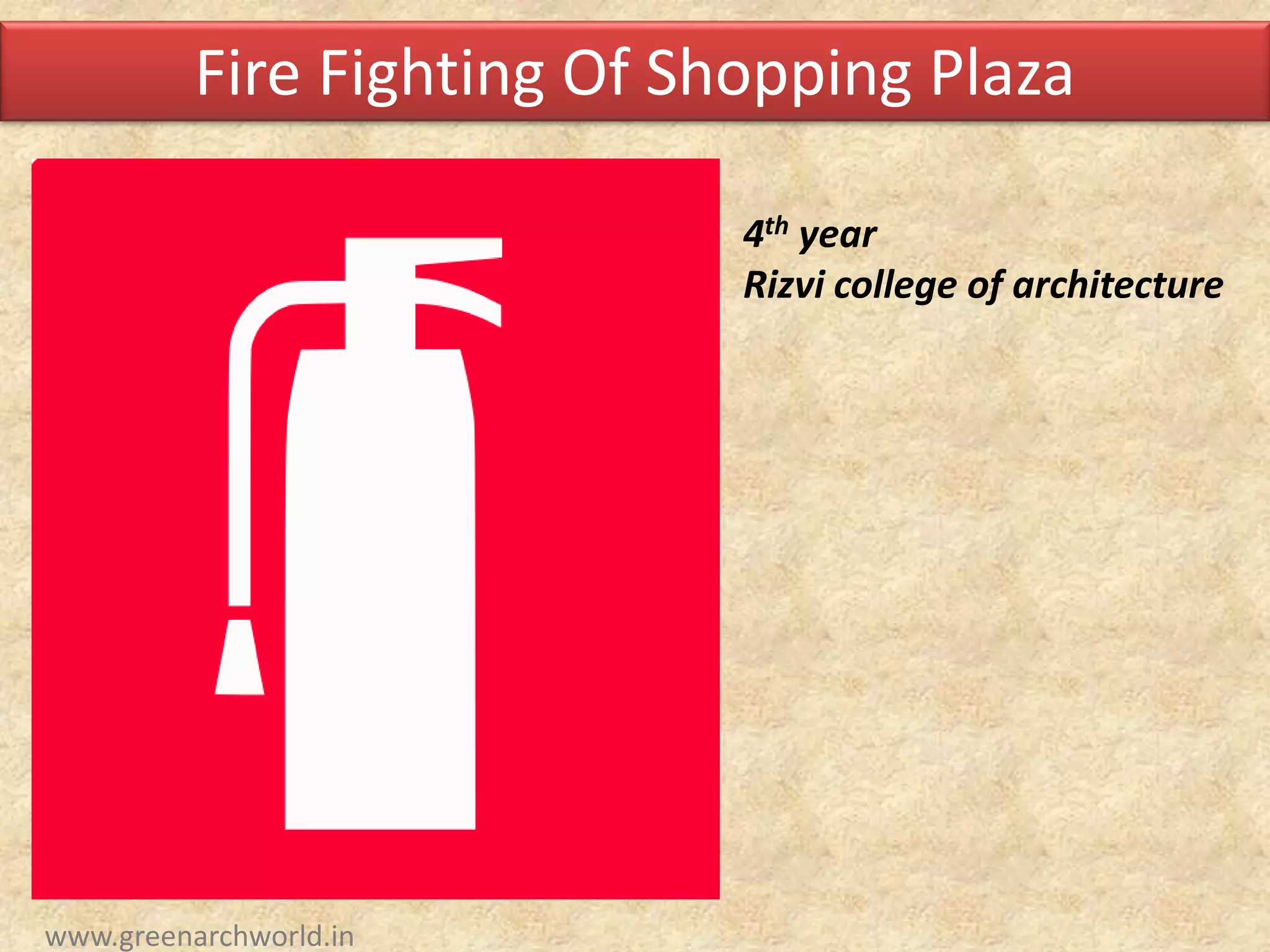

Fire Fighting Of Shopping Plaza
4th year
Rizvi college of architecture
www.greenarchworld.in

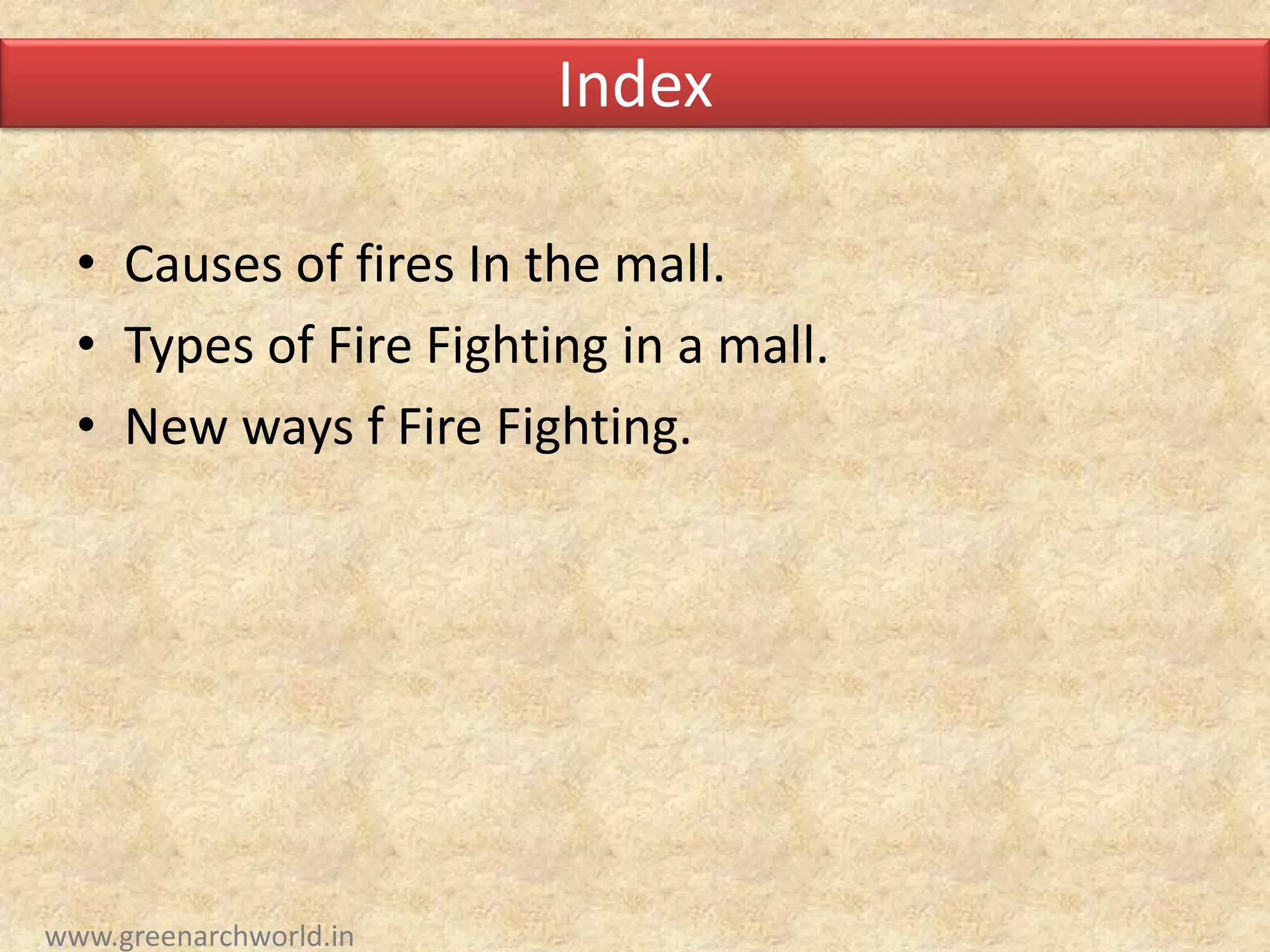

Index
• Causes of fires In the mall.
• Types of Fire Fighting in a mall.
• New ways f Fire Fighting.
www.greenarchworld.in

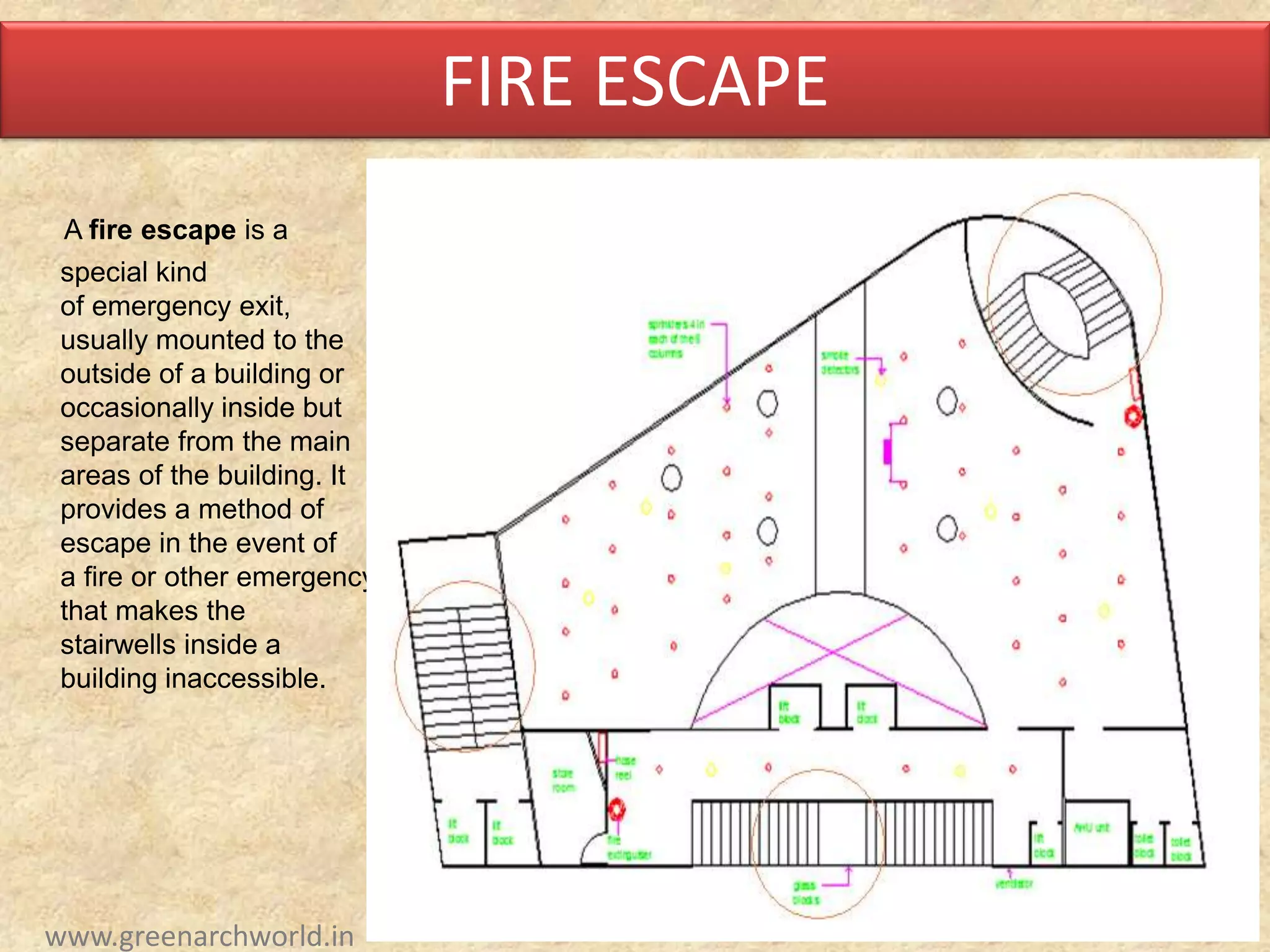

FIRE ESCAPE
A fire escape is a
special kind
of emergency exit,
usually mounted to the
outside of a building or
occasionally inside but
separate from the main
areas of the building. It
provides a method of
escape in the event of
a fire or other emergency
that makes the
stairwells inside a
building inaccessible.
www.greenarchworld.in

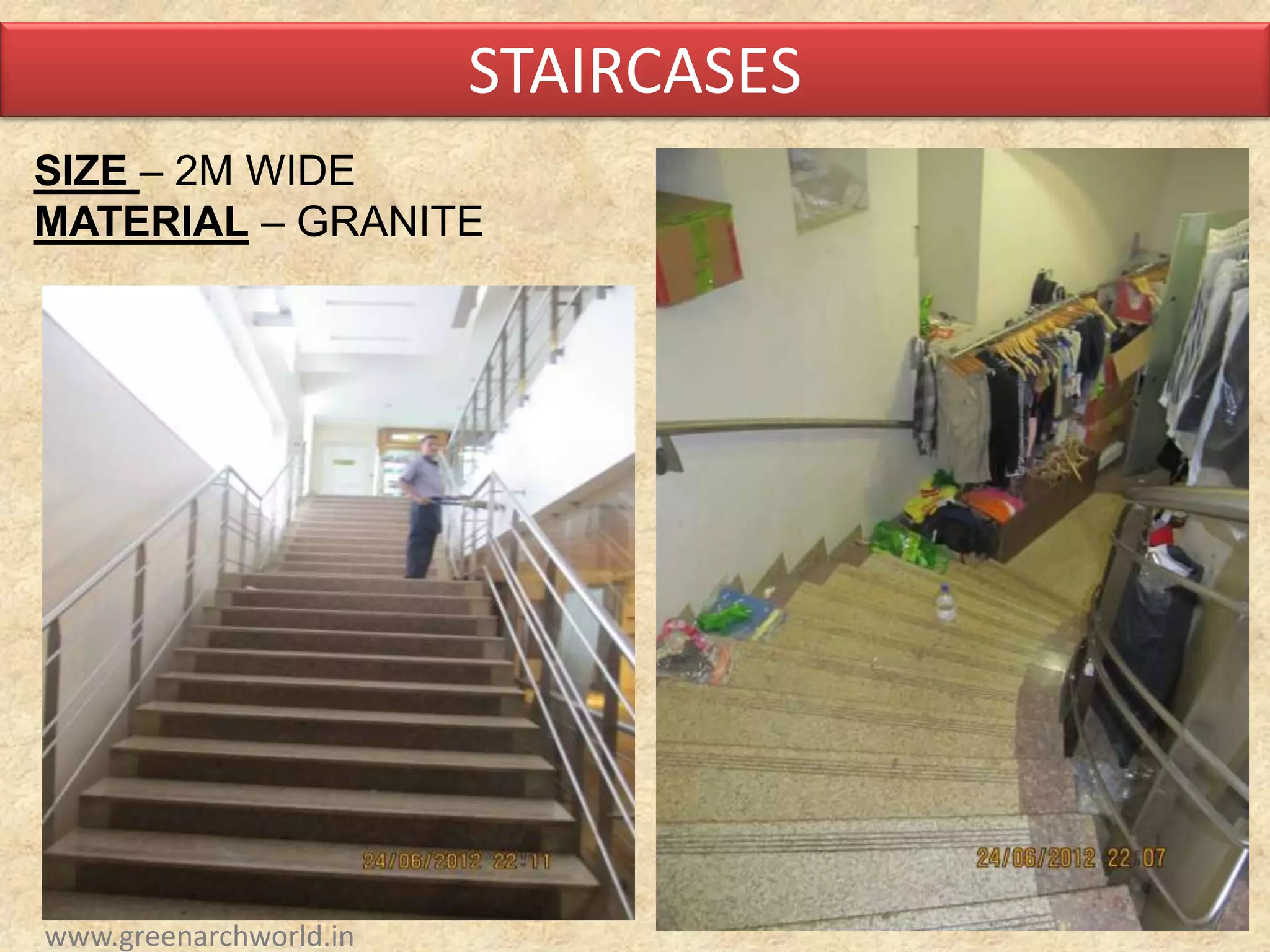

STAIRCASES
SIZE – 2M WIDE
MATERIAL – GRANITE
www.greenarchworld.in

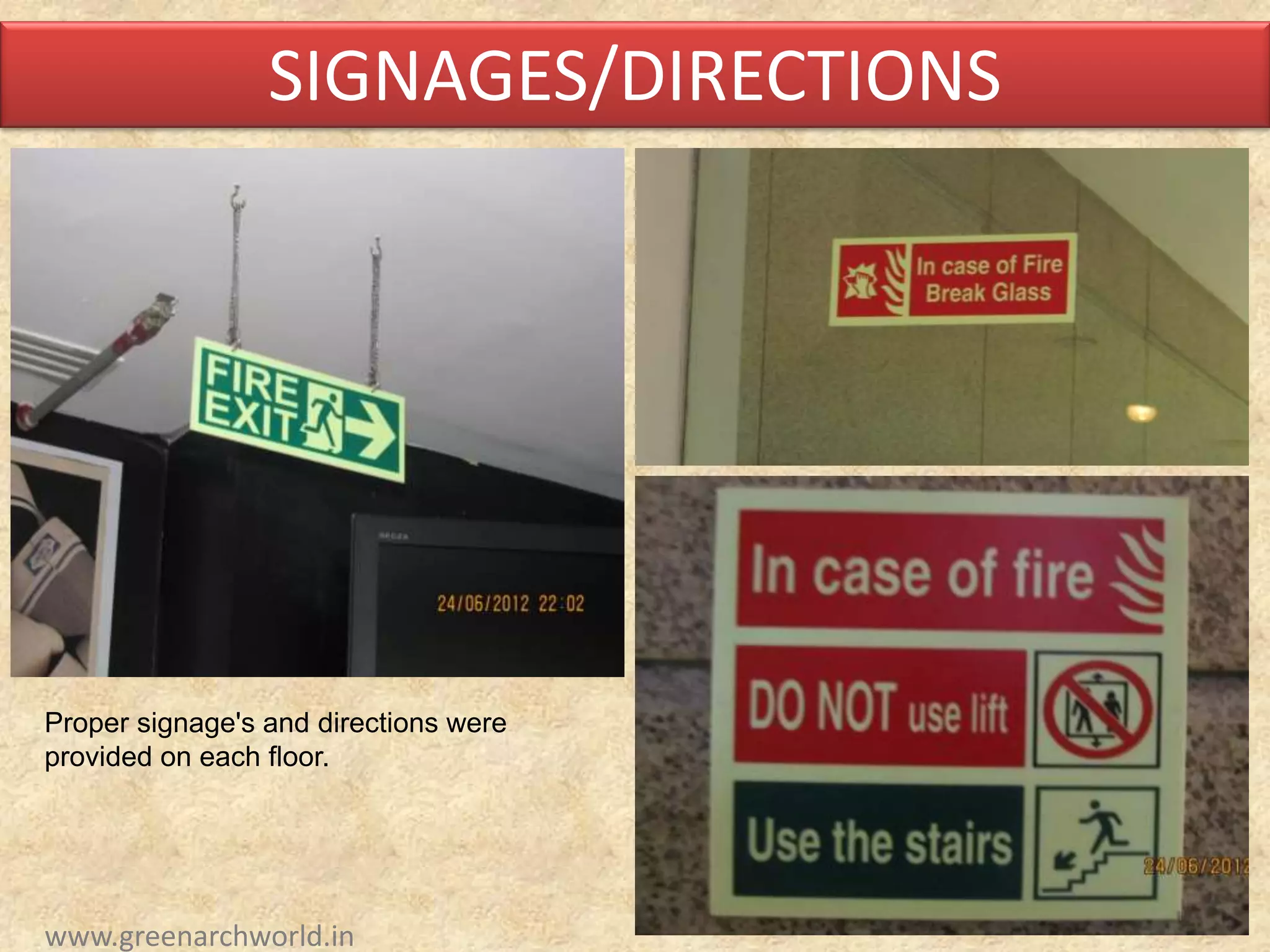

SIGNAGES/DIRECTIONS
Proper signage's and directions were
provided on each floor.
www.greenarchworld.in

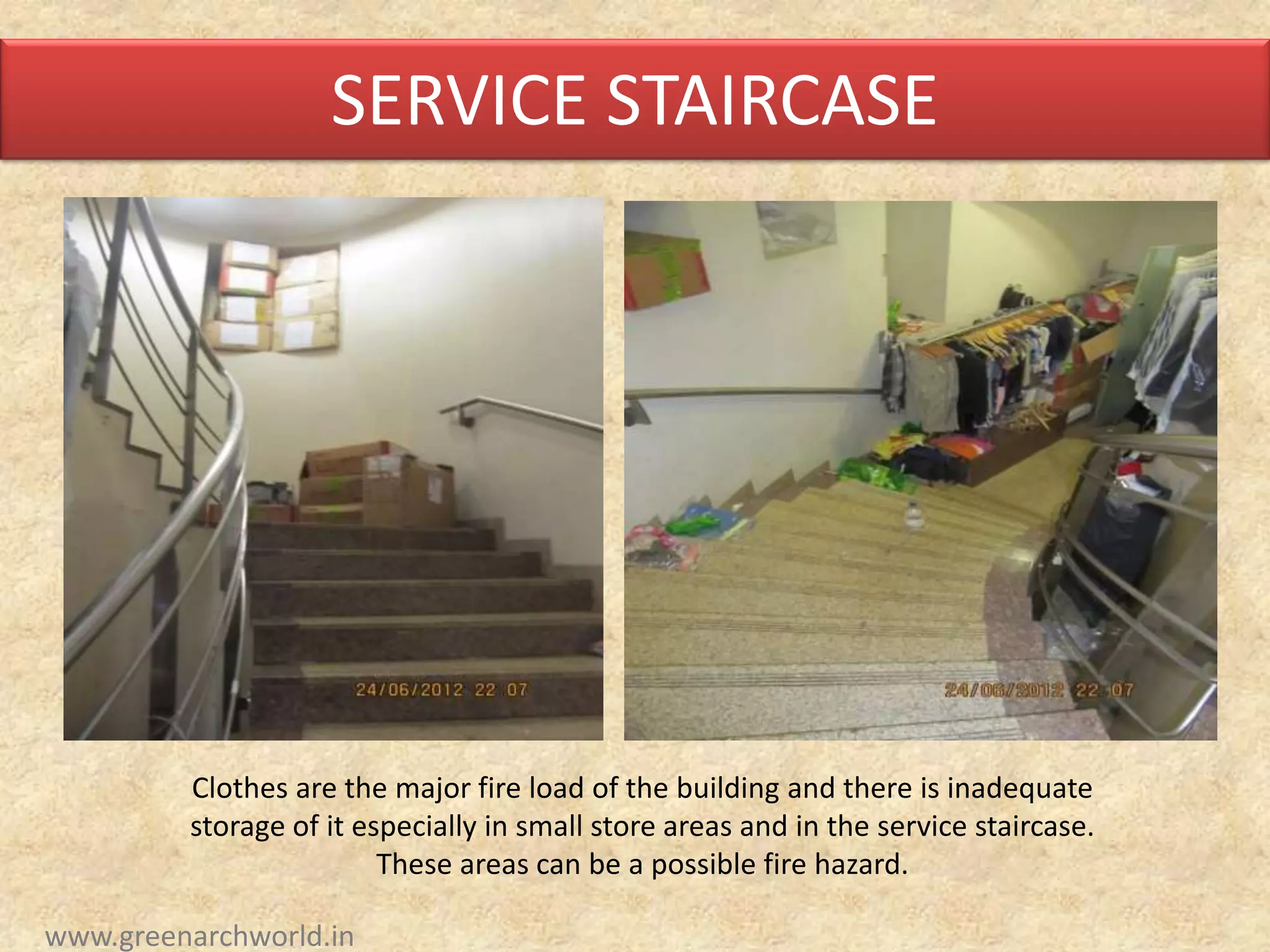

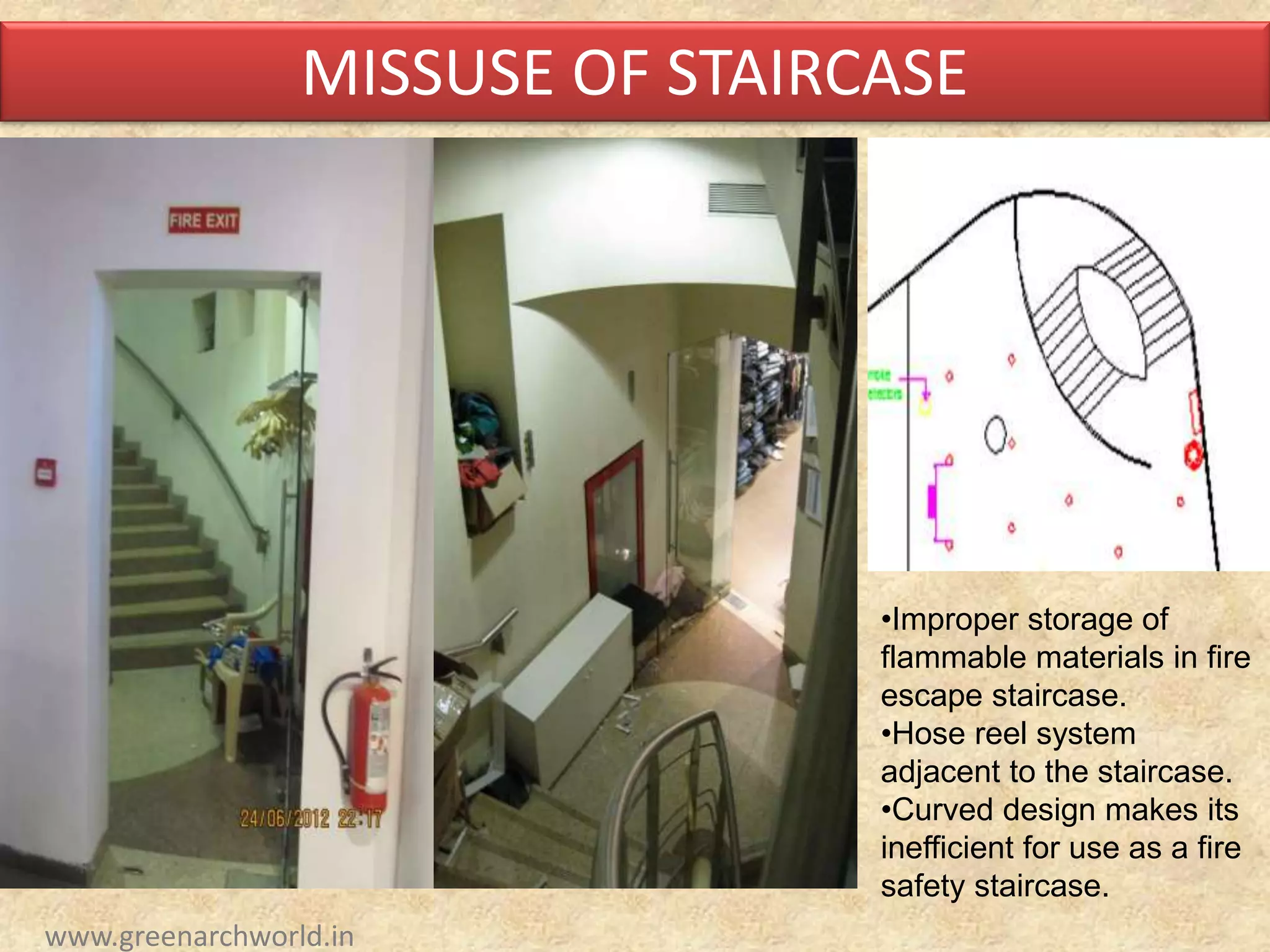

MISSUSE OF STAIRCASE
•Improper storage of
flammable materials in fire
escape staircase.
•Hose reel system
adjacent to the staircase.
•Curved design makes its
inefficient for use as a fire
safety staircase.
www.greenarchworld.in

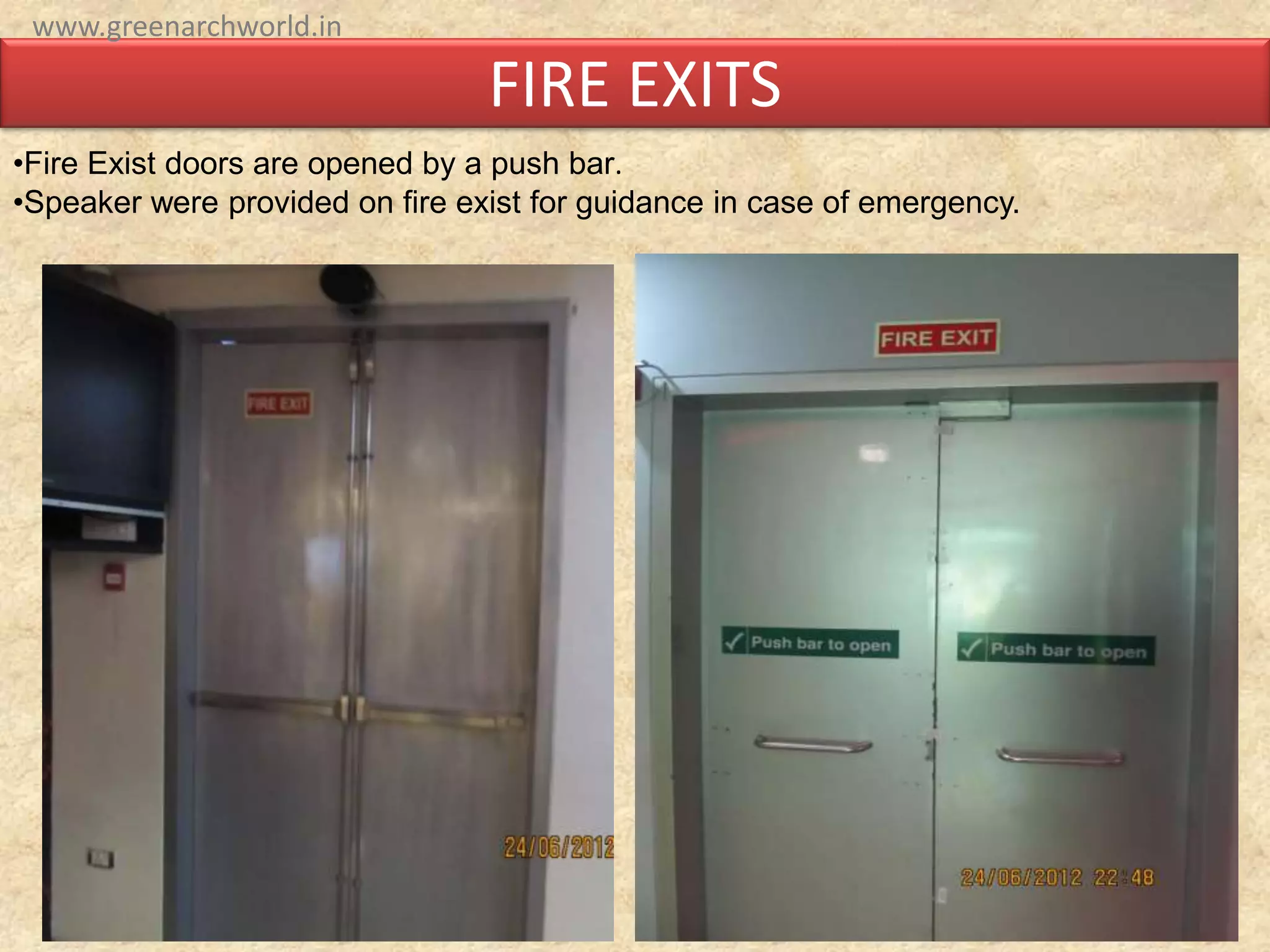

FIRE EXITS
•Fire Exist doors are opened by a push bar.
•Speaker were provided on fire exist for guidance in case of emergency.
www.greenarchworld.in

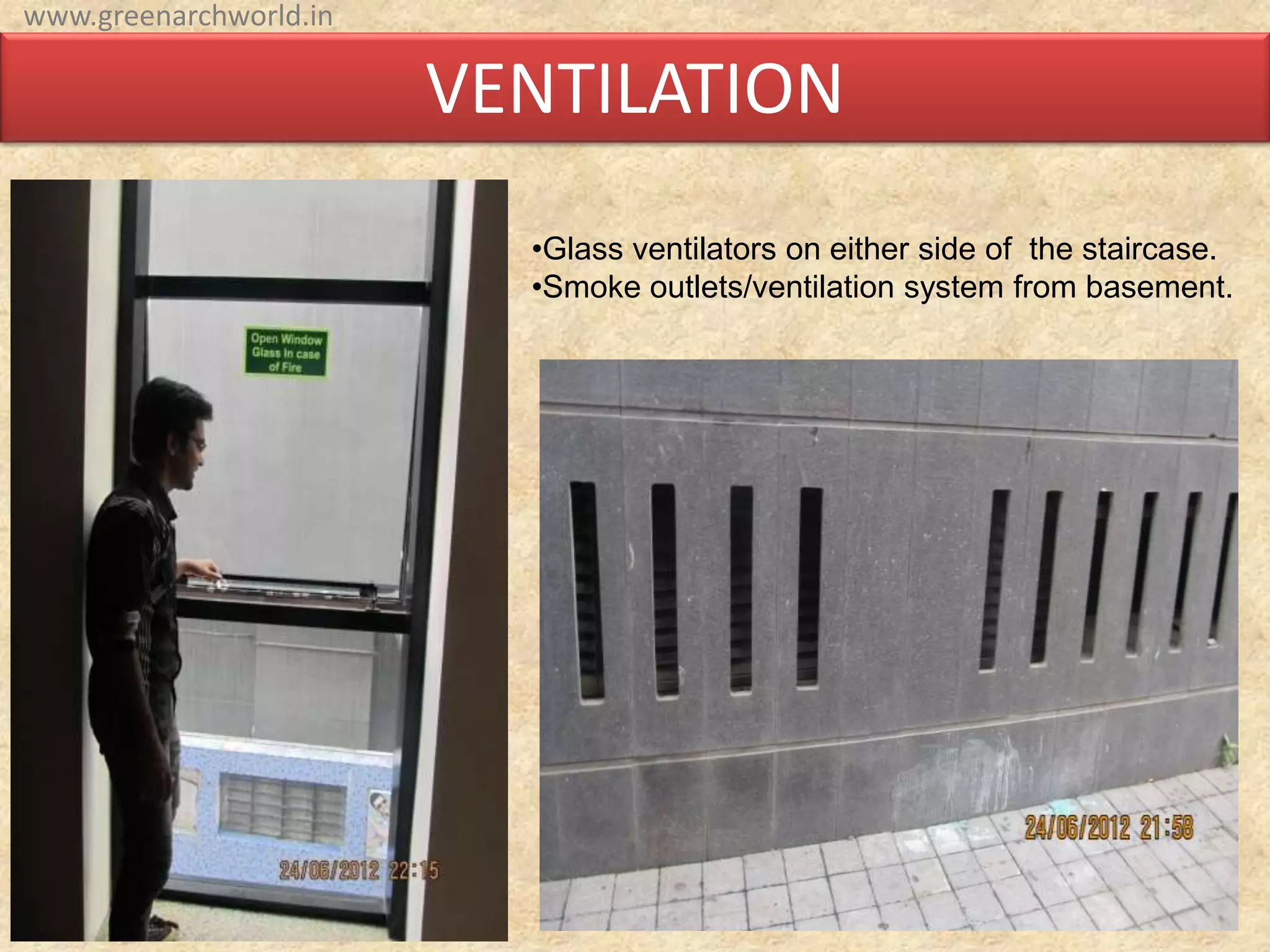

VENTILATION
•Glass ventilators on either side of the staircase.
•Smoke outlets/ventilation system from basement.
www.greenarchworld.in

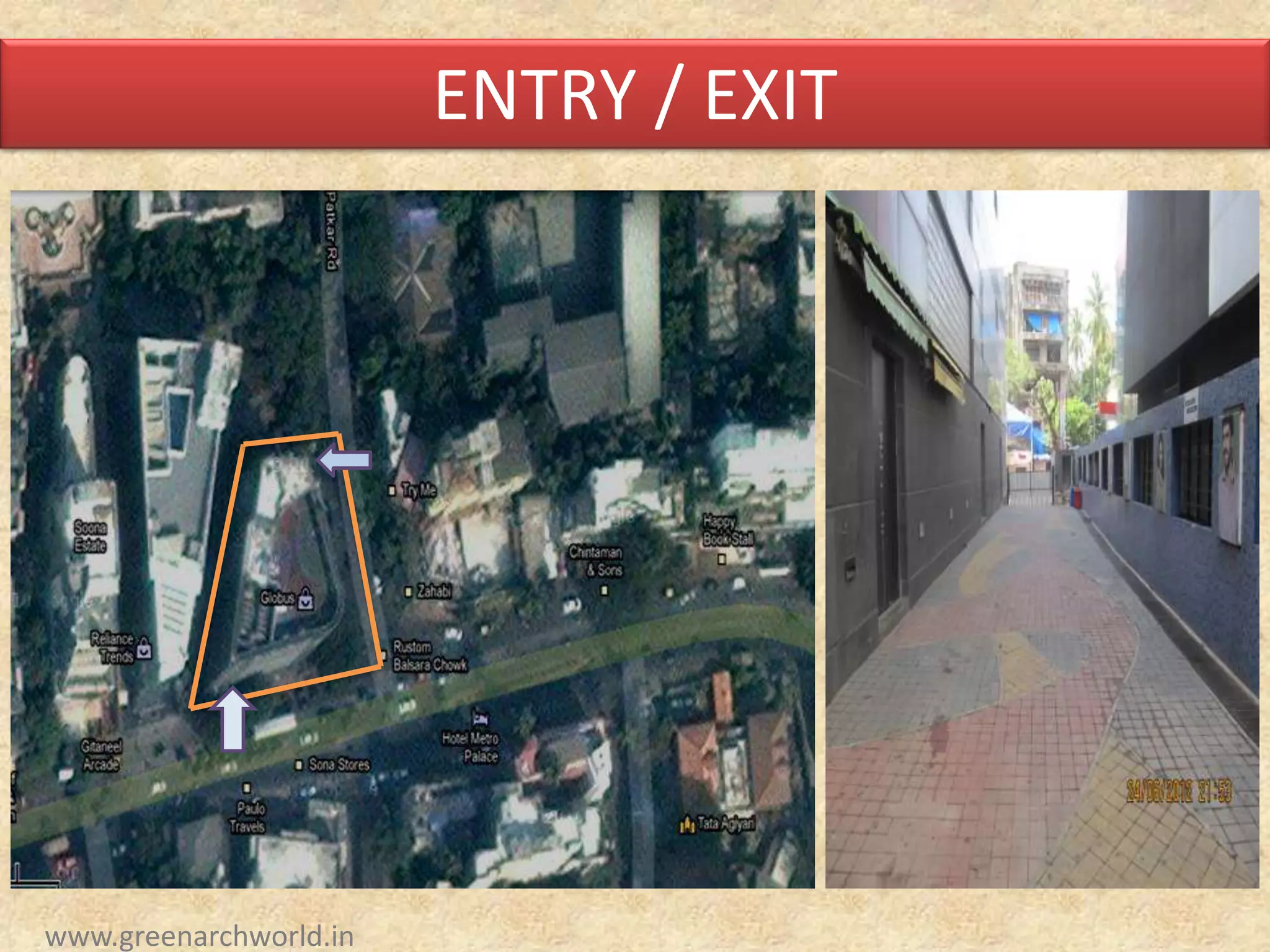

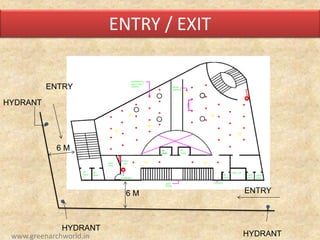

ENTRY / EXIT
www.greenarchworld.in

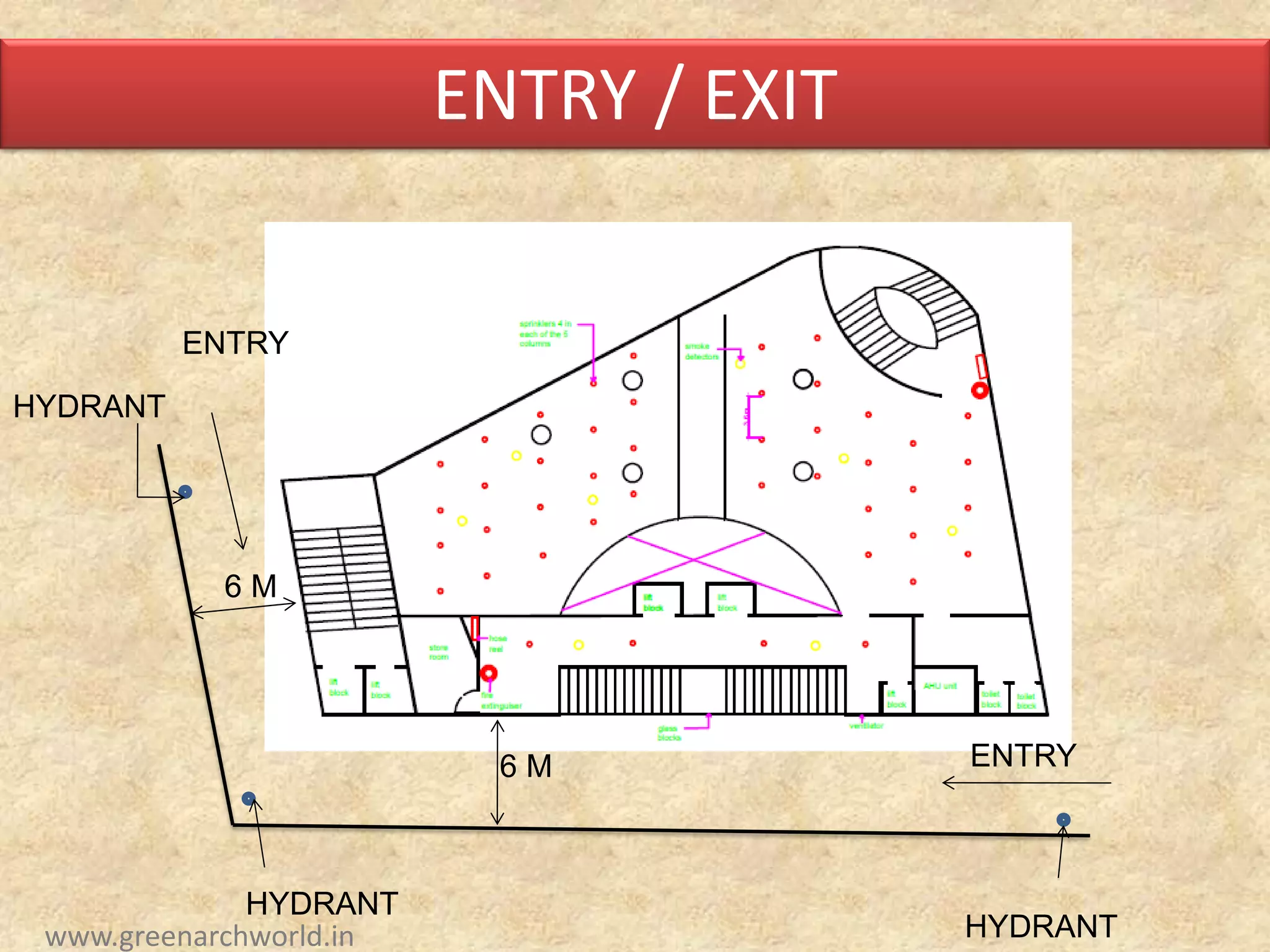

ENTRY / EXIT
ENTRY
ENTRY
HYDRANT
HYDRANT
HYDRANT
6 M
6 M
www.greenarchworld.in
 A smoke detector is a device that detects smoke, typically as an
indicator of fire.
 Smoke detectors are typically housed in a disk-shaped plastic
enclosure about 150 millimetres (6 in) in diameter and 25 millimetres
(1 in) thick,
 Most smoke detectors work either by optical detection (photoelectric)
or by physical process (ionization), while others use both detection
methods to increase sensitivity to smoke.
 Smoke detectors in large commercial, industrial, and residential
buildings are usually powered by a central fire alarm system, which is
powered by the building power with a battery backup.
SMOKE DETECTORS
www.greenarchworld.in
TYPES OF SMOKE DETECTORS
PHOTOELECTRIC :In this type principle
of reflected or scattered light is
used to indicate the presence of visual
smoke.
IONIZATION: In this type radioactive
source is used to ionize the air within
sensing chambers.
www.greenarchworld.in

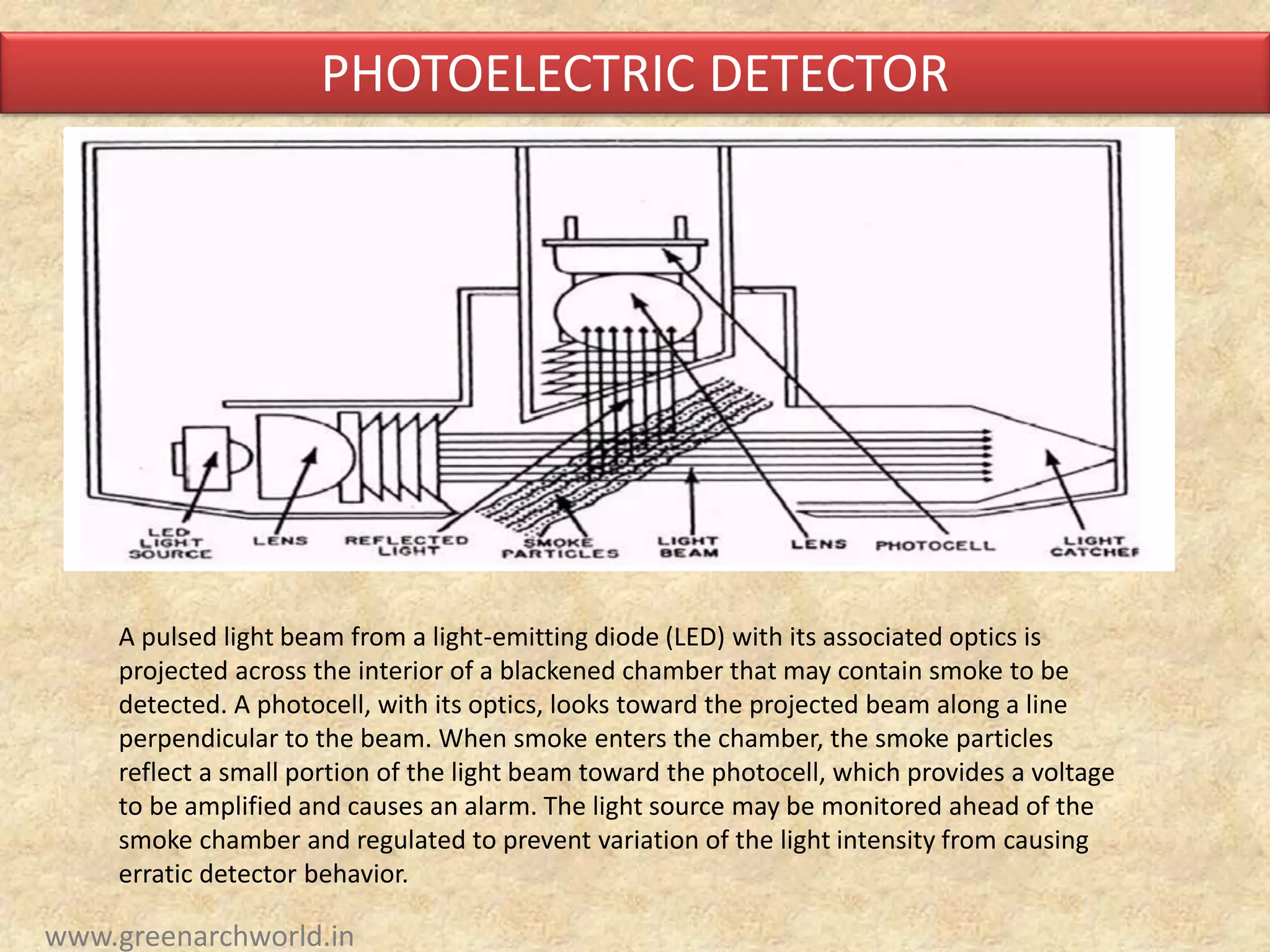

PHOTOELECTRIC DETECTOR
A pulsed light beam from a light-emitting diode (LED) with its associated optics is
projected across the interior of a blackened chamber that may contain smoke to be
detected. A photocell, with its optics, looks toward the projected beam along a line
perpendicular to the beam. When smoke enters the chamber, the smoke particles
reflect a small portion of the light beam toward the photocell, which provides a voltage
to be amplified and causes an alarm. The light source may be monitored ahead of the
smoke chamber and regulated to prevent variation of the light intensity from causing
erratic detector behavior.
www.greenarchworld.in

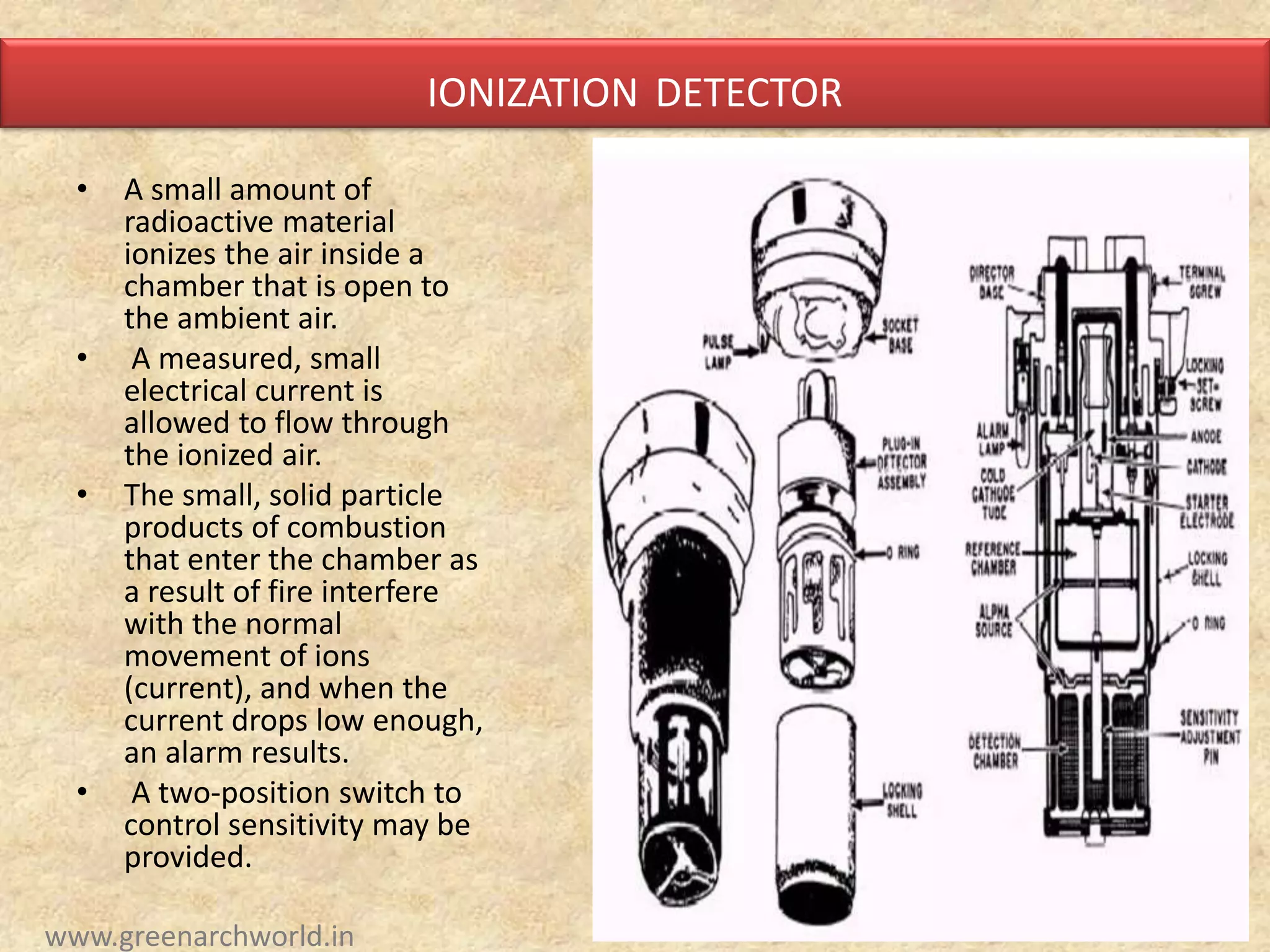

IONIZATION DETECTOR
• A small amount of
radioactive material
ionizes the air inside a
chamber that is open to
the ambient air.
• A measured, small
electrical current is
allowed to flow through
the ionized air.
• The small, solid particle
products of combustion
that enter the chamber as
a result of fire interfere
with the normal
movement of ions
(current), and when the
current drops low enough,
an alarm results.
• A two-position switch to
control sensitivity may be
provided.
www.greenarchworld.in

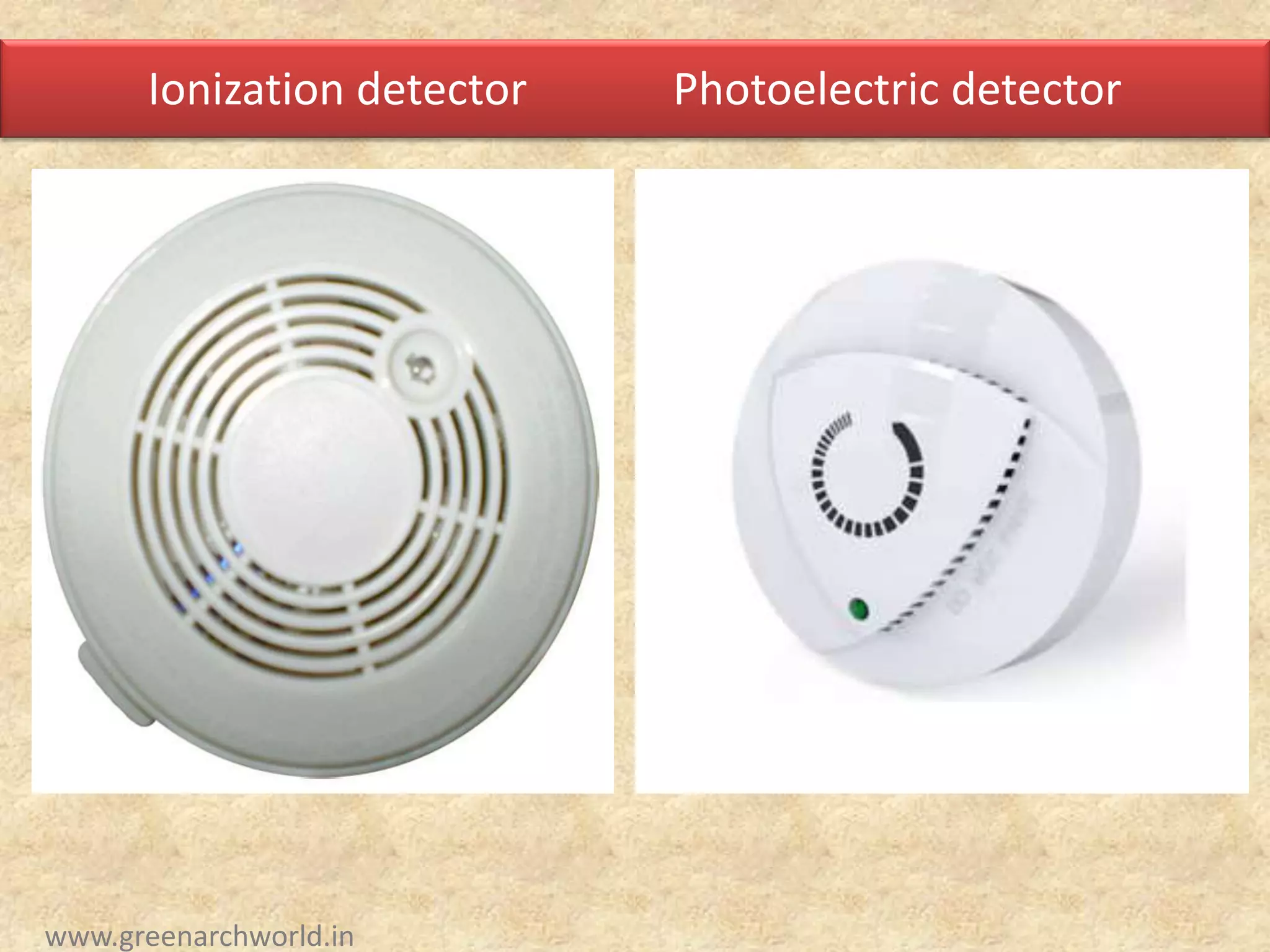

Ionization detector Photoelectric detector
www.greenarchworld.in

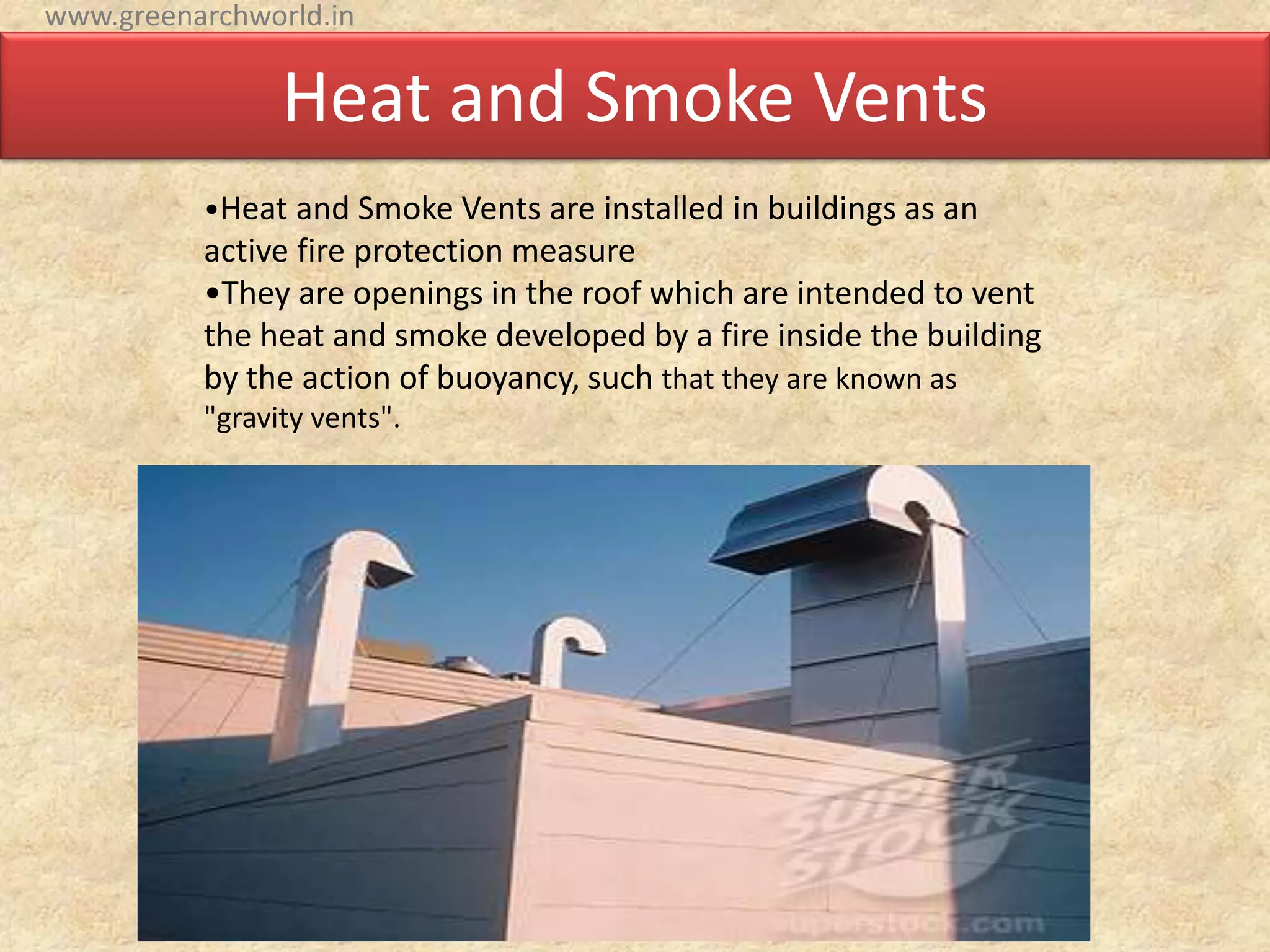

Heat and Smoke Vents
•Heat and Smoke Vents are installed in buildings as an
active fire protection measure
•They are openings in the roof which are intended to vent
the heat and smoke developed by a fire inside the building
by the action of buoyancy, such that they are known as
"gravity vents".
www.greenarchworld.in

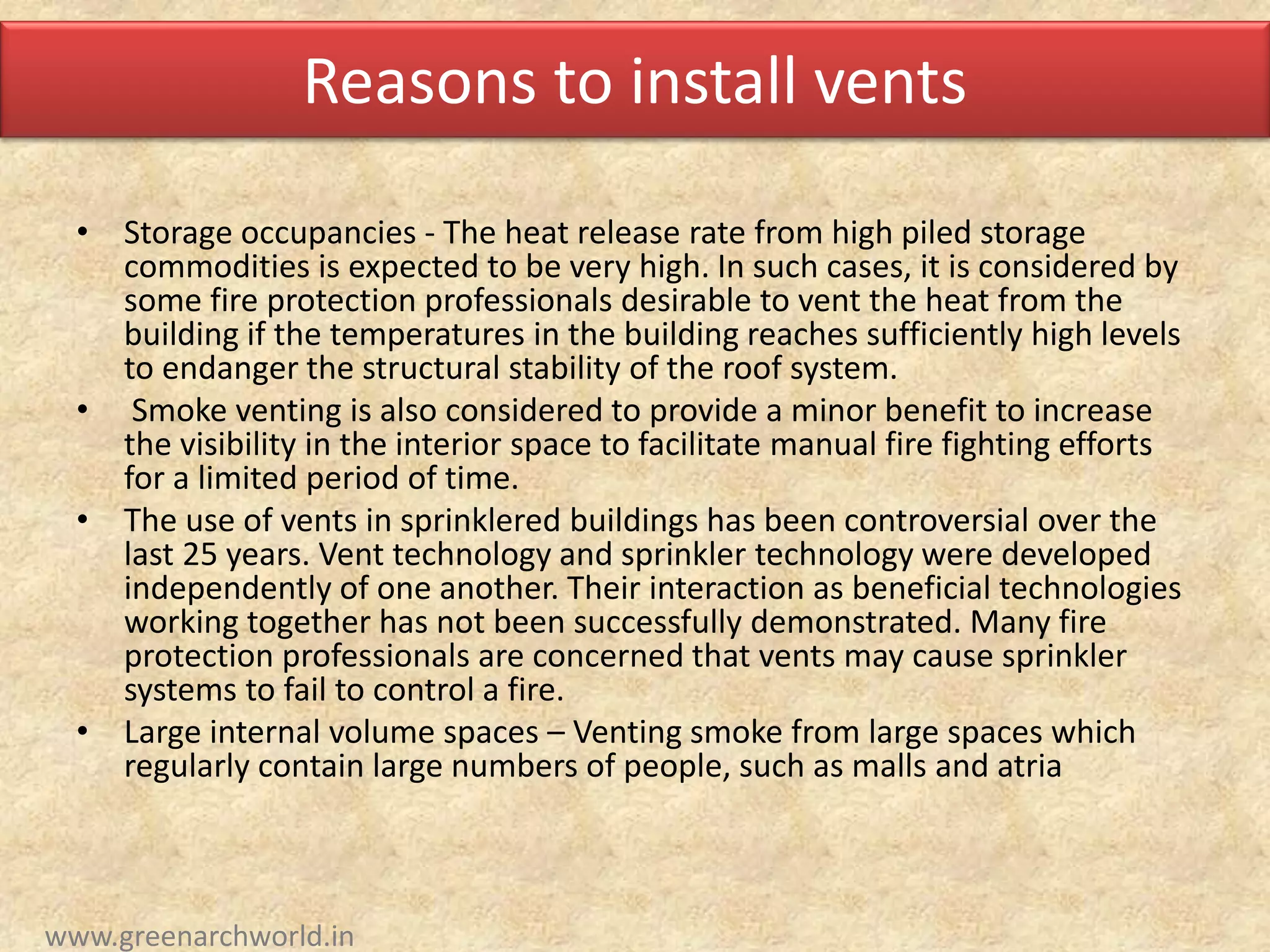

Reasons to install vents
• Storage occupancies - The heat release rate from high piled storage
commodities is expected to be very high. In such cases, it is considered by
some fire protection professionals desirable to vent the heat from the
building if the temperatures in the building reaches sufficiently high levels
to endanger the structural stability of the roof system.
• Smoke venting is also considered to provide a minor benefit to increase
the visibility in the interior space to facilitate manual fire fighting efforts
for a limited period of time.
• The use of vents in sprinklered buildings has been controversial over the
last 25 years. Vent technology and sprinkler technology were developed
independently of one another. Their interaction as beneficial technologies
working together has not been successfully demonstrated. Many fire
protection professionals are concerned that vents may cause sprinkler
systems to fail to control a fire.
• Large internal volume spaces – Venting smoke from large spaces which
regularly contain large numbers of people, such as malls and atria
www.greenarchworld.in

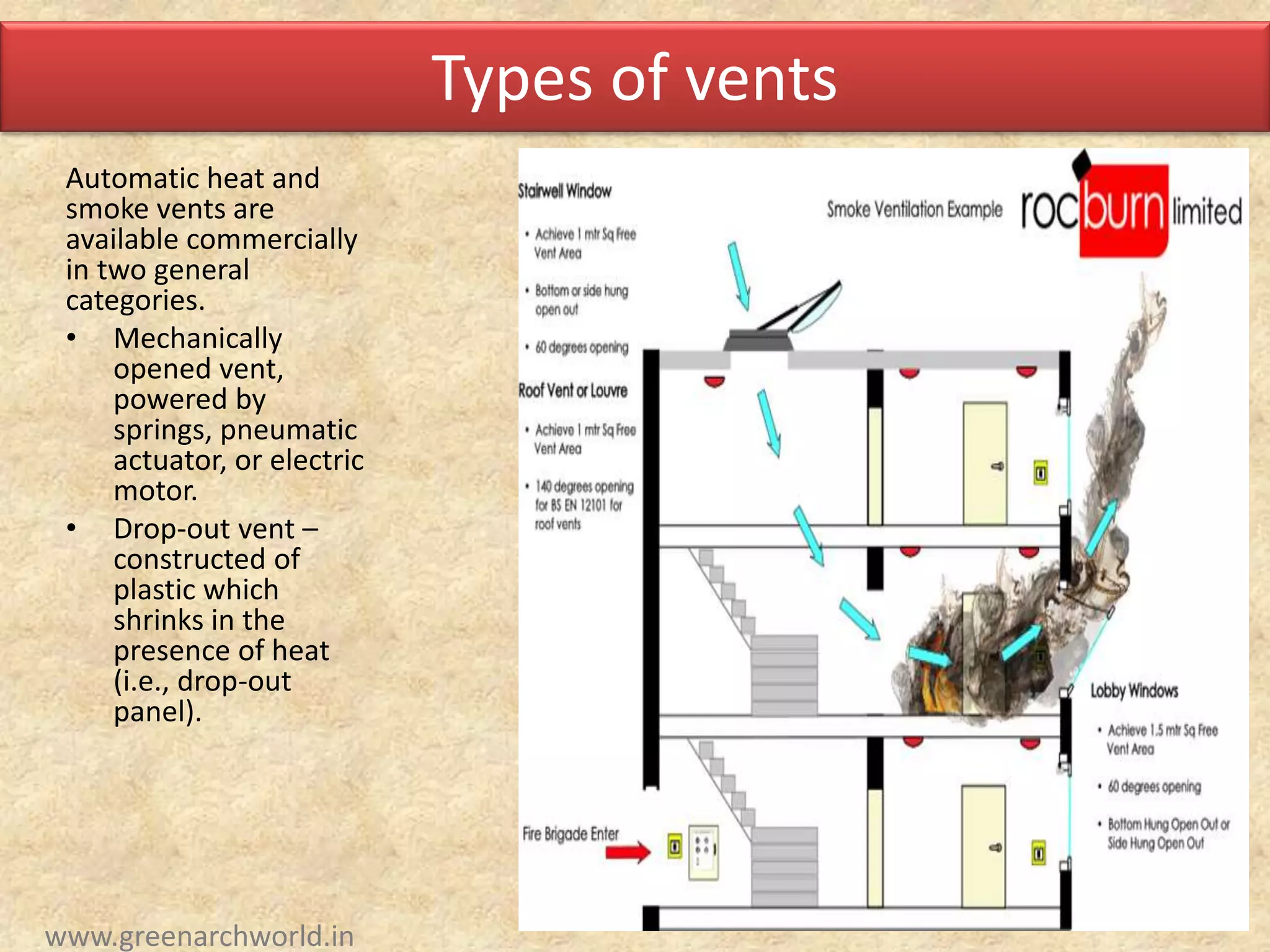

Types of vents
Automatic heat and
smoke vents are
available commercially
in two general
categories.
• Mechanically
opened vent,
powered by
springs, pneumatic
actuator, or electric
motor.
• Drop-out vent –
constructed of
plastic which
shrinks in the
presence of heat
(i.e., drop-out
panel).
www.greenarchworld.in

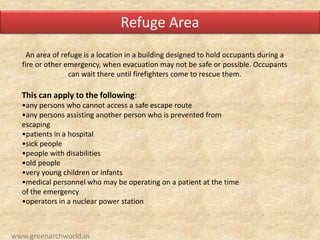

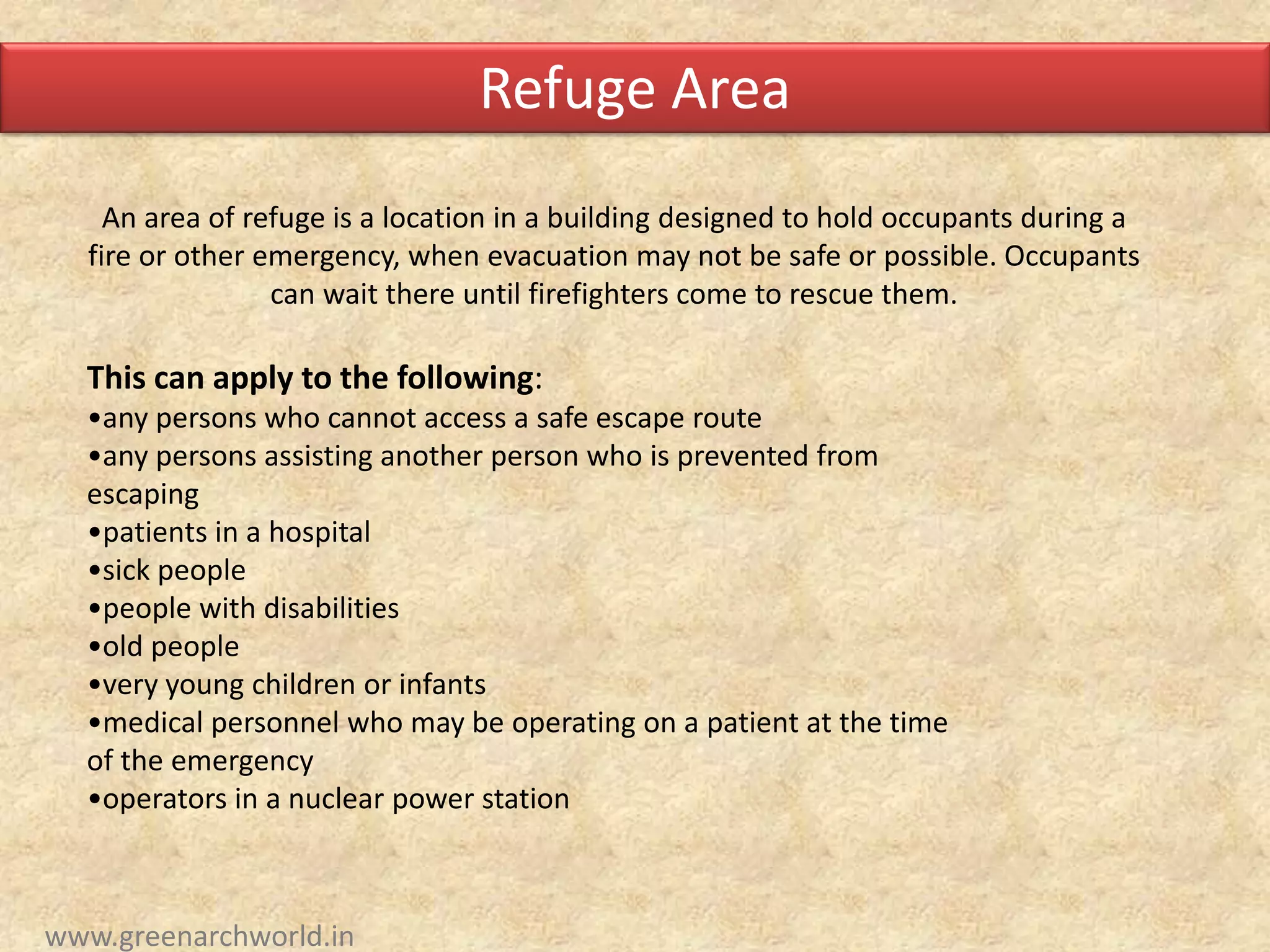

An area of refuge is a location in a building designed to hold occupants during a
fire or other emergency, when evacuation may not be safe or possible. Occupants
can wait there until firefighters come to rescue them.
This can apply to the following:
•any persons who cannot access a safe escape route
•any persons assisting another person who is prevented from
escaping
•patients in a hospital
•sick people
•people with disabilities
•old people
•very young children or infants
•medical personnel who may be operating on a patient at the time
of the emergency
•operators in a nuclear power station
Refuge Area
www.greenarchworld.in

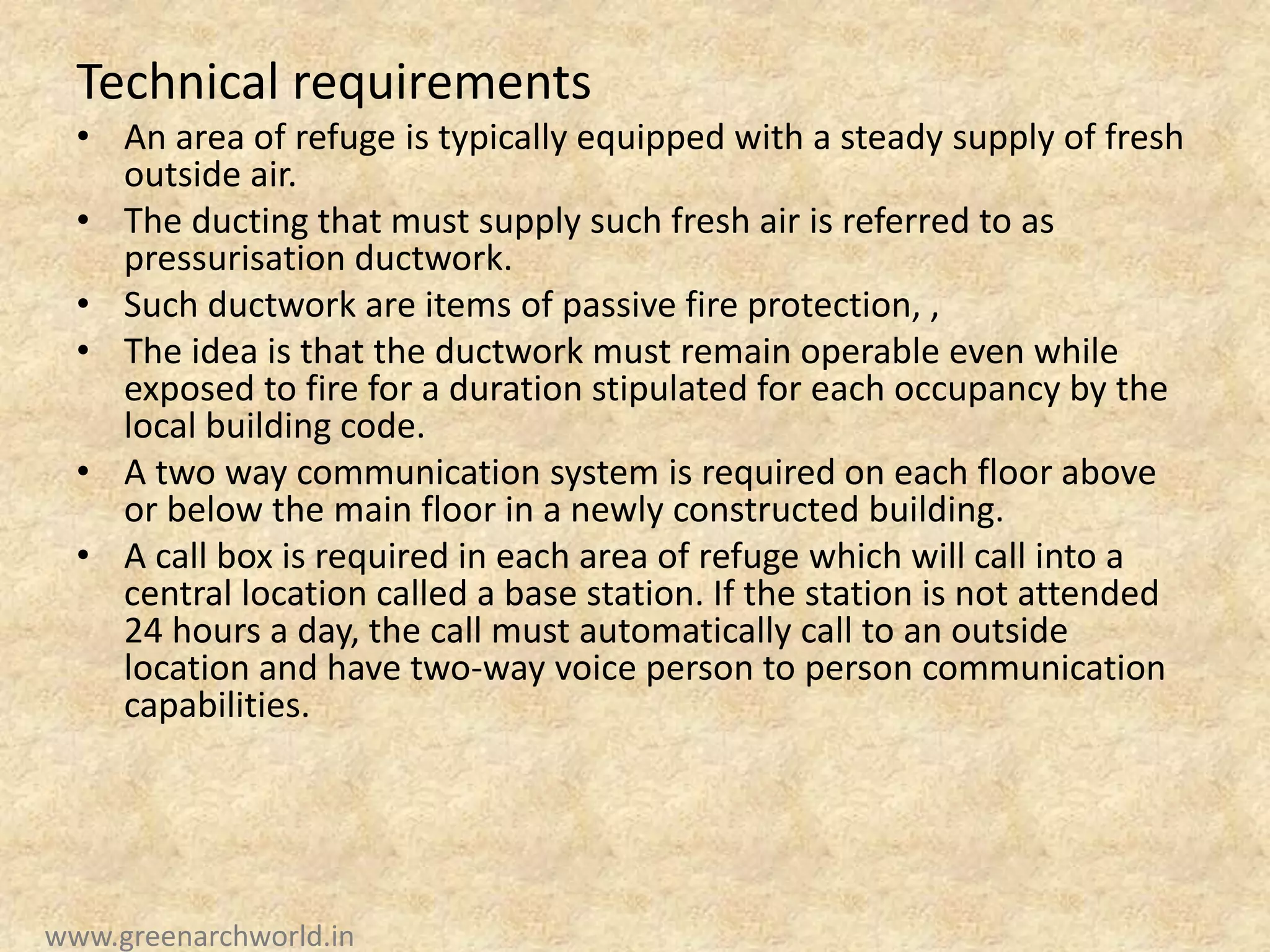

Technical requirements
• An area of refuge is typically equipped with a steady supply of fresh
outside air.
• The ducting that must supply such fresh air is referred to as
pressurisation ductwork.
• Such ductwork are items of passive fire protection, ,
• The idea is that the ductwork must remain operable even while
exposed to fire for a duration stipulated for each occupancy by the
local building code.
• A two way communication system is required on each floor above
or below the main floor in a newly constructed building.
• A call box is required in each area of refuge which will call into a
central location called a base station. If the station is not attended
24 hours a day, the call must automatically call to an outside
location and have two-way voice person to person communication
capabilities.
www.greenarchworld.in

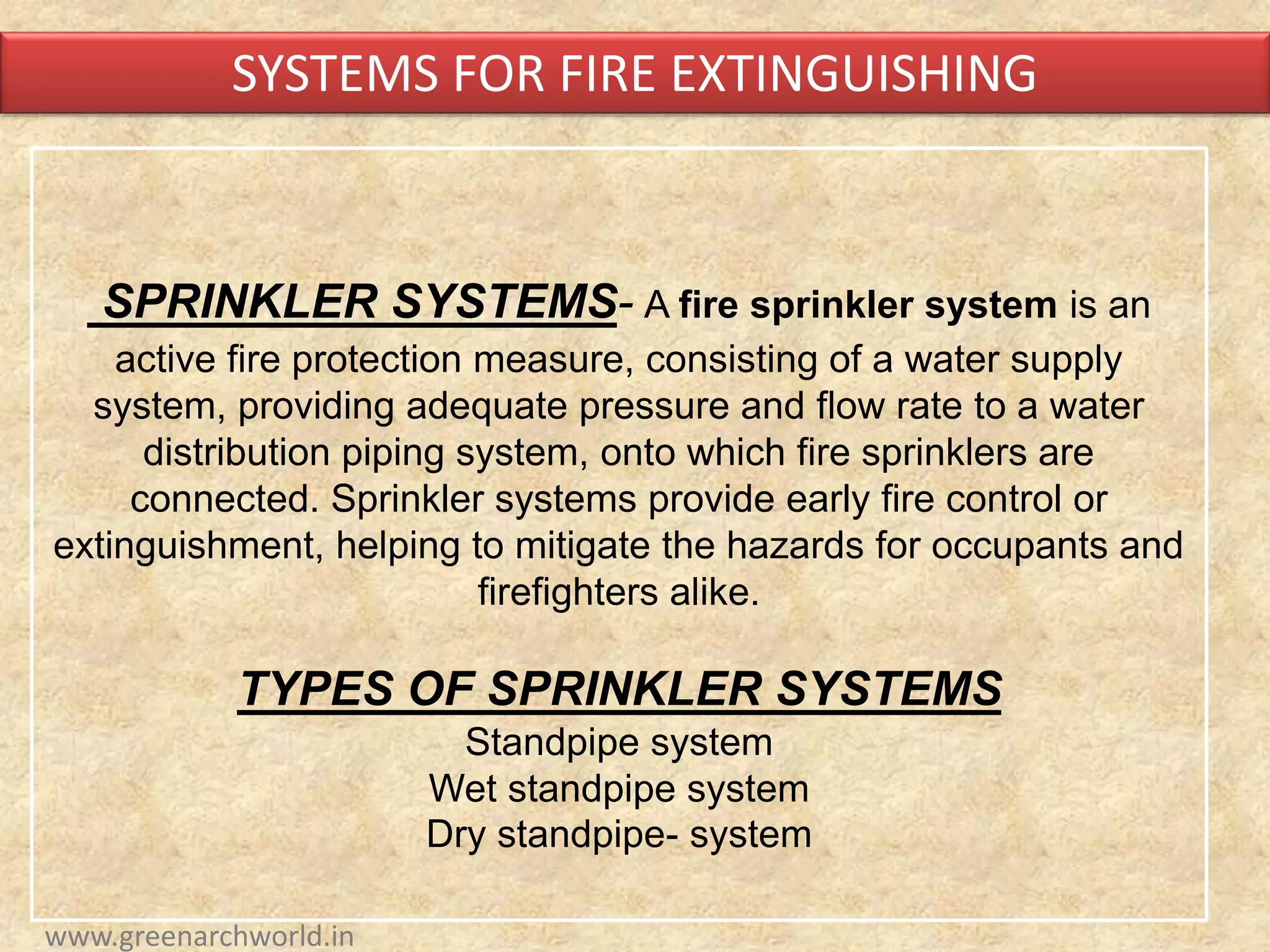

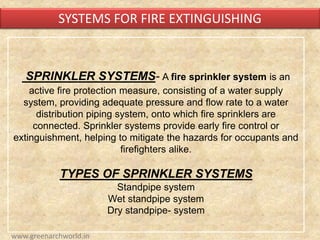

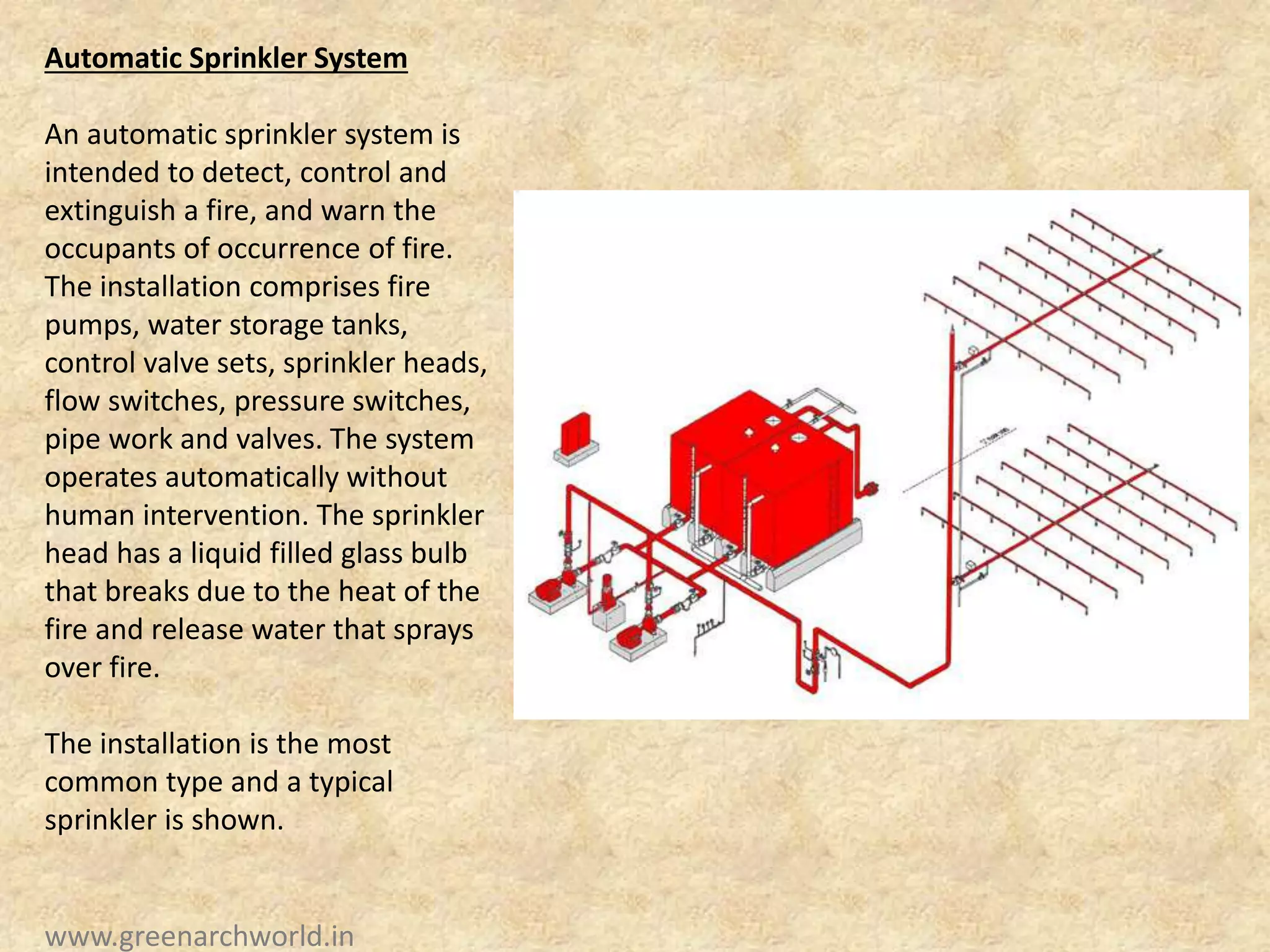

SPRINKLER SYSTEMS- A fire sprinkler system is an
active fire protection measure, consisting of a water supply
system, providing adequate pressure and flow rate to a water
distribution piping system, onto which fire sprinklers are
connected. Sprinkler systems provide early fire control or
extinguishment, helping to mitigate the hazards for occupants and
firefighters alike.
TYPES OF SPRINKLER SYSTEMS

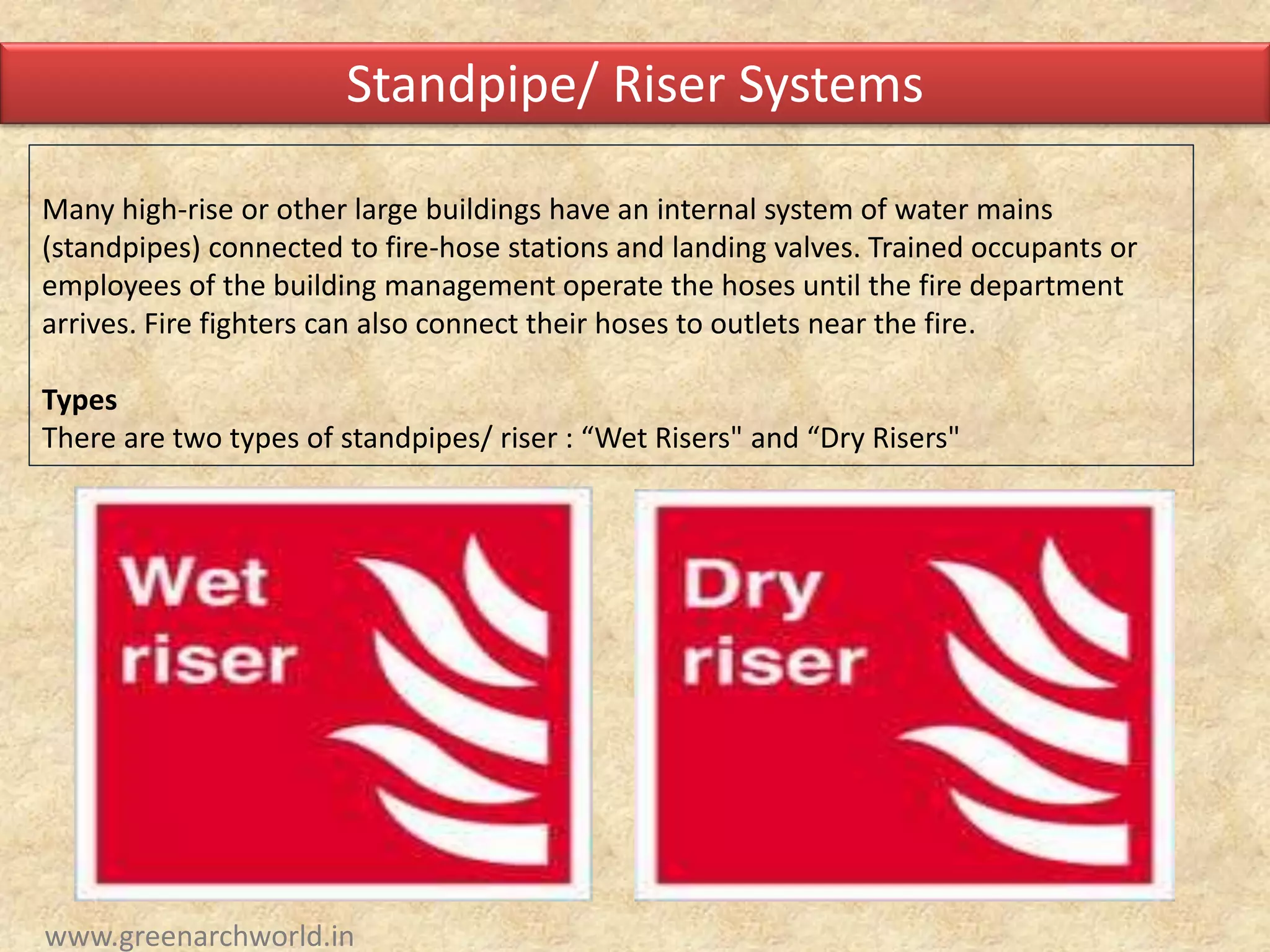

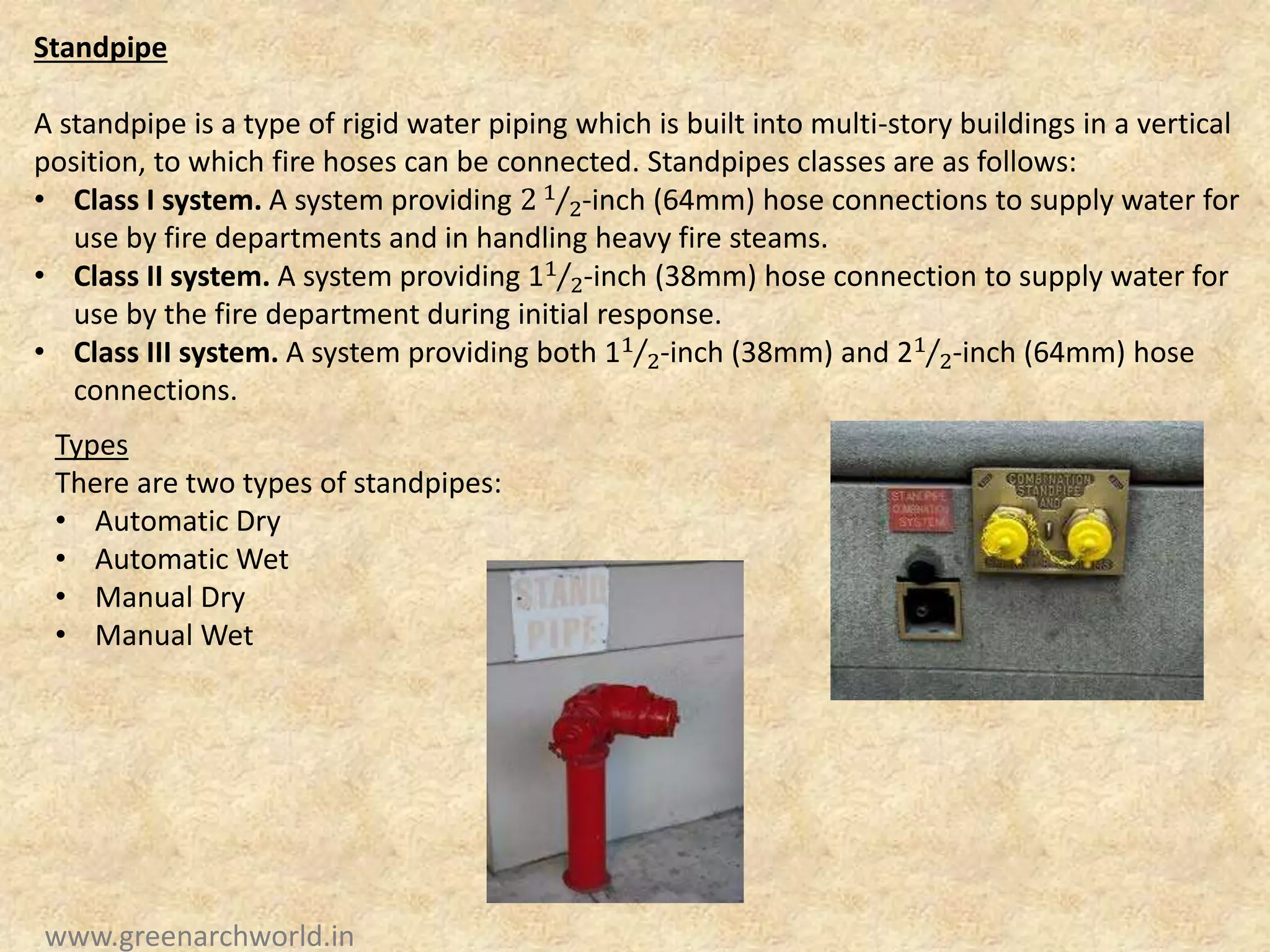

Standpipe system
Wet standpipe system
Dry standpipe- system
SYSTEMS FOR FIRE EXTINGUISHING
www.greenarchworld.in

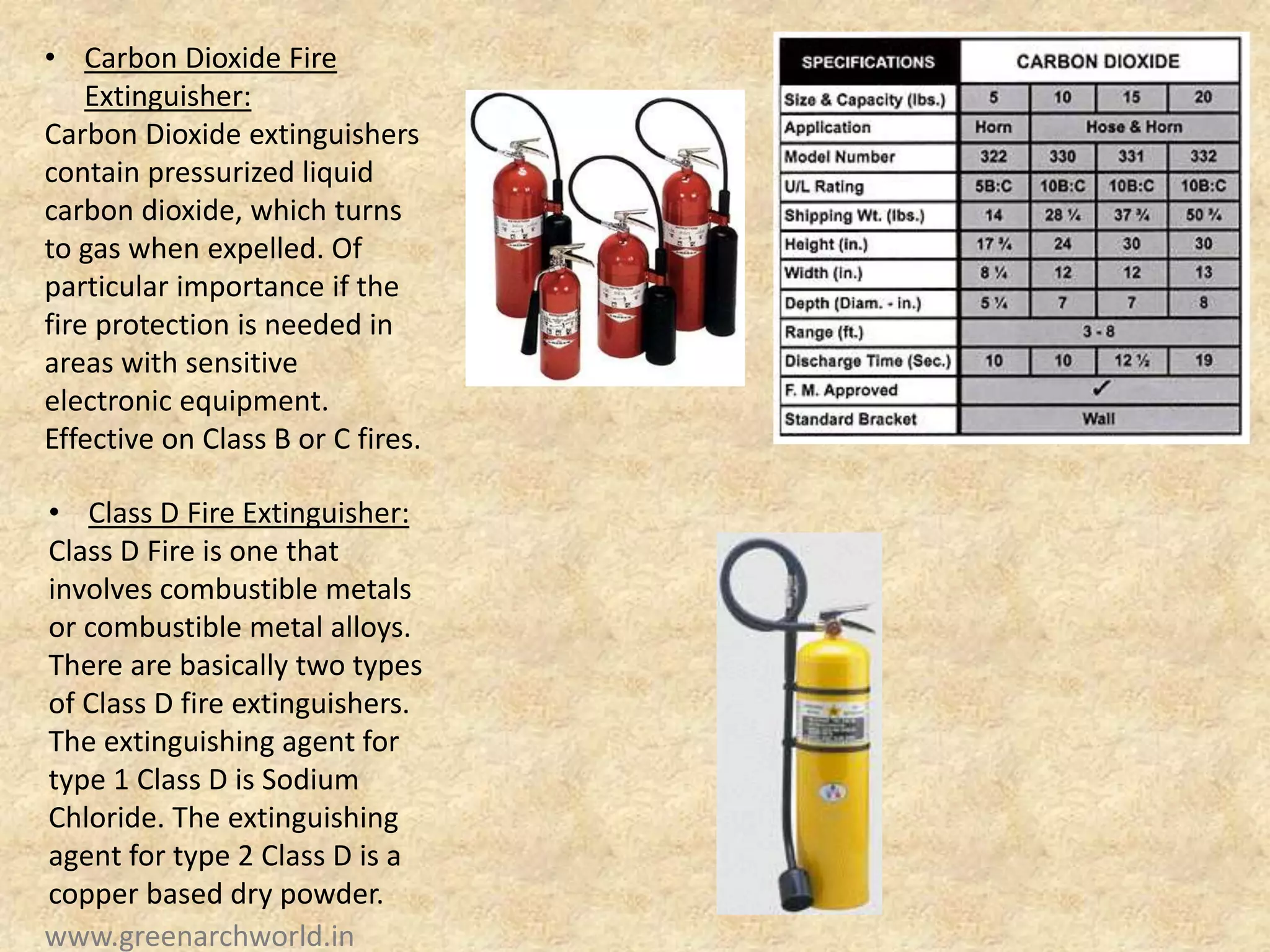

• Carbon Dioxide Fire
Extinguisher:
Carbon Dioxide extinguishers
contain pressurized liquid
carbon dioxide, which turns
to gas when expelled. Of
particular importance if the
fire protection is needed in
areas with sensitive
electronic equipment.
Effective on Class B or C fires.
• Class D Fire Extinguisher:
Class D Fire is one that
involves combustible metals
or combustible metal alloys.
There are basically two types
of Class D fire extinguishers.
The extinguishing agent for
type 1 Class D is Sodium
Chloride. The extinguishing
agent for type 2 Class D is a
copper based dry powder.
www.greenarchworld.in

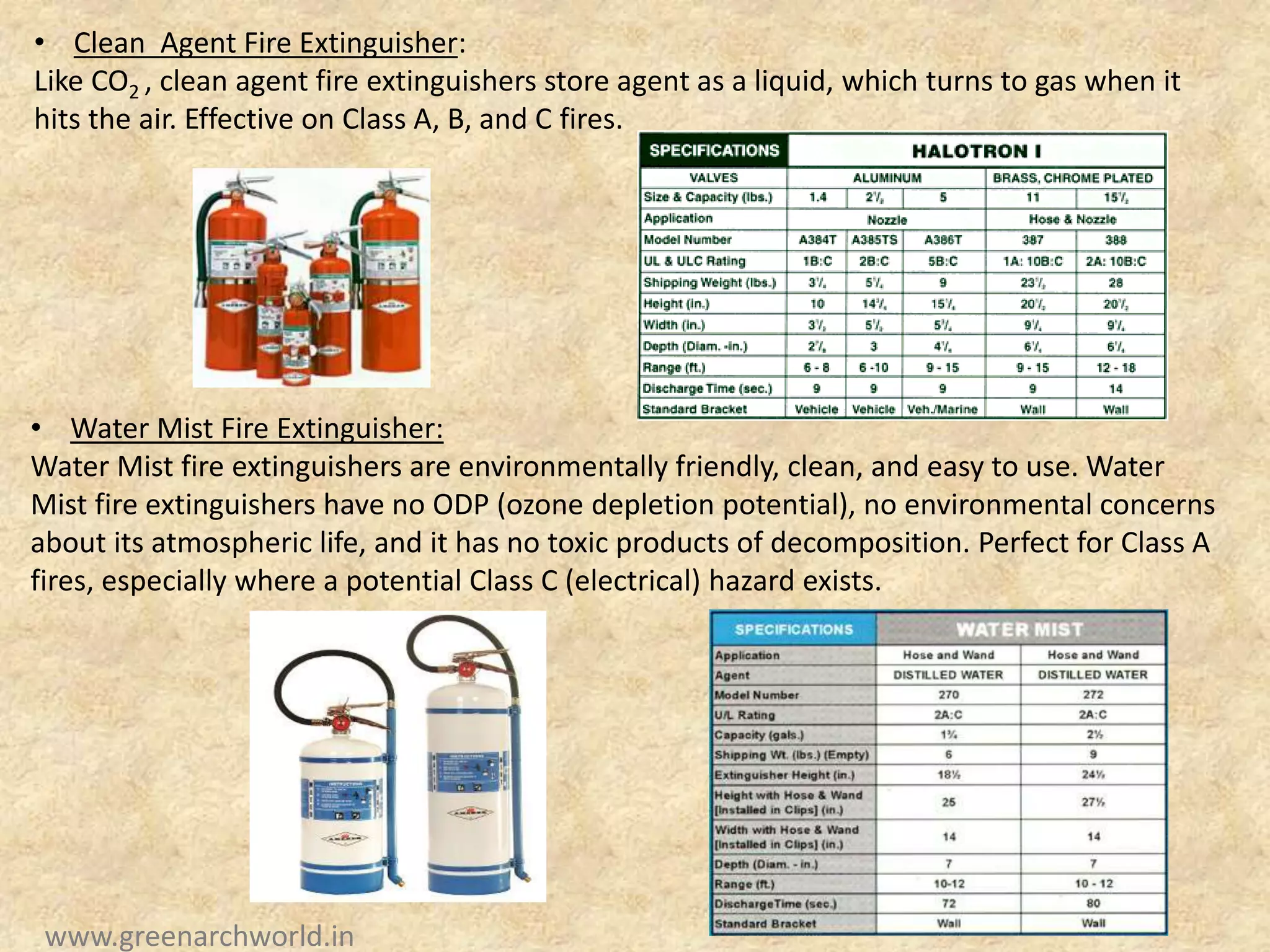

• Clean Agent Fire Extinguisher:
Like CO2 , clean agent fire extinguishers store agent as a liquid, which turns to gas when it
hits the air. Effective on Class A, B, and C fires.
• Water Mist Fire Extinguisher:
Water Mist fire extinguishers are environmentally friendly, clean, and easy to use. Water
Mist fire extinguishers have no ODP (ozone depletion potential), no environmental concerns
about its atmospheric life, and it has no toxic products of decomposition. Perfect for Class A
fires, especially where a potential Class C (electrical) hazard exists.
www.greenarchworld.in

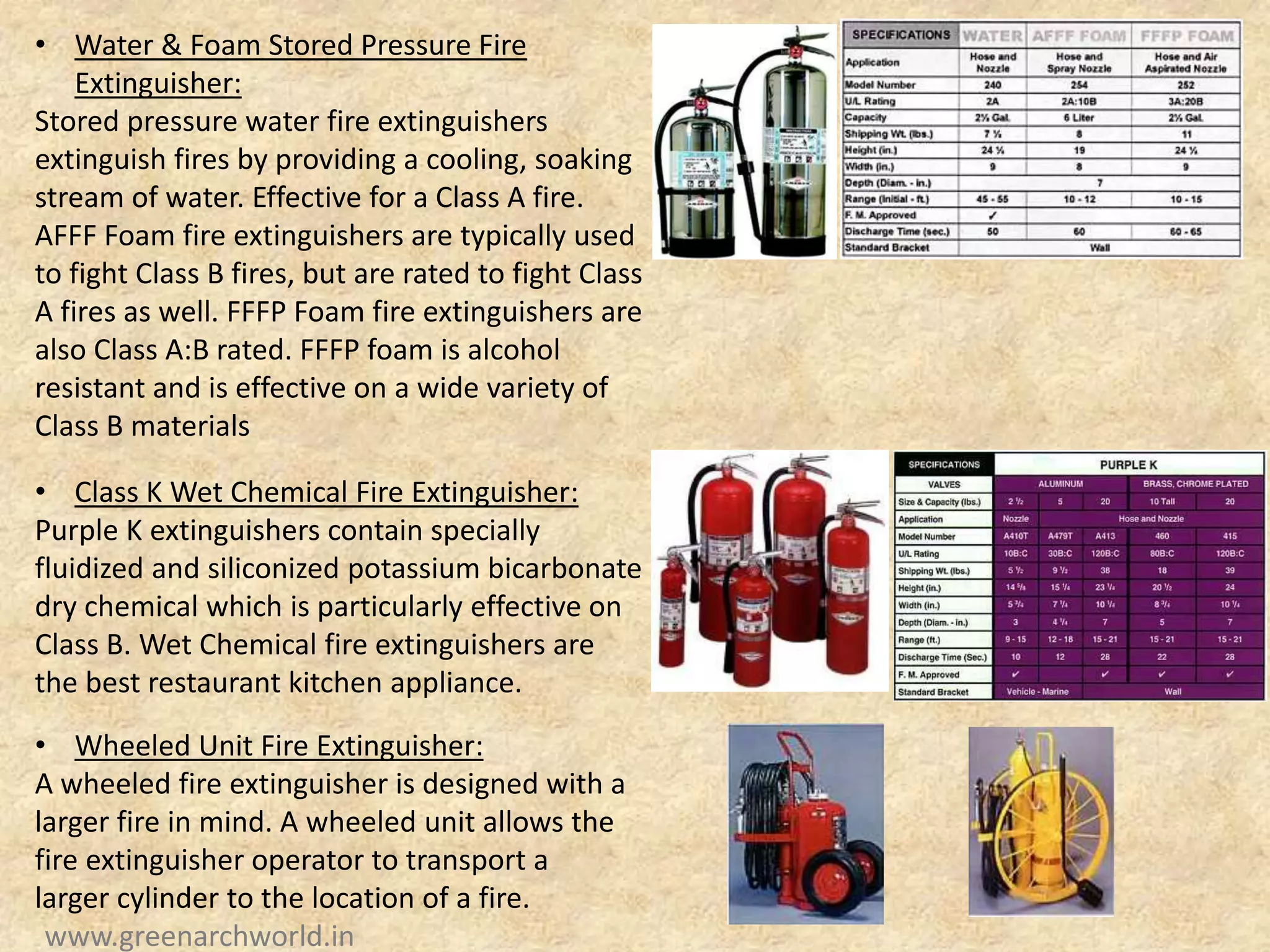

• Water & Foam Stored Pressure Fire
Extinguisher:
Stored pressure water fire extinguishers
extinguish fires by providing a cooling, soaking
stream of water. Effective for a Class A fire.
AFFF Foam fire extinguishers are typically used
to fight Class B fires, but are rated to fight Class
A fires as well. FFFP Foam fire extinguishers are
also Class A:B rated. FFFP foam is alcohol
resistant and is effective on a wide variety of
Class B materials
• Class K Wet Chemical Fire Extinguisher:
Purple K extinguishers contain specially
fluidized and siliconized potassium bicarbonate
dry chemical which is particularly effective on
Class B. Wet Chemical fire extinguishers are
the best restaurant kitchen appliance.
• Wheeled Unit Fire Extinguisher:
A wheeled fire extinguisher is designed with a
larger fire in mind. A wheeled unit allows the
fire extinguisher operator to transport a
larger cylinder to the location of a fire.
www.greenarchworld.in
www.greenarchworld.in

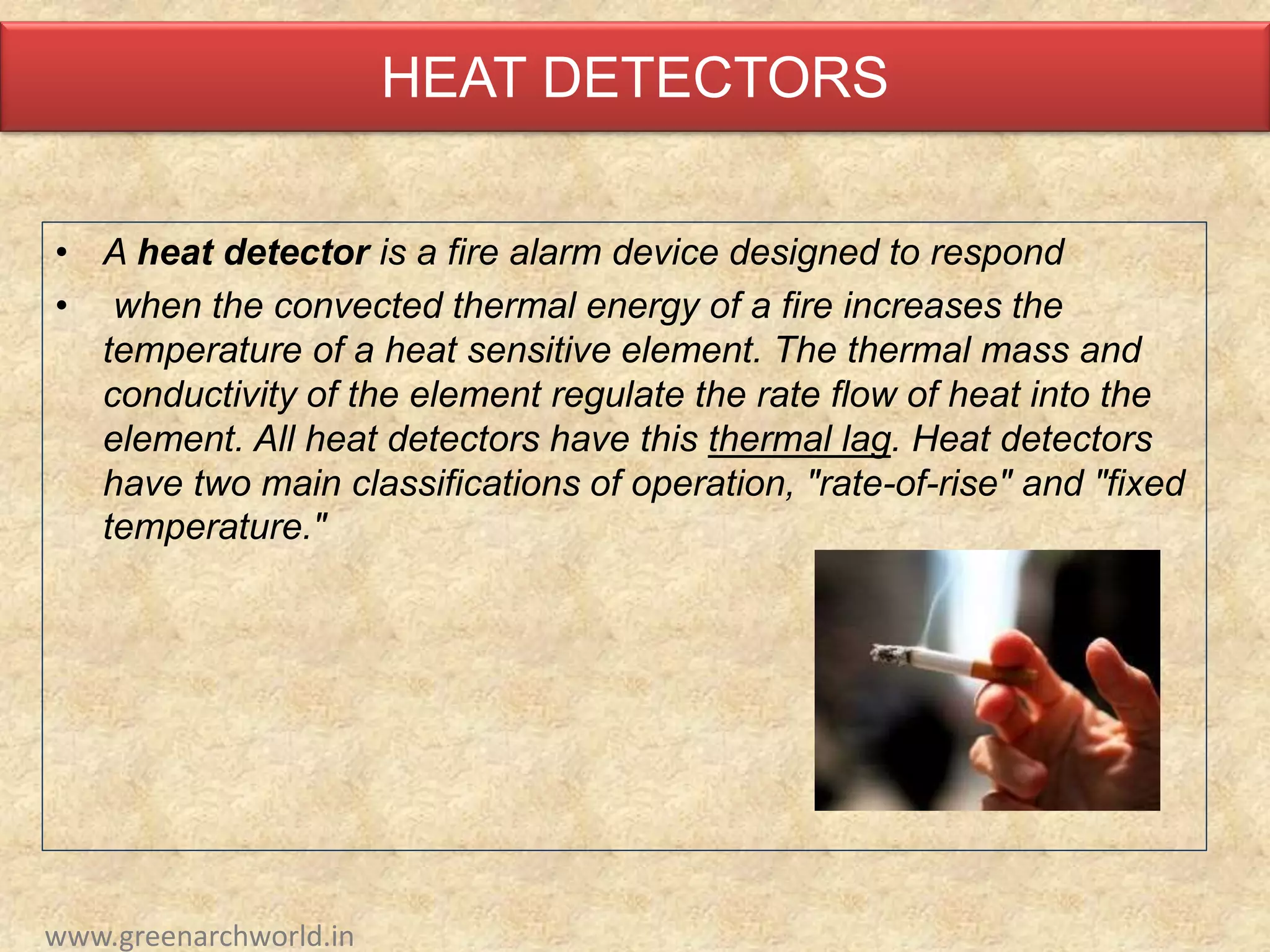

HEAT DETECTORS
• A heat detector is a fire alarm device designed to respond
• when the convected thermal energy of a fire increases the
temperature of a heat sensitive element. The thermal mass and
conductivity of the element regulate the rate flow of heat into the
element. All heat detectors have this thermal lag. Heat detectors
have two main classifications of operation, "rate-of-rise" and "fixed
temperature."
www.greenarchworld.in

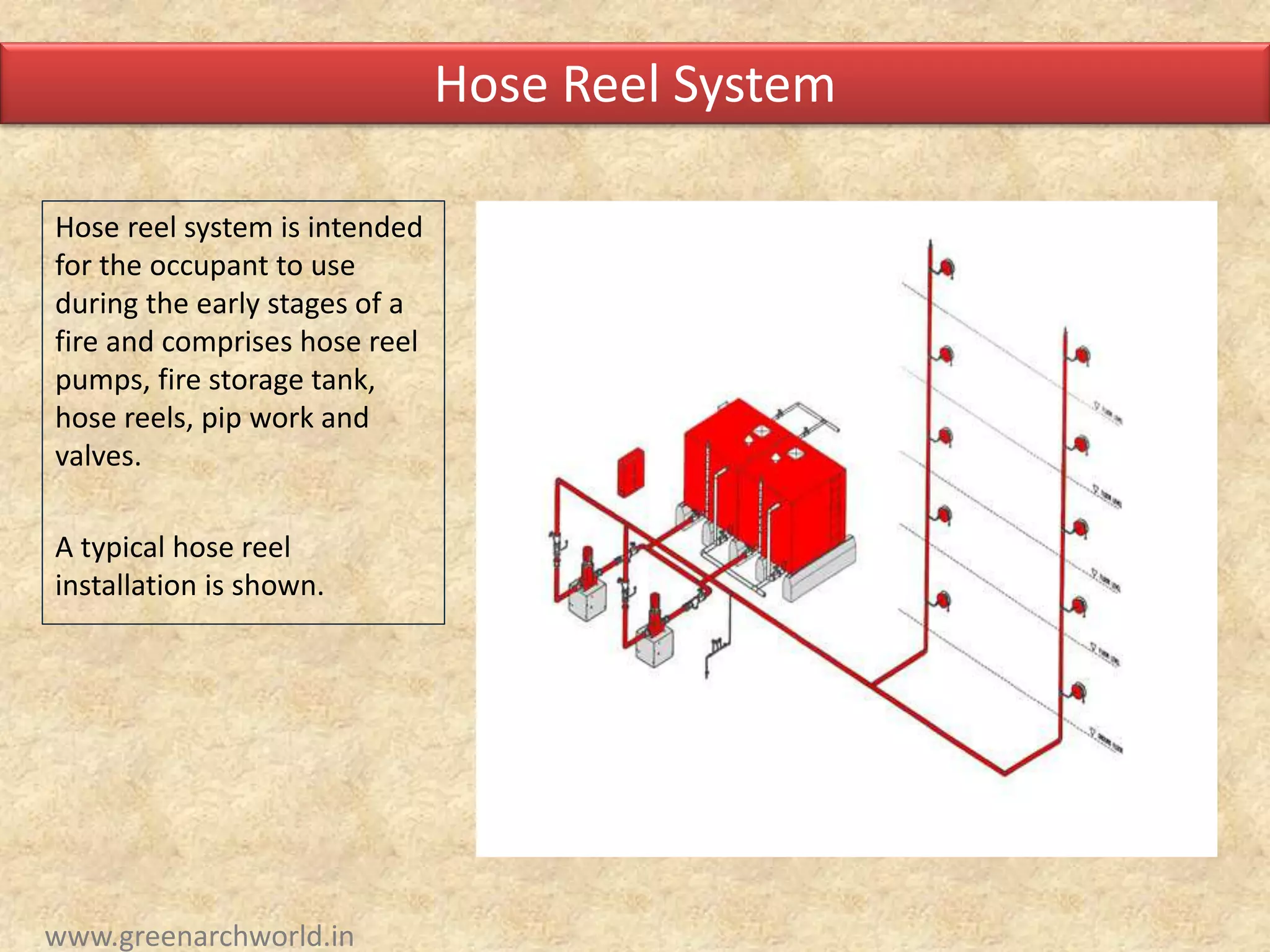

Hose reel system is intended
for the occupant to use
during the early stages of a
fire and comprises hose reel
pumps, fire storage tank,
hose reels, pip work and
valves.
A typical hose reel
installation is shown.
Hose Reel System
www.greenarchworld.in

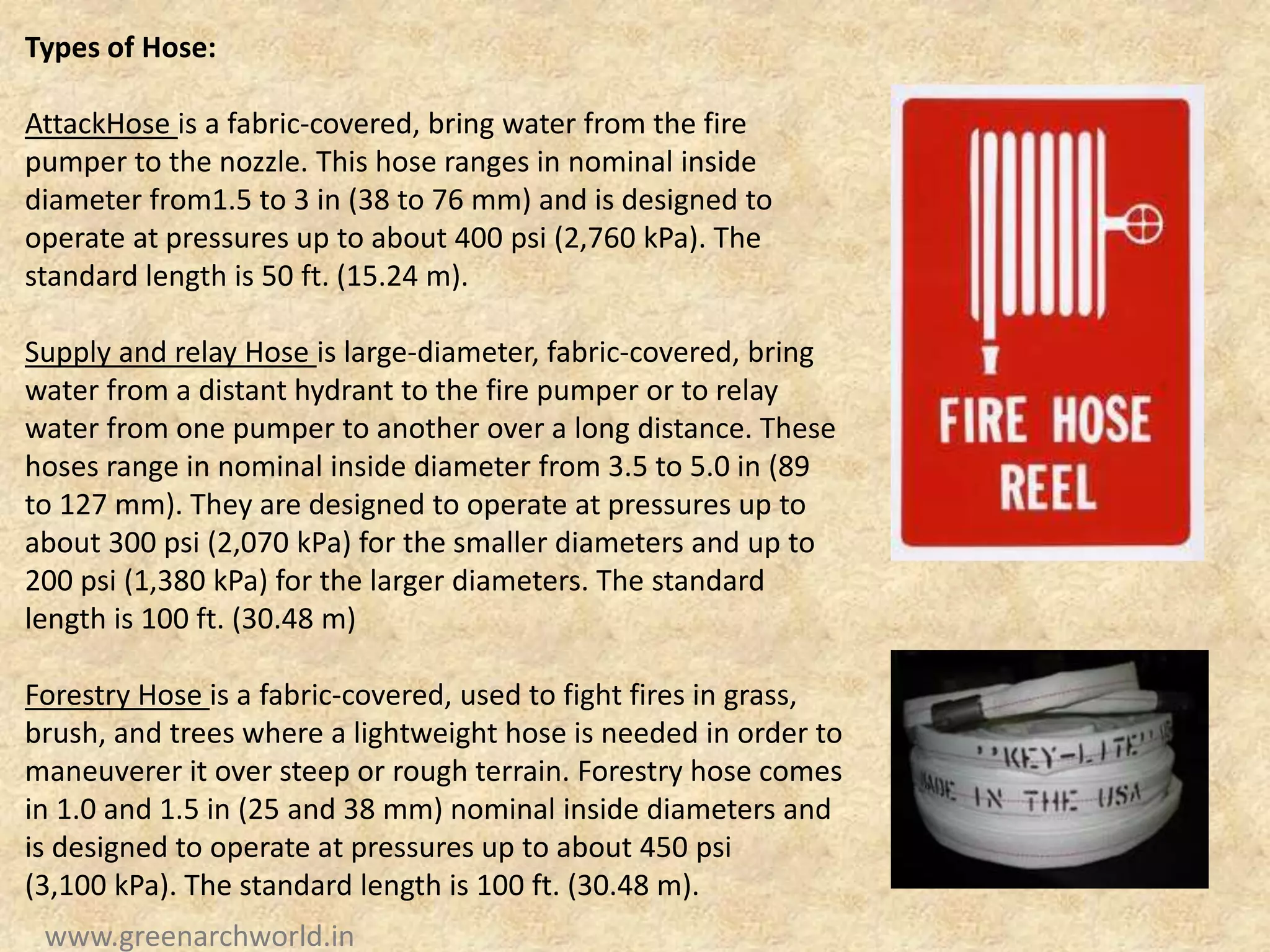

Types of Hose:
AttackHose is a fabric-covered, bring water from the fire
pumper to the nozzle. This hose ranges in nominal inside
diameter from1.5 to 3 in (38 to 76 mm) and is designed to
operate at pressures up to about 400 psi (2,760 kPa). The
standard length is 50 ft. (15.24 m).
Supply and relay Hose is large-diameter, fabric-covered, bring
water from a distant hydrant to the fire pumper or to relay
water from one pumper to another over a long distance. These
hoses range in nominal inside diameter from 3.5 to 5.0 in (89
to 127 mm). They are designed to operate at pressures up to
about 300 psi (2,070 kPa) for the smaller diameters and up to
200 psi (1,380 kPa) for the larger diameters. The standard
length is 100 ft. (30.48 m)
Forestry Hose is a fabric-covered, used to fight fires in grass,
brush, and trees where a lightweight hose is needed in order to
maneuverer it over steep or rough terrain. Forestry hose comes
in 1.0 and 1.5 in (25 and 38 mm) nominal inside diameters and
is designed to operate at pressures up to about 450 psi
(3,100 kPa). The standard length is 100 ft. (30.48 m).
www.greenarchworld.in
Booster Hose is a rubber-covered, thick-walled used to fight small
fires. Booster hose comes in 0.75 and 1.0 in (19 and 25 mm) nominal
inside diameters and is designed to operate at pressures up to 800 psi
(5,520 kPa). The standard length is 100 ft. (30.48 m).
Suction Hose or Hard Suction is a rubber-covered, semi-rigid hose
with internal metal reinforcements. It is used to suck water out of
unpressurized sources, such as ponds or rivers, by means of a
vacuum. Suction hose ranges in nominal inside diameter from 2.5 to
6.0 in (64 to 152 mm). The standard length is 10 ft (3.05 m).
www.greenarchworld.in
Standpipe
A standpipe is a type of rigid water piping which is built into multi-story buildings in a vertical
position, to which fire hoses can be connected. Standpipes classes are as follows:
• Class I system. A system providing 2 1
2-inch (64mm) hose connections to supply water for
use by fire departments and in handling heavy fire steams.
• Class II system. A system providing 11
2-inch (38mm) hose connection to supply water for
use by the fire department during initial response.
• Class III system. A system providing both 11
2-inch (38mm) and 21
2-inch (64mm) hose
connections.
Types
There are two types of standpipes:
• Automatic Dry
• Automatic Wet
• Manual Dry
• Manual Wet
www.greenarchworld.in
Many high-rise or other large buildings have an internal system of water mains
(standpipes) connected to fire-hose stations and landing valves. Trained occupants or
employees of the building management operate the hoses until the fire department
arrives. Fire fighters can also connect their hoses to outlets near the fire.
Types
There are two types of standpipes/ riser : “Wet Risers" and “Dry Risers"
Standpipe/ Riser Systems
www.greenarchworld.in

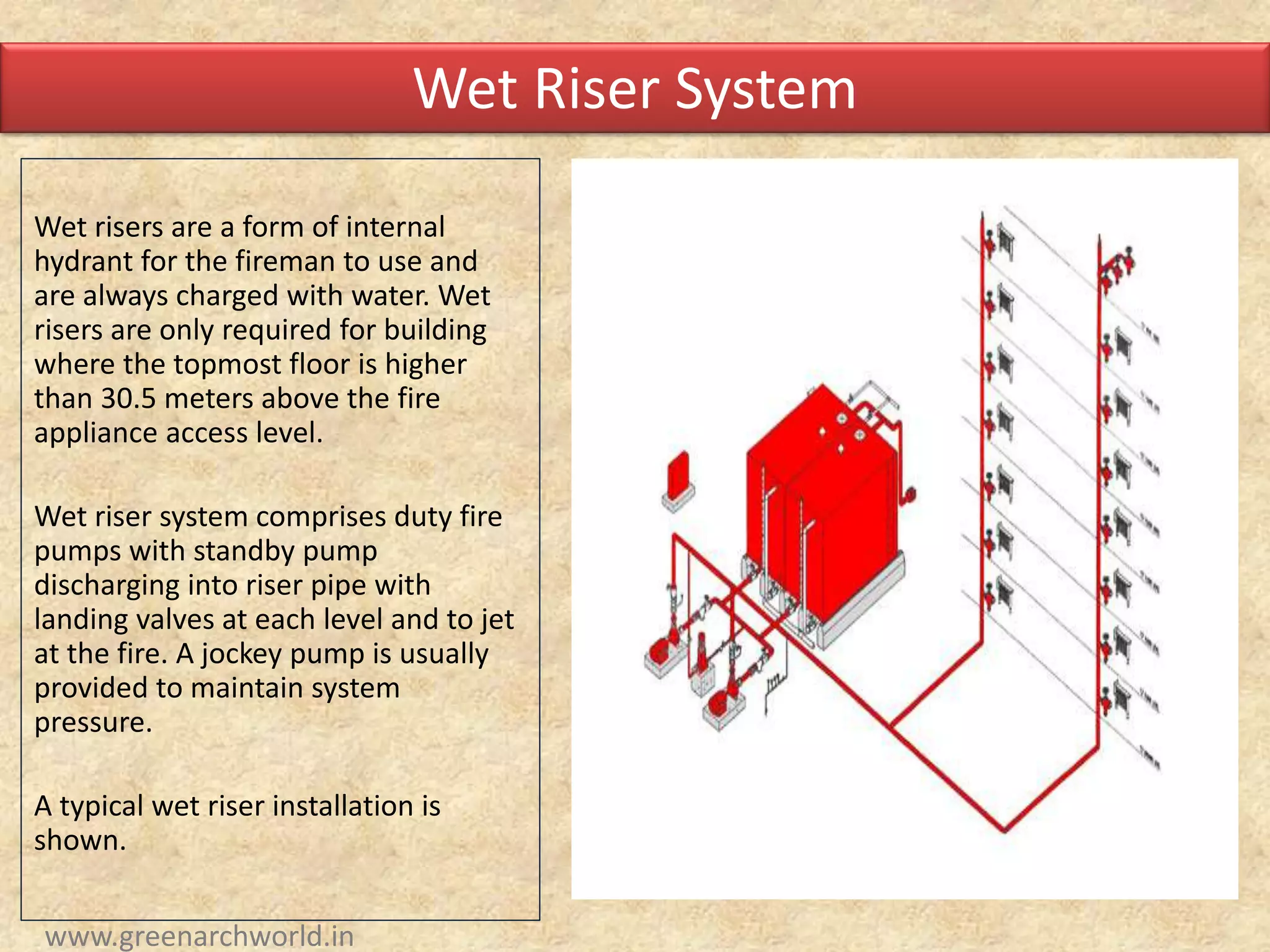

Wet risers are a form of internal
hydrant for the fireman to use and
are always charged with water. Wet
risers are only required for building
where the topmost floor is higher
than 30.5 meters above the fire
appliance access level.
Wet riser system comprises duty fire
pumps with standby pump
discharging into riser pipe with
landing valves at each level and to jet
at the fire. A jockey pump is usually
provided to maintain system
pressure.
A typical wet riser installation is
shown.
Wet Riser System
www.greenarchworld.in

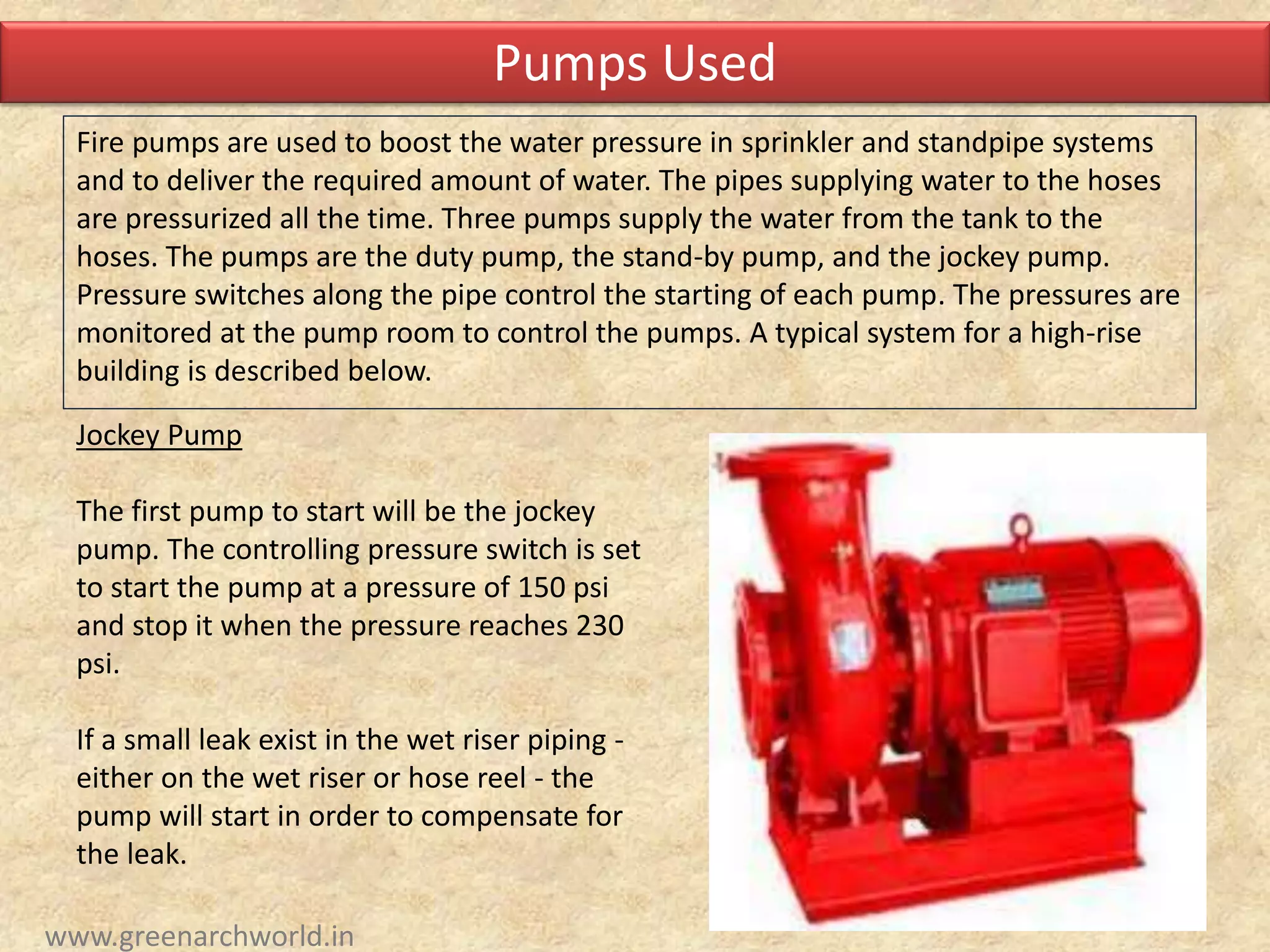

Fire pumps are used to boost the water pressure in sprinkler and standpipe systems
and to deliver the required amount of water. The pipes supplying water to the hoses
are pressurized all the time. Three pumps supply the water from the tank to the
hoses. The pumps are the duty pump, the stand-by pump, and the jockey pump.
Pressure switches along the pipe control the starting of each pump. The pressures are
monitored at the pump room to control the pumps. A typical system for a high-rise
building is described below.
Jockey Pump
The first pump to start will be the jockey
pump. The controlling pressure switch is set
to start the pump at a pressure of 150 psi
and stop it when the pressure reaches 230
psi.
If a small leak exist in the wet riser piping -
either on the wet riser or hose reel - the
pump will start in order to compensate for
the leak.
Pumps Used
www.greenarchworld.in

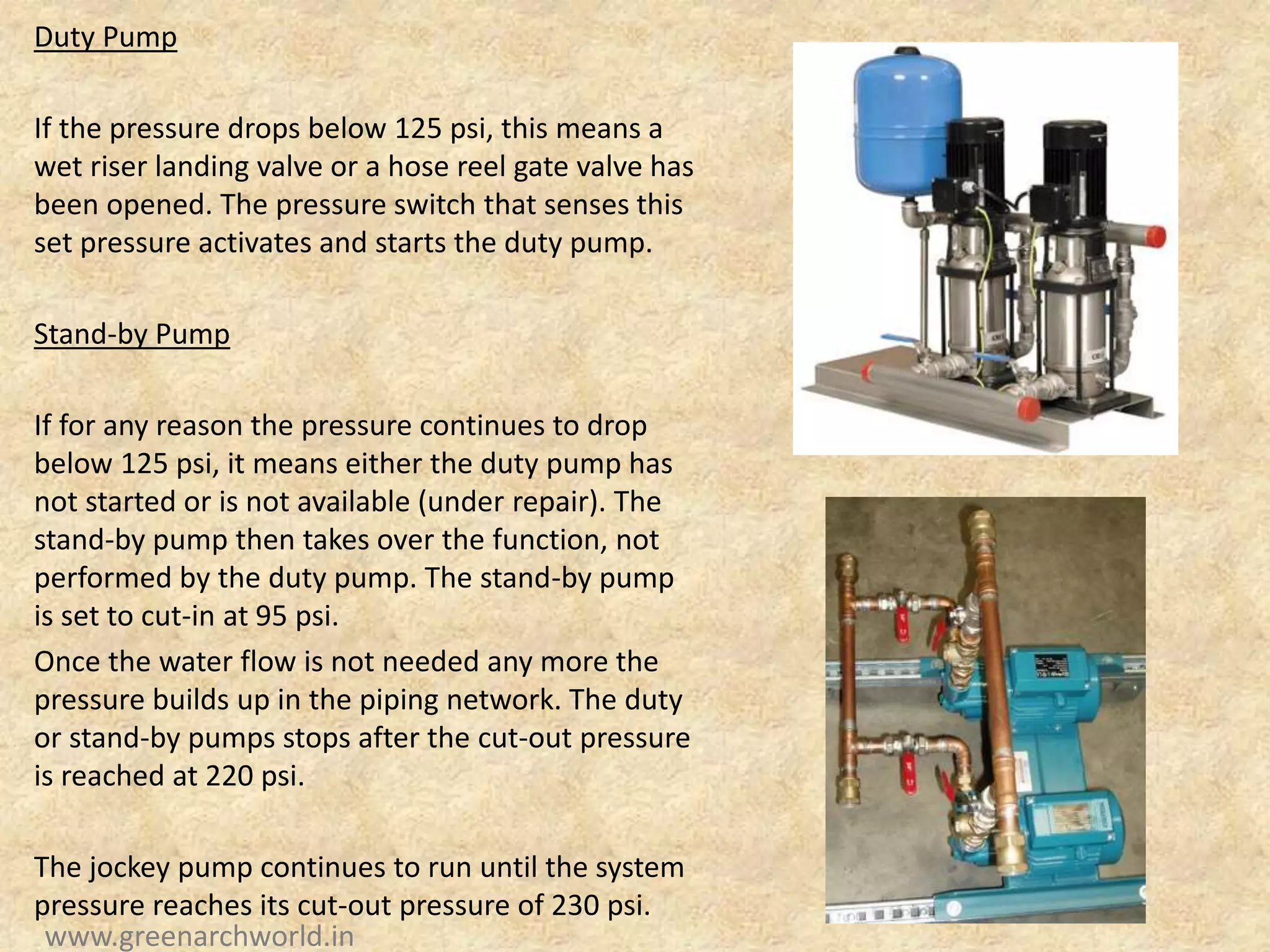

Duty Pump
If the pressure drops below 125 psi, this means a
wet riser landing valve or a hose reel gate valve has
been opened. The pressure switch that senses this
set pressure activates and starts the duty pump.
Stand-by Pump
If for any reason the pressure continues to drop
below 125 psi, it means either the duty pump has
not started or is not available (under repair). The
stand-by pump then takes over the function, not
performed by the duty pump. The stand-by pump
is set to cut-in at 95 psi.
Once the water flow is not needed any more the
pressure builds up in the piping network. The duty
or stand-by pumps stops after the cut-out pressure
is reached at 220 psi.
The jockey pump continues to run until the system
pressure reaches its cut-out pressure of 230 psi.
www.greenarchworld.in

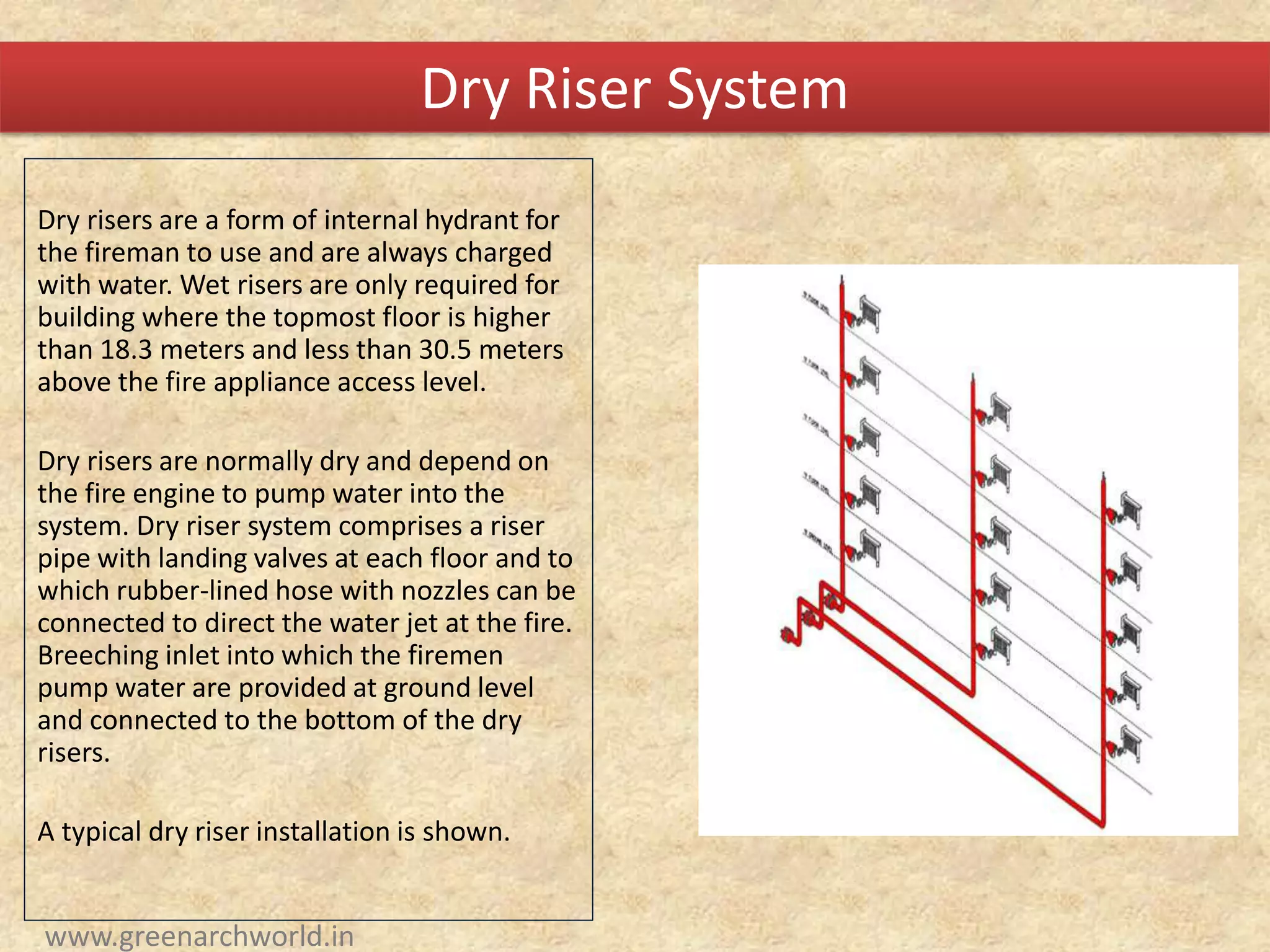

Dry risers are a form of internal hydrant for
the fireman to use and are always charged
with water. Wet risers are only required for
building where the topmost floor is higher
than 18.3 meters and less than 30.5 meters
above the fire appliance access level.
Dry risers are normally dry and depend on
the fire engine to pump water into the
system. Dry riser system comprises a riser
pipe with landing valves at each floor and to
which rubber-lined hose with nozzles can be
connected to direct the water jet at the fire.
Breeching inlet into which the firemen
pump water are provided at ground level
and connected to the bottom of the dry
risers.
A typical dry riser installation is shown.
Dry Riser System
www.greenarchworld.in

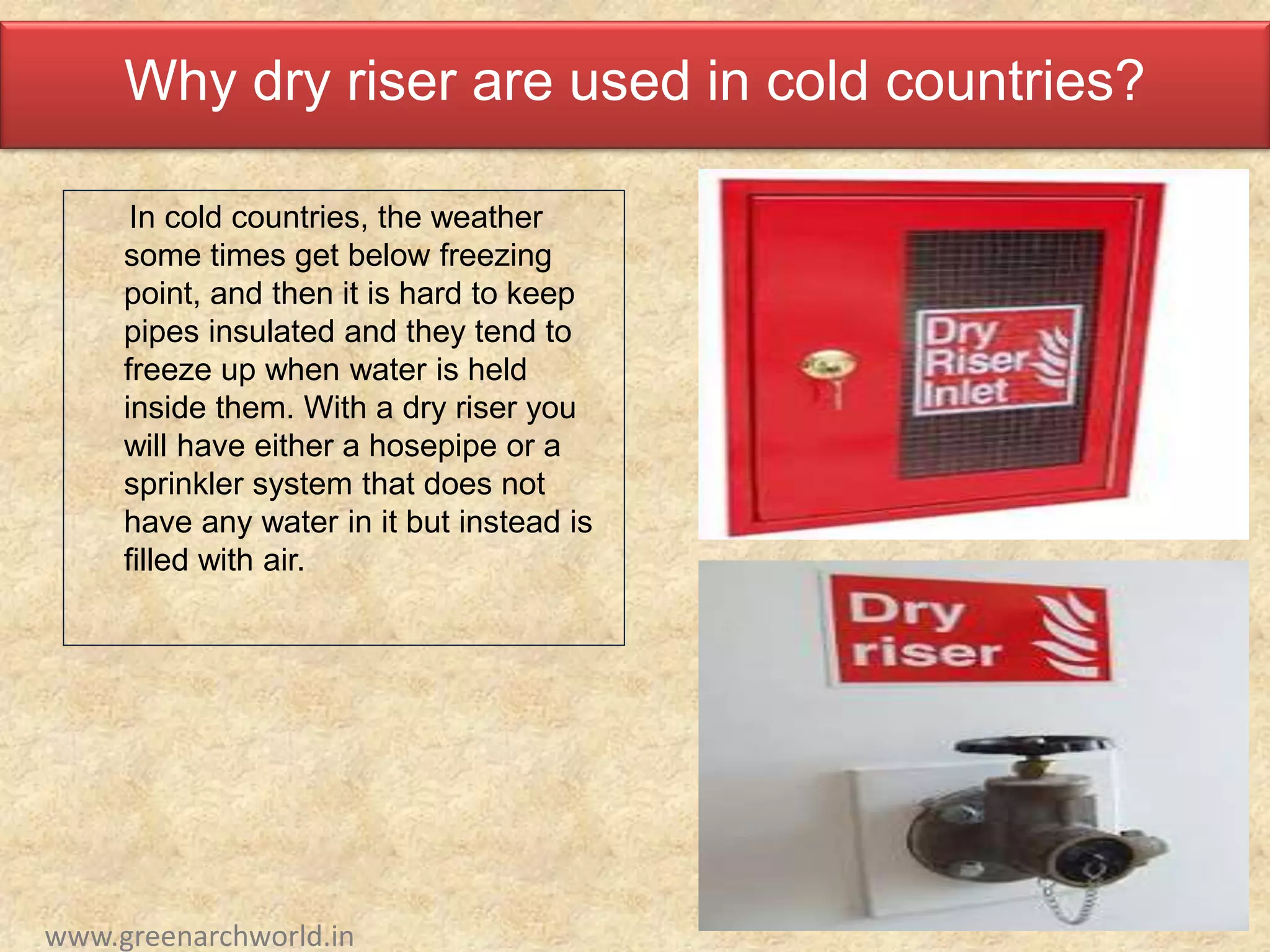

Why dry riser are used in cold countries?
In cold countries, the weather
some times get below freezing
point, and then it is hard to keep
pipes insulated and they tend to
freeze up when water is held
inside them. With a dry riser you
will have either a hosepipe or a
sprinkler system that does not
have any water in it but instead is
filled with air.
www.greenarchworld.in

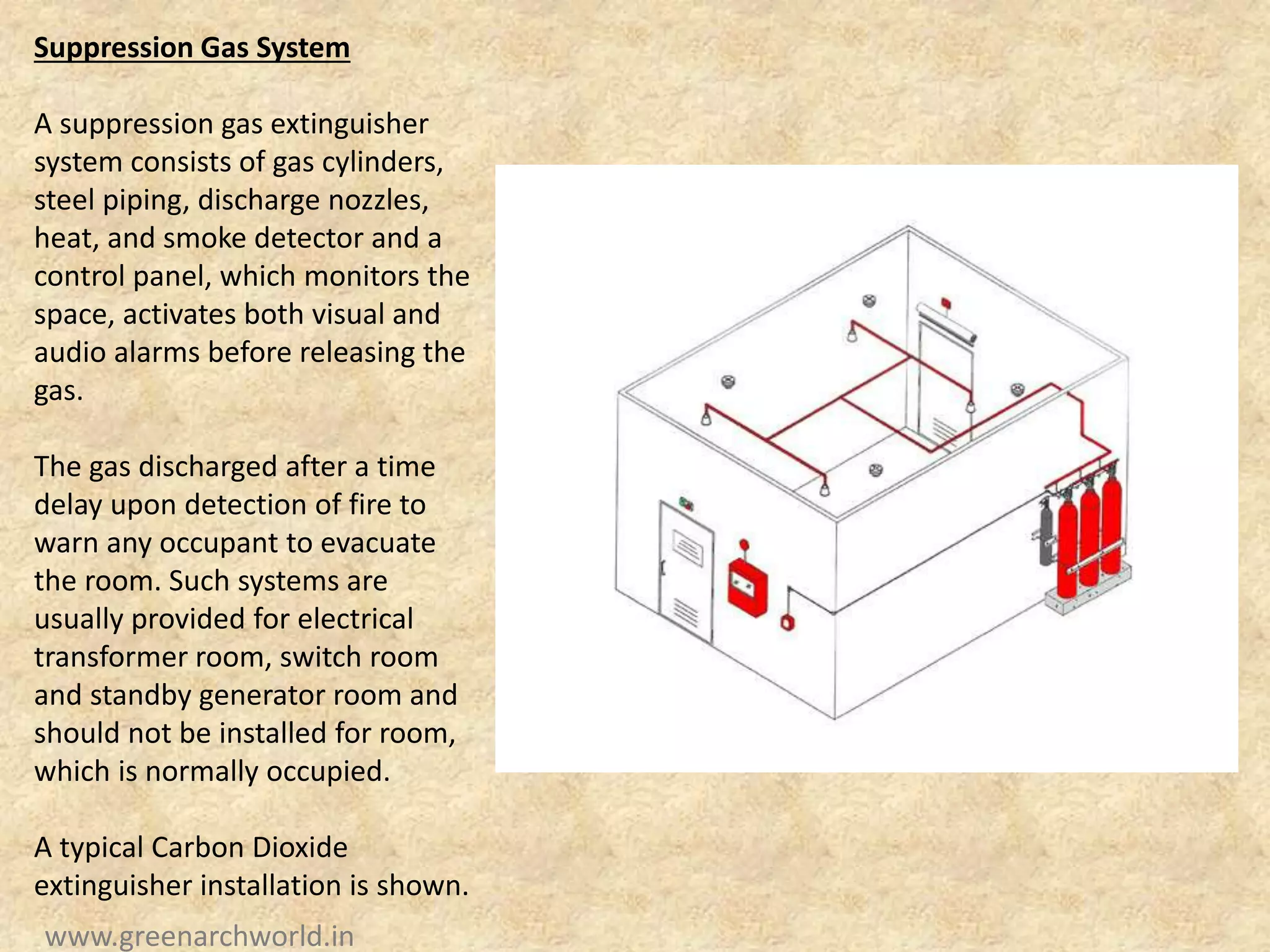

Suppression Gas System
A suppression gas extinguisher
system consists of gas cylinders,
steel piping, discharge nozzles,
heat, and smoke detector and a
control panel, which monitors the
space, activates both visual and
audio alarms before releasing the
gas.
The gas discharged after a time
delay upon detection of fire to
warn any occupant to evacuate
the room. Such systems are
usually provided for electrical
transformer room, switch room
and standby generator room and
should not be installed for room,
which is normally occupied.
A typical Carbon Dioxide
extinguisher installation is shown.
www.greenarchworld.in

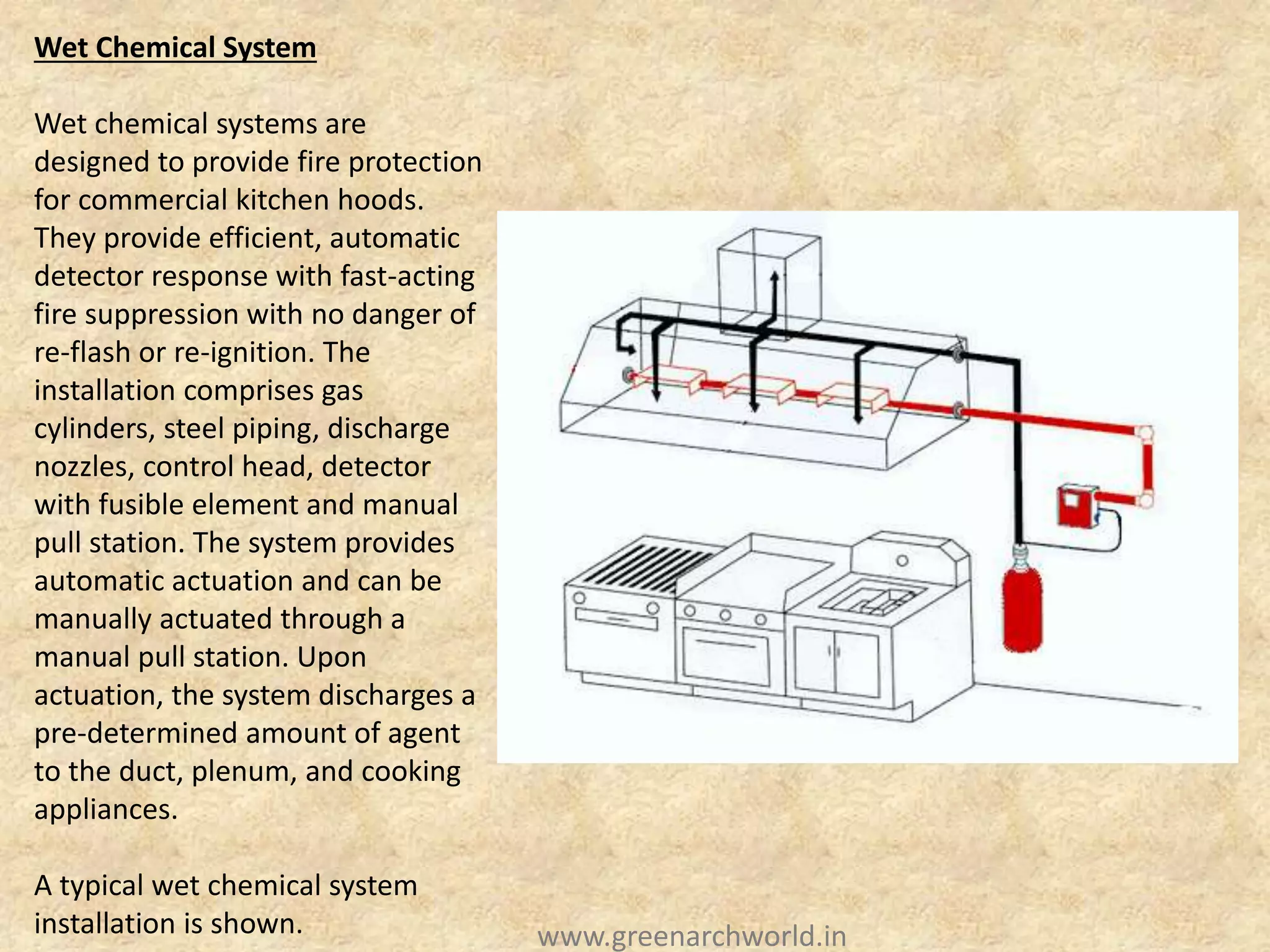

Wet Chemical System
Wet chemical systems are
designed to provide fire protection
for commercial kitchen hoods.
They provide efficient, automatic
detector response with fast-acting
fire suppression with no danger of
re-flash or re-ignition. The
installation comprises gas
cylinders, steel piping, discharge
nozzles, control head, detector
with fusible element and manual
pull station. The system provides
automatic actuation and can be
manually actuated through a
manual pull station. Upon
actuation, the system discharges a
pre-determined amount of agent
to the duct, plenum, and cooking
appliances.
A typical wet chemical system
installation is shown. www.greenarchworld.in

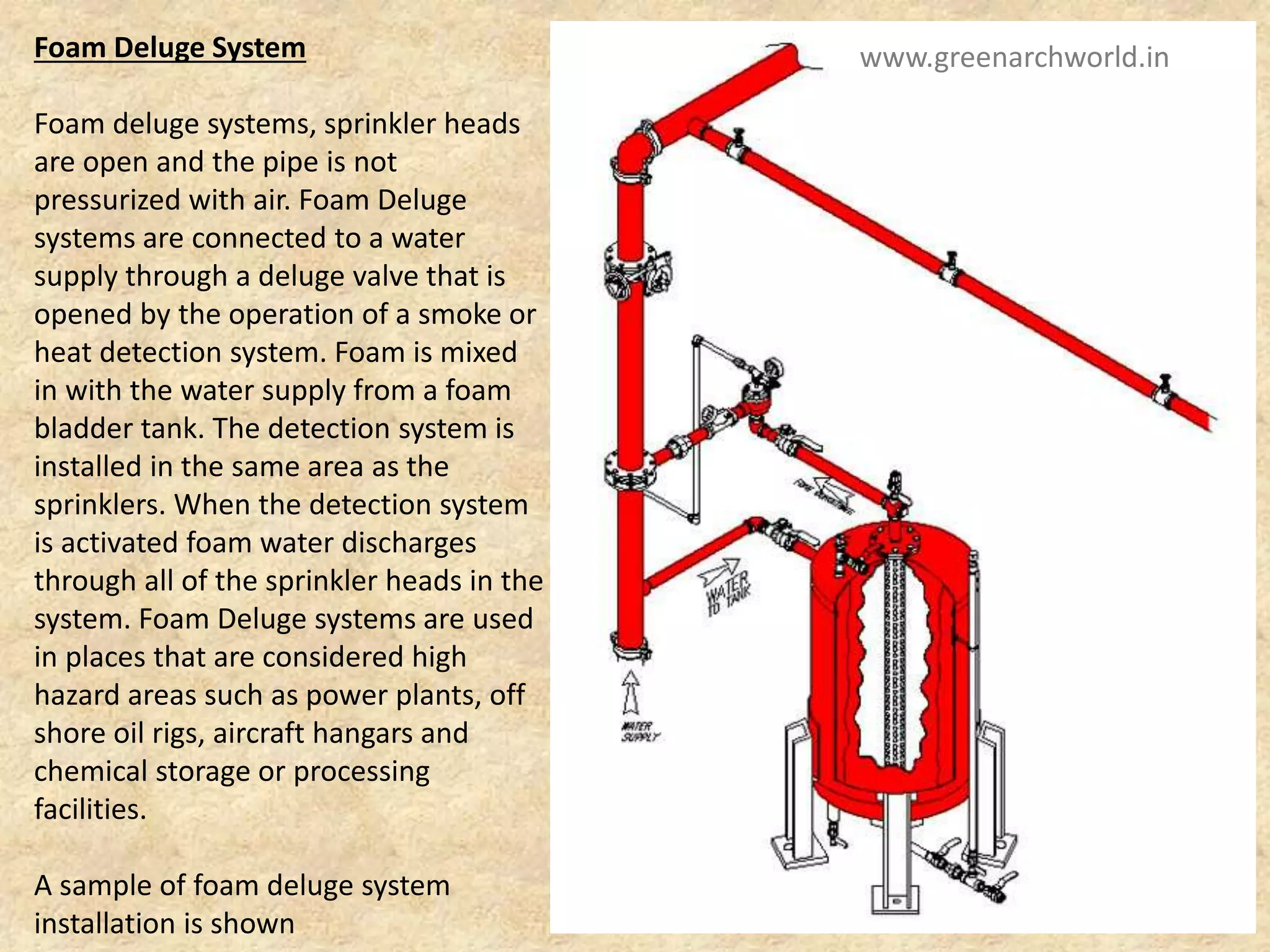

Foam Deluge System
Foam deluge systems, sprinkler heads
are open and the pipe is not
pressurized with air. Foam Deluge
systems are connected to a water
supply through a deluge valve that is
opened by the operation of a smoke or
heat detection system. Foam is mixed
in with the water supply from a foam
bladder tank. The detection system is
installed in the same area as the
sprinklers. When the detection system
is activated foam water discharges
through all of the sprinkler heads in the
system. Foam Deluge systems are used
in places that are considered high
hazard areas such as power plants, off
shore oil rigs, aircraft hangars and
chemical storage or processing
facilities.
A sample of foam deluge system
installation is shown
www.greenarchworld.in

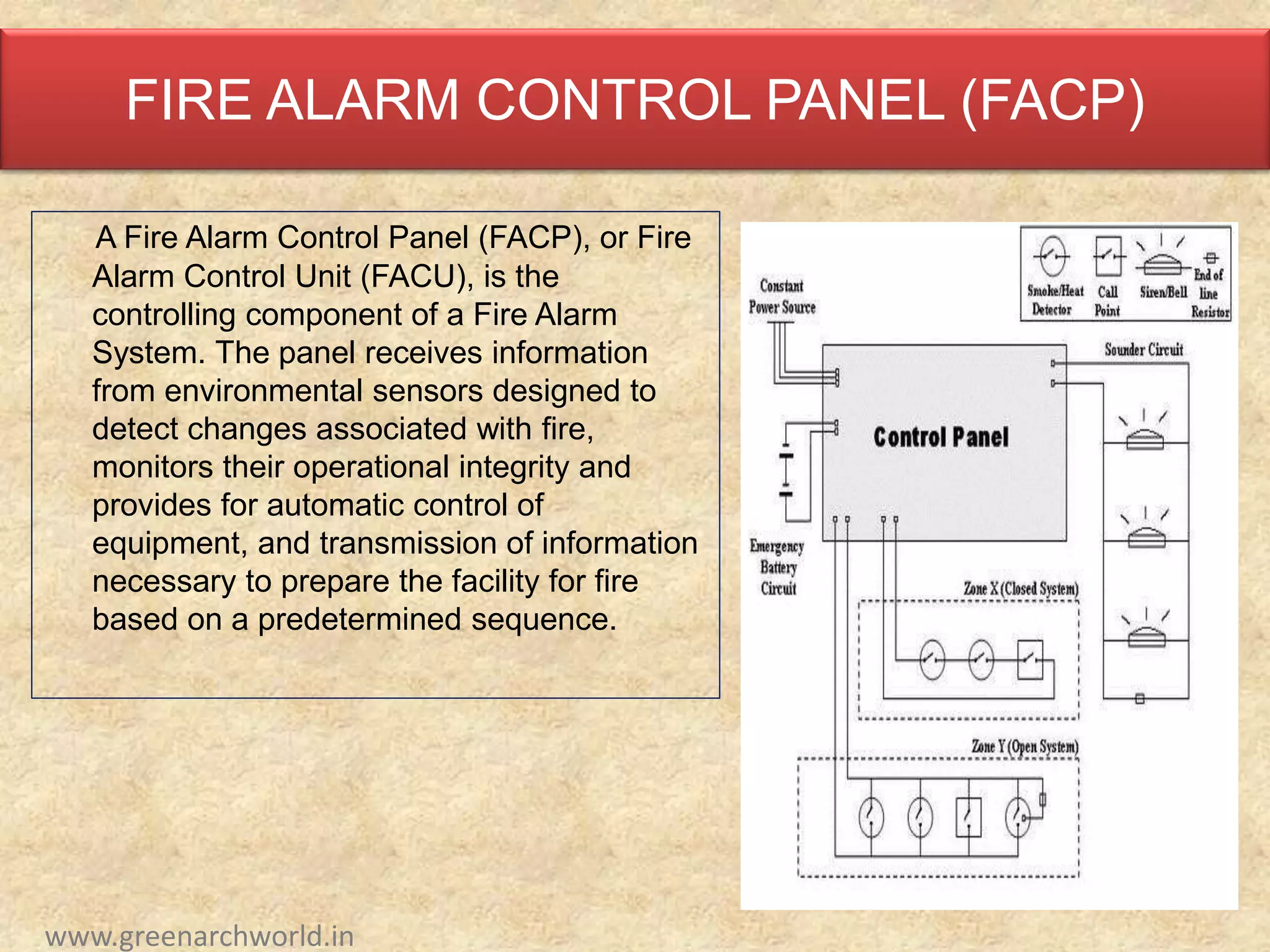

FIRE ALARM CONTROL PANEL (FACP)
A Fire Alarm Control Panel (FACP), or Fire
Alarm Control Unit (FACU), is the
controlling component of a Fire Alarm
System. The panel receives information
from environmental sensors designed to
detect changes associated with fire,
monitors their operational integrity and
provides for automatic control of
equipment, and transmission of information
necessary to prepare the facility for fire
based on a predetermined sequence.
www.greenarchworld.in

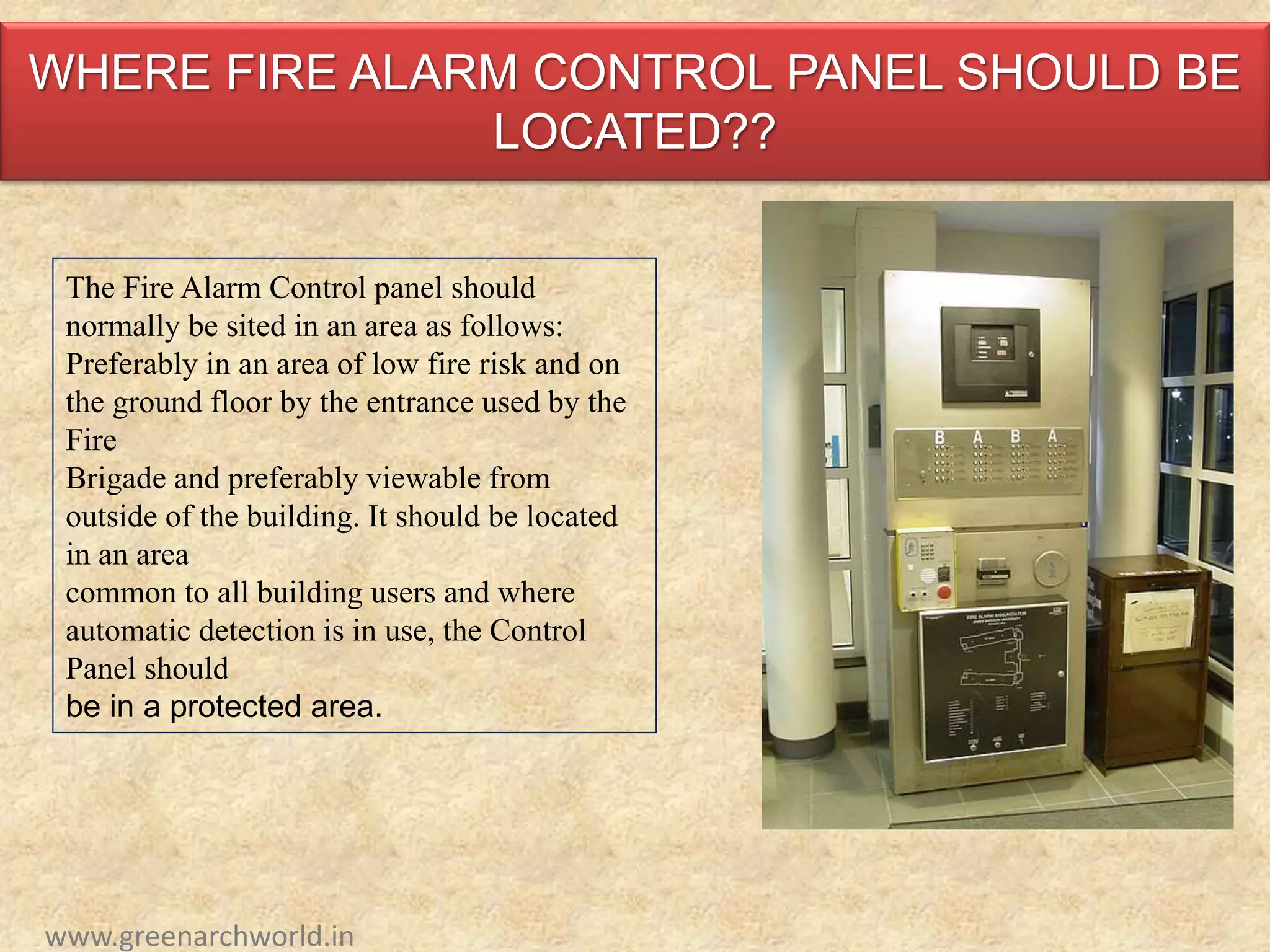

WHERE FIRE ALARM CONTROL PANEL SHOULD BE
LOCATED??
The Fire Alarm Control panel should
normally be sited in an area as follows:
Preferably in an area of low fire risk and on
the ground floor by the entrance used by the
Fire
Brigade and preferably viewable from
outside of the building. It should be located
in an area
common to all building users and where
automatic detection is in use, the Control
Panel should
be in a protected area.
www.greenarchworld.in

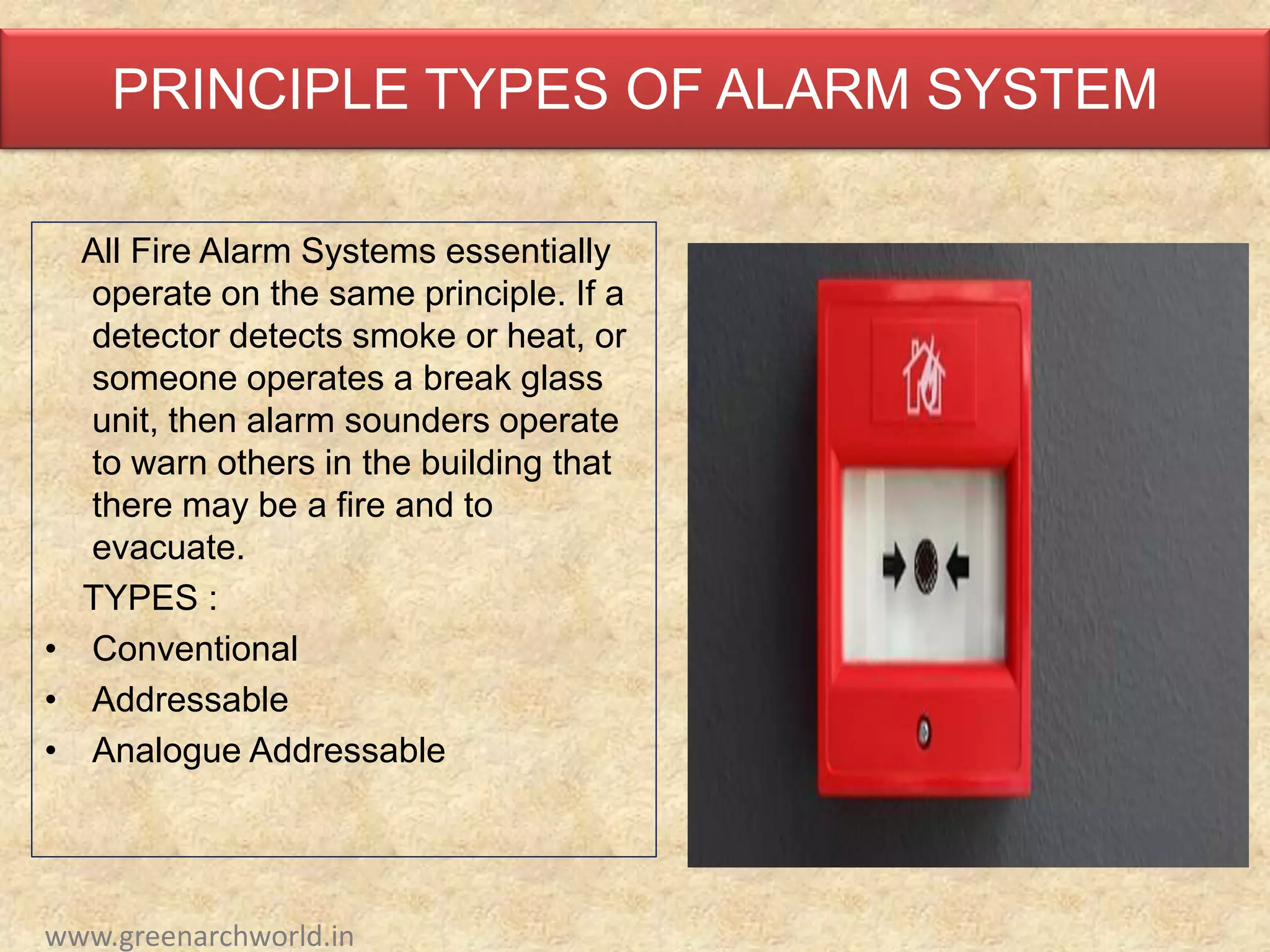

PRINCIPLE TYPES OF ALARM SYSTEM
All Fire Alarm Systems essentially
operate on the same principle. If a
detector detects smoke or heat, or
someone operates a break glass
unit, then alarm sounders operate
to warn others in the building that
there may be a fire and to
evacuate.
TYPES :
• Conventional
• Addressable
• Analogue Addressable
www.greenarchworld.in
Automatic Sprinkler System
An automatic sprinkler system is
intended to detect, control and
extinguish a fire, and warn the
occupants of occurrence of fire.
The installation comprises fire
pumps, water storage tanks,
control valve sets, sprinkler heads,
flow switches, pressure switches,
pipe work and valves. The system
operates automatically without
human intervention. The sprinkler
head has a liquid filled glass bulb
that breaks due to the heat of the
fire and release water that sprays
over fire.
The installation is the most
common type and a typical
sprinkler is shown.
www.greenarchworld.in

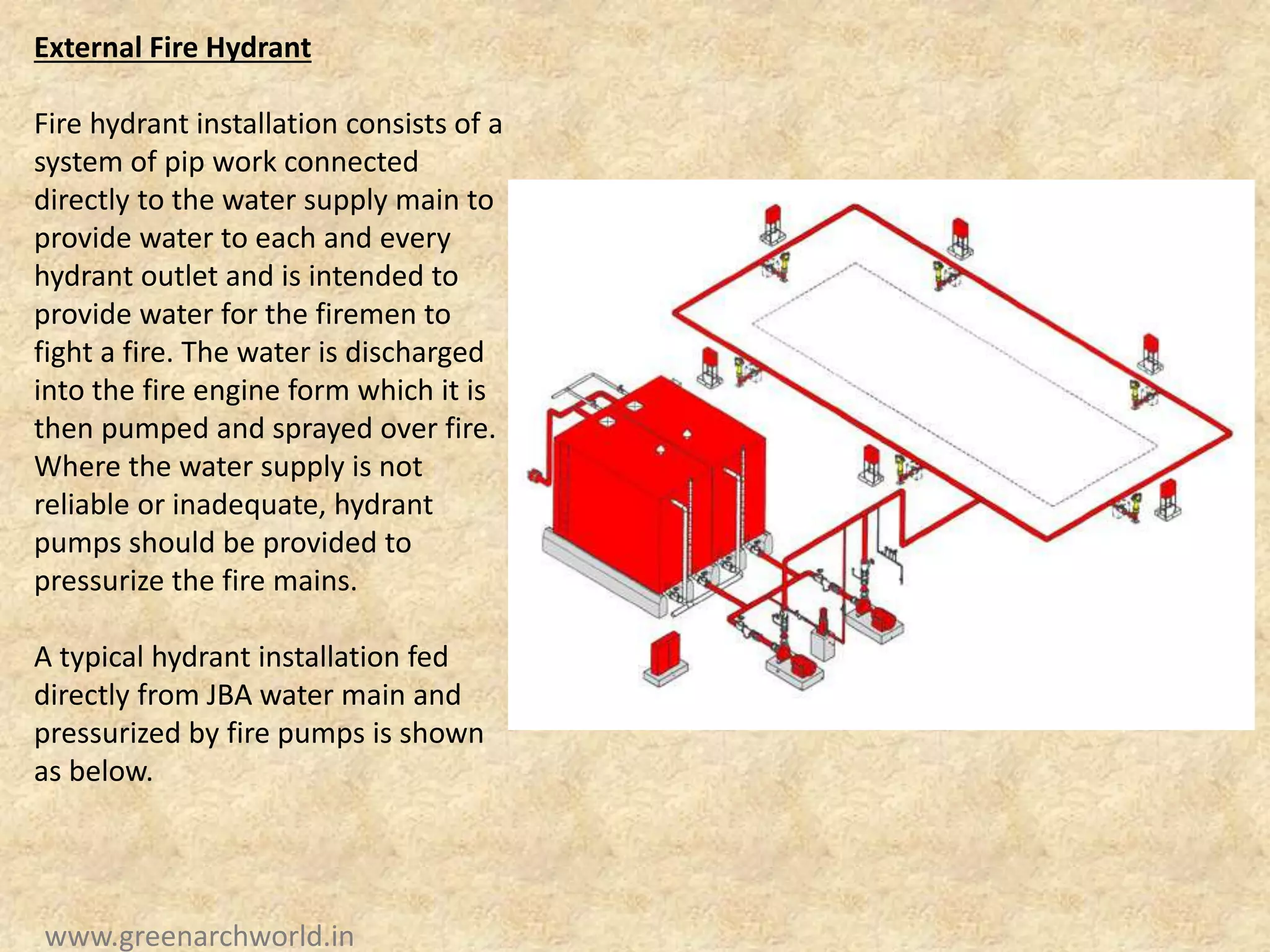

External Fire Hydrant
Fire hydrant installation consists of a
system of pip work connected
directly to the water supply main to
provide water to each and every
hydrant outlet and is intended to
provide water for the firemen to
fight a fire. The water is discharged
into the fire engine form which it is
then pumped and sprayed over fire.
Where the water supply is not
reliable or inadequate, hydrant
pumps should be provided to
pressurize the fire mains.
A typical hydrant installation fed
directly from JBA water main and
pressurized by fire pumps is shown
as below.
www.greenarchworld.in

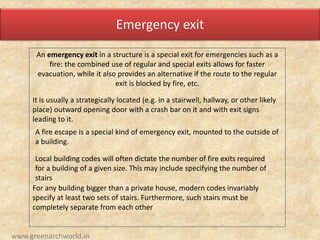

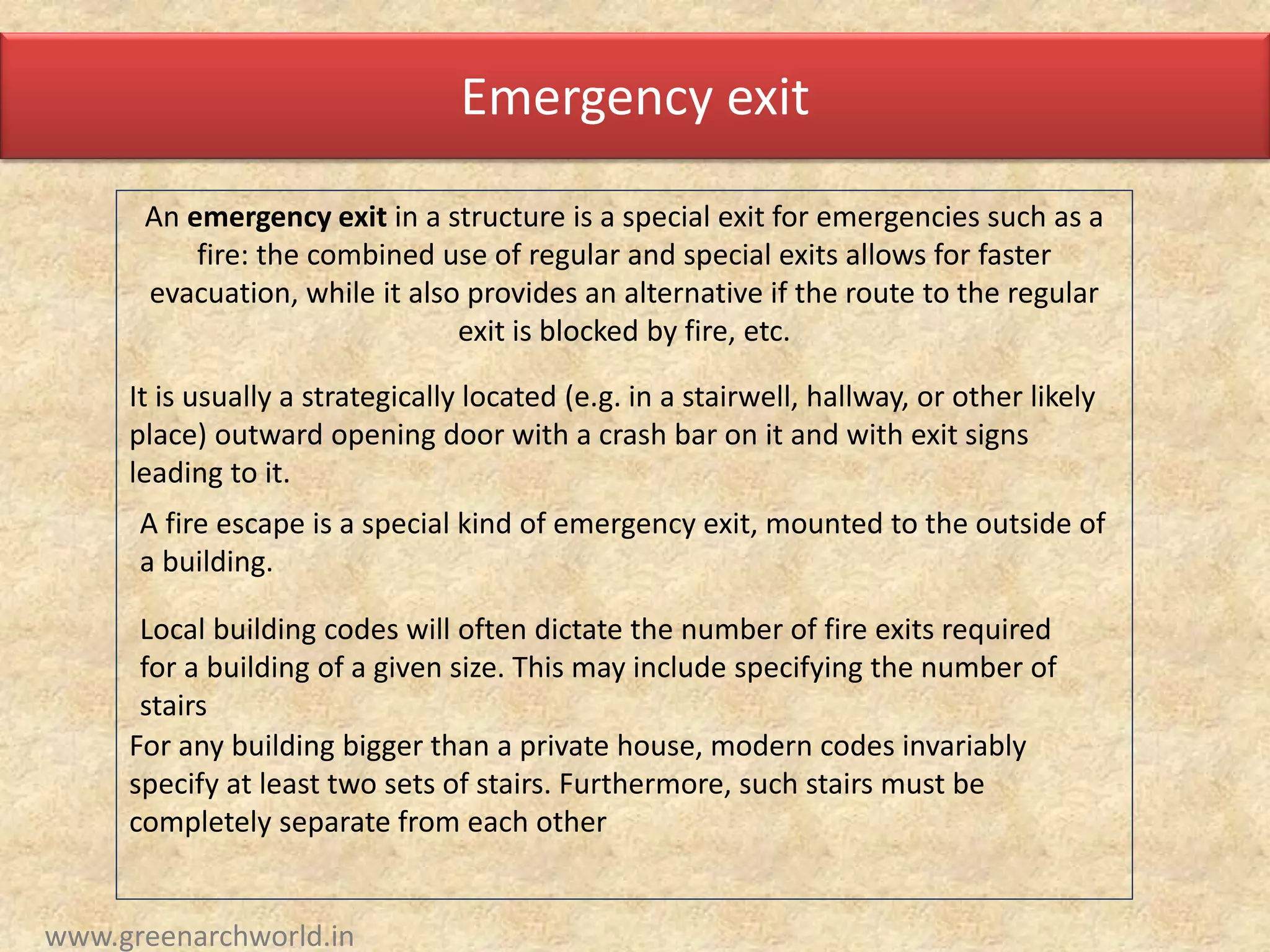

Emergency exit
An emergency exit in a structure is a special exit for emergencies such as a
fire: the combined use of regular and special exits allows for faster
evacuation, while it also provides an alternative if the route to the regular
exit is blocked by fire, etc.
It is usually a strategically located (e.g. in a stairwell, hallway, or other likely
place) outward opening door with a crash bar on it and with exit signs
leading to it.
A fire escape is a special kind of emergency exit, mounted to the outside of
a building.
Local building codes will often dictate the number of fire exits required
for a building of a given size. This may include specifying the number of
stairs
For any building bigger than a private house, modern codes invariably
specify at least two sets of stairs. Furthermore, such stairs must be
completely separate from each other
www.greenarchworld.in

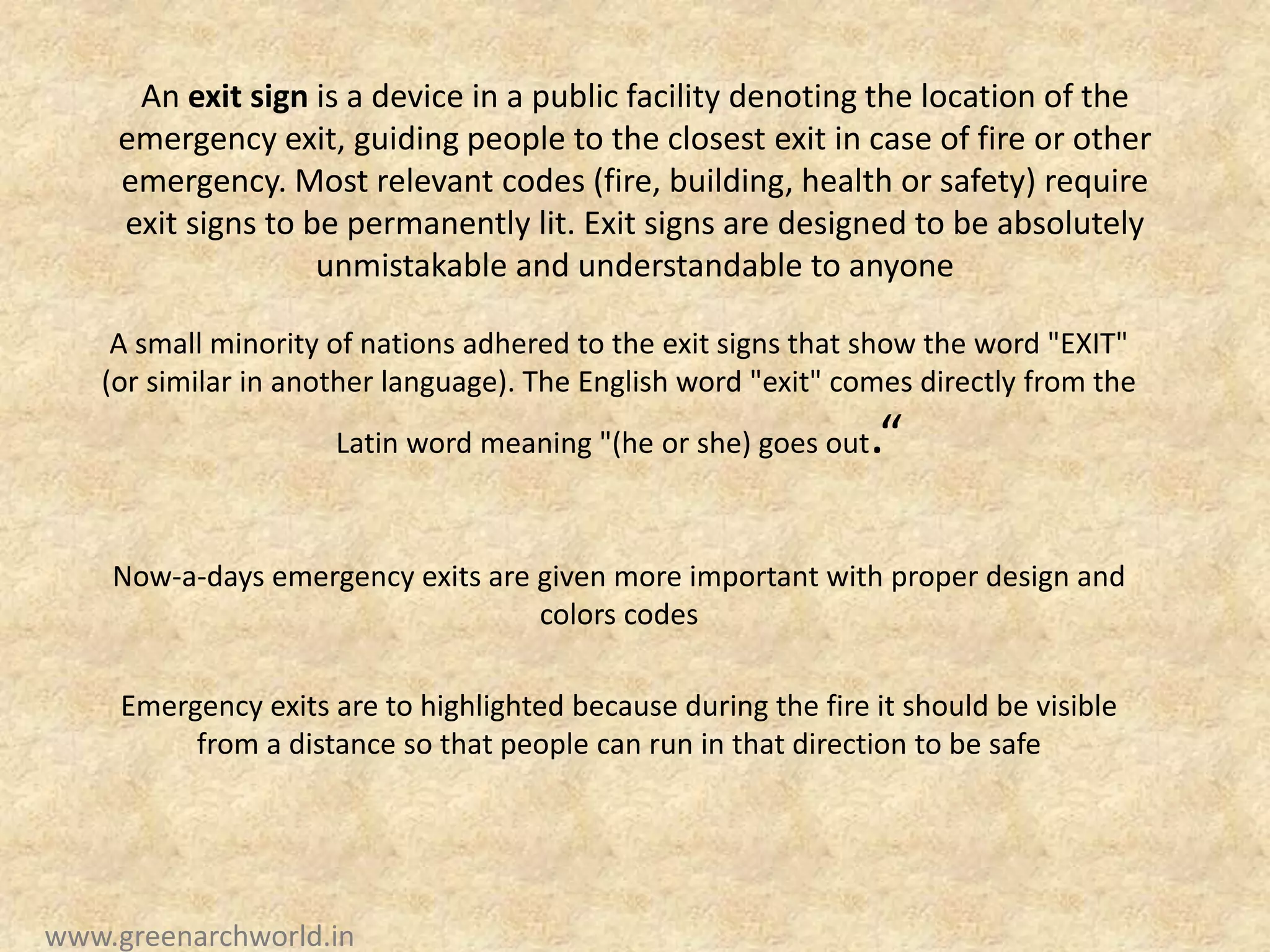

An exit sign is a device in a public facility denoting the location of the
emergency exit, guiding people to the closest exit in case of fire or other
emergency. Most relevant codes (fire, building, health or safety) require
exit signs to be permanently lit. Exit signs are designed to be absolutely
unmistakable and understandable to anyone
A small minority of nations adhered to the exit signs that show the word "EXIT"
(or similar in another language). The English word "exit" comes directly from the
Latin word meaning "(he or she) goes out.“
Now-a-days emergency exits are given more important with proper design and
colors codes
Emergency exits are to highlighted because during the fire it should be visible
from a distance so that people can run in that direction to be safe
www.greenarchworld.in
Fire Detection and Alarm System
Fire detectors are designed to
detect one or more of the three
characteristics of fire – smoke,
heat and flame. Besides that,
every fire detection system must
include manual call point (break
glass), so that in the event of fire,
help can be called immediately.
During a fire, activation of an
alarm sounders or bells is to
arouse the attention of the
occupants so that evacuation can
be carried out without causing
harm to the occupants.
A sample of fire detection and
alarm system installation is shown
www.greenarchworld.in

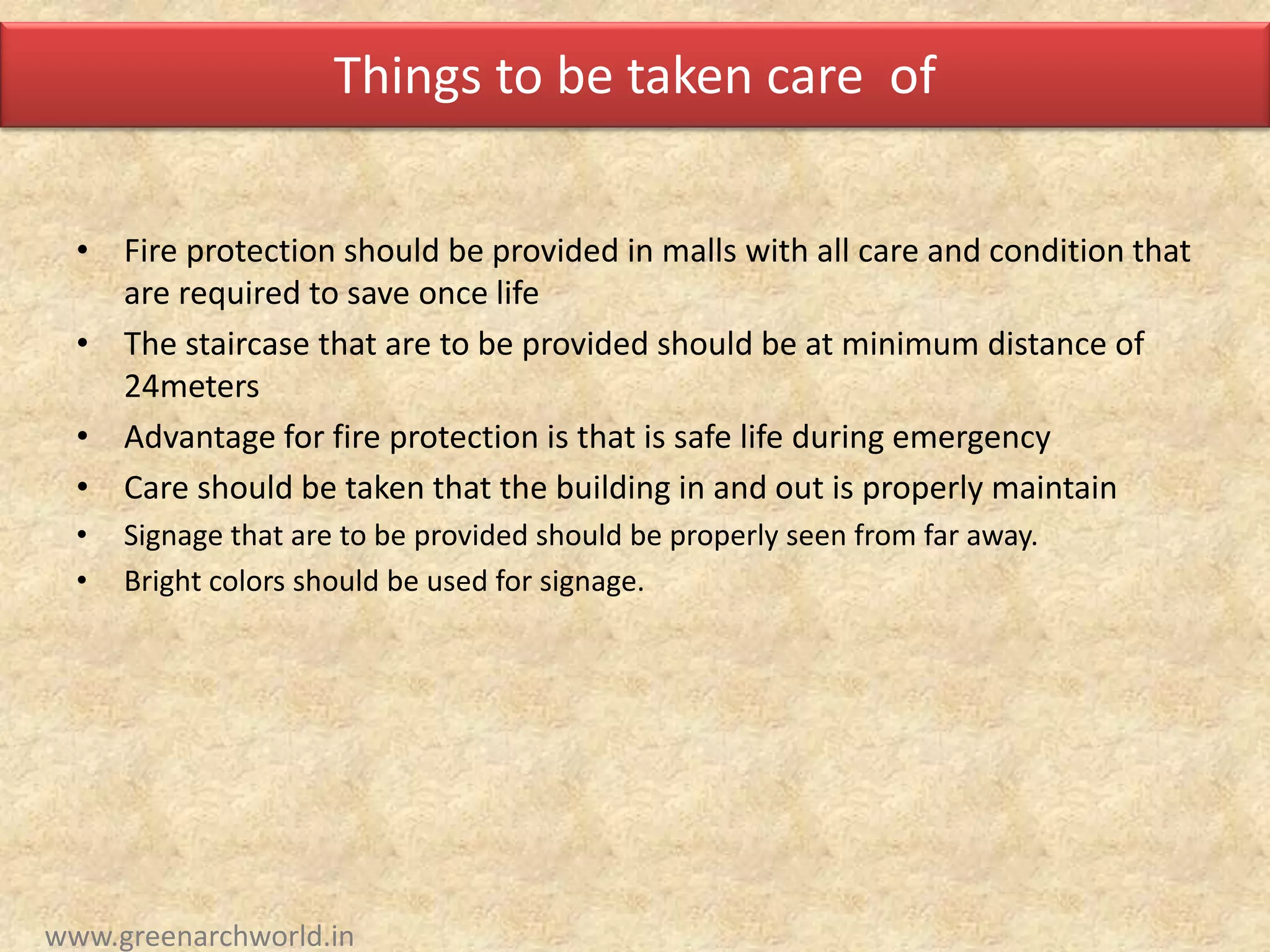

Things to be taken care of
• Fire protection should be provided in malls with all care and condition that
are required to save once life
• The staircase that are to be provided should be at minimum distance of
24meters
• Advantage for fire protection is that is safe life during emergency
• Care should be taken that the building in and out is properly maintain
• Signage that are to be provided should be properly seen from far away.
• Bright colors should be used for signage.
www.greenarchworld.in

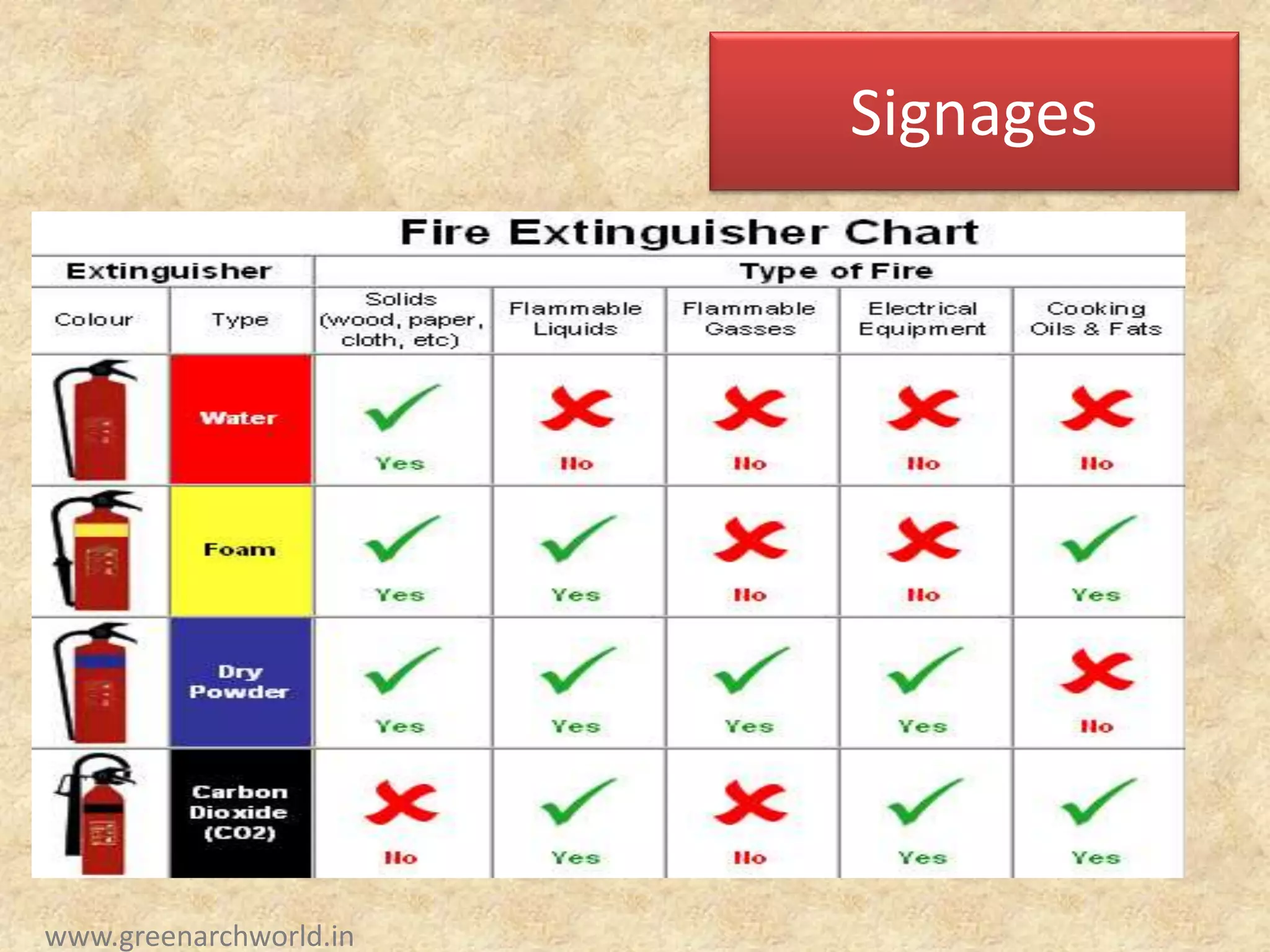

Signages
www.greenarchworld.in
www.greenarchworld.in
PROPOSALS AND INFERENCES
www.greenarchworld.in
LOCATION
•The distance between
Bandra fire station &
Globus is about 1 km.
•The average time for a
fire brigade to reach
Gobus will be about
15 min.
•The Fire-Fighting Access
is through the back
entrance.
•The Entrance connects
the main road 10 m wide
www.greenarchworld.in
SERVICE STAIRCASE
Clothes are the major fire load of the building and there is inadequate
storage of it especially in small store areas and in the service staircase.
These areas can be a possible fire hazard.
www.greenarchworld.in

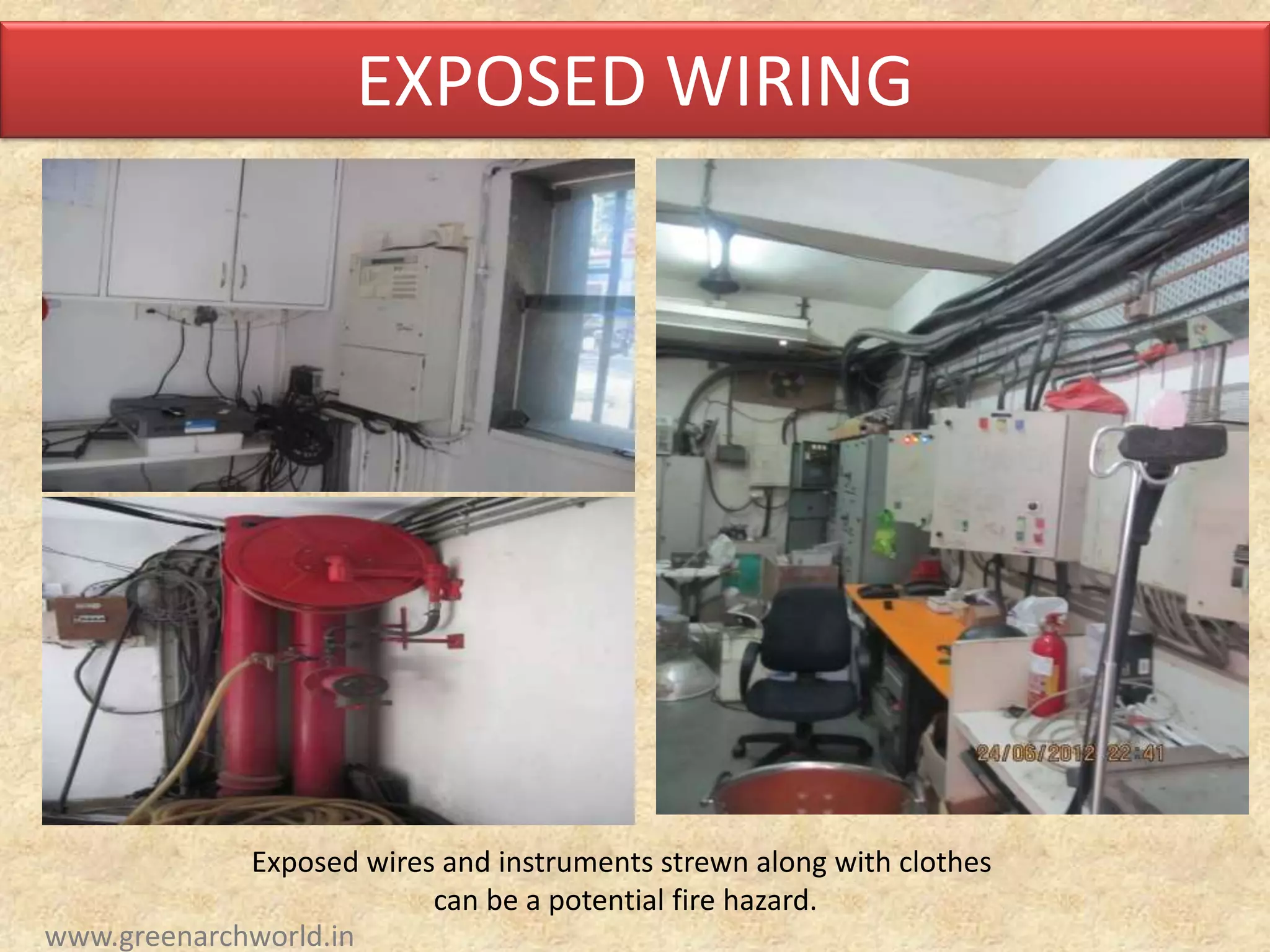

EXPOSED WIRING
Exposed wires and instruments strewn along with clothes
can be a potential fire hazard.
www.greenarchworld.in

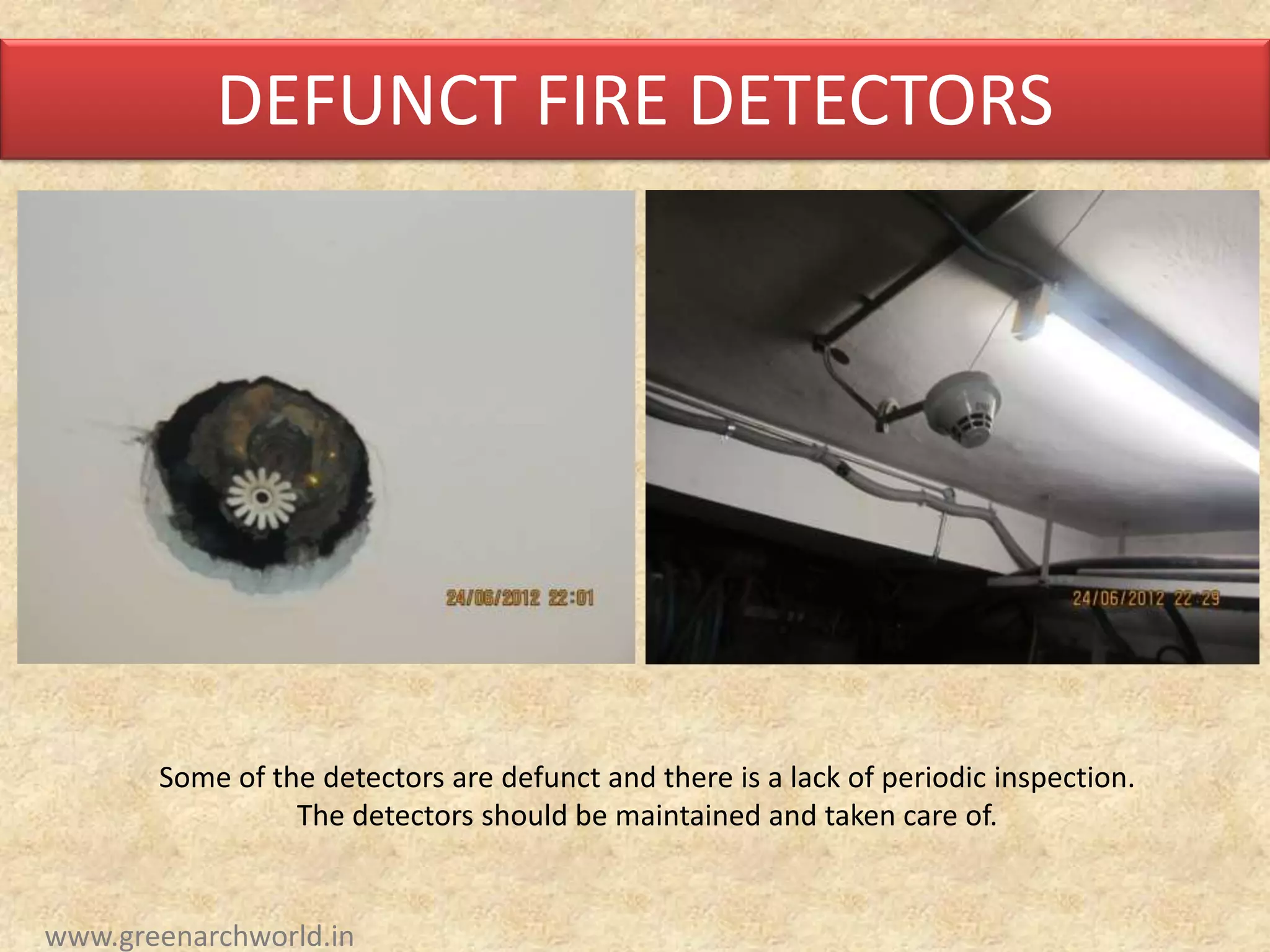

DEFUNCT FIRE DETECTORS
Some of the detectors are defunct and there is a lack of periodic inspection.
The detectors should be maintained and taken care of.
www.greenarchworld.in

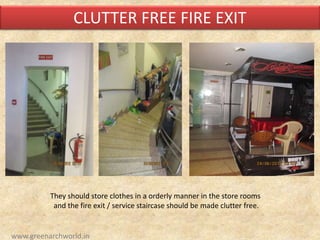

CLUTTER FREE FIRE EXIT
They should store clothes in a orderly manner in the store rooms
and the fire exit / service staircase should be made clutter free.
www.greenarchworld.in

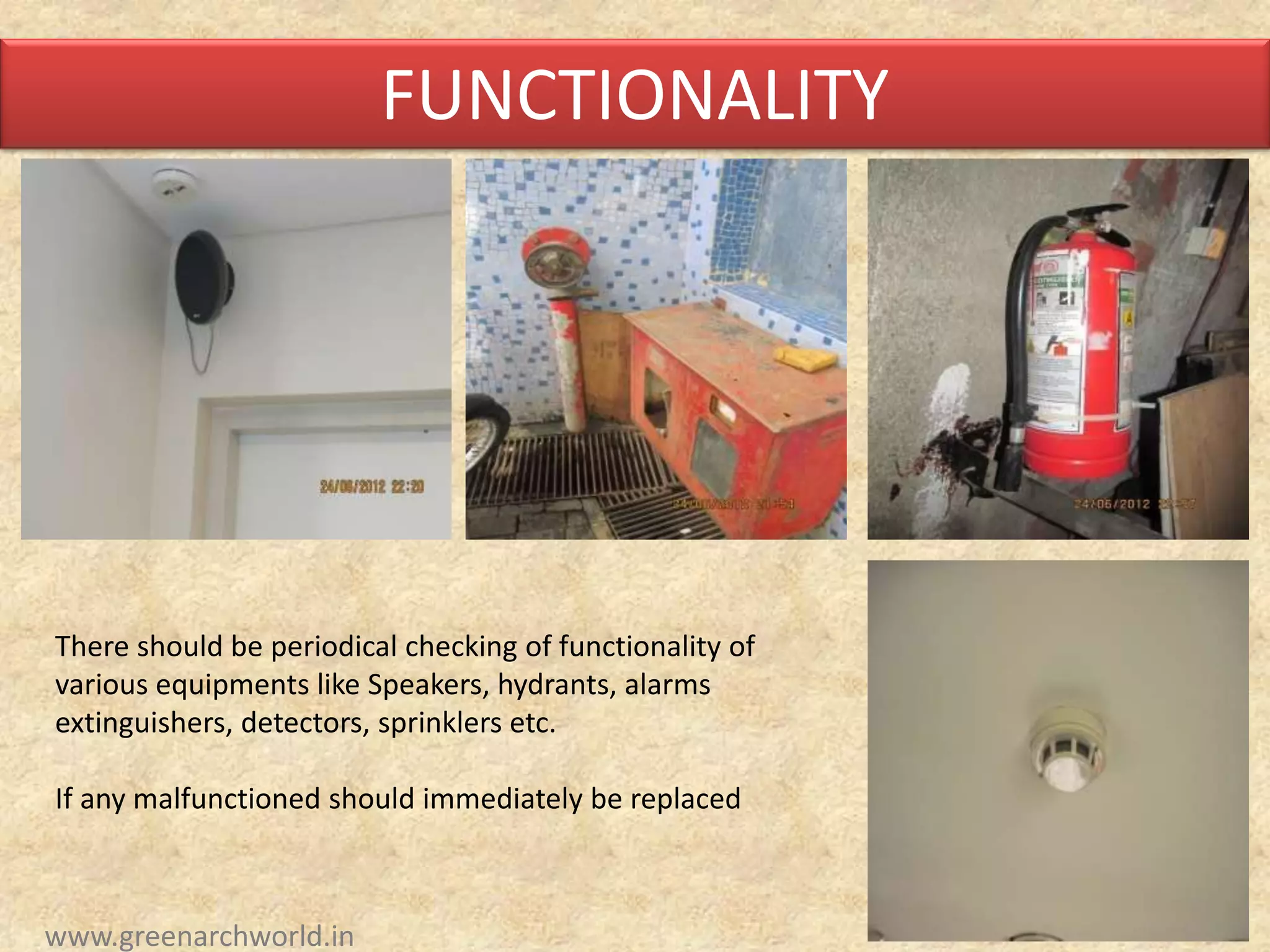

FUNCTIONALITY
There should be periodical checking of functionality of
various equipments like Speakers, hydrants, alarms
extinguishers, detectors, sprinklers etc.
If any malfunctioned should immediately be replaced
www.greenarchworld.in

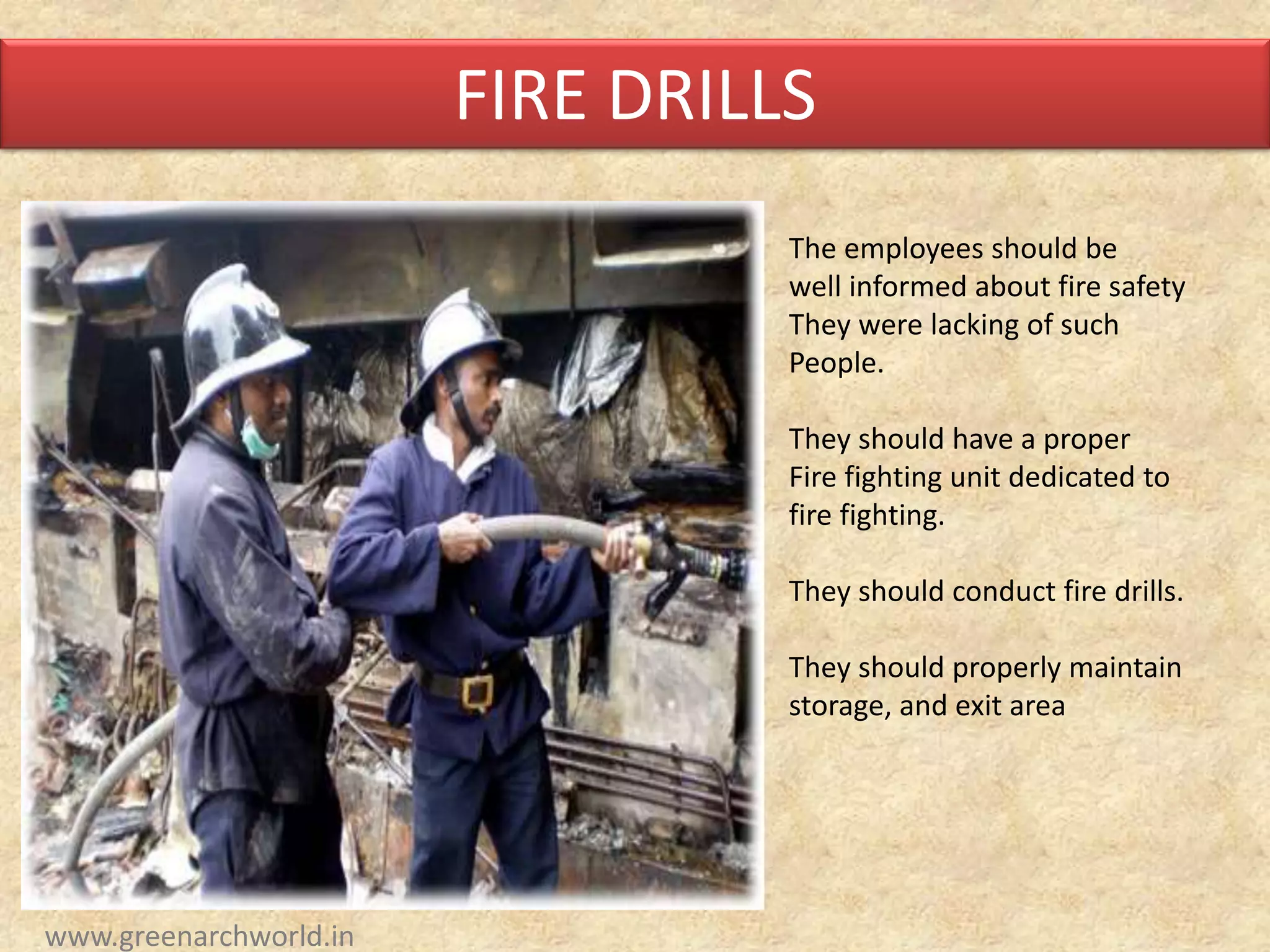

FIRE DRILLS
The employees should be
well informed about fire safety
They were lacking of such
People.
They should have a proper
Fire fighting unit dedicated to
fire fighting.
They should conduct fire drills.
They should properly maintain
storage, and exit area
www.greenarchworld.in
Thank you
Group members
• Rafay
• Esa
• Noopur
• Mubashshira
• Ninad
• Owesh
• Faiz
• Ishra
• Huzefa
www.greenarchworld.in

More Related Content

What's hot

Fire Fighting PPT
Fire Fighting PPTFire Fighting PPT
Fire Fighting PPT
SELVAN J

Fire fighting systems
Fire fighting systemsFire fighting systems
Fire fighting systems
Mark Mikhaiel

fire protection
fire protectionfire protection
fire protection
Akansha Batra

Fire alarm , detection and suppression system
Fire alarm , detection and suppression systemFire alarm , detection and suppression system
Fire alarm , detection and suppression system
Kamran Hassan

Fire Fighting system
Fire Fighting systemFire Fighting system
Fire Fighting system
RajyogFireServicesPv

Fire fighting active system
Fire fighting active systemFire fighting active system
Fire fighting active system
Noorule Inie Osman

Fire Fighting systems - Advanced Services
Fire Fighting systems - Advanced ServicesFire Fighting systems - Advanced Services
Fire Fighting systems - Advanced Services
Pratibha Mohan

Fire protection system
Fire protection systemFire protection system
Fire protection system
Deepak Thapa

Fire Fighting System
Fire Fighting SystemFire Fighting System
Fire Fighting System
Mahmoud Mandow

Fire hydrant system
Fire hydrant systemFire hydrant system
Fire hydrant system
FarahNaz96

Fire Hydrant System/Sprinkler System Fire Fighting Systems Fire Hydrant Syst...
Fire Hydrant System/Sprinkler System Fire Fighting Systems  Fire Hydrant Syst...Fire Hydrant System/Sprinkler System Fire Fighting Systems  Fire Hydrant Syst...
Fire Hydrant System/Sprinkler System Fire Fighting Systems Fire Hydrant Syst...
RajyogFireServicesPv

FIRE FIGHTING PRESENTATION
FIRE FIGHTING PRESENTATIONFIRE FIGHTING PRESENTATION
FIRE FIGHTING PRESENTATION
ASGHAR KHALIL

Fire safety arrangement
Fire safety arrangementFire safety arrangement
Fire & safety
Fire & safetyFire & safety
Fire & safety
Reliance

Fire fighting equipments
Fire fighting equipmentsFire fighting equipments
Fire fighting equipments
Simran Dhingra

Sprinkler system
Sprinkler systemSprinkler system
Sprinkler system
محمد طه أحمد

Fire fighting system
Fire fighting systemFire fighting system
Fire fighting system
Muhammad Kamran

Fire safety
Fire  safetyFire  safety
Fire safety
Saurabh Tiwari

Active and passive fire protection system
Active and passive fire protection systemActive and passive fire protection system
Active and passive fire protection system
Kamran Hassan

fire alarm system
 fire alarm system fire alarm system
fire alarm system
ashwitamane


What's hot (20)

Fire Fighting PPT
Fire Fighting PPTFire Fighting PPT
Fire Fighting PPT

Fire fighting systems
Fire fighting systemsFire fighting systems
Fire fighting systems

fire protection
fire protectionfire protection
fire protection

Fire alarm , detection and suppression system
Fire alarm , detection and suppression systemFire alarm , detection and suppression system
Fire alarm , detection and suppression system

Fire Fighting system
Fire Fighting systemFire Fighting system
Fire Fighting system

Fire fighting active system
Fire fighting active systemFire fighting active system
Fire fighting active system

Fire Fighting systems - Advanced Services
Fire Fighting systems - Advanced ServicesFire Fighting systems - Advanced Services
Fire Fighting systems - Advanced Services

Fire protection system
Fire protection systemFire protection system
Fire protection system

Fire Fighting System
Fire Fighting SystemFire Fighting System
Fire Fighting System

Fire hydrant system
Fire hydrant systemFire hydrant system
Fire hydrant system

Fire Hydrant System/Sprinkler System Fire Fighting Systems Fire Hydrant Syst...
Fire Hydrant System/Sprinkler System Fire Fighting Systems  Fire Hydrant Syst...Fire Hydrant System/Sprinkler System Fire Fighting Systems  Fire Hydrant Syst...
Fire Hydrant System/Sprinkler System Fire Fighting Systems Fire Hydrant Syst...

FIRE FIGHTING PRESENTATION
FIRE FIGHTING PRESENTATIONFIRE FIGHTING PRESENTATION
FIRE FIGHTING PRESENTATION

Fire safety arrangement
Fire safety arrangementFire safety arrangement
Fire safety arrangement

Fire & safety
Fire & safetyFire & safety
Fire & safety

Fire fighting equipments
Fire fighting equipmentsFire fighting equipments
Fire fighting equipments

Sprinkler system
Sprinkler systemSprinkler system
Sprinkler system

Fire fighting system
Fire fighting systemFire fighting system
Fire fighting system

Fire safety
Fire  safetyFire  safety
Fire safety

Active and passive fire protection system
Active and passive fire protection systemActive and passive fire protection system
Active and passive fire protection system

fire alarm system
 fire alarm system fire alarm system
fire alarm system


Viewers also liked

Fire safety in the Workplace
Fire safety in the WorkplaceFire safety in the Workplace
Fire safety in the Workplace
AlphaPlusChampion

Fire Safety Management
Fire Safety ManagementFire Safety Management
Fire Safety Management
Nc Das

Fire protection systems
Fire protection systemsFire protection systems
Fire protection systems
Her Riv

Fire fighting presentation
Fire  fighting presentationFire  fighting presentation
Fire fighting presentation
Raghunath Patil

Fire, flame & smoke detectors
Fire, flame & smoke detectorsFire, flame & smoke detectors
Fire, flame & smoke detectors
Akaash Sahoo

Provision for fire protection in high rise buildings
Provision for fire protection in high rise buildingsProvision for fire protection in high rise buildings
Provision for fire protection in high rise buildings
Aarti Rani

Wet Chemical vs. Water Sprinkler
Wet Chemical vs. Water SprinklerWet Chemical vs. Water Sprinkler
Wet Chemical vs. Water Sprinkler
Fire Equipment Manufacturers' Association

Wet chemical fire extinguisher220
Wet chemical  fire extinguisher220Wet chemical  fire extinguisher220
Wet chemical fire extinguisher220
syed fayaz ahmed

Types of fire extinguishers
Types of fire extinguishersTypes of fire extinguishers
Types of fire extinguishers
nur hannisa

Final Year Project on Fire Fighting systems
Final Year Project on Fire Fighting systemsFinal Year Project on Fire Fighting systems
Final Year Project on Fire Fighting systems
Naqash Kazmi

Top 10 Qualities Every Excellent Security Guard Should Have
Top 10 Qualities Every Excellent Security Guard Should HaveTop 10 Qualities Every Excellent Security Guard Should Have
Top 10 Qualities Every Excellent Security Guard Should Have
Grant Heanes

Fire drill procedure
Fire drill procedureFire drill procedure
Fire drill procedure
Maria Hidalgo

Run, Hide, Fight - Surviving an active Shooter event
Run, Hide, Fight - Surviving an active Shooter eventRun, Hide, Fight - Surviving an active Shooter event
Run, Hide, Fight - Surviving an active Shooter event
Talha Mehmood Khan Niazi

Factory security inspection, NAAFCO Pharma Limited and Shetu Pesticide Limited
Factory security inspection, NAAFCO Pharma Limited and Shetu Pesticide LimitedFactory security inspection, NAAFCO Pharma Limited and Shetu Pesticide Limited
Factory security inspection, NAAFCO Pharma Limited and Shetu Pesticide Limited
Fahim Goni

Factory Management
Factory ManagementFactory Management
Factory security and safety convex mirrors in Kenya
Factory security and safety convex mirrors in Kenya Factory security and safety convex mirrors in Kenya
Factory security and safety convex mirrors in Kenya
easyLive Systems Ltd

Risk Factory Information Security Coordination Challenges & Best Practice
Risk Factory Information Security Coordination Challenges & Best PracticeRisk Factory Information Security Coordination Challenges & Best Practice
Risk Factory Information Security Coordination Challenges & Best Practice
Risk Crew

Combustible Dust Safety 2017
Combustible Dust Safety 2017Combustible Dust Safety 2017
Combustible Dust Safety 2017
John Newquist

Swimming Pool Safety 2017
Swimming Pool Safety 2017 Swimming Pool Safety 2017
Swimming Pool Safety 2017
John Newquist

Safety Training Techniques 2017
Safety Training Techniques 2017Safety Training Techniques 2017
Safety Training Techniques 2017
John Newquist


Viewers also liked (20)

Fire safety in the Workplace
Fire safety in the WorkplaceFire safety in the Workplace
Fire safety in the Workplace

Fire Safety Management
Fire Safety ManagementFire Safety Management
Fire Safety Management

Fire protection systems
Fire protection systemsFire protection systems
Fire protection systems

Fire fighting presentation
Fire  fighting presentationFire  fighting presentation
Fire fighting presentation

Fire, flame & smoke detectors
Fire, flame & smoke detectorsFire, flame & smoke detectors
Fire, flame & smoke detectors

Provision for fire protection in high rise buildings
Provision for fire protection in high rise buildingsProvision for fire protection in high rise buildings
Provision for fire protection in high rise buildings

Wet Chemical vs. Water Sprinkler
Wet Chemical vs. Water SprinklerWet Chemical vs. Water Sprinkler
Wet Chemical vs. Water Sprinkler

Wet chemical fire extinguisher220
Wet chemical  fire extinguisher220Wet chemical  fire extinguisher220
Wet chemical fire extinguisher220

Types of fire extinguishers
Types of fire extinguishersTypes of fire extinguishers
Types of fire extinguishers

Final Year Project on Fire Fighting systems
Final Year Project on Fire Fighting systemsFinal Year Project on Fire Fighting systems
Final Year Project on Fire Fighting systems

Top 10 Qualities Every Excellent Security Guard Should Have
Top 10 Qualities Every Excellent Security Guard Should HaveTop 10 Qualities Every Excellent Security Guard Should Have
Top 10 Qualities Every Excellent Security Guard Should Have

Fire drill procedure
Fire drill procedureFire drill procedure
Fire drill procedure

Run, Hide, Fight - Surviving an active Shooter event
Run, Hide, Fight - Surviving an active Shooter eventRun, Hide, Fight - Surviving an active Shooter event
Run, Hide, Fight - Surviving an active Shooter event

Factory security inspection, NAAFCO Pharma Limited and Shetu Pesticide Limited
Factory security inspection, NAAFCO Pharma Limited and Shetu Pesticide LimitedFactory security inspection, NAAFCO Pharma Limited and Shetu Pesticide Limited
Factory security inspection, NAAFCO Pharma Limited and Shetu Pesticide Limited

Factory Management
Factory ManagementFactory Management
Factory Management

Factory security and safety convex mirrors in Kenya
Factory security and safety convex mirrors in Kenya Factory security and safety convex mirrors in Kenya
Factory security and safety convex mirrors in Kenya

Risk Factory Information Security Coordination Challenges & Best Practice
Risk Factory Information Security Coordination Challenges & Best PracticeRisk Factory Information Security Coordination Challenges & Best Practice
Risk Factory Information Security Coordination Challenges & Best Practice

Combustible Dust Safety 2017
Combustible Dust Safety 2017Combustible Dust Safety 2017
Combustible Dust Safety 2017

Swimming Pool Safety 2017
Swimming Pool Safety 2017 Swimming Pool Safety 2017
Swimming Pool Safety 2017

Safety Training Techniques 2017
Safety Training Techniques 2017Safety Training Techniques 2017
Safety Training Techniques 2017


Similar to Basics of Fire fighting

Fire Fighting and Solution for Globus Shopping Mall (bandra)
Fire Fighting and Solution for Globus Shopping  Mall (bandra)Fire Fighting and Solution for Globus Shopping  Mall (bandra)
Fire Fighting and Solution for Globus Shopping Mall (bandra)
Esa Shaikh

fire fitghing.pptx
fire fitghing.pptxfire fitghing.pptx
fire fitghing.pptx
AmitKumar19931

Fire system.pdf
Fire system.pdfFire system.pdf
Fire system.pdf
SumitJadoun

Fire protection system...
Fire protection system...Fire protection system...
Fire protection system...
AnkitaGorhe

FIRE FIGHTING Syllabus for for suppresion.pdf
FIRE FIGHTING Syllabus for for suppresion.pdfFIRE FIGHTING Syllabus for for suppresion.pdf
FIRE FIGHTING Syllabus for for suppresion.pdf
Kj Aswin

57910334-5-MEP-Fire-Protection-rev.ppt
57910334-5-MEP-Fire-Protection-rev.ppt57910334-5-MEP-Fire-Protection-rev.ppt
57910334-5-MEP-Fire-Protection-rev.ppt
Mohd Zulhairi Mohd Noor

Building Services II Presentation Slides
Building Services II Presentation SlidesBuilding Services II Presentation Slides
Building Services II Presentation Slides
ashleyyeap

Fire Protection Systems Areeba Siddiqui.pptx
Fire Protection Systems Areeba Siddiqui.pptxFire Protection Systems Areeba Siddiqui.pptx
Fire Protection Systems Areeba Siddiqui.pptx
Areeba Siddiqui

PALLADIUM SAFETY SOLUTIONS Pvt Ltd
PALLADIUM SAFETY SOLUTIONS Pvt LtdPALLADIUM SAFETY SOLUTIONS Pvt Ltd
PALLADIUM SAFETY SOLUTIONS Pvt Ltd
Ehsan Khan

Bs ii presentation slides
Bs ii   presentation slidesBs ii   presentation slides
Bs ii presentation slides
Arissa Loh

Fire Protection Notes PPT.pdf
Fire Protection Notes PPT.pdfFire Protection Notes PPT.pdf
Fire Protection Notes PPT.pdf
Rishu76

Fire safety
Fire safety Fire safety
Fire safety
Annapurna Sakhardande

disaster management
 disaster management disaster management
disaster management
Surpal Zala

FIRE SAFETY - Anoushka Aggarwal
FIRE SAFETY - Anoushka AggarwalFIRE SAFETY - Anoushka Aggarwal
FIRE SAFETY - Anoushka Aggarwal
ANOUSHKAAggarwal

lecture 11 fire fighting.ppt
lecture 11 fire fighting.pptlecture 11 fire fighting.ppt
lecture 11 fire fighting.ppt
SanskritiJindal4

MODULE - 5 (2).pdf
MODULE - 5 (2).pdfMODULE - 5 (2).pdf
MODULE - 5 (2).pdf
lakshmiachayath

a-one fire(Fire saftey Services)
a-one fire(Fire saftey Services)a-one fire(Fire saftey Services)
a-one fire(Fire saftey Services)
Aonefire

Globus shopping mall
Globus shopping mallGlobus shopping mall
Globus shopping mall
SaloniHosmani

GEWINN Company Profile
GEWINN Company ProfileGEWINN Company Profile
GEWINN Company Profile
Dinesh Kumar

FIRE PREVENTION & FIRE FIGHTING EQUIPMENT.pptx
FIRE PREVENTION & FIRE FIGHTING EQUIPMENT.pptxFIRE PREVENTION & FIRE FIGHTING EQUIPMENT.pptx
FIRE PREVENTION & FIRE FIGHTING EQUIPMENT.pptx
8006467070


Similar to Basics of Fire fighting (20)

Fire Fighting and Solution for Globus Shopping Mall (bandra)
Fire Fighting and Solution for Globus Shopping  Mall (bandra)Fire Fighting and Solution for Globus Shopping  Mall (bandra)
Fire Fighting and Solution for Globus Shopping Mall (bandra)

fire fitghing.pptx
fire fitghing.pptxfire fitghing.pptx
fire fitghing.pptx

Fire system.pdf
Fire system.pdfFire system.pdf
Fire system.pdf

Fire protection system...
Fire protection system...Fire protection system...
Fire protection system...

FIRE FIGHTING Syllabus for for suppresion.pdf
FIRE FIGHTING Syllabus for for suppresion.pdfFIRE FIGHTING Syllabus for for suppresion.pdf
FIRE FIGHTING Syllabus for for suppresion.pdf

57910334-5-MEP-Fire-Protection-rev.ppt
57910334-5-MEP-Fire-Protection-rev.ppt57910334-5-MEP-Fire-Protection-rev.ppt
57910334-5-MEP-Fire-Protection-rev.ppt

Building Services II Presentation Slides
Building Services II Presentation SlidesBuilding Services II Presentation Slides
Building Services II Presentation Slides

Fire Protection Systems Areeba Siddiqui.pptx
Fire Protection Systems Areeba Siddiqui.pptxFire Protection Systems Areeba Siddiqui.pptx
Fire Protection Systems Areeba Siddiqui.pptx

PALLADIUM SAFETY SOLUTIONS Pvt Ltd
PALLADIUM SAFETY SOLUTIONS Pvt LtdPALLADIUM SAFETY SOLUTIONS Pvt Ltd
PALLADIUM SAFETY SOLUTIONS Pvt Ltd

Bs ii presentation slides
Bs ii   presentation slidesBs ii   presentation slides
Bs ii presentation slides

Fire Protection Notes PPT.pdf
Fire Protection Notes PPT.pdfFire Protection Notes PPT.pdf
Fire Protection Notes PPT.pdf

Fire safety
Fire safety Fire safety
Fire safety

disaster management
 disaster management disaster management
disaster management

FIRE SAFETY - Anoushka Aggarwal
FIRE SAFETY - Anoushka AggarwalFIRE SAFETY - Anoushka Aggarwal
FIRE SAFETY - Anoushka Aggarwal

lecture 11 fire fighting.ppt
lecture 11 fire fighting.pptlecture 11 fire fighting.ppt
lecture 11 fire fighting.ppt

MODULE - 5 (2).pdf
MODULE - 5 (2).pdfMODULE - 5 (2).pdf
MODULE - 5 (2).pdf

a-one fire(Fire saftey Services)
a-one fire(Fire saftey Services)a-one fire(Fire saftey Services)
a-one fire(Fire saftey Services)

Globus shopping mall
Globus shopping mallGlobus shopping mall
Globus shopping mall

GEWINN Company Profile
GEWINN Company ProfileGEWINN Company Profile
GEWINN Company Profile

FIRE PREVENTION & FIRE FIGHTING EQUIPMENT.pptx
FIRE PREVENTION & FIRE FIGHTING EQUIPMENT.pptxFIRE PREVENTION & FIRE FIGHTING EQUIPMENT.pptx
FIRE PREVENTION & FIRE FIGHTING EQUIPMENT.pptx


More from GAW Consultants

Standardization of Door Systems
Standardization of Door SystemsStandardization of Door Systems
Standardization of Door Systems
GAW Consultants

New developments in construction technology
New developments in construction technologyNew developments in construction technology
New developments in construction technology
GAW Consultants

Architectural - Detail Design Drawings | Floor Plans
Architectural - Detail Design Drawings | Floor PlansArchitectural - Detail Design Drawings | Floor Plans
Architectural - Detail Design Drawings | Floor Plans
GAW Consultants

Art deco
Art decoArt deco
Art deco
GAW Consultants

Project 6 and archipelago 21
Project 6 and archipelago 21Project 6 and archipelago 21
Project 6 and archipelago 21
GAW Consultants

Landscape
LandscapeLandscape
Landscape
GAW Consultants

Sustainability ecotect analysis
Sustainability ecotect analysisSustainability ecotect analysis
Sustainability ecotect analysis
GAW Consultants

The new holocaust history museum 2
The new holocaust history museum 2The new holocaust history museum 2
The new holocaust history museum 2
GAW Consultants


More from GAW Consultants (8)

Standardization of Door Systems
Standardization of Door SystemsStandardization of Door Systems
Standardization of Door Systems

New developments in construction technology
New developments in construction technologyNew developments in construction technology
New developments in construction technology

Architectural - Detail Design Drawings | Floor Plans
Architectural - Detail Design Drawings | Floor PlansArchitectural - Detail Design Drawings | Floor Plans
Architectural - Detail Design Drawings | Floor Plans

Art deco
Art decoArt deco
Art deco

Project 6 and archipelago 21
Project 6 and archipelago 21Project 6 and archipelago 21
Project 6 and archipelago 21

Landscape
LandscapeLandscape
Landscape

Sustainability ecotect analysis
Sustainability ecotect analysisSustainability ecotect analysis
Sustainability ecotect analysis

The new holocaust history museum 2
The new holocaust history museum 2The new holocaust history museum 2
The new holocaust history museum 2


Recently uploaded

The Death of Slim Shady HatThe Death of Slim Shady Hat
The Death of Slim Shady HatThe Death of Slim Shady HatThe Death of Slim Shady HatThe Death of Slim Shady Hat
The Death of Slim Shady HatThe Death of Slim Shady Hat
TeeFusion

Temple Architecture in India - 9 major styles · UPSCprep.com.pdf
Temple Architecture in India - 9 major styles · UPSCprep.com.pdfTemple Architecture in India - 9 major styles · UPSCprep.com.pdf
Temple Architecture in India - 9 major styles · UPSCprep.com.pdf
taradcunha

Catálogo Platos Ducha Sanycces 2024 Amado Salvador distribuidor oficial Valencia
Catálogo Platos Ducha Sanycces 2024 Amado Salvador distribuidor oficial ValenciaCatálogo Platos Ducha Sanycces 2024 Amado Salvador distribuidor oficial Valencia
Catálogo Platos Ducha Sanycces 2024 Amado Salvador distribuidor oficial Valencia
AMADO SALVADOR

Product And Design Portfolio - Hemant Nagwekar 2024
Product And Design Portfolio - Hemant Nagwekar 2024Product And Design Portfolio - Hemant Nagwekar 2024
Product And Design Portfolio - Hemant Nagwekar 2024
Hemant Nagwekar

Vista Fashions Outdoor Awnings Brochure.
Vista Fashions Outdoor Awnings Brochure.Vista Fashions Outdoor Awnings Brochure.
Vista Fashions Outdoor Awnings Brochure.
Vista Fashions

Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
45unexpected

GRID integration of Wind energy conversion system
GRID integration of Wind energy conversion systemGRID integration of Wind energy conversion system
GRID integration of Wind energy conversion system
sulabhsachan

Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City
Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in CityIndore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City
Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City
bookneha89

New PPT Template for operations on field.pptx
New PPT Template for operations on field.pptxNew PPT Template for operations on field.pptx
New PPT Template for operations on field.pptx
hicham benkhelifa

Topup Girls Call Indore 000XX00000 Provide Best And Top Girl Service And No1 ...
Topup Girls Call Indore 000XX00000 Provide Best And Top Girl Service And No1 ...Topup Girls Call Indore 000XX00000 Provide Best And Top Girl Service And No1 ...
Topup Girls Call Indore 000XX00000 Provide Best And Top Girl Service And No1 ...
monikaservice00

Vip Today Girls Call Indore 000XX00000 Provide Best And Top Girl Service And ...
Vip Today Girls Call Indore 000XX00000 Provide Best And Top Girl Service And ...Vip Today Girls Call Indore 000XX00000 Provide Best And Top Girl Service And ...
Vip Today Girls Call Indore 000XX00000 Provide Best And Top Girl Service And ...
monikaservice00

BBW Girls Call Mumbai 9967584737 Provide Best And Top Girl Service And No1 in...
BBW Girls Call Mumbai 9967584737 Provide Best And Top Girl Service And No1 in...BBW Girls Call Mumbai 9967584737 Provide Best And Top Girl Service And No1 in...
BBW Girls Call Mumbai 9967584737 Provide Best And Top Girl Service And No1 in...
khloe sexy girl

Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
ailynolive

Enemy Encounter Standards for Hogwarts Legacy
Enemy Encounter Standards for Hogwarts LegacyEnemy Encounter Standards for Hogwarts Legacy
Enemy Encounter Standards for Hogwarts Legacy
AidanOKeefe2

Building Accessibility into your Design Systems
Building Accessibility into your Design SystemsBuilding Accessibility into your Design Systems
Building Accessibility into your Design Systems
Resolute

Russian Girls Call Delhi 🛵🚡9711199171 💃 Choose Best And Top Girl Service And ...
Russian Girls Call Delhi 🛵🚡9711199171 💃 Choose Best And Top Girl Service And ...Russian Girls Call Delhi 🛵🚡9711199171 💃 Choose Best And Top Girl Service And ...
Russian Girls Call Delhi 🛵🚡9711199171 💃 Choose Best And Top Girl Service And ...
kimmi singla$A17

Ghhhhhgggfffgggghhjjhytrrffffggggggggggggg
GhhhhhgggfffgggghhjjhytrrffffgggggggggggggGhhhhhgggfffgggghhjjhytrrffffggggggggggggg
Ghhhhhgggfffgggghhjjhytrrffffggggggggggggg
LaraibIrshad8

Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City
Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in CityIndore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City
Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City
bookneha89

High End Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service ...
High End Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service ...High End Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service ...
High End Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service ...
sharonblush

Girls Call Indore ❤ 9800★00002 ❤ VIP Neha Singla Top Model Safe
Girls Call Indore ❤ 9800★00002 ❤ VIP Neha Singla Top Model SafeGirls Call Indore ❤ 9800★00002 ❤ VIP Neha Singla Top Model Safe
Girls Call Indore ❤ 9800★00002 ❤ VIP Neha Singla Top Model Safe
bookkdreambebe


Recently uploaded (20)

The Death of Slim Shady HatThe Death of Slim Shady Hat
The Death of Slim Shady HatThe Death of Slim Shady HatThe Death of Slim Shady HatThe Death of Slim Shady Hat
The Death of Slim Shady HatThe Death of Slim Shady Hat

Temple Architecture in India - 9 major styles · UPSCprep.com.pdf
Temple Architecture in India - 9 major styles · UPSCprep.com.pdfTemple Architecture in India - 9 major styles · UPSCprep.com.pdf
Temple Architecture in India - 9 major styles · UPSCprep.com.pdf

Catálogo Platos Ducha Sanycces 2024 Amado Salvador distribuidor oficial Valencia
Catálogo Platos Ducha Sanycces 2024 Amado Salvador distribuidor oficial ValenciaCatálogo Platos Ducha Sanycces 2024 Amado Salvador distribuidor oficial Valencia
Catálogo Platos Ducha Sanycces 2024 Amado Salvador distribuidor oficial Valencia

Product And Design Portfolio - Hemant Nagwekar 2024
Product And Design Portfolio - Hemant Nagwekar 2024Product And Design Portfolio - Hemant Nagwekar 2024
Product And Design Portfolio - Hemant Nagwekar 2024

Vista Fashions Outdoor Awnings Brochure.
Vista Fashions Outdoor Awnings Brochure.Vista Fashions Outdoor Awnings Brochure.
Vista Fashions Outdoor Awnings Brochure.

Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Private Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...

GRID integration of Wind energy conversion system
GRID integration of Wind energy conversion systemGRID integration of Wind energy conversion system
GRID integration of Wind energy conversion system

Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City
Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in CityIndore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City
Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City

New PPT Template for operations on field.pptx
New PPT Template for operations on field.pptxNew PPT Template for operations on field.pptx
New PPT Template for operations on field.pptx

Topup Girls Call Indore 000XX00000 Provide Best And Top Girl Service And No1 ...
Topup Girls Call Indore 000XX00000 Provide Best And Top Girl Service And No1 ...Topup Girls Call Indore 000XX00000 Provide Best And Top Girl Service And No1 ...
Topup Girls Call Indore 000XX00000 Provide Best And Top Girl Service And No1 ...

Vip Today Girls Call Indore 000XX00000 Provide Best And Top Girl Service And ...
Vip Today Girls Call Indore 000XX00000 Provide Best And Top Girl Service And ...Vip Today Girls Call Indore 000XX00000 Provide Best And Top Girl Service And ...
Vip Today Girls Call Indore 000XX00000 Provide Best And Top Girl Service And ...

BBW Girls Call Mumbai 9967584737 Provide Best And Top Girl Service And No1 in...
BBW Girls Call Mumbai 9967584737 Provide Best And Top Girl Service And No1 in...BBW Girls Call Mumbai 9967584737 Provide Best And Top Girl Service And No1 in...
BBW Girls Call Mumbai 9967584737 Provide Best And Top Girl Service And No1 in...

Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Private Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...

Enemy Encounter Standards for Hogwarts Legacy
Enemy Encounter Standards for Hogwarts LegacyEnemy Encounter Standards for Hogwarts Legacy
Enemy Encounter Standards for Hogwarts Legacy

Building Accessibility into your Design Systems
Building Accessibility into your Design SystemsBuilding Accessibility into your Design Systems
Building Accessibility into your Design Systems

Russian Girls Call Delhi 🛵🚡9711199171 💃 Choose Best And Top Girl Service And ...
Russian Girls Call Delhi 🛵🚡9711199171 💃 Choose Best And Top Girl Service And ...Russian Girls Call Delhi 🛵🚡9711199171 💃 Choose Best And Top Girl Service And ...
Russian Girls Call Delhi 🛵🚡9711199171 💃 Choose Best And Top Girl Service And ...

Ghhhhhgggfffgggghhjjhytrrffffggggggggggggg
GhhhhhgggfffgggghhjjhytrrffffgggggggggggggGhhhhhgggfffgggghhjjhytrrffffggggggggggggg
Ghhhhhgggfffgggghhjjhytrrffffggggggggggggg

Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City
Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in CityIndore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City
Indore Girls Call 000XX00000 Provide Best And Top Girl Service And No1 in City

High End Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service ...
High End Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service ...High End Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service ...
High End Girls Call Navi Mumbai 9930245274 Provide Best And Top Girl Service ...

Girls Call Indore ❤ 9800★00002 ❤ VIP Neha Singla Top Model Safe
Girls Call Indore ❤ 9800★00002 ❤ VIP Neha Singla Top Model SafeGirls Call Indore ❤ 9800★00002 ❤ VIP Neha Singla Top Model Safe
Girls Call Indore ❤ 9800★00002 ❤ VIP Neha Singla Top Model Safe


Basics of Fire fighting

  • 1. Fire Fighting Of Shopping Plaza 4th year Rizvi college of architecture www.greenarchworld.in
  • 2. Index • Causes of fires In the mall. • Types of Fire Fighting in a mall. • New ways f Fire Fighting. www.greenarchworld.in
  • 3. FIRE ESCAPE A fire escape is a special kind of emergency exit, usually mounted to the outside of a building or occasionally inside but separate from the main areas of the building. It provides a method of escape in the event of a fire or other emergency that makes the stairwells inside a building inaccessible. www.greenarchworld.in
  • 4. STAIRCASES SIZE – 2M WIDE MATERIAL – GRANITE www.greenarchworld.in
  • 5. SIGNAGES/DIRECTIONS Proper signage's and directions were provided on each floor. www.greenarchworld.in
  • 6. MISSUSE OF STAIRCASE •Improper storage of flammable materials in fire escape staircase. •Hose reel system adjacent to the staircase. •Curved design makes its inefficient for use as a fire safety staircase. www.greenarchworld.in
  • 7. FIRE EXITS •Fire Exist doors are opened by a push bar. •Speaker were provided on fire exist for guidance in case of emergency. www.greenarchworld.in
  • 8. VENTILATION •Glass ventilators on either side of the staircase. •Smoke outlets/ventilation system from basement. www.greenarchworld.in
  • 11.  A smoke detector is a device that detects smoke, typically as an indicator of fire.  Smoke detectors are typically housed in a disk-shaped plastic enclosure about 150 millimetres (6 in) in diameter and 25 millimetres (1 in) thick,  Most smoke detectors work either by optical detection (photoelectric) or by physical process (ionization), while others use both detection methods to increase sensitivity to smoke.  Smoke detectors in large commercial, industrial, and residential buildings are usually powered by a central fire alarm system, which is powered by the building power with a battery backup. SMOKE DETECTORS www.greenarchworld.in
  • 12. TYPES OF SMOKE DETECTORS PHOTOELECTRIC :In this type principle of reflected or scattered light is used to indicate the presence of visual smoke. IONIZATION: In this type radioactive source is used to ionize the air within sensing chambers. www.greenarchworld.in
  • 13. PHOTOELECTRIC DETECTOR A pulsed light beam from a light-emitting diode (LED) with its associated optics is projected across the interior of a blackened chamber that may contain smoke to be detected. A photocell, with its optics, looks toward the projected beam along a line perpendicular to the beam. When smoke enters the chamber, the smoke particles reflect a small portion of the light beam toward the photocell, which provides a voltage to be amplified and causes an alarm. The light source may be monitored ahead of the smoke chamber and regulated to prevent variation of the light intensity from causing erratic detector behavior. www.greenarchworld.in
  • 14. IONIZATION DETECTOR • A small amount of radioactive material ionizes the air inside a chamber that is open to the ambient air. • A measured, small electrical current is allowed to flow through the ionized air. • The small, solid particle products of combustion that enter the chamber as a result of fire interfere with the normal movement of ions (current), and when the current drops low enough, an alarm results. • A two-position switch to control sensitivity may be provided. www.greenarchworld.in
  • 15. Ionization detector Photoelectric detector www.greenarchworld.in
  • 16. Heat and Smoke Vents •Heat and Smoke Vents are installed in buildings as an active fire protection measure •They are openings in the roof which are intended to vent the heat and smoke developed by a fire inside the building by the action of buoyancy, such that they are known as "gravity vents". www.greenarchworld.in
  • 17. Reasons to install vents • Storage occupancies - The heat release rate from high piled storage commodities is expected to be very high. In such cases, it is considered by some fire protection professionals desirable to vent the heat from the building if the temperatures in the building reaches sufficiently high levels to endanger the structural stability of the roof system. • Smoke venting is also considered to provide a minor benefit to increase the visibility in the interior space to facilitate manual fire fighting efforts for a limited period of time. • The use of vents in sprinklered buildings has been controversial over the last 25 years. Vent technology and sprinkler technology were developed independently of one another. Their interaction as beneficial technologies working together has not been successfully demonstrated. Many fire protection professionals are concerned that vents may cause sprinkler systems to fail to control a fire. • Large internal volume spaces – Venting smoke from large spaces which regularly contain large numbers of people, such as malls and atria www.greenarchworld.in
  • 18. Types of vents Automatic heat and smoke vents are available commercially in two general categories. • Mechanically opened vent, powered by springs, pneumatic actuator, or electric motor. • Drop-out vent – constructed of plastic which shrinks in the presence of heat (i.e., drop-out panel). www.greenarchworld.in
  • 19. An area of refuge is a location in a building designed to hold occupants during a fire or other emergency, when evacuation may not be safe or possible. Occupants can wait there until firefighters come to rescue them. This can apply to the following: •any persons who cannot access a safe escape route •any persons assisting another person who is prevented from escaping •patients in a hospital •sick people •people with disabilities •old people •very young children or infants •medical personnel who may be operating on a patient at the time of the emergency •operators in a nuclear power station Refuge Area www.greenarchworld.in
  • 20. Technical requirements • An area of refuge is typically equipped with a steady supply of fresh outside air. • The ducting that must supply such fresh air is referred to as pressurisation ductwork. • Such ductwork are items of passive fire protection, , • The idea is that the ductwork must remain operable even while exposed to fire for a duration stipulated for each occupancy by the local building code. • A two way communication system is required on each floor above or below the main floor in a newly constructed building. • A call box is required in each area of refuge which will call into a central location called a base station. If the station is not attended 24 hours a day, the call must automatically call to an outside location and have two-way voice person to person communication capabilities. www.greenarchworld.in
  • 21. SPRINKLER SYSTEMS- A fire sprinkler system is an active fire protection measure, consisting of a water supply system, providing adequate pressure and flow rate to a water distribution piping system, onto which fire sprinklers are connected. Sprinkler systems provide early fire control or extinguishment, helping to mitigate the hazards for occupants and firefighters alike. TYPES OF SPRINKLER SYSTEMS Standpipe system Wet standpipe system Dry standpipe- system SYSTEMS FOR FIRE EXTINGUISHING www.greenarchworld.in
  • 22. • Carbon Dioxide Fire Extinguisher: Carbon Dioxide extinguishers contain pressurized liquid carbon dioxide, which turns to gas when expelled. Of particular importance if the fire protection is needed in areas with sensitive electronic equipment. Effective on Class B or C fires. • Class D Fire Extinguisher: Class D Fire is one that involves combustible metals or combustible metal alloys. There are basically two types of Class D fire extinguishers. The extinguishing agent for type 1 Class D is Sodium Chloride. The extinguishing agent for type 2 Class D is a copper based dry powder. www.greenarchworld.in
  • 23. • Clean Agent Fire Extinguisher: Like CO2 , clean agent fire extinguishers store agent as a liquid, which turns to gas when it hits the air. Effective on Class A, B, and C fires. • Water Mist Fire Extinguisher: Water Mist fire extinguishers are environmentally friendly, clean, and easy to use. Water Mist fire extinguishers have no ODP (ozone depletion potential), no environmental concerns about its atmospheric life, and it has no toxic products of decomposition. Perfect for Class A fires, especially where a potential Class C (electrical) hazard exists. www.greenarchworld.in
  • 24. • Water & Foam Stored Pressure Fire Extinguisher: Stored pressure water fire extinguishers extinguish fires by providing a cooling, soaking stream of water. Effective for a Class A fire. AFFF Foam fire extinguishers are typically used to fight Class B fires, but are rated to fight Class A fires as well. FFFP Foam fire extinguishers are also Class A:B rated. FFFP foam is alcohol resistant and is effective on a wide variety of Class B materials • Class K Wet Chemical Fire Extinguisher: Purple K extinguishers contain specially fluidized and siliconized potassium bicarbonate dry chemical which is particularly effective on Class B. Wet Chemical fire extinguishers are the best restaurant kitchen appliance. • Wheeled Unit Fire Extinguisher: A wheeled fire extinguisher is designed with a larger fire in mind. A wheeled unit allows the fire extinguisher operator to transport a larger cylinder to the location of a fire. www.greenarchworld.in
  • 26. HEAT DETECTORS • A heat detector is a fire alarm device designed to respond • when the convected thermal energy of a fire increases the temperature of a heat sensitive element. The thermal mass and conductivity of the element regulate the rate flow of heat into the element. All heat detectors have this thermal lag. Heat detectors have two main classifications of operation, "rate-of-rise" and "fixed temperature." www.greenarchworld.in
  • 27. Hose reel system is intended for the occupant to use during the early stages of a fire and comprises hose reel pumps, fire storage tank, hose reels, pip work and valves. A typical hose reel installation is shown. Hose Reel System www.greenarchworld.in
  • 28. Types of Hose: AttackHose is a fabric-covered, bring water from the fire pumper to the nozzle. This hose ranges in nominal inside diameter from1.5 to 3 in (38 to 76 mm) and is designed to operate at pressures up to about 400 psi (2,760 kPa). The standard length is 50 ft. (15.24 m). Supply and relay Hose is large-diameter, fabric-covered, bring water from a distant hydrant to the fire pumper or to relay water from one pumper to another over a long distance. These hoses range in nominal inside diameter from 3.5 to 5.0 in (89 to 127 mm). They are designed to operate at pressures up to about 300 psi (2,070 kPa) for the smaller diameters and up to 200 psi (1,380 kPa) for the larger diameters. The standard length is 100 ft. (30.48 m) Forestry Hose is a fabric-covered, used to fight fires in grass, brush, and trees where a lightweight hose is needed in order to maneuverer it over steep or rough terrain. Forestry hose comes in 1.0 and 1.5 in (25 and 38 mm) nominal inside diameters and is designed to operate at pressures up to about 450 psi (3,100 kPa). The standard length is 100 ft. (30.48 m). www.greenarchworld.in
  • 29. Booster Hose is a rubber-covered, thick-walled used to fight small fires. Booster hose comes in 0.75 and 1.0 in (19 and 25 mm) nominal inside diameters and is designed to operate at pressures up to 800 psi (5,520 kPa). The standard length is 100 ft. (30.48 m). Suction Hose or Hard Suction is a rubber-covered, semi-rigid hose with internal metal reinforcements. It is used to suck water out of unpressurized sources, such as ponds or rivers, by means of a vacuum. Suction hose ranges in nominal inside diameter from 2.5 to 6.0 in (64 to 152 mm). The standard length is 10 ft (3.05 m). www.greenarchworld.in
  • 30. Standpipe A standpipe is a type of rigid water piping which is built into multi-story buildings in a vertical position, to which fire hoses can be connected. Standpipes classes are as follows: • Class I system. A system providing 2 1 2-inch (64mm) hose connections to supply water for use by fire departments and in handling heavy fire steams. • Class II system. A system providing 11 2-inch (38mm) hose connection to supply water for use by the fire department during initial response. • Class III system. A system providing both 11 2-inch (38mm) and 21 2-inch (64mm) hose connections. Types There are two types of standpipes: • Automatic Dry • Automatic Wet • Manual Dry • Manual Wet www.greenarchworld.in
  • 31. Many high-rise or other large buildings have an internal system of water mains (standpipes) connected to fire-hose stations and landing valves. Trained occupants or employees of the building management operate the hoses until the fire department arrives. Fire fighters can also connect their hoses to outlets near the fire. Types There are two types of standpipes/ riser : “Wet Risers" and “Dry Risers" Standpipe/ Riser Systems www.greenarchworld.in
  • 32. Wet risers are a form of internal hydrant for the fireman to use and are always charged with water. Wet risers are only required for building where the topmost floor is higher than 30.5 meters above the fire appliance access level. Wet riser system comprises duty fire pumps with standby pump discharging into riser pipe with landing valves at each level and to jet at the fire. A jockey pump is usually provided to maintain system pressure. A typical wet riser installation is shown. Wet Riser System www.greenarchworld.in
  • 33. Fire pumps are used to boost the water pressure in sprinkler and standpipe systems and to deliver the required amount of water. The pipes supplying water to the hoses are pressurized all the time. Three pumps supply the water from the tank to the hoses. The pumps are the duty pump, the stand-by pump, and the jockey pump. Pressure switches along the pipe control the starting of each pump. The pressures are monitored at the pump room to control the pumps. A typical system for a high-rise building is described below. Jockey Pump The first pump to start will be the jockey pump. The controlling pressure switch is set to start the pump at a pressure of 150 psi and stop it when the pressure reaches 230 psi. If a small leak exist in the wet riser piping - either on the wet riser or hose reel - the pump will start in order to compensate for the leak. Pumps Used www.greenarchworld.in
  • 34. Duty Pump If the pressure drops below 125 psi, this means a wet riser landing valve or a hose reel gate valve has been opened. The pressure switch that senses this set pressure activates and starts the duty pump. Stand-by Pump If for any reason the pressure continues to drop below 125 psi, it means either the duty pump has not started or is not available (under repair). The stand-by pump then takes over the function, not performed by the duty pump. The stand-by pump is set to cut-in at 95 psi. Once the water flow is not needed any more the pressure builds up in the piping network. The duty or stand-by pumps stops after the cut-out pressure is reached at 220 psi. The jockey pump continues to run until the system pressure reaches its cut-out pressure of 230 psi. www.greenarchworld.in
  • 35. Dry risers are a form of internal hydrant for the fireman to use and are always charged with water. Wet risers are only required for building where the topmost floor is higher than 18.3 meters and less than 30.5 meters above the fire appliance access level. Dry risers are normally dry and depend on the fire engine to pump water into the system. Dry riser system comprises a riser pipe with landing valves at each floor and to which rubber-lined hose with nozzles can be connected to direct the water jet at the fire. Breeching inlet into which the firemen pump water are provided at ground level and connected to the bottom of the dry risers. A typical dry riser installation is shown. Dry Riser System www.greenarchworld.in
  • 36. Why dry riser are used in cold countries? In cold countries, the weather some times get below freezing point, and then it is hard to keep pipes insulated and they tend to freeze up when water is held inside them. With a dry riser you will have either a hosepipe or a sprinkler system that does not have any water in it but instead is filled with air. www.greenarchworld.in
  • 37. Suppression Gas System A suppression gas extinguisher system consists of gas cylinders, steel piping, discharge nozzles, heat, and smoke detector and a control panel, which monitors the space, activates both visual and audio alarms before releasing the gas. The gas discharged after a time delay upon detection of fire to warn any occupant to evacuate the room. Such systems are usually provided for electrical transformer room, switch room and standby generator room and should not be installed for room, which is normally occupied. A typical Carbon Dioxide extinguisher installation is shown. www.greenarchworld.in
  • 38. Wet Chemical System Wet chemical systems are designed to provide fire protection for commercial kitchen hoods. They provide efficient, automatic detector response with fast-acting fire suppression with no danger of re-flash or re-ignition. The installation comprises gas cylinders, steel piping, discharge nozzles, control head, detector with fusible element and manual pull station. The system provides automatic actuation and can be manually actuated through a manual pull station. Upon actuation, the system discharges a pre-determined amount of agent to the duct, plenum, and cooking appliances. A typical wet chemical system installation is shown. www.greenarchworld.in
  • 39. Foam Deluge System Foam deluge systems, sprinkler heads are open and the pipe is not pressurized with air. Foam Deluge systems are connected to a water supply through a deluge valve that is opened by the operation of a smoke or heat detection system. Foam is mixed in with the water supply from a foam bladder tank. The detection system is installed in the same area as the sprinklers. When the detection system is activated foam water discharges through all of the sprinkler heads in the system. Foam Deluge systems are used in places that are considered high hazard areas such as power plants, off shore oil rigs, aircraft hangars and chemical storage or processing facilities. A sample of foam deluge system installation is shown www.greenarchworld.in
  • 40. FIRE ALARM CONTROL PANEL (FACP) A Fire Alarm Control Panel (FACP), or Fire Alarm Control Unit (FACU), is the controlling component of a Fire Alarm System. The panel receives information from environmental sensors designed to detect changes associated with fire, monitors their operational integrity and provides for automatic control of equipment, and transmission of information necessary to prepare the facility for fire based on a predetermined sequence. www.greenarchworld.in
  • 41. WHERE FIRE ALARM CONTROL PANEL SHOULD BE LOCATED?? The Fire Alarm Control panel should normally be sited in an area as follows: Preferably in an area of low fire risk and on the ground floor by the entrance used by the Fire Brigade and preferably viewable from outside of the building. It should be located in an area common to all building users and where automatic detection is in use, the Control Panel should be in a protected area. www.greenarchworld.in
  • 42. PRINCIPLE TYPES OF ALARM SYSTEM All Fire Alarm Systems essentially operate on the same principle. If a detector detects smoke or heat, or someone operates a break glass unit, then alarm sounders operate to warn others in the building that there may be a fire and to evacuate. TYPES : • Conventional • Addressable • Analogue Addressable www.greenarchworld.in
  • 43. Automatic Sprinkler System An automatic sprinkler system is intended to detect, control and extinguish a fire, and warn the occupants of occurrence of fire. The installation comprises fire pumps, water storage tanks, control valve sets, sprinkler heads, flow switches, pressure switches, pipe work and valves. The system operates automatically without human intervention. The sprinkler head has a liquid filled glass bulb that breaks due to the heat of the fire and release water that sprays over fire. The installation is the most common type and a typical sprinkler is shown. www.greenarchworld.in
  • 44. External Fire Hydrant Fire hydrant installation consists of a system of pip work connected directly to the water supply main to provide water to each and every hydrant outlet and is intended to provide water for the firemen to fight a fire. The water is discharged into the fire engine form which it is then pumped and sprayed over fire. Where the water supply is not reliable or inadequate, hydrant pumps should be provided to pressurize the fire mains. A typical hydrant installation fed directly from JBA water main and pressurized by fire pumps is shown as below. www.greenarchworld.in
  • 45. Emergency exit An emergency exit in a structure is a special exit for emergencies such as a fire: the combined use of regular and special exits allows for faster evacuation, while it also provides an alternative if the route to the regular exit is blocked by fire, etc. It is usually a strategically located (e.g. in a stairwell, hallway, or other likely place) outward opening door with a crash bar on it and with exit signs leading to it. A fire escape is a special kind of emergency exit, mounted to the outside of a building. Local building codes will often dictate the number of fire exits required for a building of a given size. This may include specifying the number of stairs For any building bigger than a private house, modern codes invariably specify at least two sets of stairs. Furthermore, such stairs must be completely separate from each other www.greenarchworld.in
  • 46. An exit sign is a device in a public facility denoting the location of the emergency exit, guiding people to the closest exit in case of fire or other emergency. Most relevant codes (fire, building, health or safety) require exit signs to be permanently lit. Exit signs are designed to be absolutely unmistakable and understandable to anyone A small minority of nations adhered to the exit signs that show the word "EXIT" (or similar in another language). The English word "exit" comes directly from the Latin word meaning "(he or she) goes out.“ Now-a-days emergency exits are given more important with proper design and colors codes Emergency exits are to highlighted because during the fire it should be visible from a distance so that people can run in that direction to be safe www.greenarchworld.in
  • 47. Fire Detection and Alarm System Fire detectors are designed to detect one or more of the three characteristics of fire – smoke, heat and flame. Besides that, every fire detection system must include manual call point (break glass), so that in the event of fire, help can be called immediately. During a fire, activation of an alarm sounders or bells is to arouse the attention of the occupants so that evacuation can be carried out without causing harm to the occupants. A sample of fire detection and alarm system installation is shown www.greenarchworld.in
  • 48. Things to be taken care of • Fire protection should be provided in malls with all care and condition that are required to save once life • The staircase that are to be provided should be at minimum distance of 24meters • Advantage for fire protection is that is safe life during emergency • Care should be taken that the building in and out is properly maintain • Signage that are to be provided should be properly seen from far away. • Bright colors should be used for signage. www.greenarchworld.in
  • 52. LOCATION •The distance between Bandra fire station & Globus is about 1 km. •The average time for a fire brigade to reach Gobus will be about 15 min. •The Fire-Fighting Access is through the back entrance. •The Entrance connects the main road 10 m wide www.greenarchworld.in
  • 53. SERVICE STAIRCASE Clothes are the major fire load of the building and there is inadequate storage of it especially in small store areas and in the service staircase. These areas can be a possible fire hazard. www.greenarchworld.in
  • 54. EXPOSED WIRING Exposed wires and instruments strewn along with clothes can be a potential fire hazard. www.greenarchworld.in
  • 55. DEFUNCT FIRE DETECTORS Some of the detectors are defunct and there is a lack of periodic inspection. The detectors should be maintained and taken care of. www.greenarchworld.in
  • 56. CLUTTER FREE FIRE EXIT They should store clothes in a orderly manner in the store rooms and the fire exit / service staircase should be made clutter free. www.greenarchworld.in
  • 57. FUNCTIONALITY There should be periodical checking of functionality of various equipments like Speakers, hydrants, alarms extinguishers, detectors, sprinklers etc. If any malfunctioned should immediately be replaced www.greenarchworld.in
  • 58. FIRE DRILLS The employees should be well informed about fire safety They were lacking of such People. They should have a proper Fire fighting unit dedicated to fire fighting. They should conduct fire drills. They should properly maintain storage, and exit area www.greenarchworld.in
  • 59. Thank you Group members • Rafay • Esa • Noopur • Mubashshira • Ninad • Owesh • Faiz • Ishra • Huzefa www.greenarchworld.in
