Emerson has introduced a USB Fieldbus Interface to connect standard PCs or laptops to a Foundation Fieldbus segment for device demonstration and management. The interface is compliant with Foundation Fieldbus specifications and includes features such as two power modes, support for AMS Device Manager, and additional testing approvals. This product aims to expand device connectivity and manageability beyond HART to Foundation Fieldbus devices, with an expected release date in spring 2012.

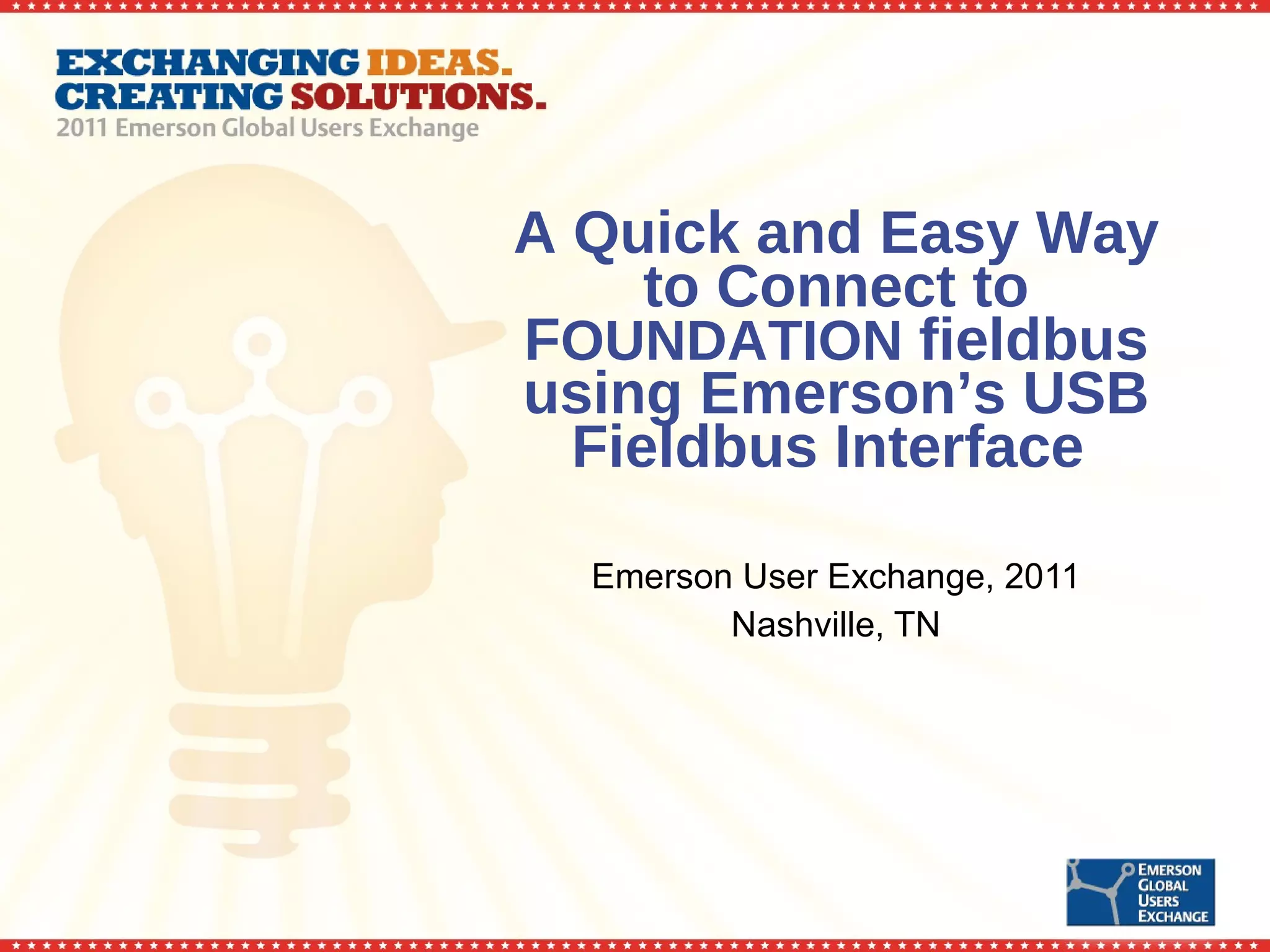

1. A Quick and Easy Way to Connect to F OUNDATION fieldbus using Emerson’s USB Fieldbus Interface Emerson User Exchange, 2011 Nashville, TN

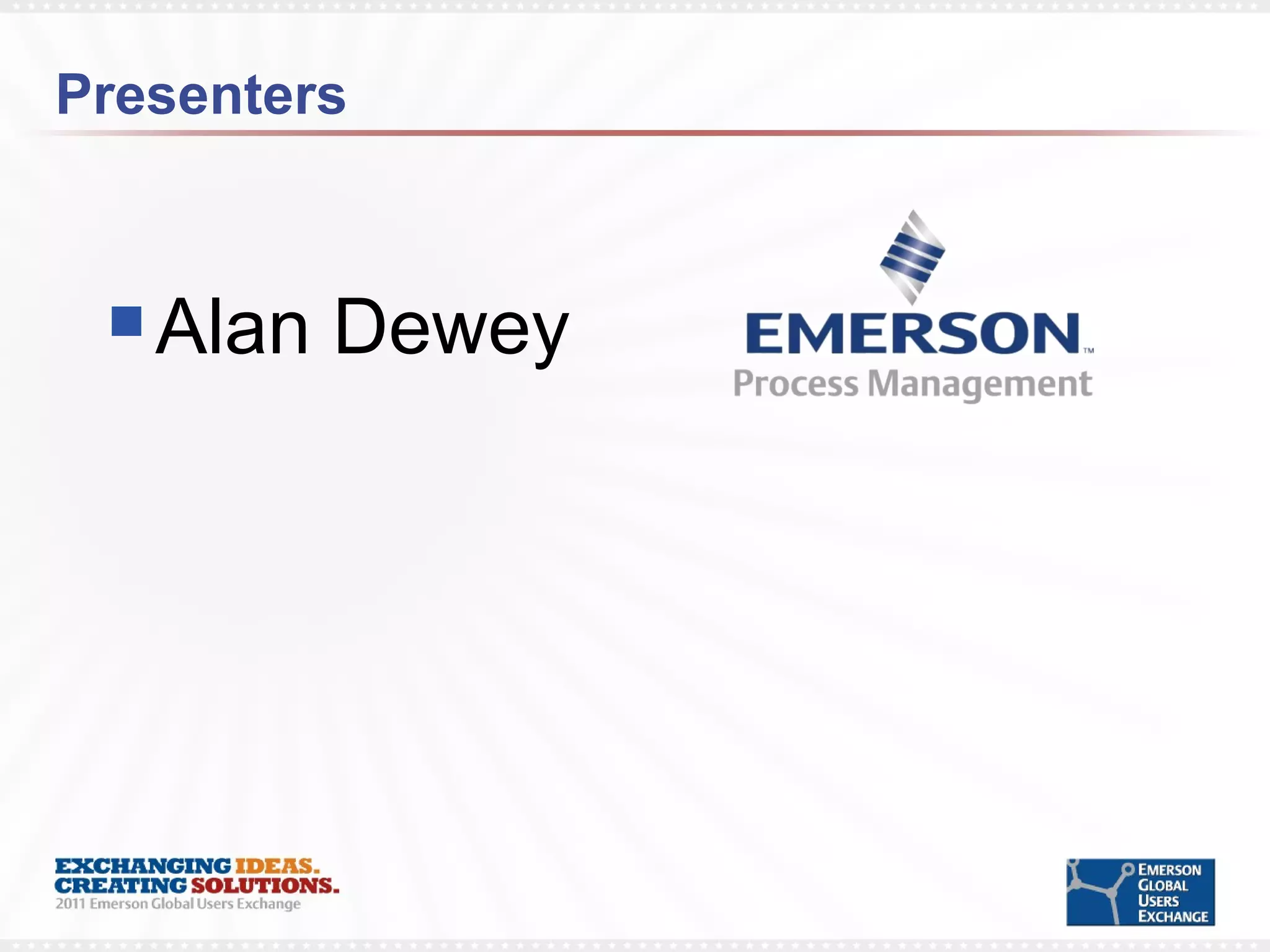

2. Presenters Alan Dewey

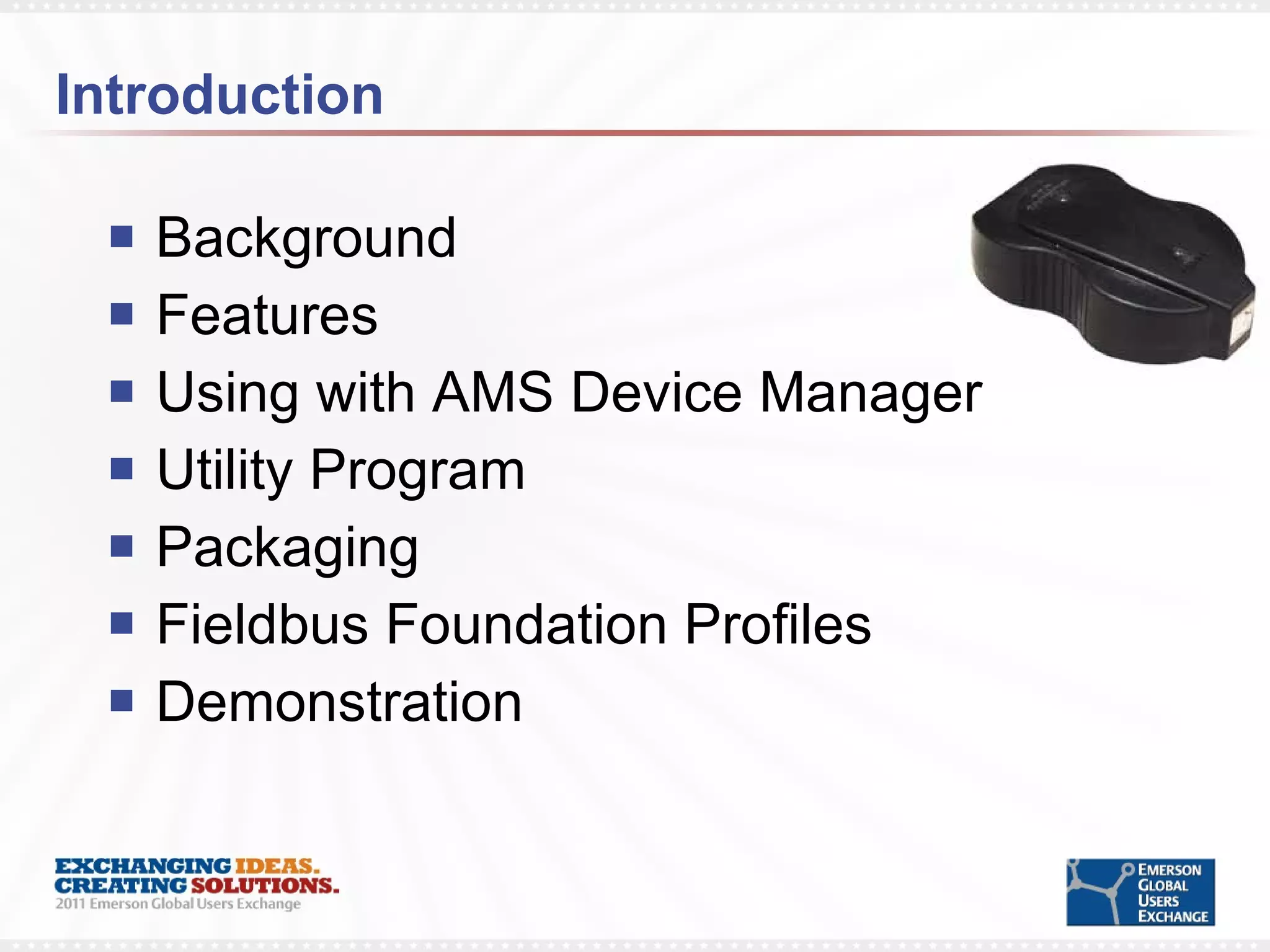

3. Introduction Background Features Using with AMS Device Manager Utility Program Packaging Fieldbus Foundation Profiles Demonstration

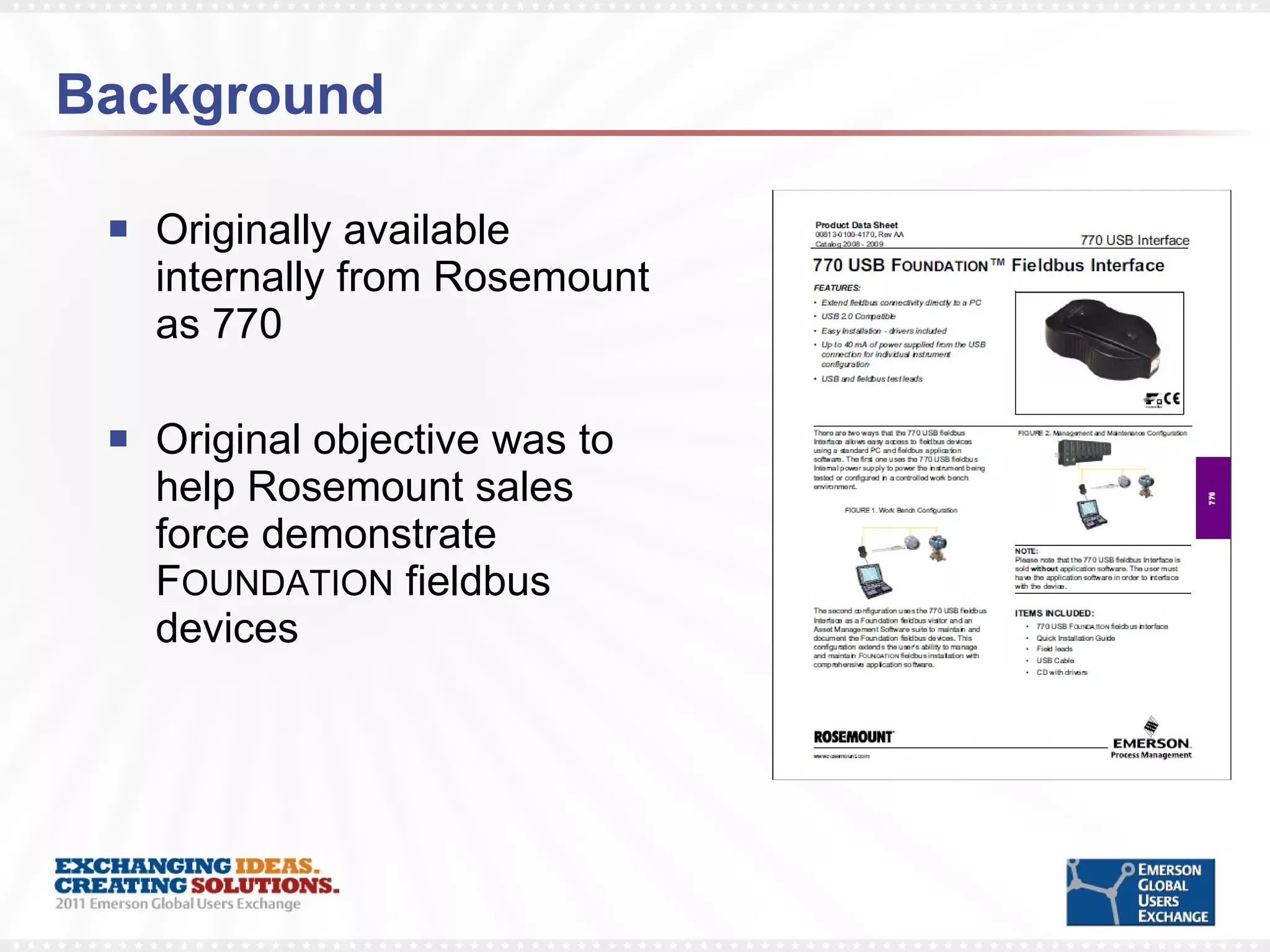

4. Background Originally available internally from Rosemount as 770 Original objective was to help Rosemount sales force demonstrate F OUNDATION fieldbus devices

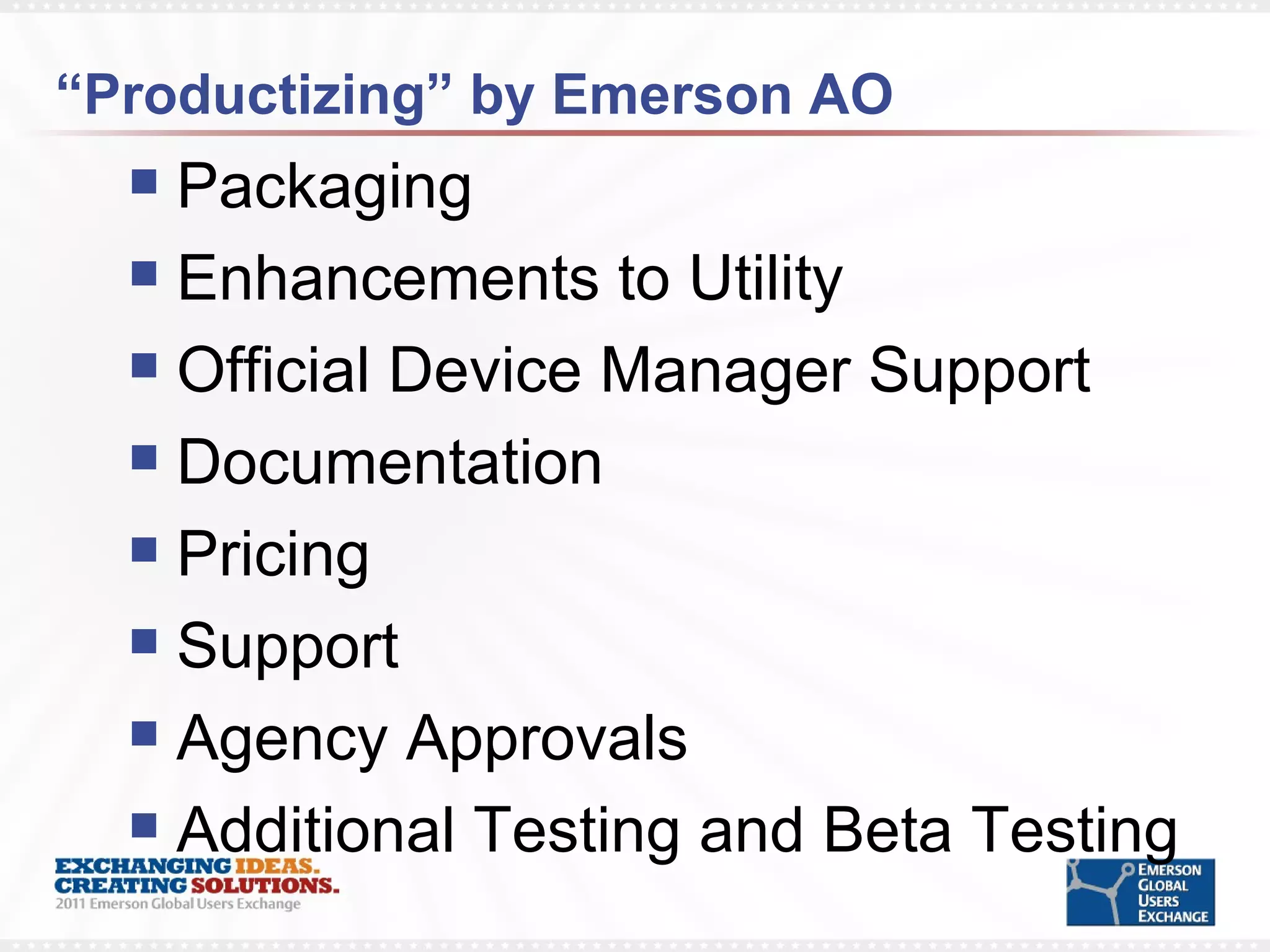

5. “ Productizing” by Emerson AO Packaging Enhancements to Utility Official Device Manager Support Documentation Pricing Support Agency Approvals Additional Testing and Beta Testing

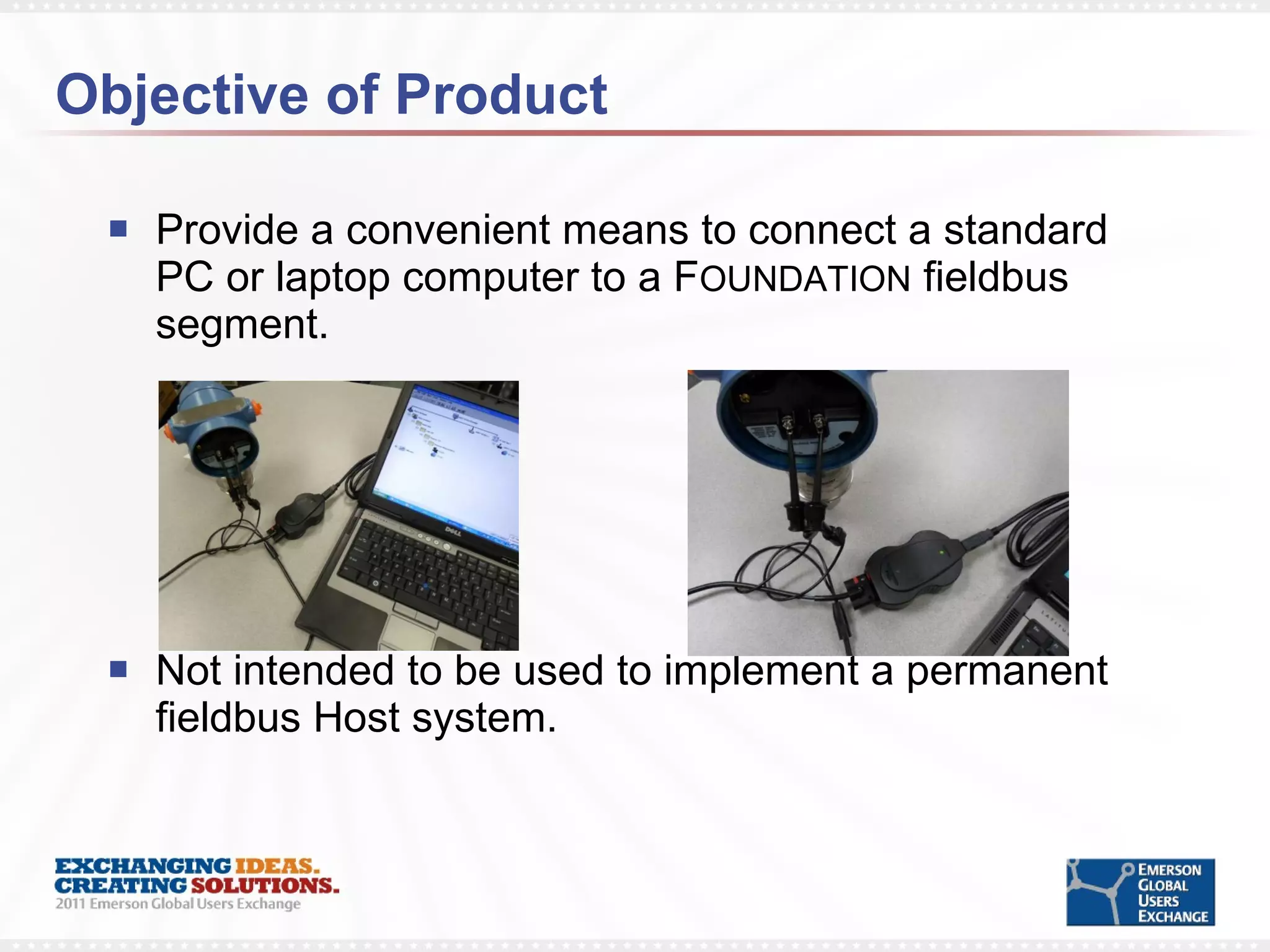

6. Objective of Product Provide a convenient means to connect a standard PC or laptop computer to a F OUNDATION fieldbus segment. Not intended to be used to implement a permanent fieldbus Host system.

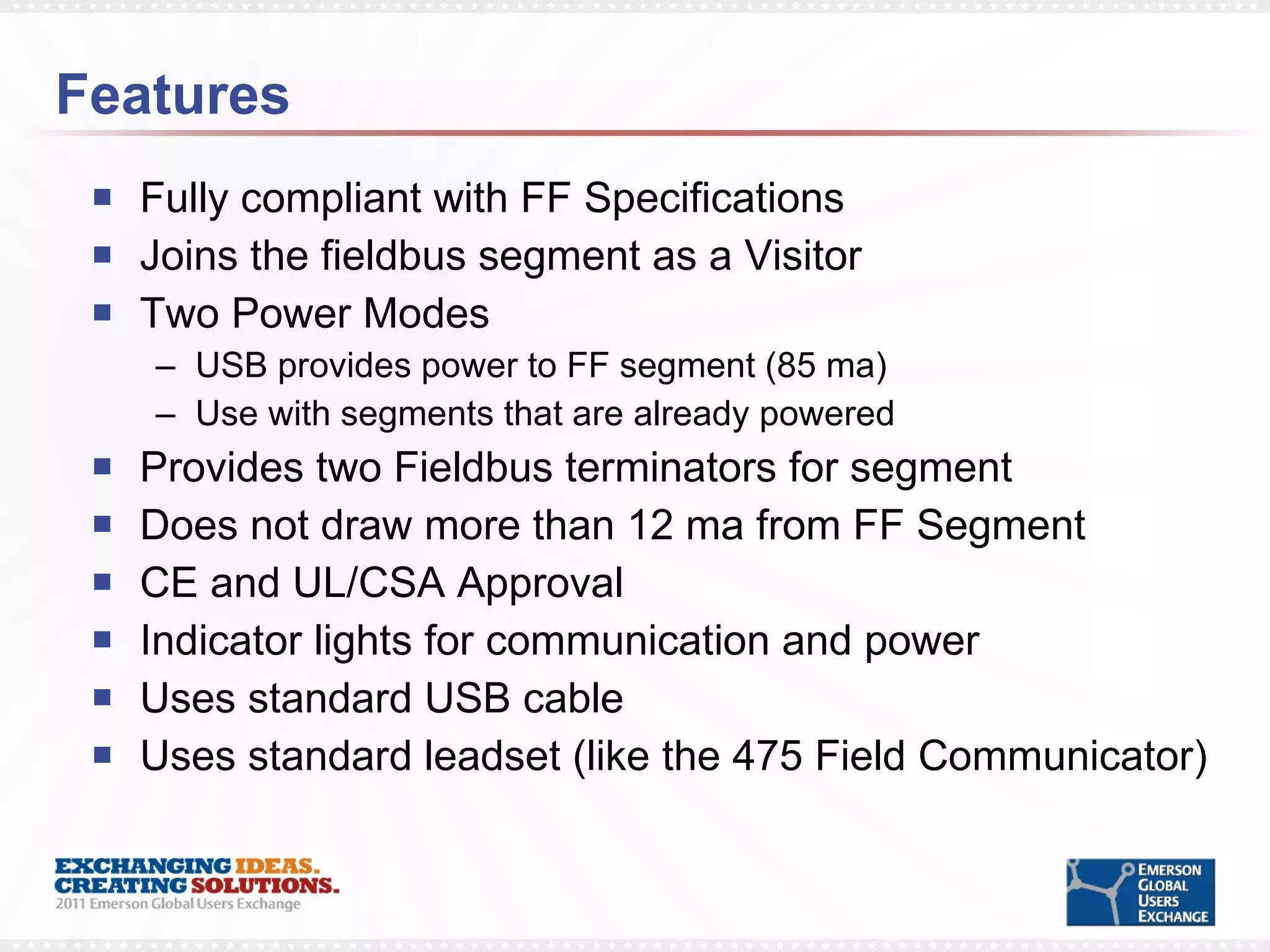

7. Features Fully compliant with FF Specifications Joins the fieldbus segment as a Visitor Two Power Modes USB provides power to FF segment (85 ma) Use with segments that are already powered Provides two Fieldbus terminators for segment Does not draw more than 12 ma from FF Segment CE and UL/CSA Approval Indicator lights for communication and power Uses standard USB cable Uses standard leadset (like the 475 Field Communicator)

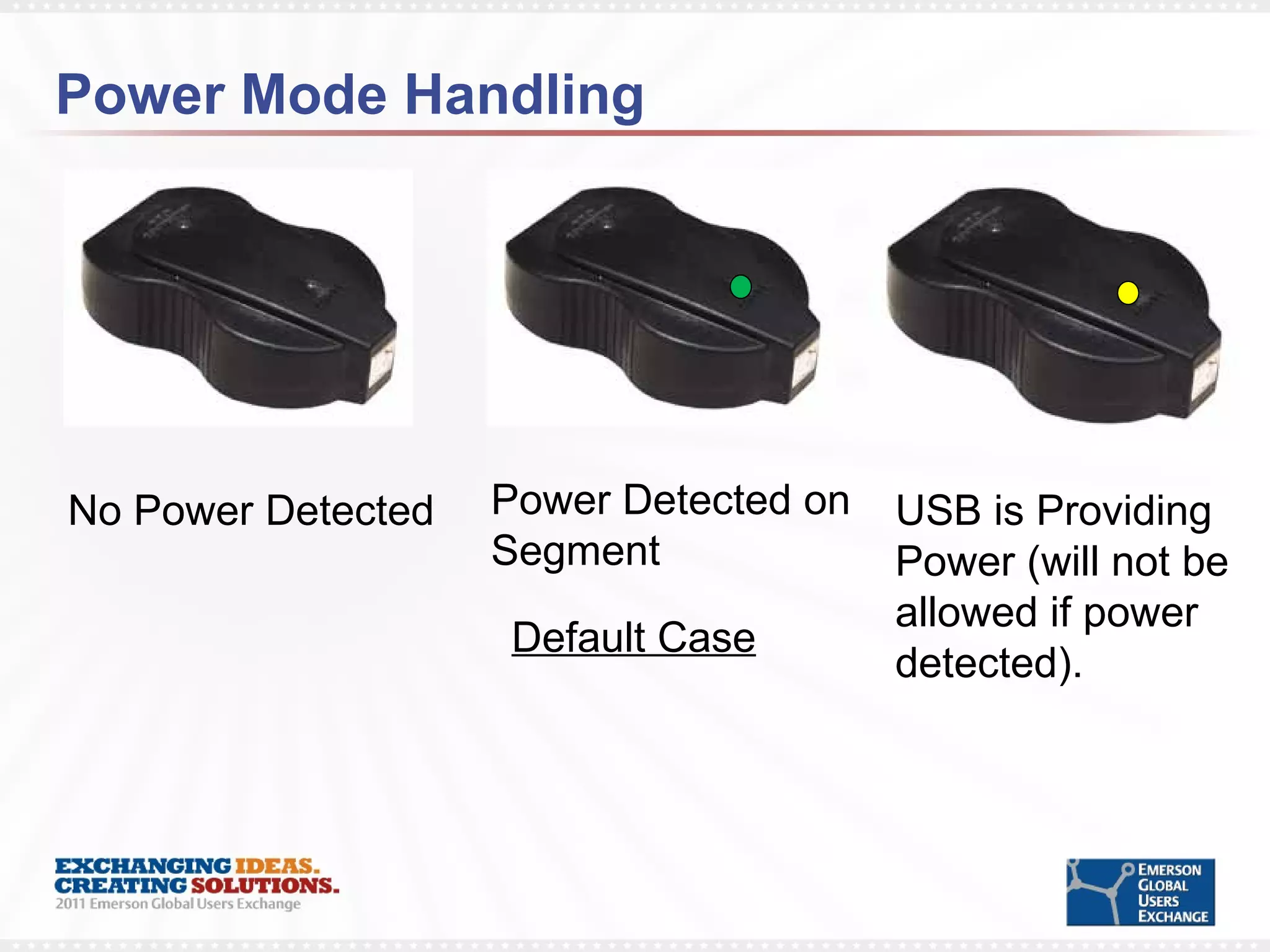

8. Power Mode Handling No Power Detected Power Detected on Segment USB is Providing Power (will not be allowed if power detected). Default Case

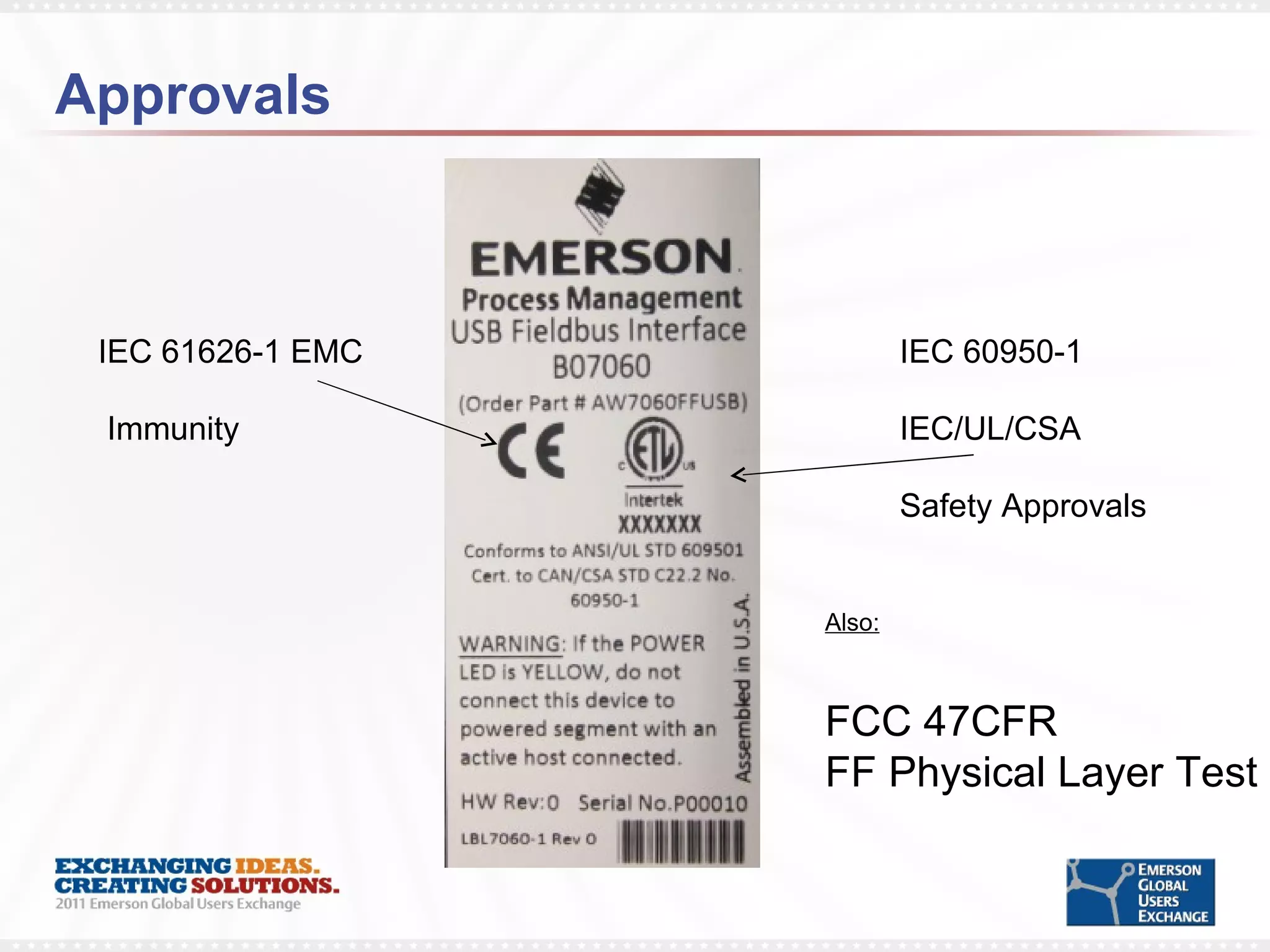

9. Approvals IEC 61626-1 EMC Immunity IEC 60950-1 IEC/UL/CSA Safety Approvals Also: FCC 47CFR FF Physical Layer Test

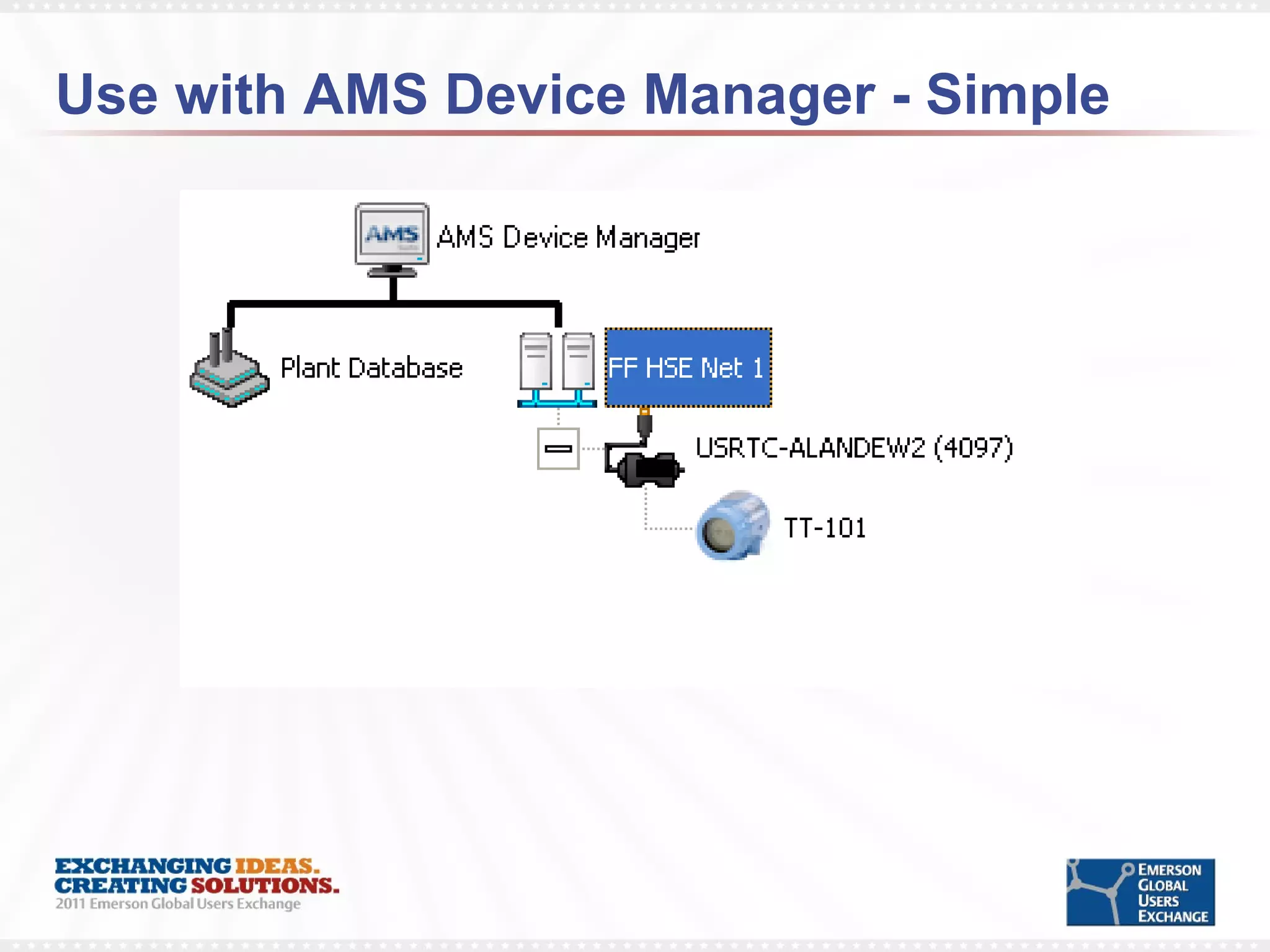

10. Use with AMS Device Manager - Simple

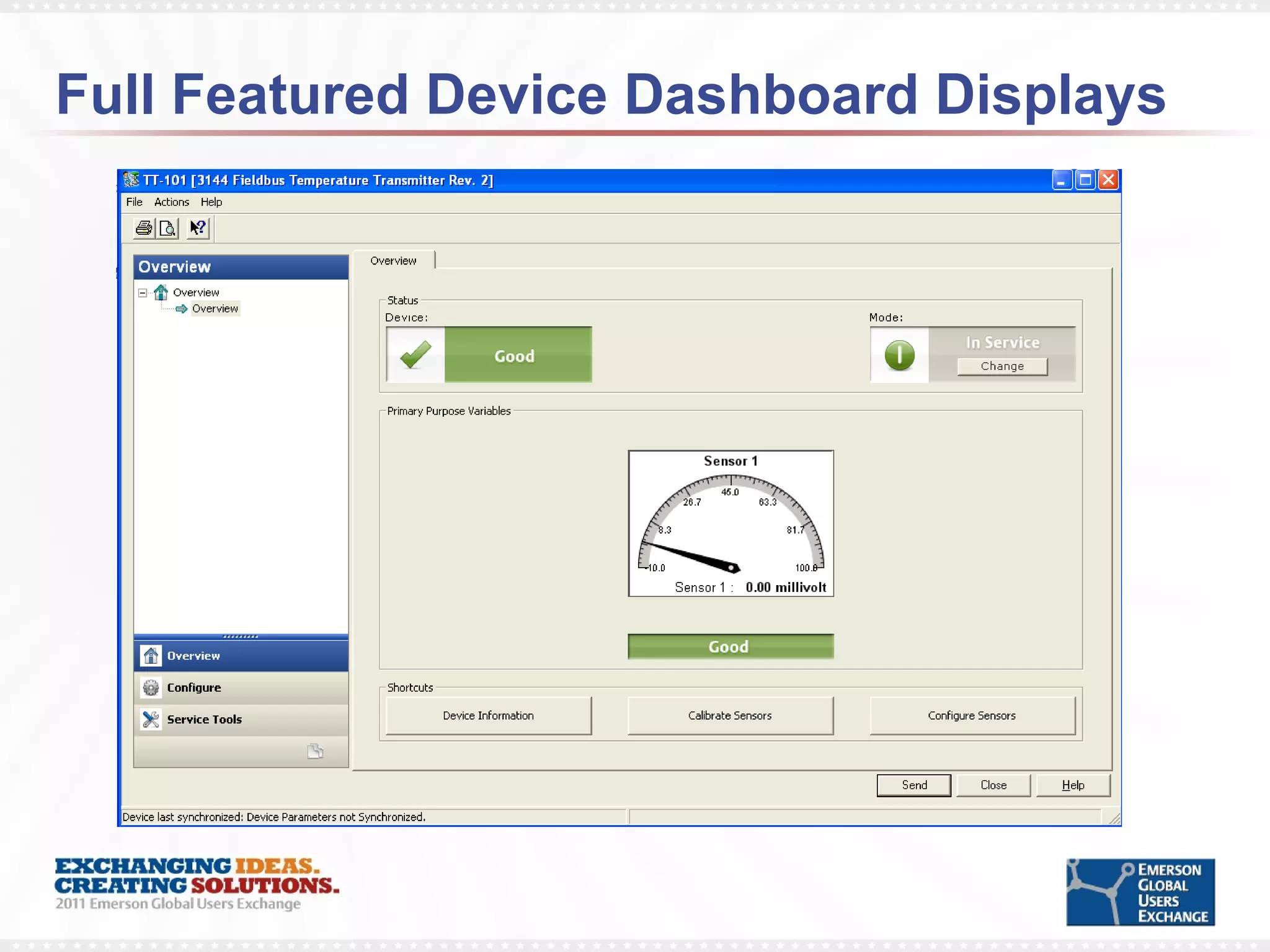

11. Full Featured Device Dashboard Displays

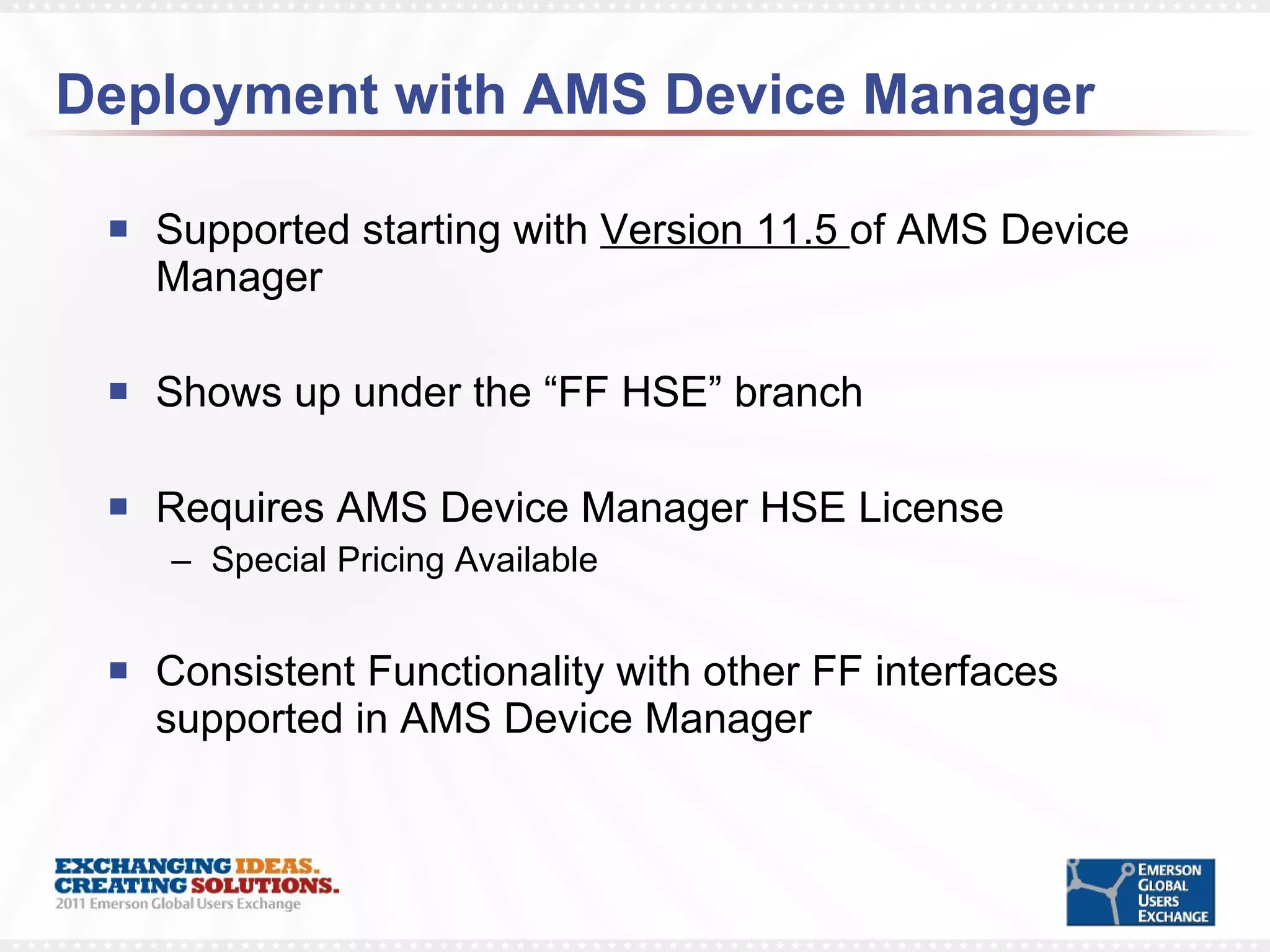

12. Supported starting with Version 11.5 of AMS Device Manager Shows up under the “FF HSE” branch Requires AMS Device Manager HSE License Special Pricing Available Consistent Functionality with other FF interfaces supported in AMS Device Manager Deployment with AMS Device Manager

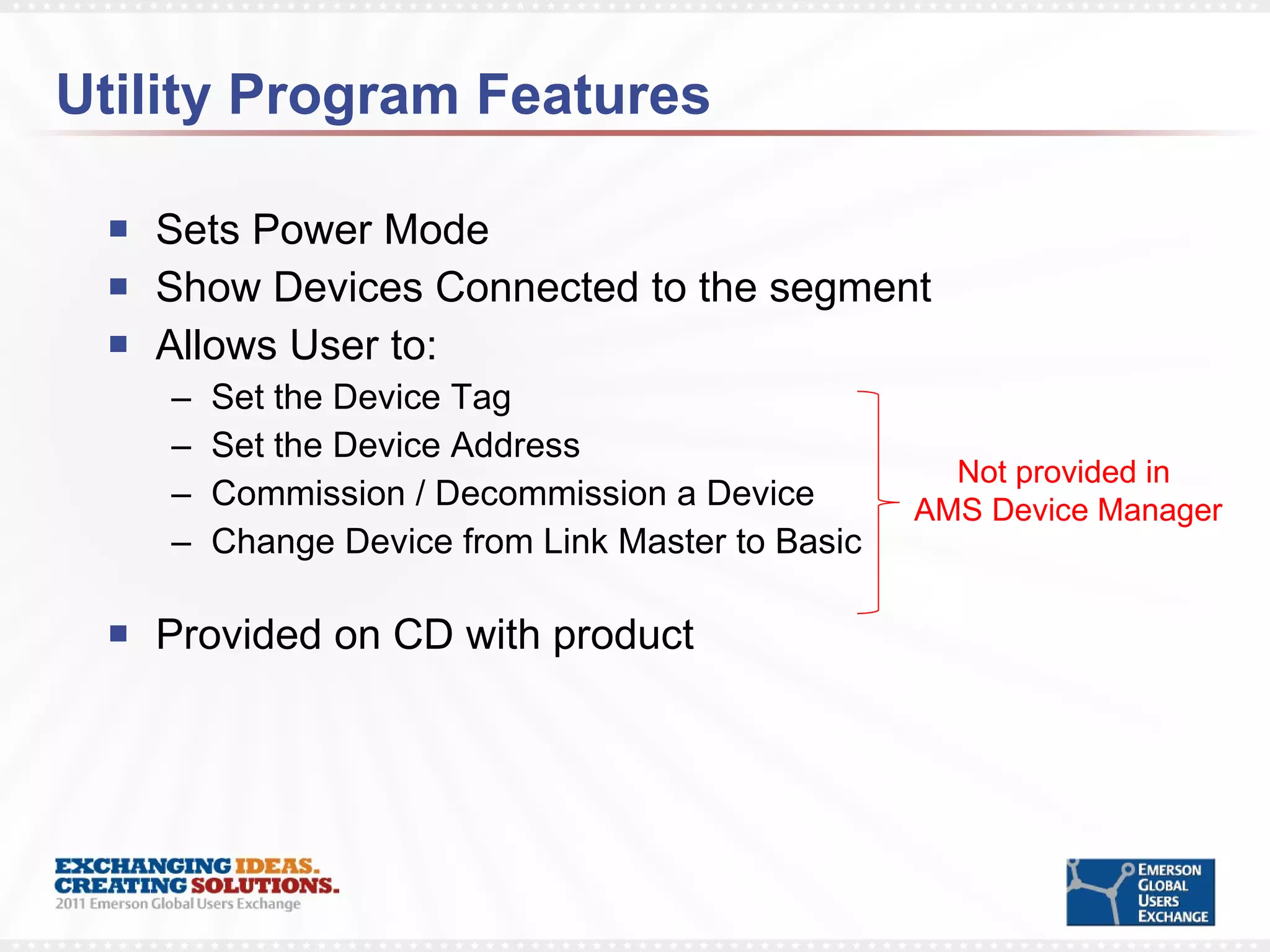

13. Utility Program Features Sets Power Mode Show Devices Connected to the segment Allows User to: Set the Device Tag Set the Device Address Commission / Decommission a Device Change Device from Link Master to Basic Provided on CD with product Not provided in AMS Device Manager

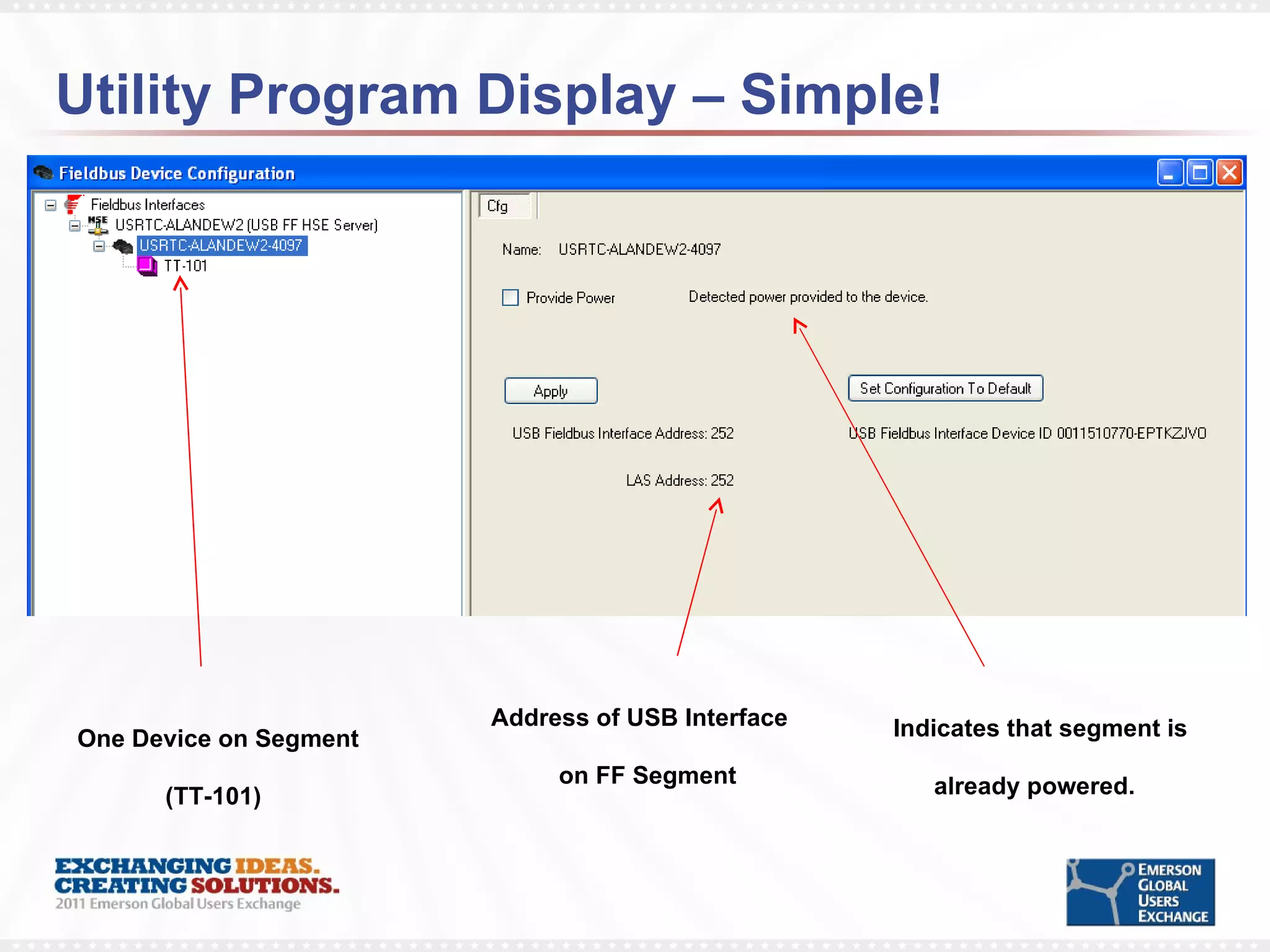

14. Utility Program Display – Simple! One Device on Segment (TT-101) Address of USB Interface on FF Segment Indicates that segment is already powered.

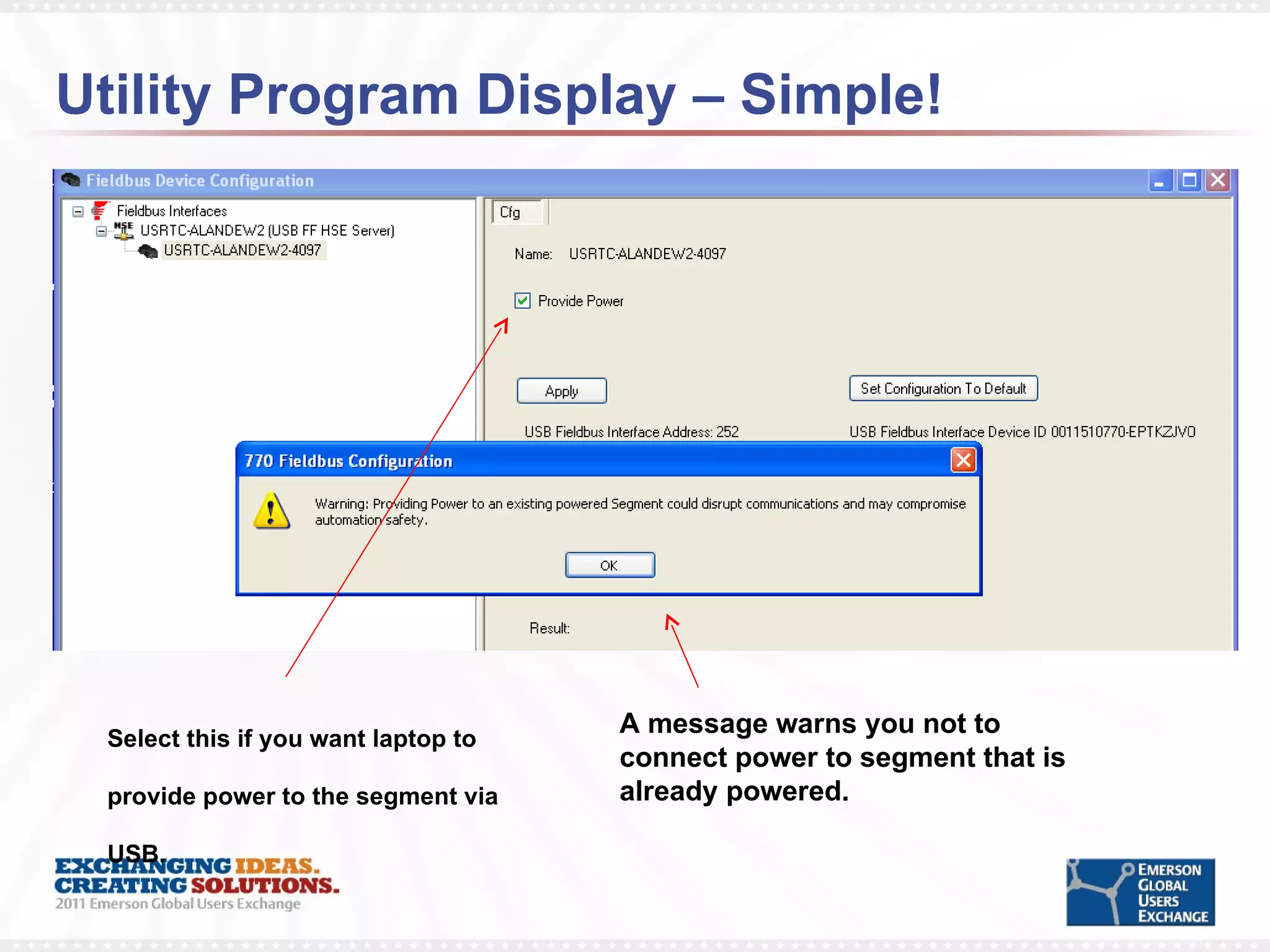

15. Utility Program Display – Simple! Select this if you want laptop to provide power to the segment via USB. A message warns you not to connect power to segment that is already powered.

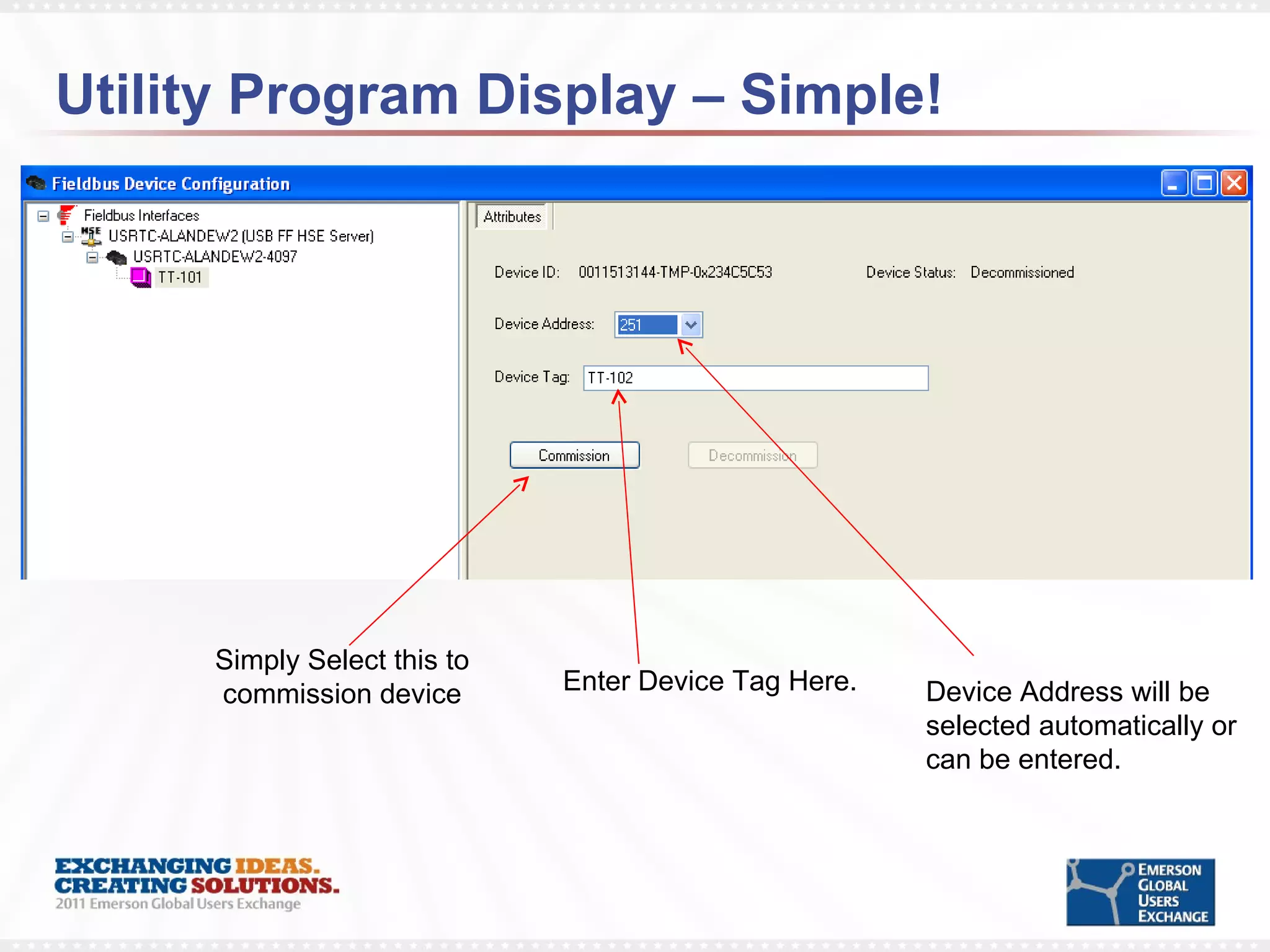

16. Utility Program Display – Simple! Simply Select this to commission device Enter Device Tag Here. Device Address will be selected automatically or can be entered.

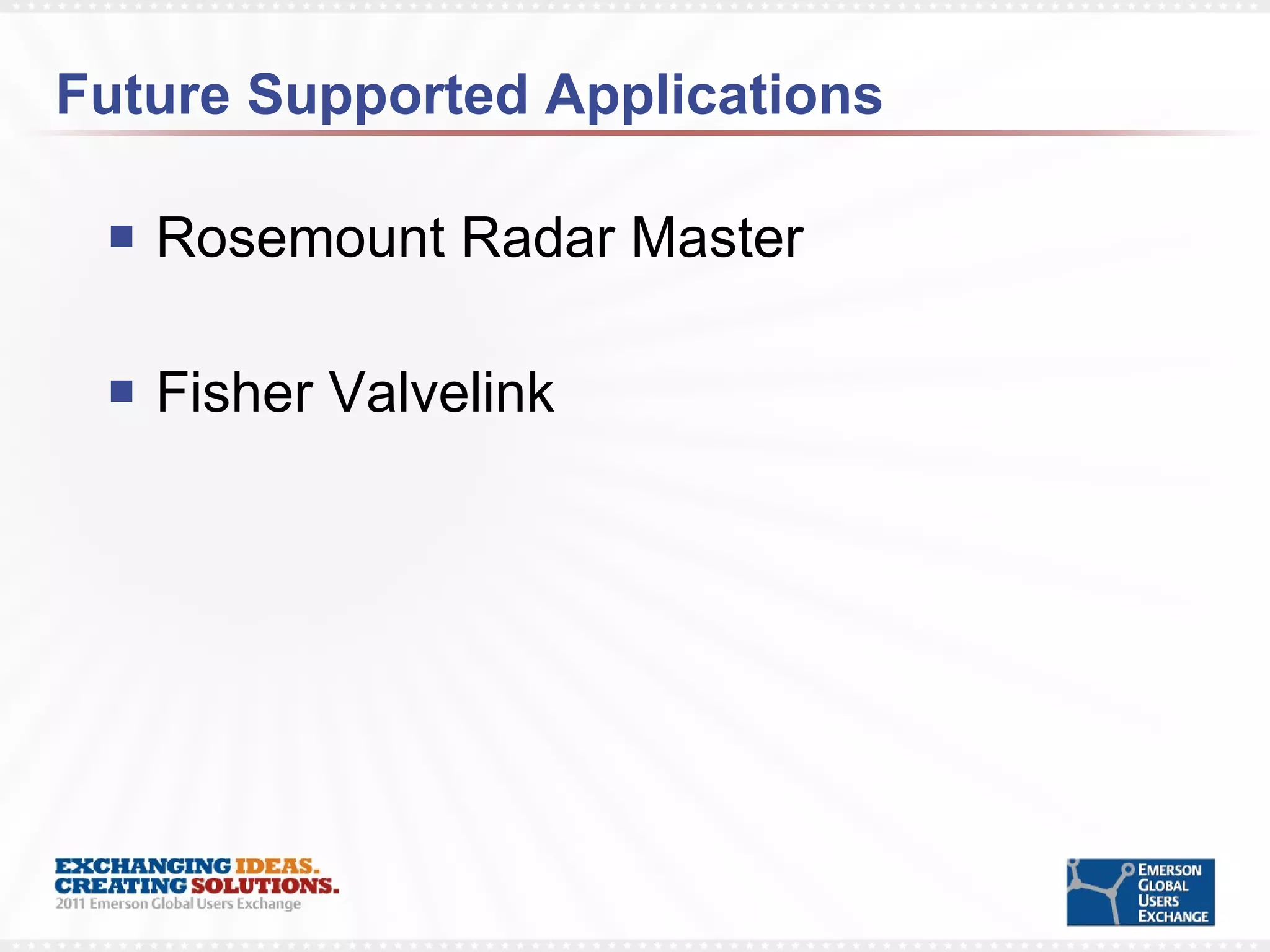

17. Future Supported Applications Rosemount Radar Master Fisher Valvelink

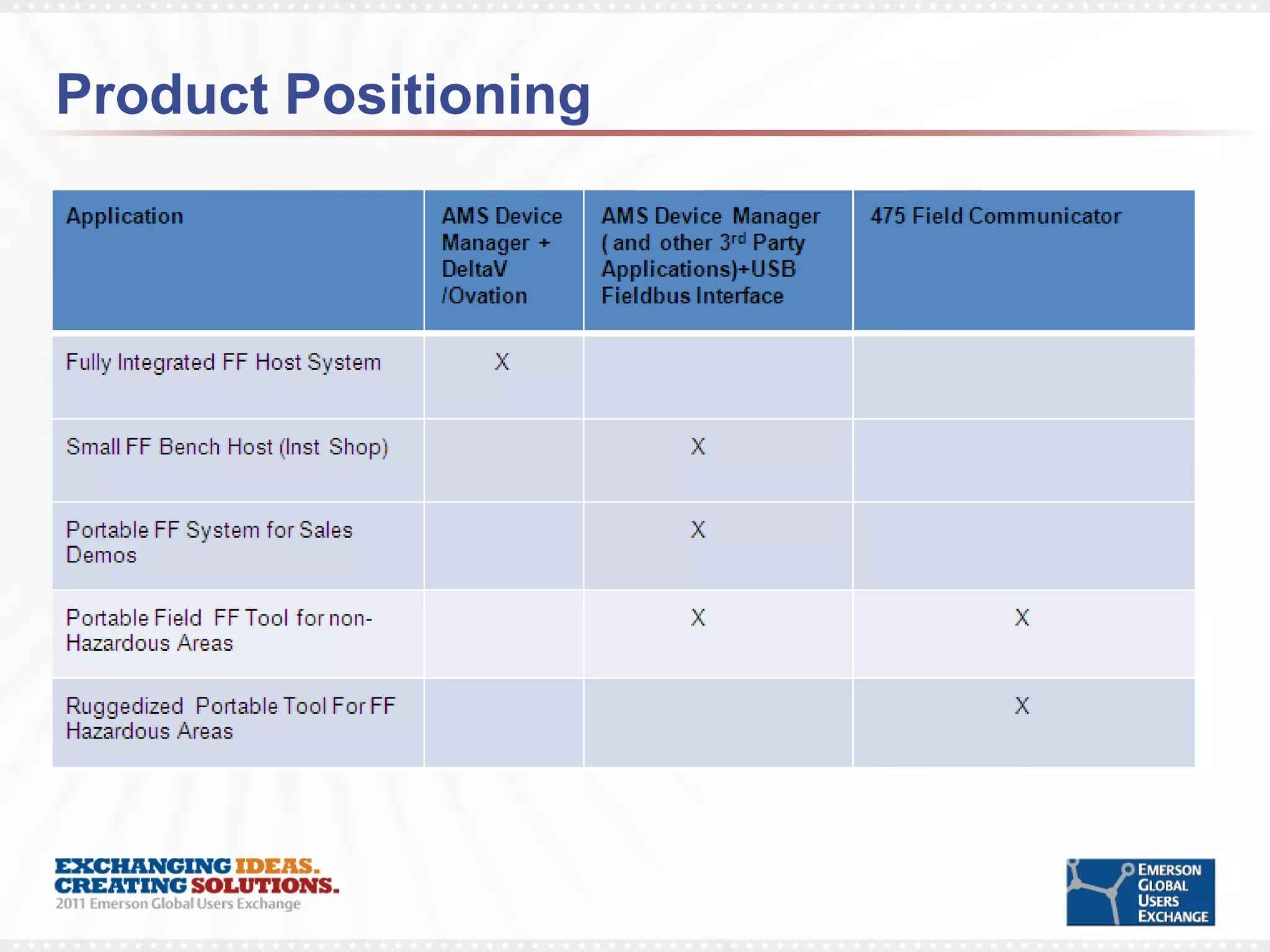

18. Product Positioning

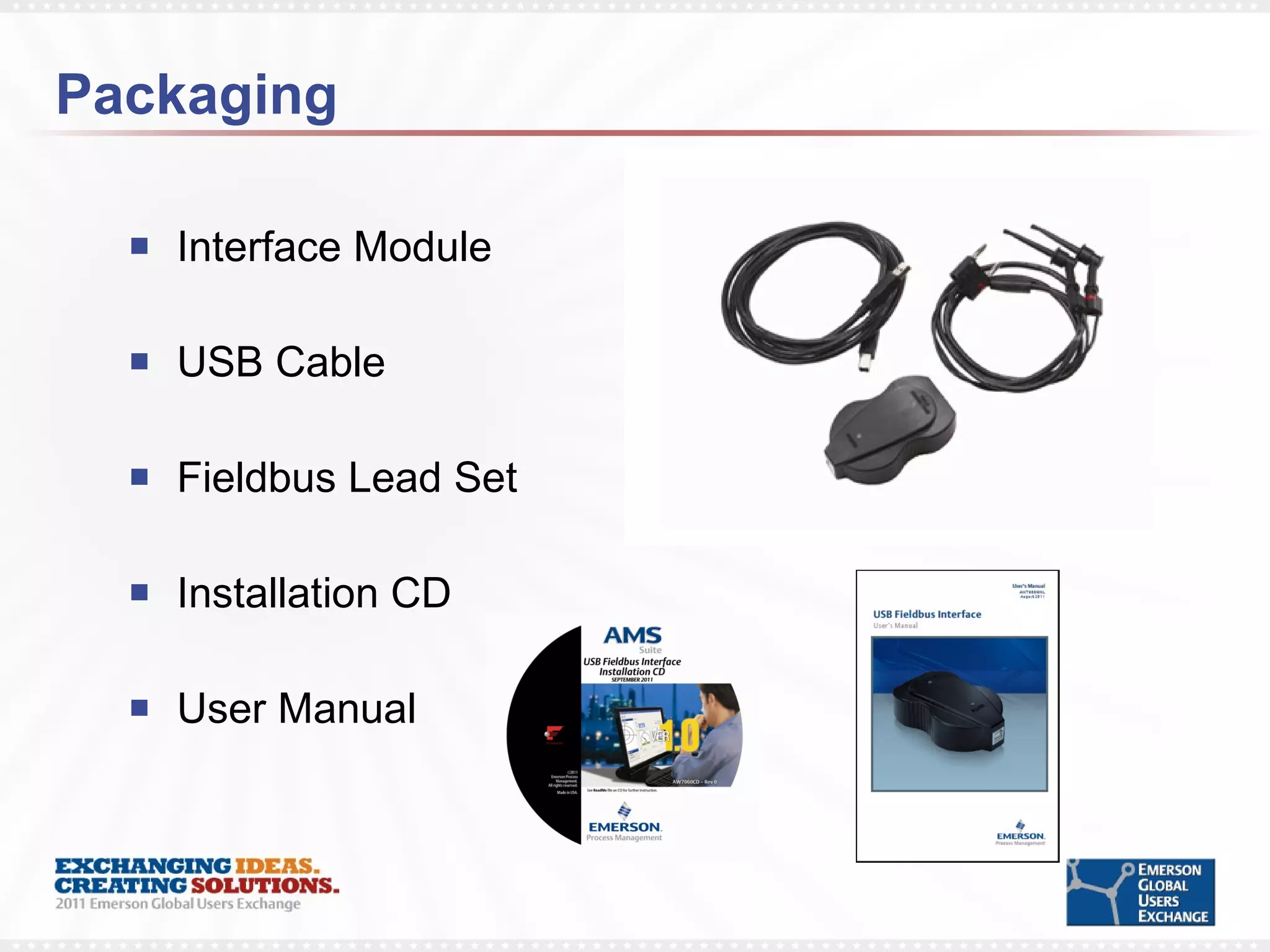

19. Packaging Interface Module USB Cable Fieldbus Lead Set Installation CD User Manual

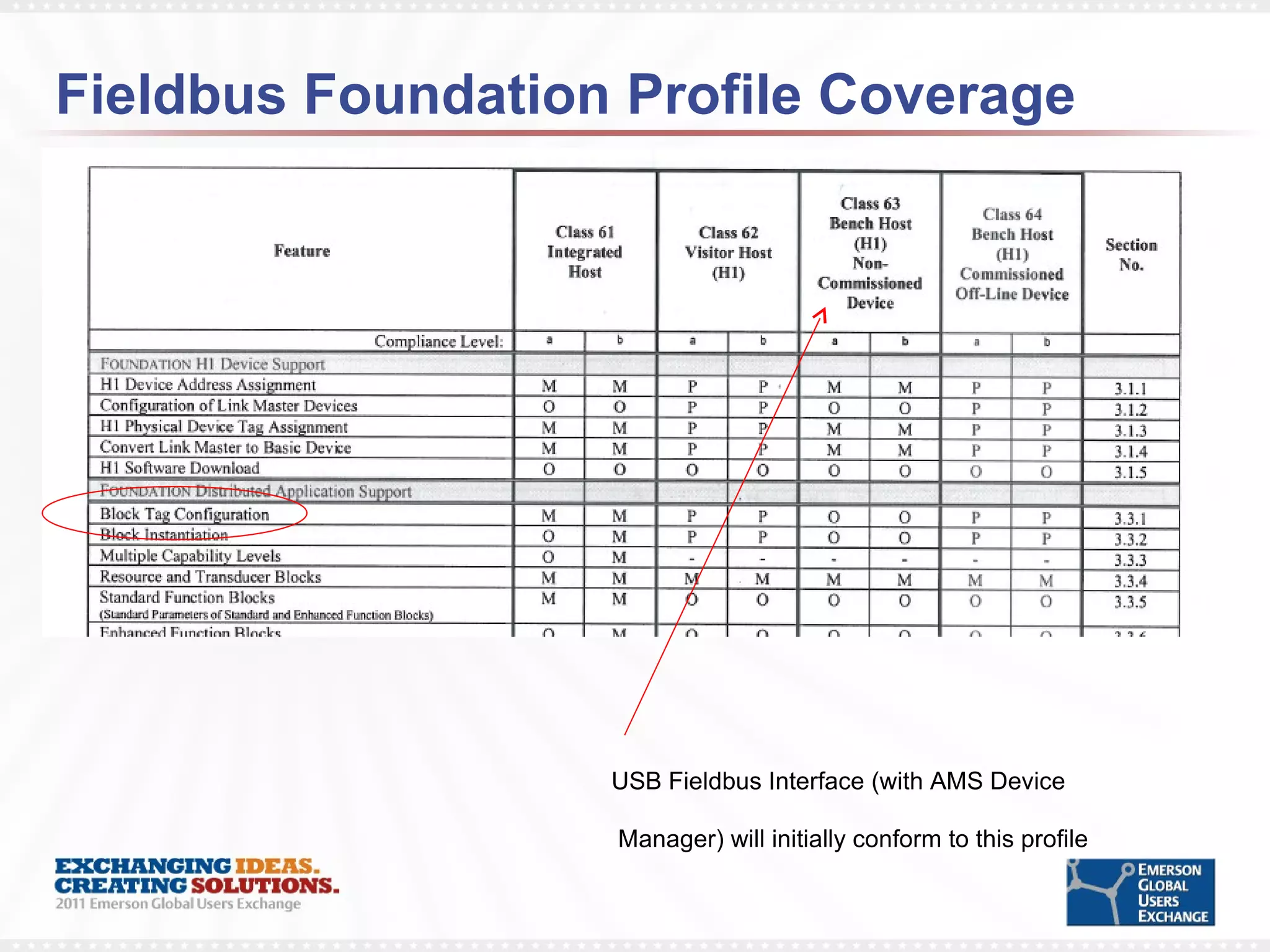

20. Fieldbus Foundation Profile Coverage USB Fieldbus Interface (with AMS Device Manager) will initially conform to this profile

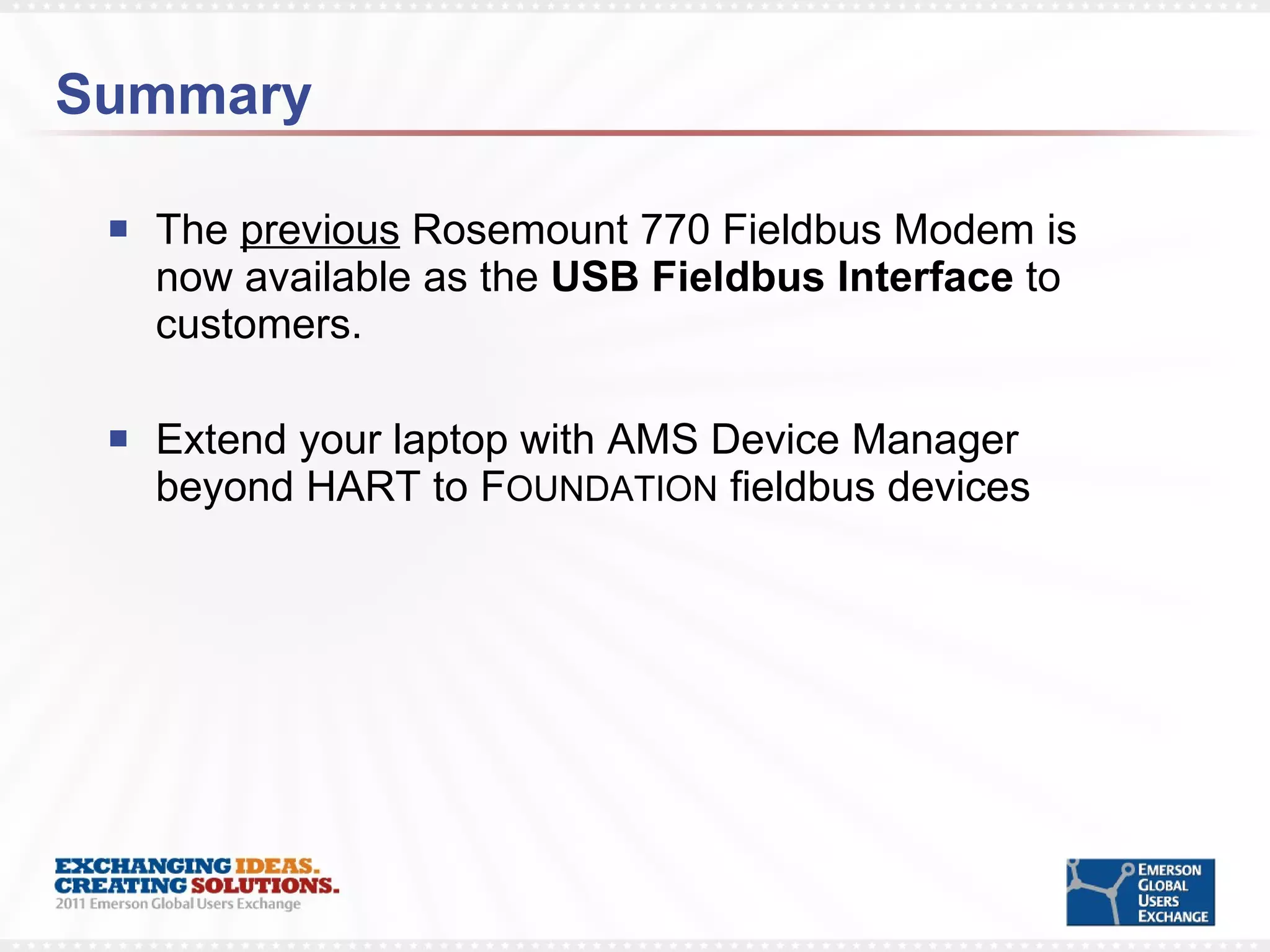

21. Summary The previous Rosemount 770 Fieldbus Modem is now available as the USB Fieldbus Interface to customers. Extend your laptop with AMS Device Manager beyond HART to F OUNDATION fieldbus devices

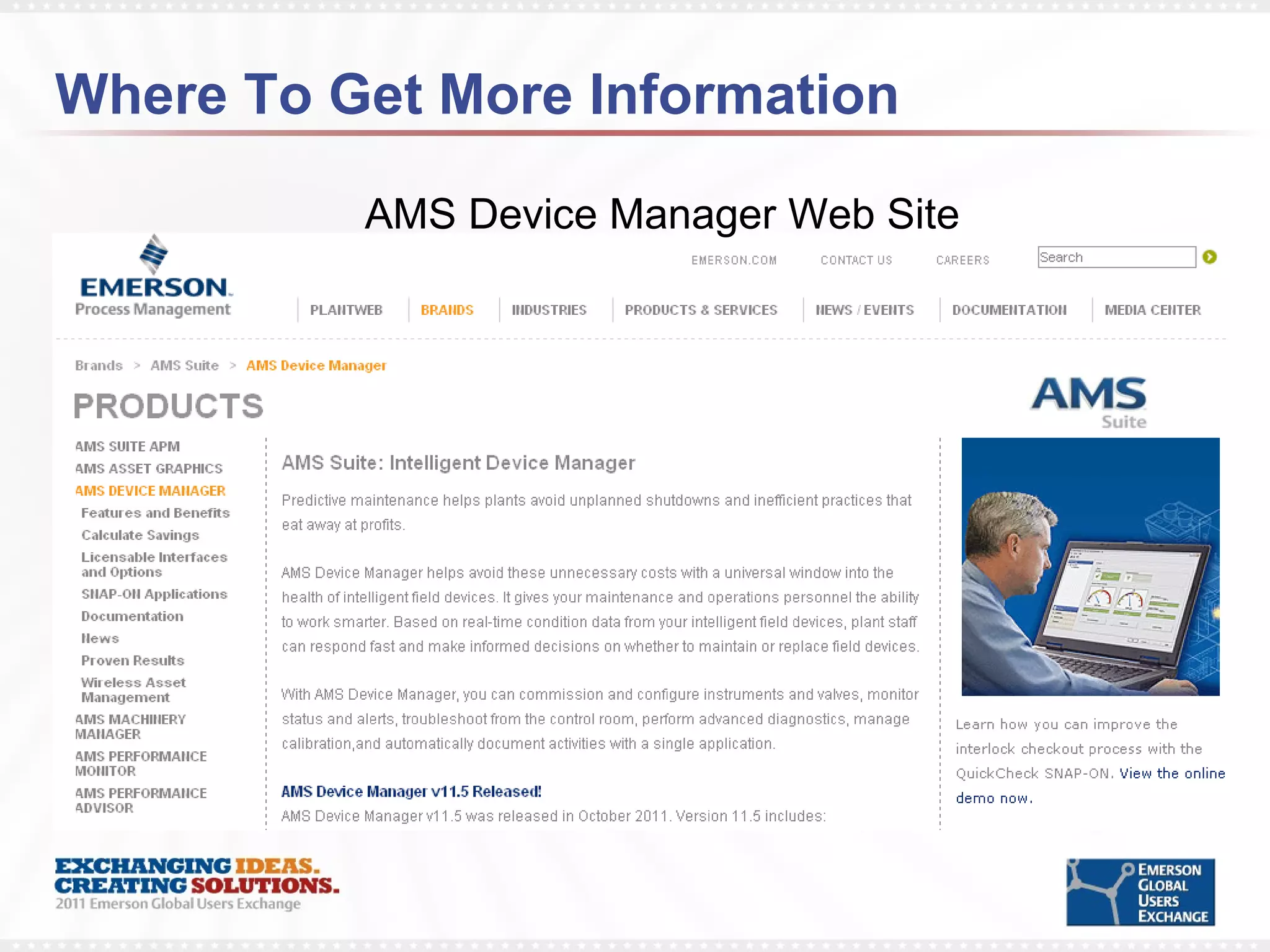

22. Where To Get More Information AMS Device Manager Web Site

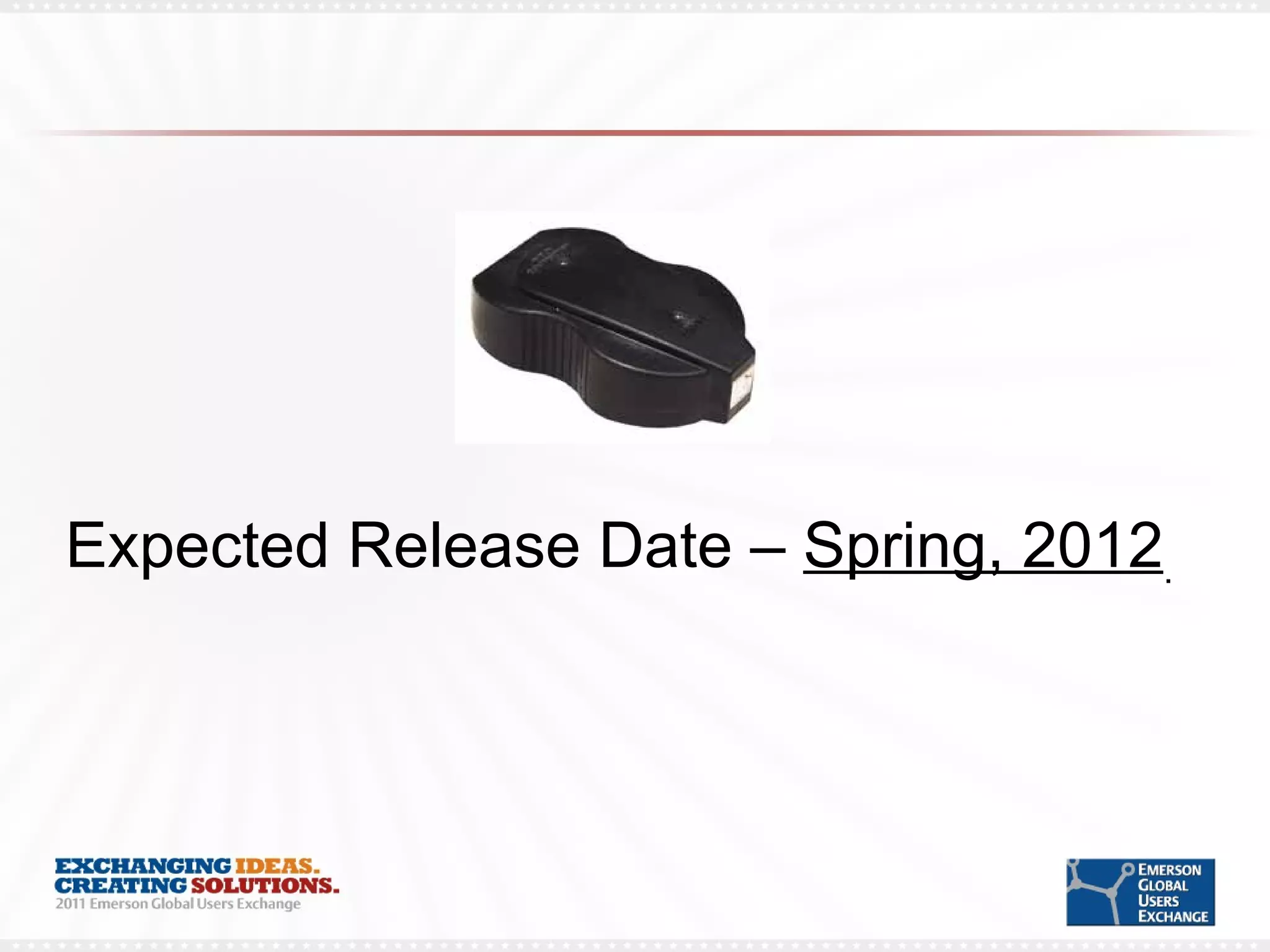

23. Expected Release Date – Spring, 2012 .
