1. Field-Portable GC/MS
Technology & applications
Dr. Joeri Vercammen
Managing Expert IS-X
www.is-x.com

2. “GC/MS DEVICES”
Ease-of-use
Speed
Price
Sensitivity
Separation power
Identification of artefacts

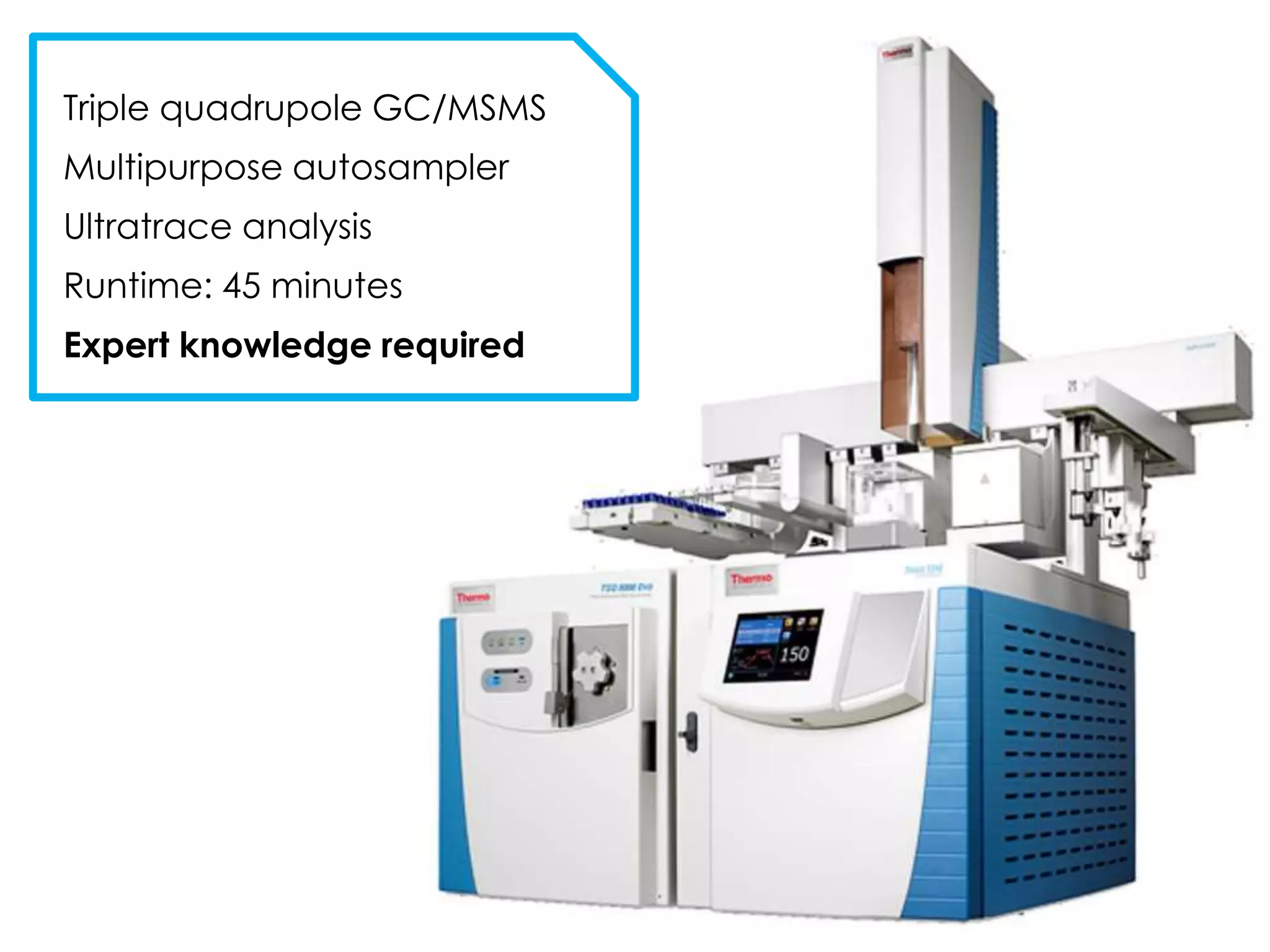

3. Triple quadrupole GC/MSMS
Multipurpose autosampler
Ultratrace analysis
Runtime: 45 minutes
Expert knowledge required

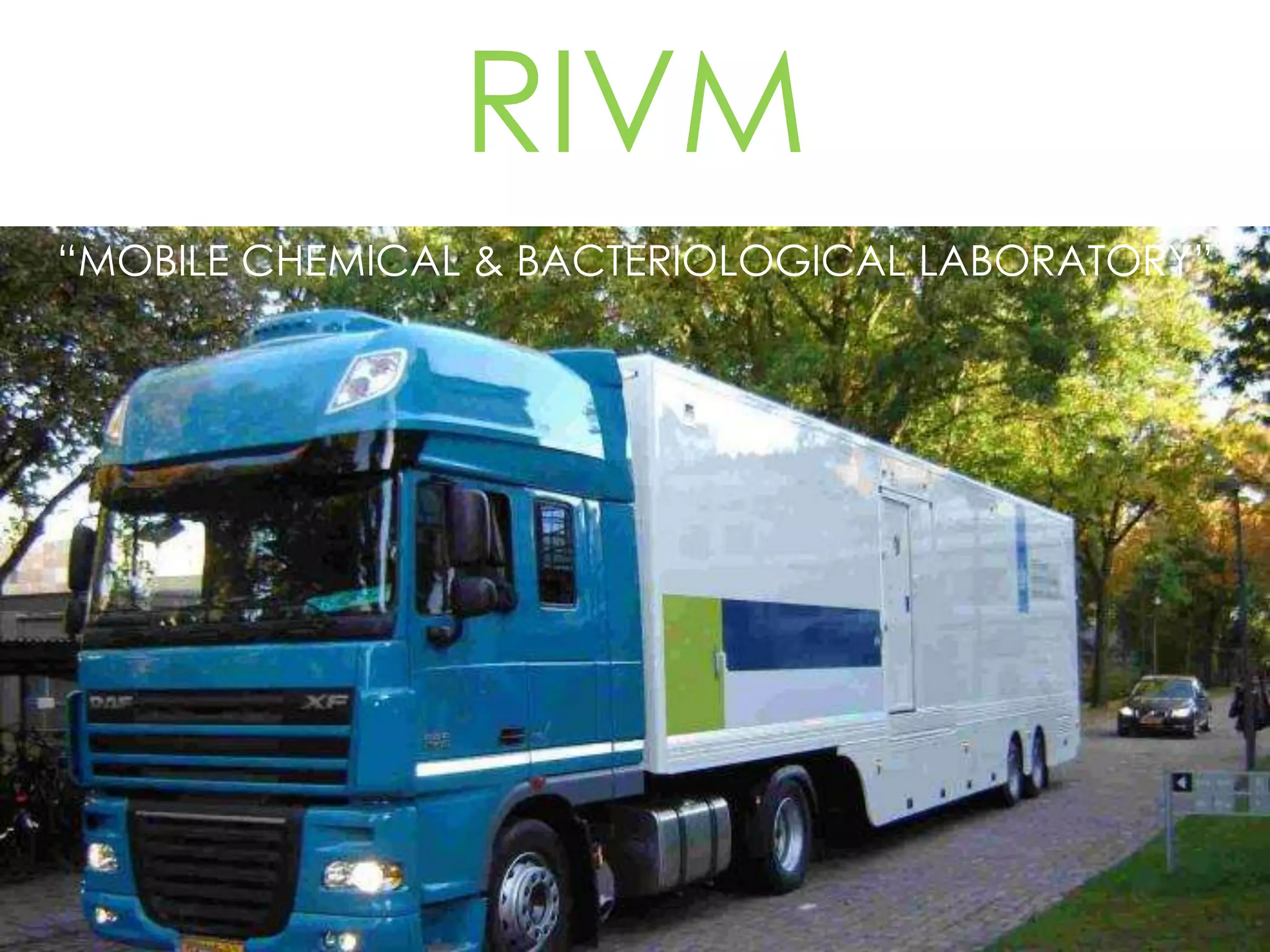

4. RIVM
“MOBILE CHEMICAL & BACTERIOLOGICAL LABORATORY”

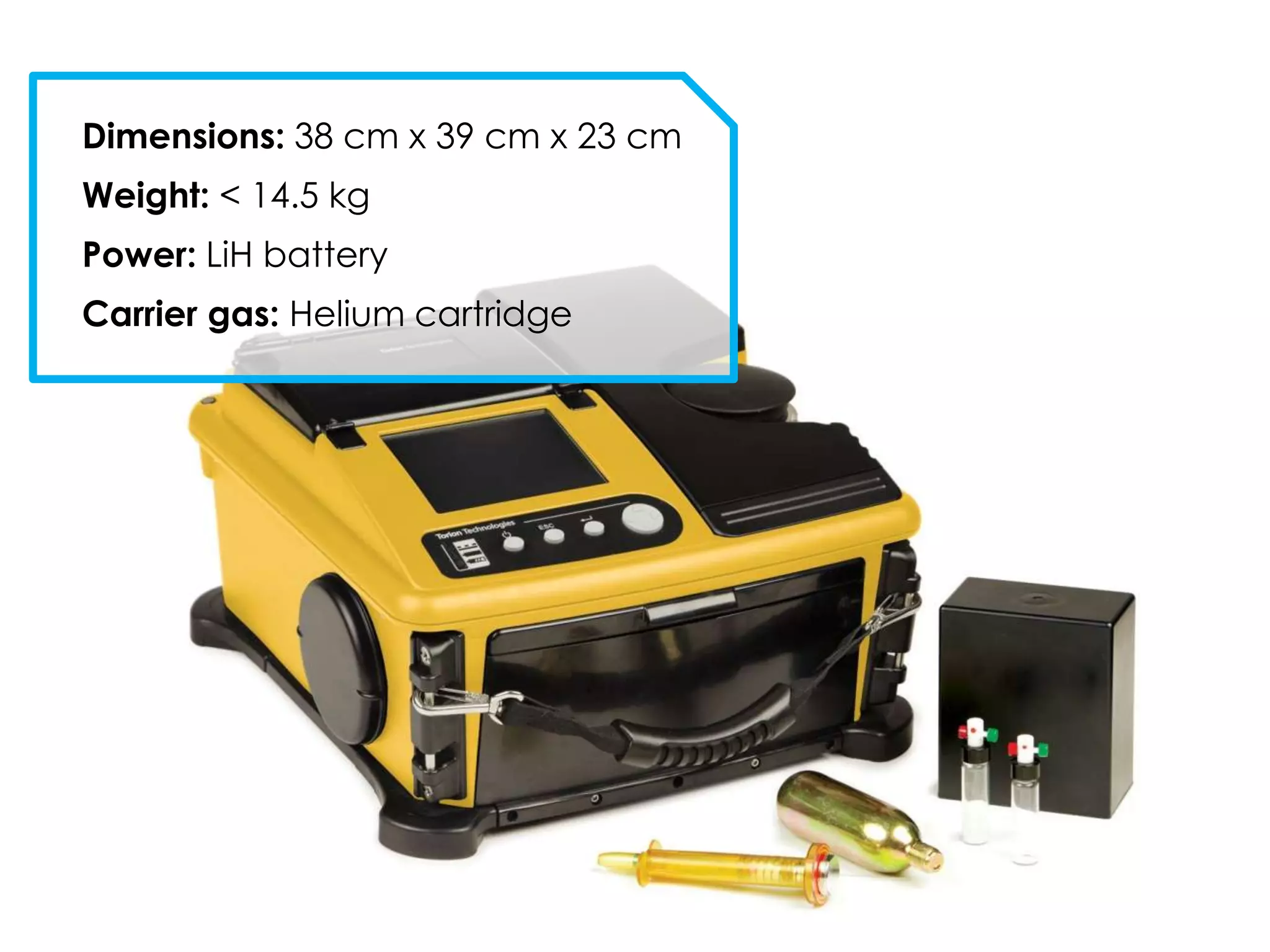

5. Dimensions: 38 cm x 39 cm x 23 cm
Weight: < 14.5 kg
Power: LiH battery
Carrier gas: Helium cartridge

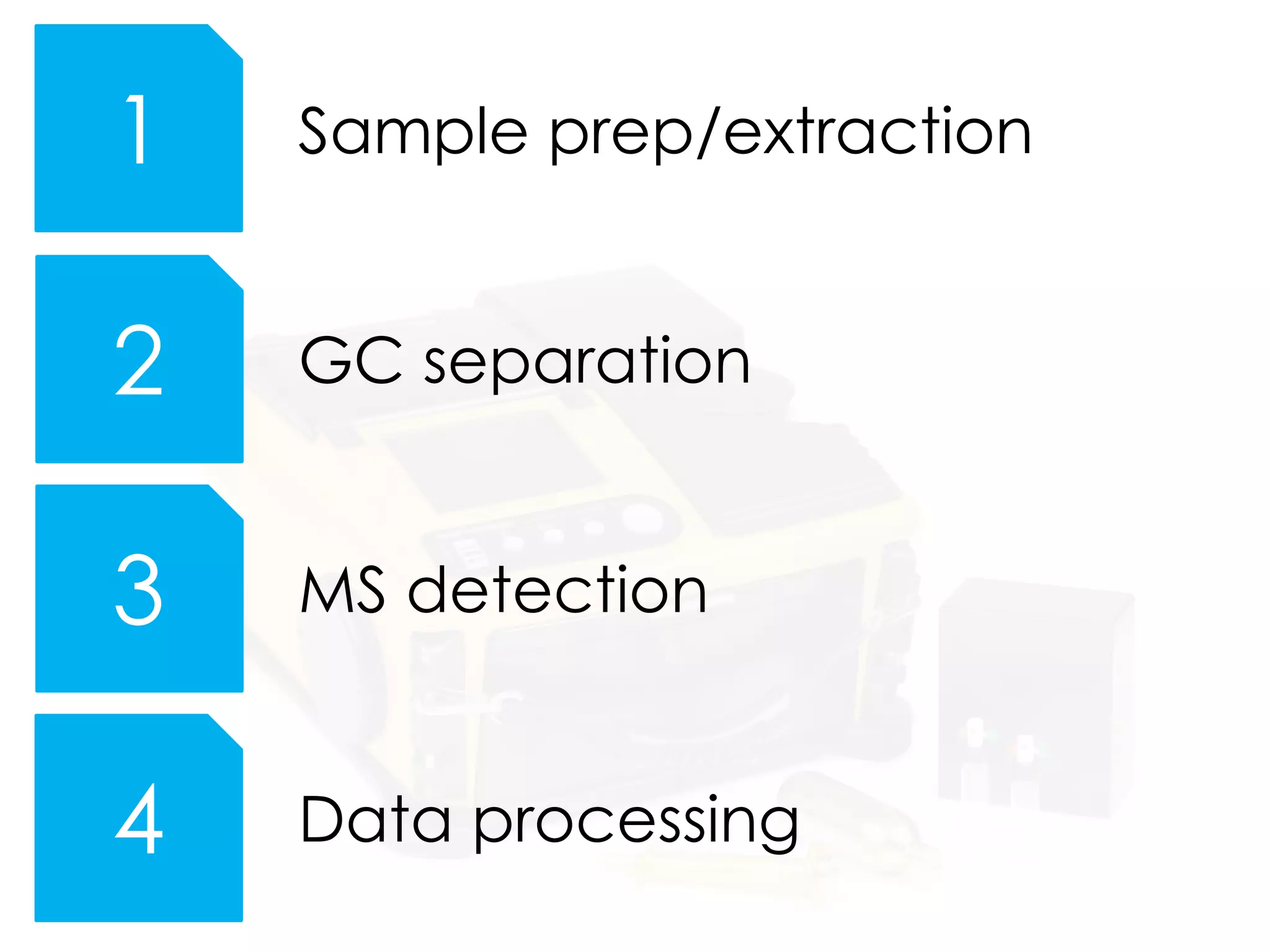

6. Sample prep/extraction
GC separation
MS detection
Data processing
1
3
2
4

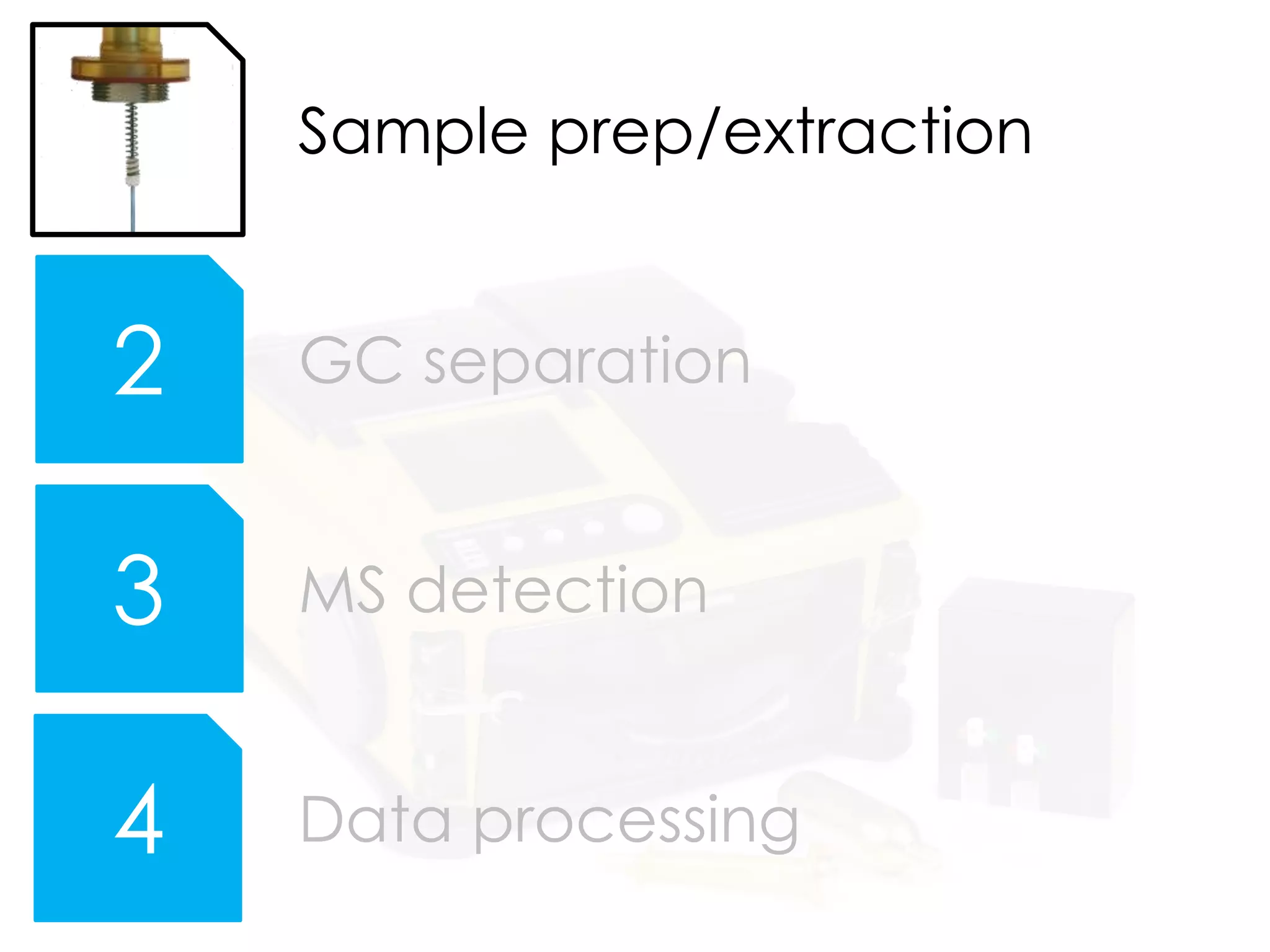

7. 3
2
4
Sample prep/extraction
GC separation
MS detection
Data processing

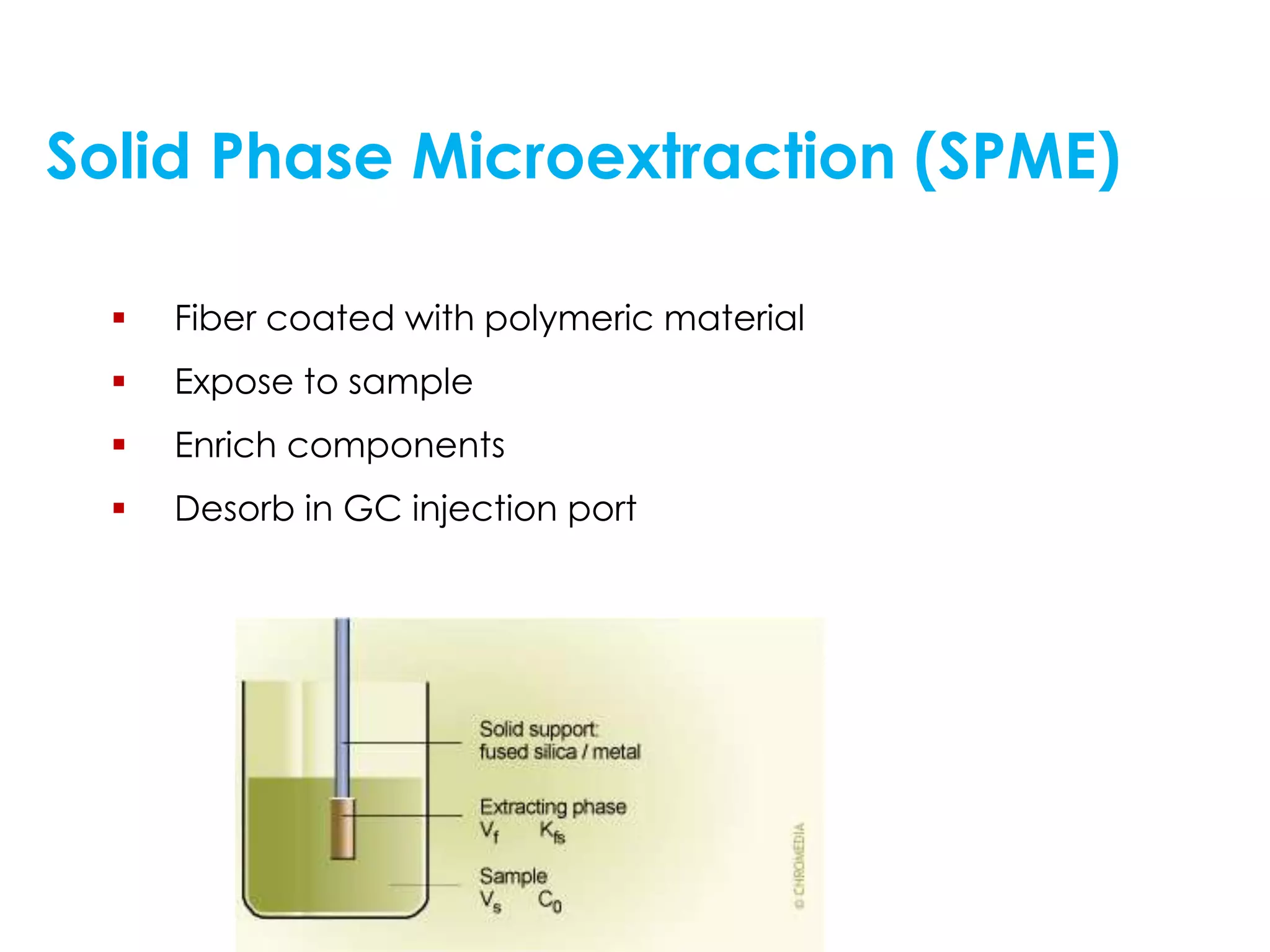

8. Solid Phase Microextraction (SPME)
 Fiber coated with polymeric material
 Expose to sample
 Enrich components
 Desorb in GC injection port

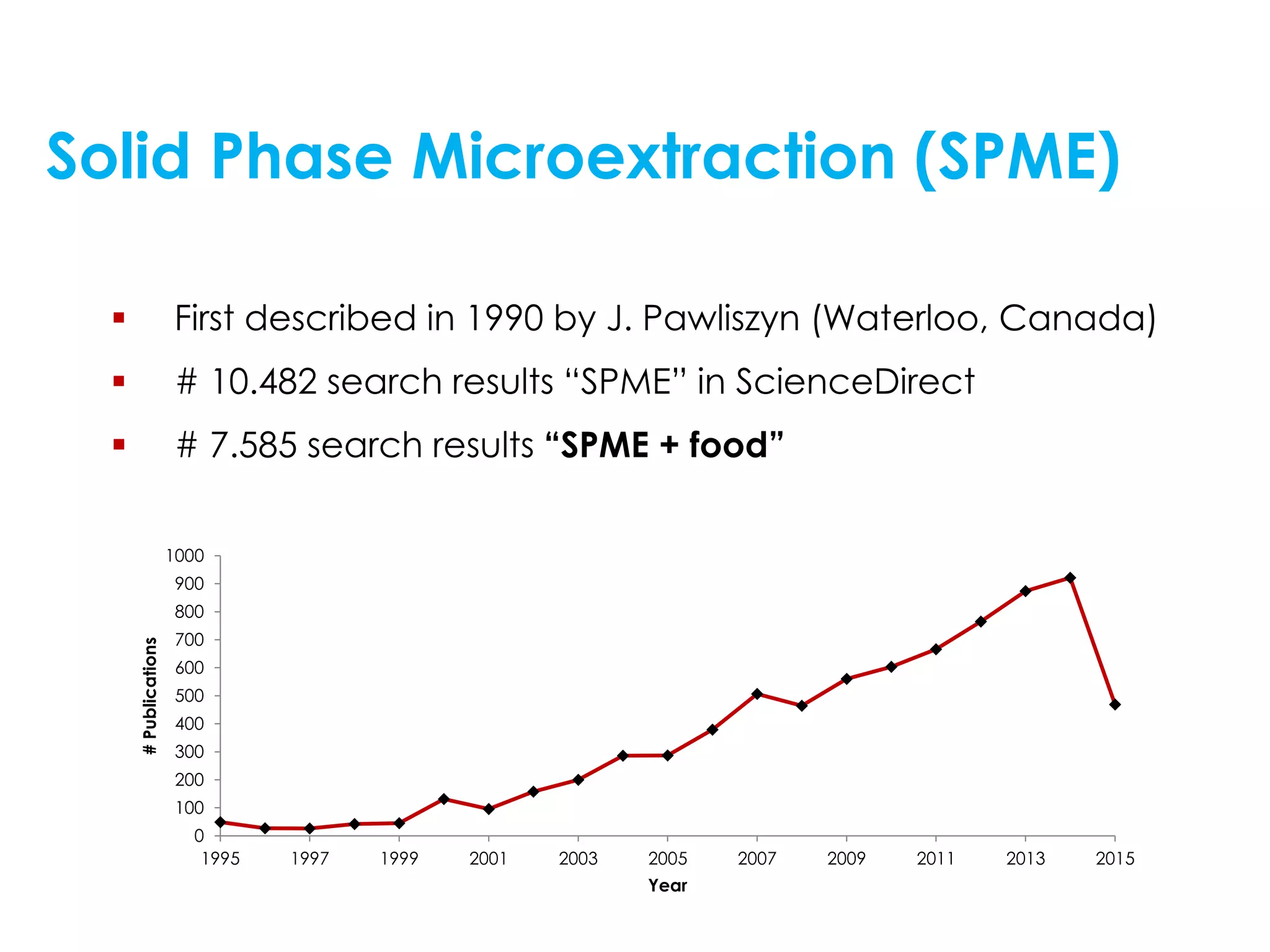

9. Solid Phase Microextraction (SPME)
 First described in 1990 by J. Pawliszyn (Waterloo, Canada)
 # 10.482 search results “SPME” in ScienceDirect
 # 7.585 search results “SPME + food”
0
100
200
300
400
500
600
700
800
900
1000
1995 1997 1999 2001 2003 2005 2007 2009 2011 2013 2015
#Publications
Year

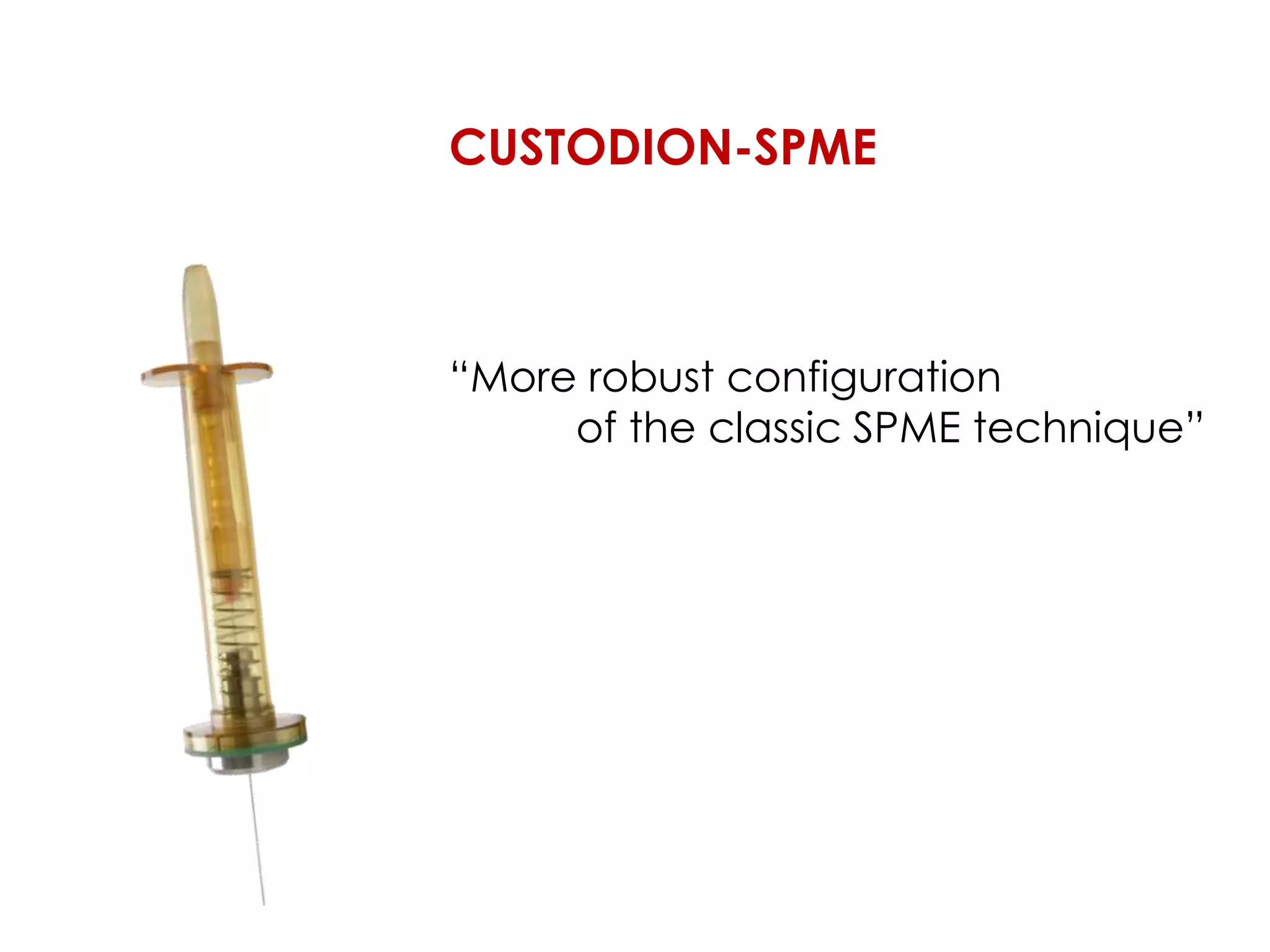

10. CUSTODION-SPME
“More robust configuration
of the classic SPME technique”

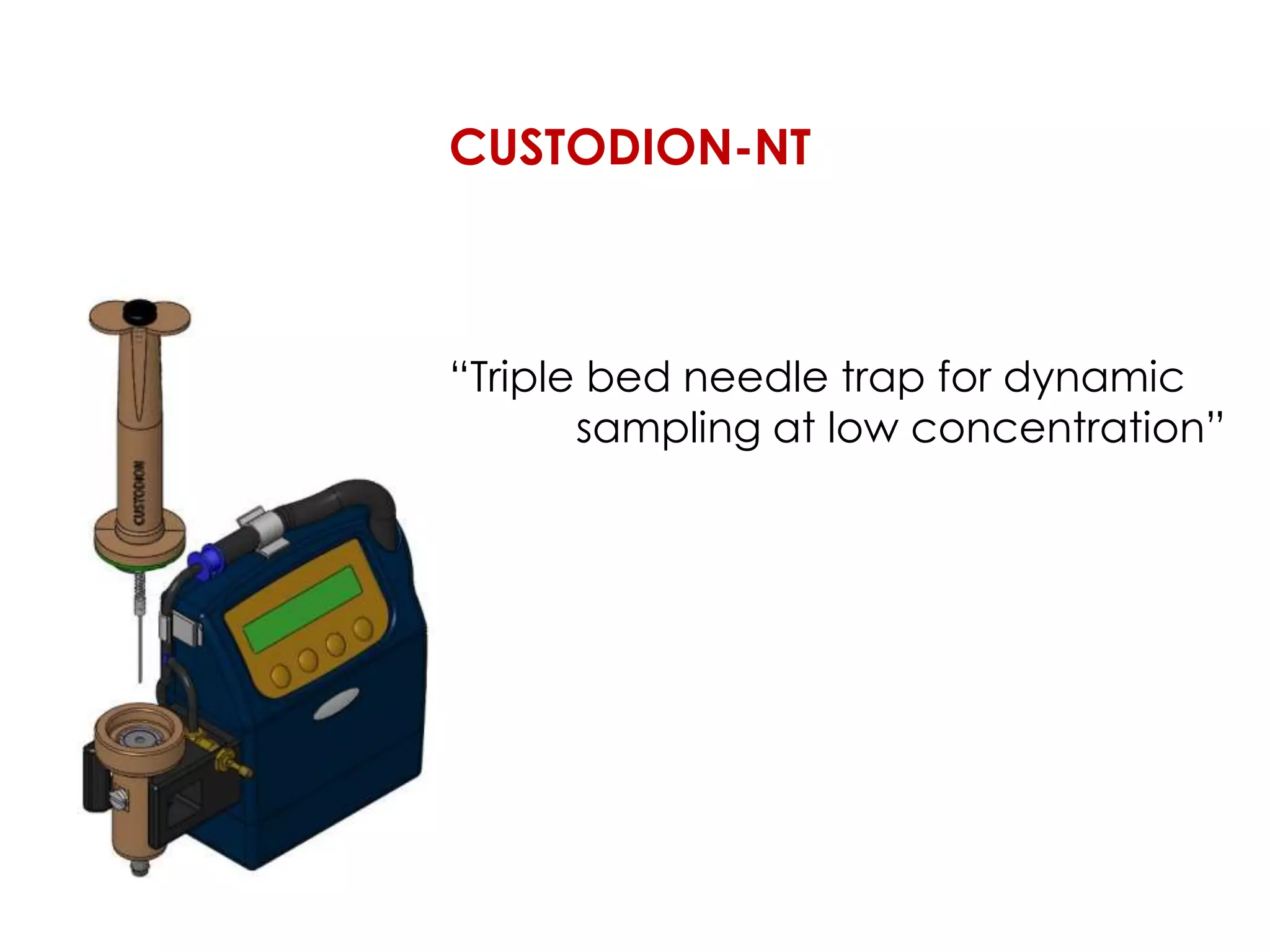

11. CUSTODION-NT
“Triple bed needle trap for dynamic
sampling at low concentration”

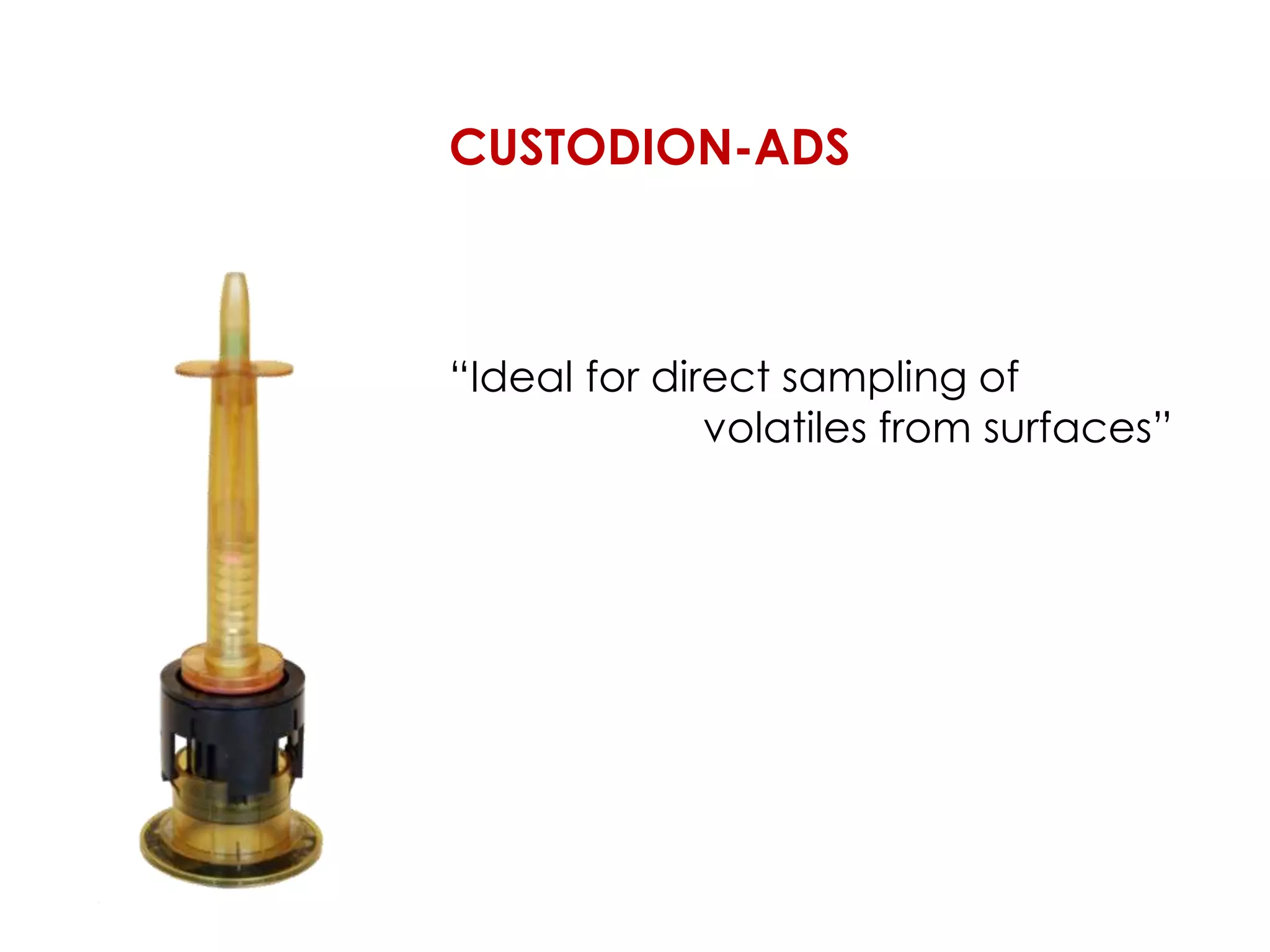

12. CUSTODION-ADS
“Ideal for direct sampling of
volatiles from surfaces”

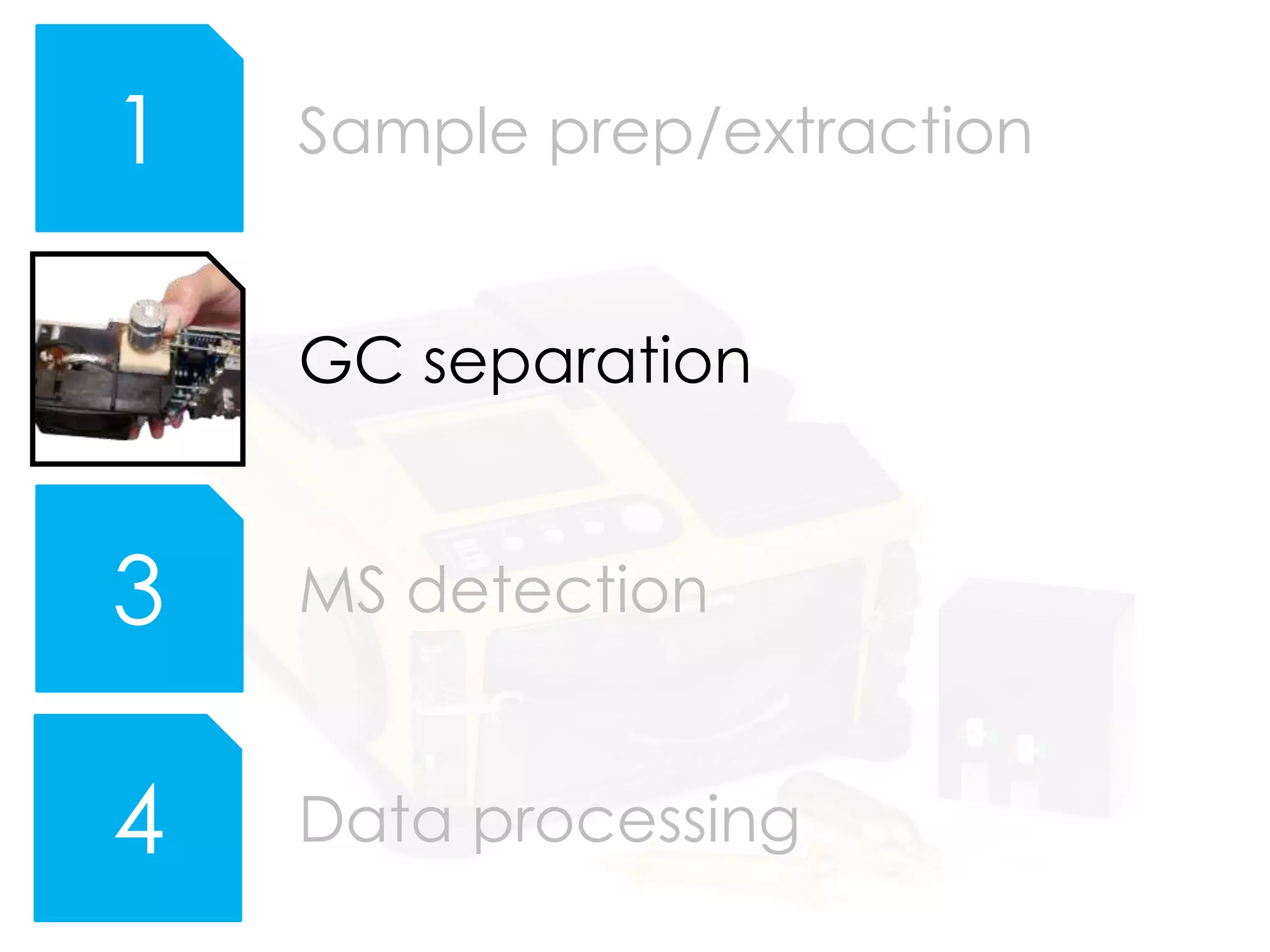

13. 1
3
4
Sample prep/extraction
GC separation
MS detection
Data processing

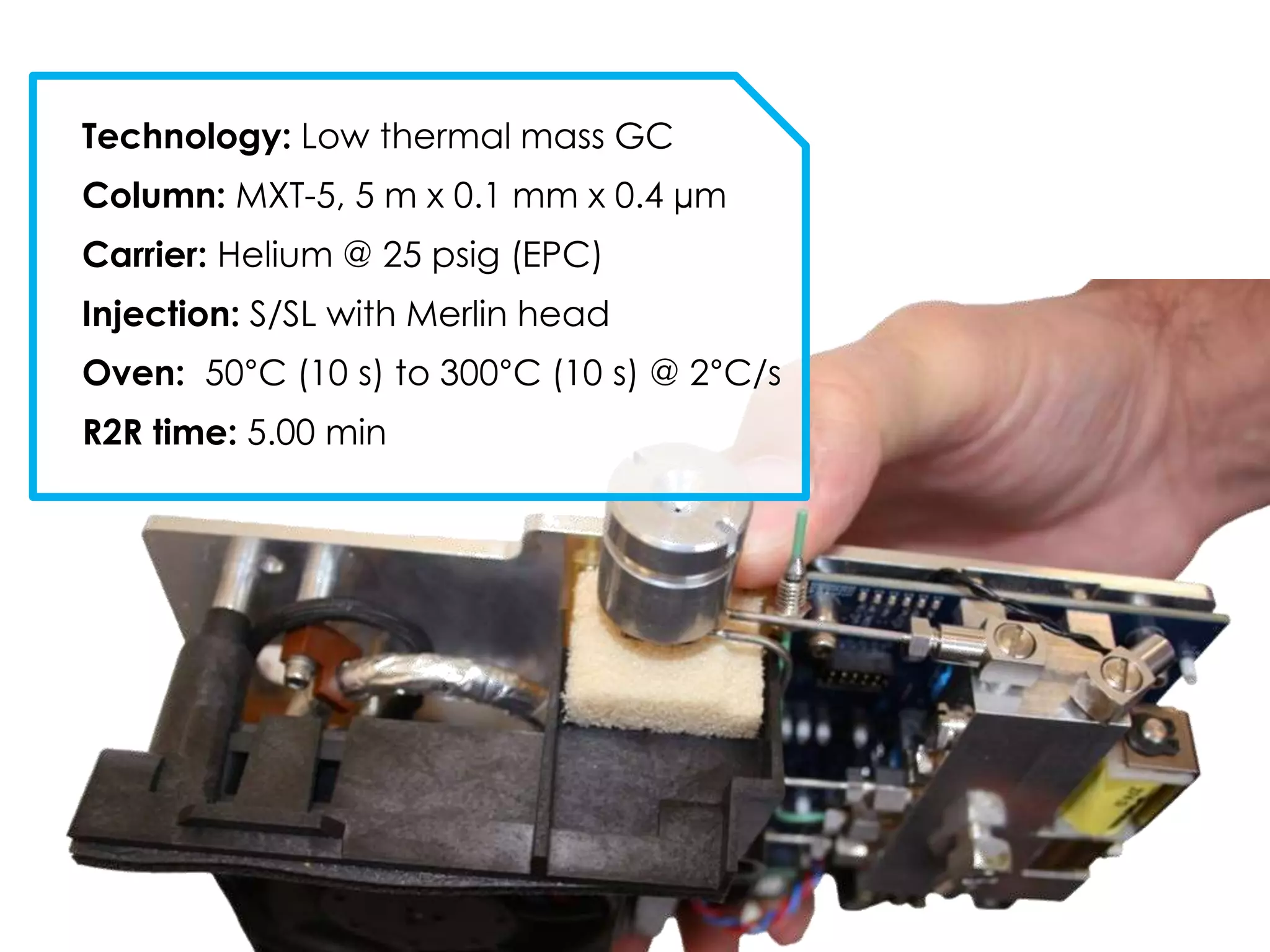

14. Technology: Low thermal mass GC
Column: MXT-5, 5 m x 0.1 mm x 0.4 µm
Carrier: Helium @ 25 psig (EPC)
Injection: S/SL with Merlin head
Oven: 50°C (10 s) to 300°C (10 s) @ 2°C/s
R2R time: 5.00 min

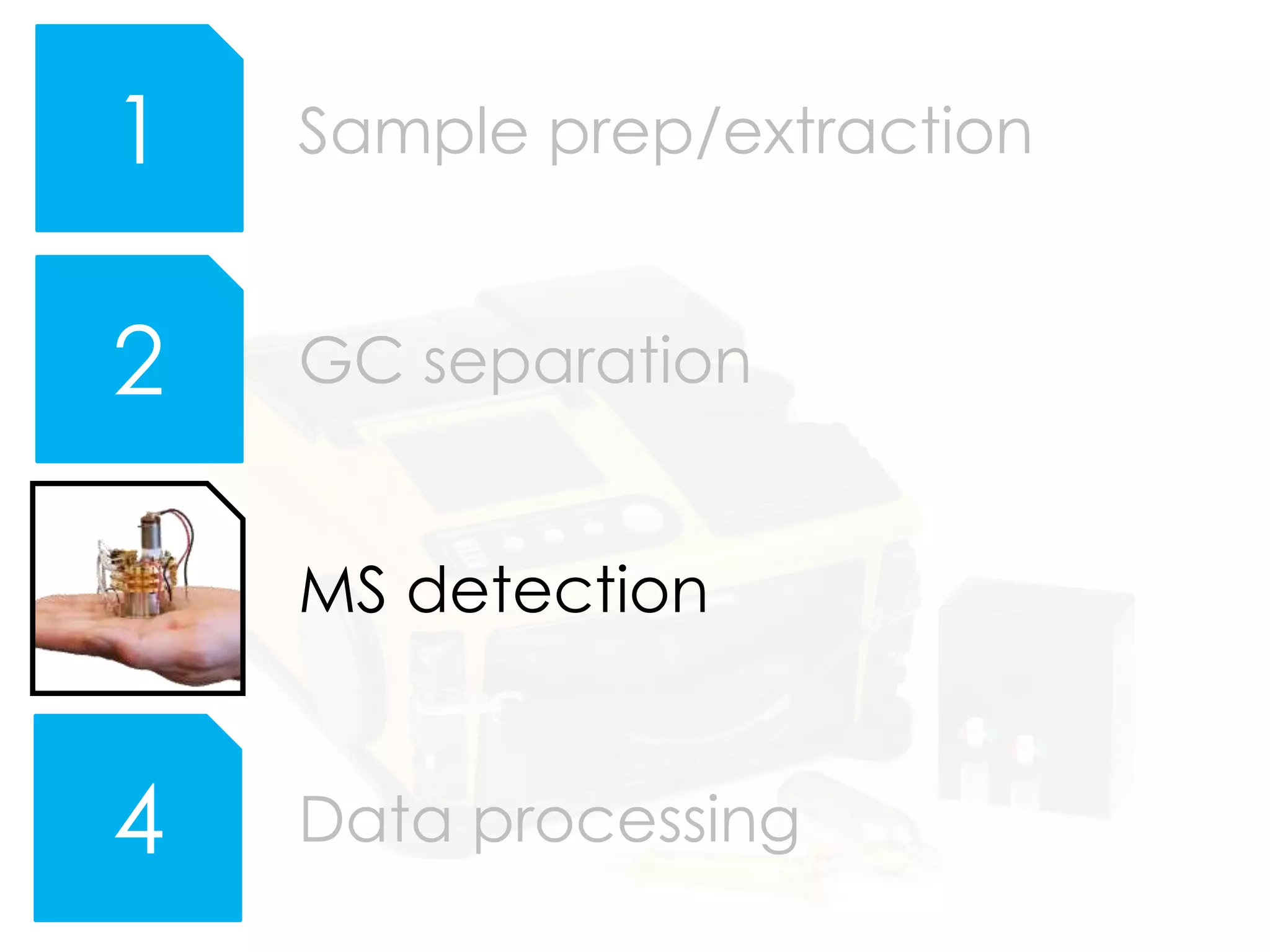

15. 1
2
4
Sample prep/extraction
GC separation
MS detection
Data processing

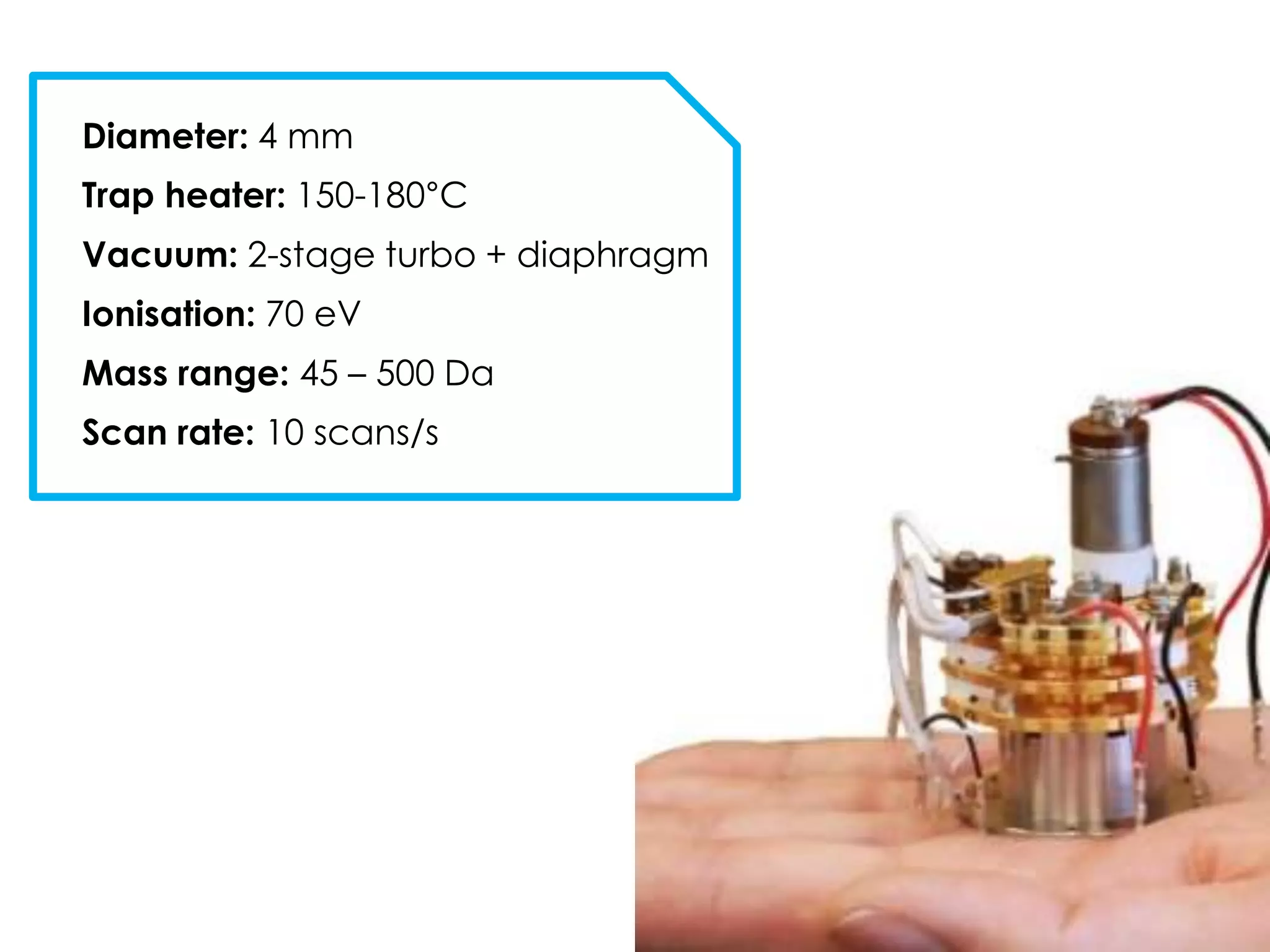

16. Diameter: 4 mm
Trap heater: 150-180°C
Vacuum: 2-stage turbo + diaphragm
Ionisation: 70 eV
Mass range: 45 – 500 Da
Scan rate: 10 scans/s

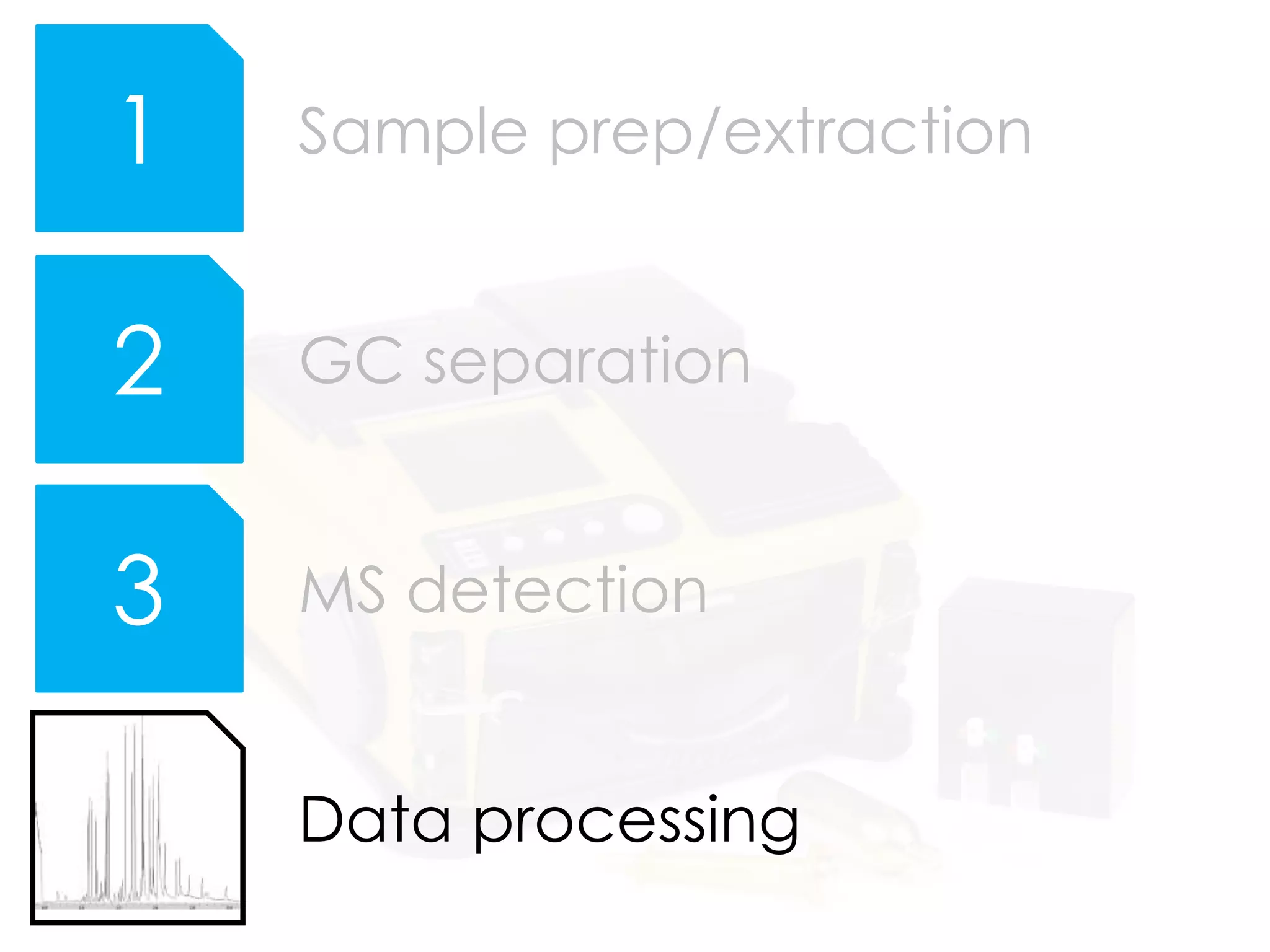

17. 1
3
2
Sample prep/extraction
GC separation
MS detection
Data processing

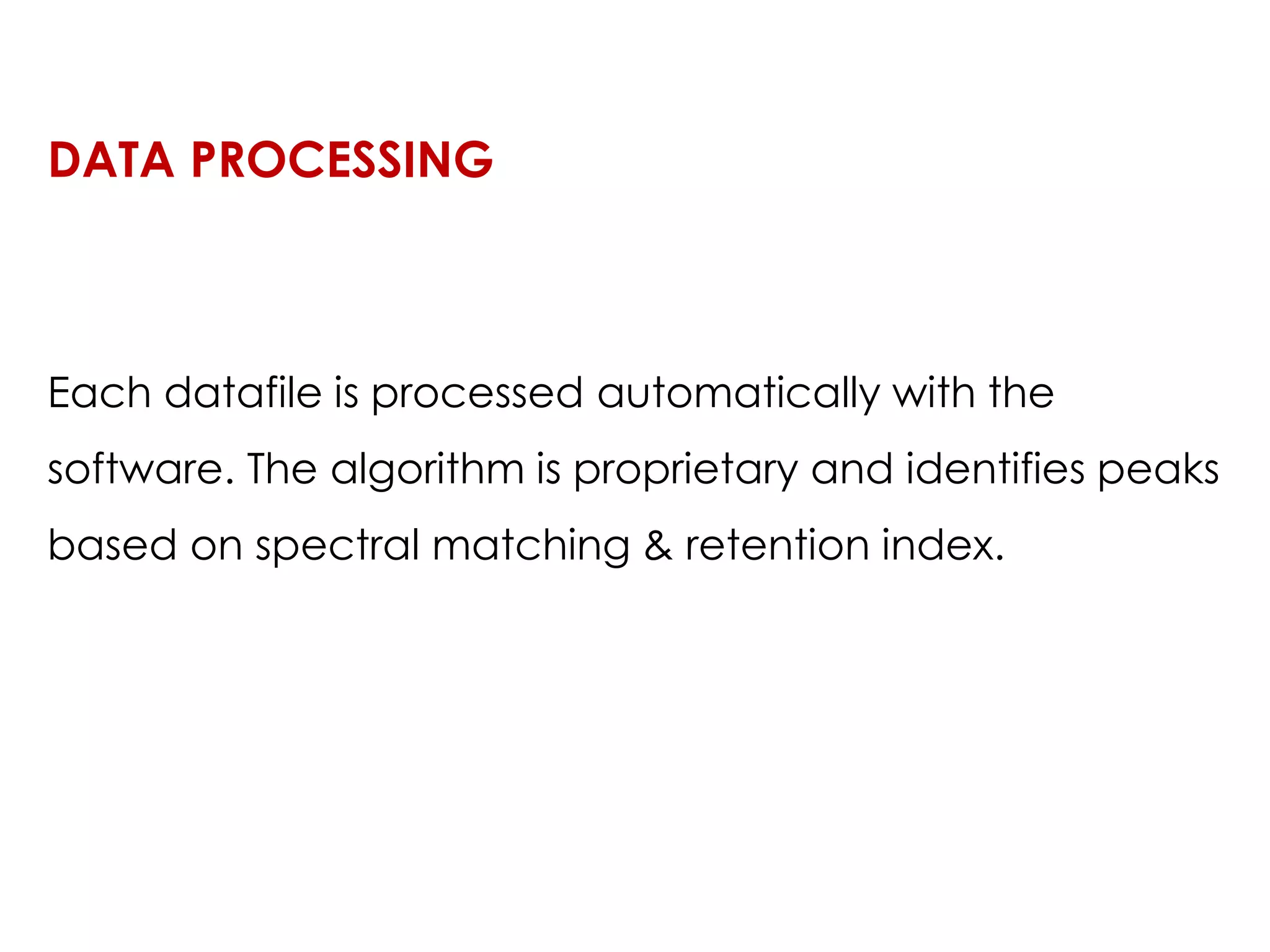

18. Each datafile is processed automatically with the
software. The algorithm is proprietary and identifies peaks
based on spectral matching & retention index.
DATA PROCESSING

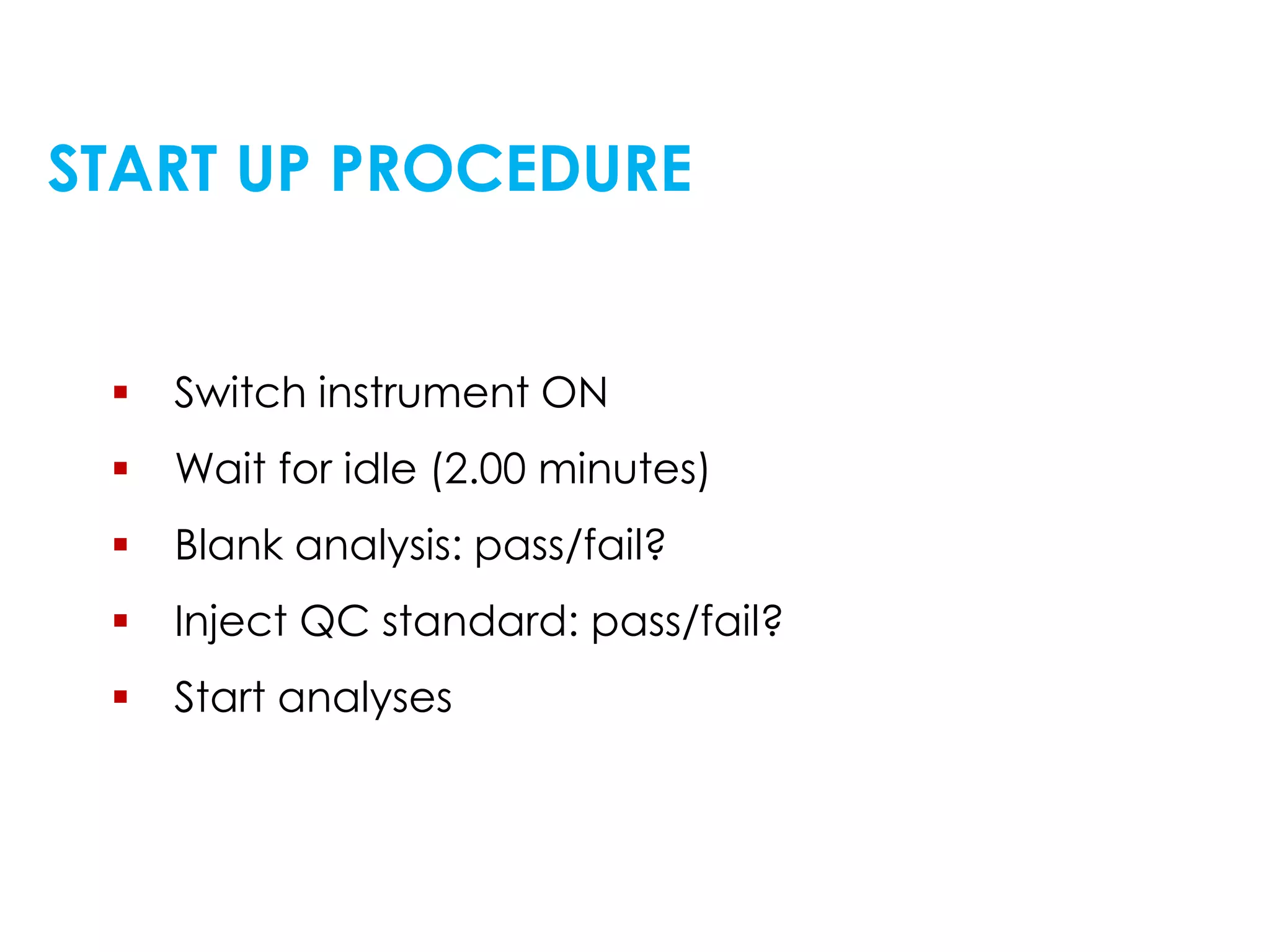

19. START UP PROCEDURE
 Switch instrument ON
 Wait for idle (2.00 minutes)
 Blank analysis: pass/fail?
 Inject QC standard: pass/fail?
 Start analyses

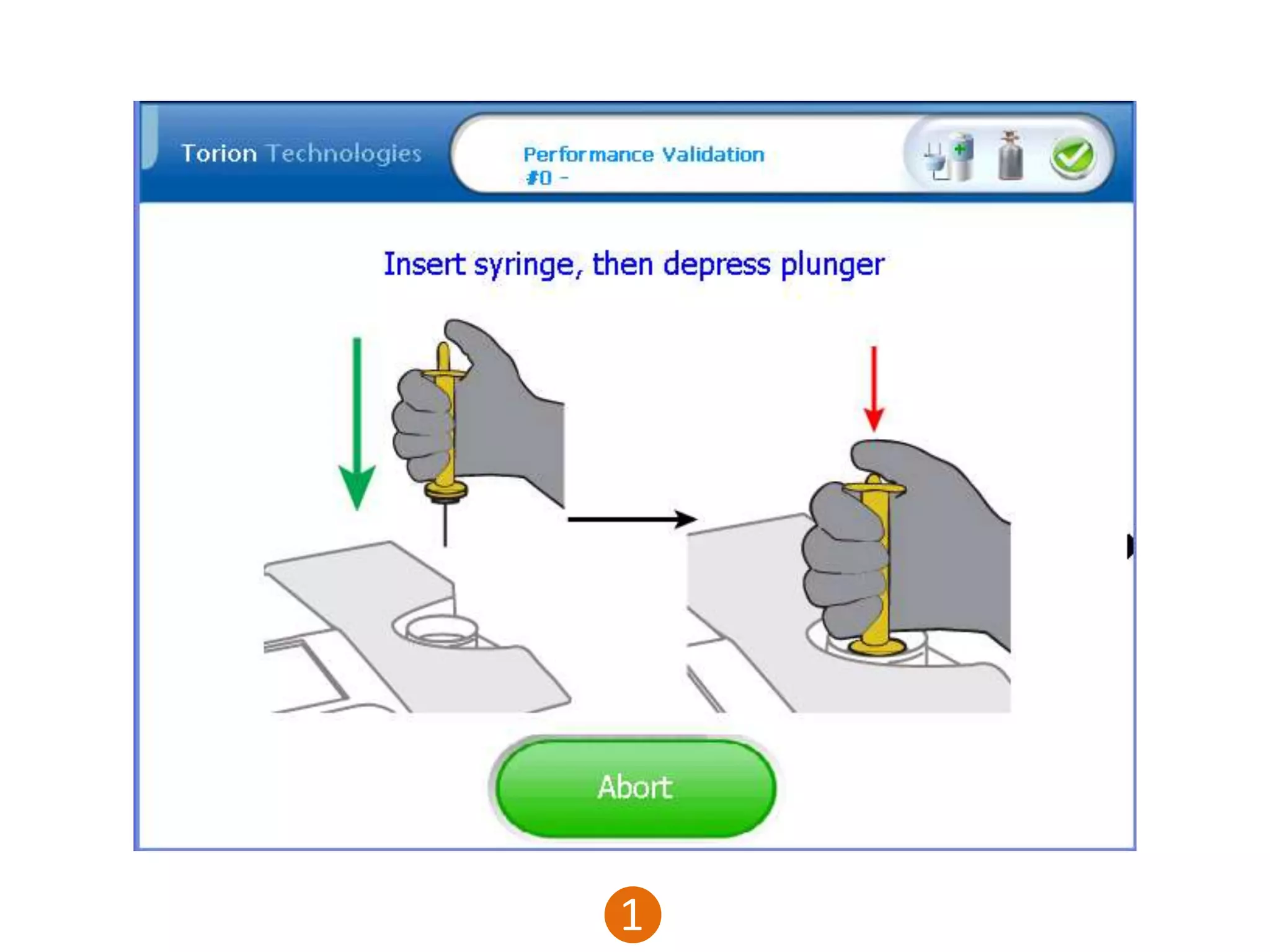

20. ❶

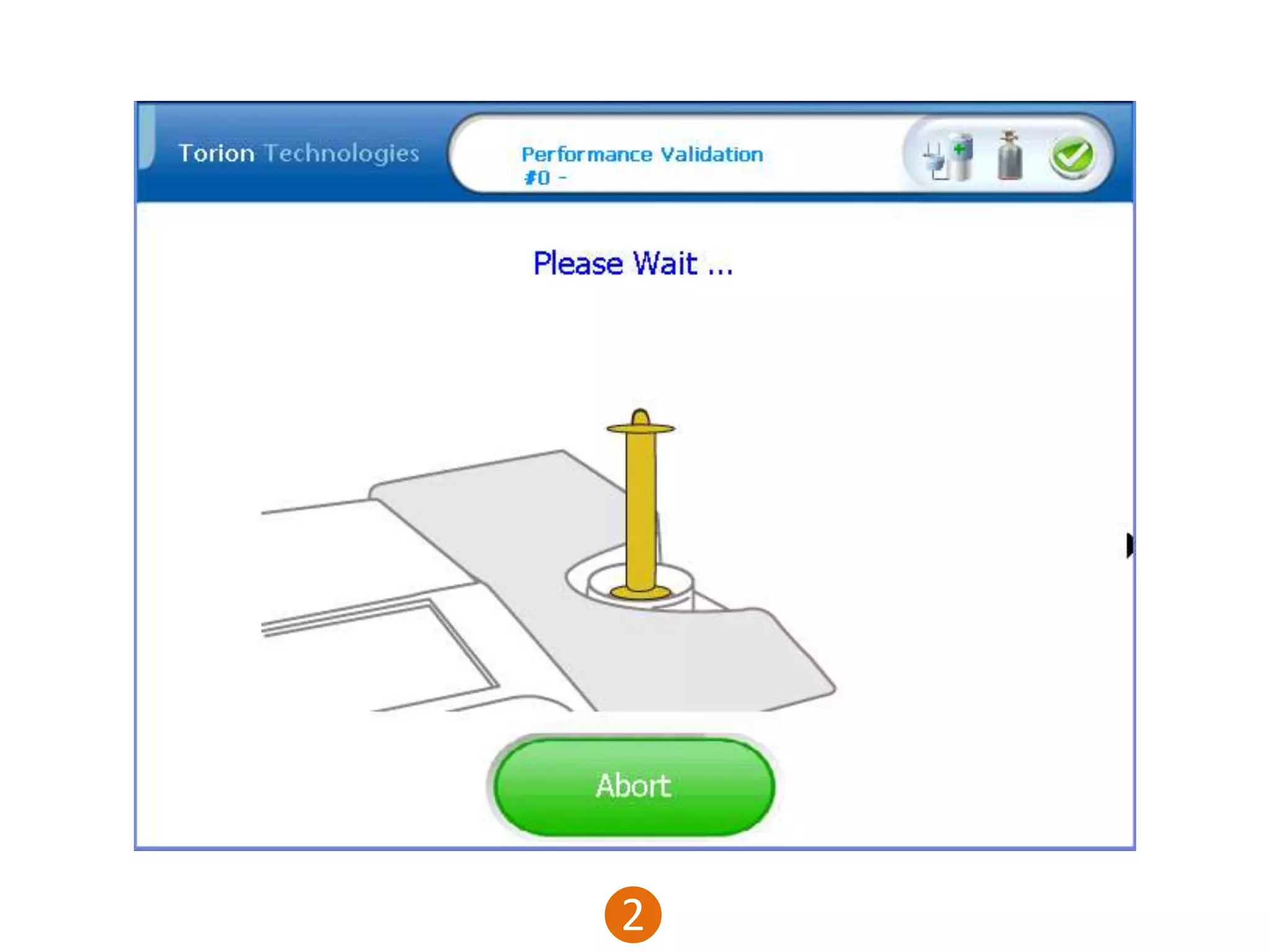

21. ❷

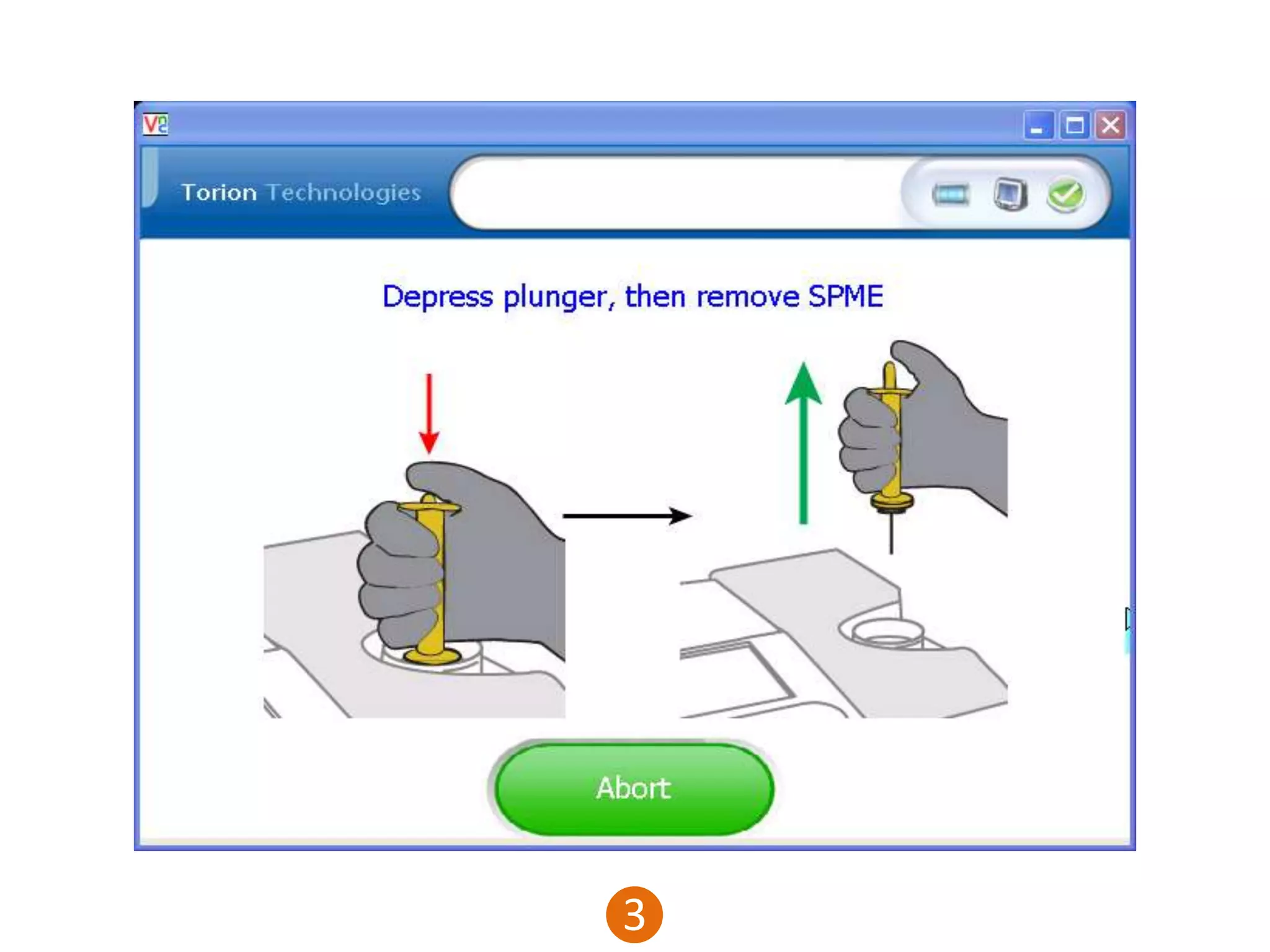

22. ❸

23. APPLICATIONS
 Shelflife & freshness
 Flavour & fragrance
 Authenticity
 Packaging
 Toxins
 Pesticides
 …

26. In vivo SPME with in vitro calibration:
Determination of off-flavor components in live fish
Z. Bai e.a., Anal. Chem. (1993) ,

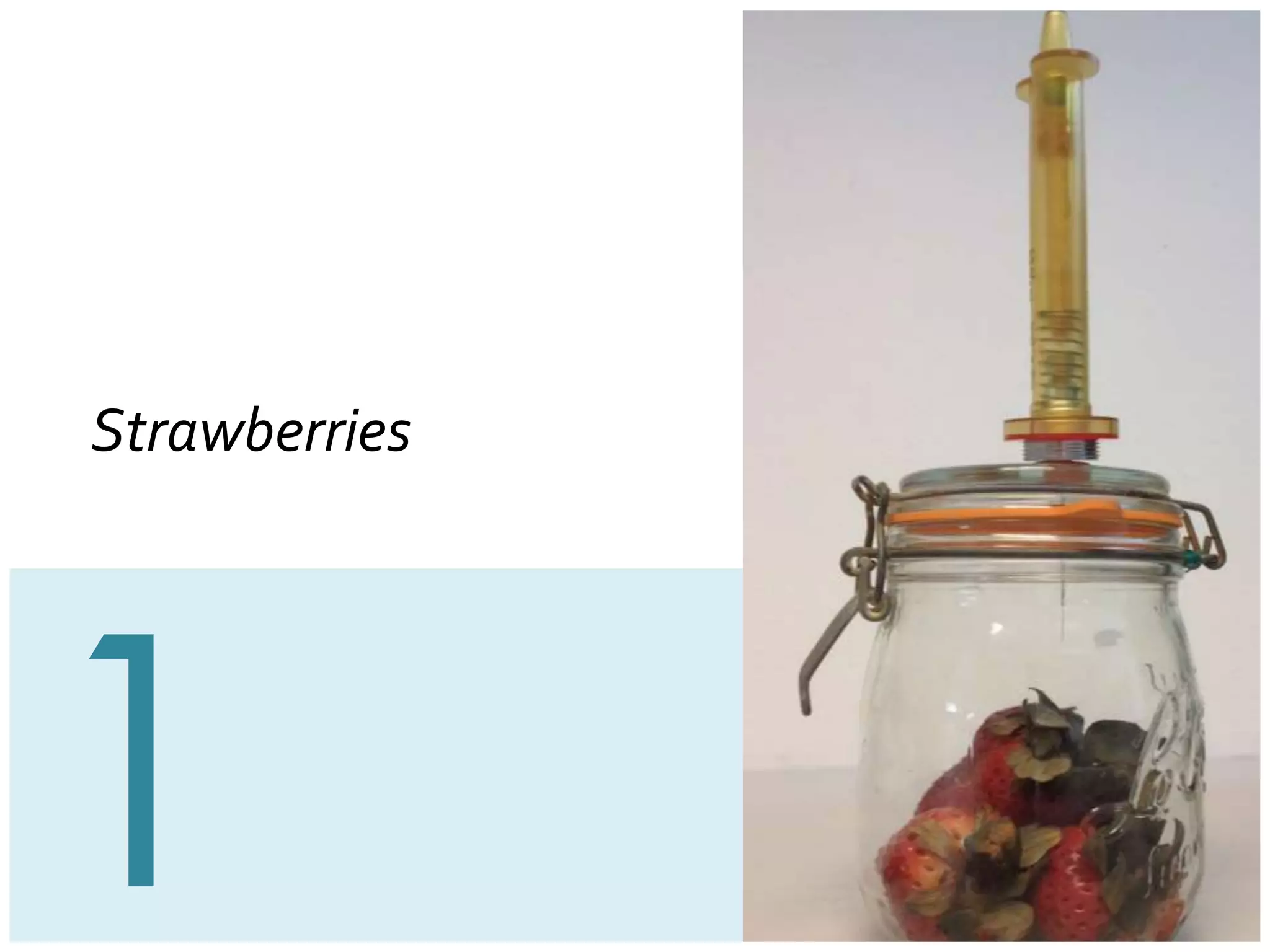

27. 1

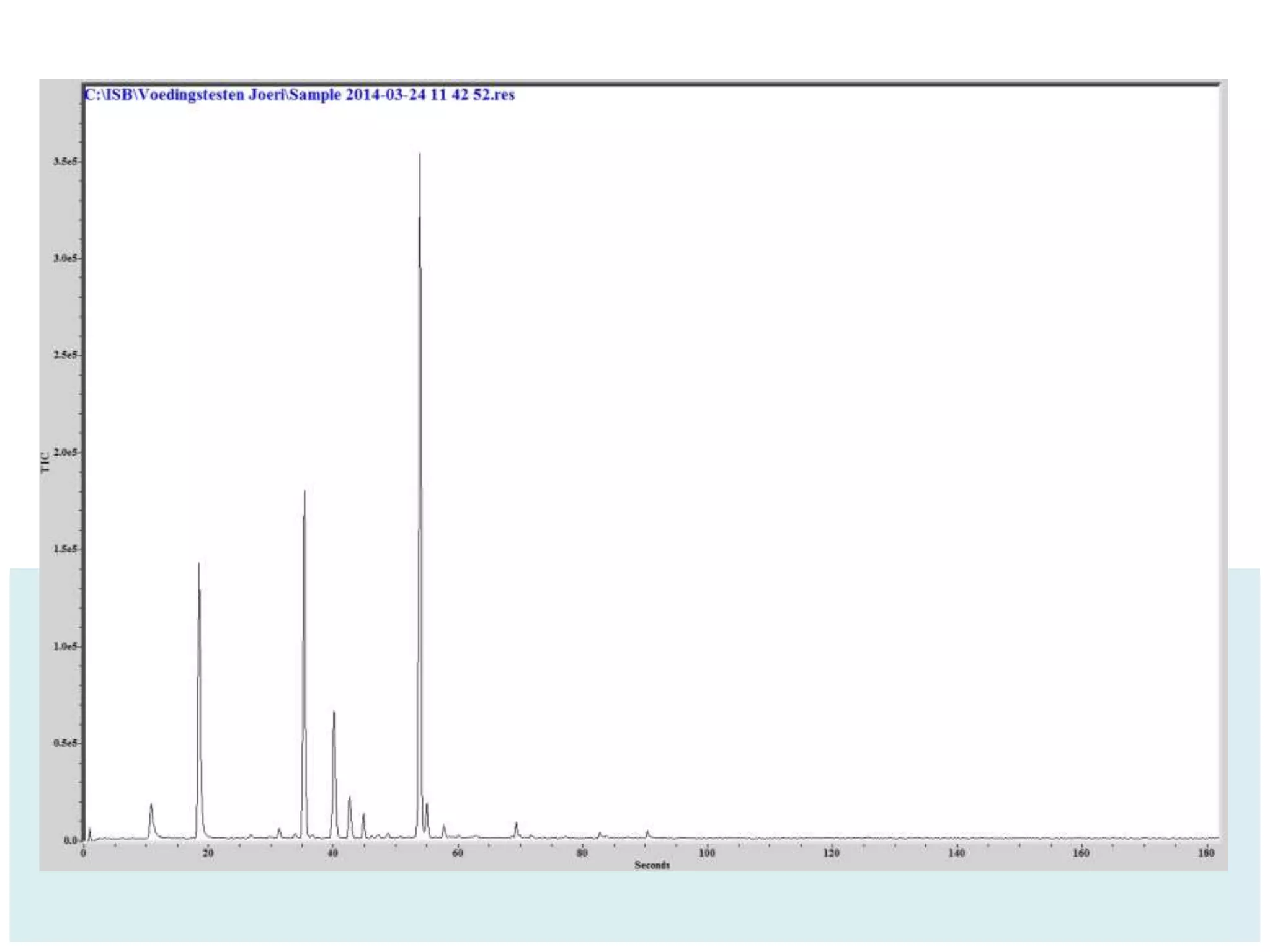

Strawberries

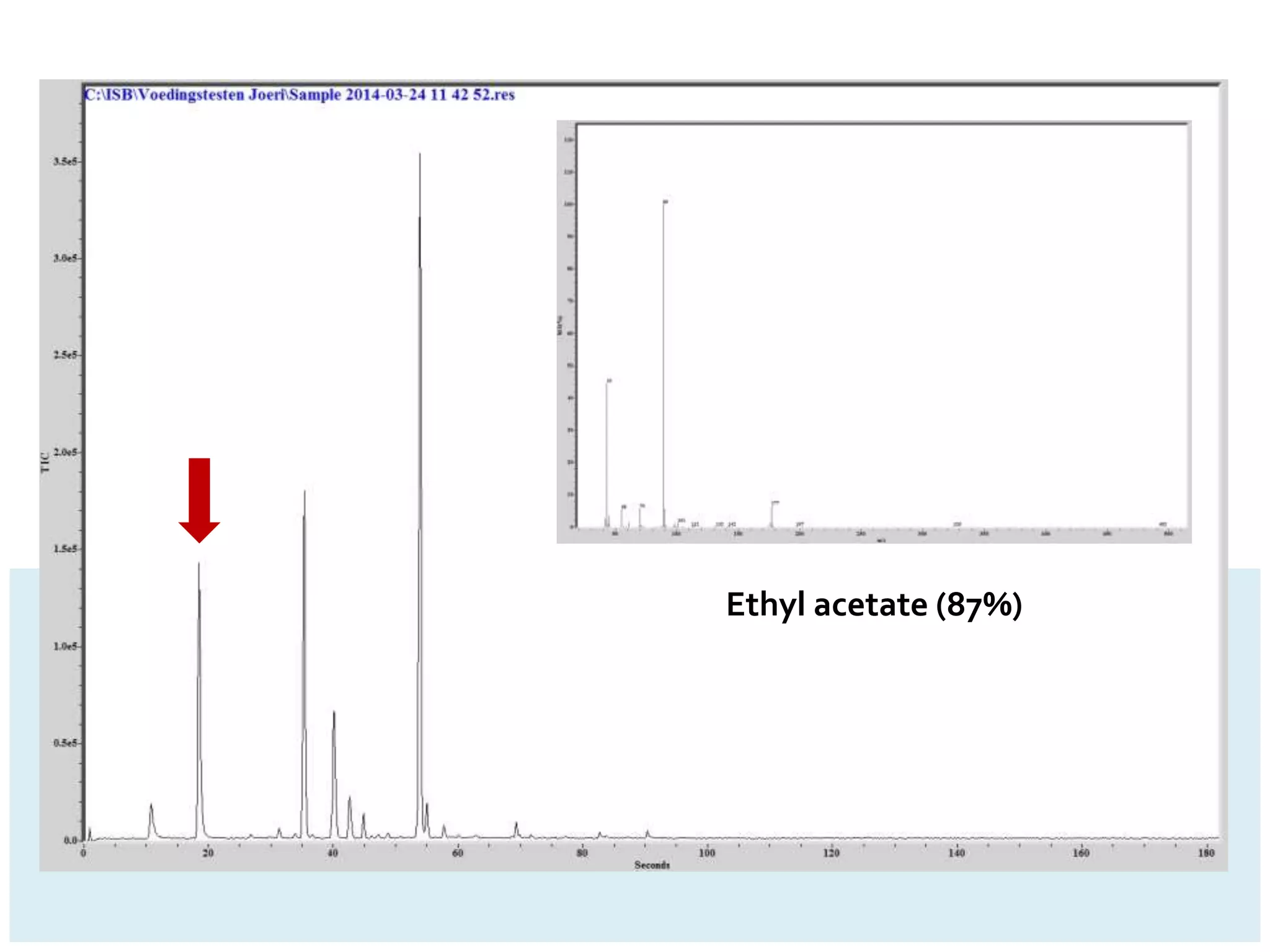

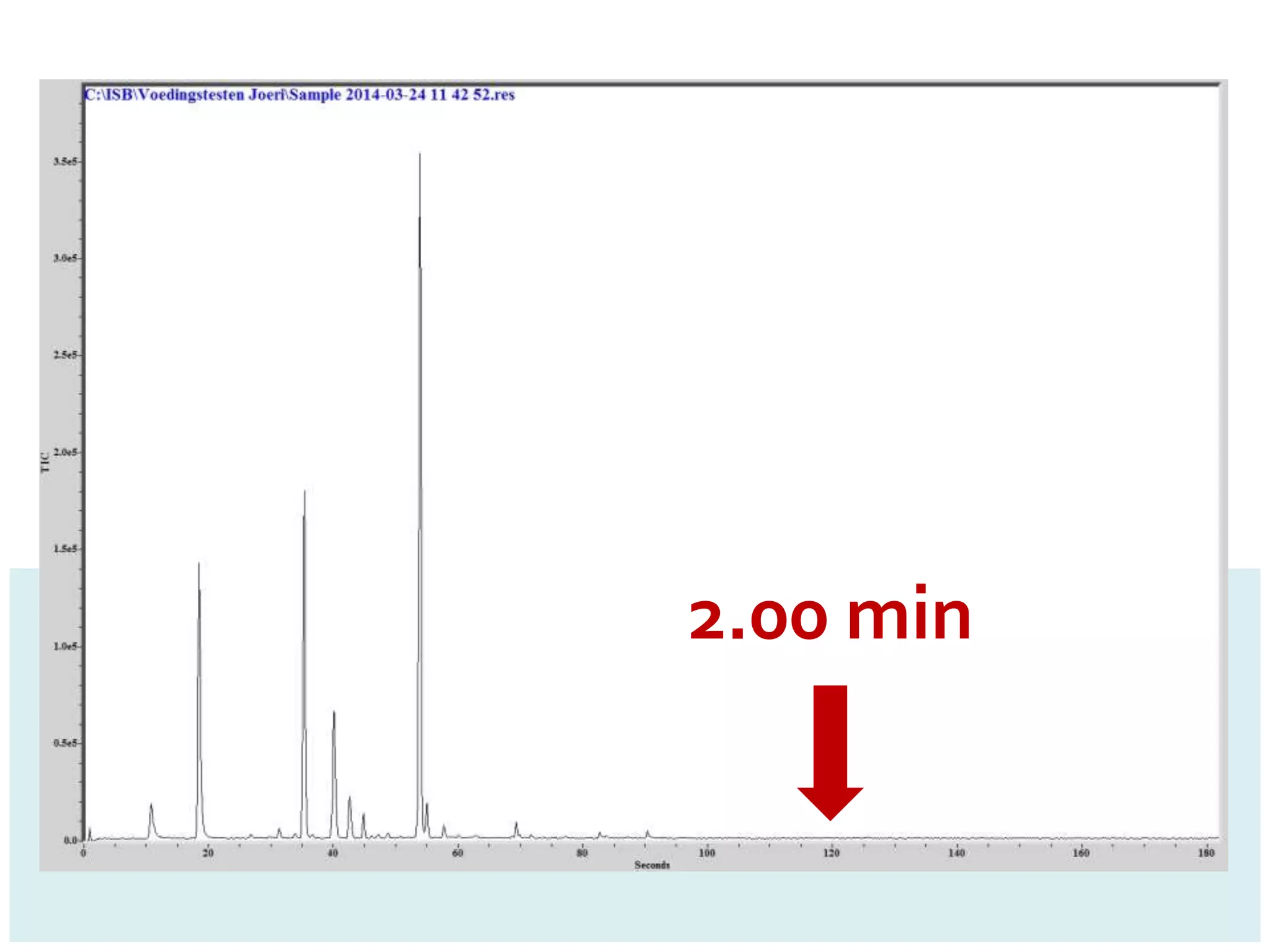

29. 2.00 min

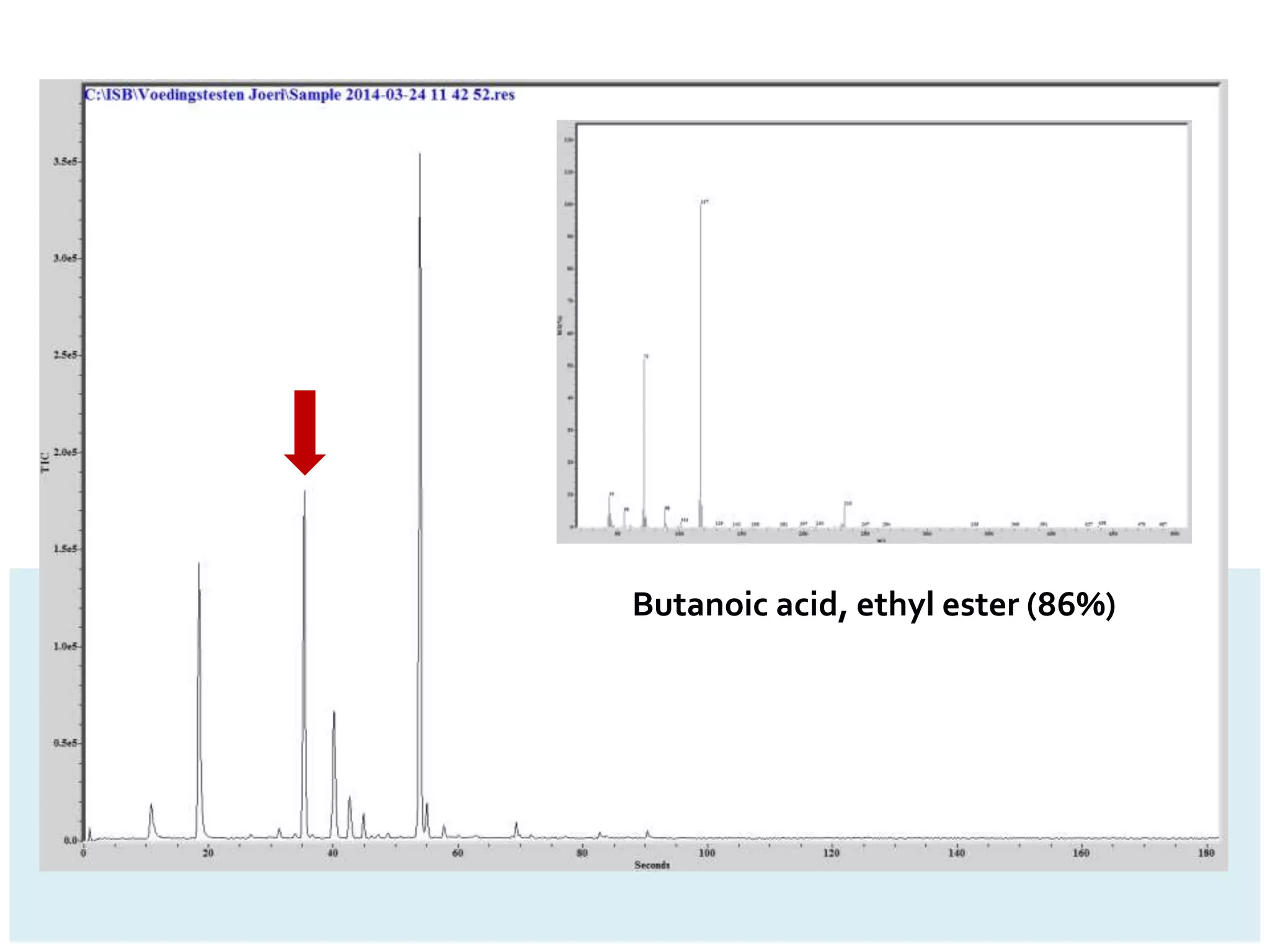

30. Ethyl acetate (87%)

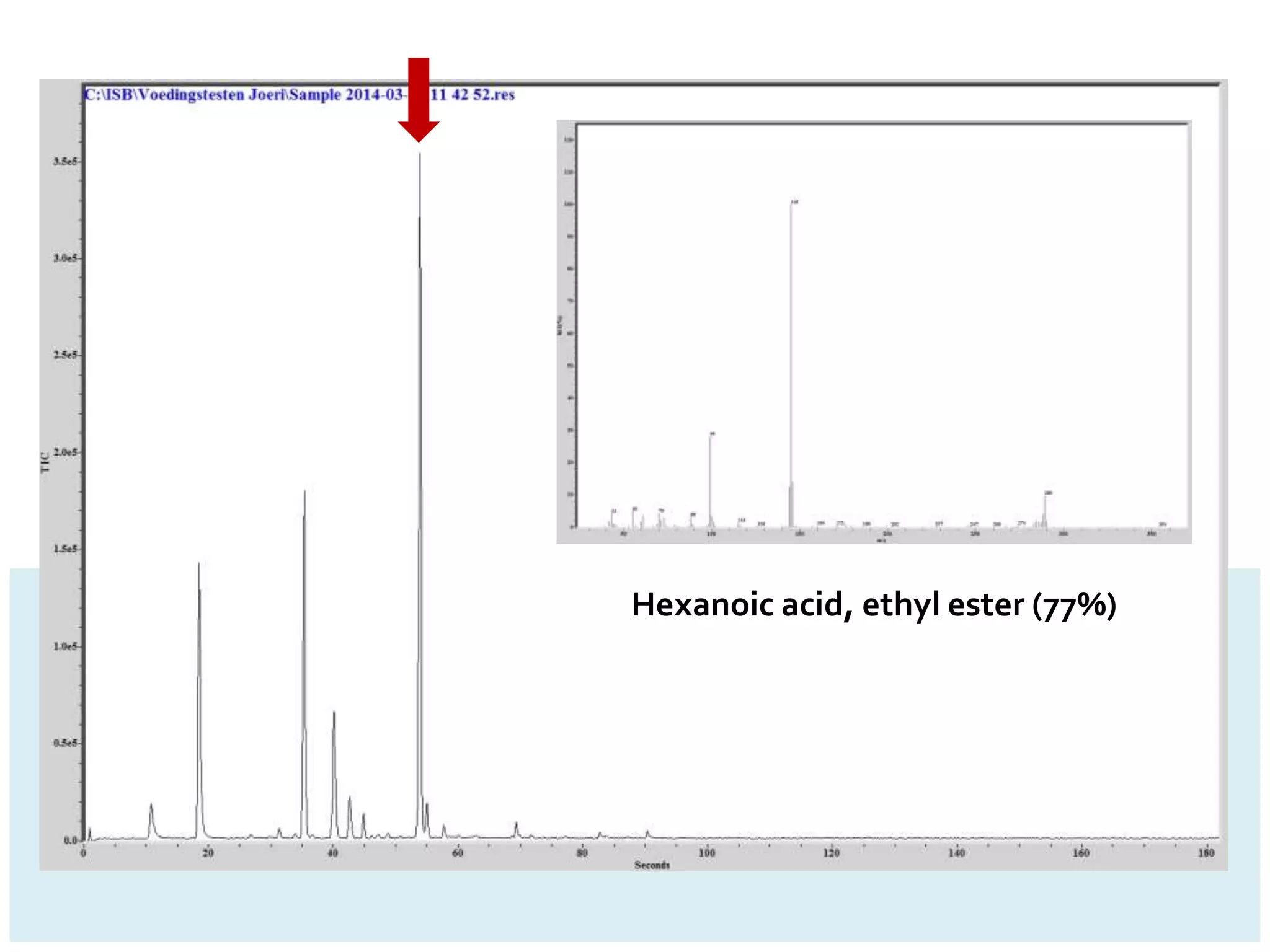

31. Butanoic acid, ethyl ester (86%)

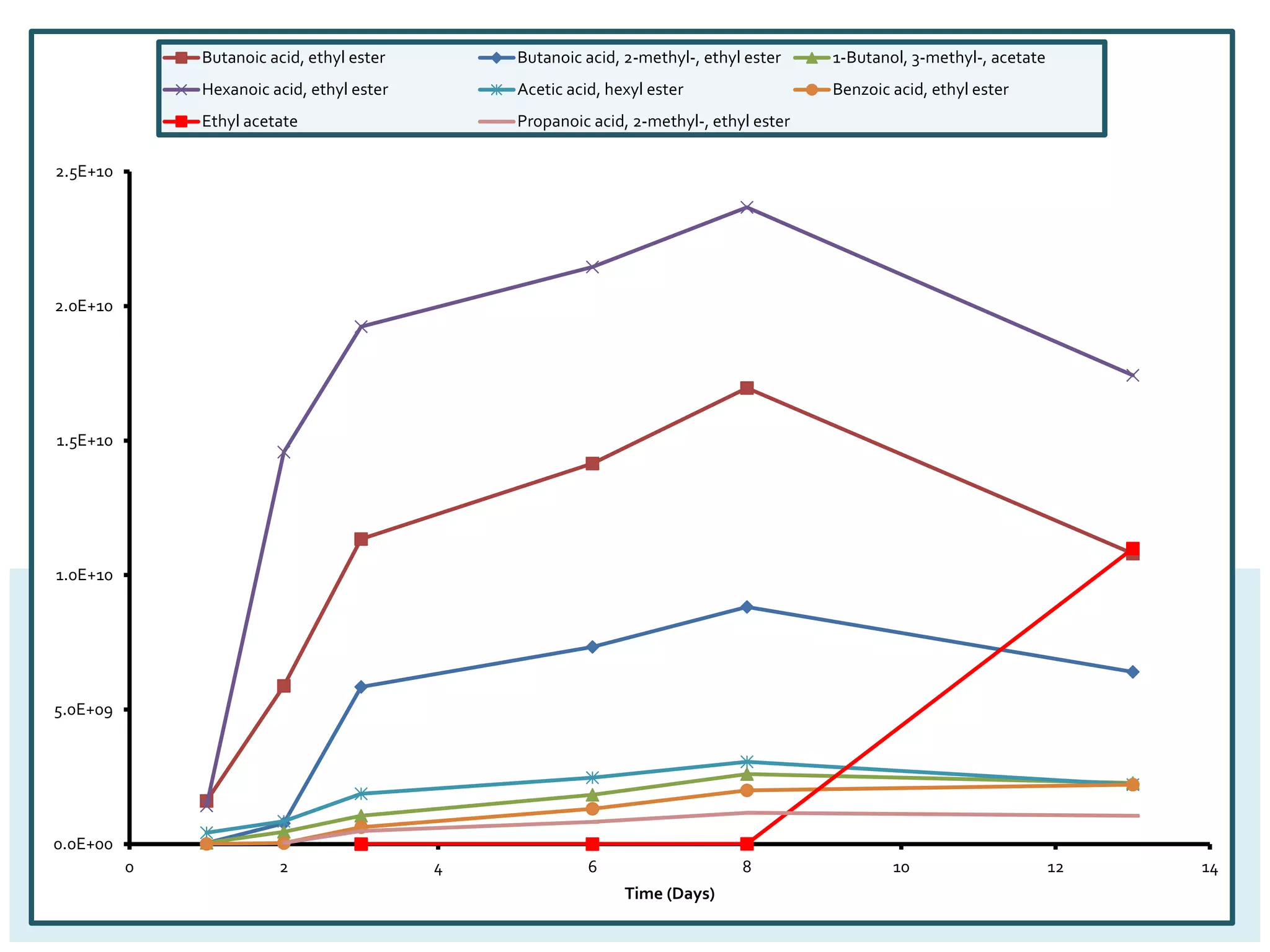

32. Hexanoic acid, ethyl ester (77%)

33. 0.0E+00
5.0E+09
1.0E+10
1.5E+10
2.0E+10
2.5E+10
0 2 4 6 8 10 12 14
Time (Days)
Butanoic acid, ethyl ester Butanoic acid, 2-methyl-, ethyl ester 1-Butanol, 3-methyl-, acetate
Hexanoic acid, ethyl ester Acetic acid, hexyl ester Benzoic acid, ethyl ester
Ethyl acetate Propanoic acid, 2-methyl-, ethyl ester

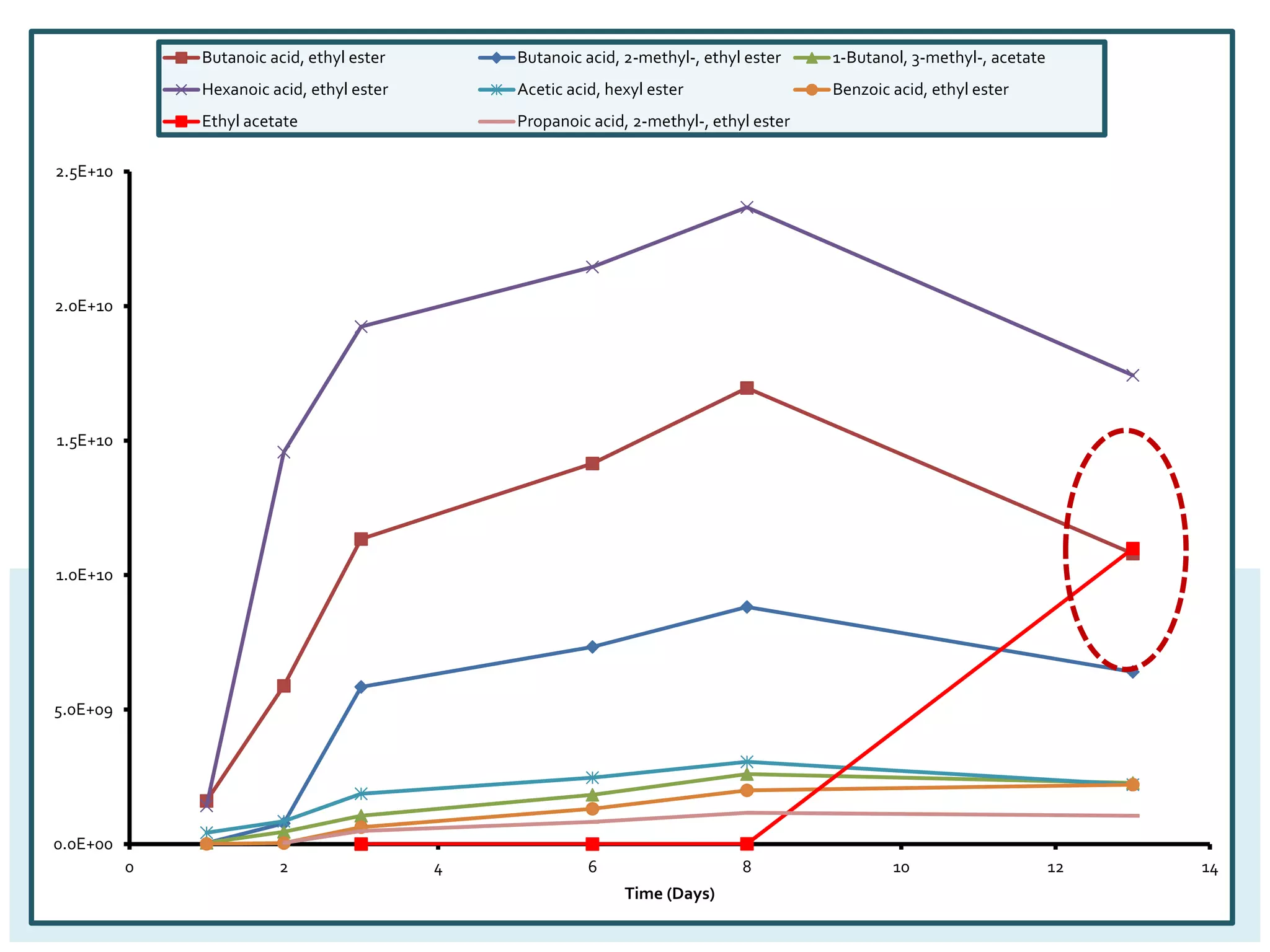

34. 0.0E+00
5.0E+09
1.0E+10
1.5E+10
2.0E+10
2.5E+10
0 2 4 6 8 10 12 14
Time (Days)
Butanoic acid, ethyl ester Butanoic acid, 2-methyl-, ethyl ester 1-Butanol, 3-methyl-, acetate
Hexanoic acid, ethyl ester Acetic acid, hexyl ester Benzoic acid, ethyl ester
Ethyl acetate Propanoic acid, 2-methyl-, ethyl ester

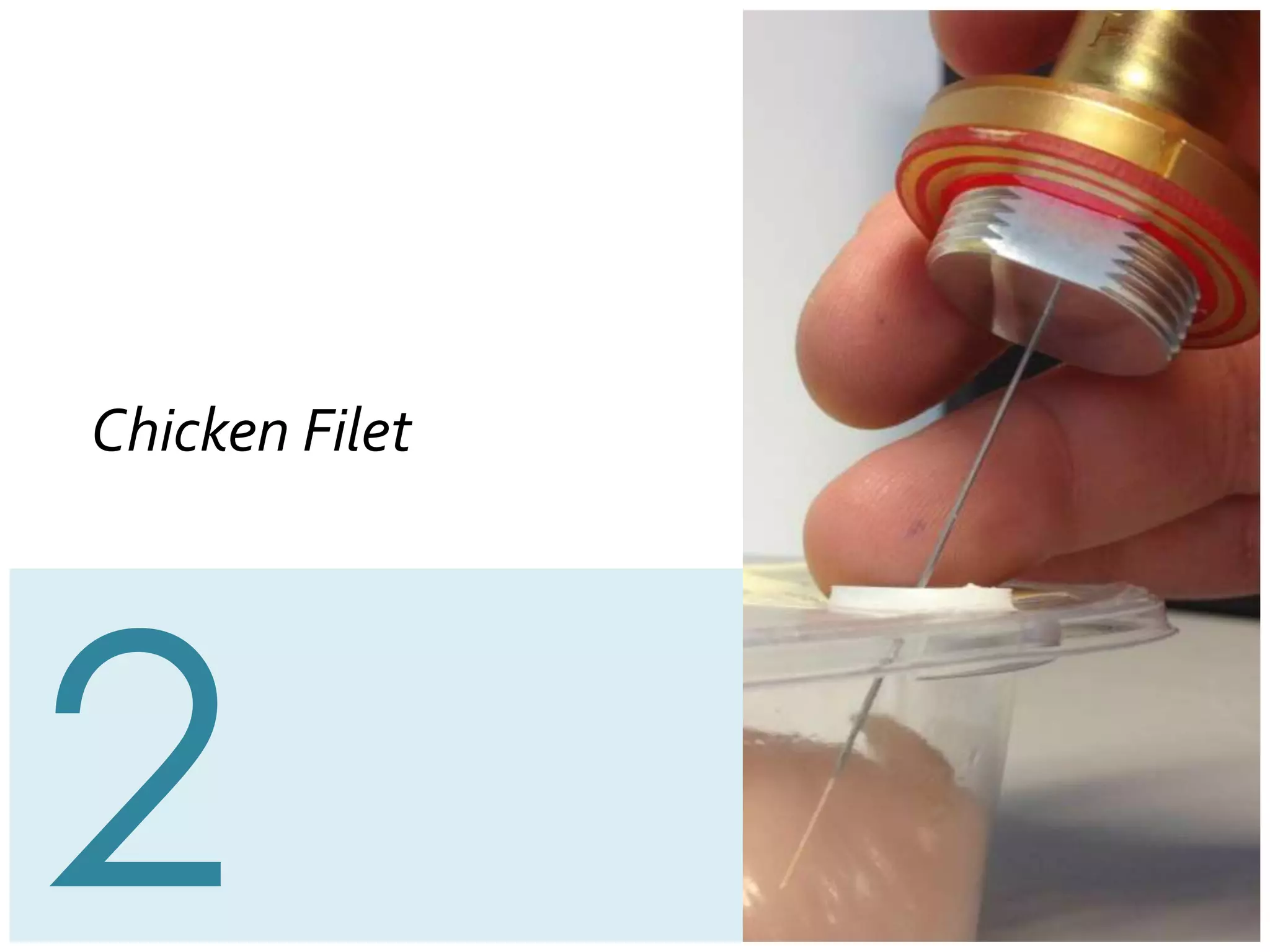

35. 2

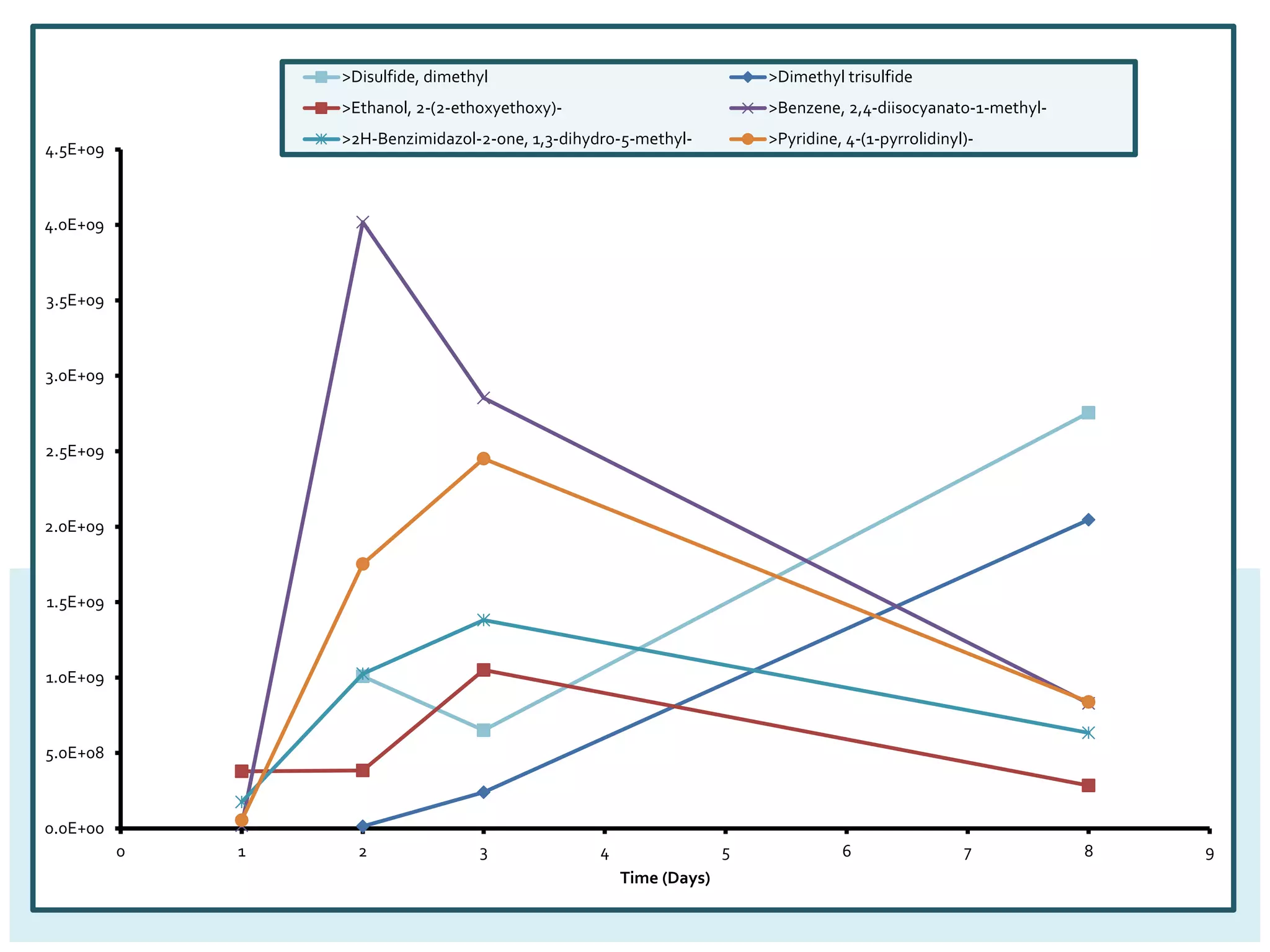

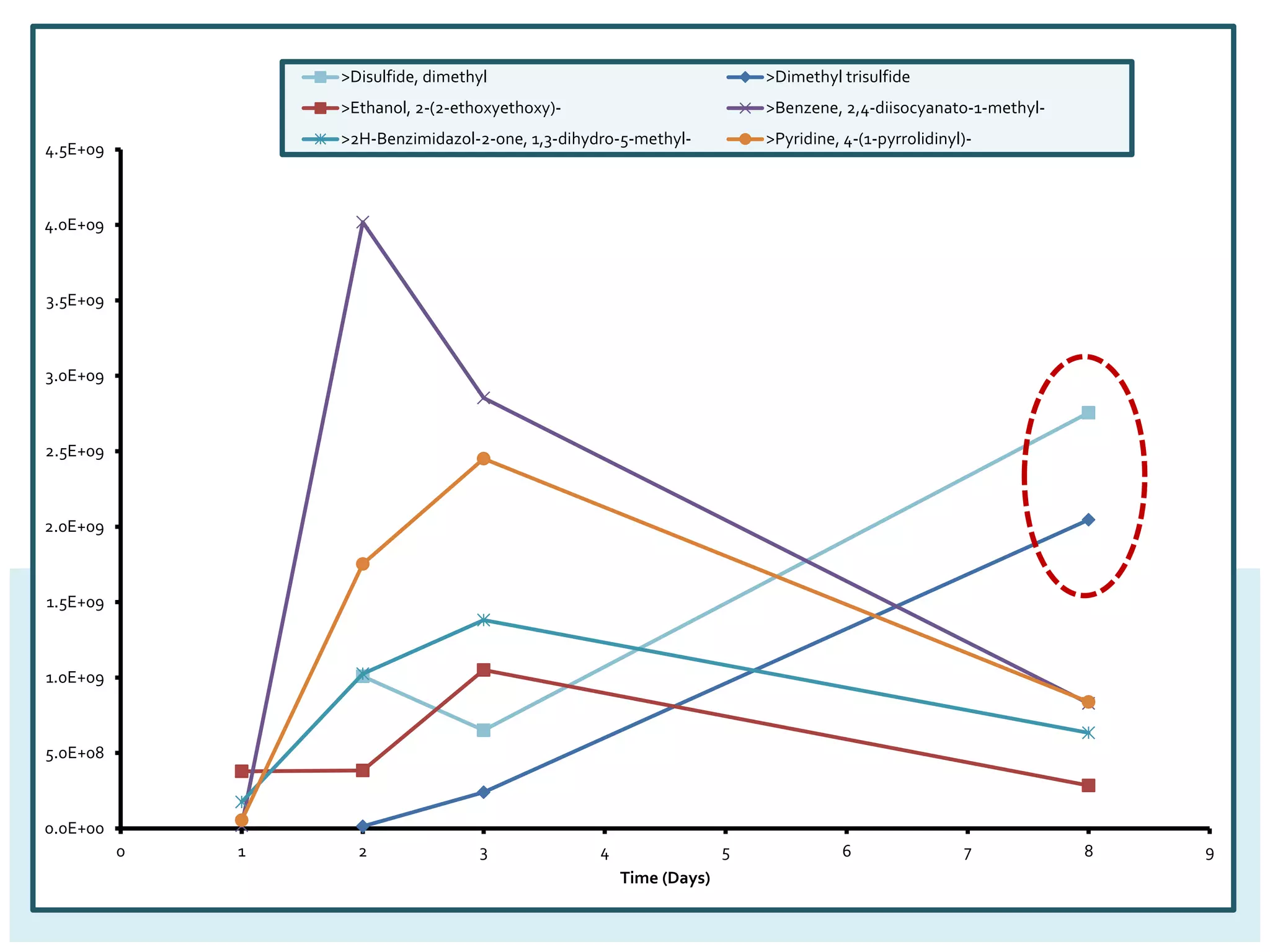

Chicken Filet

36. 0.0E+00
5.0E+08
1.0E+09
1.5E+09
2.0E+09
2.5E+09
3.0E+09
3.5E+09
4.0E+09
4.5E+09
0 1 2 3 4 5 6 7 8 9
Time (Days)
>Disulfide, dimethyl >Dimethyl trisulfide
>Ethanol, 2-(2-ethoxyethoxy)- >Benzene, 2,4-diisocyanato-1-methyl-
>2H-Benzimidazol-2-one, 1,3-dihydro-5-methyl- >Pyridine, 4-(1-pyrrolidinyl)-

37. 0.0E+00
5.0E+08
1.0E+09
1.5E+09
2.0E+09
2.5E+09
3.0E+09
3.5E+09
4.0E+09
4.5E+09
0 1 2 3 4 5 6 7 8 9
Time (Days)
>Disulfide, dimethyl >Dimethyl trisulfide
>Ethanol, 2-(2-ethoxyethoxy)- >Benzene, 2,4-diisocyanato-1-methyl-
>2H-Benzimidazol-2-one, 1,3-dihydro-5-methyl- >Pyridine, 4-(1-pyrrolidinyl)-

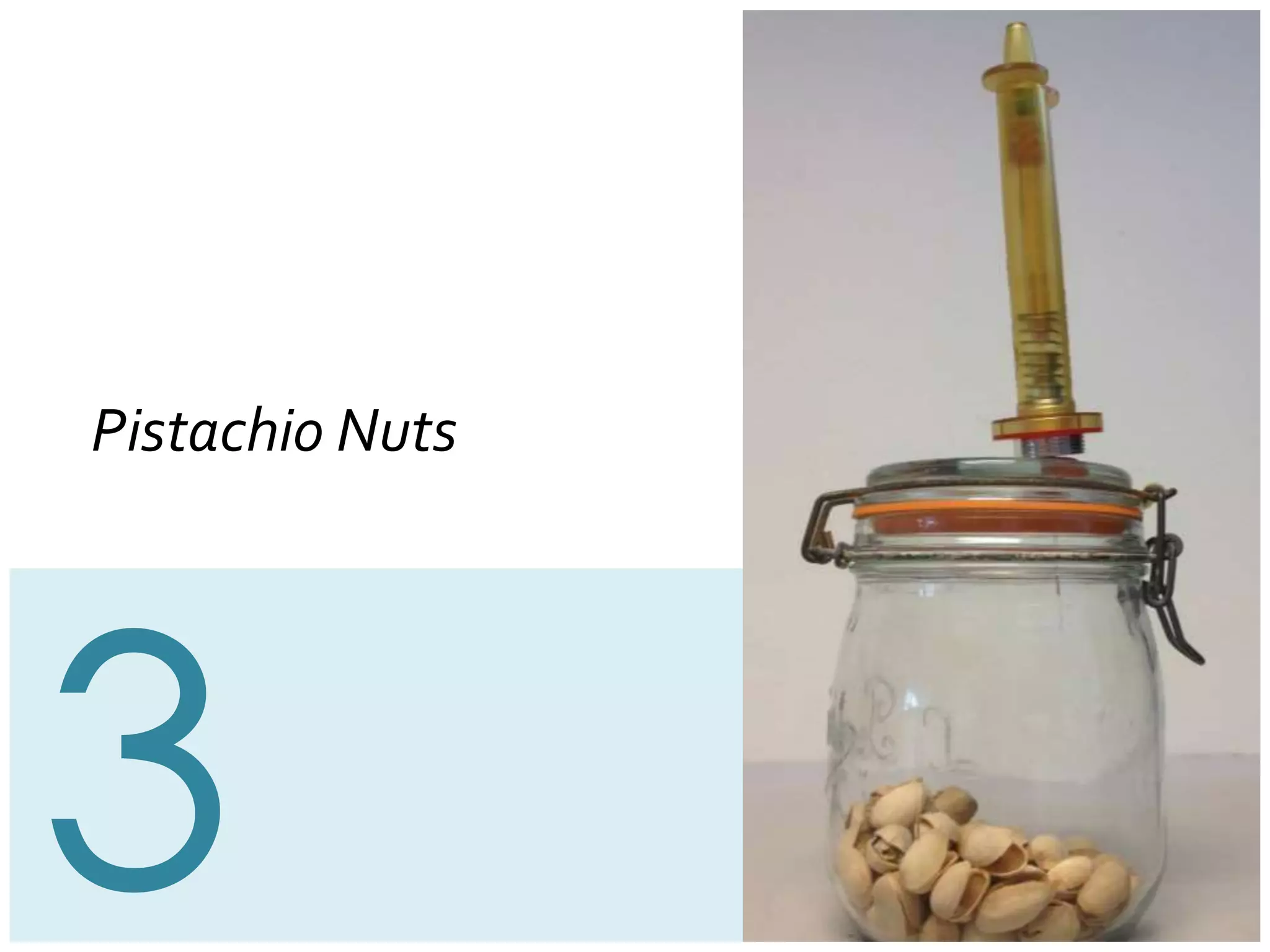

38. 3

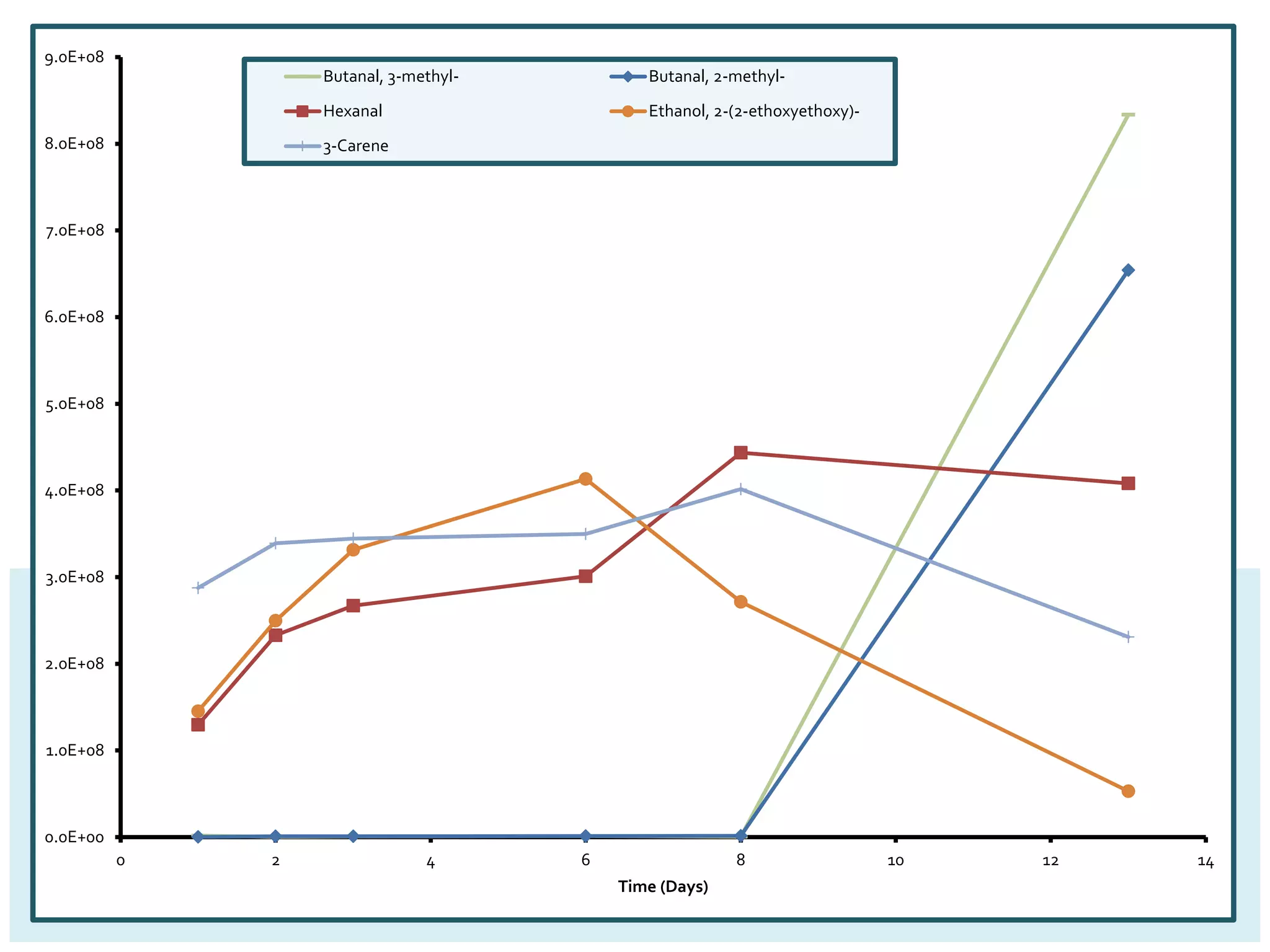

Pistachio Nuts

39. 0.0E+00
1.0E+08
2.0E+08
3.0E+08
4.0E+08
5.0E+08
6.0E+08
7.0E+08
8.0E+08
9.0E+08
0 2 4 6 8 10 12 14
Time (Days)
Butanal, 3-methyl- Butanal, 2-methyl-
Hexanal Ethanol, 2-(2-ethoxyethoxy)-
3-Carene

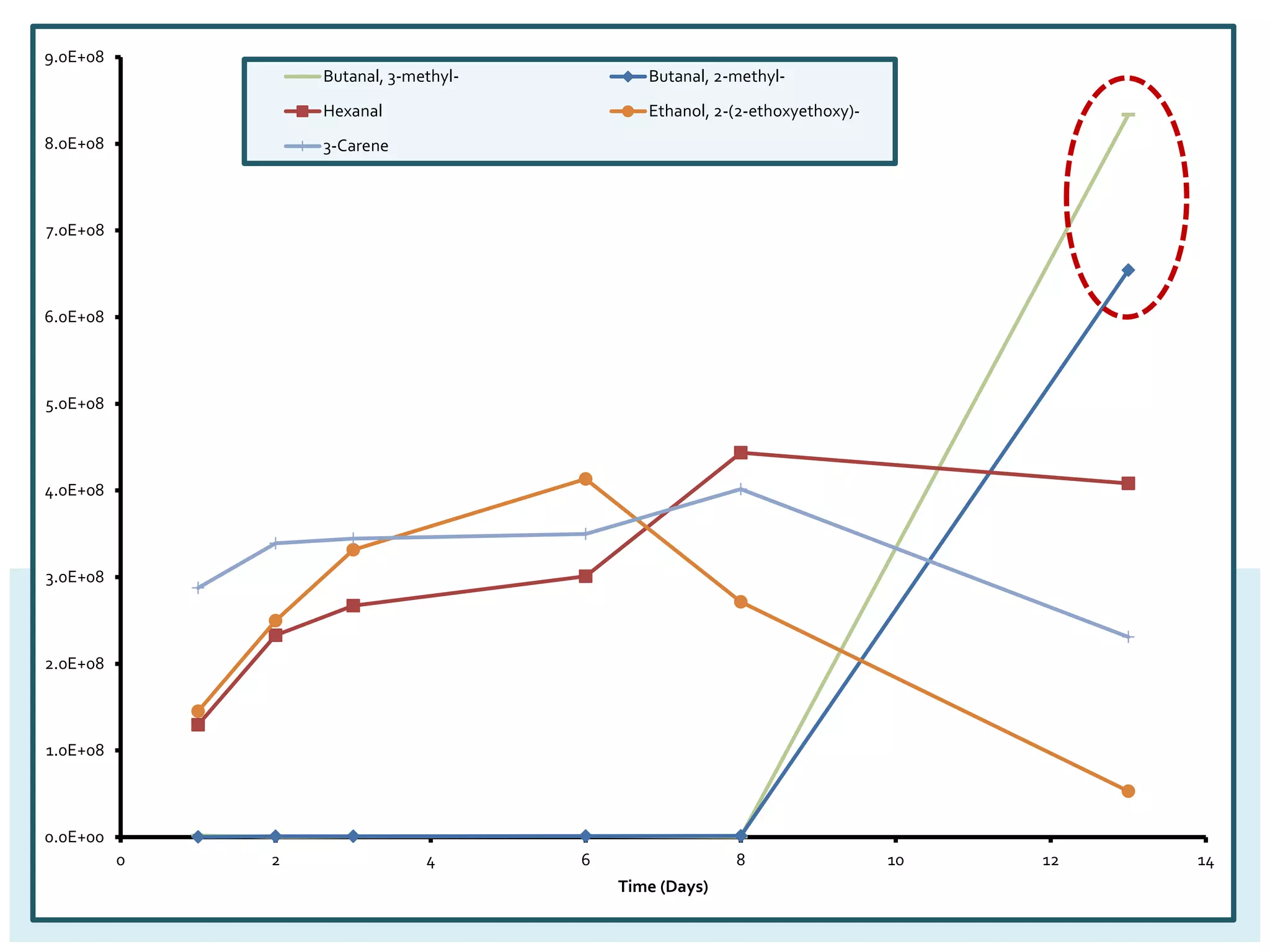

40. 0.0E+00
1.0E+08
2.0E+08
3.0E+08
4.0E+08
5.0E+08
6.0E+08
7.0E+08
8.0E+08
9.0E+08
0 2 4 6 8 10 12 14
Time (Days)
Butanal, 3-methyl- Butanal, 2-methyl-
Hexanal Ethanol, 2-(2-ethoxyethoxy)-
3-Carene

41. KEY TAKE AWAYS
Easy-to-use field portable
GC/MS system with immediate
applicability in food-related
analysis.
Both ons-site as in the lab!
