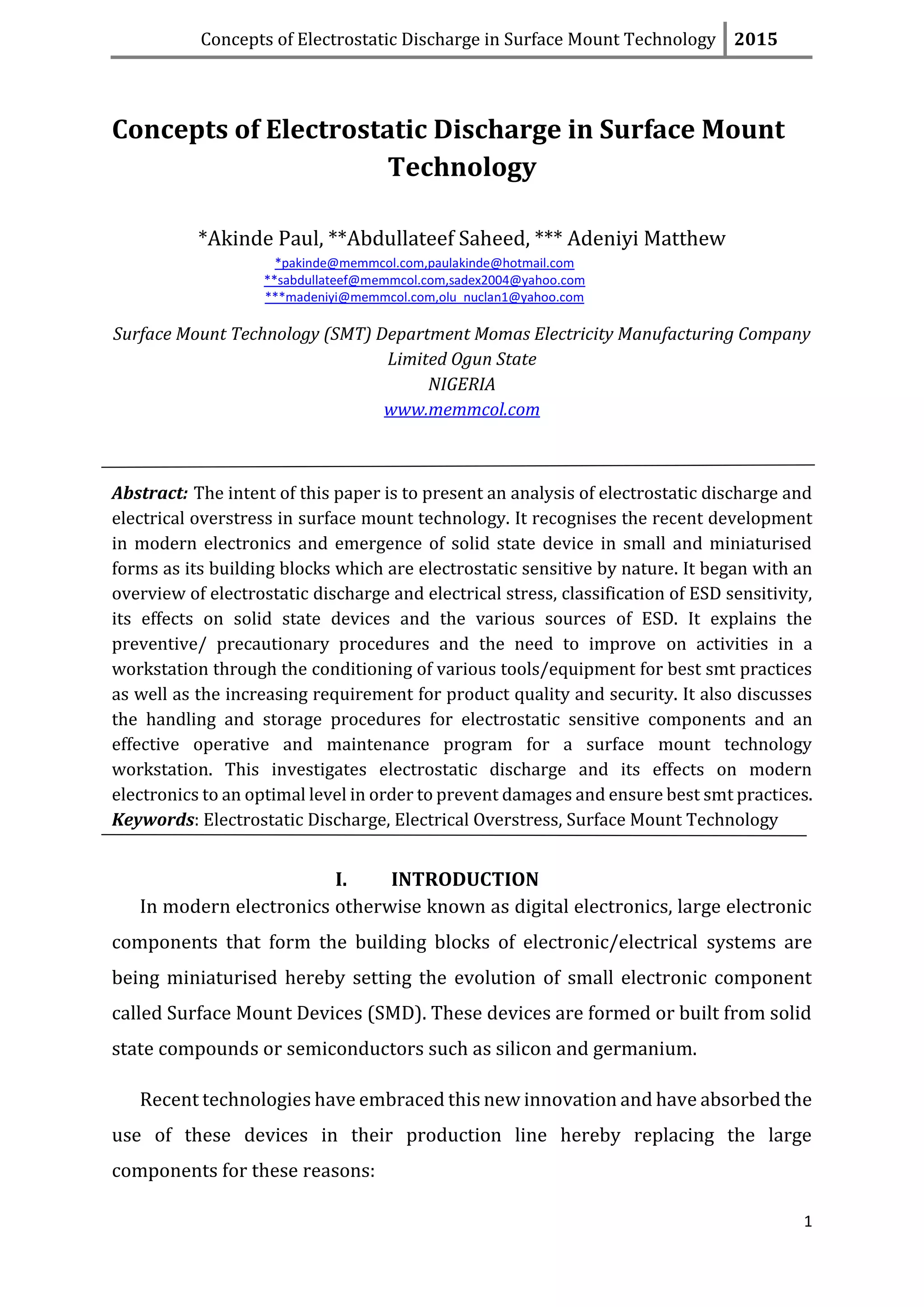

Concepts of Electrostatic Discharge in Surface Mount Technology

Concepts of Electrostatic Discharge in Surface Mount Technology 2015
1
Concepts of Electrostatic Discharge in Surface Mount
Technology
*Akinde Paul, **Abdullateef Saheed, *** Adeniyi Matthew
*pakinde@memmcol.com,paulakinde@hotmail.com
**sabdullateef@memmcol.com,sadex2004@yahoo.com
***madeniyi@memmcol.com,olu_nuclan1@yahoo.com
Surface Mount Technology (SMT) Department Momas Electricity Manufacturing Company
Limited Ogun State
NIGERIA
www.memmcol.com
Abstract: The intent of this paper is to present an analysis of electrostatic discharge and
electrical overstress in surface mount technology. It recognises the recent development
in modern electronics and emergence of solid state device in small and miniaturised
forms as its building blocks which are electrostatic sensitive by nature. It began with an
overview of electrostatic discharge and electrical stress, classification of ESD sensitivity,
its effects on solid state devices and the various sources of ESD. It explains the
preventive/ precautionary procedures and the need to improve on activities in a
workstation through the conditioning of various tools/equipment for best smt practices
as well as the increasing requirement for product quality and security. It also discusses
the handling and storage procedures for electrostatic sensitive components and an
effective operative and maintenance program for a surface mount technology
workstation. This investigates electrostatic discharge and its effects on modern
electronics to an optimal level in order to prevent damages and ensure best smt practices.
Keywords: Electrostatic Discharge, Electrical Overstress, Surface Mount Technology
I. INTRODUCTION
In modern electronics otherwise known as digital electronics, large electronic
components that form the building blocks of electronic/electrical systems are
being miniaturised hereby setting the evolution of small electronic component
called Surface Mount Devices (SMD). These devices are formed or built from solid
state compounds or semiconductors such as silicon and germanium.
Recent technologies have embraced this new innovation and have absorbed the
use of these devices in their production line hereby replacing the large
components for these reasons:

2
 Reduced overall cost of production. The cost of making SMDs is cheaper, so
for a large production line; the rate at which you buy large components in
bulk is in multiples of the rate you purchase SMD so you are saving more
and the overall cost of producing a single product is lessened.
 Reduced weight/Portability. Due to the small size of the SMD which can
perform the same way or more than the large components, the overall
weight of a single product is reduced making the product handy/portable.
In the past where the large sizes of component add up to the overall weight,
SMD have evolved hereby shedding the net weight.
However, this technology called SMD is very sensitive and easily susceptible to
an electronic epidemic called ESD and EOS. Thus, SMD are referred to as ESDS,
Electrostatic Discharge Sensitive Components.
Electrostatic Discharge (ESD): is the rapid transfer of a static electric charge
from one object to another of a different potential that was created from
electrostatic sources. It can damage a sensitive component when in contact.
Electrical Overstress (EOS): is the internal result of an unwanted application of
electrical energy that results in damaged components.
1.1 CLASSIFICATION OF ESD SENSITIVITY
Electrostatic discharge sensitive (ESDS) parts are commonly characterized to
three defined models:
1.1.1 Human Body Model (HBM)
The most common model is the HBM. This model simulates when a
discharge occurs between a human (hand/finger) to a conductor (metal
rail).

3
Fig. 0a Fig. 0b
1.1.2 Machine Model (MM)
Machine model discharges occur when charged; conductive surfaces come
into contact with ESD sensitive devices. To minimize Machine Model
discharges, ensure that all metal surfaces that come into contact with ESD
sensitive devices are grounded. Measurements should be made to ensure
that moving parts remain grounded throughout the process.
Fig. 0c

4
1.1.3 Charged Device Model (CDM)
CDM damage from an electrostatic field occurs when a charged item is
brought into close proximity to an ESD sensitive device and the device is
then grounded while in the presence of the field. Effective ESD control
programs ensure that process required insulators will not induce damaging
voltage levels onto the devices being handled.
1.2 EFFECTS OF ESD/EOS
The sensitivity of components to ESD is determined by its construction and
materials. So as the components structure becomes smaller, it works faster; and
the sensitivity increases. The effects of ESD/EOS on electronic components can be
immediate or latent.
 Immediate effect is usually caused by rework practices, additional testing
or scrap.
 Latent effect is the most serious; the product may fail after delivery as a
result of ESD potentials or electric spikes from tools.
1.3 SOURCES OF ESD/EOS
 Insulators; they concentrate energy
Rubber Paper Glass

5
 Styrofoam
 Plastic solder removers
 Sheet protectors

6

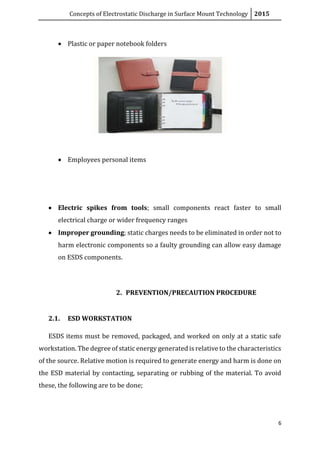

 Plastic or paper notebook folders
 Employees personal items
 Electric spikes from tools; small components react faster to small
electrical charge or wider frequency ranges
 Improper grounding; static charges needs to be eliminated in order not to
harm electronic components so a faulty grounding can allow easy damage
on ESDS components.
2. PREVENTION/PRECAUTION PROCEDURE
2.1. ESD WORKSTATION
ESDS items must be removed, packaged, and worked on only at a static safe
workstation. The degree of static energy generated is relative to the characteristics
of the source. Relative motion is required to generate energy and harm is done on
the ESD material by contacting, separating or rubbing of the material. To avoid
these, the following are to be done;

7

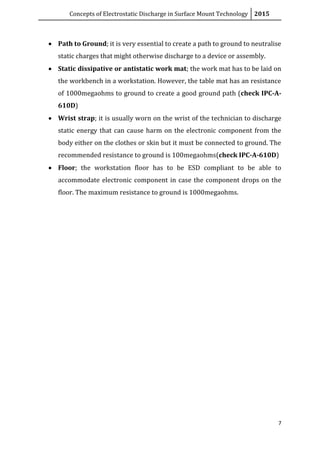

 Path to Ground; it is very essential to create a path to ground to neutralise
static charges that might otherwise discharge to a device or assembly.
 Static dissipative or antistatic work mat; the work mat has to be laid on
the workbench in a workstation. However, the table mat has an resistance
of 1000megaohms to ground to create a good ground path (check IPC-A-
610D)
 Wrist strap; it is usually worn on the wrist of the technician to discharge
static energy that can cause harm on the electronic component from the
body either on the clothes or skin but it must be connected to ground. The
recommended resistance to ground is 100megaohms(check IPC-A-610D)
 Floor; the workstation floor has to be ESD compliant to be able to
accommodate electronic component in case the component drops on the
floor. The maximum resistance to ground is 1000megaohms.

8

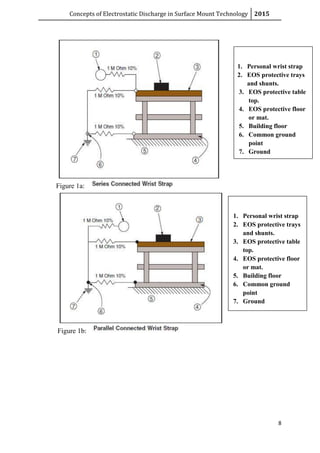

Figure 1a:
Figure 1b:
1. Personal wrist strap
2. EOS protective trays
and shunts.
3. EOS protective table
top.
4. EOS protective floor
or mat.
5. Building floor
6. Common ground
point
7. Ground
1. Personal wrist strap
2. EOS protective trays
and shunts.
3. EOS protective table
top.
4. EOS protective floor
or mat.
5. Building floor
6. Common ground
point
7. Ground

9

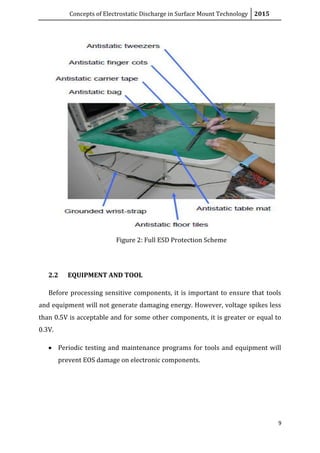

Figure 2: Full ESD Protection Scheme
2.2 EQUIPMENT AND TOOL
Before processing sensitive components, it is important to ensure that tools
and equipment will not generate damaging energy. However, voltage spikes less
than 0.5V is acceptable and for some other components, it is greater or equal to
0.3V.
 Periodic testing and maintenance programs for tools and equipment will
prevent EOS damage on electronic components.

10

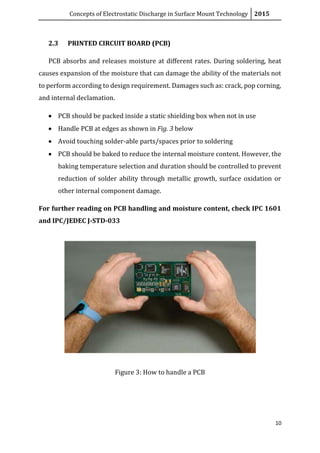

2.3 PRINTED CIRCUIT BOARD (PCB)
PCB absorbs and releases moisture at different rates. During soldering, heat
causes expansion of the moisture that can damage the ability of the materials not
to perform according to design requirement. Damages such as: crack, pop corning,
and internal declamation.
 PCB should be packed inside a static shielding box when not in use
 Handle PCB at edges as shown in Fig. 3 below
 Avoid touching solder-able parts/spaces prior to soldering
 PCB should be baked to reduce the internal moisture content. However, the
baking temperature selection and duration should be controlled to prevent
reduction of solder ability through metallic growth, surface oxidation or
other internal component damage.
For further reading on PCB handling and moisture content, check IPC 1601
and IPC/JEDEC J-STD-033
Figure 3: How to handle a PCB

11
2.4 ELECTRONIC COMPONENTS
The safety of electronic components is paramount in modern day design
because it forms the building block of any electronic/electrical system. It must be
guarded against contamination to avoid failure.
 Standard packaging; ESDS components must be packaged very well to
avoid the intruding of static charges caused by relative motion. The use of
static shielding package, which prevents an electrostatic discharge from
passing through the package and antistatic bag, which doesn’t generate
static when in motion is advisable to be used for packing when the
component is not in use.
 Avoid static generating materials near the workstation
 Eliminate contaminants such as body salts, body oils, and unauthorised
hand creams by washing of hands and use of protective handling devices.
 Use of pallets and carriers with full ESD protection is recommended for
stacking components.
3. COMPONENT HANDLING/STORAGE
As earlier discussed about Electrostatic discharge and its effects on SMD devices
and equipment, it is essential to put into consideration the storing conditions of
these components and how to handle them for best SMT practices.
3.1 STORAGE CONDITIONS
SMD devices are usually moisture/reflow sensitive. Moisture from
atmospheric humidity enters permeable packaging materials by diffusion.
Assembly processed used to solder SMD packages to PCBs expose the entire
package body to temperature between 160° - 260°. During solder reflow, rapid
moisture expansion can result in package cracking, delamination of critical
interfaces within the package, or damaged gold wire.

12

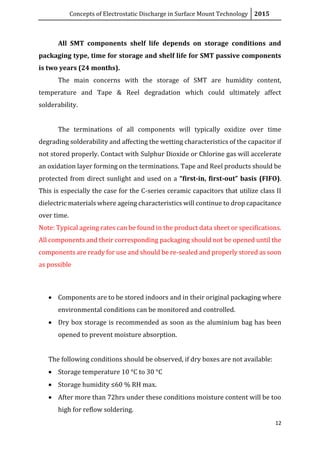

All SMT components shelf life depends on storage conditions and
packaging type, time for storage and shelf life for SMT passive components
is two years (24 months).
The main concerns with the storage of SMT are humidity content,
temperature and Tape & Reel degradation which could ultimately affect
solderability.
The terminations of all components will typically oxidize over time
degrading solderability and affecting the wetting characteristics of the capacitor if
not stored properly. Contact with Sulphur Dioxide or Chlorine gas will accelerate
an oxidation layer forming on the terminations. Tape and Reel products should be
protected from direct sunlight and used on a “first-in, first-out” basis (FIFO).
This is especially the case for the C-series ceramic capacitors that utilize class II
dielectric materials where ageing characteristics will continue to drop capacitance
over time.
Note: Typical ageing rates can be found in the product data sheet or specifications.
All components and their corresponding packaging should not be opened until the
components are ready for use and should be re-sealed and properly stored as soon
as possible
 Components are to be stored indoors and in their original packaging where
environmental conditions can be monitored and controlled.
 Dry box storage is recommended as soon as the aluminium bag has been
opened to prevent moisture absorption.
The following conditions should be observed, if dry boxes are not available:
 Storage temperature 10 °C to 30 °C
 Storage humidity ≤60 % RH max.
 After more than 72hrs under these conditions moisture content will be too
high for reflow soldering.

13

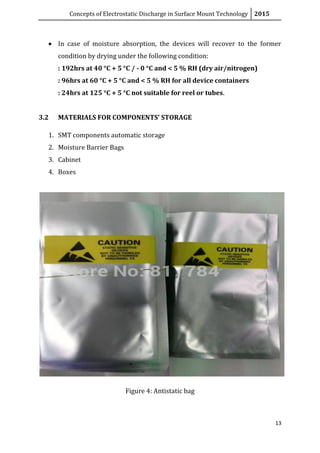

 In case of moisture absorption, the devices will recover to the former
condition by drying under the following condition:
: 192hrs at 40 °C + 5 °C / - 0 °C and < 5 % RH (dry air/nitrogen)
: 96hrs at 60 °C + 5 °C and < 5 % RH for all device containers
: 24hrs at 125 °C + 5 °C not suitable for reel or tubes.
3.2 MATERIALS FOR COMPONENTS’ STORAGE
1. SMT components automatic storage
2. Moisture Barrier Bags
3. Cabinet
4. Boxes
Figure 4: Antistatic bag

14

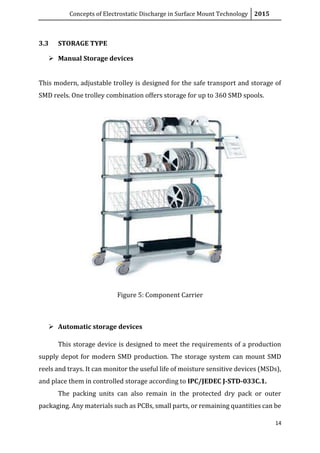

3.3 STORAGE TYPE
 Manual Storage devices
This modern, adjustable trolley is designed for the safe transport and storage of
SMD reels. One trolley combination offers storage for up to 360 SMD spools.
Figure 5: Component Carrier
 Automatic storage devices
This storage device is designed to meet the requirements of a production
supply depot for modern SMD production. The storage system can mount SMD
reels and trays. It can monitor the useful life of moisture sensitive devices (MSDs),
and place them in controlled storage according to IPC/JEDEC J-STD-033C.1.
The packing units can also remain in the protected dry pack or outer
packaging. Any materials such as PCBs, small parts, or remaining quantities can be

15
stored for production using the Smart Carrier boxes. The Smart Carrier boxes each
offer a maximum storage area of 390 mm x 390 mm x 77 mm (W/D/H).

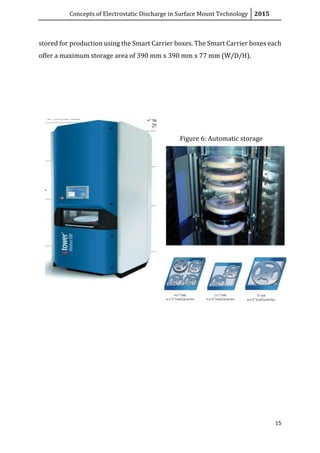

Figure 6: Automatic storage

16

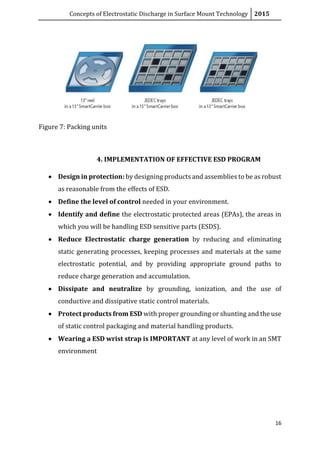

Figure 7: Packing units
4. IMPLEMENTATION OF EFFECTIVE ESD PROGRAM
 Design in protection: by designing products and assemblies to be as robust
as reasonable from the effects of ESD.
 Define the level of control needed in your environment.
 Identify and define the electrostatic protected areas (EPAs), the areas in
which you will be handling ESD sensitive parts (ESDS).
 Reduce Electrostatic charge generation by reducing and eliminating
static generating processes, keeping processes and materials at the same
electrostatic potential, and by providing appropriate ground paths to
reduce charge generation and accumulation.
 Dissipate and neutralize by grounding, ionization, and the use of
conductive and dissipative static control materials.
 Protect products from ESD with proper grounding or shunting and the use
of static control packaging and material handling products.
 Wearing a ESD wrist strap is IMPORTANT at any level of work in an SMT
environment

17

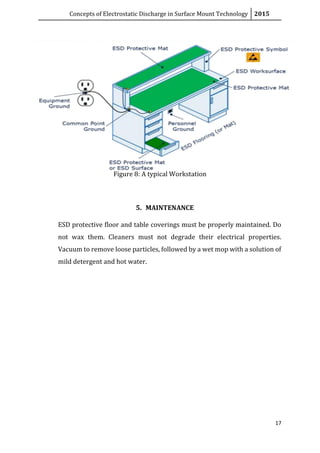

Figure 8: A typical Workstation
5. MAINTENANCE
ESD protective floor and table coverings must be properly maintained. Do
not wax them. Cleaners must not degrade their electrical properties.
Vacuum to remove loose particles, followed by a wet mop with a solution of
mild detergent and hot water.

18

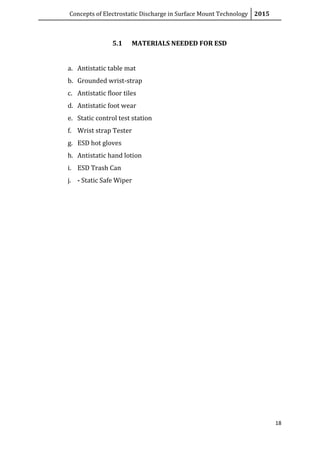

5.1 MATERIALS NEEDED FOR ESD
a. Antistatic table mat
b. Grounded wrist-strap
c. Antistatic floor tiles
d. Antistatic foot wear
e. Static control test station
f. Wrist strap Tester
g. ESD hot gloves
h. Antistatic hand lotion
i. ESD Trash Can
j. - Static Safe Wiper

19

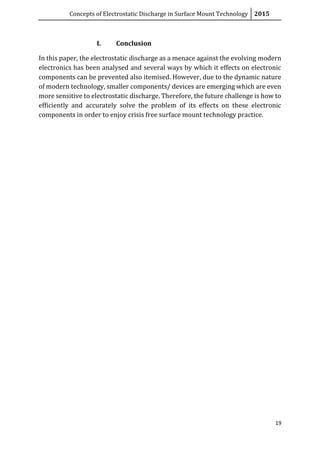

I. Conclusion
In this paper, the electrostatic discharge as a menace against the evolving modern
electronics has been analysed and several ways by which it effects on electronic
components can be prevented also itemised. However, due to the dynamic nature
of modern technology, smaller components/ devices are emerging which are even
more sensitive to electrostatic discharge. Therefore, the future challenge is how to
efficiently and accurately solve the problem of its effects on these electronic
components in order to enjoy crisis free surface mount technology practice.

20

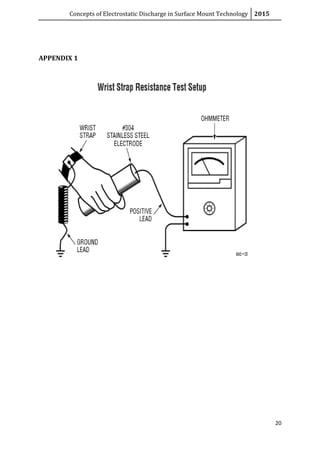

APPENDIX 1

21

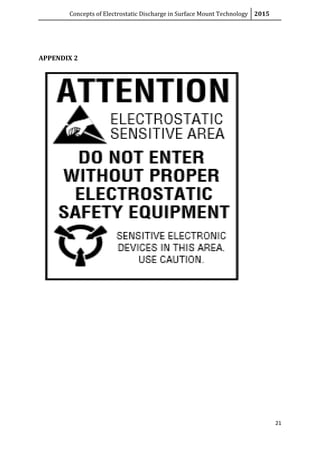

APPENDIX 2

22

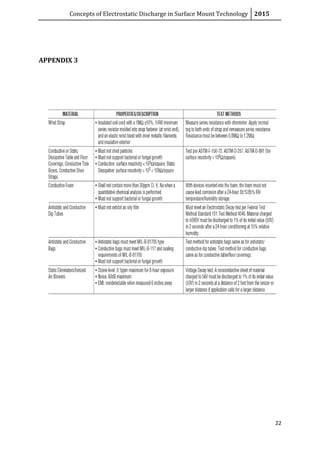

APPENDIX 3

23

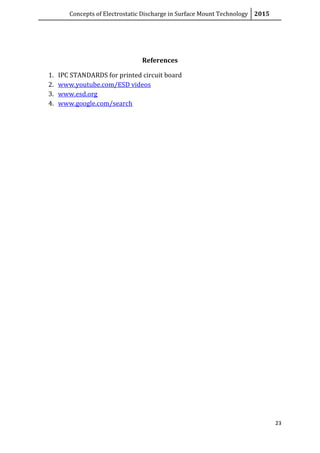

References
1. IPC STANDARDS for printed circuit board
2. www.youtube.com/ESD videos
3. www.esd.org
4. www.google.com/search

Concepts of Electrostatic Discharge in Surface Mount Technology

More Related Content

What's hot

Viewers also liked

Similar to Concepts of Electrostatic Discharge in Surface Mount Technology

Recently uploaded

Concepts of Electrostatic Discharge in Surface Mount Technology
