The document discusses electrostatic discharge and its risks. It explains that a static charge builds up from certain materials rubbing together, like clothes or one item against another. This charge can damage electronic components through sparks or discharges. Anyone working with electronics must wear a wristband and use a grounded mat to safely dissipate any static charge and prevent damage.

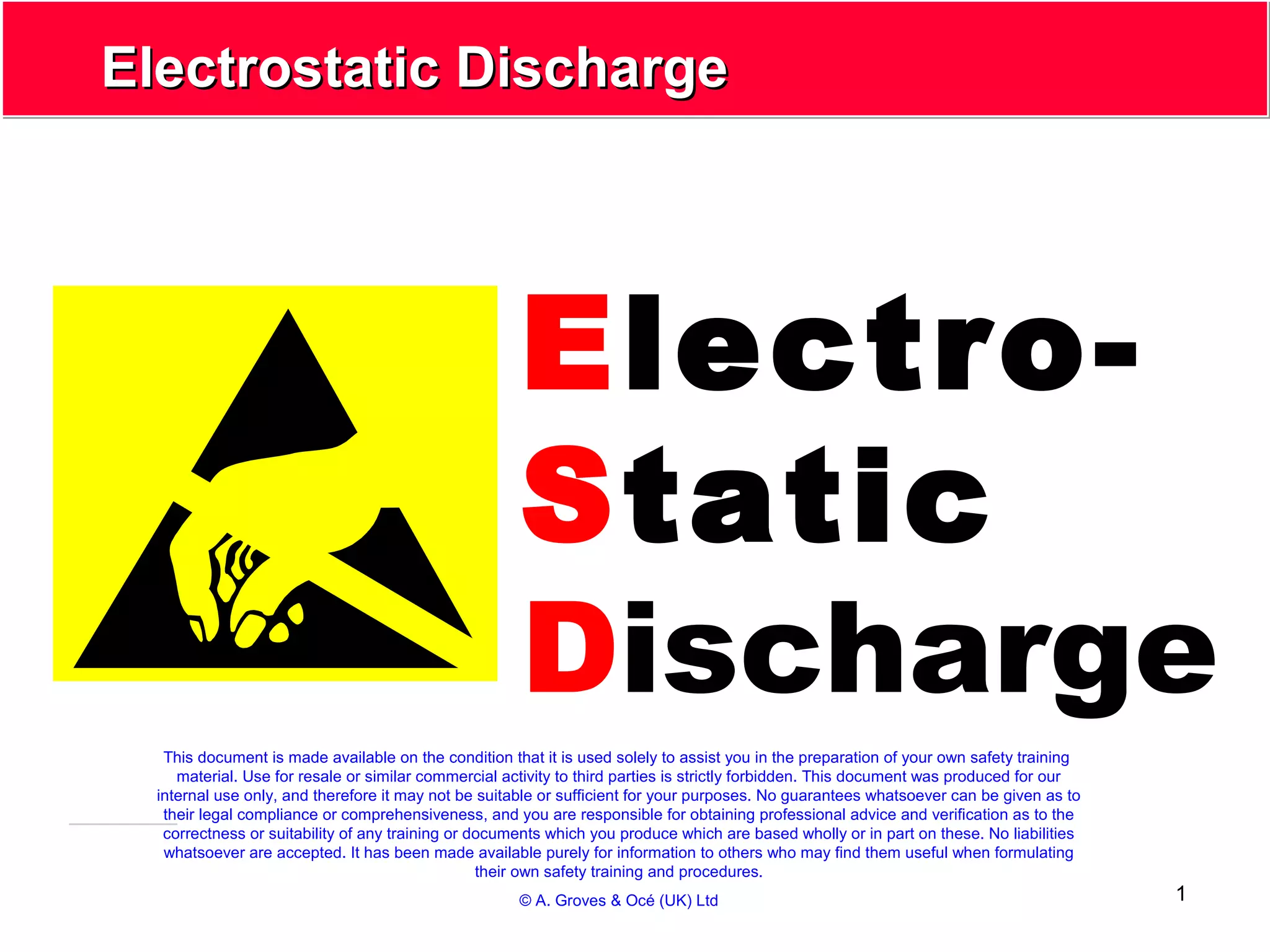

1. 1
Electrostatic DischargeElectrostatic Discharge
Electro-
Static
Discharge
This document is made available on the condition that it is used solely to assist you in the preparation of your own safety training
material. Use for resale or similar commercial activity to third parties is strictly forbidden. This document was produced for our
internal use only, and therefore it may not be suitable or sufficient for your purposes. No guarantees whatsoever can be given as to
their legal compliance or comprehensiveness, and you are responsible for obtaining professional advice and verification as to the
correctness or suitability of any training or documents which you produce which are based wholly or in part on these. No liabilities
whatsoever are accepted. It has been made available purely for information to others who may find them useful when formulating
their own safety training and procedures.
© A. Groves & Océ (UK) Ltd

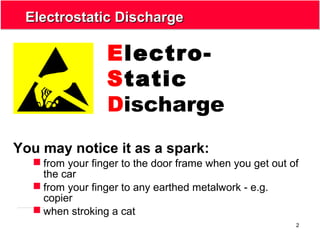

2. 2
Electrostatic DischargeElectrostatic Discharge
You may notice it as a spark:
 from your finger to the door frame when you get out of
the car
 from your finger to any earthed metalwork - e.g.
copier
 when stroking a cat
Electro-
Static
Discharge

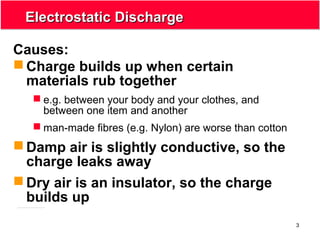

3. 3
Electrostatic DischargeElectrostatic Discharge
Causes:
 Charge builds up when certain
materials rub together
 e.g. between your body and your clothes, and
between one item and another
 man-made fibres (e.g. Nylon) are worse than cotton
 Damp air is slightly conductive, so the
charge leaks away
 Dry air is an insulator, so the charge
builds up

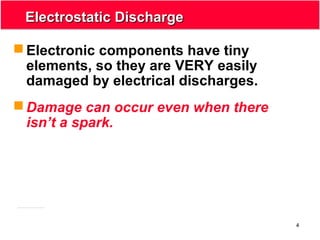

4. 4
Electrostatic DischargeElectrostatic Discharge
 Electronic components have tiny
elements, so they are VERY easily
damaged by electrical discharges.
 Damage can occur even when there
isn’t a spark.

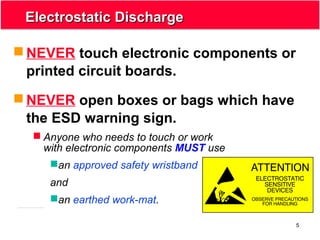

5. 5
Electrostatic DischargeElectrostatic Discharge
 NEVER touch electronic components or
printed circuit boards.
 NEVER open boxes or bags which have
the ESD warning sign.
 Anyone who needs to touch or work
with electronic components MUST use
an approved safety wristband
and
an earthed work-mat.

6. 5
Electrostatic DischargeElectrostatic Discharge
 NEVER touch electronic components or
printed circuit boards.
 NEVER open boxes or bags which have
the ESD warning sign.
 Anyone who needs to touch or work
with electronic components MUST use
an approved safety wristband
and
an earthed work-mat.
