The document outlines structural specifications related to an impervious floor, focusing on dimensions, thickness, and hydraulic calculations based on Bligh's creep theory. It includes parameters for upstream and downstream measurements, residual head conditions, and wing wall designs. Key calculations for floor length, creep length, and factors influencing uplift pressure on the floor are also detailed.

1. 3/18/2014 1
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

2. 3/18/2014
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET
2

3. u/s pile depth
u/s floor length
Top width of fall
Bottom width of fall
Height of fall
Length of cistern
Depth of cistern
Thickness of floor
d/s floor length
Depth of intermediate and d/s pile
3/18/2014 3
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

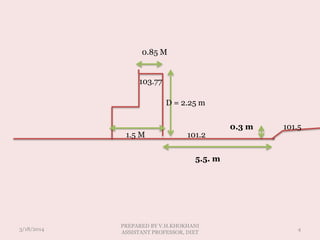

4. 1.5 M
0.85 M
D = 2.25 m
5.5. m
0.3 m
3/18/2014 4
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET
101.5
101.2
103.77

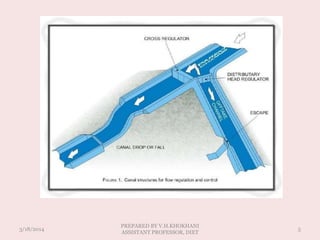

5. 3/18/2014 5
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

6. Impervious floor : (Bligh
creep theory)
Total creep length –
(L) = CHs
Where Maximum seepage head = Hs
= crest level – d/s bed level
L = 2d1 + l + 2d2
3/18/2014 6
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

7. L = 2d1 + l + 2d2
L = total creep length,
d1 = depth of u/s cutoff , d2 = depth
of d/s cutoff , &
l or b = length of impervious floor
l =b
d1
d2
lu ld1.5 m
3/18/2014 7
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

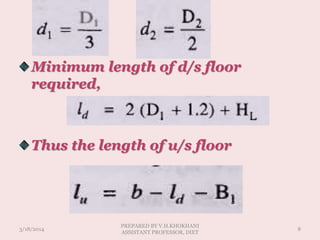

8. Minimum length of d/s floor
required,
Thus the length of u/s floor
3/18/2014 8
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

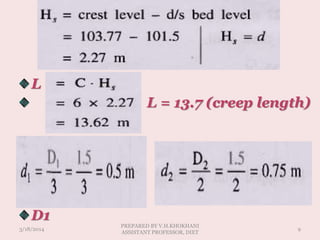

9. `
L =
L = 13.7 (creep length)
D1
3/18/2014 9
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

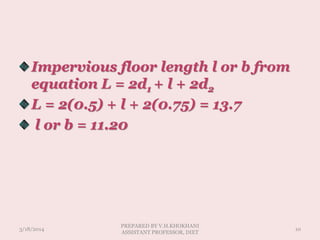

10. Impervious floor length l or b from
equation L = 2d1 + l + 2d2
L = 2(0.5) + l + 2(0.75) = 13.7
l or b = 11.20
3/18/2014 10
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

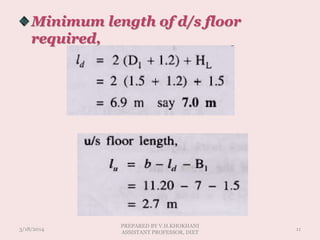

11. Minimum length of d/s floor
required,
3/18/2014 11
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

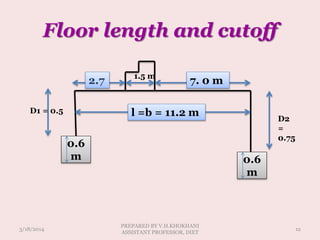

12. l =b = 11.2 mD1 = 0.5
D2
=
0.75
2.7 1.5 m
7. 0 m
0.6
m 0.6
m
Floor length and cutoff
3/18/2014 12
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

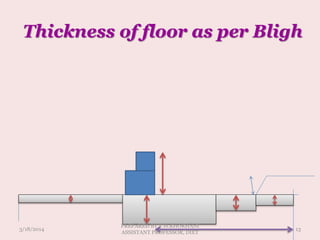

13. Thickness of floor as per Bligh
3/18/2014 13
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

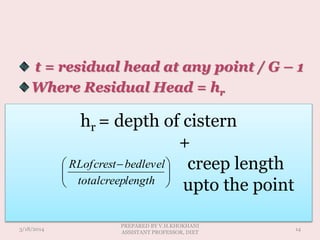

14. t = residual head at any point / G – 1
Where Residual Head = hr
hr = depth of cistern
+
creep length
upto the point





 
lengthtotalcreep
bedlevelRLofcrest
3/18/2014 14
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

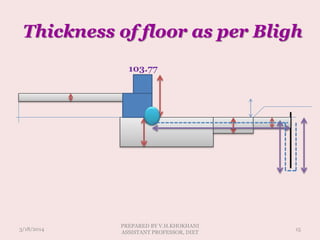

15. Thickness of floor as per Bligh
103.77
3/18/2014 15
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

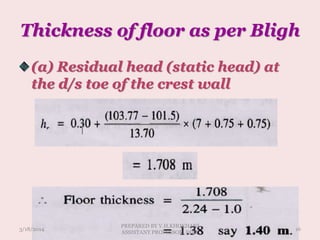

16. Thickness of floor as per Bligh
(a) Residual head (static head) at
the d/s toe of the crest wall
3/18/2014 16
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

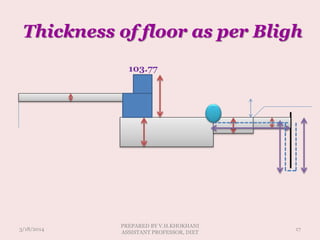

17. Thickness of floor as per Bligh
103.77
3/18/2014 17
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

18. Thickness of floor as per Bligh
(b) Residual head at 3 m from the toe
of the crest wall :
Hr = 0.3 + (4 + 0.75 + 0.75)
= 1.21
hr = depth of cistern
+
creep length
upto the point




 
lengthtotalcreep
bedlevelRLofcrest





 
70.13
5.10177.103
3/18/2014 18
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

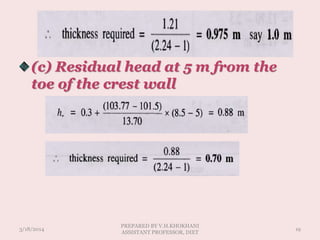

19. (c) Residual head at 5 m from the
toe of the crest wall
3/18/2014 19
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

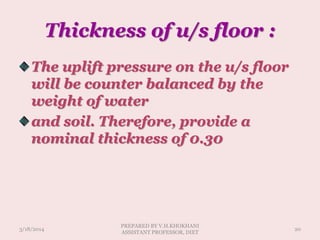

20. Thickness of u/s floor :
The uplift pressure on the u/s floor
will be counter balanced by the
weight of water
and soil. Therefore, provide a
nominal thickness of 0.30
3/18/2014 20
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

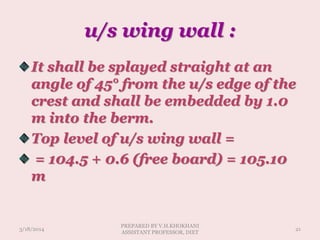

21. u/s wing wall :
It shall be splayed straight at an
angle of 45° from the u/s edge of the
crest and shall be embedded by 1.0
m into the berm.
Top level of u/s wing wall =
= 104.5 + 0.6 (free board) = 105.10
m
3/18/2014 21
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

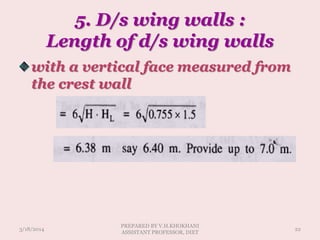

22. 5. D/s wing walls :
Length of d/s wing walls
with a vertical face measured from
the crest wall
3/18/2014 22
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

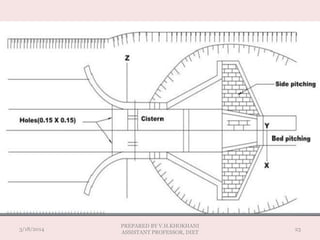

23. 3/18/2014 23
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

24. 6". D/s bed pitching :
Pitching is kept at 1 : 10. A curtain
wall (cutoff) shall be provided at
the end of pitching.
3/18/2014 24
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

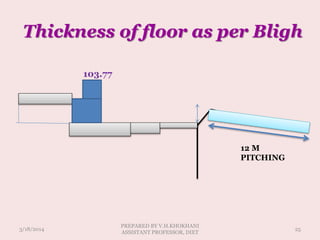

25. Thickness of floor as per Bligh
103.77
12 M
PITCHING
3/18/2014 25
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

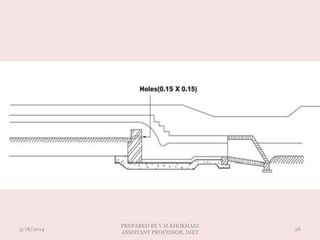

26. 3/18/2014 26
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

27. 3/18/2014 27
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

28. 3/18/2014 28
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

29. 3/18/2014 29
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET
