The document discusses the design and function of canal falls, which are irrigation structures used to lower water levels in canals and manage energy from falling water. It highlights various types of falls, considerations for their placement, and the balance between the number and size of falls for economic efficiency. Additionally, it includes design calculations and specifications for a Sarda type fall for a specific discharge scenario.

1. Canal Falls & Types of Falls
Cistern Design for Simple Vertical
Drop Fall
Design of Sarda Type Fall
Design of a Straight Glacis Fall
Alignment of the off-taking Canal
Cross Regulator
Canal Head Regulator
3/13/2014 1
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

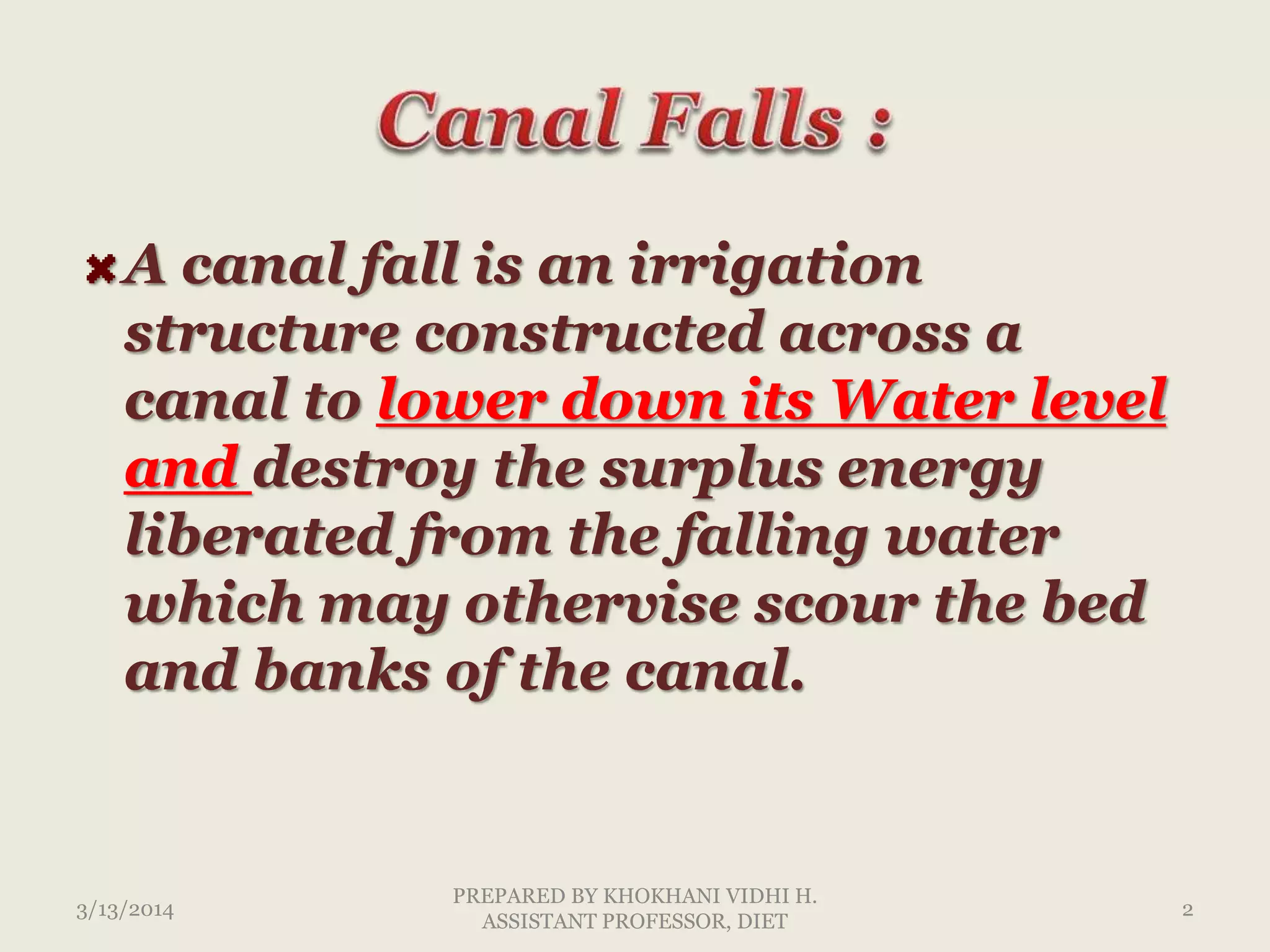

2. A canal fall is an irrigation
structure constructed across a
canal to lower down its Water level
and destroy the surplus energy
liberated from the falling water
which may othervise scour the bed
and banks of the canal.
3/13/2014 2
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

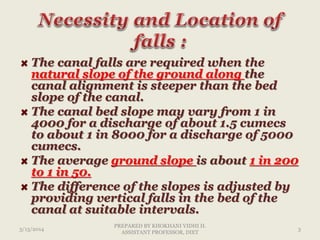

3. The canal falls are required when the
natural slope of the ground along the
canal alignment is steeper than the bed
slope of the canal.
The canal bed slope may vary from 1 in
4000 for a discharge of about 1.5 cumecs
to about 1 in 8000 for a discharge of 5000
cumecs.
The average ground slope is about 1 in 200
to 1 in 50.
The difference of the slopes is adjusted by
providing vertical falls in the bed of the
canal at suitable intervals.
3/13/2014 3
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

4. 3/13/2014 4
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

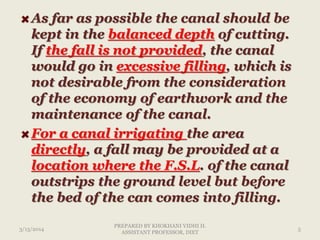

5. As far as possible the canal should be
kept in the balanced depth of cutting.
If the fall is not provided, the canal
would go in excessive filling, which is
not desirable from the consideration
of the economy of earthwork and the
maintenance of the canal.
For a canal irrigating the area
directly, a fall may be provided at a
location where the F.S.L. of the canal
outstrips the ground level but before
the bed of the can comes into filling.
3/13/2014 5
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

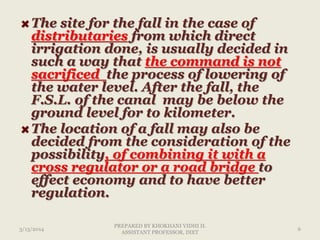

6. The site for the fall in the case of
distributaries from which direct
irrigation done, is usually decided in
such a way that the command is not
sacrificed the process of lowering of
the water level. After the fall, the
F.S.L. of the canal may be below the
ground level for to kilometer.
The location of a fall may also be
decided from the consideration of the
possibility, of combining it with a
cross regulator or a road bridge to
effect economy and to have better
regulation.
3/13/2014 6
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

7. A relative economy of providing a
large number of small falls or small
number of large falls should also be
worked out. The provision of small
number of big falls results in
unbalanced earthwork, but there is
always some saving in the cost of
the fall structure.
Sometimes it may be necessary to
provide fewer falls of large drops to
enable hydropower generation at
these falls.
3/13/2014 7
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

8. The various types of falls are :
1. Ogee fall
2. Rapid fall
3. Stepped fall
4. Notch fall
5. Vertical drop fall
6. Glacis fall
3/13/2014 8
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

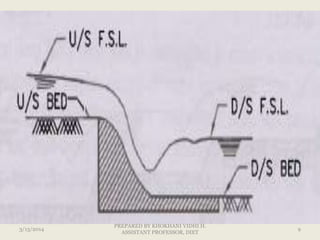

9. 3/13/2014 9
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

10. 3/13/2014 10
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

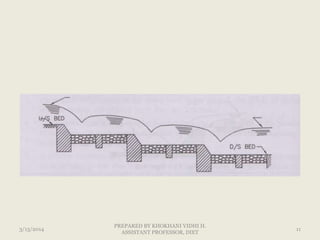

11. 3/13/2014 11
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

12. 3/13/2014 12
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

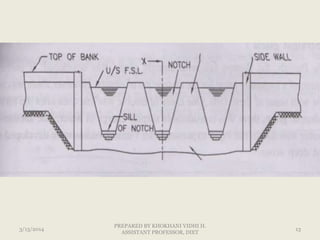

13. 3/13/2014 13
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

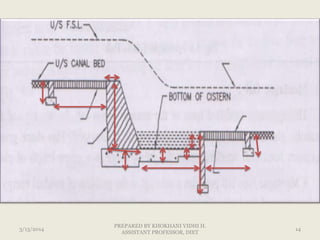

14. 3/13/2014 14
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

15. 3/13/2014
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET
15

16. u/s pile depth
u/s floor length
Top width of fall
Bottom width of fall
Height of fall
Length of cistern
Depth of cistern
Thickness of floor
d/s floor length
Depth of intermediate and d/s pile
3/13/2014 16
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

17. Design a 1.5 m Sarda type fall
for a canal having a discharge
of 12 cumecs with the following
data :
Bed level of u/s - 103.0 m
Side slopes of channel- 1 : 1
Bed level of d/s - 101.5 m
Full supply level u/s - 104.5 m
3/13/2014 17
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

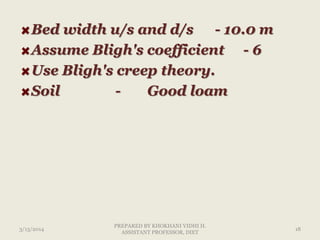

18. Bed width u/s and d/s - 10.0 m
Assume Bligh's coefficient - 6
Use Bligh's creep theory.
Soil - Good loam
3/13/2014 18
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

19. Rectangle
Q< 14
cumec
Trepezoidal
Q>14
cumec
3/13/2014 19
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

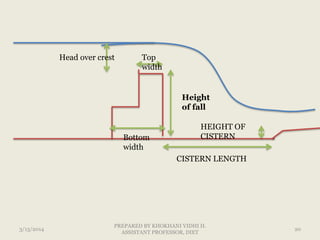

20. Top
width
Bottom
width
Height
of fall
CISTERN LENGTH
HEIGHT OF
CISTERN
Head over crest
3/13/2014 20
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

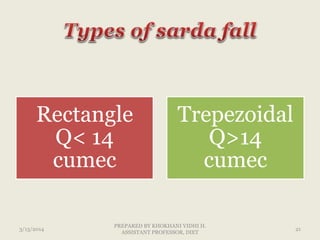

21. Rectangle
Q< 14
cumec
Trepezoidal
Q>14
cumec
3/13/2014 21
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

22. As the discharge Q = 12 cumecs < 14
cumecs, a rectangular crest wall is
provided.
1. Length of crest = d/s bed width
L = 10 m
3/13/2014 22
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

23. Assume, crest width (B) = 0.8 m
3/13/2014 23
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

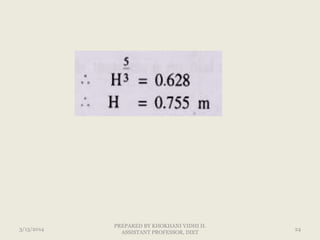

24. 3/13/2014 24
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

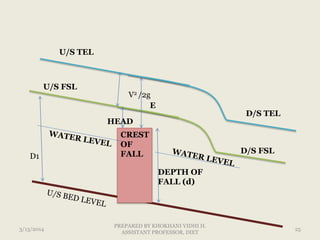

25. D1
HEAD
U/S FSL
D/S FSL
D/S TEL
U/S TEL
V2 /2g
DEPTH OF
FALL (d)
CREST
OF
FALL
E
3/13/2014 25
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

26. Height of crest above d/s bed,
d = crest level - d/s bed level
R.L. of the crest = u/s FSL – H
OR
R.L. of crest = u/s TEL - E
u/s TEL = u/s FSL + velocity head
3/13/2014 26
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

27. depth of water = 104.5 - 103.0 = 1.5 m
3/13/2014 27
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

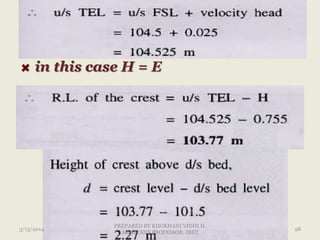

28. in this case H = E
3/13/2014 28
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

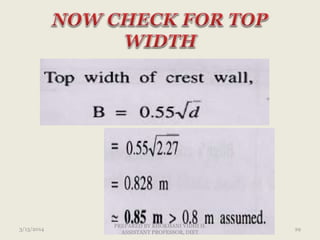

29. 3/13/2014 29
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

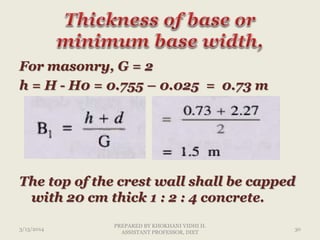

30. For masonry, G = 2
h = H - H0 = 0.755 – 0.025 = 0.73 m
The top of the crest wall shall be capped
with 20 cm thick 1 : 2 : 4 concrete.
3/13/2014 30
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

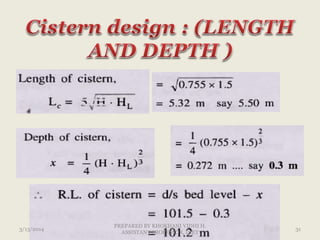

31. 3/13/2014 31
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET

32. 1.5 M
0.85 M
D = 2.25 m
5.5. m
0.3 m
3/13/2014 32
PREPARED BY KHOKHANI VIDHI H.
ASSISTANT PROFESSOR, DIET
101.5
101.2
103.77
