The document outlines the design specifications for a trapezoidal sarda type fall, including details for upstream (u/s) and downstream (d/s) wing walls, bed pitching, and cistern design. Key dimensions such as lengths, slopes, and crest levels are provided to ensure proper construction and functionality. Additional aspects discussed include the impervious floor, d/s side and bed protection, and the characteristics of various components of the system.

1. Trepezoidal Sarda type fall
Straight glacis fall
3/20/2014 1
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET

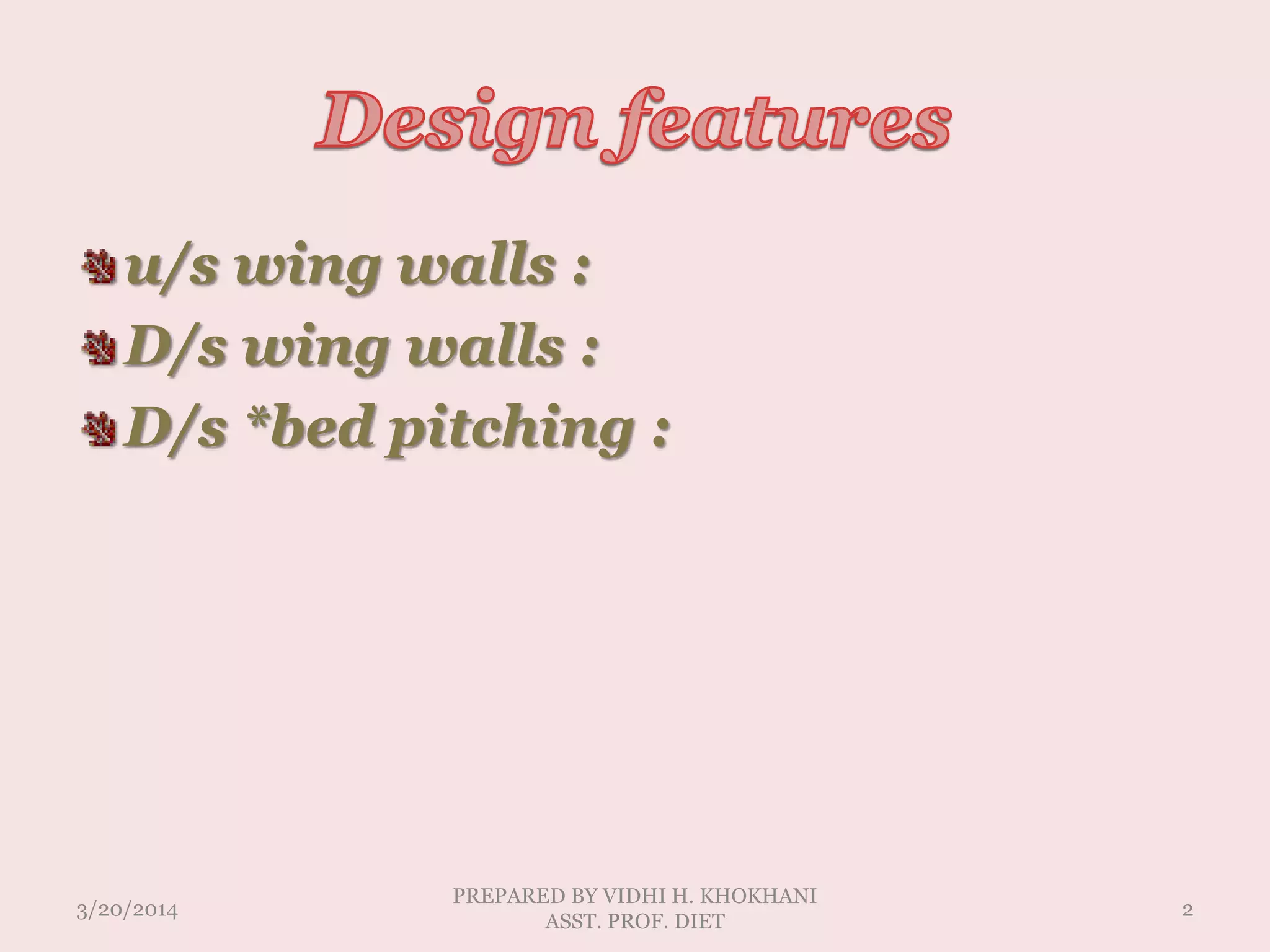

2. u/s wing walls :
D/s wing walls :
D/s *bed pitching :
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
2

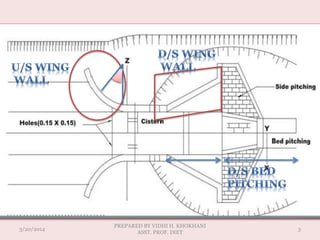

3. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
3

4. Radius = 5 to 6 times H
= 5 x 0.83 to 6 x 0.83
= 4.15 to 4.98 m
Say R = 4.50 m
Provide u/s wing walls having
segmental portion with radius 4.5 m
and subtending an angle of 60°, at the
centre and starting from the u/s edge
of the crest wall.
3/20/2014 4
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET

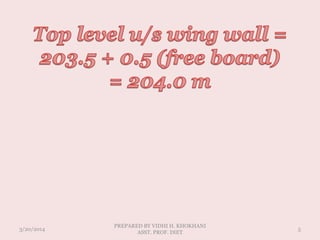

5. 3/20/2014 5
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET

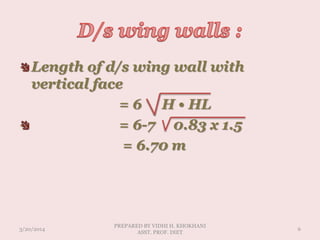

6. Length of d/s wing wall with
vertical face
= 6 H • HL
= 6-7 0.83 x 1.5
= 6.70 m
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
6

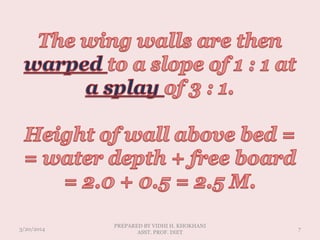

7. 3/20/2014 7
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET

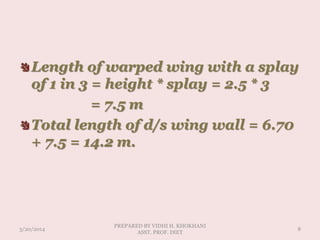

8. Length of warped wing with a splay
of 1 in 3 = height * splay = 2.5 * 3
= 7.5 m
Total length of d/s wing wall = 6.70
+ 7.5 = 14.2 m.
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
8

9. Length of d/s bed pitching
= 9 + 2Hl
= 9 + 2 x 1.5
= 12 m
Provide horizontal pitching up to
the end of masonry wing walls for a
length of 6.3 m and then sloping at 1
in 10 for length of 6 m.
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
9

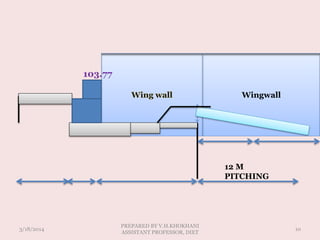

10. Wingwall
103.77
12 M
PITCHING
3/18/2014 10
PREPARED BY V.H.KHOKHANI
ASSISTANT PROFESSOR, DIET

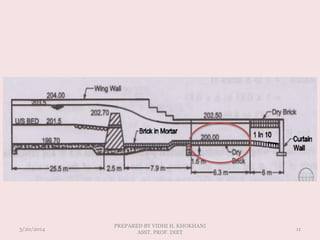

11. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
11

12. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
12

13. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
13

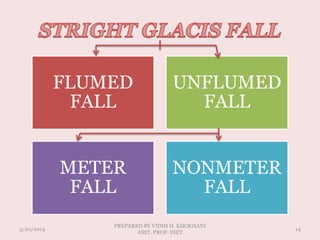

14. FLUMED
FALL
UNFLUMED
FALL
METER
FALL
NONMETER
FALL
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
14

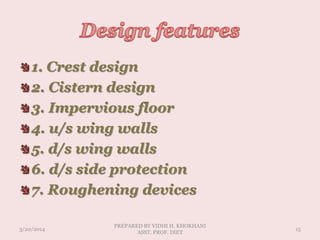

15. 1. Crest design
2. Cistern design
3. Impervious floor
4. u/s wing walls
5. d/s wing walls
6. d/s side protection
7. Roughening devices
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
15

16. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
16

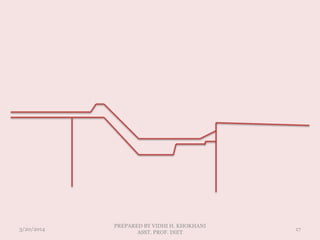

17. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
17

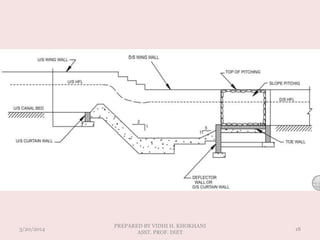

18. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
18

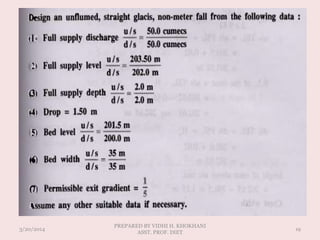

19. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
19

20. Length of crest = width of bed (for
unflumed fall)
L = 35.0 m
For non-meter fall, narrow crest is
provided.
Discharge Q is given by :
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
20

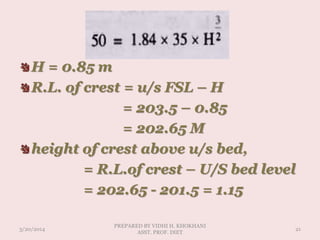

21. H = 0.85 m
R.L. of crest = u/s FSL – H
= 203.5 – 0.85
= 202.65 M
height of crest above u/s bed,
= R.L.of crest – U/S bed level
= 202.65 - 201.5 = 1.15
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
21

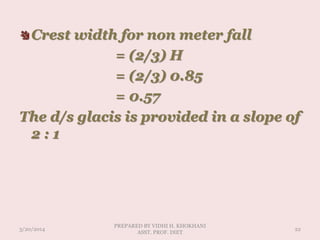

22. Crest width for non meter fall
= (2/3) H
= (2/3) 0.85
= 0.57
The d/s glacis is provided in a slope of
2 : 1
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
22

23. Compare it with d/s bed level
because as we know cistern is
always below d/s bed level.
Ef2 can be obtained from blench
curve from available q and Hl
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
23

24. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
24

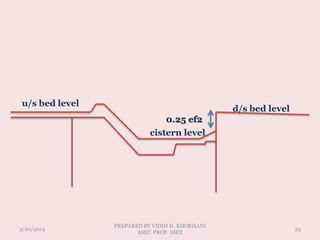

25. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
25
d/s bed level
u/s bed level
cistern level
0.25 ef2

26. d/s TEL = d/s FSL + Ha =202 + 0.02
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
26

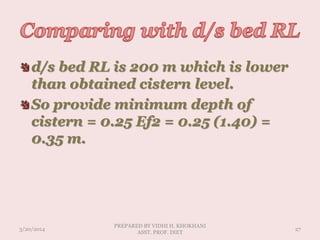

27. d/s bed RL is 200 m which is lower
than obtained cistern level.
So provide minimum depth of
cistern = 0.25 Ef2 = 0.25 (1.40) =
0.35 m.
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
27

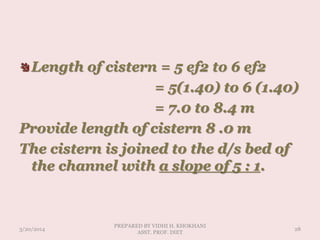

28. Length of cistern = 5 ef2 to 6 ef2
= 5(1.40) to 6 (1.40)
= 7.0 to 8.4 m
Provide length of cistern 8 .0 m
The cistern is joined to the d/s bed of
the channel with a slope of 5 : 1.
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
28

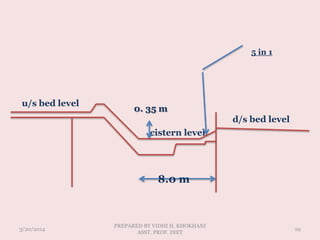

29. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
29
d/s bed level
u/s bed level
cistern level
0. 35 m
8.0 m
5 in 1

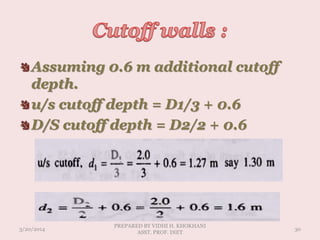

30. Assuming 0.6 m additional cutoff
depth.
u/s cutoff depth = D1/3 + 0.6
D/S cutoff depth = D2/2 + 0.6
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
30

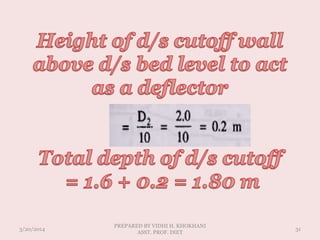

31. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
31

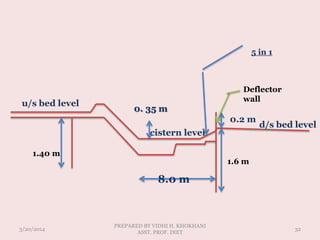

32. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
32
d/s bed level
u/s bed level
cistern level
0. 35 m
8.0 m
5 in 1
0.2 m
Deflector
wall
1.6 m
1.40 m

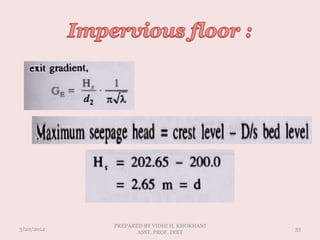

33. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
33

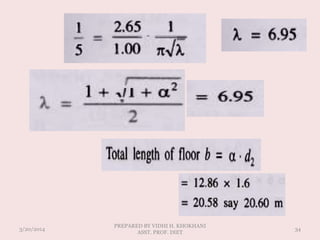

34. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
34

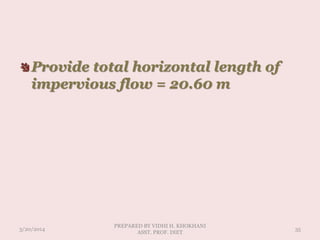

35. Provide total horizontal length of
impervious flow = 20.60 m
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
35

36. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
36

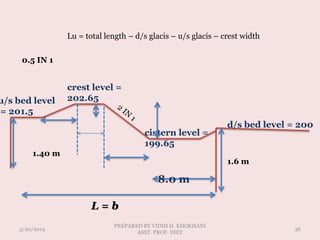

d/s bed level = 200
u/s bed level
= 201.5
cistern level =
199.65
8.0 m
1.6 m
1.40 m
crest level =
202.65
0.5 IN 1
L = b
Lu = total length – d/s glacis – u/s glacis – crest width

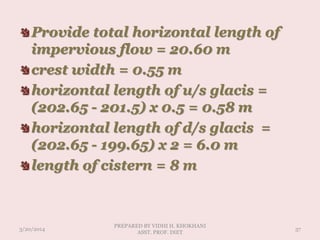

37. Provide total horizontal length of
impervious flow = 20.60 m
crest width = 0.55 m
horizontal length of u/s glacis =
(202.65 - 201.5) x 0.5 = 0.58 m
horizontal length of d/s glacis =
(202.65 - 199.65) x 2 = 6.0 m
length of cistern = 8 m
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
37

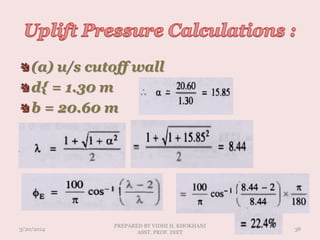

38. (a) u/s cutoff wall
d{ = 1.30 m
b = 20.60 m
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
38

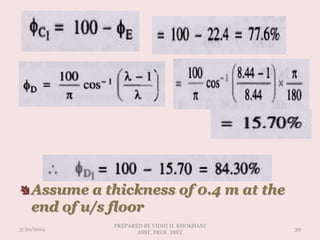

39. Assume a thickness of 0.4 m at the
end of u/s floor
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
39

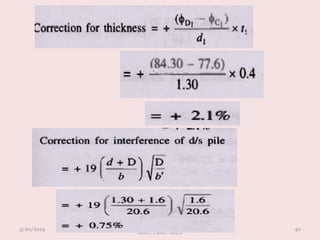

40. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
40

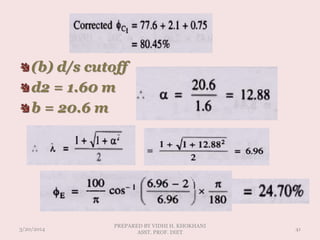

41. (b) d/s cutoff
d2 = 1.60 m
b = 20.6 m
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
41

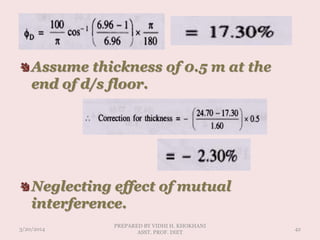

42. Assume thickness of 0.5 m at the
end of d/s floor.
Neglecting effect of mutual
interference.
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
42

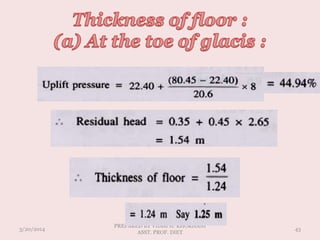

43. 3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
43

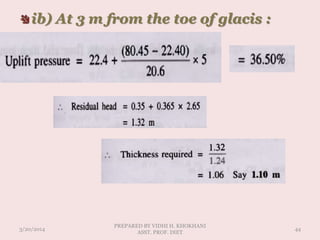

44. ib) At 3 m from the toe of glacis :
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
44

45. (2) D/s wing walls :
Provide d/s wing walls upto the end of the
d/s floor and then join them to the return
walls.
Top level of wing wall = 202 + 0.5 = 202.5
m.
d/s Bed Protection :
No bed protection is required as a deflector
has been provided,
d/s Side Protection :
Length of side protection = 3D2 = 3 x 2= 6
m
Provide 20 cm thick brick side pitching
over 10 cm ballast for a length of
6 m at a slope of 1 : 1 beyond the d/s
impervious floor.
3/20/2014
PREPARED BY VIDHI H. KHOKHANI
ASST. PROF. DIET
45
