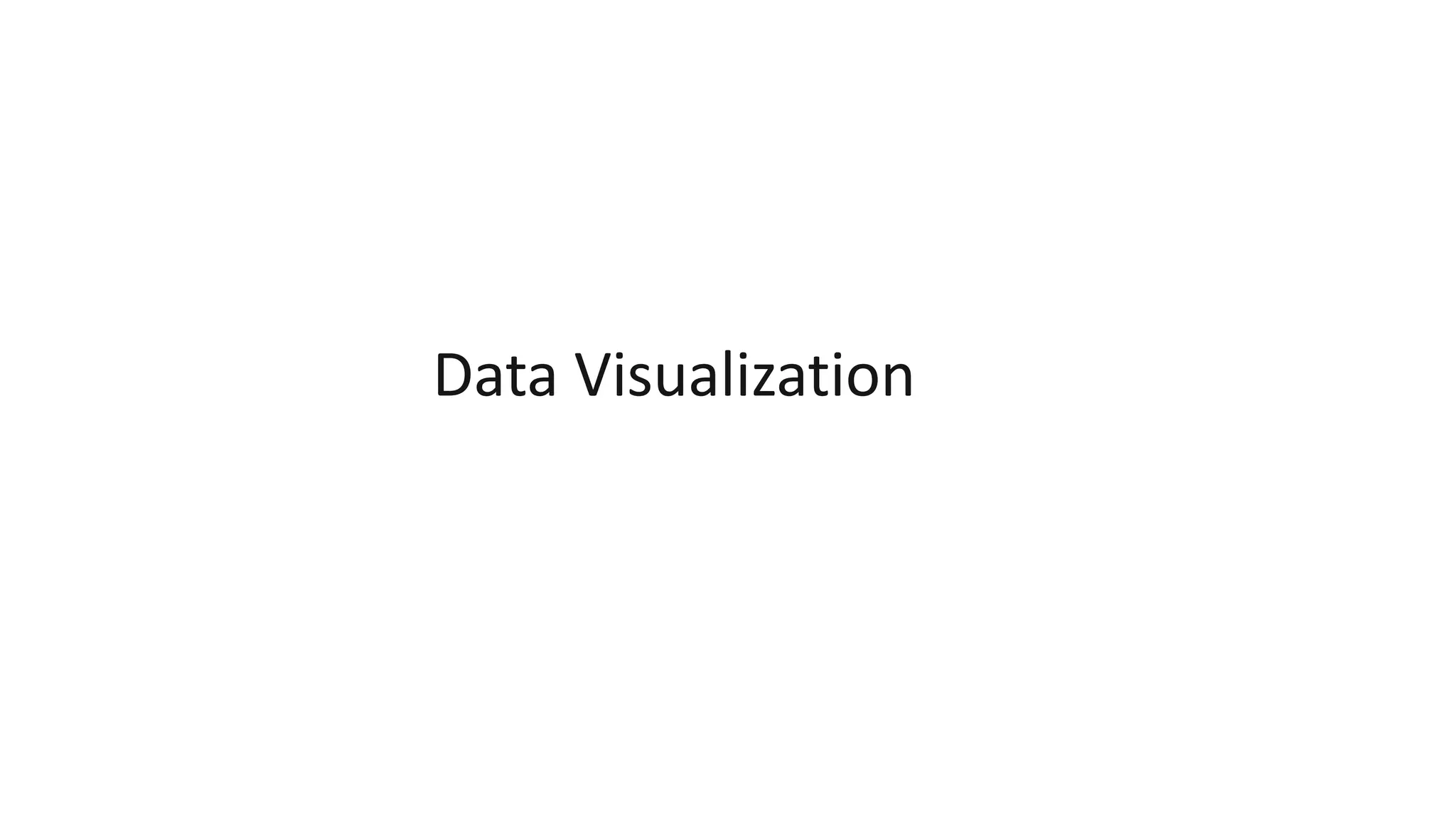

1. Data Visualization

2. Data visualization is the representation of data through use of
common graphics, such as charts, plots, infographics, and even
animations. These visual displays of information communicate
complex data relationships and data-driven insights in a way that is
easy to understand.

3. Key Principles of Data Visualization:
•Simplicity: Keep visualizations clear and uncluttered.
•Relevance: Focus on relevant data for the audience.
•Accuracy: Ensure accuracy in representation.
•Consistency: Maintain a consistent design for easier interpretation.
Common Types of Data Visualization:
•Statistical Charts: Bar charts, line charts, scatter plots.
•Time-Series Visualizations: Time-series charts, Gantt charts.
•Geospatial Visualizations: Maps, choropleth maps, bubble maps.
•Hierarchical Visualizations: Tree maps, sunburst charts.
•Network Visualizations: Node-link diagrams, force-directed graphs.
•Multidimensional Visualizations: Parallel coordinates, radar charts.

4. Best Practices in Data Visualization:
•Understand the Audience: Tailor visualizations to the audience's expertise.
•Choose Appropriate Visualizations: Match the data type and analytical task.
•Use Color Effectively: Emphasize key points, but avoid misleading use.
•Provide Context: Include titles, labels, and legends for clarity.
•Interactivity: Use interactive elements for exploration

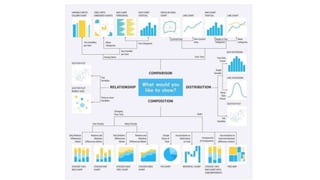

Analytical Tasks and Visualization Techniques:

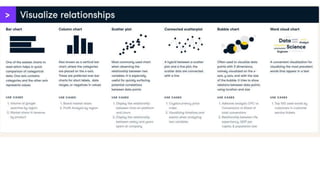

•Relationships: Scatter plots, network graphs.

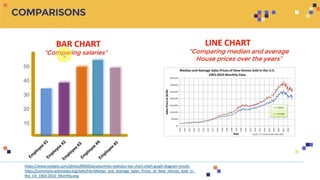

•Comparison: Bar charts, line charts, stacked bar/column charts.

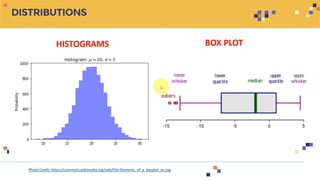

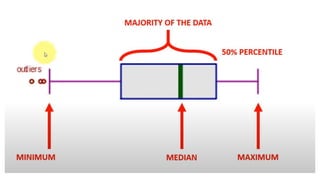

•Distribution: Histograms, box plots, kernel density plots.

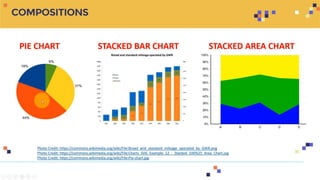

•Composition: Pie charts, stacked area charts.

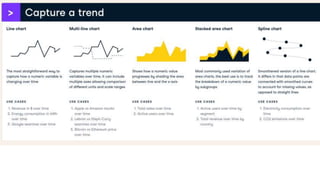

•Temporal Analysis: Time-series charts, Gantt charts.
•Spatial Analysis: Choropleth maps, bubble maps.
Challenges in Data Visualization:
•Misinterpretation: Users may misinterpret visual elements.
•Data Overload: Too much data can lead to clutter and confusion.
•Biased Visualization: Visualization choices can influence perception.

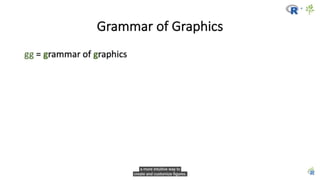

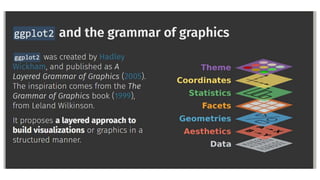

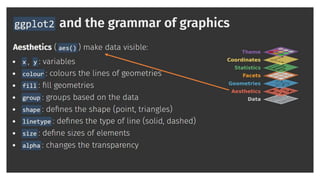

18. ggplot

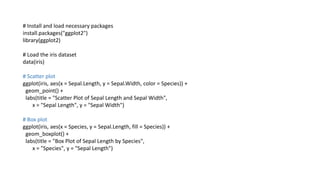

29. # Install and load necessary packages
install.packages("ggplot2")
library(ggplot2)
# Load the iris dataset
data(iris)
# Scatter plot
ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
geom_point() +
labs(title = "Scatter Plot of Sepal Length and Sepal Width",
x = "Sepal Length", y = "Sepal Width")
# Box plot
ggplot(iris, aes(x = Species, y = Sepal.Length, fill = Species)) +
geom_boxplot() +
labs(title = "Box Plot of Sepal Length by Species",
x = "Species", y = "Sepal Length")

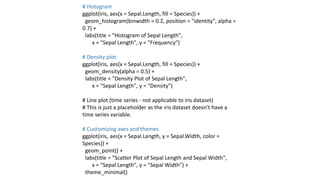

30. # Histogram
ggplot(iris, aes(x = Sepal.Length, fill = Species)) +
geom_histogram(binwidth = 0.2, position = "identity", alpha =
0.7) +
labs(title = "Histogram of Sepal Length",
x = "Sepal Length", y = "Frequency")
# Density plot
ggplot(iris, aes(x = Sepal.Length, fill = Species)) +
geom_density(alpha = 0.5) +
labs(title = "Density Plot of Sepal Length",
x = "Sepal Length", y = "Density")
# Line plot (time series - not applicable to iris dataset)
# This is just a placeholder as the iris dataset doesn't have a
time series variable.
# Customizing axes and themes
ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color =
Species)) +
geom_point() +
labs(title = "Scatter Plot of Sepal Length and Sepal Width",
x = "Sepal Length", y = "Sepal Width") +
theme_minimal()

31. Cheat Sheets
Data Visualization :https://github.com/rstudio/cheatsheets/blob/main/data-visualization.pdf
ggPlot : https://www.datacamp.com/cheat-sheet/ggplot2-cheat-sheet
