Data flow diagram
This document defines a data flow diagram (DFD) and its components. A DFD is a graphical representation of how data flows through a system. It shows external entities, processes, data stores, and data flows. External entities interact with the system, processes manipulate data, data stores hold data, and data flows show the movement of data. The document provides examples of DFD symbols and components. It also explains that DFDs can be leveled to show more detail at each level, with level 0 providing an overview and higher levels showing more granular processes.
More Related Content
Data flow diagram
- 2. DEFINITION A data flow diagram (DFD) is a graphical representation of the "flow" of data through a computer system. OR A data flow diagram looks at how data flows through a system. It concerns things like where the data will come from and go to as well as where it will be stored. But you won't find information about the processing timing (e.g. whether the processes happen in sequence or in parallel).
- 3. Flow chartshows “flow of Control “ . DFD shows “ flow of Data The flowchart describes boxes that describe computations, decisions, interactions & loops. It is important to keep in mind that data flow diagrams are not flowcharts and should not include control elements .

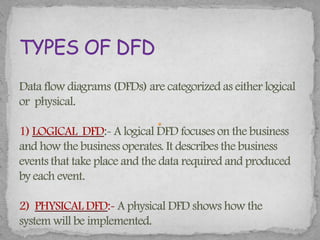

- 5. DFD COMPONENTS Data FlowDiagrams are composed of the four basic symbols shown below:-
- 6. 1)External Entity:- Thesharp cornered rectangles(or simply boxes) in a DFD indicates entities. The External Entity symbol represents sources of data to the system or destinations of data from the system. Entities are people things, organizations etc Entity

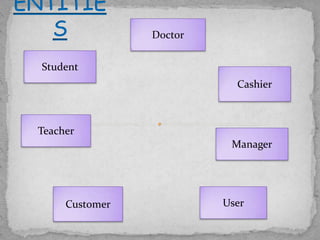

- 7. Doctor Student Cashier Teacher Manager Customer User
- 8. The roundedcornered rectangles in a DFD indicate processes The Process symbol represents an activity that transforms or manipulates the data (combines, reorders, converts, etc.). Process

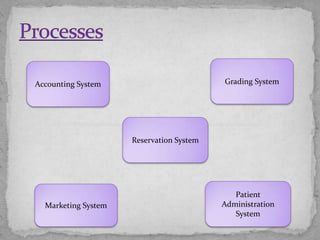

- 9. Accounting System Grading System Reservation System Patient Marketing System Administration System

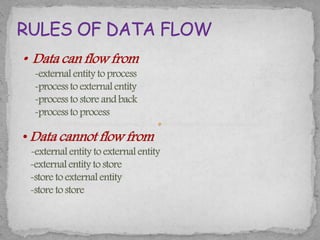

- 10. Opened sidedrectangles in DFD indicates data store. The Data Store symbol represents data that is not moving (delayed data at rest). A Data Store is a repository of data. Data can be written into the data store. This is depicted by an incoming arrow. Two data stores cannot be connected by a data flow.

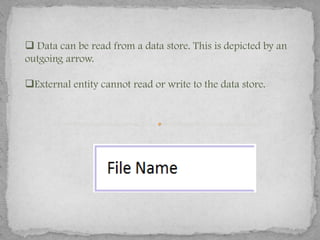

- 11. Data canbe read from a data store. This is depicted by an outgoing arrow. External entity cannot read or write to the data store.

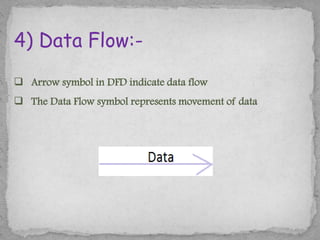

- 13. 4) Data Flow:- Arrow symbol in DFD indicate data flow The Data Flow symbol represents movement of data
- 16. EXAMPLE 1 This diagram represents a banking process, which maintains customer accounts. In this example, customers can withdraw or deposit cash, request information about their account or update their account details. The five different symbols used in this example represent the full set of symbols required to draw any business process diagram.

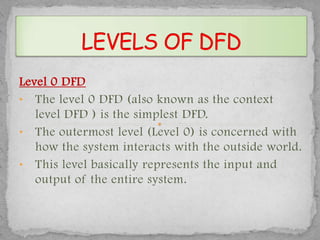

- 17. Level 0 DFD •The level 0 DFD (also known as the context level DFD ) is the simplest DFD. • The outermost level (Level 0) is concerned with how the system interacts with the outside world. • This level basically represents the input and output of the entire system.
- 18. 1. Identify yourmain system 2. Identify the external people who interact with the system 3. Decide what data these entities will enter into the system 4. Determine what these entities expect as output from the system

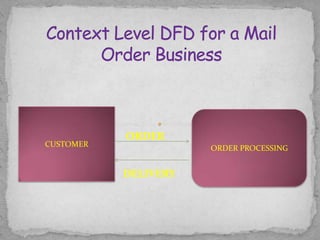

- 19. ORDER CUSTOMER ORDER PROCESSING DELIVERY

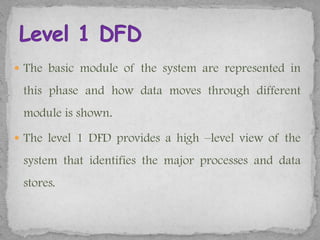

- 20. The basicmodule of the system are represented in this phase and how data moves through different module is shown. The level 1 DFD provides a high –level view of the system that identifies the major processes and data stores.

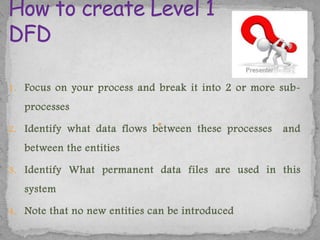

- 21. 1. Focus onyour process and break it into 2 or more sub- processes 2. Identify what data flows between these processes and between the entities 3. Identify What permanent data files are used in this system 4. Note that no new entities can be introduced

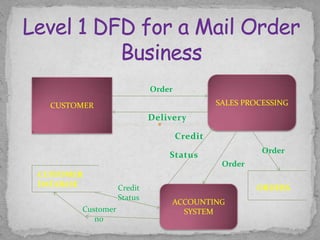

- 22. Order CUSTOMER SALES PROCESSING Delivery Credit Order Status Order CUSTOMER DATABASE Credit ORDERS Status ACCOUNTING Customer SYSTEM no.

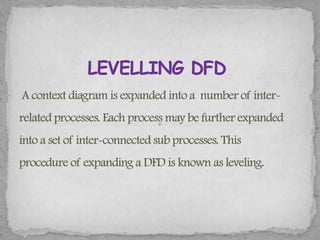

- 23. Each process fromlevel 1 is exploded even more into sub processes. This decomposition continues for each level. The number of levels possible depends on the complexity of the system

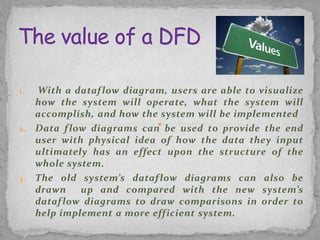

- 25. 1. With adataf low diagram, users are able to visualize how the system will operate, what the system will accomplish, and how the system will be implemented 2. Data f low diagrams can be used to provide the end user with physical idea of how the data they input ultimately has an effect upon the structure of the whole system. 3. The old system’s dataf low diagrams can also be drawn up and compared with the new system’s dataf low diagrams to draw comparisons in order to help implement a more efficient system.

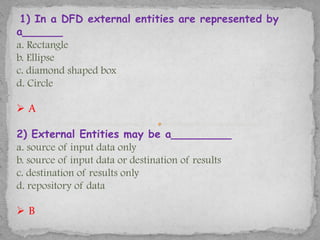

- 27. 1) In aDFD external entities are represented by a______ a. Rectangle b. Ellipse c. diamond shaped box d. Circle A 2) External Entities may be a_________ a. source of input data only b. source of input data or destination of results c. destination of results only d. repository of data B

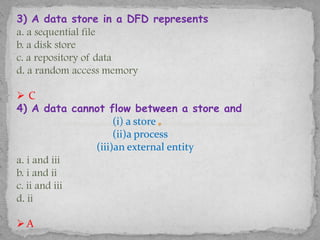

- 28. 3) A datastore in a DFD represents a. a sequential file b. a disk store c. a repository of data d. a random access memory C 4) A data cannot flow between a store and (i) a store (ii)a process (iii)an external entity a. i and iii b. i and ii c. ii and iii d. ii A
- 29. 5) Data cannotflow from an external entity to an external entity because a. it will get corrupted b. it is not allowed in DFD c. an external entity has no mechanism to read or write d. both are outside the context of the system D 6) A data flow can a. only enter a data store b. only leave a data store c. enter or leave a data store d. either enter or leave a data store but not both C
- 30. Quantity Quantity Cost/unit Billing Billing Process Process Discount Discount A

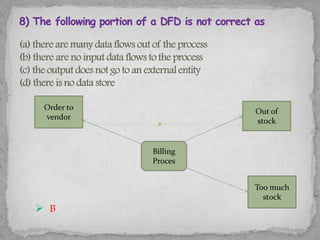

- 31. Order to Out of vendor stock Billing Proces Too much stock B

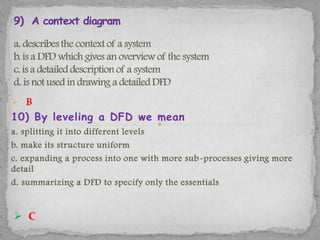

- 32. B 10) Byleveling a DFD we mean a. splitting it into different levels b. make its structure uniform c. expanding a process into one with more sub -processes giving more detail d. summarizing a DFD to specify only the essentials C

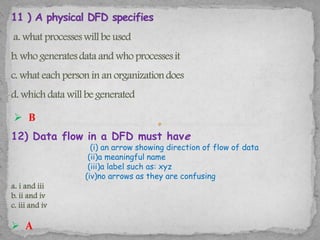

- 33. B 12) Dataflow in a DFD must have (i) an arrow showing direction of flow of data (ii)a meaningful name (iii)a label such as: xyz (iv)no arrows as they are confusing a. i and iii b. ii and iv c. iii and iv A

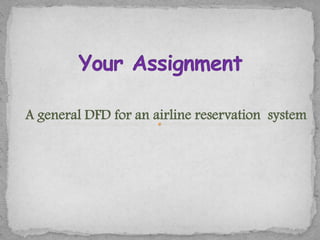

- 34. A general DFDfor an airline reservation system
- 35.
- 36.
Editor's Notes
- #2 Adataflowdiagram(DFD)isatool(andtypeofprocessmodel)thatdepictstheflowofdatathroughasystemandtheworkorprocessingperformedbythatsystem.

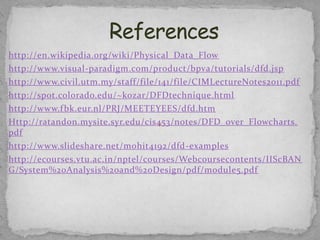

- #3 http://en.wikipedia.org/wiki/Physical_Data_Flowhttp://www.visual-paradigm.com/product/bpva/tutorials/dfd.jsphttp://www.civil.utm.my/staff/file/141/file/CIMLectureNotes2011.pdfhttp://spot.colorado.edu/~kozar/DFDtechnique.htmlhttp://www.fbk.eur.nl/PRJ/MEETEYEES/dfd.htmhttp://www.google.co.in/#hl=en&tbo=d&output=search&sclient=psy-ab&q=dfd+symbols&oq=dfd&gs_l=hp.1.1.0l4.4474.4858.0.6871.3.3.0.0.0.0.203.597.0j1j2.3.0.les%3B..0.0...1c.1.2.hp.QnhLW-MIoTE&pbx=1&bav=on.2,or.r_gc.r_pw.r_qf.&bvm=bv.42080656,d.bmk&fp=431f9b7d78bbab48&biw=1600&bih=776Http://ratandon.mysite.syr.edu/cis453/notes/DFD_over_Flowcharts.pdfhttp://www.slideshare.net/mohit4192/dfd-exampleshttp://www.google.co.in/imgres?q=animated+questions+images+for+ppt&um=1&hl=en&biw=690&bih=618&tbm=isch&tbnid=0FNpghB-jkYm6M:&imgrefurl=http://www.presentermedia.com/index.php%3Ftarget%3Dcloseup%26maincat%3Danimsp%26id%3D3112&docid=GhsyH8kMV323dM&imgurl=http://content.presentermedia.com/files/animsp/00003000/3112/Stick_Figure_q_a_PA_md_wm.gif&w=220&h=220&ei=ggAlUYH2CcTXrQepr4GgDA&zoom=1&ved=1t:3588,i:79&iact=rc&dur=408&sig=116003209041870896026&page=1&tbnh=176&tbnw=164&start=0&ndsp=10&tx=105&ty=54
