DATA ANALYSIS USING SPSS
Muhammad Ibrahim
Associate Professor of Statistics
Govt. MAO College Lahore
0300-4668681
Ibrahim.ap12@gmail.com

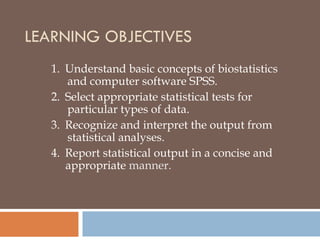

LEARNING OBJECTIVES
1.  Understand basic concepts of biostatistics
and computer software SPSS.
2.  Select appropriate statistical tests for
particular types of data.
3.  Recognize and interpret the output from
statistical analyses.
4.  Report statistical output in a concise and
appropriate manner.

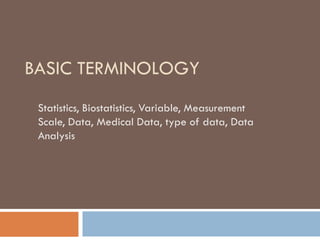

BASIC TERMINOLOGY
Statistics, Biostatistics, Variable, Measurement
Scale, Data, Medical Data, type of data, Data
Analysis

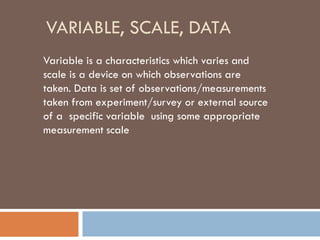

VARIABLE, SCALE, DATA
Variable is a characteristics which varies and
scale is a device on which observations are
taken. Data is set of observations/measurements
taken from experiment/survey or external source
of a specific variable using some appropriate
measurement scale

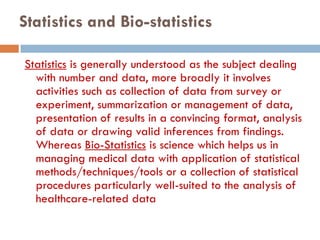

Statistics and Bio-statistics
Statistics is generally understood as the subject dealing
with number and data, more broadly it involves
activities such as collection of data from survey or
experiment, summarization or management of data,
presentation of results in a convincing format, analysis
of data or drawing valid inferences from findings.
Whereas Bio-Statistics is science which helps us in
managing medical data with application of statistical
methods/techniques/tools or a collection of statistical
procedures particularly well-suited to the analysis of
healthcare-related data

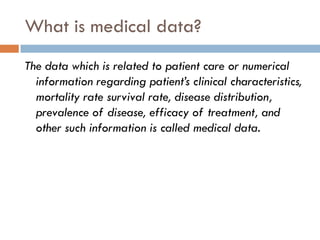

What is medical data?
The data which is related to patient care or numerical
information regarding patient’s clinical characteristics,
mortality rate survival rate, disease distribution,
prevalence of disease, efficacy of treatment, and
other such information is called medical data.

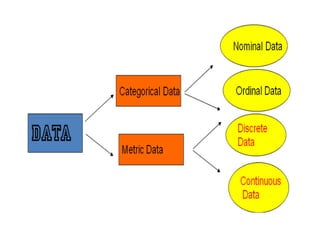

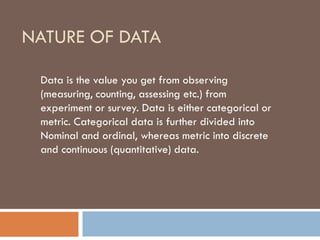

NATURE OF DATA
Data is the value you get from observing
(measuring, counting, assessing etc.) from
experiment or survey. Data is either categorical or
metric. Categorical data is further divided into
Nominal and ordinal, whereas metric into discrete
and continuous (quantitative) data.

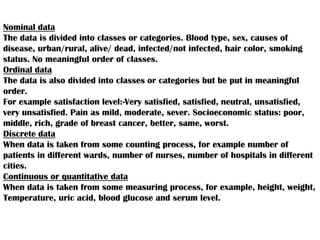

Nominal data
The data is divided into classes or categories. Blood type, sex, causes of
disease, urban/rural, alive/ dead, infected/not infected, hair color, smoking
status. No meaningful order of classes.
Ordinal data
The data is also divided into classes or categories but be put in meaningful
order.
For example satisfaction level:-Very satisfied, satisfied, neutral, unsatisfied,
very unsatisfied. Pain as mild, moderate, sever. Socioeconomic status: poor,
middle, rich, grade of breast cancer, better, same, worst.
Discrete data
When data is taken from some counting process, for example number of
patients in different wards, number of nurses, number of hospitals in different
cities.
Continuous or quantitative data
When data is taken from some measuring process, for example, height, weight,
Temperature, uric acid, blood glucose and serum level.

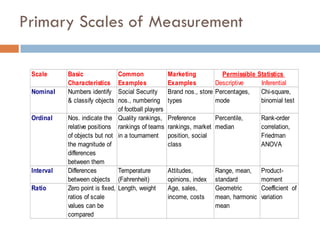

Primary Scales of Measurement
Scale Basic
Characteristics
Common
Examples
Marketing
Examples
Nominal Numbers identify
& classify objects
Social Security
nos., numbering
of football players
Brand nos., store
types
Percentages,
mode
Chi-square,
binomial test
Ordinal Nos. indicate the
relative positions
of objects but not
the magnitude of
differences
between them
Quality rankings,
rankings of teams
in a tournament
Preference
rankings, market
position, social
class
Percentile,
median
Rank-order
correlation,
Friedman
ANOVA
Ratio Zero point is fixed,
ratios of scale
values can be
compared
Length, weight Age, sales,
income, costs
Geometric
mean, harmonic
mean
Coefficient of
variation
Permissible Statistics
Descriptive Inferential
Interval Differences
between objects
Temperature
(Fahrenheit)
Attitudes,
opinions, index
Range, mean,
standard
Product-
moment

Nominal Scale
 The numbers serve only as labels or tags for identifying and classifying
objects.
 When used for identification, there is a strict one-to-one correspondence
between the numbers and the objects.
 The numbers do not reflect the amount of the characteristic possessed by the
objects.
 The only permissible operation on the numbers in a nominal scale is counting.
 Social security number, hockey players number. Imn marketing research
respondents, brands, attributes, stores and other objects

ORDINAL SCALE
A ranking scale in which numbers are assigned to objects to
indicate the relative extent to which the objects possess
some characteristic. Can determine whether an object has
more or less of a characteristic than some other object, but
not how much more or less. any series of numbers can be
assigned that preserves the ordered relationships between
the objects. So relative position of objects not the
magnitude of difference between the objects. In addition
to the counting operation allowable for nominal scale data,
ordinal scales permit the use of statistics based on
percentile, quartile, median. Possess description and order,
not distance or origin

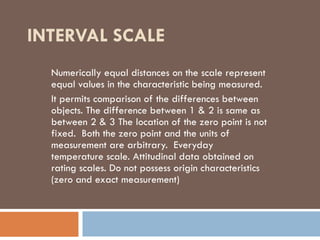

INTERVAL SCALE
Numerically equal distances on the scale represent
equal values in the characteristic being measured.
It permits comparison of the differences between
objects. The difference between 1 & 2 is same as
between 2 & 3 The location of the zero point is not
fixed. Both the zero point and the units of
measurement are arbitrary. Everyday
temperature scale. Attitudinal data obtained on
rating scales. Do not possess origin characteristics
(zero and exact measurement)

RATIO SCALE
The highest scale that allows to identify objects, rank
order of objects, and compare intervals or differences.
It is also meaningful to compute ratios of scale values
Possesses all the properties of the nominal, ordinal, and
interval scales. It has an absolute zero point.
Height, weight, age, money. Sales, costs, market share
and number of customers are variables measured on a
ratio scale
All statistical techniques can be applied to ratio data.

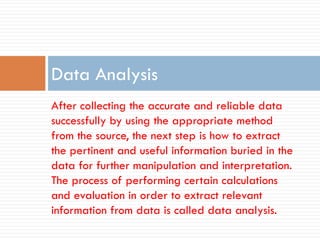

After collecting the accurate and reliable data
successfully by using the appropriate method
from the source, the next step is how to extract
the pertinent and useful information buried in the
data for further manipulation and interpretation.
The process of performing certain calculations
and evaluation in order to extract relevant
information from data is called data analysis.
Data Analysis

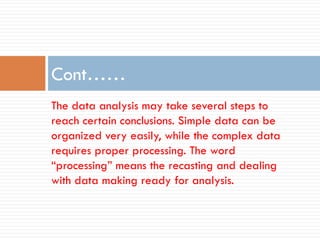

The data analysis may take several steps to
reach certain conclusions. Simple data can be
organized very easily, while the complex data
requires proper processing. The word
“processing” means the recasting and dealing
with data making ready for analysis.
Cont……

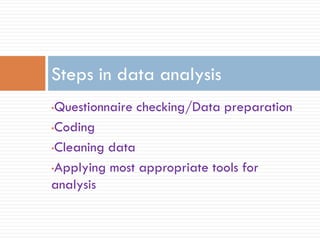

•Questionnaire checking/Data preparation
•Coding
•Cleaning data
•Applying most appropriate tools for
analysis
Steps in data analysis

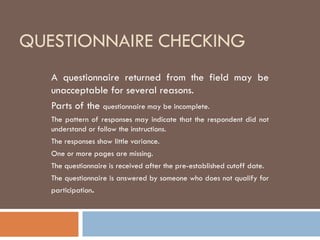

QUESTIONNAIRE CHECKING
A questionnaire returned from the field may be
unacceptable for several reasons.
Parts of the questionnaire may be incomplete.
The pattern of responses may indicate that the respondent did not
understand or follow the instructions.
The responses show little variance.
One or more pages are missing.
The questionnaire is received after the pre-established cutoff date.
The questionnaire is answered by someone who does not qualify for
participation.

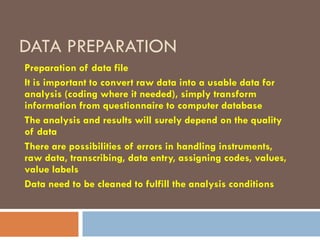

DATA PREPARATION
Preparation of data file
It is important to convert raw data into a usable data for
analysis (coding where it needed), simply transform
information from questionnaire to computer database
The analysis and results will surely depend on the quality
of data
There are possibilities of errors in handling instruments,
raw data, transcribing, data entry, assigning codes, values,
value labels
Data need to be cleaned to fulfill the analysis conditions

CODING
Coding means assigning a code, usually a
number, to each possible response to each
question.

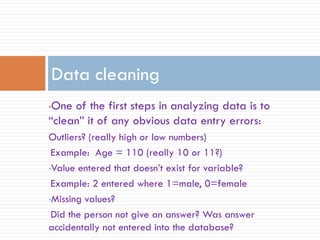

•One of the first steps in analyzing data is to
“clean” it of any obvious data entry errors:
Outliers? (really high or low numbers)
Example: Age = 110 (really 10 or 11?)
•Value entered that doesn’t exist for variable?
Example: 2 entered where 1=male, 0=female
•Missing values?
Did the person not give an answer? Was answer
accidentally not entered into the database?
Data cleaning

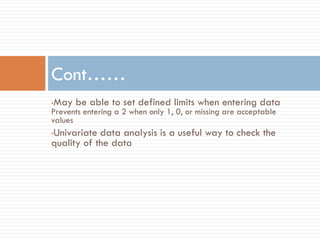

•May be able to set defined limits when entering data
Prevents entering a 2 when only 1, 0, or missing are acceptable
values
•Univariate data analysis is a useful way to check the
quality of the data
Cont……

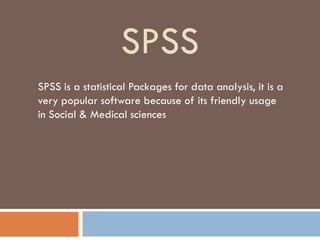

SPSS
SPSS is a statistical Packages for data analysis, it is a
very popular software because of its friendly usage
in Social & Medical sciences

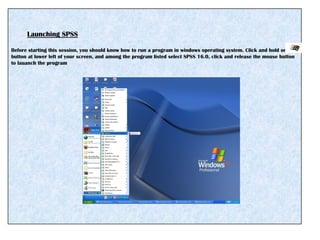

Launching SPSS
Before starting this session, you should know how to run a program in windows operating system. Click and hold on
button at lower left of your screen, and among the program listed select SPSS 16.0, click and release the mouse button
to lauanch the program

On clicking of SPSS this window will open then click on cancel button if you like to enter data in a new file or
click on OK for opening an existing file. A window will open known as data editor with variable view.

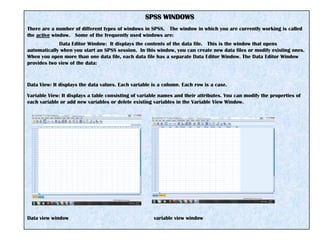

SPSS WINDOWS
There are a number of different types of windows in SPSS. The window in which you are currently working is called
the active window. Some of the frequently used windows are:

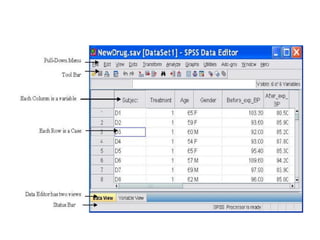

Data Editor Window: It displays the contents of the data file. This is the window that opens
automatically when you start an SPSS session. In this window, you can create new data files or modify existing ones.
When you open more than one data file, each data file has a separate Data Editor Window. The Data Editor Window
provides two view of the data:

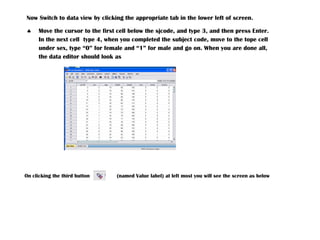

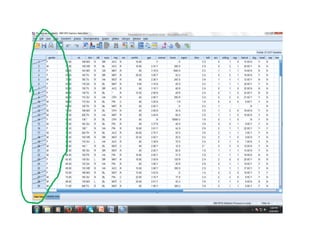

Data View: It displays the data values. Each variable is a column. Each row is a case.

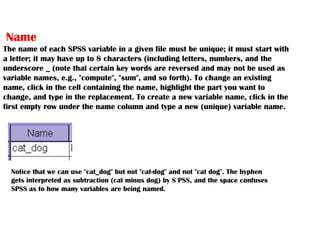

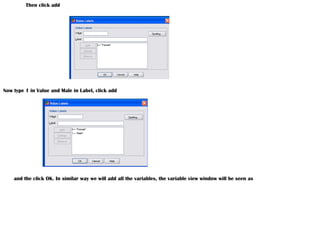

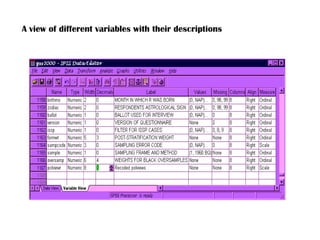

Variable View: It displays a table consisting of variable names and their attributes. You can modify the properties of
each variable or add new variables or delete existing variables in the Variable View Window.
Data view window variable view window

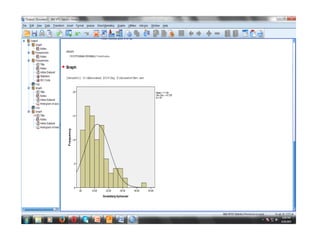

Viewer Window: It displays statistical results, tables, and charts. This window opens automatically the first time you
run a procedure that generates output

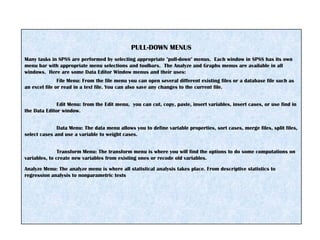

PULL-DOWN MENUS
Many tasks in SPSS are performed by selecting appropriate "pull-down" menus. Each window in SPSS has its own
menu bar with appropriate menu selections and toolbars. The Analyze and Graphs menus are available in all
windows. Here are some Data Editor Window menus and their uses:
File Menu: From the file menu you can open several different existing files or a database file such as

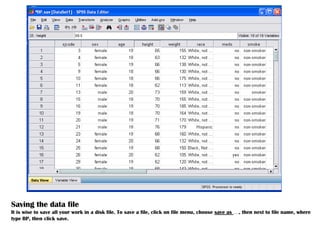

an excel file or read in a text file. You can also save any changes to the current file.

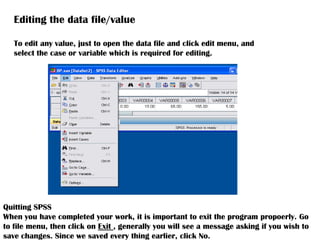

Edit Menu: from the Edit menu, you can cut, copy, paste, insert variables, insert cases, or use find in
the Data Editor window.

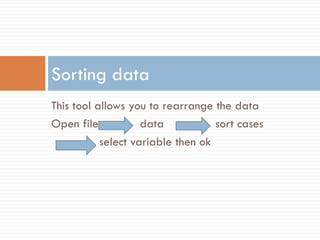

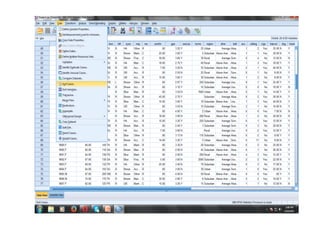

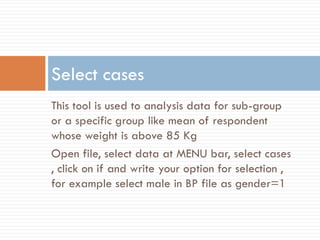

Data Menu: The data menu allows you to define variable properties, sort cases, merge files, split files,
select cases and use a variable to weight cases.

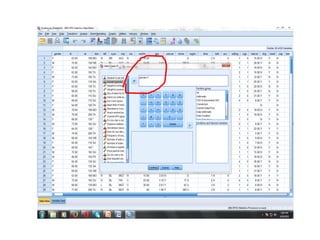

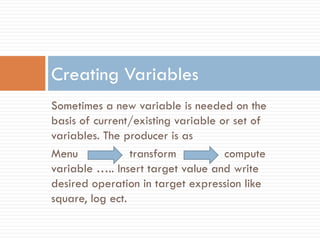

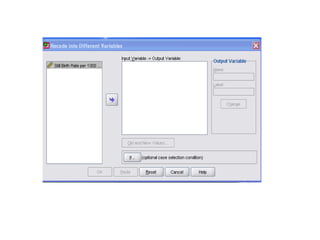

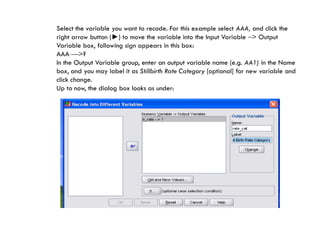

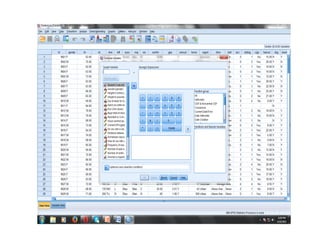

Transform Menu: The transform menu is where you will find the options to do some computations on
variables, to create new variables from existing ones or recode old variables.

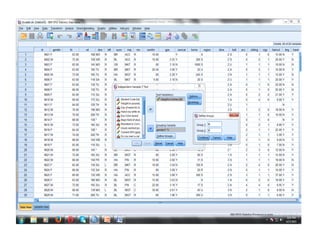

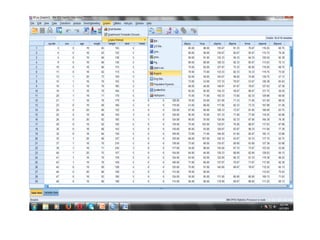

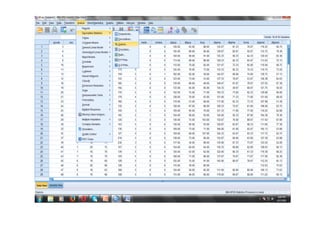

Analyze Menu: The analyze menu is where all statistical analysis takes place. From descriptive statistics to
regression analysis to nonparametric tests

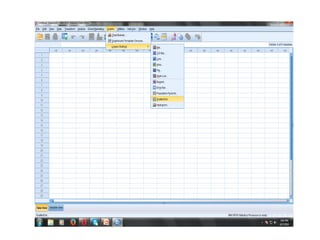

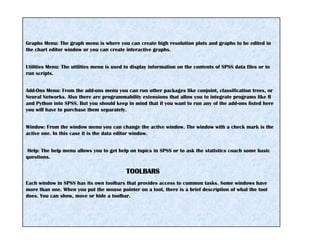

Graphs Menu: The graph menu is where you can create high resolution plots and graphs to be edited in
the chart editor window or you can create interactive graphs.
Utilities Menu: The utilities menu is used to display information on the contents of SPSS data files or to
run scripts.
Add-Ons Menu: From the add-ons menu you can run other packages like conjoint, classification trees, or
Neural Networks. Also there are programmability extensions that allow you to integrate programs like R
and Python into SPSS. But you should keep in mind that if you want to run any of the add-ons listed here
you will have to purchase them separately.
Window: From the window menu you can change the active window. The window with a check mark is the
active one. In this case it is the data editor window.
Help: The help menu allows you to get help on topics in SPSS or to ask the statistics coach some basic
questions.
TOOLBARS
Each window in SPSS has its own toolbars that provides access to common tasks. Some windows have
more than one. When you put the mouse pointer on a tool, there is a brief description of what the tool
does. You can show, move or hide a toolbar.

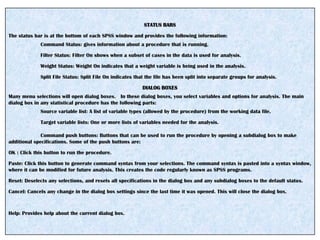

STATUS BARS
The status bar is at the bottom of each SPSS window and provides the following information:
Command Status: gives information about a procedure that is running.
Filter Status: Filter On shows when a subset of cases in the data is used for analysis.
Weight Status: Weight On indicates that a weight variable is being used in the analysis.
Split File Status: Split File On indicates that the file has been split into separate groups for analysis.
DIALOG BOXES
Many menu selections will open dialog boxes. In these dialog boxes, you select variables and options for analysis. The main
dialog box in any statistical procedure has the following parts:
Source variable list: A list of variable types (allowed by the procedure) from the working data file.
Target variable lists: One or more lists of variables needed for the analysis.
Command push buttons: Buttons that can be used to run the procedure by opening a subdialog box to make
additional specifications. Some of the push buttons are:
OK : Click this button to run the procedure.
Paste: Click this button to generate command syntax from your selections. The command syntax is pasted into a syntax window,
where it can be modified for future analysis. This creates the code regularly known as SPSS programs.
Reset: Deselects any selections, and resets all specifications in the dialog box and any subdialog boxes to the default status.
Cancel: Cancels any change in the dialog box settings since the last time it was opened. This will close the dialog box.
Help: Provides help about the current dialog box.

Name
The name of each SPSS variable in a given file must be unique; it must start with
a letter; it may have up to 8 characters (including letters, numbers, and the
underscore _ (note that certain key words are reversed and may not be used as
variable names, e.g., "compute", "sum", and so forth). To change an existing
name, click in the cell containing the name, highlight the part you want to
change, and type in the replacement. To create a new variable name, click in the
first empty row under the name column and type a new (unique) variable name.
Notice that we can use "cat_dog" but not "cat-dog" and not "cat dog". The hyphen
gets interpreted as subtraction (cat minus dog) by S PSS, and the space confuses
SPSS as to how many variables are being named.

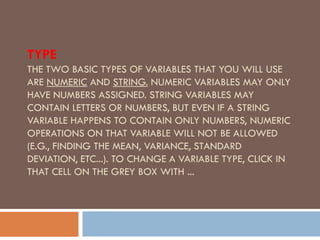

TYPE
THE TWO BASIC TYPES OF VARIABLES THAT YOU WILL USE
ARE NUMERIC AND STRING. NUMERIC VARIABLES MAY ONLY
HAVE NUMBERS ASSIGNED. STRING VARIABLES MAY
CONTAIN LETTERS OR NUMBERS, BUT EVEN IF A STRING
VARIABLE HAPPENS TO CONTAIN ONLY NUMBERS, NUMERIC
OPERATIONS ON THAT VARIABLE WILL NOT BE ALLOWED
(E.G., FINDING THE MEAN, VARIANCE, STANDARD
DEVIATION, ETC...). TO CHANGE A VARIABLE TYPE, CLICK IN
THAT CELL ON THE GREY BOX WITH ...

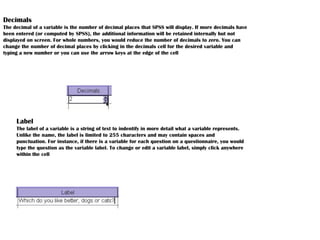

Decimals
The decimal of a variable is the number of decimal places that SPSS will display. If more decimals have
been entered (or computed by SPSS), the additional information will be retained internally but not
displayed on screen. For whole numbers, you would reduce the number of decimals to zero. You can
change the number of decimal places by clicking in the decimals cell for the desired variable and
typing a new number or you can use the arrow keys at the edge of the cell
Label
The label of a variable is a string of text to indentify in more detail what a variable represents.
Unlike the name, the label is limited to 255 characters and may contain spaces and
punctuation. For instance, if there is a variable for each question on a questionnaire, you would
type the question as the variable label. To change or edit a variable label, simply click anywhere
within the cell

Values
Although the variable label goes a long way to explaining what the variable represents, for categorical
data (discrete data of both nominal and ordinal levels of measurement), we often need to know which
numbers represent which categories. To indicate how these numbers are assigned, one can add labels to
specific values by clicking on the ... box in the values cell

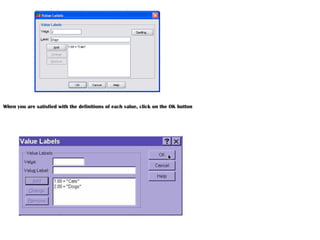

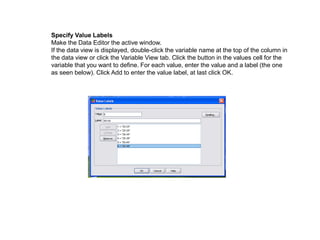

Clicking here opens up the Value Labels dialogue box.

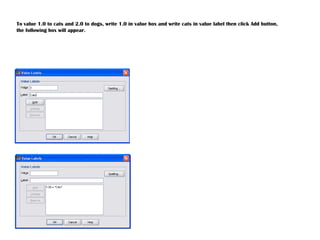

To value 1.0 to cats and 2.0 to dogs, write 1.0 in value box and write cats in value label then click Add button,
the following box will appear.

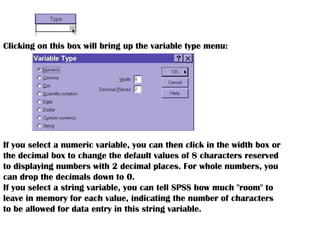

Clicking on this box will bring up the variable type menu:
If you select a numeric variable, you can then click in the width box or
the decimal box to change the default values of 8 characters reserved
to displaying numbers with 2 decimal places. For whole numbers, you
can drop the decimals down to 0.
If you select a string variable, you can tell SPSS how much "room" to
leave in memory for each value, indicating the number of characters
to be allowed for data entry in this string variable.

When you are satisfied with the definitions of each value, click on the OK button

The real beauty of value labels can be seen in the Data View by clicking on the "toe
tag" icon in the tool bar , which switches between the numeric values
and their labels

A view of different variables with their descriptions

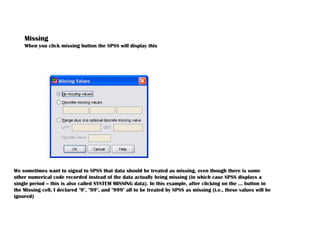

Missing
When you click missing button the SPSS will display this
We sometimes want to signal to SPSS that data should be treated as missing, even though there is some
other numerical code recorded instead of the data actually being missing (in which case SPSS displays a
single period -- this is also called SYSTEM MISSING data). In this example, after clicking on the ... button in
the Missing cell, I declared "9", "99", and "999" all to be treated by SPSS as missing (i.e., these values will be
ignored)

Columns
The columns property tells SPSS how wide the column should be for each variable. Don't confuse this one
with width, which indicates how many digits of the number will be displayed. The column size indicates how
much space is allocated rather than the degree to which it is filled.
Align
The alignment property indicates whether the information in the Data View should be left-justified, right-
justified, or centered

Measure
The Measure property indicates the level of measurement. Since SPSS does not differentiate between
interval and ratio levels of measurement, both of these quantitative variable types are lumped together
as "scale". Nominal and ordinal levels of measurement, however, are differentiated

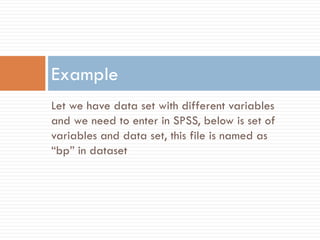

Let we have data set with different variables
and we need to enter in SPSS, below is set of
variables and data set, this file is named as
“bp” in dataset
Example

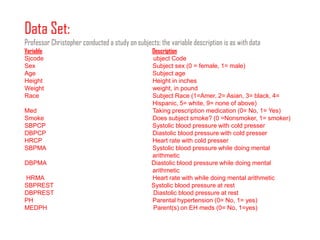

Data Set:
Professor Christopher conducted a study on subjects; the variable description is as with data
Variable Description
Sjcode ubject Code
Sex Subject sex (0 = female, 1= male)
Age Subject age
Height Height in inches
Weight weight, in pound
Race Subject Race (1=Amer, 2= Asian, 3= black, 4=
Hispanic, 5= white, 9= none of above)
Med Taking prescription medication (0= No, 1= Yes)
Smoke Does subject smoke? (0 =Nonsmoker, 1= smoker)
SBPCP Systolic blood pressure with cold presser
DBPCP Diastolic blood pressure with cold presser
HRCP Heart rate with cold presser
SBPMA Systolic blood pressure while doing mental
arithmetic
DBPMA Diastolic blood pressure while doing mental
arithmetic
HRMA Heart rate with while doing mental arithmetic
SBPREST Systolic blood pressure at rest
DBPREST Diastolic blood pressure at rest
PH Parental hypertension (0= No, 1= yes)
MEDPH Parent(s) on EH meds (0= No, 1=yes)

SJcode sex age height weight race meds smoking sbpcp dbpcp hrcp sbpma dbpma hrma sbrest dbrest Ph Medph
3 Female 19 65 155 White No Med Non smoker 126 65 88 135.667 81.333 76.667 116.25 60.75 PH+ Parent EH Yes
9 Female 18 66 130 White No Med Non smoker 113 89 88 128.333 82.333 85.667 113.625 72.125 PH- Parents EH No
10 Female 18 66 175 White No Med Non smoker 112 70 82 121.667 75.333 85 110 68.75 PH- Parents EH No
11 Female 18 62 113 White No Med Non smoker 125 70 73 133.333 82.333 74.333 119.75 73.5 PH- Parents EH No
13 Male 20 73 159 White No Med Smoker 162 62 58 145.667 68 74 130.75 57.125 PH+ Parent EH Yes
15 Male 18 70 155 White No Med Non smoker 123 73 53 137.333 78.667 53.667 126.375 65.625 PH+ Parent EH Yes
16 Male 19 69.5 185 White No Med Non smoker 139 66 48 148.667 81.667 78.667 127.625 67.375 PH+ Parent EH Yes
19 Male 18 70 164 White No Med Non smoker 133 65 85 134.333 58.667 66.667 121.75 56.5 PH- Parents EH No
20 Male 19 71 170 White No Med Non smoker 152 75 71 150.333 73 82.333 129.875 60 PH- Parents EH No
21 Male 18 76 179 Hispanic No Med Non smoker 128 70 63 121 71.333 71 121 68.5 PH- Parents EH No
23 Female 19 68.5 160 White No Med Non smoker 119 51 68 117 62.333 73.333 107.875 51.375 PH+ Parent EH Yes
24 Female 20 66 132 White No Med Non smoker 120 67 80 128.333 72.667 81 108 63.75 PH+ Parent EH Yes
25 Female 19 67.5 150 Black No Med Non smoker 129 95 70 121.333 71 77 110.25 62.875 PH- Parents EH No
26 Female 20 62 105 White Yes Med Non smoker 124 90 93 124 92.333 87 104.375 76.375 PH+ Parent EH Yes
29 Female 19 62 120 White No Med Non smoker 130 75 103 132.667 76 88.667 117.625 67.875 PH- Parents EH No
30 Female 18 67.5 143 White No Med Non smoker 130 95 93 120.667 83.667 98.333 111 77.375 PH- Parents EH No
32 Female 18 63.5 130 White No Med Non smoker 109 73 71 104 61 65.667 105.125 53.875 PH- Parents EH No
35 Male 20 66 127 White No Med Non smoker 129 68 107 124.333 63.667 93.333 117.75 62.75 PH- Parents EH No

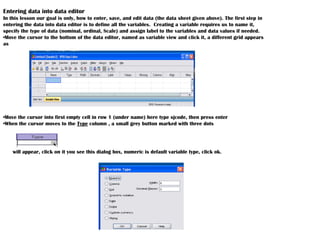

Entering data into data editor
In this lesson our goal is only, how to enter, save, and edit data (the data sheet given above). The first step in
entering the data into data editor is to define all the variables. Creating a variable requires us to name it,
specify the type of data (nominal, ordinal, Scale) and assign label to the variables and data values if needed.
•Move the cursor to the bottom of the data editor, named as variable view and click it, a different grid appears
as
•Move the cursor into first empty cell in row 1 (under name) here type sjcode, then press enter
•When the cursor moves to the Type column , a small grey button marked with three dots
will appear, click on it you see this dialog box, numeric is default variable type, click ok.

Note that the Measure column (far right column) be put on scale, because you took numeric as variable
type, In SPSS, each variable carry a descriptive label to help identify its meaning. To add label, here is
procedure:
•Move the cursor into the label column and type Subject Code.
This complete the definition of first column.
•Now lets creats a varable to represent sex, move the fisrt colume of row 2, and name the variable
sex.
•Because sex is categorical (qualitative ) variable and we are going to represent it numerically ( for
data analysis purpose, because SPSS only entertains quantitative variable). Sinse numeric is the
default in type column, we shall skip it and go to width taking width as per our requirement, in
decimal column reduce from 2 to 0
•Label this variable as subject sex
•Now we can assign text label to our coded values ( as discussed previously). In the values column
click the grey box with three dots. A box will open as below

Type “0” in value box and type Female in the value label box.

Then click add
Now type 1 in Value and Male in Label, click add
and the click OK. In similar way we will add all the variables, the variable view window will be seen as

Now Switch to data view by clicking the appropriate tab in the lower left of screen.
 Move the cursor to the first cell below the sjcode, and type 3, and then press Enter.
In the next cell type 4, when you completed the subject code, move to the tope cell
under sex, type “0” for female and “1” for male and go on. When you are done all,
the data editor should look as
On clicking the third button (named Value label) at left most you will see the screen as below

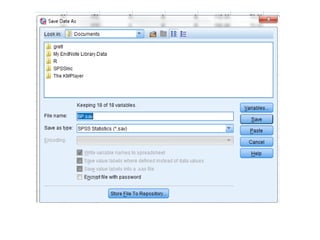

Saving the data file
It is wise to save all your work in a disk file. To save a file, click on file menu, choose save as …, then next to file name, where
type BP, then click save.

Editing the data file/value
To edit any value, just to open the data file and click edit menu, and
select the case or variable which is required for editing.
Quitting SPSS
When you have completed your work, it is important to exit the program propoerly. Go
to file menu, then click on Exit , generally you will see a message asking if you wish to
save changes. Since we saved every thing earlier, click No.

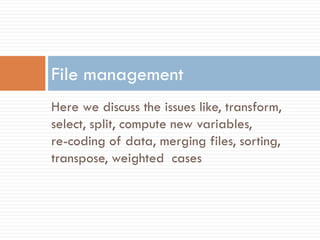

Here we discuss the issues like, transform,
select, split, compute new variables,
re-coding of data, merging files, sorting,
transpose, weighted cases
File management

This tool allows you to rearrange the data
Open file data sort cases
select variable then ok
Sorting data

If some values are missing in data/variables that
can be replaced by different methods, if
variable is categorical then the value is replaced
by the researcher on his/her personal
experience, but the variable is continuous, SPSS
will help using the Replace missing value
command. Open file, and investigate any missing
value using sort command,

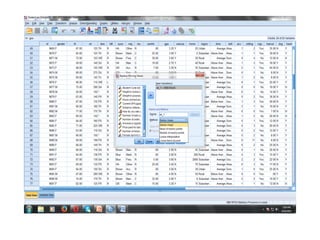

Replacing missing values

Then go to transform tool replace
missing value using option
Cont………

Sometimes a new variable is needed on the
basis of current/existing variable or set of
variables. The producer is as
Menu transform compute
variable ….. Insert target value and write
desired operation in target expression like
square, log ect.
Creating Variables

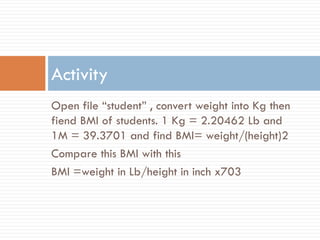

Open file “student” , convert weight into Kg then
fiend BMI of students. 1 Kg = 2.20462 Lb and
1M = 39.3701 and find BMI= weight/(height)2
Compare this BMI with this
BMI =weight in Lb/height in inch x703
Activity

If the researcher is interested to re-code the
data as you want to recode 1 5 or wants to
make numerical data into groups , then we use
re-code tool. Open the data file. From the menus
choose: Transform | Recode | Into
Different Variables...
Following Recode into Different Variables
Dialog box appears.
Re-coding

Select the variable you want to recode. For this example select AAA, and click the
right arrow button (►) to move the variable into the Input Variable > Output
Variable box, following sign appears in this box:
AAA >?
In the Output Variable group, enter an output variable name (e.g. AA1) in the Name
box, and you may label it as Stillbirth Rate Category [optional] for new variable and
click change.
Up to now, the dialog box looks as under:

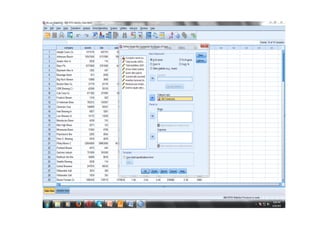

Click Old and New Values... tab following dialog box appears, and specify how to recode
values
In the old value group, select the 5th choice then put 24 in the lowest through box.. In the
value box under new value group input 1.

Click Add tab. Similarly, for the closed class interval like 25-29, select the 4th choice in the old
value group then put 25 (selection of 4th choice in each case) till the time when you input 5 in the
New Value through 29 and in the value under new value input 2, then click Add tab. Repeat this
process . Now for the highest open class, select the 6th choice in the Old Value group then put 45
in the through highest box. In the Value box under New Value group input 6, then click Add tab.
The final shape looks as under.
Click Continue and then OK. The XYZ-SPSS Data Editor containing two variables viz. AAA and AA1t looks as under,
one in Variable View and other in Data View.

Specify Value Labels
Make the Data Editor the active window.
If the data view is displayed, double-click the variable name at the top of the column in
the data view or click the Variable View tab. Click the button in the values cell for the
variable that you want to define. For each value, enter the value and a label (the one
as seen below). Click Add to enter the value label, at last click OK.

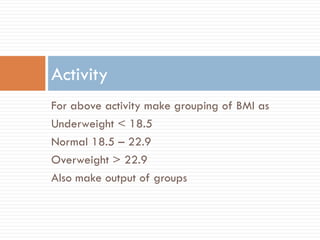

For above activity make grouping of BMI as
Underweight < 18.5
Normal 18.5 – 22.9
Overweight > 22.9
Also make output of groups
Activity

This tool is used to analysis data for sub-group
or a specific group like mean of respondent
whose weight is above 85 Kg
Open file, select data at MENU bar, select cases
, click on if and write your option for selection ,
for example select male in BP file as gender=1
Select cases

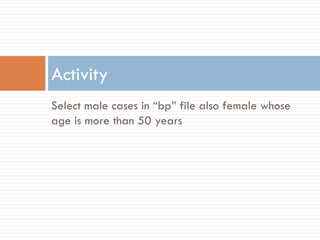

Select male cases in “bp” file also female whose
age is more than 50 years
Activity

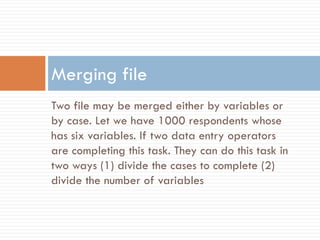

Two file may be merged either by variables or
by case. Let we have 1000 respondents whose
has six variables. If two data entry operators
are completing this task. They can do this task in
two ways (1) divide the cases to complete (2)
divide the number of variables
Merging file

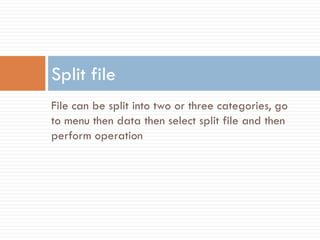

File can be split into two or three categories, go
to menu then data then select split file and then
perform operation
Split file

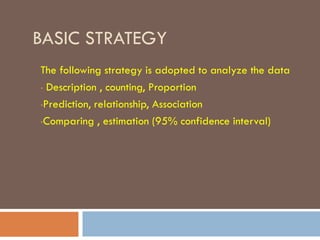

BASIC STRATEGY
The following strategy is adopted to analyze the data
• Description , counting, Proportion
•Prediction, relationship, Association
•Comparing , estimation (95% confidence interval)

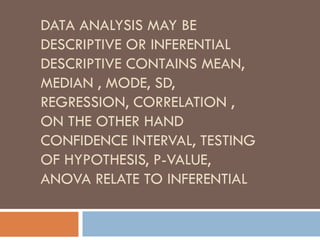

DATA ANALYSIS MAY BE
DESCRIPTIVE OR INFERENTIAL
DESCRIPTIVE CONTAINS MEAN,
MEDIAN , MODE, SD,
REGRESSION, CORRELATION ,
ON THE OTHER HAND
CONFIDENCE INTERVAL, TESTING
OF HYPOTHESIS, P-VALUE,
ANOVA RELATE TO INFERENTIAL

UNI-VARIATE DESCRIPTIVE ANALYSIS
Graphical Method
For nominal & ordinal data we use Bar or pie chart

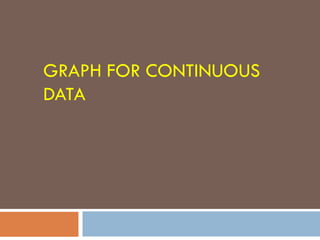

For continuous data we use histogram
Numerical method
For nominal & ordinal data we use Frequency/proportions
For continuous data we use Mean , Standard deviation

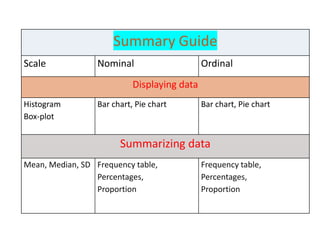

Summary Guide
Scale Nominal Ordinal
Displaying data
Histogram
Box-plot
Bar chart, Pie chart Bar chart, Pie chart
Summarizing data
Mean, Median, SD Frequency table,
Percentages,
Proportion
Frequency table,
Percentages,
Proportion

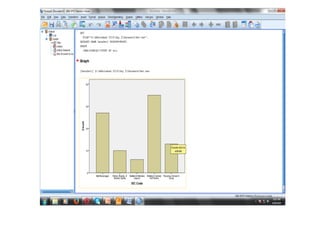

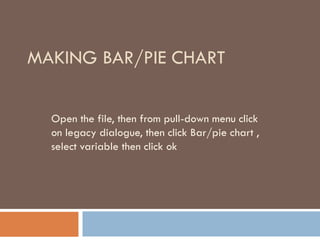

MAKING BAR/PIE CHART

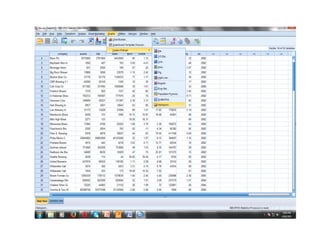

Open the file, then from pull-down menu click
on legacy dialogue, then click Bar/pie chart ,
select variable then click ok

DATA SUMMERY

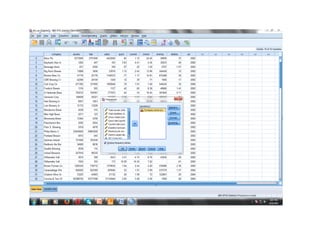

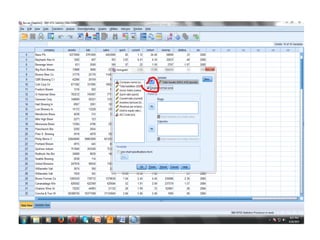

Open the file, then from pull-down menu click on
analyze Descriptive statistics
frequency select variable

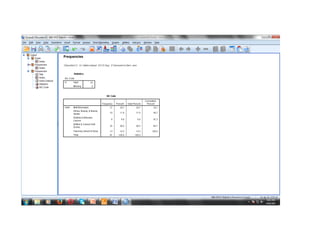

Click ok, output window will appear

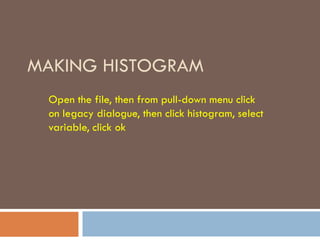

MAKING HISTOGRAM
Open the file, then from pull-down menu click
on legacy dialogue, then click histogram, select
variable, click ok

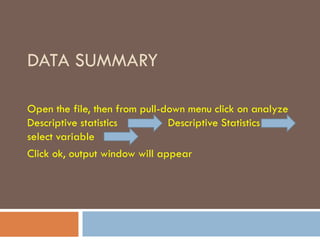

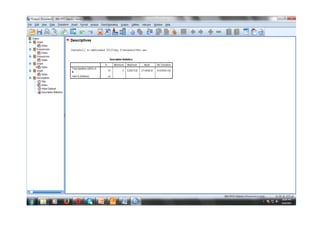

DATA SUMMARY

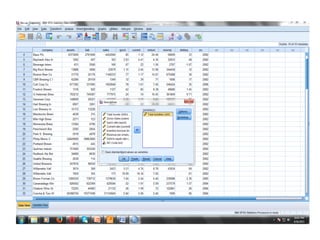

Open the file, then from pull-down menu click on analyze
Descriptive statistics Descriptive Statistics
select variable
Click ok, output window will appear

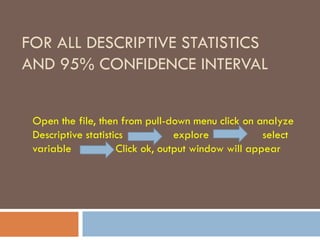

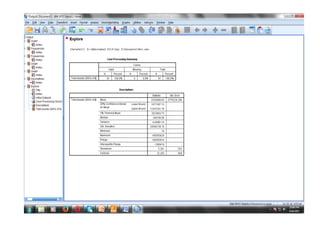

FOR ALL DESCRIPTIVE STATISTICS
AND 95% CONFIDENCE INTERVAL
Descriptive statistics explore select
variable Click ok, output window will appear

Summary Guide for appropriate analysis for
two variable
Type of variables Graphical display Relationship
Categorical-
categorical
Multiple bar Contingency table
Categorical-Scale Box-plot Descriptive statistics
for each group
Scale-scale Scatter plot Correlation

MULTIPLE BAR CHART
Open the file, then from pull-down menu click on legacy
dialogue, then click Bar chart , select variable to
category axis and one to cluster then click ok

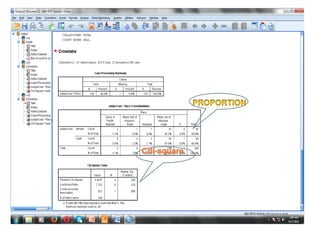

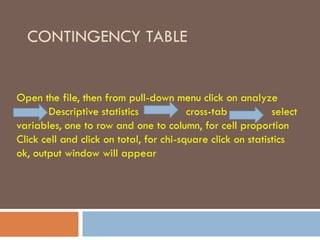

CONTINGENCY TABLE
Descriptive statistics cross-tab select
variables, one to row and one to column, for cell proportion
Click cell and click on total, for chi-square click on statistics
ok, output window will appear

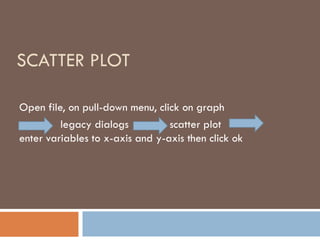

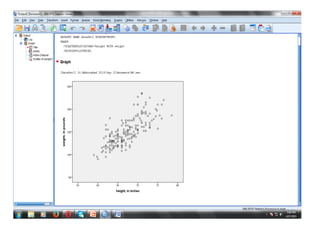

SCATTER PLOT
Open file, on pull-down menu, click on graph
legacy dialogs scatter plot
enter variables to x-axis and y-axis then click ok

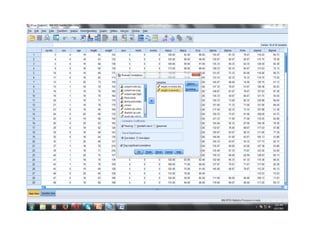

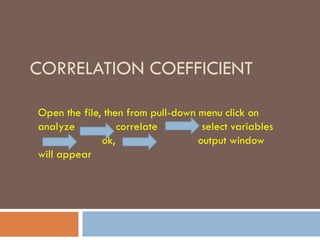

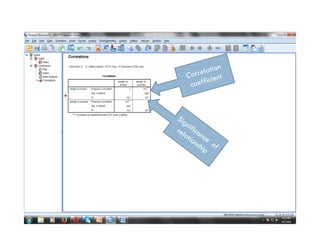

CORRELATION COEFFICIENT
Open the file, then from pull-down menu click on
analyze correlate select variables
ok, output window
will appear

SUMMARY ONE CATEGORICAL
ONE CONTINUOUS VARIABLE
When we have one categorical and one
continuous variable , then for descriptive
analysis we will use Explore command and for
graph we use Box-plot , suppose we have
gender and weight of respondents

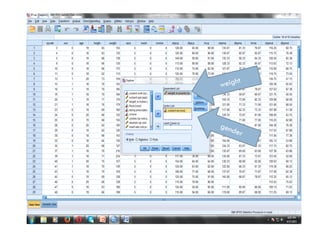

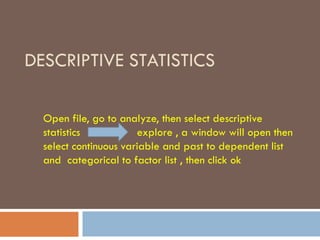

DESCRIPTIVE STATISTICS
Open file, go to analyze, then select descriptive
statistics explore , a window will open then
select continuous variable and past to dependent list
and categorical to factor list , then click ok

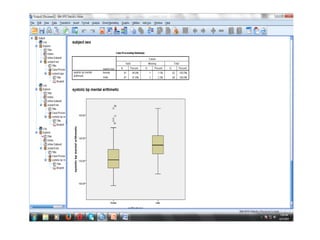

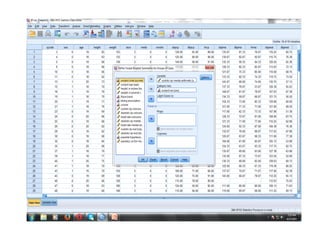

BOX PLOT
Open file, click on Graph then click to legacy dialog,
the box plot then click simple then define now put
continuous variable to variable and categorical (sex,
SES) to category axis and click ok

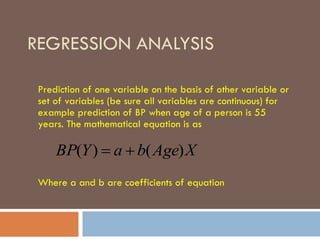

REGRESSION ANALYSIS
Prediction of one variable on the basis of other variable or
set of variables (be sure all variables are continuous) for
example prediction of BP when age of a person is 55
years. The mathematical equation is as
Where a and b are coefficients of equation
XAgebaYBP )()( 

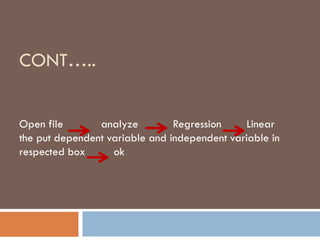

CONT…..

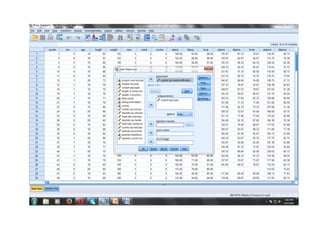

Open file analyze Regression Linear
the put dependent variable and independent variable in
respected box ok

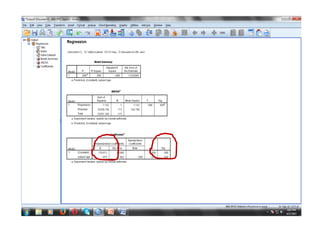

REGRESSION LINE
This is regression line using results of previous
slide.
)(075.061.129)( AgeBPY 

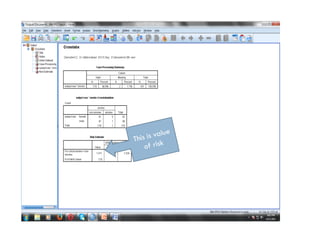

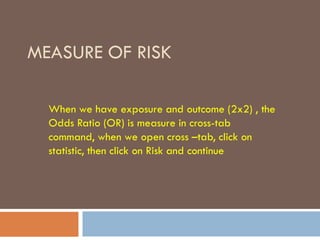

MEASURE OF RISK
When we have exposure and outcome (2x2) , the
Odds Ratio (OR) is measure in cross-tab

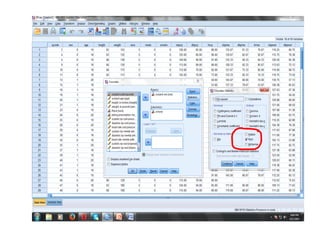

command, when we open cross –tab, click on
statistic, then click on Risk and continue

Open file “states”, for variable “bac”, what percentage of states
use the 0.8 standard.
Open file “Aids”, determine the shape of distribution of Aids cases
reported in 1994
Open file “students”, make side-by-side histogram of height in
comparison for male and female. Make a cross-tab (contingency
table) of gender, and eye-color, also compare blue color in male
and female. Make a scatter plot between height and weight and
interpret the graph. Compute descriptive statistics of variable
amount paid for hair cut.
Activity

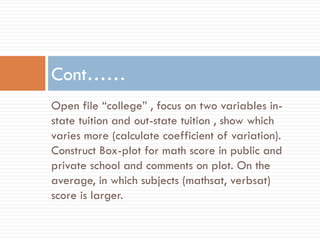

Open file “college” , focus on two variables in-
state tuition and out-state tuition , show which
varies more (calculate coefficient of variation).
Construct Box-plot for math score in public and
private school and comments on plot. On the
average, in which subjects (mathsat, verbsat)
score is larger.
Cont……

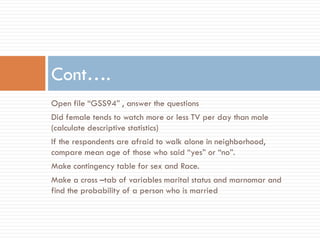

Open file “GSS94” , answer the questions
Did female tends to watch more or less TV per day than male
(calculate descriptive statistics)
If the respondents are afraid to walk alone in neighborhood,
compare mean age of those who said “yes” or “no”.
Make contingency table for sex and Race.
Make a cross –tab of variables marital status and marnomar and
find the probability of a person who is married
Cont….

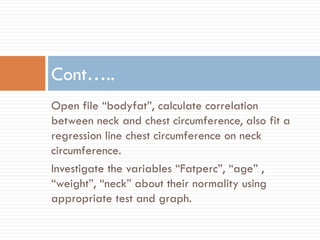

Open file “bodyfat”, calculate correlation
between neck and chest circumference, also fit a
regression line chest circumference on neck
circumference.
Investigate the variables “Fatperc”, “age” ,
“weight”, “neck” about their normality using
appropriate test and graph.
Cont…..

Open file “sleep”, using appropriate descriptive and graphical
technique, how would you establish relationship between the amount
of sleep a species require and mean weight of species. Also
interpret the results. Make a frequency distribution of variable
amount of sleep taking appropriate interval. Construct 95%
confidence interval for total sleep and life span
Open file “colleges”, construct 95% confidence interval for mean
room and board charges and what does it mean?
Cont….

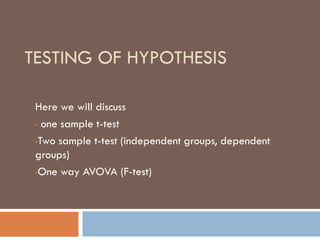

TESTING OF HYPOTHESIS
Here we will discuss
• one sample t-test
•Two sample t-test (independent groups, dependent
groups)
•One way AVOVA (F-test)

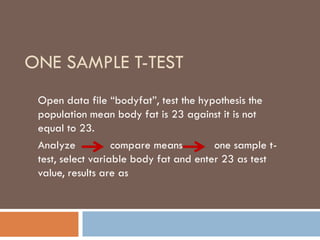

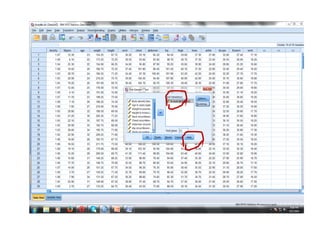

ONE SAMPLE T-TEST
Open data file “bodyfat”, test the hypothesis the
population mean body fat is 23 against it is not
equal to 23.
Analyze compare means one sample t-
test, select variable body fat and enter 23 as test

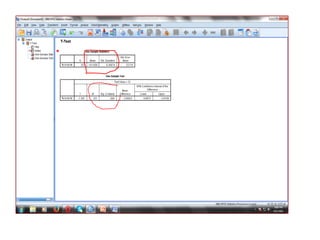

value, results are as

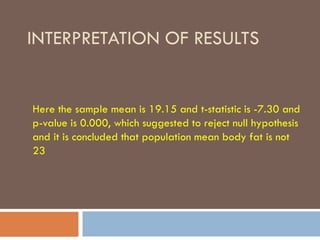

INTERPRETATION OF RESULTS
Here the sample mean is 19.15 and t-statistic is -7.30 and
p-value is 0.000, which suggested to reject null hypothesis
and it is concluded that population mean body fat is not
23

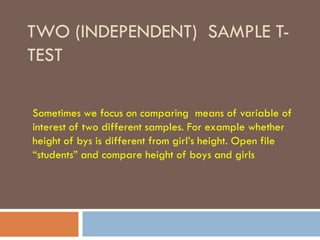

TWO (INDEPENDENT) SAMPLE T-
TEST
Sometimes we focus on comparing means of variable of
interest of two different samples. For example whether
height of bys is different from girl’s height. Open file
“students” and compare height of boys and girls

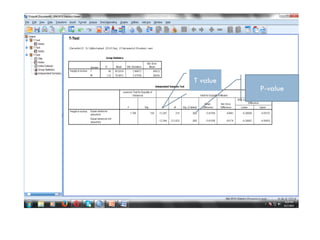

Open file analyze compare means
independent samples , click then a window will
open select height as test variable and gender
as grouping variable. Define grouping
variable putting the value of male and female
then click ok

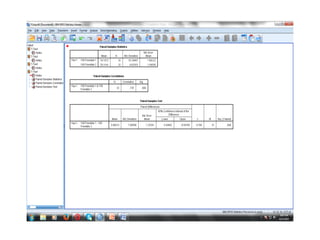

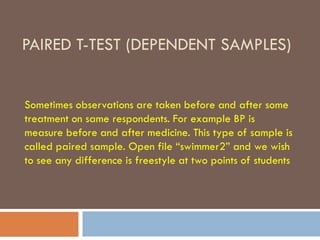

PAIRED T-TEST (DEPENDENT SAMPLES)
Sometimes observations are taken before and after some
treatment on same respondents. For example BP is
measure before and after medicine. This type of sample is
called paired sample. Open file “swimmer2” and we wish
to see any difference is freestyle at two points of students

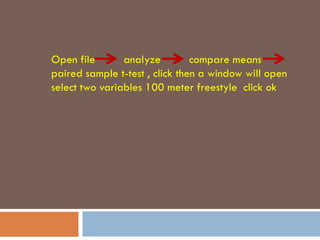

Open file analyze compare means
paired sample t-test , click then a window will open
select two variables 100 meter freestyle click ok

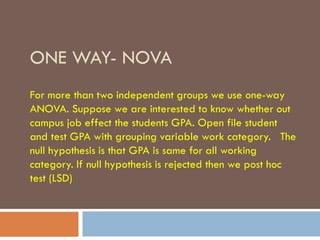

ONE WAY- NOVA
For more than two independent groups we use one-way
ANOVA. Suppose we are interested to know whether out
campus job effect the students GPA. Open file student
and test GPA with grouping variable work category. The
null hypothesis is that GPA is same for all working
category. If null hypothesis is rejected then we post hoc
test (LSD)

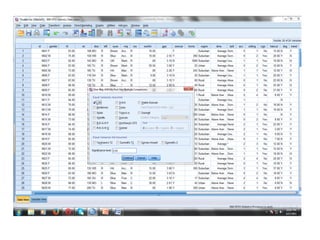

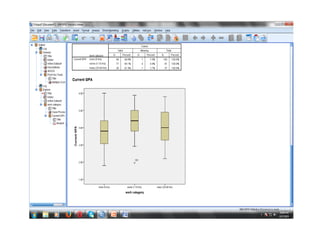

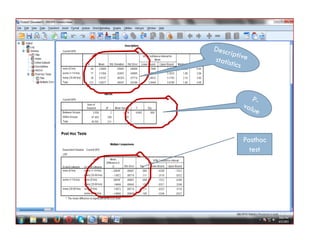

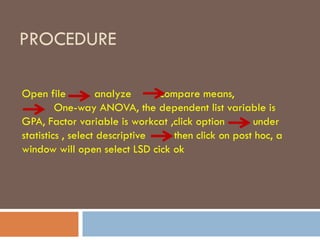

PROCEDURE
Open file analyze compare means,
One-way ANOVA, the dependent list variable is
GPA, Factor variable is workcat ,click option under
statistics , select descriptive then click on post hoc, a
window will open select LSD cick ok

Open file “GSS94” and test the null hypothesis that the
adults in United States watch an average of three hours
of TV daily. Test the hypothesis males spent 3 hours
while watching TV (Use select command)
Is there a statistically significant difference in amount of
time men and women spend watching TV. Is there a
statistically significant difference in amount of time
married and divorced spend watching TV?
Activity

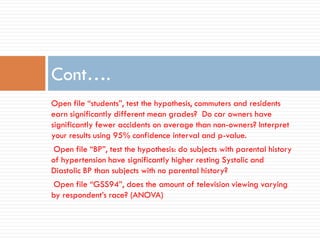

Open file “students”, test the hypothesis, commuters and residents
earn significantly different mean grades? Do car owners have
significantly fewer accidents on average than non-owners? Interpret
your results using 95% confidence interval and p-value.
Open file “BP”, test the hypothesis: do subjects with parental history
of hypertension have significantly higher resting Systolic and
Diastolic BP than subjects with no parental history?
Open file “GSS94”, does the amount of television viewing varying
by respondent’s race? (ANOVA)
Cont….

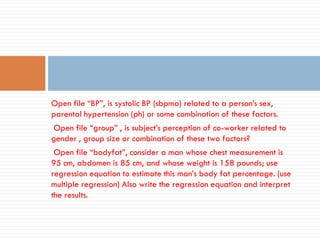

Open file “BP”, is systolic BP (sbpma) related to a person’s sex,
parental hypertension (ph) or some combination of these factors.
Open file “group” , is subject’s perception of co-worker related to
gender , group size or combination of these two factors?
Open file “bodyfat”, consider a man whose chest measurement is
95 cm, abdomen is 85 cm, and whose weight is 158 pounds; use
regression equation to estimate this man’s body fat percentage. (use
multiple regression) Also write the regression equation and interpret
the results.

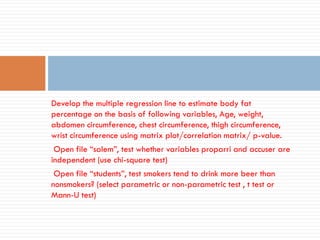

Develop the multiple regression line to estimate body fat
percentage on the basis of following variables, Age, weight,
abdomen circumference, chest circumference, thigh circumference,
wrist circumference using matrix plot/correlation matrix/ p-value.
Open file “salem”, test whether variables proparri and accuser are
independent (use chi-square test)
Open file “students”, test smokers tend to drink more beer than
nonsmokers? (select parametric or non-parametric test , t test or
Mann-U test)

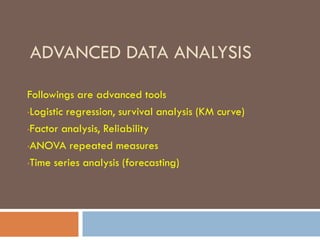

ADVANCED DATA ANALYSIS
Followings are advanced tools
•Logistic regression, survival analysis (KM curve)
•Factor analysis, Reliability
•ANOVA repeated measures
•Time series analysis (forecasting)

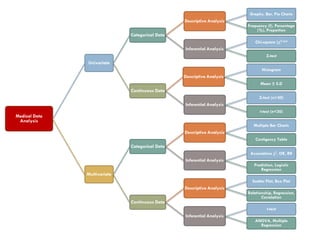

Medical Data
Analysis
Univariate
Categorical Data
Descriptive Analysis
Graphs, Bar, Pie Charts
Frequency (f), Percentage
(%), Proportion
Inferential Analysis
Chi-square (χ2) test
Z-test
Continuous Data
Histogram
Mean ± S.D
Z-test (n>30)
t-test (n<30)
Multivariate
Categorical Data
Multiple Bar Charts
Contigency Table
Association χ2, OR, RR
Prediction, Logistic
Regression
Continuous Data
Scatter Plot, Box Plot
Relationship, Regression,
Correlation
t-test
ANOVA, Multiple
Regression

Data analysis using spss

More Related Content

What's hot

Viewers also liked

Similar to Data analysis using spss

Recently uploaded

Data analysis using spss
