Setting-up Wireless Access Point (LAPTOP)

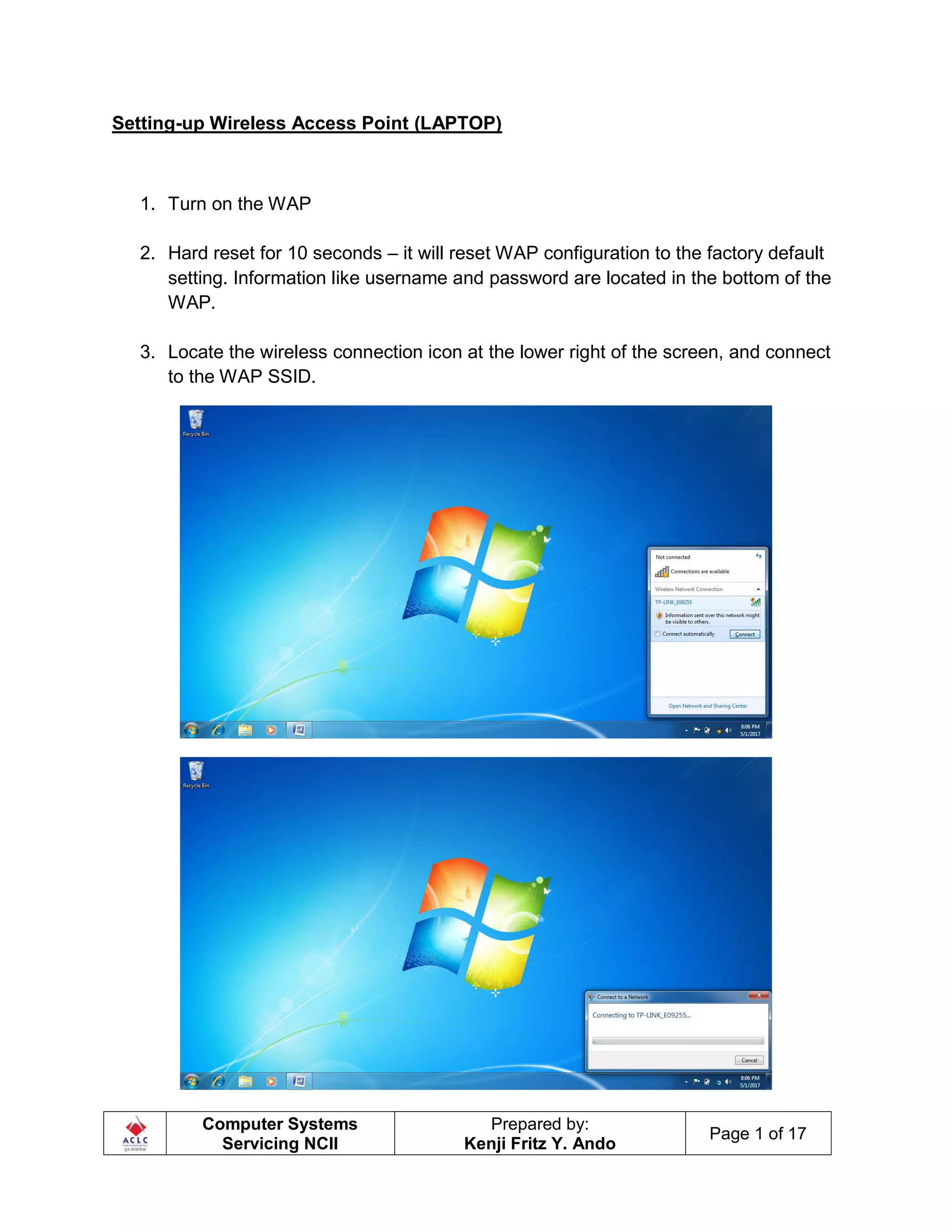

1. Turn on the WAP
2. Hard reset for 10 seconds – it will reset WAP configuration to the factory default
setting. Information like username and password are located in the bottom of the
WAP.
3. Locate the wireless connection icon at the lower right of the screen, and connect
to the WAP SSID.

2. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 2 of 17

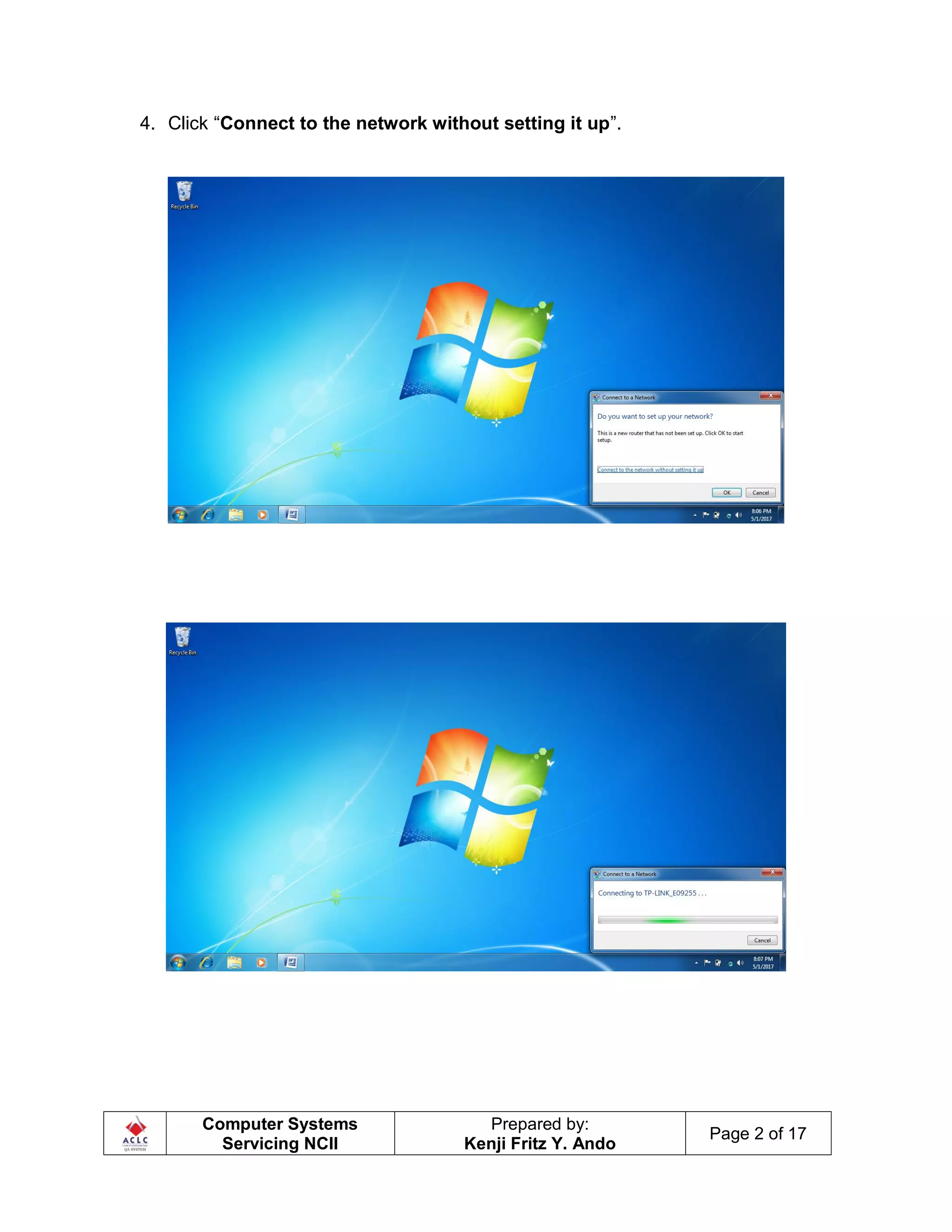

4. Click “Connect to the network without setting it up”.

3. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 3 of 17

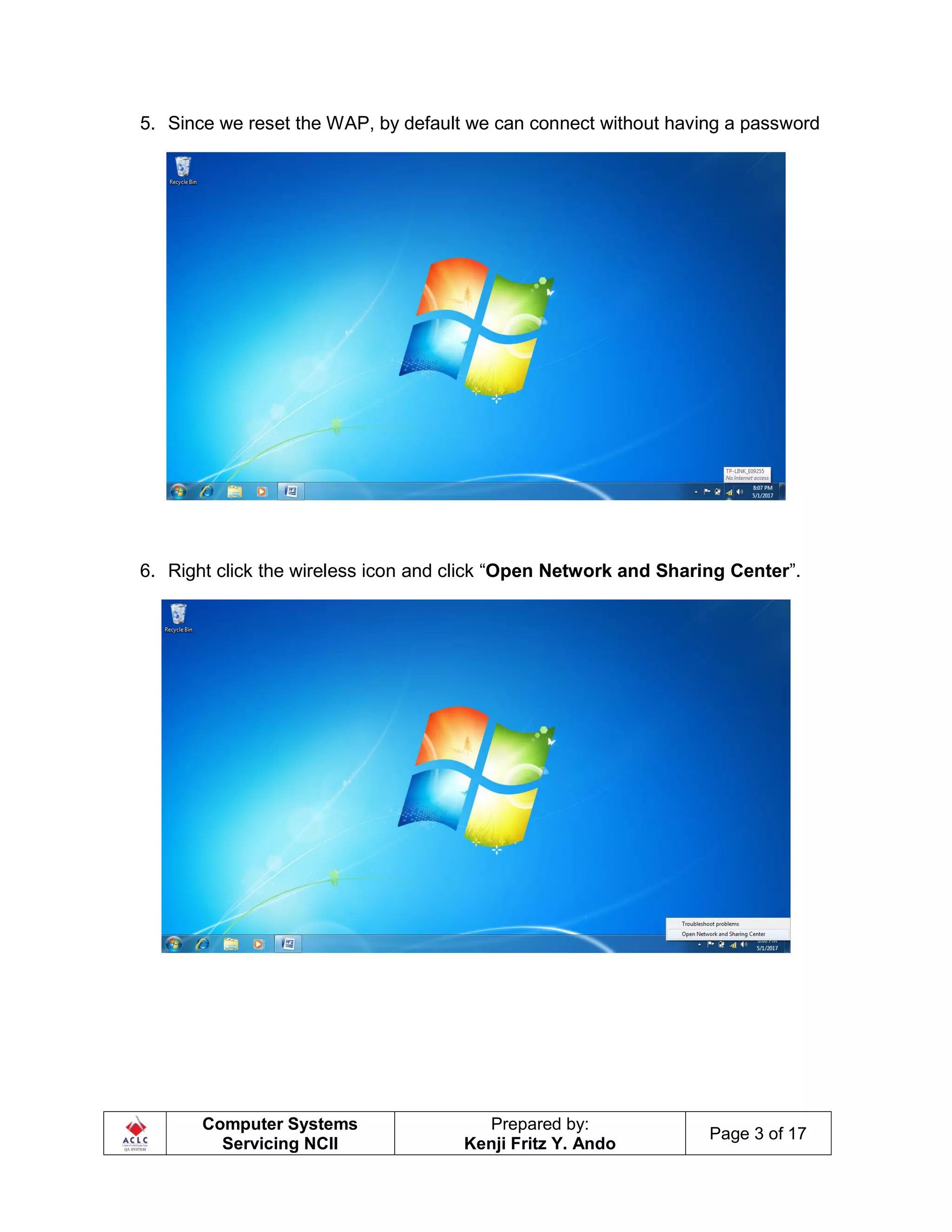

5. Since we reset the WAP, by default we can connect without having a password
6. Right click the wireless icon and click “Open Network and Sharing Center”.

4. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 4 of 17
7. Click “Wireless Network Connection”
8. Wireless Network Connection Status will prompt, click “Details…”

5. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 5 of 17

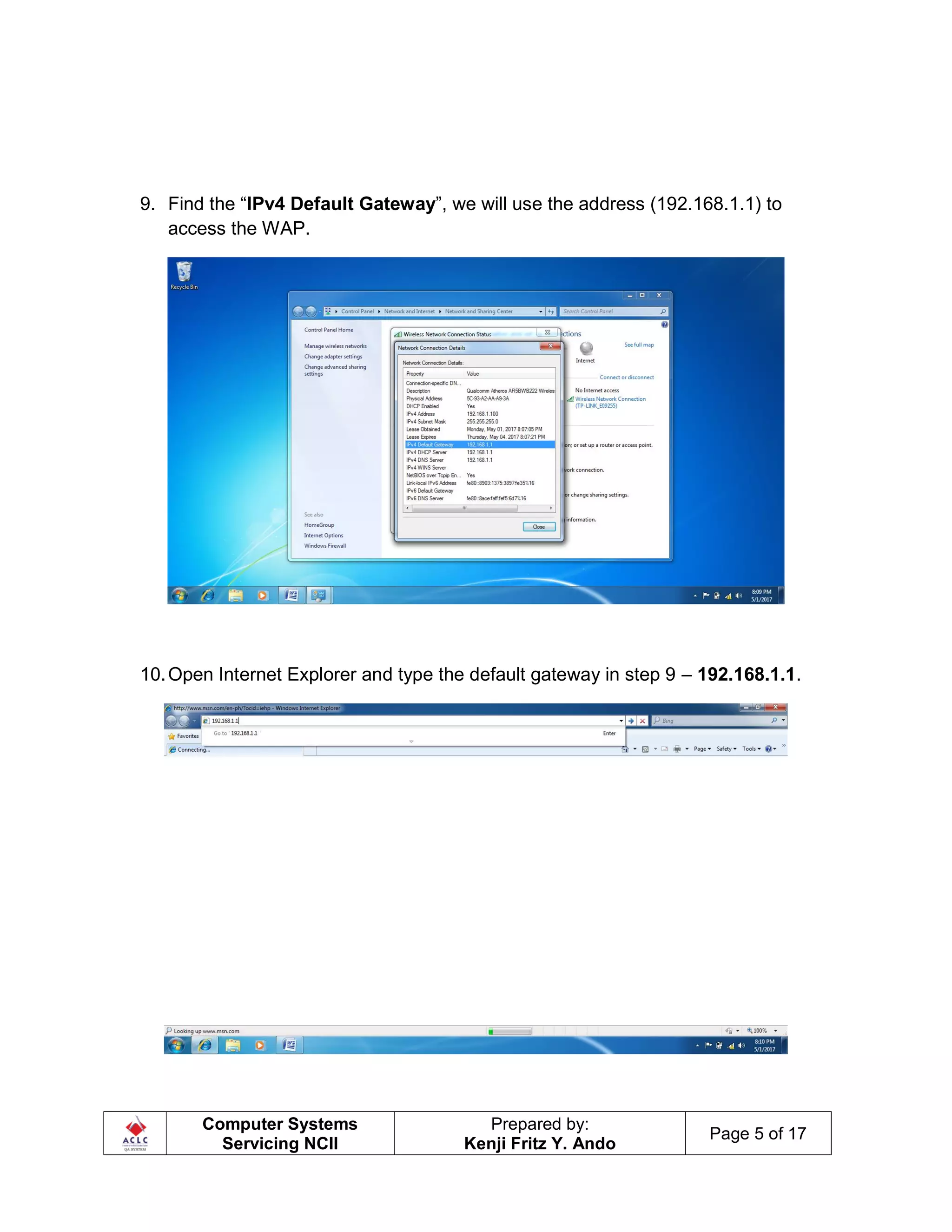

9. Find the “IPv4 Default Gateway”, we will use the address (192.168.1.1) to
access the WAP.
10.Open Internet Explorer and type the default gateway in step 9 – 192.168.1.1.

6. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 6 of 17

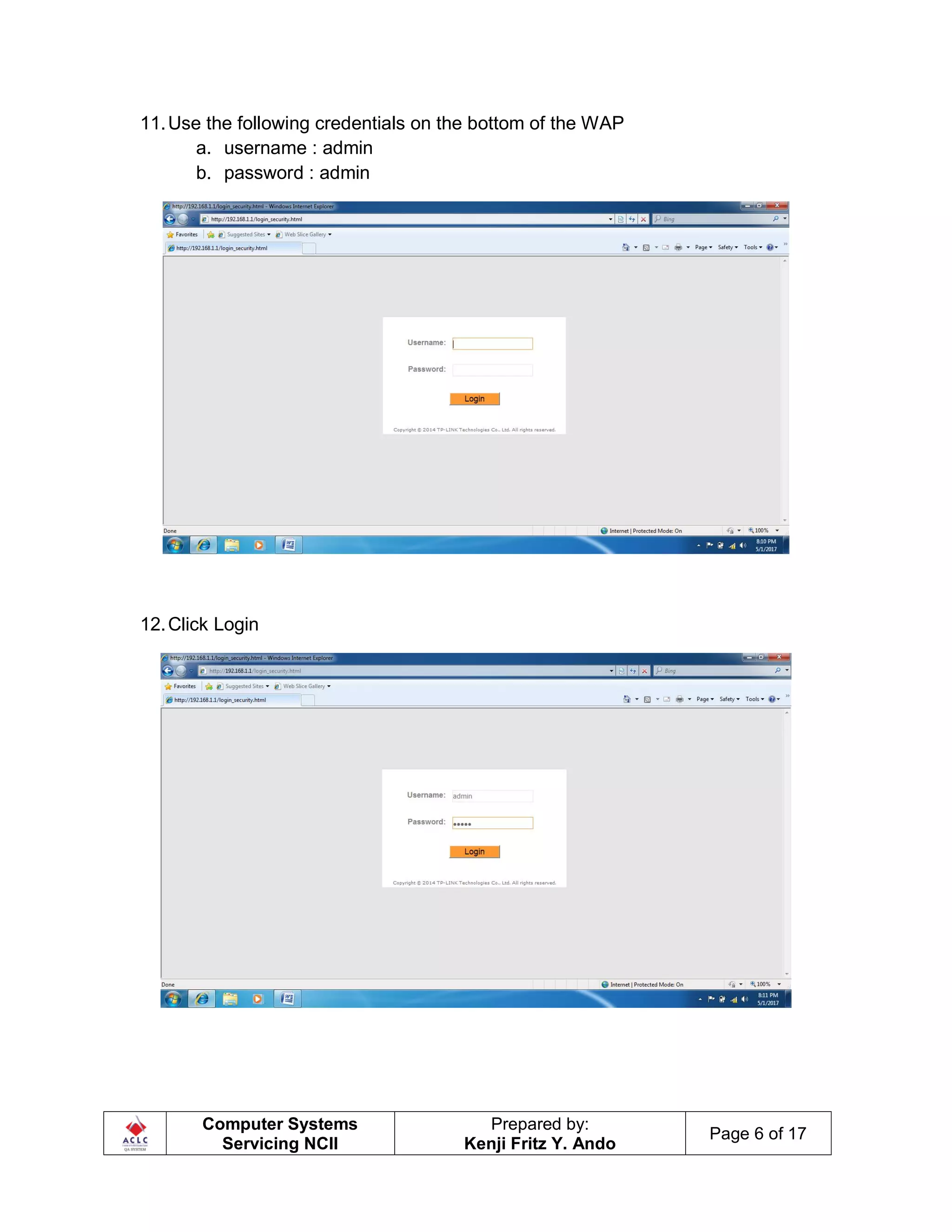

11.Use the following credentials on the bottom of the WAP
a. username : admin
b. password : admin
12.Click Login

7. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 7 of 17

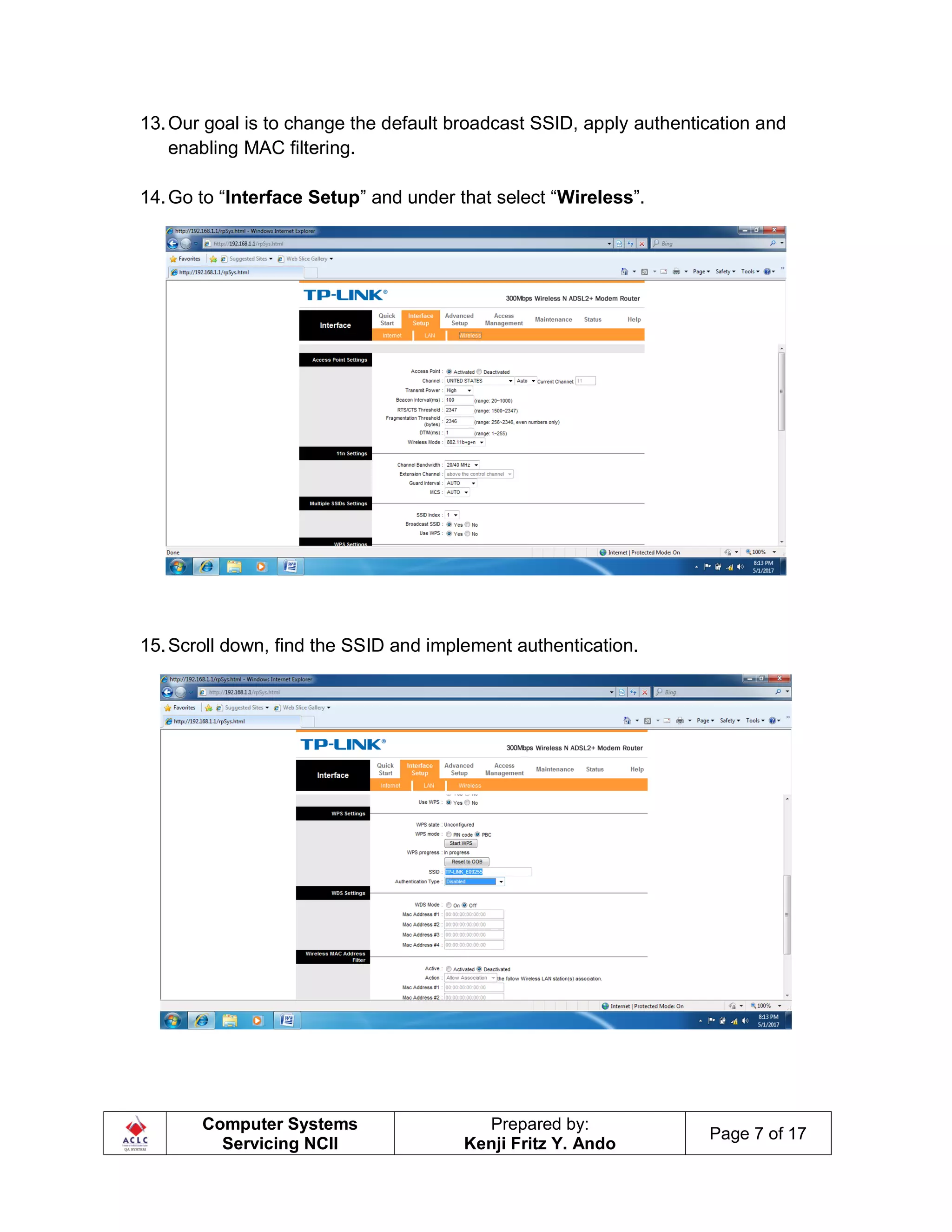

13.Our goal is to change the default broadcast SSID, apply authentication and
enabling MAC filtering.
14.Go to “Interface Setup” and under that select “Wireless”.
15.Scroll down, find the SSID and implement authentication.

8. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 8 of 17

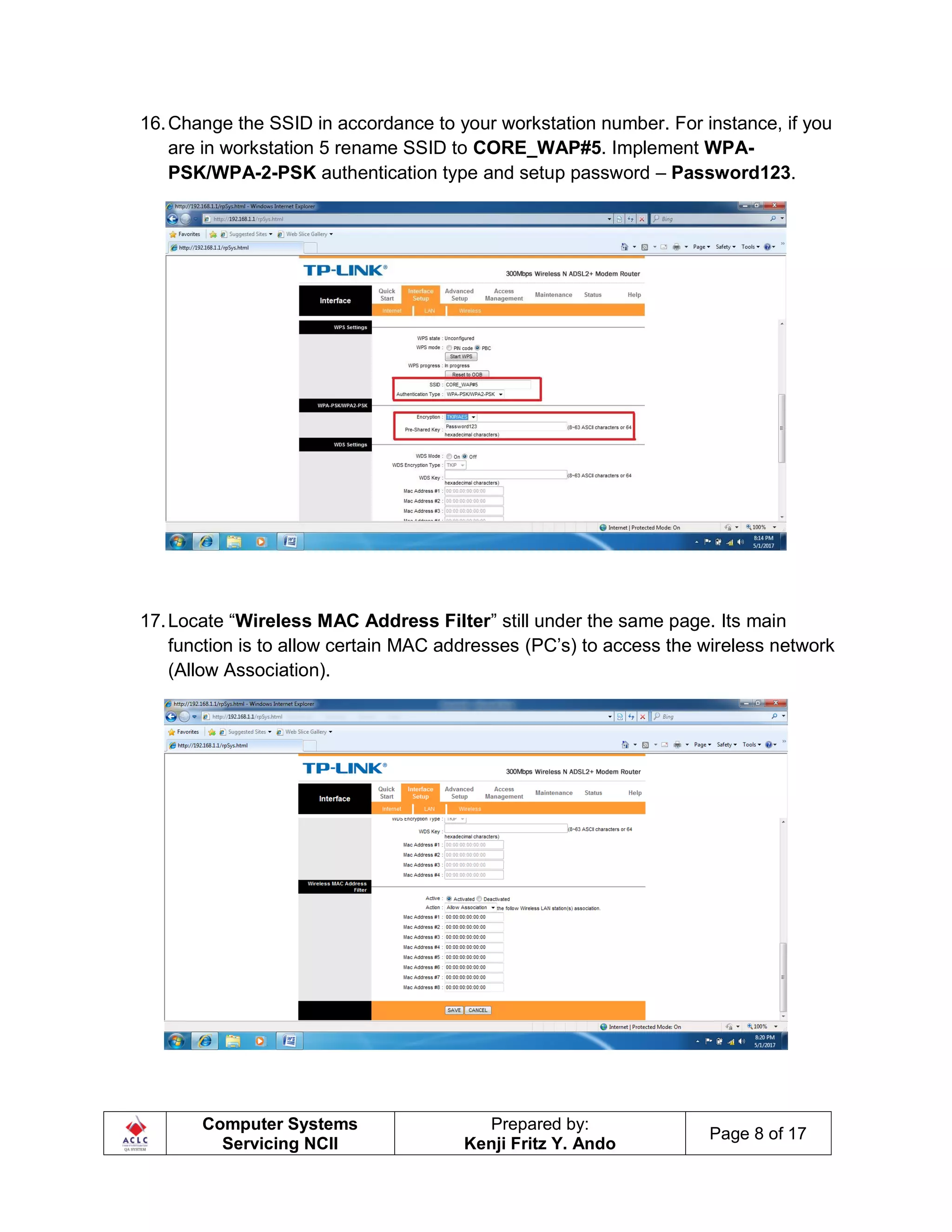

16.Change the SSID in accordance to your workstation number. For instance, if you
are in workstation 5 rename SSID to CORE_WAP#5. Implement WPA-
PSK/WPA-2-PSK authentication type and setup password – Password123.
17.Locate “Wireless MAC Address Filter” still under the same page. Its main
function is to allow certain MAC addresses (PC’s) to access the wireless network
(Allow Association).

9. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 9 of 17

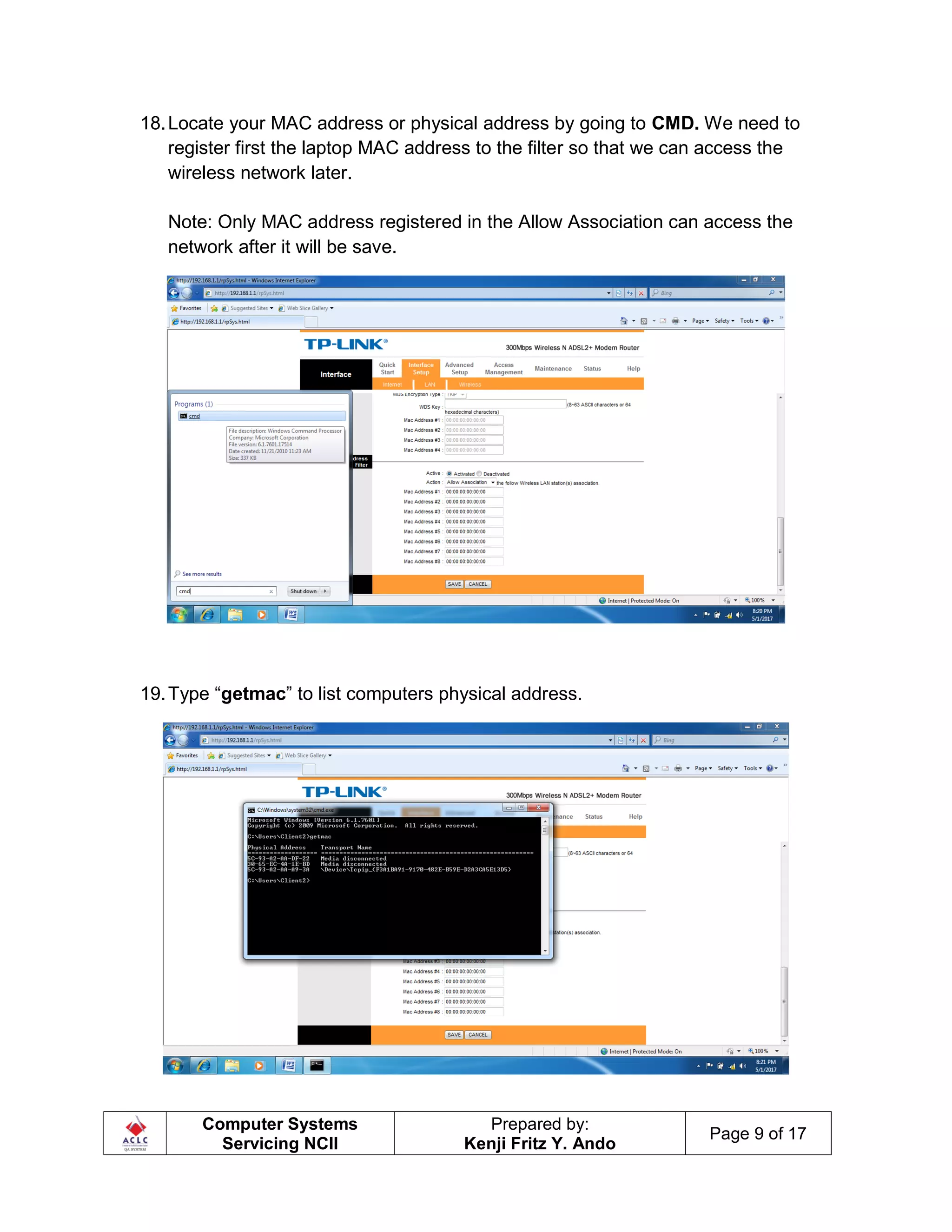

18.Locate your MAC address or physical address by going to CMD. We need to
register first the laptop MAC address to the filter so that we can access the
wireless network later.
Note: Only MAC address registered in the Allow Association can access the
network after it will be save.
19.Type “getmac” to list computers physical address.

10. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 10 of 17

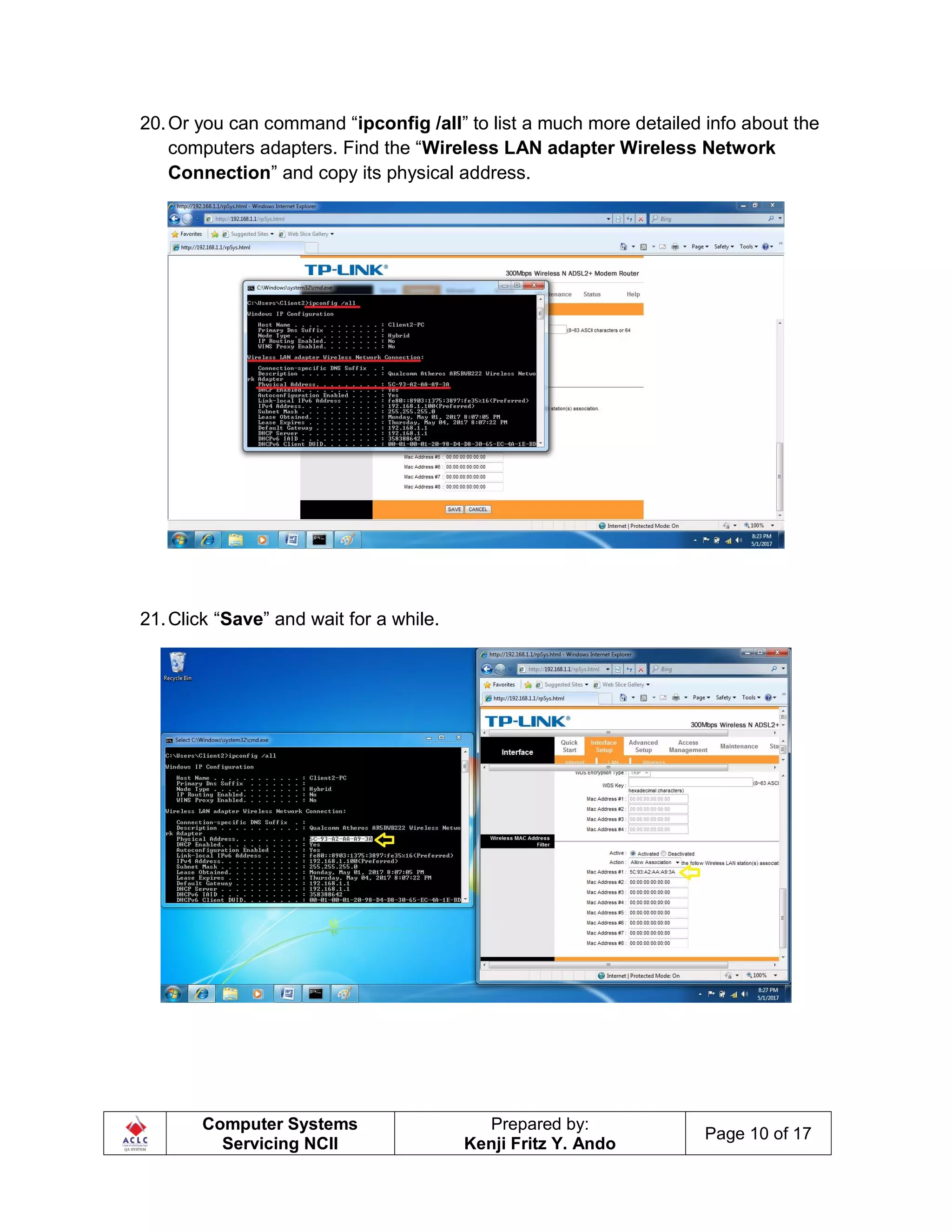

20.Or you can command “ipconfig /all” to list a much more detailed info about the
computers adapters. Find the “Wireless LAN adapter Wireless Network
Connection” and copy its physical address.
21.Click “Save” and wait for a while.

11. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 11 of 17

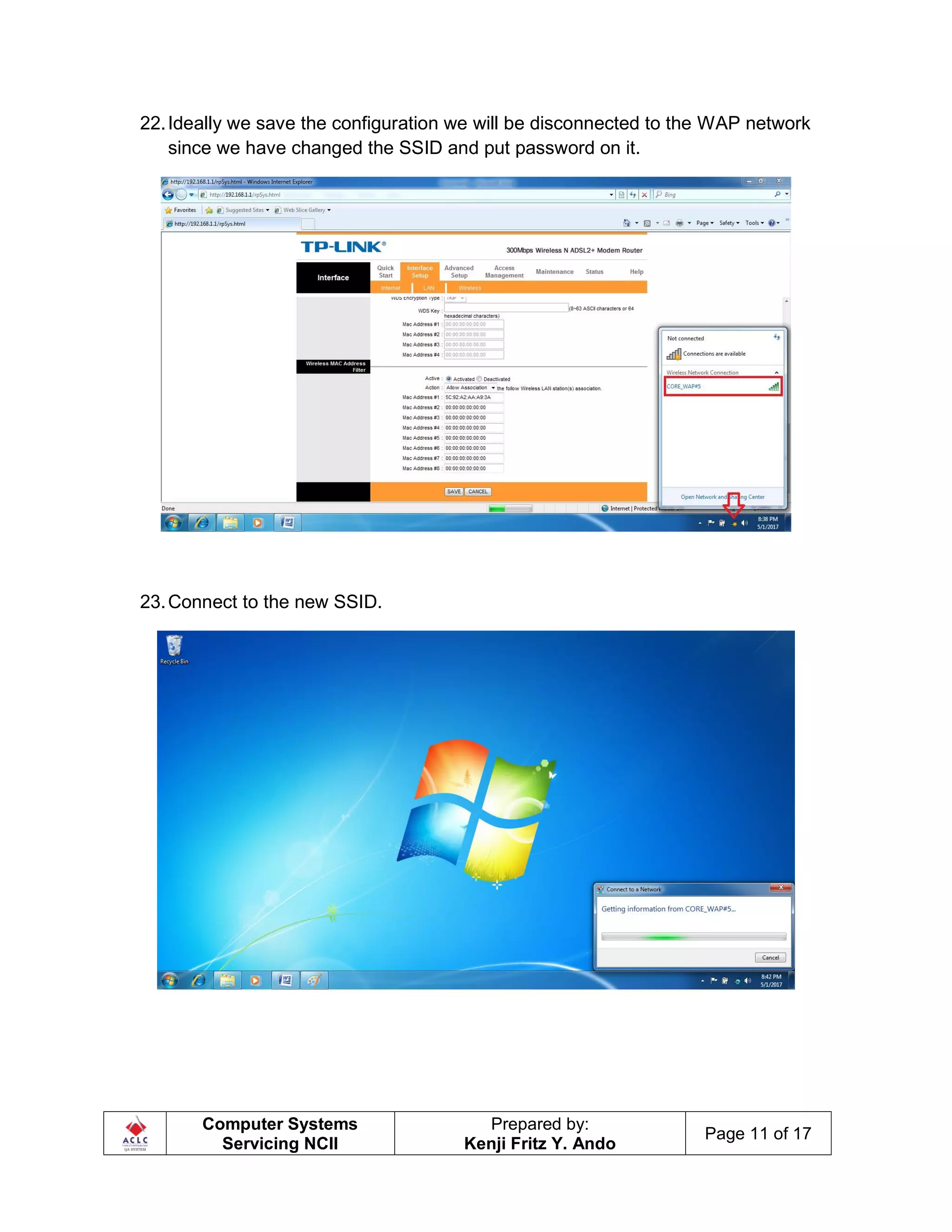

22.Ideally we save the configuration we will be disconnected to the WAP network
since we have changed the SSID and put password on it.
23.Connect to the new SSID.

12. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 12 of 17

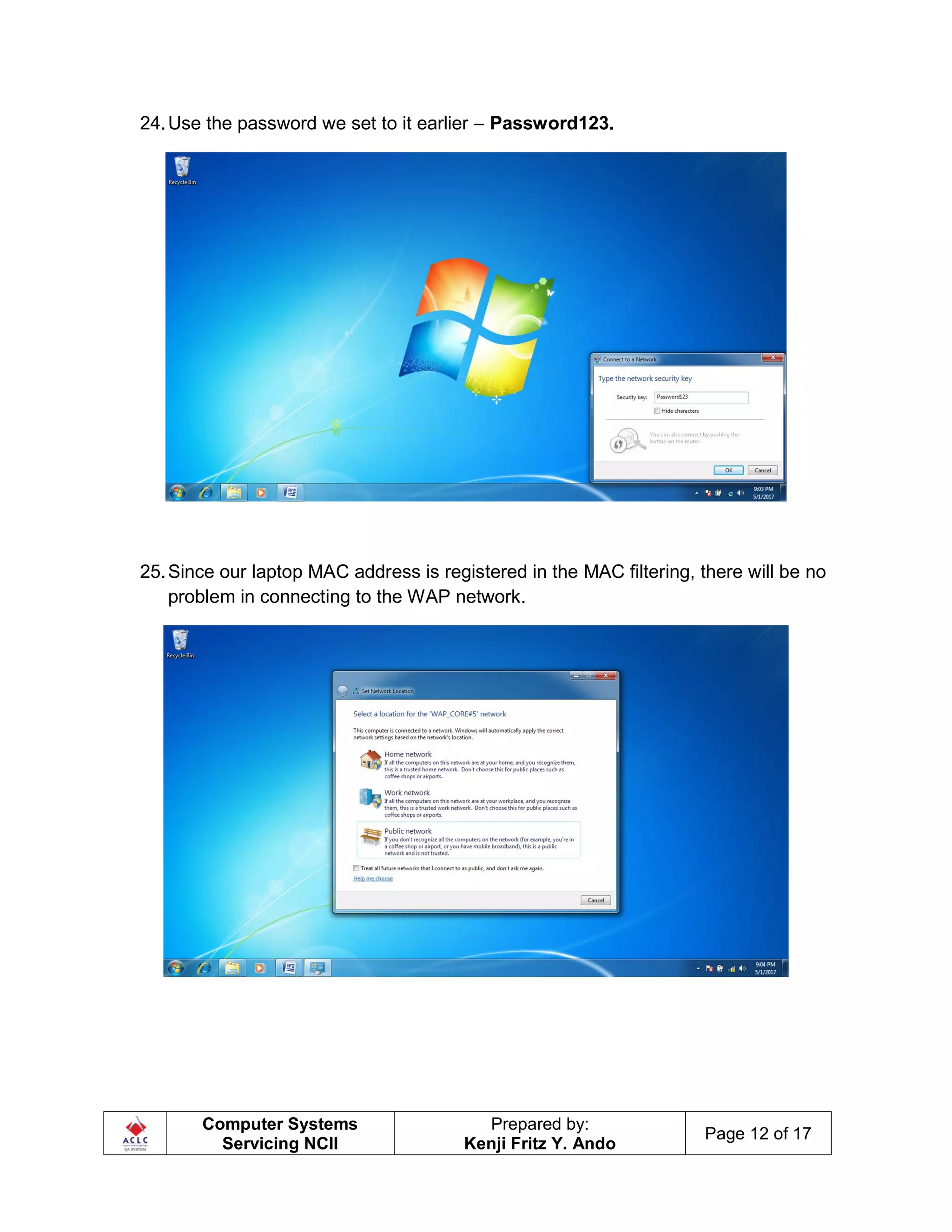

24.Use the password we set to it earlier – Password123.
25.Since our laptop MAC address is registered in the MAC filtering, there will be no
problem in connecting to the WAP network.

13. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 13 of 17
26.Connect your cellular phone to the WAP_CORE#5 SSID. Use the password we
set – Password123.

14. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 14 of 17

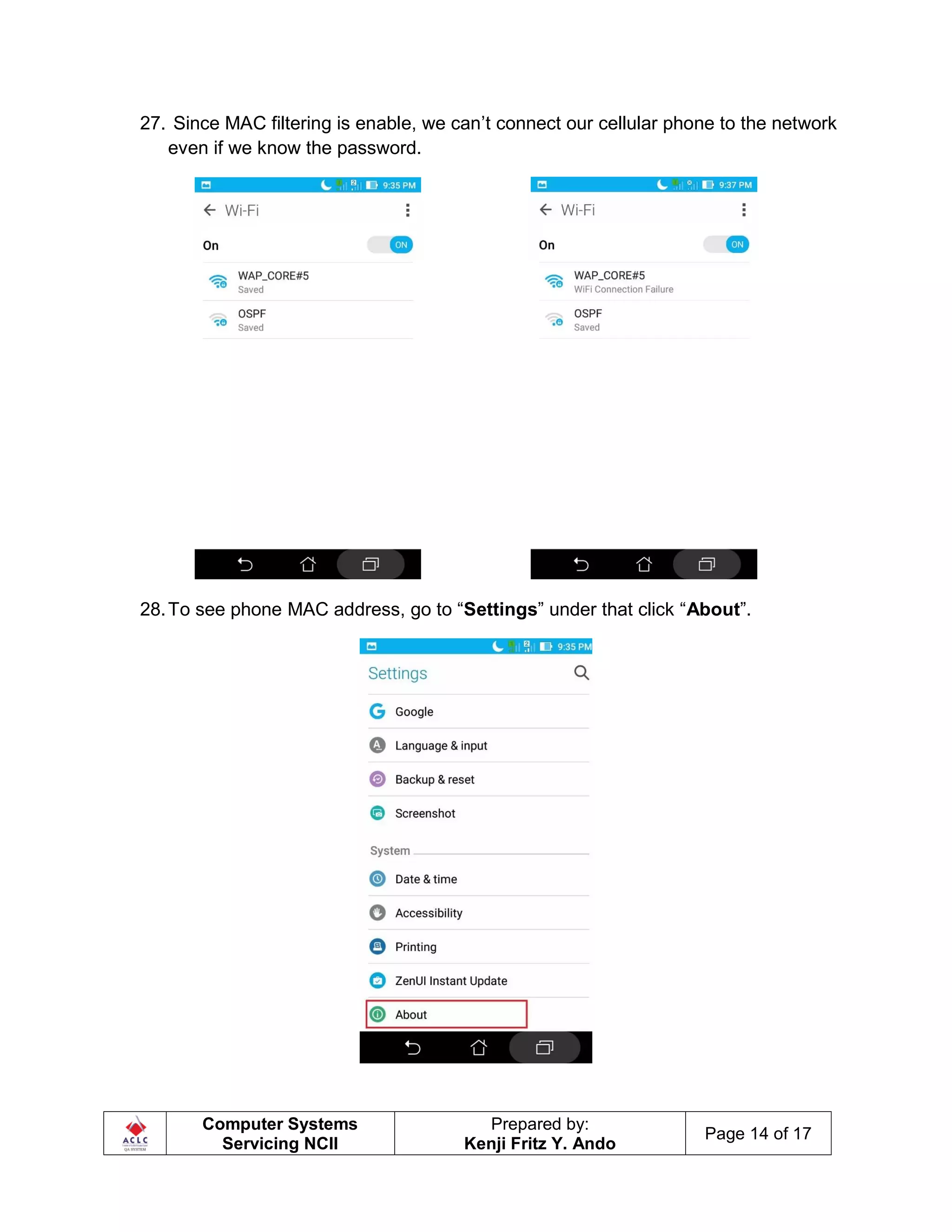

27. Since MAC filtering is enable, we can’t connect our cellular phone to the network
even if we know the password.
28.To see phone MAC address, go to “Settings” under that click “About”.

15. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 15 of 17
29.Click “Status”
30.Locate “Wi-Fi MAC address”, copy it and add to the Wireless MAC Filtering of
the Access Point.

16. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 16 of 17

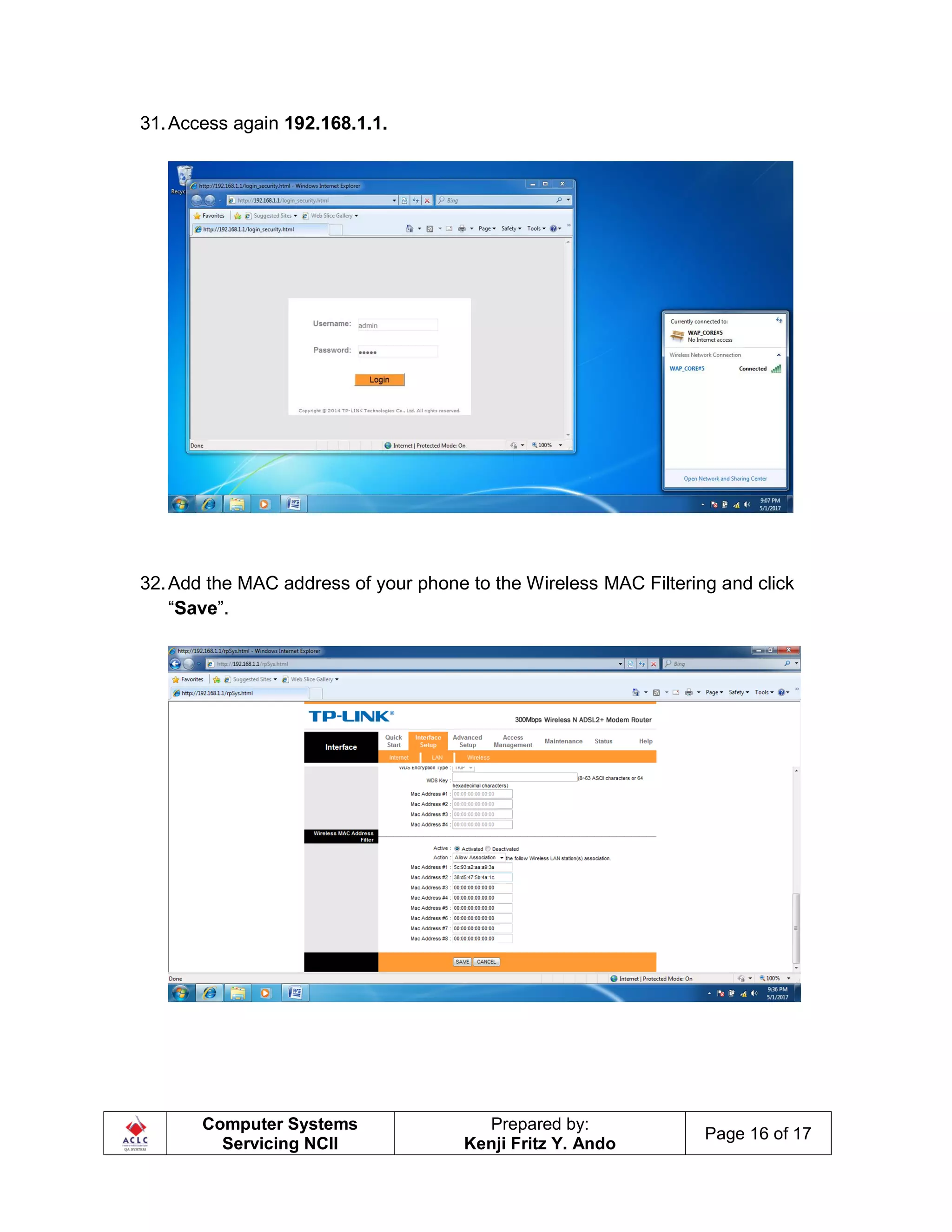

31.Access again 192.168.1.1.
32.Add the MAC address of your phone to the Wireless MAC Filtering and click
“Save”.

17. Computer Systems
Servicing NCII
Prepared by:
Kenji Fritz Y. Ando
Page 17 of 17

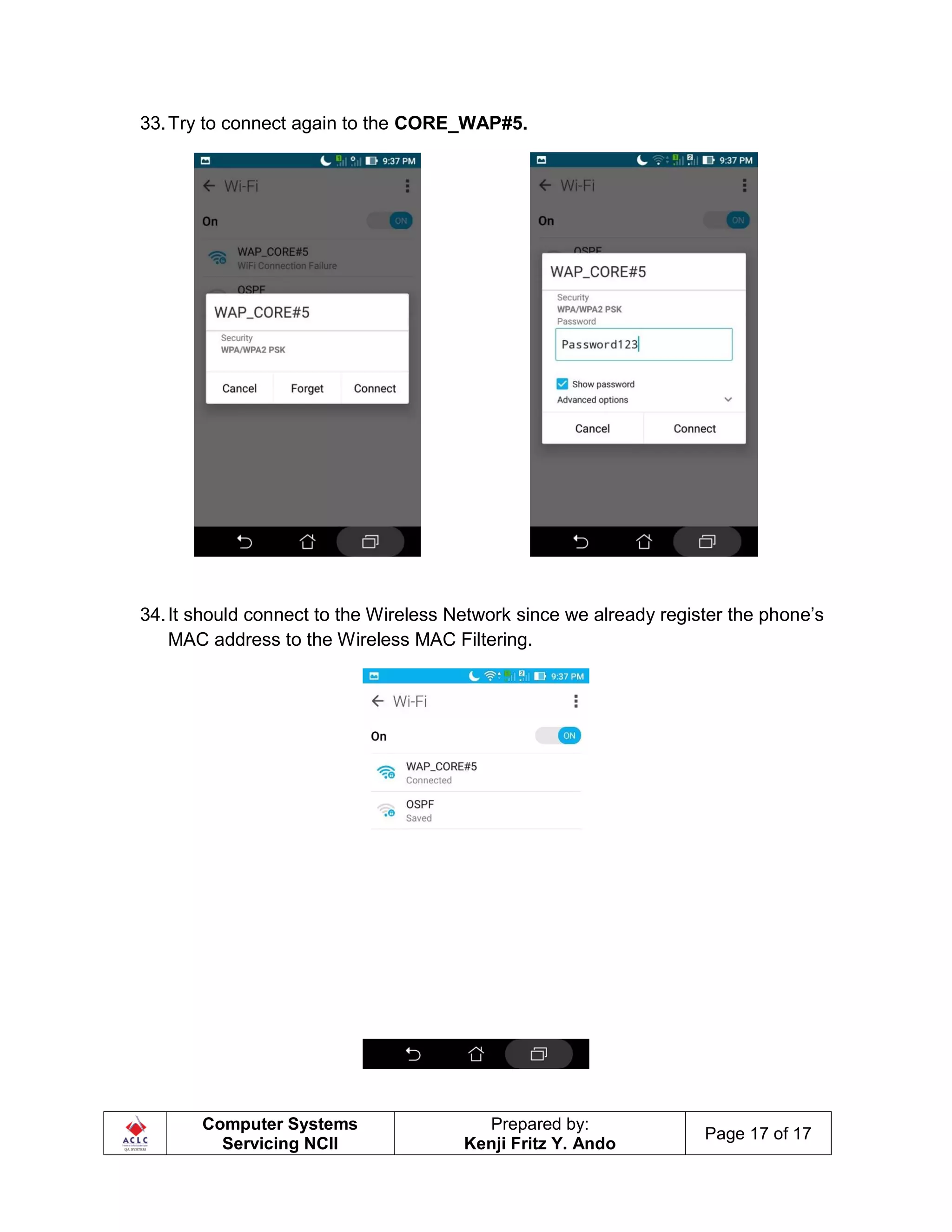

33.Try to connect again to the CORE_WAP#5.
34.It should connect to the Wireless Network since we already register the phone’s
MAC address to the Wireless MAC Filtering.
