1. Cassandra Drivers
instaclustr.com
@Instaclustr

2. Who am I and what do I do?
• Ben Bromhead
• Co-founder and CTO of Instaclustr -> www.instaclustr.com
• Instaclustr provides Cassandra-as-a-Service in the cloud
• Currently in AWS, Azure and IBM Softlayer
• We currently manage 400+ nodes

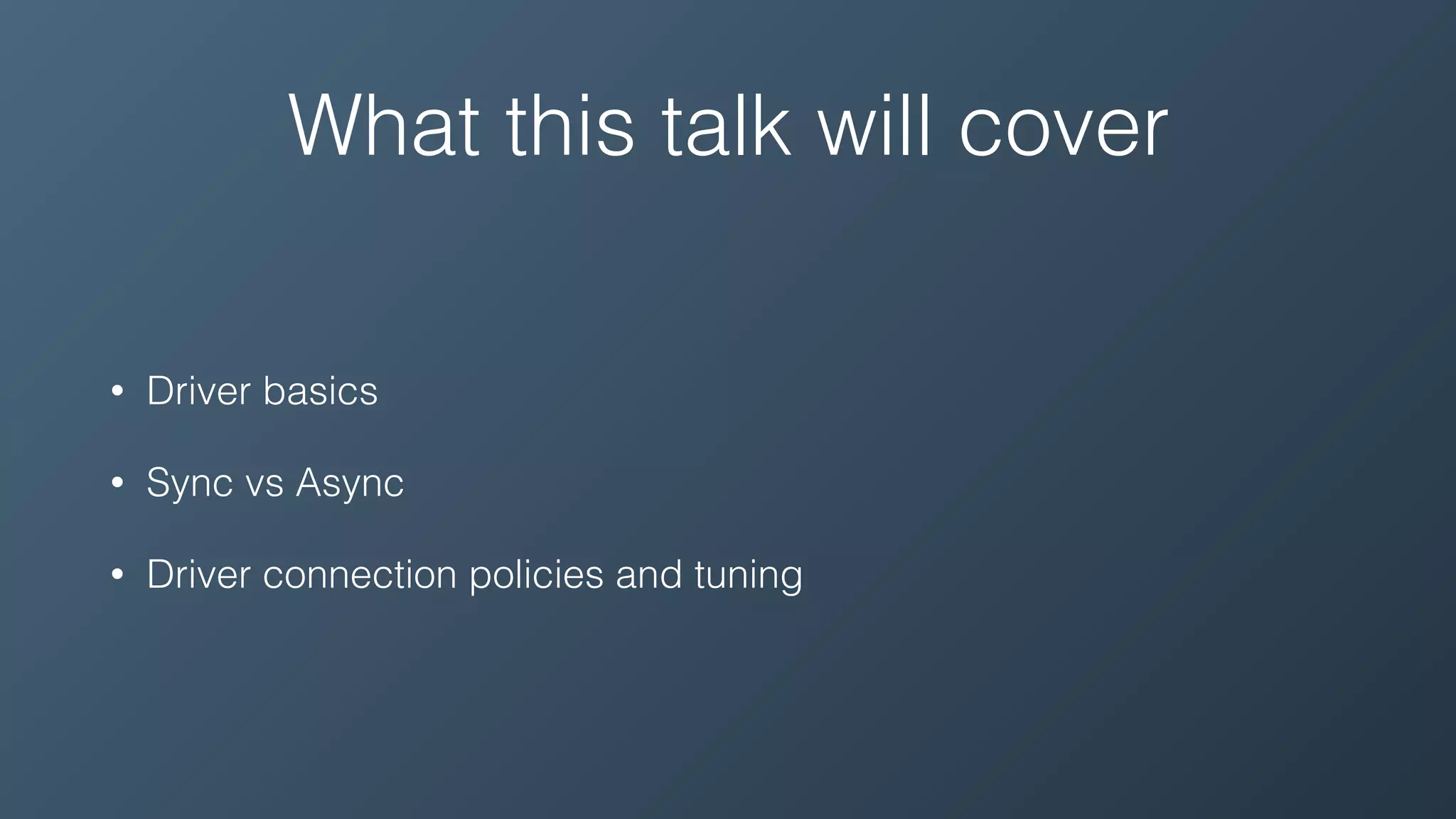

3. What this talk will cover
• Driver basics
• Sync vs Async
• Driver connection policies and tuning

4. The driver
• The Cassandra driver contains the logic for connecting to
Cassandra and running queries in a fast and efficient manner
• Focus on the Datastax Open Source drivers:

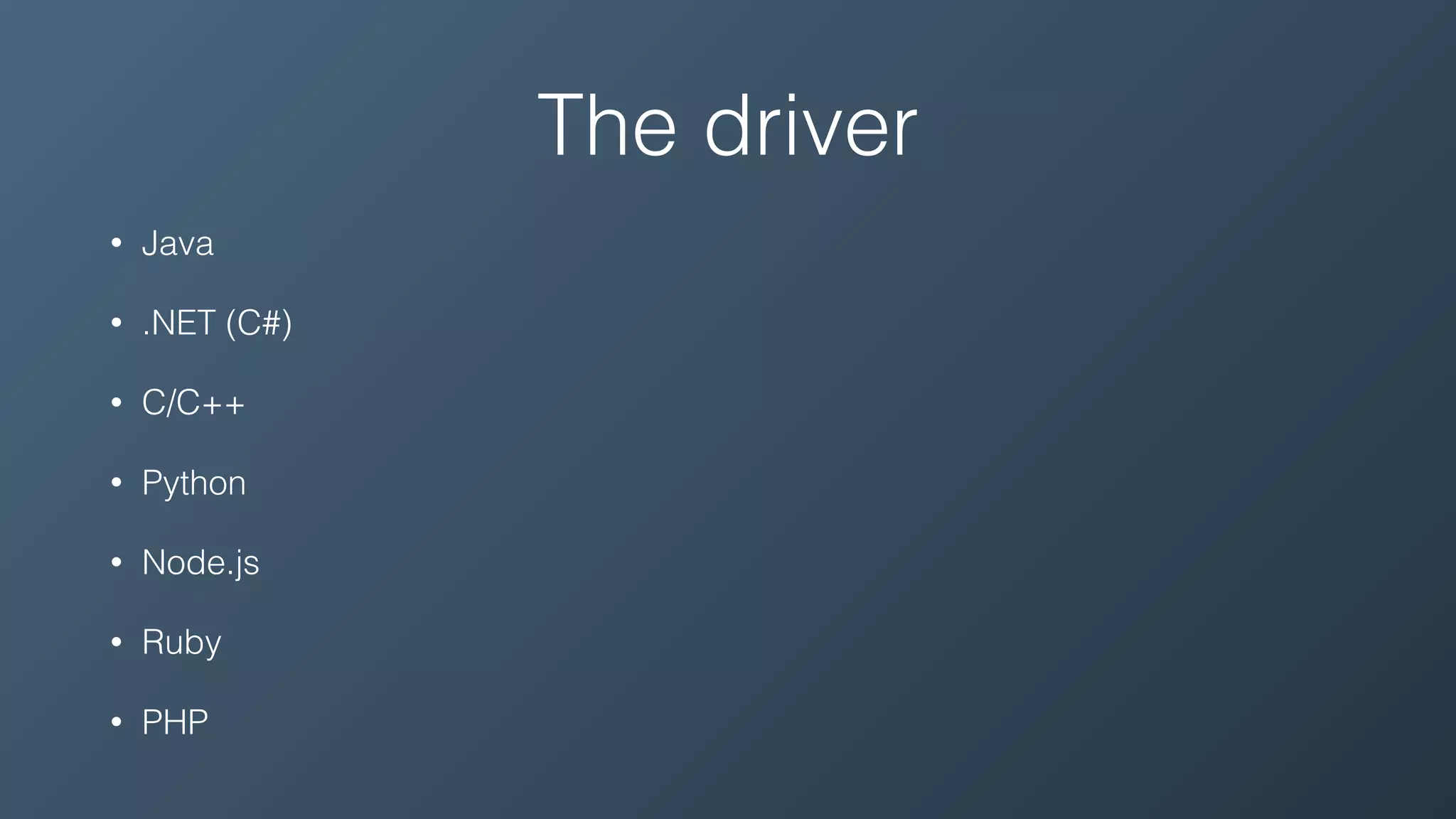

5. The driver
• Java
• .NET (C#)
• C/C++
• Python
• Node.js
• Ruby
• PHP

6. Cassandra Drivers
• All have a similar architecture that consists of:
• Session & pool management
• Chainable policies for managing failure and performance
• Sync vs Async queries
• Failover & Retry
• Tracing

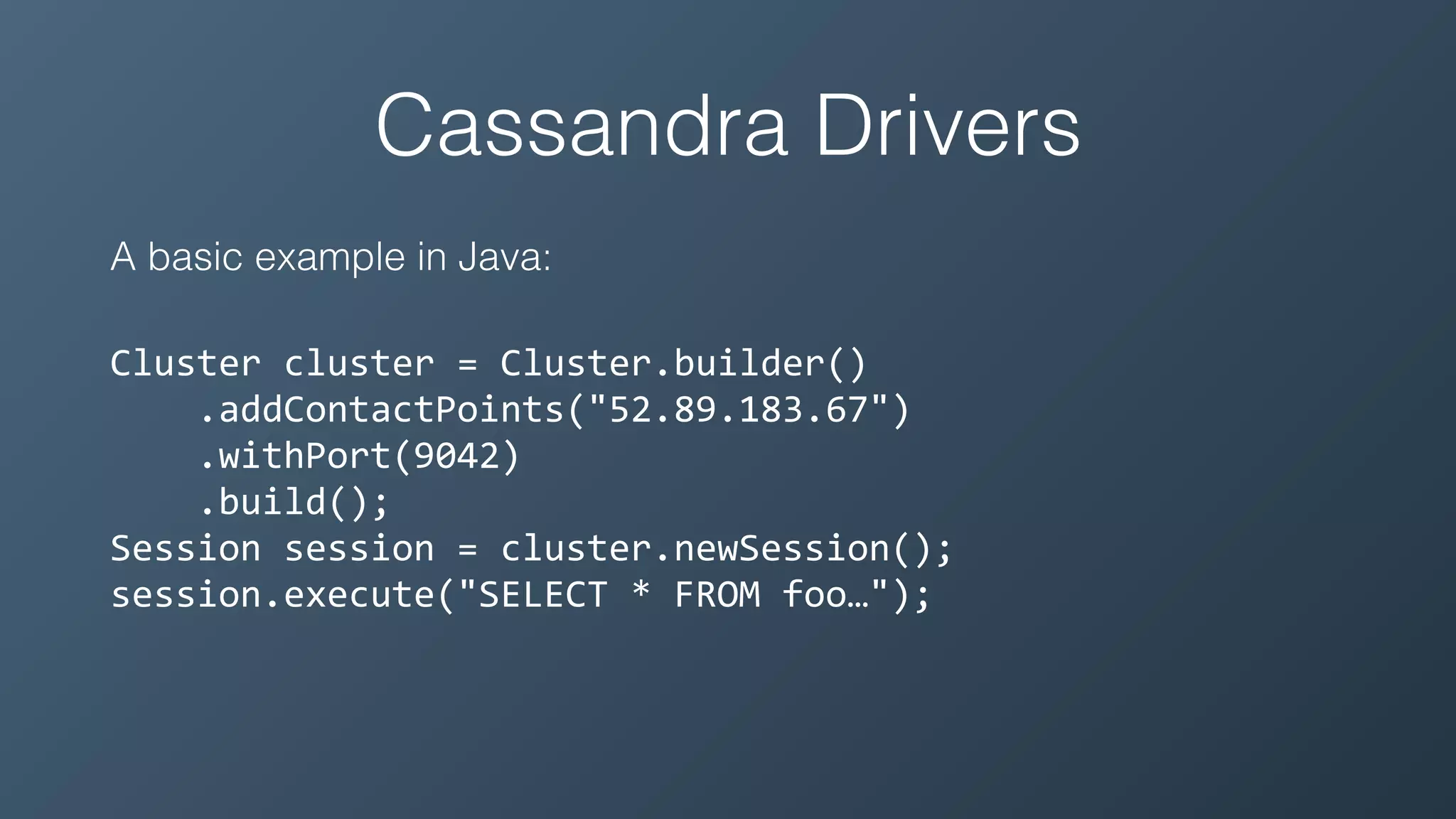

7. Cassandra Drivers
A basic example in Java:
Cluster cluster = Cluster.builder()
.addContactPoints("52.89.183.67")
.withPort(9042)
.build();
Session session = cluster.newSession();
session.execute("SELECT * FROM foo…");

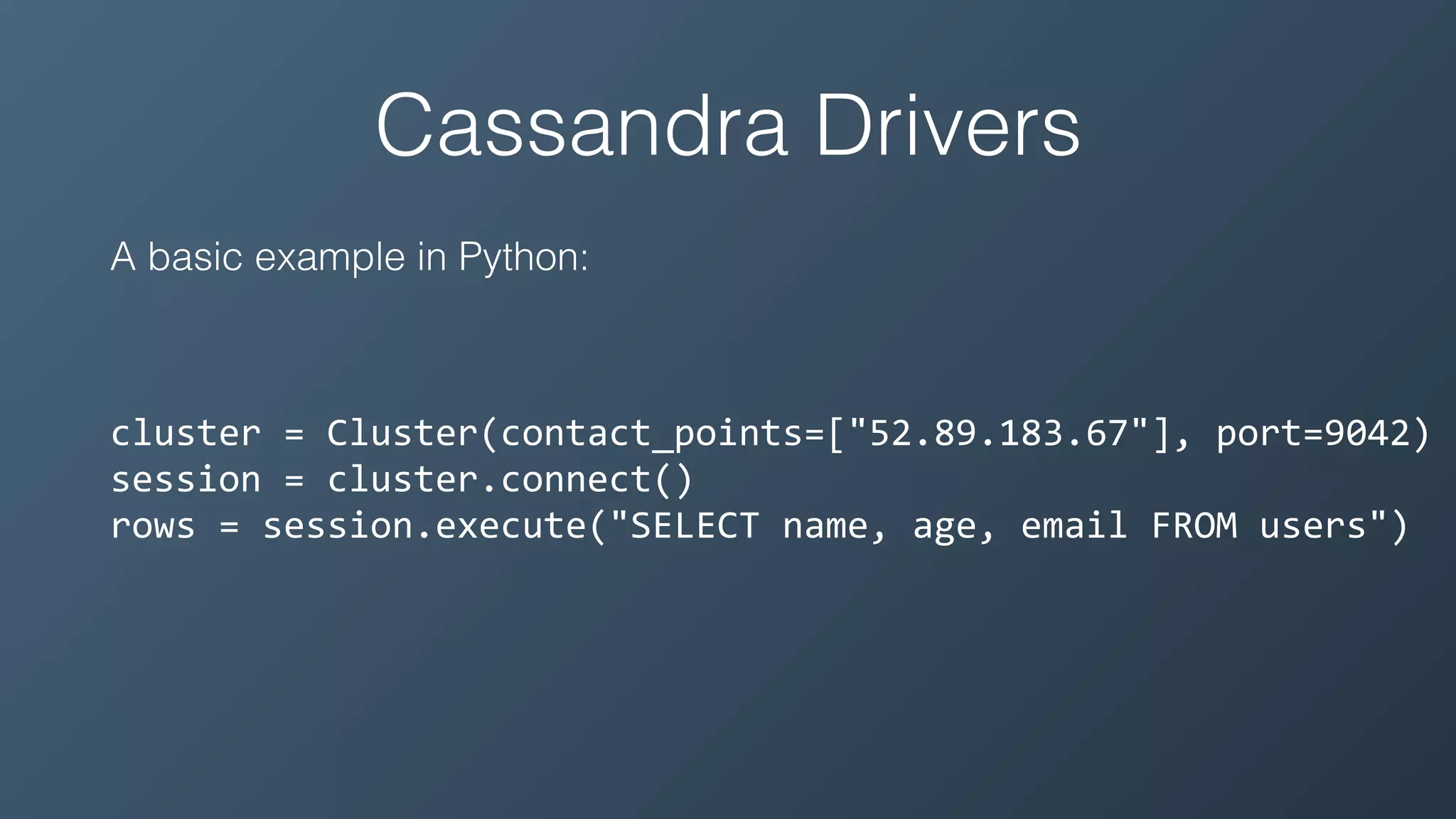

8. Cassandra Drivers
A basic example in Python:
cluster = Cluster(contact_points=["52.89.183.67"], port=9042)
session = cluster.connect()
rows = session.execute("SELECT name, age, email FROM users")

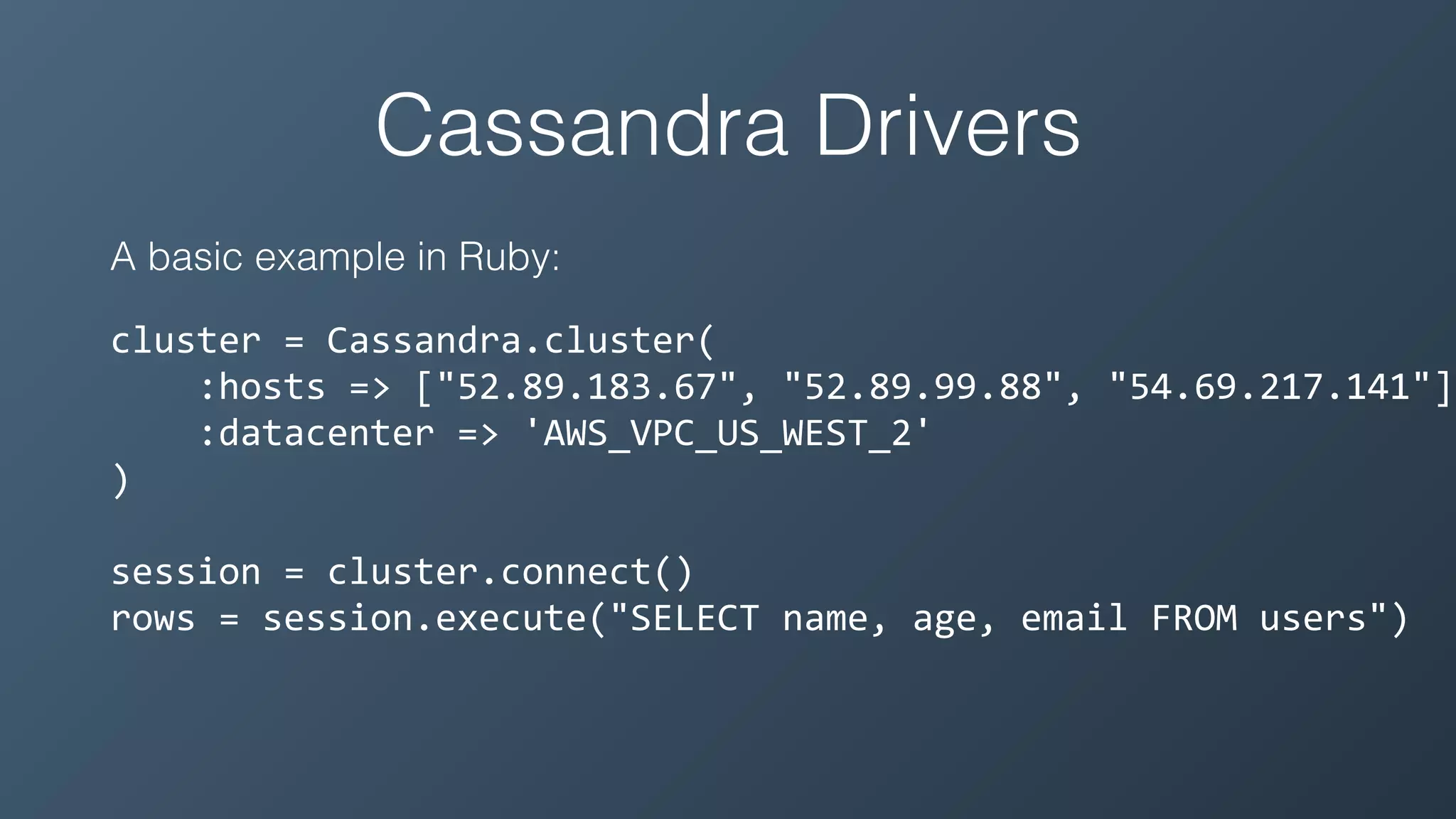

9. Cassandra Drivers
A basic example in Ruby:
cluster = Cassandra.cluster(
:hosts => ["52.89.183.67", "52.89.99.88", "54.69.217.141"],
:datacenter => 'AWS_VPC_US_WEST_2'
)
session = cluster.connect()
rows = session.execute("SELECT name, age, email FROM users")

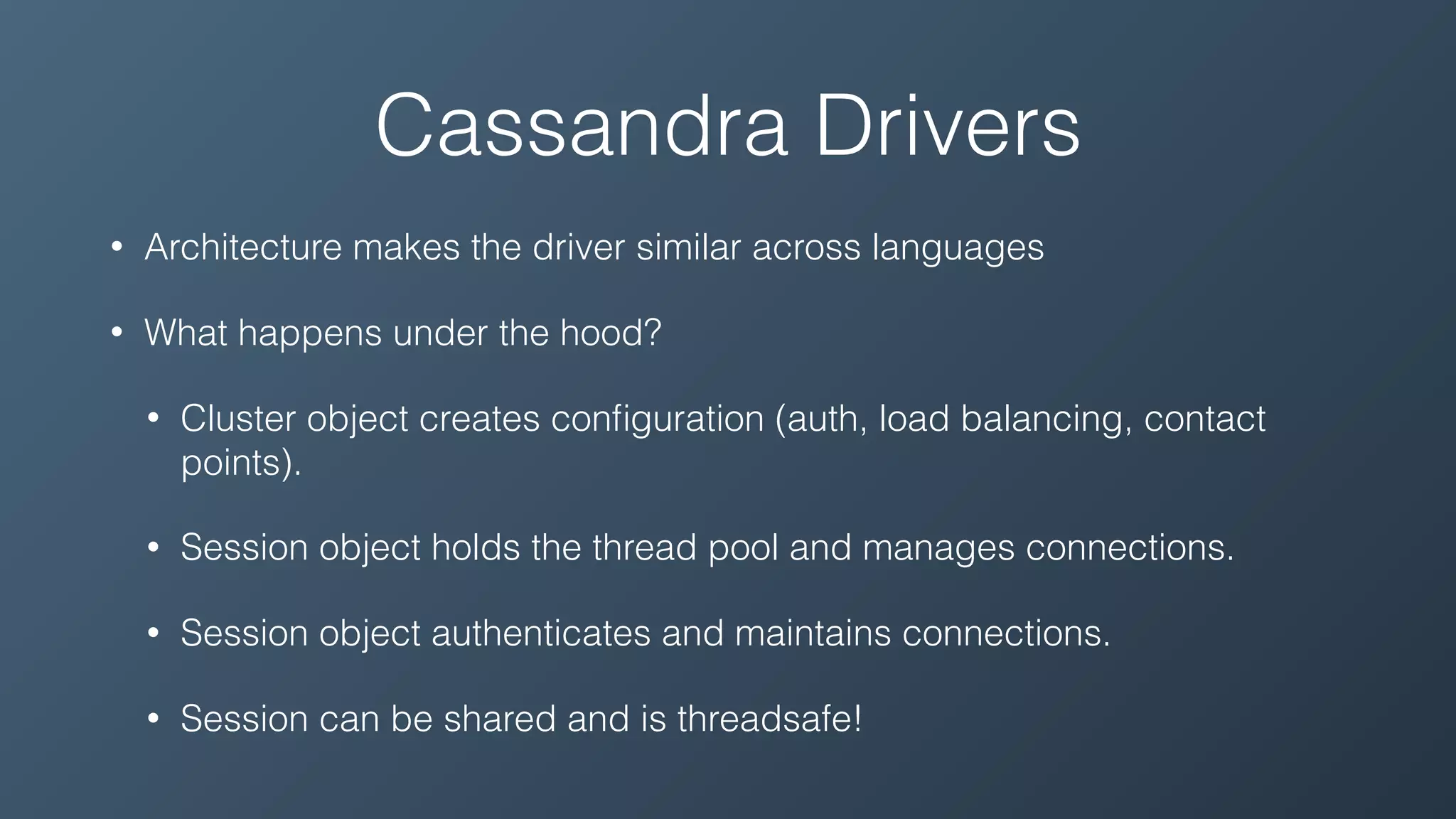

10. Cassandra Drivers
• Architecture makes the driver similar across languages
• What happens under the hood?
• Cluster object creates configuration (auth, load balancing, contact
points).
• Session object holds the thread pool and manages connections.
• Session object authenticates and maintains connections.
• Session can be shared and is threadsafe!

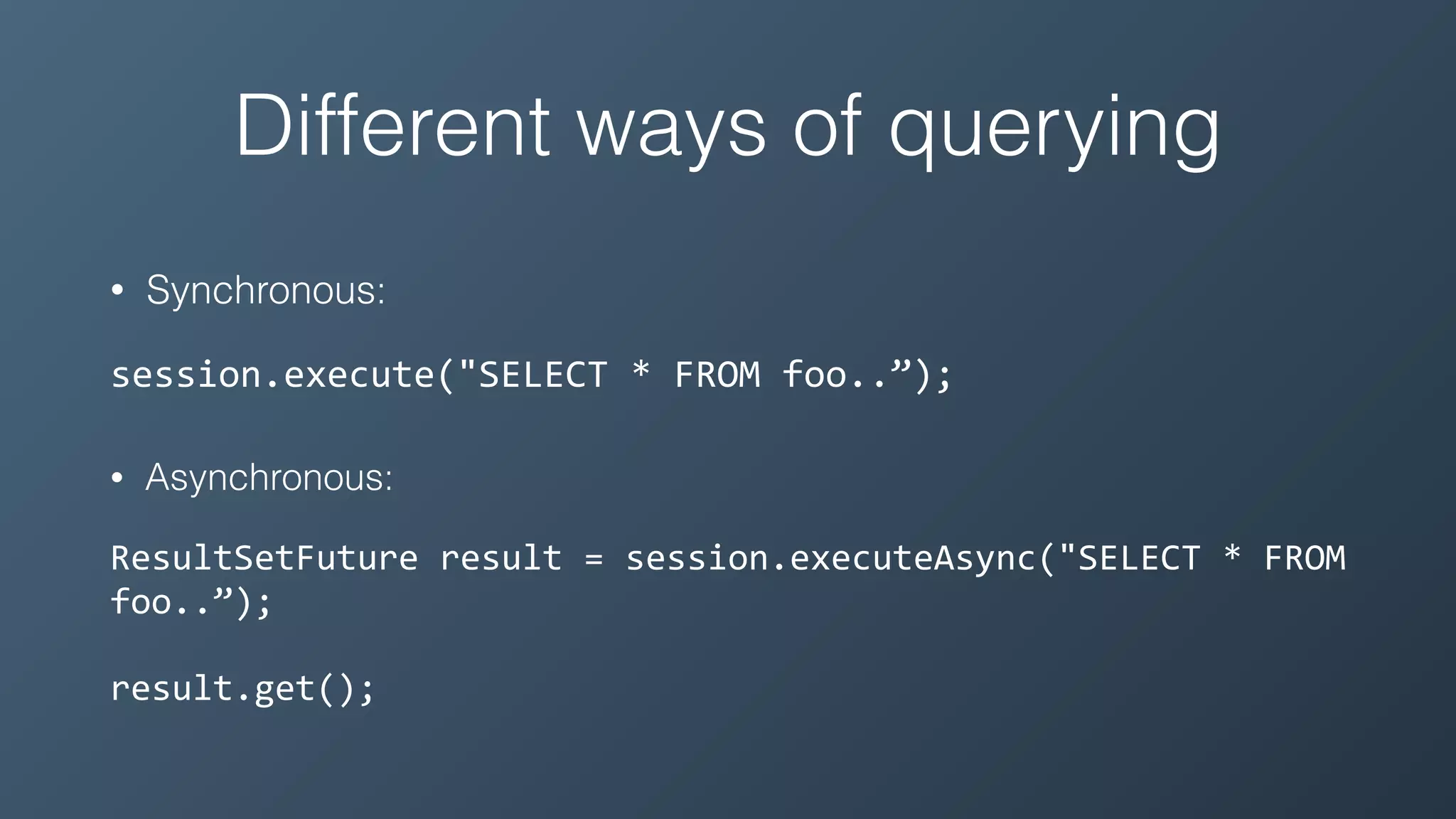

11. Different ways of querying
• Synchronous:
session.execute("SELECT * FROM foo..”);
• Asynchronous:
ResultSetFuture result = session.executeAsync("SELECT * FROM
foo..”);
result.get();

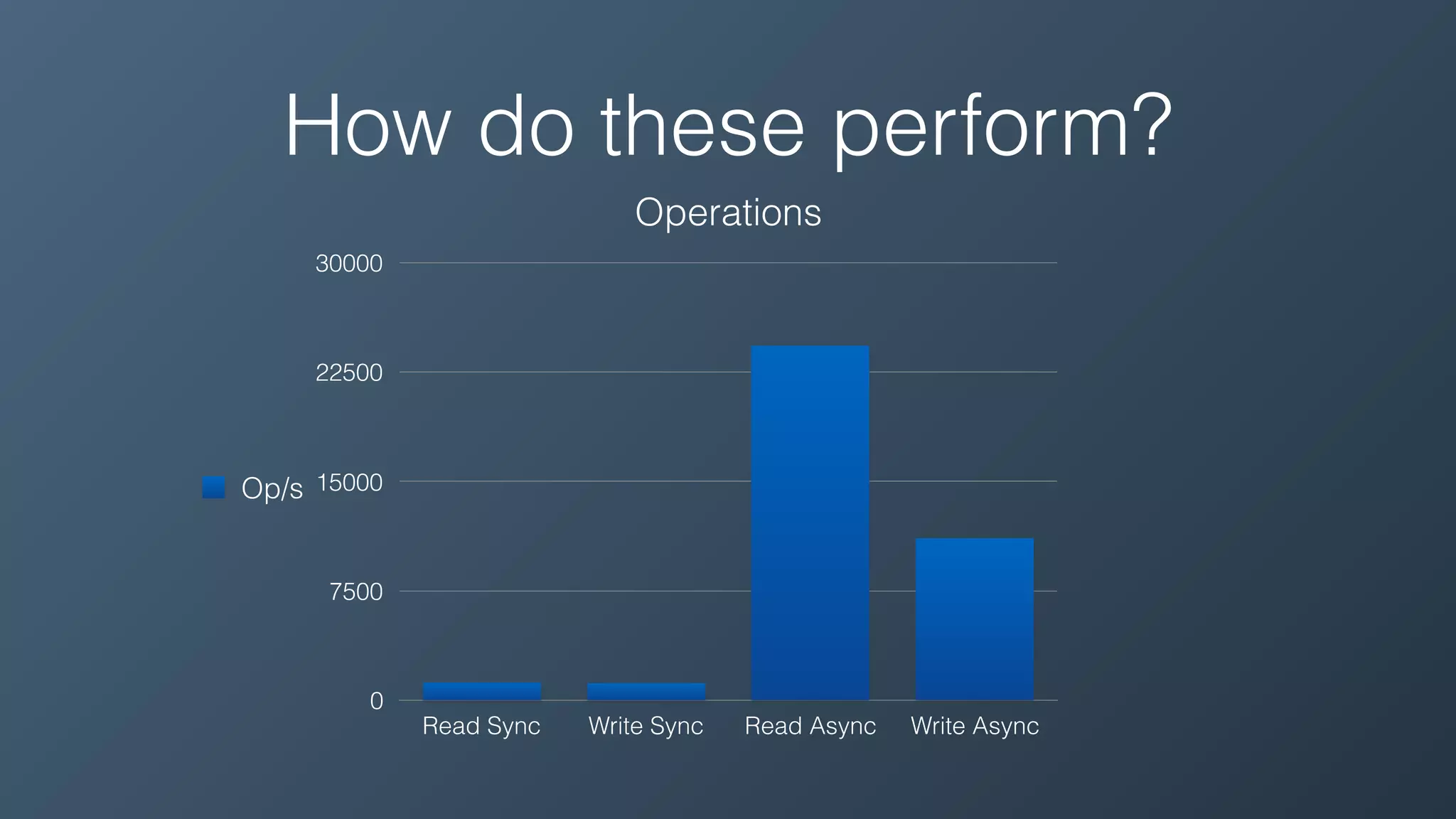

12. How do these perform?
Operations
0
7500
15000
22500
30000
Read Sync Write Sync Read Async Write Async
Op/s

13. How do these perform?
Latency
0
20
40
60
80
Read Sync Write Sync Read Async Write Async
ms

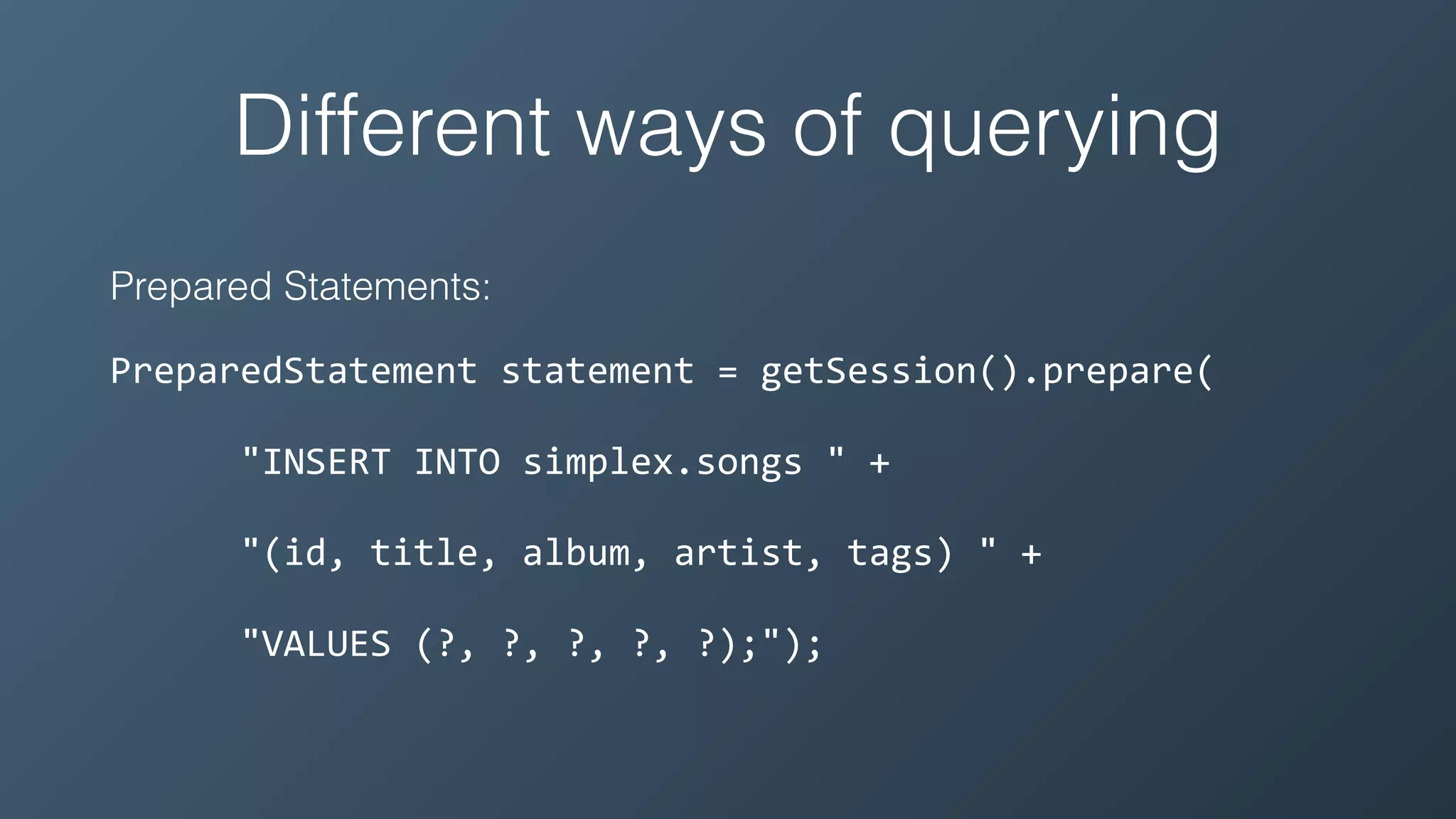

14. Different ways of querying
Prepared Statements:
PreparedStatement statement = getSession().prepare(
"INSERT INTO simplex.songs " +
"(id, title, album, artist, tags) " +
"VALUES (?, ?, ?, ?, ?);");

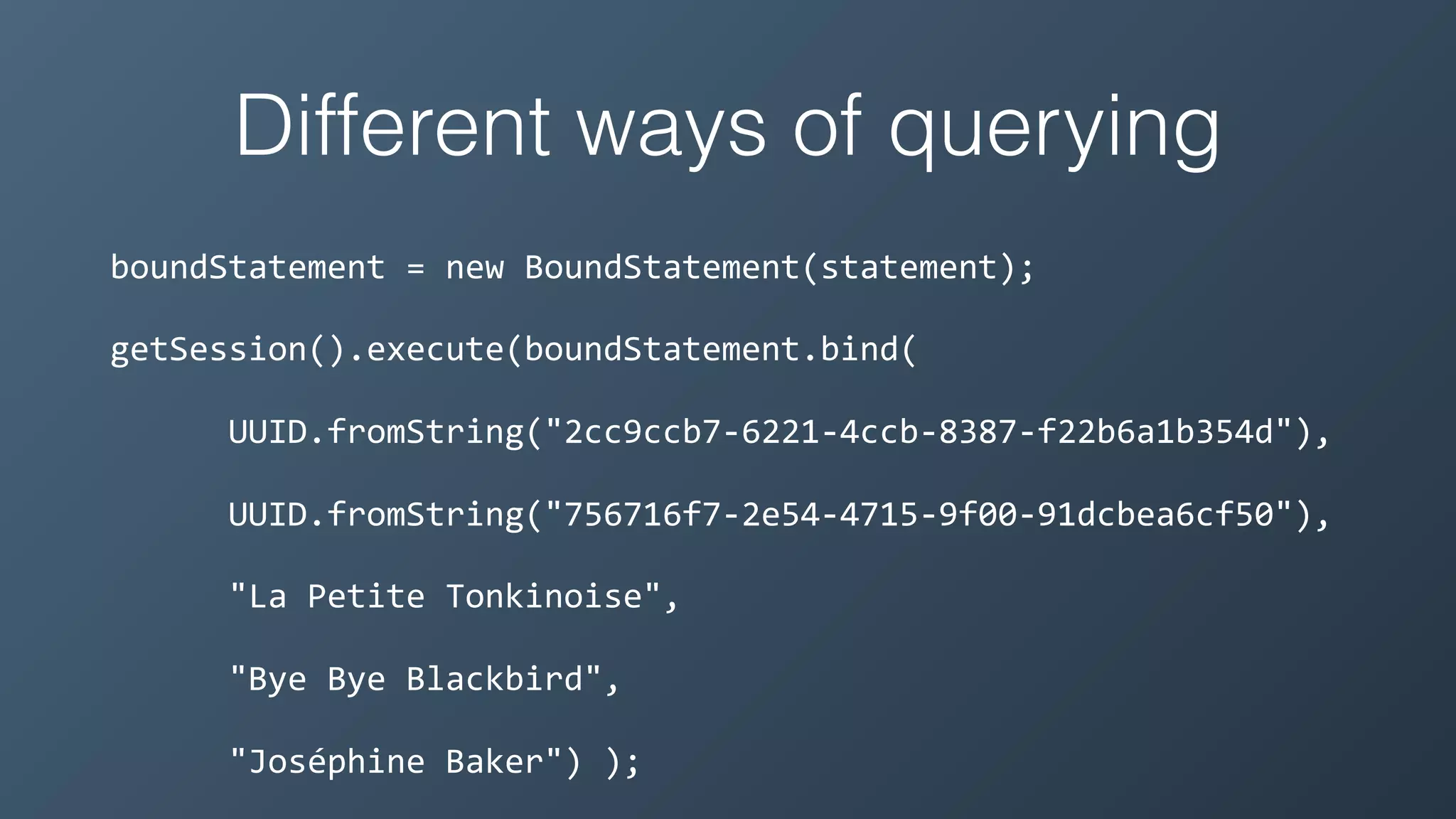

15. Different ways of querying
boundStatement = new BoundStatement(statement);
getSession().execute(boundStatement.bind(
UUID.fromString("2cc9ccb7-6221-4ccb-8387-f22b6a1b354d"),
UUID.fromString("756716f7-2e54-4715-9f00-91dcbea6cf50"),
"La Petite Tonkinoise",
"Bye Bye Blackbird",
"Joséphine Baker") );

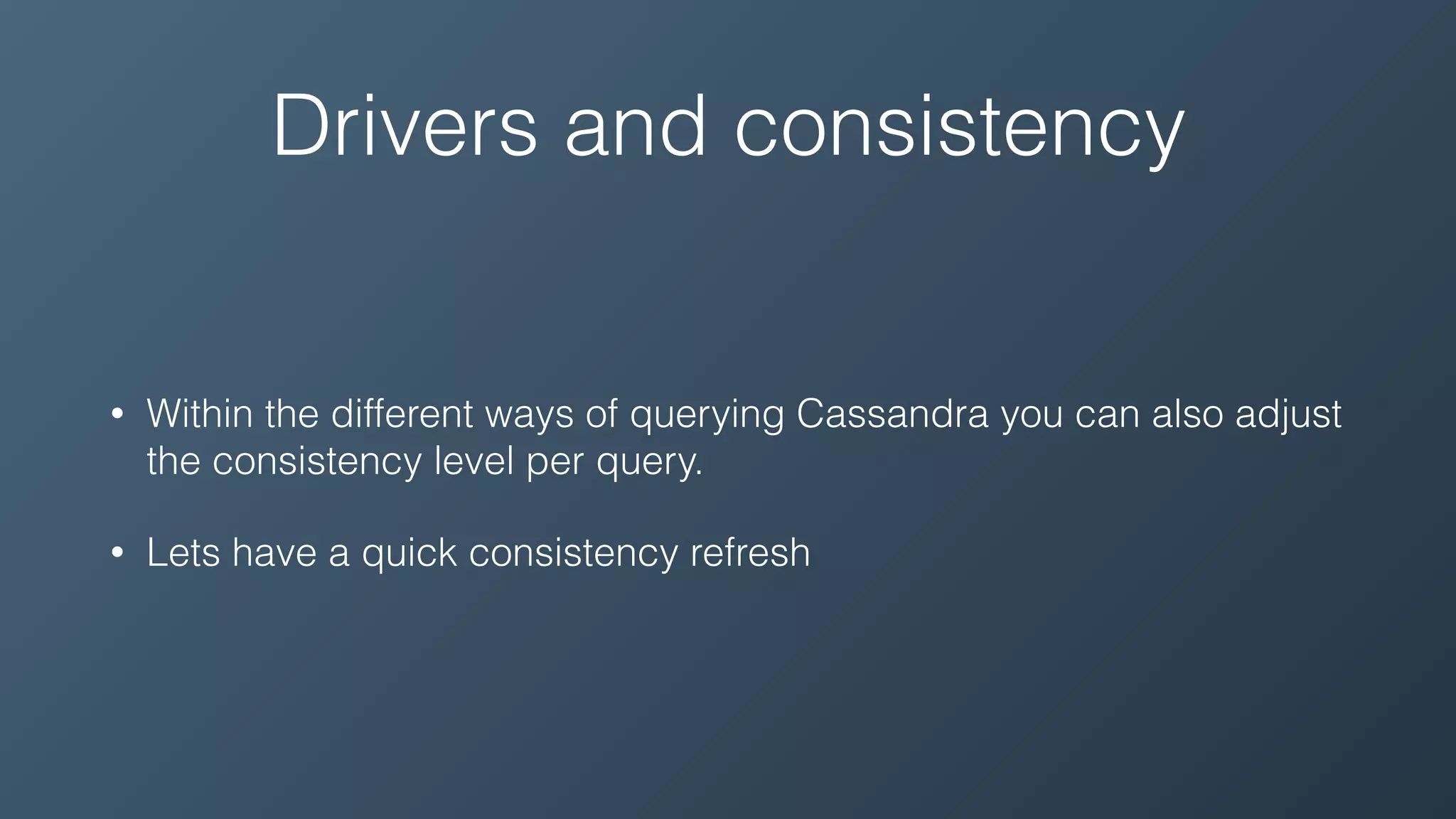

16. Drivers and consistency
• Within the different ways of querying Cassandra you can also adjust
the consistency level per query.
• Lets have a quick consistency refresh

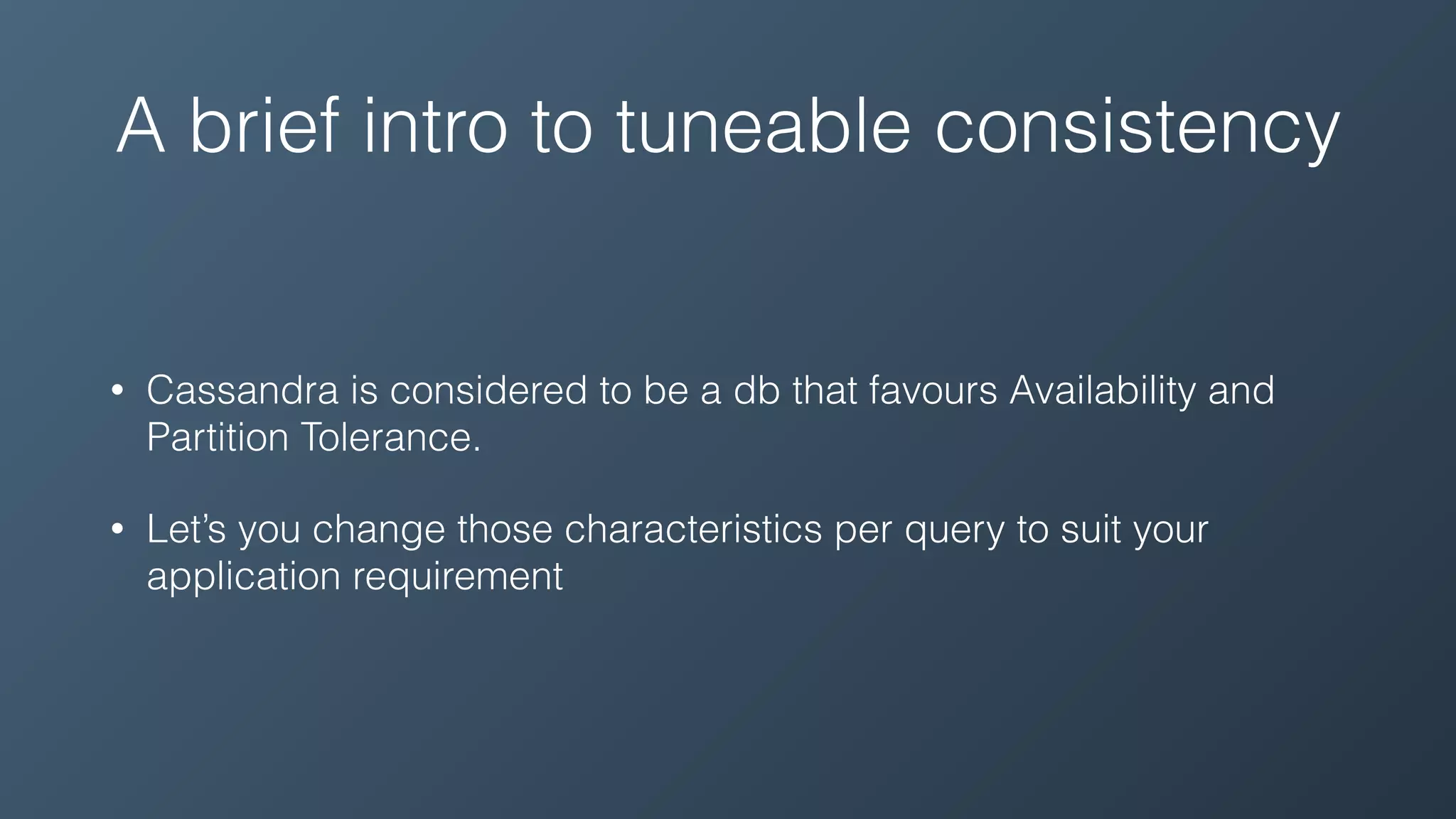

17. A brief intro to tuneable consistency
• Cassandra is considered to be a db that favours Availability and
Partition Tolerance.
• Let’s you change those characteristics per query to suit your
application requirement

18. Two consistency levers
• Consistency level - How many acknowledgements/responses from
replicas before a query is considered a success.
• Replication Factor (RF) - How many copies of a record do I store.

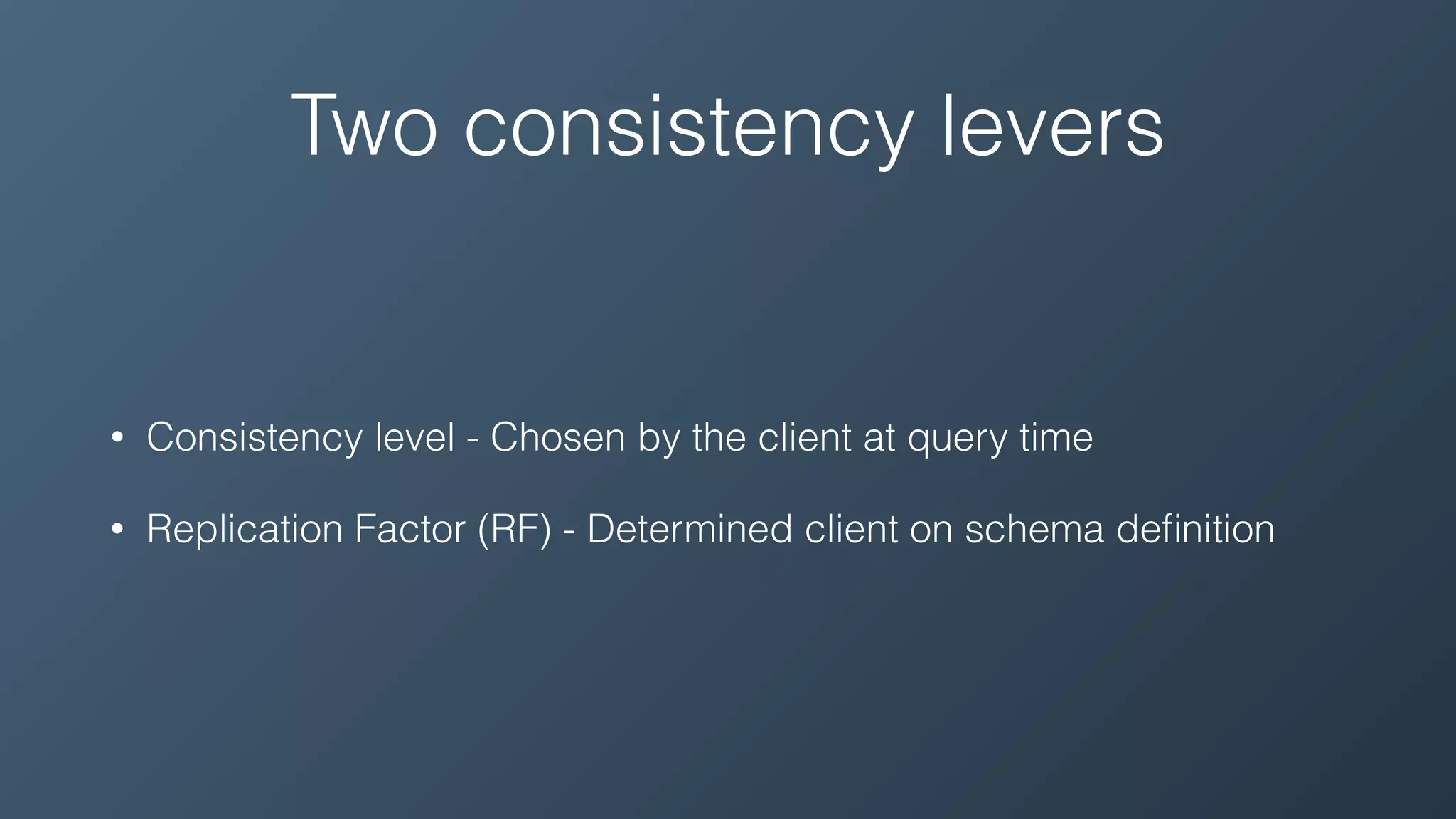

19. Two consistency levers
• Consistency level - Chosen by the client at query time
• Replication Factor (RF) - Determined client on schema definition

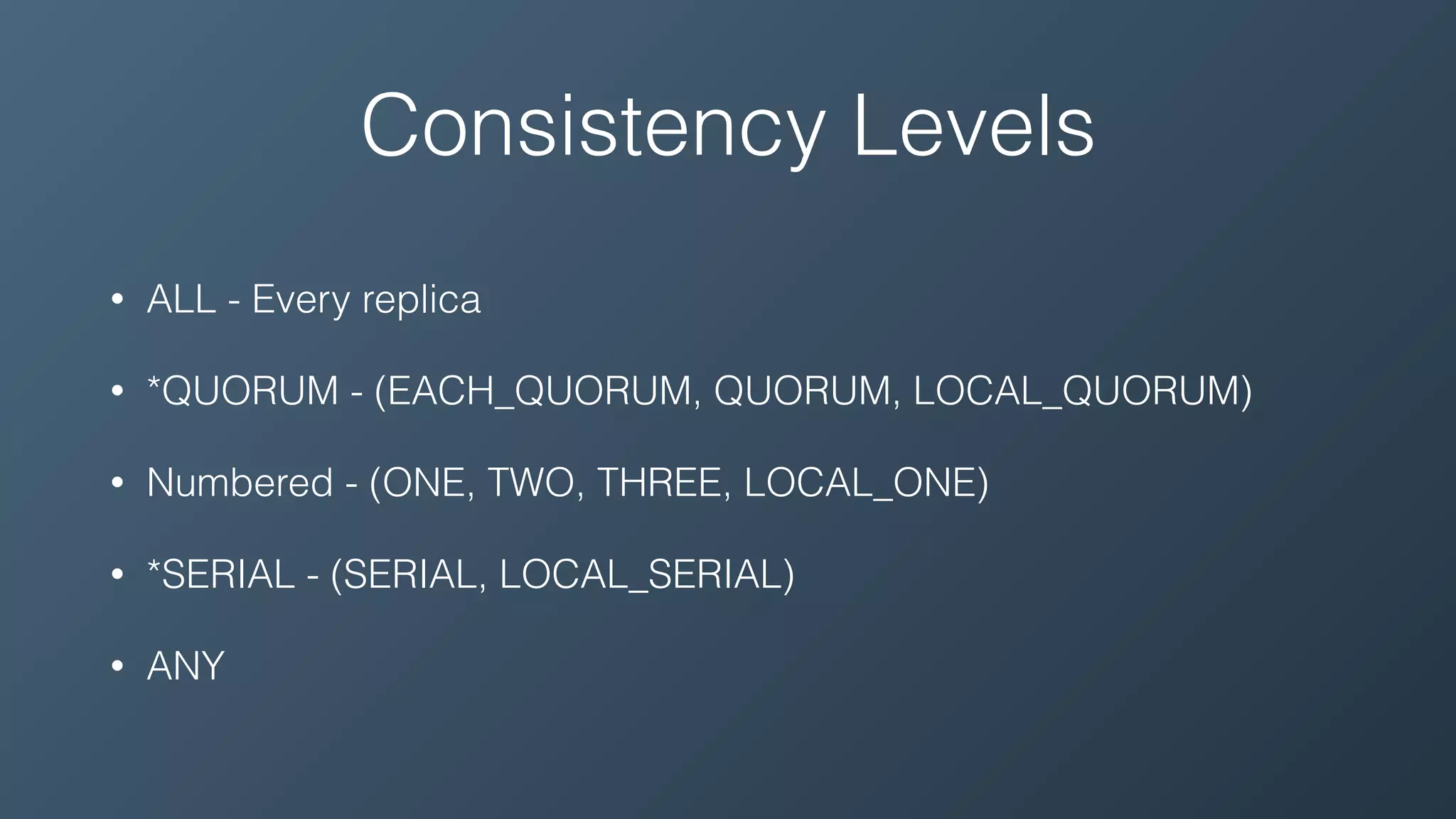

20. Consistency Levels
• ALL - Every replica
• *QUORUM - (EACH_QUORUM, QUORUM, LOCAL_QUORUM)
• Numbered - (ONE, TWO, THREE, LOCAL_ONE)
• *SERIAL - (SERIAL, LOCAL_SERIAL)
• ANY

21. What does it all mean
• At the client level (your application) you have total control
• Define implicit and explicit failure handling
• Isolate queries to a single geography
• Trade consistency for latency (a decision is better than no
decision)

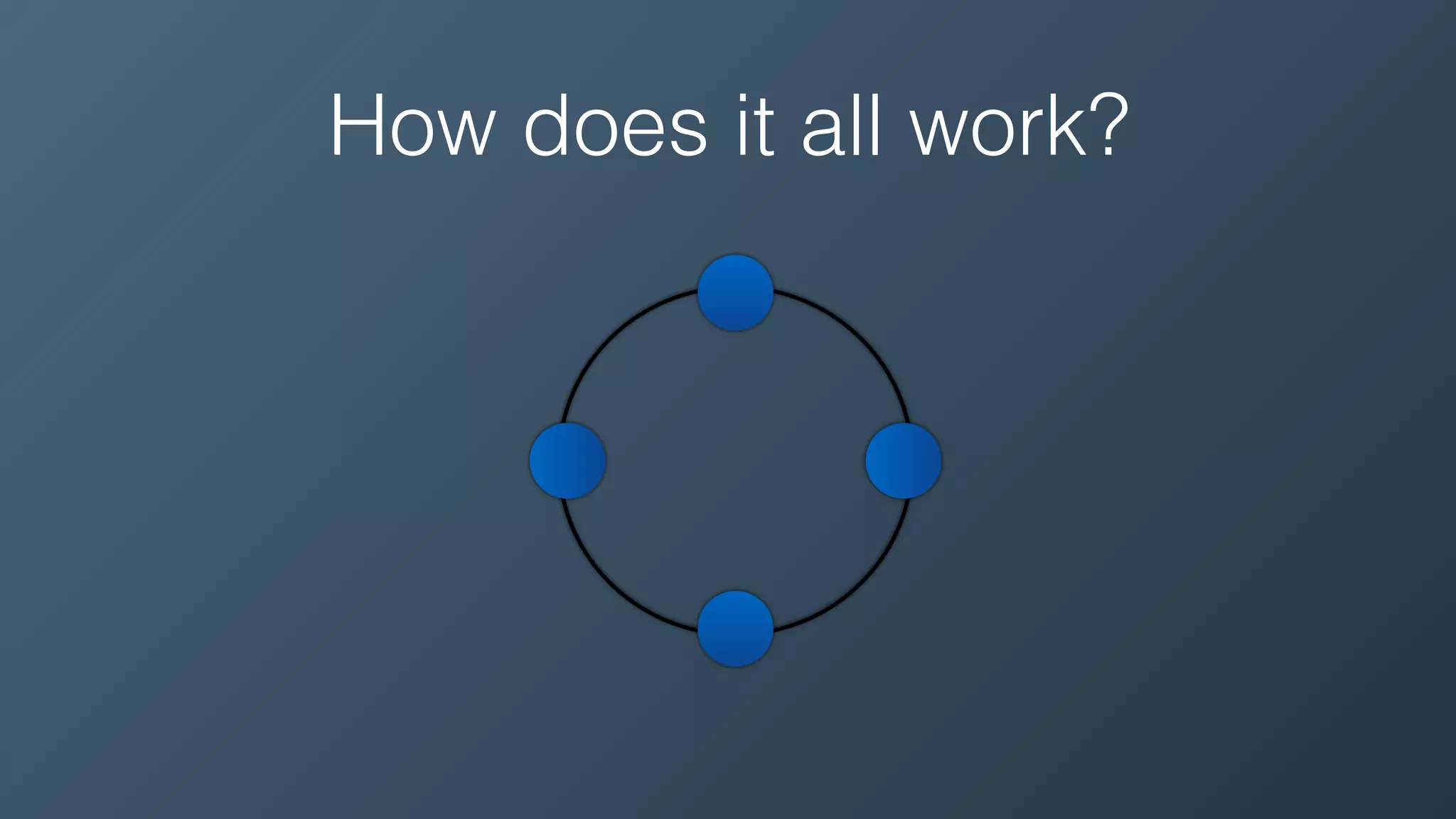

22. How does it all work?

23. Write
CL:QUORUM
RF:3
1
2
3
4
partition_key: a
How does it all work?

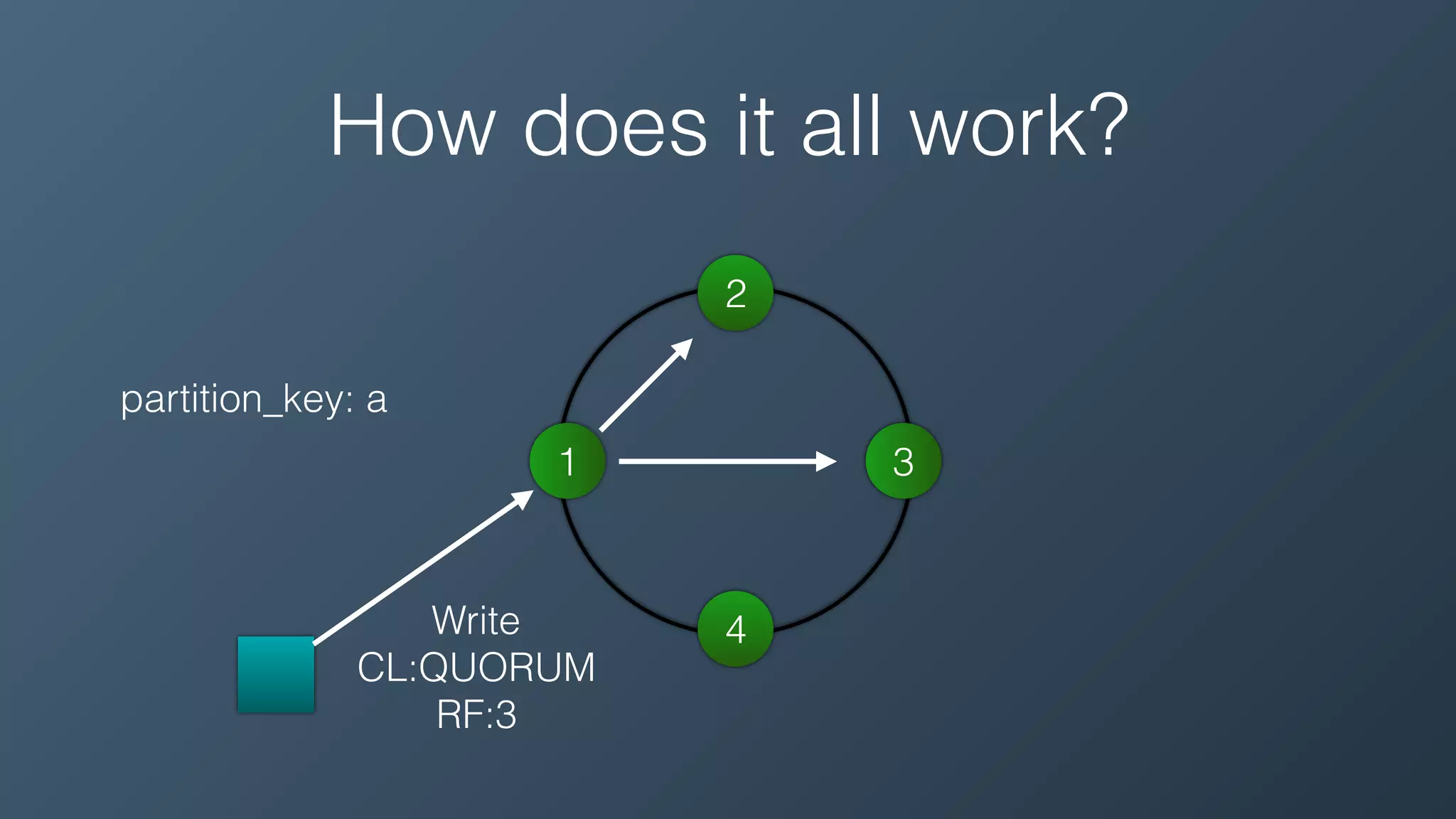

24. Write
CL:QUORUM
RF:3
1
2
3
4
partition_key: a
How does it all work?

25. Write
CL:QUORUM
RF:3
1
2
3
4
partition_key: a
How does it all work?

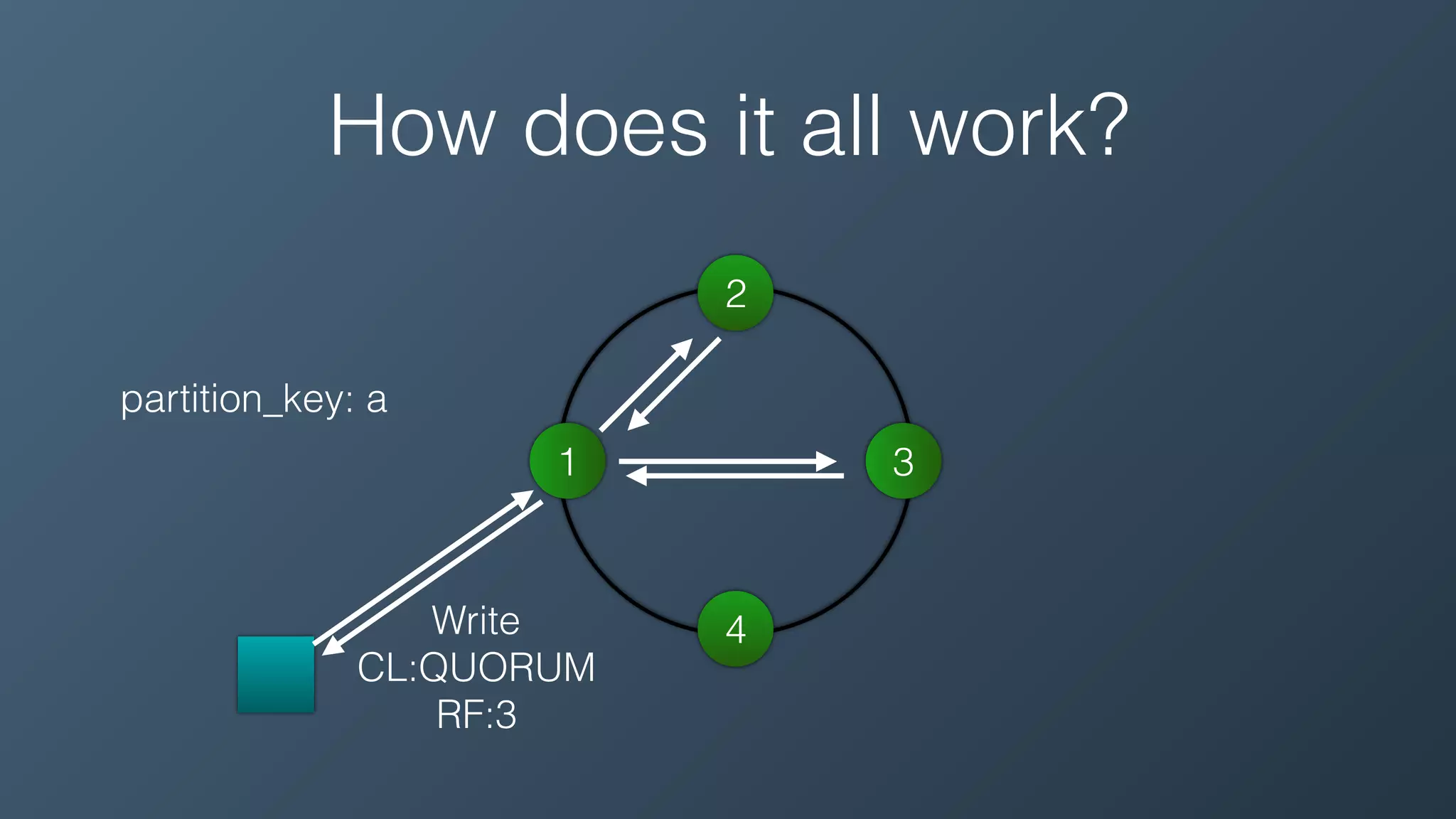

26. Write
CL:QUORUM
RF:3
1
2
3
4
partition_key: a
How does it all work?

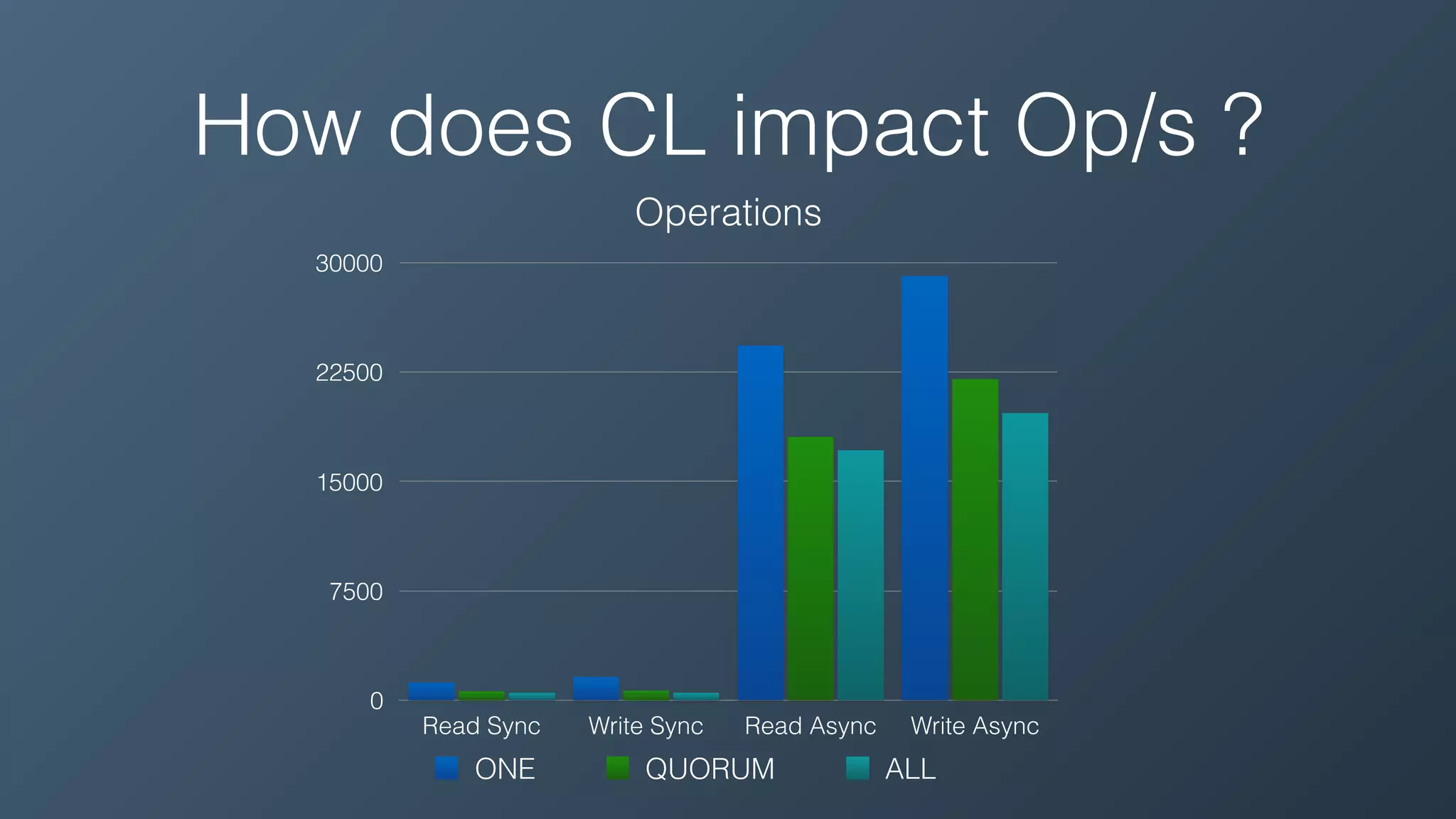

27. How does CL impact Op/s ?
Operations
0
7500
15000
22500
30000
Read Sync Write Sync Read Async Write Async
ONE QUORUM ALL

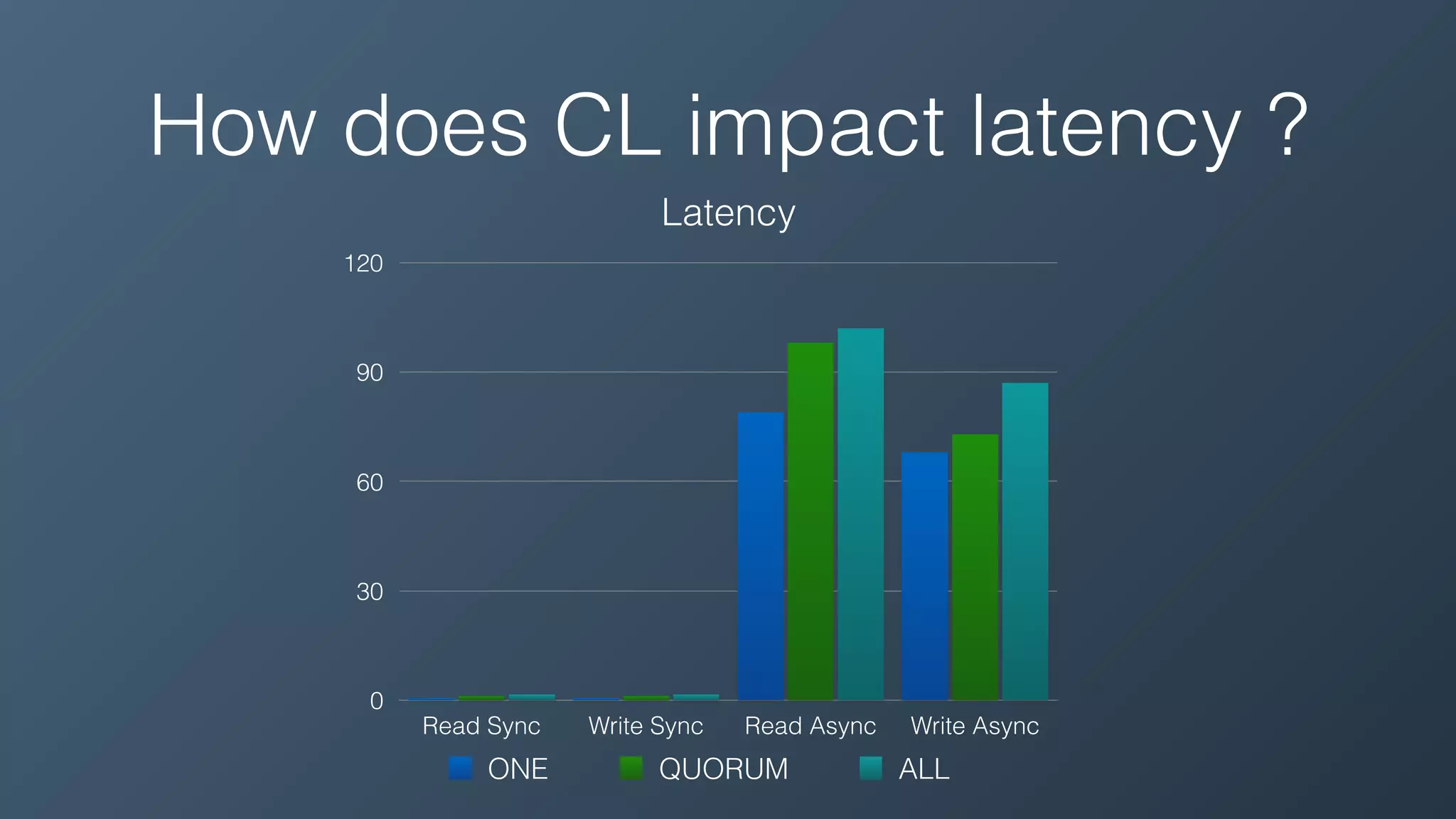

28. How does CL impact latency ?
Latency
0
30
60
90
120
Read Sync Write Sync Read Async Write Async
ONE QUORUM ALL

29. What happens when something goes wrong?

30. Write
CL:QUORUM
RF:3
1
2
3
4
partition_key: b
How does it all work?

31. Write
CL:QUORUM
RF:3
1
2
3
4
partition_key: b
How does it all work?

32. Write
CL:QUORUM
RF:3
1
2
3
4
partition_key: b
How does it all work?

33. Write
CL:QUORUM
RF:3
1
2
3
4
partition_key: b
How does it all work?
✓✓
Required responses:
floor(3 * 0.5) + 1 = 2

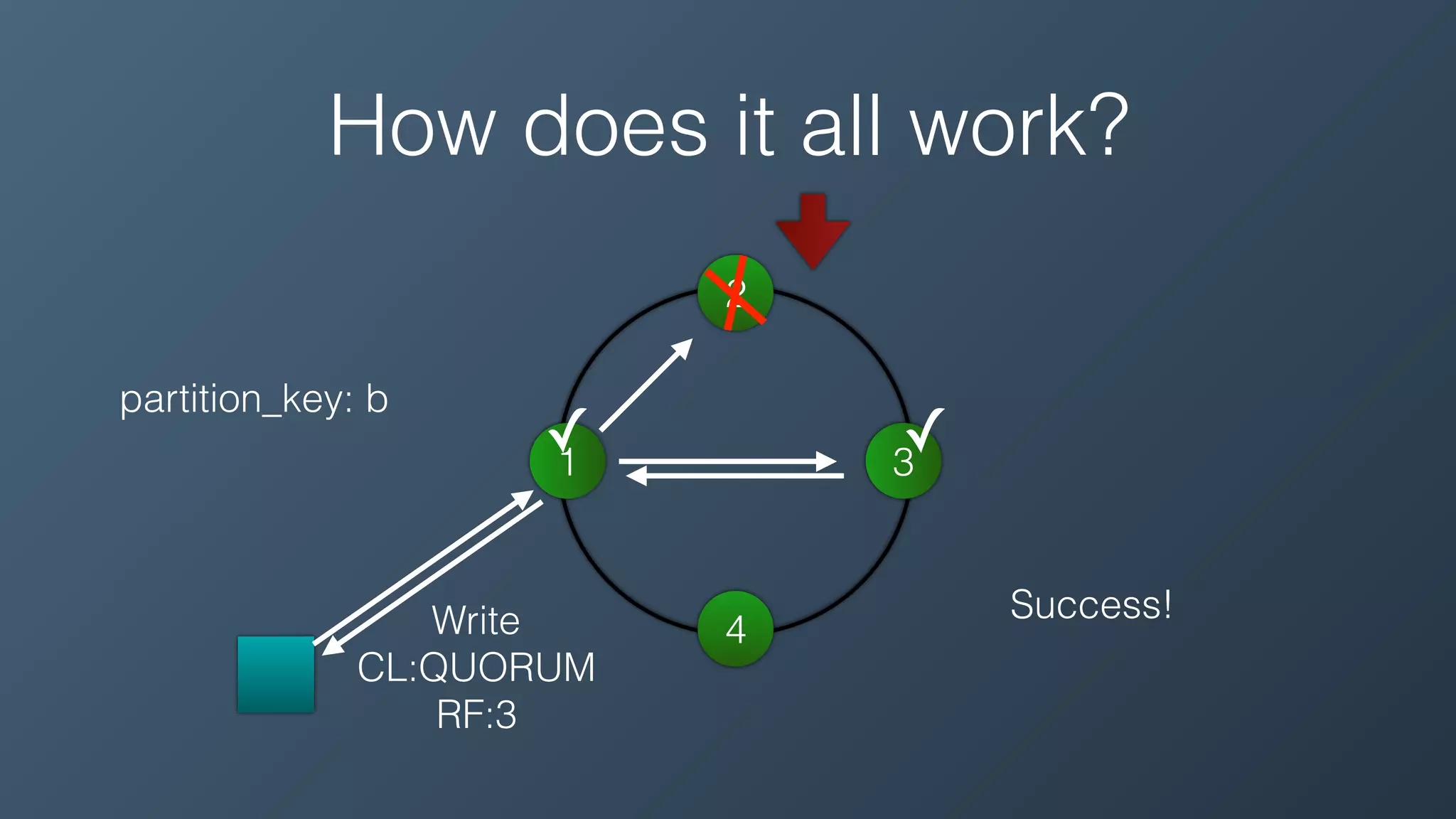

34. Write
CL:QUORUM
RF:3
1
2
3
4
partition_key: b
How does it all work?
✓✓
Success!

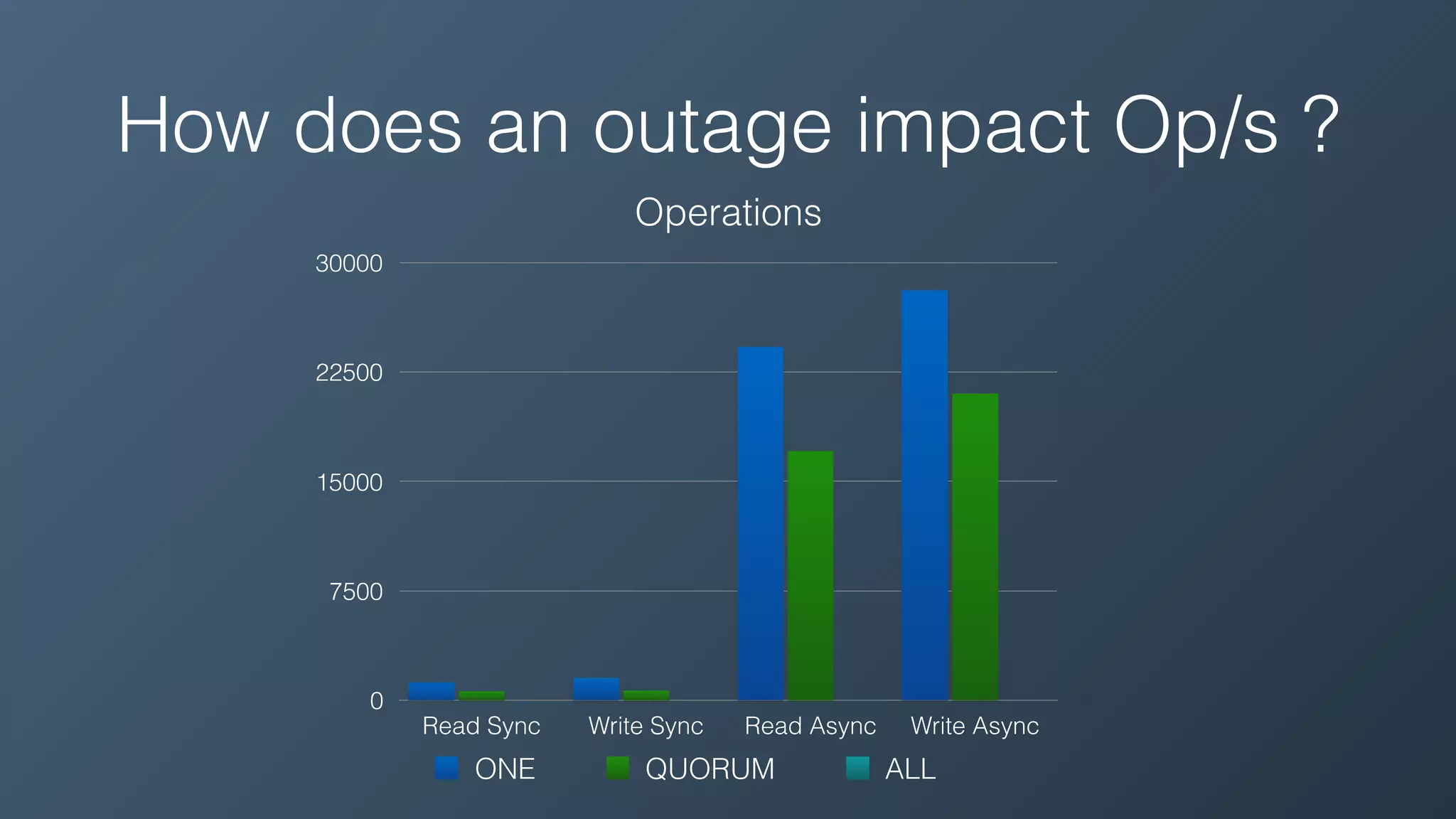

35. How does an outage impact Op/s ?
Operations
0
7500
15000
22500
30000
Read Sync Write Sync Read Async Write Async
ONE QUORUM ALL

36. How does an outage impact latency ?
Latency
0
25
50
75
100
Read Sync Write Sync Read Async Write Async
ONE QUORUM ALL

37. We are now have a replica that is not
consistent
• Anti-entropy repair (only guaranteed way to make things consistent)
• Hinted handoff
• Read repair

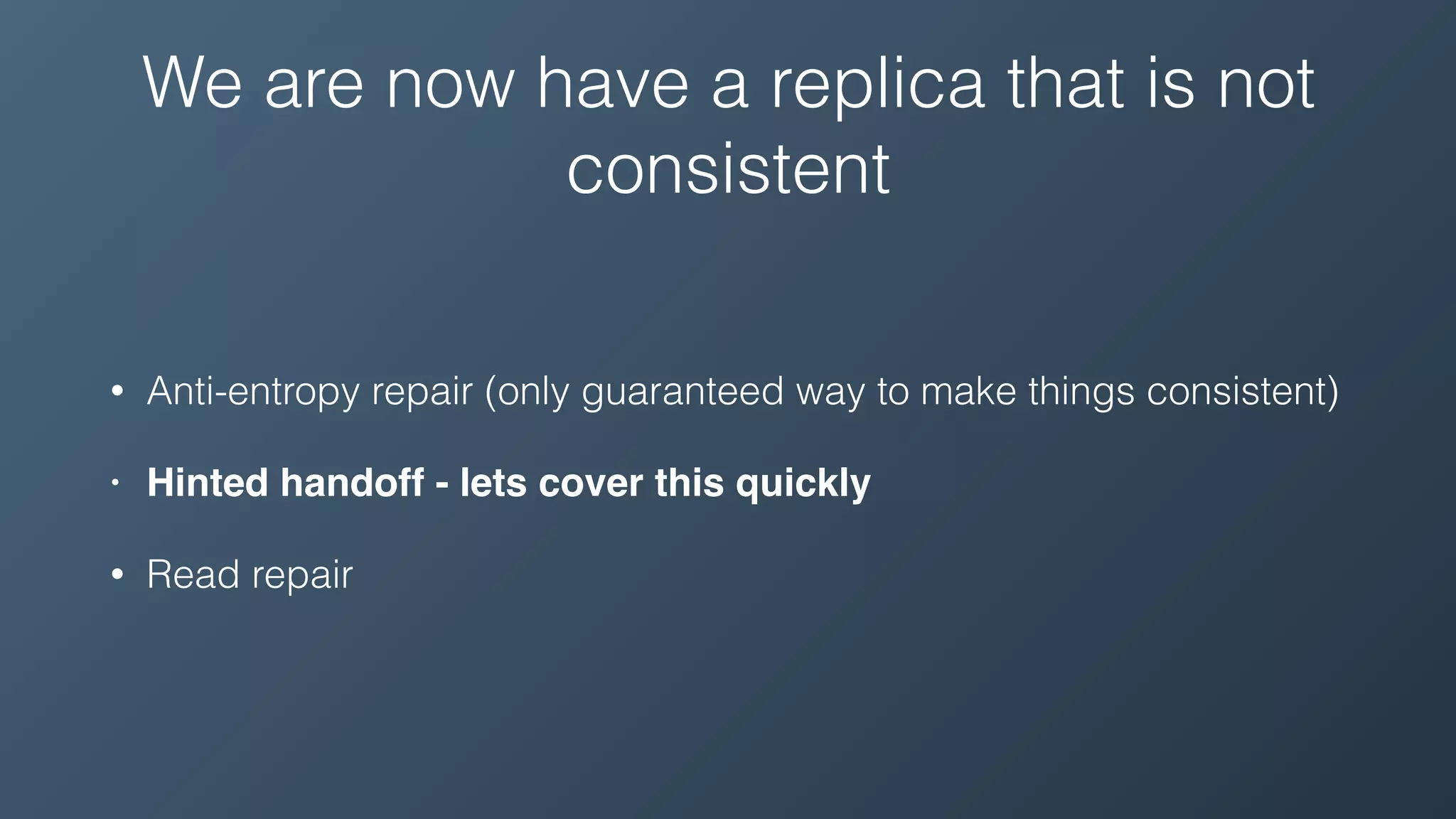

38. We are now have a replica that is not
consistent
• Anti-entropy repair (only guaranteed way to make things consistent)
• Hinted handoff - lets cover this quickly
• Read repair

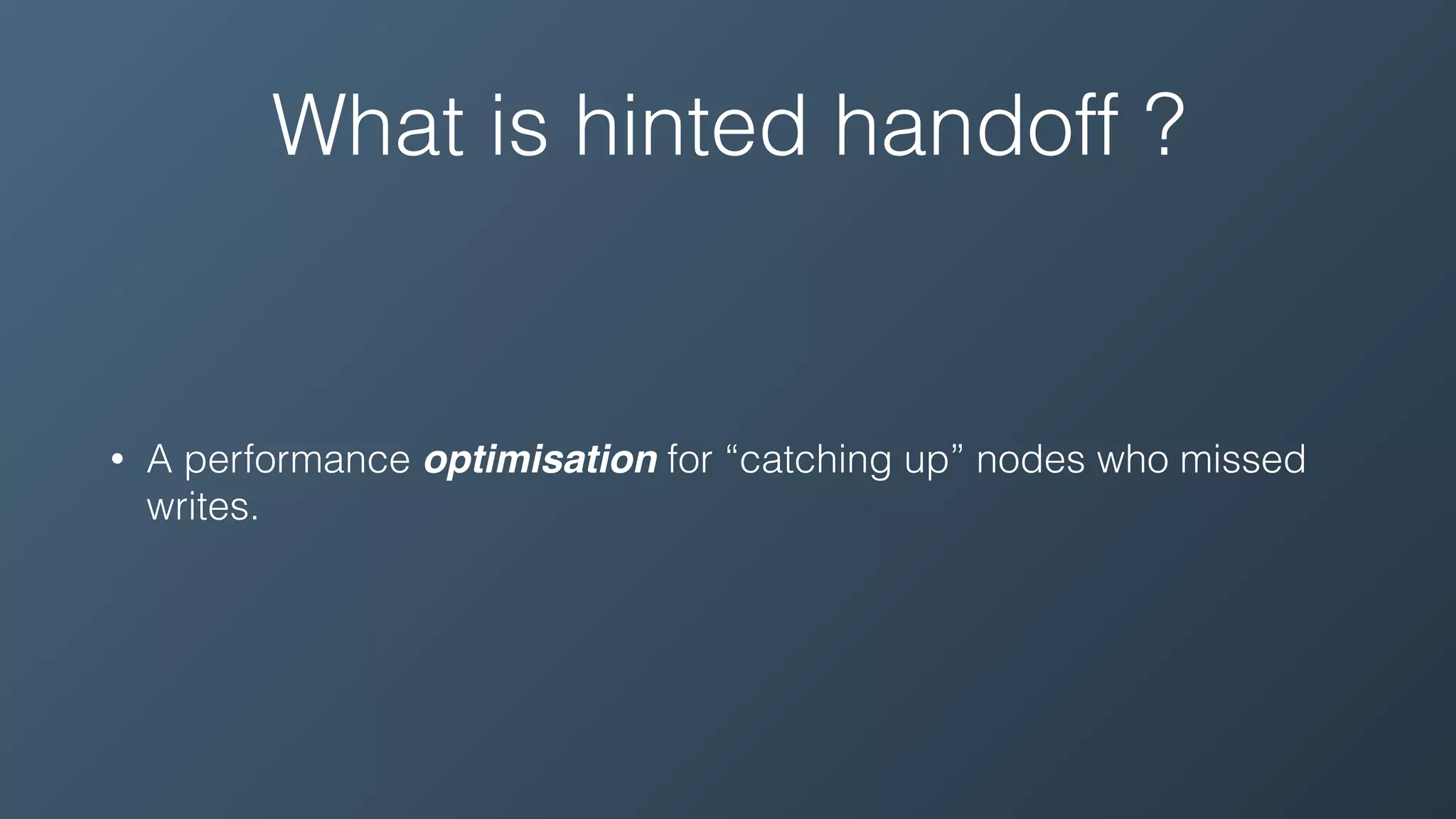

39. What is hinted handoff ?
• A performance optimisation for “catching up” nodes who missed
writes.

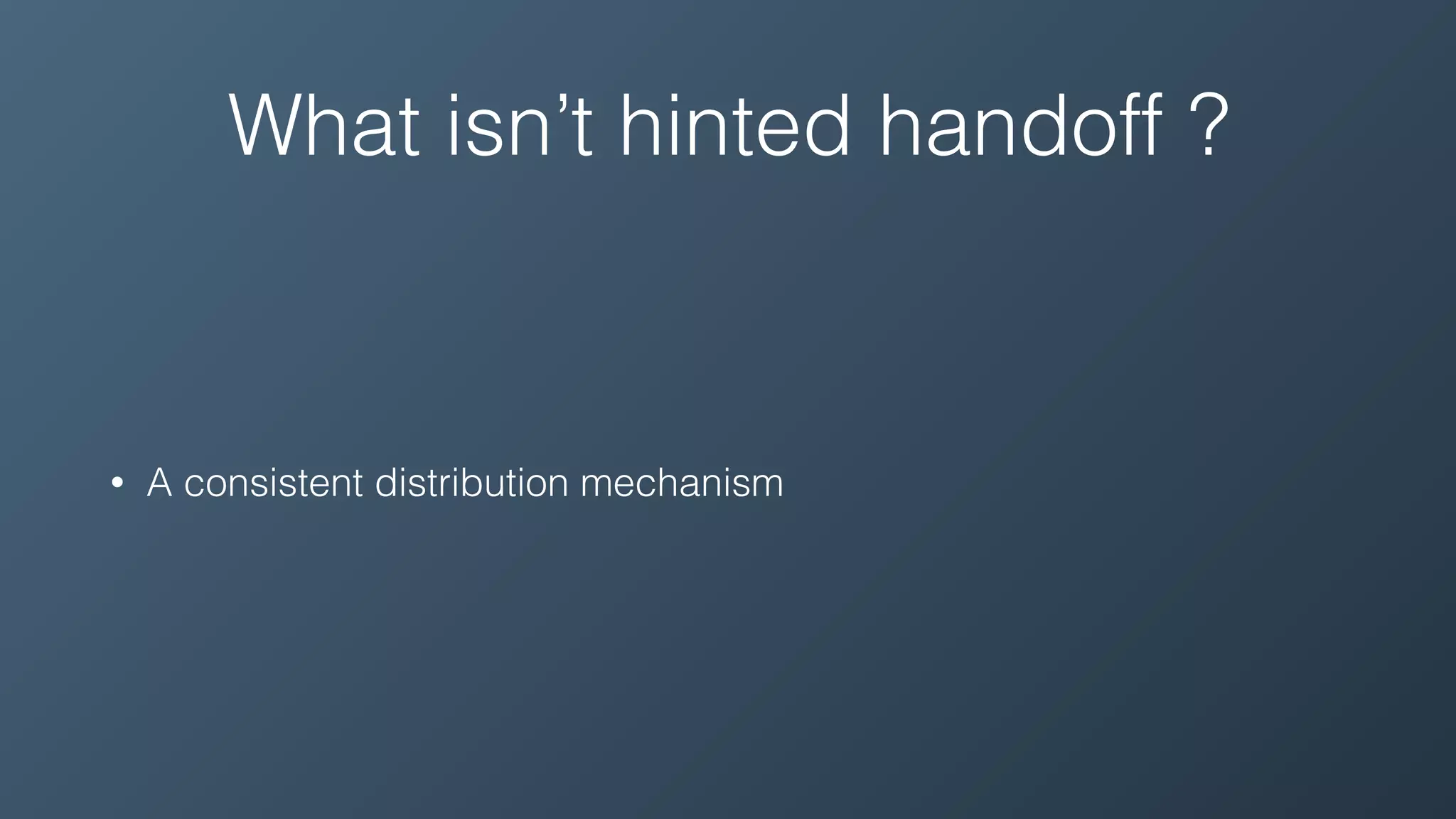

40. What isn’t hinted handoff ?
• A consistent distribution mechanism

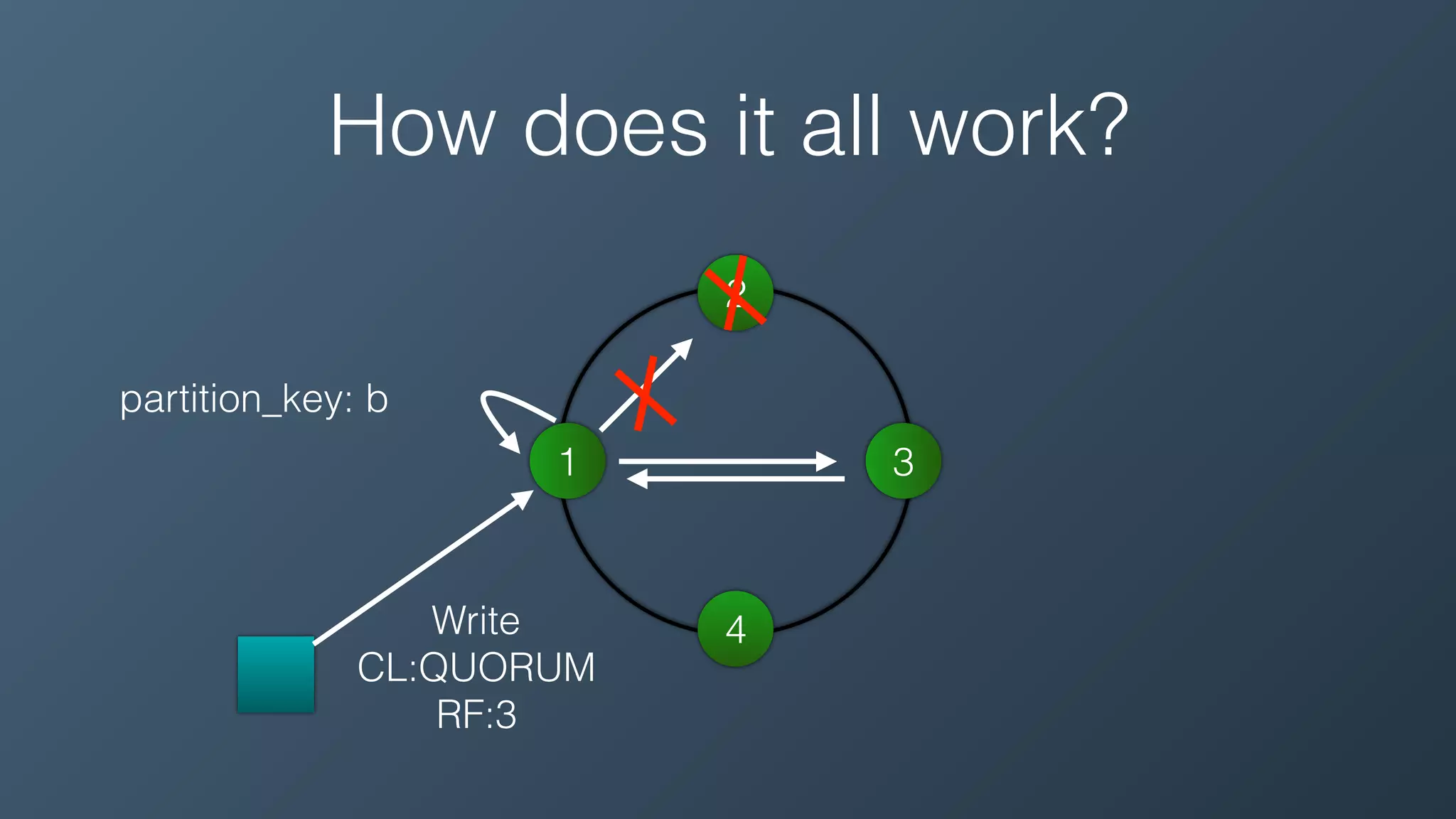

41. Write
CL:QUORUM
RF:3
partition_key: b
1
2
3
4
How does it all work?

42. Write
CL:QUORUM
RF:3
partition_key: b
1
2
3
4
How does it all work?

43. How does hinted handoff work?
1
2
3
4
host / key A B
1 ✔ ✔
2 ?
3 ✔ ✔
…
✔

44. How does hinted handoff work?
partition_key: b
1
2
3
4

45. How does hinted handoff work?
partition_key: b
1
2
3
4
Gossip: 2 is now UP
Node 1: I have stored hints for 2

46. How does hinted handoff work?
partition_key: b
1
2
3
4

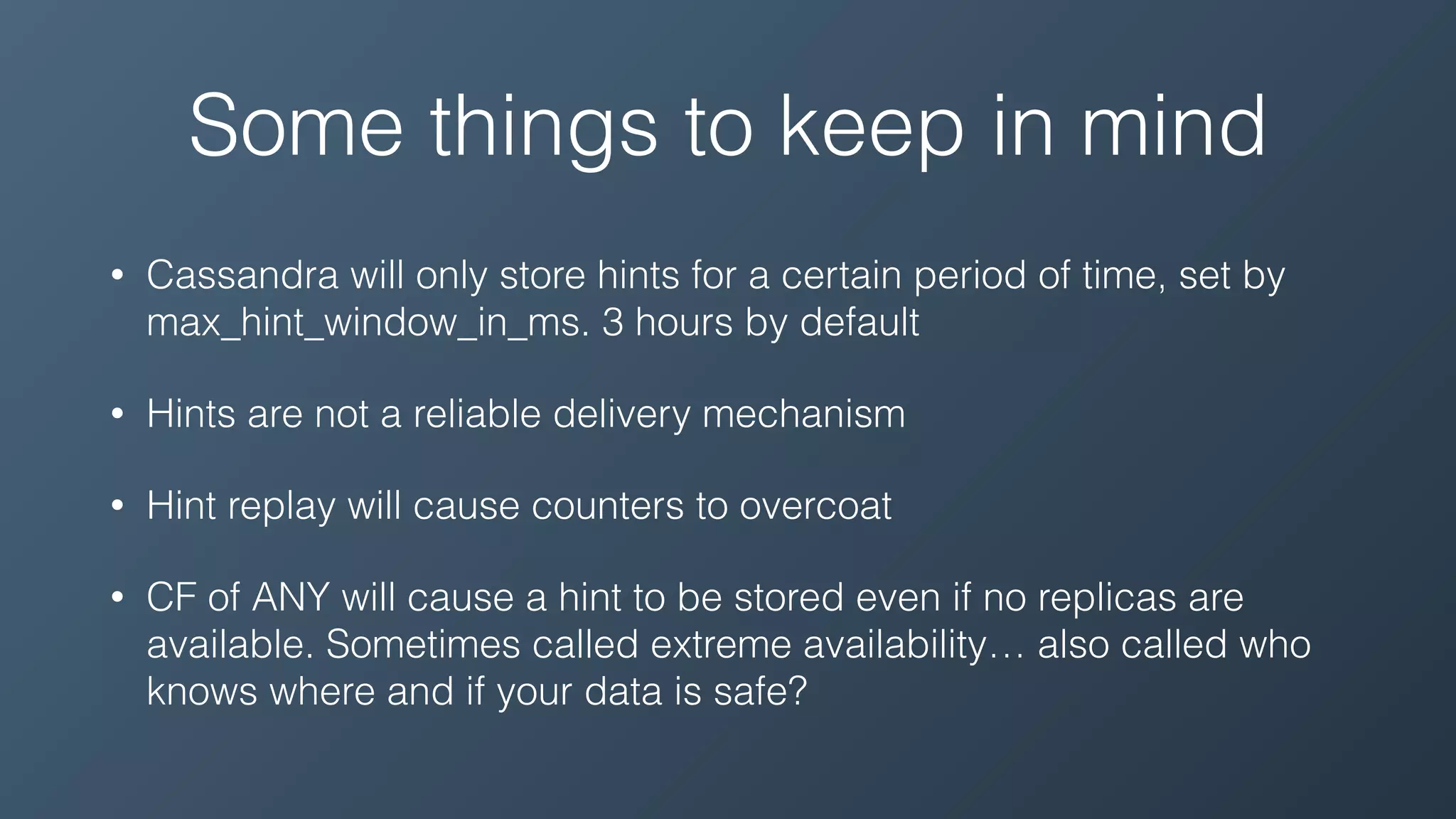

47. Some things to keep in mind
• Cassandra will only store hints for a certain period of time, set by
max_hint_window_in_ms. 3 hours by default
• Hints are not a reliable delivery mechanism
• Hint replay will cause counters to overcoat
• CF of ANY will cause a hint to be stored even if no replicas are
available. Sometimes called extreme availability… also called who
knows where and if your data is safe?

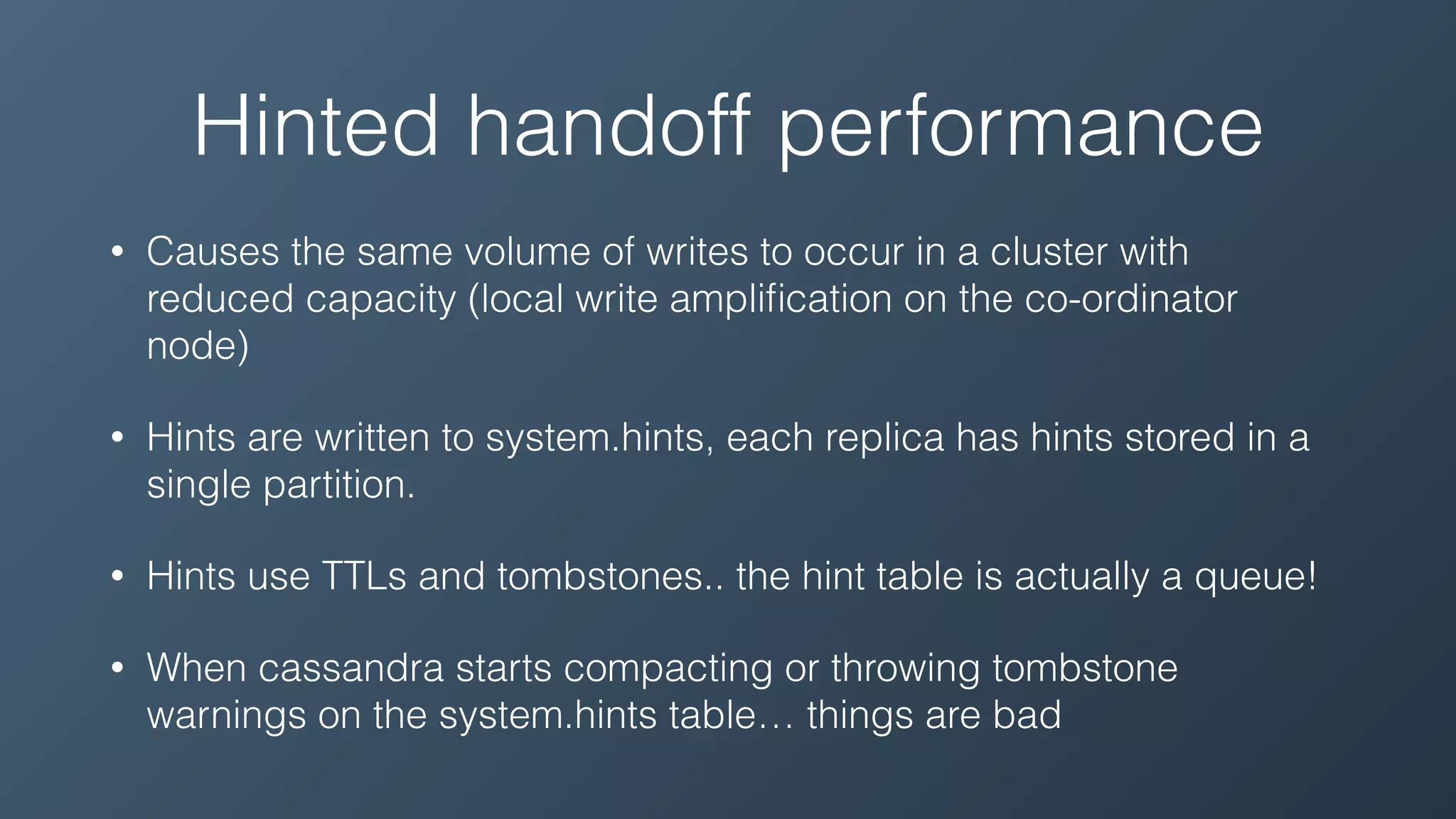

48. Hinted handoff performance
• Causes the same volume of writes to occur in a cluster with
reduced capacity (local write amplification on the co-ordinator
node)
• Hints are written to system.hints, each replica has hints stored in a
single partition.
• Hints use TTLs and tombstones.. the hint table is actually a queue!
• When cassandra starts compacting or throwing tombstone
warnings on the system.hints table… things are bad

49. Hinted handoff performance
• Rewritten in Cassandra 3.0 (in beta now)
• Takes a commitlog approach:
• No compaction
• no TTL
• no tombstones
• no memtables

50. How does this relate to the driver?
• With a node outage the “latency” on the down node becomes
hours/days until it becomes consistent
• Cassandra itself takes over the client portion of ensuring the write
makes it to the node that was down.
• You can control whether C* handles this (via repair, HH etc) or
whether your application controls this (have your client receive an
exception instead).

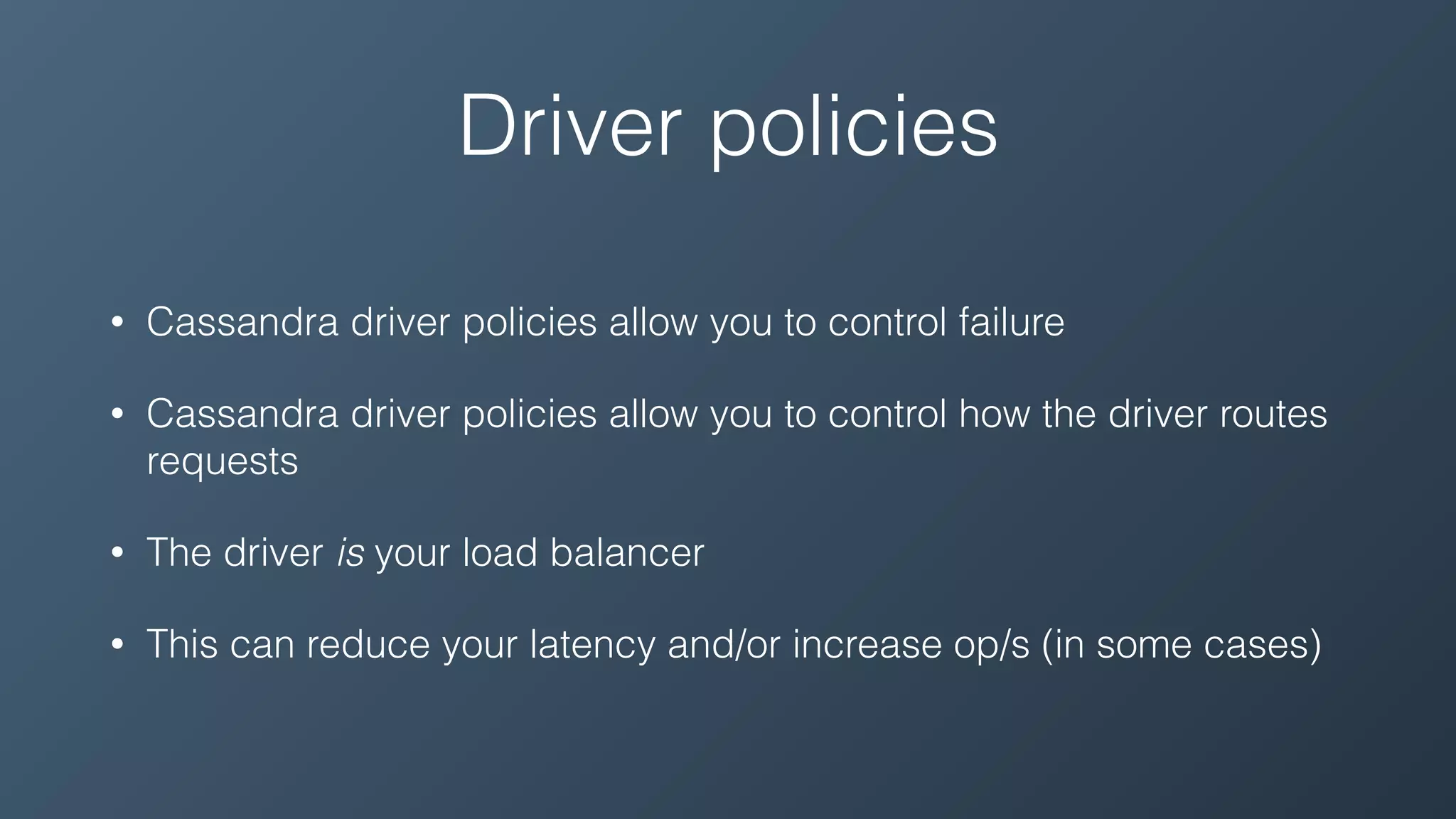

51. Driver policies
• Cassandra driver policies allow you to control failure
• Cassandra driver policies allow you to control how the driver routes
requests
• The driver is your load balancer
• This can reduce your latency and/or increase op/s (in some cases)

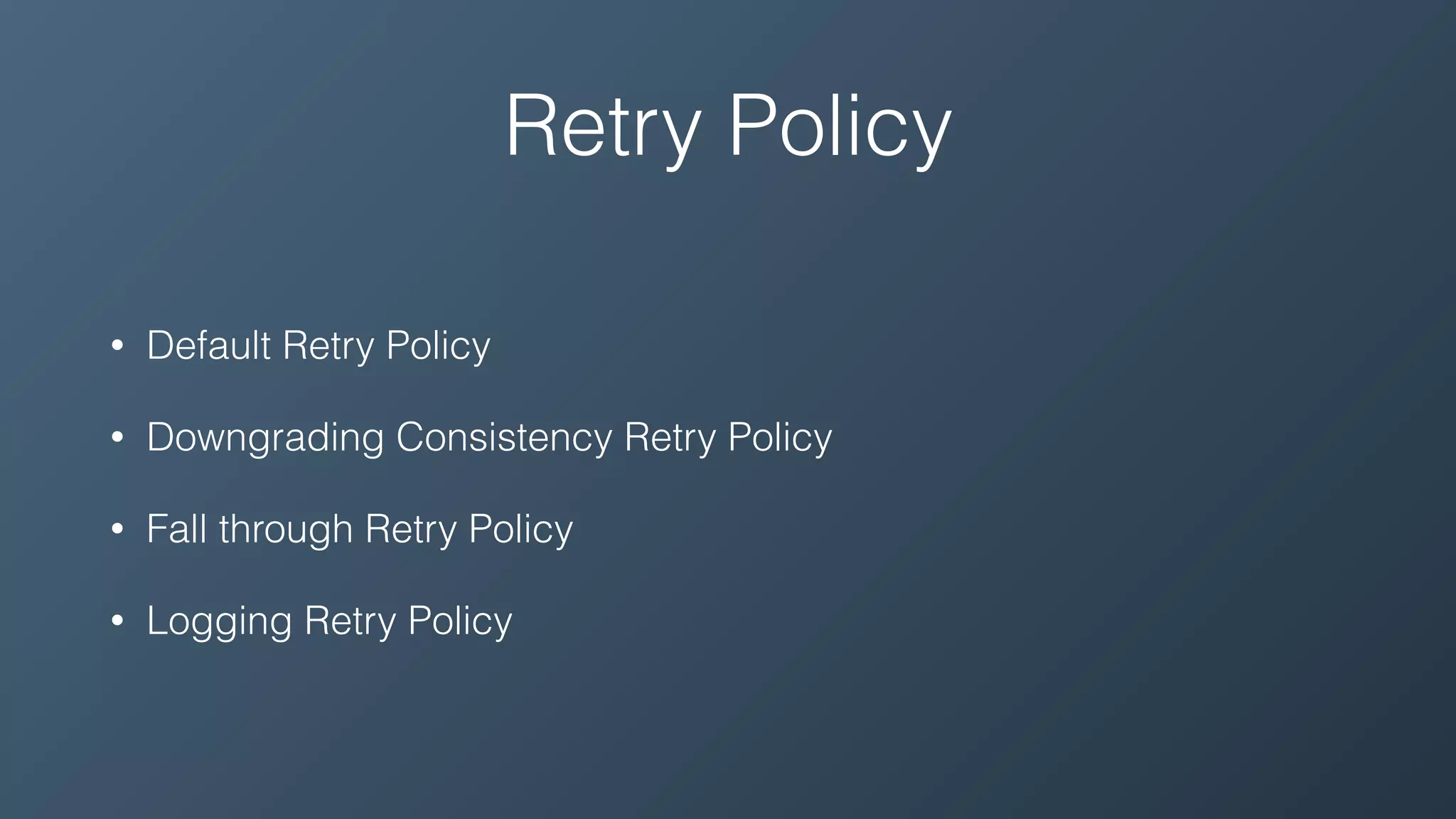

52. Retry Policy
• Default Retry Policy
• Downgrading Consistency Retry Policy
• Fall through Retry Policy
• Logging Retry Policy

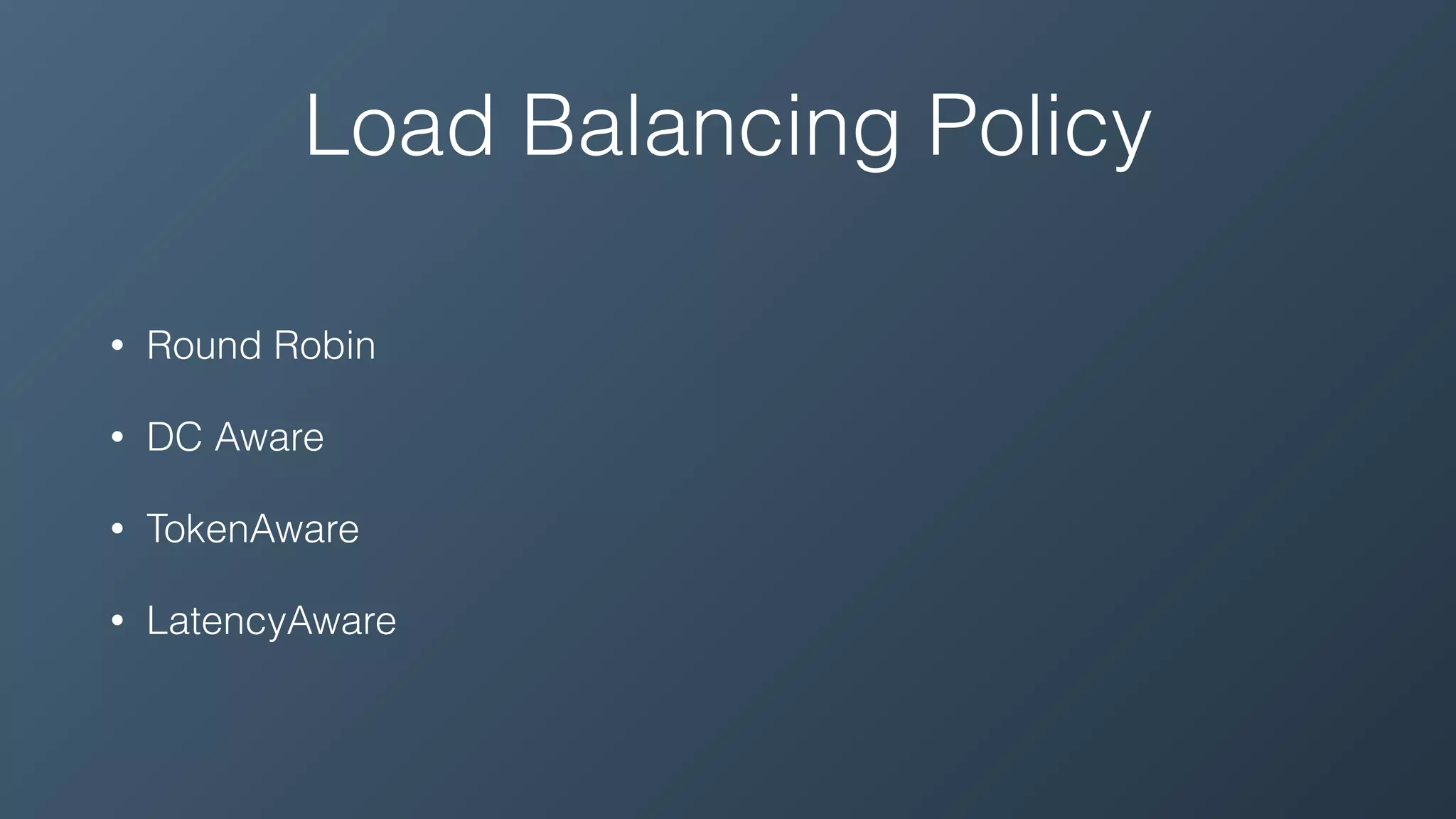

53. Load Balancing Policy
• Round Robin
• DC Aware
• TokenAware
• LatencyAware

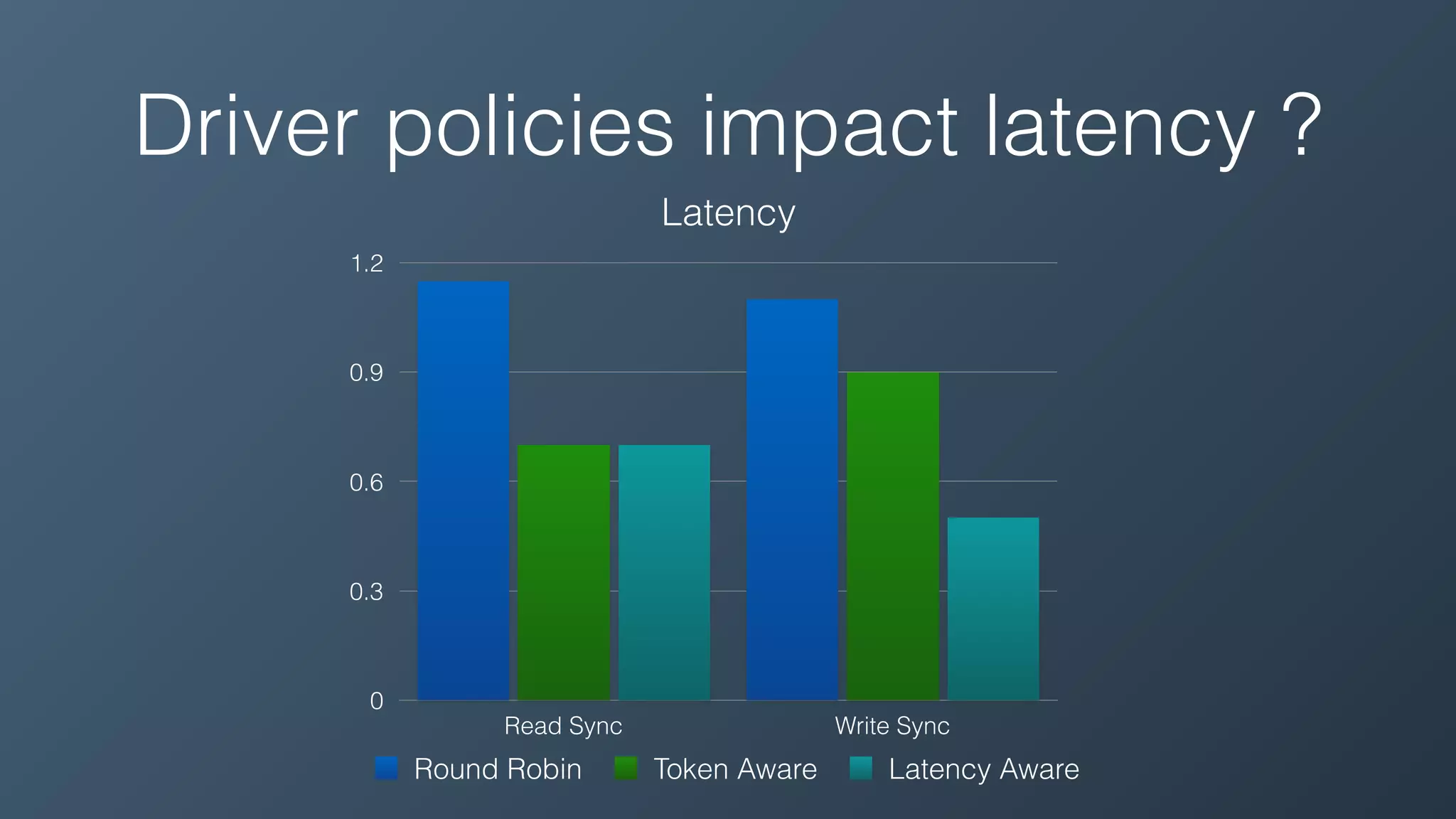

54. Driver policies impact latency ?
Latency
0
0.3
0.6
0.9
1.2
Read Sync Write Sync
Round Robin Token Aware Latency Aware

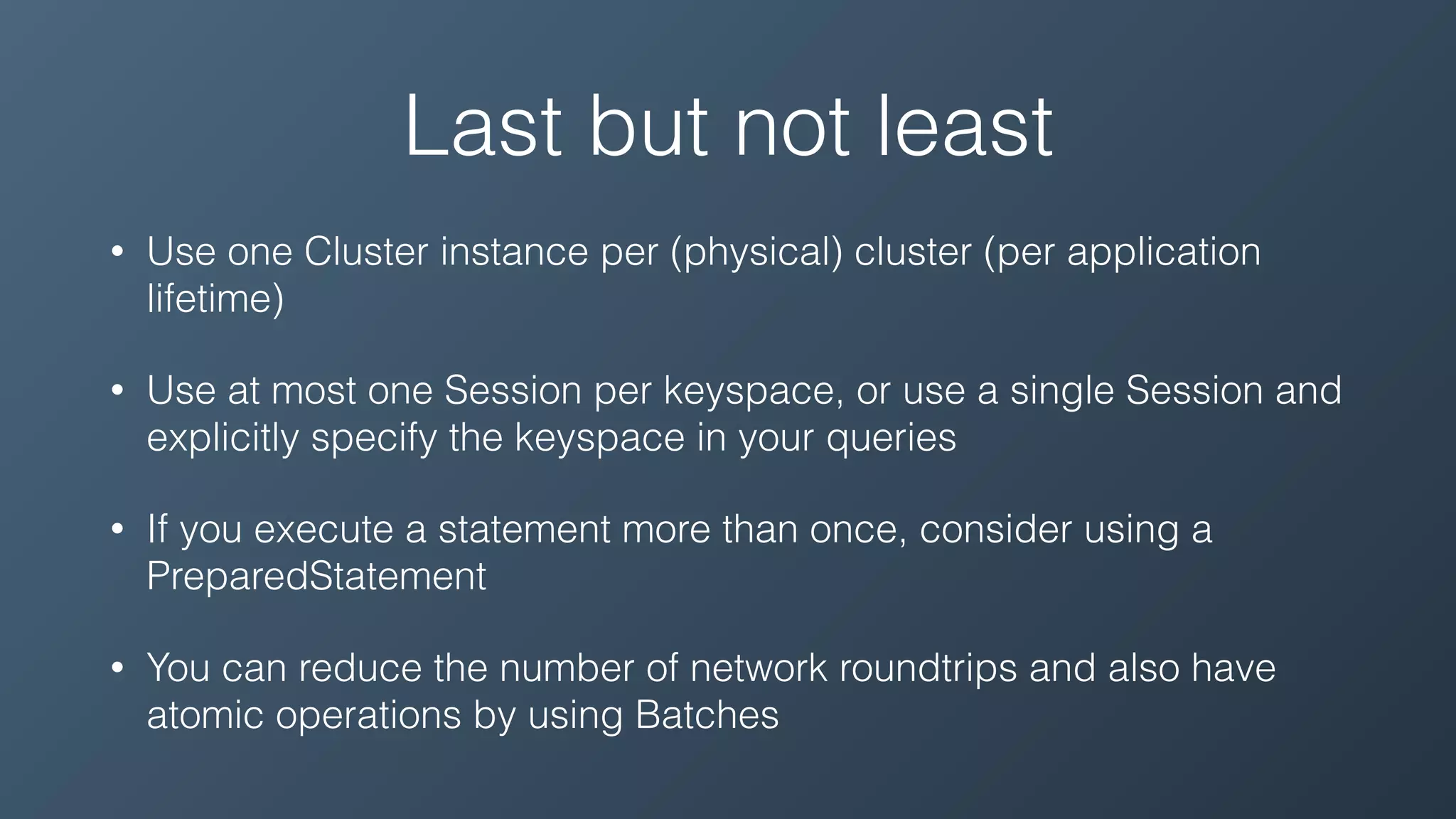

55. Last but not least
• Use one Cluster instance per (physical) cluster (per application
lifetime)
• Use at most one Session per keyspace, or use a single Session and
explicitly specify the keyspace in your queries
• If you execute a statement more than once, consider using a
PreparedStatement
• You can reduce the number of network roundtrips and also have
atomic operations by using Batches

56. Thank you!
Questions?
