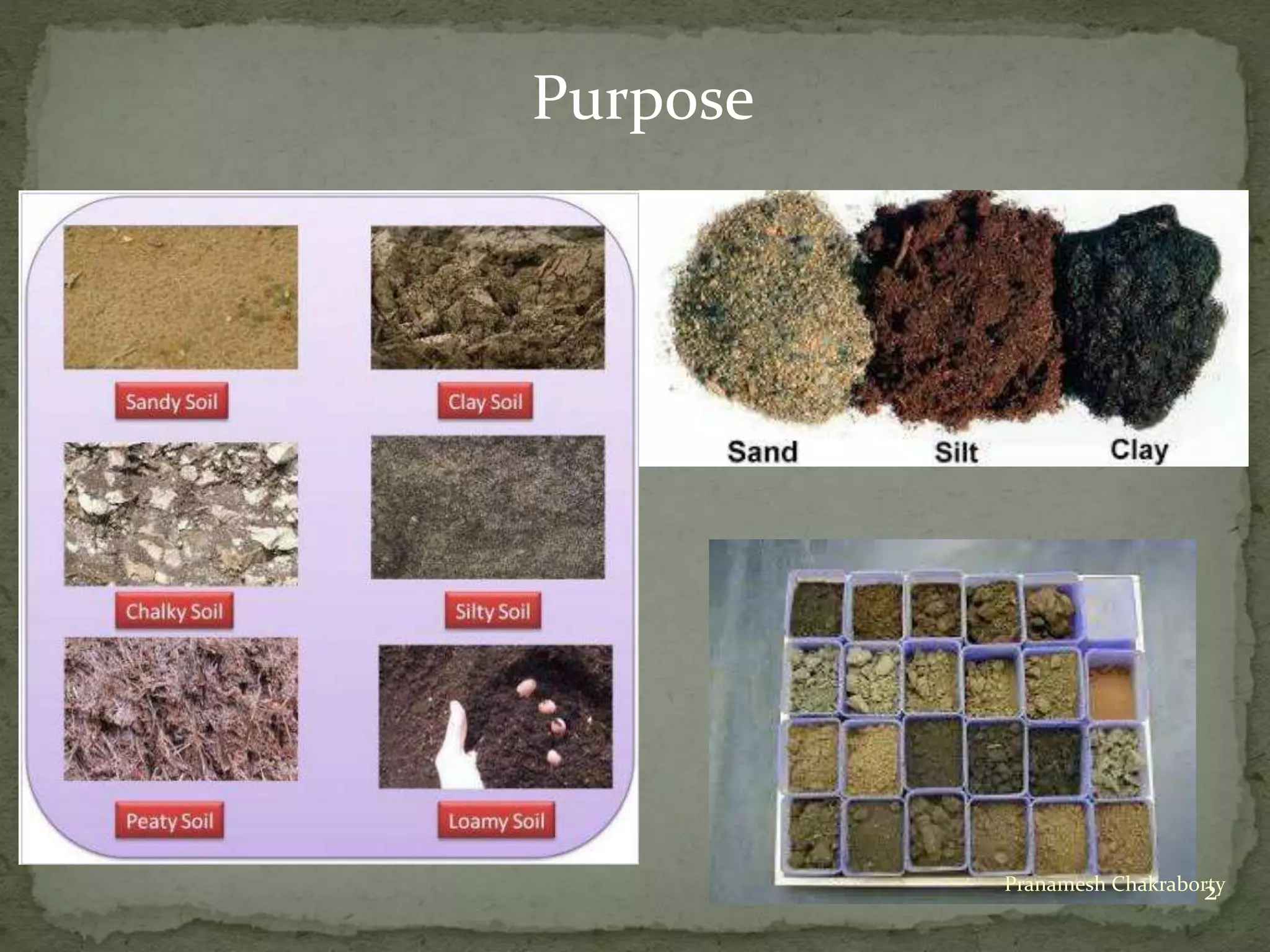

3. Purpose
Arrange various types of soils into groups
according to their engineering or various other
characteristics.
Soil possessing similar characteristics can be
placed in the same group.
3Pranamesh Chakraborty
4. Soil Classification Systems
1. Particle Size Classification
2. Textural Classification
3. Highway Research Board (HRB) Classification
4. Unified Soil Classification System (USCS)
5. Indian Standard Classification System (ISCS)
4Pranamesh Chakraborty
6. Soils arranged according to grain sizes.
Terms such as gravel, sand, silt and clay are used to
indicate grain sizes.
These terms are used only as designation of particle
sizes.
They do not signify naturally occurring soil types.
Naturally occurring soil are mixture of particles of
different sizes.
Introduction
6Pranamesh Chakraborty
9. Soil classification of composite soils exclusively
based on Particle Size Distribution.
Most popular is the Triangular Classification of U.S.
Public Roads Administration.
Classification based on % of sand, silt and clay size.
More suitable for describing coarse grained soil.
Clay soil properties are less dependent on particle
size distribution.
Introduction
9Pranamesh Chakraborty
13. Based on both particle-size composition as well as
plasticity characteristics.
Mostly used for pavement construction.
7 primary groups (A-1, A-2,…., A-7).
A-1 subdivided into 2 subgroups.
A-2 subdivided into 4 subgroups.
Introduction
13Pranamesh Chakraborty
14. Used to describe performance of soil when used for
pavement construction.
Not used to place a soil in a particular group.
It means rating the value of soil as a subgrade material
within its own group.
Higher the value of GI, poorer is the quality of material.
Group Index (GI)
14Pranamesh Chakraborty
15. Group Index of a soil depends on:
1. Amount of material passing 75 micron IS sieve.
2. Liquid Limit.
3. Plastic Limit.
Group Index (GI) determination
15Pranamesh Chakraborty
17. HRB Classification Procedure
Proceed from left to right on the chart.
Correct group will be found by process of elimination.
The first group from left into which the test data will fit will be the correct
classification.
Group Index should be rounded off to nearest integer and placed in parenthesis,
such as, A-2-2 (6).
17Pranamesh Chakraborty
22. Origin of USCS
First developed by Professor A. Casagrande
(1948) for the purpose of airfield construction
during World War II.
Afterwards, it was modified to enable the
system to be applicable to dams, foundations,
and other construction .
22Pranamesh Chakraborty
24. Classification Groups
•The soil is classified into 15 groups.
•Each group is designated a symbol consisting of
two capital letters.
•The first letter is based on main soil type.
•The second letter is based on gradation and
plasticity .
24Pranamesh Chakraborty
25. Classification Group Symbols
Main Soil
Type
Prefix Subgroup Suffix
Classification
Group symbols
Gravel G
Well-graded
Poorly-graded
Silty
Clayey
W
P
M
C
GW
GP
GM
GC
Sand S
Well-graded
Poorly-graded
Silty
Clayey
W
P
M
C
SW
SP
SM
SC
Silt M
LL < 50%
LL > 50%
L
H
ML
MH
Clay C
LL < 50%
LL > 50%
L
H
CL
CH
Organic O
LL < 50%
LL > 50%
L
H
OL
OH
Peat Pt Pt
25Pranamesh Chakraborty
26. Unified Soil Classification System (Contd.)
Coarse-grained soils: Fine-grained soils:
NO.200
0.075 mm
Well or Poor Graded
based on Cu and Cc
50 %
NO. 4
4.75 mm
50%
wL >50
wL <50
Gravel (G) Sand (S) Silt (M) Clay (C)
Based on wL and IP
(Plasticity Chart)
For G, use W if Cu > 4 and 1<Cc <3
For S, use W if Cu > 6 and 1<Cc <3
26Pranamesh Chakraborty
27. Plasticity Chart
Below A-line, use M (Silt) or
O (Organic)
Above A-line, use C - Clay
High Plasticity use H - wL >50
Low Plasticity use L - wL <50
27
Silt (M)
Clay (C)
Organic (O)
Pranamesh Chakraborty
28. Plasticity Chart
“The soil’s liquid limit (wL) after oven drying is less than 75 % of its liquid
limit before oven drying.” If the above statement is true, then it is Organic Soil
(OL or OH). Otherwise, it is Inorganic Soil (ML or MH)
28Pranamesh Chakraborty
29. Plasticity Chart
When IP and wL are in the hatched portion of the plasticity chart, the soil is
given dual symbol (CL-ML).
Soil possessing properties of more than one group are termed as boundary
soil and designated by dual group symbol.
29Pranamesh Chakraborty
30. USCS at a glance
(Santamarina et al., 2001)
30Pranamesh Chakraborty
31. Group Symbols and Group Names
Group Symbol Typical Name
GW Well-graded gravels.
GP Poorly-graded gravels.
GM Silty gravels.
GC Clayey gravels
SW Well-graded sands.
SP Poorly-graded sands.
SM Silty sands.
SC Clayey sands.
31Pranamesh Chakraborty
32. Group Symbol Typical Name
CL Inorganic clays of low plasticity.
ML Inorganic silts with slight plasticity.
OL Organic soil of low plasticity.
CH Inorganic clays of high plasticity.
MH Inorganic silts with high plasticity.
OH Organic soil of high plasticity.
Pt Peat.
Group Symbols and Group Names
32Pranamesh Chakraborty
35. Introduction
Based on USCS system
Modifications are:
Fine grained soils subdivided into 3 groups (low,
intermediate and high plasticity) as against two
groups(low and high) in USCS.
wL <35=L, 35<wL <5o=I, wL >50=H
Thus, soil classified into 18 groups as against 15
in USCS.
35Pranamesh Chakraborty
36. Classification Group Symbols
Main Soil
Type
Prefix Subgroup Suffix
Classification
Group symbols
Gravel G
Well-graded
Poorly-graded
Silty
Clayey
W
P
M
C
GW
GP
GM
GC
Sand S
Well-graded
Poorly-graded
Silty
Clayey
W
P
M
C
SW
SP
SM
SC
Silt M
LL < 35%
35<LL<>50
LL > 50%
L
I
H
ML
MI
MH
Clay C
LL < 35%
35<LL<>50
LL > 50%
L
I
H
CL
CI
CH
Organic O
LL < 35%
35<LL<>50
LL > 50%
L
I
H
OL
OI
OH
Peat Pt Pt 36Pranamesh Chakraborty
37. Plasticity Chart
High Plasticity use H - wL >50
Intermediate Plasticity use I – 35< wL >50
Low Plasticity use L - wL <35
37
Below A-line, use M (Silt) or
O (Organic)
Above A-line, use C - Clay
Pranamesh Chakraborty
