The document discusses the design and types of chimneys. It begins with an introduction on the function and applications of chimneys. It then discusses the different types of chimneys based on material, lining material, and number of flues. The document outlines important design aspects like sizing, structural parameters, and loads. Finally, it presents several case studies with salient features of different chimney projects.

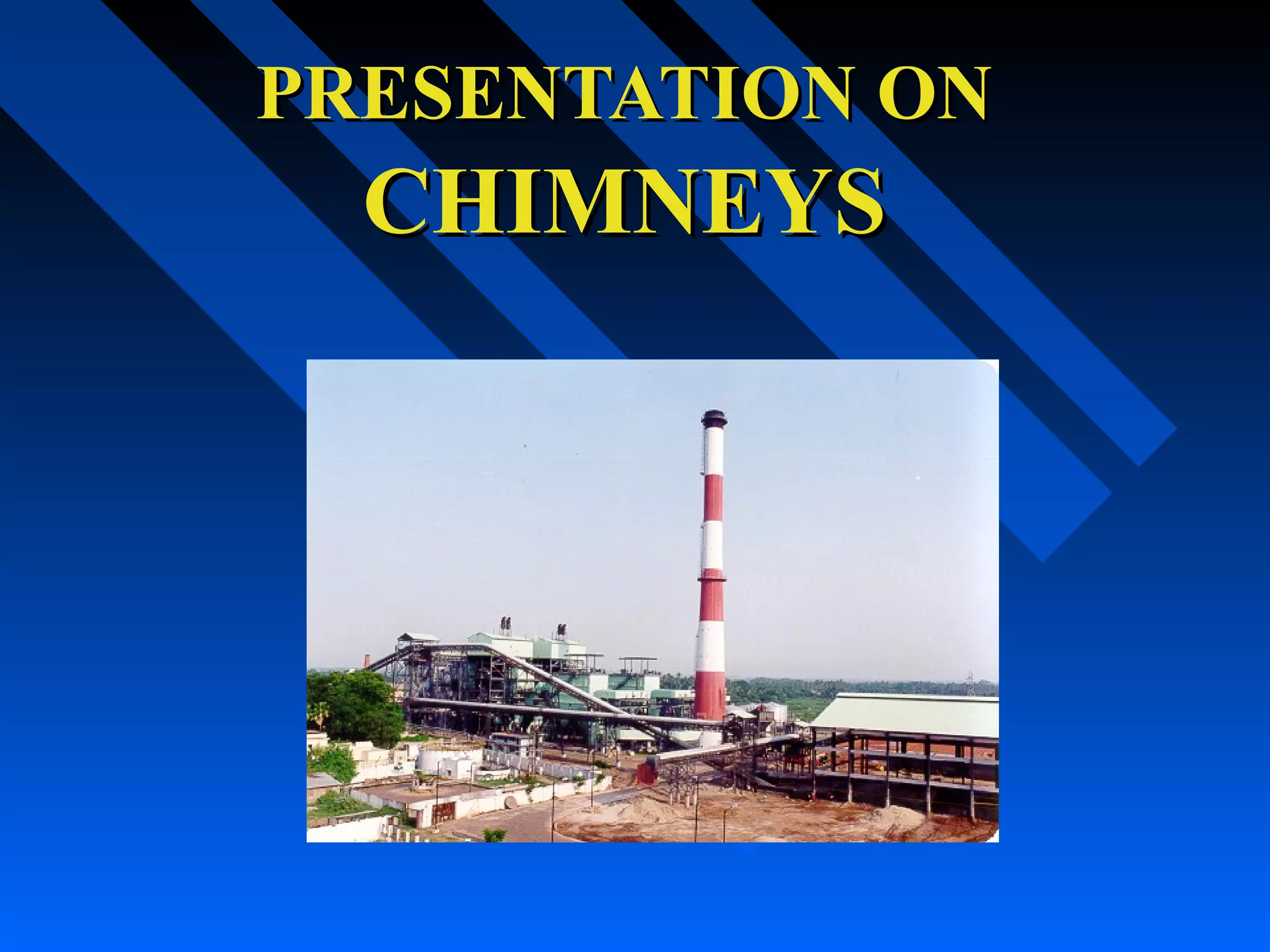

1. PRESENTATION ON
CHIMNEYS

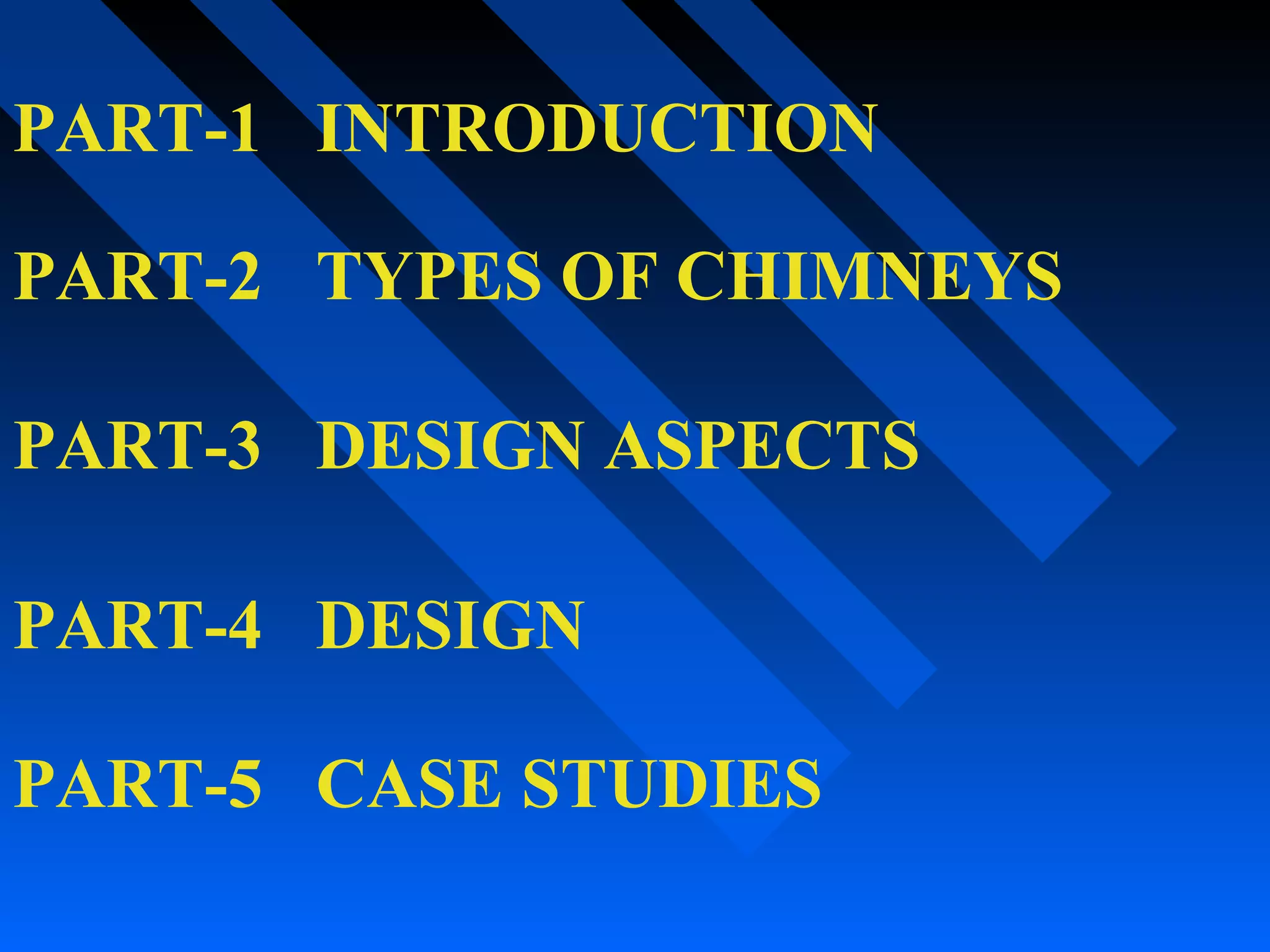

2. PART-1 INTRODUCTION
PART-2 TYPES OF CHIMNEYS
PART-3 DESIGN ASPECTS
PART-4 DESIGN
PART-5 CASE STUDIES

3. PART-1 INTRODUCTION

4. FUNCTION
 LETS OUT HOT FLUE GAS WITH
HARMFUL CHEMICALS INTO
ATMOSPHERE AT A HIGHER
ELEVATION

5. APPLICATION
 POWER PLANTS
 PROCESS PLANTS
(CEMENTS,REFINERIES,CHEMICALS,
FERTILIZERS ETC.)

6. PART-2 TYPES OF CHIMNEYS

7. CLASSIFICATION : 1
TYPE BASED ON MATERIAL OF WINDSHIELD
C h im n e y s
S te e l R C C

8. CLASSIFICATION : 2
TYPE BASED ON LINING MATERIAL
C h im n e y s
B r ic k lin e r S t e e l lin e r

9. CLASSIFICATION : 3
TYPE BASED ON NO. OF FLUES
C h im n e y s
S i n g le f l u e M u lt i f lu e

10. PART-3 DESIGN ASPECTS

11. SIZING OF CHIMNEY
- VOLUME OF FLUE GAS
- TEMPERATURE OF FLUE GAS AT ENTRY
POINT
- EXIT VELOCITY REQUIRED
- COMPOSITION OF FLUE GAS

12. STRUCTURAL DESIGN PARAMETERS
- SHELL
 HEIGHT OF CHIMNEY
 INTERNAL DIAMETER OF FLUE AT EXIT
 NUMBER OF FLUES (IF MULTI FLUE)
 TEMPERATURE OF FLUE GAS

13. STRUCTURAL DESIGN PARAMETERS
- SHELL (Contd.)
 LOCATION OF SITE FOR WIND &
SEISMIC LOADS
 BEARING CAPACITY / PILE CAPACITY
 TYPE OF LINING

14. LOADS ON CHIMNEY SHELL
 DEAD LOADS
 LIVE LOADS
 WIND LOADS
 SEISMIC LOADS

15. STANDARD FOLLOWED
 IS : 4998 (PART 1) - 1975
 IS : 4998 (PART 1) - 1992 RCC CHIMNEYS
 ACI 307-95
 ASCE - TASK COMMITTEE ON STEEL LINER
 CICIND CODE
 IS : 6533 (PART 1) - 1989
 IS : 6533 (PART 2) - 1989 STEEL STACKS

16. PART-4 DESIGN

17. DESIGN
 SINGLE FLUE BRICK LINER
 SINGLE FLUE STEEL LINER
 MULTI FLUE BRICK LINER
 MULTI FLUE STEEL LINER
 STEEL STACKS

18. DESIGN
 INDIAN CODES
 INTERNATIONAL CODES

19. SINGLE BRICK FLUE

20. SINGLE STEEL FLUE

21. TRIPLE STEEL FLUE

22. TWIN BRICK FLUE

23. PART-5 CASE STUDIES

24. SALIENT
FEATURES
No. of chimneys : 2
Height : 220m
Client :
NEYVELI LIGNITE
CORPORATION

25. SALIENT
FEATURES
No. of chimneys : 2
Height : 220m
Client :
KARNATAKA POWER
CORPORATION LTD.

26. SALIENT
FEATURES
No. of chimneys : 2
Height : 220m
Client :
KARNATAKA POWER
CORPORATION LTD.

27. SALIENT
FEATURES
No. of chimneys : 1
Height : 220m
Client :
TAMIL NADU
ELECTRICITY
BOARD

28. SALIENT
FEATURES
Height : 141 m
Project:
Tadipatri Cement Plant
Client :
Larsen & Toubro Ltd.
Group - V.

29. SALIENT
FEATURES
Height : 101 m
Temp. of flue gas
: 760 Deg.C
Client :
GGL Float facility,
Ankleshwar.

30. SALIENT
FEATURES
Height : 125 m
Project:
Hirmi Cement Plant
Client :
Larsen & Toubro Ltd.
Group - V.

31. SALIENT
FEATURES
Height : 92 m
Project:
Captive power plant,
Nellikuppam
Client :
EID Parry (I) Ltd.,
Nellikuppam

32. SALIENT
FEATURES
Height : 135 m
Project:
Gujarat Cement Plant
Client :
Larsen & Toubro Ltd.
Group - V.

33. SALIENT
FEATURES
Height : 90 m
Project:
Mangalore Refineries &
Petrochemicals Ltd.
Client :
Larsen & Toubro Ltd.

34. SALIENT
FEATURES
Height : 30 m
Project:
Captive power plant,
Vizag.
Client :
Rain Calcining Ltd..

35. Salient Features
Height : 100m
No of flues : 3
Type of flue : Steel
Project:
3 x 45 MW Captive
Cogen Plant,Gandhar

36. THANK YOU
