This document provides details for insulating pipe systems. It specifies using mineral fiber insulation conforming to ASTM C 547 Class 1, with a factory applied FSK/kraft paper laminate jacket. The insulation will be used on cold water, hot water, and chilled water pipes as described. Half wood sections will be inserted into the insulation and taped with FSK tape to maintain the vapor barrier. 360 degree type 40 pipe protection shields 12 inches long will be used, along with U-bolt or hanger supports conforming to MSS SP 58-69 Type 24 standards.

1. PIPE INSULATION SYSTEM
SCALE 1 / 1.5
DETAIL K
SCALE 2:1
K
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
CLIENT
CONTRACTOR
REVISIONS TABLE
SYM. DESCRIPTION DATE APPROVED
GENERAL NOTES
US ARMY CORPS OF ENGINEER AIR FORCE
AL UDEID AIR BASE QATAR
DRAWING NAME DRAWING NO.
SCALE.
SIZE.
A 3
CONSTR. CONTR. NO.
DESIGNED BY:
REV.
CHECKED BY
WAFIK R. ZAKHARY
1
SHEET DATE
MIDDLE EAST DISTRICT
PIPE INSULATION SYSTEM MS1001
1 OF 1
AS SHOWN
MAR
2014
TACTICAL RAMP & VEHICLE
MAINTENANCE FACILITY
WZ

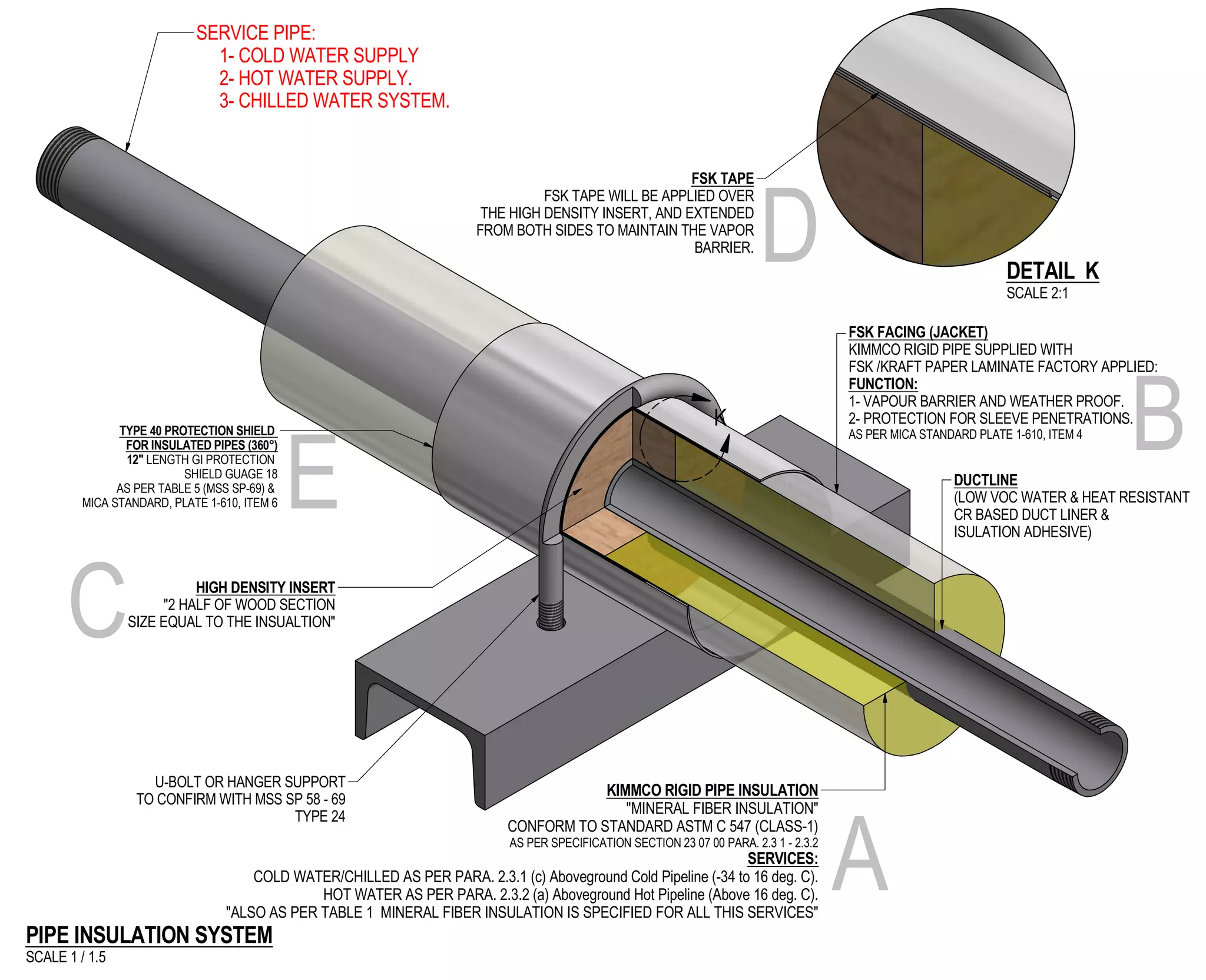

SERVICE PIPE:
1- COLD WATER SUPPLY
2- HOT WATER SUPPLY.
3- CHILLED WATER SYSTEM.
KIMMCO RIGID PIPE INSULATION
"MINERAL FIBER INSULATION"
CONFORM TO STANDARD ASTM C 547 (CLASS-1)
AS PER SPECIFICATION SECTION 23 07 00 PARA. 2.3 1 - 2.3.2
SERVICES:
COLD WATER/CHILLED AS PER PARA. 2.3.1 (c) Aboveground Cold Pipeline (-34 to 16 deg. C).
HOT WATER AS PER PARA. 2.3.2 (a) Aboveground Hot Pipeline (Above 16 deg. C).
"ALSO AS PER TABLE 1 MINERAL FIBER INSULATION IS SPECIFIED FOR ALL THIS SERVICES"
FSK FACING (JACKET)
KIMMCO RIGID PIPE SUPPLIED WITH
FSK /KRAFT PAPER LAMINATE FACTORY APPLIED:
FUNCTION:
1- VAPOUR BARRIER AND WEATHER PROOF.
2- PROTECTION FOR SLEEVE PENETRATIONS.
AS PER MICA STANDARD PLATE 1-610, ITEM 4
HIGH DENSITY INSERT
"2 HALF OF WOOD SECTION
SIZE EQUAL TO THE INSUALTION"
FSK TAPE
FSK TAPE WILL BE APPLIED OVER
THE HIGH DENSITY INSERT, AND EXTENDED
FROM BOTH SIDES TO MAINTAIN THE VAPOR
BARRIER.
A
B
C
D
TYPE 40 PROTECTION SHIELD
FOR INSULATED PIPES (360 )
12" LENGTH GI PROTECTION
SHIELD GUAGE 18
AS PER TABLE 5 (MSS SP-69) &
MICA STANDARD, PLATE 1-610, ITEM 6 E
U-BOLT OR HANGER SUPPORT
TO CONFIRM WITH MSS SP 58 - 69
TYPE 24
DUCTLINE
(LOW VOC WATER & HEAT RESISTANT
CR BASED DUCT LINER &
ISULATION ADHESIVE)
