Advancement in surface engineering processes by spraymet

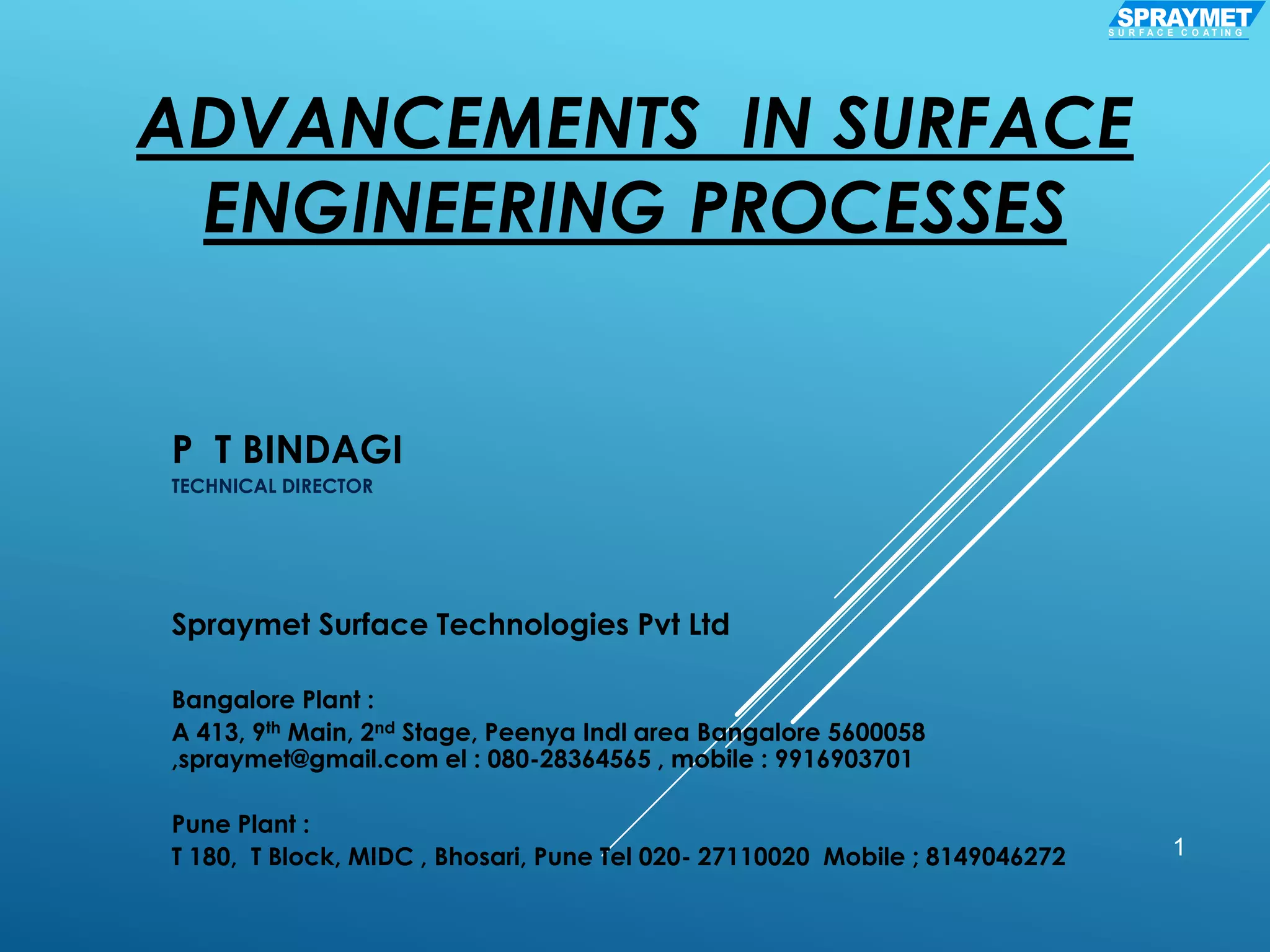

1. ADVANCEMENTS IN SURFACE
ENGINEERING PROCESSES
P T BINDAGI
TECHNICAL DIRECTOR
Spraymet Surface Technologies Pvt Ltd
Bangalore Plant :
A 413, 9th Main, 2nd Stage, Peenya Indl area Bangalore 5600058
,spraymet@gmail.com el : 080-28364565 , mobile : 9916903701
Pune Plant :
T 180, T Block, MIDC , Bhosari, Pune Tel 020- 27110020 Mobile ; 8149046272 1
SPRAYMETS U R F A C E C O A T I N G

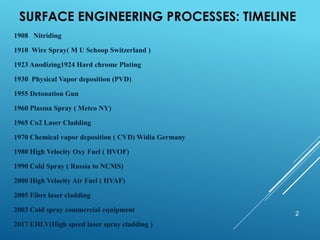

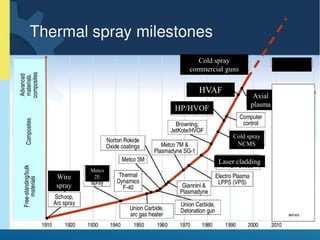

2. SURFACE ENGINEERING PROCESSES: TIMELINE
2
1908 Nitriding
1910 Wire Spray( M U Schoop Switzerland )
1923 Anodizing1924 Hard chrome Plating
1930 Physical Vapor deposition (PVD)
1955 Detonation Gun
1960 Plasma Spray ( Metco NY)
1965 Co2 Laser Cladding
1970 Chemical vapor deposition ( CVD) Widia Germany
1980 High Velocity Oxy Fuel ( HVOF)
1990 Cold Spray ( Russia to NCMS)
2000 High Velocity Air Fuel ( HVAF)
2005 Fibre laser cladding
2003 Cold spray commercial equipment
2017 EHLV(High speed laser spray cladding )

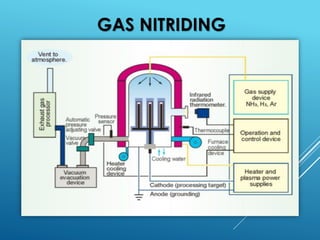

4. GAS NITRIDING PROCESS
4
Gas Nitriding
In gas Nitriding the donor is a nitrogen rich gas,
usually ammonia (NH3),
When ammonia comes into contact with the heated work piece it
dissociates into nitrogen and hydrogen.
The nitrogen then diffuses onto the surface of the material creating a
nitride layer. This process has existed for nearly a century
Recent developments have led to a process that can be accurately
controlled. The thickness and phase constitution of the resulting
Nitriding layers can be selected and the process optimized for the
particular properties required.

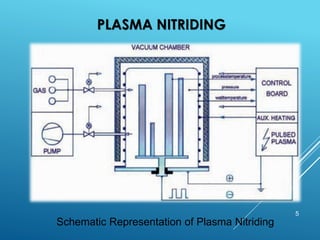

6. PLASMA NITRIDING PROCESS
6
Plasma Nitriding, also known as ion
Nitriding, plasma ion Nitriding or glow-discharge
Nitriding, is an industrial surface hardening
treatment for metallic materials.
In plasma Nitriding, the reactivity of the Nitriding
media is due to the gas in ionized state. In this
technique intense electric fields are used to
generate ionized molecules of the gas around
the surface to be nitrided. Such highly active
gas with ionized molecules is called plasma,
naming the technique. The gas used for plasma
Nitriding is usually pure nitrogen, since no
spontaneous decomposition is needed (as is
the case of gas Nitriding with ammonia).

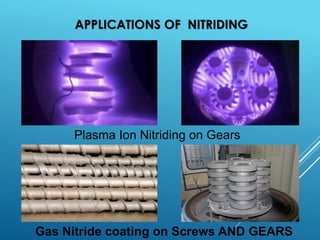

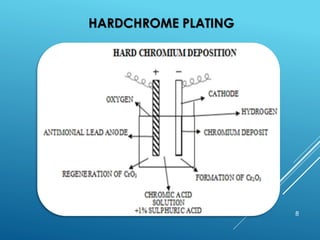

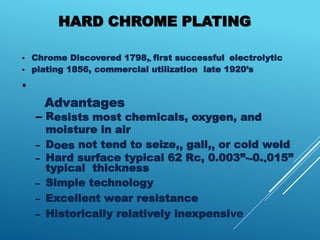

9. HARD CHROME PLATING
• Chrome Discovered 1798,, first successful electrolytic
• plating 1856, commercial utilization late 1920’s
•
Advantages
– Resists most chemicals, oxygen, and
moisture in air
– Does not tend to seize,, gall,, or cold weld
– Hard surface typical 62 Rc, 0.003”--0..015”
typical thickness
– Simple technology
– Excellent wear resistance
– Historically relatively inexpensive

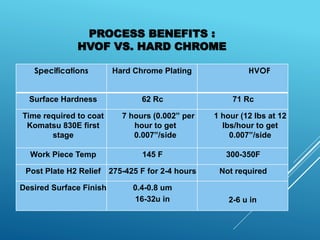

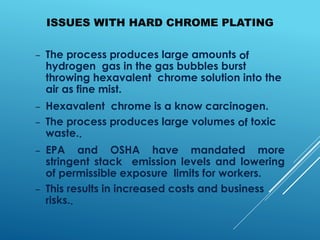

10. ISSUES WITH HARD CHROME PLATING
– The process produces large amounts of
hydrogen gas in the gas bubbles burst
throwing hexavalent chrome solution into the
air as fine mist.
– Hexavalent chrome is a know carcinogen.
– The process produces large volumes of toxic
waste..
– EPA and OSHA have mandated more
stringent stack emission levels and lowering
of permissible exposure limits for workers.
– This results in increased costs and business
risks..

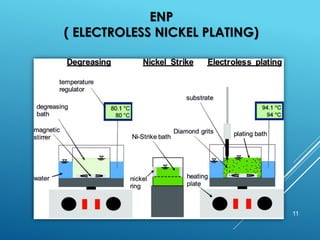

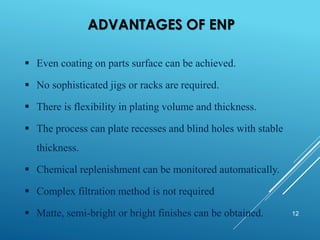

12. ADVANTAGES OF ENP
12
▪ Even coating on parts surface can be achieved.
▪ No sophisticated jigs or racks are required.
▪ There is flexibility in plating volume and thickness.
▪ The process can plate recesses and blind holes with stable
thickness.
▪ Chemical replenishment can be monitored automatically.
▪ Complex filtration method is not required
▪ Matte, semi-bright or bright finishes can be obtained.

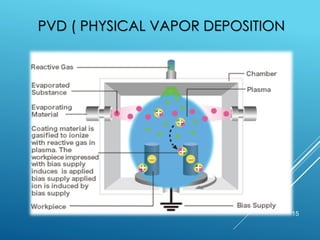

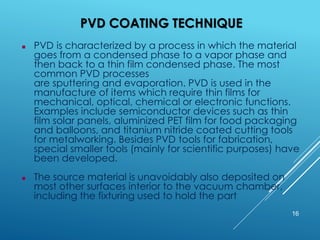

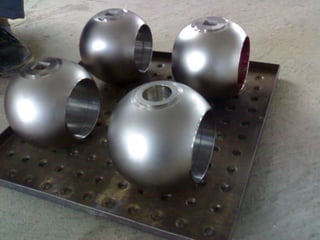

16. PVD COATING TECHNIQUE
16
PVD is characterized by a process in which the material
goes from a condensed phase to a vapor phase and
then back to a thin film condensed phase. The most
common PVD processes
are sputtering and evaporation. PVD is used in the
manufacture of items which require thin films for
mechanical, optical, chemical or electronic functions.
Examples include semiconductor devices such as thin
film solar panels, aluminized PET film for food packaging
and balloons, and titanium nitride coated cutting tools
for metalworking. Besides PVD tools for fabrication,
special smaller tools (mainly for scientific purposes) have
been developed.
The source material is unavoidably also deposited on
most other surfaces interior to the vacuum chamber,
including the fixturing used to hold the part

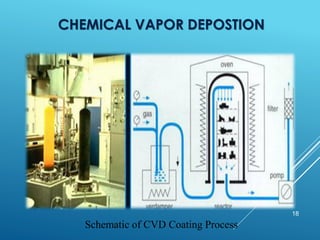

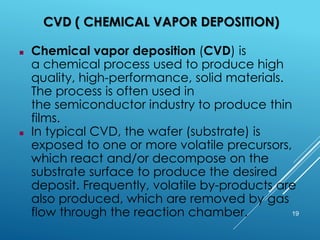

19. CVD ( CHEMICAL VAPOR DEPOSITION)
19
Chemical vapor deposition (CVD) is
a chemical process used to produce high
quality, high-performance, solid materials.
The process is often used in
the semiconductor industry to produce thin
films.
In typical CVD, the wafer (substrate) is
exposed to one or more volatile precursors,
which react and/or decompose on the
substrate surface to produce the desired
deposit. Frequently, volatile by-products are
also produced, which are removed by gas
flow through the reaction chamber.

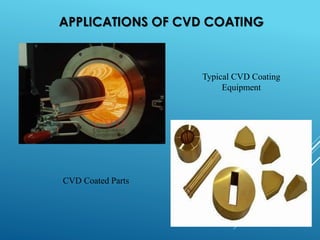

20. APPLICATIONS OF CVD COATING
20
Typical CVD Coating
Equipment
CVD Coated Parts

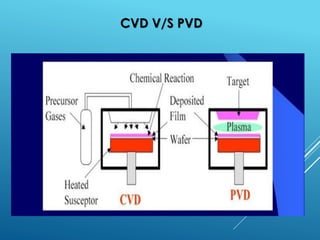

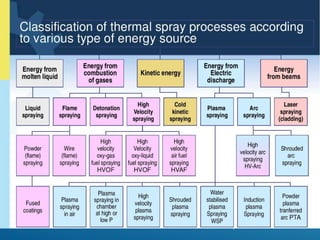

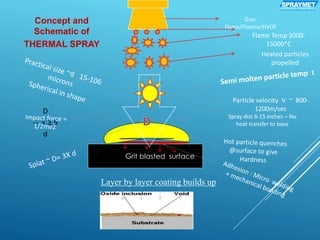

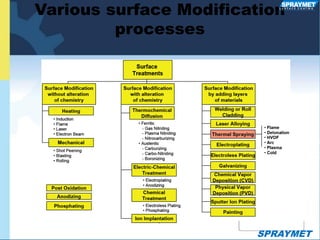

25. Gun-
Flsme/Plasma/HVOF
Flame Temp 3000-
15000*C
Particle velocity V ~ 800-
1200m/sec
Spray dist 6-15 inches – No
heat transfer to base
Grit blasted surface
D
-- = 3.5
d
SPRAYMETS U R F A C E C O A T I N G
Heated particles
propelled
Concept and
Schematic of
THERMAL SPRAY
Layer by layer coating builds up

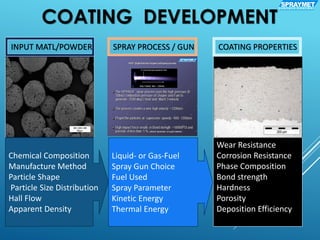

26. COATING DEVELOPMENT
26
Chemical Composition
Manufacture Method
Particle Shape
Particle Size Distribution
Hall Flow
Apparent Density
Liquid- or Gas-Fuel
Spray Gun Choice
Fuel Used
Spray Parameter
Kinetic Energy
Thermal Energy
INPUT MATL/POWDER SPRAY PROCESS / GUN COATING PROPERTIES
Wear Resistance
Corrosion Resistance
Phase Composition
Bond strength
Hardness
Porosity
Deposition Efficiency
SPRAYMETS U R F A C E C O A T I N G

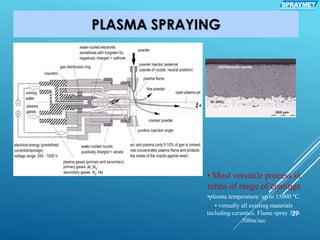

27. PLASMA SPRAYING
27
• Most versatile process in
terms of range of coatings
•plasma temperature: up to 15000 ºC.
• virtually all existing materials
including ceramics. Flame spray 350-
500m/sec
SPRAYMETS U R F A C E C O A T I N G

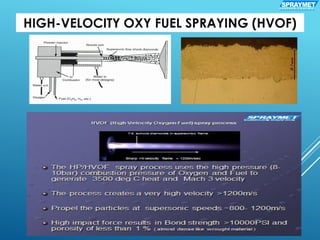

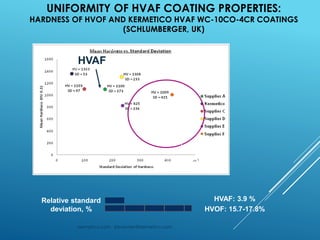

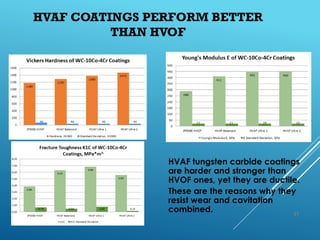

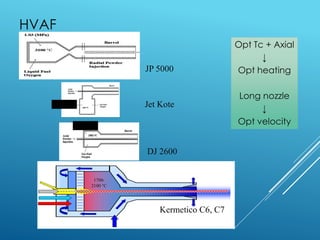

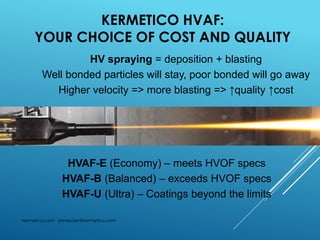

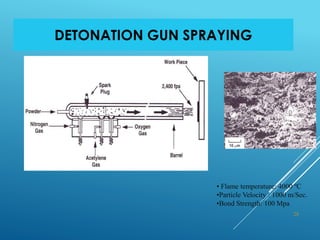

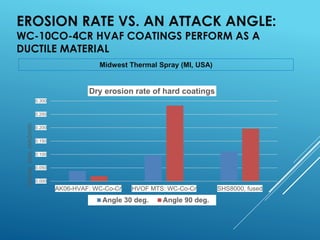

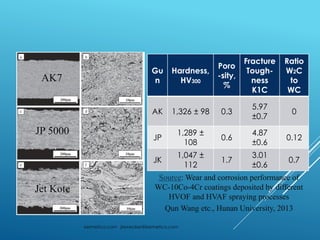

37. HVAF COATINGS PERFORM BETTER
THAN HVOF
HVAF tungsten carbide coatings
are harder and stronger than
HVOF ones, yet they are ductile.
These are the reasons why they
resist wear and cavitation
combined. 37

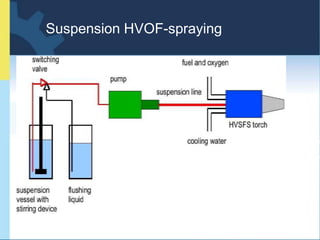

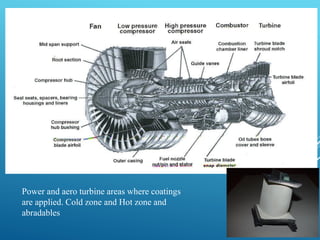

39. APPLICATIONS
SPRAYED COATINGS IN AN AIRCRAFT ENGINE
39
Power and aero turbine areas where coatings
are applied. Cold zone and Hot zone and
abradables

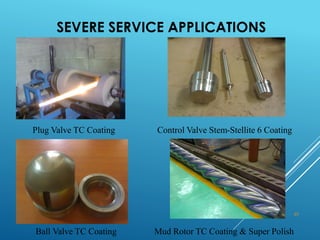

40. SEVERE SERVICE APPLICATIONS
40
Plug Valve TC Coating Control Valve Stem-Stellite 6 Coating
Ball Valve TC Coating Mud Rotor TC Coating & Super Polish

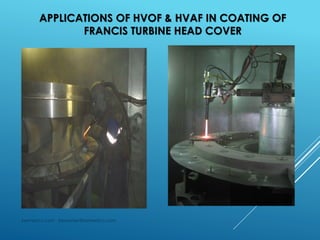

41. APPLICATIONS OF HVOF & HVAF IN COATING OF
FRANCIS TURBINE HEAD COVER
kermetico.com jrienecker@kermetico.com

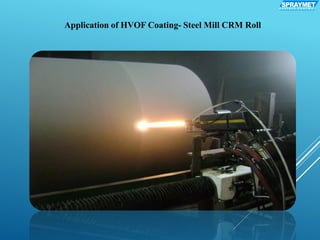

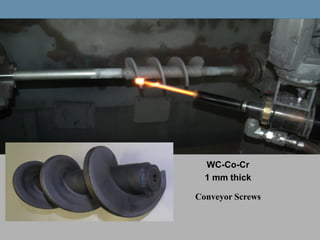

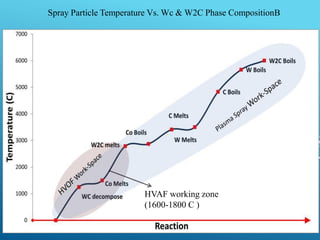

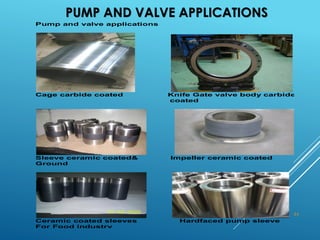

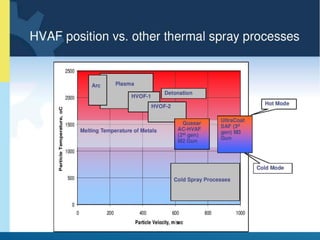

48. The gas dynamic cold spray coating is based on the projection of solid powder at
high velocity.
Compressed
gas
Powder
feeder
Substrate
De Laval Nozzle
Principle of cold spray
1. A compressed gas is heated before entering in a DE
Laval Nozzle.
2. The gas is accelerated in the nozzle.
3. Powder is injected in the gas stream and accelerated as
well.
4. The powder reaches velocity up to 1200 m/s.
5. The powder is plastically deformed and the coating is
building up.

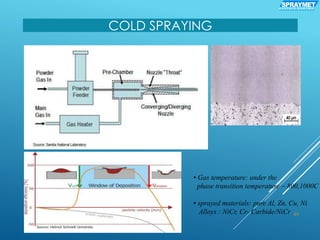

49. COLD SPRAYING
49
• Gas temperature: under the
phase transition temperature ~ 800,1000C
• sprayed materials: pure Al, Zn, Cu, Ni
Alloys : NiCr, Cr- Carbide/NiCr
SPRAYMETS U R F A C E C O A T I N G

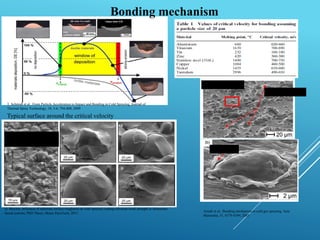

50. Copper on copper
Assadi et al., Bonding mechanism in cold gas spraying, Acta
Materialia, 51, 4379-4394, 2003
T. Schmidt et al., From Particle Acceleration to Impact and Bonding in Cold Spraying, Journal of
Thermal Spray Technology, 18, 5-6, 794-808, 2009
Bonding mechanism
Rebound zone
Material jet
Typical surface around the critical velocity
A1050 powder on 2024-
T3 substrate
Q. Blochet, Influence of substrate surface roughness on cold-sprayed coating-substrate bond strength in aluminum-
based systems, PhD Thesis, Mines ParisTech, 2015

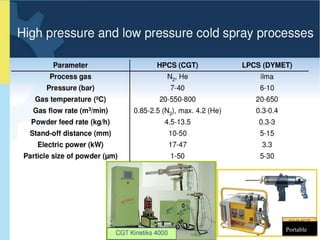

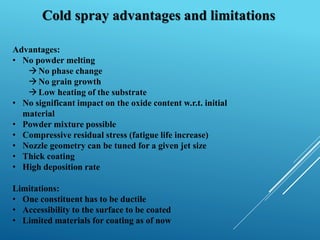

52. Cold spray advantages and limitations
Advantages:
• No powder melting
No phase change
No grain growth
Low heating of the substrate
• No significant impact on the oxide content w.r.t. initial
material
• Powder mixture possible
• Compressive residual stress (fatigue life increase)
• Nozzle geometry can be tuned for a given jet size
• Thick coating
• High deposition rate
Limitations:
• One constituent has to be ductile
• Accessibility to the surface to be coated
• Limited materials for coating as of now

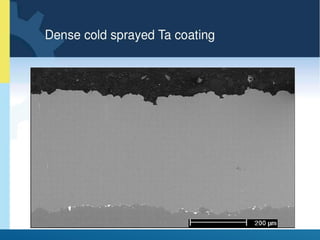

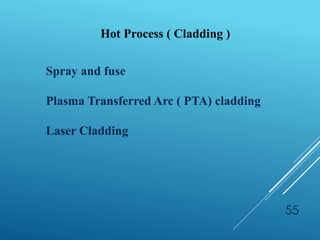

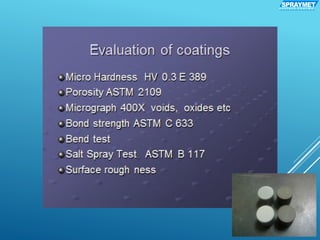

55. 55
Hot Process ( Cladding )
Spray and fuse
Plasma Transferred Arc ( PTA) cladding
Laser Cladding
56. 56
SPRAYMET SPRAY AND FUSE PROCESS Tech sheet : NCB1C/S and F
Bangalore / pune Self fluxing alloys # 45,50,60 ) 30.3.2013 : rev 3 25.10.2016
Clean the surface with solvents
Shot blast with steel grits ( Do not use Aluminu, oxide grits)
Preheat the job in rotation to ~ 200 deg ( flat jobs can be stationery with firm fixture)
Spray the alloy ( # 45 , 55, 60 , ) approx 300 micorns to avoid surface oxidtion
Increase the temp of job to ~ 650C with torch and when job is hot spray again to build up.
Fuse total thickness ( 1.5 mm – 2mm) together with uniform orange color on job. ( 900-1050*C)
Allow job to rotate for some time till orange color disappears. Else bend will come in job.
Slow cool the job by keeping in rock wool or vermiculite till room temperature
After spray brics are kept around job to contain heat for faster torch fusion
Big jobs needs two or three torches for fusion. Long jobs can be gradually fused in rotation .

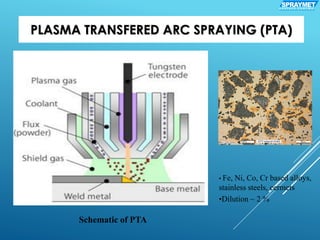

57. PLASMA TRANSFERED ARC SPRAYING (PTA)
• Fe, Ni, Co, Cr based alloys,
stainless steels, cermets
•Dilution ~ 2 %
SPRAYMETS U R F A C E C O A T I N G
Schematic of PTA
58. APPLICATIONS OF PTA
58
Hard Surfacing
PTAW is well suited to apply hard alloys for wear resistance. Stellite,
Colmonoy, Hastelloy, and Tungsten Carbide can all be successfully applied with
PTAW.
Corrosion Resistant Overlays
The localize heat input characteristics of PTAW allow corrosion resistant alloys
to be applied with very little dilution into the base material. PTAW can achieve
subsea chemistry requirements of <5% Fe in as little as 0.040” of overlay
thickness.
Flow Controls
Valve Bores, Gates, Seats, Seat Pockets, Ring Grooves, Valve Stems.
Power Industry
Turbine Blades, Shafts, Bearing Surfaces, etc.
59. EXAMPLES OF PTA CLADDING
Rock Bit Journal Overlayed with
Stellite 6 Crack Free
Typical PTA depositon

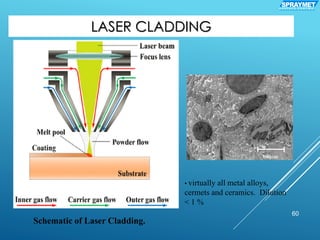

60. LASER CLADDING
60
• virtually all metal alloys,
cermets and ceramics. Dilution
< 1 %
SPRAYMETS U R F A C E C O A T I N G
Schematic of Laser Cladding.

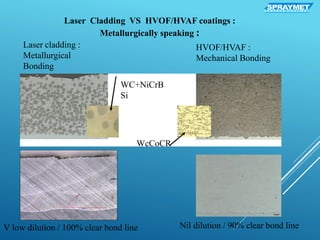

61. Laser cladding :
Metallurgical
Bonding
HVOF/HVAF :
Mechanical Bonding
WC+NiCrB
Si
WcCoCR
V low dilution / 100% clear bond line Nil dilution / 90% clear bond line
Laser Cladding VS HVOF/HVAF coatings :
Metallurgically speaking :
SPRAYMETS U R F A C E C O A T I N G

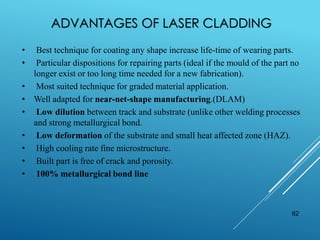

62. ADVANTAGES OF LASER CLADDING
62
• Best technique for coating any shape increase life-time of wearing parts.
• Particular dispositions for repairing parts (ideal if the mould of the part no
longer exist or too long time needed for a new fabrication).
• Most suited technique for graded material application.
• Well adapted for near-net-shape manufacturing.(DLAM)
• Low dilution between track and substrate (unlike other welding processes
and strong metallurgical bond.
• Low deformation of the substrate and small heat affected zone (HAZ).
• High cooling rate fine microstructure.
• Built part is free of crack and porosity.
• 100% metallurgical bond line

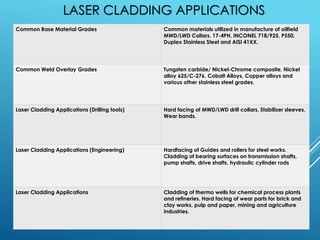

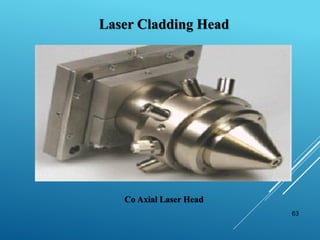

64. LASER CLADDING APPLICATIONS
64
Common Base Material Grades Common materials utilized in manufacture of oilfield
MWD/LWD Collars. 17-4PH, INCONEL 718/925, P550,
Duplex Stainless Steel and AISI 41XX.
Common Weld Overlay Grades Tungsten carbide/ Nickel-Chrome composite, Nickel
alloy 625/C-276, Cobalt Alloys, Copper alloys and
various other stainless steel grades.
Laser Cladding Applications (Drilling tools) Hard facing of MWD/LWD drill collars, Stabilizer sleeves,
Wear bands.
Laser Cladding Applications (Engineering) Hardfacing of Guides and rollers for steel works.
Cladding of bearing surfaces on transmission shafts,
pump shafts, drive shafts, hydraulic cylinder rods
Laser Cladding Applications Cladding of thermo wells for chemical process plants
and refineries. Hard facing of wear parts for brick and
clay works, pulp and paper, mining and agriculture
industries.

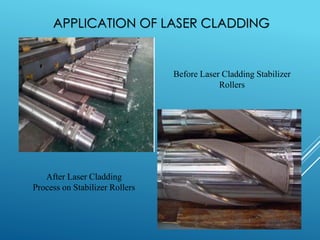

65. APPLICATION OF LASER CLADDING
65
Before Laser Cladding Stabilizer
Rollers
After Laser Cladding
Process on Stabilizer Rollers

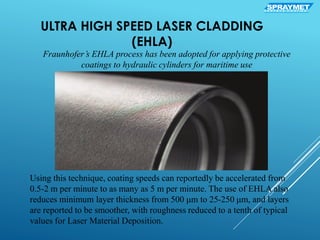

67. ULTRA HIGH SPEED LASER CLADDING
(EHLA)
Fraunhofer’s EHLA process has been adopted for applying protective
coatings to hydraulic cylinders for maritime use
Using this technique, coating speeds can reportedly be accelerated from
0.5-2 m per minute to as many as 5 m per minute. The use of EHLA also
reduces minimum layer thickness from 500 μm to 25-250 μm, and layers
are reported to be smoother, with roughness reduced to a tenth of typical
values for Laser Material Deposition.
SPRAYMETS U R F A C E C O A T I N G

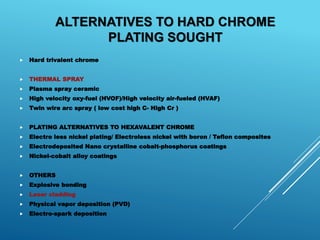

68. Hard trivalent chrome
THERMAL SPRAY
Plasma spray ceramic
High velocity oxy-fuel (HVOF)/High velocity air-fueled (HVAF)
Twin wire arc spray ( low cost high C- High Cr )
PLATING ALTERNATIVES TO HEXAVALENT CHROME
Electro less nickel plating/ Electroless nickel with boron / Teflon composites
Electrodeposited Nano crystalline cobalt-phosphorus coatings
Nickel-cobalt alloy coatings
OTHERS
Explosive bonding
Laser cladding
Physical vapor deposition (PVD)
Electro-spark deposition
ALTERNATIVES TO HARD CHROME
PLATING SOUGHT

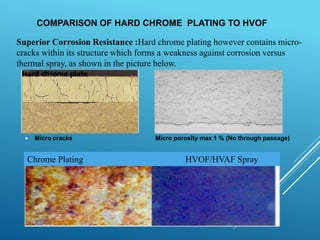

69. COMPARISON OF HARD CHROME PLATING TO HVOF
Micro cracks Micro porosity max 1 % (No through passage)
Hard chrome plate
Superior Corrosion Resistance :Hard chrome plating however contains micro-
cracks within its structure which forms a weakness against corrosion versus
thermal spray, as shown in the picture below.
Chrome Plating HVOF/HVAF Spray

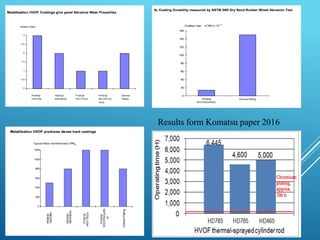

71. PROCESS BENEFITS :
HVOF VS. HARD CHROME
Specifications Hard Chrome Plating HVOF
Surface Hardness 62 Rc 71 Rc
Time required to coat
Komatsu 830E first
stage
7 hours (0.002” per
hour to get
0.007”/side
1 hour (12 lbs at 12
lbs/hour to get
0.007”/side
Work Piece Temp 145 F 300-350F
Post Plate H2 Relief 275-425 F for 2-4 hours Not required
Desired Surface Finish 0.4-0.8 um
16-32u in 2-6 u in

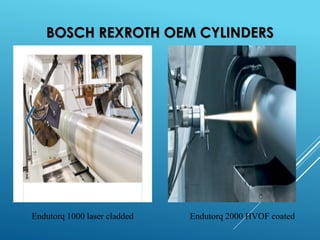

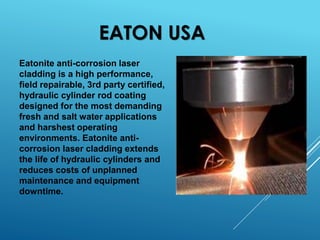

73. EATON USA
Eatonite anti-corrosion laser
cladding is a high performance,
field repairable, 3rd party certified,
hydraulic cylinder rod coating
designed for the most demanding
fresh and salt water applications
and harshest operating
environments. Eatonite anti-
corrosion laser cladding extends
the life of hydraulic cylinders and
reduces costs of unplanned
maintenance and equipment
downtime.

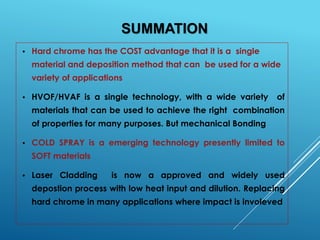

74. SUMMATION
• Hard chrome has the COST advantage that it is a single
material and deposition method that can be used for a wide
variety of applications
• HVOF/HVAF is a single technology, with a wide variety of
materials that can be used to achieve the right combination
of properties for many purposes. But mechanical Bonding
• COLD SPRAY is a emerging technology presently limited to
SOFT materials
• Laser Cladding is now a approved and widely used
depostion process with low heat input and dilution. Replacing
hard chrome in many applications where impact is involeved
