1. CHEST RADIOLOGY
Assisted by
many bright future (summer volunteers) and
current medical students
Prepared by
Dr Nasir Jaffer
Associate Professor
University Of Toronto
This teaching file is dedicated to
Late Dr Bernie Shapiro, who once said:
“ A great teacher is one who
leaves behind him/her a blazing trail of
superb teachers”

2. NOMENCLATURE IN PULMONARY RADIOLOGY
“You see what you look for and you recognise
what you know”
In the line drawing on
your right, what figure
do you see?
In radiology many terms
are used to identify
abnormalities on a
radiograph. The following
slides illustrate a few of
these used in pulmonary
radiology
The figure is either a
beautiful young lady
or an old woman

3. A medical student’s famous words!

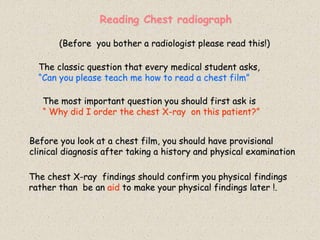

4. Reading Chest radiograph
The classic question that every medical student asks,
“Can you please teach me how to read a chest film”
Before you look at a chest film, you should have provisional
clinical diagnosis after taking a history and physical examination
The chest X-ray findings should confirm you physical findings
rather than be an aid to make your physical findings later !.
(Before you bother a radiologist please read this!)
The most important question you should first ask is
“ Why did I order the chest X-ray on this patient?”

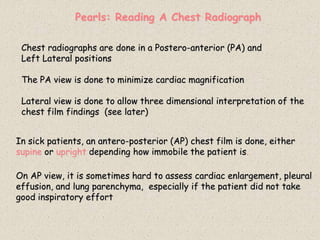

5. Pearls: Reading A Chest Radiograph
Chest radiographs are done in a Postero-anterior (PA) and
Left Lateral positions
The PA view is done to minimize cardiac magnification
Lateral view is done to allow three dimensional interpretation of the
chest film findings (see later)
In sick patients, an antero-posterior (AP) chest film is done, either
supine or upright depending how immobile the patient is.
On AP view, it is sometimes hard to assess cardiac enlargement, pleural
effusion, and lung parenchyma, especially if the patient did not take
good inspiratory effort

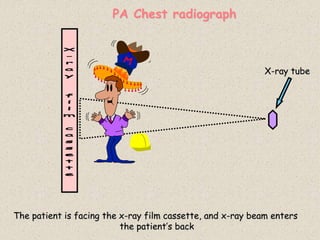

6. PA Chest radiograph
X-ray tube
The patient is facing the x-ray film cassette, and x-ray beam enters
the patient’s back

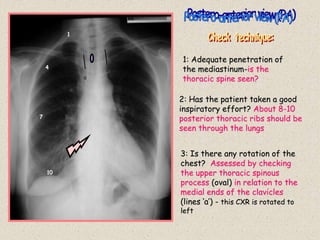

7. 3: Is there any rotation of the
chest? Assessed by checking
the upper thoracic spinous
process (oval) in relation to the
medial ends of the clavicles
(lines ‘a’) - this CXR is rotated to
left
1
4
7
10
a
a
1: Adequate penetration of
the mediastinum-is the
thoracic spine seen?
2: Has the patient taken a good
inspiratory effort? About 8-10
posterior thoracic ribs should be
seen through the lungs

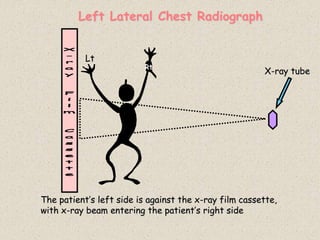

8. Left Lateral Chest Radiograph
X-ray tube
The patient’s left side is against the x-ray film cassette,
with x-ray beam entering the patient’s right side
Lt
Rt

9. Lateral view
The patient’s left side is
against the film and the
X-ray beam travels from
the right to left side
This view is used to localise
 A lung lesion (nodule or
consolidation etc) to a
specific segment of lung,
 Other pathology if you
know your anatomy of
lateral CXR (See later)
 Assess cardiac
enlargement (left/right
ventricle, left atrium)
 Hilar enlargement,
thoracic spine etc

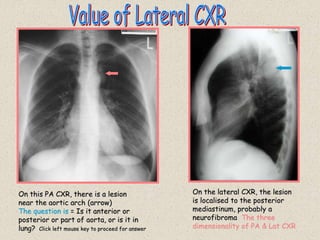

10. On this PA CXR, there is a lesion
near the aortic arch (arrow)
The question is = Is it anterior or
posterior or part of aorta, or is it in
lung? Click left mouse key to proceed for answer
On the lateral CXR, the lesion
is localised to the posterior
mediastinum, probably a
neurofibroma The three
dimensionality of PA & Lat CXR

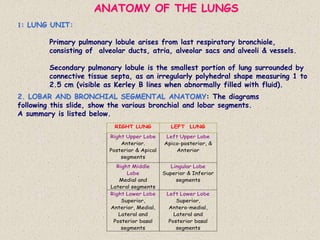

12. ANATOMY OF THE LUNGS
1: LUNG UNIT:
Primary pulmonary lobule arises from last respiratory bronchiole,
consisting of alveolar ducts, atria, alveolar sacs and alveoli & vessels.
Secondary pulmonary lobule is the smallest portion of lung surrounded by
connective tissue septa, as an irregularly polyhedral shape measuring 1 to
2.5 cm (visible as Kerley B lines when abnormally filled with fluid).
RIGHT LUNG LEFT LUNG
Right Upper Lobe
Anterior.
Posterior & Apical
segments
Left Upper Lobe
Apico-posterior, &
Anterior
Right Middle
Lobe
Medial and
Lateral segments
Lingular Lobe
Superior & Inferior
segments
Right Lower Lobe
Superior,
Anterior, Medial,
Lateral and
Posterior basal
segments
Left Lower Lobe
Superior,
Antero-medial,
Lateral and
Posterior basal
segments
2. LOBAR AND BRONCHIAL SEGMENTAL ANATOMY: The diagrams
following this slide, show the various bronchial and lobar segments.
A summary is listed below.

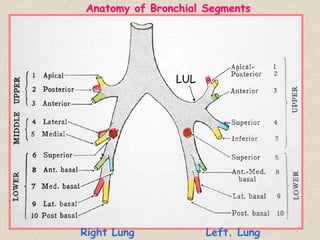

13. Anatomy of Bronchial Segments
LUL
Right Lung Left. Lung

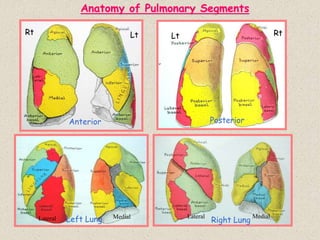

14. Rt Lt
Anterior
Lateral Medial
Left Lung Lateral Medial
Right Lung
Posterior
Anatomy of Pulmonary Segments
Lt Rt

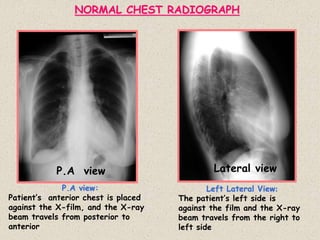

15. NORMAL CHEST RADIOGRAPH
P.A view Lateral view
P.A view:
Patient’s anterior chest is placed
against the X-film, and the X-ray
beam travels from posterior to
anterior
Left Lateral View:
The patient’s left side is
against the film and the X-ray
beam travels from the right to
left side

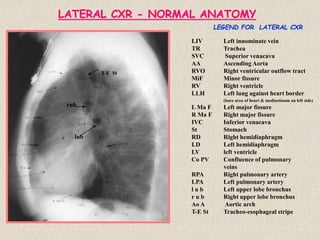

16. LATERAL CXR - NORMAL ANATOMY
LIV Left innominate vein
TR Trachea
SVC Superior venacava
AA Ascending Aorta
RVO Right ventricular outflow tract
MiF Minor fissure
RV Right ventricle
LLH Left lung against heart border
(bare area of heart & mediastinum on left side)
L Ma F Left major fissure
R Ma F Right major fissure
IVC Inferior venacava
St Stomach
RD Right hemidiaphragm
LD Left hemidiaphragm
LV left ventricle
Co PV Confluence of pulmonary
veins
RPA Right pulmonary artery
LPA Left pulmonary artery
l u b Left upper lobe bronchus
r u b Right upper lobe bronchus
Ao A Aortic arch
T-E St Tracheo-esophageal stripe
LEGEND FOR LATERAL CXR
rub
lub
T-E St

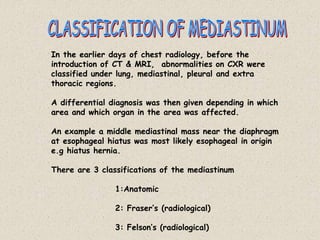

17. In the earlier days of chest radiology, before the
introduction of CT & MRI, abnormalities on CXR were
classified under lung, mediastinal, pleural and extra
thoracic regions.
A differential diagnosis was then given depending in which
area and which organ in the area was affected.
An example a middle mediastinal mass near the diaphragm
at esophageal hiatus was most likely esophageal in origin
e.g hiatus hernia.
There are 3 classifications of the mediastinum
1:Anatomic
2: Fraser’s (radiological)
3: Felson’s (radiological)

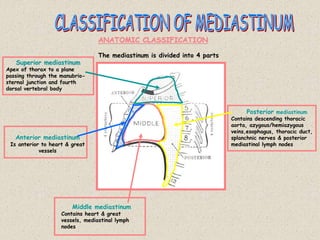

18. ANATOMIC CLASSIFICATION
The mediastinum is divided into 4 parts
Superior mediastinum
Apex of thorax to a plane
passing through the manubrio-
sternal junction and fourth
dorsal vertebral body
Anterior mediastinum
Is anterior to heart & great
vessels
Middle mediastinum
Contains heart & great
vessels, mediastinal lymph
nodes
Posterior mediastinum
Contains descending thoracic
aorta, azygous/hemiazygous
veins,esophagus, thoracic duct,
splanchnic nerves & posterior
mediastinal lymph nodes

19. FELSON’S CLASSIFICATION
CLASSIFICATION OF MEDIASTINUM
FELSON’S RADIOLOGICAL CLASSIFICATION
Posterior
Middle
Anterior
Felson’ classification divided the
thorax into 3 compartments,
Anterior, Middle and Posterior.
Anterior: The boundaries were the
sternum anteriorly and a line drawn
from the anterior tracheal wall and
behind the heart
Middle: The compartment bounded
by the trachea/posterior heart
border and a line drawn 1cm
posterior to the anterior portion of
thoracic spine.
Posterior: The space behind the
posterior limit of middle mediastinum
1 cm

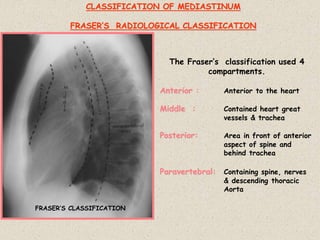

20. FRASER’S CLASSIFICATION
The Fraser’s classification used 4
compartments.
Anterior : Anterior to the heart
Middle : Contained heart great
vessels & trachea
Posterior: Area in front of anterior
aspect of spine and
behind trachea
Paravertebral: Containing spine, nerves
& descending thoracic
Aorta
CLASSIFICATION OF MEDIASTINUM
FRASER’S RADIOLOGICAL CLASSIFICATION

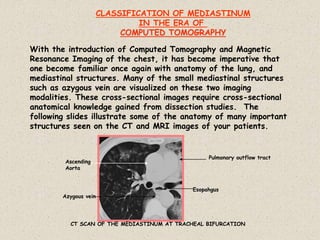

21. CLASSIFICATION OF MEDIASTINUM
IN THE ERA OF
COMPUTED TOMOGRAPHY
With the introduction of Computed Tomography and Magnetic
Resonance Imaging of the chest, it has become imperative that
one become familiar once again with anatomy of the lung, and
mediastinal structures. Many of the small mediastinal structures
such as azygous vein are visualized on these two imaging
modalities. These cross-sectional images require cross-sectional
anatomical knowledge gained from dissection studies. The
following slides illustrate some of the anatomy of many important
structures seen on the CT and MRI images of your patients.
Esopahgus
Azygous vein
Ascending
Aorta
Pulmonary outflow tract
CT SCAN OF THE MEDIASTINUM AT TRACHEAL BIFURCATION

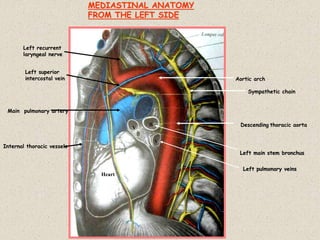

22. Heart
Descending thoracic aorta
Main pulmonary artery
Internal thoracic vessels
Left superior
intercostal vein Aortic arch
Sympathetic chain
Left recurrent
laryngeal nerve
B
V
V
MEDIASTINAL ANATOMY
FROM THE LEFT SIDE
Left pulmonary veins
Left main stem bronchus

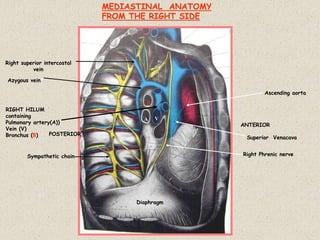

23. MEDIASTINAL ANATOMY
FROM THE RIGHT SIDE
ANTERIOR
POSTERIOR
Diaphragm
Azygous vein
Sympathetic chain
Right superior intercostal
vein
Ascending aorta
Superior Venacava
RIGHT HILUM
containing
Pulmonary artery(A))
Vein (V)
Bronchus (B)
Right Phrenic nerve
A V
B

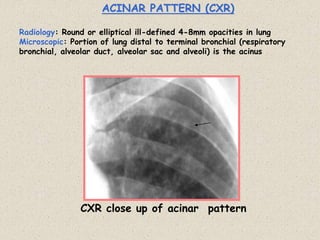

25. ACINAR PATTERN (CXR)
Radiology: Round or elliptical ill-defined 4-8mm opacities in lung
Microscopic: Portion of lung distal to terminal bronchial (respiratory
bronchial, alveolar duct, alveolar sac and alveoli) is the acinus
CXR close up of acinar pattern

26. ACINAR PATTERN (CT SCAN)
Round or elliptical ill-defined 4-8mm opacities in
lung
CT scan of right upper lobe
showing typical acinar pattern
(arrow)

27. AIR BRONCHOGRAM
Air containing bronchus peripheral to the hilum
surrounded by airless lung
CXR CT Scan
Air Bronchogram

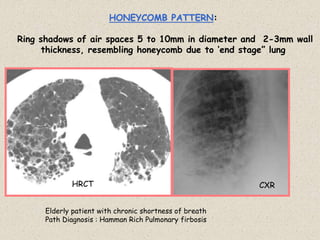

28. HONEYCOMB PATTERN:
Ring shadows of air spaces 5 to 10mm in diameter and 2-3mm wall
thickness, resembling honeycomb due to ‘end stage” lung
HRCT CXR
Elderly patient with chronic shortness of breath
Path Diagnosis : Hamman Rich Pulmonary firbosis

29. RETICULAR PATTERN
A collection of innumerable small linear opacities that together
produce an appearance resembling a net. The pattern can be fine,
medium or coarse.
LUL
RUL
Fine Medium

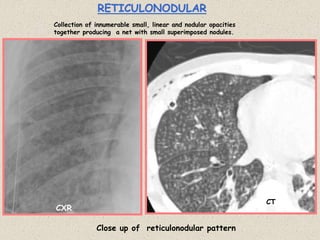

30. RETICULONODULAR
Collection of innumerable small, linear and nodular opacities
together producing a net with small superimposed nodules.
Close up of reticulonodular pattern
CXR
CT

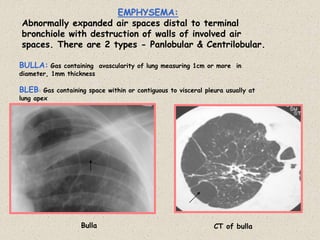

31. BULLA: Gas containing avascularity of lung measuring 1cm or more in
diameter, 1mm thickness
BLEB: Gas containing space within or contiguous to visceral pleura usually at
lung apex
EMPHYSEMA:
Abnormally expanded air spaces distal to terminal
bronchiole with destruction of walls of involved air
spaces. There are 2 types - Panlobular & Centrilobular.
Bulla CT of bulla

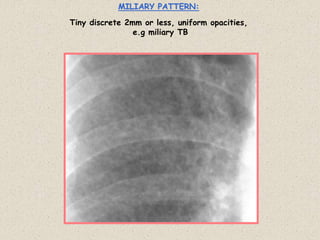

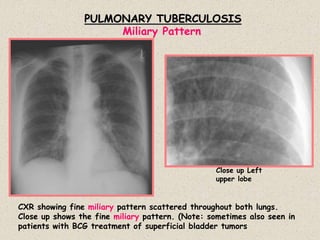

32. MILIARY PATTERN:
Tiny discrete 2mm or less, uniform opacities,
e.g miliary TB

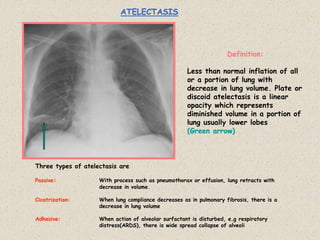

33. ATELECTASIS
Three types of atelectasis are
Passive: With process such as pneumothorax or effusion, lung retracts with
decrease in volume.
Cicatrization: When lung compliance decreases as in pulmonary fibrosis, there is a
decrease in lung volume
Adhesive: When action of alveolar surfactant is disturbed, e.g respiratory
distress(ARDS), there is wide spread collapse of alveoli
Definition:
Less than normal inflation of all
or a portion of lung with
decrease in lung volume. Plate or
discoid atelectasis is a linear
opacity which represents
diminished volume in a portion of
lung usually lower lobes
(Green arrow)

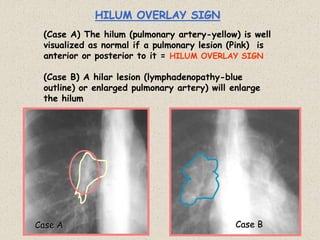

34. HILUM OVERLAY SIGN
(Case A) The hilum (pulmonary artery-yellow) is well
visualized as normal if a pulmonary lesion (Pink) is
anterior or posterior to it = HILUM OVERLAY SIGN
(Case B) A hilar lesion (lymphadenopathy-blue
outline) or enlarged pulmonary artery) will enlarge
the hilum
Case A Case B

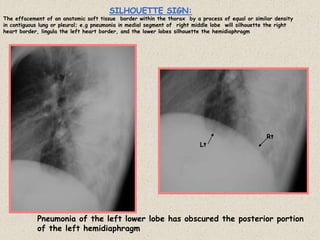

35. SILHOUETTE SIGN:
The effacement of an anatomic soft tissue border within the thorax by a process of equal or similar density
in contiguous lung or pleural; e.g pneumonia in medial segment of right middle lobe will silhouette the right
heart border, lingula the left heart border, and the lower lobes silhouette the hemidiaphragm
Pneumonia of the left lower lobe has obscured the posterior portion
of the left hemidiaphragm
Rt
Lt

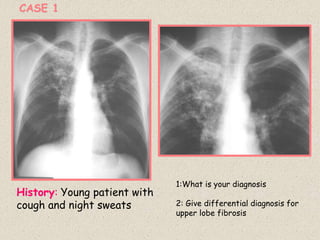

37. History: Young patient with
cough and night sweats
1:What is your diagnosis
2: Give differential diagnosis for
upper lobe fibrosis
CASE 1

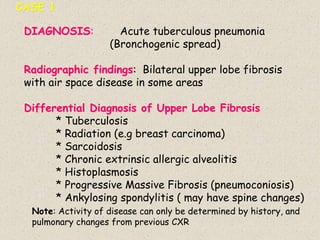

38. DIAGNOSIS: Acute tuberculous pneumonia
(Bronchogenic spread)
Radiographic findings: Bilateral upper lobe fibrosis
with air space disease in some areas
Differential Diagnosis of Upper Lobe Fibrosis
* Tuberculosis
* Radiation (e.g breast carcinoma)
* Sarcoidosis
* Chronic extrinsic allergic alveolitis
* Histoplasmosis
* Progressive Massive Fibrosis (pneumoconiosis)
* Ankylosing spondylitis ( may have spine changes)
Note: Activity of disease can only be determined by history, and
pulmonary changes from previous CXR
CASE 1

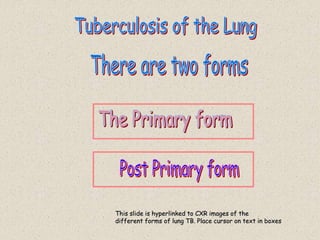

40. This slide is hyperlinked to CXR images of the
different forms of lung TB. Place cursor on text in boxes

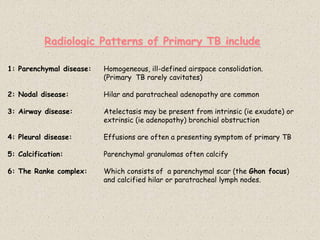

41. Radiologic Patterns of Primary TB include
1: Parenchymal disease: Homogeneous, ill-defined airspace consolidation.
(Primary TB rarely cavitates)
2: Nodal disease: Hilar and paratracheal adenopathy are common
3: Airway disease: Atelectasis may be present from intrinsic (ie exudate) or
extrinsic (ie adenopathy) bronchial obstruction
4: Pleural disease: Effusions are often a presenting symptom of primary TB
5: Calcification: Parenchymal granulomas often calcify
6: The Ranke complex: Which consists of a parenchymal scar (the Ghon focus)
and calcified hilar or paratracheal lymph nodes.

42. Radiologic Patterns of Post-Primary TB include:
1: Local exudative or fibrocaseous TB:
Apical and posterior segments of upper
lobes and superior segments of lower lobes
2: Cavitation: Usually thick walled, may disappear with
treatment
3: Acute Bronchopneumonia: Dissemination of caseaus material from one
segment to other lobes (bronchogenic spread)
4: Miliary TB : Numerous tiny discrete foci uniformly distributed
throughout lungs
5: Bronchiectasis: Due to either compression by large lymph nodes or
infection of bronchial wall infection leading to
bronchiectasis
6: Tuberculoma: A round/oval opacity ½-4 cm in diameter with
smooth borders
7: Pleural Effusion: Empyema or secondary to bronchopleural fistula
formation

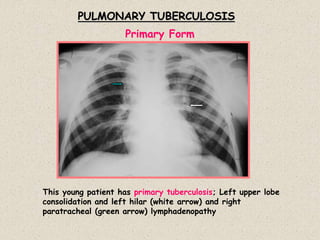

43. PULMONARY TUBERCULOSIS
This young patient has primary tuberculosis; Left upper lobe
consolidation and left hilar (white arrow) and right
paratracheal (green arrow) lymphadenopathy
Primary Form

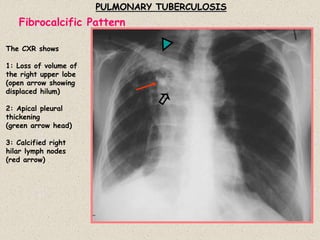

44. PULMONARY TUBERCULOSIS
The CXR shows
1: Loss of volume of
the right upper lobe
(open arrow showing
displaced hilum)
2: Apical pleural
thickening
(green arrow head)
3: Calcified right
hilar lymph nodes
(red arrow)
Fibrocalcific Pattern

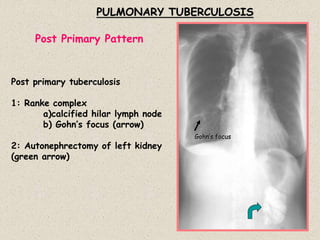

45. PULMONARY TUBERCULOSIS
Post primary tuberculosis
1: Ranke complex
a)calcified hilar lymph node
b) Gohn’s focus (arrow)
2: Autonephrectomy of left kidney
(green arrow)
Post Primary Pattern
Gohn’s focus

46. PULMONARY TUBERCULOSIS
CXR showing fine miliary pattern scattered throughout both lungs.
Close up shows the fine miliary pattern. (Note: sometimes also seen in
patients with BCG treatment of superficial bladder tumors
Close up Left
upper lobe
Miliary Pattern

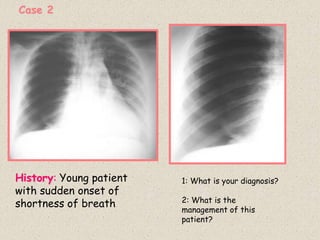

47. History: Young patient
with sudden onset of
shortness of breath
1: What is your diagnosis?
2: What is the
management of this
patient?
Case 2

48. DIAGNOSIS: TENSION PNEUMOTHORAX
Radiographic Findings: Right sided pneumothorax
with marked contralateral shift of the mediastinum.
Management: The patient should have a chest tube
inserted immediately to prevent vascular collapse.
Tension pneumothorax is a clinical diagnosis.
Etiology of pneumothorax
* Spontaneous (rupture of bleb, bullae)
* Iatrogenic (artificial ventilaton,lung biopsy, complication of central line insertions)
* Traumatic (rib fractures)
* Lung disease (metastasis -osteogenic sarcoma; COPD,asthma,honeycomb lung etc)
* Mediastinal emphysema (asthma, esophageal rupture etc)
* Pneumoperitoneum (through defects in diaphragm- peuroperitoneal foramen)
Case 2

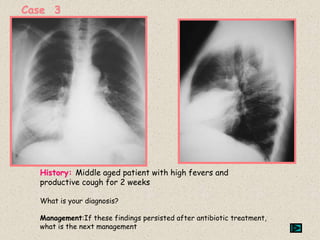

49. Case 3
History: Middle aged patient with high fevers and
productive cough for 2 weeks
What is your diagnosis?
Management:If these findings persisted after antibiotic treatment,
what is the next management

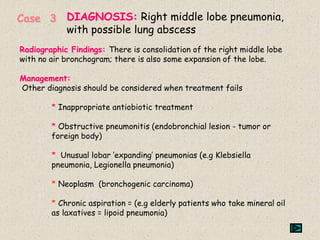

50. Radiographic Findings: There is consolidation of the right middle lobe
with no air bronchogram; there is also some expansion of the lobe.
Management:
Other diagnosis should be considered when treatment fails
* Inappropriate antiobiotic treatment
* Obstructive pneumonitis (endobronchial lesion - tumor or
foreign body)
* Unusual lobar ‘expanding’ pneumonias (e.g Klebsiella
pneumonia, Legionella pneumonia)
* Neoplasm (bronchogenic carcinoma)
* Chronic aspiration = (e.g elderly patients who take mineral oil
as laxatives = lipoid pneumonia)
Case 3 DIAGNOSIS: Right middle lobe pneumonia,
with possible lung abscess

51. History: 26 year old male
with several day history of
fever, SOB
Case 5

52. Diagnosis : Left Lower Lobe Pneumonia
Left lower lobe airspace infiltrates, with the “spine sign” and “silhoutte
sign” (See next slide)
The Radiology of Pneumonia
The radiographic presentation of pneumonia is quite variable, depending, among other
factors, on etiologic agent.
Most bacterial pneumonias show lobar, segmental, or patchy airspace infiltrates.
Interstitial pneumonias are most commonly due to atypical organisms, including
Mycoplasma, viruses, and PCP.
Radiographic findings
Case 5

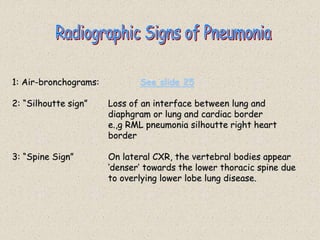

53. 1: Air-bronchograms: See slide 25
2: “Silhoutte sign” Loss of an interface between lung and
diaphgram or lung and cardiac border
e.,g RML pneumonia silhoutte right heart
border
3: “Spine Sign” On lateral CXR, the vertebral bodies appear
‘denser’ towards the lower thoracic spine due
to overlying lower lobe lung disease.

54. March 8 Sep 21
History: A pigeon breeder, with dry cough. She
presented several times with same findings until
last CXR done on Sept 21.
What is your diagnosis?
Case 6

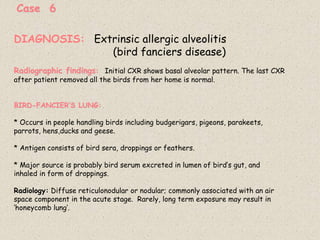

55. Case 6
Radiographic findings: Initial CXR shows basal alveolar pattern. The last CXR
after patient removed all the birds from her home is normal.
BIRD-FANCIER’S LUNG:
* Occurs in people handling birds including budgerigars, pigeons, parakeets,
parrots, hens,ducks and geese.
* Antigen consists of bird sera, droppings or feathers.
* Major source is probably bird serum excreted in lumen of bird’s gut, and
inhaled in form of droppings.
Radiology: Diffuse reticulonodular or nodular; commonly associated with an air
space component in the acute stage. Rarely, long term exposure may result in
‘honeycomb lung’.
DIAGNOSIS: Extrinsic allergic alveolitis
(bird fanciers disease)

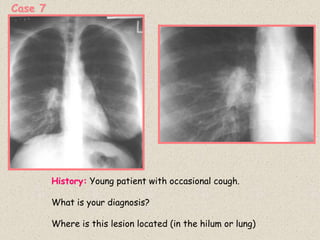

56. Case 7
History: Young patient with occasional cough.
What is your diagnosis?
Where is this lesion located (in the hilum or lung)

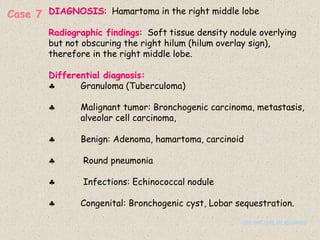

57. Case 7 DIAGNOSIS: Hamartoma in the right middle lobe
Radiographic findings: Soft tissue density nodule overlying
but not obscuring the right hilum (hilum overlay sign),
therefore in the right middle lobe.
Differential diagnosis:
 Granuloma (Tuberculoma)
 Malignant tumor: Bronchogenic carcinoma, metastasis,
alveolar cell carcinoma,
 Benign: Adenoma, hamartoma, carcinoid
 Round pneumonia
 Infections: Echinococcal nodule
 Congenital: Bronchogenic cyst, Lobar sequestration.
(See next slide for discussion)

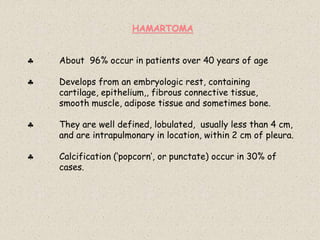

58. HAMARTOMA
 About 96% occur in patients over 40 years of age
 Develops from an embryologic rest, containing
cartilage, epithelium,, fibrous connective tissue,
smooth muscle, adipose tissue and sometimes bone.
 They are well defined, lobulated, usually less than 4 cm,
and are intrapulmonary in location, within 2 cm of pleura.
 Calcification (‘popcorn’, or punctate) occur in 30% of
cases.

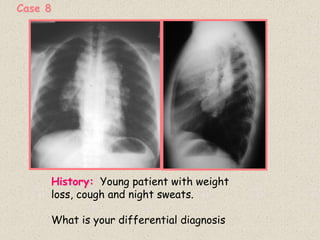

59. Case 8
History: Young patient with weight
loss, cough and night sweats.
What is your differential diagnosis

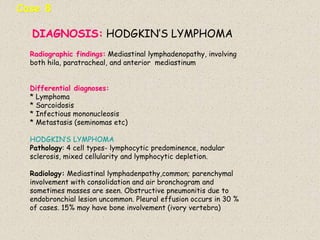

60. Case 8
DIAGNOSIS: HODGKIN’S LYMPHOMA
Radiographic findings: Mediastinal lymphadenopathy, involving
both hila, paratracheal, and anterior mediastinum
Differential diagnoses:
* Lymphoma
* Sarcoidosis
* Infectious mononucleosis
* Metastasis (seminomas etc)
HODGKIN’S LYMPHOMA
Pathology: 4 cell types- lymphocytic predominence, nodular
sclerosis, mixed cellularity and lymphocytic depletion.
Radiology: Mediastinal lymphadenpathy,common; parenchymal
involvement with consolidation and air bronchogram and
sometimes masses are seen. Obstructive pneumonitis due to
endobronchial lesion uncommon. Pleural effusion occurs in 30 %
of cases. 15% may have bone involvement (ivory vertebra)

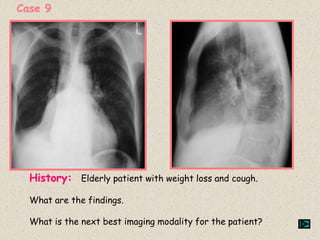

61. Case 9
History: Elderly patient with weight loss and cough.
What are the findings.
What is the next best imaging modality for the patient?

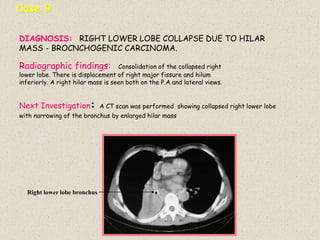

62. Case 9
Radiographic findings: Consolidation of the collapsed right
lower lobe. There is displacement of right major fissure and hilum
inferiorly. A right hilar mass is seen both on the P.A and lateral views.

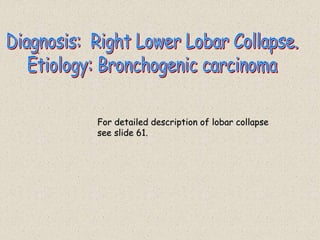

DIAGNOSIS: RIGHT LOWER LOBE COLLAPSE DUE TO HILAR
MASS - BROCNCHOGENIC CARCINOMA.
Next Investigation: A CT scan was performed showing collapsed right lower lobe
with narrowing of the bronchus by enlarged hilar mass
Right lower lobe bronchus

63. RADIOLOGY OF LOSS OF VOLUME
OF DIFFERENT LOBES
The roentgenologic signs of atelectasis are
A: Direct signs
Displacement of fissures
B: Indirect signs
Local increase in density
Elevation of hemidiaphragm
Compensatory overinflation
Displacement of hila
Approximation of ribs
Absence of air bronchogram
The following cases are typical
examples of lobar collapse

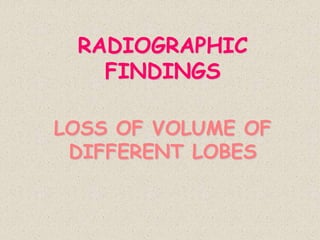

64. RADIOGRAPHIC
FINDINGS
LOSS OF VOLUME OF
DIFFERENT LOBES

65. RIGHT UPPER LOBE COLLAPSE
Right minor fissure (arrow) and hilum displaced up
with a triangular opacity seen along the upper lobe
area.

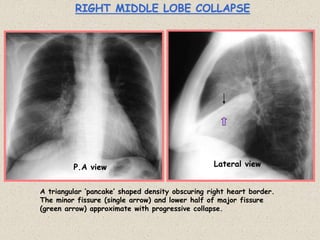

66. RIGHT MIDDLE LOBE COLLAPSE
A triangular ‘pancake’ shaped density obscuring right heart border.
The minor fissure (single arrow) and lower half of major fissure
(green arrow) approximate with progressive collapse.
P.A view Lateral view

67. RIGHT LOWER LOBE COLLAPSE
Findings seen in both right and left lower lobes are similar
The major fissure is displaced posteriorly and medially.
The X-ray findings are
On P.A film there is a triangular opacity at posterior costo-vertebral angle (arrows)
Lateral CXR, there is obliteration of the posterior third of the
respective diaphgram
P.A Lateral

68. RLL
collapse

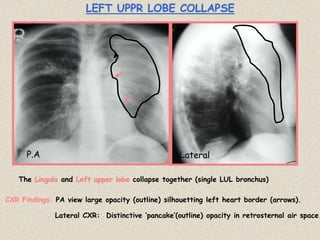

69. LEFT UPPR LOBE COLLAPSE
The Lingula and Left upper lobe collapse together (single LUL bronchus)
Lateral CXR: Distinctive ‘pancake’(outline) opacity in retrosternal air space.
CXR Findings: PA view large opacity (outline) silhouetting left heart border (arrows).

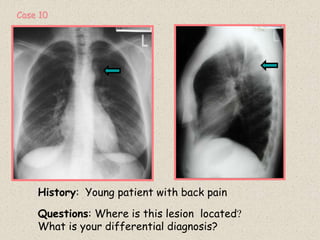

P.A Lateral

70. History: Young patient with back pain
Questions: Where is this lesion located?
What is your differential diagnosis?
Case 10

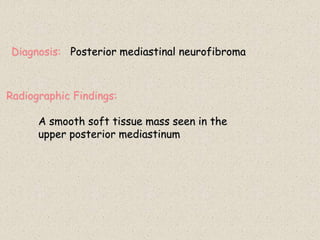

71. Diagnosis: Posterior mediastinal neurofibroma
Radiographic Findings:
A smooth soft tissue mass seen in the
upper posterior mediastinum

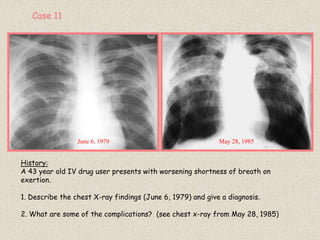

72. History:
A 43 year old IV drug user presents with worsening shortness of breath on
exertion.
1. Describe the chest X-ray findings (June 6, 1979) and give a diagnosis.
2. What are some of the complications? (see chest x-ray from May 28, 1985)
June 6, 1979 May 28, 1985
Case 11

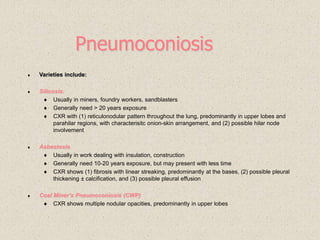

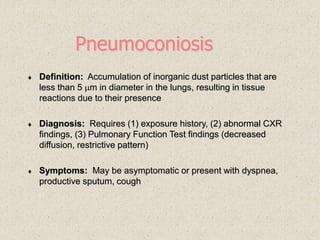

73. • Pneumoconiosis represents the reaction of the lung to inhaled dust
particles resulting in alteration of lung parenchymal structure.
•Talc is a fibrous silicate containing hydrate magnesium silicate.
•In drug users who inject talc-containing solutions intravenously,
they develop multiple small pulmonary nodules, conglomerate masses,
and premature bullous emphysema.
•Pathologically:
• It is a granulomatous pulmonary arteritis
• Perihilar ground glass alveolar involvement predominately
of the upper lobes of the lung a charasteristic finding
Natural History:
Progression to a chronic stage, in which extensive deposition or
alteration of collagen results in fibrosis.
DIAGNOSIS: TALC PULMONARY FIBROSIS DUE TO DRUG ABUSE

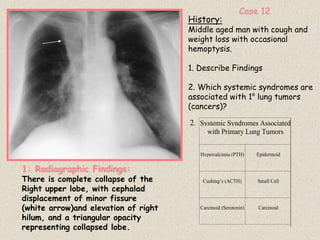

74. History:
Middle aged man with cough and
weight loss with occasional
hemoptysis.
1. Describe Findings
2. Which systemic syndromes are
associated with 1o
lung tumors
(cancers)?
Systemic Syndromes Associated
with Primary Lung Tumors
Hypercalcimia (PTH) Epidermoid
Cushing’s (ACTH) Small Cell
Carcinoid (Serotonin) Carcinoid
2.
1: Radiographic Findings:
There is complete collapse of the
Right upper lobe, with cephalad
displacement of minor fissure
(white arrow)and elevation of right
hilum, and a triangular opacity
representing collapsed lobe.
Case 12

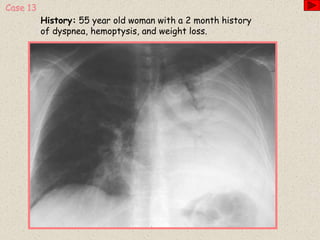

75. History: 55 year old woman with a 2 month history
of dyspnea, hemoptysis, and weight loss.
Case 13

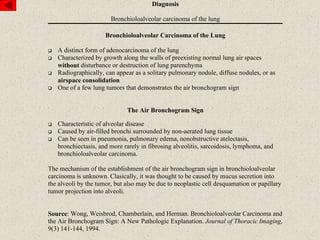

76. Diagnosis
Bronchioloalveolar carcinoma of the lung
Bronchioloalveolar Carcinoma of the Lung
 A distinct form of adenocarcinoma of the lung
 Characterized by growth along the walls of preexisting normal lung air spaces
without disturbance or destruction of lung parenchyma
 Radiographically, can appear as a solitary pulmonary nodule, diffuse nodules, or as
airspace consolidation
 One of a few lung tumors that demonstrates the air bronchogram sign
The Air Bronchogram Sign
 Characteristic of alveolar disease
 Caused by air-filled bronchi surrounded by non-aerated lung tissue
 Can be seen in pneumonia, pulmonary edema, nonobstructive atelectasis,
bronchiectasis, and more rarely in fibrosing alveolitis, sarcoidosis, lymphoma, and
bronchioloalveolar carcinoma.
The mechanism of the establishment of the air bronchogram sign in bronchioloalveolar
carcinoma is unknown. Clasically, it was thought to be caused by mucus secretion into
the alveoli by the tumor, but also may be due to neoplastic cell desquamation or papillary
tumor projection into alveoli.
Source: Wong, Weisbrod, Chamberlain, and Herman. Bronchioloalveolar Carcinoma and
the Air Bronchogram Sign: A New Pathologic Explanation. Journal of Thoracic Imaging,
9(3) 141-144, 1994.

77. Different pattern of bronchioloalveolar carcinoma
There is a small
soft tissue
density nodule
(arrow)

78. History: 66 year old with dry cough and fever.
Case 14

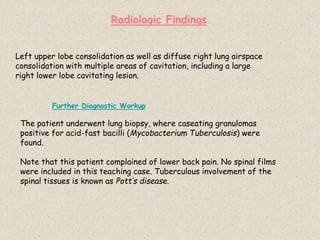

79. Radiologic Findings
Left upper lobe consolidation as well as diffuse right lung airspace
consolidation with multiple areas of cavitation, including a large
right lower lobe cavitating lesion.
Further Diagnostic Workup
The patient underwent lung biopsy, where caseating granulomas
positive for acid-fast bacilli (Mycobacterium Tuberculosis) were
found.
Note that this patient complained of lower back pain. No spinal films
were included in this teaching case. Tuberculous involvement of the
spinal tissues is known as Pott’s disease.

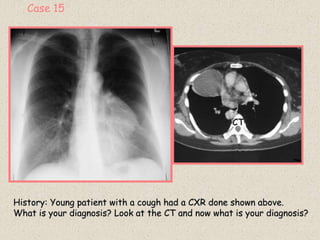

80. Case 15
History: Young patient with a cough had a CXR done shown above.
What is your diagnosis? Look at the CT and now what is your diagnosis?
CT

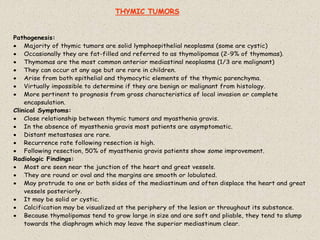

81. Pathogenesis:
 Majority of thymic tumors are solid lymphoepithelial neoplasms (some are cystic)
 Occasionally they are fat-filled and referred to as thymolipomas (2-9% of thymomas).
 Thymomas are the most common anterior mediastinal neoplasms (1/3 are malignant)
 They can occur at any age but are rare in children.
 Arise from both epithelial and thymocytic elements of the thymic parenchyma.
 Virtually impossible to determine if they are benign or malignant from histology.
 More pertinent to prognosis from gross characteristics of local invasion or complete
encapsulation.
Clinical Symptoms:
 Close relationship between thymic tumors and myasthenia gravis.
 In the absence of myasthenia gravis most patients are asymptomatic.
 Distant metastases are rare.
 Recurrence rate following resection is high.
 Following resection, 50% of myasthenia gravis patients show some improvement.
Radiologic Findings:
 Most are seen near the junction of the heart and great vessels.
 They are round or oval and the margins are smooth or lobulated.
 May protrude to one or both sides of the mediastinum and often displace the heart and great
vessels posteriorly.
 It may be solid or cystic.
 Calcification may be visualized at the periphery of the lesion or throughout its substance.
 Because thymolipomas tend to grow large in size and are soft and pliable, they tend to slump
towards the diaphragm which may leave the superior mediastinum clear.
THYMIC TUMORS

82. History: Young asthmatic patient presents with shortness of breath
and cough
You are provided with CXR What are your findings and you diagnosis?
Case 16

83. Radiographic findings:
1: Left upper lobe collapse (see section on lobar collapse)
(Arrow heads)
2: Localised bronchiectasis in Right upper lobe
(Flash arrow)

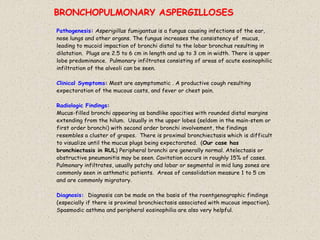

84. Pathogenesis: Asperigillus fumigantus is a fungus causing infections of the ear,
nose lungs and other organs. The fungus increases the consistency of mucus,
leading to mucoid impaction of bronchi distal to the lobar bronchus resulting in
dilatation. Plugs are 2.5 to 6 cm in length and up to 3 cm in width. There is upper
lobe predominance. Pulmonary infiltrates consisting of areas of acute eosinophilic
infiltration of the alveoli can be seen.
Clinical Symptoms: Most are asymptomatic . A productive cough resulting
expectoration of the mucous casts, and fever or chest pain.
Radiologic Findings:
Mucus-filled bronchi appearing as bandlike opacities with rounded distal margins
extending from the hilum. Usually in the upper lobes (seldom in the main-stem or
first order bronchi) with second order bronchi involvement, the findings
resembles a cluster of grapes. There is proximal bronchiectasis which is difficult
to visualize until the mucus plugs being expectorated. (Our case has
bronchiectasis in RUL) Peripheral bronchi are generally normal. Atelectasis or
obstructive pneumonitis may be seen. Cavitation occurs in roughly 15% of cases.
Pulmonary infiltrates, usually patchy and lobar or segmental in mid lung zones are
commonly seen in asthmatic patients. Areas of consolidation measure 1 to 5 cm
and are commonly migratory.
Diagnosis: Diagnosis can be made on the basis of the roentgenographic findings
(especially if there is proximal bronchiectasis associated with mucous impaction).
Spasmodic asthma and peripheral eosinophilia are also very helpful.
BRONCHOPULMONARY ASPERGILLOSES

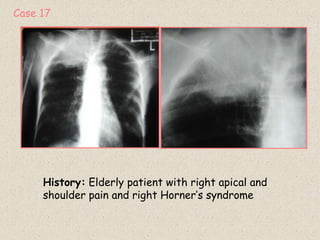

85. History: Elderly patient with right apical and
shoulder pain and right Horner’s syndrome
Case 17

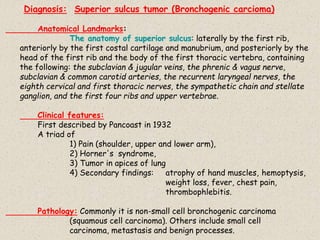

86. Diagnosis: Superior sulcus tumor (Bronchogenic carcioma)
Anatomical Landmarks:
The anatomy of superior sulcus: laterally by the first rib,
anteriorly by the first costal cartilage and manubrium, and posteriorly by the
head of the first rib and the body of the first thoracic vertebra, containing
the following: the subclavian & jugular veins, the phrenic & vagus nerve,
subclavian & common carotid arteries, the recurrent laryngeal nerves, the
eighth cervical and first thoracic nerves, the sympathetic chain and stellate
ganglion, and the first four ribs and upper vertebrae.
Clinical features:
First described by Pancoast in 1932
A triad of
1) Pain (shoulder, upper and lower arm),
2) Horner's syndrome,
3) Tumor in apices of lung
4) Secondary findings: atrophy of hand muscles, hemoptysis,
weight loss, fever, chest pain,
thrombophlebitis.
Pathology: Commonly it is non-small cell bronchogenic carcinoma
(squamous cell carcinoma). Others include small cell
carcinoma, metastasis and benign processes.

87. Radiological features:
A plain CXR, CT scan, MRI of chest and upper abdomen (to check adrenal & liver mets) are useful
in staging the tumor
The characteristic radiographic features include:
1: An apical cap > 5 mm in thickness (or a 5 mm asymmetry of the apical caps on the
two sides) or an apical mass.
2: Bone destruction. (1,2 & 3rd ribs and vertebral bodies)
3: Secondary features: Pleural effusion, pneumothorax, bilateral parynchymal lesions
resulting from contralateral hematogenous metastases, unilateral
diaphragmatic (phrenic nerve) paralysis and a diffuse or local
reticulonodular pattern caused by lymphangitic carcinomatosis.
4: Distant metastasis (adrenal, liver etc)
Management:
Depends on several factors.
* Cell type of the tumor: Squamous cell carcinoma usually localised and hence slightly
better prognosis
* Stage of the tumor
Therapy both surgical and to a lesser extent nonsurgical (radiation, chemotherapy, and
immunotherapy) influences survival.
A) Surgery:
Resection of the tumor can be curative but sometimes for palliation..
Surgical resection can vary from simple wedge resection of the tumor to
total pneumonectomy.
B) Irradiation or chemotherapy (or both)

88. History: Elderly patient with severe cough and high fever
What is your differential diagnosis?
Case 18

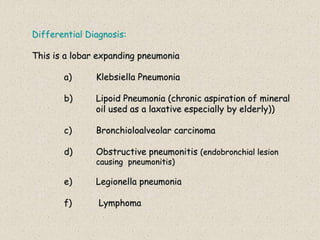

89. Differential Diagnosis:
This is a lobar expanding pneumonia
a) Klebsiella Pneumonia
b) Lipoid Pneumonia (chronic aspiration of mineral
oil used as a laxative especially by elderly))
c) Bronchioloalveolar carcinoma
d) Obstructive pneumonitis (endobronchial lesion
causing pneumonitis)
e) Legionella pneumonia
f) Lymphoma

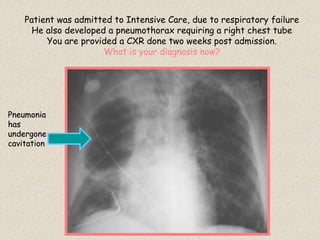

90. Patient was admitted to Intensive Care, due to respiratory failure
He also developed a pneumothorax requiring a right chest tube
You are provided a CXR done two weeks post admission.
What is your diagnosis now?
Pneumonia
has
undergone
cavitation

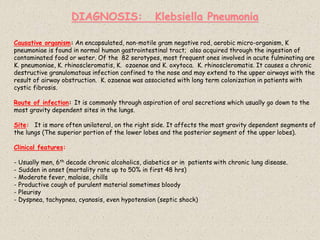

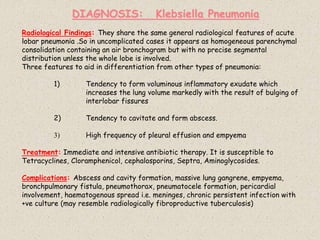

91. DIAGNOSIS: Klebsiella Pneumonia
Causative organism: An encapsulated, non-motile gram negative rod, aerobic micro-organism, K
pneumoniae is found in normal human gastrointestinal tract; also acquired through the ingestion of
contaminated food or water. Of the 82 serotypes, most frequent ones involved in acute fulminating are
K. pneumoniae, K. rhinoscleromatis, K. ozaenae and K. oxytoca. K. rhinoscleromatis. It causes a chronic
destructive granulomatous infection confined to the nose and may extend to the upper airways with the
result of airway obstruction. K. ozaenae was associated with long term colonization in patients with
cystic fibrosis.
Route of infection: It is commonly through aspiration of oral secretions which usually go down to the
most gravity dependent sites in the lungs.
Site: It is more often unilateral, on the right side. It affects the most gravity dependent segments of
the lungs (The superior portion of the lower lobes and the posterior segment of the upper lobes).
Clinical features:
- Usually men, 6th decade chronic alcoholics, diabetics or in patients with chronic lung disease.
- Sudden in onset (mortality rate up to 50% in first 48 hrs)
- Moderate fever, malaise, chills
- Productive cough of purulent material sometimes bloody
- Pleurisy
- Dyspnea, tachypnea, cyanosis, even hypotension (septic shock)

92. Radiological Findings: They share the same general radiological features of acute
lobar pneumonia .So in uncomplicated cases it appears as homogeneous parenchymal
consolidation containing an air bronchogram but with no precise segmental
distribution unless the whole lobe is involved.
Three features to aid in differentiation from other types of pneumonia:
1) Tendency to form voluminous inflammatory exudate which
increases the lung volume markedly with the result of bulging of
interlobar fissures
2) Tendency to cavitate and form abscess.
3) High frequency of pleural effusion and empyema
Treatment: Immediate and intensive antibiotic therapy. It is susceptible to
Tetracyclines, Cloramphenicol, cephalosporins, Septra, Aminoglycosides.
Complications: Abscess and cavity formation, massive lung gangrene, empyema,
bronchpulmonary fistula, pneumothorax, pneumatocele formation, pericardial
involvement, haematogenous spread i.e. meninges, chronic persistent infection with
+ve culture (may resemble radiologically fibroproductive tuberculosis)
DIAGNOSIS: Klebsiella Pneumonia

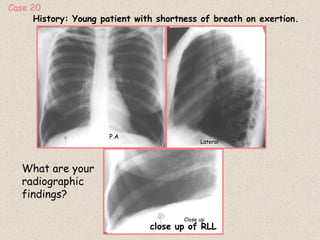

93. History: Young patient with shortness of breath on exertion.
What are your
radiographic
findings?
P.A
Lateral
Close up
close up of RLL
Case 20

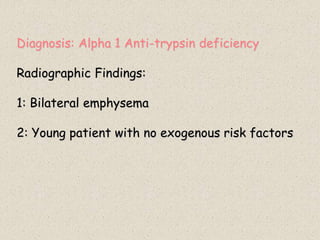

94. Diagnosis: Alpha 1 Anti-trypsin deficiency
Radiographic Findings:
1: Bilateral emphysema
2: Young patient with no exogenous risk factors

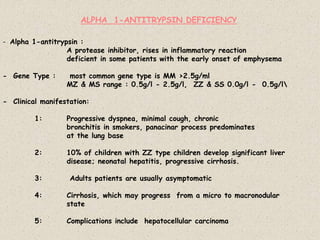

95. - Alpha 1-antitrypsin :
A protease inhibitor, rises in inflammatory reaction
deficient in some patients with the early onset of emphysema
- Gene Type : most common gene type is MM >2.5g/ml
MZ & MS range : 0.5g/l - 2.5g/l, ZZ & SS 0.0g/l - 0.5g/l
- Clinical manifestation:
1: Progressive dyspnea, minimal cough, chronic
bronchitis in smokers, panacinar process predominates
at the lung base
2: 10% of children with ZZ type children develop significant liver
disease; neonatal hepatitis, progressive cirrhosis.
3: Adults patients are usually asymptomatic
4: Cirrhosis, which may progress from a micro to macronodular
state
5: Complications include hepatocellular carcinoma
ALPHA 1-ANTITRYPSIN DEFICIENCY

96. History: Elderly patient with a chronic cough
Case 21

97. Pneumoconiosis
 Definition: Accumulation of inorganic dust particles that are
less than 5 m in diameter in the lungs, resulting in tissue
reactions due to their presence
 Diagnosis: Requires (1) exposure history, (2) abnormal CXR
findings, (3) Pulmonary Function Test findings (decreased
diffusion, restrictive pattern)
 Symptoms: May be asymptomatic or present with dyspnea,
productive sputum, cough

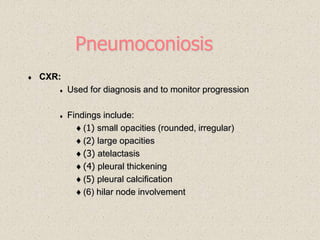

98. Pneumoconiosis
 CXR:
 Used for diagnosis and to monitor progression
 Findings include:
(1) small opacities (rounded, irregular)
(2) large opacities
(3) atelactasis
(4) pleural thickening
(5) pleural calcification
(6) hilar node involvement

99. Pneumoconiosis
 Varieties include:
 Silicosis:
 Usually in miners, foundry workers, sandblasters
 Generally need > 20 years exposure
 CXR with (1) reticulonodular pattern throughout the lung, predominantly in upper lobes and
parahilar regions, with characterisitc onion-skin arrangement, and (2) possible hilar node
involvement
 Asbestosis
 Usually in work dealing with insulation, construction
 Generally need 10-20 years exposure, but may present with less time
 CXR shows (1) fibrosis with linear streaking, predominantly at the bases, (2) possible pleural
thickening ± calcification, and (3) possible pleural effusion
 Coal Miner’s Pneumoconiosis (CWP)
 CXR shows multiple nodular opacities, predominantly in upper lobes

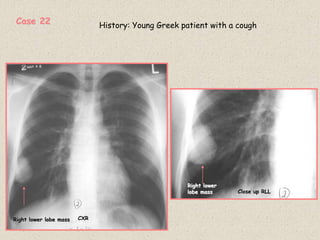

100. CXR
Close up RLL
Right lower lobe mass
Right lower
lobe mass
History: Young Greek patient with a cough
Case 22

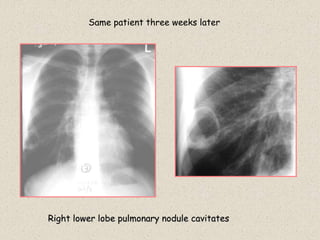

101. Same patient three weeks later
Right lower lobe pulmonary nodule cavitates

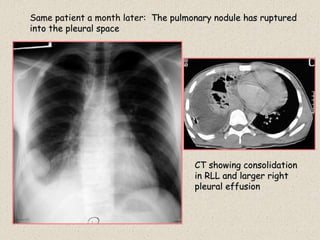

102. Same patient a month later: The pulmonary nodule has ruptured
into the pleural space
CT showing consolidation
in RLL and larger right
pleural effusion

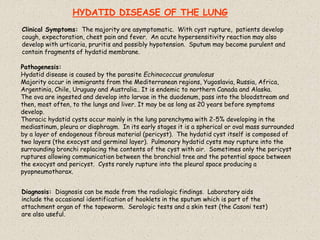

103. Pathogenesis:
Hydatid disease is caused by the parasite Echinococcus granulosus
Majority occur in immigrants from the Mediterranean regions, Yugoslavia, Russia, Africa,
Argentinia, Chile, Uruguay and Australia.. It is endemic to northern Canada and Alaska.
The ova are ingested and develop into larvae in the duodenum, pass into the bloodstream and
then, most often, to the lungs and liver. It may be as long as 20 years before symptoms
develop.
Thoracic hydatid cysts occur mainly in the lung parenchyma with 2-5% developing in the
mediastinum, pleura or diaphragm. In its early stages it is a spherical or oval mass surrounded
by a layer of endogenous fibrous material (pericyst). The hydatid cyst itself is composed of
two layers (the exocyst and germinal layer). Pulmonary hydatid cysts may rupture into the
surrounding bronchi replacing the contents of the cyst with air. Sometimes only the pericyst
ruptures allowing communication between the bronchial tree and the potential space between
the exocyst and pericyst. Cysts rarely rupture into the pleural space producing a
pyopneumothorax.
Clinical Symptoms: The majority are asymptomatic. With cyst rupture, patients develop
cough, expectoration, chest pain and fever. An acute hypersensitivity reaction may also
develop with urticaria, pruritis and possibly hypotension. Sputum may become purulent and
contain fragments of hydatid membrane.
Diagnosis: Diagnosis can be made from the radiologic findings. Laboratory aids
include the occasional identification of hooklets in the sputum which is part of the
attachment organ of the tapeworm. Serologic tests and a skin test (the Casoni test)
are also useful.
HYDATID DISEASE OF THE LUNG

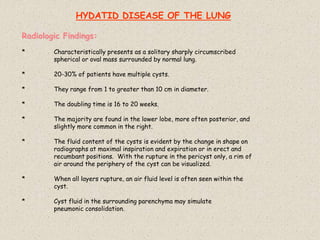

104. HYDATID DISEASE OF THE LUNG
Radiologic Findings:
* Characteristically presents as a solitary sharply circumscribed
spherical or oval mass surrounded by normal lung.
* 20-30% of patients have multiple cysts.
* They range from 1 to greater than 10 cm in diameter.
* The doubling time is 16 to 20 weeks.
* The majority are found in the lower lobe, more often posterior, and
slightly more common in the right.
* The fluid content of the cysts is evident by the change in shape on
radiographs at maximal inspiration and expiration or in erect and
recumbant positions. With the rupture in the pericyst only, a rim of
air around the periphery of the cyst can be visualized.
* When all layers rupture, an air fluid level is often seen within the
cyst.
* Cyst fluid in the surrounding parenchyma may simulate
pneumonic consolidation.

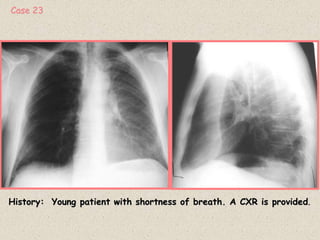

105. History: Young patient with shortness of breath. A CXR is provided.
Case 23

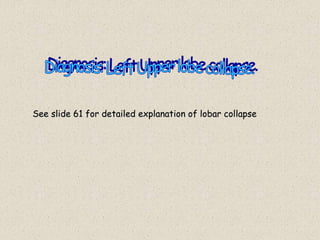

106. See slide 61 for detailed explanation of lobar collapse

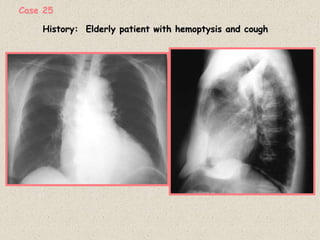

107. History: Elderly patient with hemoptysis and cough
Case 25

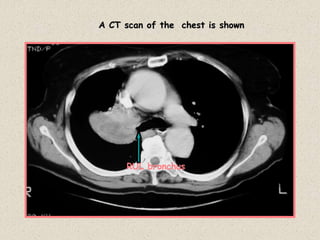

108. A CT scan of the chest is shown
RUL bronchus

109. Diagnosis: Right Upper lobe collapse due to an
endobronchial carcinioma

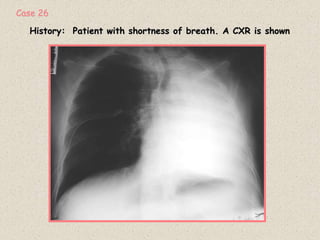

110. History: Patient with shortness of breath. A CXR is shown
Case 26

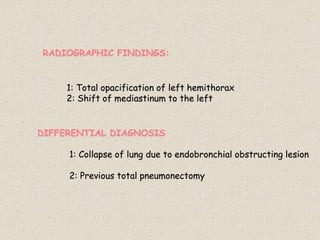

111. RADIOGRAPHIC FINDINGS:
1: Total opacification of left hemithorax
2: Shift of mediastinum to the left
DIFFERENTIAL DIAGNOSIS
1: Collapse of lung due to endobronchial obstructing lesion
2: Previous total pneumonectomy

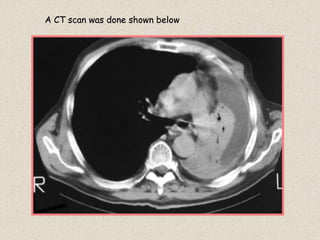

112. A CT scan was done shown below

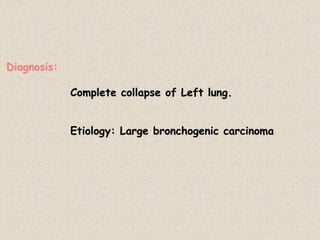

113. Diagnosis:
Complete collapse of Left lung.
Etiology: Large bronchogenic carcinoma

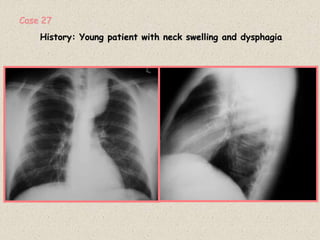

114. History: Young patient with neck swelling and dysphagia
Case 27

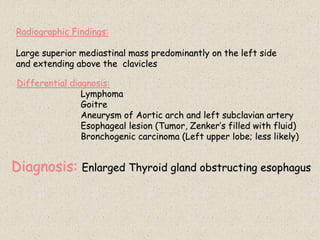

115. Diagnosis: Enlarged Thyroid gland obstructing esophagus
Radiographic Findings:
Large superior mediastinal mass predominantly on the left side
and extending above the clavicles
Differential diagnosis:
Lymphoma
Goitre
Aneurysm of Aortic arch and left subclavian artery
Esophageal lesion (Tumor, Zenker’s filled with fluid)
Bronchogenic carcinoma (Left upper lobe; less likely)

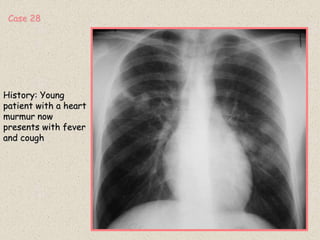

116. History: Young
patient with a heart
murmur now
presents with fever
and cough
Case 28

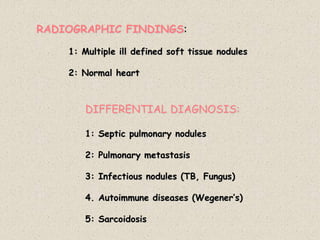

117. RADIOGRAPHIC FINDINGS:
1: Multiple ill defined soft tissue nodules
2: Normal heart
DIFFERENTIAL DIAGNOSIS:
1: Septic pulmonary nodules
2: Pulmonary metastasis
3: Infectious nodules (TB, Fungus)
4. Autoimmune diseases (Wegener’s)
5: Sarcoidosis

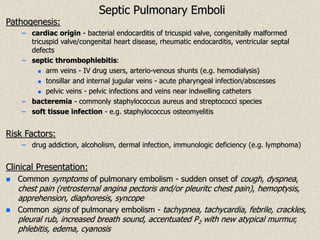

118. Septic Pulmonary Emboli
Pathogenesis:
– cardiac origin - bacterial endocarditis of tricuspid valve, congenitally malformed
tricuspid valve/congenital heart disease, rheumatic endocarditis, ventricular septal
defects
– septic thrombophlebitis:
 arm veins - IV drug users, arterio-venous shunts (e.g. hemodialysis)
 tonsillar and internal jugular veins - acute pharyngeal infection/abscesses
 pelvic veins - pelvic infections and veins near indwelling catheters
– bacteremia - commonly staphylococcus aureus and streptococci species
– soft tissue infection - e.g. staphylococcus osteomyelitis
Risk Factors:
– drug addiction, alcoholism, dermal infection, immunologic deficiency (e.g. lymphoma)
Clinical Presentation:
 Common symptoms of pulmonary embolism - sudden onset of cough, dyspnea,
chest pain (retrosternal angina pectoris and/or pleuritc chest pain), hemoptysis,
apprehension, diaphoresis, syncope
 Common signs of pulmonary embolism - tachypnea, tachycardia, febrile, crackles,
pleural rub, increased breath sound, accentuated P2 with new atypical murmur,
phlebitis, edema, cyanosis

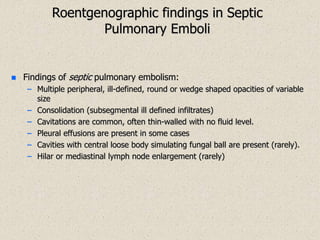

119. Roentgenographic findings in Septic
Pulmonary Emboli
 Findings of septic pulmonary embolism:
– Multiple peripheral, ill-defined, round or wedge shaped opacities of variable
size
– Consolidation (subsegmental ill defined infiltrates)
– Cavitations are common, often thin-walled with no fluid level.
– Pleural effusions are present in some cases
– Cavities with central loose body simulating fungal ball are present (rarely).
– Hilar or mediastinal lymph node enlargement (rarely)

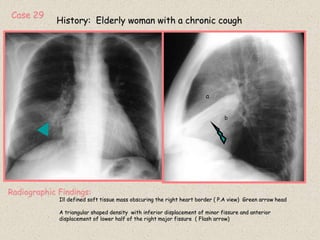

120. Case 29
History: Elderly woman with a chronic cough
Radiographic Findings:
Ill defined soft tissue mass obscuring the right heart border ( P.A view) Green arrow head
A triangular shaped density with inferior displacement of minor fissure and anterior
displacement of lower half of the right major fissure ( Flash arrow)
a
b

121. Right Middle Lobe collapse
Diagnosis:
To see a more detailed understanding
of lobar collapse see slide 60 (use the action
button on left)

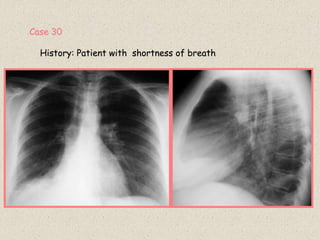

122. Case 30
History: Patient with shortness of breath

123. .
For detailed description of lobar collapse
see slide 61.

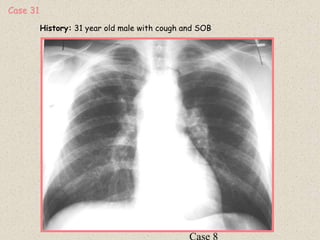

124. History: 31 year old male with cough and SOB
Case 31

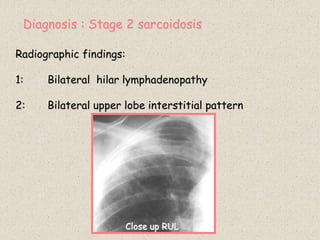

125. Diagnosis : Stage 2 sarcoidosis
Radiographic findings:
1: Bilateral hilar lymphadenopathy
2: Bilateral upper lobe interstitial pattern
Close up RUL

126. Sarcoidosis
 Definition: An idiopathic, multi-systemic disease characterized by the presence of
noncaseating granuloma often in multiple organs, including the lung, lymph nodes, liver,
spleen, skin and bone.
 Epidemiology: most common among age 20-40 North American Blacks (female
predominance) and North European Whites
 Pathogenesis: Unknown, probably involves an infectious etiology and immunologic reactions
to unidentified antigens. Morphologically, it consists of noncaseating multi-nucleated giant
cell granuloma often preceded by active alveolitis which matures into Langerhans cells with
subsequent complete resolution or residual parenchymal fibrosis.
 Clinical Presentation:
– 50% are asymptomatic with an abnormal CXR
– Constitutional symptoms: insidious onset of fever, weight loss, night sweat, weakness &
malaise
– Pulmonary symptoms: dry cough, dyspnea, hemoptysis (rare),
– Peripheral lymphadenopathy, hepatosplenomegaly
– Cutaneous manifestation: lupus pernio, psoriasis like plaques, erythema nodosum
– Bone & Joint involvement: single/recurrent/migratory mono/polyarticular arthritis
– Occular manifestation: uveitis, possibly with conjunctival, scleral, retinal and lens
involvement
– CNS involvement: cranial nerve palsy, hypothalamic hormonal disturbances
– Miscellaneous (rare): exocrine glands, kidney, GI tract and skeletal muscle involvement

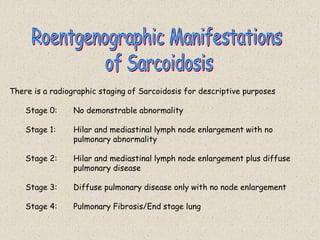

127. There is a radiographic staging of Sarcoidosis for descriptive purposes
Stage 0: No demonstrable abnormality
Stage 1: Hilar and mediastinal lymph node enlargement with no
pulmonary abnormality
Stage 2: Hilar and mediastinal lymph node enlargement plus diffuse
pulmonary disease
Stage 3: Diffuse pulmonary disease only with no node enlargement
Stage 4: Pulmonary Fibrosis/End stage lung

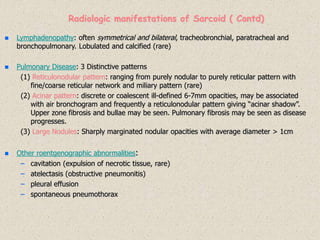

128.  Lymphadenopathy: often symmetrical and bilateral, tracheobronchial, paratracheal and
bronchopulmonary. Lobulated and calcified (rare)
 Pulmonary Disease: 3 Distinctive patterns
(1) Reticulonodular pattern: ranging from purely nodular to purely reticular pattern with
fine/coarse reticular network and miliary pattern (rare)
(2) Acinar pattern: discrete or coalescent ill-defined 6-7mm opacities, may be associated
with air bronchogram and frequently a reticulonodular pattern giving “acinar shadow”.
Upper zone fibrosis and bullae may be seen. Pulmonary fibrosis may be seen as disease
progresses.
(3) Large Nodules: Sharply marginated nodular opacities with average diameter > 1cm
 Other roentgenographic abnormalities:
– cavitation (expulsion of necrotic tissue, rare)
– atelectasis (obstructive pneumonitis)
– pleural effusion
– spontaneous pneumothorax
Radiologic manifestations of Sarcoid ( Contd)

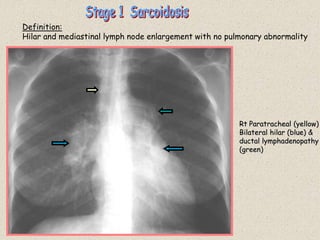

129. Rt Paratracheal (yellow)
Bilateral hilar (blue) &
ductal lymphadenopathy
(green)
Definition:
Hilar and mediastinal lymph node enlargement with no pulmonary abnormality

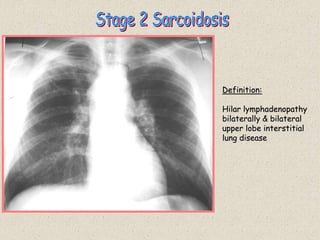

130. Definition:
Hilar lymphadenopathy
bilaterally & bilateral
upper lobe interstitial
lung disease

131. Close up RUL
Definition:
Diffuse pulmonary disease only
with no node enlargement

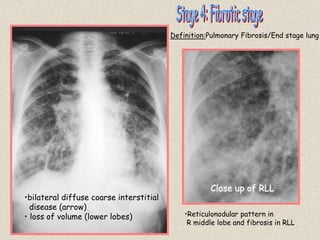

132. Close up of RLL
•bilateral diffuse coarse interstitial
disease (arrow)
• loss of volume (lower lobes) •Reticulonodular pattern in
R middle lobe and fibrosis in RLL
Definition:Pulmonary Fibrosis/End stage lung

133. Numerous rounded coalescing non-caseating granulomas (arrow)
A granuloma consists of epitheliod histiocytes, mulitnucleated
giant cells, lypmhocytes plasma cells, fibroblasts and collagen
Sarcoid histology
of lung

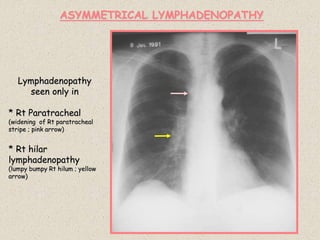

134. Lymphadenopathy
seen only in
* Rt Paratracheal
(widening of Rt paratracheal
stripe ; pink arrow)
* Rt hilar
lymphadenopathy
(lumpy bumpy Rt hilum ; yellow
arrow)
ASYMMETRICAL LYMPHADENOPATHY

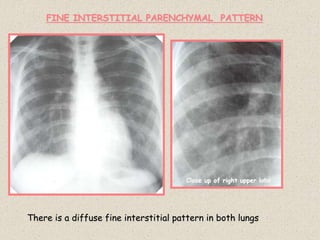

135. Close up of right upper lobe
FINE INTERSTITIAL PARENCHYMAL PATTERN
There is a diffuse fine interstitial pattern in both lungs

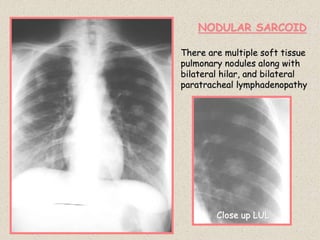

136. NODULAR SARCOID
There are multiple soft tissue
pulmonary nodules along with
bilateral hilar, and bilateral
paratracheal lymphadenopathy
Close up LUL

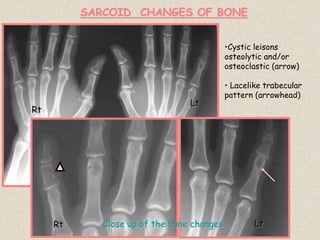

137. SARCOID CHANGES OF BONE
Rt
Lt
Rt Lt
Close up of the bone changes
•Cystic leisons
osteolytic and/or
osteoclastic (arrow)
• Lacelike trabecular
pattern (arrowhead)
