The document discusses assembly language instructions and directives. It explains that instructions tell the processor what to do and are assembled into machine code, while directives tell the assembler what to do and are not part of the instruction set. Common directives include EQU to define constants, and data definition directives like DB, DW and DD to define memory for data storage. The document also covers instruction operands like registers, immediates, and memory. It provides examples of basic instructions, and arithmetic instructions like ADD, SUB, MUL and DIV.

1. I. INTRODUCTION
Developing Assembly Language
Programs

2. Instructions and Directives
Instructions
 tell processor what to do
 assembled into machine code by
assembler
 executed at runtime by the processor
 from the Intel x86 instruction set

3. Instructions and Directives
Directives
 tell assembler what to do
 commands that are recognized and
acted upon by the assembler
 not part of the instruction set
 used to declare code and data areas,
define constants and memory for storage
 different assemblers have different
directives

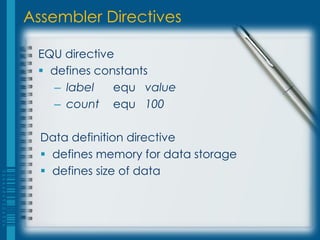

4. Assembler Directives
EQU directive
 defines constants
– label equ value
– count equ 100
Data definition directive
 defines memory for data storage
 defines size of data

5. Assembler Directives
Initialized Data
 db – define byte
 dw – define word
 dd – define double
– label directive initial value
– int db 0
– num dw 100

6. Assembler Directives
Character constants
 single quote delimited
 ‘A’
– char db ‘!’

7. Assembler Directives
String constants
 single quote delimited or sequence of
characters separated by commas
 each character is one byte each
 ‘hello’
 ‘h’, ’e’, ’l’, ’l’, ’o’
– prompt1 db ‘Please enter number: ’
– prompt2 db ‘Please enter number: ’,10

8. Assembler Directives
Declarations

9. Assembler Directives
Uninitialized Data
 resb – reserve byte
 resw – reserve word
 resd – reserve double word
– label directive value
– num resb 1 ; reserves 1 byte
– nums resb 10 ; reserves 10 bytes

10. Assembler Directives
Uninitialized
variables

11. Assembly Instructions
Basic Format
instruction operand1, operand2
Operand
 Register
 Immediate
 Memory

12. Instruction Operands
Registers
 eax, ax, ah, al
 ebx, bx, bh, bl
 ecx, cx, ch, cl
 edx, dx, dh, dl

13. Instruction Operands
Immediate
 character constants
– character symbols enclosed in quotes
– character ASCII code
 integer constants
– begin with a number
– ends with base modifier (B, O or H)
 ‘A’ = 65 = 41H = 01000001B

14. Instruction Operands
Memory
 when using the value of a variable,
enclose the variable name in square
brackets
 [num] - value of num
 num - address of num

15. Instruction Operands
 If the operands are registers or
memory locations, they must be of
the same type.
 Two memory operands are not
allowed in an instruction.

16. LABORATORY TOPICS
Basic Input/Output

17. Basic Input/Output
Interrupts
 can be a hardware or software interrupt
 the printer is out of paper
– hardware interrupt
 assembly program issuing a system call
– software interrupt
An interrupt simply gets the attention of the
processor so that it would context switch and
execute the system's interrupt handler being
invoked.

18. Basic Input/Output
Interrupts
 break the program execution cycle
(Fetch-Decode-Execute)
 wait for interrupt to be serviced
Linux services
 int 0x80, int 80H – function calls

19. INT 80H
system call numbers for this service are
placed in EAX
 1 – sys_exit (system exit)
 3 – sys_read (read from standard input)
 4 – sys_write (write to standard output)

20. INT 80H
mov eax, 1
mov ebx, 0
int 80H
 terminate program
 return 0 at the end of main program (no
error)

21. INT 80H
mov eax, 3
mov ebx, 0
mov ecx, <address>
int 80H
 reads user input
 stores input to a variable referenced by
address

22. INT 80H
mov eax, 4
mov ebx, 1
mov ecx, <string>
mov edx, <length>
int 80H
 outputs a character/string
 character/string must be in ECX and string
length must be in EDX before issuing interrupt

23. Basic Input/Output
Instructions

24. Basic Input/Output

25. Basic Input/Output

26. Basic Input/Output

27. Basic Input/Output

28. Basic Input/Output

29. Converting Characters to Numbers
 Input read from the keyboard are ASCII-
coded characters.
 Output displayed on screen are ASCII-
coded characters.
 To perform arithmetic, a numeric character
must be converted from ASCII to its
equivalent value.
 To print an integer, a number must be
converted to its equivalent ASCII
character(s).

30. Converting Characters to Numbers
Character to Number:
section .bss
num resb 1
section .text
mov eax, 3
mov ebx, 0
mov ecx, num
int 80h

31. Converting Characters to Numbers
Character to Number:
section .bss
num resb 1
section .text
mov eax, 3
mov ebx, 0
mov ecx, num
int 80h
sub [num], 30h

32. Converting Numbers to Characters
Number to Character:
section .text
mov eax, 4
mov ebx, 1
mov ecx, num
mov edx, 1
int 80h

33. Converting Numbers to Characters
Number to Character:
section .text
add [num], 30h
mov eax, 4
mov ebx, 1
mov ecx, num
mov edx, 1
int 80h

34. ASCII Table

35. ASCII Table

36. Converting Characters to Numbers
Character to Number:
mov ecx, num
int 80h
sub [num], 30h
num = 0 0 1 1 0 1 0 0
30h = 0 0 1 1 0 0 0 0
num = 0 0 0 0 0 1 0 0

37. Converting Numbers to Characters
Number to Character:
add [num], 30h
num = 0 0 0 0 0 1 1 0
30h = 0 0 1 1 0 0 0 0
num = 0 0 1 1 0 1 1 0

38. LABORATORY TOPICS
Implementing Sequential
Statements

39. Assignment Instruction
 mov instruction
mov destination, source
 mov is a storage command
 copies a value into a location
 destination may be register or memory
 source may be register, memory or
immediate
 operands should not be both memory
 operands must be of the same size

40. Simple Instructions
 inc destination
– increase destination by 1
 dec destination
– decrease destination by 1
 neg destination
– negate destination (2’s complement)
 destination may be a register or a memory

41. Add and Sub Instructions
 add destination, source
destination = destination + source
 sub destination, source
destination = destination – source
 same restrictions as the mov instruction

42. Multiplication
 mul source
 Source is the multiplier
 Source may be a register or memory
 If source is byte-size then
AX = AL * source
 If source is word-size then
DX:AX = AX * source
 If source is double word-size then
EDX:EAX = EAX * source

43. Multiplication
mov al, 2
mov [num], 80H
mul byte [num]

44. Multiplication
mov al, 2
mov [num], 80H
mul byte [num]
 This results in AX = 2 * 128 = 256 = 0100 H

45. Multiplication
mov al, 2
mov [num], 80H
mul byte [num]
 This results in AX = 2 * 128 = 256 = 0100 H
 In Binary, AX = 0000000100000000 B

46. Multiplication
mov al, 2
mov [num], 80H
mul byte [num]
 This results in AX = 2 * 128 = 256 = 0100 H
 In Binary, AX = 0000000100000000 B
 So, AH = 1 and AL = 0.

47. Multiplication
mov ax, 2
mov [num], 65535
mul word [num]
 This results in 2 * 65535 = 131070
= 0001FFFE H.
 DX = 1 and AX = FFFE H
 Only when taken together will one get the
correct product.

48. Division
 div source
 Source is the divisor
 Source may be a register or memory
 If source is byte-size then
AH = AX mod source
AL = AX div source

49. Division
 If source is word-size then
DX = DX:AX mod source
AX = DX:AX div source
 If source is double word-size then
EDX = EDX:EAX mod source
EAX = EDX:EAX div source
 div == integer division
 mod == modulus operation (remainder)

50. Division (Divide word by byte)
mov ax, 257
mov [num], 2
div byte [num]

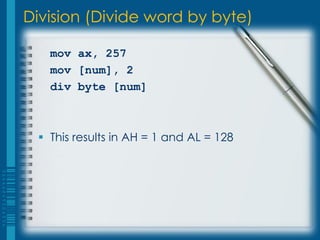

51. Division (Divide word by byte)
mov ax, 257
mov [num], 2
div byte [num]
 This results in AH = 1 and AL = 128

52. Division (Divide byte by byte)
mov [num], 129
mov al, [num]
mov ah, 0
mov [num], 2
div byte [num]

53. Division (Divide byte by byte)
mov [num], 129
mov al, [num]
mov ah, 0
mov [num], 2
div byte [num]
 AX = 129 since AH = 0 and AL = 129

54. Division (Divide byte by byte)
mov [num], 129
mov al, [num]
mov ah, 0
mov [num], 2
div byte [num]
 AX = 129 since AH = 0 and AL = 129
 This results in AH = 1 and AL = 64

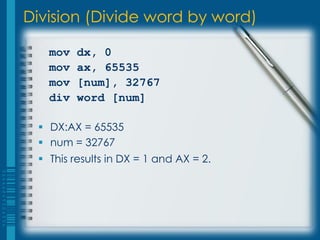

55. Division (Divide word by word)
mov dx, 0
mov ax, 65535
mov [num], 32767
div word [num]
 DX:AX = 65535
 num = 32767
 This results in DX = 1 and AX = 2.

56. Division (Divide word by word)
mov dx, 1
mov ax, 65535
mov [num], 65535
div word [num]
 Taken together the values in DX and AX is 131071.
 This is divided by 65535.
 The results are in DX = 1 and in AX = 2.

57. Divide Overflow Error
mov ax, 65535
mov [num], 2
div byte [num]
 Dividing 65535 by 2 results in a quotient of
32767 with a remainder of 1.
 The value 32767 will not fit in AL, the destination
of the quotient, thus resulting in an error.
