This document provides an overview of interpreting electrocardiogram (ECG) strips and identifying different cardiac rhythms and conduction abnormalities. It begins by outlining the key steps to interpret an ECG strip, including measuring heart rate, assessing rhythm, examining the P wave, PR interval, and QRS complex. Methods for calculating heart rate are described. Common rhythms such as normal sinus rhythm, bradycardia, junctional rhythms, premature ventricular contractions, atrial fibrillation, and ventricular tachycardia are defined. Various types of heart block and their characteristics are summarized. Causes and treatment options for different arrhythmias and clinical conditions are also reviewed.

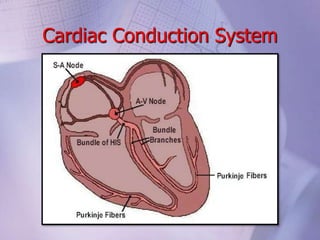

3. Cardiac Conduction System

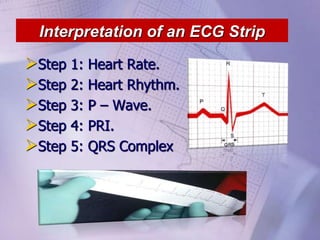

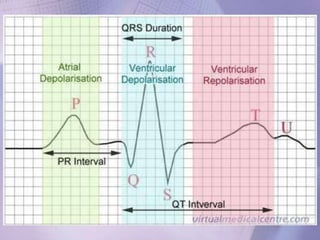

6. Interpretation of an ECG Strip
Step 1: Heart Rate.
Step 2: Heart Rhythm.
Step 3: P – Wave.
Step 4: PRI.
Step 5: QRS Complex

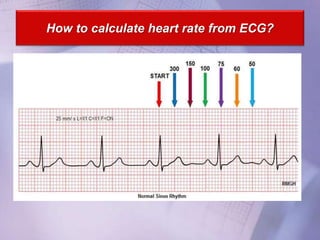

7. How to calculate heart rate from ECG?

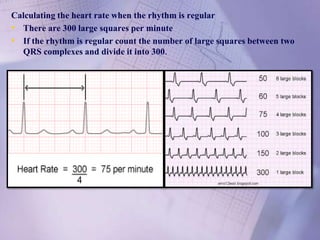

8. Calculating the heart rate when the rhythm is regular
• There are 300 large squares per minute
• If the rhythm is regular count the number of large squares between two
QRS complexes and divide it into 300.

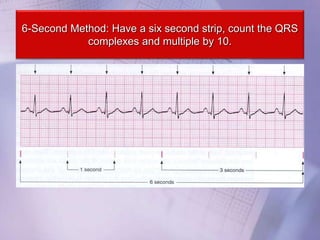

9. 6-Second Method: Have a six second strip, count the QRS
complexes and multiple by 10.

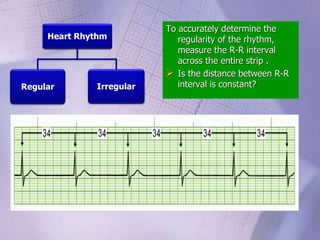

10. Heart Rhythm
Regular Irregular
To accurately determine the
regularity of the rhythm,
measure the R-R interval
across the entire strip .
 Is the distance between R-R
interval is constant?

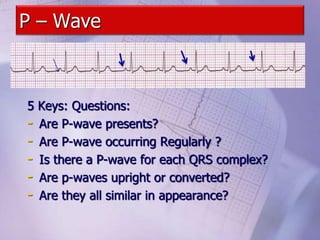

11. P – Wave
5 Keys: Questions:
- Are P-wave presents?
- Are P-wave occurring Regularly ?
- Is there a P-wave for each QRS complex?
- Are p-waves upright or converted?
- Are they all similar in appearance?

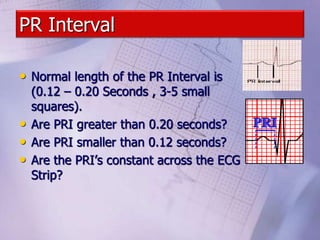

12. PR Interval
• Normal length of the PR Interval is
(0.12 – 0.20 Seconds , 3-5 small
squares).
• Are PRI greater than 0.20 seconds?
• Are PRI smaller than 0.12 seconds?
• Are the PRI’s constant across the ECG
Strip?

13. QRS
Complex
Narrow
Supra
Ventricular
Wide
Ventricular
• Normal Duration: less than 0.12 seconds (less than 3 small
boxes).
• Are QRS same in shape?
• Are QRS Greater than 0.12 seconds?
• Are QRS Less than 0.12 seconds?

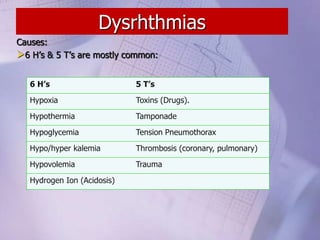

14. Dysrhthmias
Causes:
6 H’s & 5 T’s are mostly common:
6 H’s 5 T’s
Hypoxia Toxins (Drugs).
Hypothermia Tamponade
Hypoglycemia Tension Pneumothorax
Hypo/hyper kalemia Thrombosis (coronary, pulmonary)
Hypovolemia Trauma
Hydrogen Ion (Acidosis)

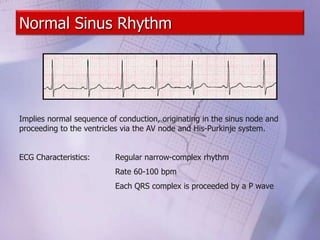

16. Normal Sinus Rhythm
Implies normal sequence of conduction, originating in the sinus node and
proceeding to the ventricles via the AV node and His-Purkinje system.
ECG Characteristics: Regular narrow-complex rhythm
Rate 60-100 bpm
Each QRS complex is proceeded by a P wave

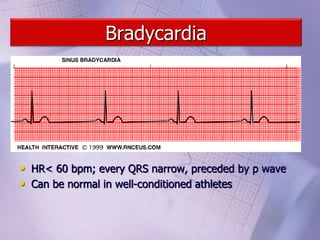

17. Bradycardia
• HR< 60 bpm; every QRS narrow, preceded by p wave
• Can be normal in well-conditioned athletes

18. Bradycardia-Etiology
• Increased Vagal tone.
• Hypothermia.
• Hypothyroidism.
• Seizures.
• Increased intracranial
pressure.
• Aging
• Sleep.
• Intrinsic disease of SA Node (e.g. sick sinus
syndrome).
• Side effect of some drugs like digitalis, calcium
channel blockers
• Result of complication of some diseases like
rheumatic fever, viral myocaditis, diphtheria
• Bradycardia is Normal to Athletic people

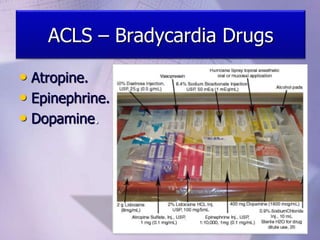

19. ACLS – Bradycardia Drugs
• Atropine.
• Epinephrine.
• Dopamine.

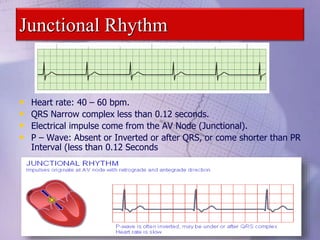

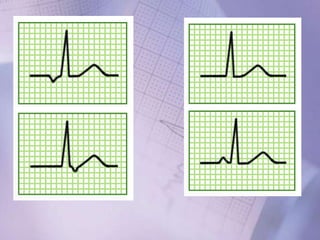

20. Junctional Rhythm
• Heart rate: 40 – 60 bpm.
• QRS Narrow complex less than 0.12 seconds.
• Electrical impulse come from the AV Node (Junctional).
• P – Wave: Absent or Inverted or after QRS, or come shorter than PR
Interval (less than 0.12 Seconds

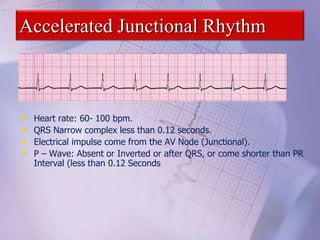

22. Accelerated Junctional Rhythm
• Heart rate: 60- 100 bpm.
• QRS Narrow complex less than 0.12 seconds.
• Electrical impulse come from the AV Node (Junctional).
• P – Wave: Absent or Inverted or after QRS, or come shorter than PR
Interval (less than 0.12 Seconds

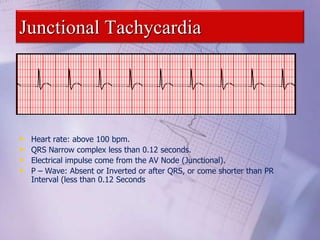

23. Junctional Tachycardia
• Heart rate: above 100 bpm.
• QRS Narrow complex less than 0.12 seconds.
• Electrical impulse come from the AV Node (Junctional).
• P – Wave: Absent or Inverted or after QRS, or come shorter than PR
Interval (less than 0.12 Seconds

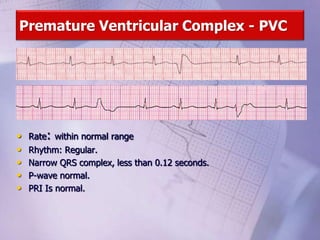

24. Premature Ventricular Complex - PVC
• Rate: within normal range
• Rhythm: Regular.
• Narrow QRS complex, less than 0.12 seconds.
• P-wave normal.
• PRI Is normal.

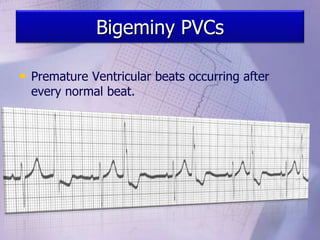

25. Bigeminy PVCs
• Premature Ventricular beats occurring after
every normal beat.

26. Trigeminy PVCs
• PVCs occur at intervals of 2 normal beats to 1
PVC

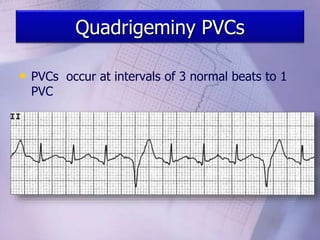

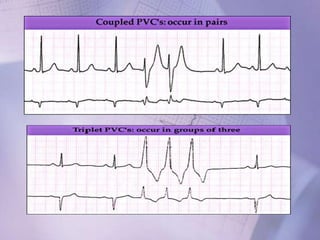

27. Quadrigeminy PVCs
• PVCs occur at intervals of 3 normal beats to 1
PVC

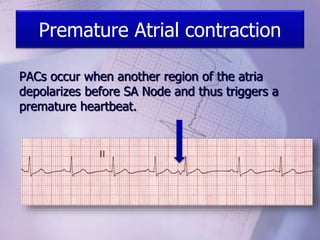

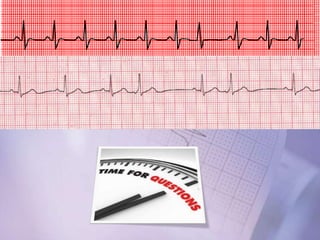

29. Premature Atrial contraction
PACs occur when another region of the atria
depolarizes before SA Node and thus triggers a
premature heartbeat.

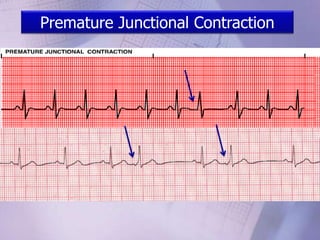

31. Premature Junctional Contraction

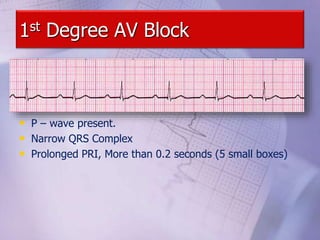

32. 1st Degree AV Block
• P – wave present.
• Narrow QRS Complex
• Prolonged PRI, More than 0.2 seconds (5 small boxes)

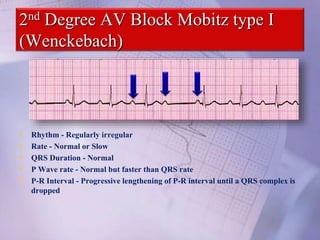

33. 2nd Degree AV Block Mobitz type I
(Wenckebach)
• Rhythm - Regularly irregular
• Rate - Normal or Slow
• QRS Duration - Normal
• P Wave rate - Normal but faster than QRS rate
• P-R Interval - Progressive lengthening of P-R interval until a QRS complex is
dropped

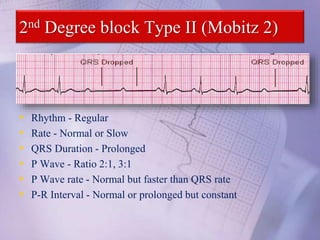

34. 2nd Degree block Type II (Mobitz 2)
• Rhythm - Regular
• Rate - Normal or Slow
• QRS Duration - Prolonged
• P Wave - Ratio 2:1, 3:1
• P Wave rate - Normal but faster than QRS rate
• P-R Interval - Normal or prolonged but constant

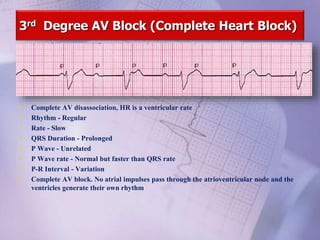

35. 3rd Degree AV Block (Complete Heart Block)
• Complete AV disassociation, HR is a ventricular rate
• Rhythm - Regular
• Rate - Slow
• QRS Duration - Prolonged
• P Wave - Unrelated
• P Wave rate - Normal but faster than QRS rate
• P-R Interval - Variation
• Complete AV block. No atrial impulses pass through the atrioventricular node and the
ventricles generate their own rhythm

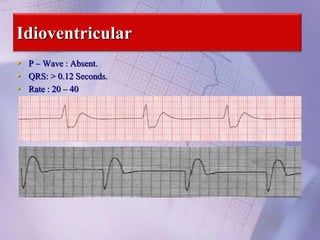

36. Idioventricular
• P – Wave : Absent.
• QRS: > 0.12 Seconds.
• Rate : 20 – 40

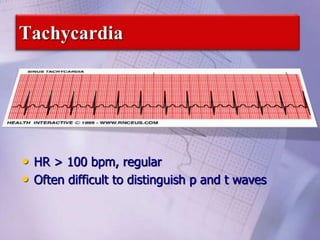

38. • HR > 100 bpm, regular
• Often difficult to distinguish p and t waves

39. Tachycardia-Etiology
• Fever
• Hyperthyroidism
• Anxiety
• Sepsis
• Anemia
• Hypotension and shock
• Pulmonary embolism
• Acute coronary ischemia
and myocardial infarction
• Heart failure
• Chronic pulmonary
disease
• Hypoxia

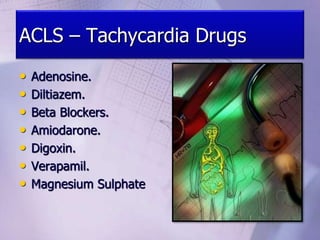

40. ACLS – Tachycardia Drugs
• Adenosine.
• Diltiazem.
• Beta Blockers.
• Amiodarone.
• Digoxin.
• Verapamil.
• Magnesium Sulphate

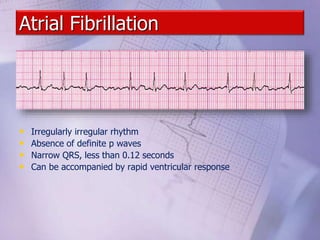

41. Atrial Fibrillation
• Irregularly irregular rhythm
• Absence of definite p waves
• Narrow QRS, less than 0.12 seconds
• Can be accompanied by rapid ventricular response

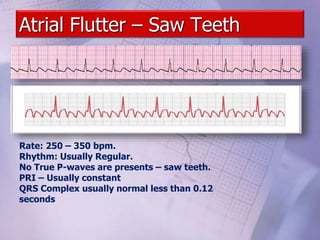

42. Atrial Flutter – Saw Teeth
Rate: 250 – 350 bpm.
Rhythm: Usually Regular.
No True P-waves are presents – saw teeth.
PRI – Usually constant
QRS Complex usually normal less than 0.12
seconds

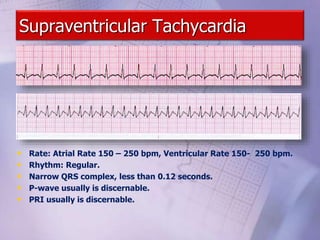

43. Supraventricular Tachycardia
• Rate: Atrial Rate 150 – 250 bpm, Ventricular Rate 150- 250 bpm.
• Rhythm: Regular.
• Narrow QRS complex, less than 0.12 seconds.
• P-wave usually is discernable.
• PRI usually is discernable.

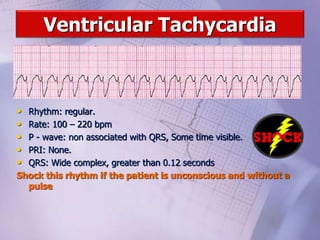

44. Ventricular Tachycardia
• Rhythm: regular.
• Rate: 100 – 220 bpm
• P - wave: non associated with QRS, Some time visible.
• PRI: None.
• QRS: Wide complex, greater than 0.12 seconds
Shock this rhythm if the patient is unconscious and without a
pulse

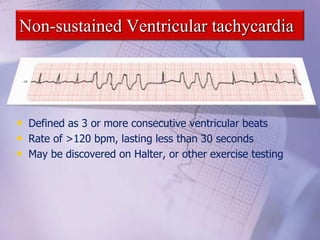

45. Non-sustained Ventricular tachycardia
• Defined as 3 or more consecutive ventricular beats
• Rate of >120 bpm, lasting less than 30 seconds
• May be discovered on Halter, or other exercise testing

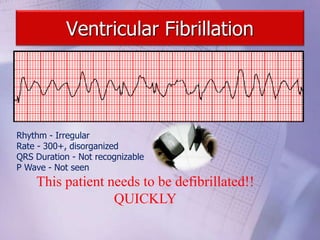

46. Ventricular Fibrillation
Rhythm - Irregular
Rate - 300+, disorganized
QRS Duration - Not recognizable
P Wave - Not seen
This patient needs to be defibrillated!!
QUICKLY

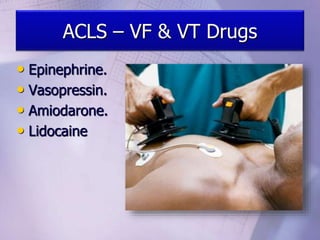

47. ACLS – VF & VT Drugs
• Epinephrine.
• Vasopressin.
• Amiodarone.
• Lidocaine

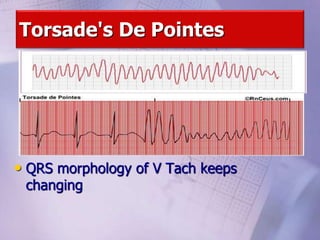

48. Torsade's De Pointes
• QRS morphology of V Tach keeps
changing

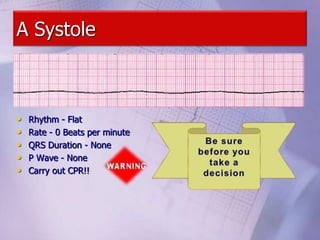

49. A Systole
• Rhythm - Flat
• Rate - 0 Beats per minute
• QRS Duration - None
• P Wave - None
• Carry out CPR!!

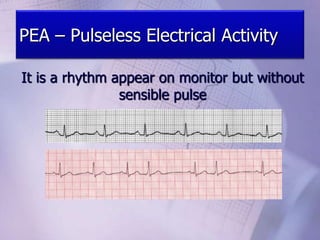

50. PEA – Pulseless Electrical Activity
It is a rhythm appear on monitor but without
sensible pulse

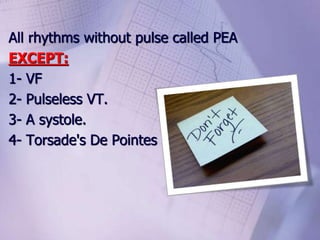

51. All rhythms without pulse called PEA
EXCEPT:
1- VF
2- Pulseless VT.
3- A systole.
4- Torsade's De Pointes
