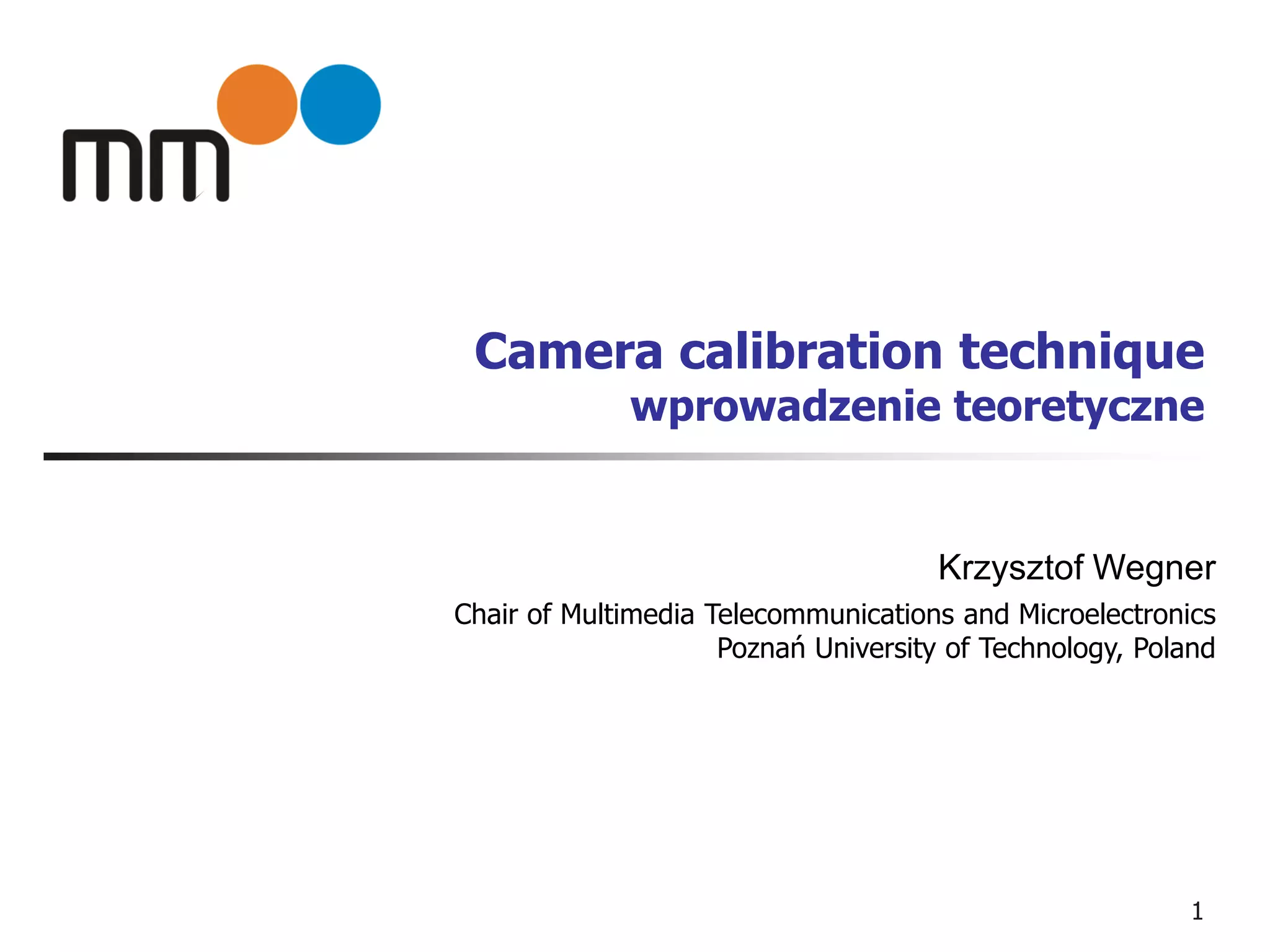

1. Camera calibration technique
wprowadzenie teoretyczne
Krzysztof Wegner
Chair of Multimedia Telecommunications and Microelectronics
Poznań University of Technology, Poland
1

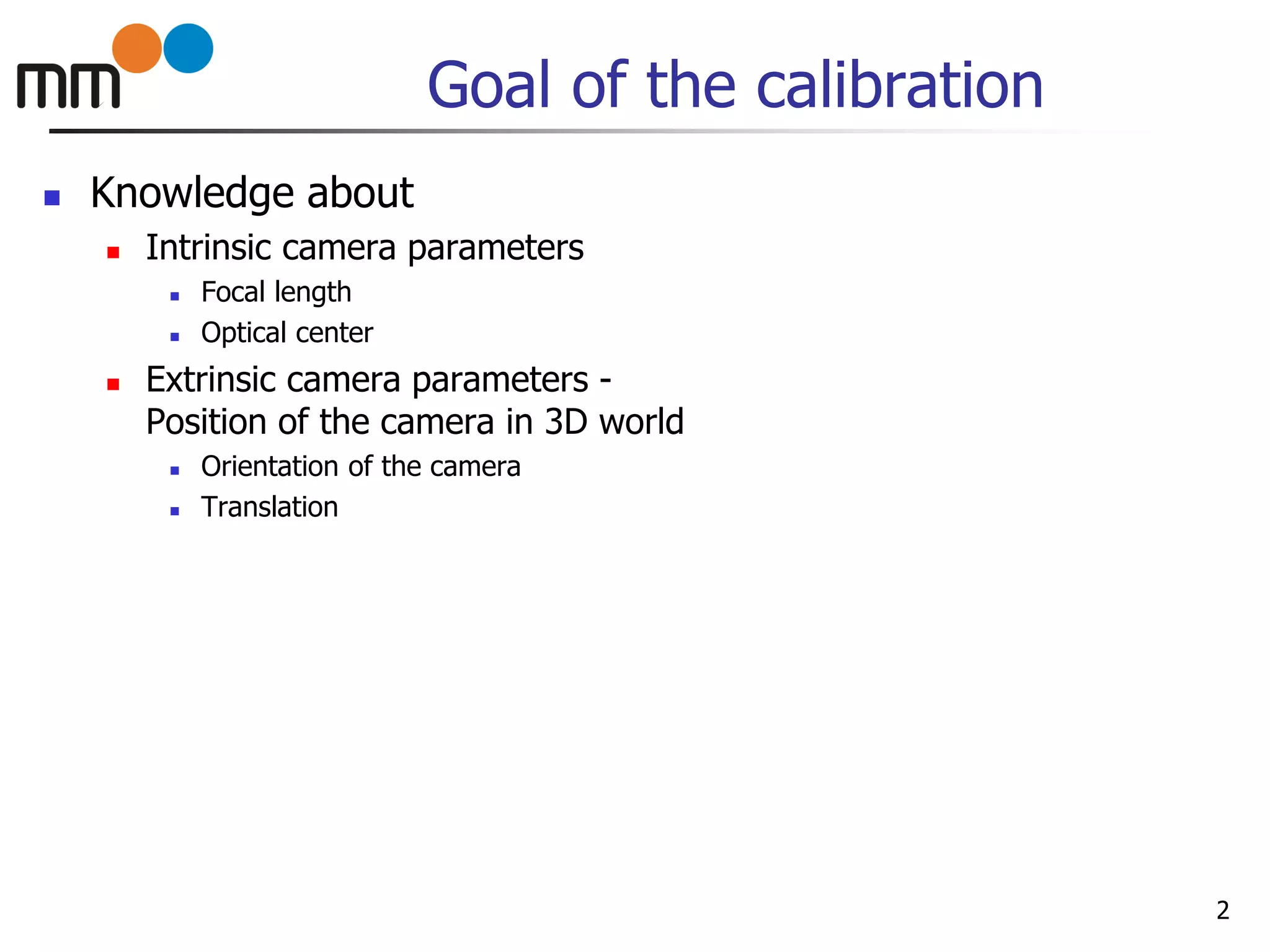

2. Goal of the calibration
Knowledge about
Intrinsic camera parameters
Focal length
Optical center
Extrinsic camera parameters -
Position of the camera in 3D world
Orientation of the camera
Translation
2
3. Goal of the calibration
Knowledge about
Intrinsic camera parameters
Focal length
Optical center
Extrinsic camera parameters -
Position of the camera in 3D world
Orientation of the camera
Translation
Common word coordinate system
3
4. Camera parameters
Intrinsic camera parameters
Focal length
Optical center
Extrinsic camera parameters -
Position of the camera in 3D world
Orientation of the camera
Translation
4
𝑨 =
𝑓𝑢 𝛾 𝑜 𝑢
0 𝑓𝑣 𝑜 𝑣
0 0 1
𝑹 = 𝒓 𝟏 𝒓 𝟐 𝒓 𝟑
𝑻 =
𝑡 𝑥
𝑡 𝑦
𝑡 𝑧
5. Camera model
Projection of a 3D point 𝑴 = 𝑋 𝑌 𝑍 1 𝑇
Onto a point 𝒎 = 𝑢 𝑣 1 𝑇
at image plane
s is a scale – distance to the point 𝑴
5
𝑠 ∙
𝑢
𝑣
1
= 𝐴 ∙ 𝑅 −𝑅 ∙ 𝑇 ∙
𝑋
𝑌
𝑍
1
6. Zhang’s Algorithm
Allows estimation of
intrinsic parameters - 𝑨 matrix
extrinsic parameters – rotation matrix 𝑹 and
translation vector 𝒕 = −𝑹 ∙ 𝒕
Planar template
𝑍 = 0
6
Z. Zhang, “A flexible new technique for camera calibration”, IEEE Transactions on Pattern Analysis and
Machine Intelligence, 22(11):1330–1334, 2000
𝑠 ∙
𝑢
𝑣
1
= 𝐴 ∙ 𝑟1 𝑟2 𝑟3 𝑡 ∙
𝑋
𝑌
𝑍
1
11. Estimating Homography H
Let’s assign
We have 2 equations and 9 variables so we need at least 5
points to solve uniquely for ℎ
11
Z. Zhang, “A flexible new technique for camera calibration”, IEEE Transactions on Pattern Analysis and
Machine Intelligence, 22(11):1330–1334, 2000
𝐻11 ∙ 𝑋 + 𝐻12 ∙ 𝑌 + 𝐻13 − 𝐻31 ∙ 𝑢 ∙ 𝑋 − 𝐻32 ∙ 𝑢 ∙ 𝑌 − 𝑢 ∙ 𝐻33 = 0
𝐻21∙ 𝑋 + 𝐻22 ∙ 𝑌 + 𝐻23 − 𝐻31 ∙ 𝑣 ∙ 𝑋 − 𝐻32 ∙ 𝑣 ∙ 𝑌 − 𝑣 ∙ 𝐻33 = 0
𝒄 𝒖 ∙ 𝒉 = 𝟎
𝒄 𝒗 ∙ 𝒉 = 𝟎
𝒄 𝒖 = 𝑋 𝑌 1 0 0 0 −𝑢 ∙ 𝑋 −𝑢 ∙ 𝑌 −𝑢
𝒄 𝒖 = 0 0 0 𝑋 𝑌 1 −𝑣 ∙ 𝑋 −𝑣 ∙ 𝑌 −𝑣
12. Estimating Homography H
Defined up to a scale factor 𝜆
We know position of the pattern’s feature points 𝑋, 𝑌
From registrated image we know 𝑢, 𝑣
Multiplication of both side by 𝜆 don’t change known 𝑋, 𝑌, 𝑢, 𝑣
So we don’t know whether we obtain 𝑯 or 𝑯
So we don’t know scale of the scene
12
Z. Zhang, “A flexible new technique for camera calibration”, IEEE Transactions on Pattern Analysis and
Machine Intelligence, 22(11):1330–1334, 2000
𝑠 ∙
𝑢
𝑣
1
= 𝑯 ∙
𝑋
𝑌
1
𝜆 ∙ 𝑠 ∙
𝑢
𝑣
1
= 𝝀 ∙ 𝑯 ∙
𝑋
𝑌
1
𝜆 ∙ 𝑠 ∙
𝑢
𝑣
1
= 𝑯 ∙
𝑋
𝑌
1
13. Homography H
Defined up to a scale factor 𝜆
We know position of the pattern’s feature points 𝑋, 𝑌
From registrated image we know 𝑢, 𝑣
13
Z. Zhang, “A flexible new technique for camera calibration”, IEEE Transactions on Pattern Analysis and
Machine Intelligence, 22(11):1330–1334, 2000
𝑠 ∙
𝑢
𝑣
1
= 𝑯 ∙
𝑋
𝑌
1
14. Homography H
Defined up to a scale factor 𝜆
We know position of the pattern’s feature points 𝑋, 𝑌
From registrated image we know 𝑢, 𝑣
Multiplication of both side by 𝜆 don’t change known 𝑋, 𝑌, 𝑢, 𝑣
14
Z. Zhang, “A flexible new technique for camera calibration”, IEEE Transactions on Pattern Analysis and
Machine Intelligence, 22(11):1330–1334, 2000
𝑠 ∙
𝑢
𝑣
1
= 𝑯 ∙
𝑋
𝑌
1
𝜆 ∙ 𝑠 ∙
𝑢
𝑣
1
= 𝝀 ∙ 𝑯 ∙
𝑋
𝑌
1
𝜆 ∙ 𝑠 ∙
𝑢
𝑣
1
= 𝑯 ∙
𝑋
𝑌
1
15. Homography H
Defined up to a scale factor 𝜆
Multiplication of both side by 𝜆 don’t change known 𝑋, 𝑌, 𝑢, 𝑣
So we don’t know whether we obtain 𝑯 or 𝑯
So we don’t know Z scale of the scene
15
Z. Zhang, “A flexible new technique for camera calibration”, IEEE Transactions on Pattern Analysis and
Machine Intelligence, 22(11):1330–1334, 2000
𝑠 ∙
𝑢
𝑣
1
= 𝑯 ∙
𝑋
𝑌
1
𝜆 ∙ 𝑠 ∙
𝑢
𝑣
1
= 𝝀 ∙ 𝑯 ∙
𝑋
𝑌
1
𝜆 ∙ 𝑠 ∙
𝑢
𝑣
1
= 𝑯 ∙
𝑋
𝑌
1
16. Constraints on the intrinsic
Vectors 𝒓 𝟏, 𝒓 𝟐 are orthonormal so taking dot product gives
and length of 𝒓 𝟏, 𝒓 𝟐 should be the same
For
we have
and
16
Z. Zhang, “A flexible new technique for camera calibration”, IEEE Transactions on Pattern Analysis and
Machine Intelligence, 22(11):1330–1334, 2000
𝑯 = 𝒉 𝟏 𝒉 𝟐 𝒉 𝟑 = 𝜆 ∙ 𝑨 ∙ 𝒓 𝟏 𝒓2 𝒕
𝒓 𝟏
𝑻
∙ 𝒓 𝟐 = 𝟎
𝒓 𝟏
𝟐
= 𝒓 𝟐
𝟐
⟹ 𝒓 𝟏
𝑻
∙ 𝒓 𝟏 = 𝒓 𝟐
𝑻
∙ 𝒓 𝟐
𝜆−1 ∙ 𝑨−𝟏 ∙ 𝒉 𝟏 𝒉 𝟐 𝒉 𝟑 = 𝒓 𝟏 𝒓2 𝒕
𝒓 𝟏 = 𝜆−1
∙ 𝑨−𝟏
∙ 𝒉 𝟏
𝒓2 = 𝜆−1 ∙ 𝑨−𝟏 ∙ 𝒉 𝟐
𝒕 = 𝜆−1
∙ 𝑨−𝟏
∙ 𝒉 𝟑
23. Solving for b
Two equation are defined but 𝒃 have 6 unknowns.
So at least 3 images are required to uniquly solve for 𝒃
Because all images are captured with the same camera we
can stack equation for 𝒃 together
23
Z. Zhang, “A flexible new technique for camera calibration”, IEEE Transactions on Pattern Analysis and
Machine Intelligence, 22(11):1330–1334, 2000
𝒗 𝟏𝟐
𝑻
𝒗 𝟏𝟏 − 𝒗 𝟐𝟐
𝑻
∙ 𝒃 = 𝟎
𝒗 𝟏𝟐
′𝑻
𝒗′ 𝟏𝟏 − 𝒗′ 𝟐𝟐
𝑻
∙ 𝒃 = 𝟎
𝒗′′ 𝟏𝟐
𝑻
𝒗′′ 𝟏𝟏 − 𝒗′′ 𝟐𝟐
𝑻
∙ 𝒃 = 𝟎
𝒗 𝟏𝟐
𝑻
𝒗 𝟏𝟏 − 𝒗 𝟐𝟐
𝑻
∙ 𝒃 = 𝟎 𝒗 𝟏𝟐
𝑻
𝒗 𝟏𝟏 − 𝒗 𝟐𝟐
𝑻
𝒗 𝟏𝟐
′𝑻
𝒗′ 𝟏𝟏 − 𝒗′ 𝟐𝟐
𝑻
𝒗′′ 𝟏𝟐
𝑻
𝒗′′ 𝟏𝟏 − 𝒗′′ 𝟐𝟐
𝑻
∙ 𝒃 = 𝟎 𝑽 =
𝒗 𝟏𝟐
𝑻
𝒗 𝟏𝟏 − 𝒗 𝟐𝟐
𝑻
𝒗 𝟏𝟐
′𝑻
𝒗′ 𝟏𝟏 − 𝒗′ 𝟐𝟐
𝑻
𝒗′′ 𝟏𝟐
𝑻
𝒗′′ 𝟏𝟏 − 𝒗′′ 𝟐𝟐
𝑻
24. Solving for b
There is trivia solution 𝒃 = 𝟎
But we look for non trivial solution so 𝒃 ≠ 𝟎
Such solution is given by eigenvector of asociated with
the smallest eigenvalue (right singulart vector of 𝑽)
24
Z. Zhang, “A flexible new technique for camera calibration”, IEEE Transactions on Pattern Analysis and
Machine Intelligence, 22(11):1330–1334, 2000
𝑽 ∙ 𝒃 = 𝟎
𝑽 𝑻 ∙ 𝑽
26. Retriving position
We know constraints
To complete rotation matrix we calculater third column
Finally we ortonormalize rotation matrix
26
Z. Zhang, “A flexible new technique for camera calibration”, IEEE Transactions on Pattern Analysis and
Machine Intelligence, 22(11):1330–1334, 2000
𝒓 𝟏 = 𝜆−1
∙ 𝑨−𝟏
∙ 𝒉 𝟏
𝒓2 = 𝜆−1
∙ 𝑨−𝟏
∙ 𝒉 𝟐
𝒕 = 𝜆−1
∙ 𝑨−𝟏
∙ 𝒉 𝟑
𝒓 𝟑 = 𝒓 𝟏 × 𝒓 𝟐
𝒓 𝟏 = 𝒓 𝟐 = 𝒓 𝟑 = 𝟏
27. Summary
Camera parameters requires at least 5 point
pattern
Intrinsic camera parameters estimation
requires at least 3 images at different
orientation
All parameters are defined up to a unknown
scale
M37232, October 2015, Geneve 27
