1. Bone Tumor
&
Tumor-like lesions
By : dr. Manal Nageeb

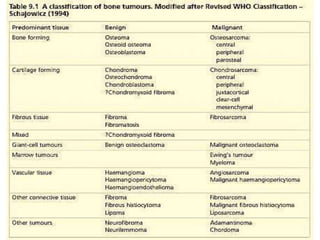

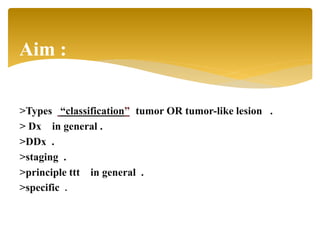

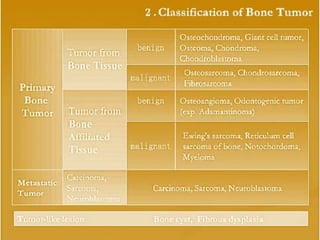

2. tumor OR tumor-like lesion .“classification”>Types
> Dx in general .
>DDx .
>staging .
>principle ttt in general .
>specific .
Aim :

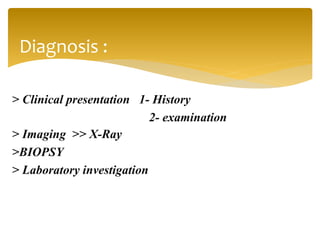

6. Diagnosis :
> Clinical presentation 1- History
2- examination
> Imaging >> X-Ray
>BIOPSY
> Laboratory investigation

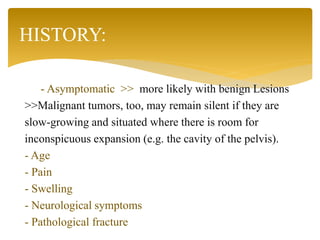

7. - Asymptomatic >> more likely with benign Lesions
>>Malignant tumors, too, may remain silent if they are
slow-growing and situated where there is room for
inconspicuous expansion (e.g. the cavity of the pelvis).
- Age
- Pain
- Swelling
- Neurological symptoms
- Pathological fracture
HISTORY:

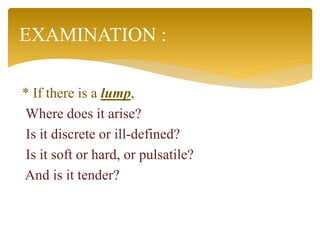

8. * If there is a lump,
Where does it arise?
Is it discrete or ill-defined?
Is it soft or hard, or pulsatile?
And is it tender?
EXAMINATION :

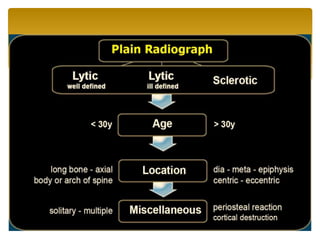

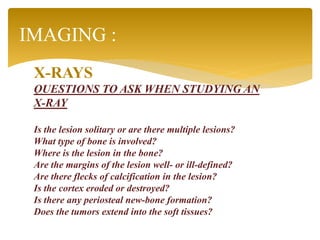

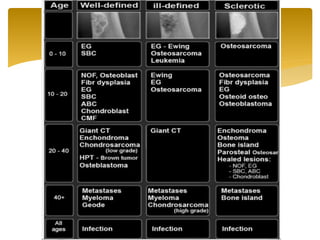

9. X-RAYS
QUESTIONS TO ASK WHEN STUDYING AN
X-RAY
Is the lesion solitary or are there multiple lesions?
What type of bone is involved?
Where is the lesion in the bone?
Are the margins of the lesion well- or ill-defined?
Are there flecks of calcification in the lesion?
Is the cortex eroded or destroyed?

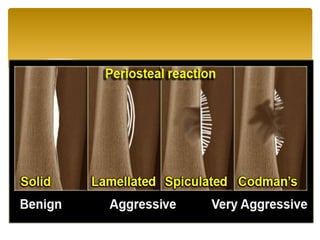

Is there any periosteal new-bone formation?
Does the tumors extend into the soft tissues?
IMAGING :

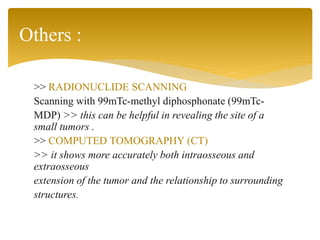

13. >> RADIONUCLIDE SCANNING
Scanning with 99mTc-methyl diphosphonate (99mTc-
MDP) >> this can be helpful in revealing the site of a
small tumors .
>> COMPUTED TOMOGRAPHY (CT)
>> it shows more accurately both intraosseous and
extraosseous
extension of the tumor and the relationship to surrounding
structures.
Others :

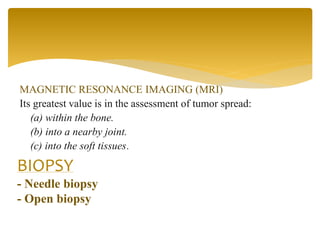

14. MAGNETIC RESONANCE IMAGING (MRI)
Its greatest value is in the assessment of tumor spread:
(a) within the bone.
(b) into a nearby joint.
(c) into the soft tissues.
BIOPSY
- Needle biopsy
- Open biopsy

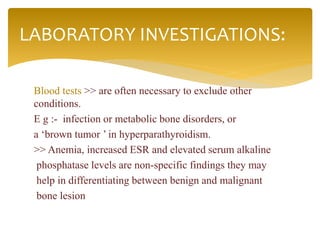

15. Blood tests >> are often necessary to exclude other
conditions.
E g :- infection or metabolic bone disorders, or
a ‘brown tumor ’ in hyperparathyroidism.
>> Anemia, increased ESR and elevated serum alkaline
phosphatase levels are non-specific findings they may
help in differentiating between benign and malignant
bone lesion
LABORATORY INVESTIGATIONS:

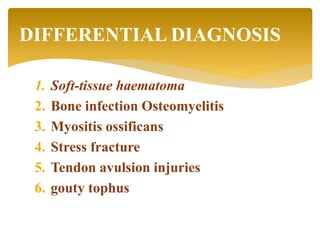

16. 1. Soft-tissue haematoma
2. Bone infection Osteomyelitis
3. Myositis ossificans
4. Stress fracture
5. Tendon avulsion injuries
6. gouty tophus
DIFFERENTIAL DIAGNOSIS

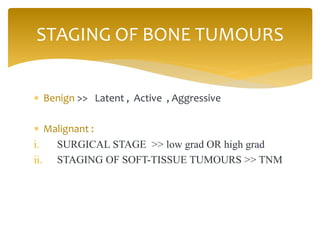

17.  Benign >> Latent , Active , Aggressive
 Malignant :
i. SURGICAL STAGE >> low grad OR high grad
ii. STAGING OF SOFT-TISSUE TUMOURS >> TNM

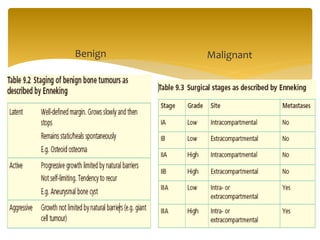

STAGING OF BONE TUMOURS

18. Benign Malignant

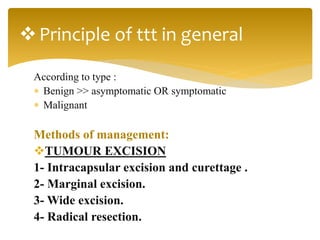

19. According to type :
 Benign >> asymptomatic OR symptomatic
 Malignant
Methods of management:
TUMOUR EXCISION
1- Intracapsular excision and curettage .
2- Marginal excision.
3- Wide excision.
4- Radical resection.
Principle of ttt in general

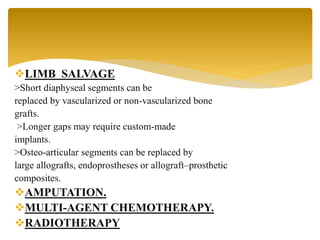

20. LIMB SALVAGE
>Short diaphyseal segments can be
replaced by vascularized or non-vascularized bone
grafts.
>Longer gaps may require custom-made
implants.
>Osteo-articular segments can be replaced by
large allografts, endoprostheses or allograft–prosthetic
composites.
AMPUTATION.
MULTI-AGENT CHEMOTHERAPY.
RADIOTHERAPY

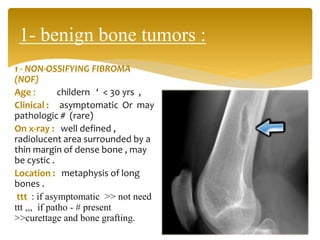

24. 1 - NON-OSSIFYING FIBROMA
(NOF)
Age : childern ‘ < 30 yrs ,
Clinical : asymptomatic Or may
pathologic # (rare)
On x-ray : well defined ,
radiolucent area surrounded by a
thin margin of dense bone , may
be cystic .
Location : metaphysis of long
bones .
ttt : if asymptomatic >> not need
ttt ,,, if patho - # present
>>curettage and bone grafting.
1- benign bone tumors :

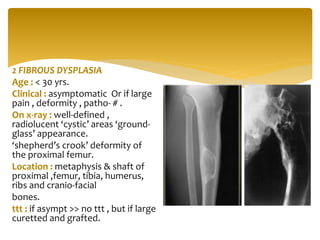

25. 2 FIBROUS DYSPLASIA
Age : < 30 yrs.
Clinical : asymptomatic Or if large
pain , deformity , patho- # .
On x-ray : well-defined ,
radiolucent ‘cystic’ areas ‘ground-
glass’ appearance.
‘shepherd’s crook’ deformity of
the proximal femur.
Location : metaphysis & shaft of
proximal ,femur, tibia, humerus,
ribs and cranio-facial
bones.
ttt : if asympt >> no ttt , but if large
curetted and grafted.

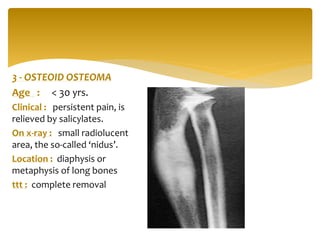

26. 3 - OSTEOID OSTEOMA
Age : < 30 yrs.
Clinical : persistent pain, is
relieved by salicylates.
On x-ray : small radiolucent
area, the so-called ‘nidus’.
Location : diaphysis or
metaphysis of long bones
ttt : complete removal

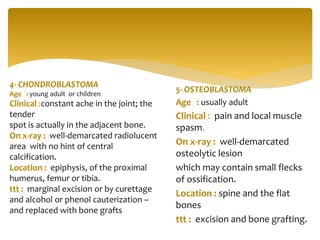

27. 5- OSTEOBLASTOMA
Age : usually adult
Clinical : pain and local muscle
spasm.
On x-ray : well-demarcated
osteolytic lesion
which may contain small flecks
of ossification.
Location : spine and the flat
bones
ttt : excision and bone grafting.
4- CHONDROBLASTOMA
Age : young adult or children
Clinical :constant ache in the joint; the
tender
spot is actually in the adjacent bone.
On x-ray : well-demarcated radiolucent
area with no hint of central
calcification.
Location : epiphysis, of the proximal
humerus, femur or tibia.
ttt : marginal excision or by curettage
and alcohol or phenol cauterization –
and replaced with bone grafts

28. 6- CHONDROMA
(ENCHONDROMA)
Age : all age
Clinical : asymptomatic Or
discovered incidentally ,,
pathological fracture.
On x-ray : well –defined osteolytic
with calcification
Location : phalanges , humerus ,
femur.
ttt : if asympt >> no ttt , but if large
curetted and grafted.

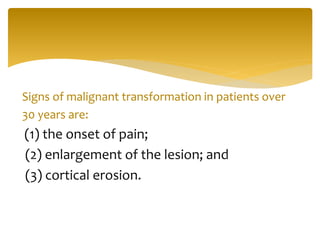

29. Signs of malignant transformation in patients over
30 years are:
(1) the onset of pain;
(2) enlargement of the lesion; and
(3) cortical erosion.

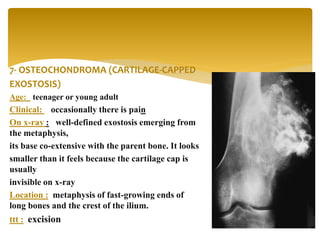

30. 7- OSTEOCHONDROMA (CARTILAGE-CAPPED
EXOSTOSIS)
Age: teenager or young adult
Clinical: occasionally there is pain
On x-ray : well-defined exostosis emerging from
the metaphysis,
its base co-extensive with the parent bone. It looks
smaller than it feels because the cartilage cap is
usually
invisible on x-ray
Location : metaphysis of fast-growing ends of
long bones and the crest of the ilium.
ttt : excision

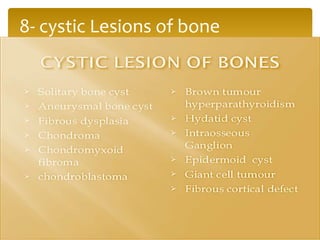

31. 8- cystic Lesions of bone

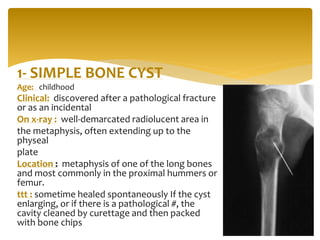

32. 1- SIMPLE BONE CYST
Age: childhood
Clinical: discovered after a pathological fracture
or as an incidental
On x-ray : well-demarcated radiolucent area in
the metaphysis, often extending up to the
physeal
plate
Location : metaphysis of one of the long bones
and most commonly in the proximal hummers or
femur.
ttt : sometime healed spontaneously If the cyst
enlarging, or if there is a pathological #, the
cavity cleaned by curettage and then packed
with bone chips

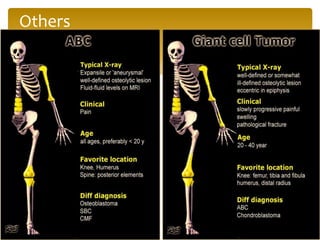

33. Others

34. ABC vs. GCT
ttt :, curetted and then
packed with bone grafts.
ttt :curettage and ‘stripping’ of the
cavity with burrs and gouges, followed
by swabbing with hydrogen peroxide or
by the application of liquid nitrogen; the
cavity is then packed with bone chips.

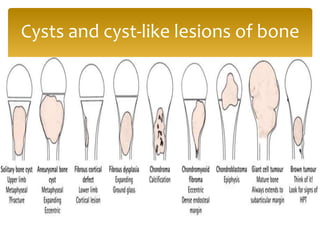

35. Cysts and cyst-like lesions of bone

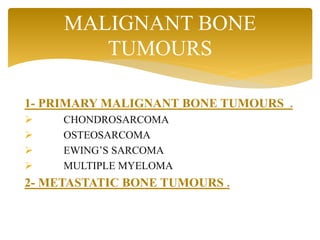

36. 1- PRIMARY MALIGNANT BONE TUMOURS .
 CHONDROSARCOMA
 OSTEOSARCOMA
 EWING’S SARCOMA
 MULTIPLE MYELOMA
2- METASTATIC BONE TUMOURS .
MALIGNANT BONE
TUMOURS

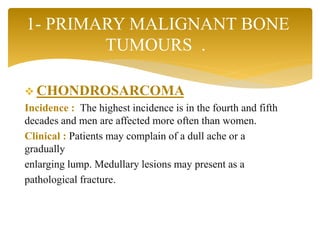

37.  CHONDROSARCOMA
Incidence : The highest incidence is in the fourth and fifth
decades and men are affected more often than women.
Clinical : Patients may complain of a dull ache or a
gradually
enlarging lump. Medullary lesions may present as a
pathological fracture.
1- PRIMARY MALIGNANT BONE
TUMOURS .

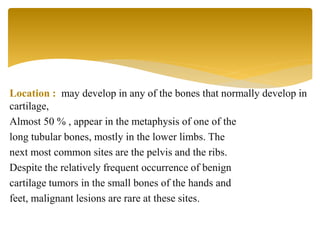

38. Location : may develop in any of the bones that normally develop in
cartilage,
Almost 50 % , appear in the metaphysis of one of the
long tubular bones, mostly in the lower limbs. The
next most common sites are the pelvis and the ribs.
Despite the relatively frequent occurrence of benign
cartilage tumors in the small bones of the hands and
feet, malignant lesions are rare at these sites.

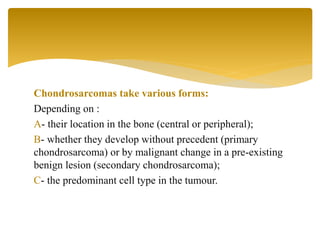

39. Chondrosarcomas take various forms:
Depending on :
A- their location in the bone (central or peripheral);
B- whether they develop without precedent (primary
chondrosarcoma) or by malignant change in a pre-existing
benign lesion (secondary chondrosarcoma);
C- the predominant cell type in the tumour.

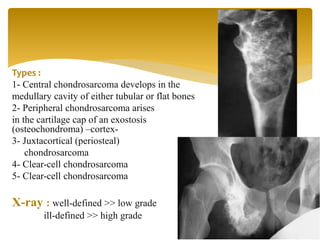

40. Types :
1- Central chondrosarcoma develops in the
medullary cavity of either tubular or flat bones
2- Peripheral chondrosarcoma arises
in the cartilage cap of an exostosis
(osteochondroma) –cortex-
3- Juxtacortical (periosteal)
chondrosarcoma
4- Clear-cell chondrosarcoma
5- Clear-cell chondrosarcoma
X-ray : well-defined >> low grade
ill-defined >> high grade

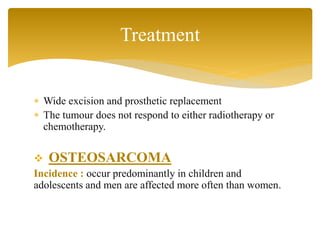

41.  Wide excision and prosthetic replacement
 The tumour does not respond to either radiotherapy or
chemotherapy.
 OSTEOSARCOMA
Incidence : occur predominantly in children and
adolescents and men are affected more often than women.
Treatment

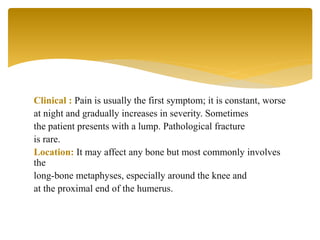

42. Clinical : Pain is usually the first symptom; it is constant, worse
at night and gradually increases in severity. Sometimes
the patient presents with a lump. Pathological fracture
is rare.
Location: It may affect any bone but most commonly involves
the
long-bone metaphyses, especially around the knee and
at the proximal end of the humerus.

43. X-ray : The endosteal margin is poorly defined.
sunburst’ effect and Codman’s triangle .

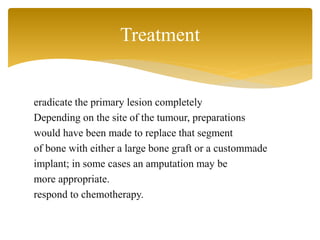

44. eradicate the primary lesion completely
Depending on the site of the tumour, preparations
would have been made to replace that segment
of bone with either a large bone graft or a custommade
implant; in some cases an amputation may be
more appropriate.
respond to chemotherapy.
Treatment

45. EWING’S SARCOMA
Incidence : It occurs most commonly between the ages of
10 and 20 years , and males more than females .
Clinical : The patient presents with pain – often throbbing
in character – and swelling. Generalized illness and
pyrexia, together with a warm, tender swelling .
Location : usually in a tubular bone and especially in the
tibia, fibula or clavicle.

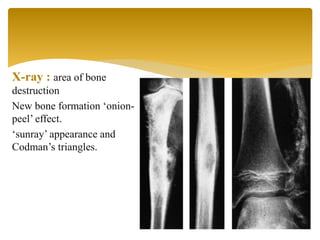

46. X-ray : area of bone
destruction
New bone formation ‘onion-
peel’ effect.
‘sunray’ appearance and
Codman’s triangles.

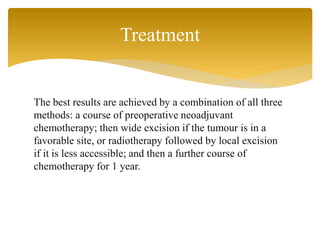

47. The best results are achieved by a combination of all three
methods: a course of preoperative neoadjuvant
chemotherapy; then wide excision if the tumour is in a
favorable site, or radiotherapy followed by local excision
if it is less accessible; and then a further course of
chemotherapy for 1 year.
Treatment

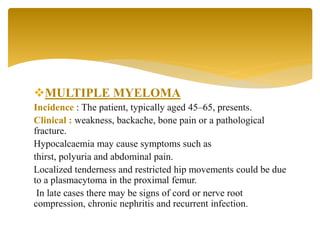

48. MULTIPLE MYELOMA
Incidence : The patient, typically aged 45–65, presents.
Clinical : weakness, backache, bone pain or a pathological
fracture.
Hypocalcaemia may cause symptoms such as
thirst, polyuria and abdominal pain.
Localized tenderness and restricted hip movements could be due
to a plasmacytoma in the proximal femur.
In late cases there may be signs of cord or nerve root
compression, chronic nephritis and recurrent infection.

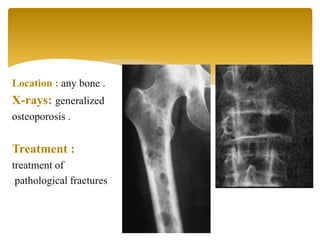

49. Location : any bone .
X-rays: generalized
osteoporosis .
Treatment :
treatment of
pathological fractures

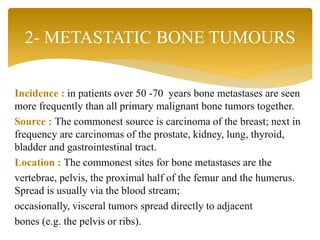

51. Incidence : in patients over 50 -70 years bone metastases are seen
more frequently than all primary malignant bone tumors together.
Source : The commonest source is carcinoma of the breast; next in
frequency are carcinomas of the prostate, kidney, lung, thyroid,
bladder and gastrointestinal tract.
Location : The commonest sites for bone metastases are the
vertebrae, pelvis, the proximal half of the femur and the humerus.
Spread is usually via the blood stream;
occasionally, visceral tumors spread directly to adjacent
bones (e.g. the pelvis or ribs).
2- METASTATIC BONE TUMOURS

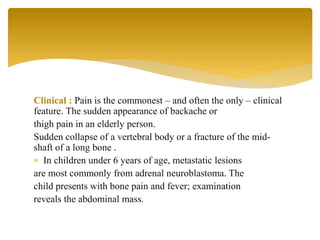

52. Clinical : Pain is the commonest – and often the only – clinical
feature. The sudden appearance of backache or
thigh pain in an elderly person.
Sudden collapse of a vertebral body or a fracture of the mid-
shaft of a long bone .
 In children under 6 years of age, metastatic lesions
are most commonly from adrenal neuroblastoma. The
child presents with bone pain and fever; examination
reveals the abdominal mass.

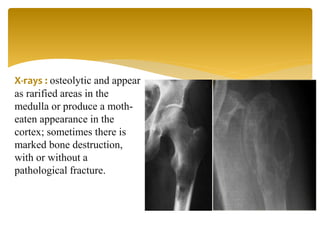

53. X-rays : osteolytic and appear
as rarified areas in the
medulla or produce a moth-
eaten appearance in the
cortex; sometimes there is
marked bone destruction,
with or without a
pathological fracture.

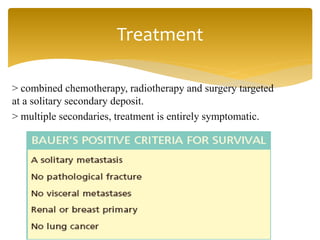

54. > combined chemotherapy, radiotherapy and surgery targeted
at a solitary secondary deposit.
> multiple secondaries, treatment is entirely symptomatic.
Treatment

55.  FIBROUS TUMOURS
 SYNOVIAL TUMOURS
 MUSCLE TUMOURS
Other tumors

56. GOOD LUCK
