Bone tumors

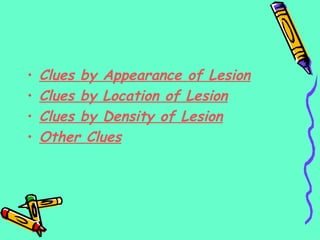

- 2. • Clues by Appearance of Lesion • Clues by Location of Lesion • Clues by Density of Lesion • Other Clues

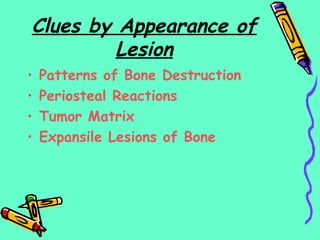

- 3. Clues by Appearance of Lesion • Patterns of Bone Destruction • Periosteal Reactions • Tumor Matrix • Expansile Lesions of Bone
- 4. Clues by Appearance of Lesion • Patterns of Bone Destruction – Geographic – Moth-eaten – Permeative

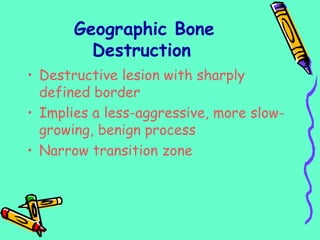

- 5. Geographic Bone Destruction • Destructive lesion with sharply defined border • Implies a less-aggressive, more slow- growing, benign process • Narrow transition zone

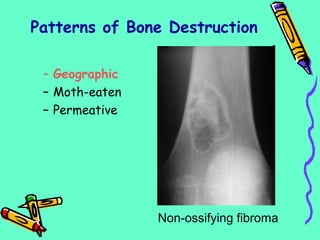

- 6. Patterns of Bone Destruction – Geographic – Moth-eaten – Permeative Non-ossifying fibroma

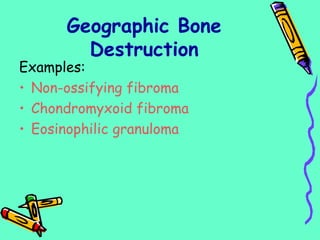

- 7. Geographic Bone Destruction Examples: • Non-ossifying fibroma • Chondromyxoid fibroma • Eosinophilic granuloma

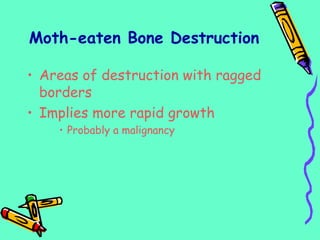

- 8. Moth-eaten Bone Destruction • Areas of destruction with ragged borders • Implies more rapid growth • Probably a malignancy

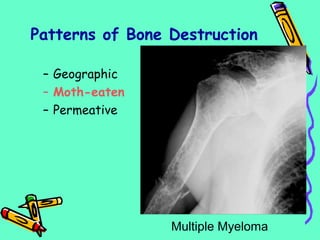

- 9. Patterns of Bone Destruction – Geographic – Moth-eaten – Permeative Multiple Myeloma

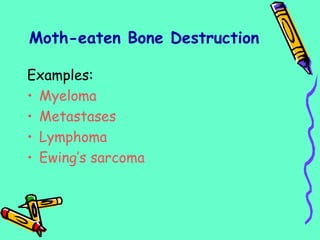

- 10. Examples: • Myeloma • Metastases • Lymphoma • Ewing’s sarcoma Moth-eaten Bone Destruction

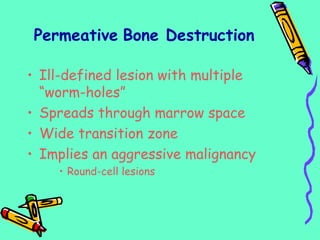

- 11. Permeative Bone Destruction • Ill-defined lesion with multiple “worm-holes” • Spreads through marrow space • Wide transition zone • Implies an aggressive malignancy • Round-cell lesions
- 12. Patterns of Bone Destruction – Geographic – Moth-eaten – Permeative Leukemia

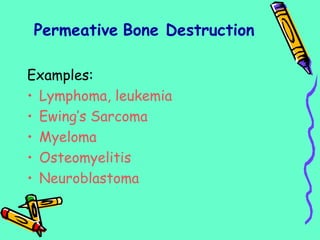

- 13. Examples: • Lymphoma, leukemia • Ewing’s Sarcoma • Myeloma • Osteomyelitis • Neuroblastoma Permeative Bone Destruction

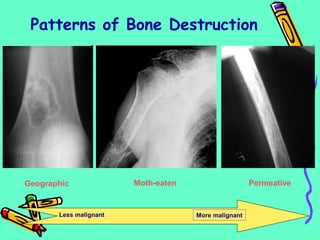

- 14. Patterns of Bone Destruction Geographic Moth-eaten Permeative Less malignant More malignant

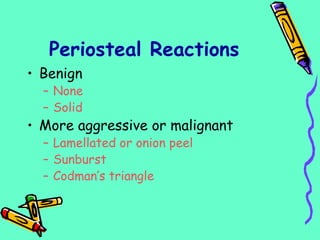

- 15. Periosteal Reactions • Benign – None – Solid • More aggressive or malignant – Lamellated or onion peel – Sunburst – Codman’s triangle

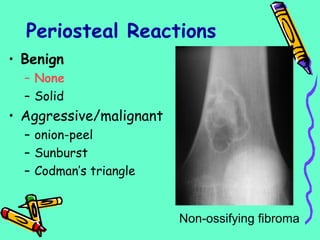

- 16. Periosteal Reactions • Benign – None – Solid • Aggressive/malignant – onion-peel – Sunburst – Codman’s triangle Non-ossifying fibroma

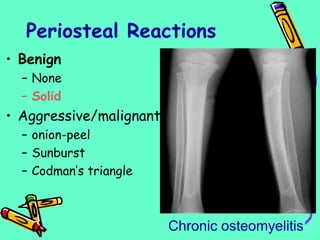

- 17. Periosteal Reactions • Benign – None – Solid • Aggressive/malignant – onion-peel – Sunburst – Codman’s triangle Chronic osteomyelitis

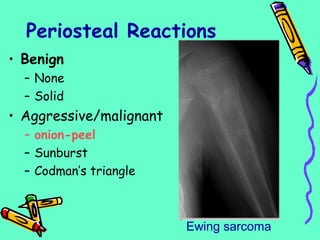

- 18. Periosteal Reactions • Benign – None – Solid • Aggressive/malignant – onion-peel – Sunburst – Codman’s triangle Ewing sarcoma

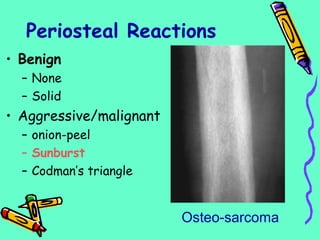

- 19. Periosteal Reactions • Benign – None – Solid • Aggressive/malignant – onion-peel – Sunburst – Codman’s triangle Osteo-sarcoma

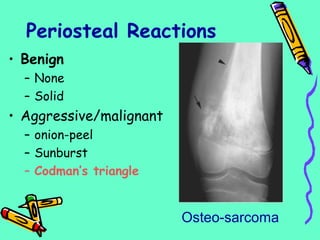

- 20. Periosteal Reactions • Benign – None – Solid • Aggressive/malignant – onion-peel – Sunburst – Codman’s triangle Osteo-sarcoma

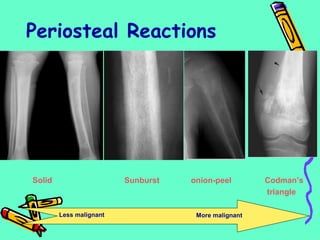

- 21. Periosteal Reactions Solid onion-peelSunburst Codman’s triangle Less malignant More malignant

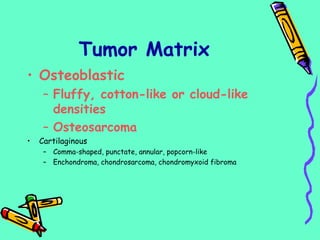

- 22. Tumor Matrix • Osteoblastic – Fluffy, cotton-like or cloud-like densities – Osteosarcoma • Cartilaginous – Comma-shaped, punctate, annular, popcorn-like – Enchondroma, chondrosarcoma, chondromyxoid fibroma

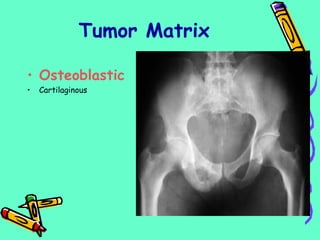

- 23. Tumor Matrix • Osteoblastic • Cartilaginous

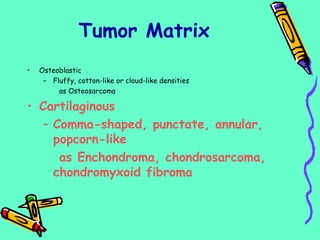

- 24. • Osteoblastic – Fluffy, cotton-like or cloud-like densities as Osteosarcoma • Cartilaginous – Comma-shaped, punctate, annular, popcorn-like as Enchondroma, chondrosarcoma, chondromyxoid fibroma Tumor Matrix

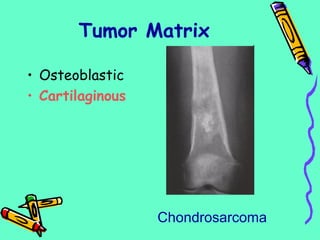

- 25. • Osteoblastic • Cartilaginous Tumor Matrix Chondrosarcoma

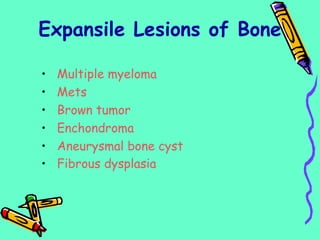

- 26. • Multiple myeloma • Mets • Brown tumor • Enchondroma • Aneurysmal bone cyst • Fibrous dysplasia Expansile Lesions of Bone

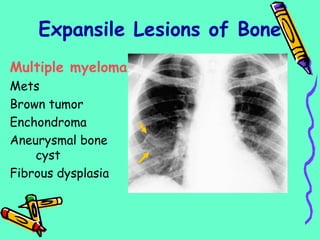

- 27. Expansile Lesions of Bone Multiple myeloma Mets Brown tumor Enchondroma Aneurysmal bone cyst Fibrous dysplasia
- 28. Multiple myeloma Mets Brown tumor Enchondroma Aneurysmal bone cyst Fibrous dysplasia Expansile Lesions of Bone Renal cell carcinoma
- 29. Multiple myeloma Mets Brown tumor Enchondroma Aneurysmal bone cyst Fibrous dysplasia Expansile Lesions of Bone

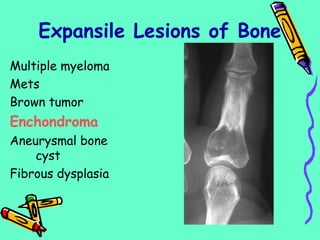

- 30. Multiple myeloma Mets Brown tumor Enchondroma Aneurysmal bone cyst Fibrous dysplasia Expansile Lesions of Bone

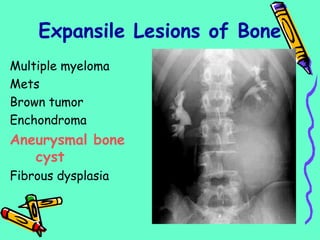

- 31. Multiple myeloma Mets Brown tumor Enchondroma Aneurysmal bone cyst Fibrous dysplasia Expansile Lesions of Bone

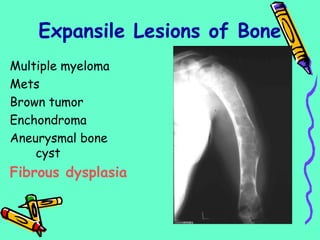

- 32. Multiple myeloma Mets Brown tumor Enchondroma Aneurysmal bone cyst Fibrous dysplasia Expansile Lesions of Bone

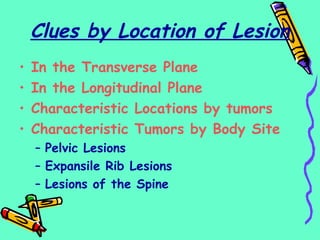

- 33. Clues by Location of Lesion • In the Transverse Plane • In the Longitudinal Plane • Characteristic Locations by tumors • Characteristic Tumors by Body Site – Pelvic Lesions – Expansile Rib Lesions – Lesions of the Spine
- 34. In the Transverse Plane . . .

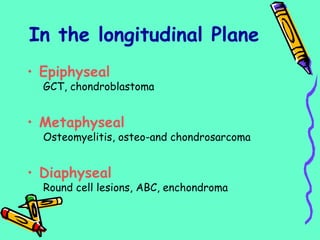

- 35. • Epiphyseal GCT, chondroblastoma • Metaphyseal Osteomyelitis, osteo-and chondrosarcoma • Diaphyseal Round cell lesions, ABC, enchondroma In the longitudinal Plane

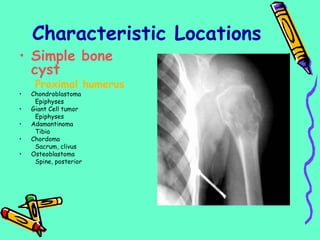

- 36. Characteristic Locations • Simple bone cyst Proximal humerus • Chondroblastoma Epiphyses • Giant Cell tumor Epiphyses • Adamantinoma Tibia • Chordoma Sacrum, clivus • Osteoblastoma Spine, posterior

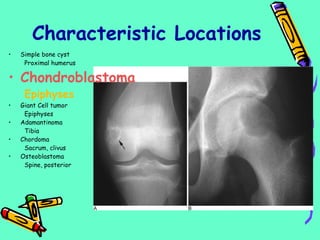

- 37. Characteristic Locations • Simple bone cyst Proximal humerus • Chondroblastoma Epiphyses • Giant Cell tumor Epiphyses • Adamantinoma Tibia • Chordoma Sacrum, clivus • Osteoblastoma Spine, posterior

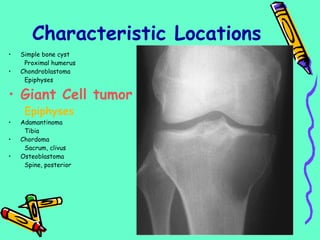

- 38. • Simple bone cyst Proximal humerus • Chondroblastoma Epiphyses • Giant Cell tumor Epiphyses • Adamantinoma Tibia • Chordoma Sacrum, clivus • Osteoblastoma Spine, posterior Characteristic Locations
- 39. • Simple bone cyst Proximal humerus • Chondroblastoma Epiphyses • Giant Cell tumor Epiphyses • Adamantinoma Tibia • Chordoma Sacrum, clivus • Osteoblastoma Spine, posterior Characteristic Locations

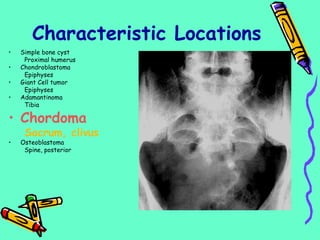

- 40. • Simple bone cyst Proximal humerus • Chondroblastoma Epiphyses • Giant Cell tumor Epiphyses • Adamantinoma Tibia • Chordoma Sacrum, clivus • Osteoblastoma Spine, posterior Characteristic Locations

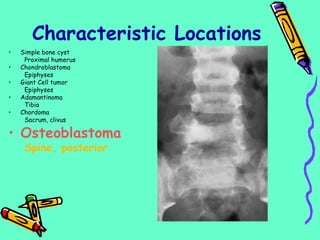

- 41. • Simple bone cyst Proximal humerus • Chondroblastoma Epiphyses • Giant Cell tumor Epiphyses • Adamantinoma Tibia • Chordoma Sacrum, clivus • Osteoblastoma Spine, posterior Characteristic Locations

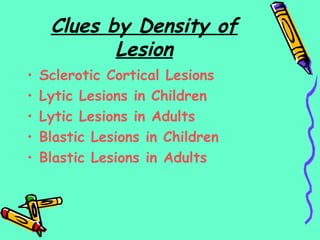

- 42. Clues by Density of Lesion • Sclerotic Cortical Lesions • Lytic Lesions in Children • Lytic Lesions in Adults • Blastic Lesions in Children • Blastic Lesions in Adults

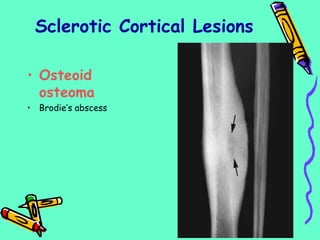

- 43. Sclerotic Cortical Lesions • Osteoid osteoma • Brodie’s abscess

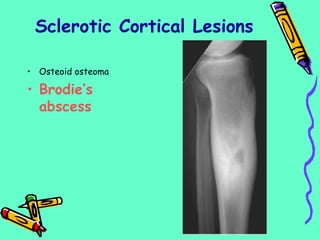

- 44. • Osteoid osteoma • Brodie’s abscess Sclerotic Cortical Lesions
- 45. Lytic Lesions in Children • Eosinophilic granuloma • Leukemia
- 46. Lytic Lesions in Children • Eosinophilic granuloma • Leukemia

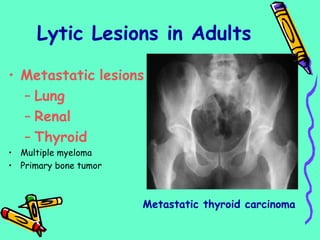

- 47. Lytic Lesions in Adults • Metastatic lesions – Lung – Renal – Thyroid • Multiple myeloma • Primary bone tumor Metastatic thyroid carcinoma
- 48. • Metastatic lesions – Lung – Renal – Thyroid • Multiple myeloma • Primary bone tumor Lytic Lesions in Adults

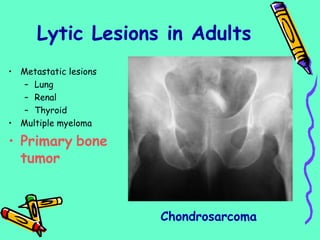

- 49. • Metastatic lesions – Lung – Renal – Thyroid • Multiple myeloma • Primary bone tumor Chondrosarcoma Lytic Lesions in Adults

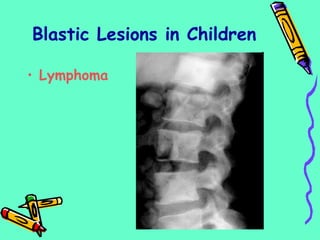

- 50. • Lymphoma Blastic Lesions in Children

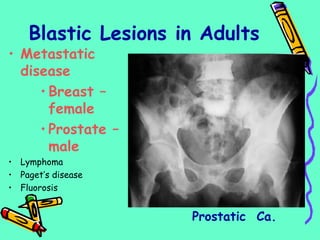

- 51. • Metastatic disease • Breast – female • Prostate – male • Lymphoma • Paget’s disease • Fluorosis Prostatic Ca. Blastic Lesions in Adults

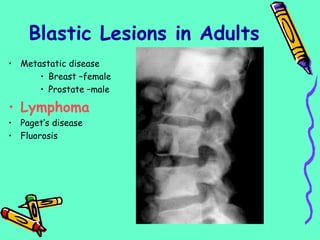

- 52. • Metastatic disease • Breast –female • Prostate –male • Lymphoma • Paget’s disease • Fluorosis Blastic Lesions in Adults

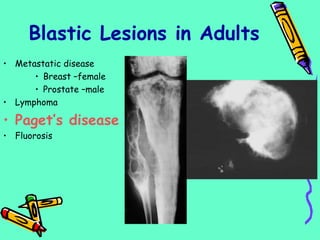

- 53. • Metastatic disease • Breast –female • Prostate –male • Lymphoma • Paget’s disease • Fluorosis Blastic Lesions in Adults

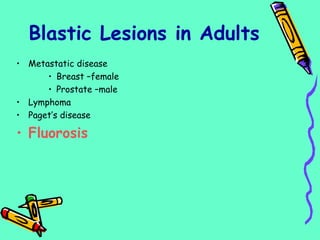

- 54. • Metastatic disease • Breast –female • Prostate –male • Lymphoma • Paget’s disease • Fluorosis Blastic Lesions in Adults

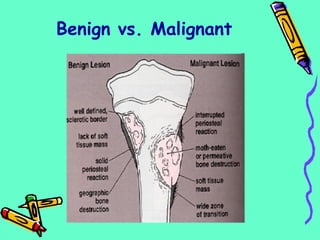

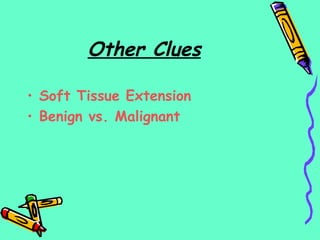

- 55. Other Clues • Soft Tissue Extension • Benign vs. Malignant

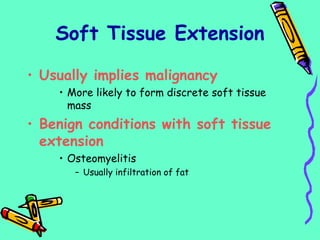

- 56. Soft Tissue Extension • Usually implies malignancy • More likely to form discrete soft tissue mass • Benign conditions with soft tissue extension • Osteomyelitis – Usually infiltration of fat
- 59. Thank You
