BERT was developed by Google AI Language and came out Oct. 2018. It has achieved the best performance in many NLP tasks. So if you are interested in NLP, studying BERT is a good way to go.

1. 1
BERT: Bidirectional Encoder
Representations from Transformers
Liangqun Lu
MS in CS and PhD in Biology
2019 - 02 - 25
Source: Devlin, Jacob, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. 2018. “BERT:
Pre-Training of Deep Bidirectional Transformers for Language Understanding.” arXiv [cs.CL].
arXiv. http://arxiv.org/abs/1810.04805.

2. Related Previous Work
● Attention: Neural Machine Translation by Jointly Learning to Align and
Translate (Bahdanau et al. 2014)
● Transformer: Attention is All you Need (Vaswani et al. 2017)
● ELMo: Deep Contextualized Word Representations (Peters et al. 2018)
● GPT: Improving language understanding by generative pre-training (Radford
et al. 2018)
2
Seq2seq NMT Attention Transformer
Bert
Glove ELMo GPTWord2Vec

3. Sequence to sequence neural network
● Many NLP tasks can be phrased as sequence-to-sequence:
○ Language translation (input → output)
○ Summarization (long text → short text)
○ Dialogue (previous utterances → next utterance)
○ Parsing (input text → output parse as sequence)
○ Code generation (natural language → Python code)
3
Encoder DecoderInput Output

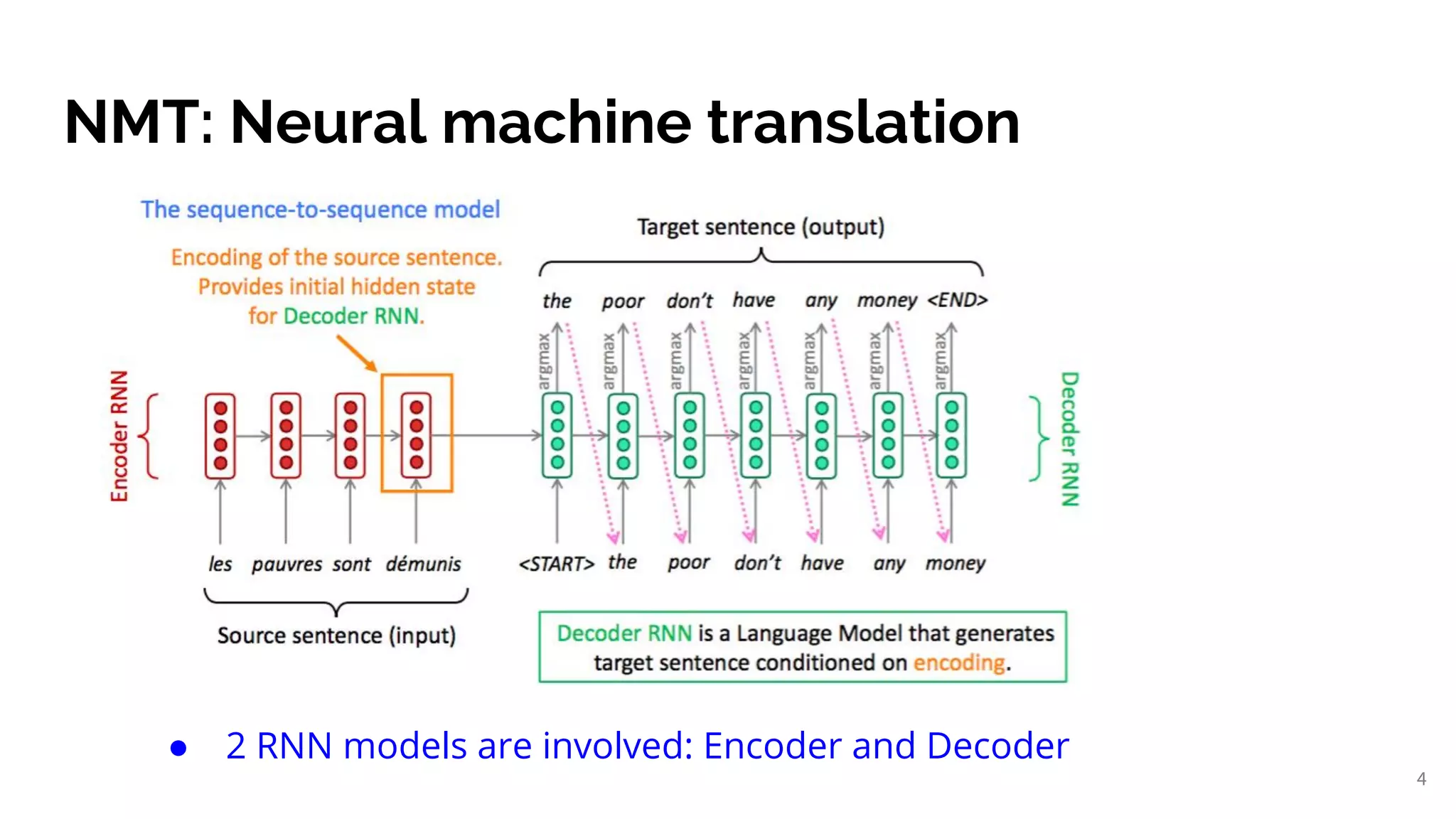

4. NMT: Neural machine translation
4
● 2 RNN models are involved: Encoder and Decoder

5. NMT training
5

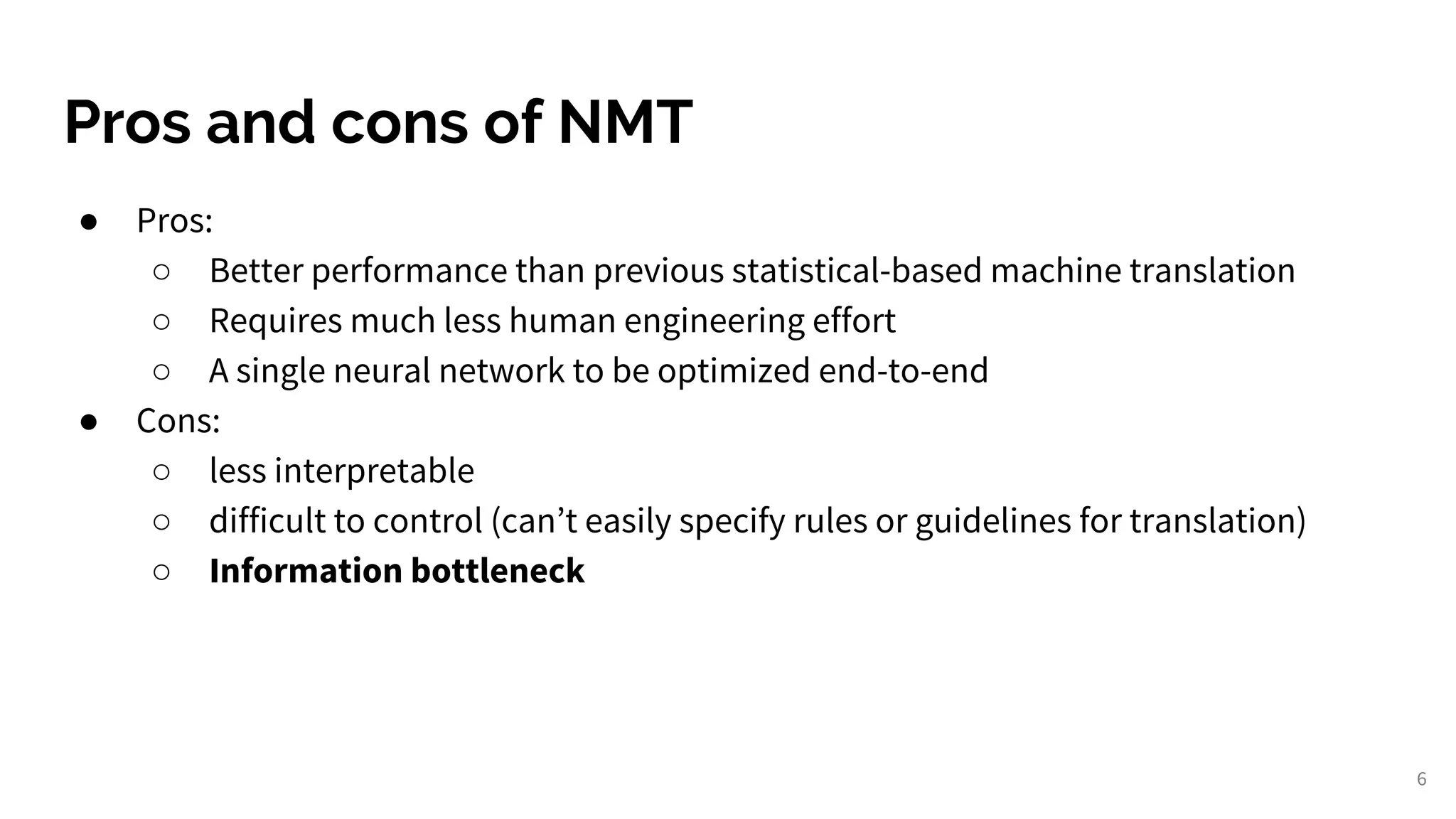

6. Pros and cons of NMT
● Pros:
○ Better performance than previous statistical-based machine translation
○ Requires much less human engineering effort
○ A single neural network to be optimized end-to-end
● Cons:
○ less interpretable
○ difficult to control (can’t easily specify rules or guidelines for translation)
○ Information bottleneck
6

7. 7

8. 8
Attention provides a solution to the
bottleneck problem: each step of the
decoder, focus on a particular part of the
source sequence

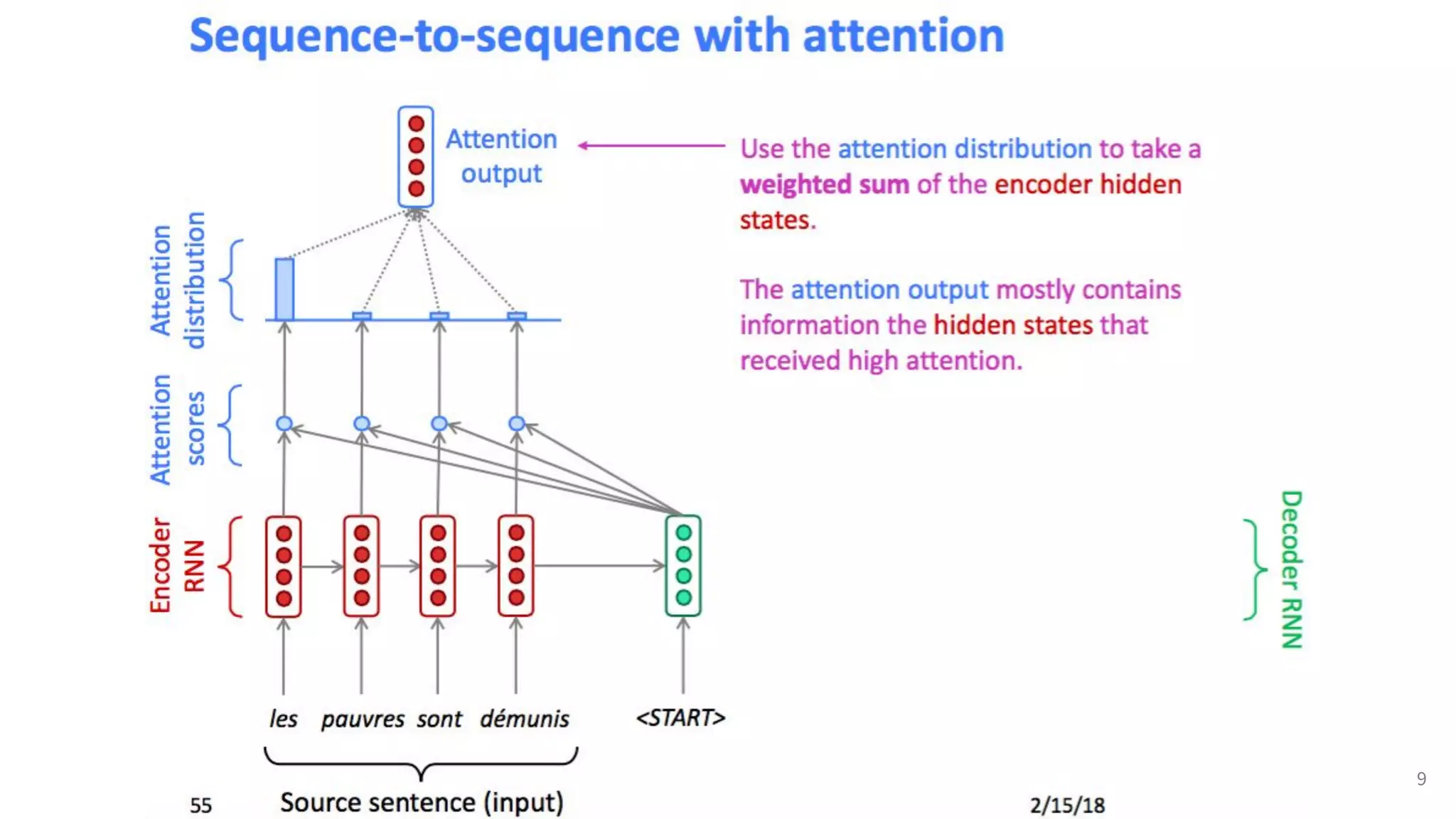

9. 9

10. 10

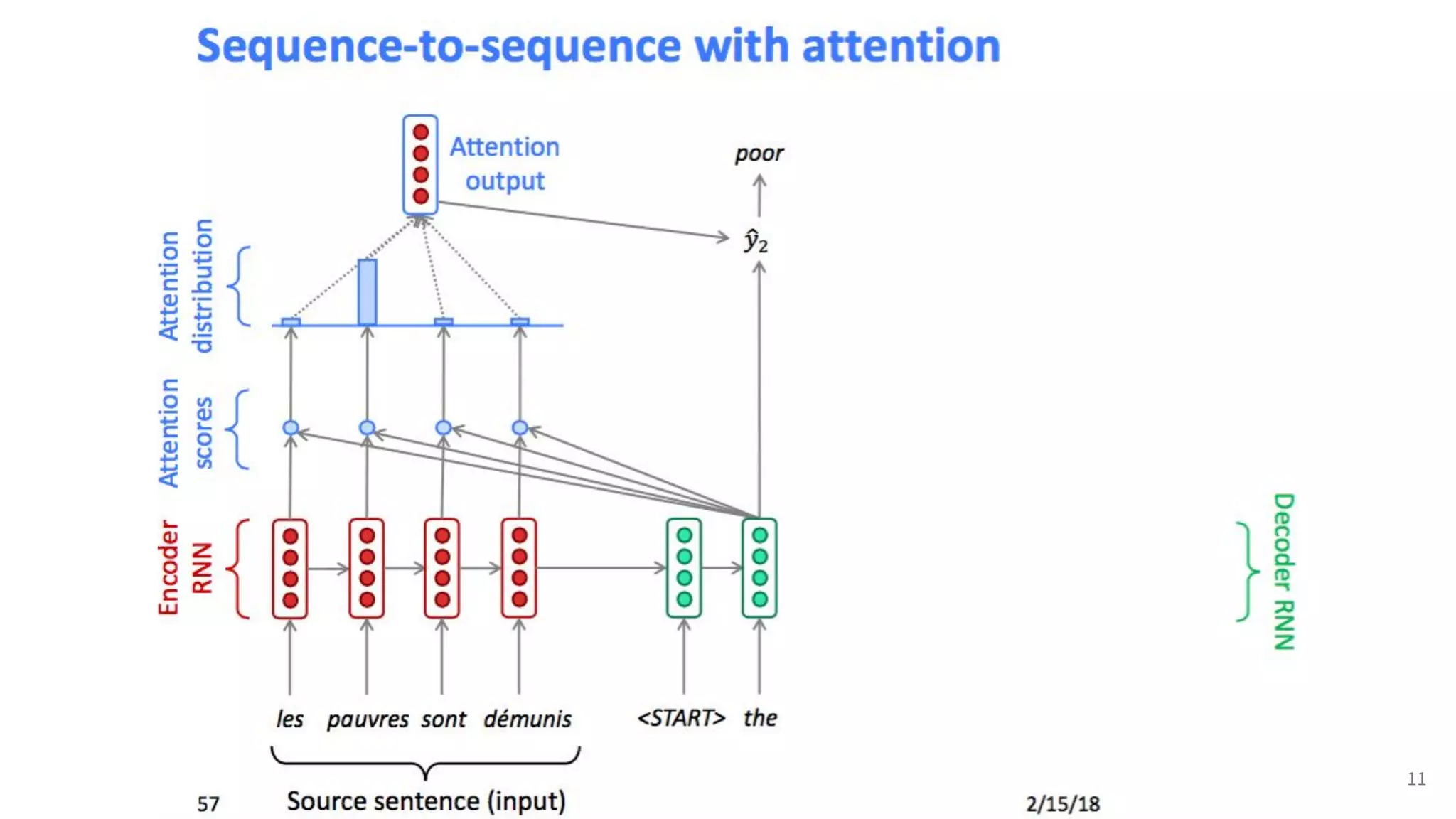

11. 11

12. 12

13. 13

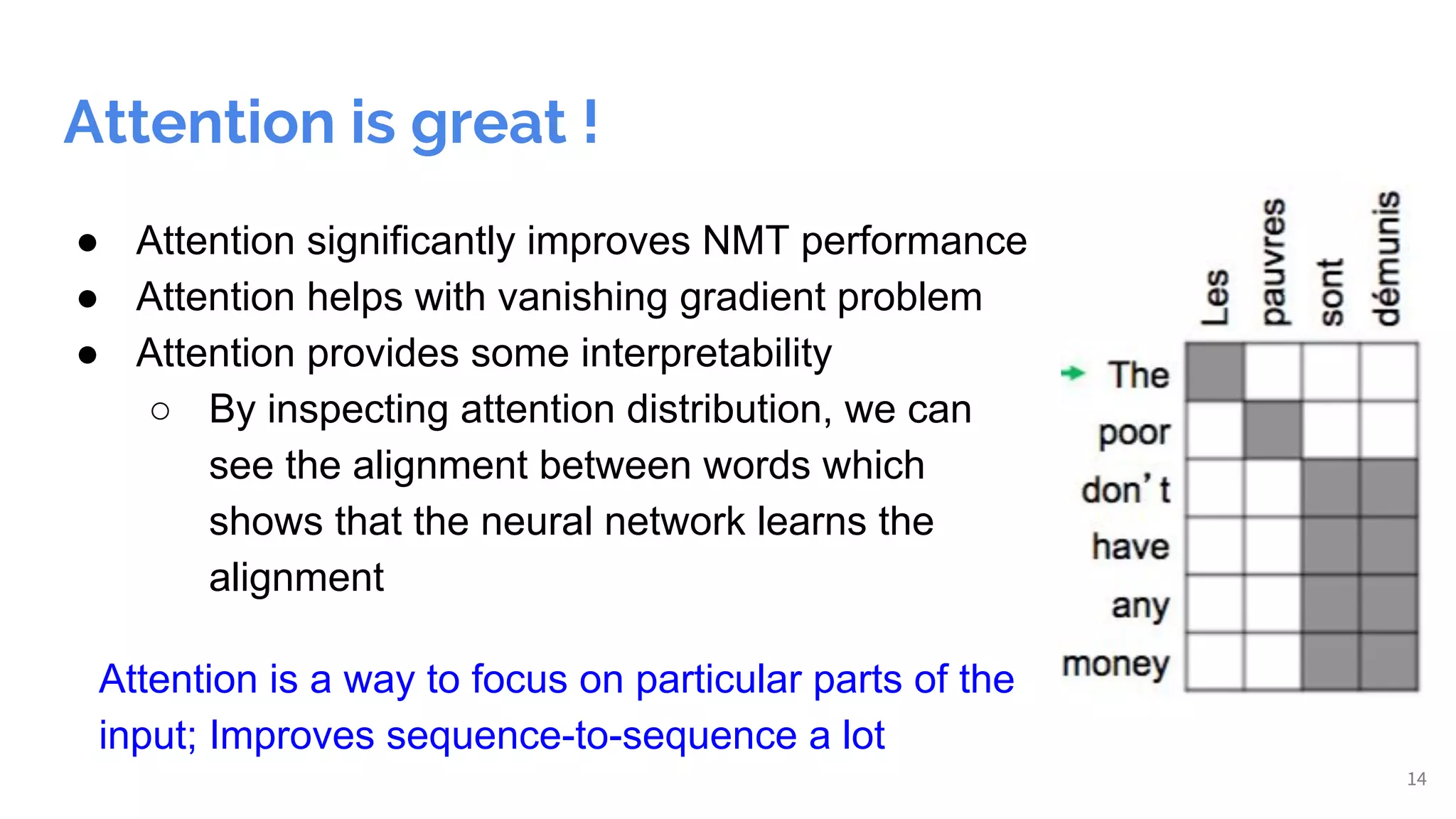

14. Attention is great !
● Attention significantly improves NMT performance
● Attention helps with vanishing gradient problem
● Attention provides some interpretability
○ By inspecting attention distribution, we can
see the alignment between words which
shows that the neural network learns the
alignment
14
Attention is a way to focus on particular parts of the
input; Improves sequence-to-sequence a lot

15. Attention is a general Deep Learning technique
● More general definition of attention:
● Given a set of vector values, and a vector query, attention is a
technique to compute a weighted sum of the values, dependent on the
query.
● For example, in the seq2seq + attention model, each decoder hidden state
attends to the encoder hidden states.
15

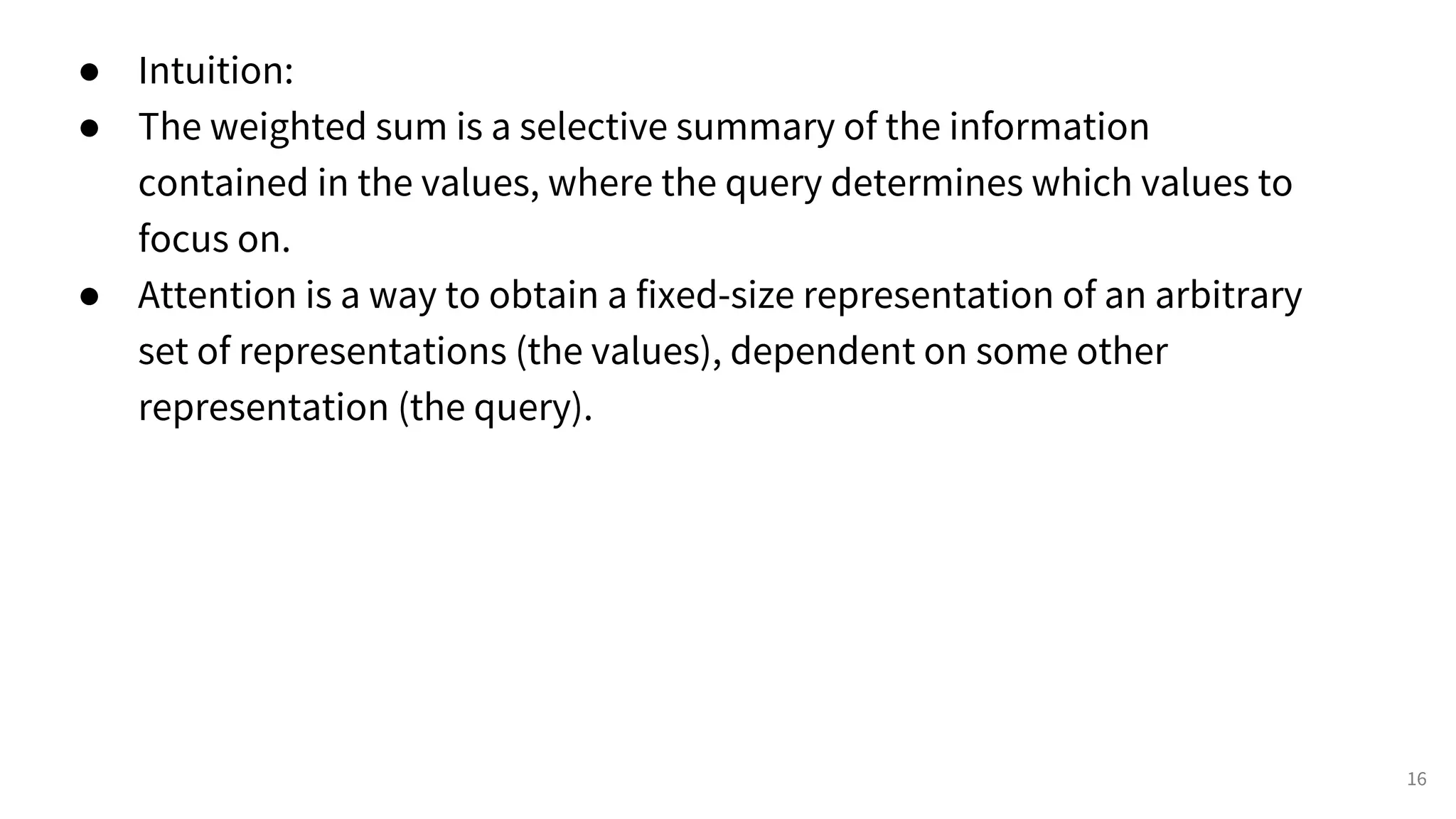

16. ● Intuition:
● The weighted sum is a selective summary of the information
contained in the values, where the query determines which values to
focus on.
● Attention is a way to obtain a fixed-size representation of an arbitrary
set of representations (the values), dependent on some other
representation (the query).
16

17. Transformer Overview
● Sequence-to-sequence Encoder to
Decoder
● Task: machine translation with parallel
corpus
● Predict each translated word
● Final cost/error function is standard
cross-entropy error on top of a softmax
classifier
17

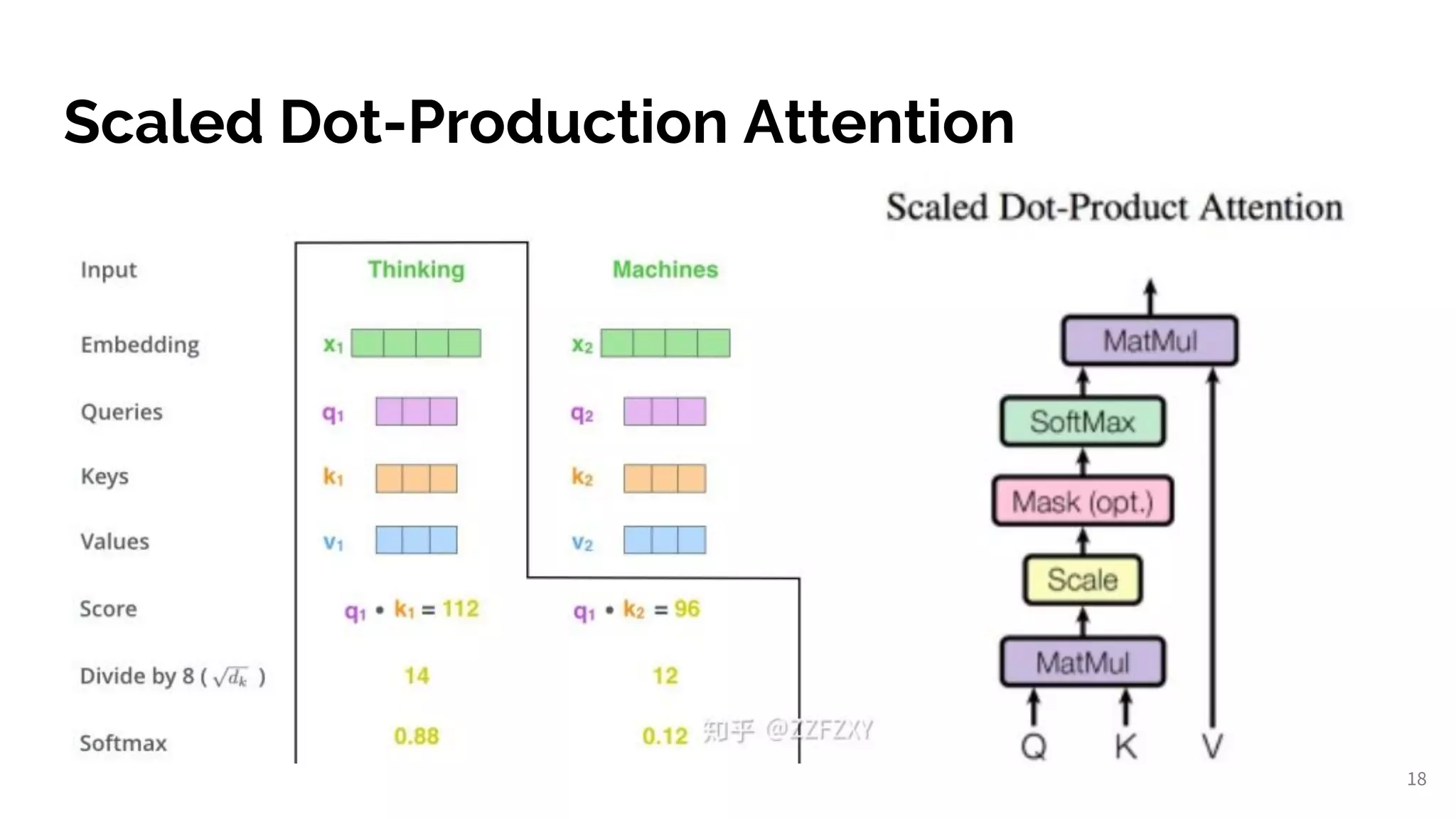

18. Scaled Dot-Production Attention
18

19. 19

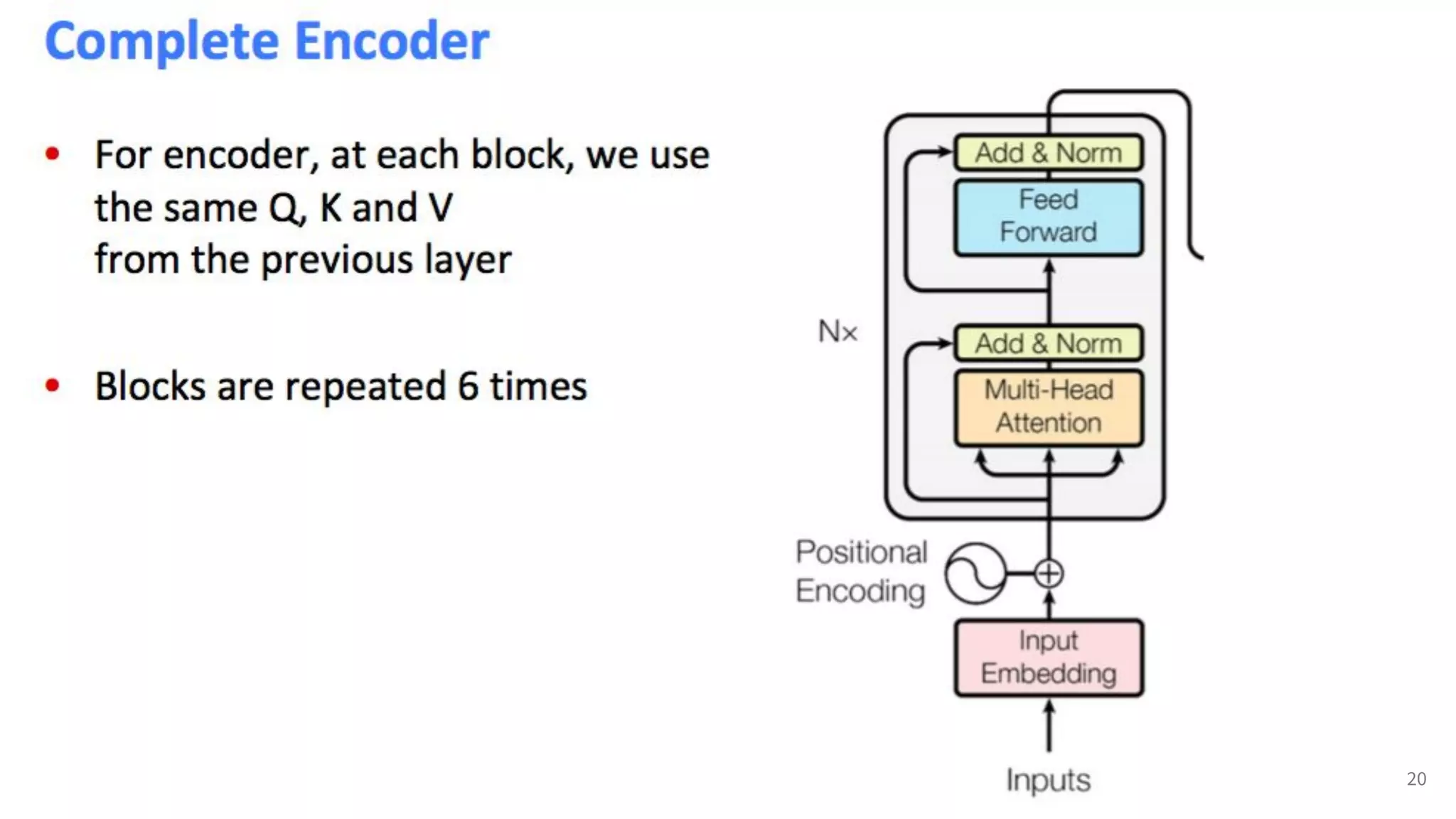

20. 20

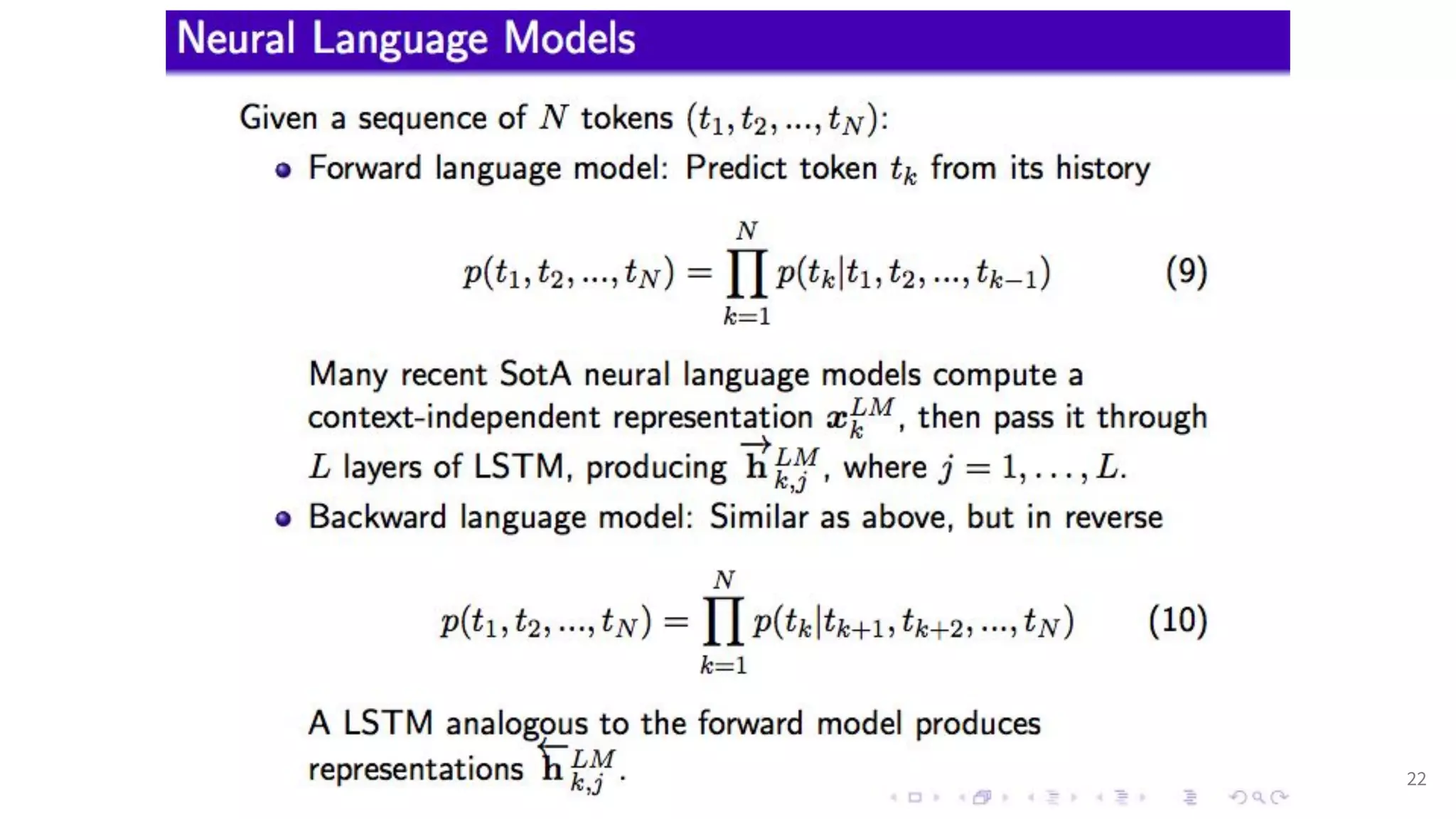

21. 21

22. 22

23. 23

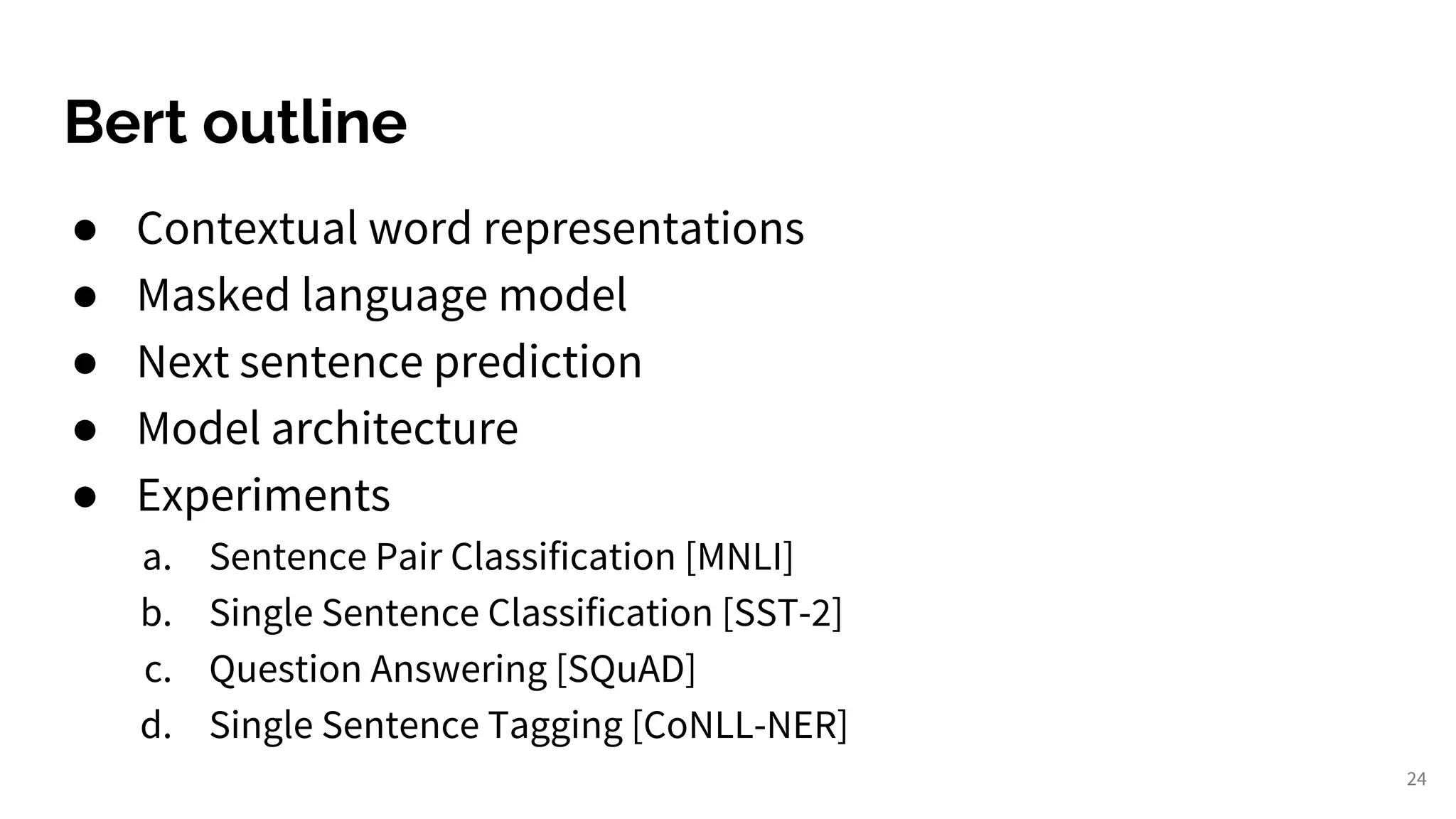

24. Bert outline
● Contextual word representations
● Masked language model
● Next sentence prediction
● Model architecture
● Experiments
a. Sentence Pair Classification [MNLI]
b. Single Sentence Classification [SST-2]
c. Question Answering [SQuAD]
d. Single Sentence Tagging [CoNLL-NER]
24

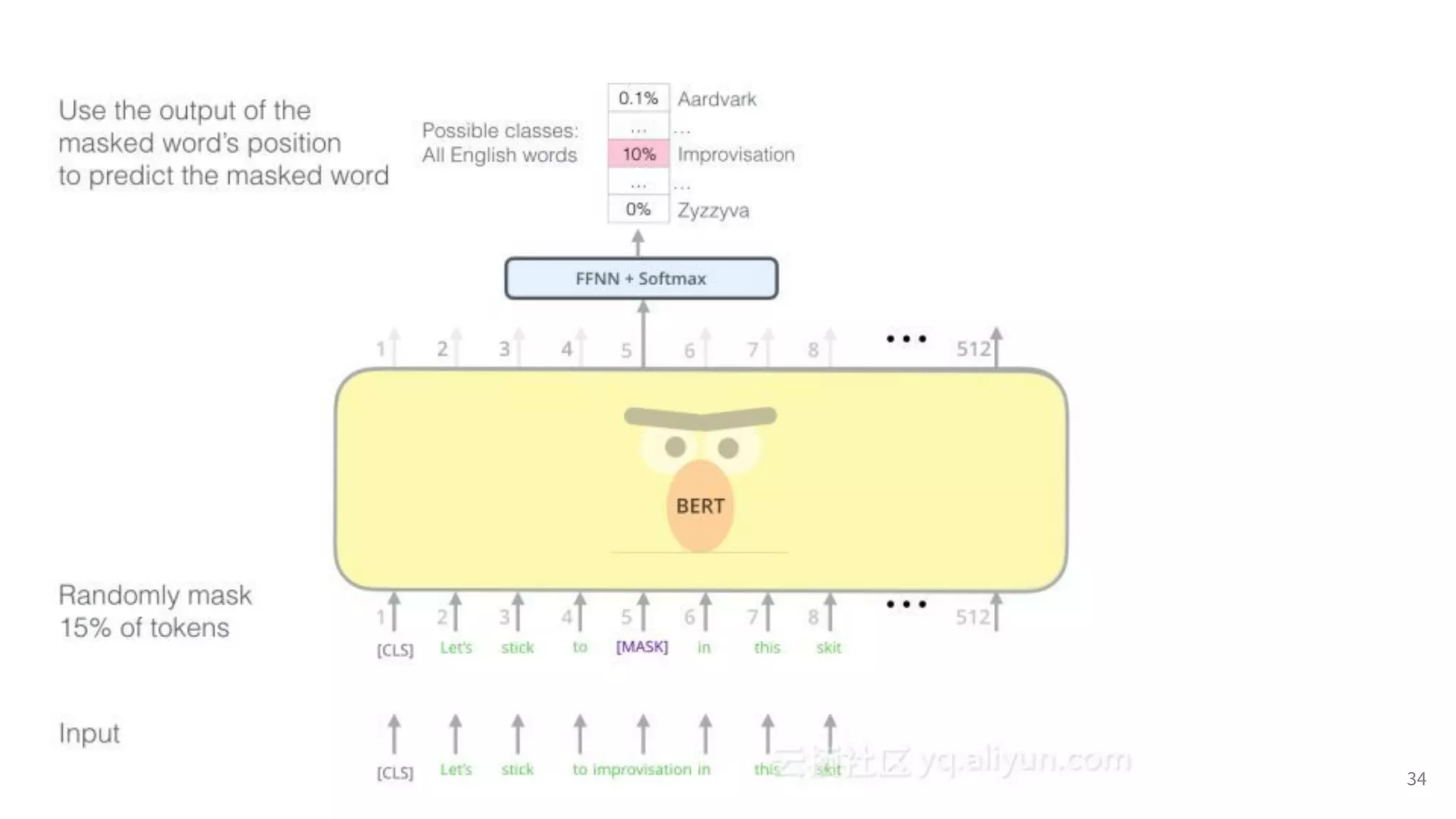

34. 34

35. 35

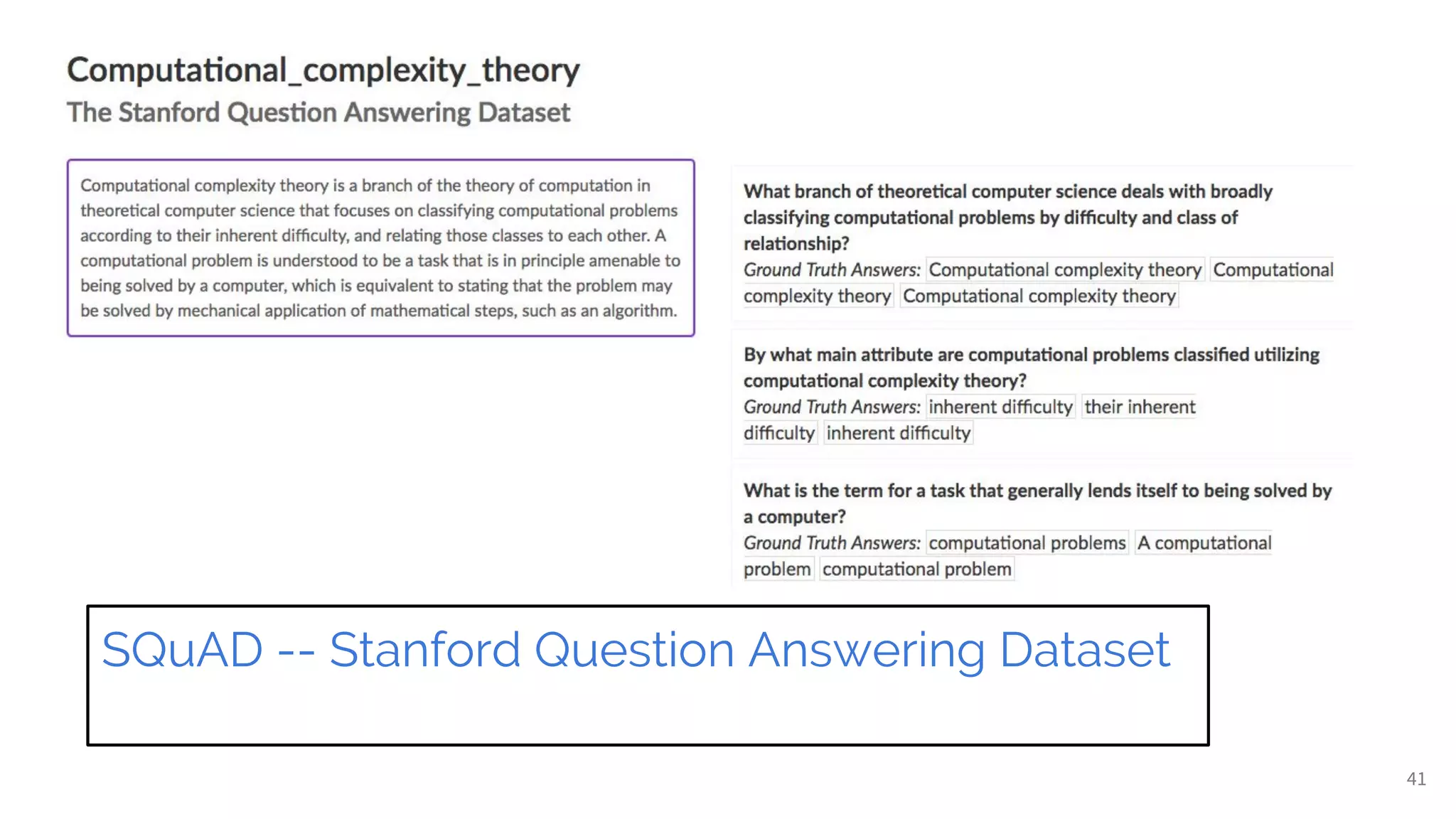

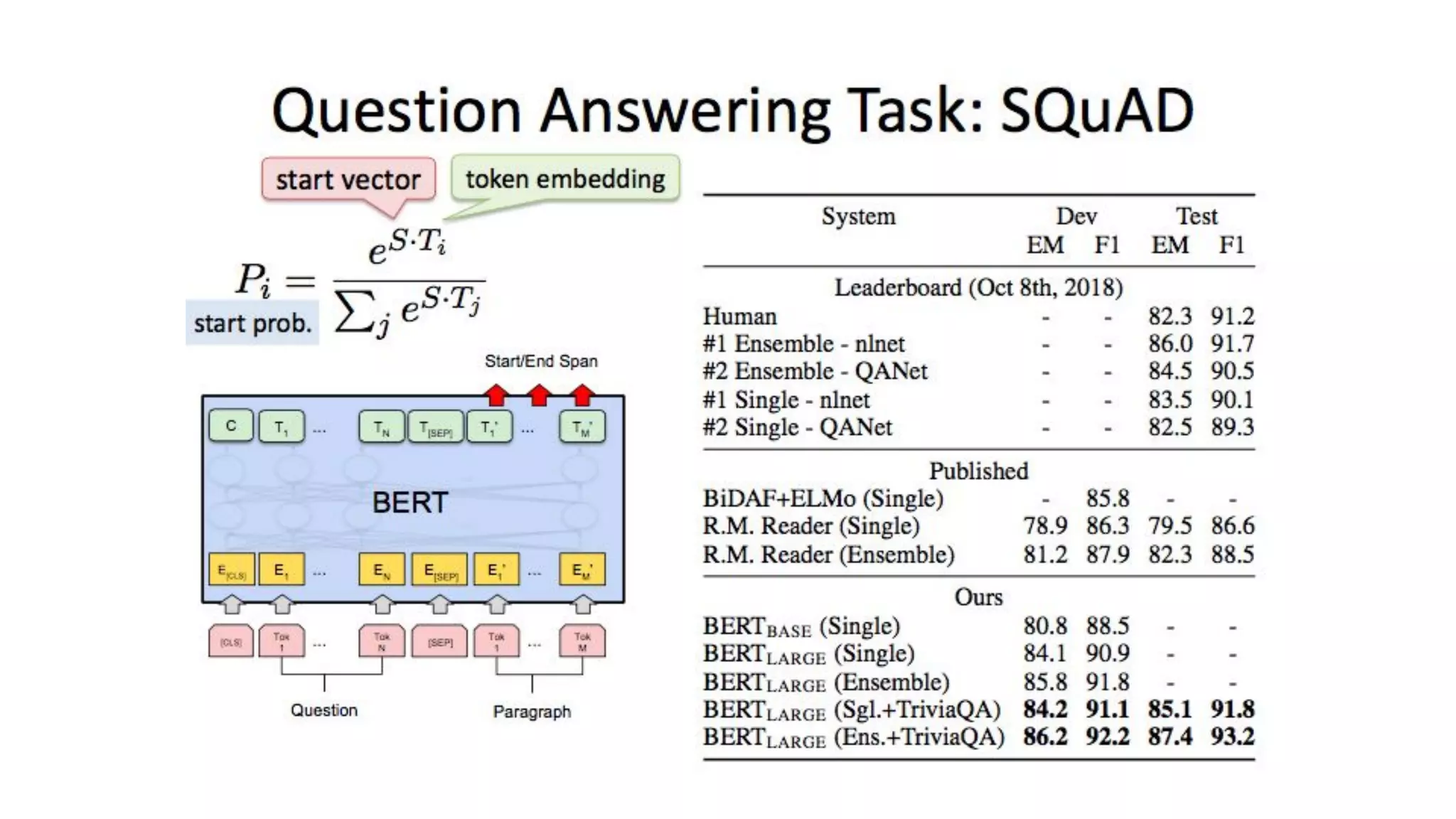

41. SQuAD -- Stanford Question Answering Dataset
41

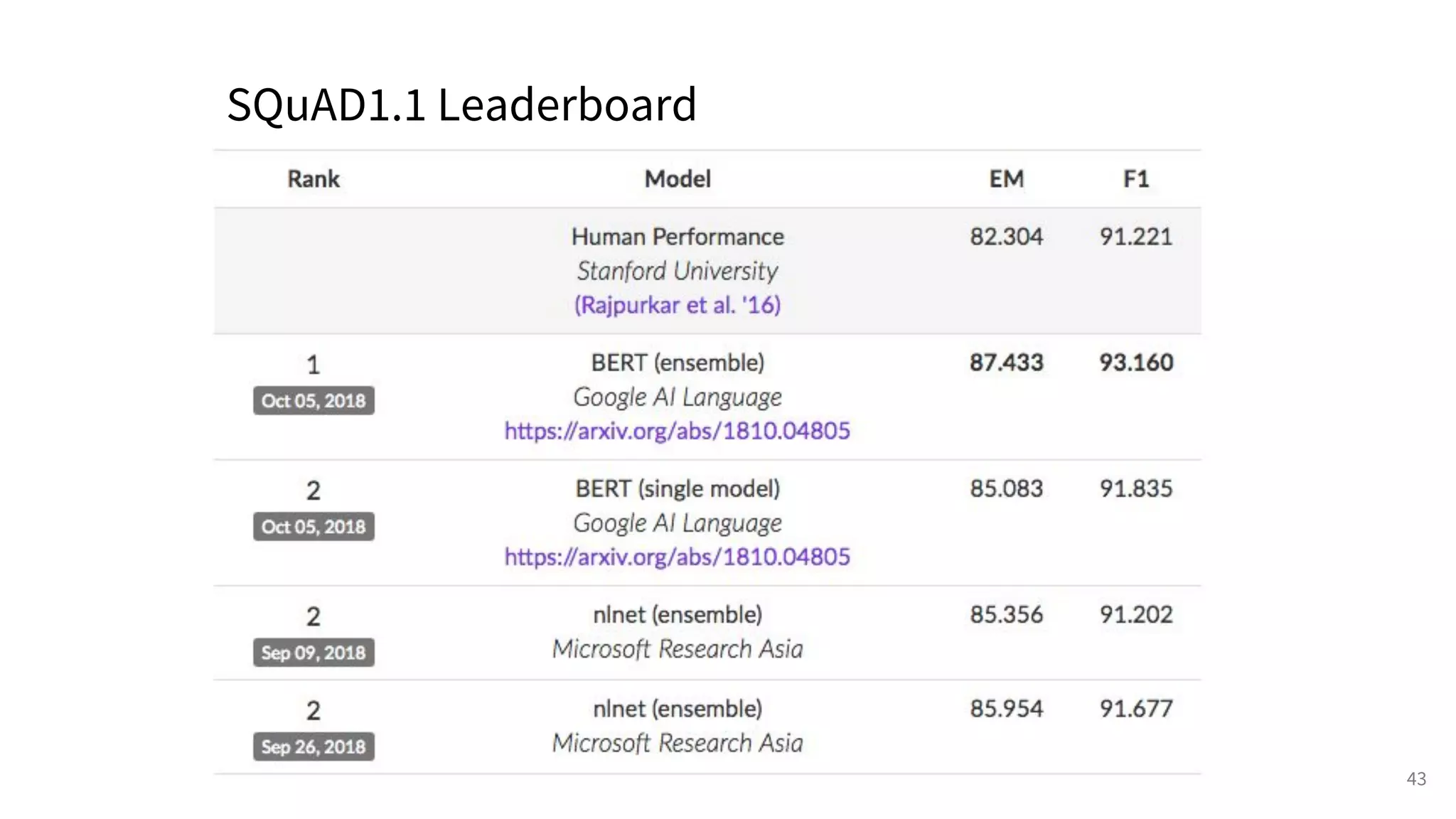

43. 43
SQuAD1.1 Leaderboard

44. Conclusion
● BERT is strong pre-trained language model that uses bidirectional
transformer
● BERT can be fine-tuned to achieve good performance in many NLP tasks
● The source code is available at github
44

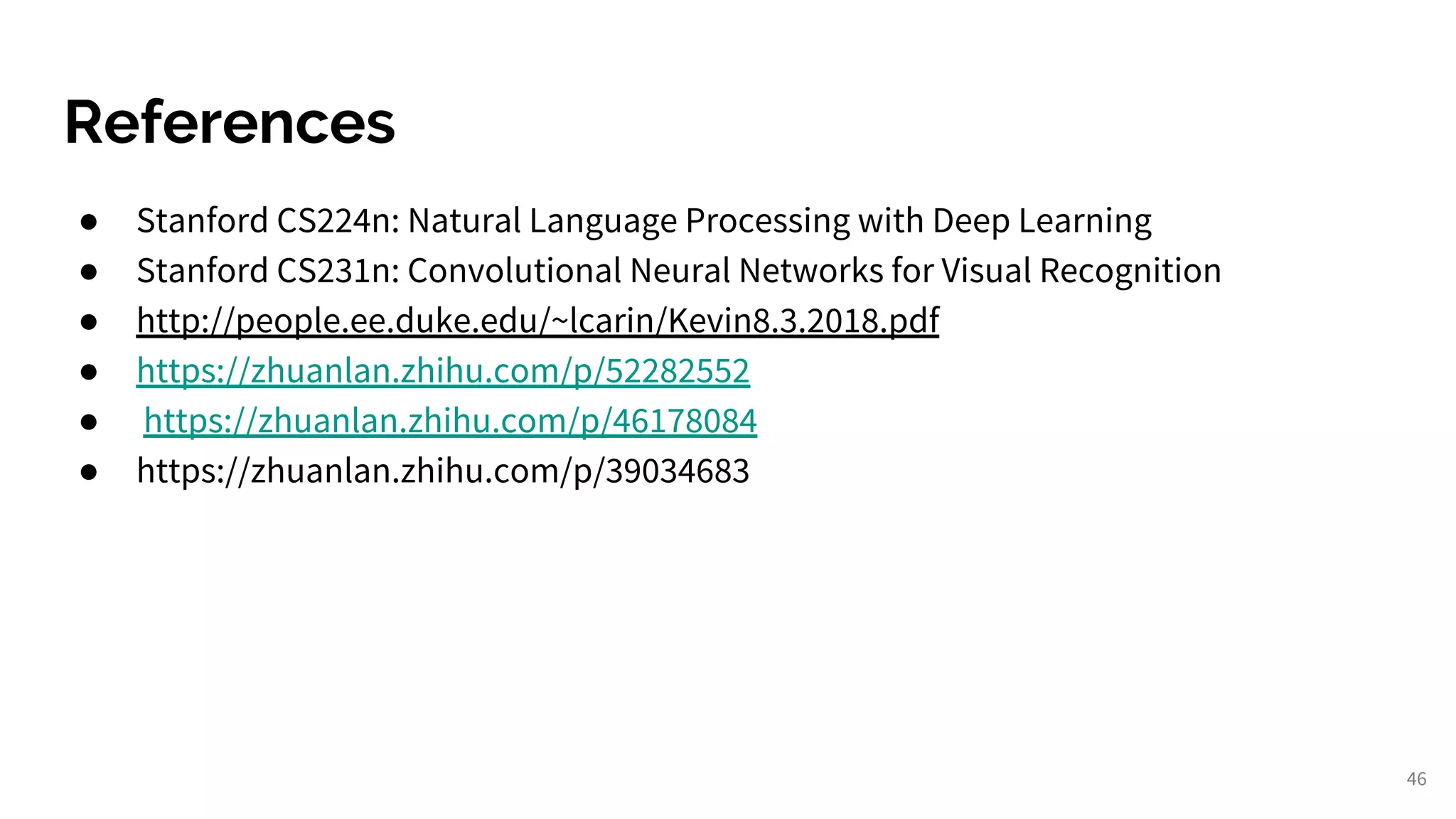

46. References
● Stanford CS224n: Natural Language Processing with Deep Learning
● Stanford CS231n: Convolutional Neural Networks for Visual Recognition
● http://people.ee.duke.edu/~lcarin/Kevin8.3.2018.pdf
● https://zhuanlan.zhihu.com/p/52282552
● https://zhuanlan.zhihu.com/p/46178084
● https://zhuanlan.zhihu.com/p/39034683
46
