The document discusses essential basic tests of textile fabrics that are crucial for garment quality control, focusing on fiber content, fabric weight, dimensional stability, color fastness, and physical characteristics. It provides detailed methodologies for various tests used to assess fabric quality, including measurements for weight, shrinkage, color fading, and physical durability. The author emphasizes the variability in testing requirements based on buyer specifications and concludes with a note of gratitude for the reader's attention.

1. Written by Shabuz Biplob
1

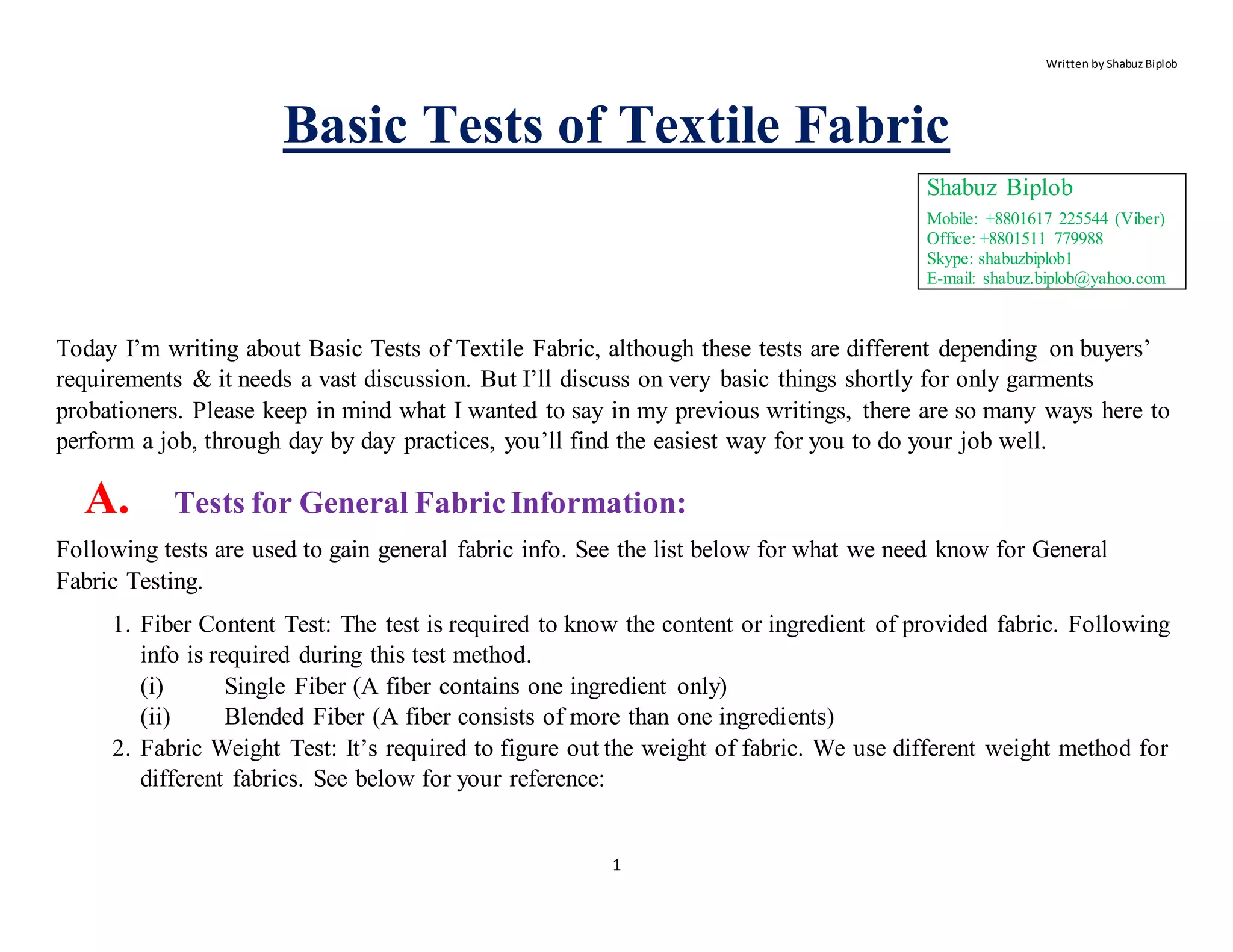

Basic Tests of Textile Fabric
Shabuz Biplob
Mobile: +8801617 225544 (Viber)
Office: +8801511 779988
Skype: shabuzbiplob1
E-mail: shabuz.biplob@yahoo.com
Today I’m writing about Basic Tests of Textile Fabric, although these tests are different depending on buyers’
requirements & it needs a vast discussion. But I’ll discuss on very basic things shortly for only garments
probationers. Please keep in mind what I wanted to say in my previous writings, there are so many ways here to
perform a job, through day by day practices, you’ll find the easiest way for you to do your job well.
A. Tests for General FabricInformation:
Following tests are used to gain general fabric info. See the list below for what we need know for General
Fabric Testing.
1. Fiber Content Test: The test is required to know the content or ingredient of provided fabric. Following
info is required during this test method.
(i) Single Fiber (A fiber contains one ingredient only)
(ii) Blended Fiber (A fiber consists of more than one ingredients)
2. Fabric Weight Test: It’s required to figure out the weight of fabric. We use different weight method for
different fabrics. See below for your reference:

2. Written by Shabuz Biplob
2

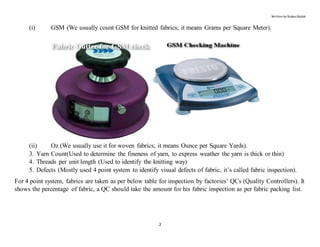

(i) GSM (We usually count GSM for knitted fabrics; it means Grams per Square Meter).
(ii) Oz (We usually use it for woven fabrics; it means Ounce per Square Yards).
3. Yarn Count(Used to determine the fineness of yarn, to express weather the yarn is thick or thin)
4. Threads per unit length (Used to identify the knitting way)

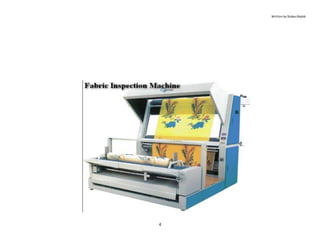

5. Defects (Mostly used 4 point system to identify visual defects of fabric, it’s called fabric inspection).
For 4 point system, fabrics are taken as per below table for inspection by factories’ QCs (Quality Controllers). It
shows the percentage of fabric, a QC should take the amount for his fabric inspection as per fabric packing list.

3. Written by Shabuz Biplob
3

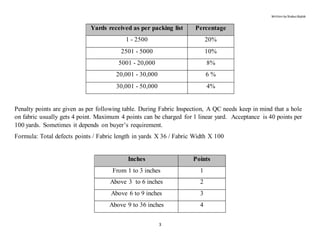

Yards received as per packing list Percentage
1 - 2500 20%
2501 - 5000 10%
5001 - 20,000 8%
20,001 - 30,000 6 %
30,001 - 50,000 4%
Penalty points are given as per following table. During Fabric Inspection, A QC needs keep in mind that a hole
on fabric usually gets 4 point. Maximum 4 points can be charged for 1 linear yard. Acceptance is 40 points per
100 yards. Sometimes it depends on buyer’s requirement.
Formula: Total defects points / Fabric length in yards X 36 / Fabric Width X 100
Inches Points
From 1 to 3 inches 1
Above 3 to 6 inches 2
Above 6 to 9 inches 3
Above 9 to 36 inches 4

4. Written by Shabuz Biplob
4

5. Written by Shabuz Biplob
5

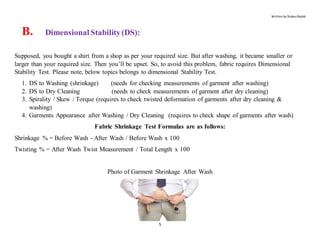

B. Dimensional Stability(DS):
Supposed, you bought a shirt from a shop as per your required size. But after washing, it became smaller or
larger than your required size. Then you’ll be upset. So, to avoid this problem, fabric requires Dimensional
Stability Test. Please note, below topics belongs to dimensional Stability Test.
1. DS to Washing (shrinkage) (needs for checking measurements of garment after washing)
2. DS to Dry Cleaning (needs to check measurements of garment after dry cleaning)
3. Spirality / Skew / Torque (requires to check twisted deformation of garments after dry cleaning &
washing)
4. Garments Appearance after Washing / Dry Cleaning (requires to check shape of garments after wash)
Fabric Shrinkage Test Formulas are as follows:
Shrinkage % = Before Wash - After Wash / Before Wash x 100
Twisting % = After Wash Twist Measurement / Total Length x 100
Photo of Garment Shrinkage After Wash

6. Written by Shabuz Biplob
6

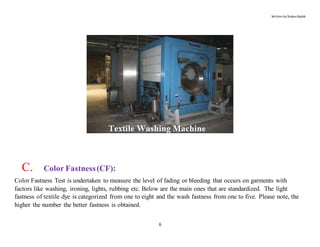

C. Color Fastness(CF):
Color Fastness Test is undertaken to measure the level of fading or bleeding that occurs on garments with
factors like washing, ironing, lights, rubbing etc. Below are the main ones that are standardized. The light
fastness of textile dye is categorized from one to eight and the wash fastness from one to five. Please note, the
higher the number the better fastness is obtained.

7. Written by Shabuz Biplob
7
1. CF to Washing (used to measure color bleeding or fading after wash)
2. CF to Dry Cleaning (used to measure color bleeding or fading after dry cleaning)
3. CF to Ironing (used to measure color bleeding or fading after ironing)
4. CF to Water (used to measure color bleeding or fading into water)
5. CF to Rubbing (used to measure color bleeding or fading after rubbing)
6. CF to Perspiration (used to measure color bleeding or fading into perspiration)
7. CF to Light (used to measure color bleeding or fading into light)
8. CF to Chlorine Bleach (used to measure color bleeding or fading while chlorine bleaching)
Photo of Color Fastness Before & After Wash

8. Written by Shabuz Biplob
8

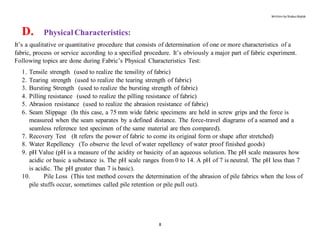

D. Physical Characteristics:
It’s a qualitative or quantitative procedure that consists of determination of one or more characteristics of a
fabric, process or service according to a specified procedure. It’s obviously a major part of fabric experiment.
Following topics are done during Fabric’s Physical Characteristics Test:
1. Tensile strength (used to realize the tensility of fabric)
2. Tearing strength (used to realize the tearing strength of fabric)
3. Bursting Strength (used to realize the bursting strength of fabric)
4. Pilling resistance (used to realize the pilling resistance of fabric)
5. Abrasion resistance (used to realize the abrasion resistance of fabric)
6. Seam Slippage (In this case, a 75 mm wide fabric specimens are held in screw grips and the force is
measured when the seam separates by a defined distance. The force-travel diagrams of a seamed and a
seamless reference test specimen of the same material are then compared).
7. Recovery Test (It refers the power of fabric to come its original form or shape after stretched)
8. Water Repellency (To observe the level of water repellency of water proof finished goods)
9. pH Value (pH is a measure of the acidity or basicity of an aqueous solution. The pH scale measures how
acidic or basic a substance is. The pH scale ranges from 0 to 14. A pH of 7 is neutral. The pH less than 7
is acidic. The pH greater than 7 is basic).
10. Pile Loss (This test method covers the determination of the abrasion of pile fabrics when the loss of
pile stuffs occur, sometimes called pile retention or pile pull out).

9. Written by Shabuz Biplob
9
Photo of pile fabrics
In some cases, more basic tests are required depending on buyers’ requirements such as flammability, fill
power, harmful chemicals & heavy metal content etc. Today I’m going to finish here. Hope, we’ll meet soon
with more. Before leaving, please pardon me for finding anything boring in my writings. Thank you for reading
with patience.
THE END
