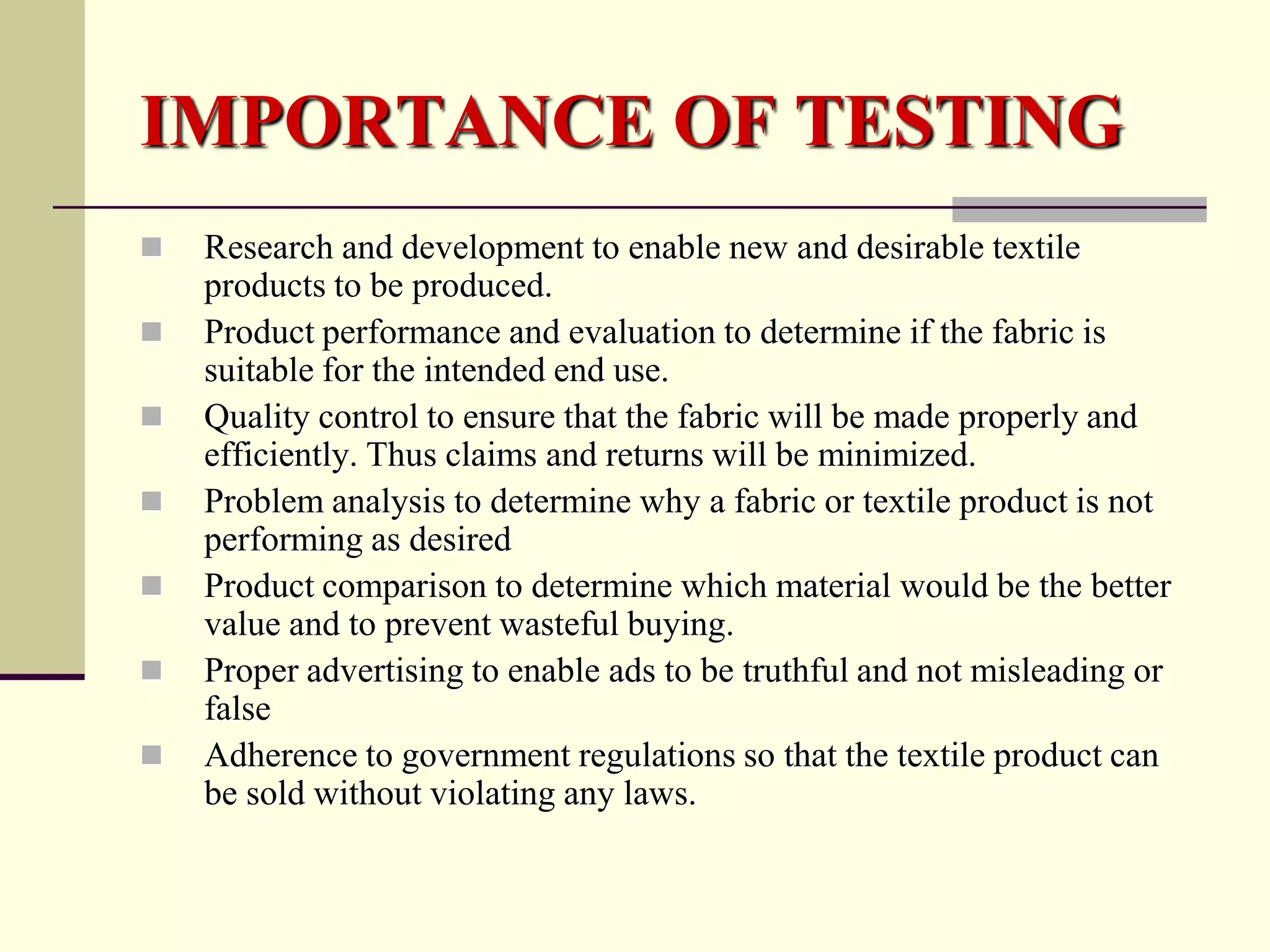

IMPORTANCE OF TESTING
   Research and development to enable new and desirable textile
    products to be produced.
   Product performance and evaluation to determine if the fabric is
    suitable for the intended end use.
   Quality control to ensure that the fabric will be made properly and
    efficiently. Thus claims and returns will be minimized.
   Problem analysis to determine why a fabric or textile product is not
    performing as desired
   Product comparison to determine which material would be the better
    value and to prevent wasteful buying.
   Proper advertising to enable ads to be truthful and not misleading or
    false
   Adherence to government regulations so that the textile product can
    be sold without violating any laws.
COLOUR FASTNESS &
SHADE MATCHING
COLOR FASTNESS
Property of a pigment or dye to retain its original
  hue, especially without fading, running, or
  changing when wetted, washed, cleaned; or stored
  under normal conditions when exposed to light,
  heat, or other influences.
Factors Affecting Color
Fastness
 Fiber Type
 Class of Dye Used
 Dyeing or Printing Process used
 Types of Finishing Treatments Used
 Action Of Laundering Detergents
Qualities Of The Color Evaluator
 A special individual needed who:
      Possesses a knowledge of dyes and pigments.
      Knows why color change
      Is skilled in colorfastness tests and knows their
       limitations.
      Has the ability to evaluate and report color
       changes.
Measured Using…
Color fastness in
• Paper: fadeometer,
• Cloth: launderometer.
Explained Further…
Types Of Colorfastness
 Adversely affected by:
      Washing
      Light
      Crocking
      Abrasion

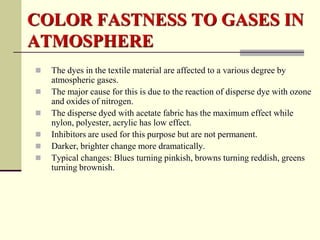

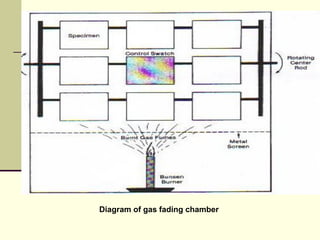

      Gases in Atmosphere

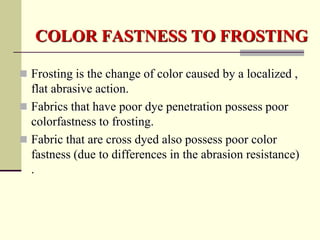

      Frosting
      Perspiration
      Heat
GRAY SCALE
 Arrangement of Achromatic gray chips in a scale
  from light to dark.
 Nine pairs of non-glossy neutral grey coloured
  chips, which illustrate the perceived colour
  differences.
 give a corresponding fastness rating of 5, 4-5, 4,
  3-4, 3, 2-3, 2, 1-2, and 1)

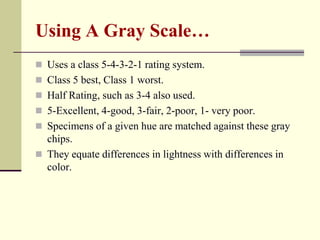

Using A Gray Scale…
 Uses a class 5-4-3-2-1 rating system.
 Class 5 best, Class 1 worst.
 Half Rating, such as 3-4 also used.
 5-Excellent, 4-good, 3-fair, 2-poor, 1- very poor.
 Specimens of a given hue are matched against these gray
  chips.
 They equate differences in lightness with differences in
  color.

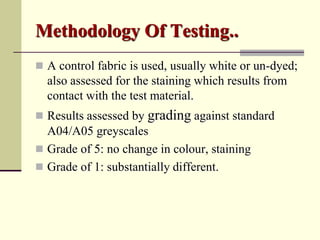

Methodology Of Testing..
 A control fabric is used, usually white or un-dyed;
  also assessed for the staining which results from
  contact with the test material.
 Results assessed by grading against standard
  A04/A05 greyscales
 Grade of 5: no change in colour, staining
 Grade of 1: substantially different.

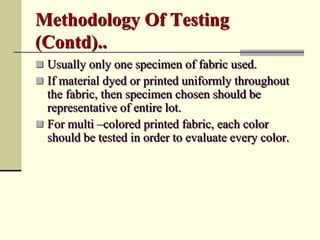

Methodology Of Testing
(Contd)..
 Usually only one specimen of fabric used.
 If material dyed or printed uniformly throughout
  the fabric, then specimen chosen should be
  representative of entire lot.
 For multi –colored printed fabric, each color
  should be tested in order to evaluate every color.

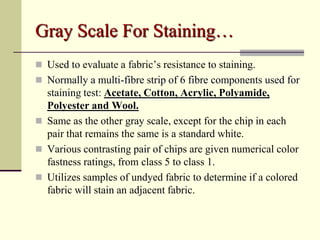

Gray Scale For Staining…
 Used to evaluate a fabric’s resistance to staining.
 Normally a multi-fibre strip of 6 fibre components used for
  staining test: Acetate, Cotton, Acrylic, Polyamide,
  Polyester and Wool.
 Same as the other gray scale, except for the chip in each
  pair that remains the same is a standard white.
 Various contrasting pair of chips are given numerical color
  fastness ratings, from class 5 to class 1.
 Utilizes samples of undyed fabric to determine if a colored
  fabric will stain an adjacent fabric.
Multifibre Fabric Strip
Grey Scales for Staining
Grey Scales For Coloring
Limitations Of Grey Scale
 Disagreement when bright colors are used.
 Works well with most colors otherwise.

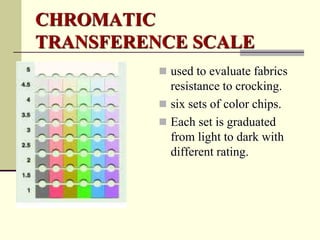

CHROMATIC
TRANSFERENCE SCALE
           used to evaluate fabrics
            resistance to crocking.
           six sets of color chips.
           Each set is graduated
            from light to dark with
            different rating.
Lighting Used For Evaluation
 When visually evaluating or comparing, standardized light
  source should be used.
 COLOR MATCHING BOOTH frequently used for color
  checking.

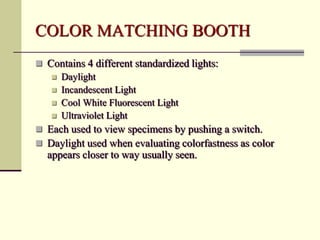

COLOR MATCHING BOOTH
 Contains 4 different standardized lights:
    Daylight
    Incandescent Light
    Cool White Fluorescent Light
    Ultraviolet Light
 Each used to view specimens by pushing a switch.
 Daylight used when evaluating colorfastness as color
  appears closer to way usually seen.

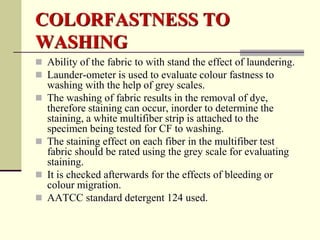

COLORFASTNESS TO
WASHING
 Ability of the fabric to with stand the effect of laundering.
 Launder-ometer is used to evaluate colour fastness to
    washing with the help of grey scales.
   The washing of fabric results in the removal of dye,
    therefore staining can occur, inorder to determine the
    staining, a white multifiber strip is attached to the
    specimen being tested for CF to washing.
   The staining effect on each fiber in the multifiber test
    fabric should be rated using the grey scale for evaluating
    staining.
   It is checked afterwards for the effects of bleeding or
    colour migration.
   AATCC standard detergent 124 used.

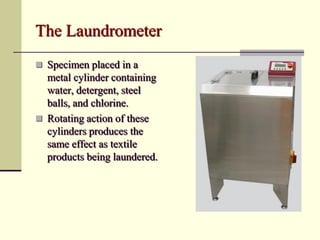

The Laundrometer
 Specimen placed in a
  metal cylinder containing
  water, detergent, steel
  balls, and chlorine.
 Rotating action of these
  cylinders produces the
  same effect as textile
  products being laundered.
Testing Procedure: Overview
 The specimen is placed in a metal cylinder in which water,
  detergent, metal balls and chlorine are placed.
 The amount of detergent ,temperature, agitation and bleach
  can be controlled.

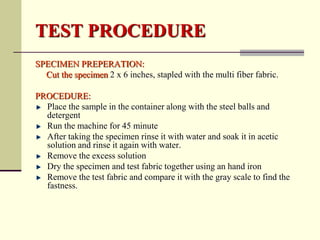

TEST PROCEDURE
SPECIMEN PREPERATION:
  Cut the specimen 2 x 6 inches, stapled with the multi fiber fabric.

PROCEDURE:
  Place the sample in the container along with the steel balls and
  detergent
  Run the machine for 45 minute
  After taking the specimen rinse it with water and soak it in acetic
  solution and rinse it again with water.
  Remove the excess solution
  Dry the specimen and test fabric together using an hand iron
  Remove the test fabric and compare it with the gray scale to find the
  fastness.

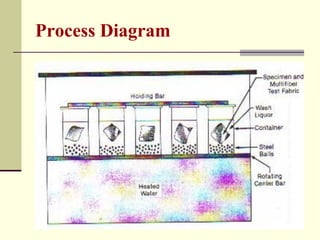

Process Diagram
COLORFASTNESS TO LIGHT
 This refers to the ability of the fabric to withstand
  the sun light.
 The resistance of the sunlight depends on:
       the intensity of the light
      inherent properties of the fabric.
      Season
      altitude
      distance from the equator.

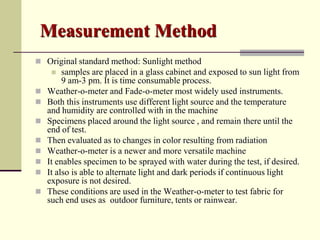

Measurement Method
 Original standard method: Sunlight method
        samples are placed in a glass cabinet and exposed to sun light from
         9 am-3 pm. It is time consumable process.
   Weather-o-meter and Fade-o-meter most widely used instruments.
   Both this instruments use different light source and the temperature
    and humidity are controlled with in the machine
   Specimens placed around the light source , and remain there until the
    end of test.
   Then evaluated as to changes in color resulting from radiation
   Weather-o-meter is a newer and more versatile machine
   It enables specimen to be sprayed with water during the test, if desired.
   It also is able to alternate light and dark periods if continuous light
    exposure is not desired.
   These conditions are used in the Weather-o-meter to test fabric for
    such end uses as outdoor furniture, tents or rainwear.

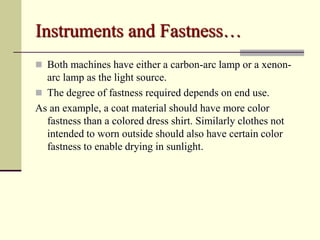

Instruments and Fastness…
 Both machines have either a carbon-arc lamp or a xenon-
  arc lamp as the light source.
 The degree of fastness required depends on end use.
As an example, a coat material should have more color
  fastness than a colored dress shirt. Similarly clothes not
  intended to worn outside should also have certain color
  fastness to enable drying in sunlight.

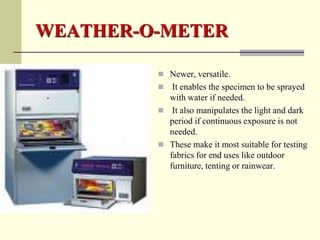

WEATHER-O-METER

          Newer, versatile.
           It enables the specimen to be sprayed
           with water if needed.
          It also manipulates the light and dark
           period if continuous exposure is not
           needed.
          These make it most suitable for testing
           fabrics for end uses like outdoor
           furniture, tenting or rainwear.
Using Weather Meter
Two testing methods are used:
 Time method
 Standard fading method

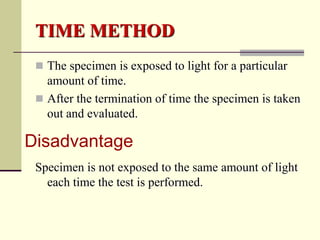

TIME METHOD
  The specimen is exposed to light for a particular
   amount of time.
  After the termination of time the specimen is taken
   out and evaluated.

Disadvantage
 Specimen is not exposed to the same amount of light
   each time the test is performed.

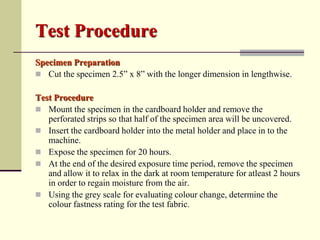

Test Procedure
Specimen Preparation
 Cut the specimen 2.5” x 8” with the longer dimension in lengthwise.

Test Procedure
 Mount the specimen in the cardboard holder and remove the
   perforated strips so that half of the specimen area will be uncovered.
 Insert the cardboard holder into the metal holder and place in to the
   machine.
 Expose the specimen for 20 hours.
 At the end of the desired exposure time period, remove the specimen
   and allow it to relax in the dark at room temperature for atleast 2 hours
   in order to regain moisture from the air.
 Using the grey scale for evaluating colour change, determine the
   colour fastness rating for the test fabric.

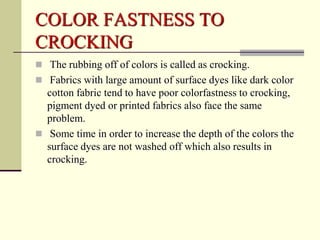

COLOR FASTNESS TO
CROCKING
 The rubbing off of colors is called as crocking.
 Fabrics with large amount of surface dyes like dark color
  cotton fabric tend to have poor colorfastness to crocking,
  pigment dyed or printed fabrics also face the same
  problem.
 Some time in order to increase the depth of the colors the
  surface dyes are not washed off which also results in
  crocking.

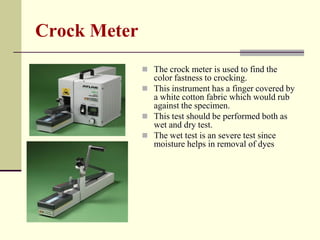

Crock Meter
               The crock meter is used to find the
                color fastness to crocking.
               This instrument has a finger covered by
                a white cotton fabric which would rub
                against the specimen.
               This test should be performed both as
                wet and dry test.
               The wet test is an severe test since
                moisture helps in removal of dyes

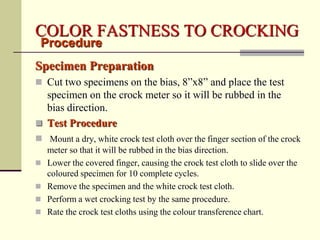

COLOR FASTNESS TO CROCKING
 Procedure
Specimen Preparation
 Cut two specimens on the bias, 8”x8” and place the test
  specimen on the crock meter so it will be rubbed in the
  bias direction.
 Test Procedure
 Mount a dry, white crock test cloth over the finger section of the crock
    meter so that it will be rubbed in the bias direction.
   Lower the covered finger, causing the crock test cloth to slide over the
    coloured specimen for 10 complete cycles.
   Remove the specimen and the white crock test cloth.
   Perform a wet crocking test by the same procedure.
   Rate the crock test cloths using the colour transference chart.

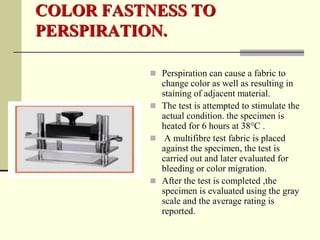

COLOR FASTNESS TO
PERSPIRATION.

           Perspiration can cause a fabric to
            change color as well as resulting in
            staining of adjacent material.
           The test is attempted to stimulate the
            actual condition. the specimen is
            heated for 6 hours at 38°C .
           A multifibre test fabric is placed
            against the specimen, the test is
            carried out and later evaluated for
            bleeding or color migration.
           After the test is completed ,the
            specimen is evaluated using the gray
            scale and the average rating is
            reported.

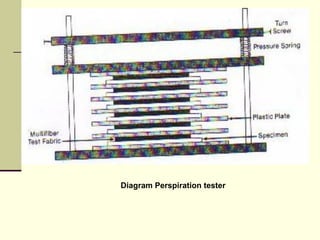

Diagram Perspiration tester

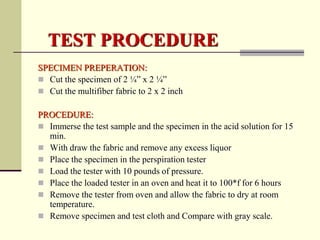

TEST PROCEDURE
SPECIMEN PREPERATION:
 Cut the specimen of 2 ¼” x 2 ¼”
 Cut the multifiber fabric to 2 x 2 inch

PROCEDURE:
 Immerse the test sample and the specimen in the acid solution for 15
  min.
 With draw the fabric and remove any excess liquor
 Place the specimen in the perspiration tester
 Load the tester with 10 pounds of pressure.
 Place the loaded tester in an oven and heat it to 100*f for 6 hours
 Remove the tester from oven and allow the fabric to dry at room
  temperature.
 Remove specimen and test cloth and Compare with gray scale.
COLOR FASTNESS TO FROSTING

 Frosting is the change of color caused by a localized ,
  flat abrasive action.
 Fabrics that have poor dye penetration possess poor
  colorfastness to frosting.
 Fabric that are cross dyed also possess poor color
  fastness (due to differences in the abrasion resistance)
  .
Difference Between Crocking Test and
Frosting Test
 Crocking evaluates the appearance of the specimen
 Frosting only evaluates the rubbing cloth, not the
  specimen.
COLOR FASTNESS TO GASES IN
ATMOSPHERE
   The dyes in the textile material are affected to a various degree by
    atmospheric gases.
   The major cause for this is due to the reaction of disperse dye with ozone
    and oxides of nitrogen.
   The disperse dyed with acetate fabric has the maximum effect while
    nylon, polyester, acrylic has low effect.
   Inhibitors are used for this purpose but are not permanent.
   Darker, brighter change more dramatically.
   Typical changes: Blues turning pinkish, browns turning reddish, greens
    turning brownish.
Instruments Used

 GAS FADING CHAMBER:-tests the effects of
  oxides of nitrogen.
 OZONITER (ozone exposure chamber):-tests the
  effect of ozone.
General Procedure
 The specimens are placed in the gas filled chamber for a particular
    time along with the control fabric.
   The tests are conducted at 140*F for approximately 2-3 hours.
   The relative humidity is normally kept low due to the heating of gases.
   Gas fading termination: when blue sample turns a specific purple
    color.
   Ozone fading test: gray sample turns a standard brown color
Gas Fading Chamber

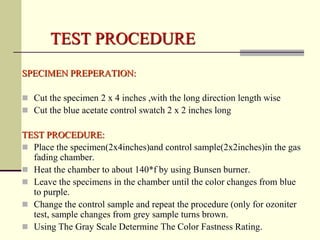

TEST PROCEDURE
SPECIMEN PREPERATION:

 Cut the specimen 2 x 4 inches ,with the long direction length wise
 Cut the blue acetate control swatch 2 x 2 inches long

TEST PROCEDURE:
 Place the specimen(2x4inches)and control sample(2x2inches)in the gas
  fading chamber.
 Heat the chamber to about 140*f by using Bunsen burner.
 Leave the specimens in the chamber until the color changes from blue
  to purple.
 Change the control sample and repeat the procedure (only for ozoniter
  test, sample changes from grey sample turns brown.
 Using The Gray Scale Determine The Color Fastness Rating.

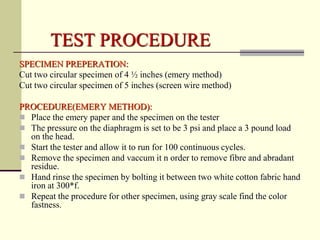

TEST PROCEDURE
SPECIMEN PREPERATION:
Cut two circular specimen of 4 ½ inches (emery method)
Cut two circular specimen of 5 inches (screen wire method)

PROCEDURE(EMERY METHOD):
 Place the emery paper and the specimen on the tester
 The pressure on the diaphragm is set to be 3 psi and place a 3 pound load
  on the head.
 Start the tester and allow it to run for 100 continuous cycles.
 Remove the specimen and vaccum it n order to remove fibre and abradant
  residue.
 Hand rinse the specimen by bolting it between two white cotton fabric hand
  iron at 300*f.
 Repeat the procedure for other specimen, using gray scale find the color
  fastness.
Diagram of gas fading chamber
COLOR FASTNESS DUE TO HOT
IRON
 The change in color of the garment due to hot iron and dry
  heat can be found by Contact Heat Tester.

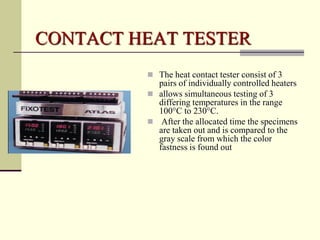

CONTACT HEAT TESTER
          The heat contact tester consist of 3
           pairs of individually controlled heaters
          allows simultaneous testing of 3
           differing temperatures in the range
           100°C to 230°C.
          After the allocated time the specimens
           are taken out and is compared to the
           gray scale from which the color
           fastness is found out

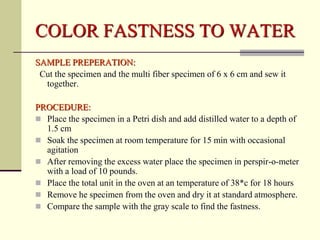

COLOR FASTNESS TO WATER
SAMPLE PREPERATION:
 Cut the specimen and the multi fiber specimen of 6 x 6 cm and sew it
  together.

PROCEDURE:
 Place the specimen in a Petri dish and add distilled water to a depth of
  1.5 cm
 Soak the specimen at room temperature for 15 min with occasional
  agitation
 After removing the excess water place the specimen in perspir-o-meter
  with a load of 10 pounds.
 Place the total unit in the oven at an temperature of 38*c for 18 hours
 Remove he specimen from the oven and dry it at standard atmosphere.
 Compare the sample with the gray scale to find the fastness.
Shade Matching….
What Makes One Perceive Color
   ?
 Light falls on the object and is partially absorbed.
 The light that is not absorbed is reflected and falls on the color receptors in
  the eye.
 The receptors convert the incident light into stimuli, which are then
  conducted via nerves to the brain.
 Here the stimuli are interpreted and a color perception is formed
How are colors defined ?
Three numerical values:
 Hue
    The actual color of the sample.
    Similarity of one or a mixture of one or more colors out of the primary
     ones.
 Value
    Property that arises out of the fraction of incident light being reflected
     from the sample.
    Saturation Of Color
 Chroma
    View at a given illuminance level.
    Brightness of the Sample


 Form the basis of colourimetry.
 Human eye can perceive light wavelength of 350 to 750 nm .
VALUE
                        10P(89)
                                    10RP(01)
             10PB(75)
                                                 10R(11)




                                                           10YR(19)




HUE10B(65)                                     CROMA

                                                           10Y(31)
         10BG(57)


                         10G(49)      10GY(41)
Color order system
 Any systematic rational method of arranging all
  possible colors or subsets by means of material
  samples selected so that they represent all object
  color.
NEED FOR COLOR ORDER
SYSTEM
 Human Inability to distinguish between tens of
  millions of shades perceived.

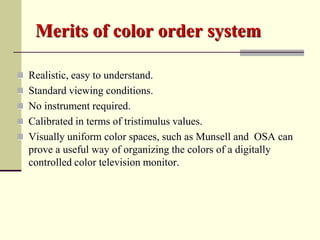

Merits of color order system

 Realistic, easy to understand.
 Standard viewing conditions.
 No instrument required.
 Calibrated in terms of tristimulus values.
 Visually uniform color spaces, such as Munsell and OSA can
  prove a useful way of organizing the colors of a digitally
  controlled color television monitor.

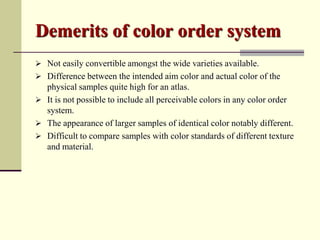

Demerits of color order system
 Not easily convertible amongst the wide varieties available.
 Difference between the intended aim color and actual color of the
  physical samples quite high for an atlas.
 It is not possible to include all perceivable colors in any color order
  system.
 The appearance of larger samples of identical color notably different.
 Difficult to compare samples with color standards of different texture
  and material.
Type of color order system
 Munsell color order system
 OSA color order system
 Chroma cosmos
 CIE colorimetric system
 RAL system
 Practical color coordinate system
 OSA-UCS system etc.
COLOR MATCHING
 Color matching can be done in two ways:
      Visual color matching under          illuminant.
      Computerized color matching system (Spectro
       photometer)
Process Of Color Matching
    Basic information needed:
     light source
     fabric quality
     Specific requirements (process flow)


Visual color matching
    Shade matching is done under light box in a darkroom.
    Both standard and sample are placed under same illuminant and
     matched visually.
    A trial and error method.
Light Viewing Cabinets
By Gretag Macbeth
Different Light sources
 Illuminants
standard light sources defined by specific spectral power
   distribution(SPD). These may be:
     Natural day light
     Tungsten lamp
     Tungsten-Halogen Lamp
     Carbon arc lamp
     Mercury and sodium vapor lamps
     Xenon arc lamps
     Fluorescent tubes
     Lasers
     UV lamps
     Cool white
Lab Facilities for Color
Matching
          Spectrophotometer
Process for color matching in
Spectrophotometer
 Standard shade fed to the spectrophotometer by measuring
  its reflectance value.
 difference of the reflectance value(DE) obtained.
 DE should be as close as possible to standard shade.

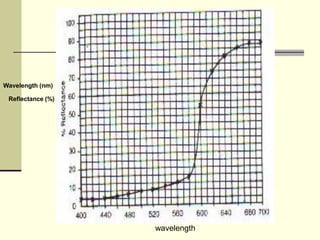

Working of spectrophotometer
Wavelength (nm)

 Reflectance (%)




                   wavelength
DE Measurement
 Two methods present:
1)Lab method, DE= sqrt[(dl/l)^2+(da/a)^2+(db/b)^2]
2)Lch method, DE= sqrt[(dl/l)^2+(dh/h)^2+(dc/c)^2]
   dL=Value
   da=red or green values (RGB Value)
   db=yellow or blue relative values
   dc=Chroma
   dh= Hue
Color development by CCM

 Based on the reflectance value computer will calculate some recipes of
  different dye stuff which may ultimately produce the desired colour
 Colour matching is a trial and error method. The shade which was
  produced by computer prediction may not match under particular light
  source which are checking visually in the light cabinet.
 If the shade doesn’t match with the standard then a second attempt is
  taken with the help of CCM or by visual analysis.

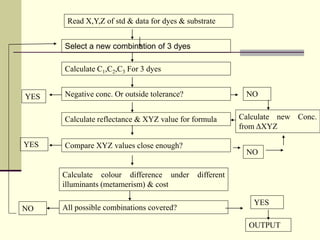

Read X,Y,Z of std & data for dyes & substrate


      Select a new combination of 3 dyes

      Calculate C1,C2,C3 For 3 dyes


YES   Negative conc. Or outside tolerance?                 NO


      Calculate reflectance & XYZ value for formula       Calculate new Conc.
                                                          from ΔXYZ

YES   Compare XYZ values close enough?
                                                           NO

      Calculate colour difference under       different
      illuminants (metamerism) & cost

                                                             YES
NO    All possible combinations covered?

                                                            OUTPUT
Metamarism
 A colored object appears to be one colour under a given light source such as
  daylight, but appears to change colour under another light source
 five types:
       Illuminant
       Observer
       Geometrical
       Field-size metamerism
       instrumental metamerism
Metamarism

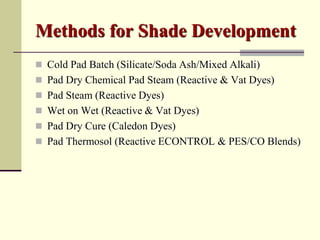

Methods for Shade Development
 Cold Pad Batch (Silicate/Soda Ash/Mixed Alkali)
 Pad Dry Chemical Pad Steam (Reactive & Vat Dyes)
 Pad Steam (Reactive Dyes)
 Wet on Wet (Reactive & Vat Dyes)
 Pad Dry Cure (Caledon Dyes)
 Pad Thermosol (Reactive ECONTROL & PES/CO Blends)

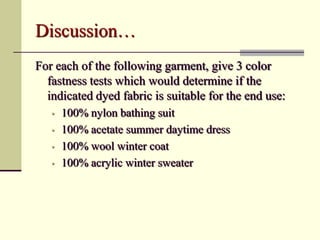

Discussion…
For each of the following garment, give 3 color
  fastness tests which would determine if the
  indicated dyed fabric is suitable for the end use:
   •   100% nylon bathing suit
   •   100% acetate summer daytime dress
   •   100% wool winter coat
   •   100% acrylic winter sweater
Discussion…
Which Rating is better for colorfastness to light for a
 woman’s summer dress:
                 Class 5- 20 hours
                         Or
                Class 4- 40 hours?
Thank You.

More Related Content

What's hot

Garments washing
Garments washingGarments washing
Garments washing
Md. Mazadul Hasan Shishir

Garment washing
Garment washingGarment washing
Garment washing
Rajeev Sharan

Fastness testing of fabric
Fastness testing  of fabric Fastness testing  of fabric
Fastness testing of fabric
Abdur Rahman Nadim

Functions of dyeing auxiliaries
Functions of dyeing auxiliariesFunctions of dyeing auxiliaries
Functions of dyeing auxiliaries
Tanvir Ahammed

Textile coloration
Textile  colorationTextile  coloration
Textile coloration
Md. Mazadul Hasan Shishir

Water repellency of fabrics
Water repellency of fabricsWater repellency of fabrics
Water repellency of fabrics
yousuf1234

LABORATORY CALCULATIONS & PROCEDRES
LABORATORY CALCULATIONS & PROCEDRESLABORATORY CALCULATIONS & PROCEDRES
LABORATORY CALCULATIONS & PROCEDRES
Abu Sayed

Textile Testing & Quality Control
Textile Testing & Quality ControlTextile Testing & Quality Control
Textile Testing & Quality Control
Azmir Latif Beg

Introduction to dyeing
Introduction to dyeingIntroduction to dyeing
Introduction to dyeing
Rajeev Sharan

Textile testing
Textile testingTextile testing
Textile testing
Er Rangari

Textile testing & quality control
Textile testing & quality controlTextile testing & quality control
Textile testing & quality control
Azmir Latif Beg

Yarn Count
Yarn CountYarn Count
Colrfastness to washing
Colrfastness to washingColrfastness to washing
Colrfastness to washing
Monirul Islam Saikat

Scouring
ScouringScouring
Fabric Strenght Testing.ppt
Fabric Strenght Testing.pptFabric Strenght Testing.ppt
Fabric Strenght Testing.ppt
MdAbdullah360298

Study On Beam Dyeing Machine
Study On Beam Dyeing MachineStudy On Beam Dyeing Machine
Study On Beam Dyeing Machine
Md Rakibul Hassan

Important of textile testing
Important of textile testingImportant of textile testing
Important of textile testing
Mizanur Rehman Shobuj

Yarn count
Yarn countYarn count
Yarn count
Amit Biswas

Pigment Dyeing
Pigment DyeingPigment Dyeing
Dyeing of polyester and cotton blends
Dyeing of polyester and cotton blendsDyeing of polyester and cotton blends
Dyeing of polyester and cotton blends
Ashish Dua


What's hot (20)

Garments washing
Garments washingGarments washing
Garments washing

Garment washing
Garment washingGarment washing
Garment washing

Fastness testing of fabric
Fastness testing  of fabric Fastness testing  of fabric
Fastness testing of fabric

Functions of dyeing auxiliaries
Functions of dyeing auxiliariesFunctions of dyeing auxiliaries
Functions of dyeing auxiliaries

Textile coloration
Textile  colorationTextile  coloration
Textile coloration

Water repellency of fabrics
Water repellency of fabricsWater repellency of fabrics
Water repellency of fabrics

LABORATORY CALCULATIONS & PROCEDRES
LABORATORY CALCULATIONS & PROCEDRESLABORATORY CALCULATIONS & PROCEDRES
LABORATORY CALCULATIONS & PROCEDRES

Textile Testing & Quality Control
Textile Testing & Quality ControlTextile Testing & Quality Control
Textile Testing & Quality Control

Introduction to dyeing
Introduction to dyeingIntroduction to dyeing
Introduction to dyeing

Textile testing
Textile testingTextile testing
Textile testing

Textile testing & quality control
Textile testing & quality controlTextile testing & quality control
Textile testing & quality control

Yarn Count
Yarn CountYarn Count
Yarn Count

Colrfastness to washing
Colrfastness to washingColrfastness to washing
Colrfastness to washing

Scouring
ScouringScouring
Scouring

Fabric Strenght Testing.ppt
Fabric Strenght Testing.pptFabric Strenght Testing.ppt
Fabric Strenght Testing.ppt

Study On Beam Dyeing Machine
Study On Beam Dyeing MachineStudy On Beam Dyeing Machine
Study On Beam Dyeing Machine

Important of textile testing
Important of textile testingImportant of textile testing
Important of textile testing

Yarn count
Yarn countYarn count
Yarn count

Pigment Dyeing
Pigment DyeingPigment Dyeing
Pigment Dyeing

Dyeing of polyester and cotton blends
Dyeing of polyester and cotton blendsDyeing of polyester and cotton blends
Dyeing of polyester and cotton blends


Similar to Colour fastness

Different fastness machines or techniques used in textiles
Different fastness machines or techniques used in textilesDifferent fastness machines or techniques used in textiles
Different fastness machines or techniques used in textiles
Shubham Singh

Color fastness .pdf
Color fastness .pdfColor fastness .pdf
Color fastness .pdf
Mahin66

Wet Testing of textile materials
Wet Testing of textile materialsWet Testing of textile materials
Wet Testing of textile materials
Azmir Latif Beg

textile chemical testing
textile chemical testingtextile chemical testing
textile chemical testing
Hemant yadav

Evaluation of Wash and Light Fastness of Some Selected Printed Fabrics
Evaluation of Wash and Light Fastness of Some Selected Printed FabricsEvaluation of Wash and Light Fastness of Some Selected Printed Fabrics
Evaluation of Wash and Light Fastness of Some Selected Printed Fabrics
IOSR Journals

Garment testing book
Garment testing bookGarment testing book
Garment testing book
dilan chathuranga

Fastness Testing.pptx
Fastness Testing.pptxFastness Testing.pptx
Fastness Testing.pptx
MdAbulKalamAzad94

Color fastness to rubbing by Crockmeter
Color fastness to rubbing by CrockmeterColor fastness to rubbing by Crockmeter
Color fastness to rubbing by Crockmeter
Hasibul Haque Chowdhury

Manufacturing process of textile industries (Printing and dyeing process of f...
Manufacturing process of textile industries (Printing and dyeing process of f...Manufacturing process of textile industries (Printing and dyeing process of f...
Manufacturing process of textile industries (Printing and dyeing process of f...
Muhammad Umair Akram

Color fastness of dyed goods .
Color fastness of dyed goods .Color fastness of dyed goods .
Color fastness of dyed goods .
Md. Mazadul Hasan Shishir

Presentation on Dyeing of Modified Polyester Fabric at Low Temperature.pptx
Presentation on Dyeing of Modified Polyester Fabric at Low Temperature.pptxPresentation on Dyeing of Modified Polyester Fabric at Low Temperature.pptx
Presentation on Dyeing of Modified Polyester Fabric at Low Temperature.pptx
MahmudSharifBhuiyan

Textile dyeing practices including finishing
Textile dyeing practices including finishingTextile dyeing practices including finishing
Textile dyeing practices including finishing
Mithila Eranda

All Testing Of Textile Lab
All Testing Of Textile LabAll Testing Of Textile Lab
All Testing Of Textile Lab
daffodil international university

Industrial visit report
Industrial visit reportIndustrial visit report
Industrial visit report
Ankur Shukla

Industrial visit report
Industrial visit reportIndustrial visit report
Industrial visit report
Ankur Shukla

4.1.04 application of a vat dye
4.1.04 application of a vat dye4.1.04 application of a vat dye
4.1.04 application of a vat dye
Mehmet Kacmaz

Color fastness
Color fastnessColor fastness
Color fastness
Sanghamitra Kalita

FASTNESSES BEHAVIOUR OF TEXTILE MATERIAL
FASTNESSES BEHAVIOUR OF TEXTILE MATERIALFASTNESSES BEHAVIOUR OF TEXTILE MATERIAL
FASTNESSES BEHAVIOUR OF TEXTILE MATERIAL
MD SOHEL KHAN

Assessment of Bleached and Unbleached Jute Yarn with Various Dyes and Paramet...
Assessment of Bleached and Unbleached Jute Yarn with Various Dyes and Paramet...Assessment of Bleached and Unbleached Jute Yarn with Various Dyes and Paramet...
Assessment of Bleached and Unbleached Jute Yarn with Various Dyes and Paramet...
CrimsonpublishersMedical

scouring and bleaching
scouring and bleaching scouring and bleaching
scouring and bleaching
Azmir Latif Beg


Similar to Colour fastness (20)

Different fastness machines or techniques used in textiles
Different fastness machines or techniques used in textilesDifferent fastness machines or techniques used in textiles
Different fastness machines or techniques used in textiles

Color fastness .pdf
Color fastness .pdfColor fastness .pdf
Color fastness .pdf

Wet Testing of textile materials
Wet Testing of textile materialsWet Testing of textile materials
Wet Testing of textile materials

textile chemical testing
textile chemical testingtextile chemical testing
textile chemical testing

Evaluation of Wash and Light Fastness of Some Selected Printed Fabrics
Evaluation of Wash and Light Fastness of Some Selected Printed FabricsEvaluation of Wash and Light Fastness of Some Selected Printed Fabrics
Evaluation of Wash and Light Fastness of Some Selected Printed Fabrics

Garment testing book
Garment testing bookGarment testing book
Garment testing book

Fastness Testing.pptx
Fastness Testing.pptxFastness Testing.pptx
Fastness Testing.pptx

Color fastness to rubbing by Crockmeter
Color fastness to rubbing by CrockmeterColor fastness to rubbing by Crockmeter
Color fastness to rubbing by Crockmeter

Manufacturing process of textile industries (Printing and dyeing process of f...
Manufacturing process of textile industries (Printing and dyeing process of f...Manufacturing process of textile industries (Printing and dyeing process of f...
Manufacturing process of textile industries (Printing and dyeing process of f...

Color fastness of dyed goods .
Color fastness of dyed goods .Color fastness of dyed goods .
Color fastness of dyed goods .

Presentation on Dyeing of Modified Polyester Fabric at Low Temperature.pptx
Presentation on Dyeing of Modified Polyester Fabric at Low Temperature.pptxPresentation on Dyeing of Modified Polyester Fabric at Low Temperature.pptx
Presentation on Dyeing of Modified Polyester Fabric at Low Temperature.pptx

Textile dyeing practices including finishing
Textile dyeing practices including finishingTextile dyeing practices including finishing
Textile dyeing practices including finishing

All Testing Of Textile Lab
All Testing Of Textile LabAll Testing Of Textile Lab
All Testing Of Textile Lab

Industrial visit report
Industrial visit reportIndustrial visit report
Industrial visit report

Industrial visit report
Industrial visit reportIndustrial visit report
Industrial visit report

4.1.04 application of a vat dye
4.1.04 application of a vat dye4.1.04 application of a vat dye
4.1.04 application of a vat dye

Color fastness
Color fastnessColor fastness
Color fastness

FASTNESSES BEHAVIOUR OF TEXTILE MATERIAL
FASTNESSES BEHAVIOUR OF TEXTILE MATERIALFASTNESSES BEHAVIOUR OF TEXTILE MATERIAL
FASTNESSES BEHAVIOUR OF TEXTILE MATERIAL

Assessment of Bleached and Unbleached Jute Yarn with Various Dyes and Paramet...
Assessment of Bleached and Unbleached Jute Yarn with Various Dyes and Paramet...Assessment of Bleached and Unbleached Jute Yarn with Various Dyes and Paramet...
Assessment of Bleached and Unbleached Jute Yarn with Various Dyes and Paramet...

scouring and bleaching
scouring and bleaching scouring and bleaching
scouring and bleaching


More from Rajeev Sharan

Graduation Project (SA 8000 & it's frame work for Indian Apparel Manufacturing)
Graduation Project (SA 8000 & it's frame work for Indian Apparel Manufacturing)Graduation Project (SA 8000 & it's frame work for Indian Apparel Manufacturing)
Graduation Project (SA 8000 & it's frame work for Indian Apparel Manufacturing)
Rajeev Sharan

Supply chain management
Supply chain managementSupply chain management
Supply chain managementRajeev Sharan

Final pl doc
Final pl docFinal pl doc
Final pl doc
Rajeev Sharan

Production module-ERP
Production module-ERPProduction module-ERP
Production module-ERPRajeev Sharan

Supply chain management
Supply chain managementSupply chain management
Supply chain managementRajeev Sharan

Inventory management
Inventory managementInventory management
Inventory management
Rajeev Sharan

Calculator code
Calculator codeCalculator code
Calculator code
Rajeev Sharan

Maintenance management
Maintenance managementMaintenance management
Maintenance management
Rajeev Sharan

Maintenance management
Maintenance managementMaintenance management
Maintenance management
Rajeev Sharan

Maintenance management
Maintenance managementMaintenance management
Maintenance management
Rajeev Sharan

RECENT TRENDS OF MAINTENANCE MANAGEMENT
RECENT TRENDS OF MAINTENANCE MANAGEMENTRECENT TRENDS OF MAINTENANCE MANAGEMENT
RECENT TRENDS OF MAINTENANCE MANAGEMENTRajeev Sharan

Shirt spec sheet
Shirt spec sheetShirt spec sheet
Shirt spec sheet
Rajeev Sharan

product analysis & development- sourcing
product analysis & development- sourcingproduct analysis & development- sourcing
product analysis & development- sourcing
Rajeev Sharan

Product Analysis & Development
Product Analysis & DevelopmentProduct Analysis & Development
Product Analysis & Development
Rajeev Sharan

Ergonomics
Ergonomics Ergonomics
Ergonomics
Rajeev Sharan

Total service management
Total service managementTotal service management
Total service management
Rajeev Sharan

Lean- automobile
Lean- automobileLean- automobile
Lean- automobile
Rajeev Sharan


More from Rajeev Sharan (20)

Graduation Project (SA 8000 & it's frame work for Indian Apparel Manufacturing)
Graduation Project (SA 8000 & it's frame work for Indian Apparel Manufacturing)Graduation Project (SA 8000 & it's frame work for Indian Apparel Manufacturing)
Graduation Project (SA 8000 & it's frame work for Indian Apparel Manufacturing)

Supply chain management
Supply chain managementSupply chain management
Supply chain management

Final pl doc
Final pl docFinal pl doc
Final pl doc

Production module-ERP
Production module-ERPProduction module-ERP
Production module-ERP

Supply chain management
Supply chain managementSupply chain management
Supply chain management

E smartx.ppt
E smartx.pptE smartx.ppt
E smartx.ppt

Inventory management
Inventory managementInventory management
Inventory management

Calculator code
Calculator codeCalculator code
Calculator code

Maintenance management
Maintenance managementMaintenance management
Maintenance management

Maintenance management
Maintenance managementMaintenance management
Maintenance management

Maintenance management
Maintenance managementMaintenance management
Maintenance management

RECENT TRENDS OF MAINTENANCE MANAGEMENT
RECENT TRENDS OF MAINTENANCE MANAGEMENTRECENT TRENDS OF MAINTENANCE MANAGEMENT
RECENT TRENDS OF MAINTENANCE MANAGEMENT

PAD FINAL DOC
PAD FINAL DOCPAD FINAL DOC
PAD FINAL DOC

Shirt spec sheet
Shirt spec sheetShirt spec sheet
Shirt spec sheet

product analysis & development- sourcing
product analysis & development- sourcingproduct analysis & development- sourcing
product analysis & development- sourcing

Product Analysis & Development
Product Analysis & DevelopmentProduct Analysis & Development
Product Analysis & Development

Ergonomics
ErgonomicsErgonomics
Ergonomics

Ergonomics
Ergonomics Ergonomics
Ergonomics

Total service management
Total service managementTotal service management
Total service management

Lean- automobile
Lean- automobileLean- automobile
Lean- automobile


Recently uploaded

Capsule Wardrobe Women: A document show
Capsule Wardrobe Women:  A document showCapsule Wardrobe Women:  A document show
Capsule Wardrobe Women: A document show
mustaphaadeyemi08

一比一原版(UoL毕业证)伦敦大学毕业证如何办理
一比一原版(UoL毕业证)伦敦大学毕业证如何办理一比一原版(UoL毕业证)伦敦大学毕业证如何办理
一比一原版(UoL毕业证)伦敦大学毕业证如何办理
qghuhwa

Calendario 2024 mensual anual documento A4 multicolor pastel imprimible bla...
Calendario 2024 mensual  anual  documento A4 multicolor pastel imprimible bla...Calendario 2024 mensual  anual  documento A4 multicolor pastel imprimible bla...
Calendario 2024 mensual anual documento A4 multicolor pastel imprimible bla...
ValentinoRueda

一比一原版(McGill毕业证书)麦吉尔大学毕业证如何办理
一比一原版(McGill毕业证书)麦吉尔大学毕业证如何办理一比一原版(McGill毕业证书)麦吉尔大学毕业证如何办理
一比一原版(McGill毕业证书)麦吉尔大学毕业证如何办理
lyurzi7r

MISS RAIPUR 2024 - WINNER POONAM BHARTI.
MISS RAIPUR 2024 - WINNER POONAM BHARTI.MISS RAIPUR 2024 - WINNER POONAM BHARTI.
MISS RAIPUR 2024 - WINNER POONAM BHARTI.
DK PAGEANT

MISS TEEN LUCKNOW 2024 - WINNER ASIYA 2024
MISS TEEN LUCKNOW 2024 - WINNER ASIYA 2024MISS TEEN LUCKNOW 2024 - WINNER ASIYA 2024
MISS TEEN LUCKNOW 2024 - WINNER ASIYA 2024
DK PAGEANT

Analysis and Assessment of Gateway Process – HemiSync(1).PDF
Analysis and Assessment of Gateway Process – HemiSync(1).PDFAnalysis and Assessment of Gateway Process – HemiSync(1).PDF
Analysis and Assessment of Gateway Process – HemiSync(1).PDF
JoshuaDagama1

Biography and career history of Bruno Amezcua
Biography and career history of Bruno AmezcuaBiography and career history of Bruno Amezcua
Biography and career history of Bruno Amezcua
Bruno Amezcua

Insanony: Watch Instagram Stories Secretly - A Complete Guide
Insanony: Watch Instagram Stories Secretly - A Complete GuideInsanony: Watch Instagram Stories Secretly - A Complete Guide
Insanony: Watch Instagram Stories Secretly - A Complete Guide
Trending Blogers

Confidence is Key: Fashion for Women Over 50
Confidence is Key: Fashion for Women Over 50Confidence is Key: Fashion for Women Over 50
Confidence is Key: Fashion for Women Over 50
miabarn9

快速办理(加拿大CBU毕业证书)卡普顿大学毕业证毕业完成信一模一样
快速办理(加拿大CBU毕业证书)卡普顿大学毕业证毕业完成信一模一样快速办理(加拿大CBU毕业证书)卡普顿大学毕业证毕业完成信一模一样
快速办理(加拿大CBU毕业证书)卡普顿大学毕业证毕业完成信一模一样
ubopub

一比一原版塔夫斯大学毕业证Tufts成绩单一模一样
一比一原版塔夫斯大学毕业证Tufts成绩单一模一样一比一原版塔夫斯大学毕业证Tufts成绩单一模一样
一比一原版塔夫斯大学毕业证Tufts成绩单一模一样
stgq9v39

Self-Discipline: The Secret Weapon for Certain Victory
Self-Discipline: The Secret Weapon for Certain VictorySelf-Discipline: The Secret Weapon for Certain Victory
Self-Discipline: The Secret Weapon for Certain Victory
bluetroyvictorVinay


Recently uploaded (13)

Capsule Wardrobe Women: A document show
Capsule Wardrobe Women:  A document showCapsule Wardrobe Women:  A document show
Capsule Wardrobe Women: A document show

一比一原版(UoL毕业证)伦敦大学毕业证如何办理
一比一原版(UoL毕业证)伦敦大学毕业证如何办理一比一原版(UoL毕业证)伦敦大学毕业证如何办理
一比一原版(UoL毕业证)伦敦大学毕业证如何办理

Calendario 2024 mensual anual documento A4 multicolor pastel imprimible bla...
Calendario 2024 mensual  anual  documento A4 multicolor pastel imprimible bla...Calendario 2024 mensual  anual  documento A4 multicolor pastel imprimible bla...
Calendario 2024 mensual anual documento A4 multicolor pastel imprimible bla...

一比一原版(McGill毕业证书)麦吉尔大学毕业证如何办理
一比一原版(McGill毕业证书)麦吉尔大学毕业证如何办理一比一原版(McGill毕业证书)麦吉尔大学毕业证如何办理
一比一原版(McGill毕业证书)麦吉尔大学毕业证如何办理

MISS RAIPUR 2024 - WINNER POONAM BHARTI.
MISS RAIPUR 2024 - WINNER POONAM BHARTI.MISS RAIPUR 2024 - WINNER POONAM BHARTI.
MISS RAIPUR 2024 - WINNER POONAM BHARTI.

MISS TEEN LUCKNOW 2024 - WINNER ASIYA 2024
MISS TEEN LUCKNOW 2024 - WINNER ASIYA 2024MISS TEEN LUCKNOW 2024 - WINNER ASIYA 2024
MISS TEEN LUCKNOW 2024 - WINNER ASIYA 2024

Analysis and Assessment of Gateway Process – HemiSync(1).PDF
Analysis and Assessment of Gateway Process – HemiSync(1).PDFAnalysis and Assessment of Gateway Process – HemiSync(1).PDF
Analysis and Assessment of Gateway Process – HemiSync(1).PDF

Biography and career history of Bruno Amezcua
Biography and career history of Bruno AmezcuaBiography and career history of Bruno Amezcua
Biography and career history of Bruno Amezcua

Insanony: Watch Instagram Stories Secretly - A Complete Guide
Insanony: Watch Instagram Stories Secretly - A Complete GuideInsanony: Watch Instagram Stories Secretly - A Complete Guide
Insanony: Watch Instagram Stories Secretly - A Complete Guide

Confidence is Key: Fashion for Women Over 50
Confidence is Key: Fashion for Women Over 50Confidence is Key: Fashion for Women Over 50
Confidence is Key: Fashion for Women Over 50

快速办理(加拿大CBU毕业证书)卡普顿大学毕业证毕业完成信一模一样
快速办理(加拿大CBU毕业证书)卡普顿大学毕业证毕业完成信一模一样快速办理(加拿大CBU毕业证书)卡普顿大学毕业证毕业完成信一模一样
快速办理(加拿大CBU毕业证书)卡普顿大学毕业证毕业完成信一模一样

一比一原版塔夫斯大学毕业证Tufts成绩单一模一样
一比一原版塔夫斯大学毕业证Tufts成绩单一模一样一比一原版塔夫斯大学毕业证Tufts成绩单一模一样
一比一原版塔夫斯大学毕业证Tufts成绩单一模一样

Self-Discipline: The Secret Weapon for Certain Victory
Self-Discipline: The Secret Weapon for Certain VictorySelf-Discipline: The Secret Weapon for Certain Victory
Self-Discipline: The Secret Weapon for Certain Victory


Colour fastness

  • 1. IMPORTANCE OF TESTING  Research and development to enable new and desirable textile products to be produced.  Product performance and evaluation to determine if the fabric is suitable for the intended end use.  Quality control to ensure that the fabric will be made properly and efficiently. Thus claims and returns will be minimized.  Problem analysis to determine why a fabric or textile product is not performing as desired  Product comparison to determine which material would be the better value and to prevent wasteful buying.  Proper advertising to enable ads to be truthful and not misleading or false  Adherence to government regulations so that the textile product can be sold without violating any laws.
  • 3. COLOR FASTNESS Property of a pigment or dye to retain its original hue, especially without fading, running, or changing when wetted, washed, cleaned; or stored under normal conditions when exposed to light, heat, or other influences.
  • 4. Factors Affecting Color Fastness  Fiber Type  Class of Dye Used  Dyeing or Printing Process used  Types of Finishing Treatments Used  Action Of Laundering Detergents
  • 5. Qualities Of The Color Evaluator  A special individual needed who:  Possesses a knowledge of dyes and pigments.  Knows why color change  Is skilled in colorfastness tests and knows their limitations.  Has the ability to evaluate and report color changes.
  • 6. Measured Using… Color fastness in • Paper: fadeometer, • Cloth: launderometer. Explained Further…
  • 7. Types Of Colorfastness  Adversely affected by:  Washing  Light  Crocking  Abrasion  Gases in Atmosphere  Frosting  Perspiration  Heat
  • 8. GRAY SCALE  Arrangement of Achromatic gray chips in a scale from light to dark.  Nine pairs of non-glossy neutral grey coloured chips, which illustrate the perceived colour differences.  give a corresponding fastness rating of 5, 4-5, 4, 3-4, 3, 2-3, 2, 1-2, and 1)
  • 9. Using A Gray Scale…  Uses a class 5-4-3-2-1 rating system.  Class 5 best, Class 1 worst.  Half Rating, such as 3-4 also used.  5-Excellent, 4-good, 3-fair, 2-poor, 1- very poor.  Specimens of a given hue are matched against these gray chips.  They equate differences in lightness with differences in color.
  • 10. Methodology Of Testing..  A control fabric is used, usually white or un-dyed; also assessed for the staining which results from contact with the test material.  Results assessed by grading against standard A04/A05 greyscales  Grade of 5: no change in colour, staining  Grade of 1: substantially different.
  • 11. Methodology Of Testing (Contd)..  Usually only one specimen of fabric used.  If material dyed or printed uniformly throughout the fabric, then specimen chosen should be representative of entire lot.  For multi –colored printed fabric, each color should be tested in order to evaluate every color.
  • 12. Gray Scale For Staining…  Used to evaluate a fabric’s resistance to staining.  Normally a multi-fibre strip of 6 fibre components used for staining test: Acetate, Cotton, Acrylic, Polyamide, Polyester and Wool.  Same as the other gray scale, except for the chip in each pair that remains the same is a standard white.  Various contrasting pair of chips are given numerical color fastness ratings, from class 5 to class 1.  Utilizes samples of undyed fabric to determine if a colored fabric will stain an adjacent fabric.
  • 14. Grey Scales for Staining
  • 15. Grey Scales For Coloring
  • 16. Limitations Of Grey Scale  Disagreement when bright colors are used.  Works well with most colors otherwise.
  • 17. CHROMATIC TRANSFERENCE SCALE  used to evaluate fabrics resistance to crocking.  six sets of color chips.  Each set is graduated from light to dark with different rating.
  • 18. Lighting Used For Evaluation  When visually evaluating or comparing, standardized light source should be used.  COLOR MATCHING BOOTH frequently used for color checking.
  • 19. COLOR MATCHING BOOTH  Contains 4 different standardized lights:  Daylight  Incandescent Light  Cool White Fluorescent Light  Ultraviolet Light  Each used to view specimens by pushing a switch.  Daylight used when evaluating colorfastness as color appears closer to way usually seen.
  • 20. COLORFASTNESS TO WASHING  Ability of the fabric to with stand the effect of laundering.  Launder-ometer is used to evaluate colour fastness to washing with the help of grey scales.  The washing of fabric results in the removal of dye, therefore staining can occur, inorder to determine the staining, a white multifiber strip is attached to the specimen being tested for CF to washing.  The staining effect on each fiber in the multifiber test fabric should be rated using the grey scale for evaluating staining.  It is checked afterwards for the effects of bleeding or colour migration.  AATCC standard detergent 124 used.
  • 21. The Laundrometer  Specimen placed in a metal cylinder containing water, detergent, steel balls, and chlorine.  Rotating action of these cylinders produces the same effect as textile products being laundered.
  • 22. Testing Procedure: Overview  The specimen is placed in a metal cylinder in which water, detergent, metal balls and chlorine are placed.  The amount of detergent ,temperature, agitation and bleach can be controlled.
  • 23. TEST PROCEDURE SPECIMEN PREPERATION: Cut the specimen 2 x 6 inches, stapled with the multi fiber fabric. PROCEDURE: Place the sample in the container along with the steel balls and detergent Run the machine for 45 minute After taking the specimen rinse it with water and soak it in acetic solution and rinse it again with water. Remove the excess solution Dry the specimen and test fabric together using an hand iron Remove the test fabric and compare it with the gray scale to find the fastness.
  • 25. COLORFASTNESS TO LIGHT  This refers to the ability of the fabric to withstand the sun light.  The resistance of the sunlight depends on:  the intensity of the light  inherent properties of the fabric.  Season  altitude  distance from the equator.
  • 26. Measurement Method  Original standard method: Sunlight method  samples are placed in a glass cabinet and exposed to sun light from 9 am-3 pm. It is time consumable process.  Weather-o-meter and Fade-o-meter most widely used instruments.  Both this instruments use different light source and the temperature and humidity are controlled with in the machine  Specimens placed around the light source , and remain there until the end of test.  Then evaluated as to changes in color resulting from radiation  Weather-o-meter is a newer and more versatile machine  It enables specimen to be sprayed with water during the test, if desired.  It also is able to alternate light and dark periods if continuous light exposure is not desired.  These conditions are used in the Weather-o-meter to test fabric for such end uses as outdoor furniture, tents or rainwear.
  • 27. Instruments and Fastness…  Both machines have either a carbon-arc lamp or a xenon- arc lamp as the light source.  The degree of fastness required depends on end use. As an example, a coat material should have more color fastness than a colored dress shirt. Similarly clothes not intended to worn outside should also have certain color fastness to enable drying in sunlight.
  • 28. WEATHER-O-METER  Newer, versatile.  It enables the specimen to be sprayed with water if needed.  It also manipulates the light and dark period if continuous exposure is not needed.  These make it most suitable for testing fabrics for end uses like outdoor furniture, tenting or rainwear.
  • 29. Using Weather Meter Two testing methods are used:  Time method  Standard fading method
  • 30. TIME METHOD  The specimen is exposed to light for a particular amount of time.  After the termination of time the specimen is taken out and evaluated. Disadvantage Specimen is not exposed to the same amount of light each time the test is performed.
  • 31. Test Procedure Specimen Preparation  Cut the specimen 2.5” x 8” with the longer dimension in lengthwise. Test Procedure  Mount the specimen in the cardboard holder and remove the perforated strips so that half of the specimen area will be uncovered.  Insert the cardboard holder into the metal holder and place in to the machine.  Expose the specimen for 20 hours.  At the end of the desired exposure time period, remove the specimen and allow it to relax in the dark at room temperature for atleast 2 hours in order to regain moisture from the air.  Using the grey scale for evaluating colour change, determine the colour fastness rating for the test fabric.
  • 32. COLOR FASTNESS TO CROCKING  The rubbing off of colors is called as crocking.  Fabrics with large amount of surface dyes like dark color cotton fabric tend to have poor colorfastness to crocking, pigment dyed or printed fabrics also face the same problem.  Some time in order to increase the depth of the colors the surface dyes are not washed off which also results in crocking.
  • 33. Crock Meter  The crock meter is used to find the color fastness to crocking.  This instrument has a finger covered by a white cotton fabric which would rub against the specimen.  This test should be performed both as wet and dry test.  The wet test is an severe test since moisture helps in removal of dyes
  • 34. COLOR FASTNESS TO CROCKING Procedure Specimen Preparation  Cut two specimens on the bias, 8”x8” and place the test specimen on the crock meter so it will be rubbed in the bias direction.  Test Procedure  Mount a dry, white crock test cloth over the finger section of the crock meter so that it will be rubbed in the bias direction.  Lower the covered finger, causing the crock test cloth to slide over the coloured specimen for 10 complete cycles.  Remove the specimen and the white crock test cloth.  Perform a wet crocking test by the same procedure.  Rate the crock test cloths using the colour transference chart.
  • 35. COLOR FASTNESS TO PERSPIRATION.  Perspiration can cause a fabric to change color as well as resulting in staining of adjacent material.  The test is attempted to stimulate the actual condition. the specimen is heated for 6 hours at 38°C .  A multifibre test fabric is placed against the specimen, the test is carried out and later evaluated for bleeding or color migration.  After the test is completed ,the specimen is evaluated using the gray scale and the average rating is reported.
  • 37. TEST PROCEDURE SPECIMEN PREPERATION:  Cut the specimen of 2 ¼” x 2 ¼”  Cut the multifiber fabric to 2 x 2 inch PROCEDURE:  Immerse the test sample and the specimen in the acid solution for 15 min.  With draw the fabric and remove any excess liquor  Place the specimen in the perspiration tester  Load the tester with 10 pounds of pressure.  Place the loaded tester in an oven and heat it to 100*f for 6 hours  Remove the tester from oven and allow the fabric to dry at room temperature.  Remove specimen and test cloth and Compare with gray scale.
  • 38. COLOR FASTNESS TO FROSTING  Frosting is the change of color caused by a localized , flat abrasive action.  Fabrics that have poor dye penetration possess poor colorfastness to frosting.  Fabric that are cross dyed also possess poor color fastness (due to differences in the abrasion resistance) .
  • 39. Difference Between Crocking Test and Frosting Test  Crocking evaluates the appearance of the specimen  Frosting only evaluates the rubbing cloth, not the specimen.
  • 40. COLOR FASTNESS TO GASES IN ATMOSPHERE  The dyes in the textile material are affected to a various degree by atmospheric gases.  The major cause for this is due to the reaction of disperse dye with ozone and oxides of nitrogen.  The disperse dyed with acetate fabric has the maximum effect while nylon, polyester, acrylic has low effect.  Inhibitors are used for this purpose but are not permanent.  Darker, brighter change more dramatically.  Typical changes: Blues turning pinkish, browns turning reddish, greens turning brownish.
  • 41. Instruments Used  GAS FADING CHAMBER:-tests the effects of oxides of nitrogen.  OZONITER (ozone exposure chamber):-tests the effect of ozone.
  • 42. General Procedure  The specimens are placed in the gas filled chamber for a particular time along with the control fabric.  The tests are conducted at 140*F for approximately 2-3 hours.  The relative humidity is normally kept low due to the heating of gases.  Gas fading termination: when blue sample turns a specific purple color.  Ozone fading test: gray sample turns a standard brown color
  • 44. TEST PROCEDURE SPECIMEN PREPERATION:  Cut the specimen 2 x 4 inches ,with the long direction length wise  Cut the blue acetate control swatch 2 x 2 inches long TEST PROCEDURE:  Place the specimen(2x4inches)and control sample(2x2inches)in the gas fading chamber.  Heat the chamber to about 140*f by using Bunsen burner.  Leave the specimens in the chamber until the color changes from blue to purple.  Change the control sample and repeat the procedure (only for ozoniter test, sample changes from grey sample turns brown.  Using The Gray Scale Determine The Color Fastness Rating.
  • 45. TEST PROCEDURE SPECIMEN PREPERATION: Cut two circular specimen of 4 ½ inches (emery method) Cut two circular specimen of 5 inches (screen wire method) PROCEDURE(EMERY METHOD):  Place the emery paper and the specimen on the tester  The pressure on the diaphragm is set to be 3 psi and place a 3 pound load on the head.  Start the tester and allow it to run for 100 continuous cycles.  Remove the specimen and vaccum it n order to remove fibre and abradant residue.  Hand rinse the specimen by bolting it between two white cotton fabric hand iron at 300*f.  Repeat the procedure for other specimen, using gray scale find the color fastness.
  • 46. Diagram of gas fading chamber
  • 47. COLOR FASTNESS DUE TO HOT IRON  The change in color of the garment due to hot iron and dry heat can be found by Contact Heat Tester.
  • 48. CONTACT HEAT TESTER  The heat contact tester consist of 3 pairs of individually controlled heaters  allows simultaneous testing of 3 differing temperatures in the range 100°C to 230°C.  After the allocated time the specimens are taken out and is compared to the gray scale from which the color fastness is found out
  • 49. COLOR FASTNESS TO WATER SAMPLE PREPERATION: Cut the specimen and the multi fiber specimen of 6 x 6 cm and sew it together. PROCEDURE:  Place the specimen in a Petri dish and add distilled water to a depth of 1.5 cm  Soak the specimen at room temperature for 15 min with occasional agitation  After removing the excess water place the specimen in perspir-o-meter with a load of 10 pounds.  Place the total unit in the oven at an temperature of 38*c for 18 hours  Remove he specimen from the oven and dry it at standard atmosphere.  Compare the sample with the gray scale to find the fastness.
  • 51. What Makes One Perceive Color ?  Light falls on the object and is partially absorbed.  The light that is not absorbed is reflected and falls on the color receptors in the eye.  The receptors convert the incident light into stimuli, which are then conducted via nerves to the brain.  Here the stimuli are interpreted and a color perception is formed
  • 52. How are colors defined ? Three numerical values:  Hue The actual color of the sample.  Similarity of one or a mixture of one or more colors out of the primary ones.  Value  Property that arises out of the fraction of incident light being reflected from the sample.  Saturation Of Color  Chroma  View at a given illuminance level.  Brightness of the Sample  Form the basis of colourimetry.  Human eye can perceive light wavelength of 350 to 750 nm .
  • 53. VALUE 10P(89) 10RP(01) 10PB(75) 10R(11) 10YR(19) HUE10B(65) CROMA 10Y(31) 10BG(57) 10G(49) 10GY(41)
  • 54. Color order system  Any systematic rational method of arranging all possible colors or subsets by means of material samples selected so that they represent all object color.
  • 55. NEED FOR COLOR ORDER SYSTEM  Human Inability to distinguish between tens of millions of shades perceived.
  • 56. Merits of color order system  Realistic, easy to understand.  Standard viewing conditions.  No instrument required.  Calibrated in terms of tristimulus values.  Visually uniform color spaces, such as Munsell and OSA can prove a useful way of organizing the colors of a digitally controlled color television monitor.
  • 57. Demerits of color order system  Not easily convertible amongst the wide varieties available.  Difference between the intended aim color and actual color of the physical samples quite high for an atlas.  It is not possible to include all perceivable colors in any color order system.  The appearance of larger samples of identical color notably different.  Difficult to compare samples with color standards of different texture and material.
  • 58. Type of color order system  Munsell color order system  OSA color order system  Chroma cosmos  CIE colorimetric system  RAL system  Practical color coordinate system  OSA-UCS system etc.
  • 59. COLOR MATCHING  Color matching can be done in two ways:  Visual color matching under illuminant.  Computerized color matching system (Spectro photometer)
  • 60. Process Of Color Matching  Basic information needed:  light source  fabric quality  Specific requirements (process flow) Visual color matching  Shade matching is done under light box in a darkroom.  Both standard and sample are placed under same illuminant and matched visually.  A trial and error method.
  • 61. Light Viewing Cabinets By Gretag Macbeth
  • 62. Different Light sources  Illuminants standard light sources defined by specific spectral power distribution(SPD). These may be:  Natural day light  Tungsten lamp  Tungsten-Halogen Lamp  Carbon arc lamp  Mercury and sodium vapor lamps  Xenon arc lamps  Fluorescent tubes  Lasers  UV lamps  Cool white
  • 63. Lab Facilities for Color Matching Spectrophotometer
  • 64. Process for color matching in Spectrophotometer  Standard shade fed to the spectrophotometer by measuring its reflectance value.  difference of the reflectance value(DE) obtained.  DE should be as close as possible to standard shade.
  • 66. Wavelength (nm) Reflectance (%) wavelength
  • 67.
  • 68. DE Measurement  Two methods present: 1)Lab method, DE= sqrt[(dl/l)^2+(da/a)^2+(db/b)^2] 2)Lch method, DE= sqrt[(dl/l)^2+(dh/h)^2+(dc/c)^2] dL=Value da=red or green values (RGB Value) db=yellow or blue relative values dc=Chroma dh= Hue
  • 69. Color development by CCM  Based on the reflectance value computer will calculate some recipes of different dye stuff which may ultimately produce the desired colour  Colour matching is a trial and error method. The shade which was produced by computer prediction may not match under particular light source which are checking visually in the light cabinet.  If the shade doesn’t match with the standard then a second attempt is taken with the help of CCM or by visual analysis.
  • 70. Read X,Y,Z of std & data for dyes & substrate Select a new combination of 3 dyes Calculate C1,C2,C3 For 3 dyes YES Negative conc. Or outside tolerance? NO Calculate reflectance & XYZ value for formula Calculate new Conc. from ΔXYZ YES Compare XYZ values close enough? NO Calculate colour difference under different illuminants (metamerism) & cost YES NO All possible combinations covered? OUTPUT
  • 71. Metamarism  A colored object appears to be one colour under a given light source such as daylight, but appears to change colour under another light source  five types:  Illuminant  Observer  Geometrical  Field-size metamerism  instrumental metamerism
  • 73. Methods for Shade Development  Cold Pad Batch (Silicate/Soda Ash/Mixed Alkali)  Pad Dry Chemical Pad Steam (Reactive & Vat Dyes)  Pad Steam (Reactive Dyes)  Wet on Wet (Reactive & Vat Dyes)  Pad Dry Cure (Caledon Dyes)  Pad Thermosol (Reactive ECONTROL & PES/CO Blends)
  • 74. Discussion… For each of the following garment, give 3 color fastness tests which would determine if the indicated dyed fabric is suitable for the end use: • 100% nylon bathing suit • 100% acetate summer daytime dress • 100% wool winter coat • 100% acrylic winter sweater
  • 75. Discussion… Which Rating is better for colorfastness to light for a woman’s summer dress: Class 5- 20 hours Or Class 4- 40 hours?
