This document provides an overview of automated server deployment and configuration using Ansible. It discusses traditional server provisioning processes versus modern approaches using infrastructure as code and configuration management software. It introduces key concepts in Ansible like idempotence and provides examples of installing Apache web server using Ansible playbooks and modules. The document recommends Ansible as an easy to learn configuration management tool and outlines steps to get started, including installing Ansible, configuring inventory files, using modules and writing playbooks. It also discusses using Ansible to manage Docker images and containers.

1. “Automated Deployment and Configuration
Engines. Ansible”
Alberto Molina Coballes
Teacher at IES Gonzalo Nazareno @alberto_molina
alb.molina@gmail.com

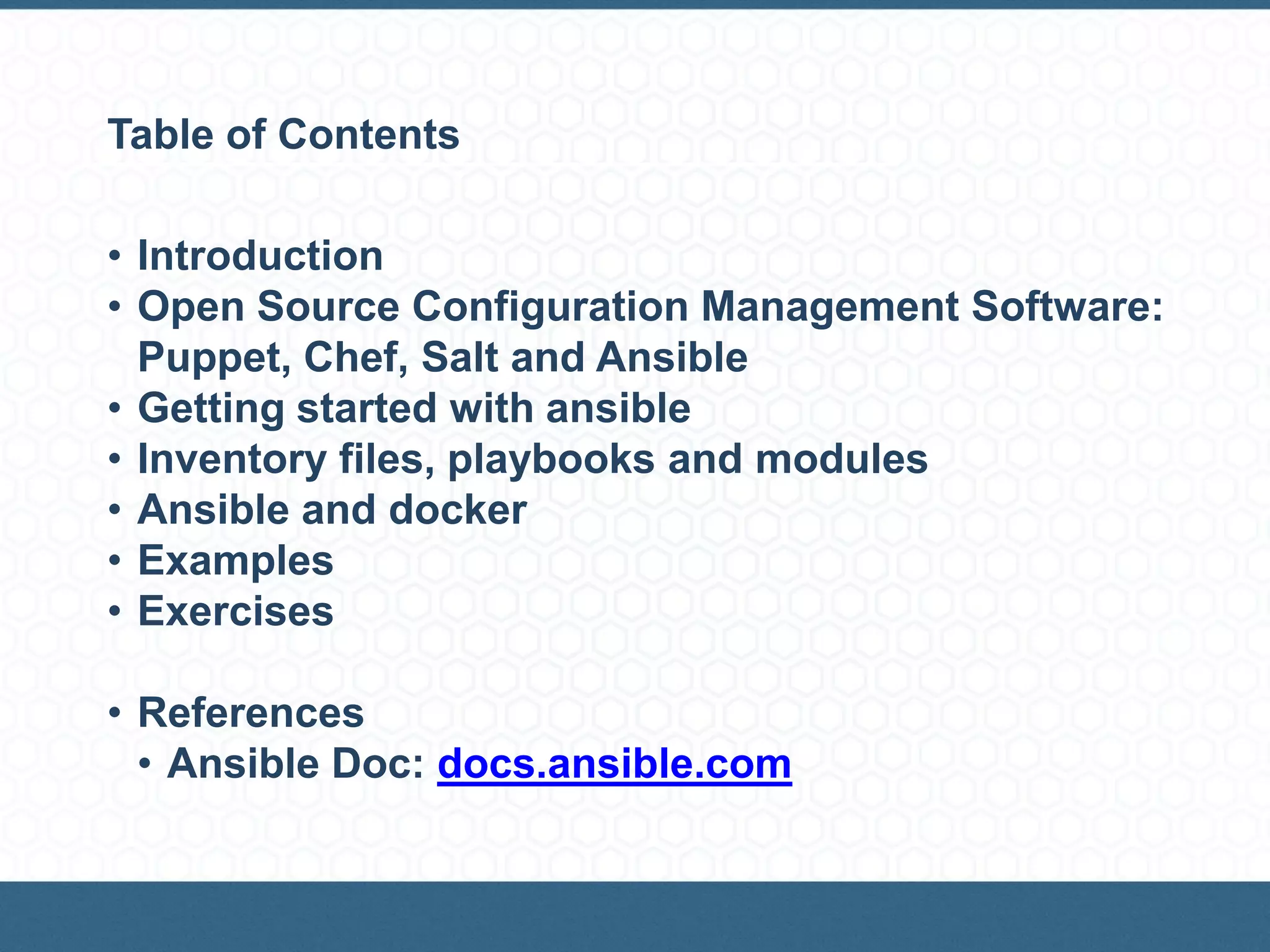

2. Table of Contents
• Introduction
• Open Source Configuration Management Software:
Puppet, Chef, Salt and Ansible
• Getting started with ansible
• Inventory files, playbooks and modules
• Ansible and docker
• Examples
• Exercises
• References
• Ansible Doc: docs.ansible.com

3. Server Deployments

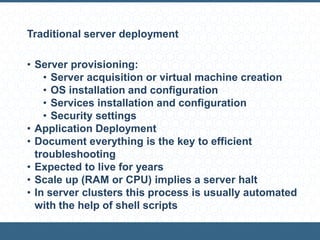

4. Traditional server deployment
• Server provisioning:
• Server acquisition or virtual machine creation
• OS installation and configuration
• Services installation and configuration
• Security settings
• Application Deployment
• Document everything is the key to efficient
troubleshooting
• Expected to live for years
• Scale up (RAM or CPU) implies a server halt
• In server clusters this process is usually automated
with the help of shell scripts

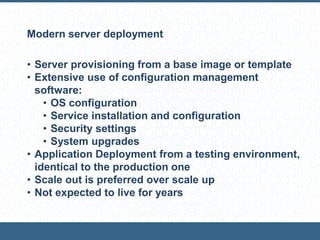

5. Modern server deployment
• Server provisioning from a base image or template
• Extensive use of configuration management
software:
• OS configuration
• Service installation and configuration
• Security settings
• System upgrades
• Application Deployment from a testing environment,
identical to the production one
• Scale out is preferred over scale up
• Not expected to live for years

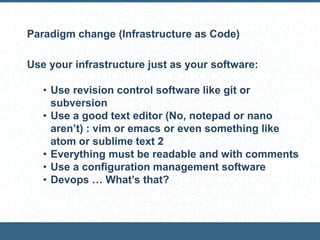

6. Paradigm change (Infrastructure as Code)
Use your infrastructure just as your software:
• Use revision control software like git or
subversion
• Use a good text editor (No, notepad or nano
aren’t) : vim or emacs or even something like
atom or sublime text 2
• Everything must be readable and with comments
• Use a configuration management software
• Devops … What’s that?

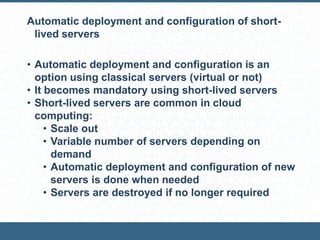

7. Automatic deployment and configuration of short-
lived servers
• Automatic deployment and configuration is an
option using classical servers (virtual or not)
• It becomes mandatory using short-lived servers
• Short-lived servers are common in cloud
computing:
• Scale out
• Variable number of servers depending on
demand
• Automatic deployment and configuration of new
servers is done when needed
• Servers are destroyed if no longer required

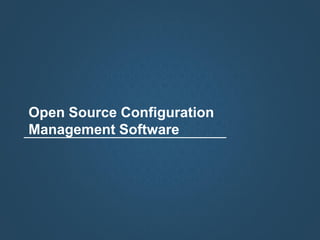

8. Open Source Configuration
Management Software

9. Configuration Management Software (cms)
• Automation software used for system administrator
tasks
• Standarizes resource configuration and
management:
• Provisioning
• Management
• Release management
• Patch management
• Security
• One example: Heartbleed

10. Idempotence
“Property of certain operations in mathematics and
computer science, that can be applied multiple
times without changing the result beyond the initial
application”
• Term used in cms to explain the key difference
between them and classical use of shell scripts
• A cms recipe can be safely re-run any number of
times, and at each run it will come to desired state

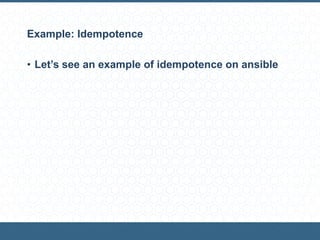

11. Example: Idempotence
• Let’s see an example of idempotence on ansible

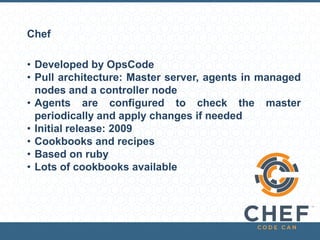

12. Chef
• Developed by OpsCode
• Pull architecture: Master server, agents in managed
nodes and a controller node
• Agents are configured to check the master
periodically and apply changes if needed
• Initial release: 2009
• Cookbooks and recipes
• Based on ruby
• Lots of cookbooks available

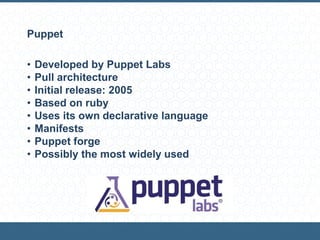

13. Puppet
• Developed by Puppet Labs
• Pull architecture
• Initial release: 2005
• Based on ruby
• Uses its own declarative language
• Manifests
• Puppet forge
• Possibly the most widely used

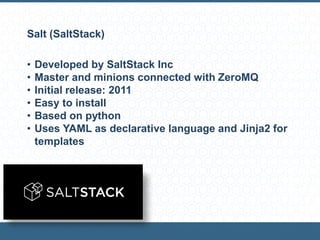

14. Salt (SaltStack)
• Developed by SaltStack Inc
• Master and minions connected with ZeroMQ
• Initial release: 2011
• Easy to install
• Based on python
• Uses YAML as declarative language and Jinja2 for
templates

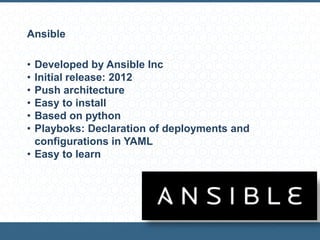

15. Ansible
• Developed by Ansible Inc
• Initial release: 2012
• Push architecture
• Easy to install
• Based on python
• Playboks: Declaration of deployments and
configurations in YAML
• Easy to learn

16. Chef example: Installing apache2 with chef-solo
# mkdir –p chef/{cookbooks,data_bags,nodes,roles,site-cookbooks}
# cd chef
# git init .
# git submodule add https://github.com/opscode-cookbooks/apt.git cookbooks/apt
# git submodule add https://github.com/opscode-cookbooks/apache2.git
cookbooks/apache2
# git submodule add https://github.com/opscode-cookbooks/iptables.git
cookbooks/iptables
# git submodule add https://github.com/opscode-cookbooks/logrotate.git
cookbooks/logrotate
# echo ‘file_cache_path "/root/chef-solo“’ > solo.rb
# echo ‘cookbook_path "/root/chef-repo/cookbooks“’ >> solo.rb
# echo ‘{ "run_list": [ "recipe[apt]", "recipe[apache2]" ] }’ > web.json
# chef-solo -c solo.rb -j web.json

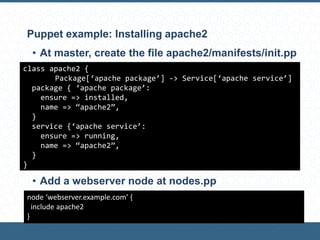

17. Puppet example: Installing apache2
• At master, create the file apache2/manifests/init.pp
• Add a webserver node at nodes.pp
class apache2 {
Package[‘apache package’] -> Service[‘apache service’]
package { ‘apache package’:
ensure => installed,
name => “apache2”,
}
service {‘apache service’:
ensure => running,
name => “apache2”,
}
}
node ‘webserver.example.com’ {
include apache2
}

18. Salt example: Installing apache2
• At master, create the file webservers.sls:
• Initial release: 2012
• Push architecture
• Easy to install
• Apply the formula to one “minion”:
webserver:
pkg:
- installed:
- pkg:
- apache2
# salt ‘webserver1.example.com’ state.sls webserver

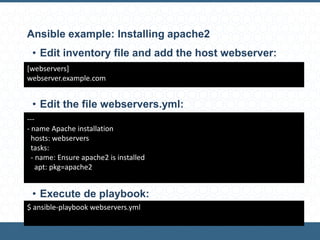

19. Ansible example: Installing apache2
[webservers]
webserver.example.com
---
- name Apache installation
hosts: webservers
tasks:
- name: Ensure apache2 is installed
apt: pkg=apache2
$ ansible-playbook webservers.yml
• Edit inventory file and add the host webserver:
• Edit the file webservers.yml:
• Execute de playbook:

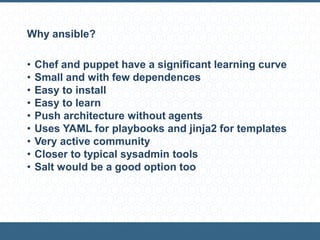

20. Why ansible?
• Chef and puppet have a significant learning curve
• Small and with few dependences
• Easy to install
• Easy to learn
• Push architecture without agents
• Uses YAML for playbooks and jinja2 for templates
• Very active community
• Closer to typical sysadmin tools
• Salt would be a good option too

21. Getting started with ansible

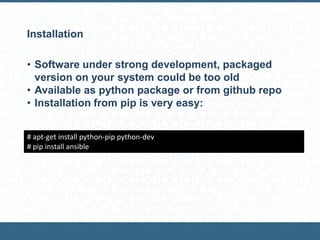

22. Installation
• Software under strong development, packaged
version on your system could be too old
• Available as python package or from github repo
• Installation from pip is very easy:
# apt-get install python-pip python-dev
# pip install ansible

23. SSH
• Ansible communicates with remote machines over
ssh.
• You need to configure passwordless ssh access to
remote machines
• Exercise: Configure a remote server to access using
ssh public key with passphrase

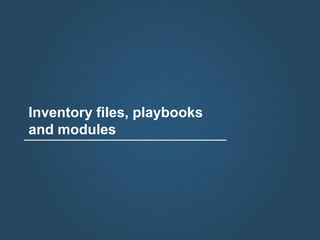

24. Inventory files, playbooks
and modules

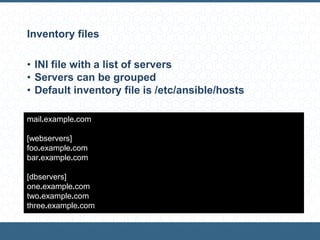

25. Inventory files
• INI file with a list of servers
• Servers can be grouped
• Default inventory file is /etc/ansible/hosts
mail.example.com
[webservers]
foo.example.com
bar.example.com
[dbservers]
one.example.com
two.example.com
three.example.com

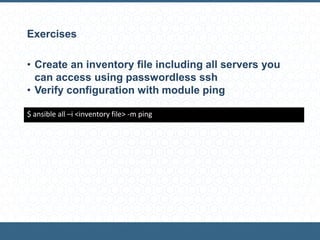

26. Exercises
• Create an inventory file including all servers you
can access using passwordless ssh
• Verify configuration with module ping
$ ansible all –i <inventory file> -m ping

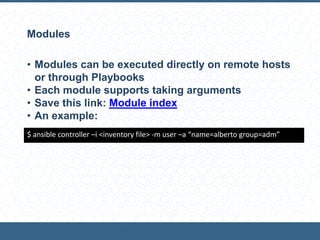

27. Modules
• Modules can be executed directly on remote hosts
or through Playbooks
• Each module supports taking arguments
• Save this link: Module index
• An example:
$ ansible controller –i <inventory file> -m user –a “name=alberto group=adm”

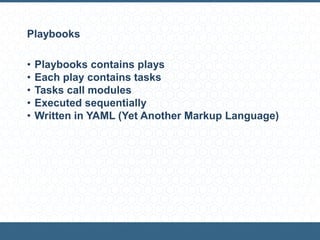

28. Playbooks
• Playbooks contains plays
• Each play contains tasks
• Tasks call modules
• Executed sequentially
• Written in YAML (Yet Another Markup Language)

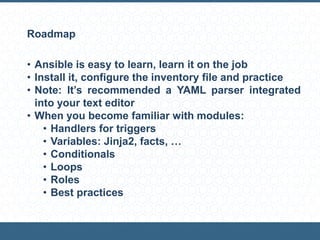

29. Roadmap
• Ansible is easy to learn, learn it on the job
• Install it, configure the inventory file and practice
• Note: It’s recommended a YAML parser integrated
into your text editor
• When you become familiar with modules:
• Handlers for triggers
• Variables: Jinja2, facts, …
• Conditionals
• Loops
• Roles
• Best practices

30. Examples

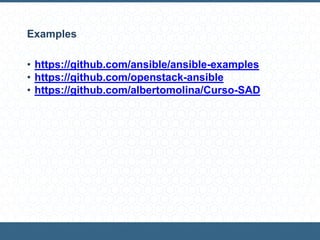

31. Examples
• https://github.com/ansible/ansible-examples
• https://github.com/openstack-ansible
• https://github.com/albertomolina/Curso-SAD

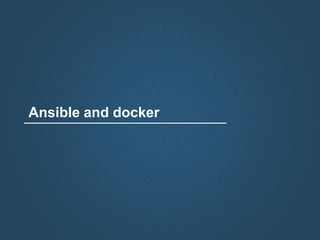

32. Ansible and docker

33. Ansible and docker
• Reference: http://www.ansible.com/docker

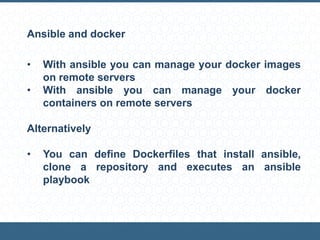

34. Ansible and docker
• With ansible you can manage your docker images
on remote servers
• With ansible you can manage your docker
containers on remote servers
Alternatively
• You can define Dockerfiles that install ansible,
clone a repository and executes an ansible
playbook

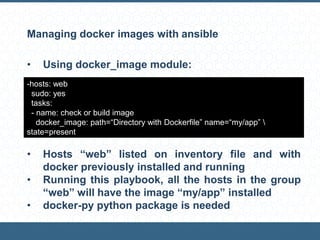

35. Managing docker images with ansible
• Using docker_image module:
• Hosts “web” listed on inventory file and with
docker previously installed and running
• Running this playbook, all the hosts in the group
“web” will have the image “my/app” installed
• docker-py python package is needed
-hosts: web
sudo: yes
tasks:
- name: check or build image
docker_image: path=“Directory with Dockerfile” name=“my/app”
state=present

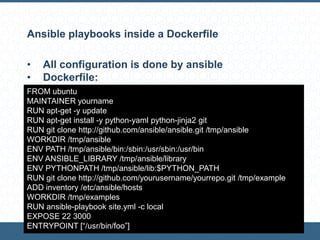

36. Ansible playbooks inside a Dockerfile
• All configuration is done by ansible
• Dockerfile:
FROM ubuntu
MAINTAINER yourname
RUN apt-get -y update
RUN apt-get install -y python-yaml python-jinja2 git
RUN git clone http://github.com/ansible/ansible.git /tmp/ansible
WORKDIR /tmp/ansible
ENV PATH /tmp/ansible/bin:/sbin:/usr/sbin:/usr/bin
ENV ANSIBLE_LIBRARY /tmp/ansible/library
ENV PYTHONPATH /tmp/ansible/lib:$PYTHON_PATH
RUN git clone http://github.com/yourusername/yourrepo.git /tmp/example
ADD inventory /etc/ansible/hosts
WORKDIR /tmp/examples
RUN ansible-playbook site.yml -c local
EXPOSE 22 3000
ENTRYPOINT [“/usr/bin/foo”]

37. Exercises

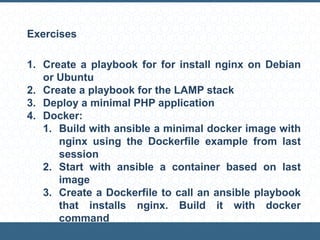

38. Exercises
1. Create a playbook for for install nginx on Debian
or Ubuntu
2. Create a playbook for the LAMP stack
3. Deploy a minimal PHP application
4. Docker:
1. Build with ansible a minimal docker image with
nginx using the Dockerfile example from last
session
2. Start with ansible a container based on last
3. Create a Dockerfile to call an ansible playbook
that installs nginx. Build it with docker
command

39. Thanks
Alberto Molina Coballes
Teacher at IES Gonzalo Nazareno @alberto_molina
alb.molina@gmail.com
