Chasing AMI - Building Amazon machine images with Puppet, Packer and Jenkins
The document discusses building cloud infrastructure with a focus on continuous delivery, automation, and testing using tools like Amazon Machine Images (AMIs), Jenkins, Packer, and Puppet. It emphasizes the need for 'immutable' servers and a shift towards treating machine images as applications to ensure consistency and reliability across deployments. The talk also covers best practices for managing infrastructure efficiently in a cloud environment while addressing common challenges and pitfalls.
More Related Content
Similar to Chasing AMI - Building Amazon machine images with Puppet, Packer and Jenkins
![How Big Brands are Taking Your Traffic in Alberta [Data Inside].pptx](https://cdn.slidesharecdn.com/ss_thumbnails/howbigbrandsaretakingyourtrafficinalbertadatainside-260123180142-42d276f3-thumbnail.jpg?width=640&height=640&fit=bounds)
Chasing AMI - Building Amazon machine images with Puppet, Packer and Jenkins
- 2. Chasing AMI Baking Amazonmachine images with Jenkins, Packer and Puppet Tomas Doran @bobtfish 2014-04-04

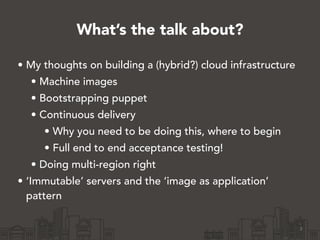

- 3. What’s the talkabout? • My thoughts on building a (hybrid?) cloud infrastructure • Machine images • Bootstrapping puppet • Continuous delivery • Why you need to be doing this, where to begin • Full end to end acceptance testing! • Doing multi-region right • ‘Immutable’ servers and the ‘image as application’ pattern 3
- 4.
- 5.
- 6. Serious business 6 The worldis changing
- 7. Serious business 7 The worldis changing Keep up, or die

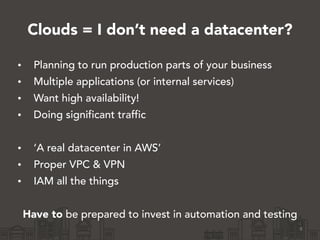

- 8. Clouds = Idon’t need a datacenter? • Planning to run production parts of your business • Multiple applications (or internal services) • Want high availability! • Doing significant traffic ! • ‘A real datacenter in AWS’ • Proper VPC & VPN • IAM all the things ! Have to be prepared to invest in automation and testing 8
- 9. No silly! Clouds= rain, duh! 9

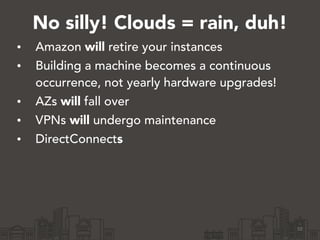

- 10. No silly! Clouds= rain, duh! • Amazon will retire your instances • Building a machine becomes a continuous occurrence, not yearly hardware upgrades! • AZs will fall over • VPNs will undergo maintenance • DirectConnects 10

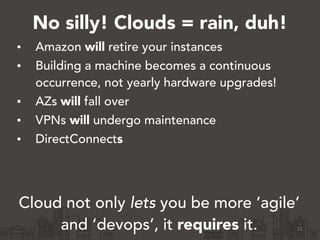

- 11. No silly! Clouds= rain, duh! • Amazon will retire your instances • Building a machine becomes a continuous occurrence, not yearly hardware upgrades! • AZs will fall over • VPNs will undergo maintenance • DirectConnects ! ! Cloud not only lets you be more ‘agile’ and ‘devops’, it requires it. 11
- 12. No silly! Clouds= rain, duh! • Amazon will retire your instances • Building a machine becomes a continuous occurrence, not yearly hardware upgrades! • AZs will fall over • VPNs will undergo maintenance • DirectConnects ! ! Cloud not only lets you be more ‘agile’ and ‘devops’, it requires it. 12

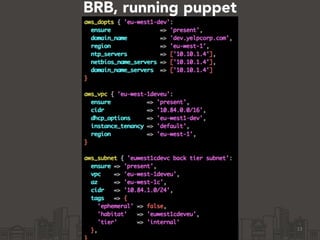

- 13.
- 14.

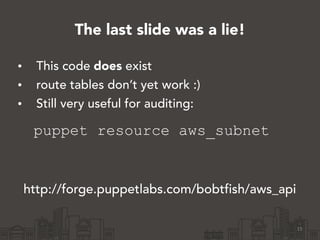

- 15. The last slidewas a lie! • This code does exist • route tables don’t yet work :) • Still very useful for auditing: puppet resource aws_subnet 15 http://forge.puppetlabs.com/bobtfish/aws_api

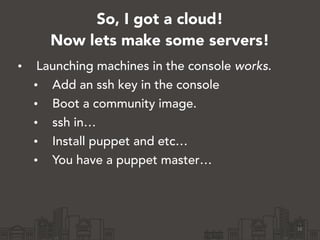

- 16. So, I gota cloud! Now lets make some servers! • Launching machines in the console works. • Add an ssh key in the console • Boot a community image. • ssh in… • Install puppet and etc… • You have a puppet master… 16

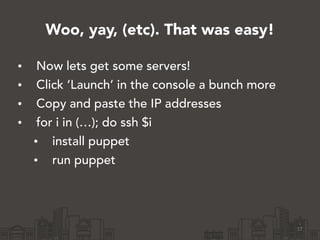

- 17. Woo, yay, (etc).That was easy! • Now lets get some servers! • Click ‘Launch’ in the console a bunch more • Copy and paste the IP addresses • for i in (…); do ssh $i • install puppet • run puppet 17
- 18. Woo, yay, (etc).That was easy! • Now lets get some servers! • Click ‘Launch’ in the console a bunch more • Copy and paste the IP addresses • for i in (…); do ssh $i • install puppet • run puppet 18

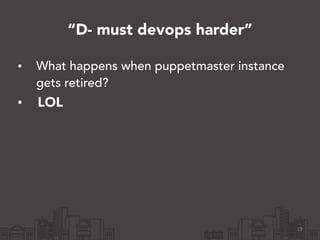

- 19. “D- must devopsharder” • What happens when puppetmaster instance gets retired? • LOL 19
- 20.
- 21.

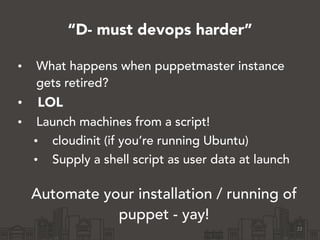

- 22. “D- must devopsharder” • What happens when puppetmaster instance gets retired? • LOL • Launch machines from a script! • cloudinit (if you’re running Ubuntu) • Supply a shell script as user data at launch ! Automate your installation / running of puppet - yay! 22

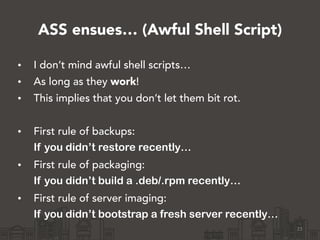

- 23. ASS ensues… (AwfulShell Script) 23 • I don’t mind awful shell scripts… • As long as they work! • This implies that you don’t let them bit rot. ! • First rule of backups: If you didn’t restore recently… • First rule of packaging: If you didn’t build a .deb/.rpm recently… • First rule of server imaging: If you didn’t bootstrap a fresh server recently…
- 24.

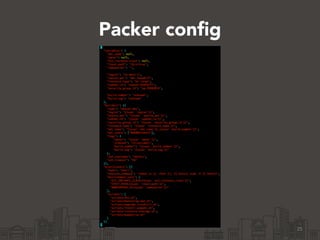

- 25.

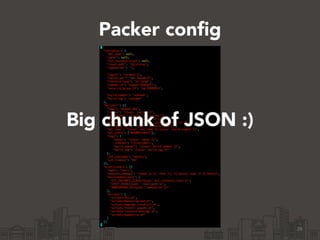

- 26. Packer config 26 Big chunkof JSON :)

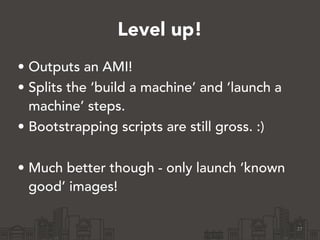

- 27. Level up! 27 • Outputsan AMI! • Splits the ‘build a machine’ and ‘launch a machine’ steps. • Bootstrapping scripts are still gross. :) ! • Much better though - only launch ‘known good’ images!

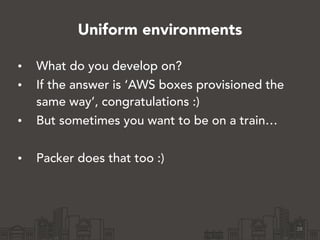

- 28. Uniform environments • Whatdo you develop on? • If the answer is ‘AWS boxes provisioned the same way’, congratulations :) • But sometimes you want to be on a train… ! • Packer does that too :) 28

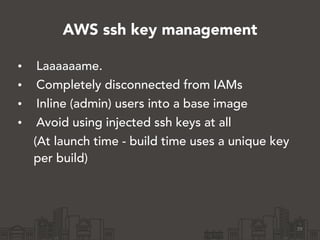

- 29. AWS ssh keymanagement • Laaaaaame. • Completely disconnected from IAMs • Inline (admin) users into a base image • Avoid using injected ssh keys at all (At launch time - build time uses a unique key per build) 29

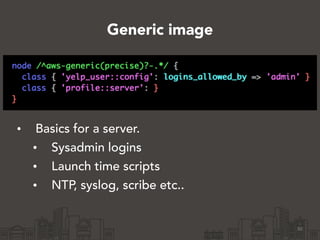

- 30. Generic image • Basicsfor a server. • Sysadmin logins • Launch time scripts • NTP, syslog, scribe etc.. 30

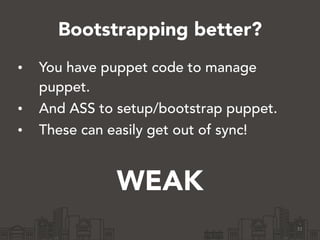

- 31. Bootstrapping better? 31 • Youhave puppet code to manage puppet. • And ASS to setup/bootstrap puppet. • These can easily get out of sync! ! WEAK

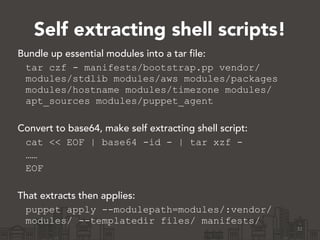

- 32. Self extracting shellscripts! 32 Bundle up essential modules into a tar file: tar czf - manifests/bootstrap.pp vendor/ modules/stdlib modules/aws modules/packages modules/hostname modules/timezone modules/ apt_sources modules/puppet_agent ! Convert to base64, make self extracting shell script: cat << EOF | base64 -id - | tar xzf - …… EOF ! That extracts then applies: puppet apply --modulepath=modules/:vendor/ modules/ --templatedir files/ manifests/

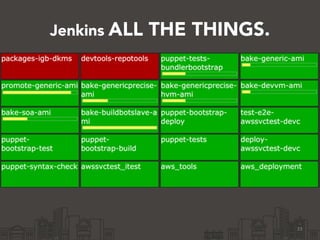

- 33. 33 Jenkins ALL THETHINGS.

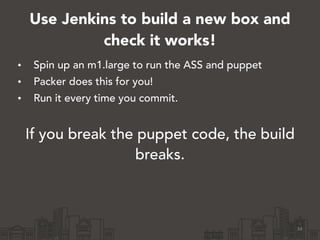

- 34. Use Jenkins tobuild a new box and check it works! 34 • Spin up an m1.large to run the ASS and puppet • Packer does this for you! • Run it every time you commit. ! If you break the puppet code, the build breaks.

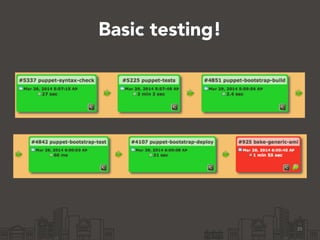

- 35.

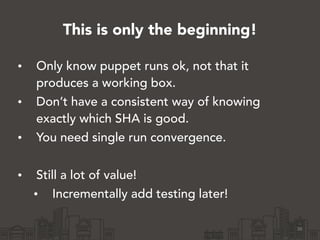

- 36. This is onlythe beginning! • Only know puppet runs ok, not that it produces a working box. • Don’t have a consistent way of knowing exactly which SHA is good. • You need single run convergence. ! • Still a lot of value! • Incrementally add testing later! 36

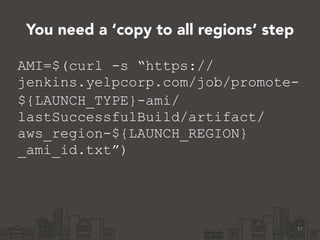

- 37. You need a‘copy to all regions’ step 37 AMI=$(curl -s “https:// jenkins.yelpcorp.com/job/promote- ${LAUNCH_TYPE}-ami/ lastSuccessfulBuild/artifact/ aws_region-${LAUNCH_REGION} _ami_id.txt”)

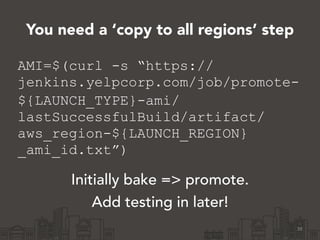

- 38. 38 AMI=$(curl -s “https:// jenkins.yelpcorp.com/job/promote- ${LAUNCH_TYPE}-ami/ lastSuccessfulBuild/artifact/ aws_region-${LAUNCH_REGION} _ami_id.txt”) Initiallybake => promote. Add testing in later! You need a ‘copy to all regions’ step
- 39.
- 40.
- 41. Agile till ithurts If you’re not mildly frightened, you aren’t moving fast enough! ! (Someone moving faster will put you out of business) 41
- 42. Launch the sameimage anywhere • Test launching in regions you didn’t build in! • Switch scripts are an anti pattern • You should make dynamic environment data truly dynamic • Use DNS based discovery • Or zookeeper 42

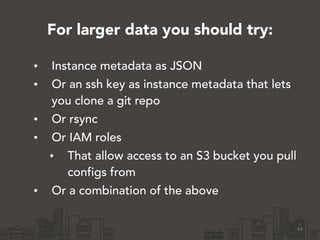

- 43. For larger datayou should try: • Instance metadata as JSON • Or an ssh key as instance metadata that lets you clone a git repo • Or rsync • Or IAM roles • That allow access to an S3 bucket you pull configs from • Or a combination of the above 43

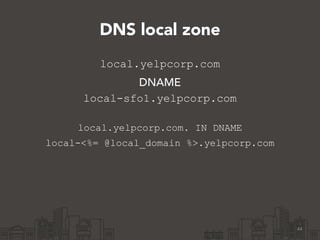

- 44. DNS local zone local.yelpcorp.com DNAME local-sfo1.yelpcorp.com ! local.yelpcorp.com.IN DNAME local-<%= @local_domain %>.yelpcorp.com 44

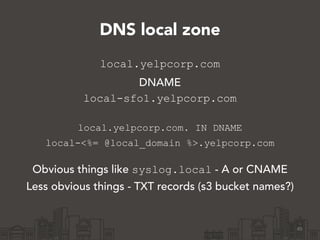

- 45. DNS local zone local.yelpcorp.com DNAME local-sfo1.yelpcorp.com ! local.yelpcorp.com.IN DNAME local-<%= @local_domain %>.yelpcorp.com Obvious things like syslog.local - A or CNAME Less obvious things - TXT records (s3 bucket names?) 45

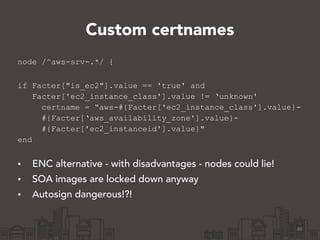

- 46. Custom certnames node /^aws-srv-.*/{ ! if Facter["is_ec2"].value == 'true' and Facter['ec2_instance_class'].value != ‘unknown' certname = “aws-#{Facter['ec2_instance_class'].value}- #{Facter[‘aws_availability_zone'].value}- #{Facter['ec2_instanceid'].value}" end ! • ENC alternative - with disadvantages - nodes could lie! • SOA images are locked down anyway • Autosign dangerous!?! 46
- 47.

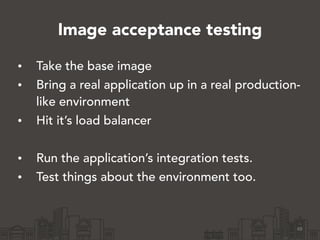

- 48. Image acceptance testing •Take the base image • Bring a real application up in a real production- like environment • Hit it’s load balancer ! • Run the application’s integration tests. • Test things about the environment too. 48

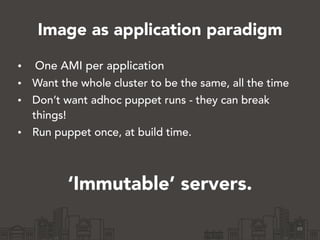

- 49. Image as applicationparadigm • One AMI per application • Want the whole cluster to be the same, all the time • Don’t want adhoc puppet runs - they can break things! • Run puppet once, at build time. 49 ‘Immutable’ servers.

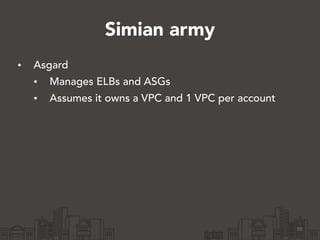

- 50. Simian army • Asgard •Manages ELBs and ASGs • Assumes it owns a VPC and 1 VPC per account 50

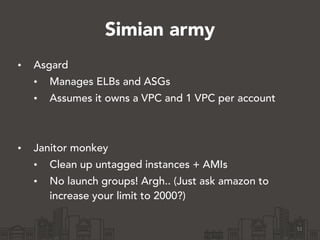

- 51. Simian army • Asgard •Manages ELBs and ASGs • Assumes it owns a VPC and 1 VPC per account ! ! • Janitor monkey • Clean up untagged instances + AMIs • No launch groups! Argh.. (Just ask amazon to increase your limit to 2000?) 51

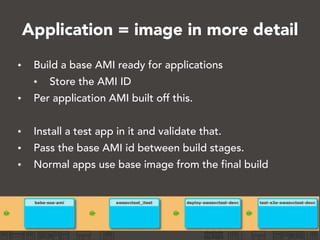

- 52. Application = imagein more detail • Build a base AMI ready for applications • Store the AMI ID • Per application AMI built off this. ! • Install a test app in it and validate that. • Pass the base AMI id between build stages. • Normal apps use base image from the final build 52

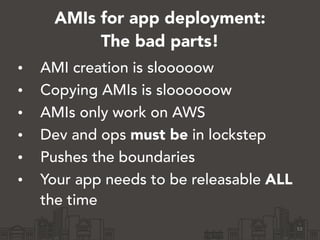

- 53. AMIs for appdeployment: The bad parts! • AMI creation is slooooow • Copying AMIs is sloooooow • AMIs only work on AWS • Dev and ops must be in lockstep • Pushes the boundaries • Your app needs to be releasable ALL the time 53
- 54. Issues with ‘Immutable’servers • Immutable is a lie! • Fixing issues = redeploy. No fun at 3am ! • Orchestration helps! (<3 mcollective) ! • Prediction: AMI per application will stop being a thing. Because Docker! 54

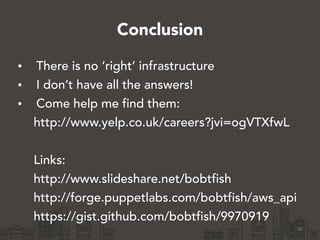

- 55. Conclusion • There isno ‘right’ infrastructure • I don’t have all the answers! • Come help me find them: http://www.yelp.co.uk/careers?jvi=ogVTXfwL ! Links: http://www.slideshare.net/bobtfish http://forge.puppetlabs.com/bobtfish/aws_api https://gist.github.com/bobtfish/9970919 55
- 56. Conclusion • There isno ‘right’ infrastructure • I don’t have all the answers! • Come help me find them: http://www.yelp.co.uk/careers?jvi=ogVTXfwL ! Links: http://www.slideshare.net/bobtfish http://forge.puppetlabs.com/bobtfish/aws_api https://gist.github.com/bobtfish/9970919 56
