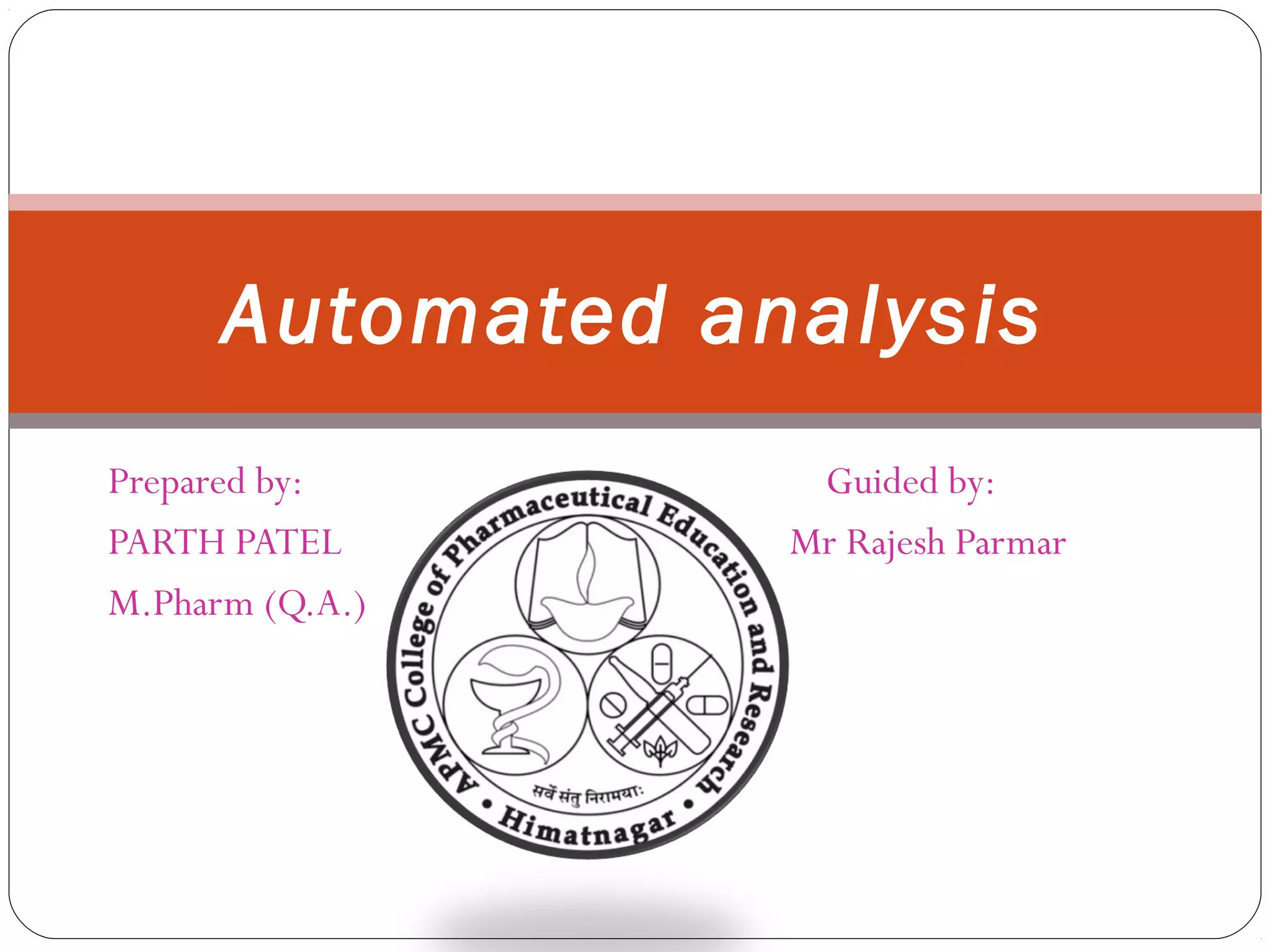

1. Automated analysis
Prepared by: Guided by:
PARTH PATEL Mr Rajesh Parmar
M.Pharm (Q.A.)
1

2. CONTENT…
 Introduction
 Need for automation
 Objective of automation
 Advantages automatic analyses
 Unit operations in chemical analysis
 Types of automated analysis
 Flow-injection analysis
 Discrete automatic systems
 Reference
2

3. INTRODUCTION …
Automation is the performance of operations
without human intervention.
Automation may involve operation like the
preparation of samples, the measurements of
responses, and the calculation of results.
3

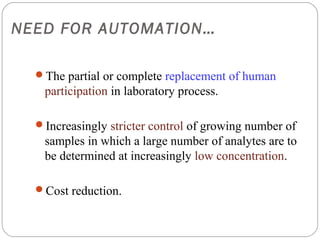

4. NEED FOR AUTOMATION…
The partial or complete replacement of human
participation in laboratory process.
Increasingly stricter control of growing number of
samples in which a large number of analytes are to
be determined at increasingly low concentration.
Cost reduction.
4

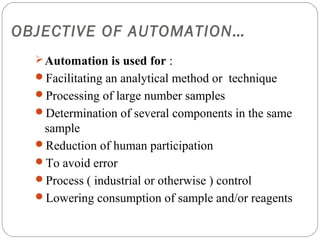

5. OBJECTIVE OF AUTOMATION…
 Automation is used for :
Facilitating an analytical method or technique
Processing of large number samples
Determination of several components in the same
sample
Reduction of human participation
To avoid error
Process ( industrial or otherwise ) control
Lowering consumption of sample and/or reagents
5

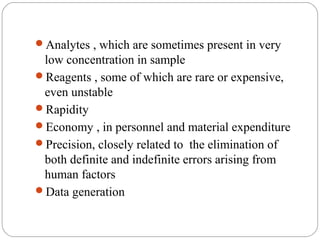

6. Analytes , which are sometimes present in very
low concentration in sample
Reagents , some of which are rare or expensive,
even unstable
Rapidity
Economy , in personnel and material expenditure
Precision, closely related to the elimination of
both definite and indefinite errors arising from
human factors
Data generation
6

7. ADVANTAGES OF AUTOMATIC
ANALYSES…
Automated instruments offer a major economic
advantage because of their savings in labor costs.
Their speed, which is frequently significantly
greater than that of manual devices. So, the number
of determination per day can be much higher than
with manual methods.
A well-designed analyzer can usually produce
more reproducible results over a long period of
time than can an operator employing a manual
instrument.
The ability to process samples in situation that
7 would be dangerous for humans.

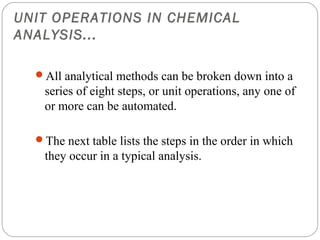

8. UNIT OPERATIONS IN CHEMICAL
ANALYSIS...
All analytical methods can be broken down into a
series of eight steps, or unit operations, any one of
or more can be automated.
The next table lists the steps in the order in which
they occur in a typical analysis.
8

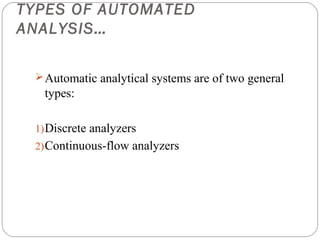

9. TYPES OF AUTOMATED
ANALYSIS…
 Automatic analytical systems are of two general
types:
1) Discrete analyzers
2) Continuous-flow analyzers
9

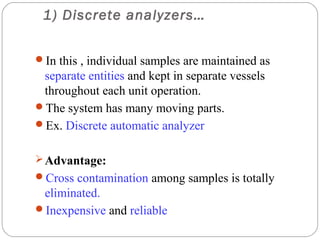

10. 1) Discrete analyzers…
In this , individual samples are maintained as
separate entities and kept in separate vessels
throughout each unit operation.
The system has many moving parts.
Ex. Discrete automatic analyzer
 Advantage:
Cross contamination among samples is totally
eliminated.
Inexpensive and reliable
10

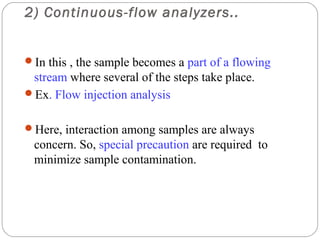

11. 2) Continuous-flow analyzers..
In this , the sample becomes a part of a flowing
stream where several of the steps take place.
Ex. Flow injection analysis
Here, interaction among samples are always
concern. So, special precaution are required to
minimize sample contamination.
11

12. FLOW-INJECTION ANALYSIS...
Flow-injection methods are an outgrowth of
segmented-flow procedures, which were widely
used in clinical laboratories in the 1960s and 1970s
for automatic routine determination of a variety of
species in blood and urine samples for medical
diagnostic purposes.
In segmented-flow system , samples were carried
through the system to a detector by flowing
aqueous solution.
12

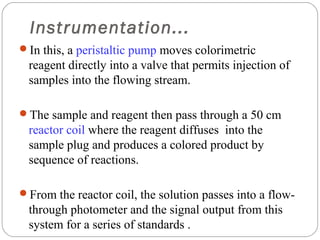

13. Instrumentation...
In this, a peristaltic pump moves colorimetric
reagent directly into a valve that permits injection of
samples into the flowing stream.
The sample and reagent then pass through a 50 cm
reactor coil where the reagent diffuses into the
sample plug and produces a colored product by
sequence of reactions.
From the reactor coil, the solution passes into a flow-
through photometer and the signal output from this
13 system for a series of standards .

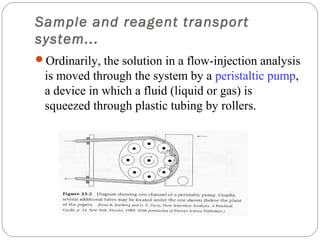

14. Sample and reagent transport
system...
Ordinarily, the solution in a flow-injection analysis
is moved through the system by a peristaltic pump,
a device in which a fluid (liquid or gas) is
squeezed through plastic tubing by rollers.
14

15. Sample injectors and
detectors...
The injectors and detectors employed in flow-
injection analysis are similar in kind and
performance requirements to those used in HPLC.
Sample size for flow injection procedure ranges
from 1μL to 200 μL.
 For successful analysis, injectors must not disturb
the flow of the carrier system.
The most common detectors in flow injection are
spectrophotometer, photometer and fluorometer.
15

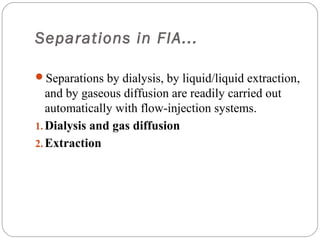

16. Separations in FIA...
Separations by dialysis, by liquid/liquid extraction,
and by gaseous diffusion are readily carried out
automatically with flow-injection systems.
1. Dialysis and gas diffusion
2. Extraction
16

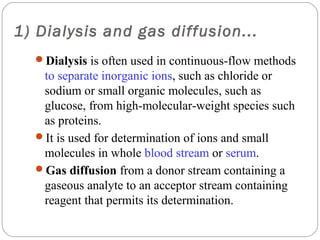

17. 1) Dialysis and gas diffusion...
Dialysis is often used in continuous-flow methods
to separate inorganic ions, such as chloride or
sodium or small organic molecules, such as
glucose, from high-molecular-weight species such
as proteins.
It is used for determination of ions and small
molecules in whole blood stream or serum.
Gas diffusion from a donor stream containing a
gaseous analyte to an acceptor stream containing
reagent that permits its determination.
17

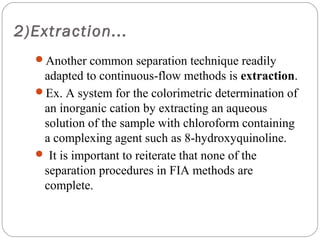

18. 2)Extraction...
Another common separation technique readily
adapted to continuous-flow methods is extraction.
Ex. A system for the colorimetric determination of
an inorganic cation by extracting an aqueous
solution of the sample with chloroform containing
a complexing agent such as 8-hydroxyquinoline.
 It is important to reiterate that none of the
separation procedures in FIA methods are
complete.
18

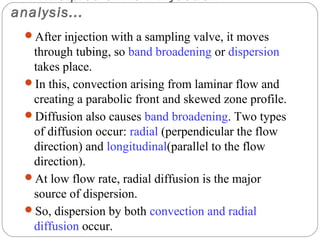

19. analysis...
After injection with a sampling valve, it moves
through tubing, so band broadening or dispersion
takes place.
In this, convection arising from laminar flow and
creating a parabolic front and skewed zone profile.
Diffusion also causes band broadening. Two types
of diffusion occur: radial (perpendicular the flow
direction) and longitudinal(parallel to the flow
direction).
At low flow rate, radial diffusion is the major
source of dispersion.
So, dispersion by both convection and radial
19 diffusion occur.

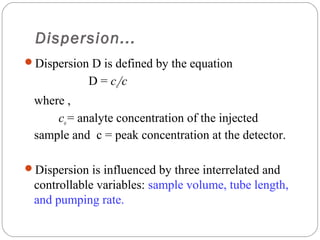

20. Dispersion...
Dispersion D is defined by the equation
D = co/c
where ,
co = analyte concentration of the injected
sample and c = peak concentration at the detector.
Dispersion is influenced by three interrelated and
controllable variables: sample volume, tube length,
and pumping rate.
20

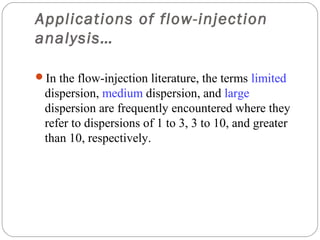

21. Applications of flow-injection
analysis…
In the flow-injection literature, the terms limited
dispersion, medium dispersion, and large
dispersion are frequently encountered where they
refer to dispersions of 1 to 3, 3 to 10, and greater
than 10, respectively.
21

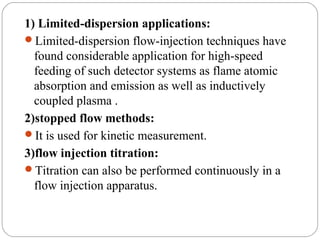

22. 1) Limited-dispersion applications:
Limited-dispersion flow-injection techniques have
found considerable application for high-speed
feeding of such detector systems as flame atomic
absorption and emission as well as inductively
coupled plasma .
2)stopped flow methods:
It is used for kinetic measurement.
3)flow injection titration:
Titration can also be performed continuously in a
flow injection apparatus.
22

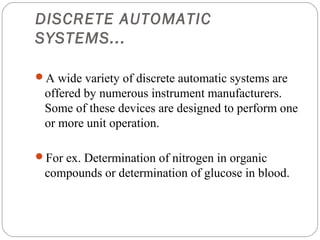

23. DISCRETE AUTOMATIC
SYSTEMS...
A wide variety of discrete automatic systems are
offered by numerous instrument manufacturers.
Some of these devices are designed to perform one
or more unit operation.
For ex. Determination of nitrogen in organic
compounds or determination of glucose in blood.
23

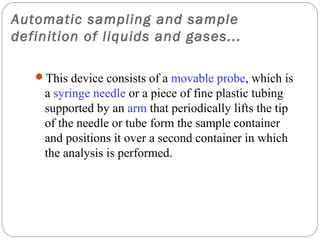

24. Automatic sampling and sample
definition of liquids and gases...
This device consists of a movable probe, which is
a syringe needle or a piece of fine plastic tubing
supported by an arm that periodically lifts the tip
of the needle or tube form the sample container
and positions it over a second container in which
the analysis is performed.
24

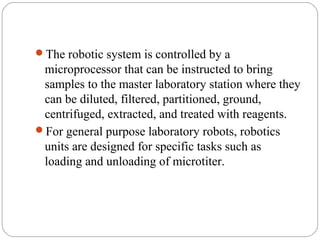

25. Robotics...
The robotic system is controlled by a
microprocessor that can be instructed to bring
samples to the master laboratory station where they
can be diluted, filtered, partitioned, ground,
centrifuged, extracted, and treated with reagents.
For general purpose laboratory robots, robotics
units are designed for specific tasks such as
loading and unloading of microtiter.
25

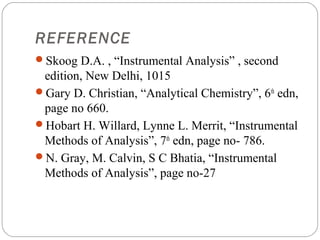

26. REFERENCE
Skoog D.A. , “Instrumental Analysis” , second
edition, New Delhi, 1015
Gary D. Christian, “Analytical Chemistry”, 6th edn,
page no 660.
Hobart H. Willard, Lynne L. Merrit, “Instrumental
Methods of Analysis”, 7th edn, page no- 786.
N. Gray, M. Calvin, S C Bhatia, “Instrumental
Methods of Analysis”, page no-27
26
