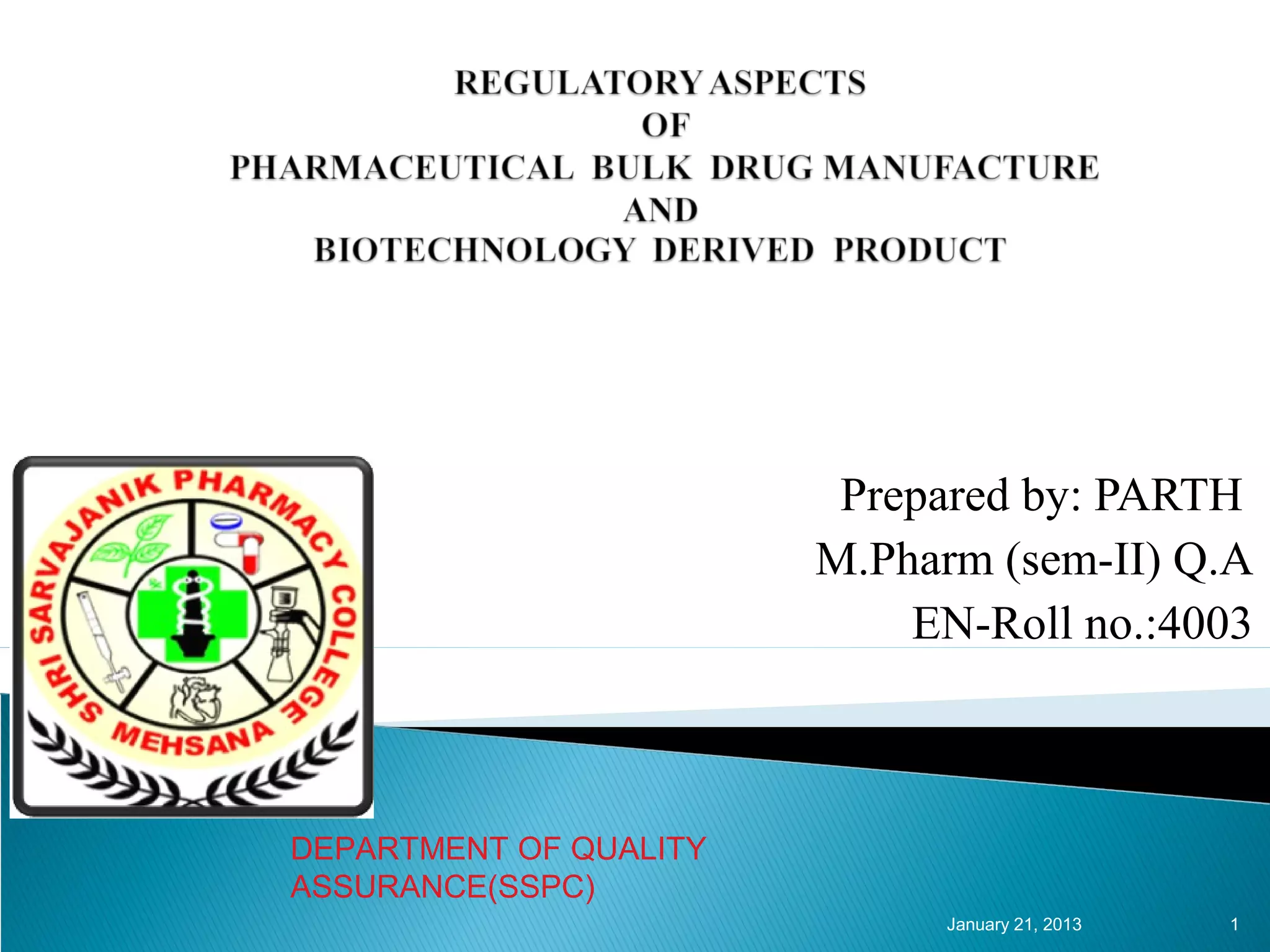

1. Prepared by: PARTH
M.Pharm (sem-II) Q.A
EN-Roll no.:4003
DEPARTMENT OF QUALITY
ASSURANCE(SSPC)
January 25, 2013 1

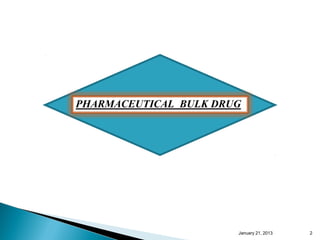

2. January 25, 2013 2

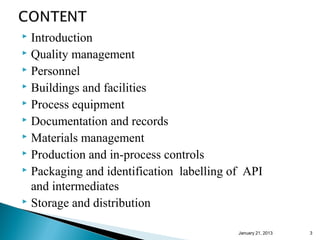

3.  Introduction
 Quality management
 Personnel
 Buildings and facilities
 Process equipment
 Documentation and records
 Materials management
 Production and in-process controls
 Packaging and identification labelling of API
and intermediates
 Storage and distribution
January 25, 2013 3

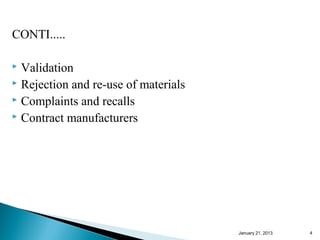

4. CONTI.....
 Validation
 Rejection and re-use of materials
 Complaints and recalls
 Contract manufacturers
January 25, 2013 4

5. Regulatory Applicability
 Within the world community, materials may vary as
to the legal classification as an API.
 When a material is classified as an API in the region
or country in which it is manufactured or used in a
drug product, it should be manufactured according to
this Guide.
January 25, 2013 5

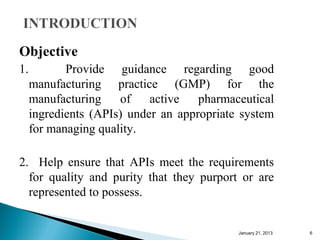

6. Objective
1. Provide guidance regarding good
manufacturing practice (GMP) for the
manufacturing of active pharmaceutical
ingredients (APIs) under an appropriate system
for managing quality.
2. Help ensure that APIs meet the requirements
for quality and purity that they purport or are
represented to possess.
January 25, 2013 6

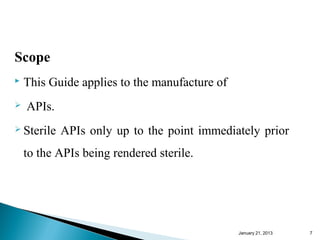

7. Scope
 This Guide applies to the manufacture of
 APIs.
 Sterile APIs only up to the point immediately prior
to the APIs being rendered sterile.
January 25, 2013 7

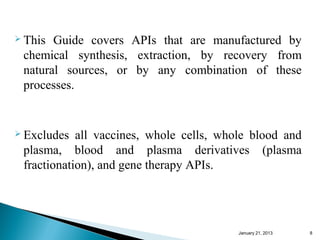

8.  This Guide covers APIs that are manufactured by
chemical synthesis, extraction, by recovery from
natural sources, or by any combination of these
processes.
 Excludes all vaccines, whole cells, whole blood and
plasma, blood and plasma derivatives (plasma
fractionation), and gene therapy APIs.
January 25, 2013 8

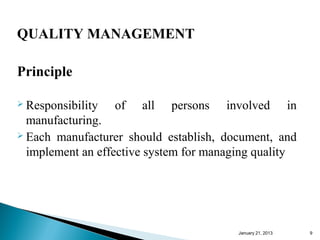

9. QUALITY MANAGEMENT
Principle
 Responsibility of all persons involved in
manufacturing.
 Each manufacturer should establish, document, and
implement an effective system for managing quality
January 25, 2013 9

10. CONTI....
 Should provide the organisational structure,
procedures, processes and resources, as well as
activities necessary to ensure confidence that the
API will meet its intended specifications for
quality and purity
 Allquality related activities should be defined
and documented.
January 25, 2013 10

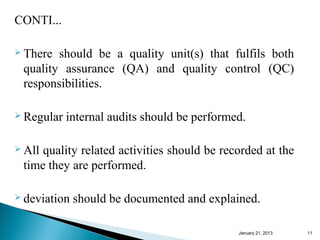

11. CONTI...
 There should be a quality unit(s) that fulfils both
quality assurance (QA) and quality control (QC)
responsibilities.
 Regular internal audits should be performed.
 Allquality related activities should be recorded at the
time they are performed.
 deviation should be documented and explained.
January 25, 2013 11

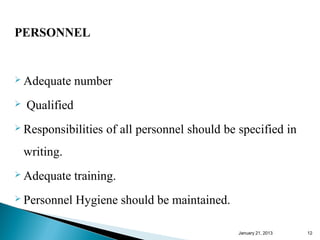

12. PERSONNEL
 Adequate number
 Qualified
 Responsibilities of all personnel should be specified in
writing.
 Adequate training.
 Personnel Hygiene should be maintained.
January 25, 2013 12

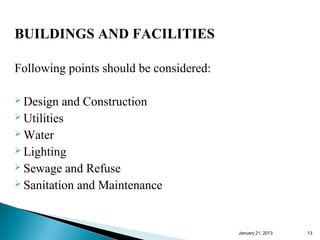

13. BUILDINGS AND FACILITIES
Following points should be considered:
 Design and Construction
 Utilities
 Water
 Lighting
 Sewage and Refuse
 Sanitation and Maintenance
January 25, 2013 13

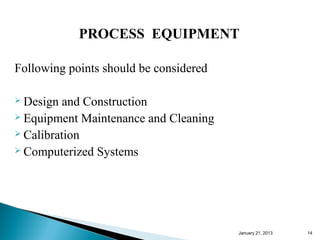

14. PROCESS EQUIPMENT
Following points should be considered
 Design and Construction
 Equipment Maintenance and Cleaning
 Calibration
 Computerized Systems
January 25, 2013 14

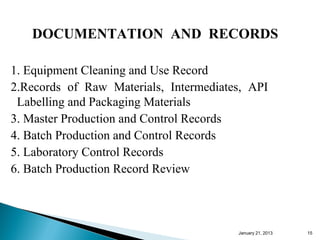

15. DOCUMENTATION AND RECORDS
1. Equipment Cleaning and Use Record
2.Records of Raw Materials, Intermediates, API
Labelling and Packaging Materials
3. Master Production and Control Records
4. Batch Production and Control Records
5. Laboratory Control Records
6. Batch Production Record Review
January 25, 2013 15

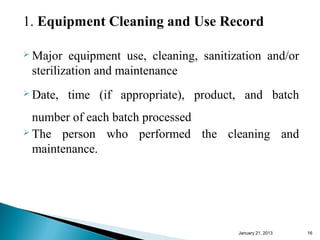

16. 1. Equipment Cleaning and Use Record
 Major equipment use, cleaning, sanitization and/or
sterilization and maintenance
 Date, time (if appropriate), product, and batch
number of each batch processed
 The person who performed the cleaning and
maintenance.
January 25, 2013 16

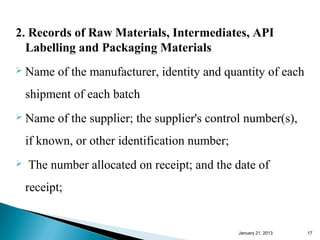

17. 2. Records of Raw Materials, Intermediates, API
Labelling and Packaging Materials
 Name of the manufacturer, identity and quantity of each
shipment of each batch
 Name of the supplier; the supplier's control number(s),
if known, or other identification number;
 The number allocated on receipt; and the date of
receipt;
January 25, 2013 17

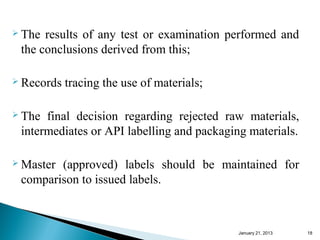

18.  The results of any test or examination performed and
the conclusions derived from this;
 Records tracing the use of materials;
 The final decision regarding rejected raw materials,
intermediates or API labelling and packaging materials.
 Master(approved) labels should be maintained for
comparison to issued labels.
January 25, 2013 18

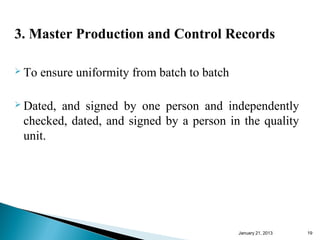

19. 3. Master Production and Control Records
 To ensure uniformity from batch to batch
 Dated,and signed by one person and independently
checked, dated, and signed by a person in the quality
unit.
January 25, 2013 19

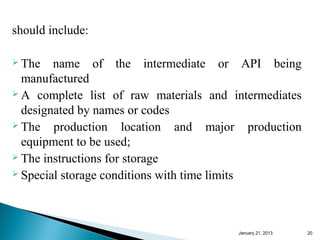

20. should include:
 The name of the intermediate or API being
manufactured
 A complete list of raw materials and intermediates
designated by names or codes
 The production location and major production
equipment to be used;
 The instructions for storage
 Special storage conditions with time limits
January 25, 2013 20

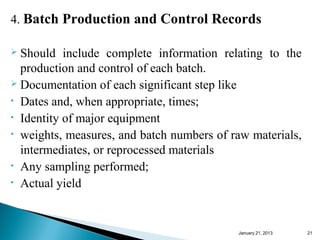

21. 4. Batch Production and Control Records
 Should include complete information relating to the
production and control of each batch.
 Documentation of each significant step like
• Dates and, when appropriate, times;
• Identity of major equipment
• weights, measures, and batch numbers of raw materials,
intermediates, or reprocessed materials
• Any sampling performed;
• Actual yield
January 25, 2013 21

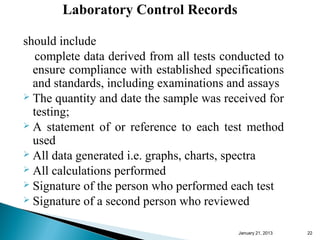

22. Laboratory Control Records
should include
complete data derived from all tests conducted to
ensure compliance with established specifications
and standards, including examinations and assays
 The quantity and date the sample was received for
testing;
 A statement of or reference to each test method
used
 All data generated i.e. graphs, charts, spectra
 All calculations performed
 Signature of the person who performed each test
 Signature of a second person who reviewed
January 25, 2013 22

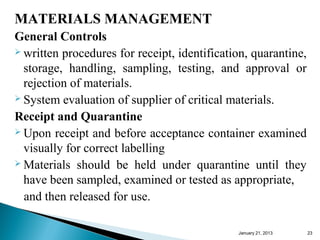

23. MATERIALS MANAGEMENT
General Controls
 written procedures for receipt, identification, quarantine,
storage, handling, sampling, testing, and approval or
rejection of materials.
 System evaluation of supplier of critical materials.
Receipt and Quarantine
 Upon receipt and before acceptance container examined
visually for correct labelling
 Materials should be held under quarantine until they
have been sampled, examined or tested as appropriate,
and then released for use.
January 25, 2013 23

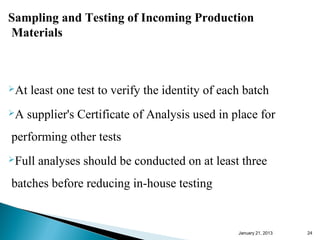

24. Sampling and Testing of Incoming Production
Materials
At least one test to verify the identity of each batch
A supplier's Certificate of Analysis used in place for
performing other tests
Full analyses should be conducted on at least three
batches before reducing in-house testing
January 25, 2013 24

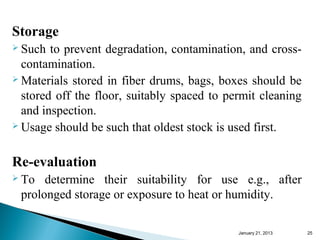

25. Storage
 Such to prevent degradation, contamination, and cross-
contamination.
 Materials stored in fiber drums, bags, boxes should be
stored off the floor, suitably spaced to permit cleaning
and inspection.
 Usage should be such that oldest stock is used first.
Re-evaluation
 To determine their suitability for use e.g., after
prolonged storage or exposure to heat or humidity.
January 25, 2013 25

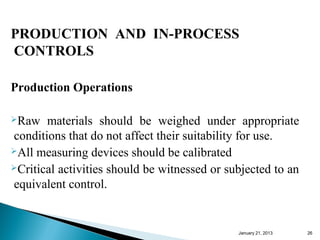

26. PRODUCTION AND IN-PROCESS
CONTROLS
Production Operations
Raw materials should be weighed under appropriate
conditions that do not affect their suitability for use.
All measuring devices should be calibrated
Critical activities should be witnessed or subjected to an
equivalent control.
January 25, 2013 26

27.  Actual yields should be compared with expected yields
at designated steps in the production process.
 Expected yields with appropriate ranges should be
established based on previous laboratory, pilot scale, or
manufacturing data.
 Deviations should be investigated documented and
explained.
 Any critical deviation should be investigated.
 Materials to be reprocessed or reworked should be
appropriately controlled to prevent unauthorized use.
January 25, 2013 27

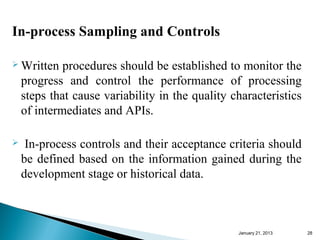

28. In-process Sampling and Controls
 Written procedures should be established to monitor the
progress and control the performance of processing
steps that cause variability in the quality characteristics
of intermediates and APIs.
 In-process controls and their acceptance criteria should
be defined based on the information gained during the
development stage or historical data.
January 25, 2013 28

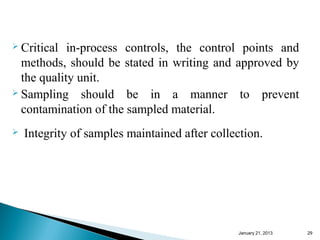

29.  Critical in-process controls, the control points and
methods, should be stated in writing and approved by
the quality unit.
 Sampling should be in a manner to prevent
contamination of the sampled material.
 Integrity of samples maintained after collection.
January 25, 2013 29

30. Blending Batches of Intermediates or APIs
 Process of combining materials within the same
specification to produce a homogeneous intermediate or
API.
 Batches should be
Adequately controlled documented and tested for
conformance
 If the blending could adversely affect stability, stability
testing of the final blended batches should be performed.
January 25, 2013 30

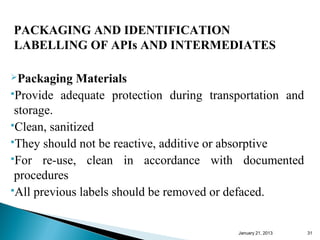

31. PACKAGING AND IDENTIFICATION
LABELLING OF APIs AND INTERMEDIATES
Packaging Materials
Provide adequate protection during transportation and
storage.
Clean, sanitized
They should not be reactive, additive or absorptive
For re-use, clean in accordance with documented
procedures
All previous labels should be removed or defaced.
January 25, 2013 31

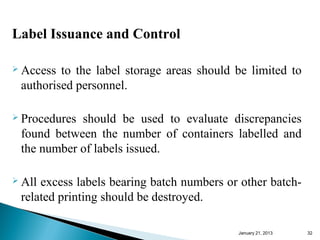

32. Label Issuance and Control
 Access to the label storage areas should be limited to
authorised personnel.
 Proceduresshould be used to evaluate discrepancies
found between the number of containers labelled and
the number of labels issued.
 Allexcess labels bearing batch numbers or other batch-
related printing should be destroyed.
January 25, 2013 32

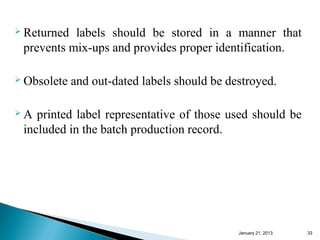

33.  Returned labels should be stored in a manner that
prevents mix-ups and provides proper identification.
 Obsolete and out-dated labels should be destroyed.
A printed label representative of those used should be
included in the batch production record.
January 25, 2013 33

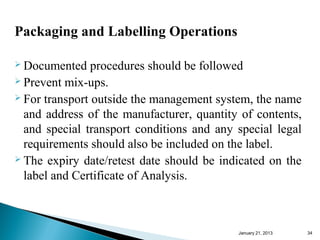

34. Packaging and Labelling Operations
 Documented procedures should be followed
 Prevent mix-ups.
 For transport outside the management system, the name
and address of the manufacturer, quantity of contents,
and special transport conditions and any special legal
requirements should also be included on the label.
 The expiry date/retest date should be indicated on the
label and Certificate of Analysis.
January 25, 2013 34

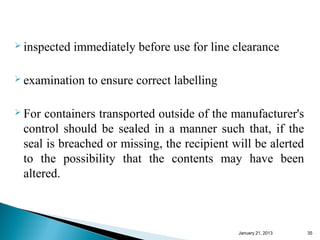

35.  inspected immediately before use for line clearance
 examination to ensure correct labelling
 For containers transported outside of the manufacturer's
control should be sealed in a manner such that, if the
seal is breached or missing, the recipient will be alerted
to the possibility that the contents may have been
altered.
January 25, 2013 35

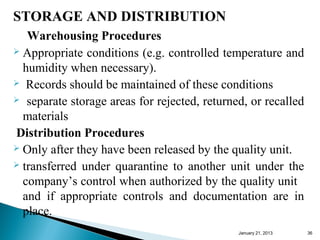

36. STORAGE AND DISTRIBUTION
Warehousing Procedures
 Appropriate conditions (e.g. controlled temperature and
humidity when necessary).
 Records should be maintained of these conditions
 separate storage areas for rejected, returned, or recalled
materials
Distribution Procedures
 Only after they have been released by the quality unit.
 transferred under quarantine to another unit under the
company’s control when authorized by the quality unit
and if appropriate controls and documentation are in
place.
January 25, 2013 36

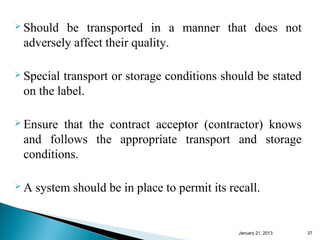

37.  Should be transported in a manner that does not
adversely affect their quality.
 Special transport or storage conditions should be stated
on the label.
 Ensure that the contract acceptor (contractor) knows
and follows the appropriate transport and storage
conditions.
A system should be in place to permit its recall.
January 25, 2013 37

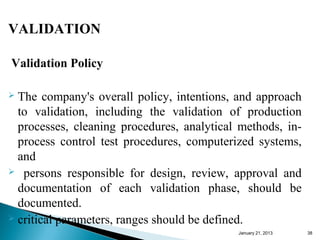

38. VALIDATION
Validation Policy
 The company's overall policy, intentions, and approach
to validation, including the validation of production
processes, cleaning procedures, analytical methods, in-
process control test procedures, computerized systems,
and
 persons responsible for design, review, approval and
documentation of each validation phase, should be
documented.
 critical parameters, ranges should be defined.
January 25, 2013 38

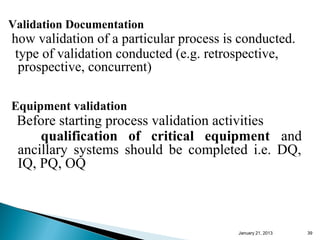

39. Validation Documentation
how validation of a particular process is conducted.
type of validation conducted (e.g. retrospective,
prospective, concurrent)
Equipment validation
Before starting process validation activities
qualification of critical equipment and
ancillary systems should be completed i.e. DQ,
IQ, PQ, OQ
January 25, 2013 39

40. Cleaning Validation
 Directed to situations or process steps where
contamination or carryover of materials poses the
greatest risk to API quality.
 Sampling should include swabbing, rinsing, or
alternative methods as appropriate, to detect both
insoluble and soluble residues.
Validation of Analytical Methods
 Analytical methods should be validated unless the
method employed is included in the relevant
pharmacopoeia or other recognised standard
reference.
January 25, 2013 40

41. REJECTION AND RE-USE OF MATERIALS
 Rejection
 failing to meet established specifications
 Quarantined
 reprocessed or reworked
 Reprocessing
 By repeating a crystallization step or other appropriate
chemical or physical manipulation steps e.g.
distillation, filtration, chromatography, milling
January 25, 2013 41

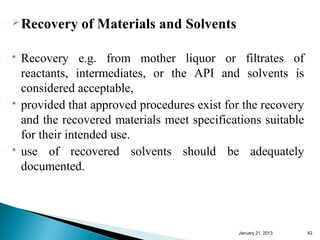

42.  Recovery of Materials and Solvents
 Recovery e.g. from mother liquor or filtrates of
reactants, intermediates, or the API and solvents is
considered acceptable,
 provided that approved procedures exist for the recovery
and the recovered materials meet specifications suitable
for their intended use.
 use of recovered solvents should be adequately
documented.
January 25, 2013 42

43.  Returns
 Identified and quarantined.
 Reprocessed, reworked, or destroyed, as appropriate.
 Records should be maintained.
COMPLAINTS AND RECALLS
CONTRACT MANUFACTURERS
(INCLUDING LABORATORIES)
 should comply with the GMP defined in this Guide.
January 25, 2013 43

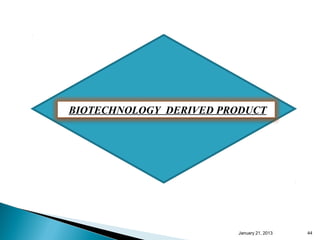

44. BIOTECHNOLOGY DERIVED PRODUCT
January 25, 2013 44

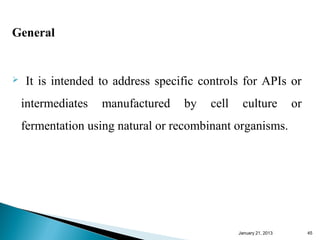

45. General
 It is intended to address specific controls for APIs or
intermediates manufactured by cell culture or
fermentation using natural or recombinant organisms.
January 25, 2013 45

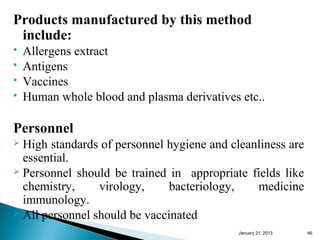

46. Products manufactured by this method
include:
 Allergens extract
 Antigens
 Vaccines
 Human whole blood and plasma derivatives etc..
Personnel
 High standards of personnel hygiene and cleanliness are
essential.
 Personnel should be trained in appropriate fields like
chemistry, virology, bacteriology, medicine
immunology.
 All personnel should be vaccinated
January 25, 2013 46

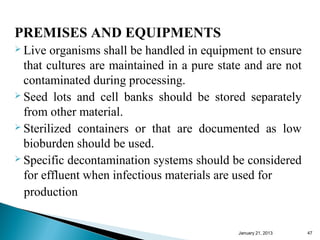

47. PREMISES AND EQUIPMENTS
 Live organisms shall be handled in equipment to ensure
that cultures are maintained in a pure state and are not
contaminated during processing.
 Seed lots and cell banks should be stored separately
from other material.
 Sterilized containers or that are documented as low
bioburden should be used.
 Specific decontamination systems should be considered
for effluent when infectious materials are used for
production
January 25, 2013 47

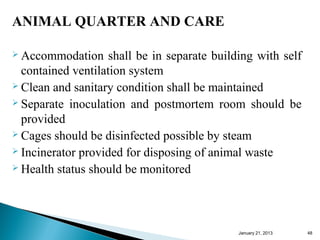

48. ANIMAL QUARTER AND CARE
 Accommodation shall be in separate building with self
contained ventilation system
 Clean and sanitary condition shall be maintained
 Separate inoculation and postmortem room should be
provided
 Cages should be disinfected possible by steam
 Incinerator provided for disposing of animal waste
 Health status should be monitored
January 25, 2013 48

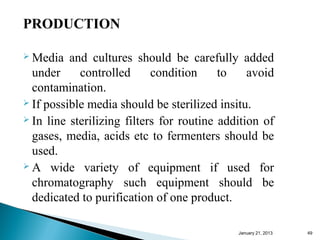

49. PRODUCTION
 Media and cultures should be carefully added
under controlled condition to avoid
contamination.
 If possible media should be sterilized insitu.
 In line sterilizing filters for routine addition of
gases, media, acids etc to fermenters should be
used.
 A wide variety of equipment if used for
chromatography such equipment should be
dedicated to purification of one product.
January 25, 2013 49

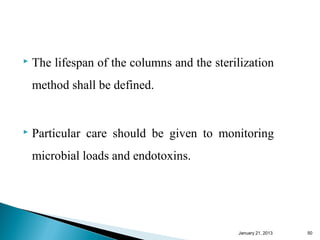

50.  The lifespan of the columns and the sterilization
method shall be defined.
 Particular care should be given to monitoring
microbial loads and endotoxins.
January 25, 2013 50

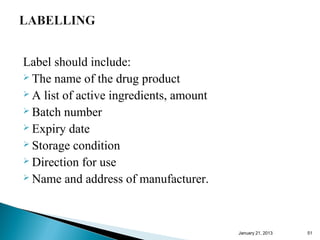

51. Label should include:
 The name of the drug product
 A list of active ingredients, amount
 Batch number
 Expiry date
 Storage condition
 Direction for use
 Name and address of manufacturer.
January 25, 2013 51

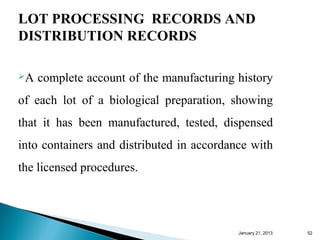

52. LOT PROCESSING RECORDS AND
DISTRIBUTION RECORDS
A complete account of the manufacturing history
of each lot of a biological preparation, showing
that it has been manufactured, tested, dispensed
into containers and distributed in accordance with
the licensed procedures.
January 25, 2013 52

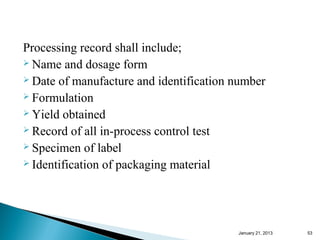

53. Processing record shall include;
 Name and dosage form
 Date of manufacture and identification number
 Formulation
 Yield obtained
 Record of all in-process control test
 Specimen of label
 Identification of packaging material
January 25, 2013 53

54. Quality assurance and quality control
Principal duties
 To prepare detail instruction for each analysis
 To ensure adequate identification and
segregation of test sample to avoid mix up
 To ensure environmental monitoring
 To release and reject raw material, intermediates
and finished products
 To establish expiry dates
January 25, 2013 54

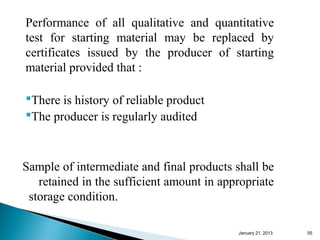

55. Performance of all qualitative and quantitative
test for starting material may be replaced by
certificates issued by the producer of starting
material provided that :
There is history of reliable product
The producer is regularly audited
Sample of intermediate and final products shall be
retained in the sufficient amount in appropriate
storage condition.
January 25, 2013 55

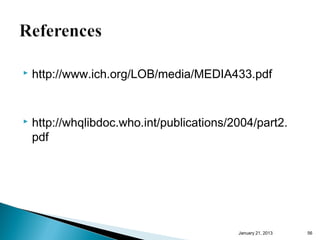

56.  http://www.ich.org/LOB/media/MEDIA433.pdf
 http://whqlibdoc.who.int/publications/2004/part2.
pdf
January 25, 2013 56

57. January 25, 2013 57
