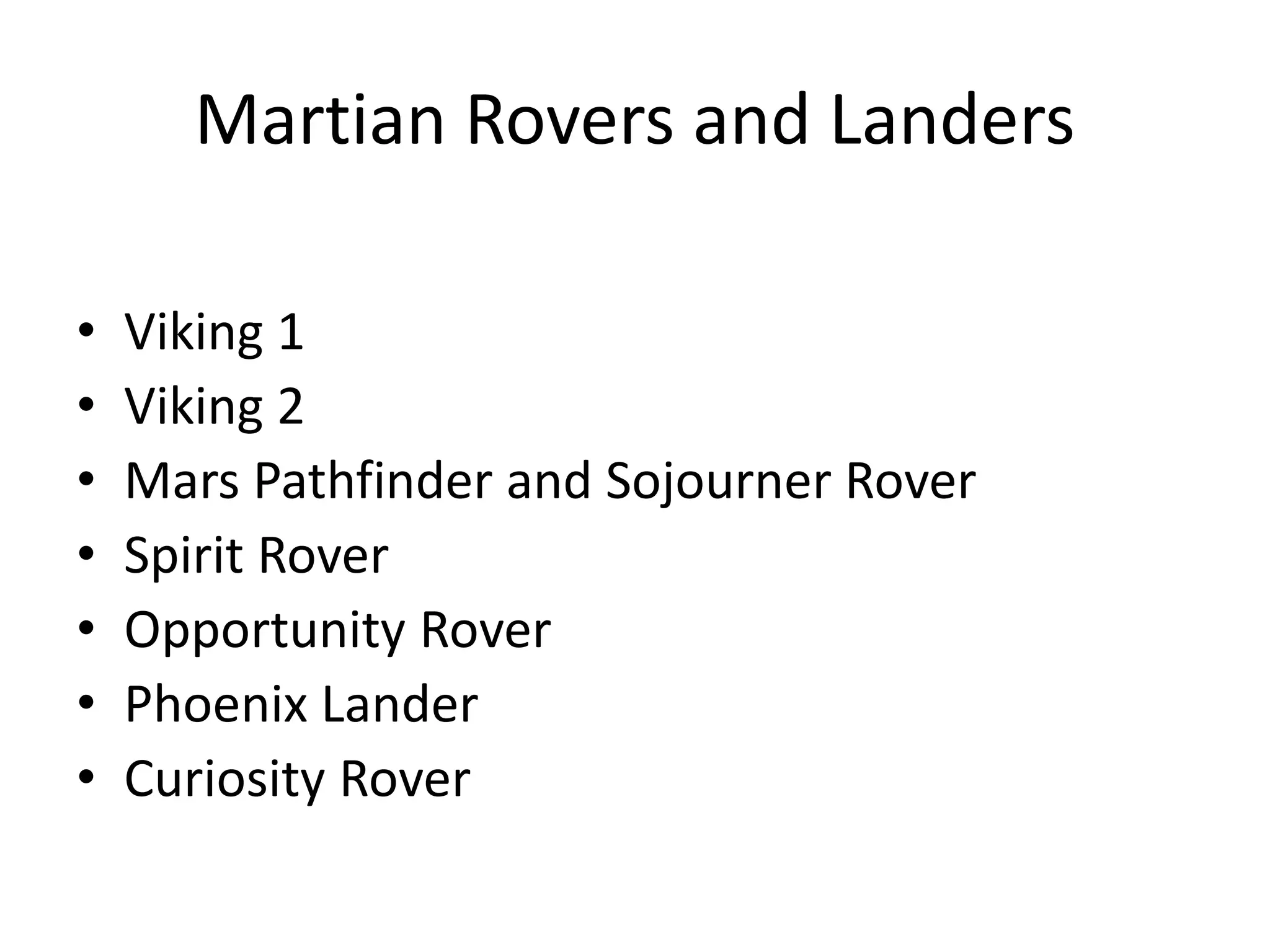

- 1. Martian Rovers andLanders • Viking 1 • Viking 2 • Mars Pathfinder and Sojourner Rover • Spirit Rover • Opportunity Rover • Phoenix Lander • Curiosity Rover

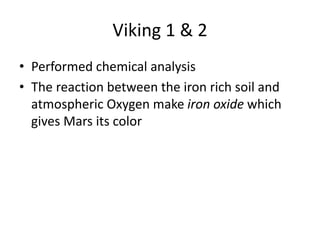

- 2. Viking 1 &2 • Performed chemical analysis • The reaction between the iron rich soil and atmospheric Oxygen make iron oxide which gives Mars its color

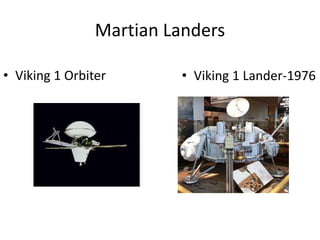

- 3. Martian Landers • Viking1 Orbiter • Viking 1 Lander-1976
- 4. View from Viking1-Chryse Planitia

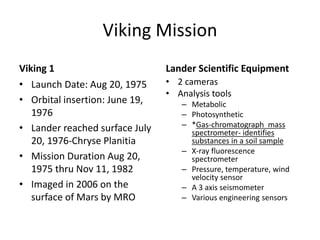

- 5. Viking Mission Viking 1Lander Scientific Equipment • Launch Date: Aug 20, 1975 • Orbital insertion: June 19, 1976 • Lander reached surface July 20, 1976-Chryse Planitia • Mission Duration Aug 20, 1975 thru Nov 11, 1982 • Imaged in 2006 on the surface of Mars by MRO • 2 cameras • Analysis tools – Metabolic – Photosynthetic – *Gas-chromatograph mass spectrometer- identifies substances in a soil sample – X-ray fluorescence spectrometer – Pressure, temperature, wind velocity sensor – A 3 axis seismometer – Various engineering sensors
- 6. Viking 1 SoilAnalysis Results • Soil contained – Silicon – Iron – Magnesium – Aluminum – Sulfur – Chlorine – Calcium – Titanium – Potassium – Trace amounts of • Strontium • yttrium • The sulfur and chlorine are likely the result of evaporating sea water • All soil samples heated in the GCMS gave off water vapor • Search for life – One experiment gave a positive result for life – DEBATED to this day!! – Antarctica’s dry areas have no detectable organic compounds-but there are organisms living in the rocks
- 7.

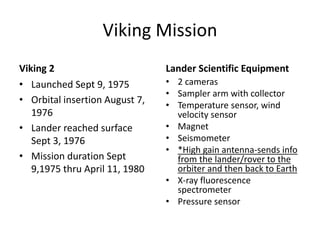

- 8. Viking Mission Viking 2Lander Scientific Equipment • Launched Sept 9, 1975 • Orbital insertion August 7, 1976 • Lander reached surface Sept 3, 1976 • Mission duration Sept 9,1975 thru April 11, 1980 • 2 cameras • Sampler arm with collector • Temperature sensor, wind velocity sensor • Magnet • Seismometer • *High gain antenna-sends info from the lander/rover to the orbiter and then back to Earth • X-ray fluorescence spectrometer • Pressure sensor

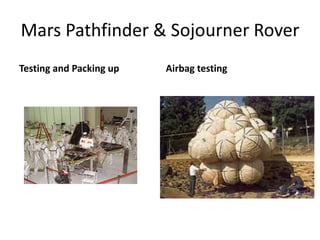

- 9. Mars Pathfinder &Sojourner Rover Testing and Packing up Airbag testing

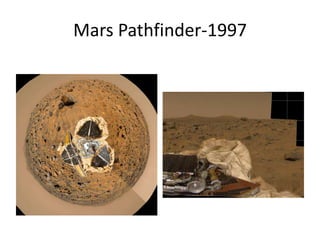

- 10.

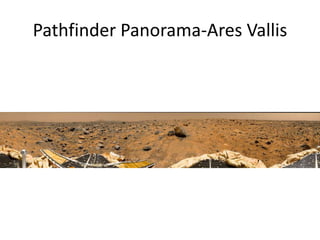

- 11.

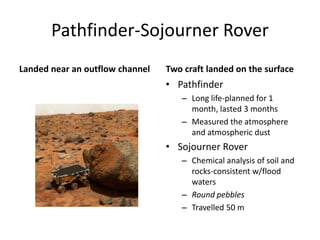

- 12. Pathfinder-Sojourner Rover Landed nearan outflow channel Two craft landed on the surface • Pathfinder – Long life-planned for 1 month, lasted 3 months – Measured the atmosphere and atmospheric dust • Sojourner Rover – Chemical analysis of soil and rocks-consistent w/flood waters – Round pebbles – Travelled 50 m

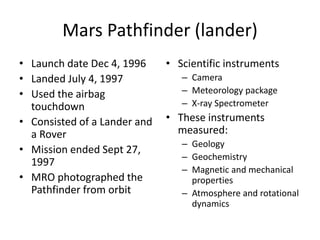

- 13. Mars Pathfinder (lander) •Launch date Dec 4, 1996 • Landed July 4, 1997 • Used the airbag touchdown • Consisted of a Lander and a Rover • Mission ended Sept 27, 1997 • MRO photographed the Pathfinder from orbit • Scientific instruments – Camera – Meteorology package – X-ray Spectrometer • These instruments measured: – Geology – Geochemistry – Magnetic and mechanical properties – Atmosphere and rotational dynamics

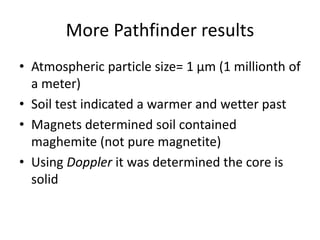

- 14. More Pathfinder results •Atmospheric particle size= 1 μm (1 millionth of a meter) • Soil test indicated a warmer and wetter past • Magnets determined soil contained maghemite (not pure magnetite) • Using Doppler it was determined the core is solid
- 15. Sojourner Rover (climbedoff Pathfinder) ***First rover to be deployed on another planet*** Scientific equipment Findings • 3 cameras • Laser striper hazard detection system • X-ray spectrometer – Examines chemical composition of soil • Accelerometers – Measures proper acceleration • Potentiometers – Controls and measures electrical devices • Confirmed previous volcanic activity • Found basaltic rock • Found elements: – Silicon – Magnesium iron silicate – Aluminum silicates of • Potassium • Sodium • Calcium – Quartz (silicon dioxide) – Magnetite – Iron sulfide – Calcium phosphates

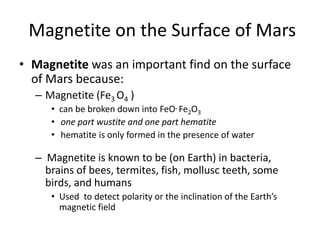

- 16. Magnetite on theSurface of Mars • Magnetite was an important find on the surface of Mars because: – Magnetite (Fe3 O4 ) • can be broken down into FeO. Fe2O3 • one part wustite and one part hematite • hematite is only formed in the presence of water – Magnetite is known to be (on Earth) in bacteria, brains of bees, termites, fish, mollusc teeth, some birds, and humans • Used to detect polarity or the inclination of the Earth’s magnetic field
- 17. Delta II HeavyLifter-Spirit and Opportunity Launch Vehicle Launch Patch

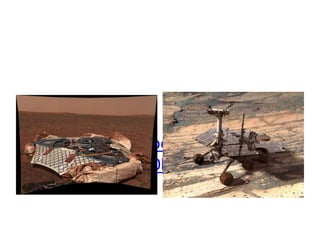

- 18.

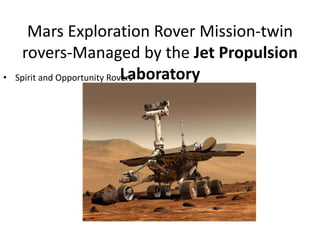

- 19. Mars Exploration RoverMission-twin rovers-Managed by the Jet Propulsion Laboratory• Spirit and Opportunity Rovers
- 20. Earth from Mars-pictaken by Spirit

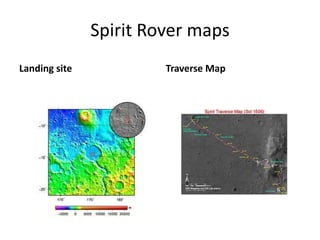

- 21. Spirit Rover maps Landingsite Traverse Map
- 22.

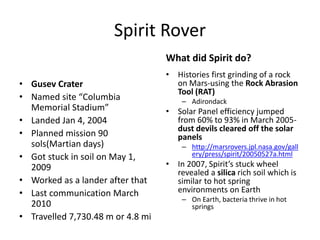

- 23. Spirit Rover What didSpirit do? • Gusev Crater • Named site “Columbia Memorial Stadium” • Landed Jan 4, 2004 • Planned mission 90 sols(Martian days) • Got stuck in soil on May 1, 2009 • Worked as a lander after that • Last communication March 2010 • Travelled 7,730.48 m or 4.8 mi • Histories first grinding of a rock on Mars-using the Rock Abrasion Tool (RAT) – Adirondack • Solar Panel efficiency jumped from 60% to 93% in March 2005- dust devils cleared off the solar panels – http://marsrovers.jpl.nasa.gov/gall ery/press/spirit/20050527a.html • In 2007, Spirit’s stuck wheel revealed a silica rich soil which is similar to hot spring environments on Earth – On Earth, bacteria thrive in hot springs

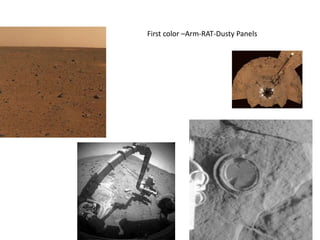

- 24.
- 25.

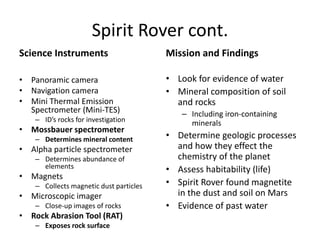

- 26. Spirit Rover cont. ScienceInstruments Mission and Findings • Panoramic camera • Navigation camera • Mini Thermal Emission Spectrometer (Mini-TES) – ID’s rocks for investigation • Mossbauer spectrometer – Determines mineral content • Alpha particle spectrometer – Determines abundance of elements • Magnets – Collects magnetic dust particles • Microscopic imager – Close-up images of rocks • Rock Abrasion Tool (RAT) – Exposes rock surface • Look for evidence of water • Mineral composition of soil and rocks – Including iron-containing minerals • Determine geologic processes and how they effect the chemistry of the planet • Assess habitability (life) • Spirit Rover found magnetite in the dust and soil on Mars • Evidence of past water

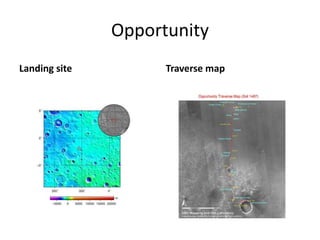

- 27.

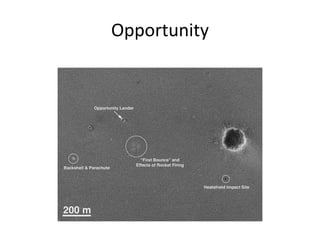

- 28.
- 29.
- 30.

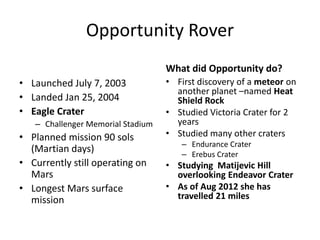

- 31. Opportunity Rover What didOpportunity do? • Launched July 7, 2003 • Landed Jan 25, 2004 • Eagle Crater – Challenger Memorial Stadium • Planned mission 90 sols (Martian days) • Currently still operating on Mars • Longest Mars surface mission • First discovery of a meteor on another planet –named Heat Shield Rock • Studied Victoria Crater for 2 years • Studied many other craters – Endurance Crater – Erebus Crater • Studying Matijevic Hill overlooking Endeavor Crater • As of Aug 2012 she has travelled 21 miles
- 32. Opportunity Cont. Science Instruments Missionand Findings • Panoramic camera • Navigation camera • Mini Thermal Emission Spectrometer (Mini-TES) – ID’s rocks for investigation • Mossbauer spectrometer – Determines mineral content • Alpha particle spectrometer – Determines abundance of elements • Magnets – Collects magnetic dust particles • Microscopic imager – Close-up images of rocks • Rock Abrasion Tool (RAT) – Exposes rock surface • Reinforced previous findings of the evidence of previous liquid water on Mars • Hematite-nicknamed blueberries • Has made astronomical observations • Has taken atmospheric data
- 33.
- 34.

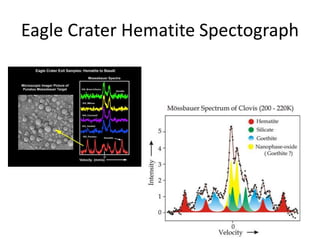

- 35. Eagle Crater HematiteSpectograph
- 36.

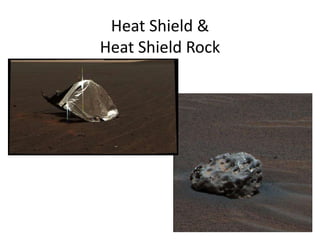

- 37. Heat Shield & HeatShield Rock

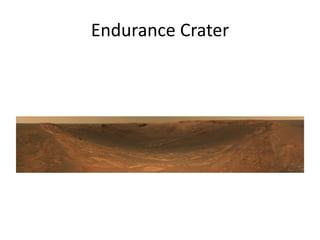

- 38.

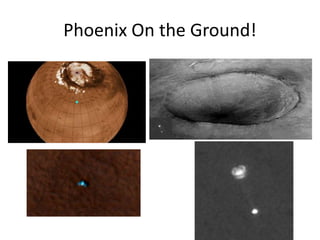

- 39. Phoenix On theGround!

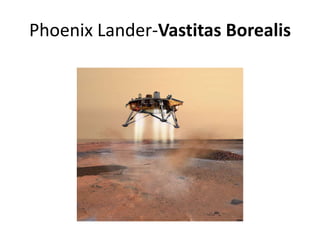

- 40.

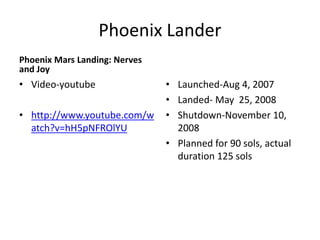

- 41. Phoenix Lander Phoenix MarsLanding: Nerves and Joy • Video-youtube • http://www.youtube.com/w atch?v=hH5pNFROlYU • Launched-Aug 4, 2007 • Landed- May 25, 2008 • Shutdown-November 10, 2008 • Planned for 90 sols, actual duration 125 sols

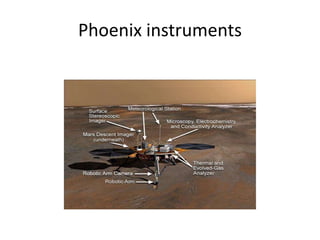

- 42.

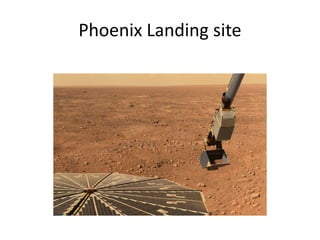

- 43.

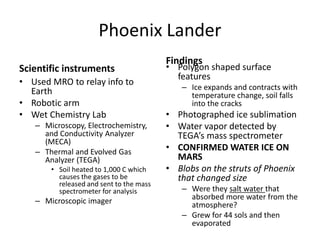

- 44. Phoenix Lander Scientific instruments Findings •Used MRO to relay info to Earth • Robotic arm • Wet Chemistry Lab – Microscopy, Electrochemistry, and Conductivity Analyzer (MECA) – Thermal and Evolved Gas Analyzer (TEGA) • Soil heated to 1,000 C which causes the gases to be released and sent to the mass spectrometer for analysis – Microscopic imager • Polygon shaped surface features – Ice expands and contracts with temperature change, soil falls into the cracks • Photographed ice sublimation • Water vapor detected by TEGA’s mass spectrometer • CONFIRMED WATER ICE ON MARS • Blobs on the struts of Phoenix that changed size – Were they salt water that absorbed more water from the atmosphere? – Grew for 44 sols and then evaporated

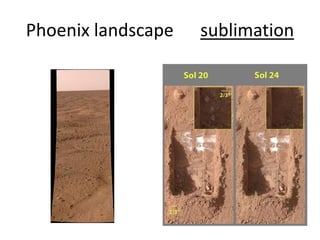

- 45.
- 46.

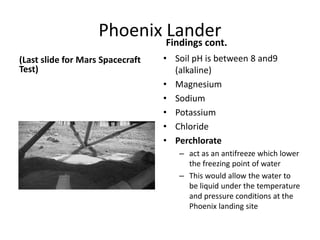

- 47. Phoenix Lander (Last slidefor Mars Spacecraft Test) Findings cont. • Soil pH is between 8 and9 (alkaline) • Magnesium • Sodium • Potassium • Chloride • Perchlorate – act as an antifreeze which lower the freezing point of water – This would allow the water to be liquid under the temperature and pressure conditions at the Phoenix landing site
