1. Presented By:
Arun Brijwasi
MCA/25021/18

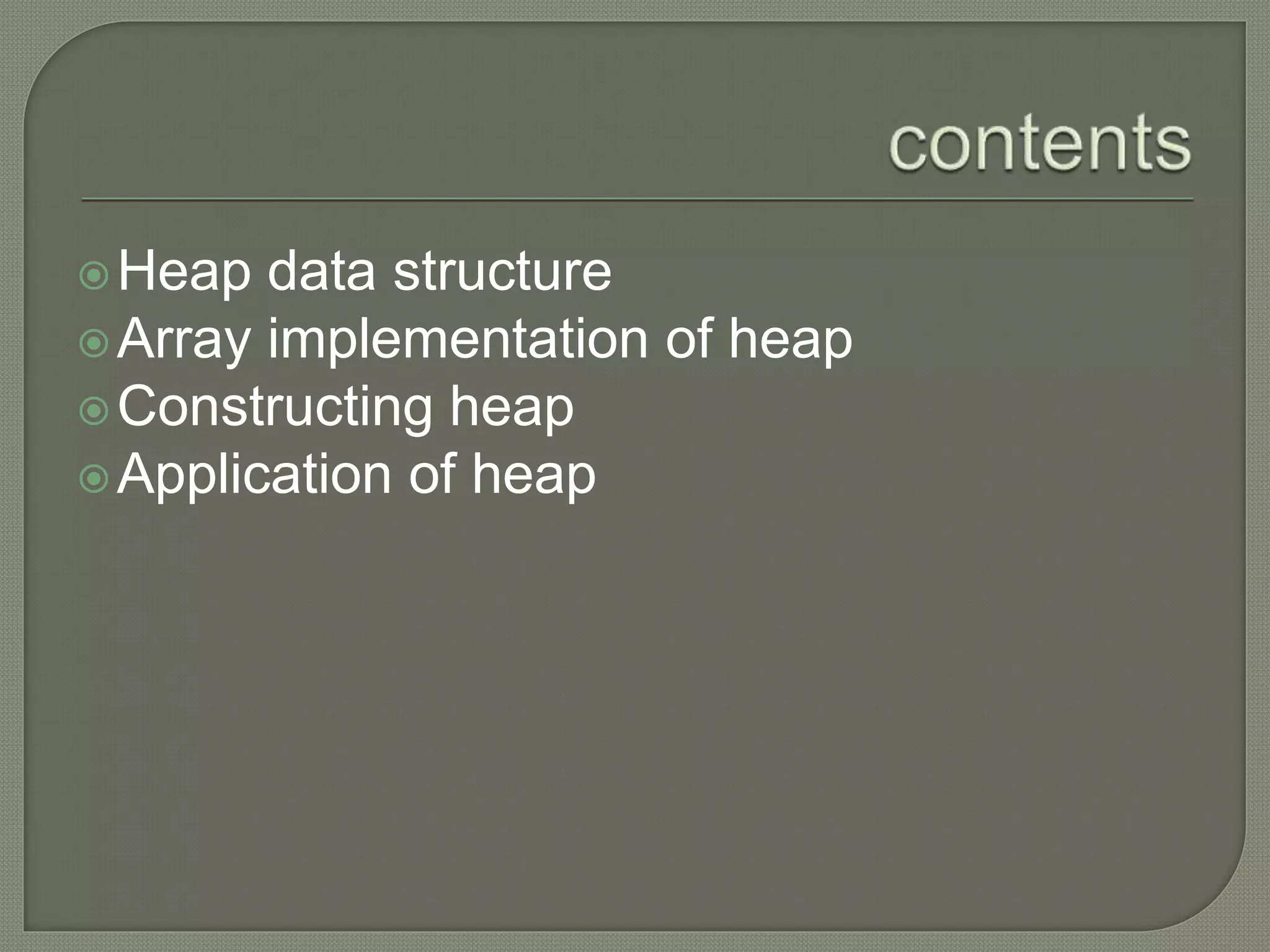

2. Heap data structure
Array implementation of heap
Constructing heap
Application of heap

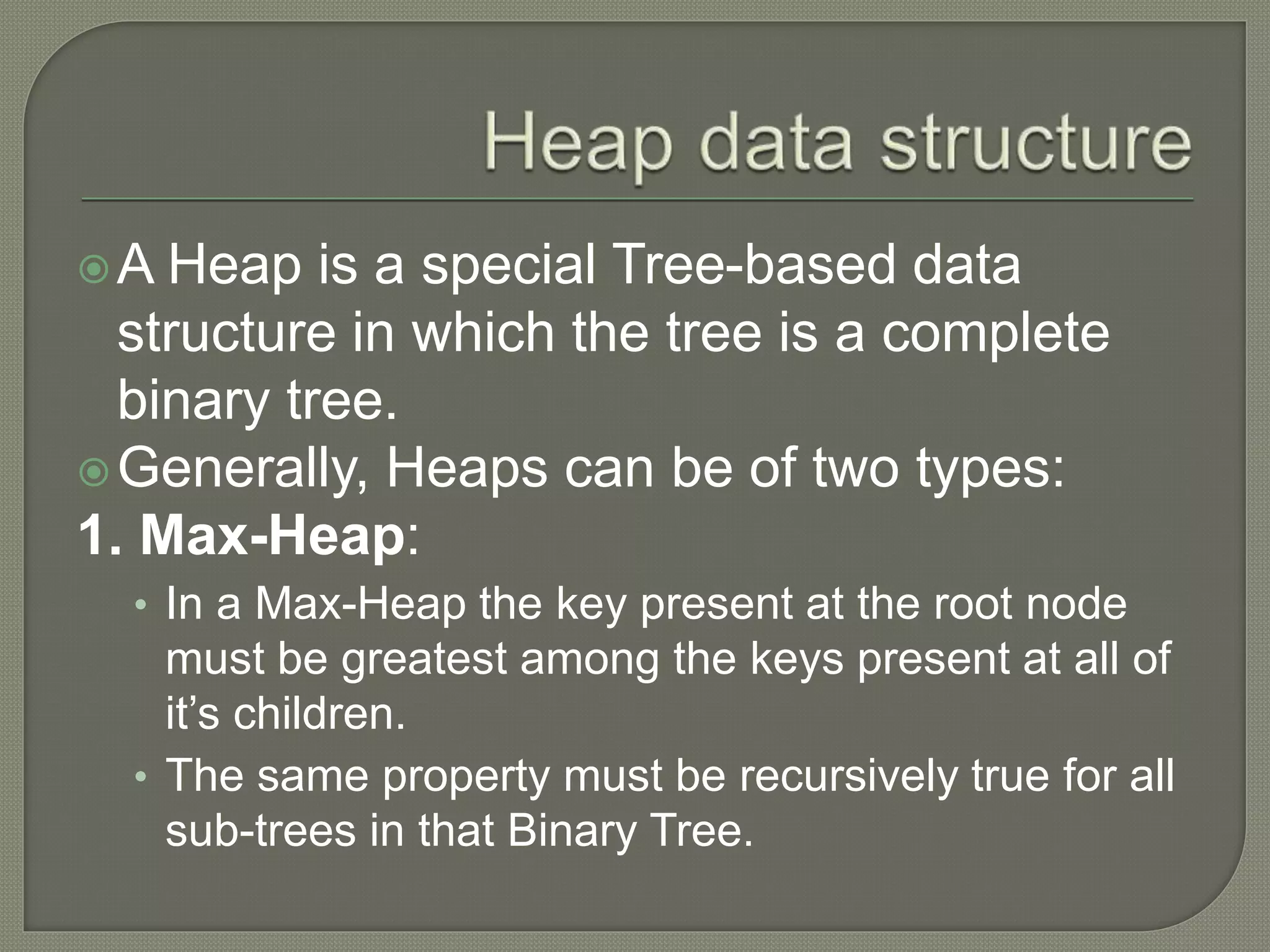

3. A Heap is a special Tree-based data
structure in which the tree is a complete
binary tree.
Generally, Heaps can be of two types:
1. Max-Heap:
• In a Max-Heap the key present at the root node
must be greatest among the keys present at all of
it’s children.
• The same property must be recursively true for all
sub-trees in that Binary Tree.

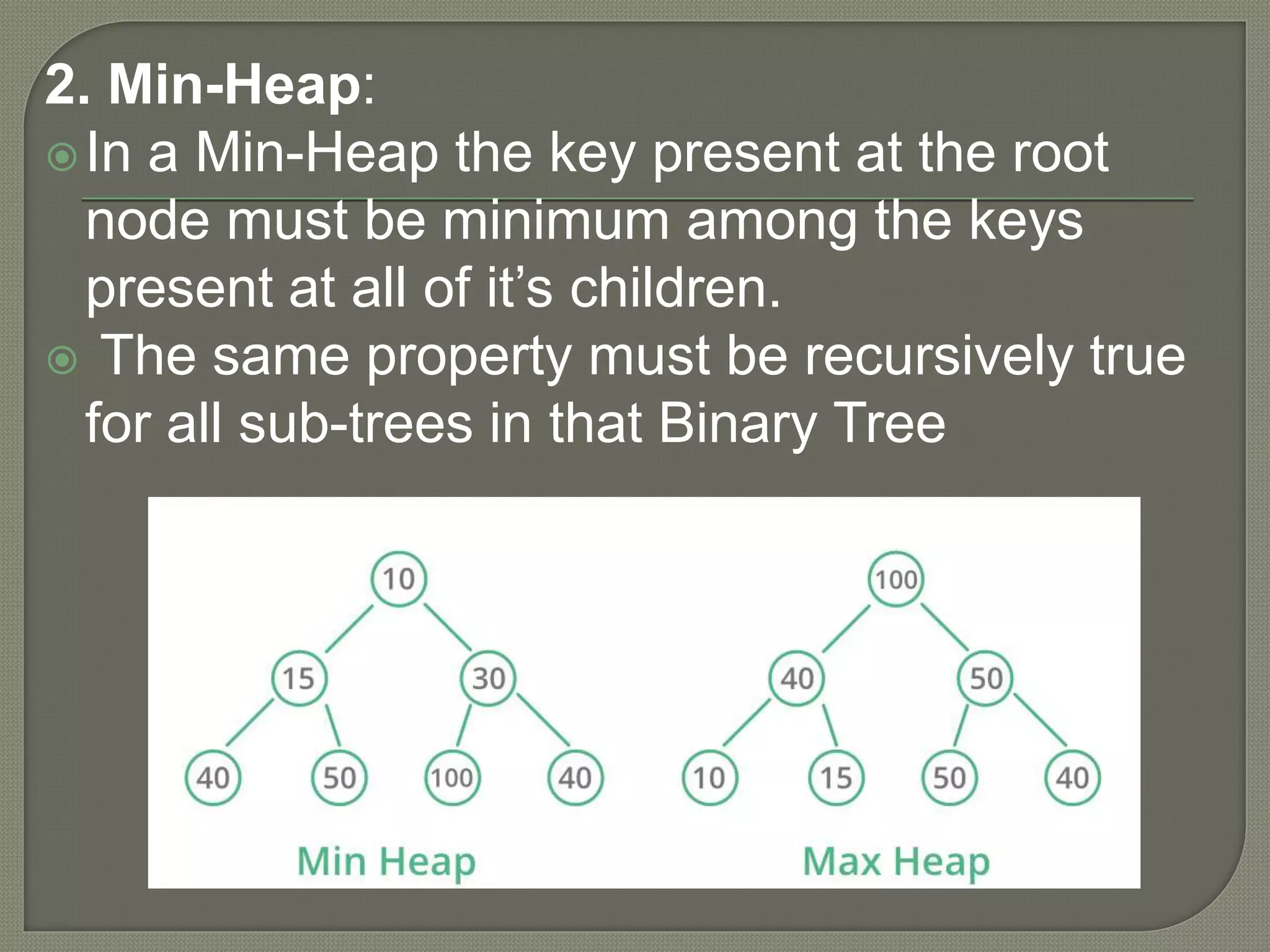

4. 2. Min-Heap:
In a Min-Heap the key present at the root
node must be minimum among the keys
present at all of it’s children.
 The same property must be recursively true
for all sub-trees in that Binary Tree

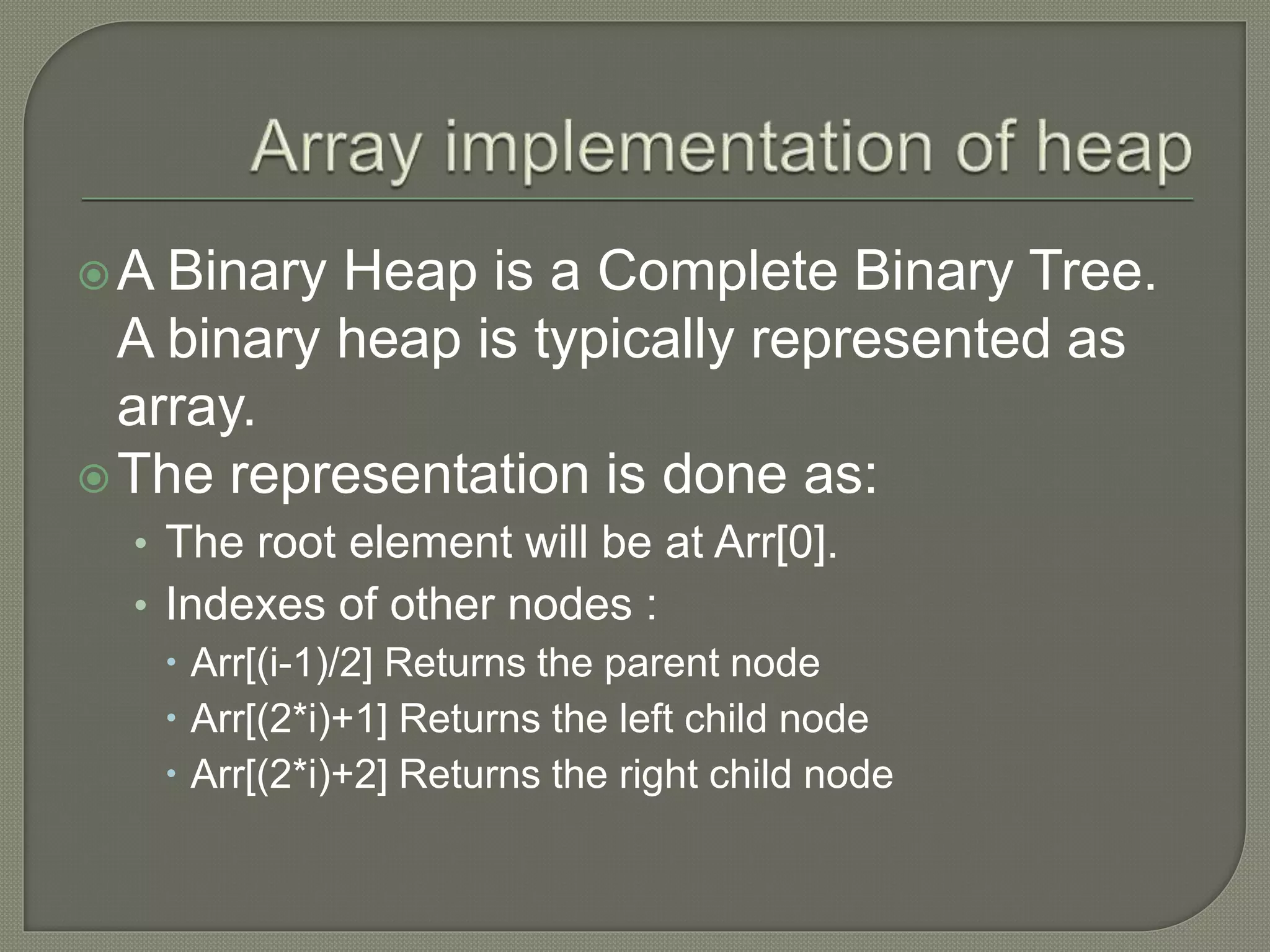

5. A Binary Heap is a Complete Binary Tree.
A binary heap is typically represented as
array.
The representation is done as:
• The root element will be at Arr[0].
• Indexes of other nodes :
 Arr[(i-1)/2] Returns the parent node
 Arr[(2*i)+1] Returns the left child node
 Arr[(2*i)+2] Returns the right child node

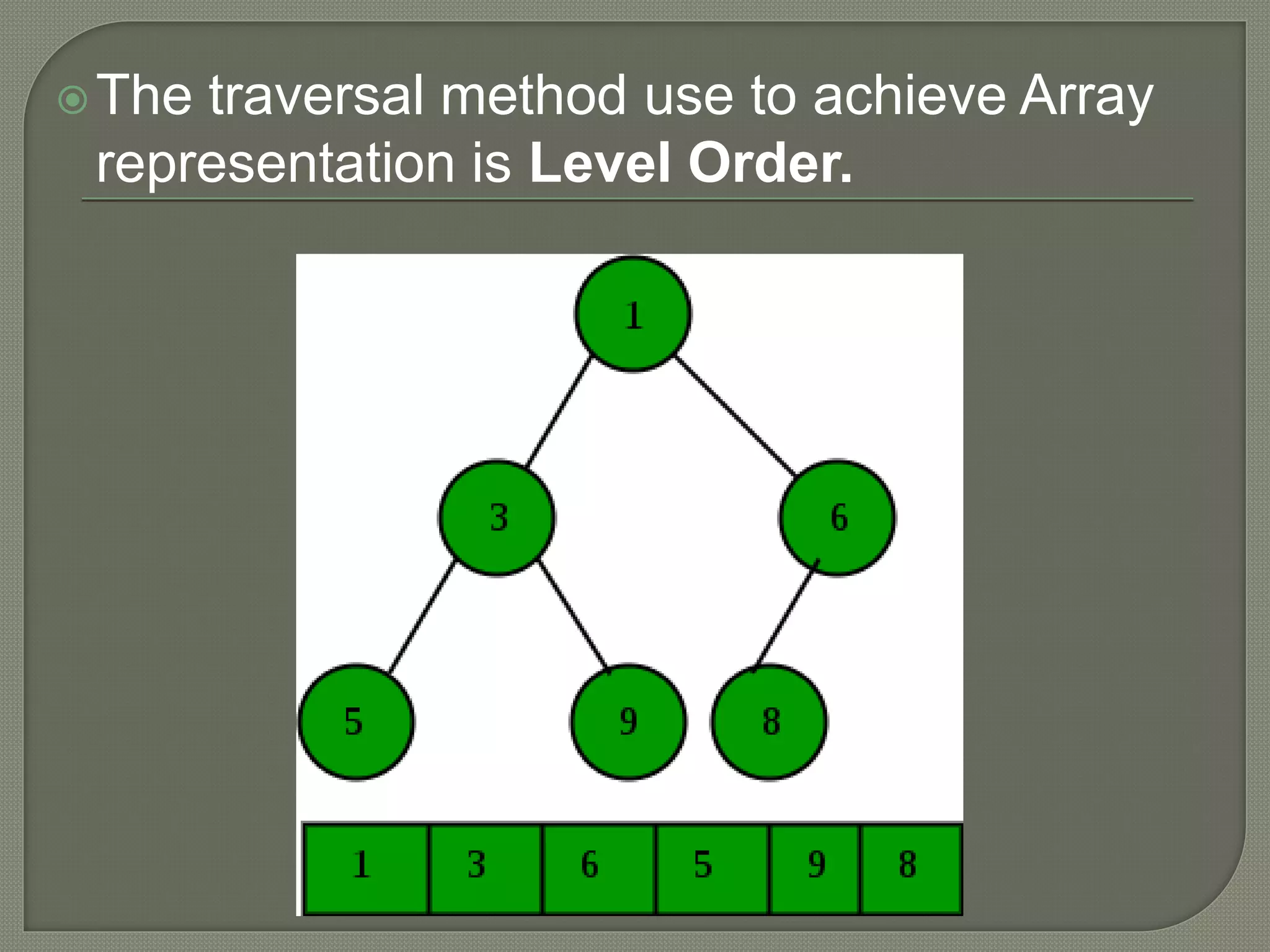

6. The traversal method use to achieve Array
representation is Level Order.

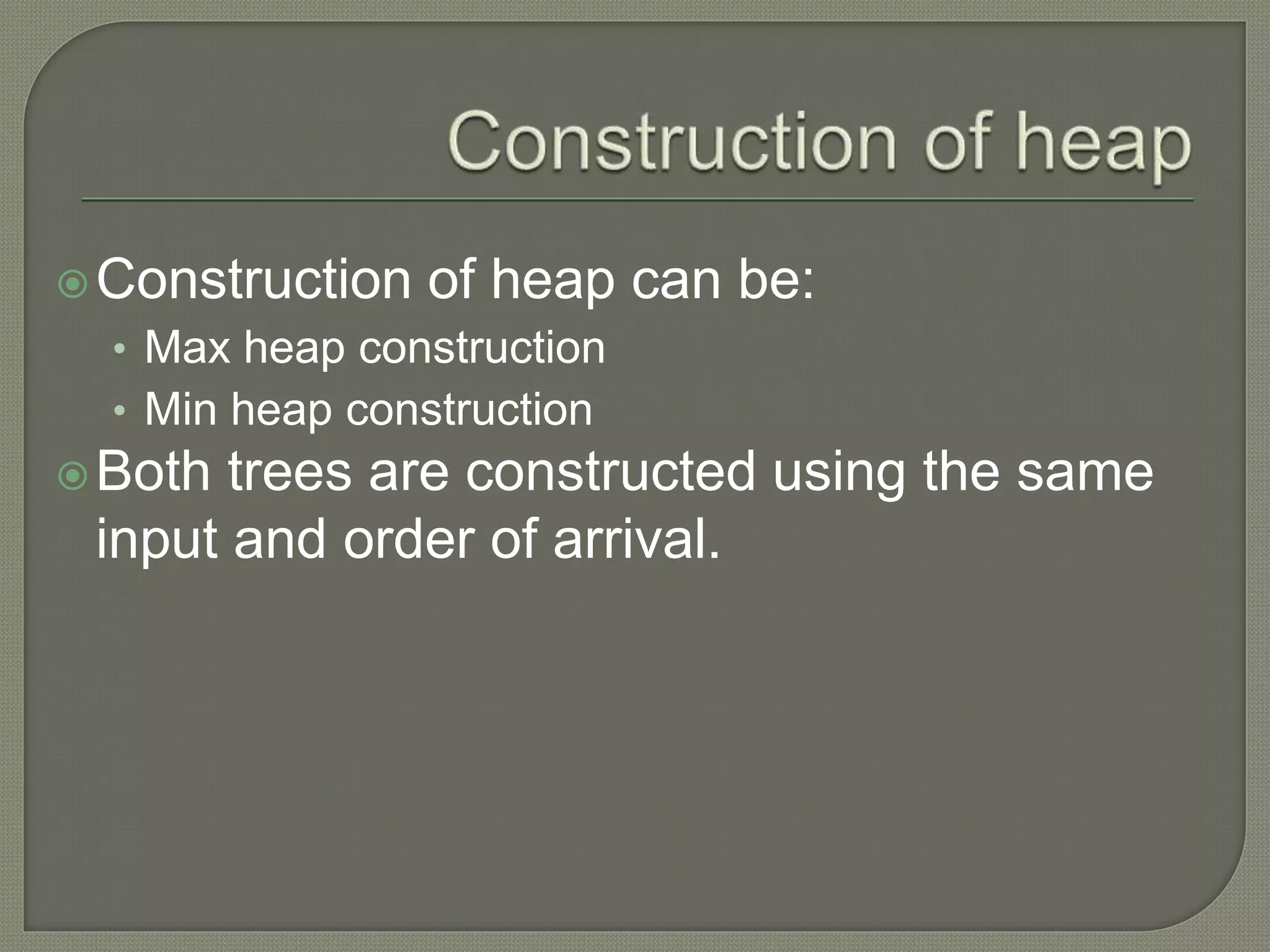

7. Construction of heap can be:
• Max heap construction
• Min heap construction
Both trees are constructed using the same
input and order of arrival.

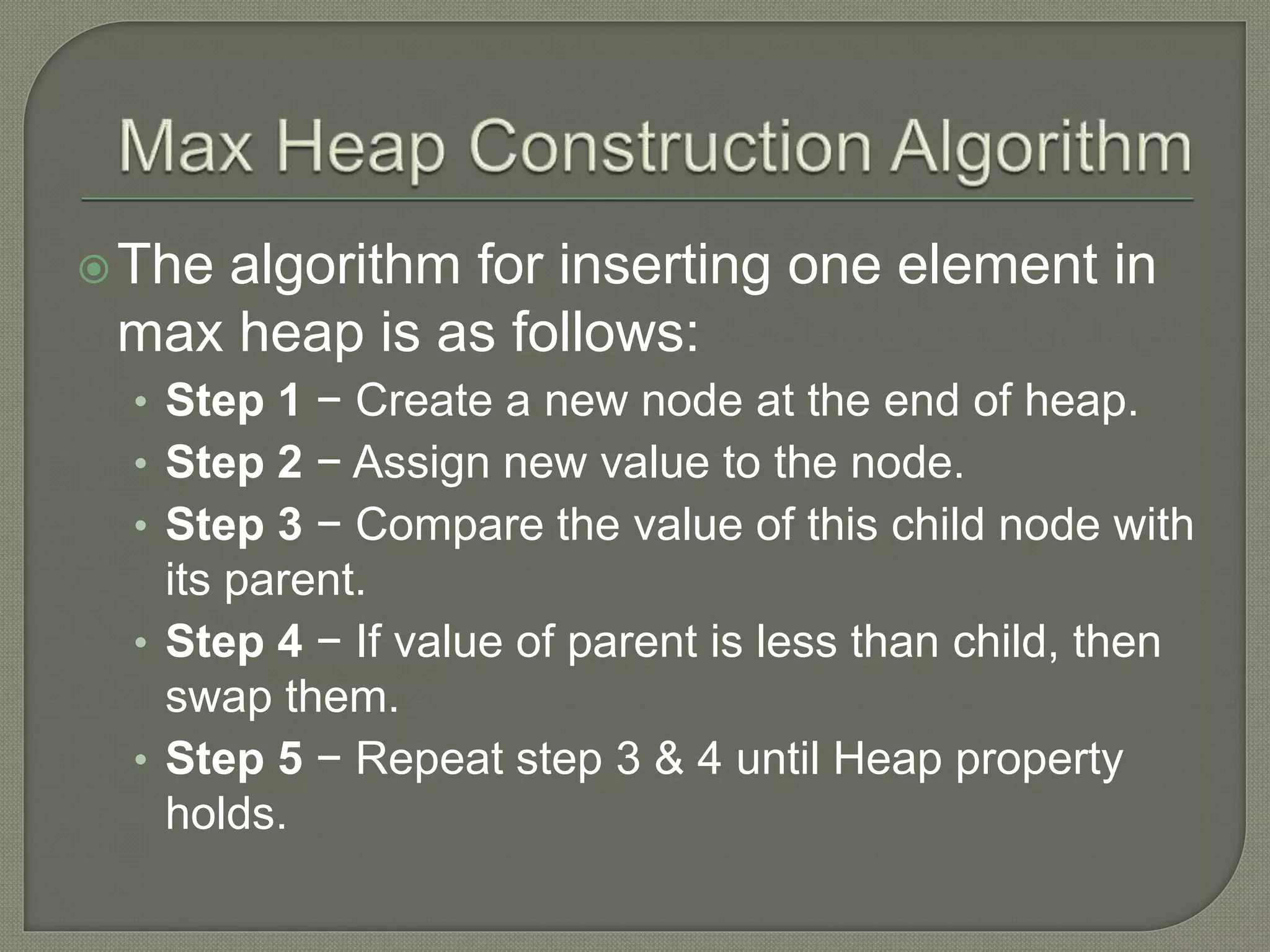

8. The algorithm for inserting one element in
max heap is as follows:
• Step 1 − Create a new node at the end of heap.
• Step 2 − Assign new value to the node.
• Step 3 − Compare the value of this child node with
its parent.
• Step 4 − If value of parent is less than child, then
swap them.
• Step 5 − Repeat step 3 & 4 until Heap property
holds.

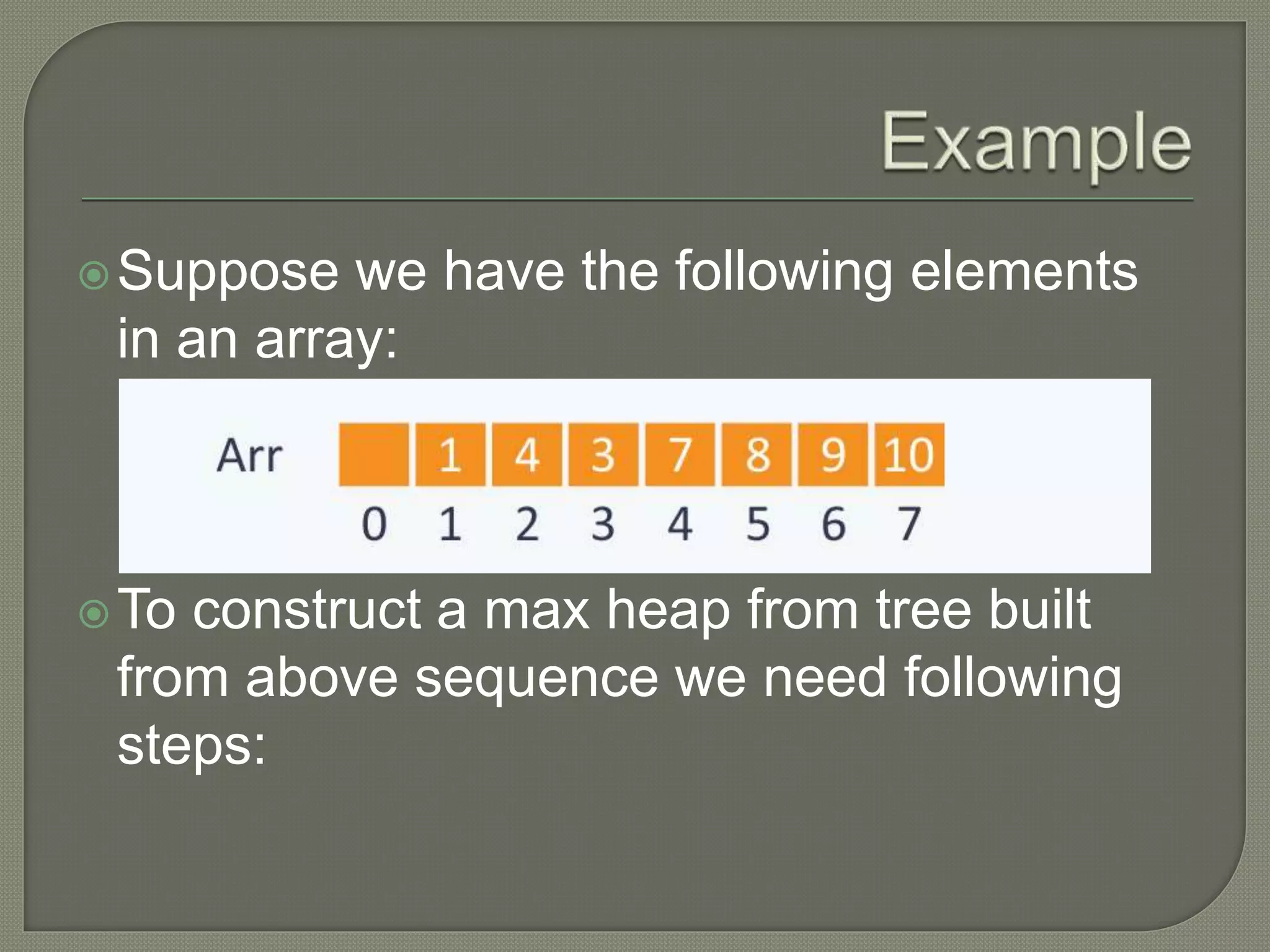

9. Suppose we have the following elements
in an array:

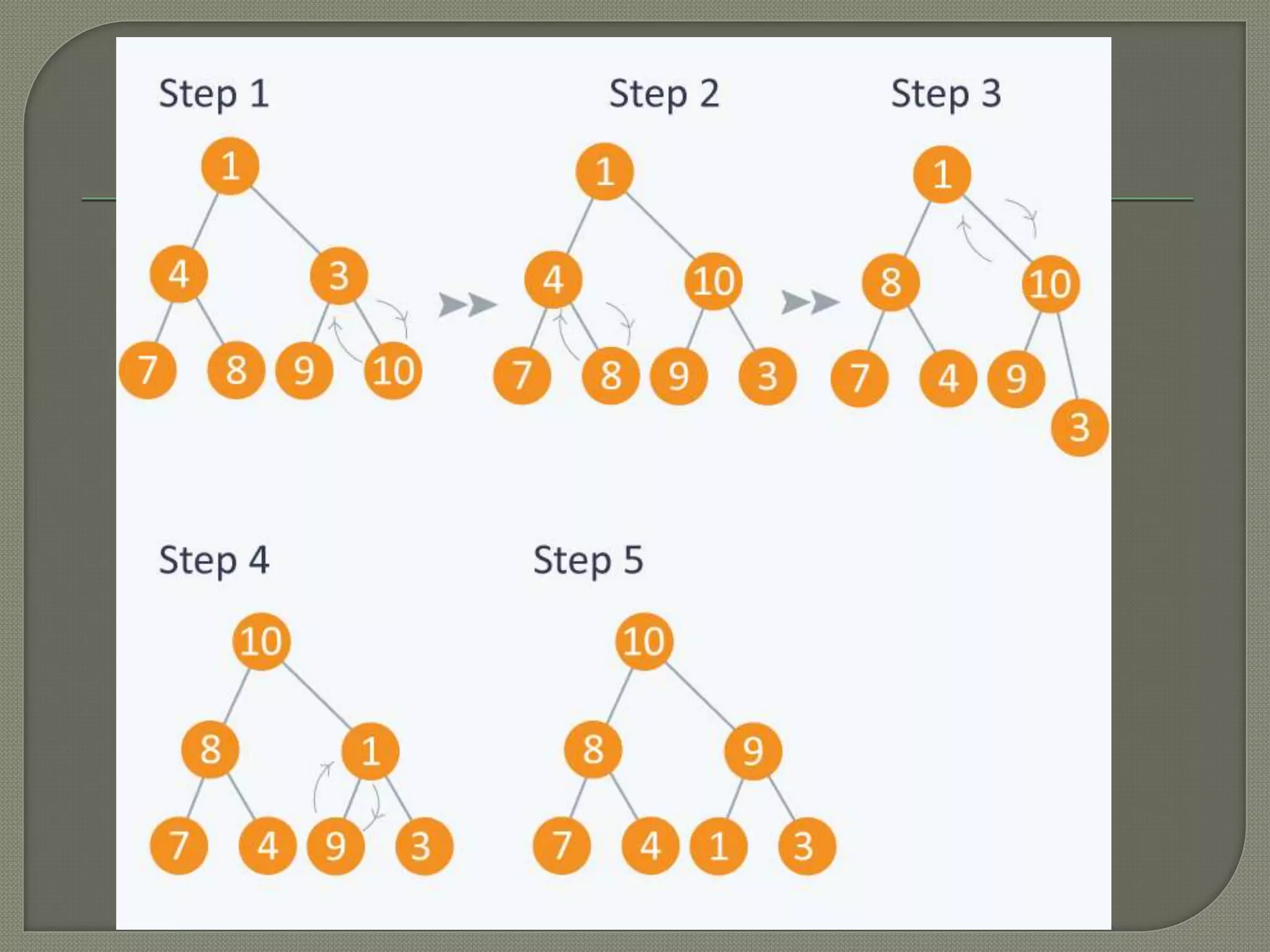

To construct a max heap from tree built
from above sequence we need following
steps:

11. After we obtain the max heap the elements
in array will be as follows:

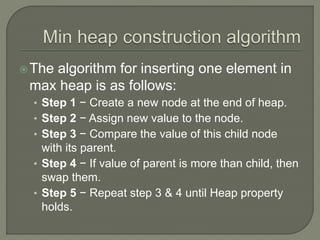

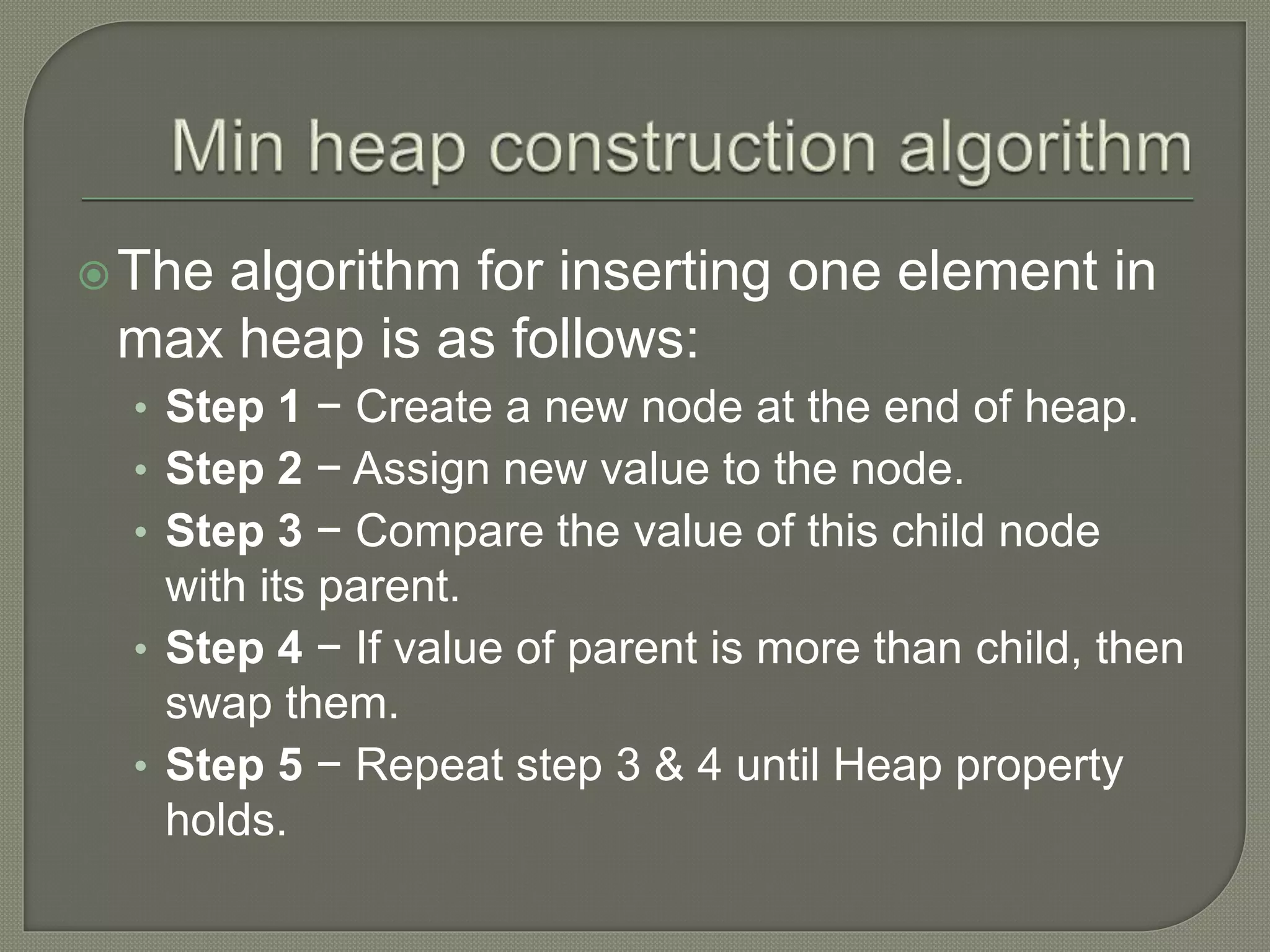

12. The algorithm for inserting one element in
max heap is as follows:
• Step 1 − Create a new node at the end of heap.
• Step 2 − Assign new value to the node.
• Step 3 − Compare the value of this child node
with its parent.
• Step 4 − If value of parent is more than child, then
swap them.
• Step 5 − Repeat step 3 & 4 until Heap property
holds.

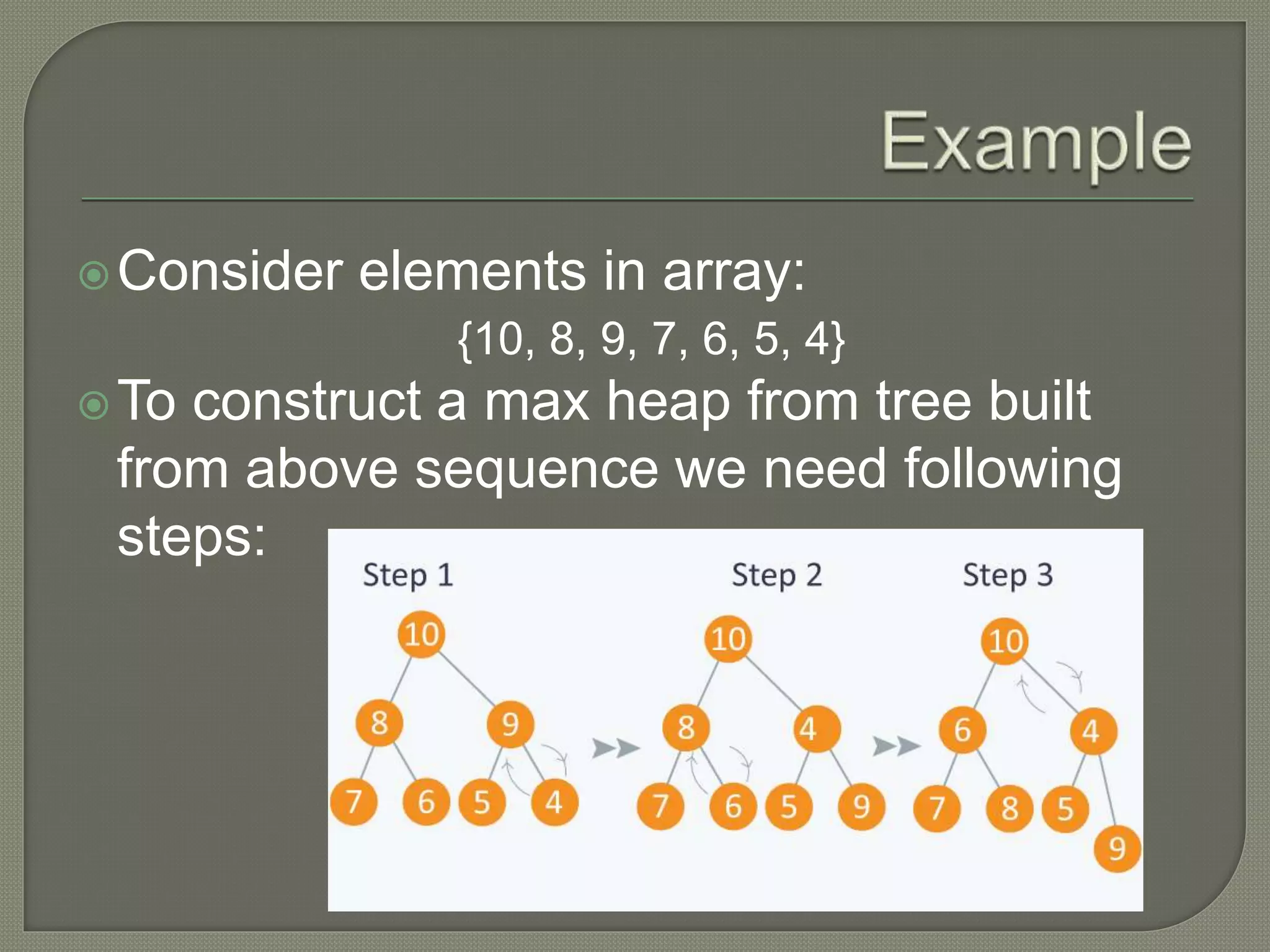

13. Consider elements in array:
{10, 8, 9, 7, 6, 5, 4}

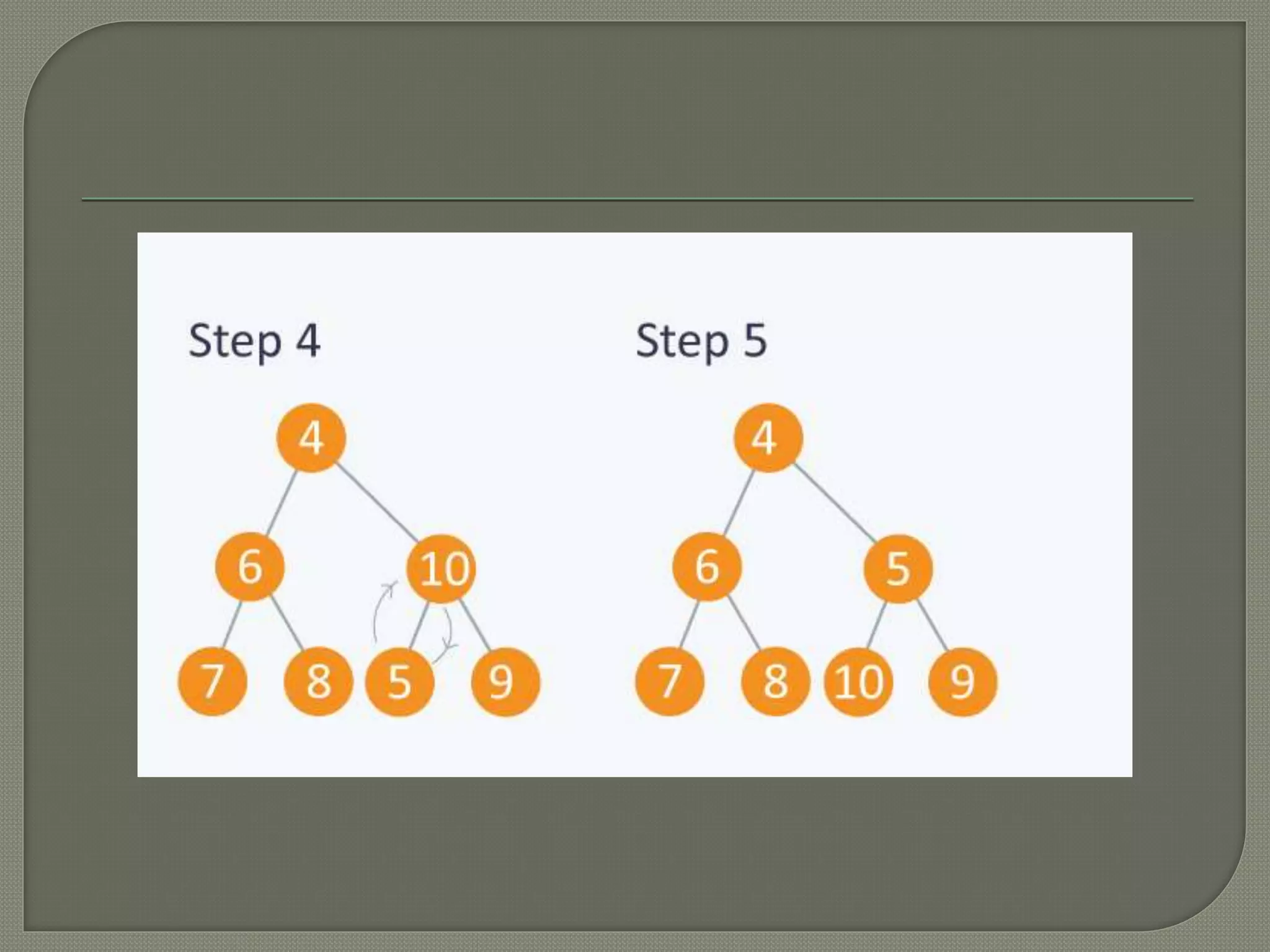

To construct a max heap from tree built
from above sequence we need following
steps:

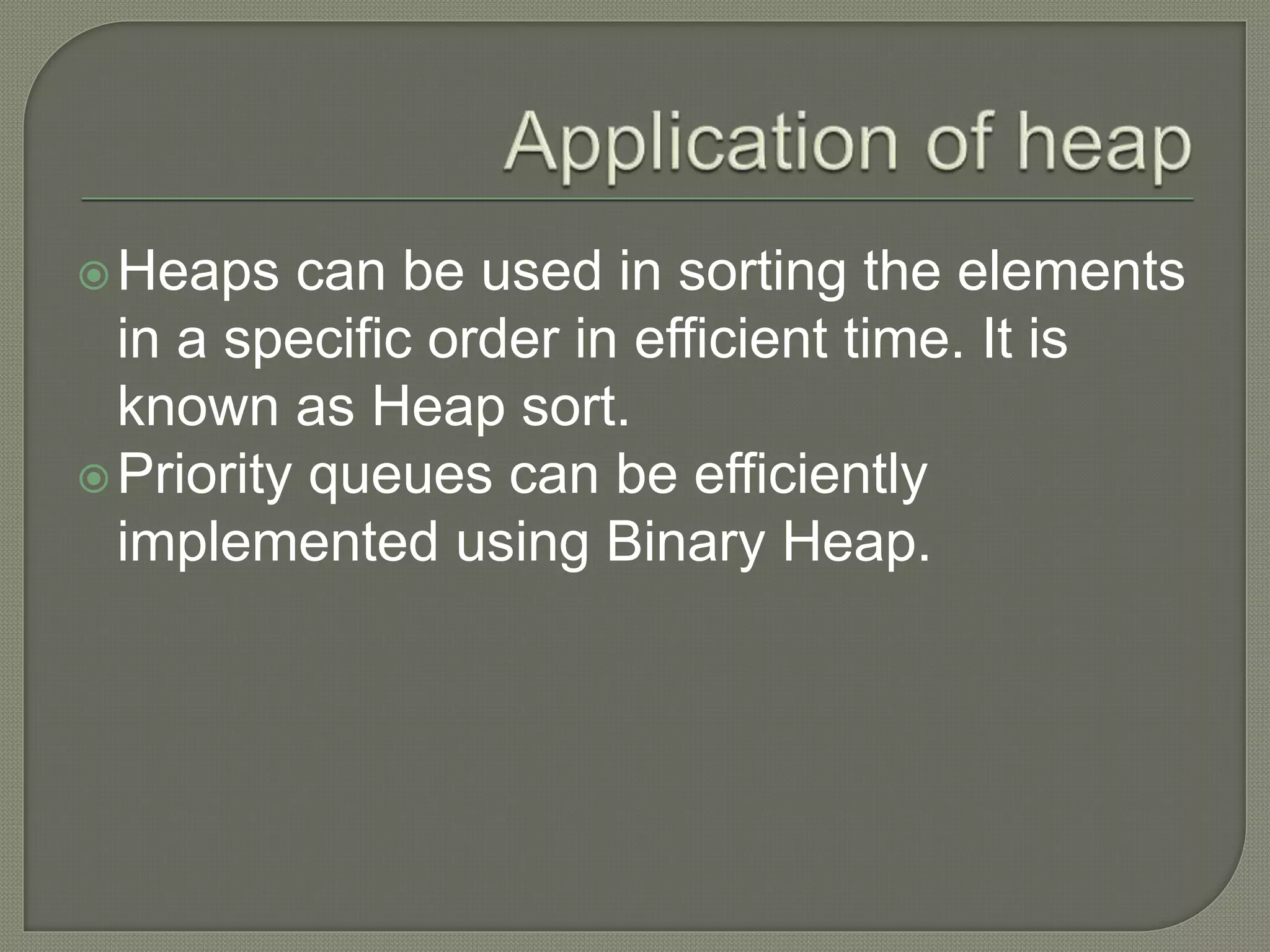

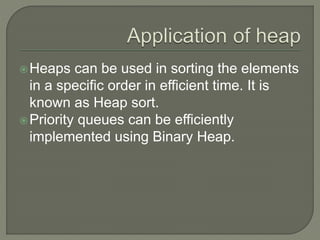

15. Heaps can be used in sorting the elements
in a specific order in efficient time. It is
known as Heap sort.
Priority queues can be efficiently
implemented using Binary Heap.
