1. Ansible
for
Beginners
…?
#pyfes 2013.11 in Tokyo
by @r_rudi(しろう)

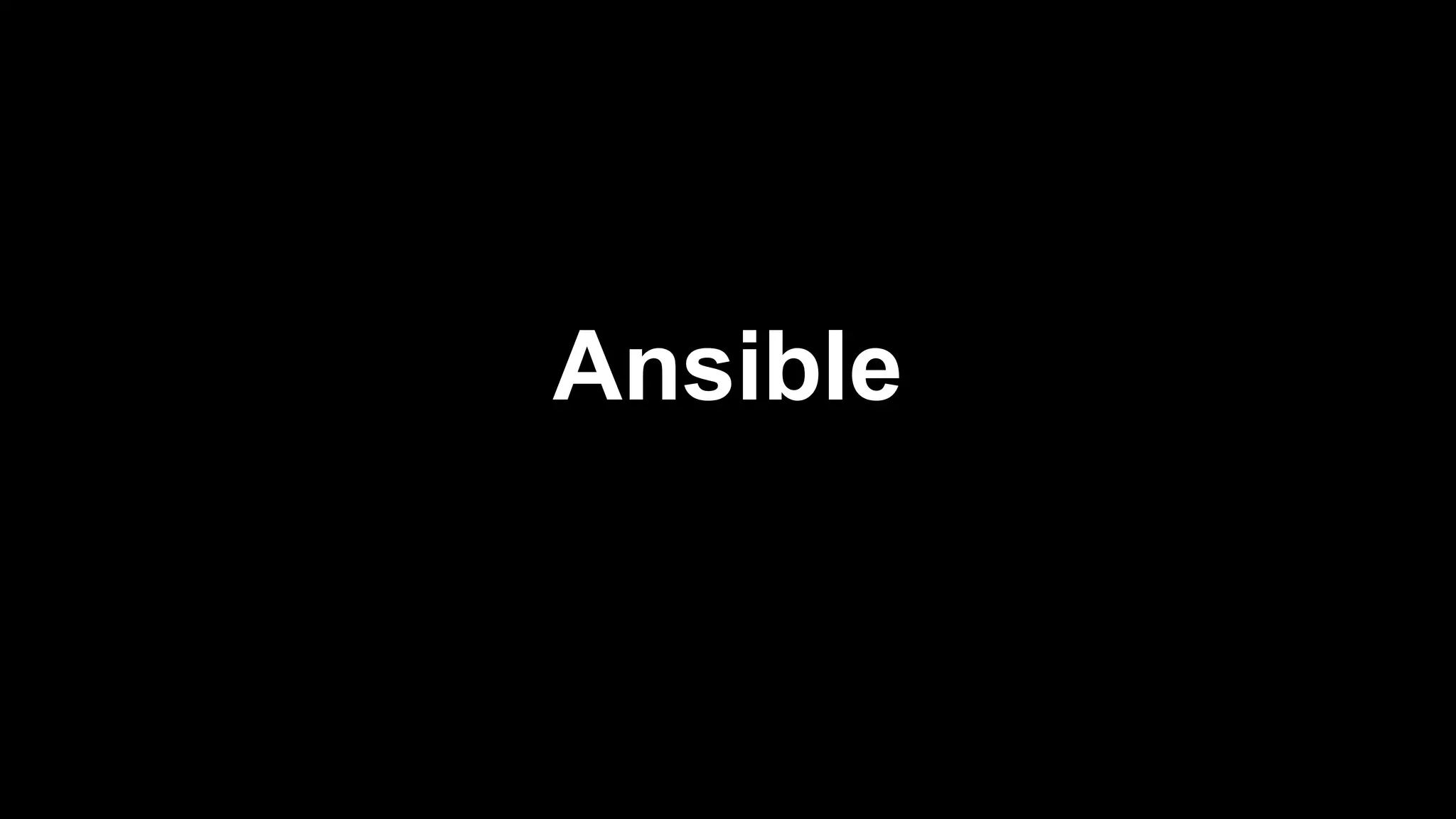

2. Ansible

3. Chef
Puppet
Salt
cfengine
juju
…..

4. Provisioning
Tool

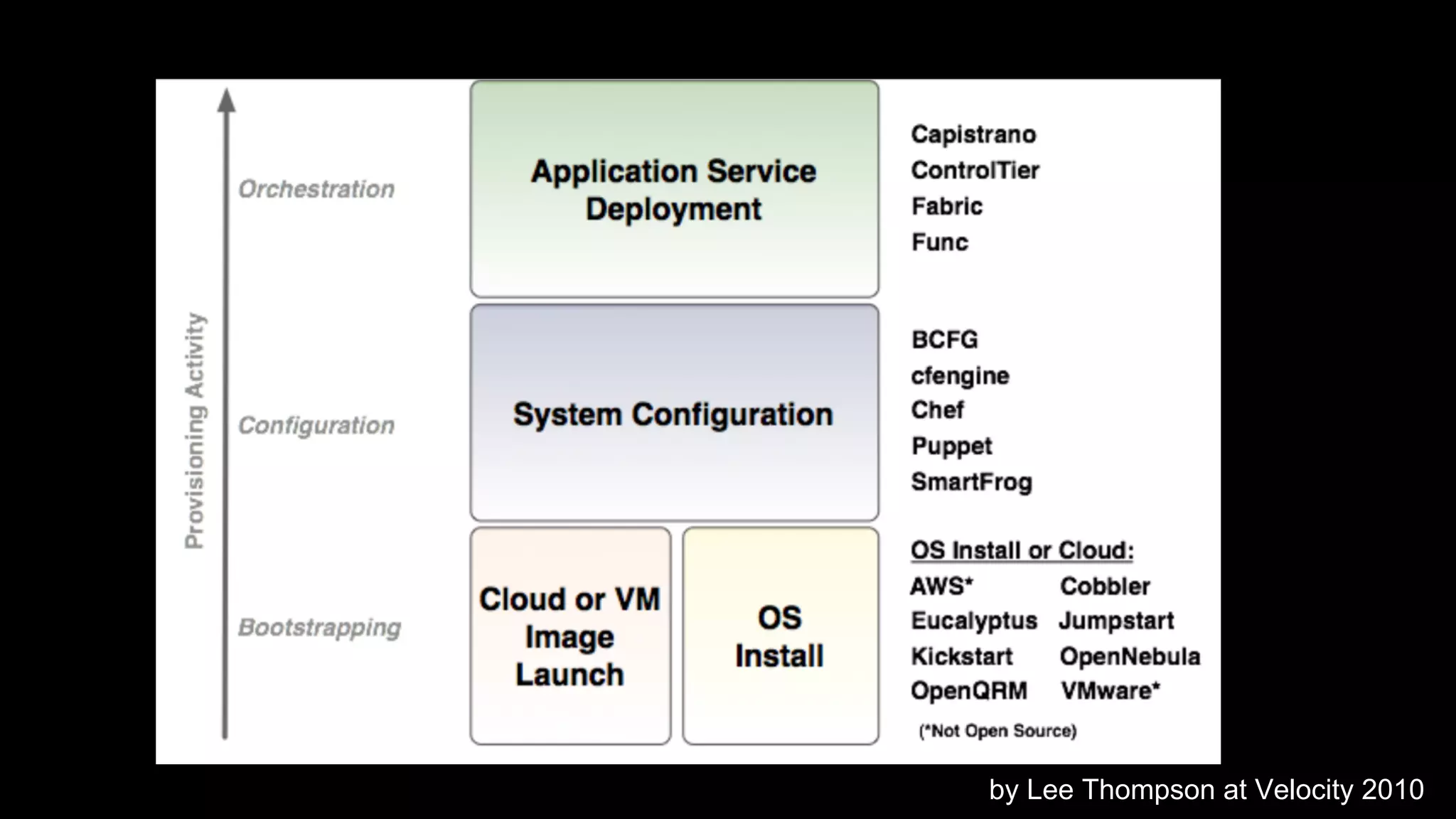

6. by Lee Thompson at Velocity 2010

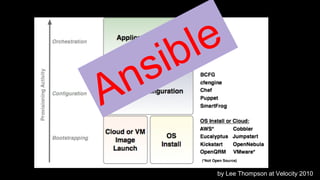

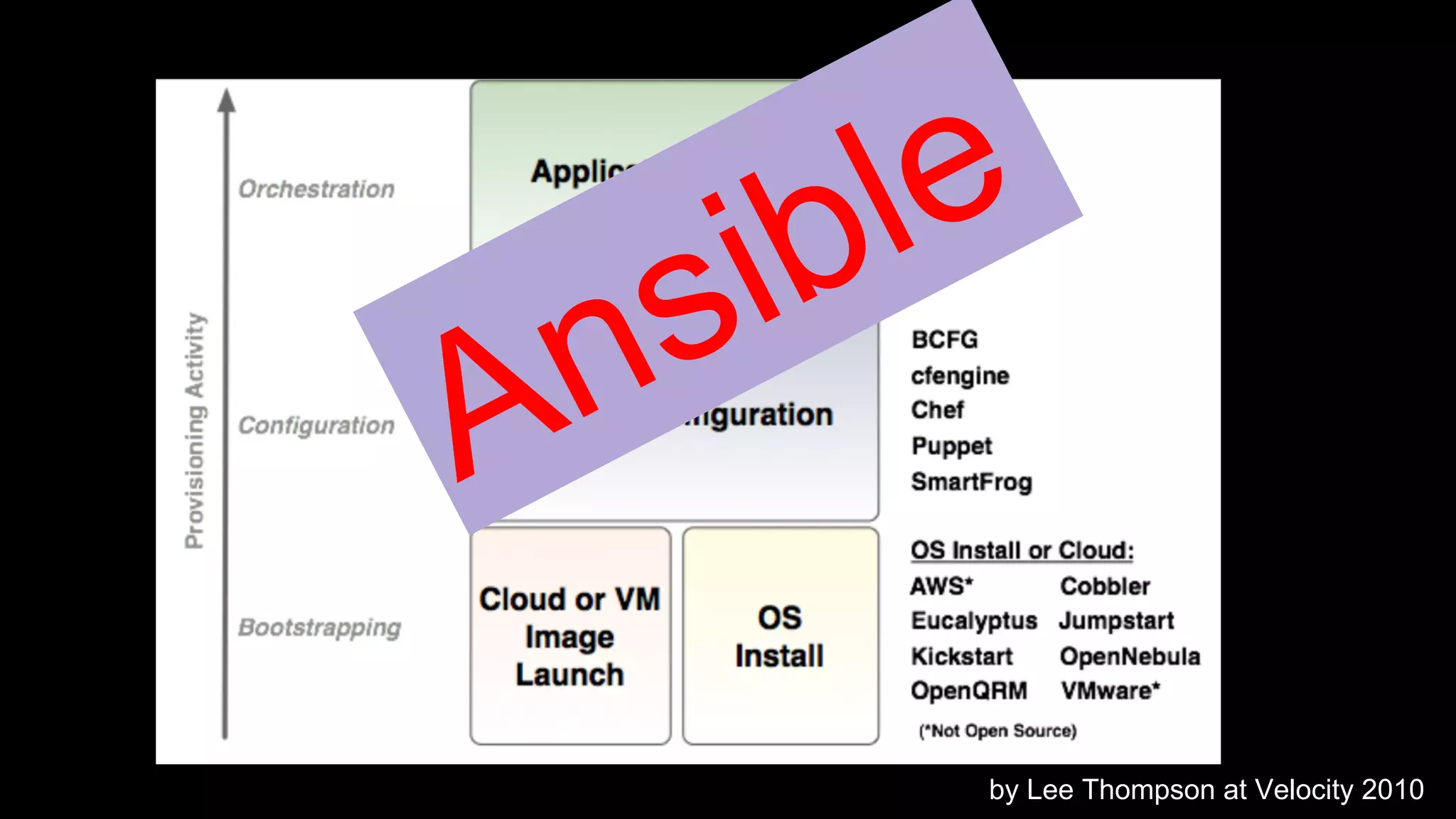

7. s
n
A
le
ib
by Lee Thompson at Velocity 2010

8. Today’s
Assumptions

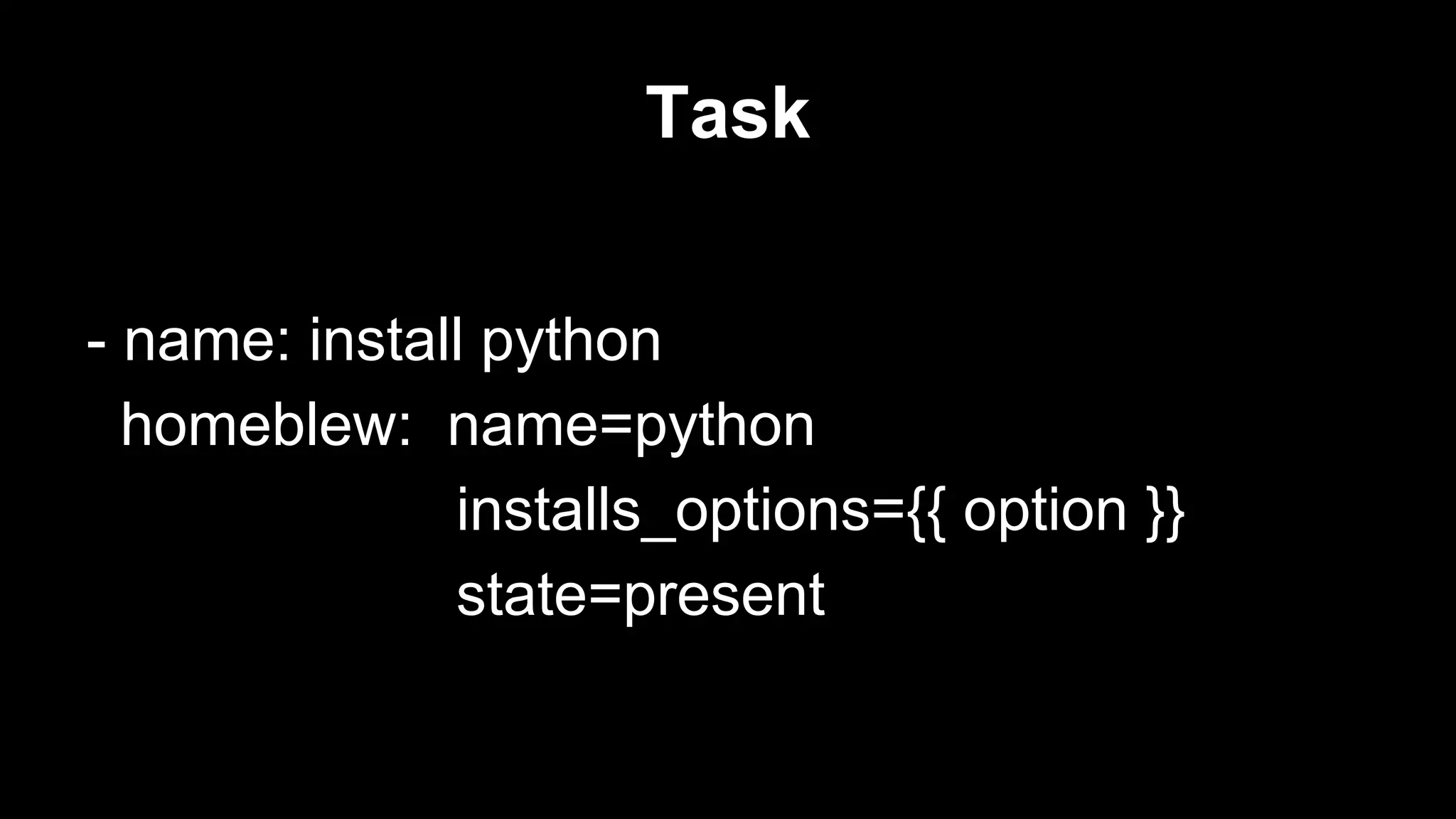

9. Task
- name: install python
homeblew: name=python
installs_options={{ option }}
state=present

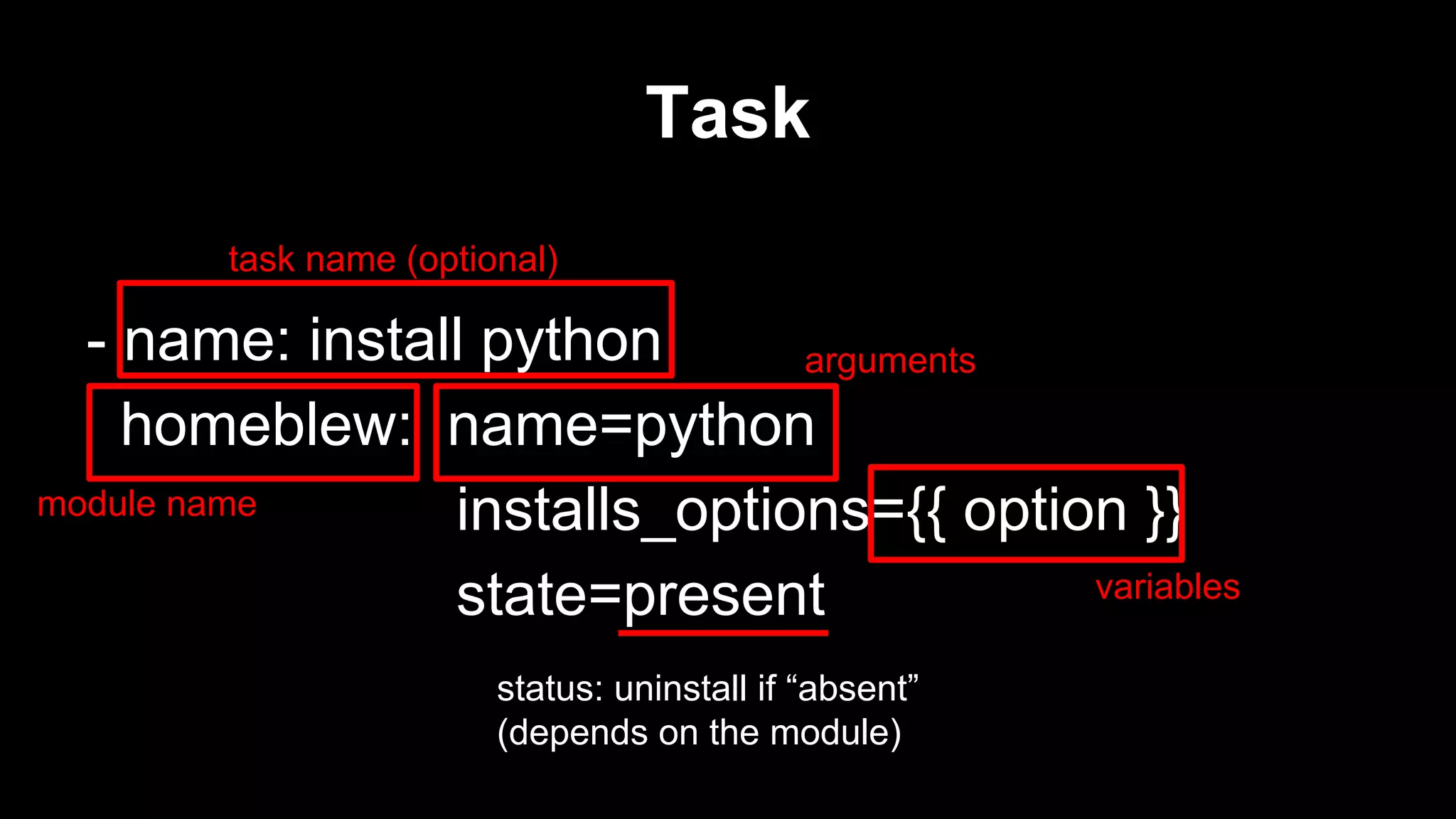

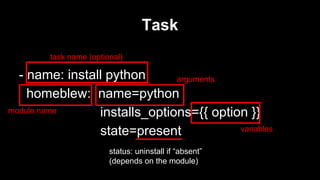

10. Task
task name (optional)
- name: install python
arguments
homeblew: name=python
module name
installs_options={{ option }}
variables
state=present
status: uninstall if “absent”
(depends on the module)

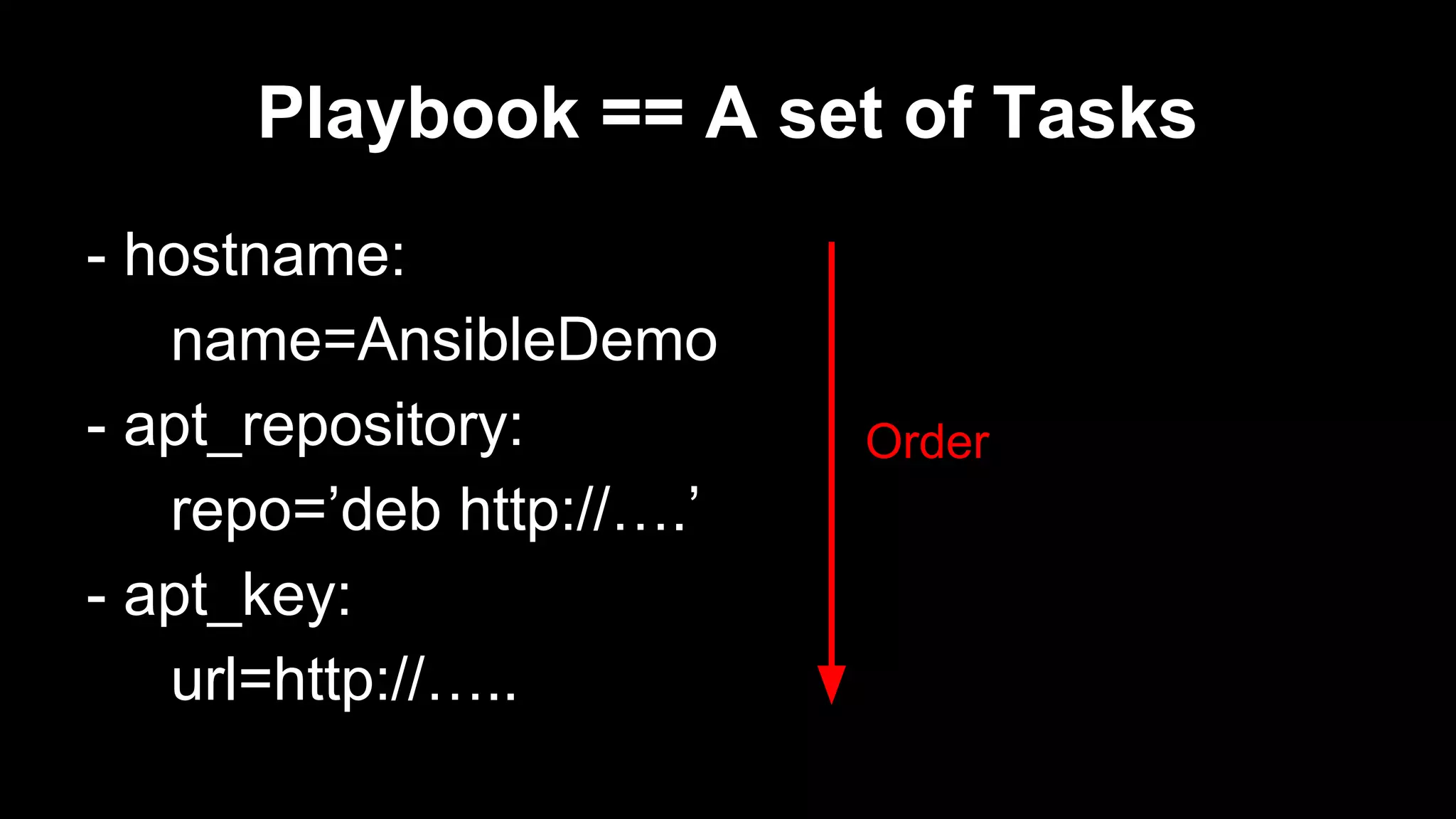

11. Playbook == A set of Tasks
- hostname:
name=AnsibleDemo
- apt_repository:
repo=’deb http://….’
- apt_key:
url=http://…..
Order

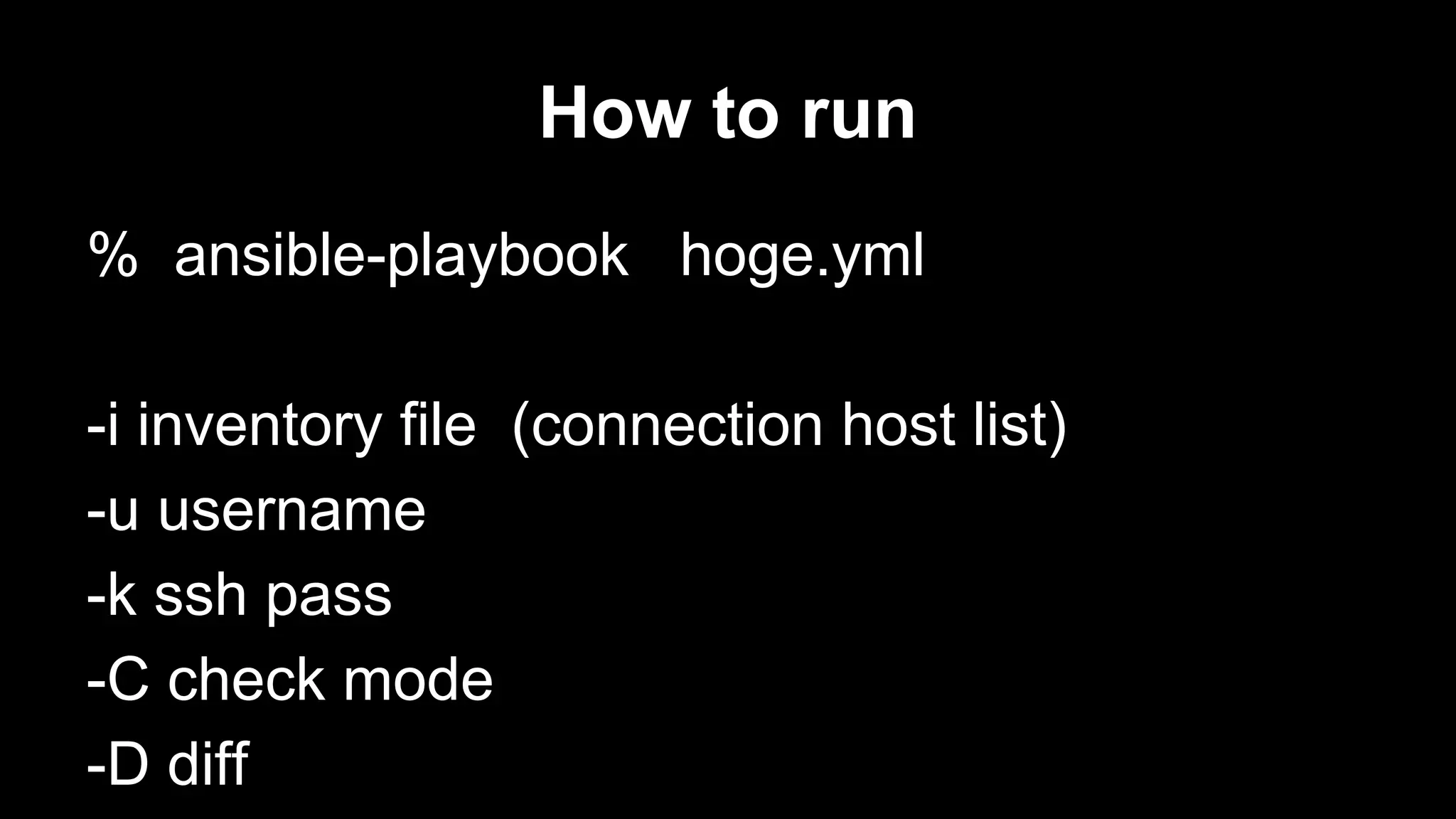

12. How to run
% ansible-playbook hoge.yml
-i inventory file (connection host list)
-u username
-k ssh pass
-C check mode
-D diff

13. OK
Let' Go !

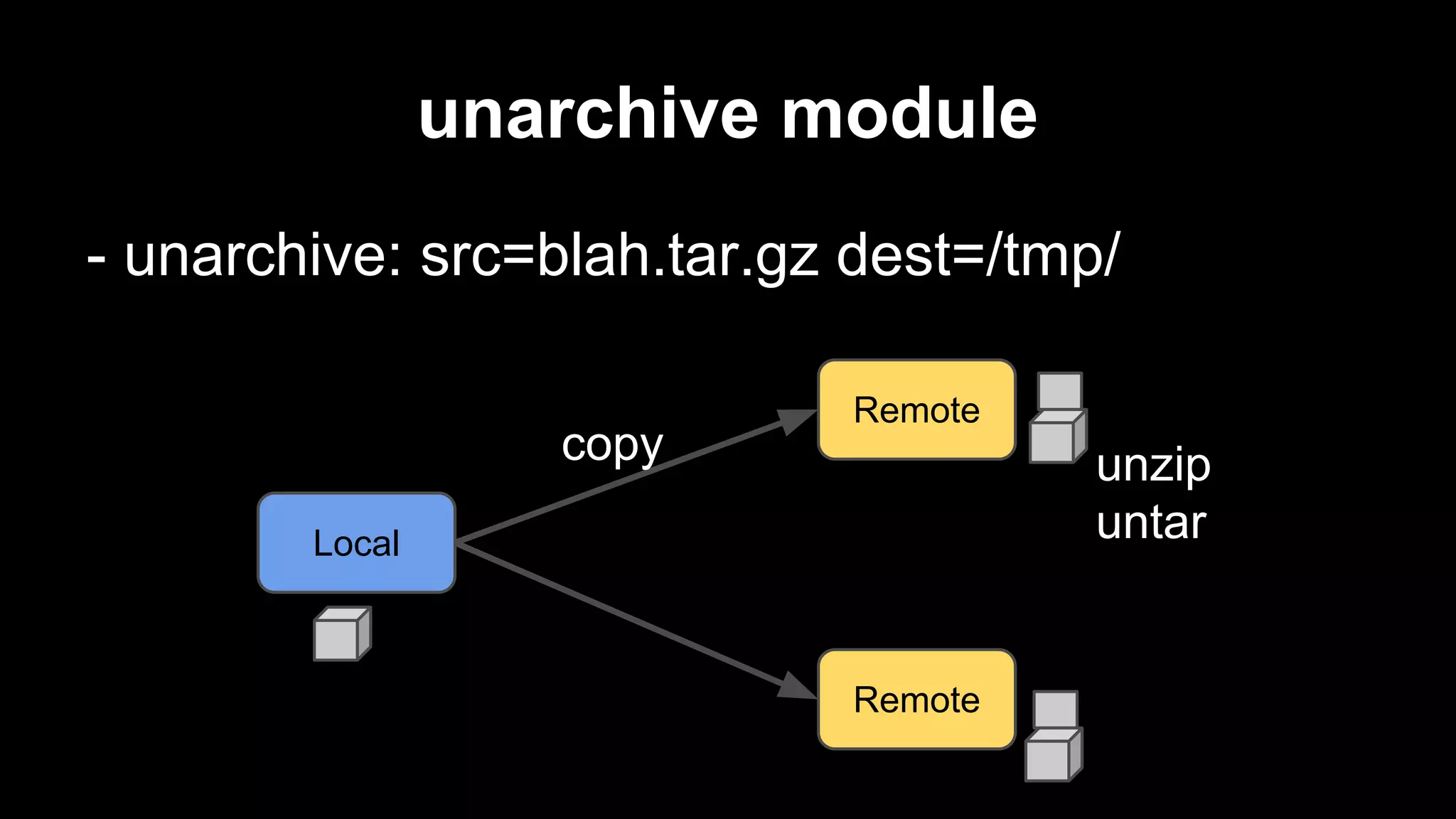

14. unarchive module
- unarchive: src=blah.tar.gz dest=/tmp/
copy
Remote
unzip
untar
Local
Remote

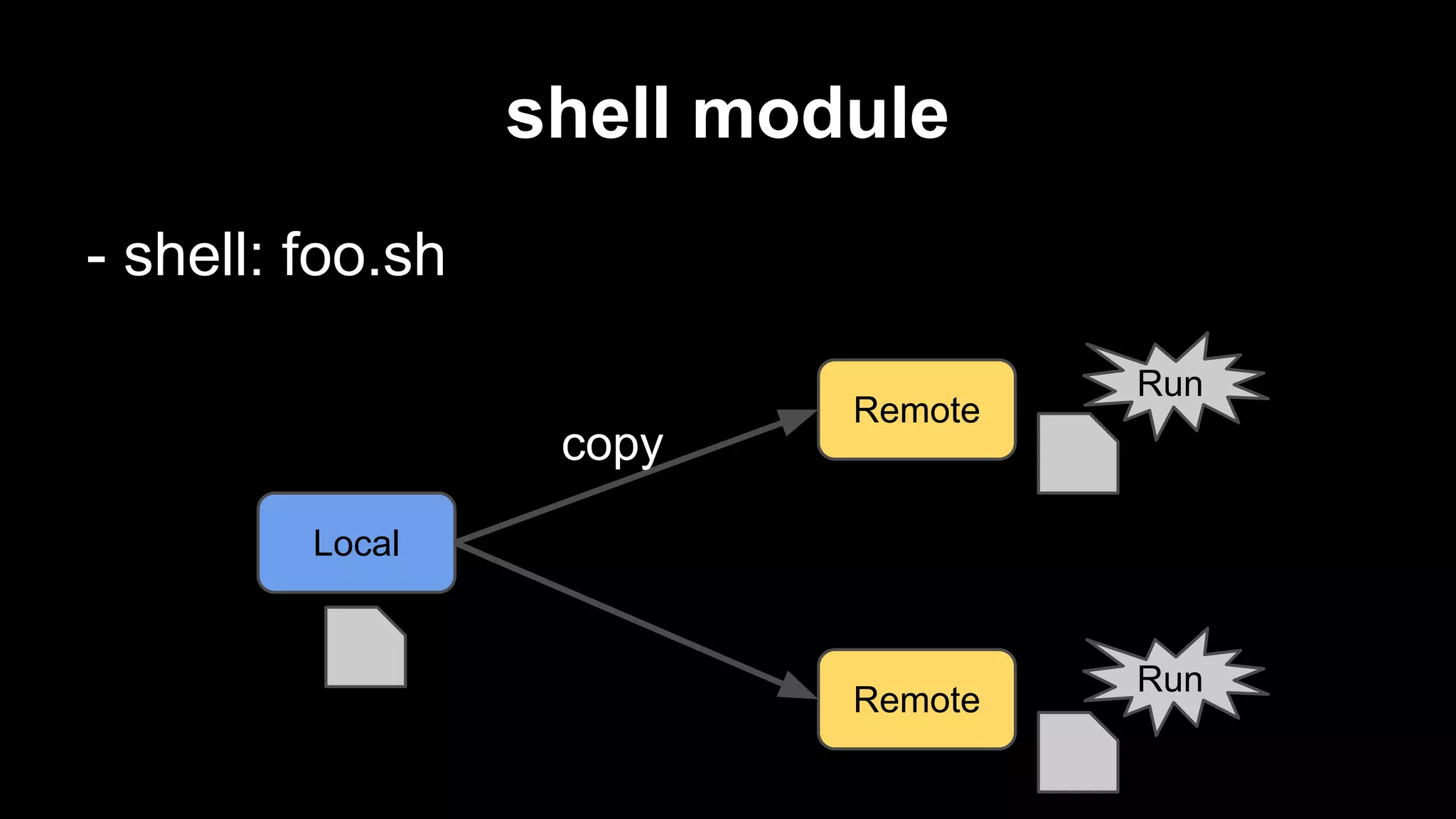

15. shell module
- shell: foo.sh
copy
Remote
Run
Local
Remote
Run

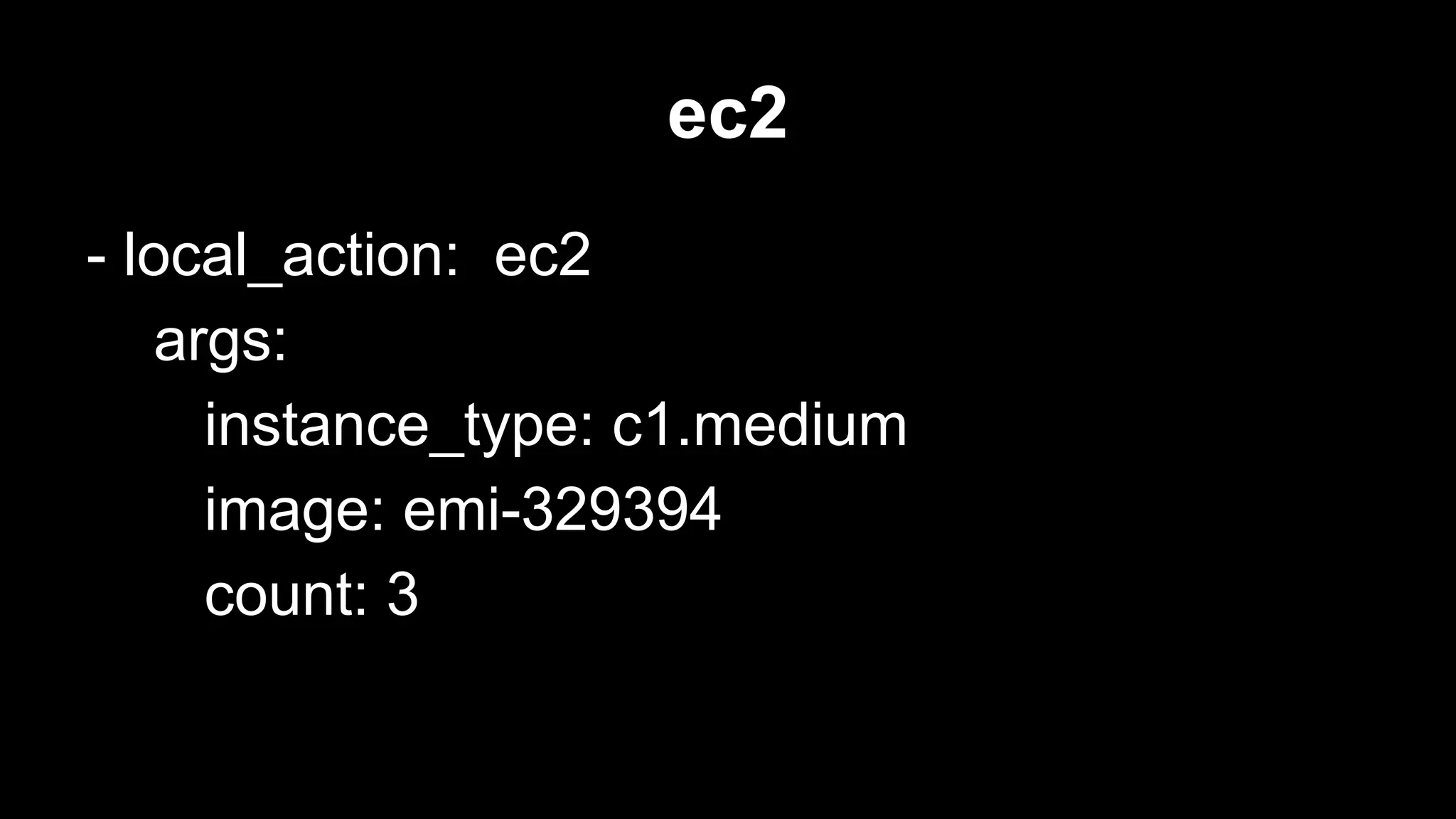

16. ec2
- local_action: ec2
args:
instance_type: c1.medium
image: emi-329394
count: 3

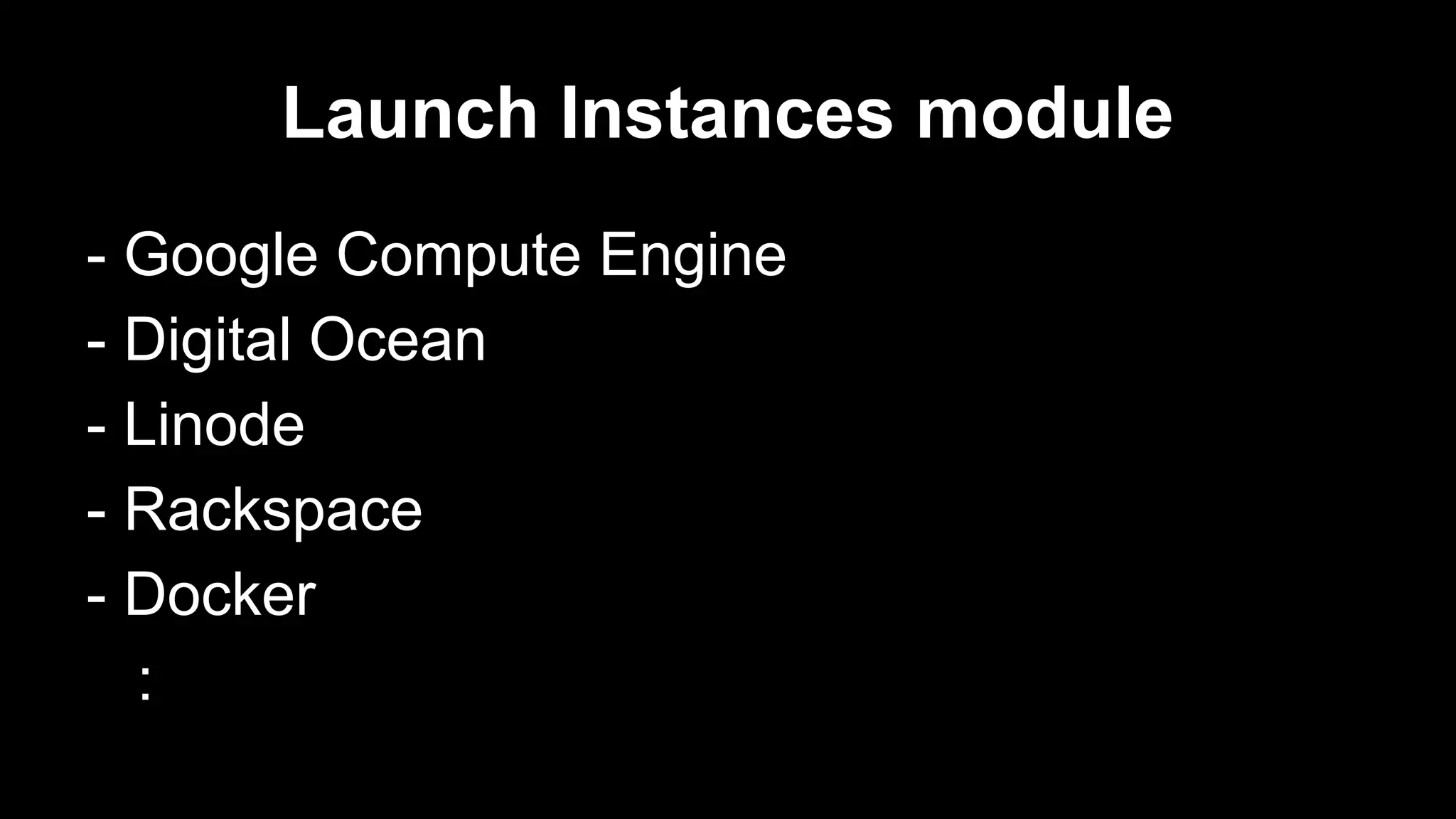

17. Launch Instances module
- Google Compute Engine
- Digital Ocean
- Linode
- Rackspace
- Docker
:

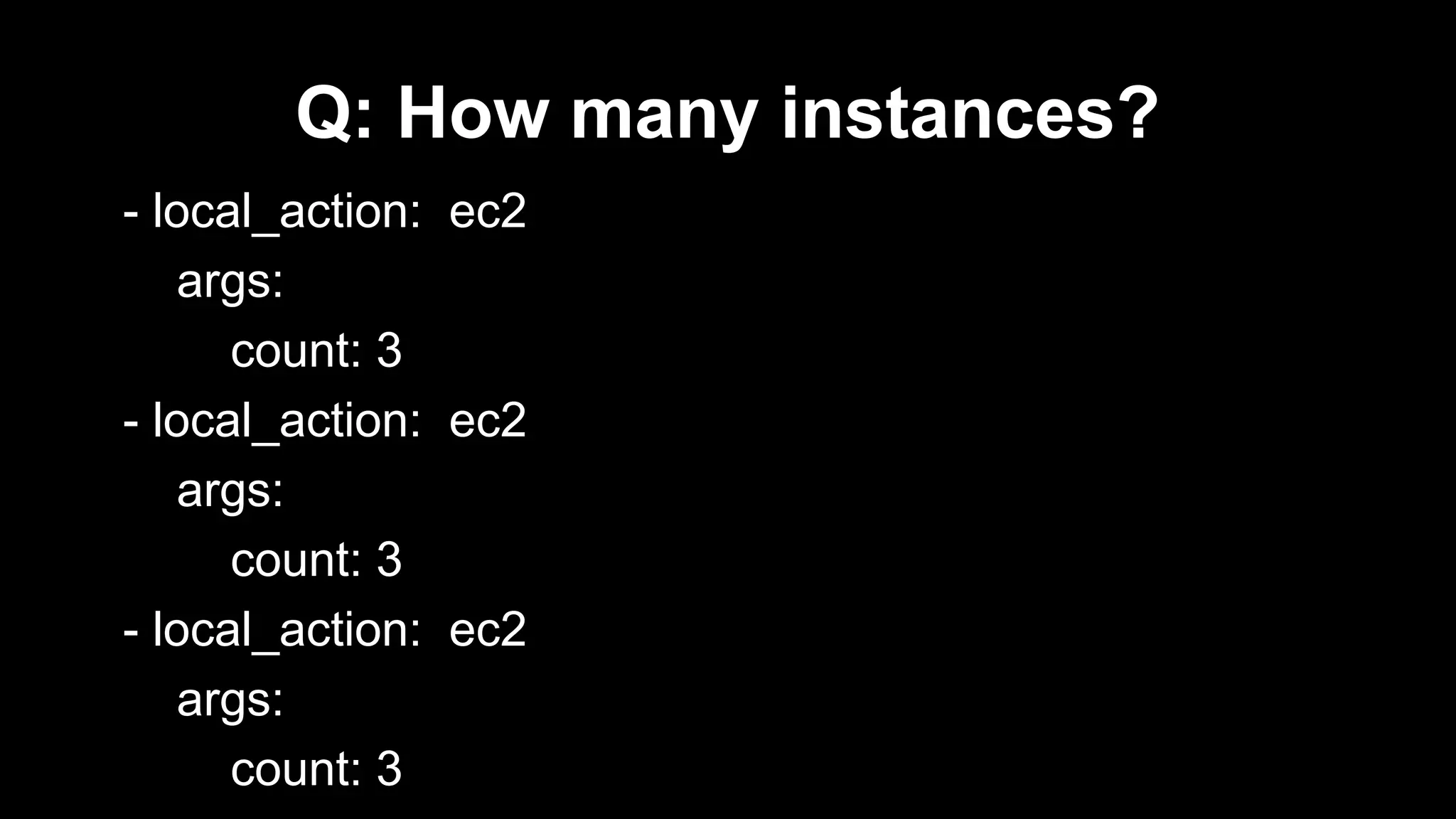

18. Q: How many instances?
- local_action: ec2
args:
count: 3
- local_action: ec2
args:
count: 3
- local_action: ec2
args:
count: 3

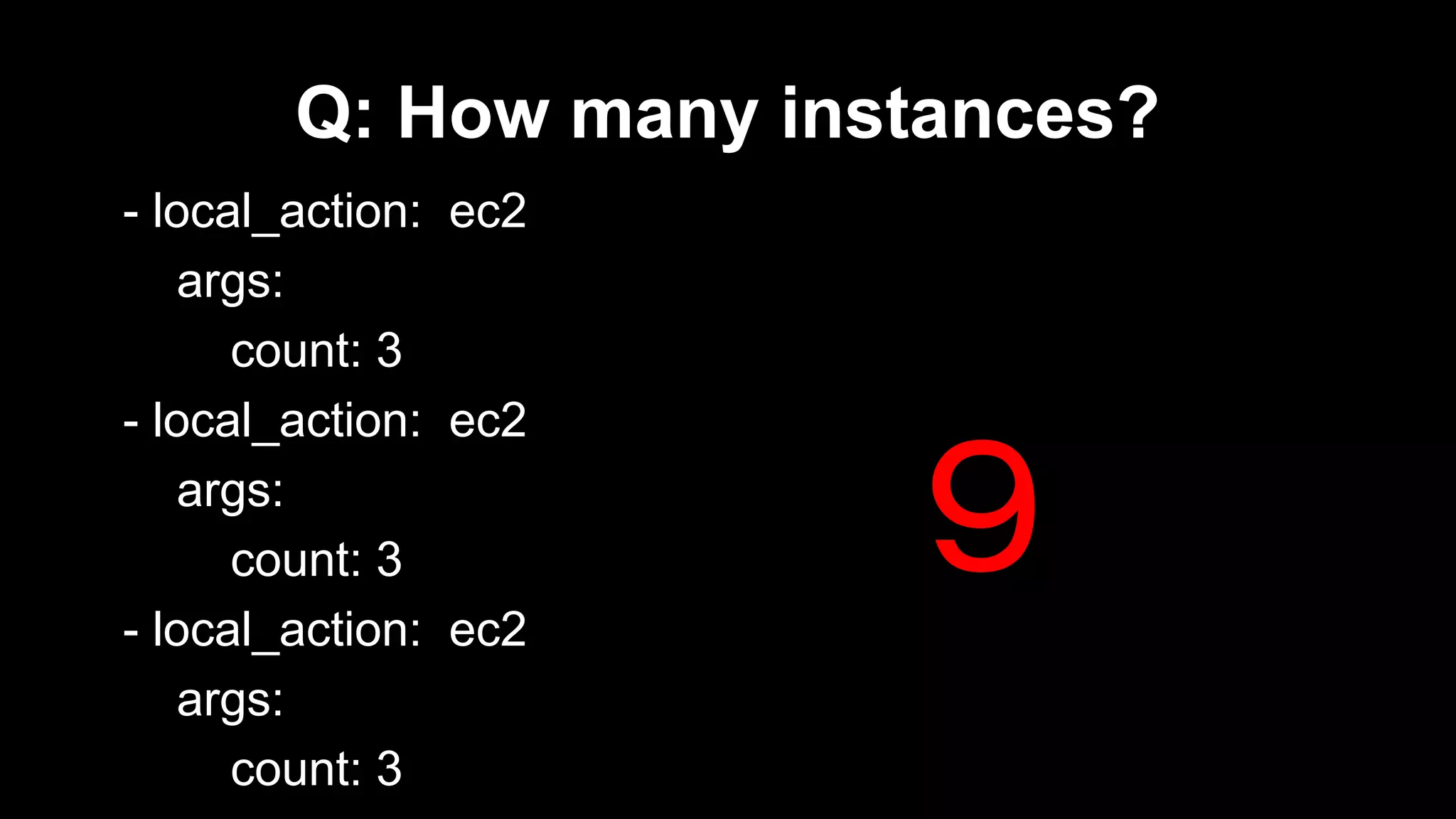

19. Q: How many instances?
- local_action: ec2
args:
count: 3
- local_action: ec2
args:
count: 3
- local_action: ec2
args:
count: 3
９

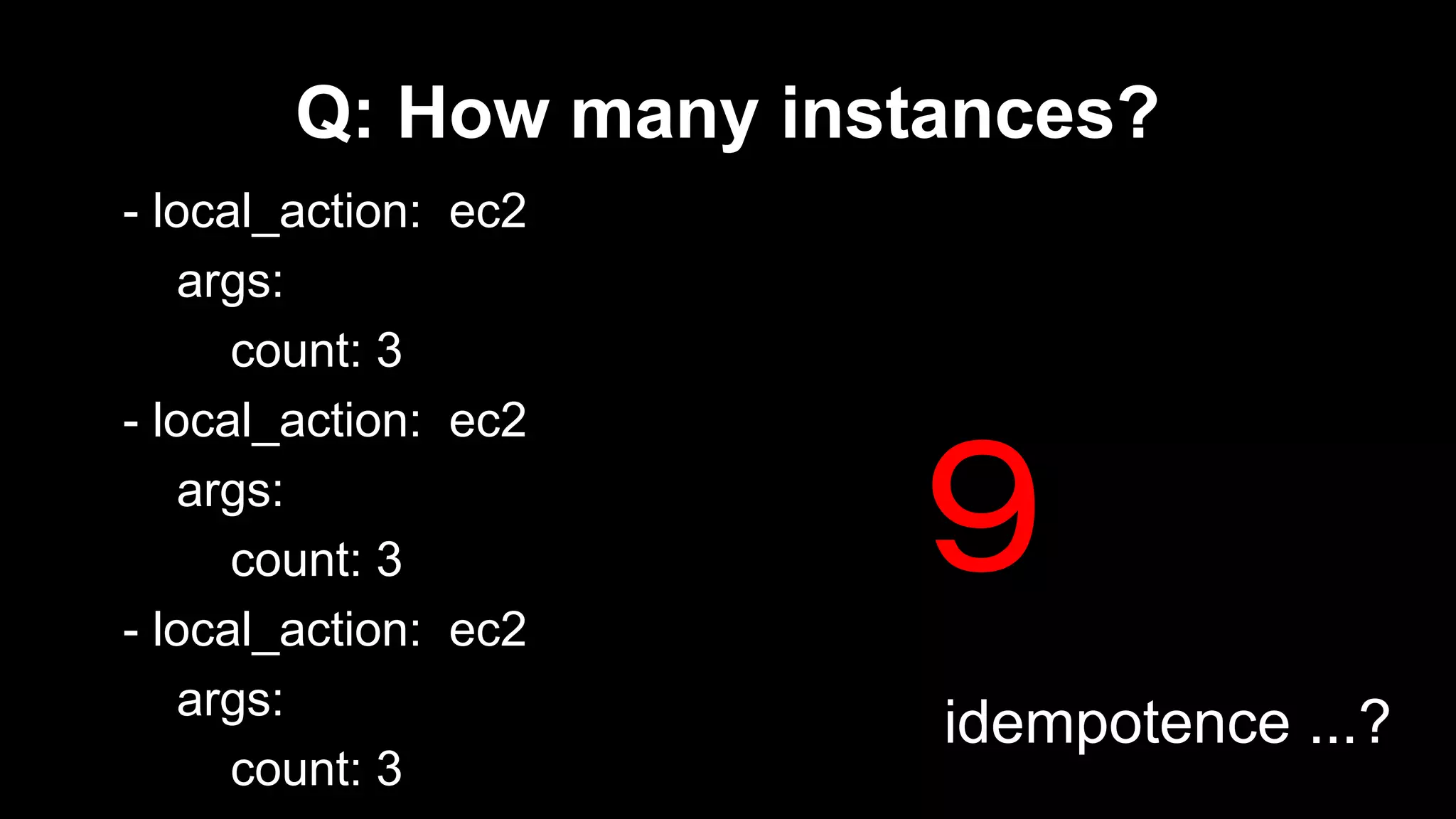

20. Q: How many instances?
- local_action: ec2
args:
count: 3
- local_action: ec2
args:
count: 3
- local_action: ec2
args:
count: 3
９
idempotence ...?

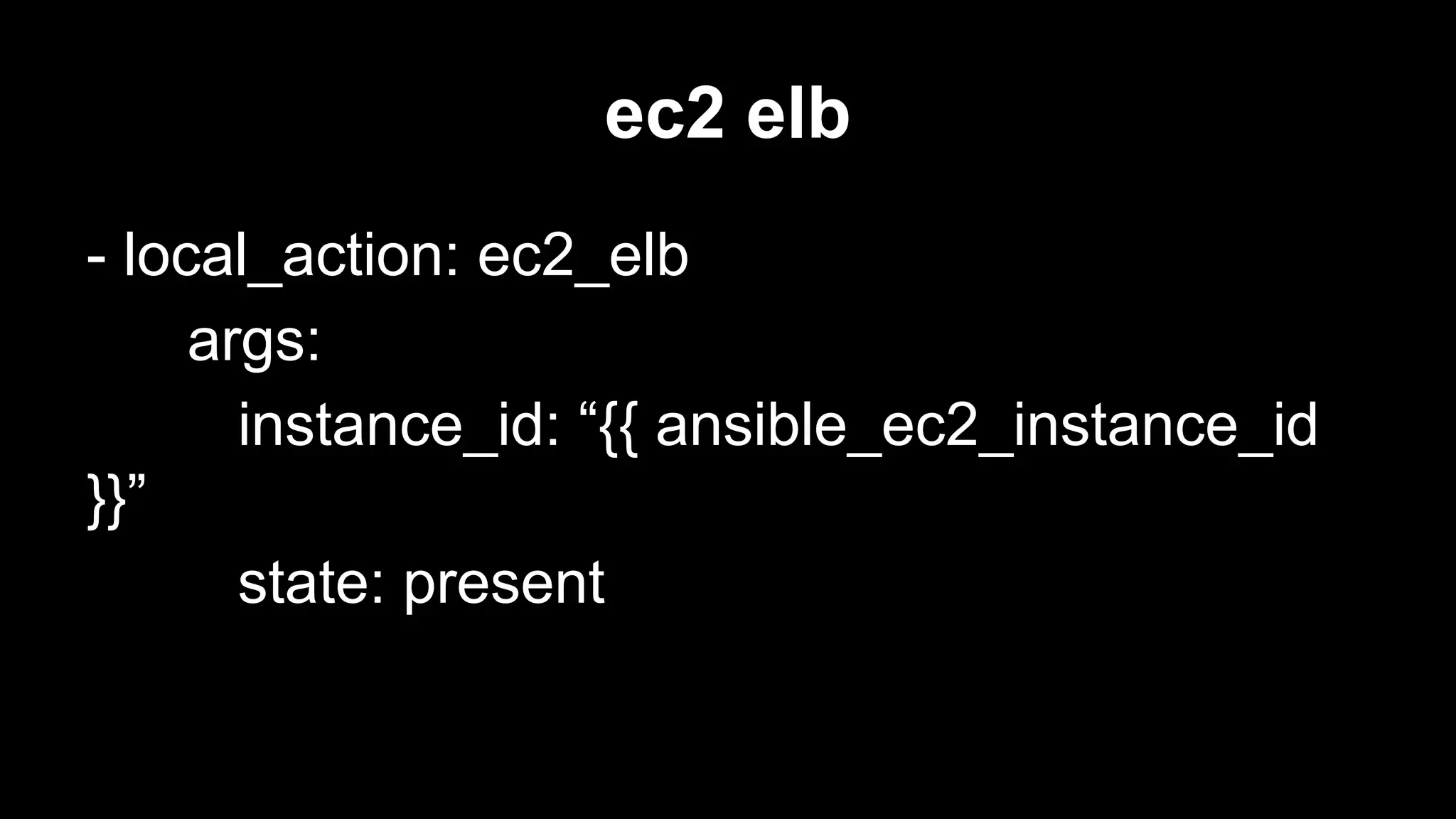

21. ec2 elb
- local_action: ec2_elb
args:
instance_id: “{{ ansible_ec2_instance_id
}}”
state: present

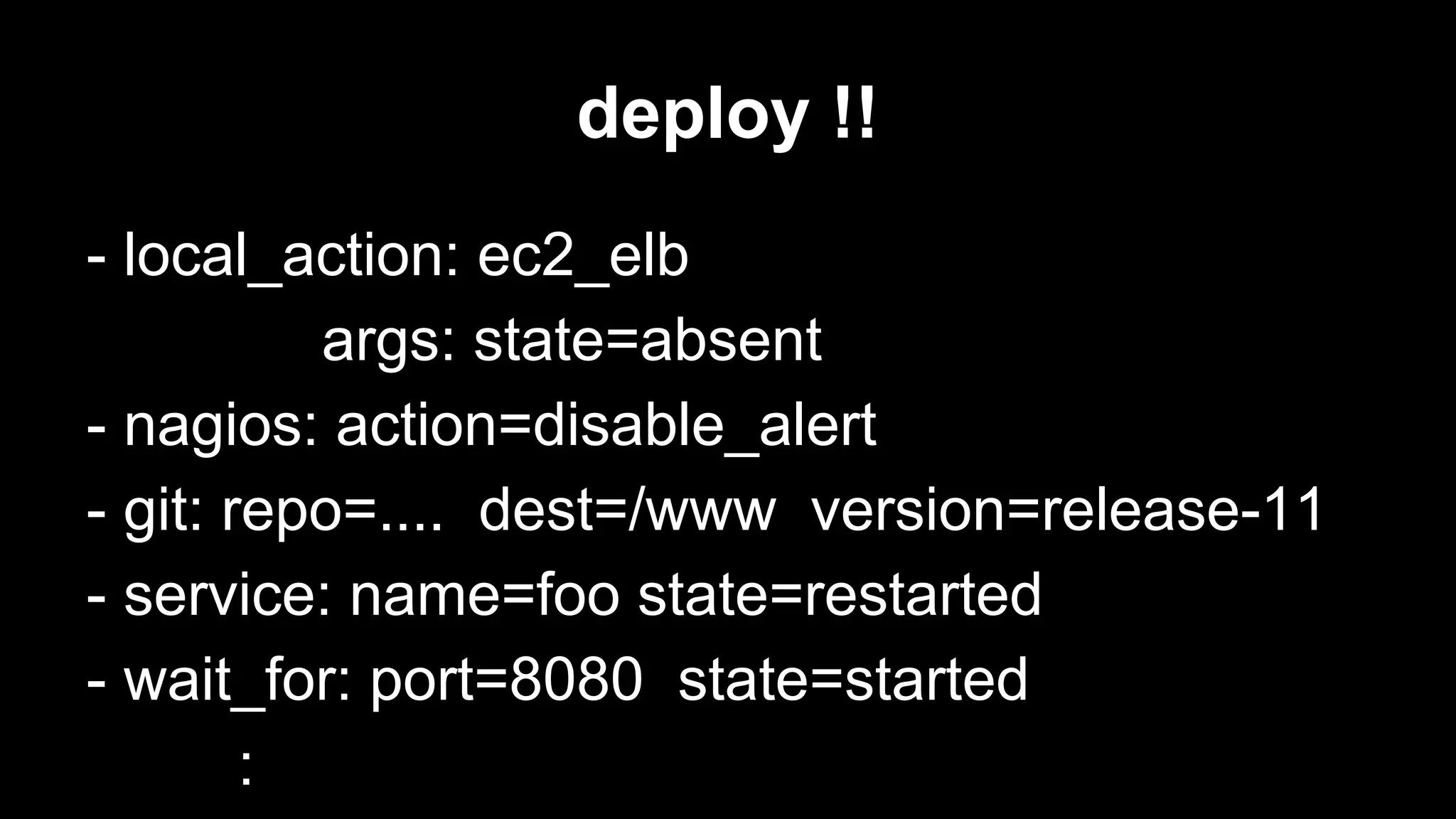

22. deploy !!
- local_action: ec2_elb
args: state=absent
- nagios: action=disable_alert
- git: repo=.... dest=/www version=release-11
- service: name=foo state=restarted
- wait_for: port=8080 state=started
:

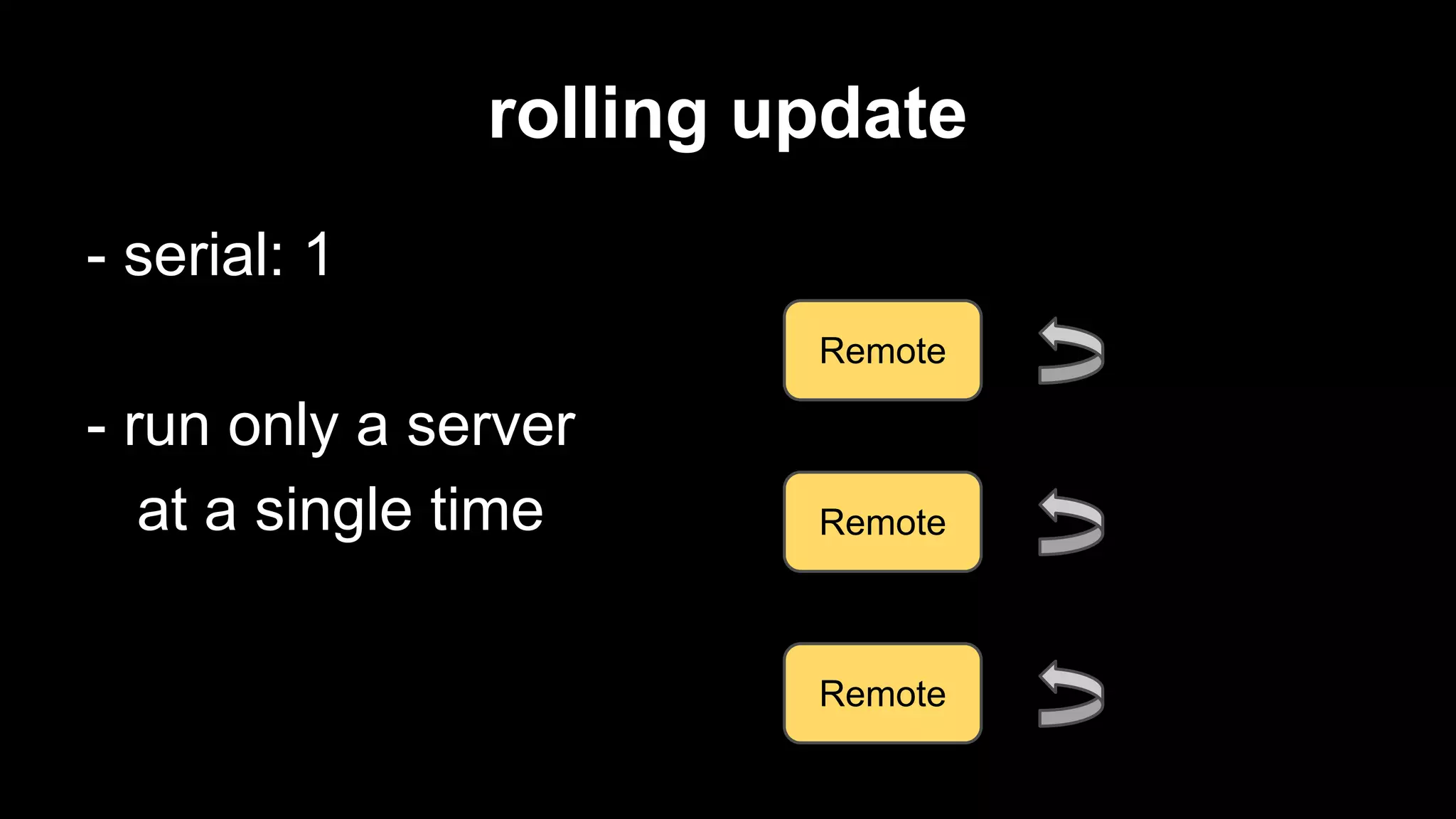

23. rolling update
- serial: 1
Remote
- run only a server
at a single time
Remote
Remote

24. Python API
cause this is #pyfes

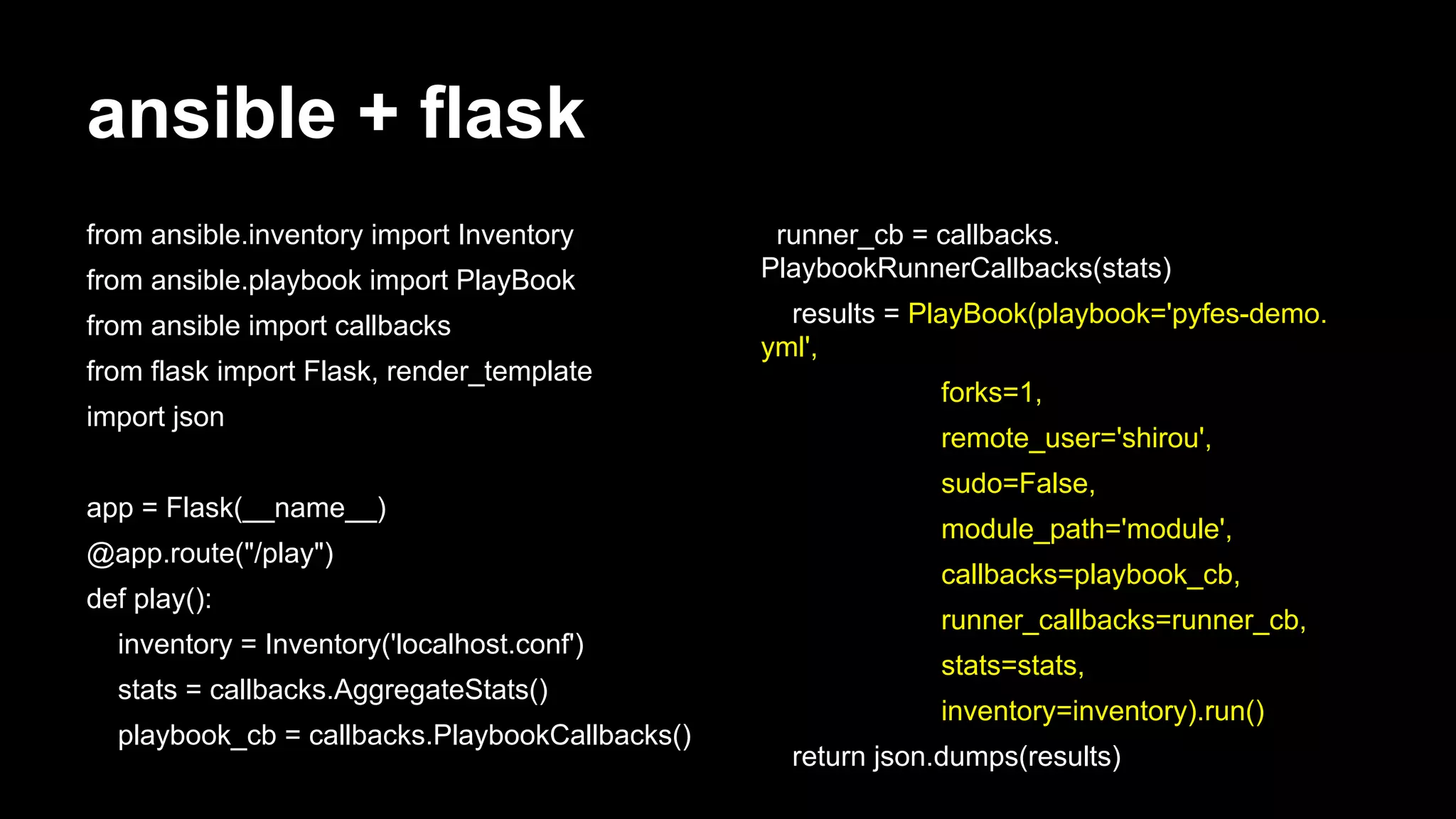

25. ansible + flask
from ansible.inventory import Inventory
from ansible.playbook import PlayBook
from ansible import callbacks
from flask import Flask, render_template
import json
app = Flask(__name__)
@app.route("/play")
def play():
inventory = Inventory('localhost.conf')
stats = callbacks.AggregateStats()
playbook_cb = callbacks.PlaybookCallbacks()
runner_cb = callbacks.
PlaybookRunnerCallbacks(stats)
results = PlayBook(playbook='pyfes-demo.
yml',
forks=1,
remote_user='shirou',
sudo=False,
module_path='module',
callbacks=playbook_cb,
runner_callbacks=runner_cb,
stats=stats,
inventory=inventory).run()
return json.dumps(results)

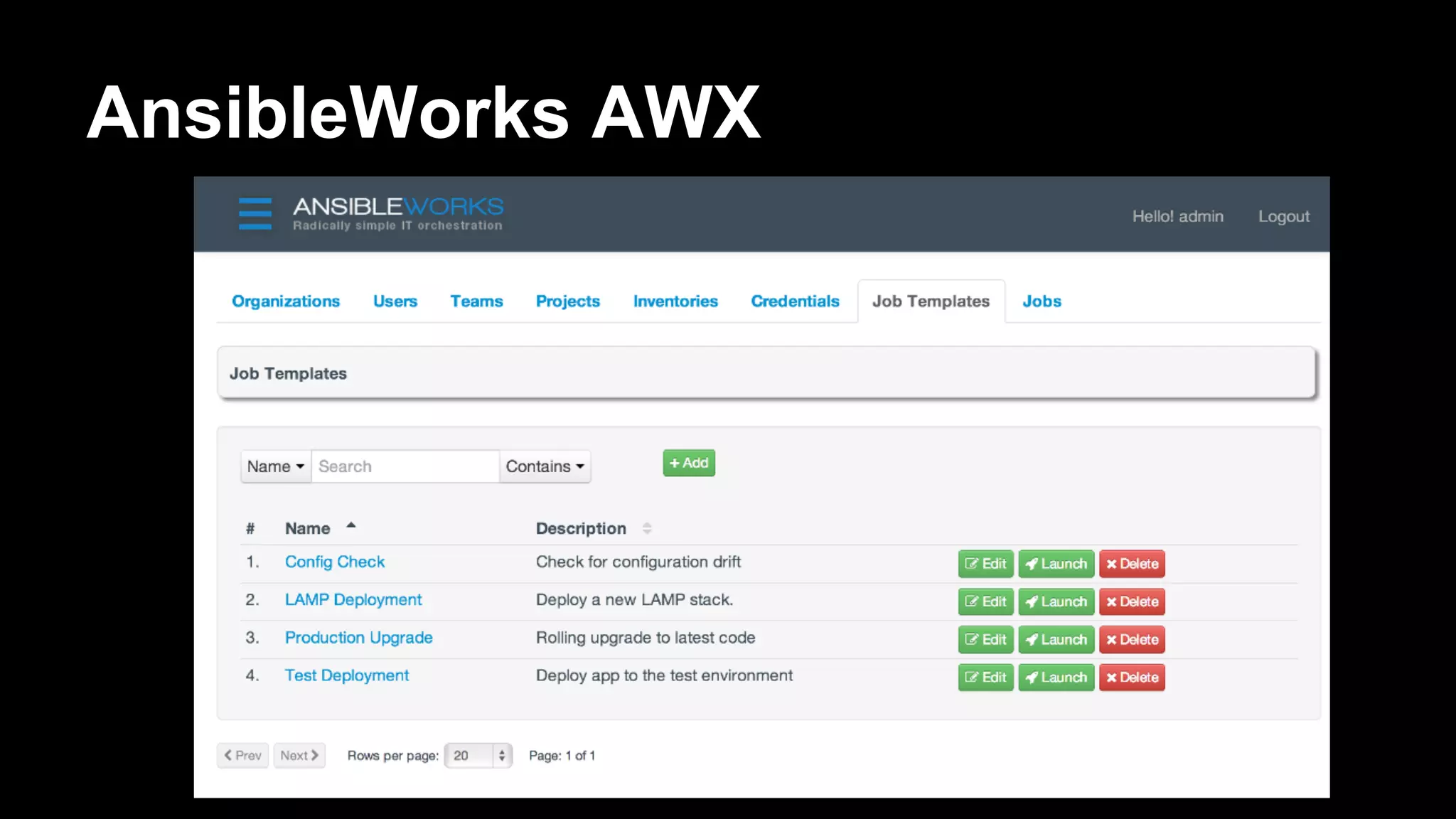

26. AnsibleWorks AWX

27. Demo
or Die

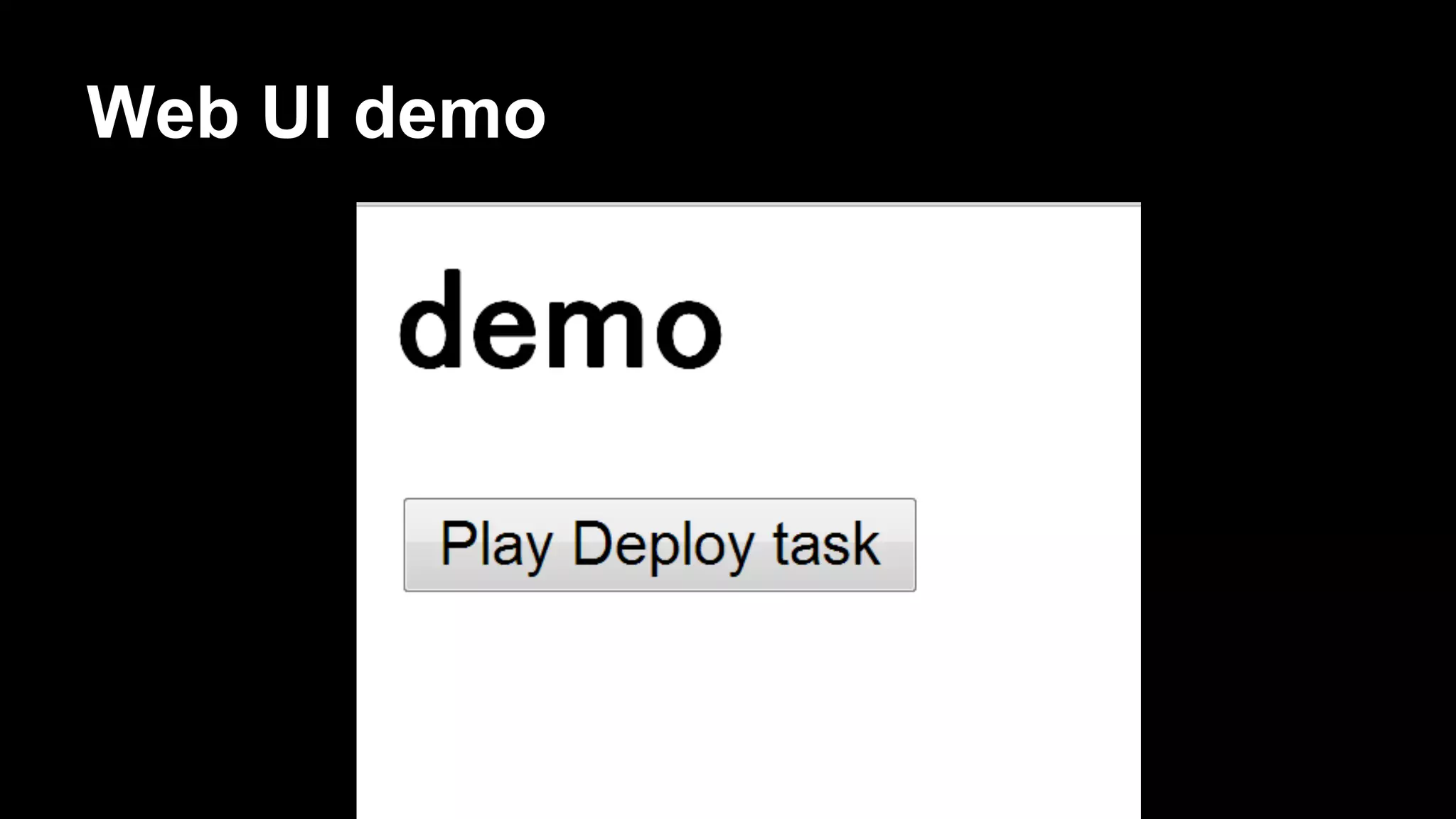

28. Web UI demo

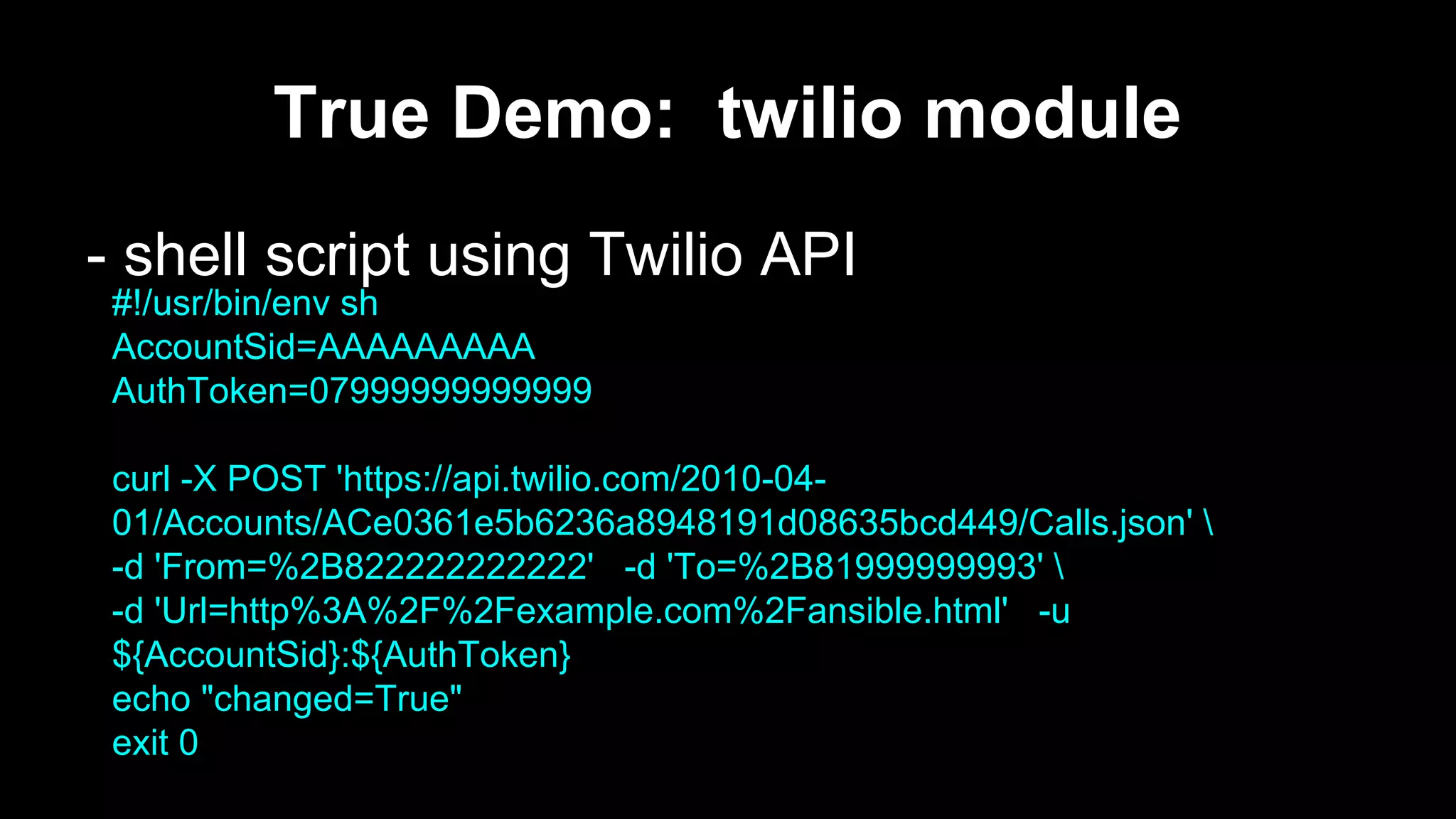

29. True Demo: twilio module
- shell script using Twilio API
#!/usr/bin/env sh
AccountSid=AAAAAAAAA
AuthToken=07999999999999
curl -X POST 'https://api.twilio.com/2010-0401/Accounts/ACe0361e5b6236a8948191d08635bcd449/Calls.json'
-d 'From=%2B822222222222' -d 'To=%2B81999999993'
-d 'Url=http%3A%2F%2Fexample.com%2Fansible.html' -u
${AccountSid}:${AuthToken}
echo "changed=True"
exit 0

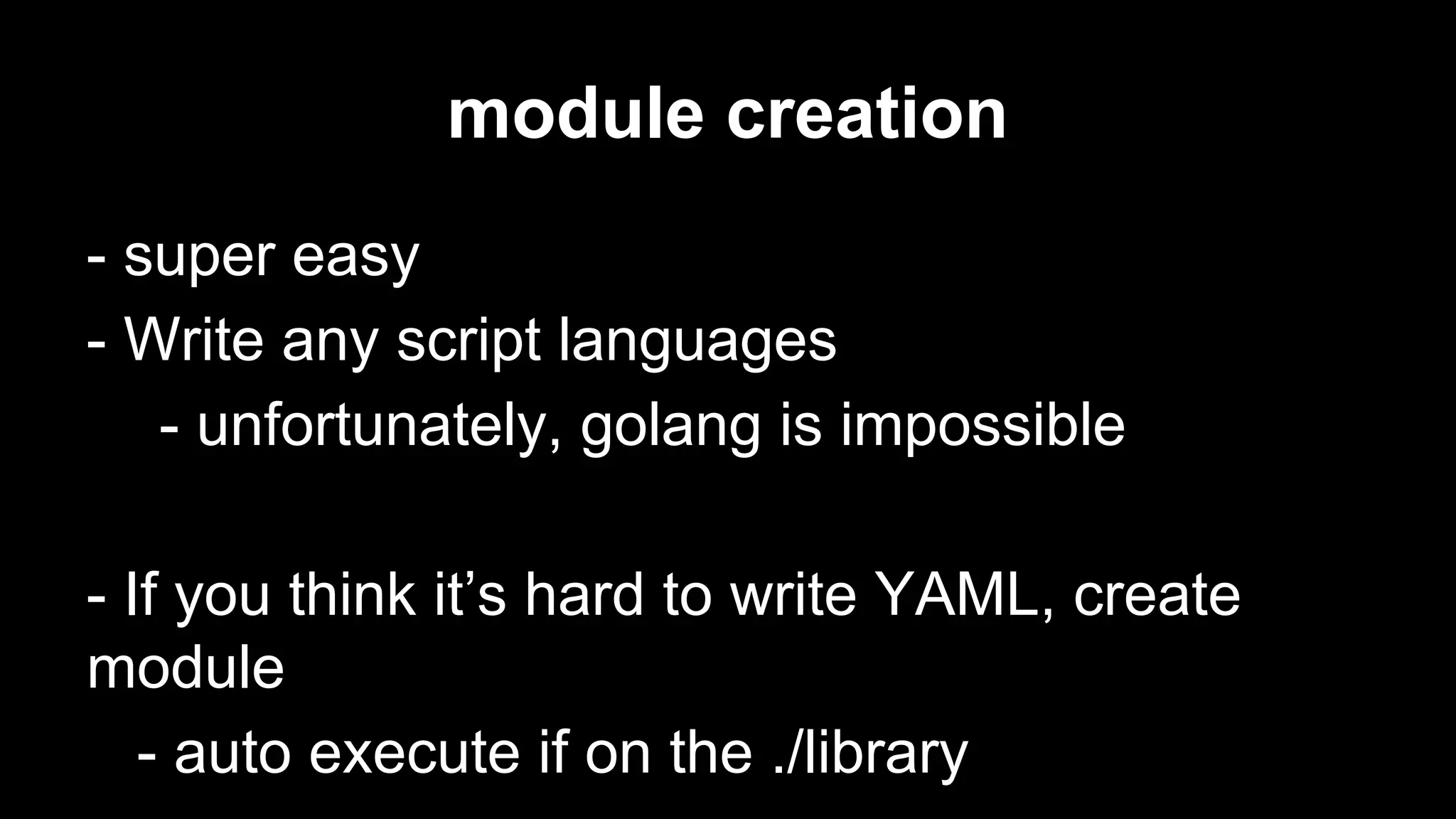

30. module creation
- super easy
- Write any script languages
- unfortunately, golang is impossible
- If you think it’s hard to write YAML, create
module
- auto execute if on the ./library

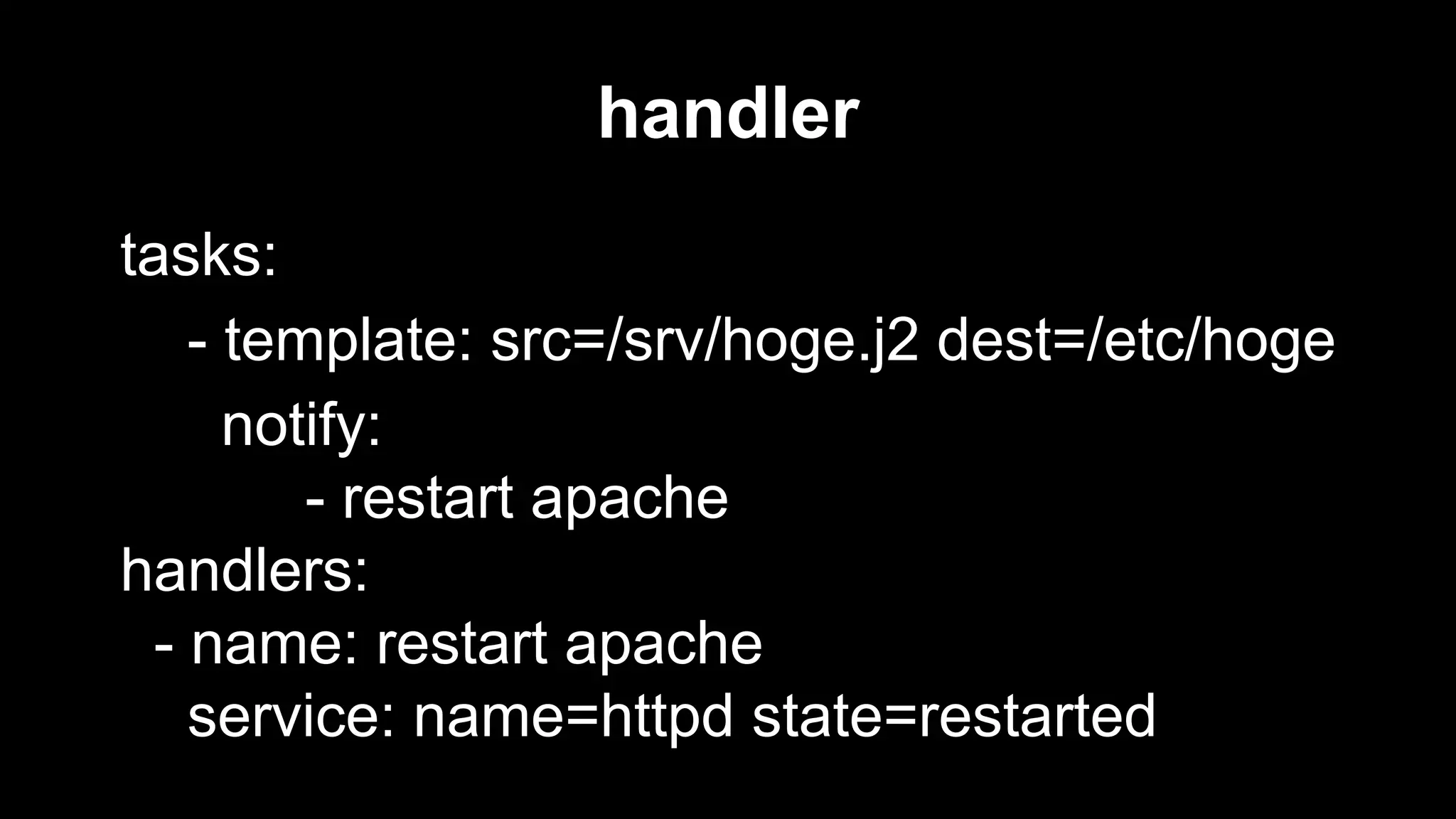

31. handler
tasks:
- template: src=/srv/hoge.j2 dest=/etc/hoge
notify:
- restart apache
handlers:
- name: restart apache
service: name=httpd state=restarted

32. How many servers
Ansible can manage?

33. We have users using Ansible in push mode
against 5000 machines at a time

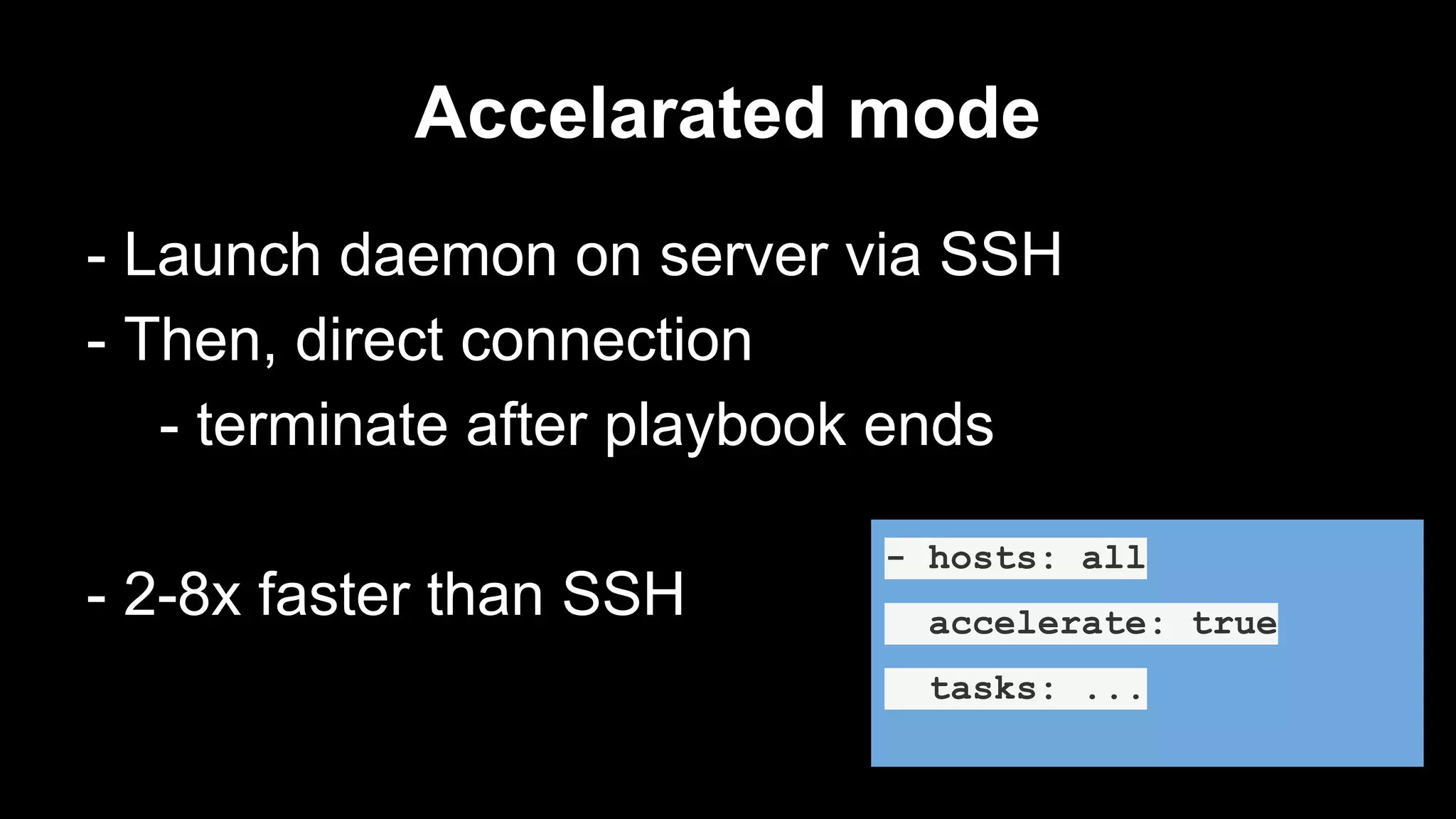

34. Accelarated mode
- Launch daemon on server via SSH
- Then, direct connection
- terminate after playbook ends
- 2-8x faster than SSH
- hosts: all
accelerate: true
tasks: ...

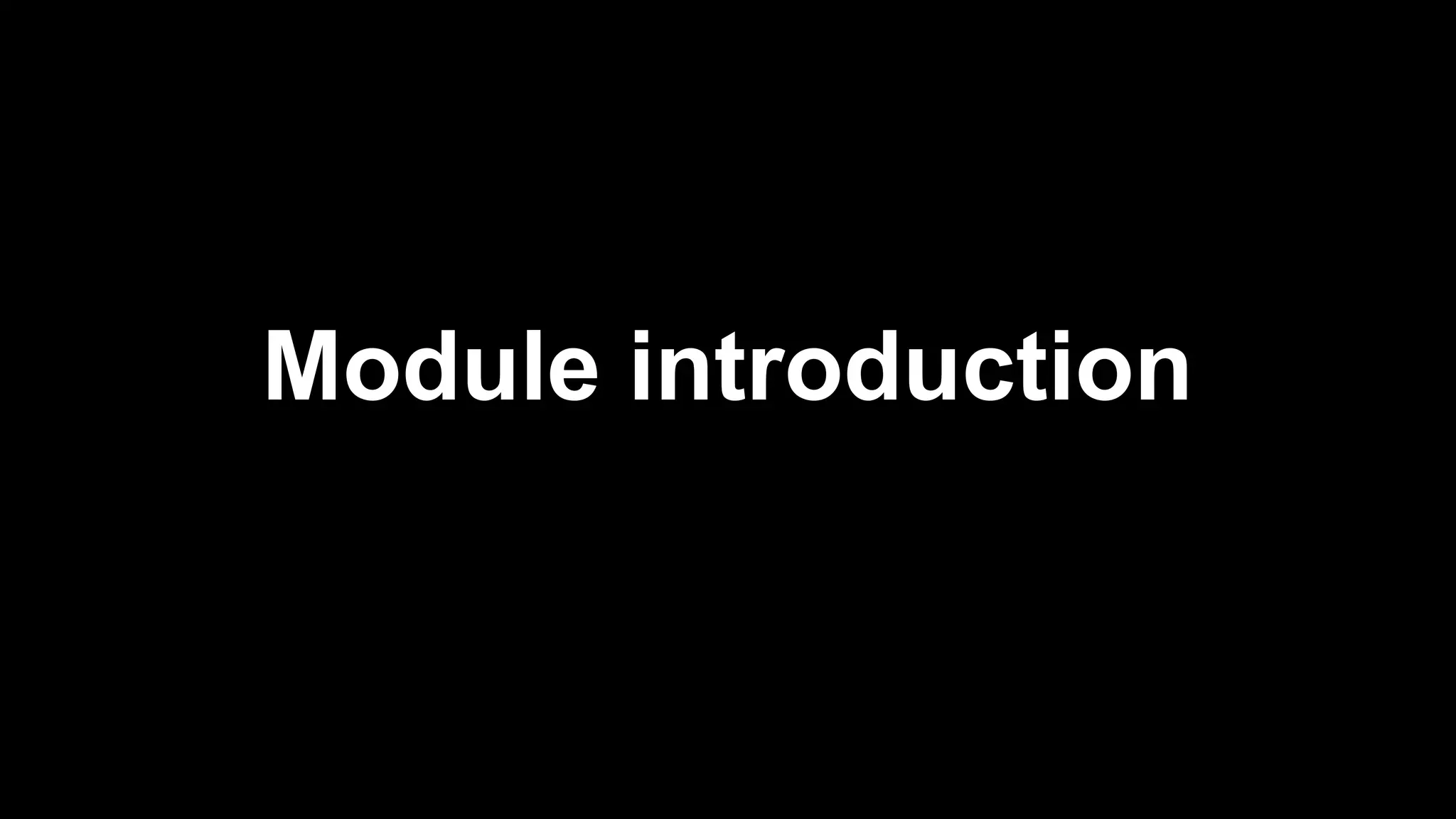

35. Module introduction

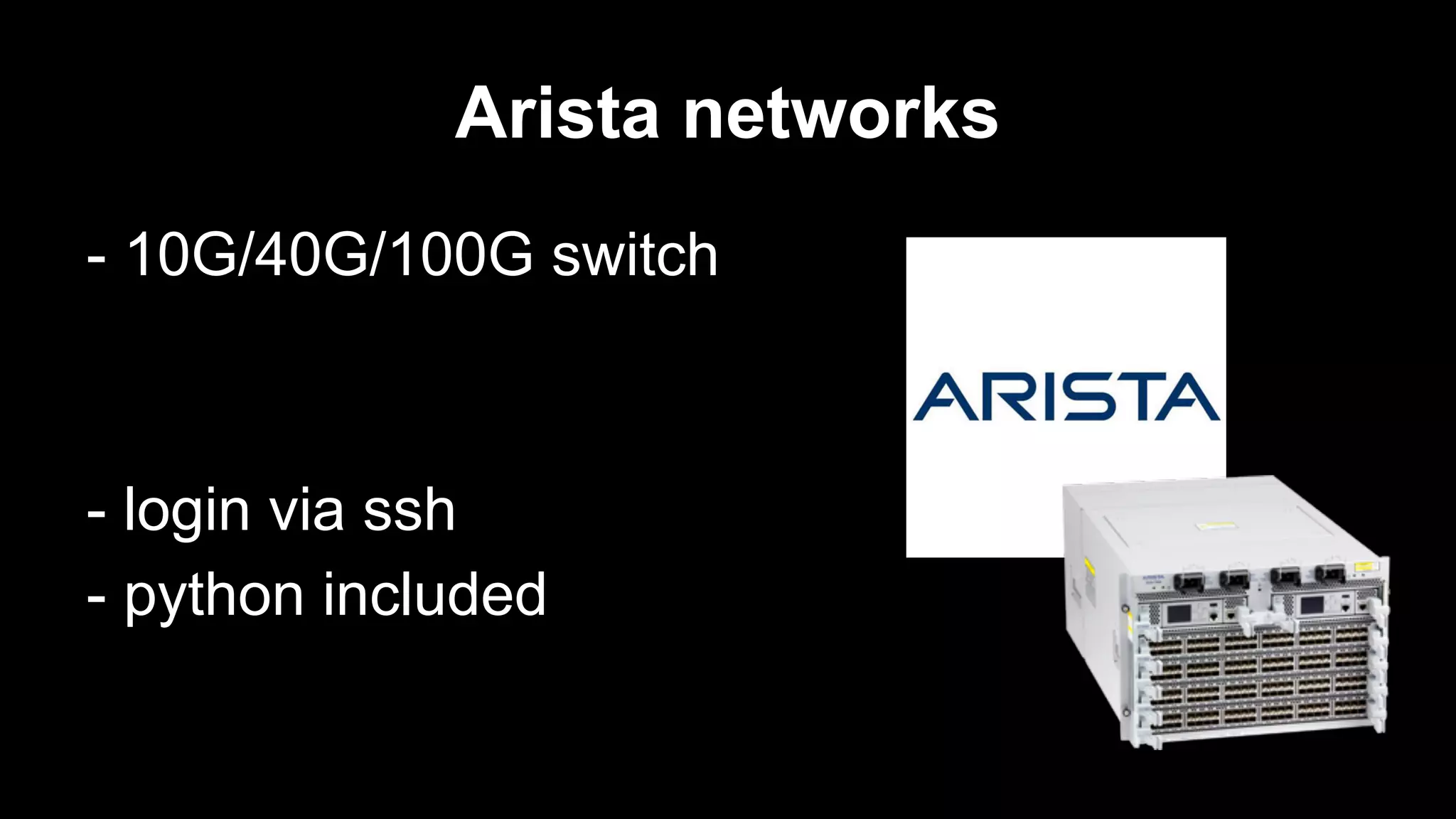

36. Arista networks
- 10G/40G/100G switch
- login via ssh
- python included

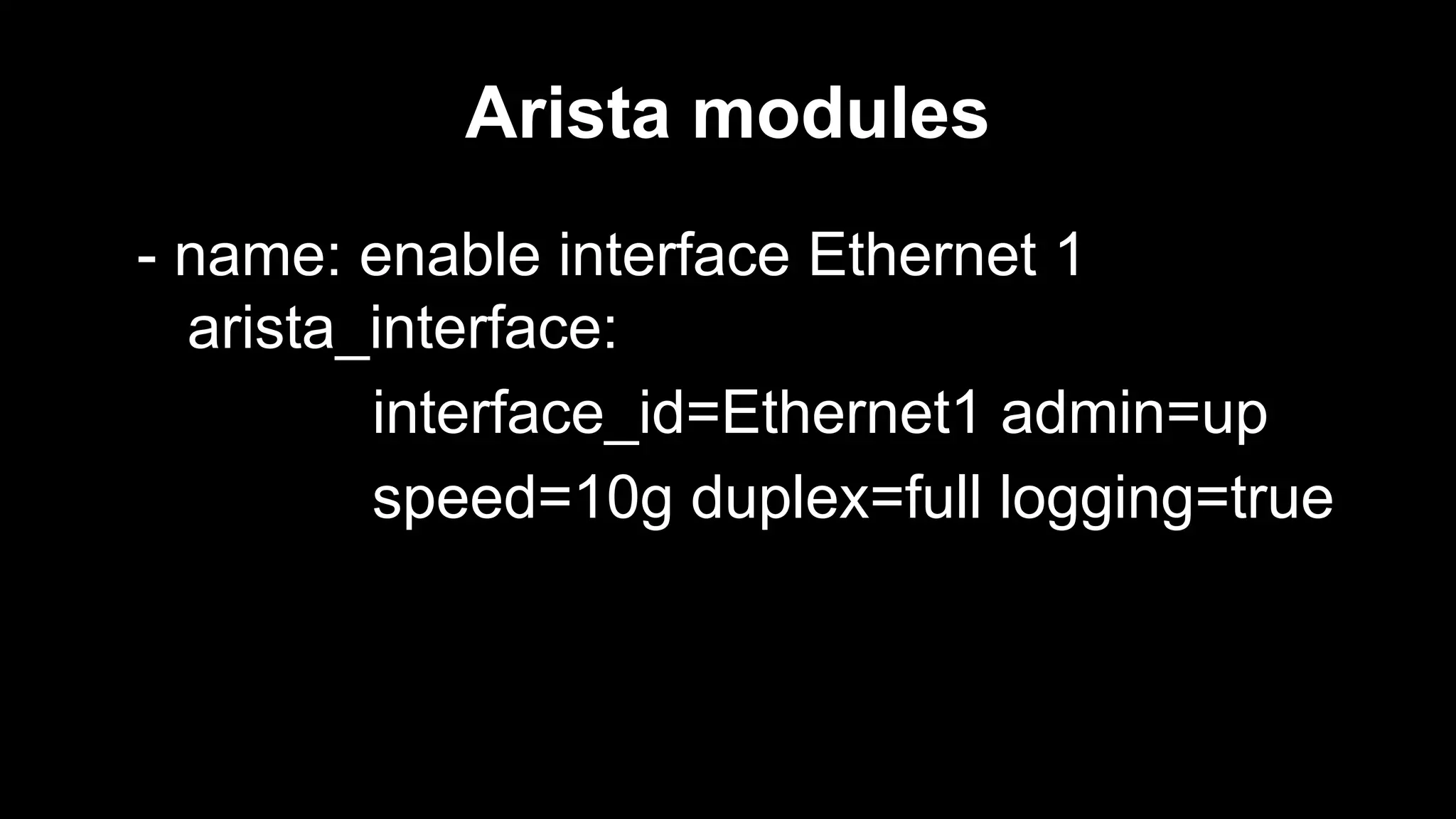

37. Arista modules
- name: enable interface Ethernet 1
arista_interface:
interface_id=Ethernet1 admin=up
speed=10g duplex=full logging=true

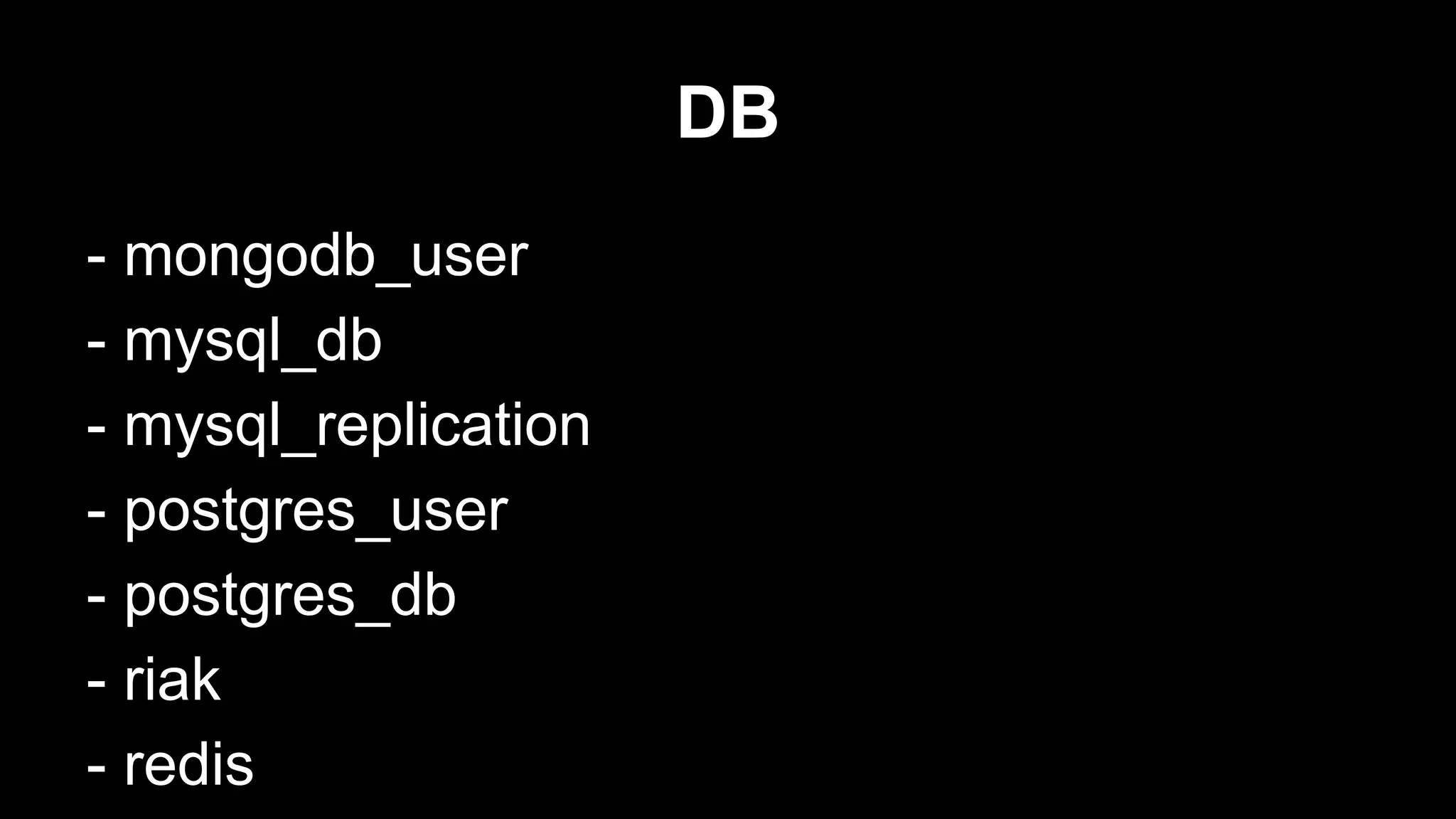

38. DB
- mongodb_user
- mysql_db
- mysql_replication
- postgres_user
- postgres_db
- riak
- redis

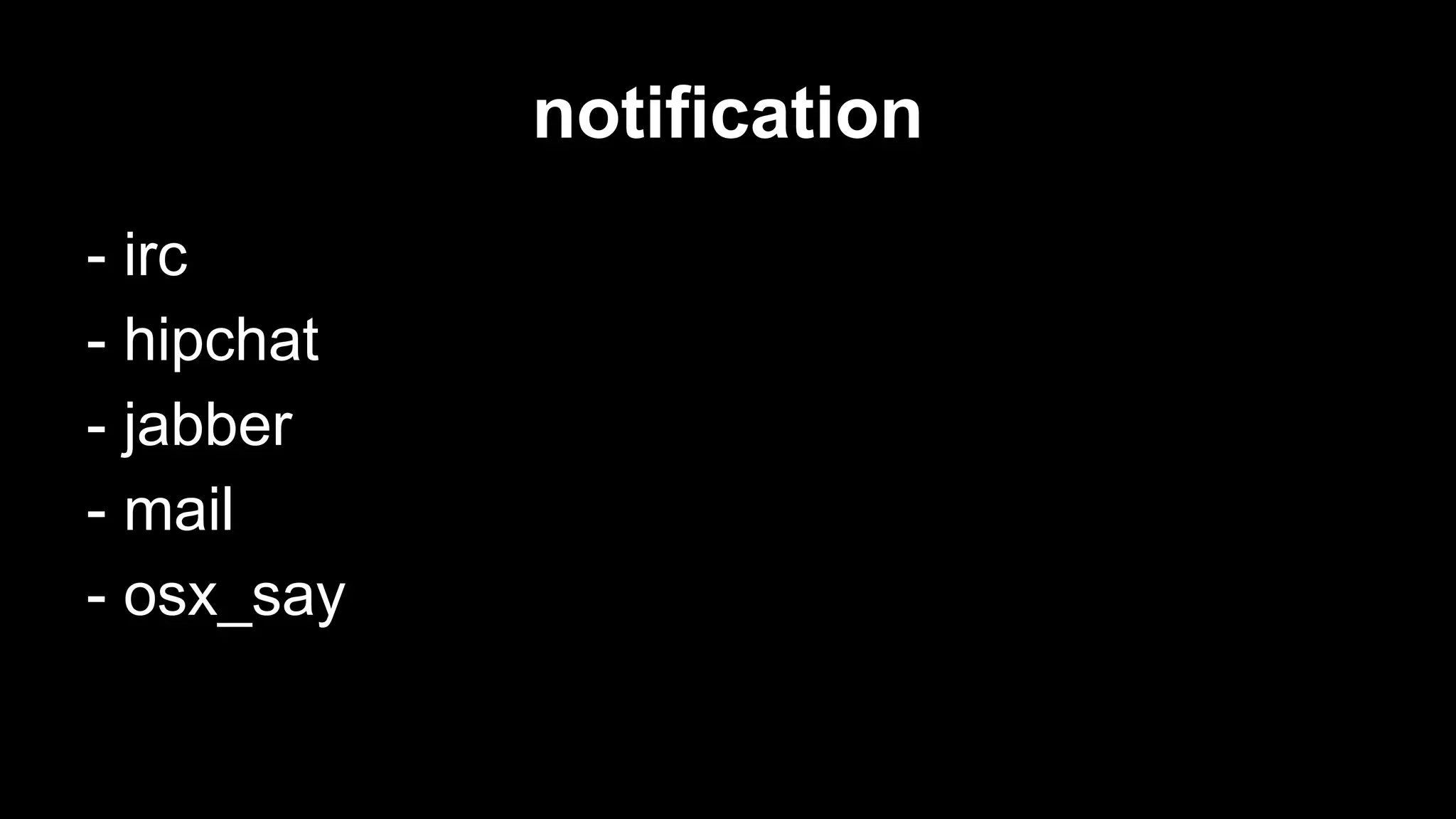

39. notification
- irc
- hipchat
- jabber
- mail
- osx_say

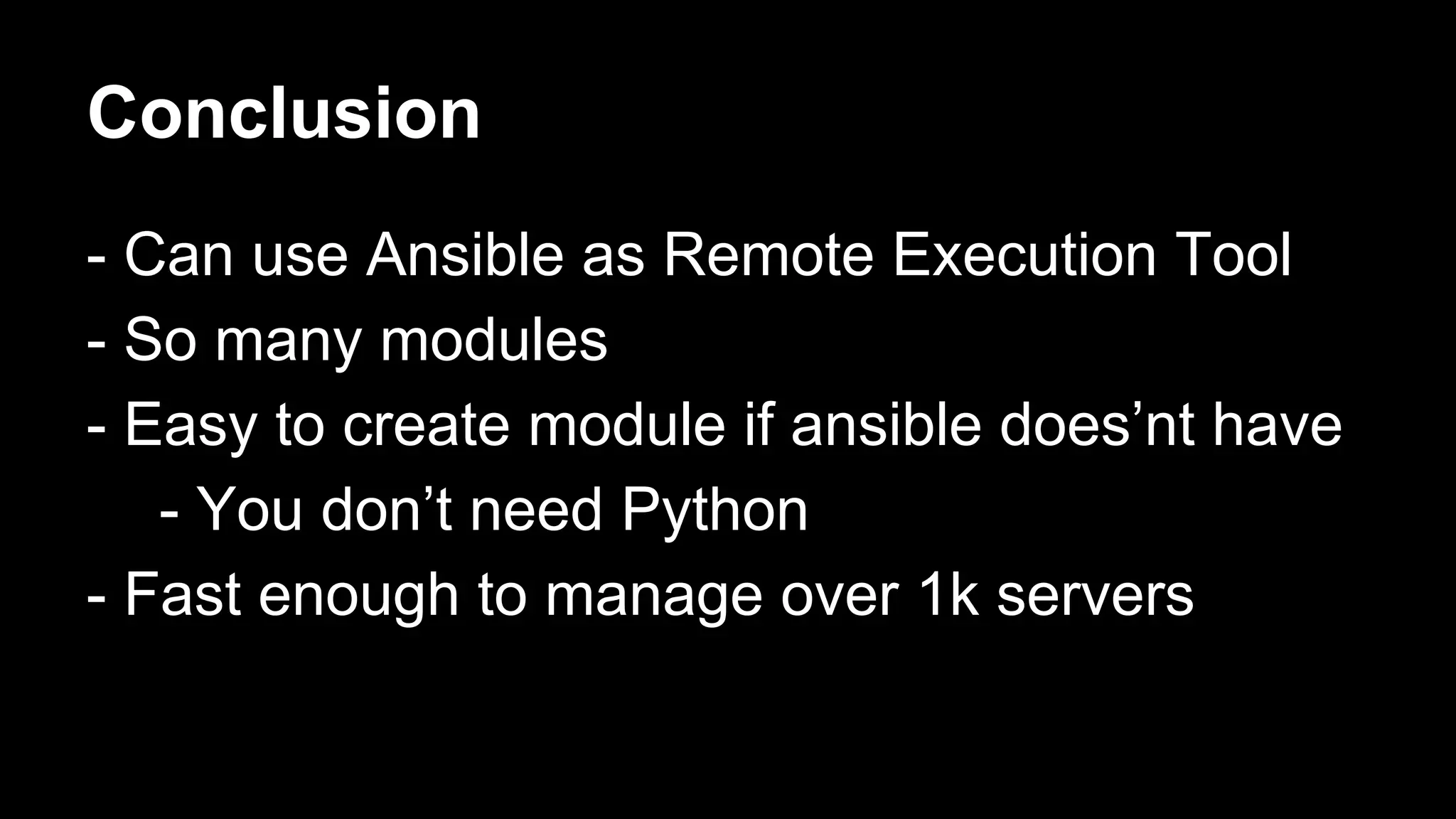

40. Conclusion
- Can use Ansible as Remote Execution Tool
- So many modules
- Easy to create module if ansible does’nt have
- You don’t need Python
- Fast enough to manage over 1k servers

41. Ansible Book
- Release Nov. 2013
- cover wide area
- especially, not
included part this slide
