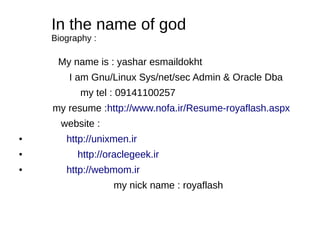

3. In the name of god
Biography :
My name is : yashar esmaildokht
I am Gnu/Linux Sys/net/sec Admin & Oracle Dba
my tel : 09141100257
my resume :http://www.nofa.ir/Resume-royaflash.aspx
website :
● http://unixmen.ir
● http://oraclegeek.ir
● http://webmom.ir
my nick name : royaflash

4. What is ansible
Ansible is an open-source automation engine
that automates cloud provisioning,
configuration management, and application
deployment.Once installed on a control node,
Ansible, which is an agentless architecture,
connects to a managed node through the
default OpenSSH connection type.

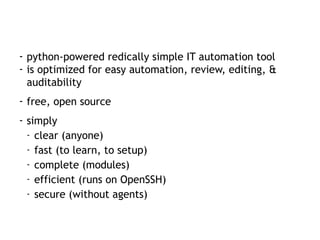

5. - python-powered redically simple IT automation tool
- is optimized for easy automation, review, editing, &
auditability
- free, open source
- simply
- clear (anyone)
- fast (to learn, to setup)
- complete (modules)
- efficient (runs on OpenSSH)
- secure (without agents)

8. - configuration management
- application deployment
- multi-tier orchestration
- cloud provisioning
For what Ansible?

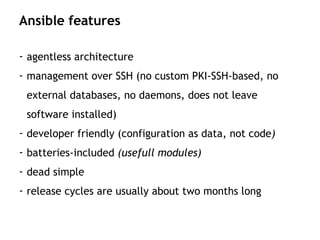

9. - agentless architecture
- management over SSH (no custom PKI-SSH-based, no
external databases, no daemons, does not leave
software installed)
- developer friendly (configuration as data, not code)
- batteries-included (usefull modules)
- dead simple
- release cycles are usually about two months long
Ansible features

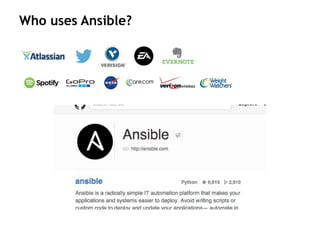

10. Who uses Ansible?

12. Who uses Ansible?
20.01.2014

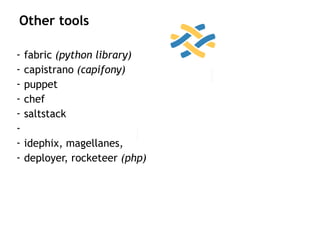

13. - fabric (python library)
- capistrano (capifony)
- puppet
- chef
- saltstack
-
- idephix, magellanes,
- deployer, rocketeer (php)
Other tools

14. - required Python 2.6
- or Python 2.5 (with additional paramiko, PyYAML,
python-jinja2 and httplib2 modules)
- Windows isn’t supported for the control machine
(starting with 1.8 will be fully support Windows)
- includes Red Hat, Debian, CentOS, OS X, any of the
BSDs, and so on
Control Machine Requirements

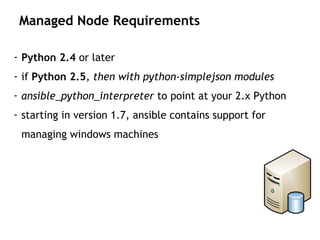

15. - Python 2.4 or later
- if Python 2.5, then with python-simplejson modules
- ansible_python_interpreter to point at your 2.x Python
- starting in version 1.7, ansible contains support for
managing windows machines
Managed Node Requirements

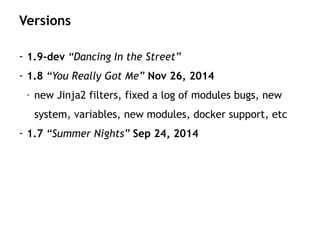

17. - 1.9-dev “Dancing In the Street”
- 1.8 “You Really Got Me” Nov 26, 2014
- new Jinja2 filters, fixed a log of modules bugs, new
system, variables, new modules, docker support, etc
- 1.7 “Summer Nights” Sep 24, 2014
Versions

18. Ansible Galaxy

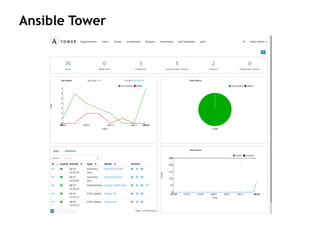

19. Ansible Tower

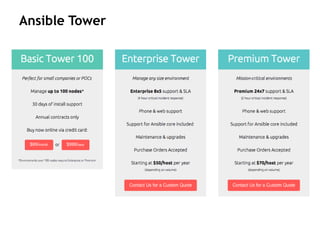

20. Ansible Tower

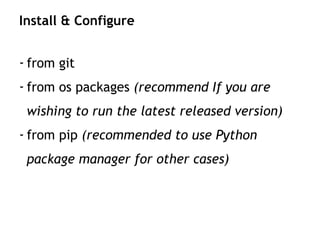

21. - from git
- from os packages (recommend If you are
wishing to run the latest released version)
- from pip (recommended to use Python
package manager for other cases)
Install & Configure

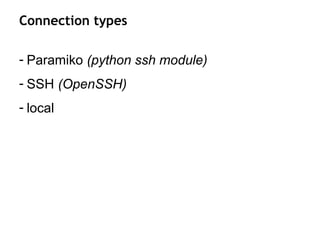

22. - Paramiko (python ssh module)
- SSH (OpenSSH)
- local
Connection types

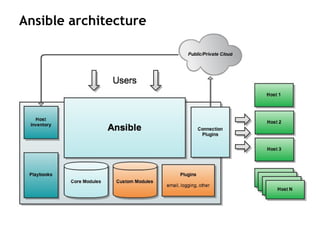

23. Ansible architecture

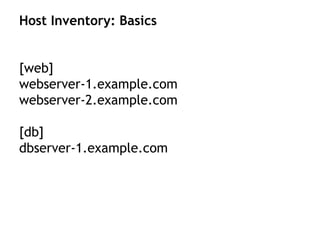

24. [web]
webserver-1.example.com
webserver-2.example.com
[db]
dbserver-1.example.com
Host Inventory: Basics

25. [web]
webserver-[01:25].example.com
webserver-2.example.com
[db]
dbserver-[a:f].example.com
Host Inventory: Ranges

26. [all:children]
all-local
all-stage
[all-local:children]
web-local
db-local
[all-stage:children]
web-stage
db-stage
Host Inventory: child groups
[web-stage:children]
web-stage-testing
web-stage-production
[db-stage:children]
db-stage-testing
db-stage-production
[web-stage-testing]
testing-red
[web-stage-production]
production
[web-local]
vagrant
[db-local]
vagrant

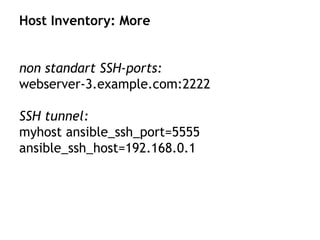

27. non standart SSH-ports:
webserver-3.example.com:2222
SSH tunnel:
myhost ansible_ssh_port=5555
ansible_ssh_host=192.168.0.1
Host Inventory: More

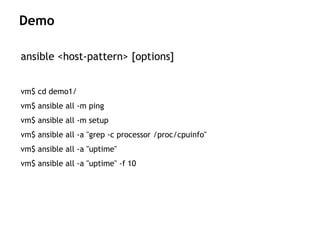

28. ansible <host-pattern> [options]
vm$ cd demo1/
vm$ ansible all -m ping
vm$ ansible all -m setup
vm$ ansible all -a "grep -c processor /proc/cpuinfo"
vm$ ansible all -a "uptime"
vm$ ansible all -a "uptime" -f 10
Demo

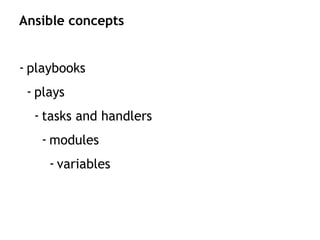

29. - playbooks
- plays
- tasks and handlers
- modules
- variables
Ansible concepts

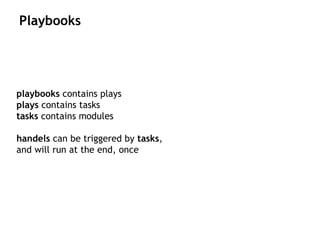

30. playbooks contains plays
plays contains tasks
tasks contains modules
handels can be triggered by tasks,
and will run at the end, once
Playbooks

31. a tasks calls a module,
and may have parameters
Tasks

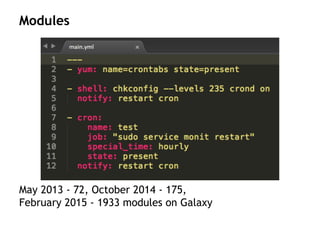

32. Modules
May 2013 - 72, October 2014 - 175,
February 2015 - 1933 modules on Galaxy

33. Modules list

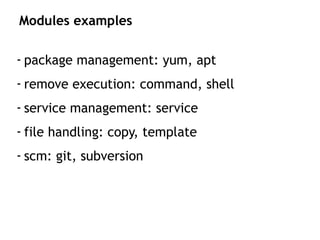

34. - package management: yum, apt
- remove execution: command, shell
- service management: service
- file handling: copy, template
- scm: git, subversion
Modules examples

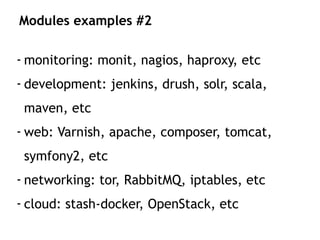

35. - monitoring: monit, nagios, haproxy, etc
- development: jenkins, drush, solr, scala,
maven, etc
- web: Varnish, apache, composer, tomcat,
symfony2, etc
- networking: tor, RabbitMQ, iptables, etc
- cloud: stash-docker, OpenStack, etc
Modules examples #2

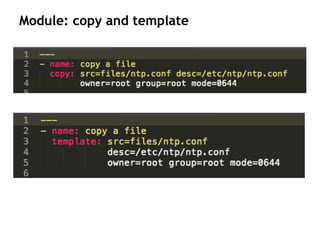

36. Module: copy and template

37. Module: apt and yum

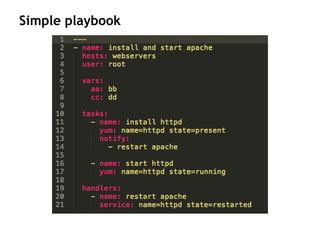

38. Simple playbook

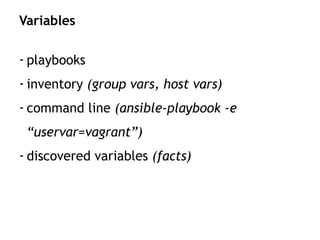

39. - playbooks
- inventory (group vars, host vars)
- command line (ansible-playbook -e
“uservar=vagrant”)
- discovered variables (facts)
Variables

40. Ansible Directory Structure

41. Facts
- discovered variables about systems
- ansible -m setup <hostname>

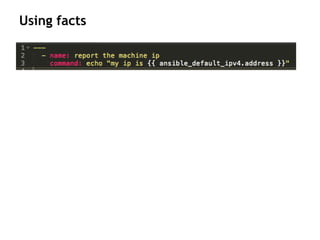

42. Using facts

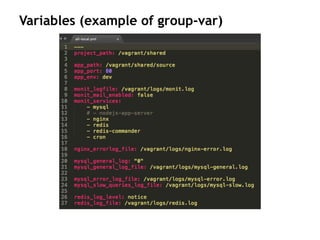

43. Variables (example of group-var)

44. Variables (example of host-vars)

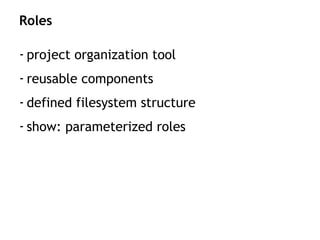

45. - project organization tool
- reusable components
- defined filesystem structure
- show: parameterized roles
Roles

46. Roles

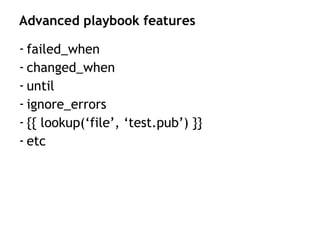

47. - failed_when
- changed_when
- until
- ignore_errors
- {{ lookup(‘file’, ‘test.pub’) }}
- etc
Advanced playbook features

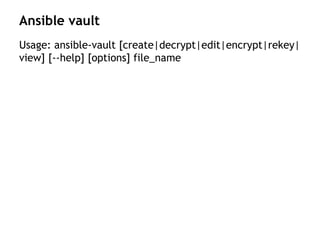

48. Usage: ansible-vault [create|decrypt|edit|encrypt|rekey|
view] [--help] [options] file_name
Ansible vault

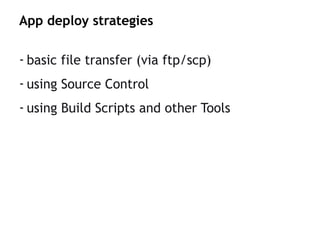

49. App deploy strategies
- basic file transfer (via ftp/scp)
- using Source Control
- using Build Scripts and other Tools

50. http://symfony.com/doc/current/cookbook/deployment/tools.html
1)Upload your modified code
2)Update your vendor dependencies (composer)
3)Running database migrations
4)Updated assetic assets
5)Clearing your cache
6)Other things
Symfony deployment

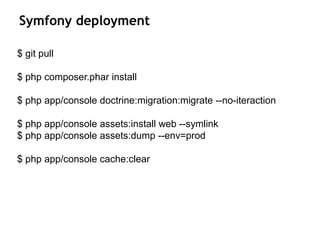

51. Symfony deployment
$ git pull
$ php composer.phar install
$ php app/console doctrine:migration:migrate --no-iteraction
$ php app/console assets:install web --symlink
$ php app/console assets:dump --env=prod
$ php app/console cache:clear

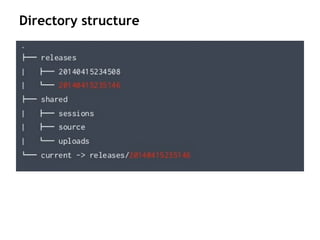

52. Directory structure

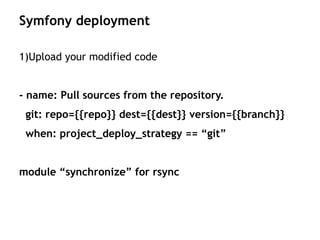

54. 1)Upload your modified code
- name: Pull sources from the repository.
git: repo={{repo}} dest={{dest}} version={{branch}}
when: project_deploy_strategy == “git”
module “synchronize” for rsync
Symfony deployment

55. 2) Update your vendor dependencies (composer)
- name: Install composer
get_url: url=https://getcomposer.org/composer.phar
dest={{project_root}}/composer.phar mode=0755 validate_certs=no
- name: Run composer install
shell: cd {{project_root}}/releases/{{release}} && {{path}}
{{project_root}}/composer.phar install {{project_composer_opts}}
Symfony deployment

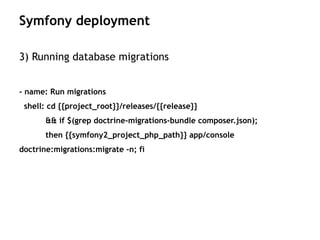

56. 3) Running database migrations
- name: Run migrations
shell: cd {{project_root}}/releases/{{release}}
&& if $(grep doctrine-migrations-bundle composer.json);
then {{symfony2_project_php_path}} app/console
doctrine:migrations:migrate -n; fi
Symfony deployment

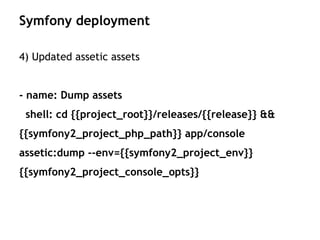

57. 4) Updated assetic assets
- name: Dump assets
shell: cd {{project_root}}/releases/{{release}} &&
{{symfony2_project_php_path}} app/console
assetic:dump --env={{symfony2_project_env}}
{{symfony2_project_console_opts}}
Symfony deployment

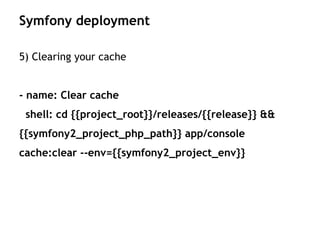

58. 5) Clearing your cache
- name: Clear cache
shell: cd {{project_root}}/releases/{{release}} &&
{{symfony2_project_php_path}} app/console
cache:clear --env={{symfony2_project_env}}
Symfony deployment

59. Easy way
https://galaxy.ansible.com/list#/roles/639
https://github.com/servergrove/ansible-symfony2

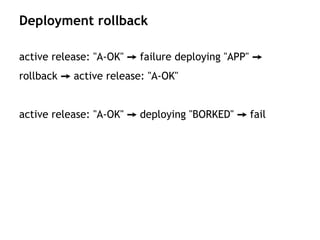

60. active release: "A-OK" failure deploying "APP"➙ ➙
rollback active release: "A-OK"➙
active release: "A-OK" deploying "BORKED" fail➙ ➙
Deployment rollback

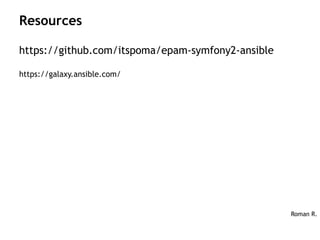

61. https://github.com/itspoma/epam-symfony2-ansible
https://galaxy.ansible.com/
Roman R.
Resources

62. Thanks!
-questions?
