1. Ansible Berlin Meetup, @danvaida
Ansible Berlin meetup
01/17

2. Ansible Berlin Meetup, @danvaida

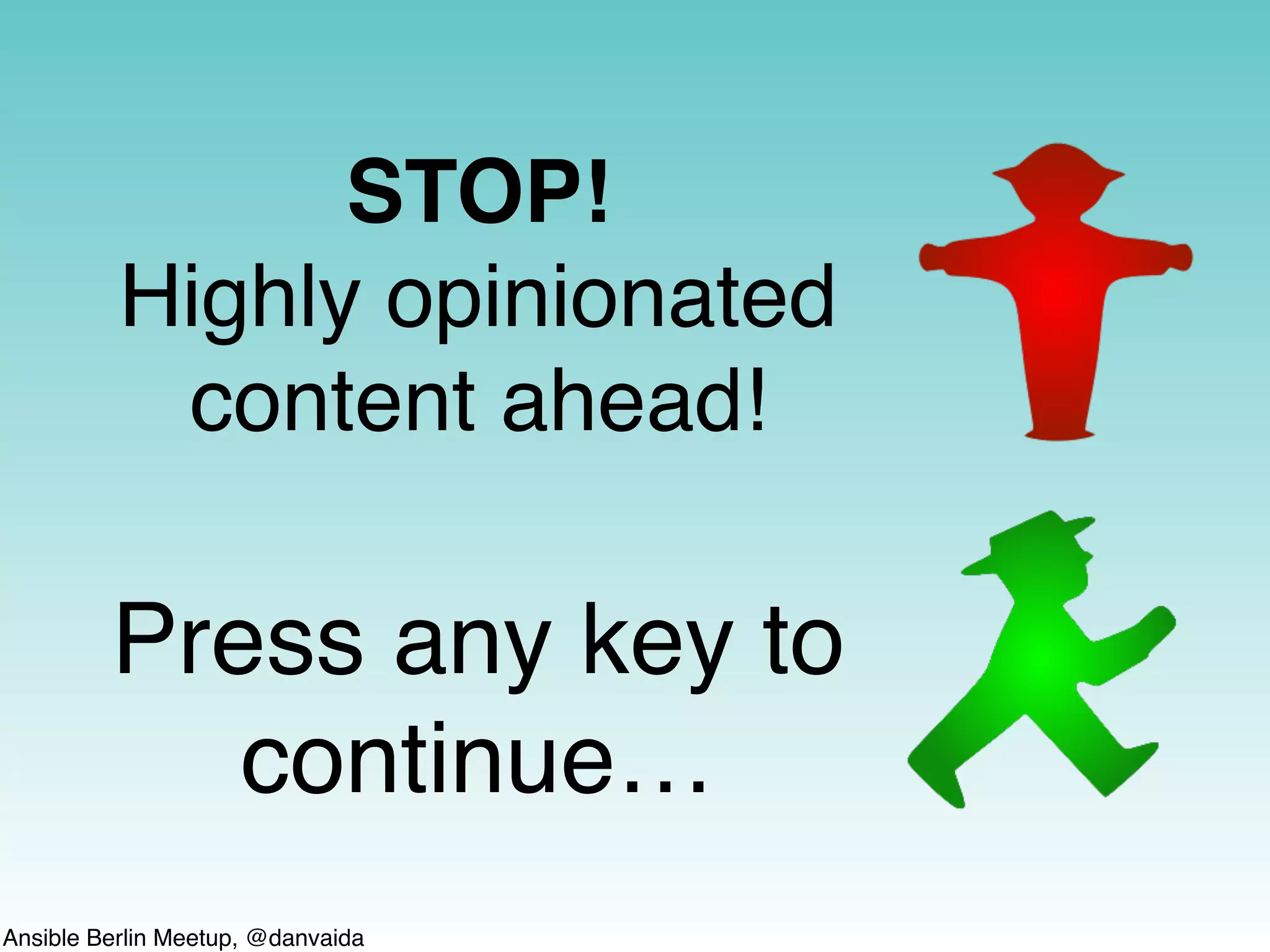

STOP!
Highly opinionated
content ahead!
Press any key to
continue…

3. Ansible Berlin Meetup, @danvaida

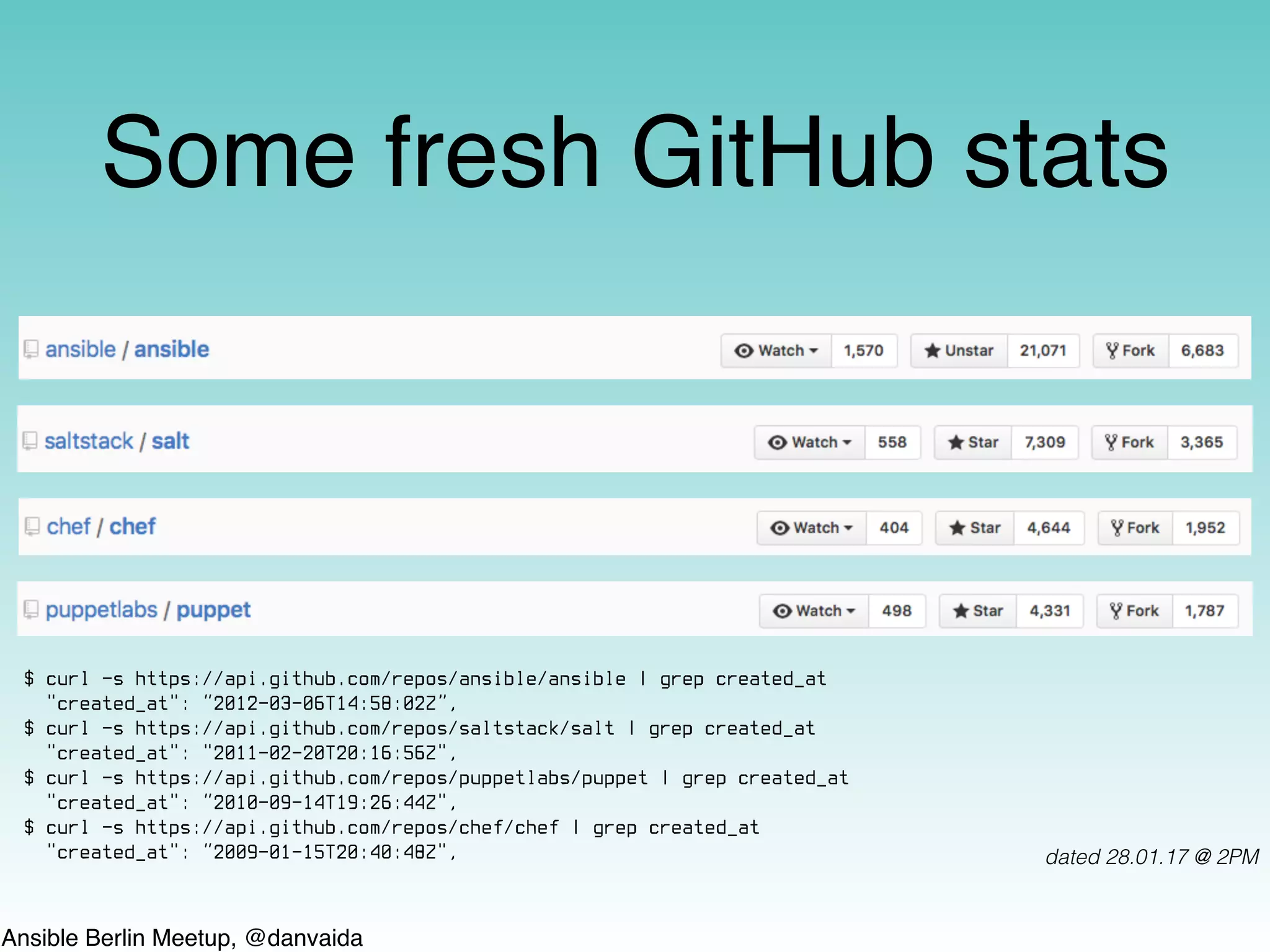

Some fresh GitHub stats
dated 28.01.17 @ 2PM
$ curl -s https://api.github.com/repos/ansible/ansible | grep created_at
"created_at": “2012-03-06T14:58:02Z”,
$ curl -s https://api.github.com/repos/saltstack/salt | grep created_at
"created_at": "2011-02-20T20:16:56Z",
$ curl -s https://api.github.com/repos/puppetlabs/puppet | grep created_at
"created_at": “2010-09-14T19:26:44Z",
$ curl -s https://api.github.com/repos/chef/chef | grep created_at
"created_at": “2009-01-15T20:40:48Z",

4. Ansible Berlin Meetup, @danvaida

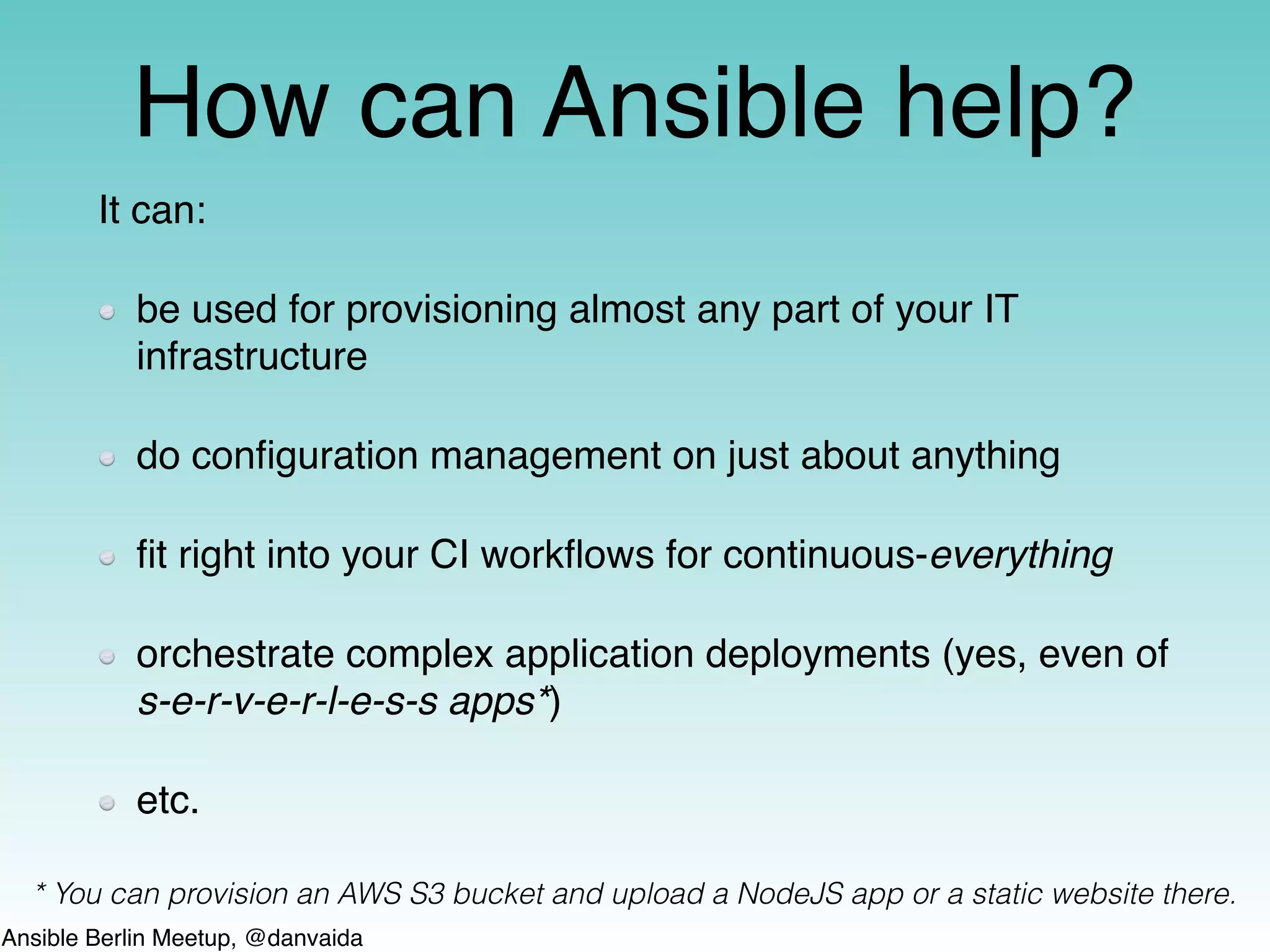

How can Ansible help?
It can:
be used for provisioning almost any part of your IT
infrastructure
do configuration management on just about anything
fit right into your CI workflows for continuous-everything
orchestrate complex application deployments (yes, even of
s-e-r-v-e-r-l-e-s-s apps*)
etc.
* You can provision an AWS S3 bucket and upload a NodeJS app or a static website there.

5. Ansible Berlin Meetup, @danvaida

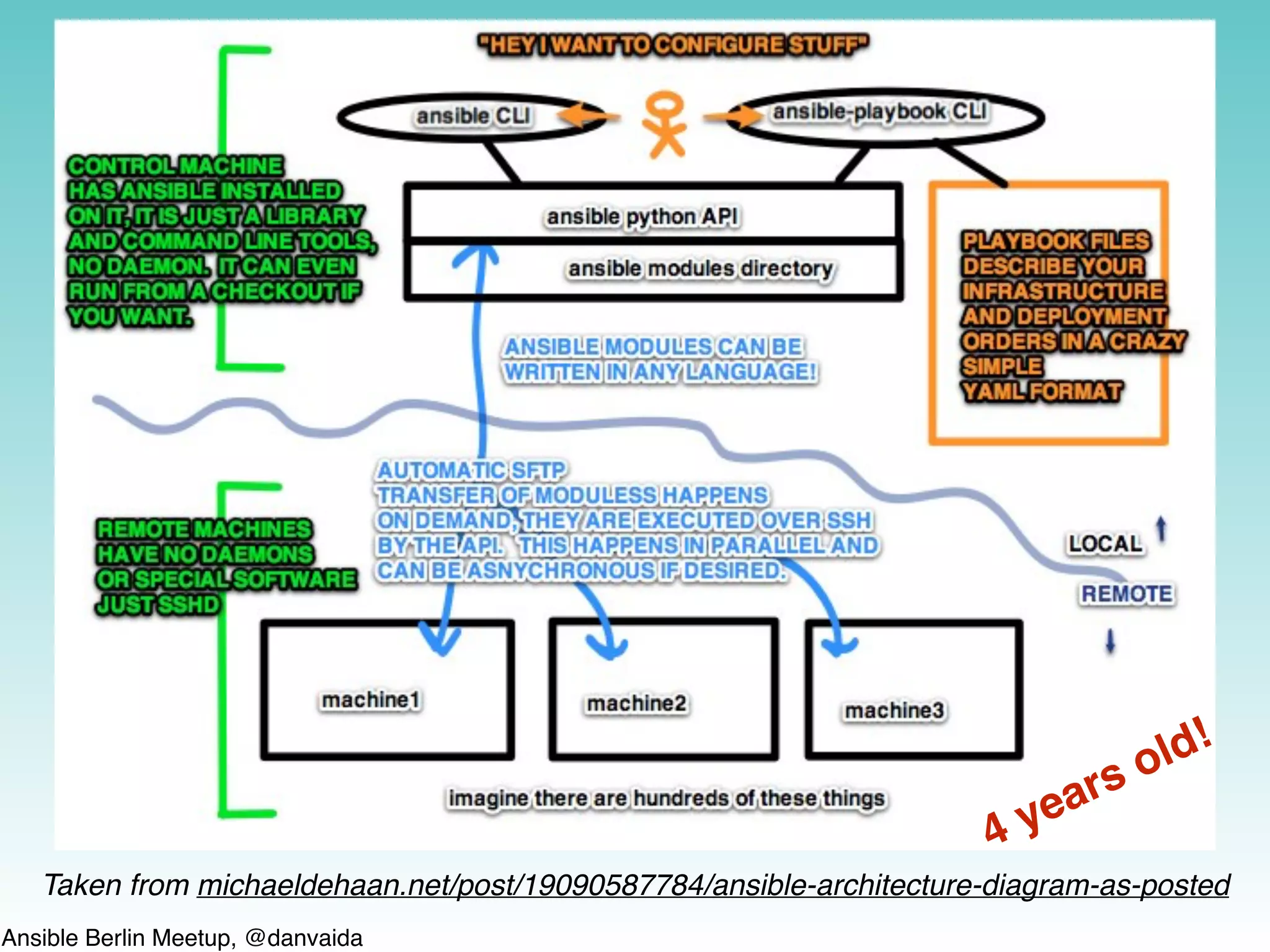

Taken from michaeldehaan.net/post/19090587784/ansible-architecture-diagram-as-posted
4 years old!

6. Ansible Berlin Meetup, @danvaida

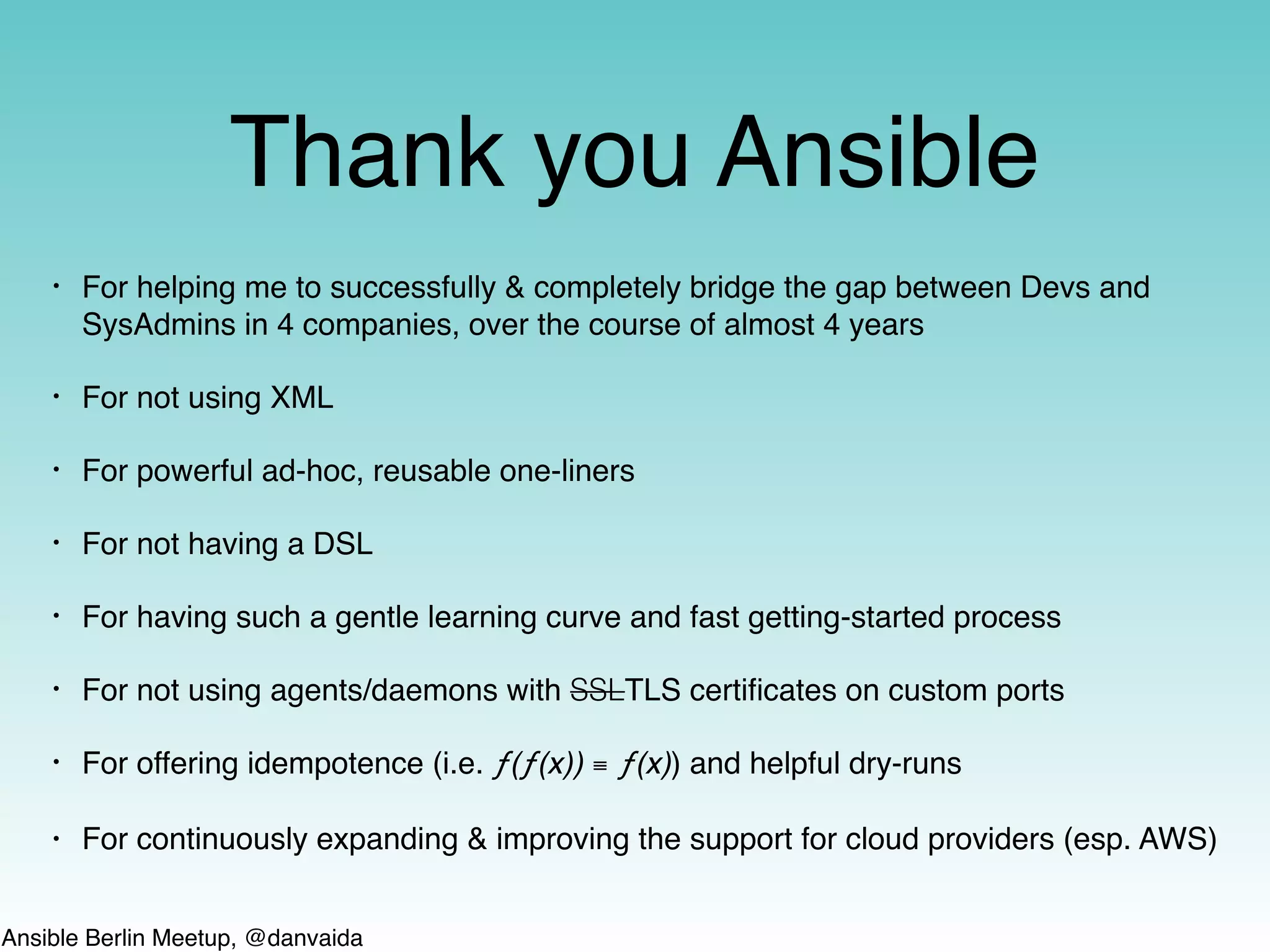

Thank you Ansible
• For helping me to successfully & completely bridge the gap between Devs and
SysAdmins in 4 companies, over the course of almost 4 years
• For not using XML
• For powerful ad-hoc, reusable one-liners
• For not having a DSL
• For having such a gentle learning curve and fast getting-started process
• For not using agents/daemons with SSLTLS certificates on custom ports
• For offering idempotence (i.e. ƒ(ƒ(x)) ≡ ƒ(x)) and helpful dry-runs
• For continuously expanding & improving the support for cloud providers (esp. AWS)

7. Ansible Berlin Meetup, @danvaida

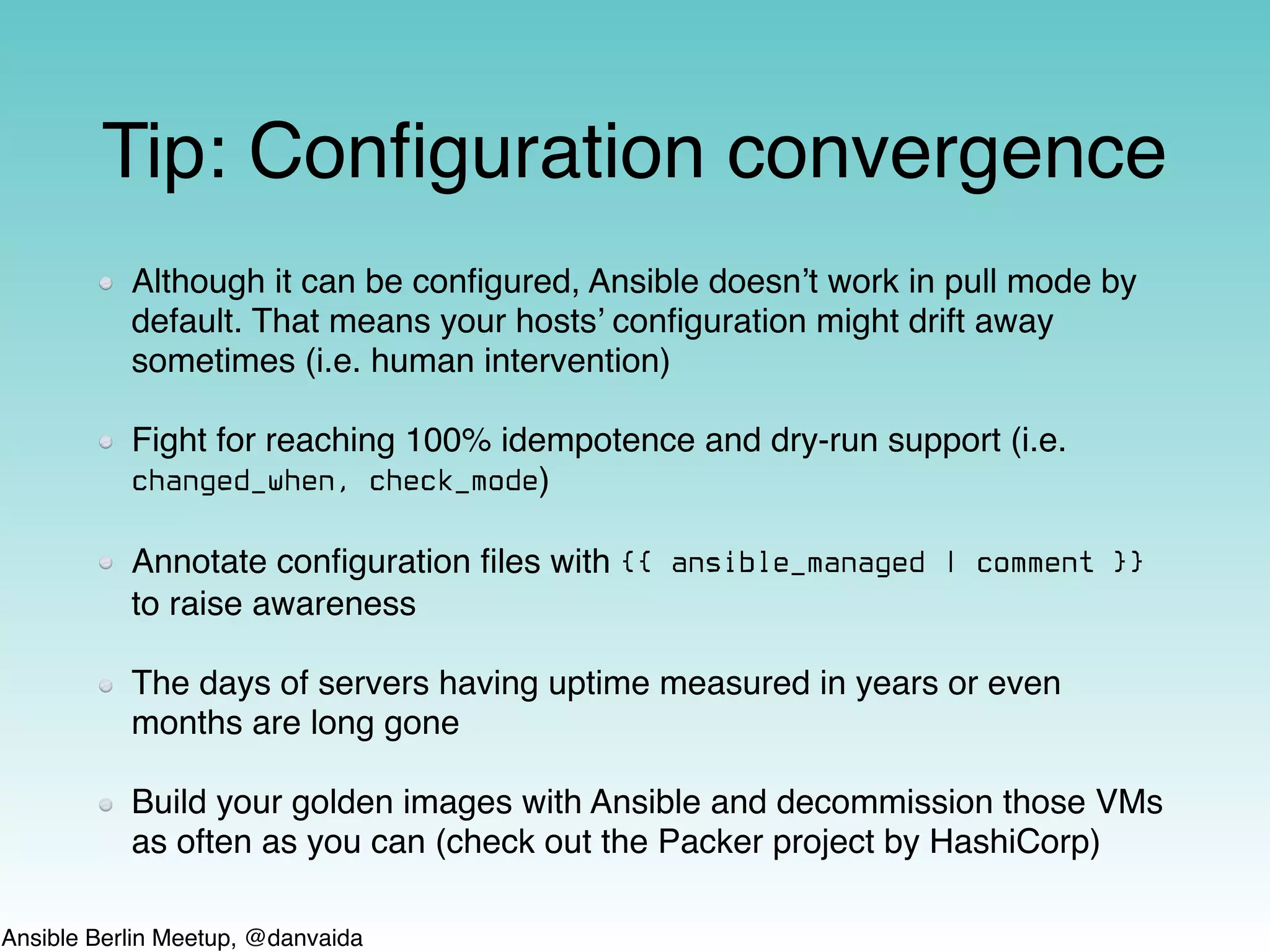

Tip: Configuration convergence
Although it can be configured, Ansible doesn’t work in pull mode by
default. That means your hosts’ configuration might drift away
sometimes (i.e. human intervention)
Fight for reaching 100% idempotence and dry-run support (i.e.
changed_when, check_mode)
Annotate configuration files with {{ ansible_managed | comment }}
to raise awareness
The days of servers having uptime measured in years or even
months are long gone
Build your golden images with Ansible and decommission those VMs
as often as you can (check out the Packer project by HashiCorp)

8. Ansible Berlin Meetup, @danvaida

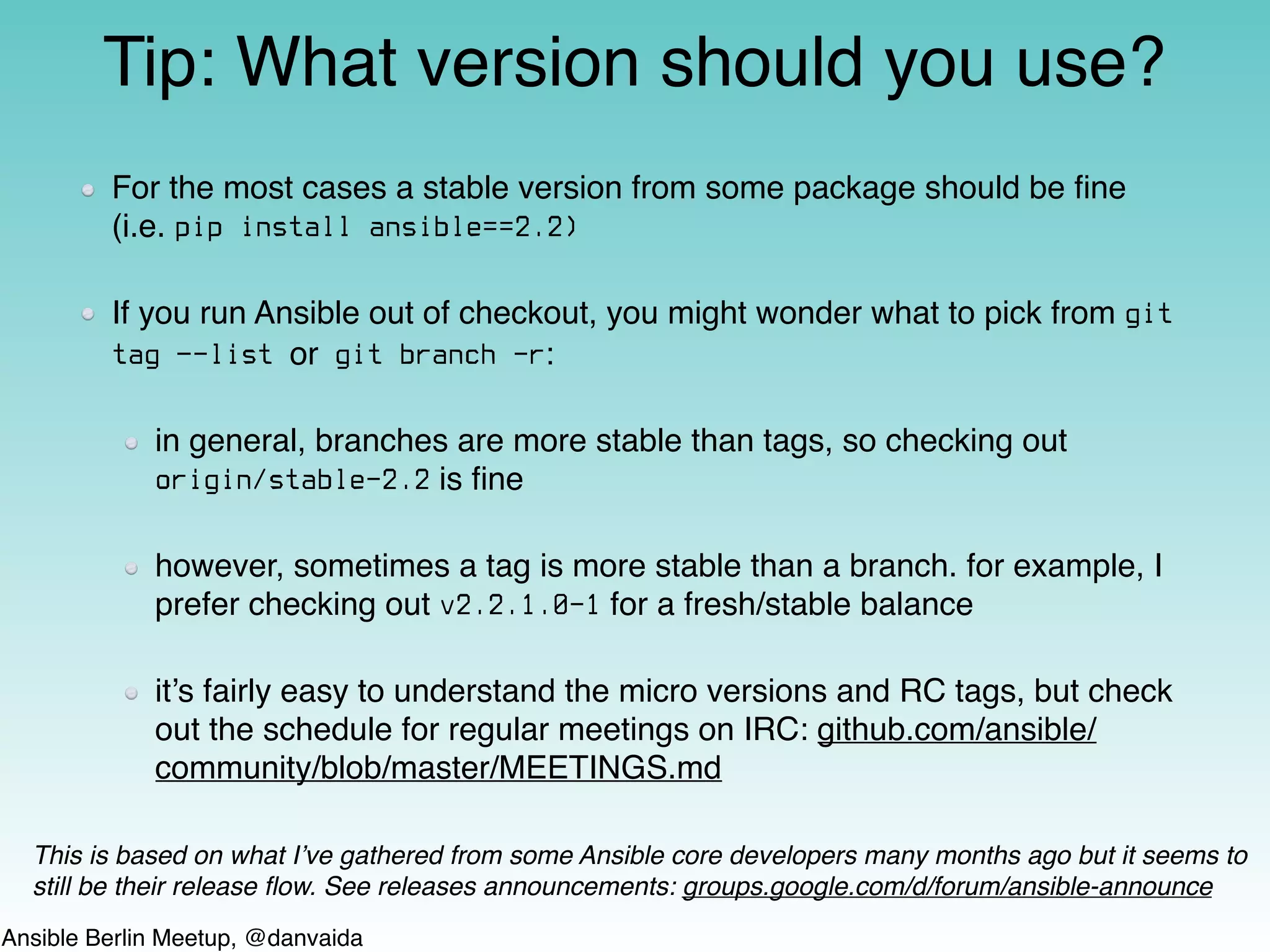

For the most cases a stable version from some package should be fine
(i.e. pip install ansible==2.2)
If you run Ansible out of checkout, you might wonder what to pick from git
tag —-list or git branch -r:
in general, branches are more stable than tags, so checking out
origin/stable-2.2 is fine
however, sometimes a tag is more stable than a branch. for example, I
prefer checking out v2.2.1.0-1 for a fresh/stable balance
it’s fairly easy to understand the micro versions and RC tags, but check
out the schedule for regular meetings on IRC: github.com/ansible/
community/blob/master/MEETINGS.md
Tip: What version should you use?
This is based on what I’ve gathered from some Ansible core developers many months ago but it seems to
still be their release flow. See releases announcements: groups.google.com/d/forum/ansible-announce

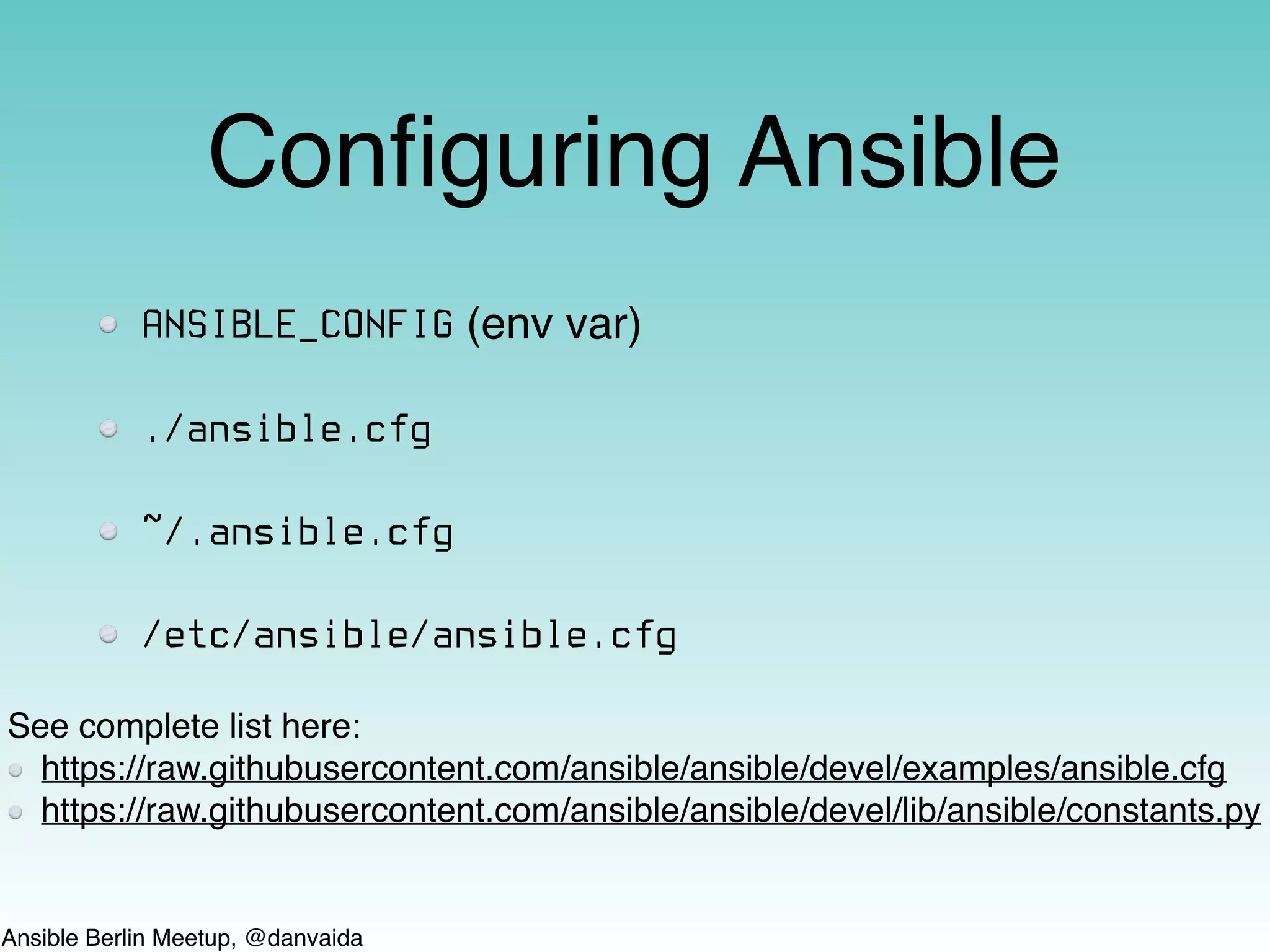

9. Ansible Berlin Meetup, @danvaida
Configuring Ansible
ANSIBLE_CONFIG (env var)
./ansible.cfg
~/.ansible.cfg
/etc/ansible/ansible.cfg
See complete list here:
https://raw.githubusercontent.com/ansible/ansible/devel/examples/ansible.cfg
https://raw.githubusercontent.com/ansible/ansible/devel/lib/ansible/constants.py

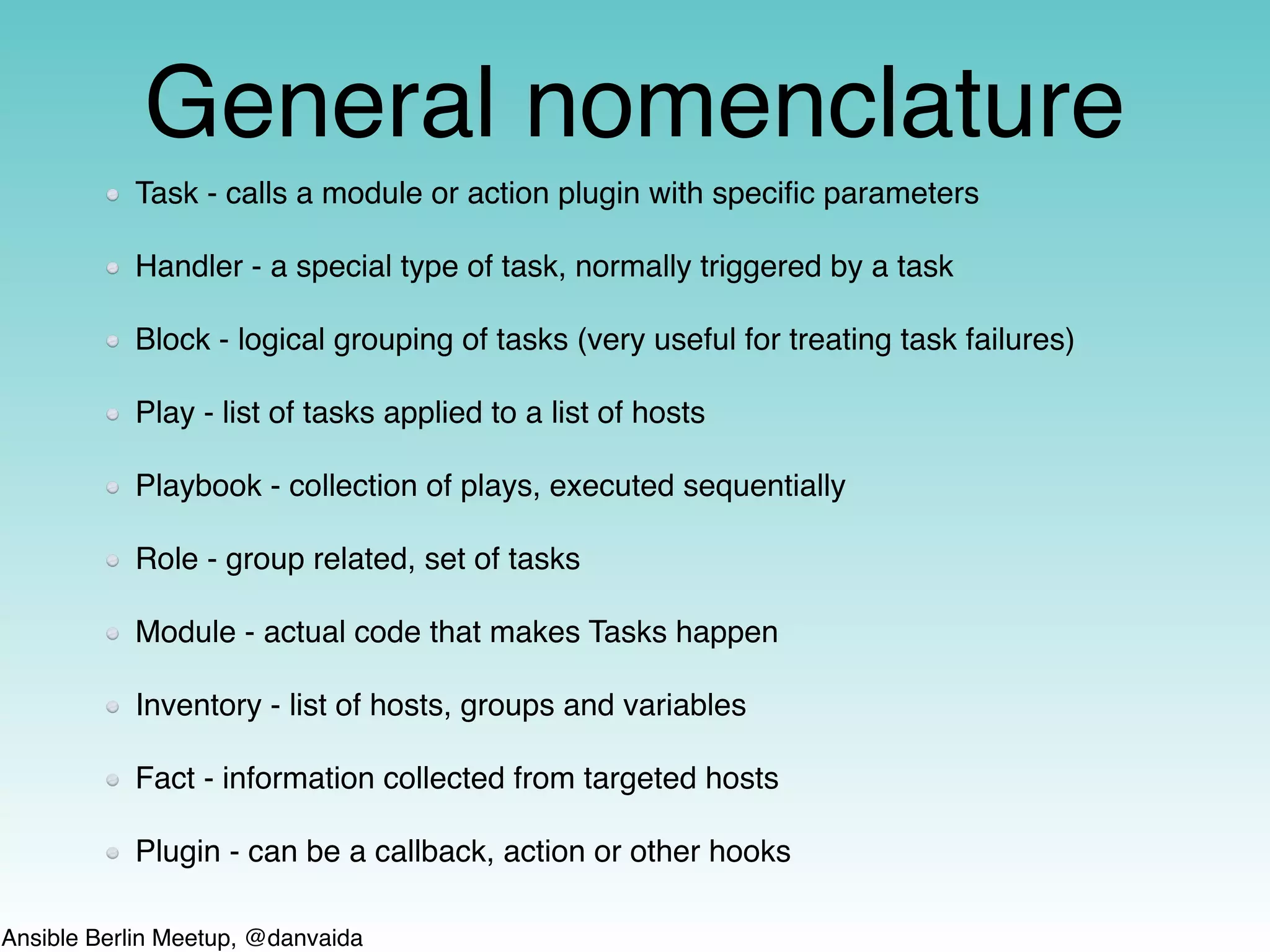

10. Ansible Berlin Meetup, @danvaida
General nomenclature
Task - calls a module or action plugin with specific parameters
Handler - a special type of task, normally triggered by a task
Block - logical grouping of tasks (very useful for treating task failures)
Play - list of tasks applied to a list of hosts
Playbook - collection of plays, executed sequentially
Role - group related, set of tasks
Module - actual code that makes Tasks happen
Inventory - list of hosts, groups and variables
Fact - information collected from targeted hosts
Plugin - can be a callback, action or other hooks

11. Ansible Berlin Meetup, @danvaida

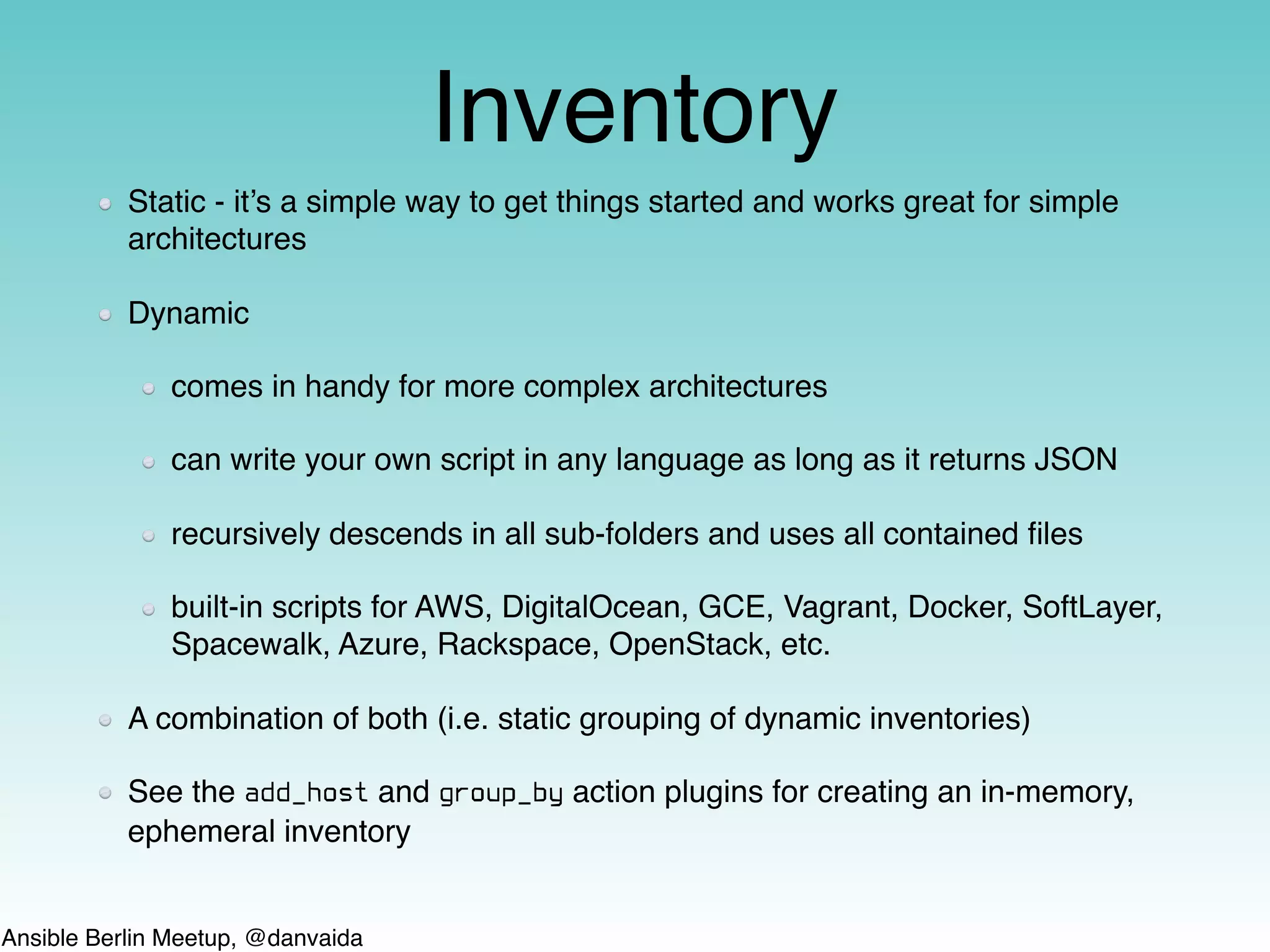

Inventory
Static - it’s a simple way to get things started and works great for simple
architectures
Dynamic
comes in handy for more complex architectures
can write your own script in any language as long as it returns JSON
recursively descends in all sub-folders and uses all contained files
built-in scripts for AWS, DigitalOcean, GCE, Vagrant, Docker, SoftLayer,
Spacewalk, Azure, Rackspace, OpenStack, etc.
A combination of both (i.e. static grouping of dynamic inventories)
See the add_host and group_by action plugins for creating an in-memory,
ephemeral inventory

12. Ansible Berlin Meetup, @danvaida

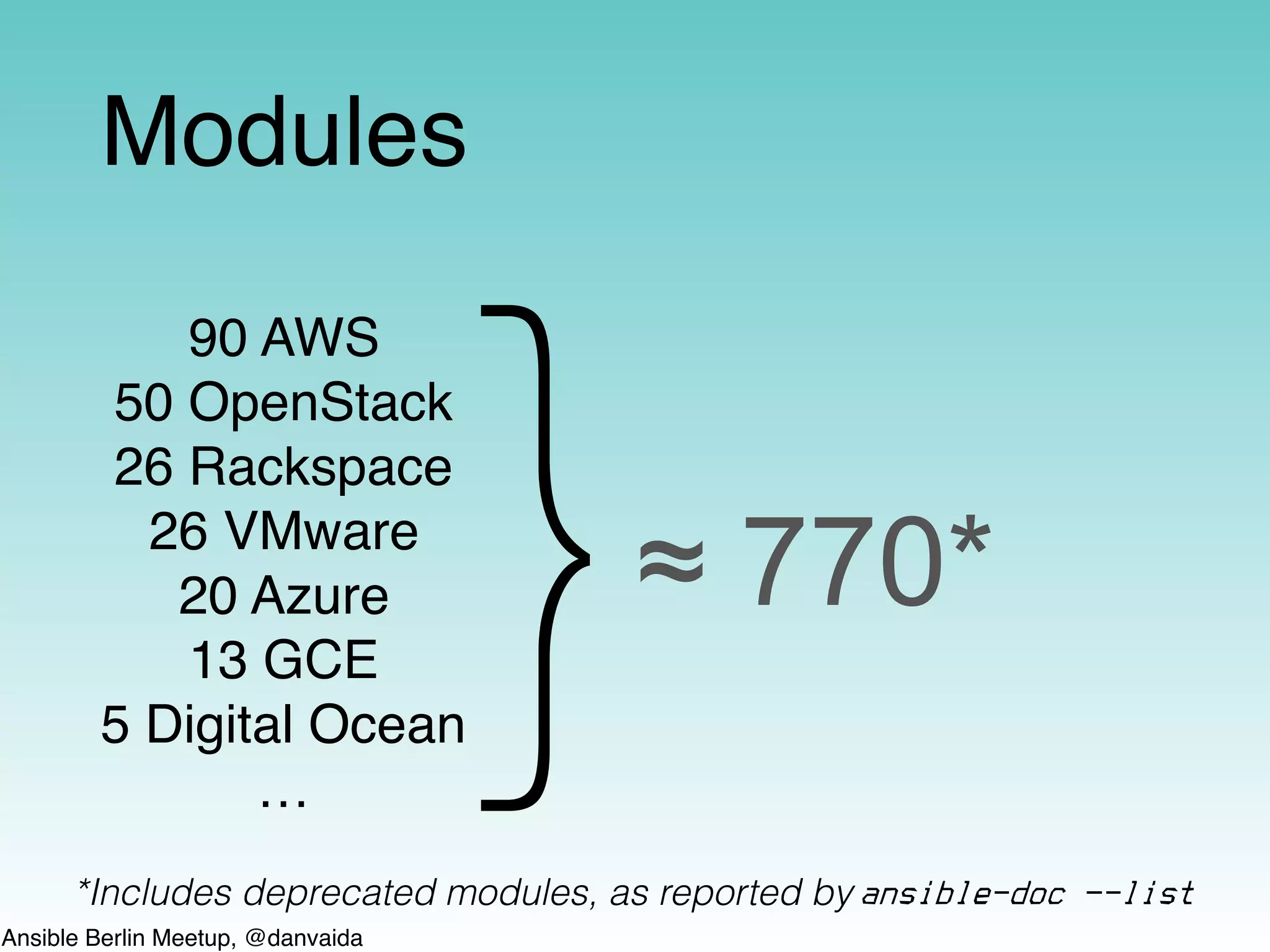

Modules
90 AWS
50 OpenStack
26 Rackspace
26 VMware
20 Azure
13 GCE
5 Digital Ocean
…
}≈ 770*
*Includes deprecated modules, as reported by ansible-doc —-list

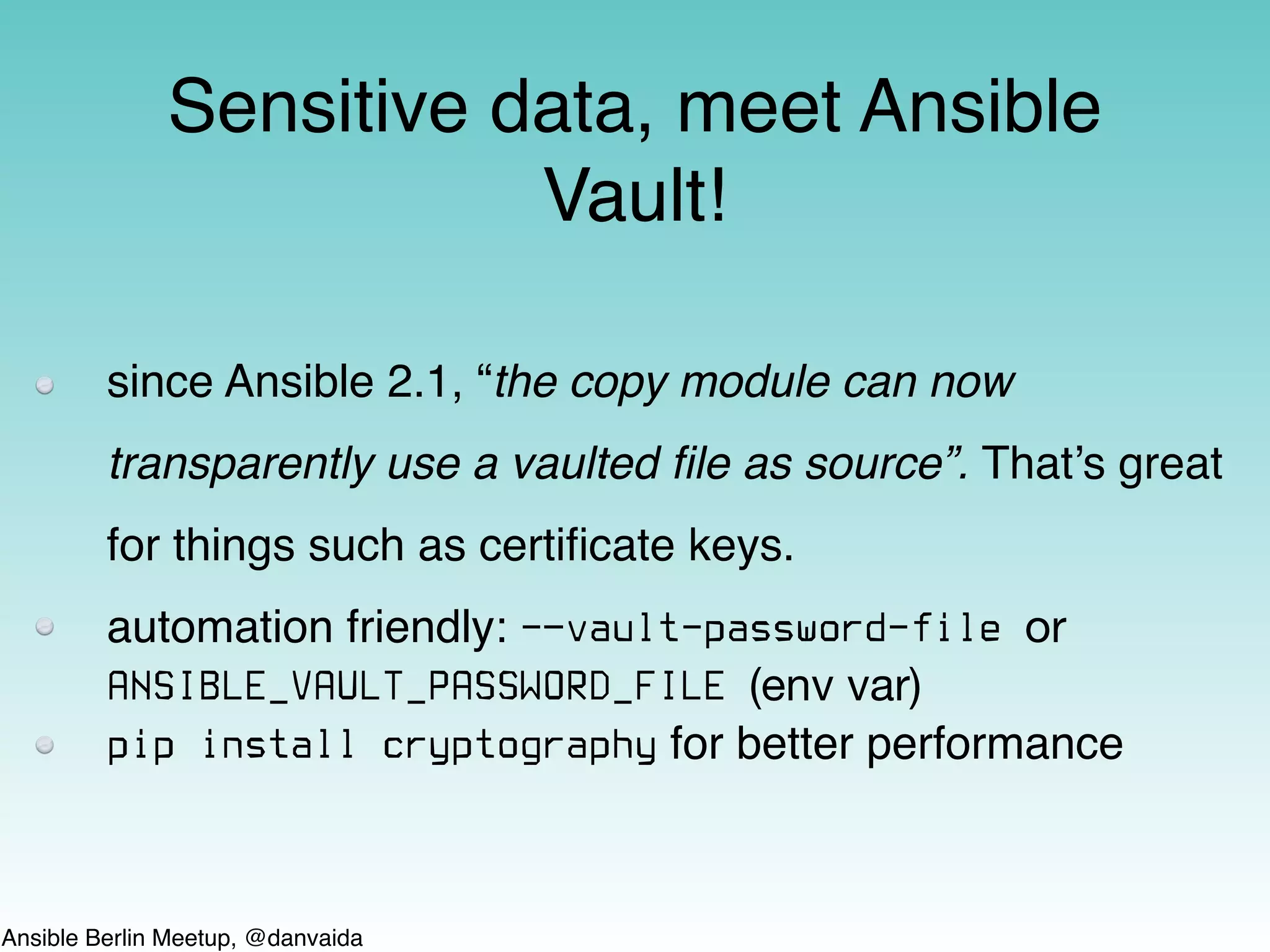

13. Ansible Berlin Meetup, @danvaida
since Ansible 2.1, “the copy module can now
transparently use a vaulted file as source”. That’s great
for things such as certificate keys.
automation friendly: -—vault-password-file or
ANSIBLE_VAULT_PASSWORD_FILE (env var)
pip install cryptography for better performance
Sensitive data, meet Ansible
Vault!

14. Ansible Berlin Meetup, @danvaida

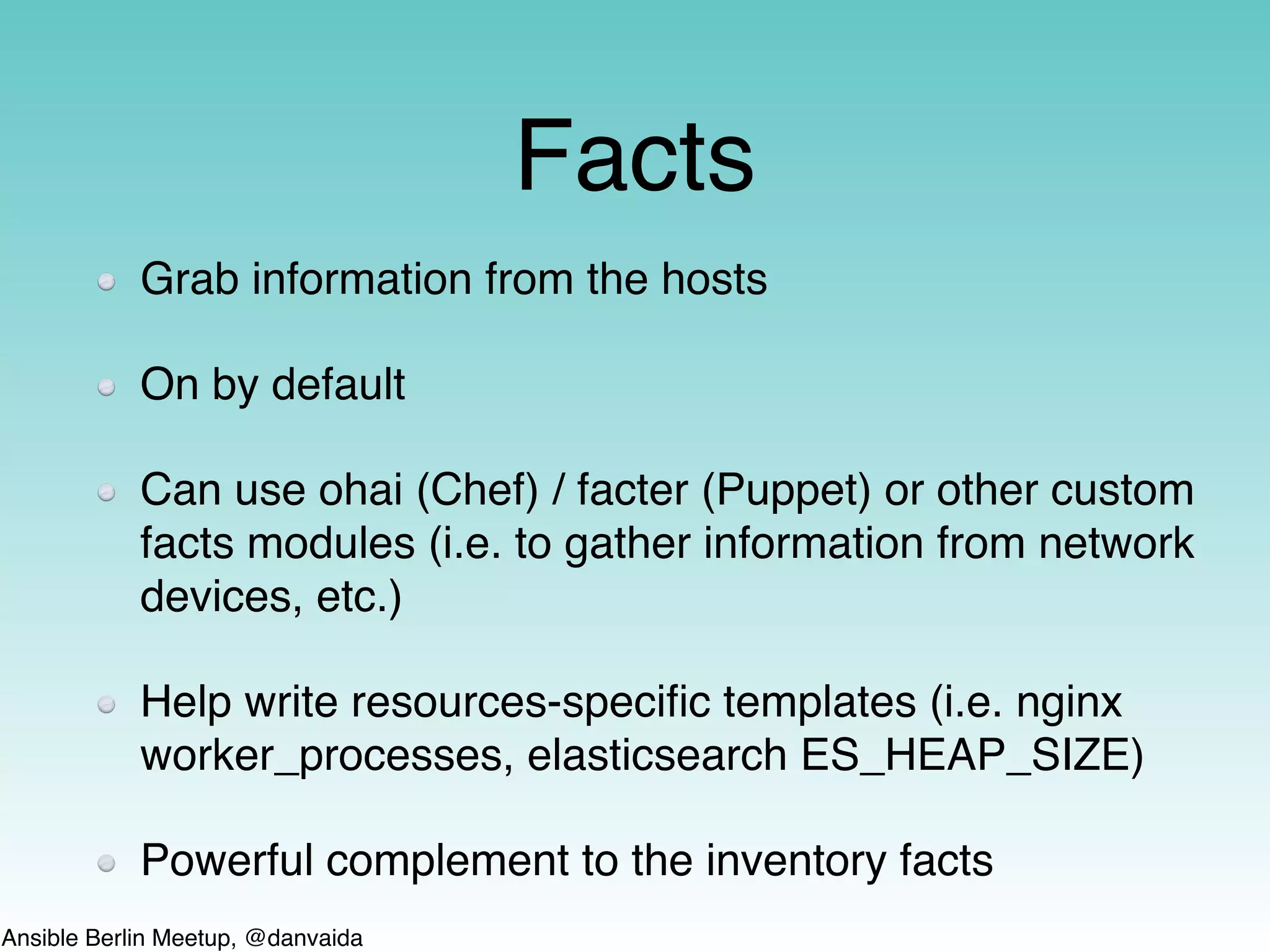

Facts
Grab information from the hosts
On by default
Can use ohai (Chef) / facter (Puppet) or other custom
facts modules (i.e. to gather information from network
devices, etc.)
Help write resources-specific templates (i.e. nginx
worker_processes, elasticsearch ES_HEAP_SIZE)
Powerful complement to the inventory facts

15. Ansible Berlin Meetup, @danvaida

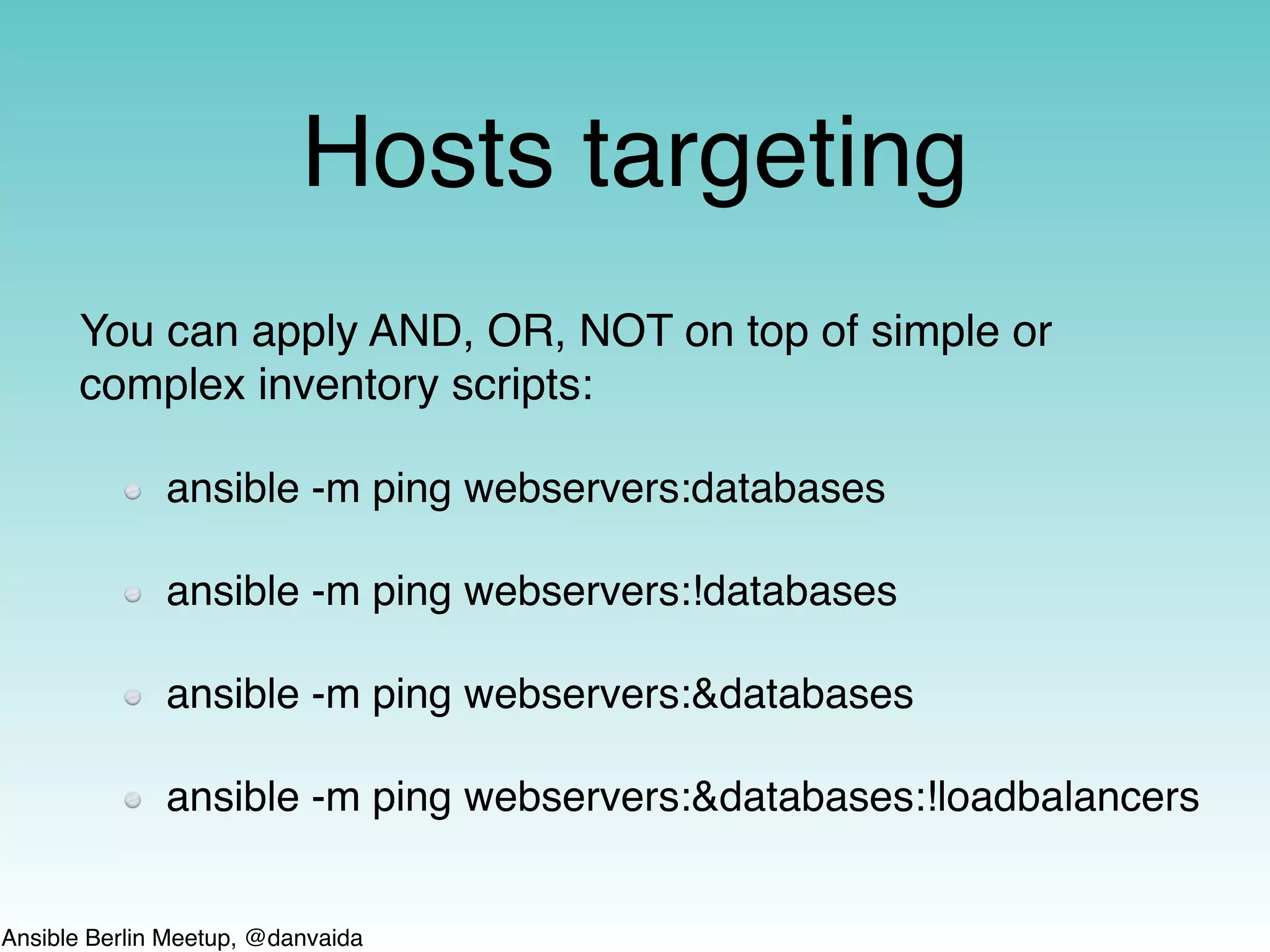

Hosts targeting
You can apply AND, OR, NOT on top of simple or
complex inventory scripts:
ansible -m ping webservers:databases
ansible -m ping webservers:!databases
ansible -m ping webservers:&databases
ansible -m ping webservers:&databases:!loadbalancers

16. Ansible Berlin Meetup, @danvaida

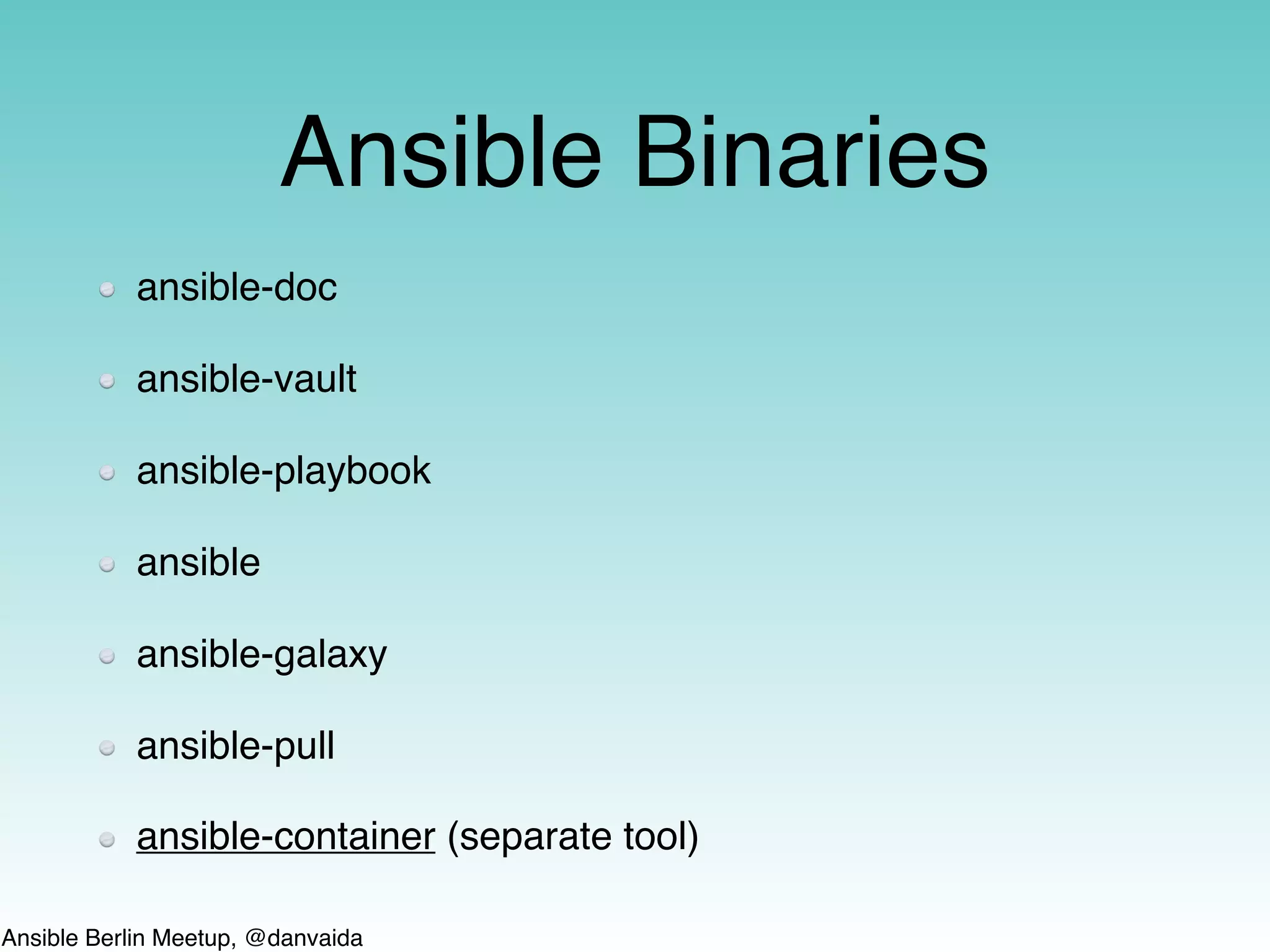

Ansible Binaries
ansible-doc
ansible-vault
ansible-playbook
ansible
ansible-galaxy
ansible-pull
ansible-container (separate tool)

17. Ansible Berlin Meetup, @danvaida

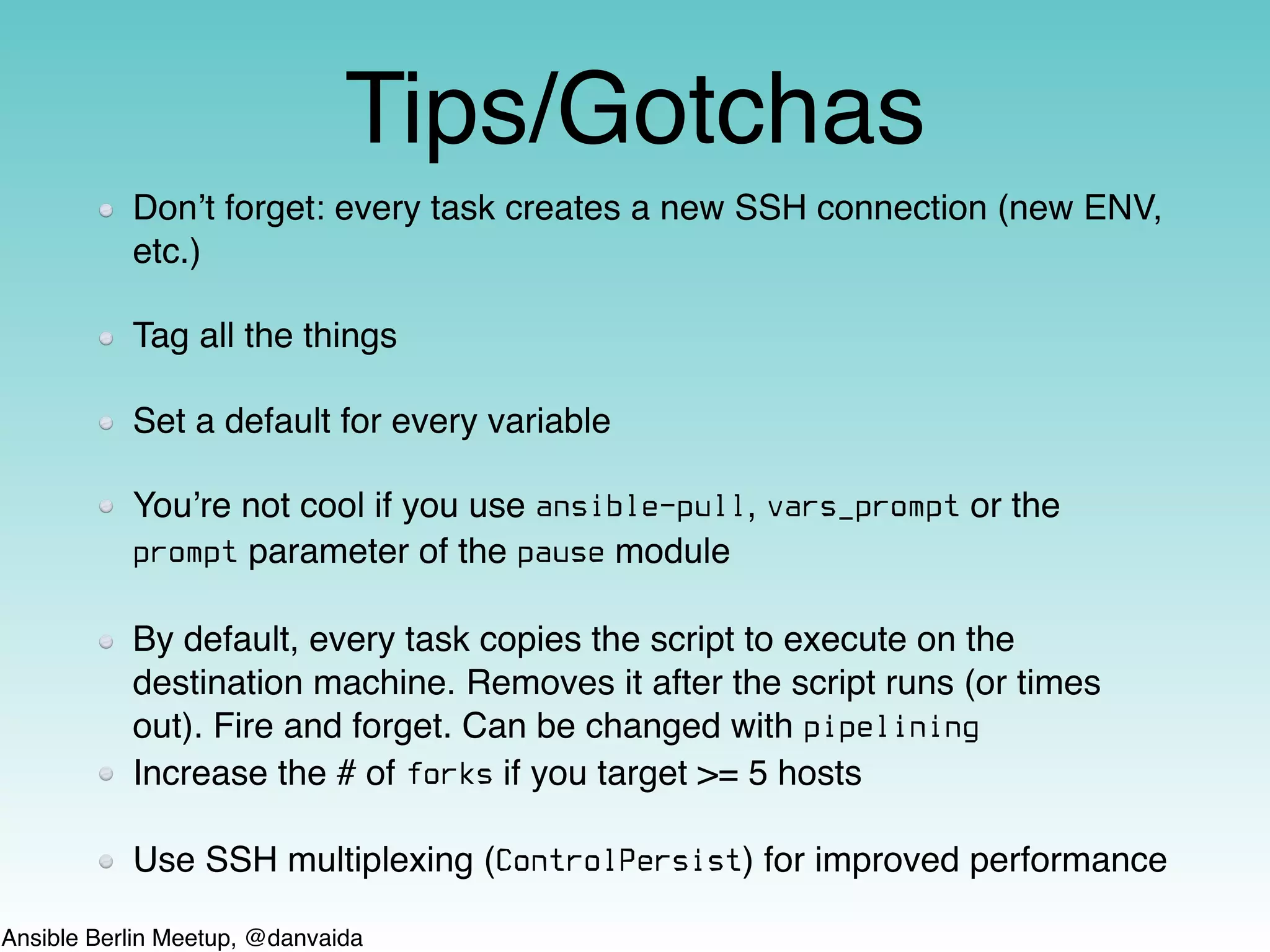

Tips/Gotchas
Don’t forget: every task creates a new SSH connection (new ENV,
etc.)
Tag all the things
Set a default for every variable
You’re not cool if you use ansible-pull, vars_prompt or the
prompt parameter of the pause module
By default, every task copies the script to execute on the
destination machine. Removes it after the script runs (or times
out). Fire and forget. Can be changed with pipelining
Increase the # of forks if you target >= 5 hosts
Use SSH multiplexing (ControlPersist) for improved performance

18. Ansible Berlin Meetup, @danvaida

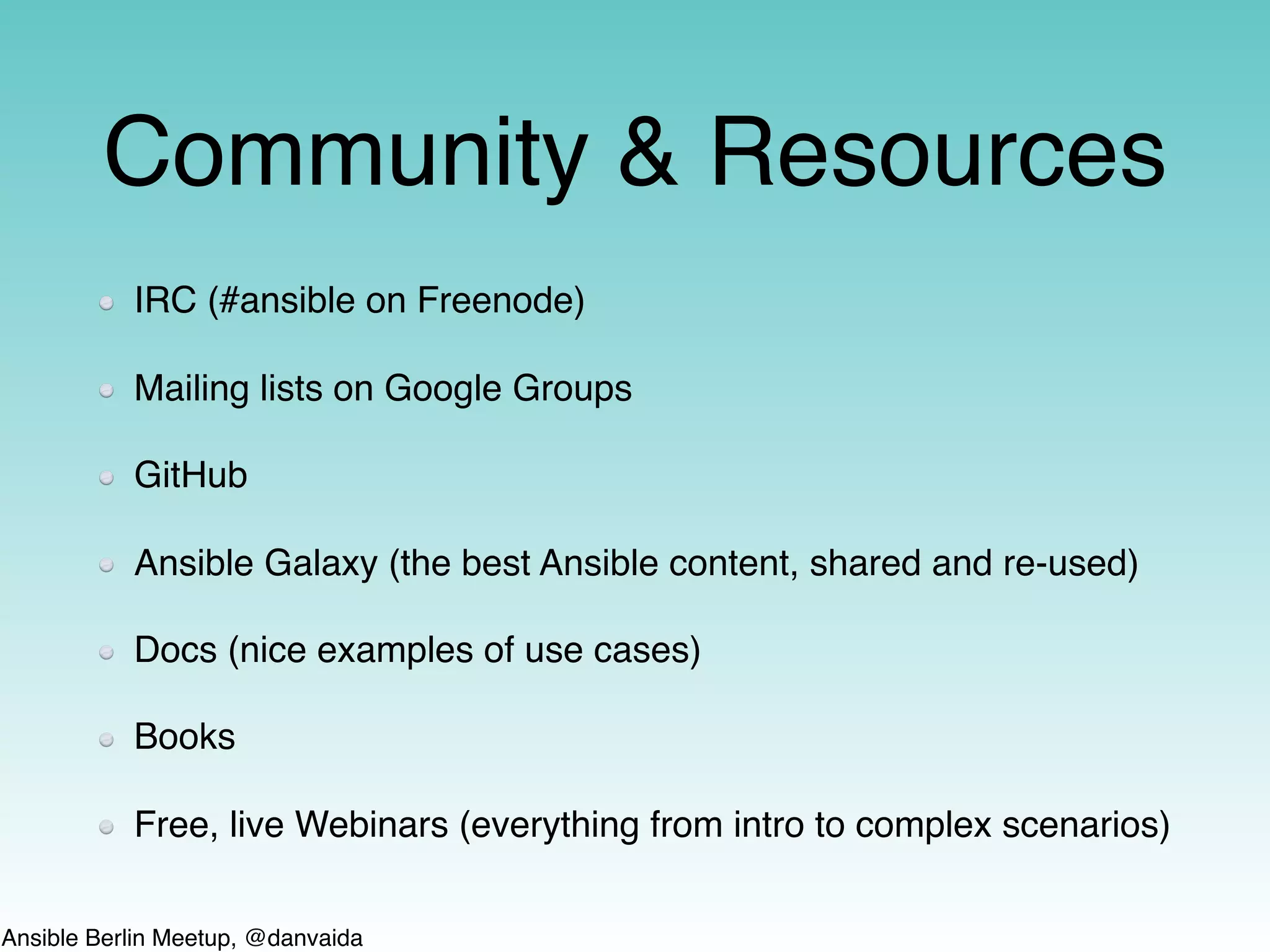

Community & Resources
IRC (#ansible on Freenode)
Mailing lists on Google Groups
GitHub
Ansible Galaxy (the best Ansible content, shared and re-used)
Docs (nice examples of use cases)
Books
Free, live Webinars (everything from intro to complex scenarios)

19. Ansible Berlin Meetup, @danvaida
Recommended reading
material
