1. DevOps (3)
- Ansible —
Mulodo Vietnam Co., Ltd.

2. Our Purpose
Make ourselves ‘Dev Company’ from
‘factory’.
Points
Engineering knowledge <- * TODAY *
Logical Thinking
Co-operation work
— Study Group —

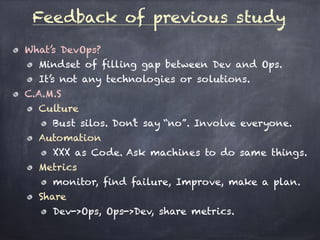

3. What’s DevOps?
Mindset of filling gap between Dev and Ops.
It’s not any technologies or solutions.
C.A.M.S
Culture
Bust silos. Don’t say “no”. Involve everyone.
Automation
XXX as Code. Ask machines to do same things.
Metrics
monitor, find failure, Improve, make a plan.
Share
Dev->Ops, Ops->Dev, share metrics.
Feedback of previous study

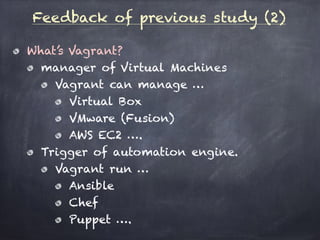

4. Feedback of previous study (2)
What’s Vagrant?
manager of Virtual Machines
Vagrant can manage …
Virtual Box
VMware (Fusion)
AWS EC2 ….
Trigger of automation engine.
Vagrant run …
Ansible
Chef
Puppet ….

5. Ansible
simple IT automation engine

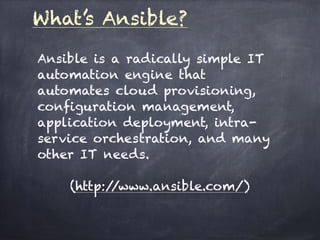

6. What’s Ansible?
Ansible is a radically simple IT
automation engine that
automates cloud provisioning,
configuration management,
application deployment, intra-
service orchestration, and many
other IT needs.
(http://www.ansible.com/)

7. Goal
Server
Apps
Apache
PHP
MySQL
Product
Apps
Source
Data
Cron
Virtual server
Vagrant
+ ansible
+ fabric
automation
Today: learn Ansible

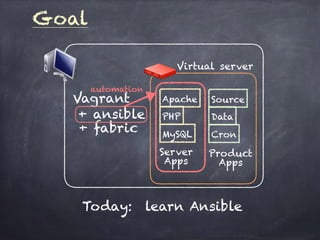

8. Goal
Server
Apps
Apache
PHP
MySQL
Product
Apps
Source
Data
Cron
Virtual server
Vagrant
+ ansible
+ fabric
automation
Today: learn Ansible

9. Goal
Server
Apps
Apache
PHP
MySQL
Product
Apps
Source
Data
Cron
Virtual server
Vagrant
+ ansible
+ fabric
automation
Today: learn Ansible

10. How Ansible work?
Hosts
[httpd]
192.168.33.40
192.168.33.41
[backend]
192.168.33.50
Playbook (YAML file)
- hosts: httpd
become: yes
tasks:
- name: be sure httpd is installed
yum: name=httpd state=installed
- name: be sure httpd is running and enabled
service: name=httpd state=started enabled=yes
target serves
tasks

11. Create hosts file
- Location
- Anywhere you want.
- Default: as you installed Ansible..
$ ansible --help
Usage: ansible <host-pattern> [options]
:
-i INVENTORY, --inventory-file=INVENTORY
specify inventory host file
(default=/usr/local/etc/ansible/hosts)
:
$
$ cd TEST <— Your test Vagrant location
TEST$ emacs hosts
:
TEST$ cat hosts
[test-servers]
192.168.33.10 <— IP address of Your Vagrant server
TEST$

12. Create playbook
- Location
- Anywhere you want. (No Default)
$ cd TEST <— Your test Vagrant location
TEST$ mkdir playbooks
TEST$ cd playbooks
TEST/playbooks$ emacs httpd.yml
:
TEST$ cat httpd.yml
- hosts: httpd-server
become: yes
tasks:
- name: be sure httpd is installed
yum: name=httpd state=installed
- name: be sure httpd is running and enabled
service: name=httpd state=started enabled=yes
TEST$

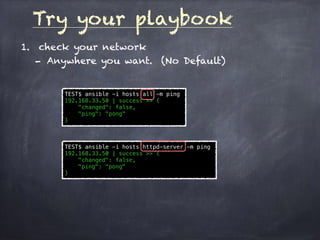

13. Try your playbook
1. check your network
- Anywhere you want. (No Default)
TEST$ ansible -i hosts all -m ping
192.168.33.50 | success >> {
"changed": false,
"ping": "pong"
}
TEST$ ansible -i hosts httpd-server -m ping
192.168.33.50 | success >> {
"changed": false,
"ping": "pong"
}

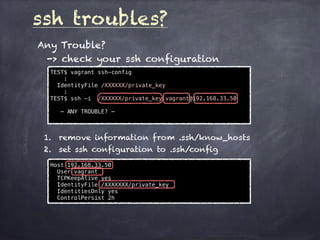

14. ssh troubles?
Any Trouble?
-> check your ssh configuration
TEST$ vagrant ssh-config
:
IdentityFile /XXXXXX/private_key
:
TEST$ ssh -i /XXXXXX/private_key vagrant@192.168.33.50
— ANY TROUBLE? —
1. remove information from .ssh/know_hosts
2. set ssh configuration to .ssh/config
Host 192.168.33.50
User vagrant
TCPKeepAlive yes
IdentityFile /XXXXXXX/private_key
IdentitiesOnly yes
ControlPersist 2h

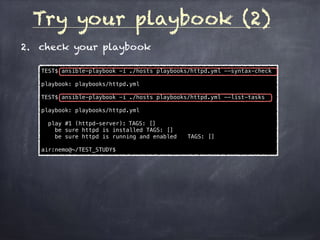

15. Try your playbook (2)
2. check your playbook
TEST$ ansible-playbook -i ./hosts playbooks/httpd.yml --syntax-check
playbook: playbooks/httpd.yml
TEST$ ansible-playbook -i ./hosts playbooks/httpd.yml --list-tasks
playbook: playbooks/httpd.yml
play #1 (httpd-server): TAGS: []
be sure httpd is installed TAGS: []
be sure httpd is running and enabled TAGS: []
air:nemo@~/TEST_STUDY$

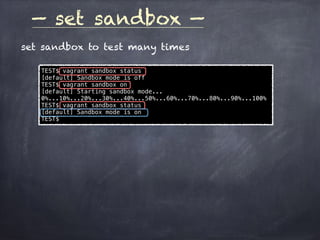

16. — set sandbox —
set sandbox to test many times
TEST$ vagrant sandbox status
[default] Sandbox mode is off
TEST$ vagrant sandbox on
[default] Starting sandbox mode...
0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
TEST$ vagrant sandbox status
[default] Sandbox mode is on
TEST$

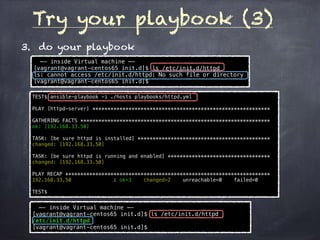

17. Try your playbook (3)
3. do your playbook
TEST$ ansible-playbook -i ./hosts playbooks/httpd.yml
PLAY [httpd-server] ***********************************************************
GATHERING FACTS ***************************************************************
ok: [192.168.33.50]
TASK: [be sure httpd is installed] ********************************************
changed: [192.168.33.50]
TASK: [be sure httpd is running and enabled] **********************************
changed: [192.168.33.50]
PLAY RECAP ********************************************************************
192.168.33.50 : ok=3 changed=2 unreachable=0 failed=0
TEST$
—- inside Virtual machine —-
[vagrant@vagrant-centos65 init.d]$ ls /etc/init.d/httpd
ls: cannot access /etc/init.d/httpd: No such file or directory
[vagrant@vagrant-centos65 init.d]$
—- inside Virtual machine —-
[vagrant@vagrant-centos65 init.d]$ ls /etc/init.d/httpd
/etc/init.d/httpd
[vagrant@vagrant-centos65 init.d]$

18. Insider Playbook
playbook : YAML file
- hosts: httpd-server
become: yes
tasks:
- name: be sure httpd is installed
yum: name=httpd state=installed
- name: be sure httpd is running and enabled
service: name=httpd state=started enabled=yes
target servers - ‘hosts’ file
do with ‘sudo’
Task : definition
name : description
Task itself

19. Inside Playbook
tasks inside : Modules
yum: name=httpd state=installed
module Parameters
http://docs.ansible.com/ansible/modules.html
http://docs.ansible.com/ansible/modules_by_category.html

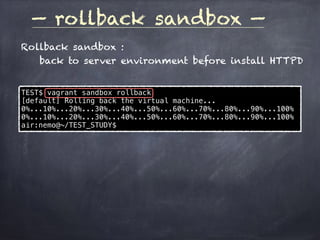

20. — rollback sandbox —
Rollback sandbox :
back to server environment before install HTTPD
TEST$ vagrant sandbox rollback
[default] Rolling back the virtual machine...
0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
0%...10%...20%...30%...40%...50%...60%...70%...80%...90%...100%
air:nemo@~/TEST_STUDY$

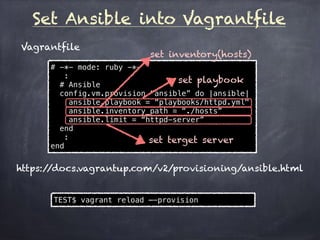

21. Set Ansible into Vagrantfile
Vagrantfile
# -*- mode: ruby -*-
:
# Ansible
config.vm.provision “ansible” do |ansible|
ansible.playbook = “playbooks/httpd.yml"
ansible.inventory_path = “./hosts”
ansible.limit = “httpd-server”
end
:
end
https://docs.vagrantup.com/v2/provisioning/ansible.html
set playbook
set inventory(hosts)
set terget server
TEST$ vagrant reload —-provision

22. Try : do Ansbile with Vagrant
TEST$ vagrant reload --provision
==> default: Attempting graceful shutdown of VM...
:
==> default: Machine booted and ready!
:
==> default: Running provisioner: ansible...
PLAY [httpd-server] ***********************************************************
GATHERING FACTS ***************************************************************
ok: [192.168.33.50]
TASK: [be sure httpd is installed] ********************************************
changed: [192.168.33.50]
TASK: [be sure httpd is running and enabled] **********************************
changed: [192.168.33.50]
PLAY RECAP ********************************************************************
192.168.33.50 : ok=3 changed=2 unreachable=0 failed=0
air:nemo@~/TEST_STUDY$
server has launched.
start Ansible tasks
Server setting was changed.
Task
Task
Server setting was changed.

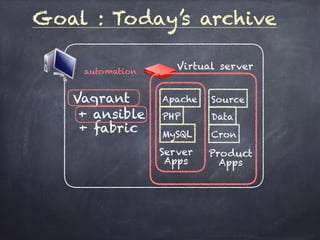

23. Goal : Today’s archive
Server
Apps
Apache
PHP
MySQL
Product
Apps
Source
Data
Cron
Virtual server
Vagrant
+ ansible
+ fabric
automation

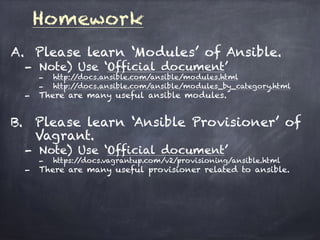

24. Homework
A. Please learn ‘Modules’ of Ansible.
- Note) Use ‘Official document’
- http://docs.ansible.com/ansible/modules.html
- http://docs.ansible.com/ansible/modules_by_category.html
- There are many useful ansible modules.
B. Please learn ‘Ansible Provisioner’ of
Vagrant.
- Note) Use ‘Official document’
- https://docs.vagrantup.com/v2/provisioning/ansible.html
- There are many useful provisioner related to ansible.

25. Homework (2)
C. Please make playbook of PHP/MySQL.
- currently, there is only httpd playbook.
HINT
Vagrantfile
:
ansible.playbook = “playbooks/setup.yml”
:
setup.yml
=====
# setup httpd
- include: playbooks/httpd.yml
# setup mysql
- include: playbooks/mysql.yml
# setup php
- include: playbooks/php.yml
=====

26. Next : Ansible(2)
A) What’s Idempotence??
B) Make spec list.
and use tarballs.
