1. Ansible Roles done right
Ansible Berlin Meetup

2. Fetching and installing roles
• requirements.yml
• ansible-galaxy install -r requirements.yml
• depending on how you access the repo, you
might need a valid key in your ssh agent for
grabbing the role
• it's a good idea to specify the path of the roles in
your ansible.cfg file. that will also tell Galaxy
where to unpack the roles
Ansible Berlin Meetup

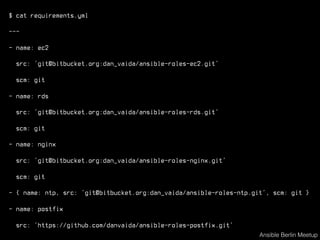

3. $ cat requirements.yml
---
- name: ec2
src: ‘git@bitbucket.org:dan_vaida/ansible-roles-ec2.git’
scm: git
- name: rds
src: ‘git@bitbucket.org:dan_vaida/ansible-roles-rds.git’
scm: git
- name: nginx
src: ‘git@bitbucket.org:dan_vaida/ansible-roles-nginx.git’
scm: git
- { name: ntp, src: ‘git@bitbucket.org:dan_vaida/ansible-roles-ntp.git’, scm: git }
- name: postfix
src: ‘https://github.com/danvaida/ansible-roles-postfix.git’
Ansible Berlin Meetup

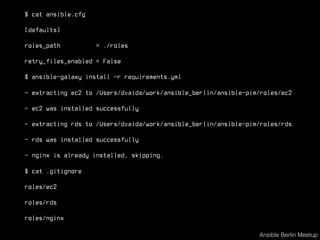

4. $ cat ansible.cfg
[defaults]
roles_path = ./roles
retry_files_enabled = False
$ ansible-galaxy install -r requirements.yml
- extracting ec2 to /Users/dvaida/work/ansible_berlin/ansible-pim/roles/ec2
- ec2 was installed successfully
- extracting rds to /Users/dvaida/work/ansible_berlin/ansible-pim/roles/rds
- rds was installed successfully
- nginx is already installed, skipping.
$ cat .gitignore
roles/ec2
roles/rds
roles/nginx
Ansible Berlin Meetup

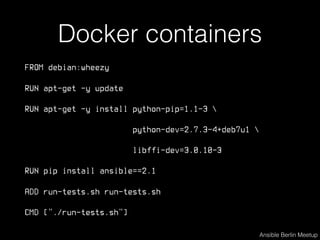

5. Docker containers
FROM debian:wheezy
RUN apt-get -y update
RUN apt-get -y install python-pip=1.1-3
python-dev=2.7.3-4+deb7u1
libffi-dev=3.0.10-3
RUN pip install ansible==2.1
ADD run-tests.sh run-tests.sh
CMD ["./run-tests.sh"]
Ansible Berlin Meetup

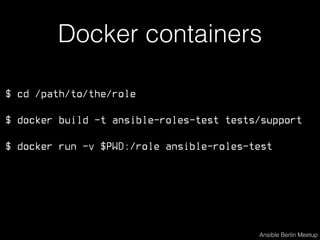

6. $ cd /path/to/the/role
$ docker build -t ansible-roles-test tests/support
$ docker run -v $PWD:/role ansible-roles-test
Ansible Berlin Meetup
Docker containers

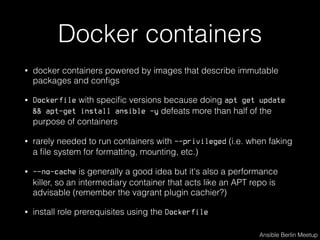

7. Docker containers
• docker containers powered by images that describe immutable
packages and configs
• Dockerfile with specific versions because doing apt get update
&& apt-get install ansible -y defeats more than half of the
purpose of containers
• rarely needed to run containers with --privileged (i.e. when faking
a file system for formatting, mounting, etc.)
• --no-cache is generally a good idea but it's also a performance
killer, so an intermediary container that acts like an APT repo is
advisable (remember the vagrant plugin cachier?)
• install role prerequisites using the Dockerfile
Ansible Berlin Meetup

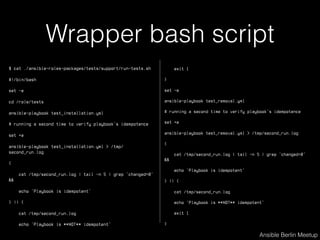

8. Wrapper bash script
$ cat ./ansible-roles-packages/tests/support/run-tests.sh
#!/bin/bash
set -e
cd /role/tests
ansible-playbook test_installation.yml
# running a second time to verify playbook's idempotence
set +e
ansible-playbook test_installation.yml > /tmp/
second_run.log
{
cat /tmp/second_run.log | tail -n 5 | grep 'changed=0'
&&
echo 'Playbook is idempotent'
} || {
cat /tmp/second_run.log
echo 'Playbook is **NOT** idempotent'
Ansible Berlin Meetup
exit 1
}
set -e
ansible-playbook test_removal.yml
# running a second time to verify playbook's idempotence
set +e
ansible-playbook test_removal.yml > /tmp/second_run.log
{
cat /tmp/second_run.log | tail -n 5 | grep 'changed=0'
&&
echo 'Playbook is idempotent'
} || {
cat /tmp/second_run.log
echo 'Playbook is **NOT** idempotent'
exit 1
}

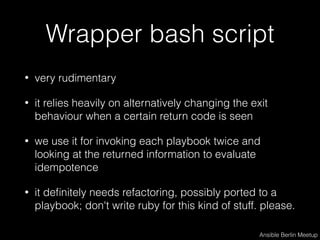

9. Wrapper bash script
• very rudimentary
• it relies heavily on alternatively changing the exit
behaviour when a certain return code is seen
• we use it for invoking each playbook twice and
looking at the returned information to evaluate
idempotence
• it definitely needs refactoring, possibly ported to a
playbook; don't write ruby for this kind of stuff. please.
Ansible Berlin Meetup

10. changed=0 unreachable=0 failed=0
• Idempotence means f(x)=f(f(x))
• The tests that ship with the roles are like unit-
tests in the big picture
• You must write integration tests, too. They will
prove that your roles’ interconnection actually
works by testing your application's health.
Ansible Berlin Meetup

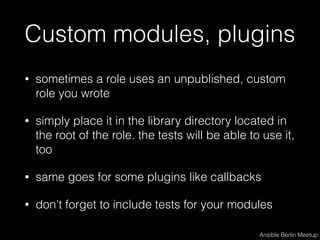

11. Custom modules, plugins
• sometimes a role uses an unpublished, custom
role you wrote
• simply place it in the library directory located in
the root of the role. the tests will be able to use it,
too
• same goes for some plugins like callbacks
• don't forget to include tests for your modules
Ansible Berlin Meetup

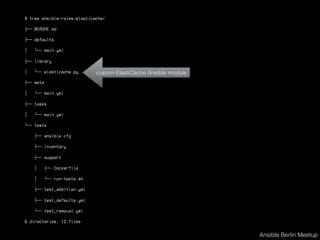

12. $ tree ansible-roles-elasticache/
├── README.md
├── defaults
│ └── main.yml
├── library
│ └── elasticache.py
├── meta
│ └── main.yml
├── tasks
│ └── main.yml
└── tests
├── ansible.cfg
├── inventory
├── support
│ ├── Dockerfile
│ └── run-tests.sh
├── test_addition.yml
├── test_defaults.yml
└── test_removal.yml
6 directories, 12 files
Ansible Berlin Meetup
custom ElastiCache Ansible module

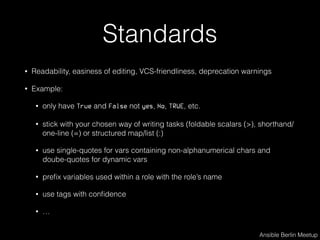

13. Standards
• Readability, easiness of editing, VCS-friendliness, deprecation warnings
• Example:
• only have True and False not yes, No, TRUE, etc.
• stick with your chosen way of writing tasks (foldable scalars (>), shorthand/
one-line (=) or structured map/list (:)
• use single-quotes for vars containing non-alphanumerical chars and
doube-quotes for dynamic vars
• prefix variables used within a role with the role’s name
• use tags with confidence
• …
Ansible Berlin Meetup

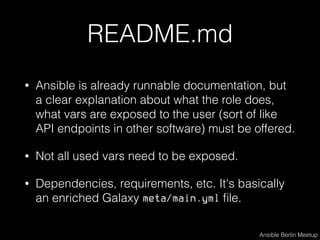

14. README.md
• Ansible is already runnable documentation, but
a clear explanation about what the role does,
what vars are exposed to the user (sort of like
API endpoints in other software) must be offered.
• Not all used vars need to be exposed.
• Dependencies, requirements, etc. It's basically
an enriched Galaxy meta/main.yml file.
Ansible Berlin Meetup

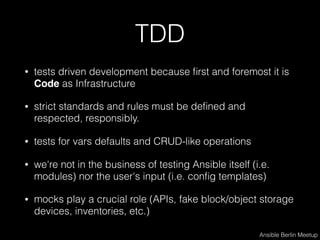

15. TDD
• tests driven development because first and foremost it is
Code as Infrastructure
• strict standards and rules must be defined and
respected, responsibly.
• tests for vars defaults and CRUD-like operations
• we're not in the business of testing Ansible itself (i.e.
modules) nor the user's input (i.e. config templates)
• mocks play a crucial role (APIs, fake block/object storage
devices, inventories, etc.)
Ansible Berlin Meetup

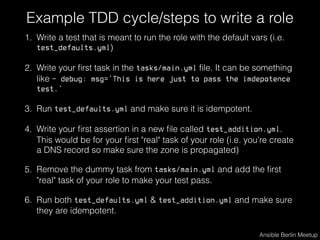

16. Example TDD cycle/steps to write a role
1. Write a test that is meant to run the role with the default vars (i.e.
test_defaults.yml)
2. Write your first task in the tasks/main.yml file. It can be something
like - debug: msg='This is here just to pass the imdepotence
test.’
3. Run test_defaults.yml and make sure it is idempotent.
4. Write your first assertion in a new file called test_addition.yml.
This would be for your first "real" task of your role (i.e. you’re create
a DNS record so make sure the zone is propagated)
5. Remove the dummy task from tasks/main.yml and add the first
"real" task of your role to make your test pass.
6. Run both test_defaults.yml & test_addition.yml and make sure
they are idempotent.
Ansible Berlin Meetup

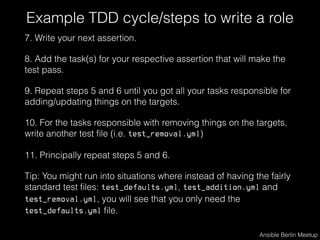

17. Example TDD cycle/steps to write a role
7. Write your next assertion.
8. Add the task(s) for your respective assertion that will make the
test pass.
9. Repeat steps 5 and 6 until you got all your tasks responsible for
adding/updating things on the targets.
10. For the tasks responsible with removing things on the targets,
write another test file (i.e. test_removal.yml)
11. Principally repeat steps 5 and 6.
Tip: You might run into situations where instead of having the fairly
standard test files: test_defaults.yml, test_addition.yml and
test_removal.yml, you will see that you only need the
test_defaults.yml file.
Ansible Berlin Meetup

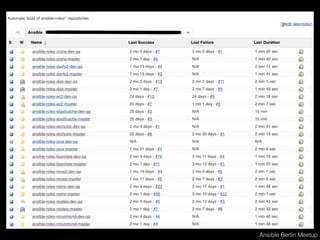

18. CI via Jenkins
• the complete flow includes automatic runs of the
docker containers which implicitly execute the role tests
• this is typically happening when a PR is made, a
branch is merged into the master branch.
• a working solution is to have two Jenkins jobs.
Example:
• ansible-roles-logrotate-dev-qa (runs against PRs)
• ansible-roles-logrotate-master (runs against master)
Ansible Berlin Meetup

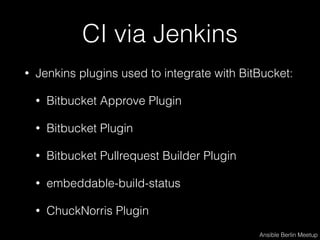

19. CI via Jenkins
• Jenkins plugins used to integrate with BitBucket:
• Bitbucket Approve Plugin
• Bitbucket Plugin
• Bitbucket Pullrequest Builder Plugin
• embeddable-build-status
• ChuckNorris Plugin
Ansible Berlin Meetup

20. Ansible Berlin Meetup

21. "It works on my machine" always holds true for Chuck Norris.
Ansible Berlin Meetup

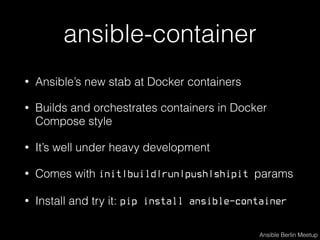

22. ansible-container
• Ansible’s new stab at Docker containers
• Builds and orchestrates containers in Docker
Compose style
• It’s well under heavy development
• Comes with init|build|run|push|shipit params
• Install and try it: pip install ansible-container
Ansible Berlin Meetup

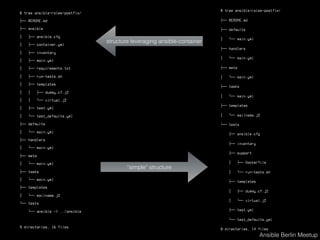

23. $ tree ansible-roles-postfix/
├── README.md
├── ansible
│ ├── ansible.cfg
│ ├── container.yml
│ ├── inventory
│ ├── main.yml
│ ├── requirements.txt
│ ├── run-tests.sh
│ ├── templates
│ │ ├── dummy.cf.j2
│ │ └── virtual.j2
│ ├── test.yml
│ └── test_defaults.yml
├── defaults
│ └── main.yml
├── handlers
│ └── main.yml
├── meta
│ └── main.yml
├── tasks
│ └── main.yml
├── templates
│ └── mailname.j2
└── tests
└── ansible -> ../ansible
9 directories, 16 files
Ansible Berlin Meetup
$ tree ansible-roles-postfix/
├── README.md
├── defaults
│ └── main.yml
├── handlers
│ └── main.yml
├── meta
│ └── main.yml
├── tasks
│ └── main.yml
├── templates
│ └── mailname.j2
└── tests
├── ansible.cfg
├── inventory
├── support
│ ├── Dockerfile
│ └── run-tests.sh
├── templates
│ ├── dummy.cf.j2
│ └── virtual.j2
├── test.yml
└── test_defaults.yml
8 directories, 14 files
structure leveraging ansible-container
“simple” structure

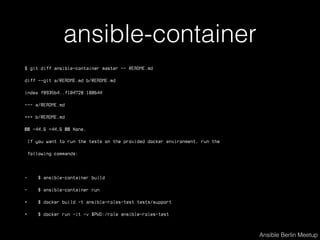

24. ansible-container
$ git diff ansible-container master -- README.md
diff --git a/README.md b/README.md
index f8935b4..f104728 100644
--- a/README.md
+++ b/README.md
@@ -44,6 +44,6 @@ None.
If you want to run the tests on the provided docker environment, run the
following commands:
- $ ansible-container build
- $ ansible-container run
+ $ docker build -t ansible-roles-test tests/support
+ $ docker run -it -v $PWD:/role ansible-roles-test
Ansible Berlin Meetup

25. Questions?
Ansible Berlin Meetup

26. Thanks.
