Anjali agrawal case discussion by experts

ER potpourri-
Film reading panel
Anjali Agrawal, MD
Consultant,Teleradiology Solutions
SER 2016, Bangalore

Panelists
 Dr Raju Sharma
 Dr Shanmuganathan
 Dr Dinesh Varma
 Dr Rathachai Kaewlai
 Dr Adnan Sheikh

MBBS: Maulana Azad Medical College, New Delhi
MD: AIIMS, New Delhi
Fellowship in GI Radiology: Massachusetts General Hospital, Boston
Joined as Assistant Professor, AIIMS in 1993
Professor in Dept of Radiology AIIMS, New Delhi since 2008
Area of Interest: Abdominal Imaging
RAJU SHARMA, MD, MAMS

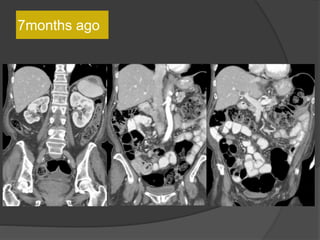

Case 1: 64F, abdominal distention, pain, h/o
SBO

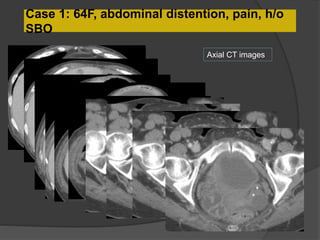

Axial CT images

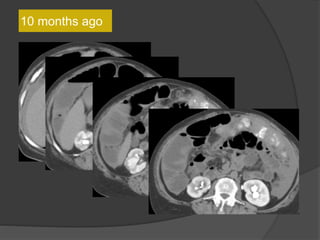

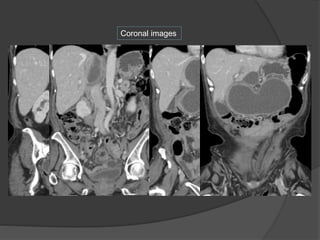

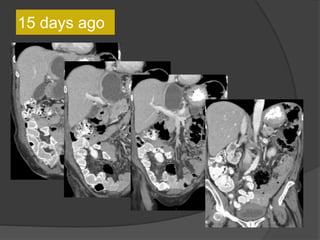

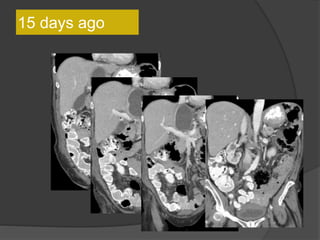

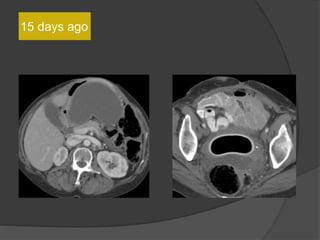

15d ago

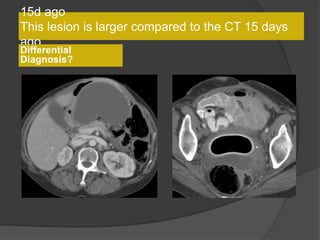

This lesion is larger compared to the CT 15 days
ago
Differential
Diagnosis?

Case 1: 64F, abdominal distention, pain, h/o
SBO
• Multilobulated thick-walled cystic lesion in the lesser sac and extending along the
adjacent peritoneal spaces and gastrohepatic ligament. Cystic lesion in the left
hemipelvis
• Minimal ascites, omental and mesenteric thickening

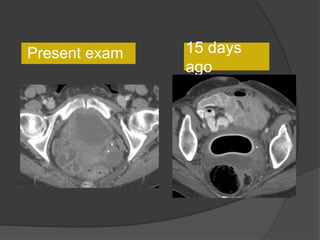

Present exam 15 days ago
Increased size

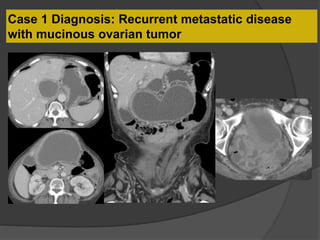

Case 1 Diagnosis: Recurrent metastatic disease
with mucinous ovarian tumor

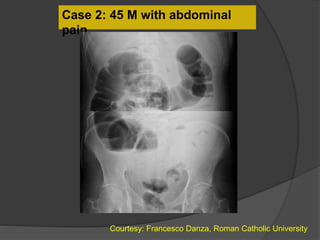

Case 2: 45 M with abdominal
pain
Courtesy: Francesco Danza, Roman Catholic University

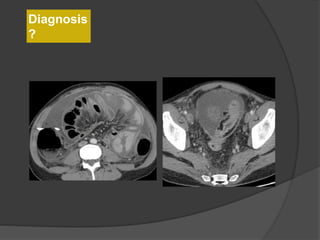

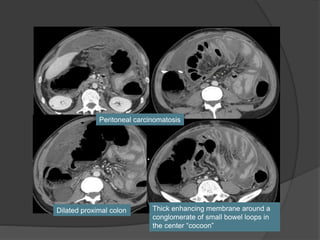

Peritoneal carcinomatosis
Thick enhancing membrane around a
conglomerate of small bowel loops in

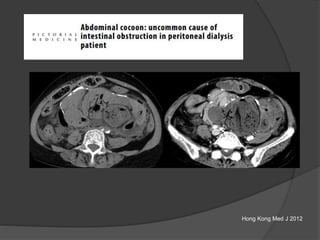

the center “cocoon”
Dilated proximal colon

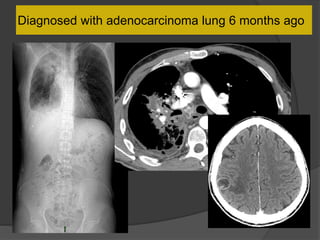

Diagnosed with adenocarcinoma lung 6 months ago

Case 2 Diagnosis: “Cocoon
peritonitis”
•AKA sclerosing
encapsulating peritonitis
•Rare cause of bowel
obstruction due to fibrotic
encapsulation of the bowel
forming a sac or cocoon
•May be idiopathic or
secondary to chronic
peritoneal dialysis, TB,
sarcoidosis, GI malignancy,
fibrogenic foreign material
•Treatment –Surgical
removal of the covering
membrane

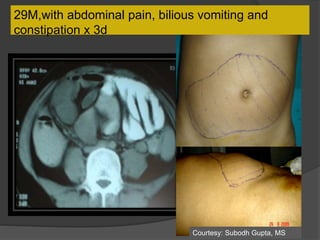

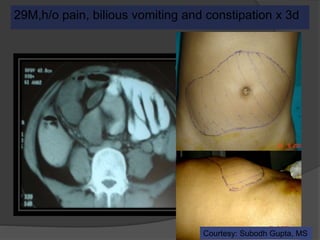

29M,with abdominal pain, bilious vomiting and
constipation x 3d
Courtesy: Subodh Gupta, MS

Histopathology
 The cocoon membrane showed
proliferation of fibroconnective tissue
with granulomas

RATHACHAI KAEWLAI, MD
 Ramathibodi Hospital, Faculty of
Medicine, Mahidol University,
Bangkok,Thailand
 Subspecialties: Emergency radiology and
body imaging
 Training:
 MD – Siriraj Hospital, BKK
 Residency – Ramathibodi, BKK
 American Board (Diagnostic Radiology) –
MGH, Boston, USA
 Clinical Fellowships – MGH (Boston) and
NEOUCOM (Ohio)

Case 1: 38 M with acute onset severe abdominal
pain

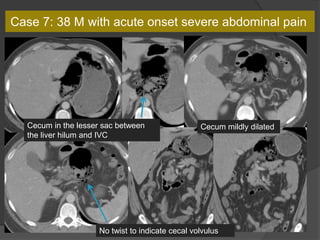

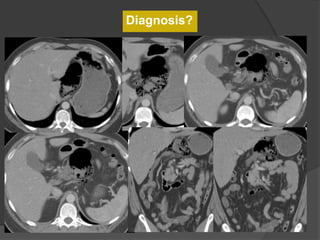

Cecum in the lesser sac
Diagnosis?

Cecum mildly dilatedCecum in the lesser sac between
the liver hilum and IVC
No twist to indicate cecal volvulus

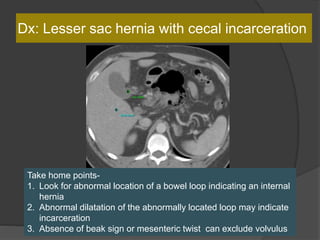

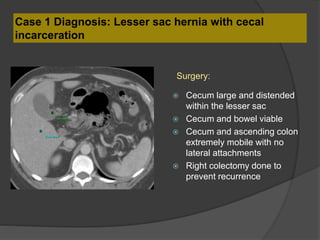

Case 1 Diagnosis: Lesser sac hernia with cecal
incarceration
 Cecum large and distended
within the lesser sac
 Cecum and bowel viable
 Cecum and ascending colon
extremely mobile with no
lateral attachments
 Right colectomy done to
prevent recurrence
Surgery:

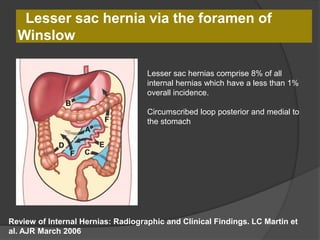

Lesser sac hernia via the foramen of
Winslow
Review of Internal Hernias: Radiographic and Clinical Findings. LC Martin et
al. AJR March 2006
Lesser sac hernias comprise 8% of all
internal hernias which have a less than 1%
overall incidence.
Circumscribed loop posterior and medial to
the stomach

Case 2: 12 F with abdominal pain

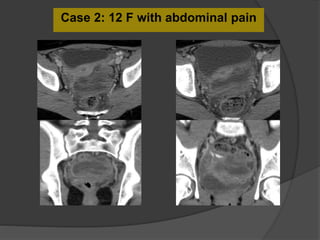

Case 2: 12 year old female with abdominal pain

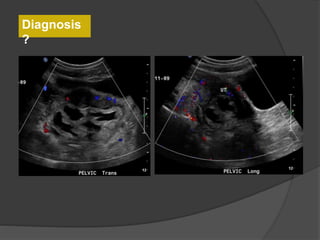

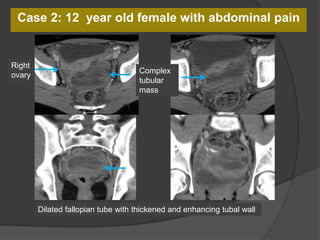

Dilated fallopian tube with thickened and enhancing tubal wall
Right
ovary
Complex
tubular
mass

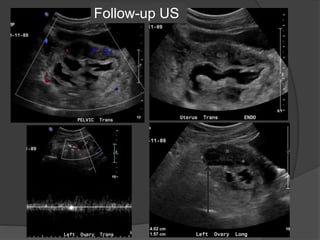

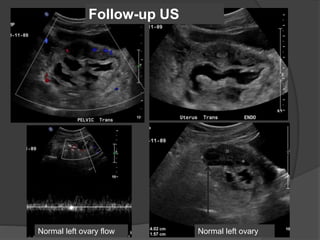

Follow-up US
Normal left ovaryNormal left ovary flow

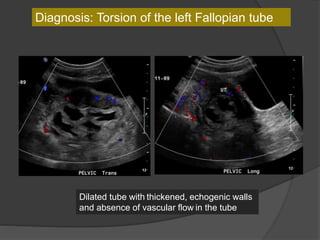

Diagnosis: Torsion of the left Fallopian tube
Dilated tube with thickened, echogenic walls
and absence of vascular flow in the tube

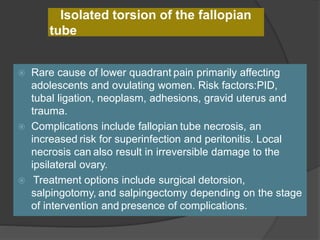

Isolated torsion of the fallopian
tube
 Rare cause of lower quadrant pain primarily affecting
adolescents and ovulating women. Risk factors:PID,
tubal ligation, neoplasm, adhesions, gravid uterus and
trauma.
 Complications include fallopian tube necrosis, an
increased risk for superinfection and peritonitis. Local
necrosis can also result in irreversible damage to the
ipsilateral ovary.
 Treatment options include surgical detorsion,
salpingotomy, and salpingectomy depending on the stage
of intervention and presence of complications.

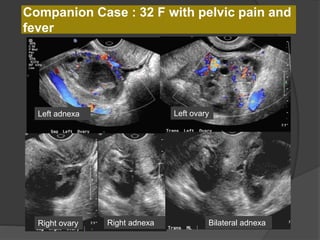

Companion Case : 32 F with pelvic pain and
fever
Left ovaryLeft adnexa
Right ovary Right adnexa Bilateral adnexa

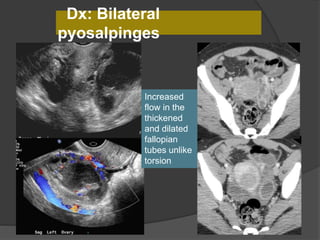

Dx: Bilateral
pyosalpinges
Increased
flow in the
thickened
and dilated
fallopian
tubes unlike
torsion

Acting Director Radiology; Head of
Emergency/Trauma Radiology
The Alfred Hospital, Melbourne, Australia
Areas of Interest:Emergency / Trauma
Radiology
Past President RANZCR
Chairman :ANZERG
President Elect: AOSR
DINESH VARMA, MBBS,
FRANZCR

Case 1:17M, Status post cardiac
arrest
July 16

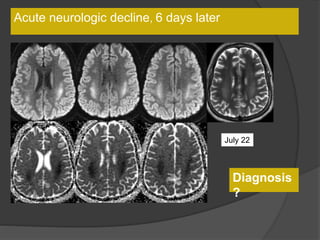

Acute neurologic decline, 6 days later
July 22
Diagnosis
?

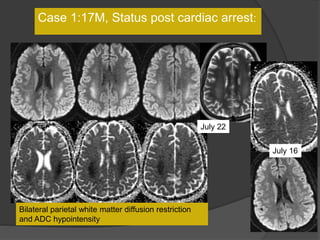

Case 1:17M, Status post cardiac arrest:
July 22
July 16

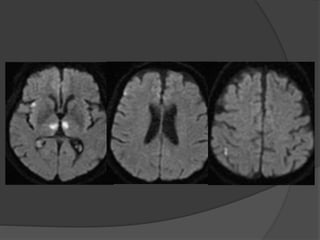

Bilateral parietal white matter diffusion restriction
and ADC hypointensity

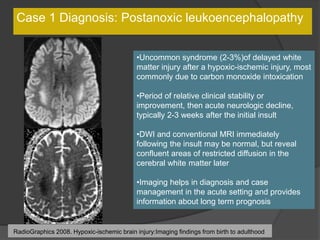

Case 1 Diagnosis: Postanoxic leukoencephalopathy
•Uncommon syndrome (2-3%)of delayed white
matter injury after a hypoxic-ischemic injury, most
commonly due to carbon monoxide intoxication
•Period of relative clinical stability or
improvement, then acute neurologic decline,
typically 2-3 weeks after the initial insult
•DWI and conventional MRI immediately
following the insult may be normal, but reveal
confluent areas of restricted diffusion in the
cerebral white matter later
•Imaging helps in diagnosis and case
management in the acute setting and provides
information about long term prognosis
RadioGraphics 2008. Hypoxic-ischemic brain injury:Imaging findings from birth to adulthood

June 2014

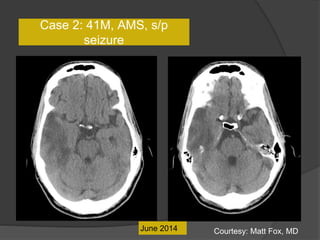

Case 2: 41M, AMS, s/p
seizure
Courtesy: Matt Fox, MD

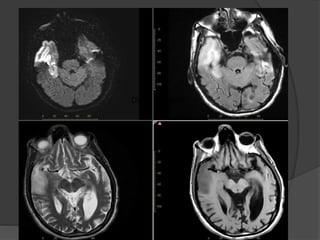

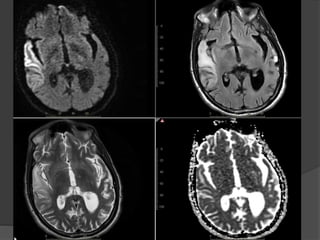

DWI Flair
ADC
DWI

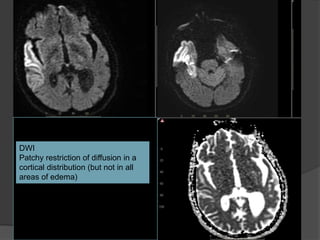

Patchy restriction of diffusion in a
cortical distribution (but not in all
areas of edema)

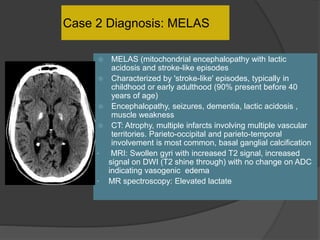

Case 2 Diagnosis: MELAS
 MELAS (mitochondrial encephalopathy with lactic
acidosis and stroke-like episodes
 Characterized by 'stroke-like' episodes, typically in
childhood or early adulthood (90% present before 40
years of age)
 Encephalopathy, seizures, dementia, lactic acidosis ,
muscle weakness
 CT: Atrophy, multiple infarcts involving multiple vascular
territories. Parieto-occipital and parieto-temporal
involvement is most common, basal ganglial calcification
• MRI: Swollen gyri with increased T2 signal, increased
signal on DWI (T2 shine through) with no change on ADC
indicating vasogenic edema
• MR spectroscopy: Elevated lactate

K.
Shanmuganathan
1979-MD University of Sri Lanka
Radiology-St, Bartholomew’s Hospital,
London
1991-Present, University of Maryland
School of Medicine, Baltimore
Professor Diagnostic Radiology, Shock
Trauma Center, University of Maryland
School of Medicine
120 publications, textbooks and
chapters, 200 invited lectures

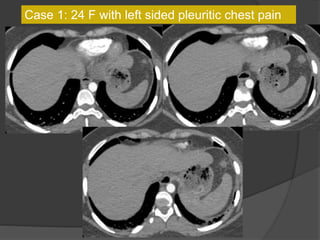

Case 1: 24 F with left sided pleuritic chest pain

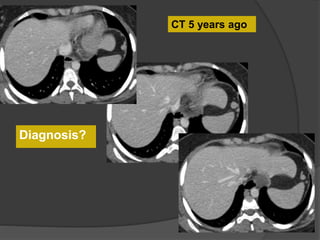

CT 5 years agoCurrent CT

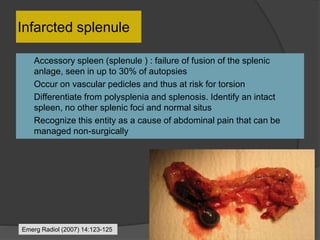

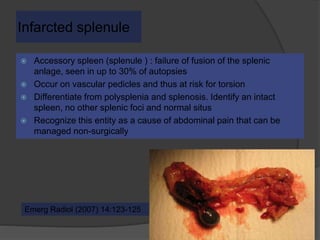

Case 1 Diagnosis: Infarcted splenule

Infarcted splenule
 Accessory spleen (splenule ) : failure of fusion of the splenic
anlage, seen in up to 30% of autopsies
 Occur on vascular pedicles and thus at risk for torsion
 Differentiate from polysplenia and splenosis. Identify an intact
spleen, no other splenic foci and normal situs
 Recognize this entity as a cause of abdominal pain that can be
managed non-surgically
Emerg Radiol (2007) 14:123-125

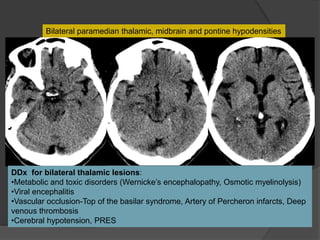

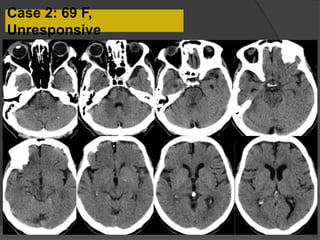

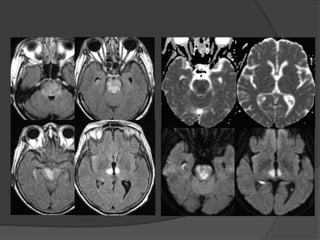

Bilateral paramedian thalamic, midbrain and pontine hypodensities
DDx for bilateral thalamic lesions:
•Metabolic and toxic disorders (Wernicke’s encephalopathy, Osmotic myelinolysis)
•Viral encephalitis
•Vascular occlusion-Top of the basilar syndrome, Artery of Percheron infarcts, Deep
venous thrombosis
•Cerebral hypotension, PRES

Acute infarcts in the pons, midbrain and bilateral thalami
“V sign”
Lazzaro N et al. AJNR Am J Neuroradiol 2010;31:1283-1289

Lazzaro N et al. AJNR Am J Neuroradiol 2010;31:1283-1289

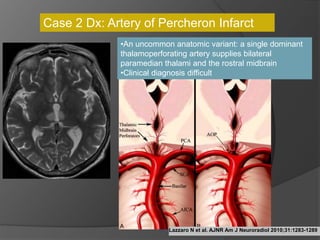

•An uncommon anatomic variant: a single dominant
thalamoperforating artery supplies bilateral
paramedian thalami and the rostral midbrain
•Clinical diagnosis difficult
Case 2 Dx: Artery of Percheron Infarct

Most common etiology is cardioembolic

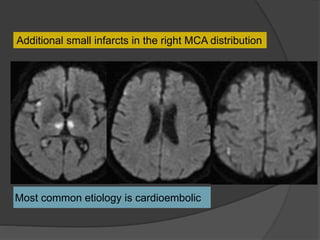

Additional small infarcts in the right MCA distribution

ADNAN SHEIKH, MD
MD – JJMMC, Davangere, India
Musculoskeletal fellowship – Vancouver General
Hospital
Emergency trauma fellowship – Vancouver
General Hospital
Head, ER /Trauma radiology, The Ottawa
Hospital.
Fellowship director, ER/ Trauma radiology, The
Ottawa Hospital.
Medical Director , 3D printing lab , The Ottawa
Hospital

Case 1: A“healthy” 50 year old
Fell off a 3 ft high parapet
c/o pain, inability to bear weight on the right
foot

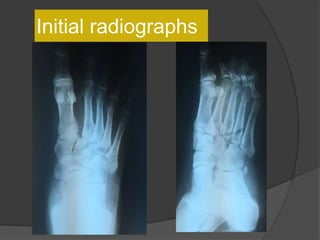

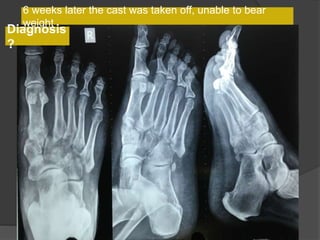

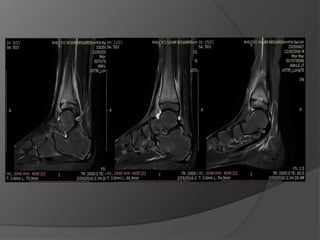

6 weeks later the cast was taken off, unable to bear
weight
Diagnosis
?

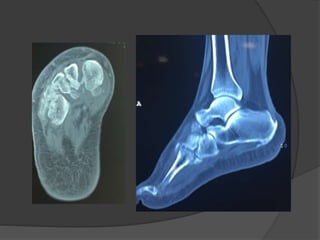

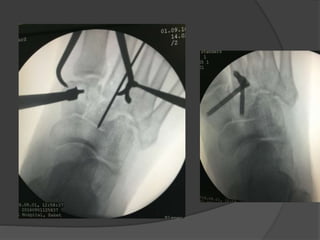

Lisfranc fracture- dislocation

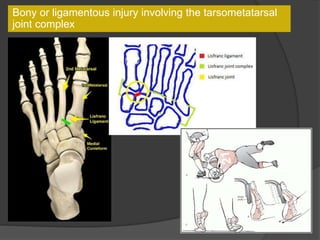

Bony or ligamentous injury involving the tarsometatarsal
joint complex

Case 2:32 M,h/o pain and swelling right hip and thigh

Drug overdose, found unconscious and
trapped between the toilet seat and wall

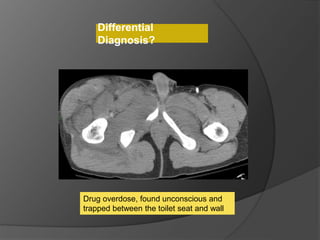

Differential
Diagnosis?

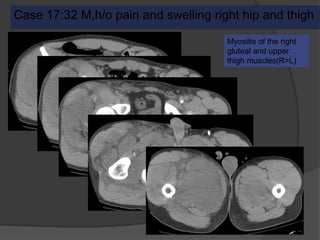

Case 2:32 M, h/o pain and swelling right hip and thigh

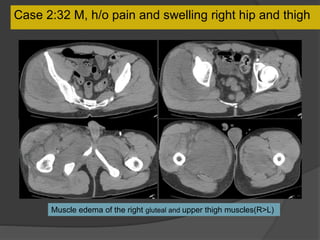

Muscle edema of the right gluteal and upper thigh muscles(R>L)

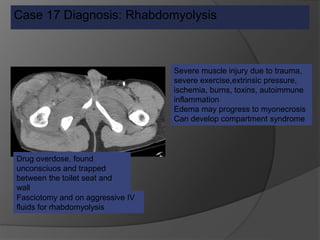

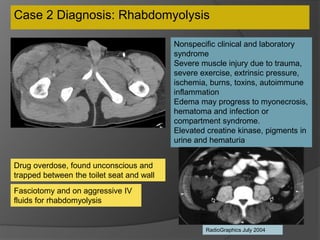

Case 2 Diagnosis: Rhabdomyolysis
Nonspecific clinical and laboratory
syndrome
Severe muscle injury due to trauma,
severe exercise, extrinsic pressure,
ischemia, burns, toxins, autoimmune
inflammation
Edema may progress to myonecrosis,
hematoma and infection or
compartment syndrome.
Elevated creatine kinase, pigments in
urine and hematuria
Fasciotomy and on aggressive IV
fluids for rhabdomyolysis
Drug overdose, found unconscious and
trapped between the toilet seat and wall
RadioGraphics July 2004

ER potpourri-
Film Reading
Panel
anjali.agrawal@telradsol.com

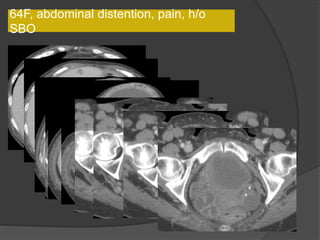

64F, abdominal distention, pain, h/o
SBO

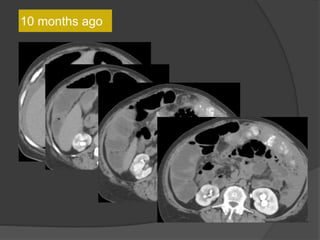

64F, abdominal distention, pain, h/o
SBO

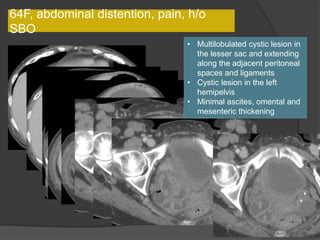

• Multilobulated cystic lesion in
the lesser sac and extending
along the adjacent peritoneal
spaces and ligaments
• Cystic lesion in the left
hemipelvis
• Minimal ascites, omental and
mesenteric thickening

Diagnosis: Recurrent metastatic disease
with mucinous tumor

Case 13: 45 M with abdominal pain
Case courtesy: Francesco Danza, MD

Peritoneal carcinomatosis Thick enhancing membrane
around a conglomerate of
small bowel loops in the
center “cocoon”

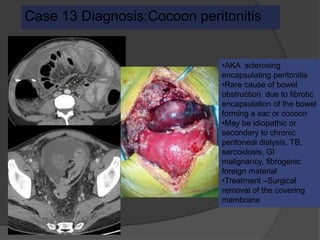

Case 13 Diagnosis:Cocoon peritonitis
•AKA sclerosing
encapsulating peritonitis
•Rare cause of bowel
obstruction due to fibrotic
encapsulation of the bowel
forming a sac or cocoon
•May be idiopathic or
secondary to chronic
peritoneal dialysis, TB,
sarcoidosis, GI
malignancy, fibrogenic
foreign material
•Treatment –Surgical
removal of the covering
membrane

29M,h/o pain, bilious vomiting and constipation x 3d
Courtesy: Subodh Gupta, MS

Histopathology
 The cocoon membrane showed
proliferation of fibroconnective
tissue
 No evidence of TB

Case 14: 24 F with left sided pleuritic chest pain

CT 5 years agoCurrent CT

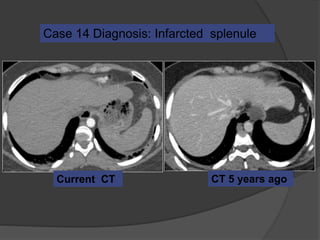

Case 14 Diagnosis: Infarcted splenule

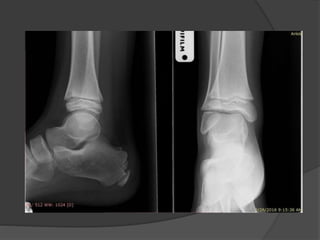

8 M with ankle and hip pain for a few weeks and
fatigue

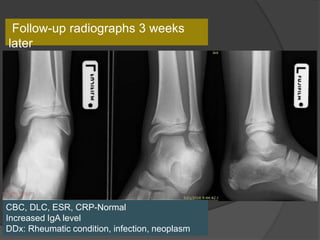

Follow-up radiographs 3 weeks
later
CBC, DLC, ESR, CRP-Normal
Increased IgA level
DDx: Rheumatic condition, infection, neoplasm

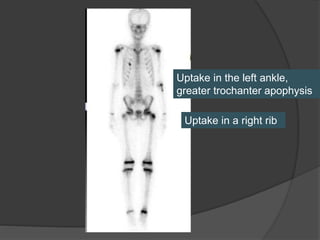

Uptake in the left ankle,
greater trochanter apophysis
Uptake in a right rib

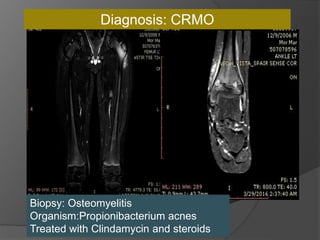

Biopsy: Osteomyelitis
Organism:Propionibacterium acnes
Treated with Clindamycin and steroids
Diagnosis: CRMO

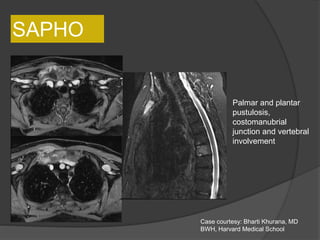

SAPHO
Palmar and plantar
pustulosis,
costomanubrial
junction and vertebral
involvement
Case courtesy: Bharti Khurana, MD
BWH, Harvard Medical School

Costomanubrial involvement
and clavicular osteitis
SAPHO

Case 17:32 M,h/o pain and swelling right hip and thigh
Myositis of the right
gluteal and upper
thigh muscles(R>L)

Case 17 Diagnosis: Rhabdomyolysis
Severe muscle injury due to trauma,
severe exercise,extrinsic pressure,
ischemia, burns, toxins, autoimmune
inflammation
Edema may progress to myonecrosis
Can develop compartment syndrome
Fasciotomy and on aggressive IV
fluids for rhabdomyolysis
Drug overdose, found
unconsciuos and trapped
between the toilet seat and
wall

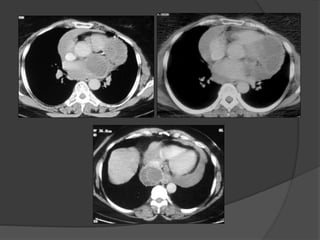

Case A 3:
73 year old male , R/O mass,
heart attack

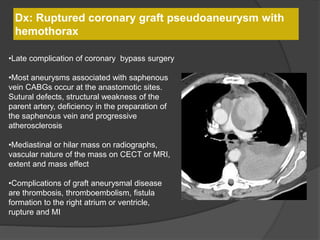

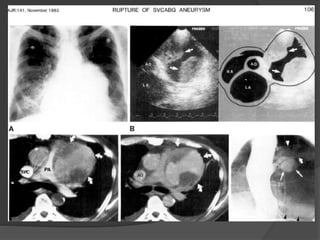

Dx: Ruptured coronary graft pseudoaneurysm with
hemothorax
•Late complication of coronary bypass surgery
•Most aneurysms associated with saphenous
vein CABGs occur at the anastomotic sites.
Sutural defects, structural weakness of the
parent artery, deficiency in the preparation of
the saphenous vein and progressive
atherosclerosis
•Mediastinal or hilar mass on radiographs,
vascular nature of the mass on CECT or MRI,
extent and mass effect
•Complications of graft aneurysmal disease
are thrombosis, thromboembolism, fistula
formation to the right atrium or ventricle,
rupture and MI

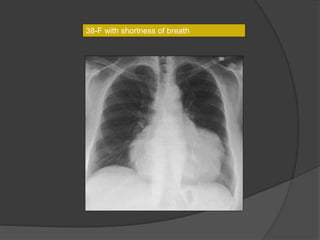

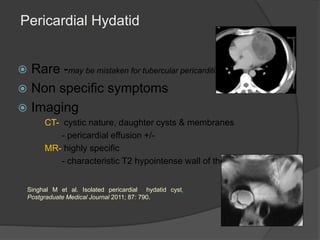

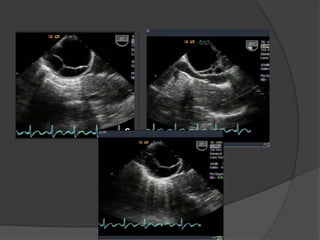

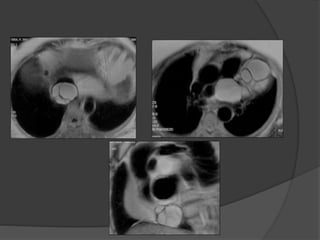

Pericardial Hydatid
 Rare -may be mistaken for tubercular pericarditis
 Non specific symptoms
 Imaging
CT- cystic nature, daughter cysts & membranes
- pericardial effusion +/-
MR- highly specific
- characteristic T2 hypointense wall of the cyst
Singhal M et al. Isolated pericardial hydatid cyst.
Postgraduate Medical Journal 2011; 87: 790.

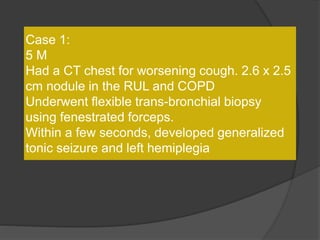

Case 1:
5 M
Had a CT chest for worsening cough. 2.6 x 2.5
cm nodule in the RUL and COPD
Underwent flexible trans-bronchial biopsy
using fenestrated forceps.
Within a few seconds, developed generalized
tonic seizure and left hemiplegia

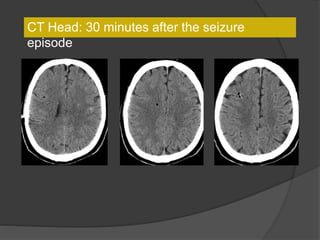

CT Head: 30 minutes after the seizure
episode

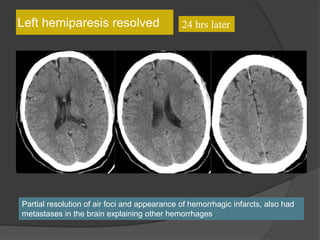

24 hrs laterLeft hemiparesis resolved
Partial resolution of air foci and appearance of hemorrhagic infarcts, also had
metastases in the brain explaining other hemorrhages

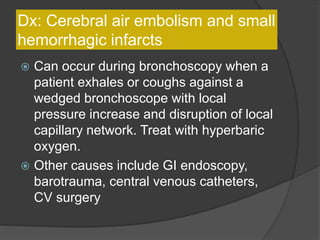

Dx: Cerebral air embolism and small
hemorrhagic infarcts
 Can occur during bronchoscopy when a
patient exhales or coughs against a
wedged bronchoscope with local
pressure increase and disruption of local
capillary network. Treat with hyperbaric
oxygen.
 Other causes include GI endoscopy,
barotrauma, central venous catheters,
CV surgery

Case 5:17M, Status post cardiac arrest:
July 22
July 16
Bilateral parietal white matter diffusion restriction
and ADC hypointensity

Case 5 Diagnosis: Postanoxic leukoencephalopathy
•Uncommon syndrome (2-3%)of delayed white
matter injury after a hypoxic-ischemic injury, most
commonly due to carbon monoxide intoxication
•Period of relative clinical stability or
improvement, then acute neurologic decline,
typically 2-3 weeks after the initial insult
•DWI and conventional MRI immediately
following the insult may be normal, but reveal
confluent areas of restricted diffusion in the
cerebral white matter later
•Imaging helps in diagnosis and case
management in the acute setting and provides
information about long term prognosis
RadioGraphics 2008. Hypoxic-ischemic brain injury:Imaging findings from birth to adulthood

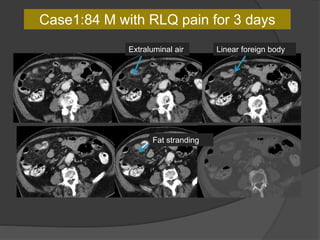

Case1:84 M with RLQ pain for 3 days
Linear foreign bodyExtraluminal air
Fat stranding

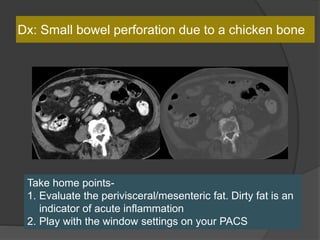

Dx: Small bowel perforation due to a chicken bone
Take home points-
1. Evaluate the perivisceral/mesenteric fat. Dirty fat is an
indicator of acute inflammation
2. Play with the window settings on your PACS

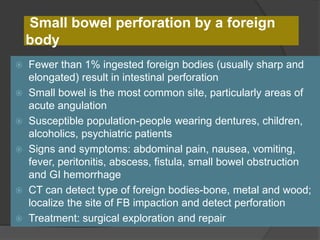

Small bowel perforation by a foreign
body
 Fewer than 1% ingested foreign bodies (usually sharp and
elongated) result in intestinal perforation
 Small bowel is the most common site, particularly areas of
acute angulation
 Susceptible population-people wearing dentures, children,
alcoholics, psychiatric patients
 Signs and symptoms: abdominal pain, nausea, vomiting,
fever, peritonitis, abscess, fistula, small bowel obstruction
and GI hemorrhage
 CT can detect type of foreign bodies-bone, metal and wood;
localize the site of FB impaction and detect perforation
 Treatment: surgical exploration and repair

Don’t trust cows that write !

Case 2: 56 M with abdominal pain
Disrupted bowel wall
and focal thickening
Foreign body

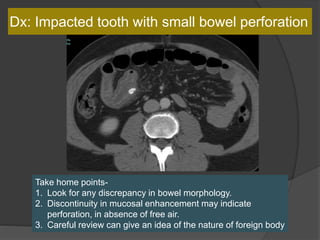

Dx: Impacted tooth with small bowel perforation
Take home points-
1. Look for any discrepancy in bowel morphology.
2. Discontinuity in mucosal enhancement may indicate
perforation, in absence of free air.
3. Careful review can give an idea of the nature of foreign body

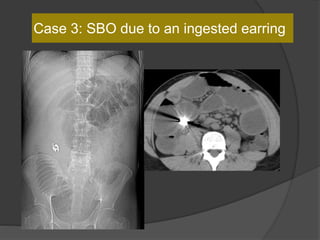

Case 3: SBO due to an ingested earring

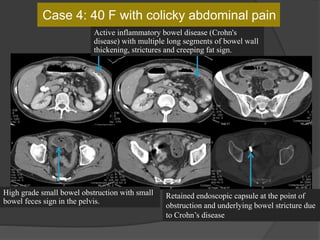

Case 4: 40 F with colicky abdominal pain
High grade small bowel obstruction with small
bowel feces sign in the pelvis.
Retained endoscopic capsule at the point of
obstruction and underlying bowel stricture due
to Crohn’s disease
Active inflammatory bowel disease (Crohn's
disease) with multiple long segments of bowel wall
thickening, strictures and creeping fat sign.

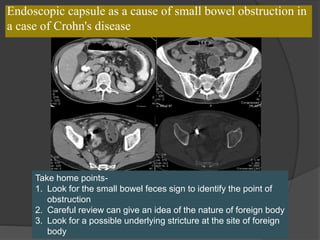

Endoscopic capsule as a cause of small bowel obstruction in
a case of Crohn's disease
Take home points-
1. Look for the small bowel feces sign to identify the point of
obstruction
2. Careful review can give an idea of the nature of foreign body
3. Look for a possible underlying stricture at the site of foreign
body

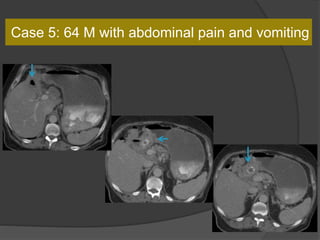

Case 5: 64 M with abdominal pain and vomiting

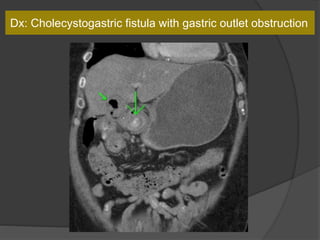

Dx: Cholecystogastric fistula with gastric outlet obstruction

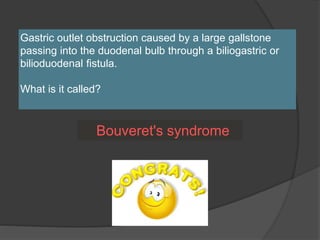

Gastric outlet obstruction caused by a large gallstone
passing into the duodenal bulb through a biliogastric or
bilioduodenal fistula.
What is it called?
Bouveret's syndrome

Extraluminal fecal matter in the peritoneal cavity and air loculi
Fecaloma at
the perforation
site
Colon wall thickening due to pressure necrosis

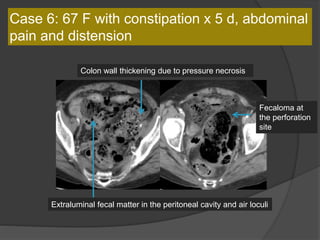

Case 6: 67 F with constipation x 5 d, abdominal
pain and distension

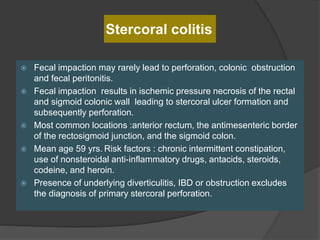

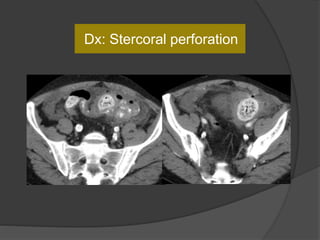

Stercoral colitis
 Fecal impaction may rarely lead to perforation, colonic obstruction
and fecal peritonitis.
 Fecal impaction results in ischemic pressure necrosis of the rectal
and sigmoid colonic wall leading to stercoral ulcer formation and
subsequently perforation.
 Most common locations :anterior rectum, the antimesenteric border
of the rectosigmoid junction, and the sigmoid colon.
 Mean age 59 yrs. Risk factors : chronic intermittent constipation,
use of nonsteroidal anti-inflammatory drugs, antacids, steroids,
codeine, and heroin.
 Presence of underlying diverticulitis, IBD or obstruction excludes
the diagnosis of primary stercoral perforation.

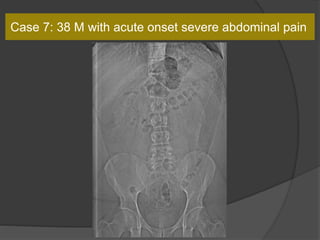

Case 7: 38 M with acute onset severe abdominal pain

Cecum mildly dilatedCecum in the lesser sac between
the liver hilum and IVC
No twist to indicate cecal volvulus
Case 7: 38 M with acute onset severe abdominal pain

Dx: Lesser sac hernia with cecal incarceration
Take home points-
1. Look for abnormal location of a bowel loop indicating an internal
hernia
2. Abnormal dilatation of the abnormally located loop may indicate
incarceration
3. Absence of beak sign or mesenteric twist can exclude volvulus

Case 8: 64 F with chest pain, abdominal back pain,
evaluate pulmonary embolism or dissection, CT A/P
normal. 24 hrs later right flank pain and hypotension ,
?aortic dissection
19 HU
40 HU
60 HU

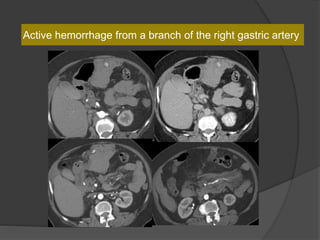

Active hemorrhage from a branch of the right gastric artery

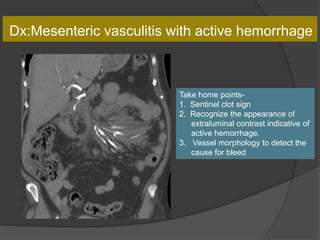

Dx:Mesenteric vasculitis with active hemorrhage
Take home points-
1. Sentinel clot sign
2. Recognize the appearance of
extraluminal contrast indicative of
active hemorrhage.
3. Vessel morphology to detect the
cause for bleed

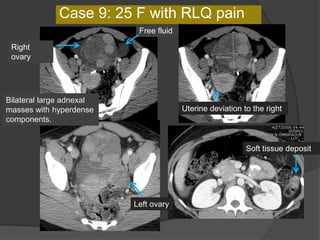

Bilateral large adnexal
masses with hyperdense
components.
Right
ovary
Left ovary
Free fluid
Uterine deviation to the right
Case 9: 25 F with RLQ pain
Soft tissue deposit

Dx: Bilateral struma ovarii with torsion of
the right ovary and benign strumosis
Take home points-
1. Consider the possibility of torsion in presence of a large adnexal
mass and appropriate clinical setting
2. Ascites , abnormal location of the ovary, ipsilateral deviation of the
uterus indicate adnexal torsion

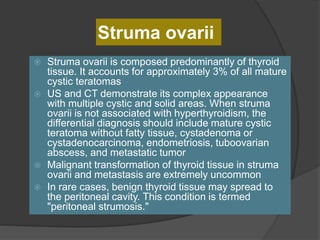

Struma ovarii
 Struma ovarii is composed predominantly of thyroid
tissue. It accounts for approximately 3% of all mature
cystic teratomas
 US and CT demonstrate its complex appearance
with multiple cystic and solid areas. When struma
ovarii is not associated with hyperthyroidism, the
differential diagnosis should include mature cystic
teratoma without fatty tissue, cystadenoma or
cystadenocarcinoma, endometriosis, tuboovarian
abscess, and metastatic tumor
 Malignant transformation of thyroid tissue in struma
ovarii and metastasis are extremely uncommon
 In rare cases, benign thyroid tissue may spread to
the peritoneal cavity. This condition is termed
"peritoneal strumosis."

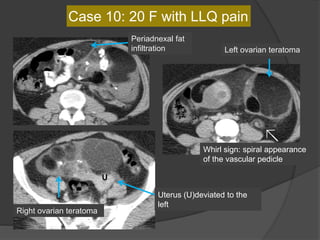

Case 10: 20 F with LLQ pain
Whirl sign: spiral appearance
of the vascular pedicle
Periadnexal fat
infiltration
Uterus (U)deviated to the
left
U
Right ovarian teratoma
Left ovarian teratoma

Dx: Bilateral ovarian dermoid cysts with
torsion on the left
Take home point-
Look for the whirl sign in adnexal torsion

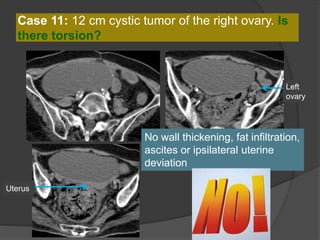

Case 11: 12 cm cystic tumor of the right ovary. Is
there torsion?
No wall thickening, fat infiltration,
ascites or ipsilateral uterine
deviation
Left
ovary
Uterus

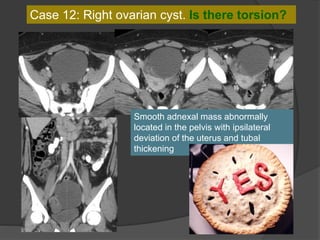

Case 12: Right ovarian cyst. Is there torsion?
Smooth adnexal mass abnormally
located in the pelvis with ipsilateral
deviation of the uterus and tubal
thickening

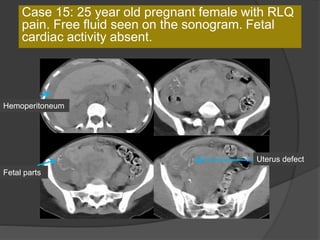

Case 15: 25 year old pregnant female with RLQ
pain. Free fluid seen on the sonogram. Fetal
cardiac activity absent.
Hemoperitoneum
Fetal parts
Uterus defect

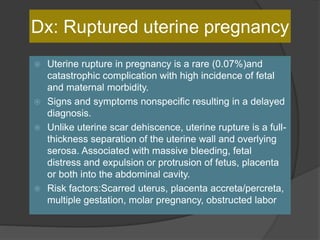

Dx: Ruptured uterine pregnancy
 Uterine rupture in pregnancy is a rare (0.07%)and
catastrophic complication with high incidence of fetal
and maternal morbidity.
 Signs and symptoms nonspecific resulting in a delayed
diagnosis.
 Unlike uterine scar dehiscence, uterine rupture is a full-
thickness separation of the uterine wall and overlying
serosa. Associated with massive bleeding, fetal
distress and expulsion or protrusion of fetus, placenta
or both into the abdominal cavity.
 Risk factors:Scarred uterus, placenta accreta/percreta,
multiple gestation, molar pregnancy, obstructed labor

Case 16: 57 M with a stiff neck and sore throat
CT findings:
Elongated irregular calcification
anterior to the C1 vertebra extending
up to mid C2 level.
Ill-defined fluid in the prevertebral
space extending from C1 through C4-5
level without rim enhancement.
No other evidence of inflammatory
changes.

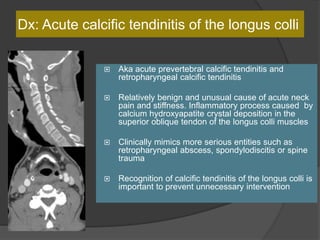

Dx: Acute calcific tendinitis of the longus colli
 Aka acute prevertebral calcific tendinitis and
retropharyngeal calcific tendinitis
 Relatively benign and unusual cause of acute neck
pain and stiffness. Inflammatory process caused by
calcium hydroxyapatite crystal deposition in the
superior oblique tendon of the longus colli muscles
 Clinically mimics more serious entities such as
retropharyngeal abscess, spondylodiscitis or spine
trauma
 Recognition of calcific tendinitis of the longus colli is
important to prevent unnecessary intervention

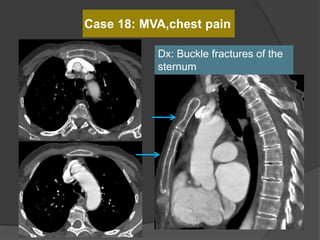

Case 18: MVA,chest pain
Dx: Buckle fractures of the
sternum

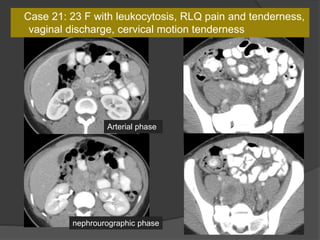

Case 21: 23 F with leukocytosis, RLQ pain and tenderness,
vaginal discharge, cervical motion tenderness
Arterial phase
nephrourographic phase

Dx: TOA with perihepatitis (Fitz-Hugh Curtis Syndrome)
 Characterized by right sided abdominal
pain and perihepatitis associated with
pelvic inflammatory disease (gonococcal
or chlamydial)
 Localized RUQ peritonitis (hepatic
capsular/pericapsular enhancement on
the arterial phase) with PID (mild pelvic
edema, thickened fallopian tubes,
enlarged ovary, abnormal endometrial
enhancement and fluid, frank
tuboovarian abscess) suggest the
diagnosis

ER potpourri-
An interactive case review
Anjali Agrawal, MD
Teleradiology Solutions
anjali.agrawal@telradsol.com
SAARC2012

Anjali agrawal case discussion by experts

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Anjali agrawal case discussion by experts

Similar to Anjali agrawal case discussion by experts (20)

More from Teleradiology Solutions

More from Teleradiology Solutions (20)

Recently uploaded

Recently uploaded (20)

Anjali agrawal case discussion by experts
