The document summarizes information about analog to digital converters (ADCs). It discusses several types of ADCs including counter type, successive approximation, flash, delta-sigma, dual slope, and their basic principles and components. It provides examples of ADC calculations including determining the digital output and conversion time for a given analog input. The document aims to explain key ADC concepts such as resolution, speed, accuracy and sources of error like quantization noise.

1. Department of Electronics engineering
School of Engineering and Technology
Pondicherry University.
Presented by:-
ANIL KUMAR YADAV
M.TECH(1ST YEAR)
REG. NO- 13304025
1

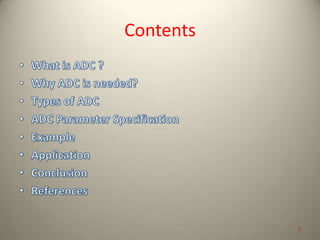

2. Contents
2

3. An electronic integrated circuit which transforms a signal from
analog (continuous) to digital (discrete) form.
The basic principle of operation is to use the comparator
principle to determine whether or not to turn on a particular bit of
the binary number output
3

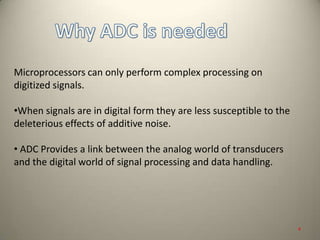

4. Microprocessors can only perform complex processing on
digitized signals.
•When signals are in digital form they are less susceptible to the
deleterious effects of additive noise.
• ADC Provides a link between the analog world of transducers
and the digital world of signal processing and data handling.
4

5. 2 steps process
• Sampling and Holding (S/H)
•Quantizing and Encoding (Q/E)
5

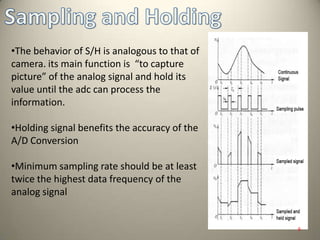

6. •The behavior of S/H is analogous to that of
camera. its main function is “to capture
picture” of the analog signal and hold its
value until the adc can process the
information.
•Holding signal benefits the accuracy of the
A/D Conversion
•Minimum sampling rate should be at least
twice the highest data frequency of the
analog signal
6

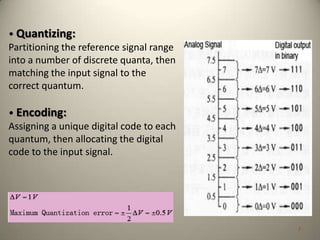

7. • Quantizing:
Partitioning the reference signal range
into a number of discrete quanta, then
matching the input signal to the
correct quantum.
• Encoding:
Assigning a unique digital code to each
quantum, then allocating the digital
code to the input signal.
7

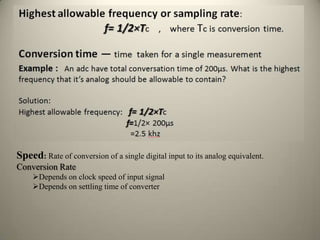

8. Speed: Rate of conversion of a single digital input to its analog equivalent.
Conversion Rate
Depends on clock speed of input signal
Depends on settling time of converter
8

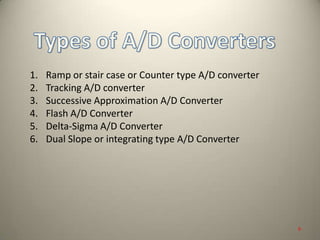

9. 1. Ramp or stair case or Counter type A/D converter
2. Tracking A/D converter
3. Successive Approximation A/D Converter
4. Flash A/D Converter
5. Delta-Sigma A/D Converter
6. Dual Slope or integrating type A/D Converter
9

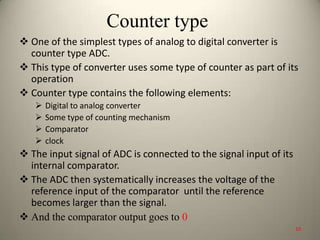

10. Counter type
 One of the simplest types of analog to digital converter is
counter type ADC.
 This type of converter uses some type of counter as part of its
operation
 Counter type contains the following elements:
 Digital to analog converter
 Some type of counting mechanism
 Comparator
 clock
 The input signal of ADC is connected to the signal input of its
internal comparator.
 The ADC then systematically increases the voltage of the
reference input of the comparator until the reference
becomes larger than the signal.
 And the comparator output goes to 0
10

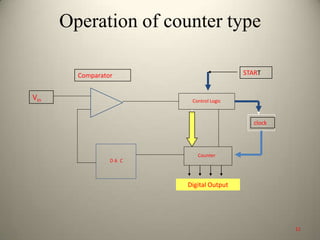

11. Operation of counter type
Control Logic
D A C
Counter
START
Vin
Comparator
Digital Output
clock
11

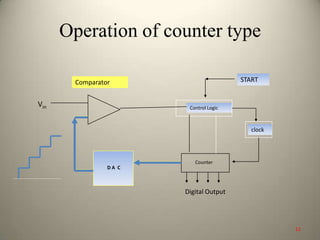

12. Operation of counter type
Control Logic
D A C
Counter
START
Vin
Comparator
Digital Output
clock
12

13. Continue
 Ex: consider an input signal is 4.78 volts. The initial
comparator’s input would be 2.5 volts
 The comparator compares the two value then the result this
is less than 4.78 then the next higher voltage (5.00 volts) is
applied
 The comparator compares the two value and says this is
greater than 4.78 and switches 0
 The digital output of the ADC is the number of times the ADC
increase the voltage after starting at the initial 2.5 volts
 This scheme is relatively simple , but as the number of ADC
increases the time it takes to scan through all possible values
lower than input will grow quickly
13

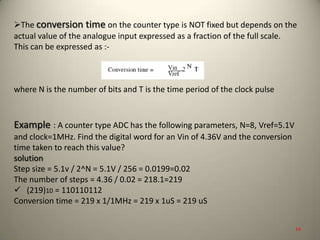

14. The conversion time on the counter type is NOT fixed but depends on the
actual value of the analogue input expressed as a fraction of the full scale.
This can be expressed as :-
where N is the number of bits and T is the time period of the clock pulse
Example : A counter type ADC has the following parameters, N=8, Vref=5.1V
and clock=1MHz. Find the digital word for an Vin of 4.36V and the conversion
time taken to reach this value?
solution
Step size = 5.1v / 2^N = 5.1V / 256 = 0.0199=0.02
The number of steps = 4.36 / 0.02 = 218.1=219
 (219)10 = 110110112
Conversion time = 219 x 1/1MHz = 219 x 1uS = 219 uS
14

15. Features of counter type
Use a clock to index the counter
Use DAC to generate analog signal to compare
against input
Comparator is used to compare VIN and VDAC where
VIN is the signal to be digitized
The input to the DAC is from the counter
15

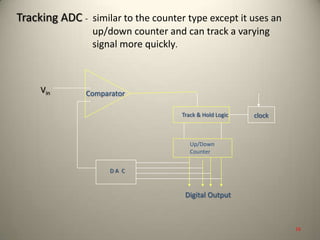

16. Track & Hold Logic
D A C
Up/Down
Counter
Vin Comparator
Digital Output
clock
Tracking ADC - similar to the counter type except it uses an
up/down counter and can track a varying
signal more quickly.
16

17. Fundamental Components (For n bit Flash A/D)
2^n-1 Comparators
2^n Resistors
Control Logic

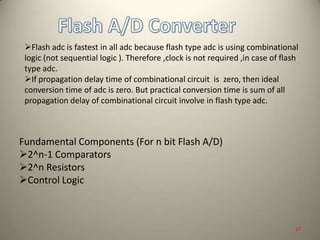

Flash adc is fastest in all adc because flash type adc is using combinational
logic (not sequential logic ). Therefore ,clock is not required ,in case of flash
type adc.
If propagation delay time of combinational circuit is zero, then ideal
conversion time of adc is zero. But practical conversion time is sum of all
propagation delay of combinational circuit involve in flash type adc.
17

18. A resistive voltage divider (see figure)
can provide all the digital reference
states required. There are eight
reference values for the 3-bit converter.
The analog signal is compared
concurrently with each reference state;
therefore a separate comparator is
required for each comparison.
Digital logic then combines the several
comparator outputs to determine the
appropriate binary code to present.
The reference voltages are set to 0.5,
1.5, 2.5, 3.5, 4.5, 5.5, 6.5, and 7.5 volts
respectively. The comparator outputs
are labeled correspondingly as 1, 2, 3, 4,
5, 6, and 7 respectively.
18

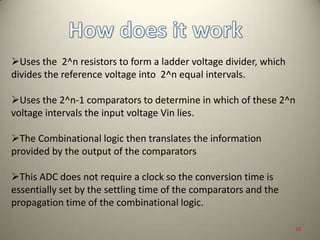

19. Uses the 2^n resistors to form a ladder voltage divider, which
divides the reference voltage into 2^n equal intervals.
Uses the 2^n-1 comparators to determine in which of these 2^n
voltage intervals the input voltage Vin lies.
The Combinational logic then translates the information
provided by the output of the comparators
This ADC does not require a clock so the conversion time is
essentially set by the settling time of the comparators and the
propagation time of the combinational logic.
19

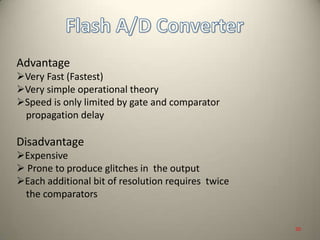

20. Advantage
Very Fast (Fastest)
Very simple operational theory
Speed is only limited by gate and comparator
propagation delay
Disadvantage
Expensive
 Prone to produce glitches in the output
Each additional bit of resolution requires twice
the comparators
20

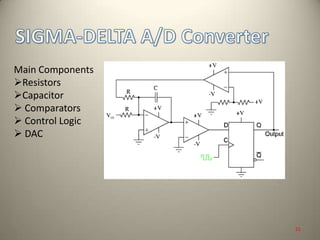

21. Main Components
Resistors
Capacitor
 Comparators
 Control Logic
 DAC
21

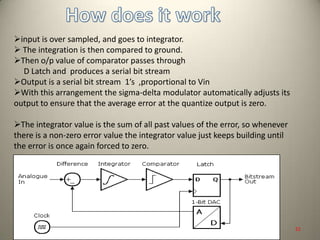

22. input is over sampled, and goes to integrator.
 The integration is then compared to ground.
Then o/p value of comparator passes through
D Latch and produces a serial bit stream
Output is a serial bit stream 1’s ,proportional to Vin
With this arrangement the sigma-delta modulator automatically adjusts its
output to ensure that the average error at the quantize output is zero.
The integrator value is the sum of all past values of the error, so whenever
there is a non-zero error value the integrator value just keeps building until
the error is once again forced to zero.
22

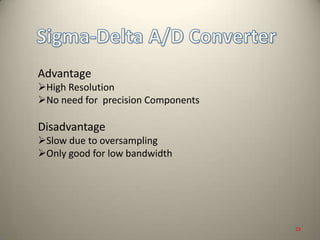

23. Advantage
High Resolution
No need for precision Components
Disadvantage
Slow due to oversampling
Only good for low bandwidth
23

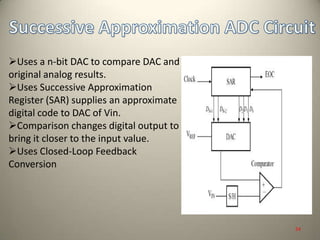

24. Uses a n-bit DAC to compare DAC and
original analog results.
Uses Successive Approximation
Register (SAR) supplies an approximate
digital code to DAC of Vin.
Comparison changes digital output to
bring it closer to the input value.
Uses Closed-Loop Feedback
Conversion
24

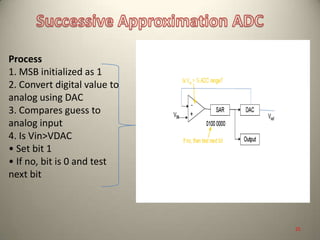

25. Process
1. MSB initialized as 1
2. Convert digital value to
analog using DAC
3. Compares guess to
analog input
4. Is Vin>VDAC
• Set bit 1
• If no, bit is 0 and test
next bit
25

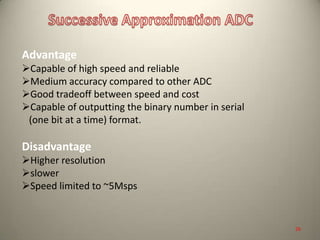

26. Advantage
Capable of high speed and reliable
Medium accuracy compared to other ADC
Good tradeoff between speed and cost
Capable of outputting the binary number in serial
(one bit at a time) format.
Disadvantage
Higher resolution
slower
Speed limited to ~5Msps
26

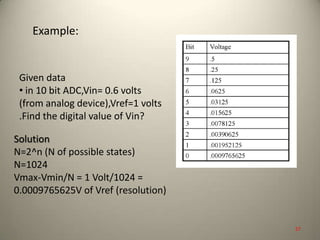

27. Example:
Given data
• in 10 bit ADC,Vin= 0.6 volts
(from analog device),Vref=1 volts
.Find the digital value of Vin?
Solution
N=2^n (N of possible states)
N=1024
Vmax-Vmin/N = 1 Volt/1024 =
0.0009765625V of Vref (resolution)
27

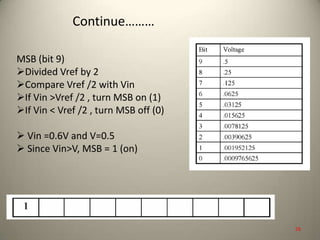

28. Continue………
MSB (bit 9)
Divided Vref by 2
Compare Vref /2 with Vin
If Vin >Vref /2 , turn MSB on (1)
If Vin < Vref /2 , turn MSB off (0)
 Vin =0.6V and V=0.5
 Since Vin>V, MSB = 1 (on)
28

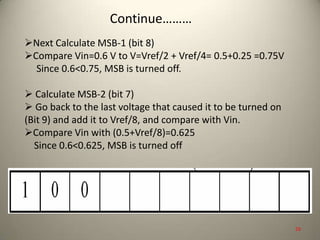

29. Next Calculate MSB-1 (bit 8)
Compare Vin=0.6 V to V=Vref/2 + Vref/4= 0.5+0.25 =0.75V
Since 0.6<0.75, MSB is turned off.
 Calculate MSB-2 (bit 7)
 Go back to the last voltage that caused it to be turned on
(Bit 9) and add it to Vref/8, and compare with Vin.
Compare Vin with (0.5+Vref/8)=0.625
Since 0.6<0.625, MSB is turned off
Continue………
29

30. Calculate the state of MSB-3 (bit 6)
Go to the last bit that caused it to be turned on (in this
case MSB-1) and add it to Vref/16, and compare it to Vin.
Compare Vin to V= 0.5 + Vref/16= 0.5625
Since 0.6>0.5625, MSB-3=1 (turned on)
Continue………
30

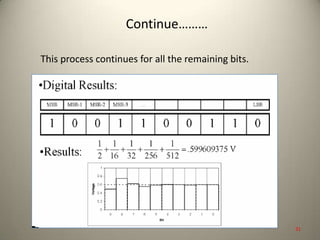

31. This process continues for all the remaining bits.
Continue………
31

32. Fundamental components
1. integrator
2. Electronically Controlled Switches
3. Counter
4. Clock
5. Control Logic
6. Comparator
32

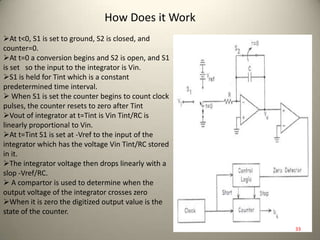

33. How Does it Work
At t<0, S1 is set to ground, S2 is closed, and
counter=0.
At t=0 a conversion begins and S2 is open, and S1
is set so the input to the integrator is Vin.
S1 is held for Tint which is a constant
predetermined time interval.
 When S1 is set the counter begins to count clock
pulses, the counter resets to zero after Tint
Vout of integrator at t=Tint is Vin Tint/RC is
linearly proportional to Vin.
At t=Tint S1 is set at -Vref to the input of the
integrator which has the voltage Vin Tint/RC stored
in it.
The integrator voltage then drops linearly with a
slop -Vref/RC.
 A compartor is used to determine when the
output voltage of the integrator crosses zero
When it is zero the digitized output value is the
state of the counter.
33

34. 34

35. 35

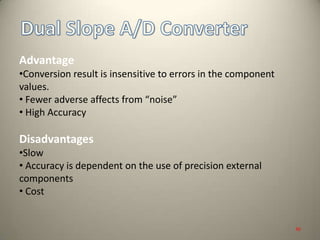

36. Advantage
•Conversion result is insensitive to errors in the component
values.
• Fewer adverse affects from “noise”
• High Accuracy
Disadvantages
•Slow
• Accuracy is dependent on the use of precision external
components
• Cost
36

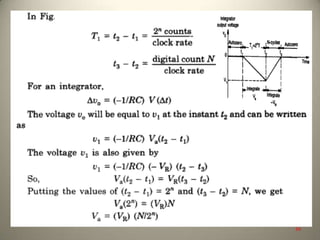

37. 37
Resolution
Dual-slope integrating,
Counter
Tracking
successive approximation
Flash.
Speed
Flash
Tracking
Successive Approximation
Counter
Dual-slope integrating.

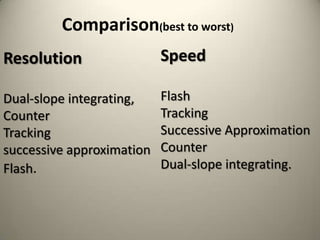

Comparison(best to worst)

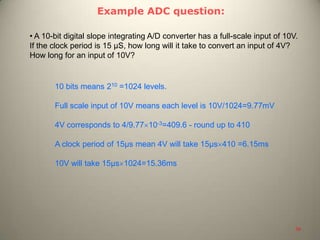

38. Example ADC question:
• A 10-bit digital slope integrating A/D converter has a full-scale input of 10V.

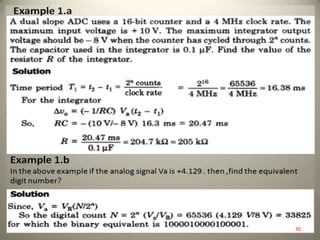

If the clock period is 15 μS, how long will it take to convert an input of 4V?
How long for an input of 10V?
10 bits means 210 =1024 levels.
Full scale input of 10V means each level is 10V/1024=9.77mV
4V corresponds to 4/9.77 10-3=409.6 - round up to 410
A clock period of 15μs mean 4V will take 15μs 410 =6.15ms
10V will take 15μs 1024=15.36ms
38

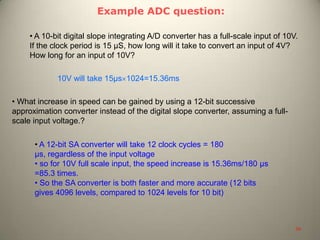

39. Example ADC question:
• A 10-bit digital slope integrating A/D converter has a full-scale input of 10V.
If the clock period is 15 μS, how long will it take to convert an input of 4V?
How long for an input of 10V?
10V will take 15μs 1024=15.36ms
• What increase in speed can be gained by using a 12-bit successive
approximation converter instead of the digital slope converter, assuming a full-
scale input voltage.?
• A 12-bit SA converter will take 12 clock cycles = 180
μs, regardless of the input voltage
• so for 10V full scale input, the speed increase is 15.36ms/180 μs
=85.3 times.
• So the SA converter is both faster and more accurate (12 bits
gives 4096 levels, compared to 1024 levels for 10 bit)
39

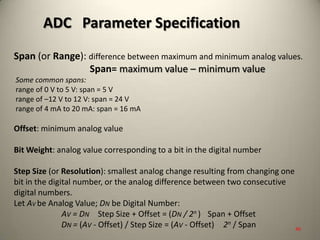

40. Span (or Range): difference between maximum and minimum analog values.
Span= maximum value – minimum value
Some common spans:
range of 0 V to 5 V: span = 5 V
range of –12 V to 12 V: span = 24 V
range of 4 mA to 20 mA: span = 16 mA
Offset: minimum analog value
Bit Weight: analog value corresponding to a bit in the digital number
Step Size (or Resolution): smallest analog change resulting from changing one
bit in the digital number, or the analog difference between two consecutive
digital numbers.
Let AV be Analog Value; DN be Digital Number:
AV = DN Step Size + Offset = (DN / 2n ) Span + Offset
DN = (AV - Offset) / Step Size = (AV - Offset) 2n / Span
ADC Parameter Specification
40

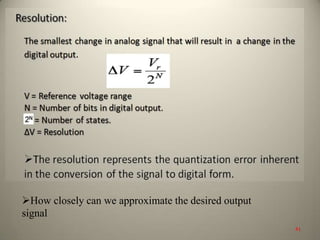

41. How closely can we approximate the desired output
signal
41

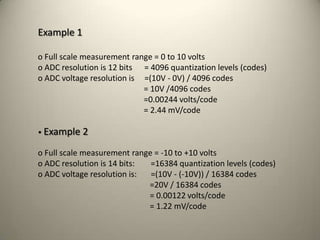

42. Example 1
o Full scale measurement range = 0 to 10 volts
o ADC resolution is 12 bits = 4096 quantization levels (codes)
o ADC voltage resolution is =(10V - 0V) / 4096 codes
= 10V /4096 codes
=0.00244 volts/code
= 2.44 mV/code
• Example 2
o Full scale measurement range = -10 to +10 volts
o ADC resolution is 14 bits: =16384 quantization levels (codes)
o ADC voltage resolution is: =(10V - (-10V)) / 16384 codes
=20V / 16384 codes
= 0.00122 volts/code
= 1.22 mV/code
42

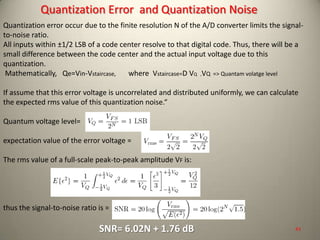

43. Quantization error occur due to the finite resolution N of the A/D converter limits the signal-
to-noise ratio.
All inputs within ±1/2 LSB of a code center resolve to that digital code. Thus, there will be a
small difference between the code center and the actual input voltage due to this
quantization.
Mathematically, Qe=Vin-Vstaircase, where Vstaircase=D VQ ,VQ => Quantam volatge level
If assume that this error voltage is uncorrelated and distributed uniformly, we can calculate
the expected rms value of this quantization noise.“
Quantum voltage level=
expectation value of the error voltage =
The rms value of a full-scale peak-to-peak amplitude VF is:
thus the signal-to-noise ratio is =
SNR= 6.02N + 1.76 dB
Quantization Error and Quantization Noise
43

44. Quantization error voltage for ideal analog-to-digital converter.
44

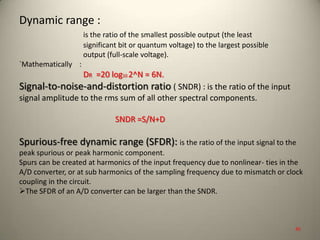

45. Dynamic range :
is the ratio of the smallest possible output (the least
significant bit or quantum voltage) to the largest possible
output (full-scale voltage).
`Mathematically :
DR =20 log10 2^N = 6N.
Signal-to-noise-and-distortion ratio ( SNDR) : is the ratio of the input
signal amplitude to the rms sum of all other spectral components.
SNDR =S/N+D
Spurious-free dynamic range (SFDR): is the ratio of the input signal to the
peak spurious or peak harmonic component.
Spurs can be created at harmonics of the input frequency due to nonlinear- ties in the
A/D converter, or at sub harmonics of the sampling frequency due to mismatch or clock
coupling in the circuit.
The SFDR of an A/D converter can be larger than the SNDR.
45

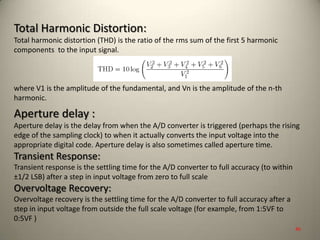

46. Total Harmonic Distortion:
Total harmonic distortion (THD) is the ratio of the rms sum of the first 5 harmonic
components to the input signal.
where V1 is the amplitude of the fundamental, and Vn is the amplitude of the n-th
harmonic.
Aperture delay :
Aperture delay is the delay from when the A/D converter is triggered (perhaps the rising
edge of the sampling clock) to when it actually converts the input voltage into the
appropriate digital code. Aperture delay is also sometimes called aperture time.
Transient Response:
Transient response is the settling time for the A/D converter to full accuracy (to within
±1/2 LSB) after a step in input voltage from zero to full scale
Overvoltage Recovery:
Overvoltage recovery is the settling time for the A/D converter to full accuracy after a
step in input voltage from outside the full scale voltage (for example, from 1:5VF to
0:5VF )
46

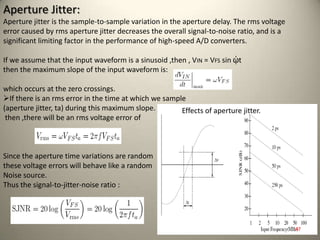

47. Aperture Jitter:
Aperture jitter is the sample-to-sample variation in the aperture delay. The rms voltage
error caused by rms aperture jitter decreases the overall signal-to-noise ratio, and is a
significant limiting factor in the performance of high-speed A/D converters.
If we assume that the input waveform is a sinusoid ,then , VIN = VFS sin ᾡt
then the maximum slope of the input waveform is:
which occurs at the zero crossings.
If there is an rms error in the time at which we sample
(aperture jitter, ta) during this maximum slope.
then ,there will be an rms voltage error of
Since the aperture time variations are random
these voltage errors will behave like a random
Noise source.
Thus the signal-to-jitter-noise ratio :
Effects of aperture jitter.
47

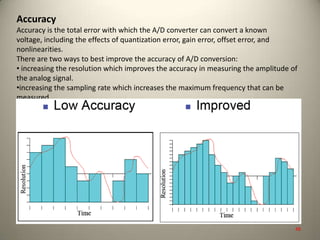

48. Accuracy
Accuracy is the total error with which the A/D converter can convert a known
voltage, including the effects of quantization error, gain error, offset error, and
nonlinearities.
There are two ways to best improve the accuracy of A/D conversion:
• increasing the resolution which improves the accuracy in measuring the amplitude of
the analog signal.
•increasing the sampling rate which increases the maximum frequency that can be
measured.
48

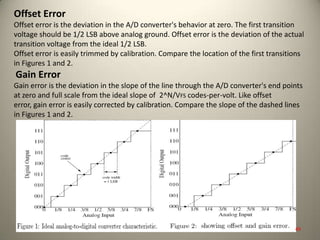

49. Offset Error
Offset error is the deviation in the A/D converter's behavior at zero. The first transition
voltage should be 1/2 LSB above analog ground. Offset error is the deviation of the actual
transition voltage from the ideal 1/2 LSB.
Offset error is easily trimmed by calibration. Compare the location of the first transitions
in Figures 1 and 2.
Gain Error
Gain error is the deviation in the slope of the line through the A/D converter's end points
at zero and full scale from the ideal slope of 2^N/VFS codes-per-volt. Like offset
error, gain error is easily corrected by calibration. Compare the slope of the dashed lines
in Figures 1 and 2.
49

50. Differential Nonlinearity
Differential nonlinearity (DNL) is the deviation of the code transition widths from the ideal
width of 1 LSB i.e. difference b/w the actual code width of nonideal converter and the ideal
case.
Mathematically, DNL=actual step width-ideal step width
ideal step width=Vref/8=.625V=1 LSB
All code widths in the ideal A/D converter are 1 LSB wide, so the DNL would be zero
everywhere.
Integral Nonlinearity
Integral nonlinearity (INL) is the distance of the code centers in the A/D converter
characteristic from the ideal line.
If all code centers land on the ideal line, the INL is zero everywhere.
See the deviations of the code centers from the ideal line in Figure .
Missing Codes
Missing codes are output digital codes that are not produced for any input voltage, usually
due to large DNL.
In some converters, missing codes can be caused by non-monotonicity of the internal D/A.
The large DNL in Figure 3 causes code 100 to be “crowded out.”
50

51. 51
Fig . ADC characteristic, showing nonlinearity errors and a missing code.
The dashed line is the ideal characteristic, and the dotted line is the best
fit.

52. ADC are used virtually everywhere where an analog signal has to be
processed, stored, or transported in digital form.
•Some examples of ADC usage are digital volt meters, cell
phone, thermocouples, and digital oscilloscope.
•Microcontrollers commonly use 8, 10, 12, or 16 bit ADCs, our micro
controller uses an 8 or 10 bit ADC.
52

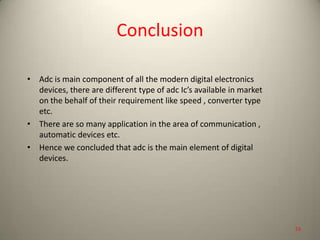

53. Conclusion
• Adc is main component of all the modern digital electronics
devices, there are different type of adc Ic’s available in market
on the behalf of their requirement like speed , converter type
etc.
• There are so many application in the area of communication ,
automatic devices etc.
• Hence we concluded that adc is the main element of digital
devices.
53

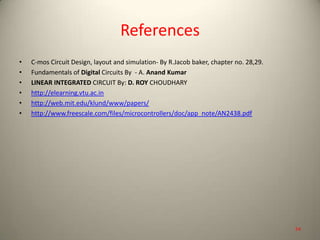

54. References
• C-mos Circuit Design, layout and simulation- By R.Jacob baker, chapter no. 28,29.
• Fundamentals of Digital Circuits By - A. Anand Kumar
• LINEAR INTEGRATED CIRCUIT By: D. ROY CHOUDHARY
• http://elearning.vtu.ac.in
• http://web.mit.edu/klund/www/papers/
• http://www.freescale.com/files/microcontrollers/doc/app_note/AN2438.pdf
54

55. 55
VERY MUCH……………………….
……………………………………………..
……………………………………………..
………

56. 56
References
