1. ADC - Dual Slope Integrator
CIRCUIT
A fascinating question has always been - how can you convert an analog voltage
to an equivalent digital word? One of the many interesting architectures available
is the dual-slope integrator. This Analog-to-Digital Converter (ADC) has been at
the heart of the Digital Volt Meter (DVM) for decades. The time on the dial is
proportional to the input voltage. Just a few basic components constructs this basic
ADC implementation.
INTEGRATOR AND SWITCHES
The basic DNA of this converter is your basic op amp integrator, two switches and
a reference.
The name Dual Slope comes from its basic behaviour of creating a waveform with
a positive slope, followed by a negative slope. The entire conversion occurs in
three phases.

2. 1. RAMP UP - Integrate a Variable Input (Vin) for a Fixed Time (T1)
2. RAMP DOWN - Integrate a Fixed voltage (Vref) for a Variable Time (T2) until output returns to 0V.
The time interval T2 is proportional to the input voltage! Simply measure T2 with a oscillator and a
counter. At the end-of-conversion, the DVM's display is updated with the new count value.
3. RESET - Short C1 for Vo = 0V
RAMP UP AND DOWN
The power of the Dual Integrator lies in independence on the Capacitor accuracy or
drift.During the RAMP UP phase (starting at Vo=0V), the output increases with a
variable slope (depending on Vin) for a fixed period T1.
V1 = -Vin / R1 · T1 / C1 RAMP UP ▲
(Notice, because the integrator is inverting, you need to invertVin for a positive
slope.)
During the RAMP DOWN Phase, the output decreases to 0V at a Fixed Slope for a
variable time T2. The same voltage change as during ramp up.
V2 = -Vref / ( R1· C1) ·T2 RAMP DOWN ▼
Because the output ramps up and down equally (V1=V2) , we can write
Vin / ( R1· C1) ·T1 = Vref / ( R1· C1) ·T2
Note that the RC terms drop out and you are left with ratios Vin / Vref = T2 /
T1. Solving for T2 you get
T2 = Vin / Vref · T1
This result tells us that the the interval T2 varies in direct proportion to the ratio of
Vin/Vref. So how can you get a digital word out of this? Simply let a coulter run
during T2 and display it's result.
Typically, the accuracy of an integrator circuit largely depends the accuracy of R1
and C1. For example, a 1% error in C1 causes a 1% error at the output. But, as we
discovered above, a converter with both a positive and negative slope places the
accuracy on the ratio of slopes and intervals; not the exact slopes. The only
precision component required is the reference VREF.

3. DESIGN
Let's design a +/-10V dual-slope converter with T1=T2=10ms. Choosing
C1=0.1uF, calculate R1 for a max Vo=10V for Vin=10V during T1=10ms.
.R1= -Vin / Vo · T1 / C1 = 100k
The total convert time will be at least T1+T2=20ms plus the Reset Phase T3.
SPICE MODEL
VIN and VREF define the input and reference voltages respectively. To get a
positive slope during T1, we'll invert VIN using controlled source E_INVERTER
with gain set to -1. Analog switches S1 and S2 (defined by models SWA and
SWB) are controlled by VCNTL. This switch control signal turns S1 ON (S2 OFF)
during T1 and then turns T2 ON (T1 OFF) during T2.
Components R1, C1 and XOP1 create a classic op amp integrator. The Reset Phase
simply returns C1s voltage to 0V. To keep things simple, we'll avoid the reset
circuitry and use the Initial Condition option (IC=0V) to set the initial cap voltage.
Comparator XCMP1 indicates when the integrator output V(3) crosses 0V. This
zero-crossing provides us the measurement of T2, and ultimately the measure of
VIN!. Also, we'll stop the integrating at the end of T2 by opening S2. This is
accomplished by ANDing the VCNTL and XCMP1 outputs using a diode-based
AND gate (see R31, D31 and D32.).
The comparator's model is created in a sub circuit COMP1. A simple piece-wise-
linear table describes XCMP's input / output relationship.
EOUT 5 0 TABLE {V(4)} = (-0.5MV 0V) (0.5MV, 5V)

4. This behavioral model defines three cases
(Vin+-Vin-) > +0.5mV Vo = 5V
(Vin+-Vin-) < -0.5mV Vo = 0V
-0.5mV < (Vin+-Vin-) < +0.5mV. G = ( 5V - 0V ) / (+0.5mV - (-0.5mV) ) = 5000.
CONVERTER TEST
To test our converter, we'll apply an input of VIN=9.5V. Run a TRANSIENT
SIMULATION of the file named DUAL_SLOPE_CONVERTER.CIR.
CIRCUIT INSIGHT
Plot the switch control VCNTL at V(15) and the comparator output at V(5). In
another pane, plot the integrator output at V(3). Find when the comparator output
falls (T_fall) indicating the end of the ramp down interval and calculate
T2 = T_fall - T1.
As an example, for T_fall=19.0599 ms, calculate T2 = 19.5099 ms - 10ms =
9.055ms. Finally, determine the VIN as
VIN = T2 / T1 * Vref
= 9.5099ms / 10ms * 10V
= 9.5099 V
The converter has delivered as promised! The reading of VIN lands within 0.1% of
Full Scale.
SPICE FILE
DUAL_SLOPE_CONVERTER.CIR
*
* INPUT VOLTAGE
VIN 10 20 9.5VDC
VN 20 0 SIN(0Voff 0Vpeak 3kHz)
*
* INVERT INPUT
E_INVERTER 11 0 10 0 -1
*
* REFERENCE VOLTAGE
VREF 12 0 10.0VDC
*
* CONTROL: VCNTRL=0 S1=ON, S2=OFF
* VCNTRL=1 S1=Off,S2=ON
VCNTL 15 0 PWL(0MS 0V 10MS 0V 10.01MS 5V)
*
* INTEGRATOR
S1 11 1 15 0 SWB
S2 12 1 31 0 SWA
R1 1 2 100K
C1 2 3 0.10UF IC=0V

5. XOP1 0 2 3 OPAMP1
*
* COMPARATOR (ZERO CROSSING DETECTOR)
XCMP1 3 0 5 COMP1
*
* AND GATE, IF VCNTRL AND XCMP1 OUTPUTS ARE HI, THEN S2 = ON
VCC 30 0 DC 5V
R31 30 31 10k
D31 31 15 D1N4148
D32 31 5 D1N4148
*
*
* SUBCIRCUITS AND MODELS ***********************************
*
.SUBCKT COMP1 1 2 5
* TERMINALS: 1-INPUT+, 2-INPUT-, 5-OUTPUT
* DIFF AMP
EDIFF 3 0 VALUE = { V(1) - V(2) }
* FREQUENCY RESPONSE
RP1 3 4 500
CP1 4 0 1000PF
* LIMITER
EOUT 5 0 TABLE {V(4)} = (-0.5MV 0V) (0.5MV, 5V)
.ENDS
*
*
* OPAMP MACRO MODEL, SINGLE-POLE WITH 15V OUTPUT CLAMP
* connections: non-inverting input
* | inverting input
* | | output
* | | |
.SUBCKT OPAMP1 1 2 6
* INPUT IMPEDANCE
RIN 1 2 10MEG
* DC GAIN=100K AND POLE1=100HZ
* UNITY GAIN = DCGAIN X POLE1 = 10MHZ
EGAIN 3 0 1 2 100K
RP1 3 4 100K
CP1 4 0 0.0159UF
* OUTPUT BUFFER AND RESISTANCE
EBUFFER 5 0 4 0 1
ROUT 5 6 10
.ENDS
*
.MODEL SWA VSWITCH(VON=5 VOFF=0 RON=1 ROFF=1e12)
.MODEL SWB VSWITCH(VON=0 VOFF=5 RON=1 ROFF=1e12)
*
* DIODE
.model D1N4148 D(Is=0.1p Rs=16 CJO=2p Tt=12n Bv=100 Ibv=0.1p)
*
* ANALYSIS *************************************************
.TRAN 25US 20MS UIC
.PROBE
.END

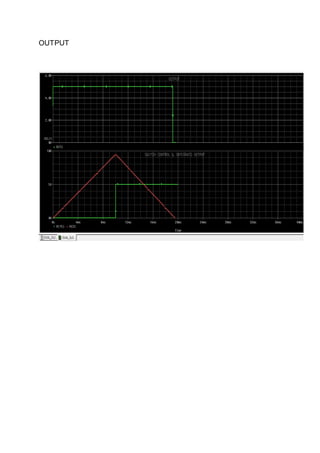

6. OUTPUT
