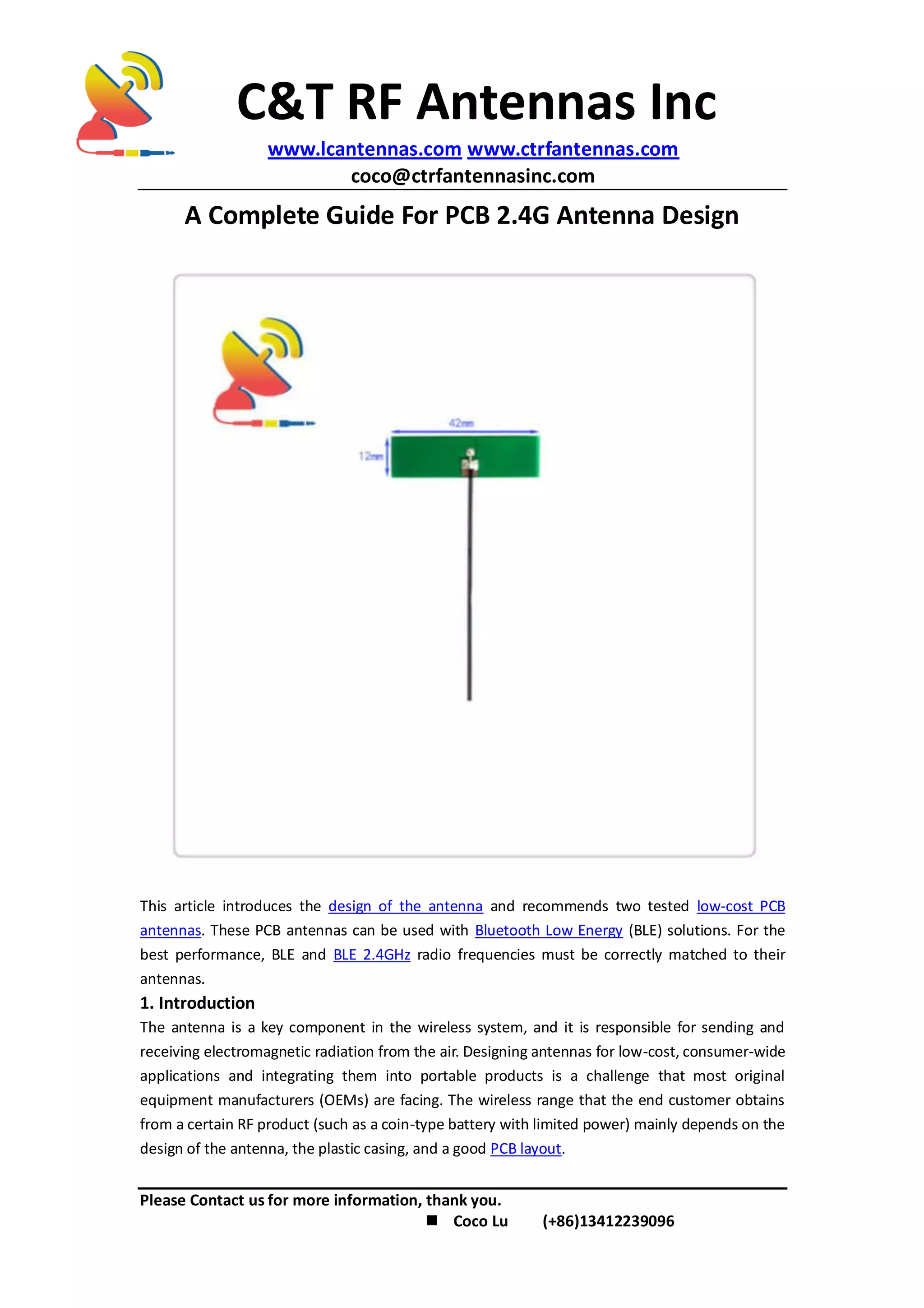

A Complete Guide For PCB 2.4G Antenna Design
This article introduces the design of the antenna and recommends two tested low-cost PCB
antennas. These PCB antennas can be used with Bluetooth Low Energy (BLE) solutions. For the
best performance, BLE and BLE 2.4GHz radio frequencies must be correctly matched to their
antennas.
1. Introduction
The antenna is a key component in the wireless system, and it is responsible for sending and
receiving electromagnetic radiation from the air. Designing antennas for low-cost, consumer-wide
applications and integrating them into portable products is a challenge that most original
equipment manufacturers (OEMs) are facing. The wireless range that the end customer obtains
from a certain RF product (such as a coin-type battery with limited power) mainly depends on the
design of the antenna, the plastic casing, and a good PCB layout.

C&T RF Antennas Inc
 Coco Lu (+86)13412239096

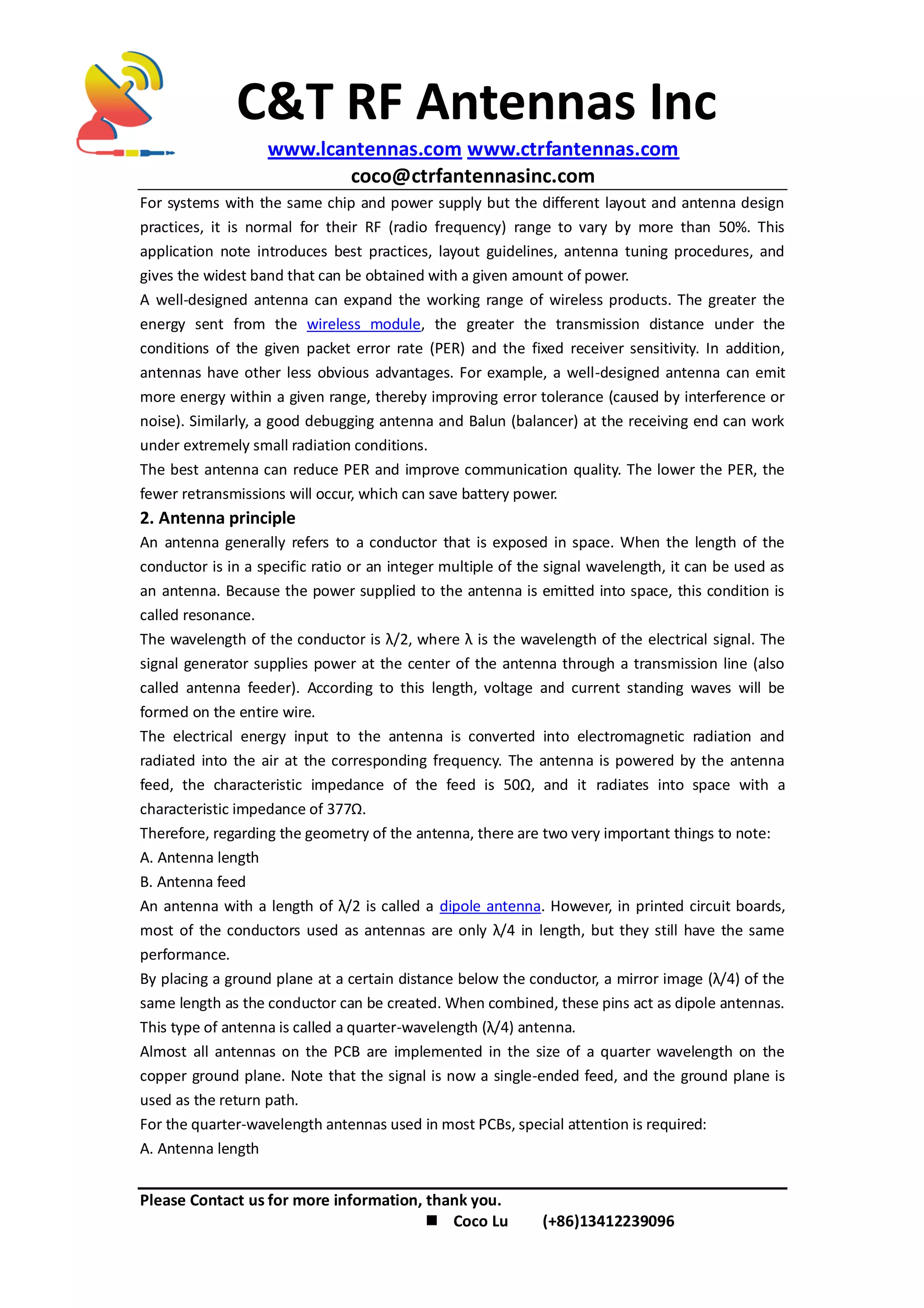

For systems with the same chip and power supply but the different layout and antenna design
practices, it is normal for their RF (radio frequency) range to vary by more than 50%. This
application note introduces best practices, layout guidelines, antenna tuning procedures, and
gives the widest band that can be obtained with a given amount of power.
A well-designed antenna can expand the working range of wireless products. The greater the
energy sent from the wireless module, the greater the transmission distance under the
conditions of the given packet error rate (PER) and the fixed receiver sensitivity. In addition,
antennas have other less obvious advantages. For example, a well-designed antenna can emit
more energy within a given range, thereby improving error tolerance (caused by interference or
noise). Similarly, a good debugging antenna and Balun (balancer) at the receiving end can work
under extremely small radiation conditions.
The best antenna can reduce PER and improve communication quality. The lower the PER, the
fewer retransmissions will occur, which can save battery power.
2. Antenna principle
An antenna generally refers to a conductor that is exposed in space. When the length of the
conductor is in a specific ratio or an integer multiple of the signal wavelength, it can be used as
an antenna. Because the power supplied to the antenna is emitted into space, this condition is
called resonance.
The wavelength of the conductor is λ/2, where λ is the wavelength of the electrical signal. The
signal generator supplies power at the center of the antenna through a transmission line (also
called antenna feeder). According to this length, voltage and current standing waves will be
formed on the entire wire.
The electrical energy input to the antenna is converted into electromagnetic radiation and
radiated into the air at the corresponding frequency. The antenna is powered by the antenna
feed, the characteristic impedance of the feed is 50Ω, and it radiates into space with a
characteristic impedance of 377Ω.
Therefore, regarding the geometry of the antenna, there are two very important things to note:
A. Antenna length
B. Antenna feed
An antenna with a length of λ/2 is called a dipole antenna. However, in printed circuit boards,
most of the conductors used as antennas are only λ/4 in length, but they still have the same
performance.
By placing a ground plane at a certain distance below the conductor, a mirror image (λ/4) of the
same length as the conductor can be created. When combined, these pins act as dipole antennas.
This type of antenna is called a quarter-wavelength (λ/4) antenna.
Almost all antennas on the PCB are implemented in the size of a quarter wavelength on the
copper ground plane. Note that the signal is now a single-ended feed, and the ground plane is
used as the return path.
For the quarter-wavelength antennas used in most PCBs, special attention is required:

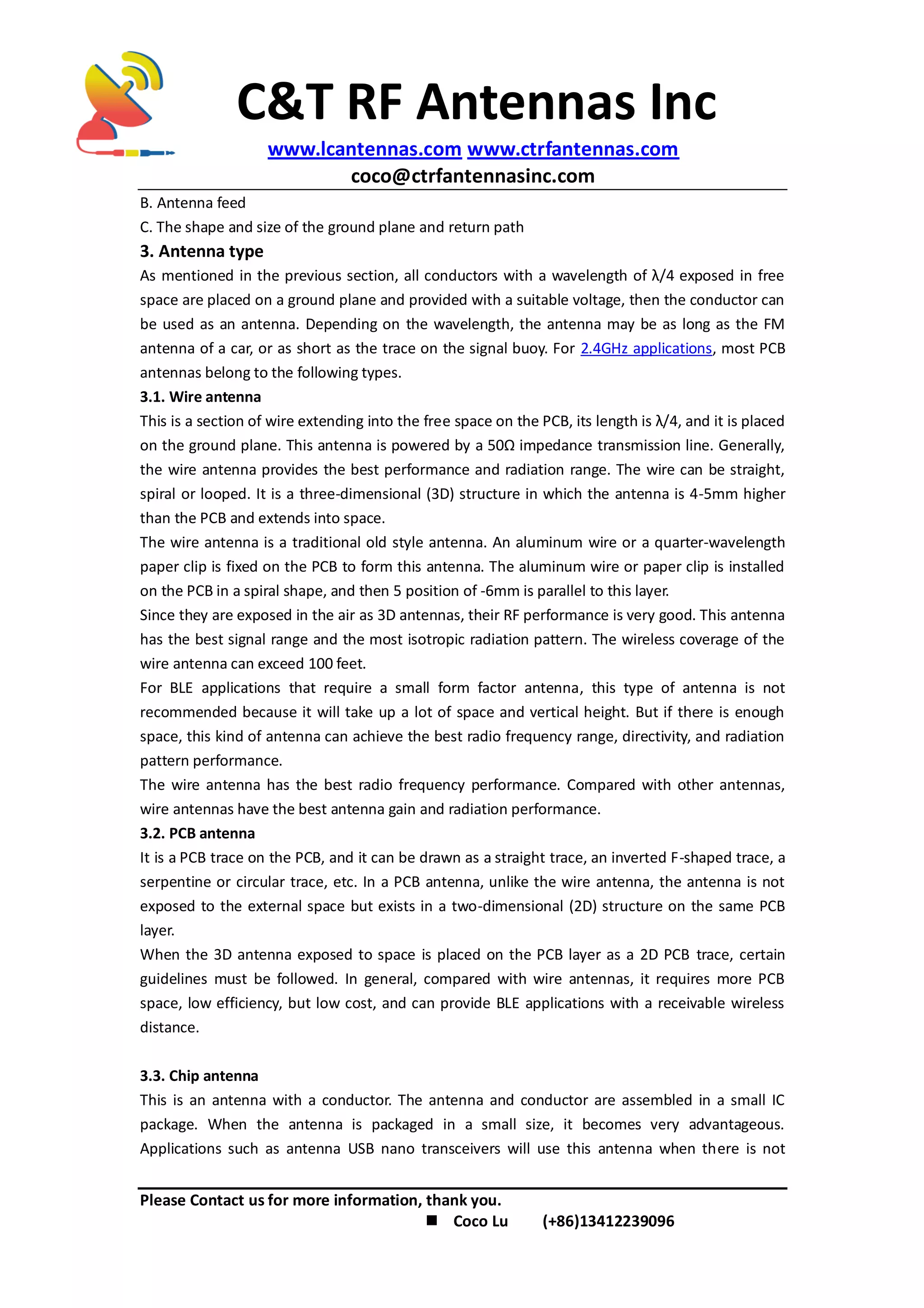

A. Antenna length

C&T RF Antennas Inc
 Coco Lu (+86)13412239096
B. Antenna feed
C. The shape and size of the ground plane and return path
3. Antenna type
As mentioned in the previous section, all conductors with a wavelength of λ/4 exposed in free
space are placed on a ground plane and provided with a suitable voltage, then the conductor can
be used as an antenna. Depending on the wavelength, the antenna may be as long as the FM
antenna of a car, or as short as the trace on the signal buoy. For 2.4GHz applications, most PCB
antennas belong to the following types.
3.1. Wire antenna
This is a section of wire extending into the free space on the PCB, its length is λ/4, and it is placed
on the ground plane. This antenna is powered by a 50Ω impedance transmission line. Generally,
the wire antenna provides the best performance and radiation range. The wire can be straight,
spiral or looped. It is a three-dimensional (3D) structure in which the antenna is 4-5mm higher
than the PCB and extends into space.
The wire antenna is a traditional old style antenna. An aluminum wire or a quarter-wavelength
paper clip is fixed on the PCB to form this antenna. The aluminum wire or paper clip is installed
on the PCB in a spiral shape, and then 5 position of -6mm is parallel to this layer.
Since they are exposed in the air as 3D antennas, their RF performance is very good. This antenna
has the best signal range and the most isotropic radiation pattern. The wireless coverage of the
wire antenna can exceed 100 feet.
For BLE applications that require a small form factor antenna, this type of antenna is not
recommended because it will take up a lot of space and vertical height. But if there is enough
space, this kind of antenna can achieve the best radio frequency range, directivity, and radiation
pattern performance.
The wire antenna has the best radio frequency performance. Compared with other antennas,
wire antennas have the best antenna gain and radiation performance.
3.2. PCB antenna
It is a PCB trace on the PCB, and it can be drawn as a straight trace, an inverted F-shaped trace, a
serpentine or circular trace, etc. In a PCB antenna, unlike the wire antenna, the antenna is not
exposed to the external space but exists in a two-dimensional (2D) structure on the same PCB
layer.
When the 3D antenna exposed to space is placed on the PCB layer as a 2D PCB trace, certain
guidelines must be followed. In general, compared with wire antennas, it requires more PCB
space, low efficiency, but low cost, and can provide BLE applications with a receivable wireless
distance.
3.3. Chip antenna
This is an antenna with a conductor. The antenna and conductor are assembled in a small IC
package. When the antenna is packaged in a small size, it becomes very advantageous.
Applications such as antenna USB nano transceivers will use this antenna when there is not

C&T RF Antennas Inc
 Coco Lu (+86)13412239096

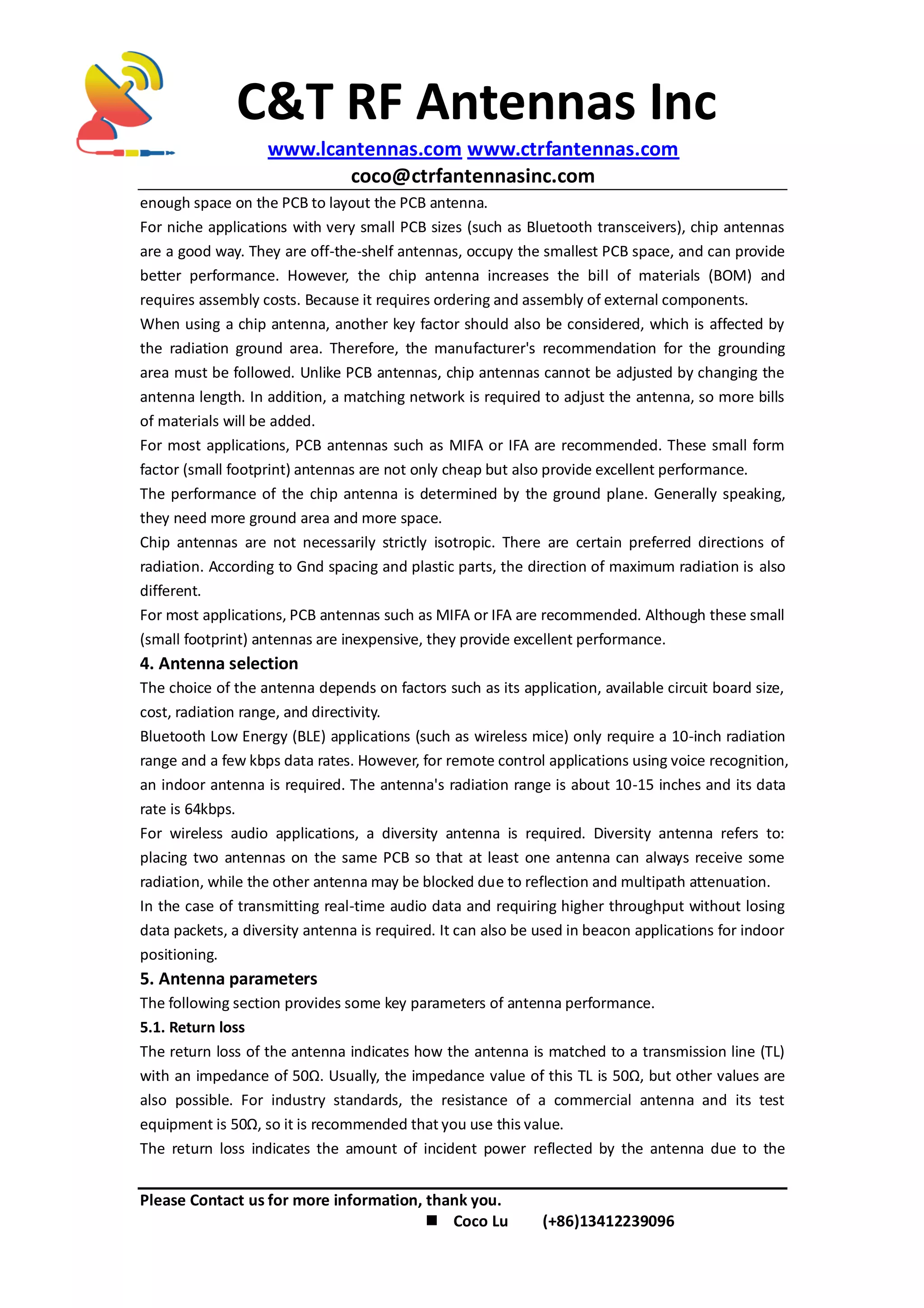

enough space on the PCB to layout the PCB antenna.
For niche applications with very small PCB sizes (such as Bluetooth transceivers), chip antennas
are a good way. They are off-the-shelf antennas, occupy the smallest PCB space, and can provide
better performance. However, the chip antenna increases the bill of materials (BOM) and
requires assembly costs. Because it requires ordering and assembly of external components.
When using a chip antenna, another key factor should also be considered, which is affected by
the radiation ground area. Therefore, the manufacturer's recommendation for the grounding
area must be followed. Unlike PCB antennas, chip antennas cannot be adjusted by changing the
antenna length. In addition, a matching network is required to adjust the antenna, so more bills
of materials will be added.
For most applications, PCB antennas such as MIFA or IFA are recommended. These small form
factor (small footprint) antennas are not only cheap but also provide excellent performance.
The performance of the chip antenna is determined by the ground plane. Generally speaking,
they need more ground area and more space.
Chip antennas are not necessarily strictly isotropic. There are certain preferred directions of
radiation. According to Gnd spacing and plastic parts, the direction of maximum radiation is also
different.
For most applications, PCB antennas such as MIFA or IFA are recommended. Although these small
(small footprint) antennas are inexpensive, they provide excellent performance.
4. Antenna selection
The choice of the antenna depends on factors such as its application, available circuit board size,
cost, radiation range, and directivity.
Bluetooth Low Energy (BLE) applications (such as wireless mice) only require a 10-inch radiation
range and a few kbps data rates. However, for remote control applications using voice recognition,
an indoor antenna is required. The antenna's radiation range is about 10-15 inches and its data
rate is 64kbps.
For wireless audio applications, a diversity antenna is required. Diversity antenna refers to:
placing two antennas on the same PCB so that at least one antenna can always receive some
radiation, while the other antenna may be blocked due to reflection and multipath attenuation.
In the case of transmitting real-time audio data and requiring higher throughput without losing
data packets, a diversity antenna is required. It can also be used in beacon applications for indoor
positioning.
5. Antenna parameters
The following section provides some key parameters of antenna performance.

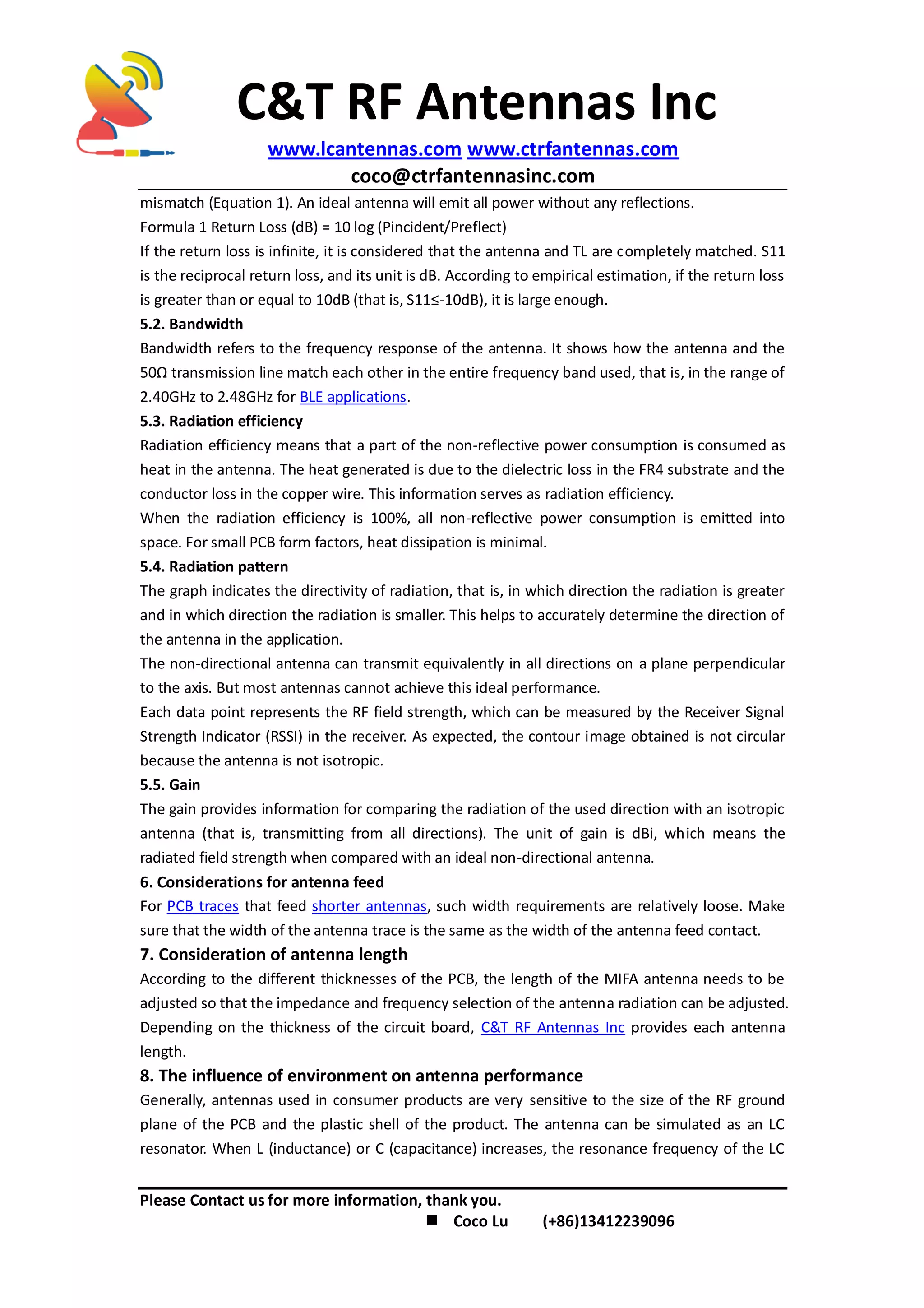

5.1. Return loss
The return loss of the antenna indicates how the antenna is matched to a transmission line (TL)
with an impedance of 50Ω. Usually, the impedance value of this TL is 50Ω, but other values are
also possible. For industry standards, the resistance of a commercial antenna and its test
equipment is 50Ω, so it is recommended that you use this value.
The return loss indicates the amount of incident power reflected by the antenna due to the

C&T RF Antennas Inc
 Coco Lu (+86)13412239096
mismatch (Equation 1). An ideal antenna will emit all power without any reflections.
Formula 1 Return Loss (dB) = 10 log (Pincident/Preflect)
If the return loss is infinite, it is considered that the antenna and TL are completely matched. S11
is the reciprocal return loss, and its unit is dB. According to empirical estimation, if the return loss
is greater than or equal to 10dB (that is, S11≤-10dB), it is large enough.
5.2. Bandwidth
Bandwidth refers to the frequency response of the antenna. It shows how the antenna and the
50Ω transmission line match each other in the entire frequency band used, that is, in the range of
2.40GHz to 2.48GHz for BLE applications.
5.3. Radiation efficiency
Radiation efficiency means that a part of the non-reflective power consumption is consumed as
heat in the antenna. The heat generated is due to the dielectric loss in the FR4 substrate and the
conductor loss in the copper wire. This information serves as radiation efficiency.
When the radiation efficiency is 100%, all non-reflective power consumption is emitted into
space. For small PCB form factors, heat dissipation is minimal.
5.4. Radiation pattern
The graph indicates the directivity of radiation, that is, in which direction the radiation is greater
and in which direction the radiation is smaller. This helps to accurately determine the direction of
the antenna in the application.
The non-directional antenna can transmit equivalently in all directions on a plane perpendicular
to the axis. But most antennas cannot achieve this ideal performance.
Each data point represents the RF field strength, which can be measured by the Receiver Signal
Strength Indicator (RSSI) in the receiver. As expected, the contour image obtained is not circular
because the antenna is not isotropic.
5.5. Gain
The gain provides information for comparing the radiation of the used direction with an isotropic
antenna (that is, transmitting from all directions). The unit of gain is dBi, which means the
radiated field strength when compared with an ideal non-directional antenna.
6. Considerations for antenna feed
For PCB traces that feed shorter antennas, such width requirements are relatively loose. Make
sure that the width of the antenna trace is the same as the width of the antenna feed contact.
7. Consideration of antenna length
According to the different thicknesses of the PCB, the length of the MIFA antenna needs to be
adjusted so that the impedance and frequency selection of the antenna radiation can be adjusted.
Depending on the thickness of the circuit board, C&T RF Antennas Inc provides each antenna
length.
8. The influence of environment on antenna performance
Generally, antennas used in consumer products are very sensitive to the size of the RF ground
plane of the PCB and the plastic shell of the product. The antenna can be simulated as an LC
resonator. When L (inductance) or C (capacitance) increases, the resonance frequency of the LC

C&T RF Antennas Inc
 Coco Lu (+86)13412239096
resonator will decrease. A larger RF ground plane and plastic housing will increase the effective
capacitance, thereby reducing the resonance frequency.

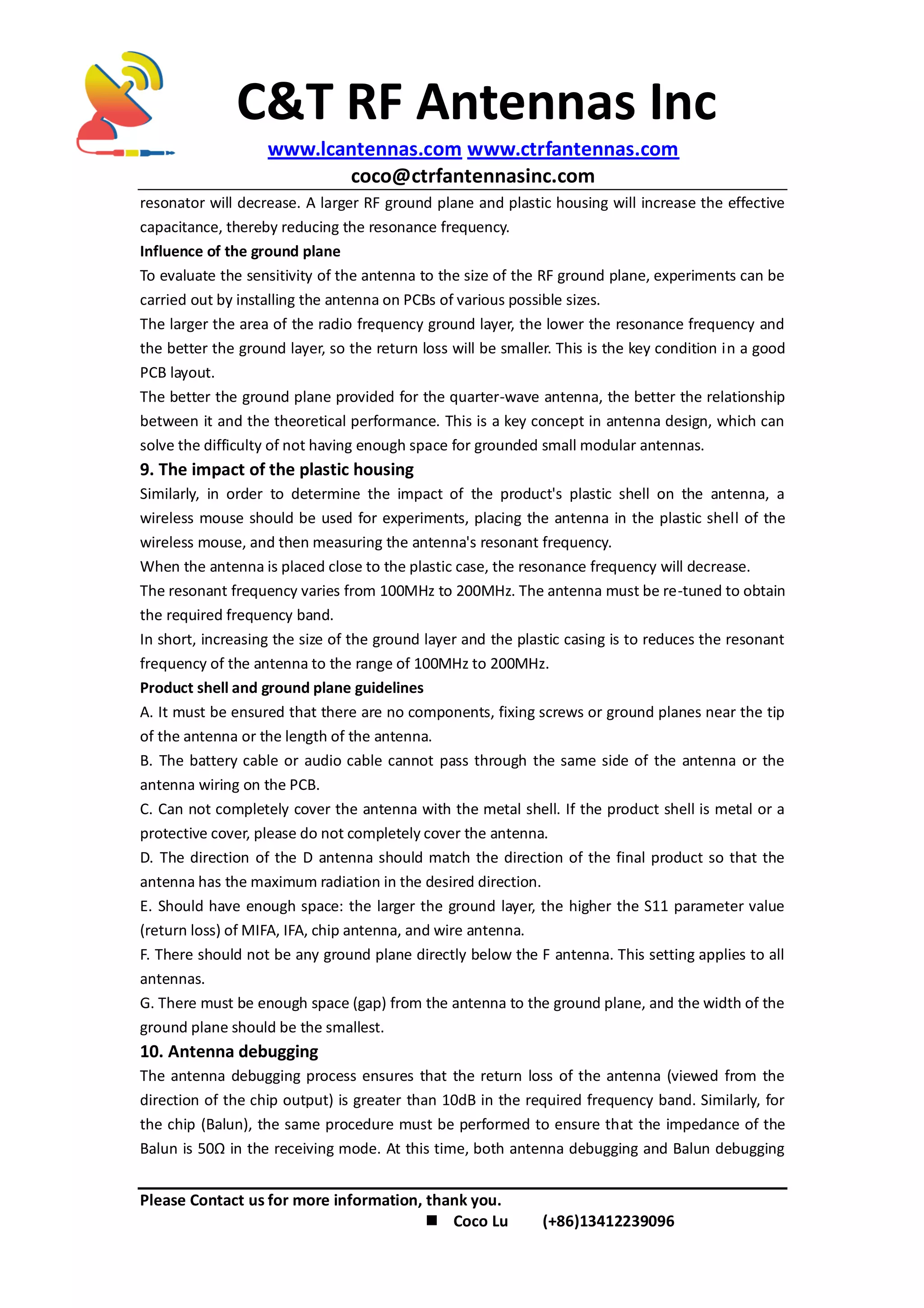

Influence of the ground plane
To evaluate the sensitivity of the antenna to the size of the RF ground plane, experiments can be
carried out by installing the antenna on PCBs of various possible sizes.
The larger the area of the radio frequency ground layer, the lower the resonance frequency and
the better the ground layer, so the return loss will be smaller. This is the key condition in a good
PCB layout.
The better the ground plane provided for the quarter-wave antenna, the better the relationship
between it and the theoretical performance. This is a key concept in antenna design, which can
solve the difficulty of not having enough space for grounded small modular antennas.
9. The impact of the plastic housing
Similarly, in order to determine the impact of the product's plastic shell on the antenna, a
wireless mouse should be used for experiments, placing the antenna in the plastic shell of the
wireless mouse, and then measuring the antenna's resonant frequency.
When the antenna is placed close to the plastic case, the resonance frequency will decrease.
The resonant frequency varies from 100MHz to 200MHz. The antenna must be re-tuned to obtain
the required frequency band.
In short, increasing the size of the ground layer and the plastic casing is to reduces the resonant
frequency of the antenna to the range of 100MHz to 200MHz.
Product shell and ground plane guidelines
A. It must be ensured that there are no components, fixing screws or ground planes near the tip
of the antenna or the length of the antenna.
B. The battery cable or audio cable cannot pass through the same side of the antenna or the
antenna wiring on the PCB.
C. Can not completely cover the antenna with the metal shell. If the product shell is metal or a
protective cover, please do not completely cover the antenna.
D. The direction of the D antenna should match the direction of the final product so that the
antenna has the maximum radiation in the desired direction.
E. Should have enough space: the larger the ground layer, the higher the S11 parameter value
(return loss) of MIFA, IFA, chip antenna, and wire antenna.
F. There should not be any ground plane directly below the F antenna. This setting applies to all
antennas.
G. There must be enough space (gap) from the antenna to the ground plane, and the width of the
ground plane should be the smallest.
10. Antenna debugging
The antenna debugging process ensures that the return loss of the antenna (viewed from the
direction of the chip output) is greater than 10dB in the required frequency band. Similarly, for
the chip (Balun), the same procedure must be performed to ensure that the impedance of the
Balun is 50Ω in the receiving mode. At this time, both antenna debugging and Balun debugging

C&T RF Antennas Inc
 Coco Lu (+86)13412239096
are called antenna debugging.
The reference point is connected to a network analyzer with a port network. During antenna
debugging, the connection with the chip can be disconnected by removing the Balun matching
component. During Balun debugging, the connection with the antenna matching component will
be disconnected.

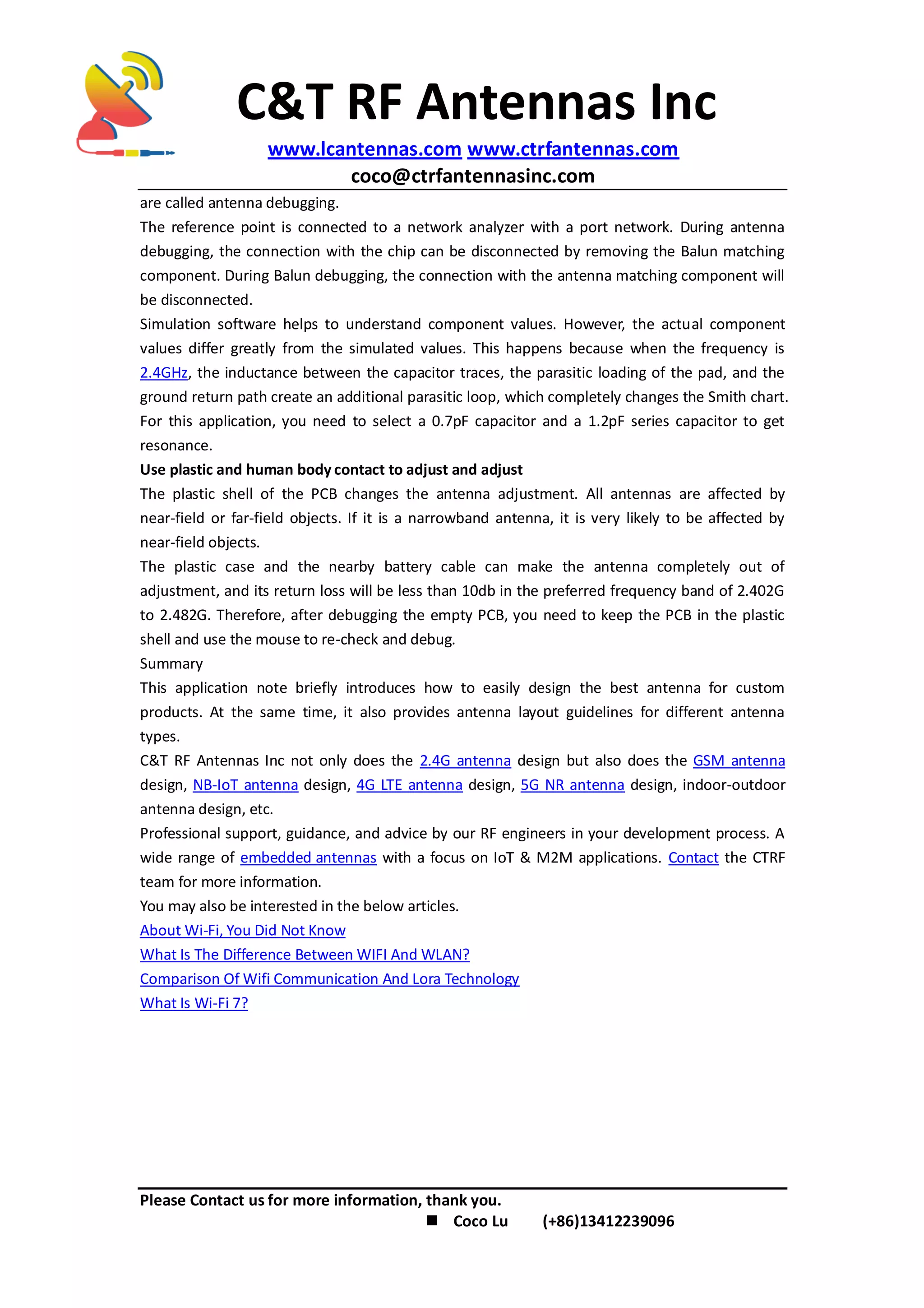

Simulation software helps to understand component values. However, the actual component
values differ greatly from the simulated values. This happens because when the frequency is
2.4GHz, the inductance between the capacitor traces, the parasitic loading of the pad, and the
ground return path create an additional parasitic loop, which completely changes the Smith chart.
For this application, you need to select a 0.7pF capacitor and a 1.2pF series capacitor to get
resonance.
Use plastic and human body contact to adjust and adjust
The plastic shell of the PCB changes the antenna adjustment. All antennas are affected by
near-field or far-field objects. If it is a narrowband antenna, it is very likely to be affected by
near-field objects.
The plastic case and the nearby battery cable can make the antenna completely out of
adjustment, and its return loss will be less than 10db in the preferred frequency band of 2.402G
to 2.482G. Therefore, after debugging the empty PCB, you need to keep the PCB in the plastic
shell and use the mouse to re-check and debug.
Summary
This application note briefly introduces how to easily design the best antenna for custom
products. At the same time, it also provides antenna layout guidelines for different antenna
types.
C&T RF Antennas Inc not only does the 2.4G antenna design but also does the GSM antenna
design, NB-IoT antenna design, 4G LTE antenna design, 5G NR antenna design, indoor-outdoor
antenna design, etc.
Professional support, guidance, and advice by our RF engineers in your development process. A
wide range of embedded antennas with a focus on IoT & M2M applications. Contact the CTRF
team for more information.
You may also be interested in the below articles.
About Wi-Fi, You Did Not Know
What Is The Difference Between WIFI And WLAN?
Comparison Of Wifi Communication And Lora Technology
What Is Wi-Fi 7?

A complete guide for pcb 2.4G antenna design

More Related Content

What's hot

Similar to A complete guide for pcb 2.4G antenna design

More from Antenna Manufacturer Coco

Recently uploaded

A complete guide for pcb 2.4G antenna design
