1. SECURITY AND SECURITY PERMISSIONS Chapter 9

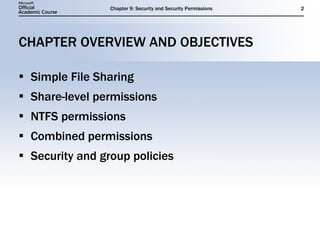

2. CHAPTER OVERVIEW AND OBJECTIVES Simple File Sharing Share-level permissions NTFS permissions Combined permissions Security and group policies

3. SIMPLE FILE SHARING

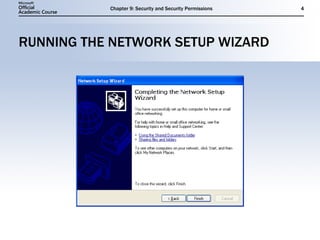

4. RUNNING THE NETWORK SETUP WIZARD

5. SHARING A FOLDER ON THE NETWORK

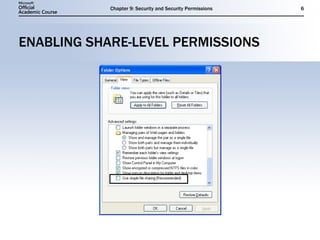

6. ENABLING SHARE-LEVEL PERMISSIONS

7. SHARE-LEVEL PERMISSIONS Read Allows users to view files and folders, view the contents of files and subfolders, and execute programs.* Change Full Control Share Permission Description Allows the user to change NTFS permissions on files and folders (including the shared folder). Administrators must configure share permissions locally or using the Computer Management console. Allows users to add and remove files and subfolders and edit files. *Programs requiring the ability to write to configuration files will not run properly without the Change permission.

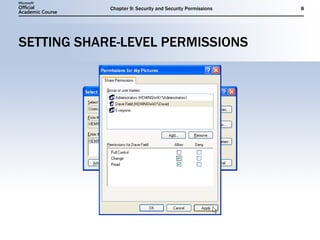

8. SETTING SHARE-LEVEL PERMISSIONS

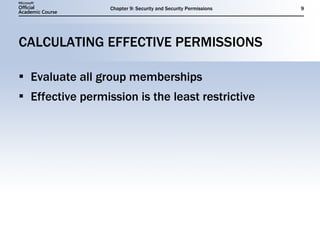

9. CALCULATING EFFECTIVE PERMISSIONS Evaluate all group memberships Effective permission is the least restrictive

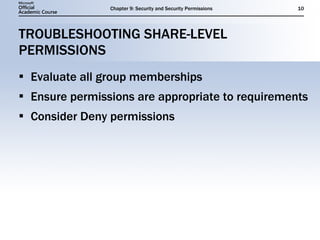

10. TROUBLESHOOTING SHARE-LEVEL PERMISSIONS Evaluate all group memberships Ensure permissions are appropriate to requirements Consider Deny permissions

11. NTFS PERMISSIONS

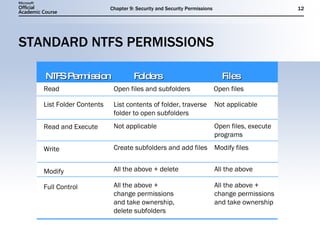

12. STANDARD NTFS PERMISSIONS Read Open files and subfolders Open files List Folder Contents Read and Execute Write Modify Full Control NTFS Permission Folders Files Not applicable List contents of folder, traverse folder to open subfolders Create subfolders and add files Not applicable Open files, execute programs All the above + delete All the above + change permissions and take ownership, delete subfolders All the above Modify files All the above + change permissions and take ownership

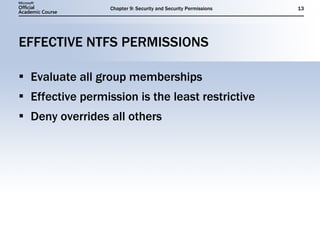

13. EFFECTIVE NTFS PERMISSIONS Evaluate all group memberships Effective permission is the least restrictive Deny overrides all others

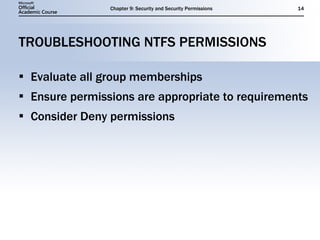

14. TROUBLESHOOTING NTFS PERMISSIONS Evaluate all group memberships Ensure permissions are appropriate to requirements Consider Deny permissions

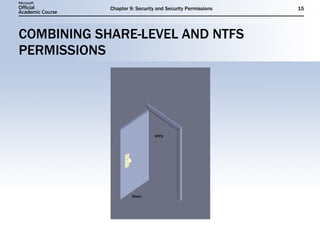

15. COMBINING SHARE-LEVEL AND NTFS PERMISSIONS

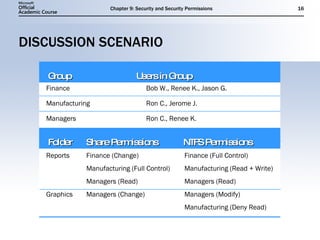

16. DISCUSSION SCENARIO Finance Bob W., Renee K., Jason G. Manufacturing Ron C., Jerome J. Managers Ron C., Renee K. Reports Finance (Change) Finance (Full Control) Manufacturing (Full Control) Manufacturing (Read + Write) Managers (Read) Managers (Read) Graphics Managers (Change) Managers (Modify) Manufacturing (Deny Read) Group Users in Group Folder Share Permissions NTFS Permissions

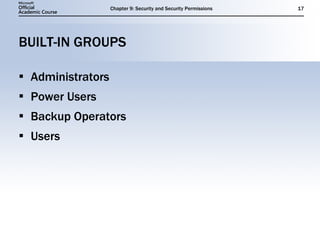

17. BUILT-IN GROUPS Administrators Power Users Backup Operators Users

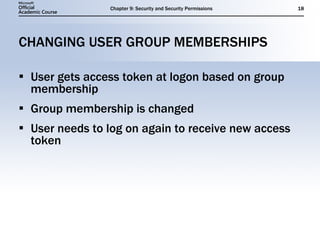

18. CHANGING USER GROUP MEMBERSHIPS User gets access token at logon based on group membership Group membership is changed User needs to log on again to receive new access token

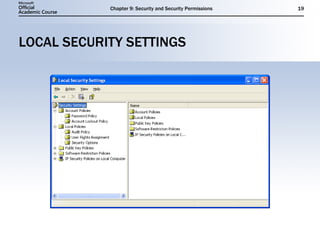

19. LOCAL SECURITY SETTINGS

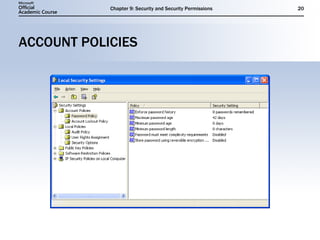

20. ACCOUNT POLICIES

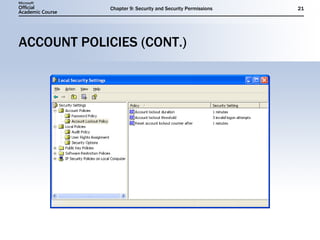

21. ACCOUNT POLICIES (CONT.)

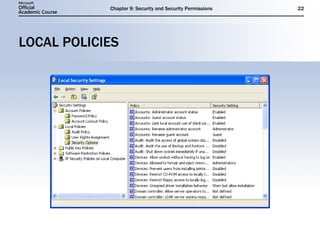

22. LOCAL POLICIES

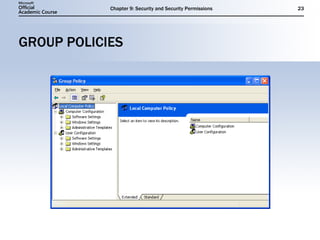

23. GROUP POLICIES

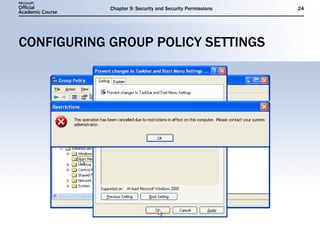

24. CONFIGURING GROUP POLICY SETTINGS

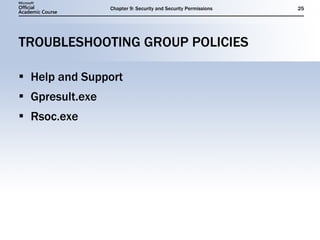

25. TROUBLESHOOTING GROUP POLICIES Help and Support Gpresult.exe Rsoc.exe

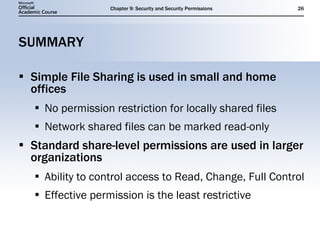

26. SUMMARY Simple File Sharing is used in small and home offices No permission restriction for locally shared files Network shared files can be marked read-only Standard share-level permissions are used in larger organizations Ability to control access to Read, Change, Full Control Effective permission is the least restrictive

27. SUMMARY (CONT.) NTFS permissions Incorporated into the file system More granular than share-level permissions Effective permission is the least restrictive Combined permissions The more restrictive of either share-level or NTFS

28. SUMMARY (CONT.) Local security policy Controls password strength Controls account lockout policy Assigns user rights and other security-related settings Group policy Controls desktop and application configuration Is tiered so site, domain, and organizational unit override local settings
