Users nowadays are provided with major password stereotypes such as textual passwords, biometric scanning, tokens or cards (such as an ATM) etc. Mostly textual passwords follow an encryption algorithm as mentioned aboveBiometric scanning is your "natural" signature and Cards or Tokens prove your validity. But some people hate the fact to carry around their cards, some refuse to undergo strong IR exposure to their retinas(Biometric scanning). Mostly textual passwords, nowadays, are kept very simple say a word from the dictionary or their pet names, girlfriends etc. Years back Klein performed such tests and he could crack 10-15 passwords per day. Now with the technology change, fast processors and many tools on the Internet this has become a Child's Play.

1. NationalInstituteofScience&Technology
1
By
Sambit Kumar Mishra
3D Password Presentation
Presented By Sambit Kumar Mishra

2. NationalInstituteofScience&Technology
2
• Introduction
• Authentication Scheme
• 3D Virtual Environment
• Advantages
• Disadvantages
• Application
• State Diagram
• Attacks and Counter Measure
• Conclusion
OUTLINE
3D PasswordPresentation 2017
Presented By Sambit Kumar Mishra

3. NationalInstituteofScience&Technology
3
Introduction
• The authentication has become a serious
field of research with misuse of
technology.
• 3D passwords are customizable and
interesting way of authentication.
• It presents a 3D virtual environment with
virtual objects.
• Virtual objects can be any object that we
encounter in real life.
3D Password Presentation
Presented By Sambit Kumar Mishra

4. NationalInstituteofScience&Technology
4
Authentication Scheme
1. Token Based Authentication : ATM
Cards, Keys , ID Cards
2. Biometric Based Authentication :
fingerprints, palm prints, hand geometry,
face recognition, voice recognition, iris
recognition, and retina recognition
3. Recall Based Authentication-:Recall
what you have created before.
4. Graphical Passwords: (Recall Based +
Recognition Based).
3D Password Presentation
Presented By Sambit Kumar Mishra

5. NationalInstituteofScience&Technology
5

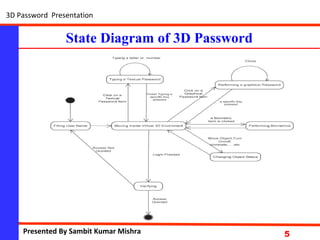

State Diagram of 3D Password
3D Password Presentation
Presented By Sambit Kumar Mishra

6. NationalInstituteofScience&Technology
6
3D Virtual Environment
3D Password Presentation
Presented By Sambit Kumar Mishra

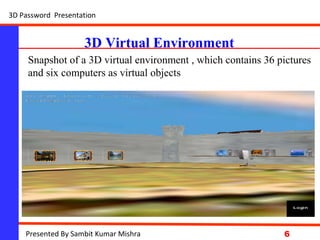

Snapshot of a 3D virtual environment , which contains 36 pictures
and six computers as virtual objects

7. NationalInstituteofScience&Technology
7
3D Virtual Environment
3D Password Presentation
Presented By Sambit Kumar Mishra
Snapshot of a proof-of-concept 3-D virtual environment, where the
user is typing a textual password on a virtual computer as a part of
the user’s 3-D password

8. NationalInstituteofScience&Technology
8
Application of 3D Passowrd
• Networking
• Nuclear and military Areas
• Airplanes and Jet Fighters
• Others Areas
3D Password Presentation
Presented By Sambit Kumar Mishra

9. NationalInstituteofScience&Technology
9
Attacks and Counter Measures
•Shoulder Surfing
•Brute Force Attack
•Well-Studied Attack
3D Password Presentation
Presented By Sambit Kumar Mishra

10. NationalInstituteofScience&Technology
10
Advantages
• It provides user options to choose the type of authentication of
his/her own choice
• It eliminates a brute force attack.
• Provides high level security to the system
• Secure against a software like key logger.
3D Password Presentation
Presented By Sambit Kumar Mishra

11. NationalInstituteofScience&Technology
11

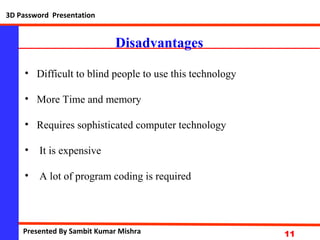

Disadvantages
• Difficult to blind people to use this technology
• More Time and memory
• Requires sophisticated computer technology
• It is expensive
• A lot of program coding is required
3D Password Presentation
Presented By Sambit Kumar Mishra

12. NationalInstituteofScience&Technology
12
Conclusion
• 3D password is a multi factor authentication scheme that
combines the various authentication schemes into a single 3D
virtual environment.
• Design of the 3D virtual environment is the selection of
objects inside the environment and the object's type reflect the
resulted password space
• Password space is very large compared to any existing
authentication schemes
3D Password Presentation
Presented By Sambit Kumar Mishra
