1. Diode
Electronic Circuits
CHO, Yong Heui

2. Electronic Circuits

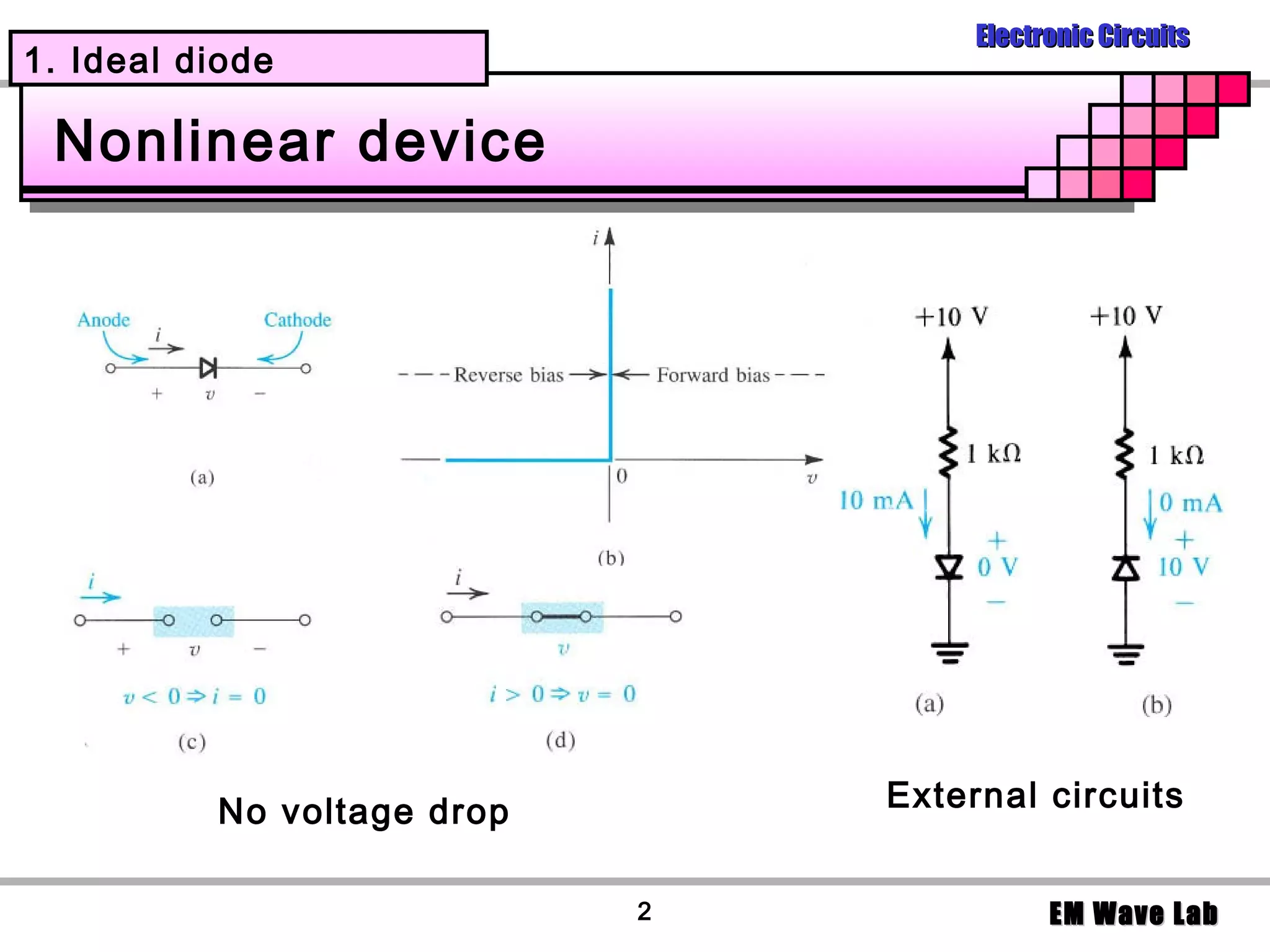

1. Ideal diode
Nonlinear device
No voltage drop External circuits
2 EM Wave Lab

3. Electronic Circuits
1. Ideal diode

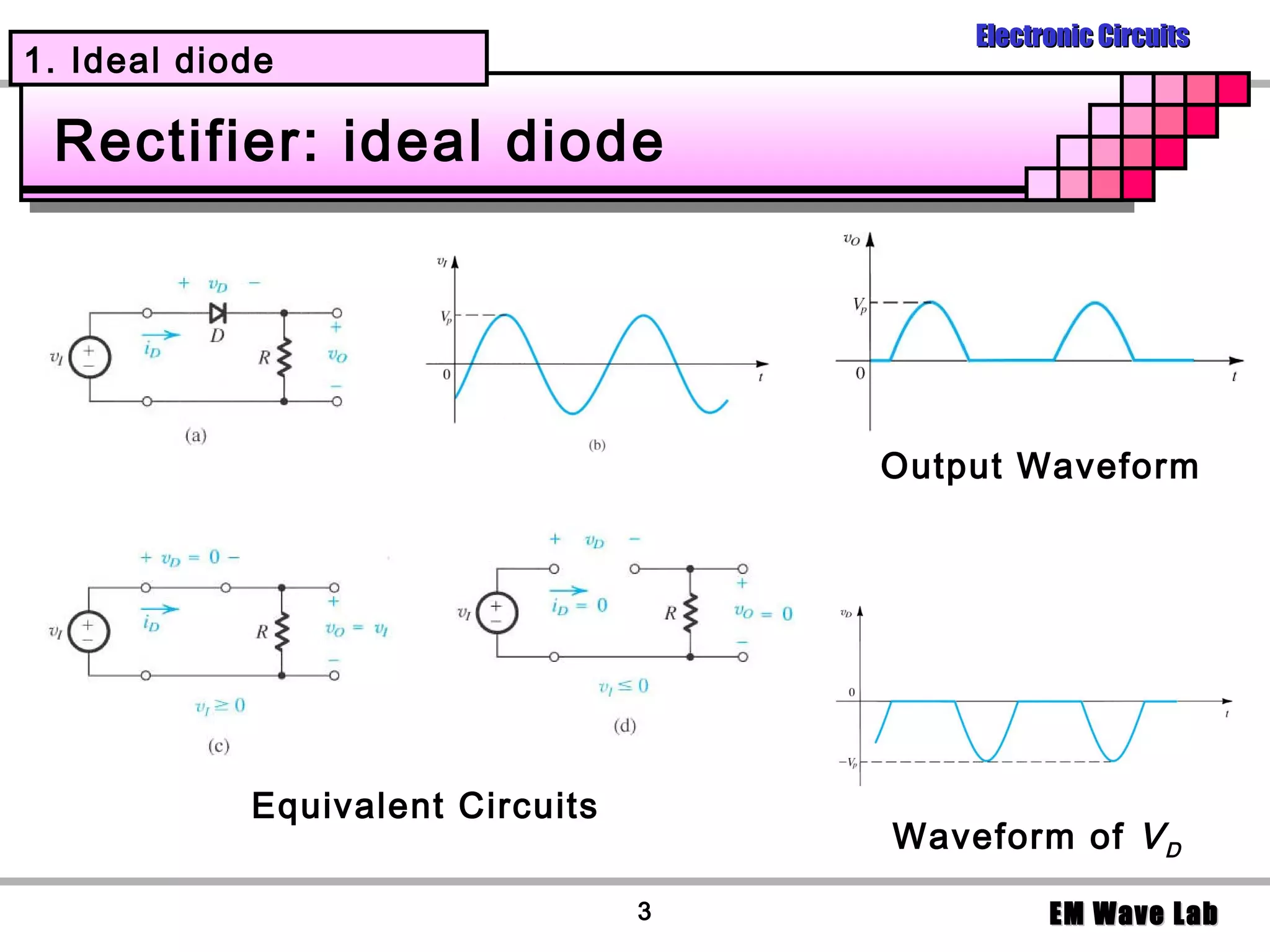

Rectifier: ideal diode
Output Waveform
Equivalent Circuits
Waveform of V D
3 EM Wave Lab

4. Electronic Circuits
1. Ideal diode

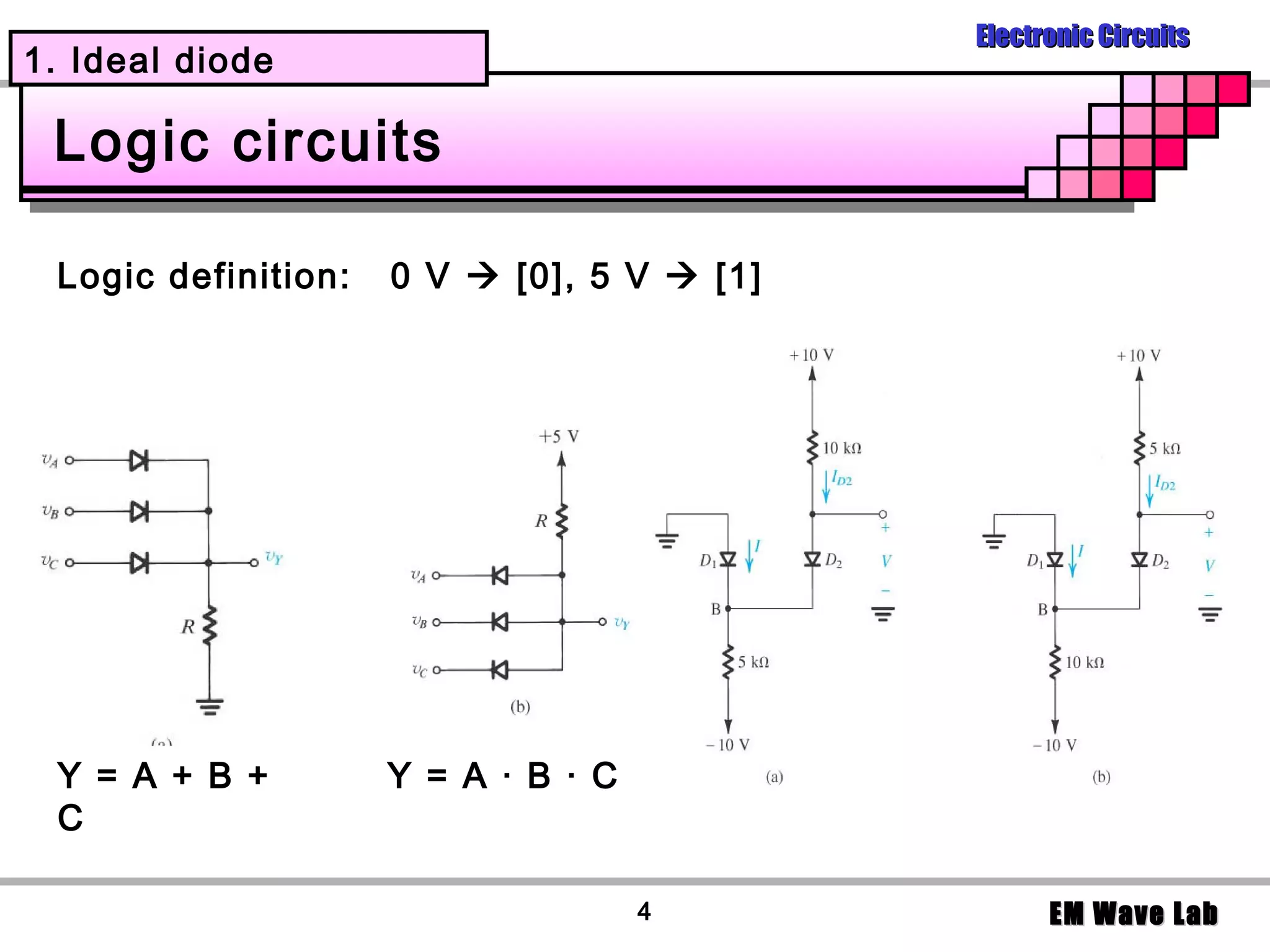

Logic circuits
Logic definition: 0 V  [0], 5 V  [1]
Y = A + B + Y = A · B · C
C
4 EM Wave Lab

5. Electronic Circuits

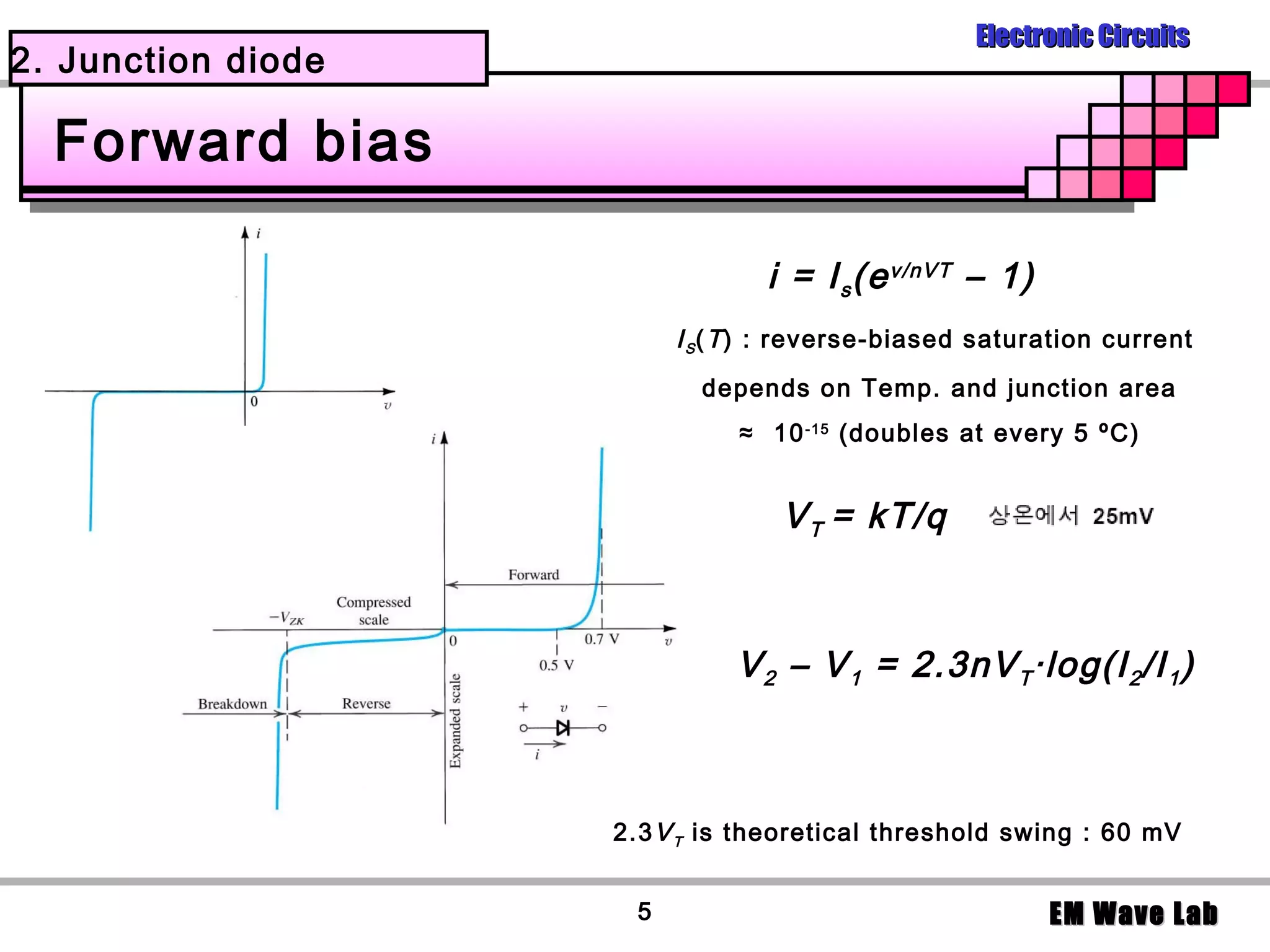

2. Junction diode

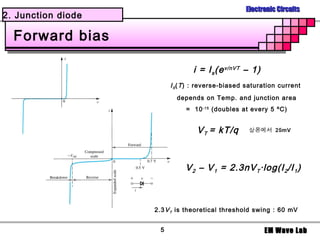

Forward bias
i = I s (e v/nVT – 1)
I S ( T ) : reverse-biased saturation current
depends on Temp. and junction area
≈ 10 -15 (doubles at every 5 ºC)
V T = kT/q
V 2 – V 1 = 2.3nV T ·log(I 2 /I 1 )
2.3 V T is theoretical threshold swing : 60 mV
5 EM Wave Lab

6. Electronic Circuits
2. Junction diode

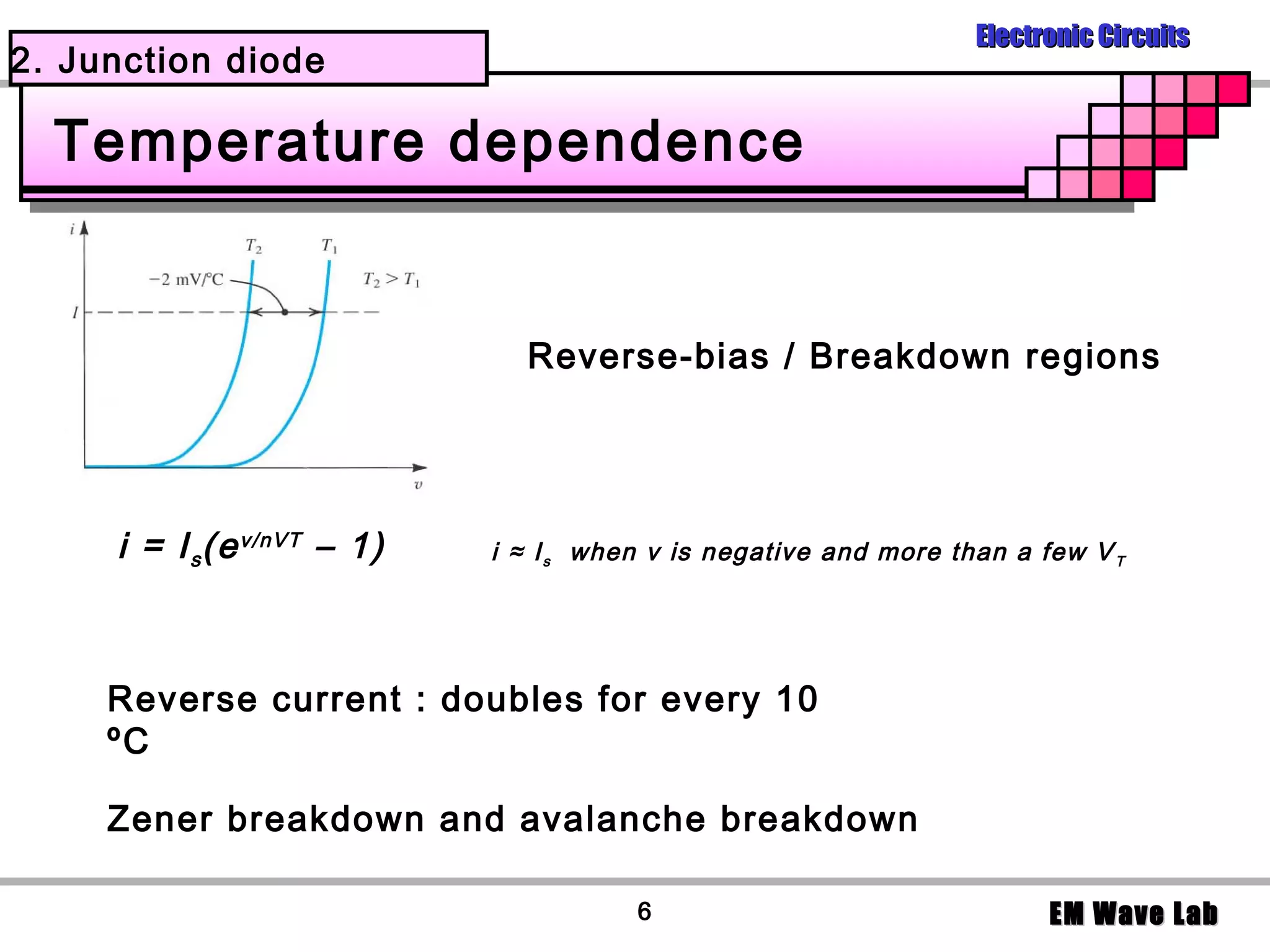

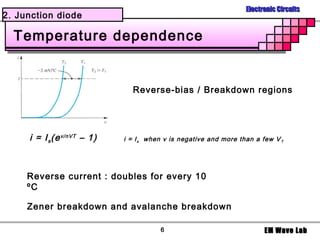

Temperature dependence
Reverse-bias / Breakdown regions
i = I s (e v/nVT – 1) i ≈ I s when v is negative and more than a few V T
Reverse current : doubles for every 10
ºC
Zener breakdown and avalanche breakdown
6 EM Wave Lab

7. Electronic Circuits
3. Modeling

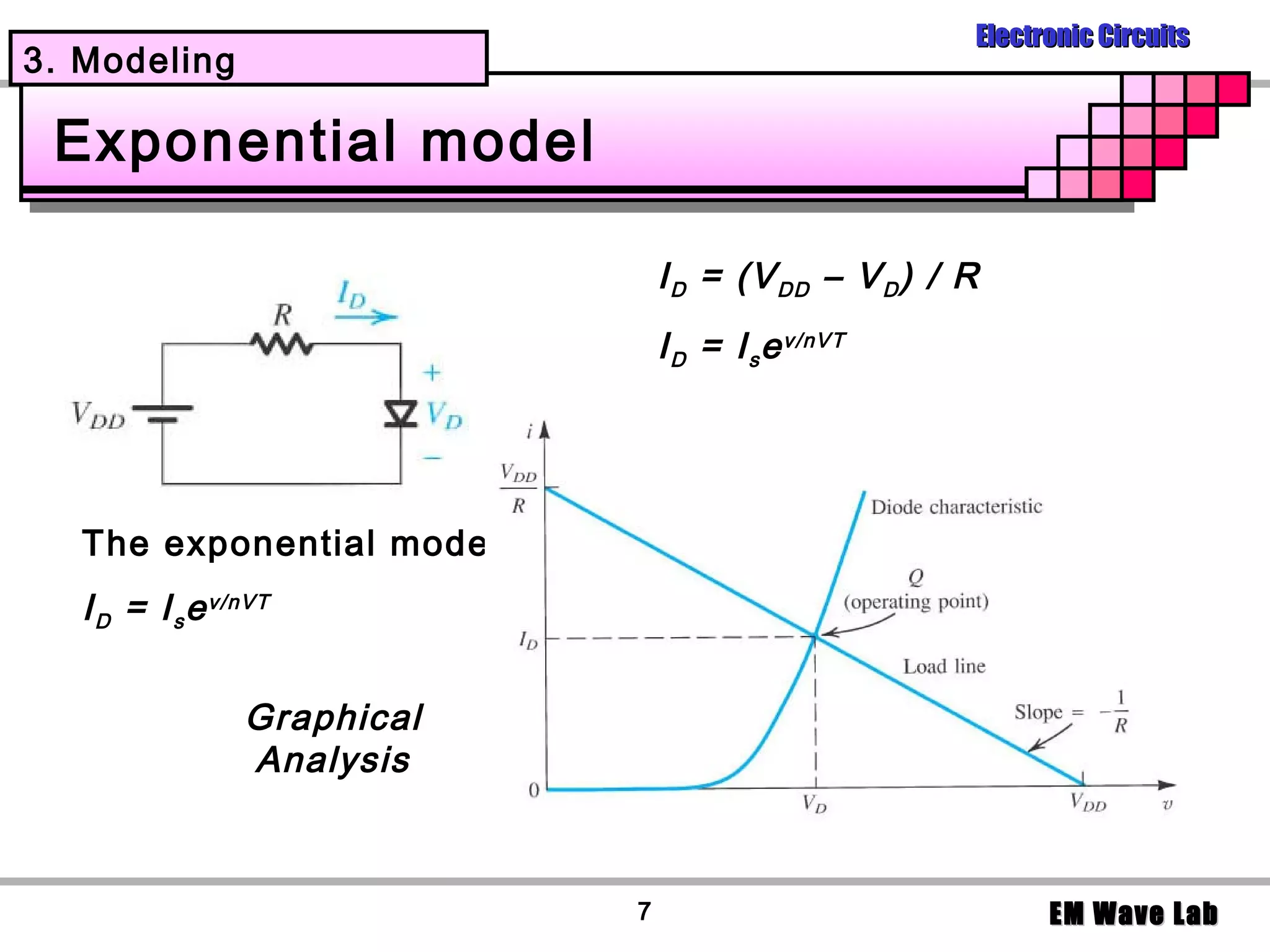

Exponential model
I D = (V DD – V D ) / R
I D = I s e v/nVT
The exponential model:
I D = I s e v/nVT
Graphical
Analysis
7 EM Wave Lab

8. Electronic Circuits
3. Modeling

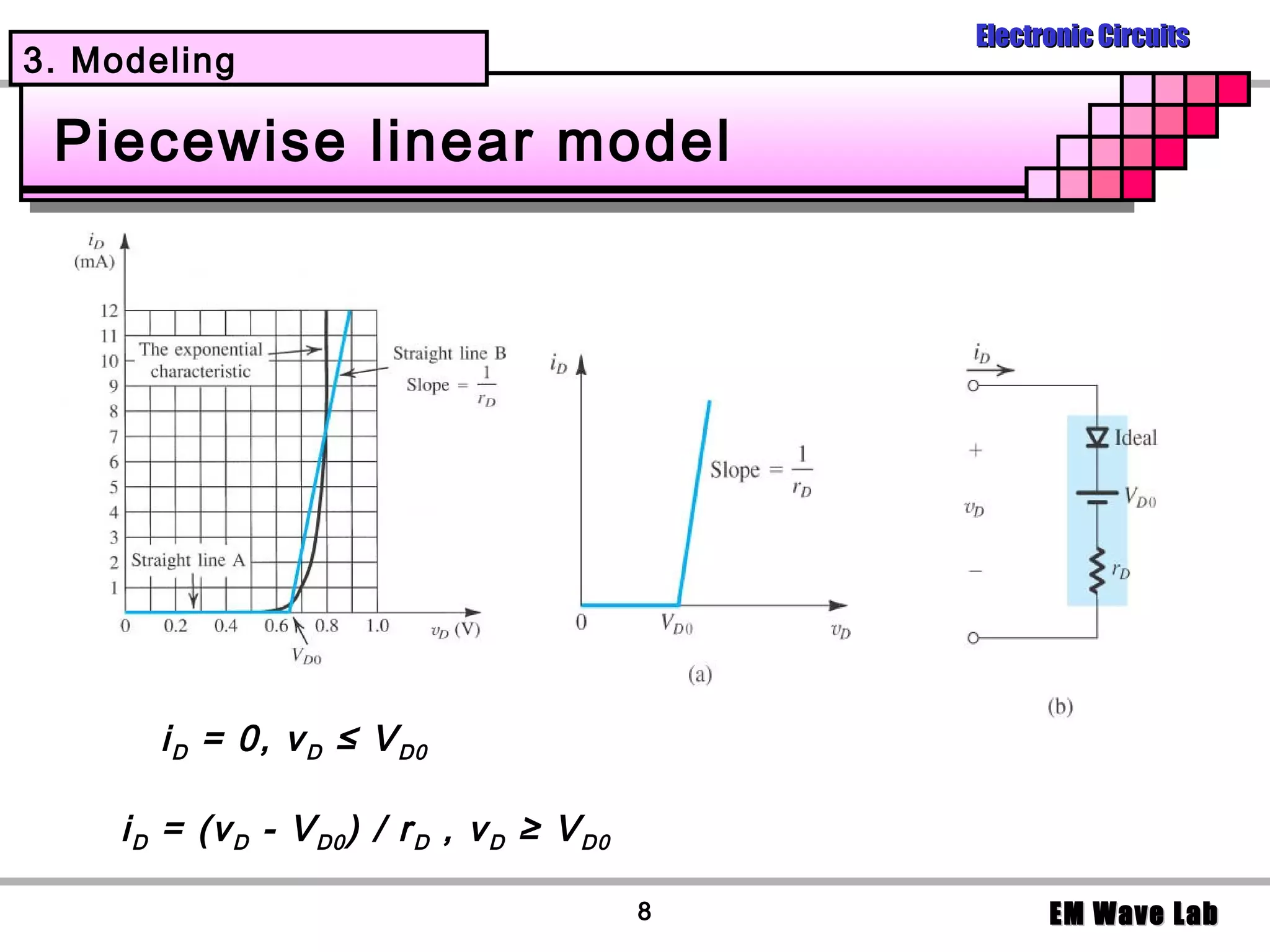

Piecewise linear model
i D = 0, v D ≤ V D0
i D = (v D - V D0 ) / r D , v D ≥ V D0
8 EM Wave Lab

9. Electronic Circuits
3. Modeling

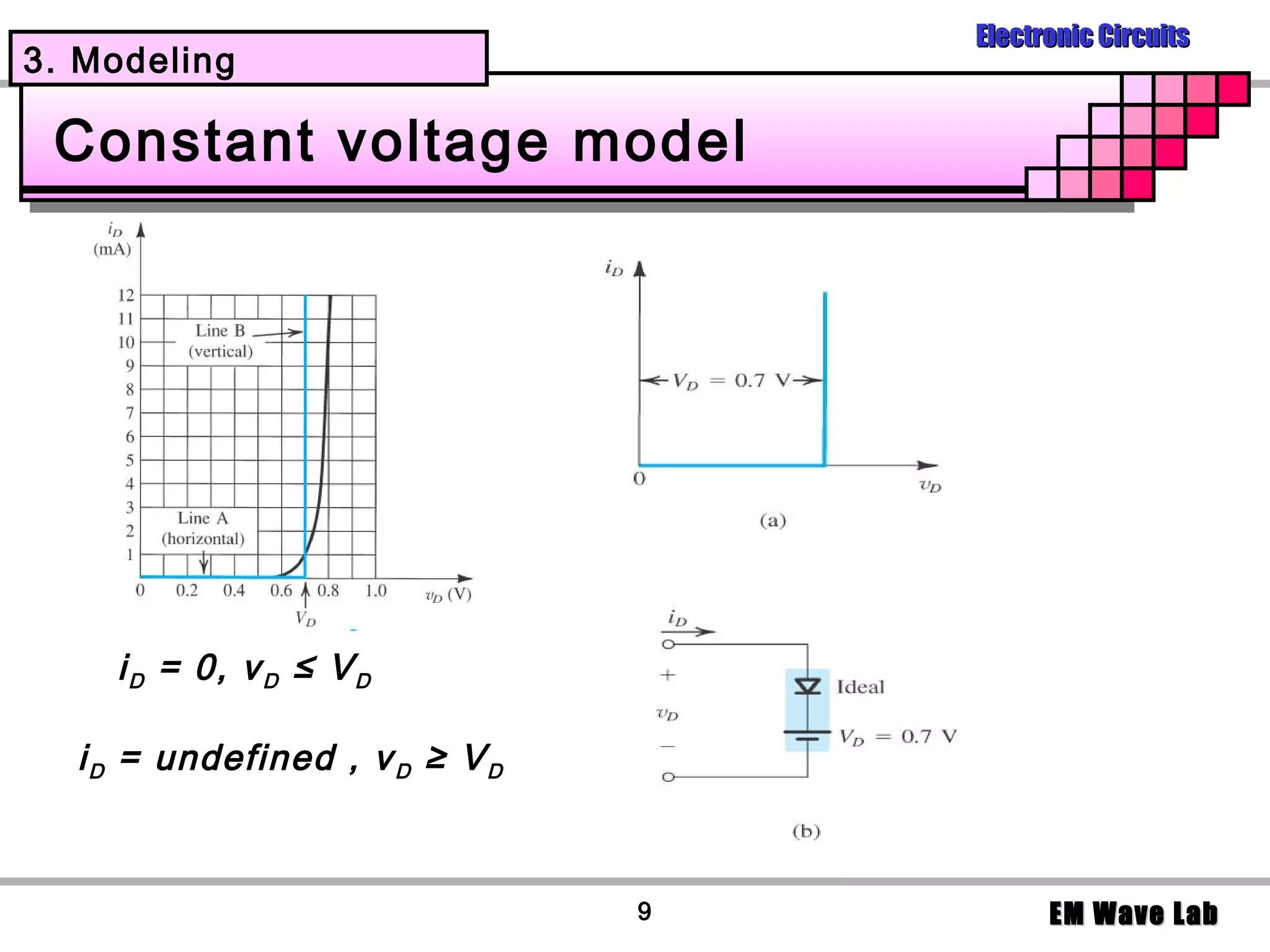

Constant voltage model
i D = 0, v D ≤ V D
i D = undefined , v D ≥ V D
9 EM Wave Lab

10. Electronic Circuits
3. Modeling

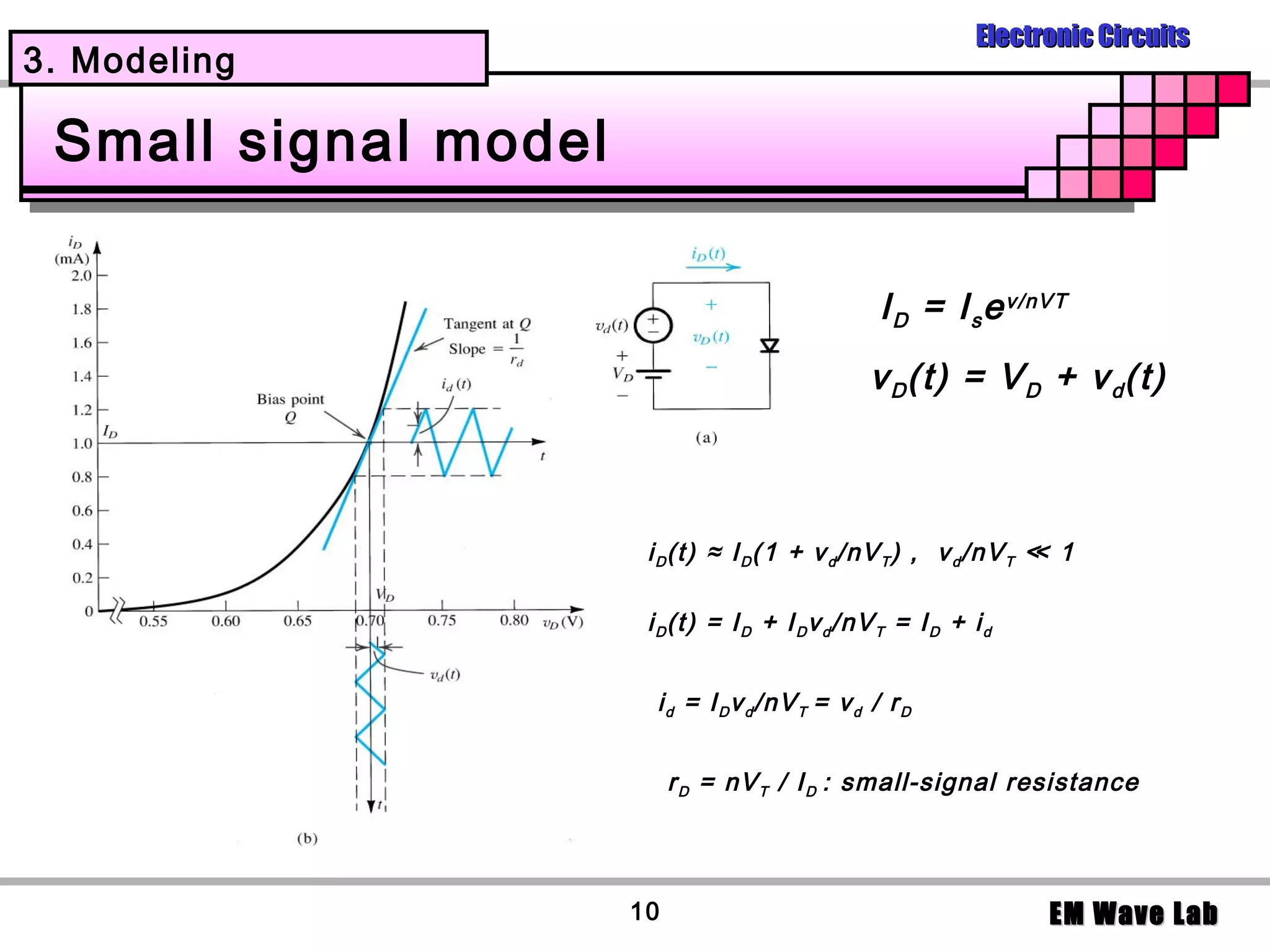

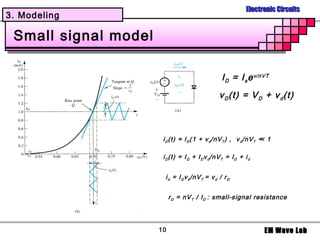

Small signal model
I D = I s e v/nVT
v D (t) = V D + v d (t)
i D (t) ≈ I D (1 + v d /nV T ) , v d /nV T ≪ 1
i D (t) = I D + I D v d /nV T = I D + i d
i d = I D v d /nV T = v d / r D
r D = nV T / I D : small-signal resistance
10 EM Wave Lab

11. Electronic Circuits
4. Zener diode

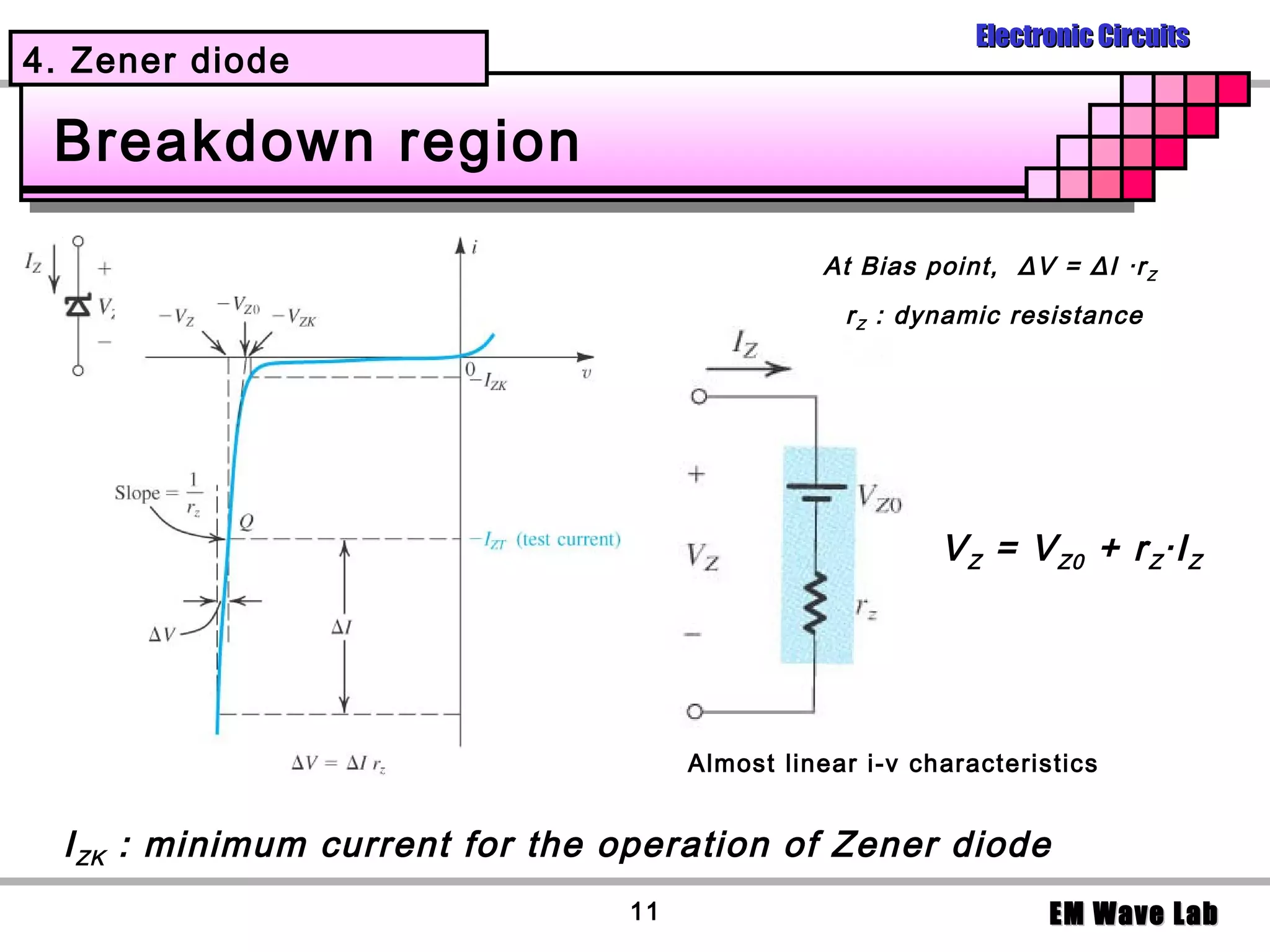

Breakdown region
At Bias point, ΔV = ΔI ·r Z
r Z : dynamic resistance
V Z = V Z0 + r Z ·I Z
Almost linear i-v characteristics
I ZK : minimum current for the operation of Zener diode
11 EM Wave Lab

12. Electronic Circuits
4. Zener diode
Shunt regulator

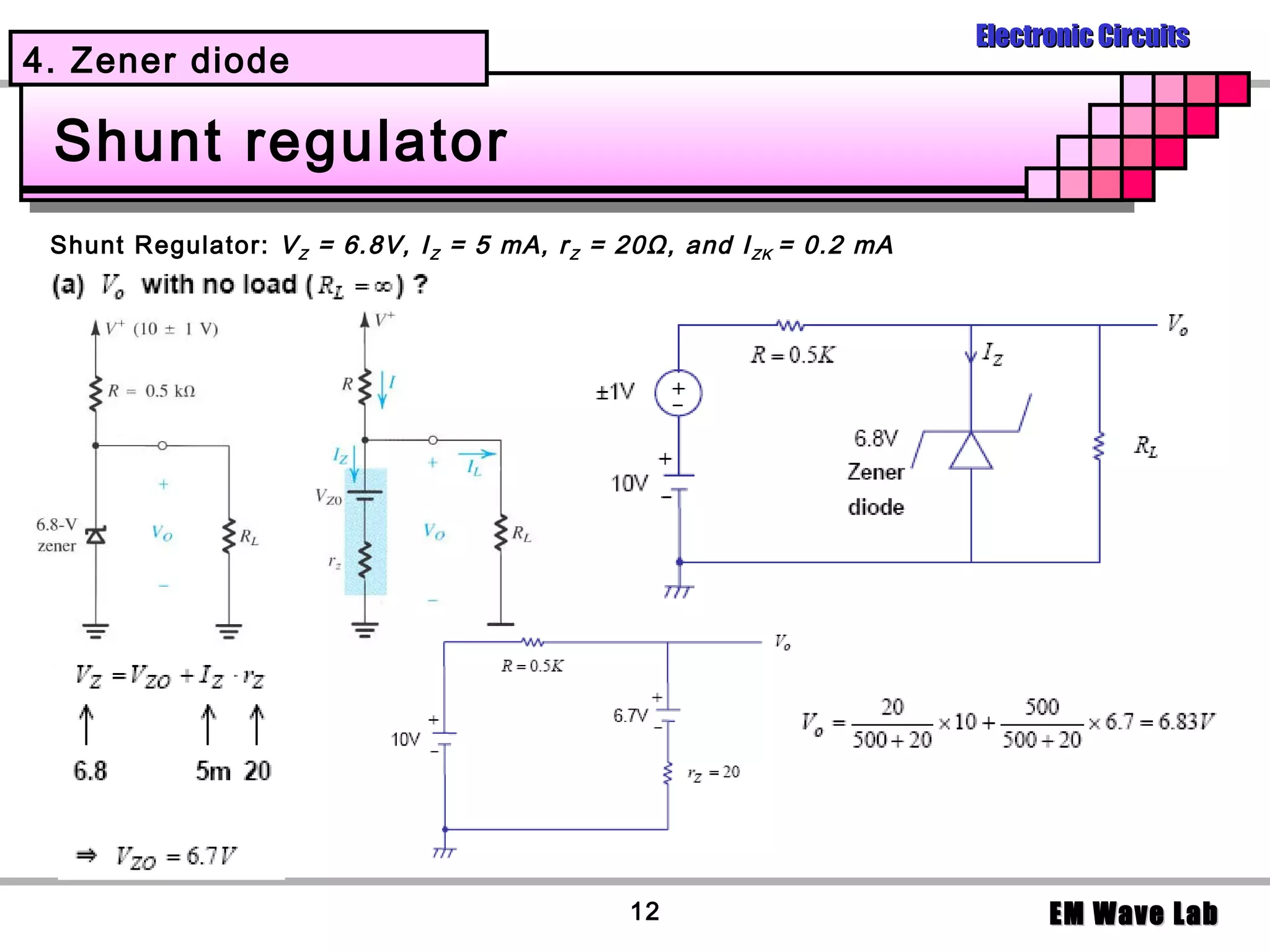

Shunt Regulator: V Z = 6.8V, I Z = 5 mA, r Z = 20Ω, and I ZK = 0.2 mA
12 EM Wave Lab

13. Electronic Circuits
4. Zener diode
Shunt regulator

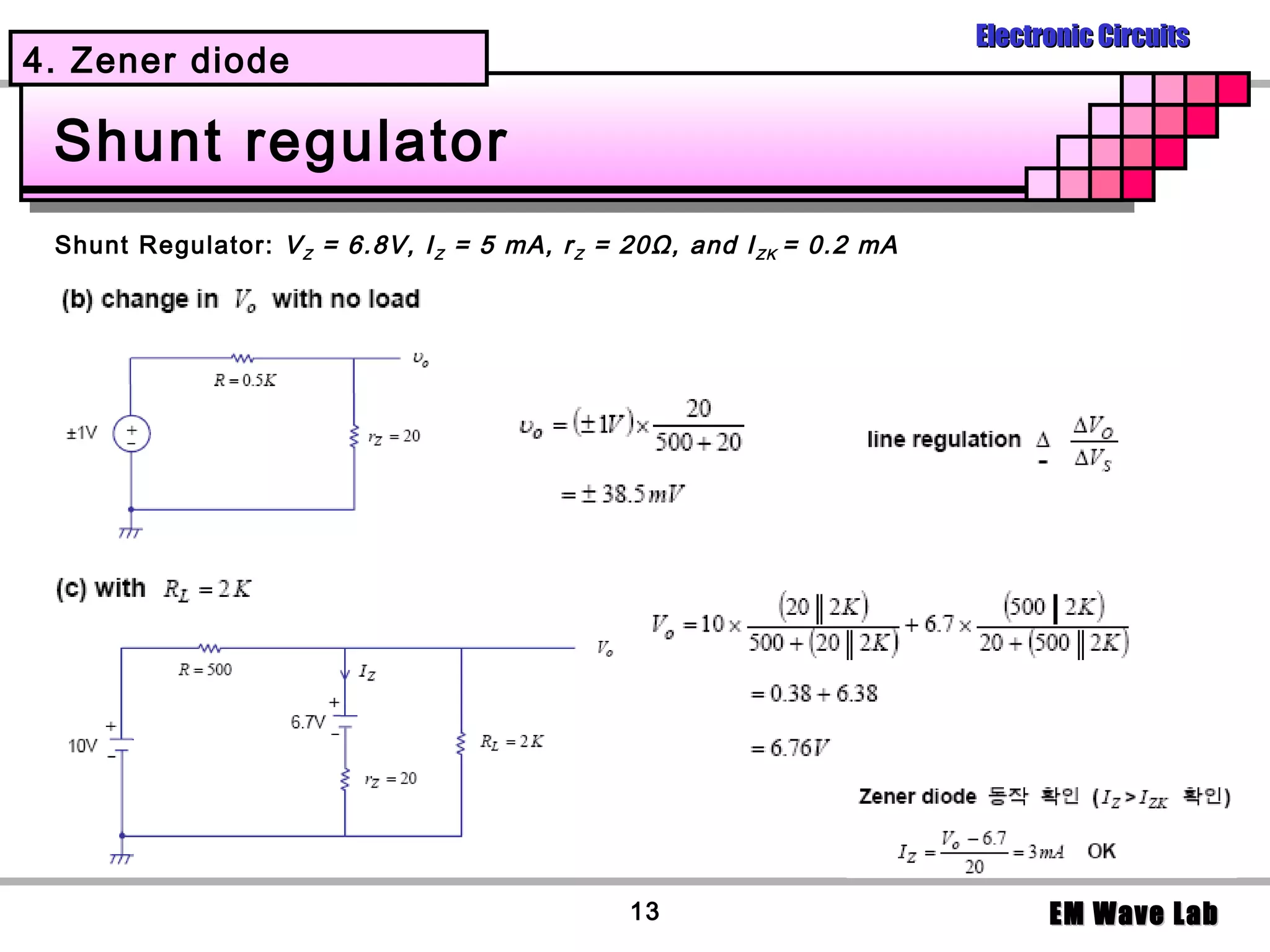

Shunt Regulator: V Z = 6.8V, I Z = 5 mA, r Z = 20Ω, and I Z K = 0.2 mA
13 EM Wave Lab

14. Electronic Circuits
4. Zener diode

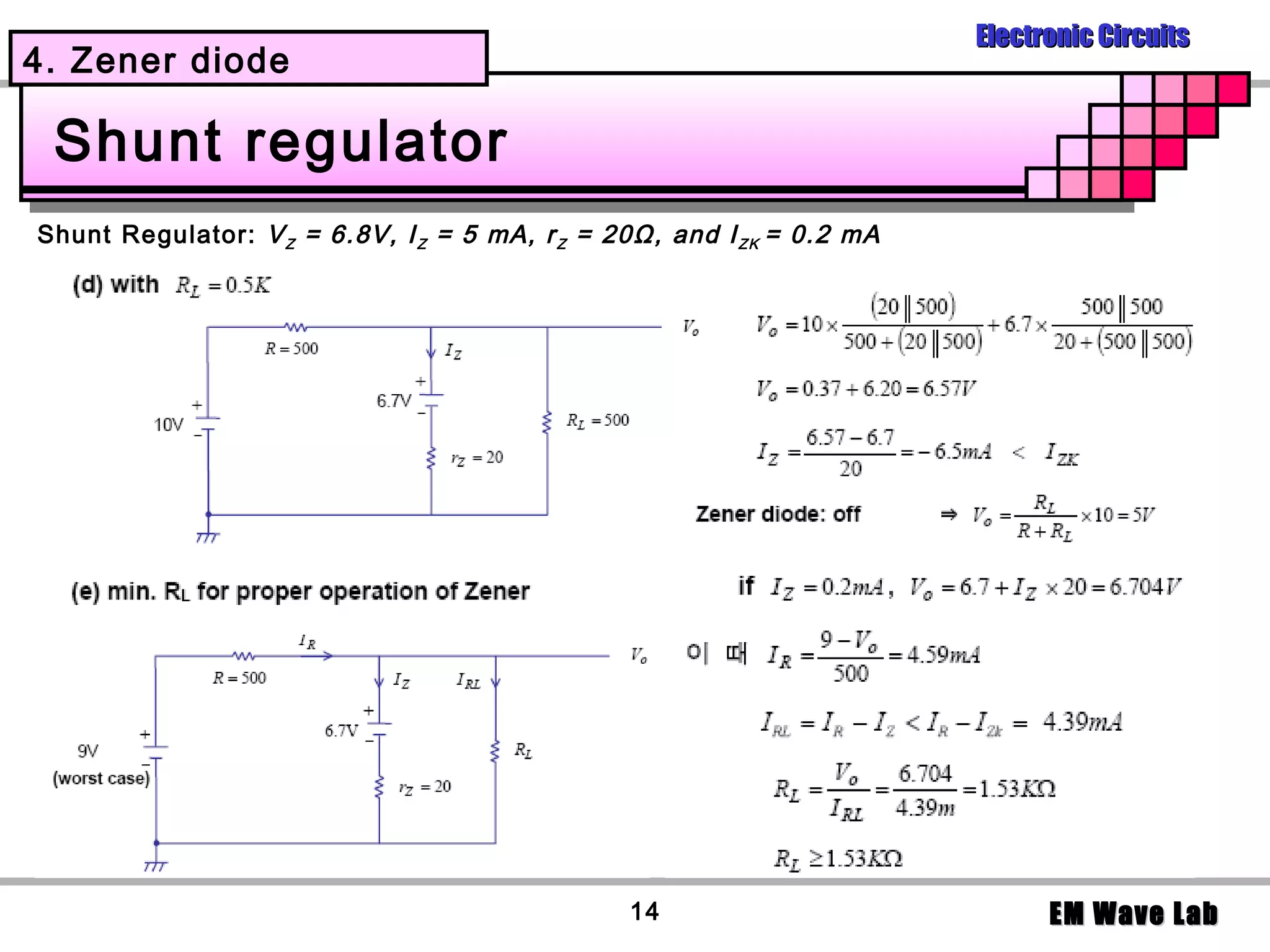

Shunt regulator
Shunt Regulator: V Z = 6.8V, I Z = 5 mA, r Z = 20Ω, and I Z K = 0.2 mA
14 EM Wave Lab

15. Electronic Circuits
5. Rectifier

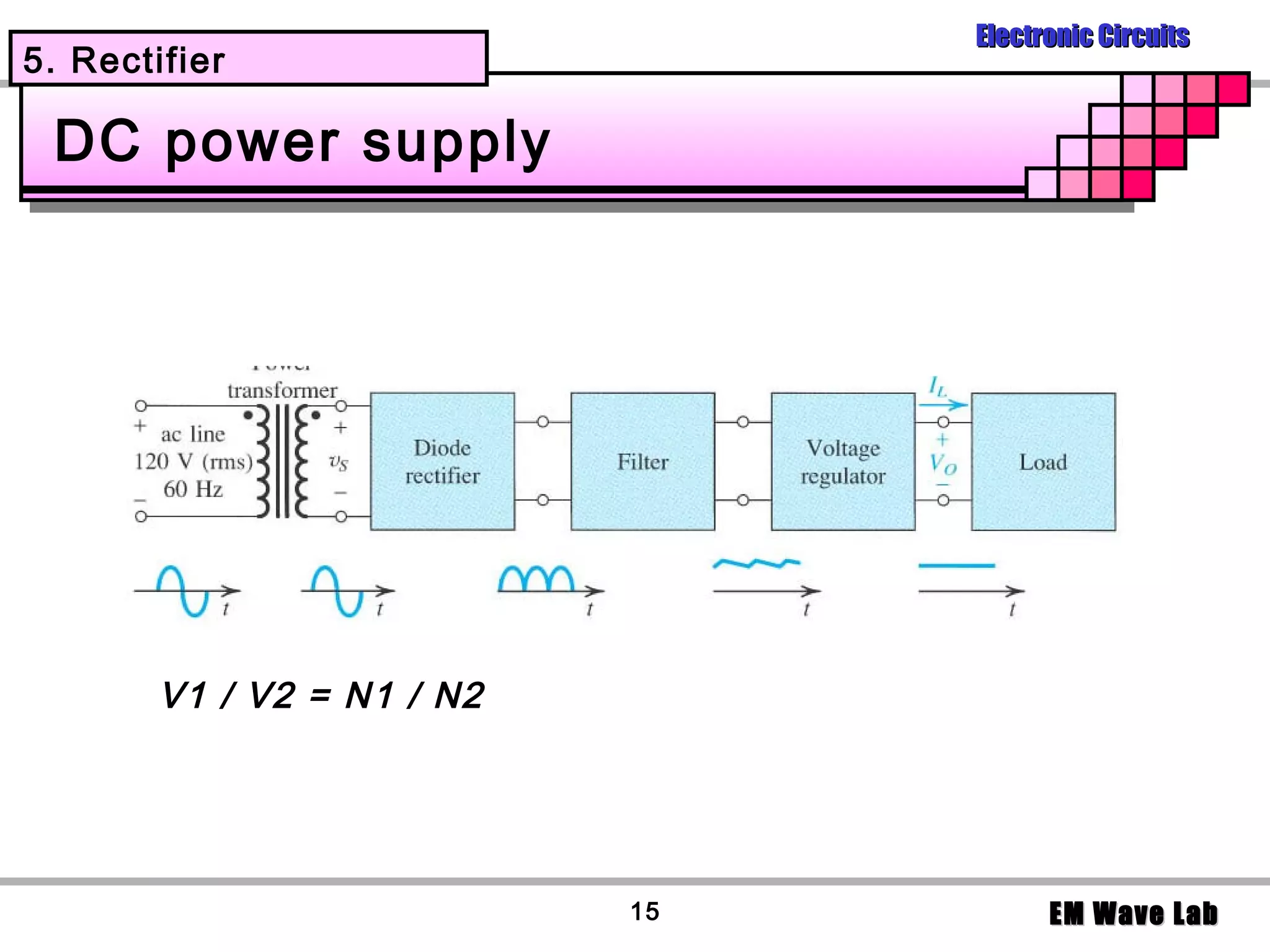

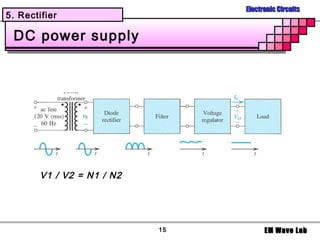

DC power supply
V1 / V2 = N1 / N2
15 EM Wave Lab

16. Electronic Circuits
5. Rectifier

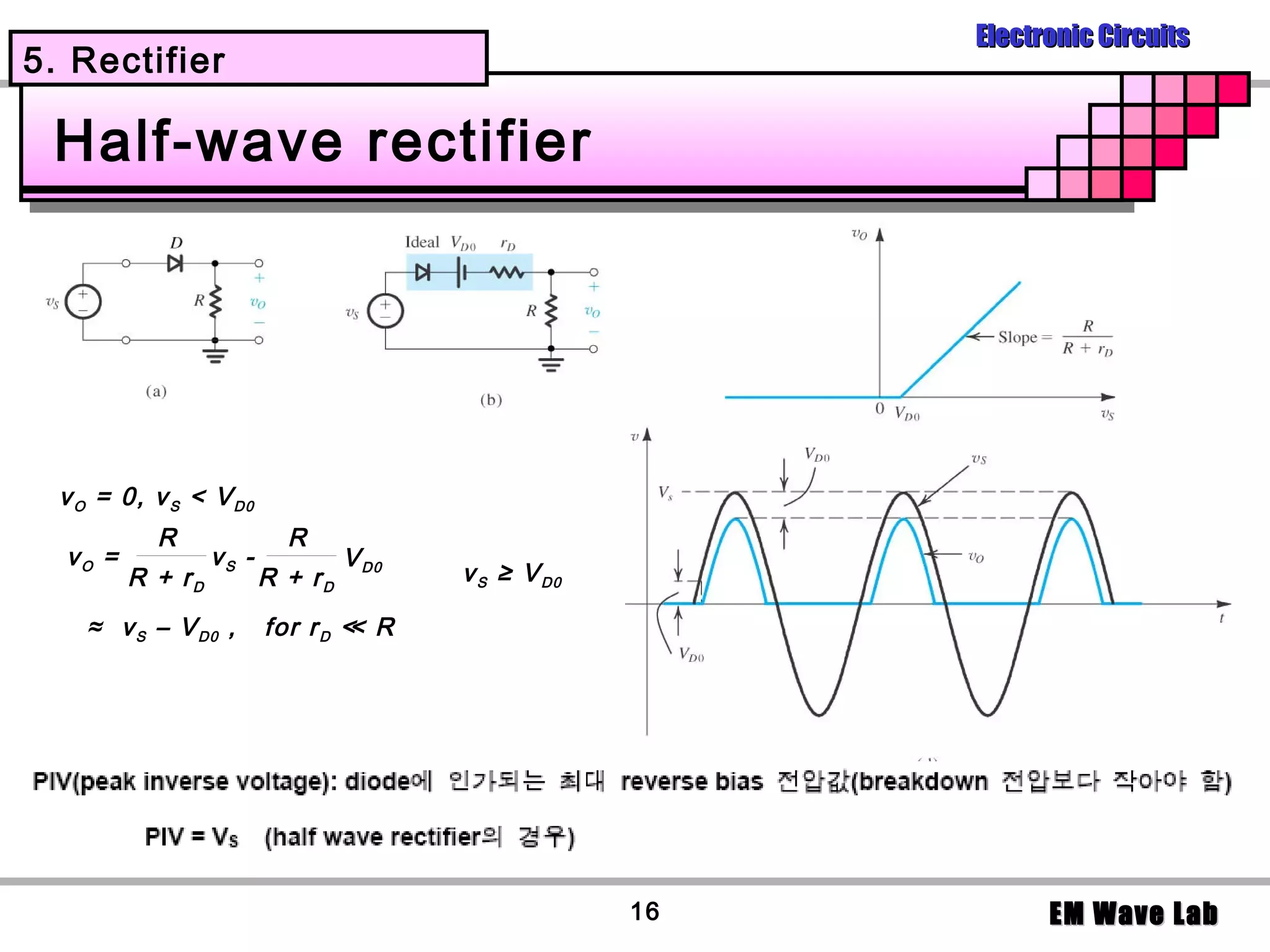

Half-wave rectifier
v O = 0, v S < V D0
R R
vO = vS - V D0
R + rD R + rD v S ≥ V D0
≈ v S – V D0 , for r D ≪ R
16 EM Wave Lab

17. Electronic Circuits
5. Rectifier

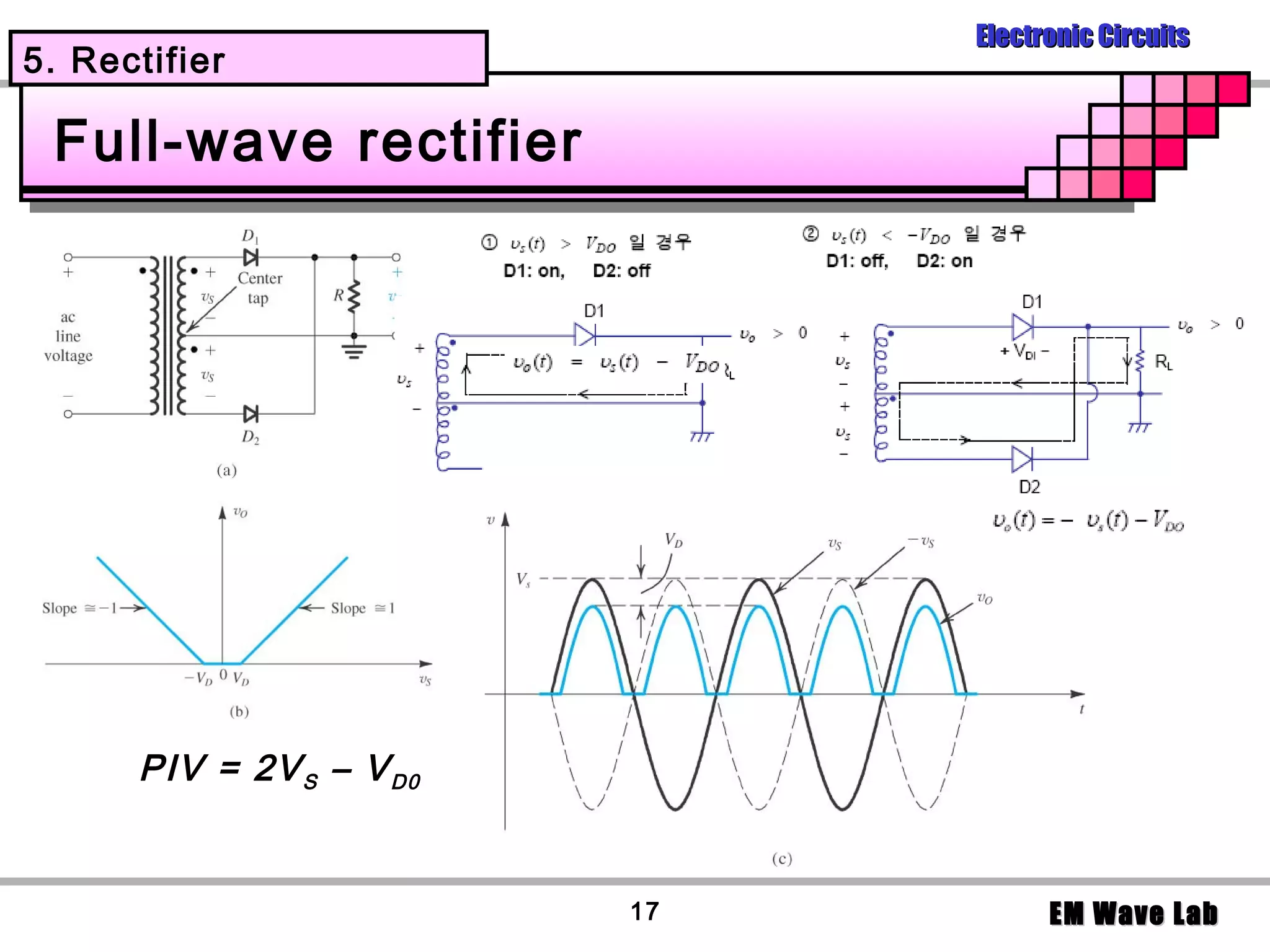

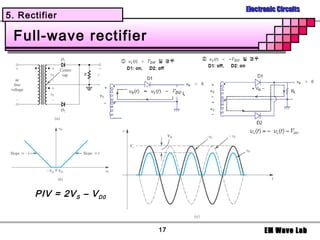

Full-wave rectifier
PIV = 2V S – V D0
17 EM Wave Lab

18. Electronic Circuits
5. Rectifier

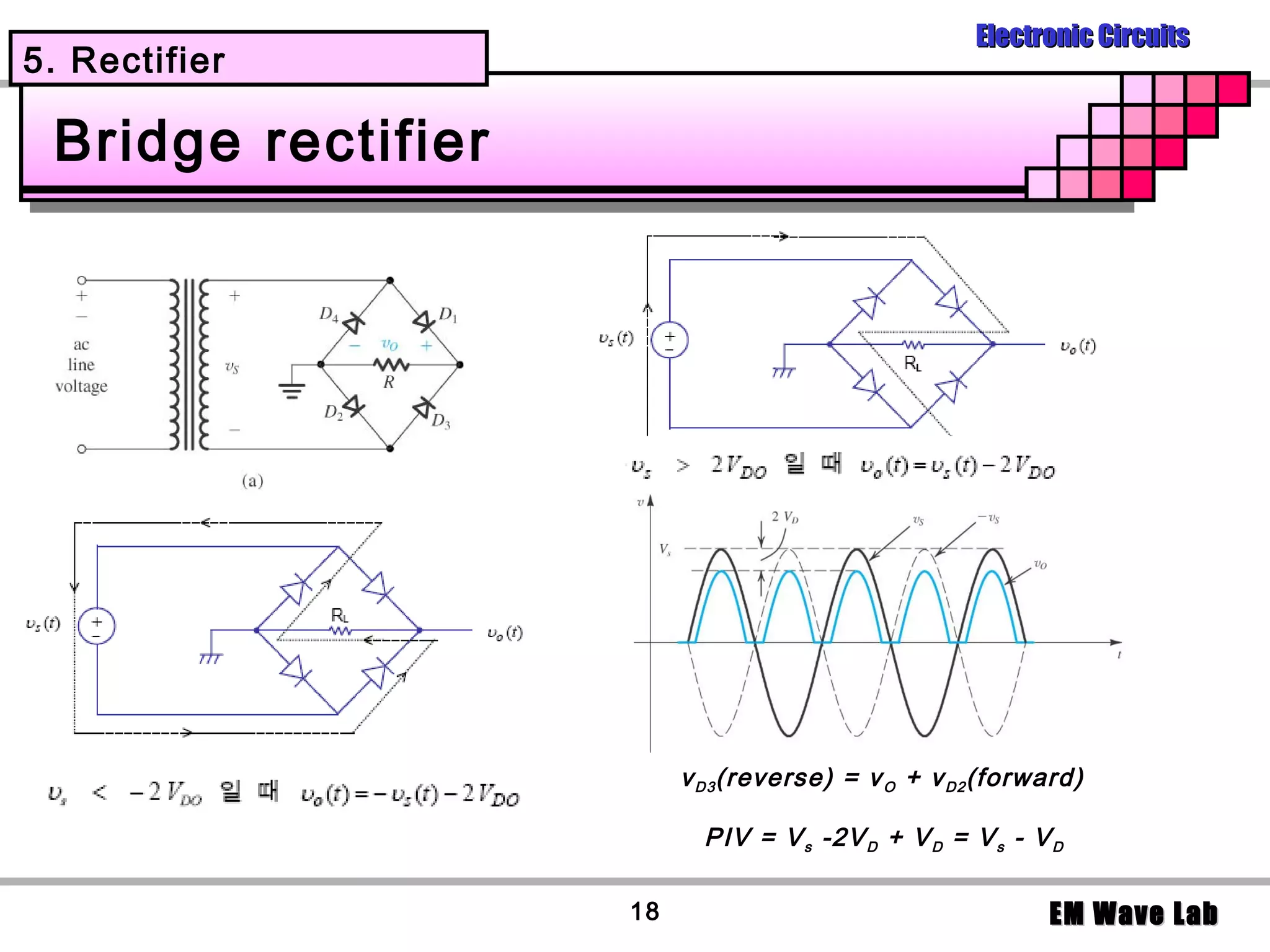

Bridge rectifier
v D 3 (reverse) = v O + v D2 (forward)
PIV = V s -2V D + V D = V s - V D
18 EM Wave Lab

19. Electronic Circuits
5. Rectifier

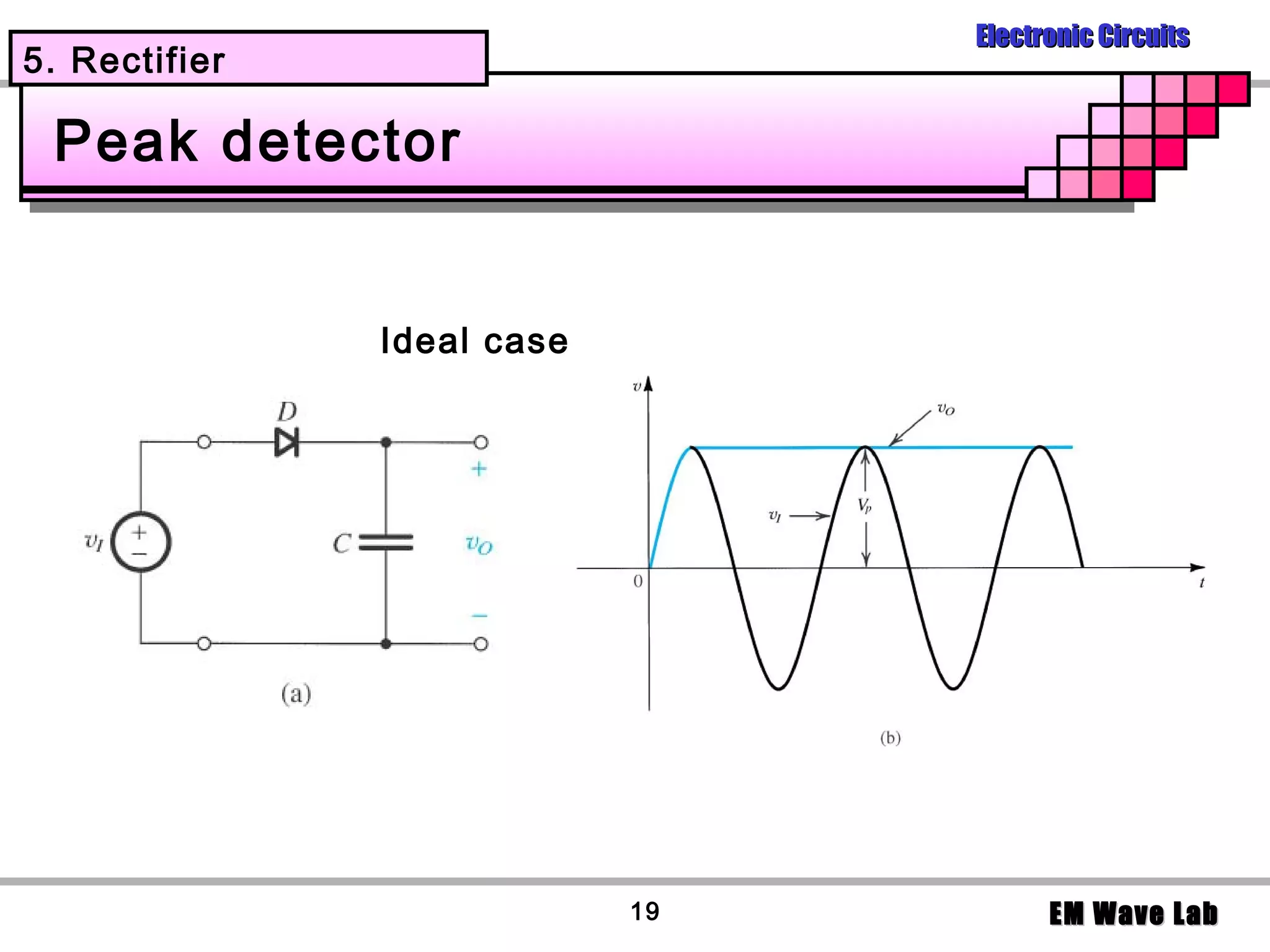

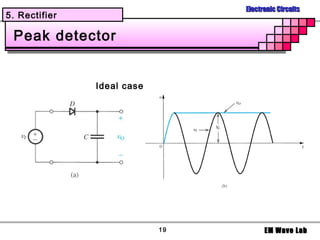

Peak detector
Ideal case
19 EM Wave Lab

20. Electronic Circuits
5. Rectifier

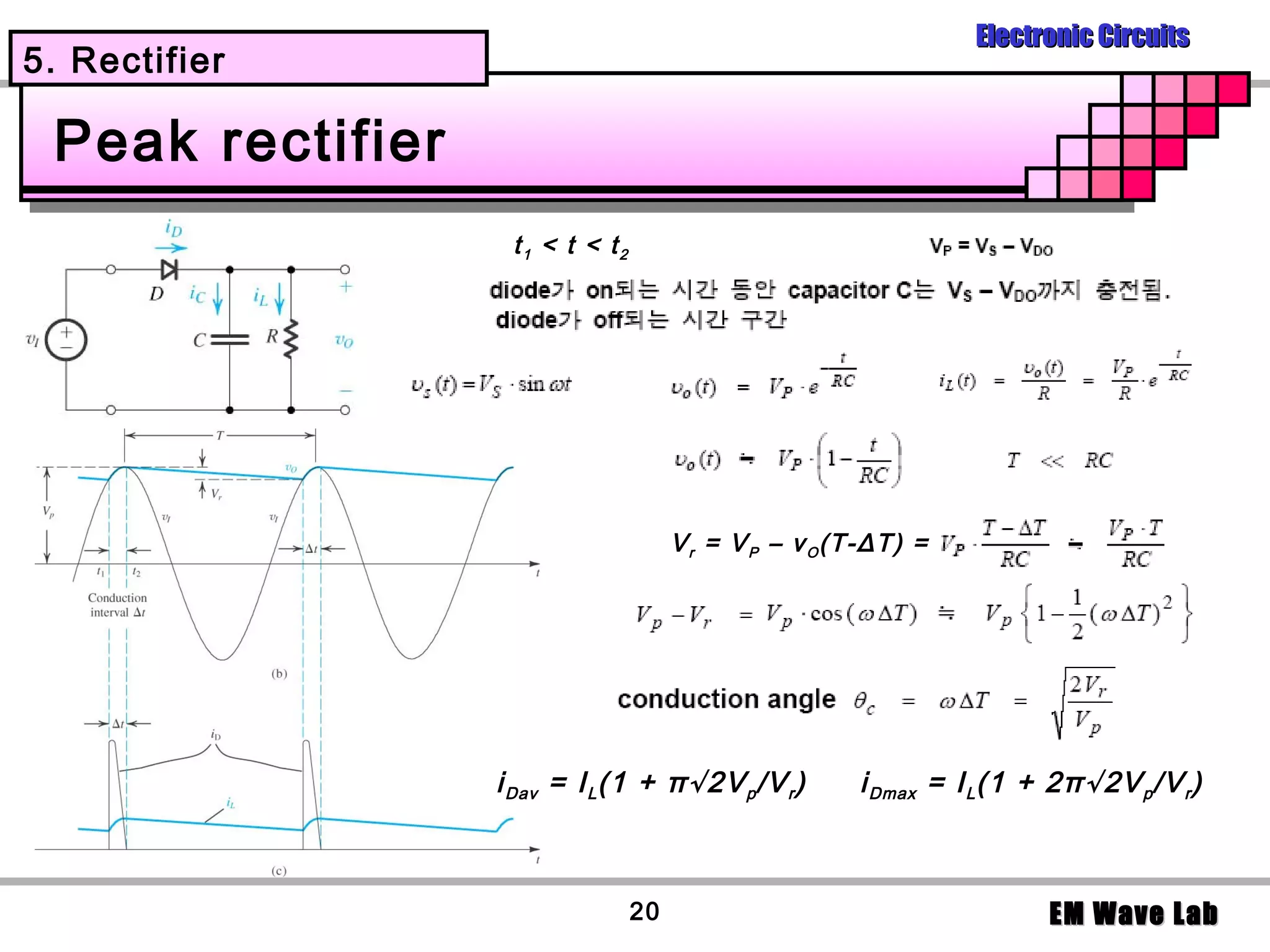

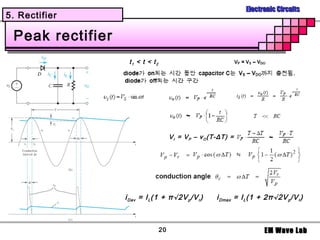

Peak rectifier
t1 < t < t2
V r = V P – v O (T-ΔT) =
i Dav = I L (1 + π√2V p /V r ) i Dmax = I L (1 + 2π√2V p /V r )
20 EM Wave Lab

21. Electronic Circuits
5. Rectifier

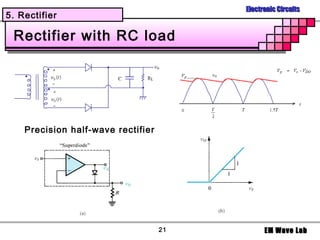

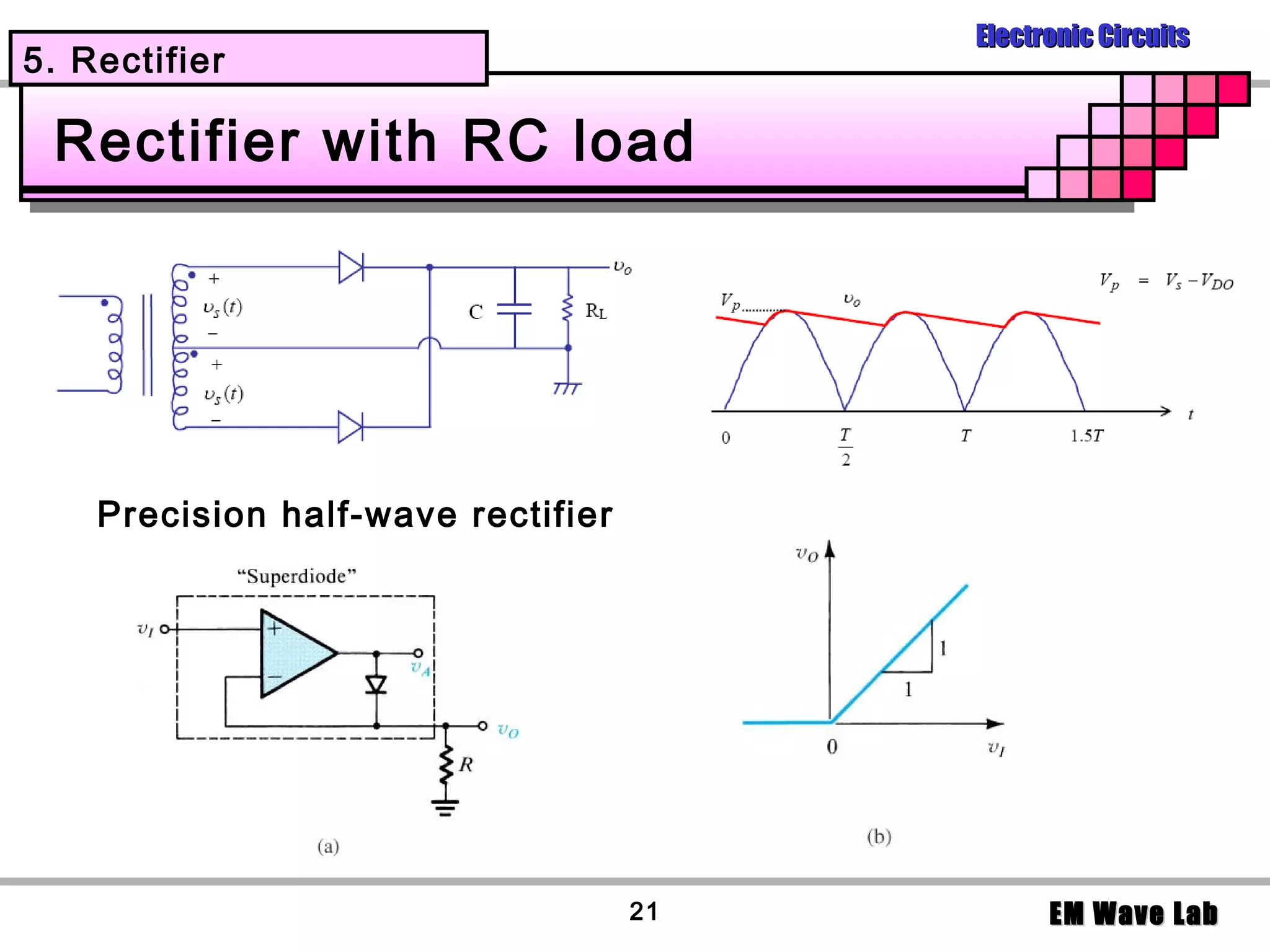

Rectifier with RC load
Precision half-wave rectifier
21 EM Wave Lab

22. Electronic Circuits

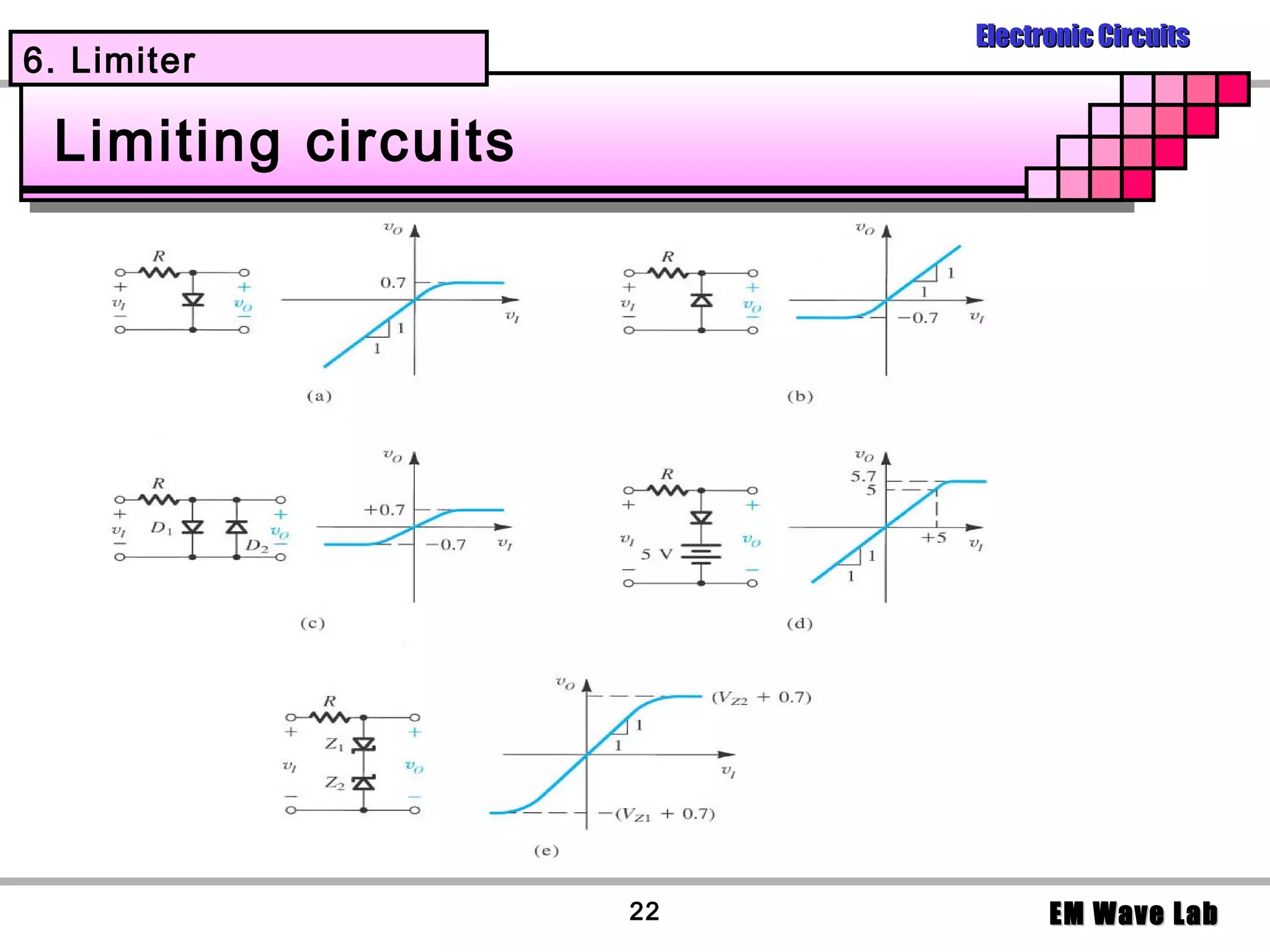

6. Limiter

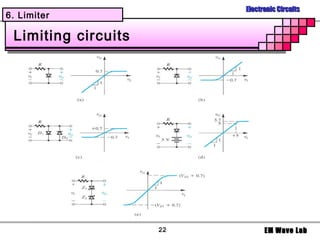

Limiting circuits
22 EM Wave Lab

23. Electronic Circuits
6. Limiter

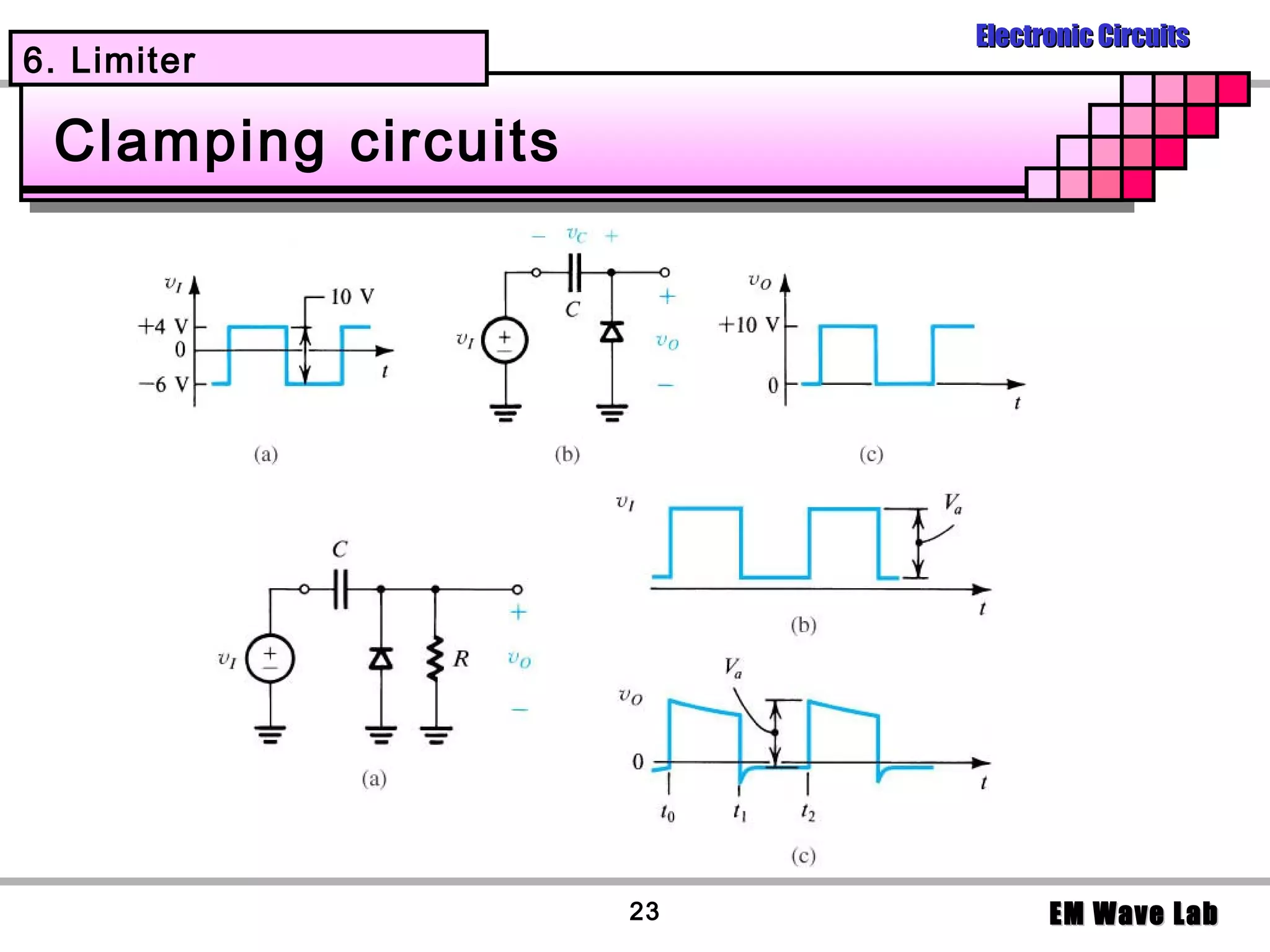

Clamping circuits
23 EM Wave Lab

24. Electronic Circuits
6. Limiter

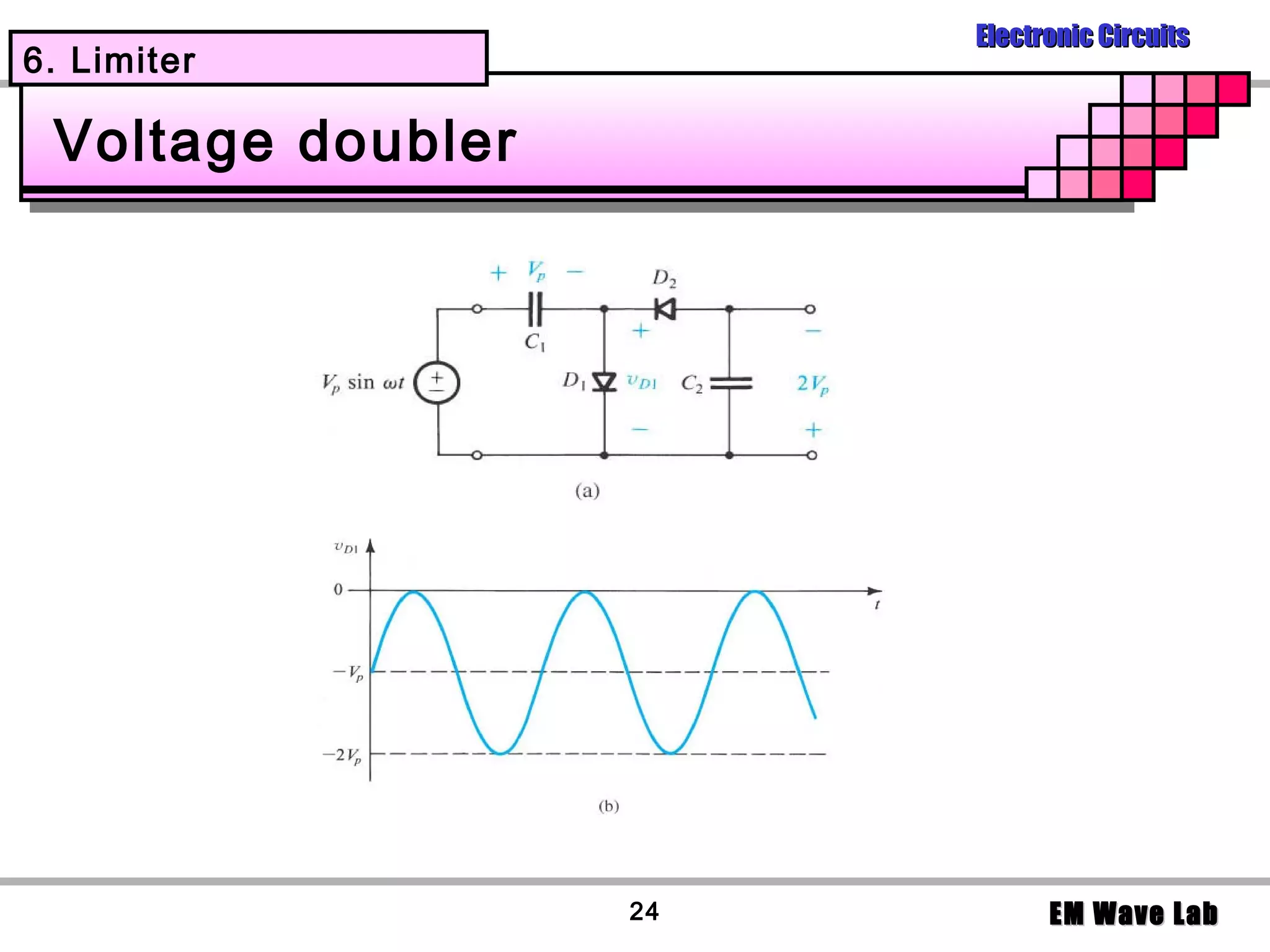

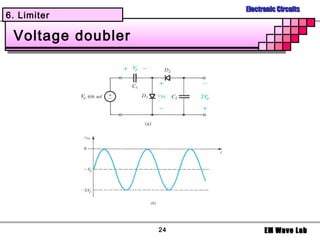

Voltage doubler
24 EM Wave Lab
