2016 bioinformatics i_python_part_2_strings_wim_vancriekinge

FBW
18-10-2016
Wim Van Criekinge

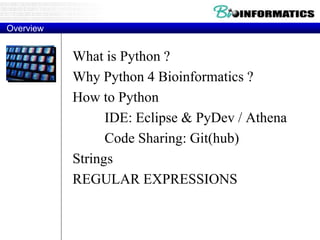

Overview
What is Python ?
Why Python 4 Bioinformatics ?
How to Python
IDE: Eclipse & PyDev / Athena
Code Sharing: Git(hub)
Strings

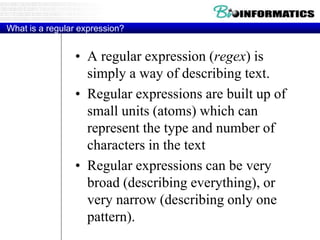

Regular expressions

Python
• Programming languages are overrated
– If you are going into bioinformatics you probably
learn/need multiple
– If you know one you know 90% of a second
• Choice does matter but it matters far less than people think it
does
• Why Python?
– Lets you start useful programs asap
– Build-in libraries – incl BioPython
– Free, most platforms, widely (scientifically) used
• Versus Perl?
– Incredibly similar
– Consistent syntax, indentation

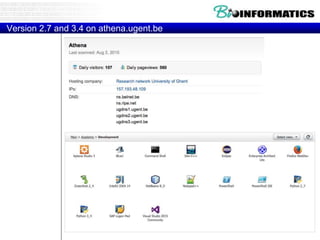

Version 2.7 and 3.4 on athena.ugent.be

Eclipse IDE Components
Menubars
Full drop down menus plus quick
access to common functions
Editor Pane
This is where we edit
our source code
Perspective Switcher
We can switch between
various perspectives
here
Outline Pane
This contains a hierarchical
view of a source file
Package Explorer Pane
This is where our
projects/files are listed
Miscellaneous Pane
Various components can appear in this
pane – typically this contains a console
and a list of compiler problems
Task List Pane
This contains a list of
“tasks” to complete

GitHub: Hosted GIT
• Largest open source git hosting site
• Public and private options
• User-centric rather than project-centric
• http://github.ugent.be (use your Ugent
login and password)
– Accept invitation from Bioinformatics-I-
2015
URI:
– https://github.ugent.be/Bioinformatics-I-
2015/Python.git

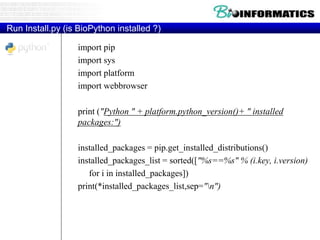

Run Install.py (is BioPython installed ?)
import pip
import sys
import platform
import webbrowser
print ("Python " + platform.python_version()+ " installed
packages:")
installed_packages = pip.get_installed_distributions()
installed_packages_list = sorted(["%s==%s" % (i.key, i.version)
for i in installed_packages])
print(*installed_packages_list,sep="n")

Control Structures
if condition:
statements
[elif condition:
statements] ...
else:
statements
while condition:
statements
for var in sequence:
statements
break
continue

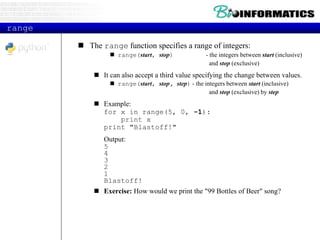

range
 The range function specifies a range of integers:
 range(start, stop) - the integers between start (inclusive)
and stop (exclusive)
 It can also accept a third value specifying the change between values.
 range(start, stop, step) - the integers between start (inclusive)
and stop (exclusive) by step
 Example:
for x in range(5, 0, -1):
print x
print "Blastoff!"
Output:
5
4
3
2
1
Blastoff!
 Exercise: How would we print the "99 Bottles of Beer" song?

Grouping Indentation
In Python:
for i in range(20):
if i%3 == 0:
print (i)
if i%5 == 0:
print ("Bingo!”)
print ("---”)
0
Bingo!
---
---
---
3
---
---
---
6
---
---
---
9
---
---
---
12
---
---
---
15
Bingo!
---
---
---
18
---
---

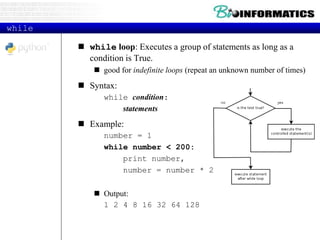

while
 while loop: Executes a group of statements as long as a
condition is True.
 good for indefinite loops (repeat an unknown number of times)
 Syntax:
while condition:
statements
 Example:
number = 1
while number < 200:
print number,
number = number * 2
 Output:
1 2 4 8 16 32 64 128

if
if statement: Executes a group of
statements only if a certain condition
is true. Otherwise, the statements are
skipped.
Syntax:
if condition:
statements
Example:
gpa = 3.4
if gpa > 2.0:
print "Your application is accepted."

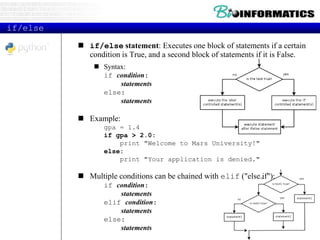

if/else
 if/else statement: Executes one block of statements if a certain
condition is True, and a second block of statements if it is False.
 Syntax:
if condition:
statements
else:
statements
 Example:
gpa = 1.4
if gpa > 2.0:
print "Welcome to Mars University!"
else:
print "Your application is denied."
 Multiple conditions can be chained with elif ("else if"):
if condition:
statements
elif condition:
statements
else:
statements

Logic
 Many logical expressions use relational operators:
 Logical expressions can be combined with logical operators:
Operator Example Result
and 9 != 6 and 2 < 3 True
or 2 == 3 or -1 < 5 True
not not 7 > 0 False
Operator Meaning Example Result
== equals 1 + 1 == 2 True
!= does not equal 3.2 != 2.5 True
< less than 10 < 5 False
> greater than 10 > 5 True
<= less than or equal to 126 <= 100 False
>= greater than or equal to 5.0 >= 5.0 True

How to generate random numbers
The standard random module implements a random number
generator.
import random
print (random.random())
This prints a random floating point number in the range [0, 1) (that is,
between 0 and 1, including 0.0 but always smaller than 1.0).
There are also many other specialized generators in this module,
such as:
randrange(a, b) chooses an integer in the range [a, b).
uniform(a, b) chooses a floating point number in the range [a, b).
normalvariate(mean, sdev) samples the normal (Gaussian)
distribution.
Some higher-level functions operate on sequences directly, such as:
choice(S) chooses a random element from a given sequence (the
sequence must have a known length).
shuffle(L) shuffles a list in-place, i.e. permutes it randomly
There’s also a Random class you can instantiate to create
independent multiple random number generators.

First program: PI-thon.py
• How good are the random numbers ?
• If they are good, you should be able to
“measure” PI

Measure Pi with two random numbers …. many of them …
1
x
y

import random
print ("Let's calculate Pin")
c=0
maxx=1000
for l in range(1,maxx):
# print ("We're generating point %d" % (l))
x = random.uniform(0,1)
y = random.uniform(0,1)
# print ("(" + str(x) + "," + str(y) + ")",end="n")
r = x*x + y*y
# print ("r = " + str(r))
if r < 1:
# print ("In the circle",end="n")
c+=1
p = float(c)*4/float(l)
print ("Pi estimate after " + str(maxx) + " iterations = " + str(p) + "n")

Python Videos
http://python.org/
- documentation, tutorials, beginners guide, core
distribution, ...
Books include:
 Learning Python by Mark Lutz
 Python Essential Reference by David Beazley
 Python Cookbook, ed. by Martelli, Ravenscroft and
Ascher

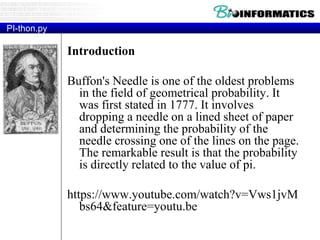

PI-thon.py
Introduction
Buffon's Needle is one of the oldest problems
in the field of geometrical probability. It
was first stated in 1777. It involves
dropping a needle on a lined sheet of paper
and determining the probability of the
needle crossing one of the lines on the page.
The remarkable result is that the probability
is directly related to the value of pi.
https://www.youtube.com/watch?v=Vws1jvM
bs64&feature=youtu.be

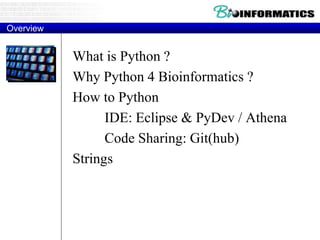

Overview
What is Python ?
How to Python

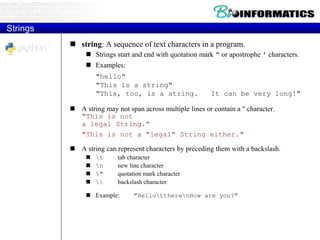

Strings

 string: A sequence of text characters in a program.
 Strings start and end with quotation mark " or apostrophe ' characters.
 Examples:
"hello"
"This is a string"
"This, too, is a string. It can be very long!"
 A string may not span across multiple lines or contain a " character.
"This is not
a legal String."
"This is not a "legal" String either."
 A string can represent characters by preceding them with a backslash.
 t tab character
 n new line character
 " quotation mark character
 backslash character
 Example: "HellottherenHow are you?"
Strings

Indexes
 Characters in a string are numbered with indexes starting at 0:
 Example:
name = "P. Diddy"
 Accessing an individual character of a string:
variableName [ index ]
 Example:
print name, "starts with", name[0]
Output:
P. Diddy starts with P
index 0 1 2 3 4 5 6 7
character P . D i d d y

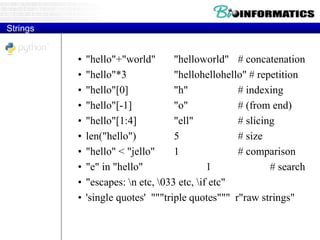

Strings
• "hello"+"world" "helloworld" # concatenation
• "hello"*3 "hellohellohello" # repetition
• "hello"[0] "h" # indexing
• "hello"[-1] "o" # (from end)
• "hello"[1:4] "ell" # slicing
• len("hello") 5 # size
• "hello" < "jello" 1 # comparison
• "e" in "hello" 1 # search
• "escapes: n etc, 033 etc, if etc"
• 'single quotes' """triple quotes""" r"raw strings"

String properties
 len(string) - number of characters in a string
(including spaces)
 str.lower(string) - lowercase version of a string
 str.upper(string) - uppercase version of a string
 Example:
name = "Martin Douglas Stepp"
length = len(name)
big_name = str.upper(name)
print big_name, "has", length,
"characters"
Output:
MARTIN DOUGLAS STEPP has 20 characters
a.replace

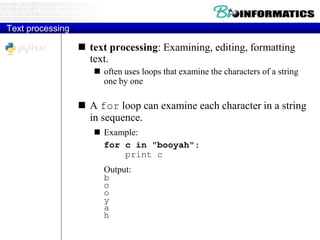

Text processing
 text processing: Examining, editing, formatting
text.
 often uses loops that examine the characters of a string
one by one
 A for loop can examine each character in a string
in sequence.
 Example:
for c in "booyah":
print c
Output:
b
o
o
y
a
h

Strings and numbers
 ord(text) - converts a string into a number.
 Example: ord("a") is 97, ord("b") is 98, ...
 Characters map to numbers using standardized mappings such
as ASCII and Unicode.
 chr(number) - converts a number into a string.
 Example: chr(99) is "c"
 Exercise: Write a program that performs a rotation cypher.
 e.g. "Attack" when rotated by 1 becomes "buubdl"

Lists
• Flexible arrays, not Lisp-like linked
lists
• a = [99, "bottles of beer", ["on", "the",
"wall"]]
• Same operators as for strings
• a+b, a*3, a[0], a[-1], a[1:], len(a)
• Item and slice assignment
• a[0] = 98
• a[1:2] = ["bottles", "of", "beer"]
-> [98, "bottles", "of", "beer", ["on", "the", "wall"]]
• del a[-1] # -> [98, "bottles", "of", "beer"]

More List Operations
>>> a = range(5) # [0,1,2,3,4]
>>> a.append(5) # [0,1,2,3,4,5]
>>> a.pop() # [0,1,2,3,4]
>>> a.insert(0, 42) # [42,0,1,2,3,4]
>>> a.pop(0) # [0,1,2,3,4]
>>> a.reverse() # [4,3,2,1,0]
>>> a.sort() # [0,1,2,3,4]

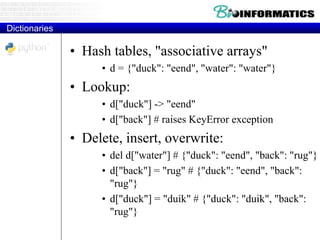

Dictionaries
• Hash tables, "associative arrays"
• d = {"duck": "eend", "water": "water"}
• Lookup:
• d["duck"] -> "eend"
• d["back"] # raises KeyError exception
• Delete, insert, overwrite:
• del d["water"] # {"duck": "eend", "back": "rug"}
• d["back"] = "rug" # {"duck": "eend", "back":
"rug"}
• d["duck"] = "duik" # {"duck": "duik", "back":
"rug"}

More Dictionary Ops
• Keys, values, items:
• d.keys() -> ["duck", "back"]
• d.values() -> ["duik", "rug"]
• d.items() -> [("duck","duik"),
("back","rug")]
• Presence check:
• d.has_key("duck") -> 1; d.has_key("spam") -
> 0
• Values of any type; keys almost any
• {"name":"Guido", "age":43,
("hello","world"):1,
42:"yes", "flag": ["red","white","blue"]}

Dictionary Details
• Keys must be immutable:
– numbers, strings, tuples of immutables
• these cannot be changed after creation
– reason is hashing (fast lookup technique)
– not lists or other dictionaries
• these types of objects can be changed "in
place"
– no restrictions on values
• Keys will be listed in arbitrary order
– again, because of hashing

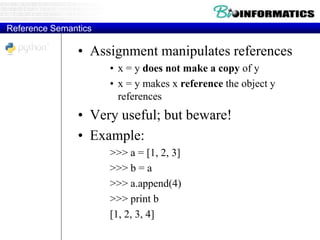

Reference Semantics
• Assignment manipulates references
• x = y does not make a copy of y
• x = y makes x reference the object y
references
• Very useful; but beware!
• Example:
>>> a = [1, 2, 3]
>>> b = a
>>> a.append(4)
>>> print b
[1, 2, 3, 4]

a
1 2 3
b
a
1 2 3
b
4
a = [1, 2, 3]
a.append(4)
b = a
a
1 2 3
Changing a Shared List

a
1
b
a
1b
a = 1
a = a+1
b = a
a
1
2

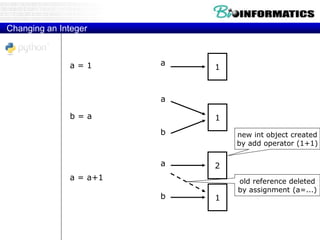

Changing an Integer
old reference deleted
by assignment (a=...)
new int object created
by add operator (1+1)

Example Function
def gcd(a, b):
"greatest common divisor"
while a != 0:
a, b = b%a, a # parallel assignment
return b
>>> gcd.__doc__
'greatest common divisor'
>>> gcd(12, 20)
4

Overview
What is Python ?
How to Python
Strings
REGULAR EXPRESSIONS

What is a regular expression?
• A regular expression (regex) is
simply a way of describing text.
• Regular expressions are built up of
small units (atoms) which can
represent the type and number of
characters in the text
• Regular expressions can be very
broad (describing everything), or
very narrow (describing only one
pattern).

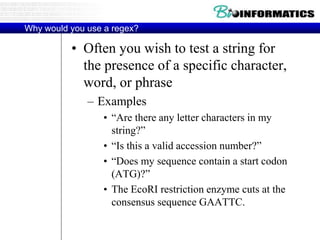

Why would you use a regex?
• Often you wish to test a string for
the presence of a specific character,
word, or phrase
– Examples
• “Are there any letter characters in my
string?”
• “Is this a valid accession number?”
• “Does my sequence contain a start codon
(ATG)?”
• The EcoRI restriction enzyme cuts at the
consensus sequence GAATTC.

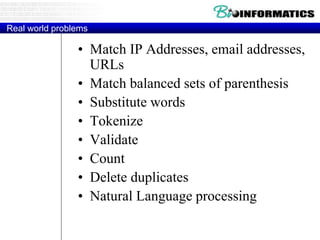

Real world problems
• Match IP Addresses, email addresses,
URLs
• Match balanced sets of parenthesis
• Substitute words
• Tokenize
• Validate
• Count
• Delete duplicates
• Natural Language processing

RE in Python
• Unleash the power - built-in re module
• Functions
– to compile patterns
• compile
– to perform matches
• match, search, findall, finditer
– to perform operations on match object
• group, start, end, span
– to substitute
• sub, subn
• - Metacharacters

Quantifiers
• [ATGC]
• You can specify the number of times
you want to see an atom. Examples
• d* : Zero or more times
• d+ : One or more times
• d{3} : Exactly three times
• d{4,7} : At least four, and not more
than seven
• d{3,} : Three or more times
• We could rewrite /ddd-dddd/ as:
– /d{3}-d{4}/

Anchors
• Anchors force a pattern match to a
certain location
• ^ : start matching at beginning of string
• $ : start matching at end of string
• b : match at word boundary (between w
and W)
• Example:
• /^ddd-dddd$/ : matches only valid
phone numbers

Grouping, capturing
• You can group atoms together with
parentheses
• /cat+/ matches cat, catt, cattt
• /(cat)+/ matches cat, catcat, catcatcat
• Use as many sets of parentheses as
you need
• match.group()

Regex.py
import re
line = "Cats are smarter than dogs"
matchObj = re.match( r'(.*) are (.*?) .*', line,
re.M|re.I)
if matchObj:
print ("matchObj.group() : ", matchObj.group())
print ("matchObj.group(1) : ", matchObj.group(1))
print ("matchObj.group(2) : ", matchObj.group(2))
else:
print ("No match!!")

Regex.py
text = 'abbaaabbbbaaaaa'
pattern = 'ab'
for match in re.finditer(pattern, text):
s = match.start()
e = match.end()
print ('Found "%s" at %d:%d' % (text[s:e], s, e))

References
• http://docs.python.org/
• http://code.activestate.com/recipes/langs/pyt
hon/
• http://www.regular-expressions.info/
• http://www.dabeaz.com/ply/ply.html
• Mastering Regular Expressions by Jeffrey E
F. Friedl
• Python Cookbook by Alex Martelli, Anna
Martelli & David Ascher
• Text processing in Python by David Mertz

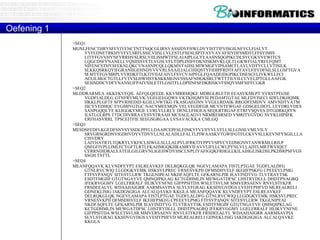

Oefening 1
1. Which of following 4 sequences
(seq1/2/3/4)
a) contains a “Galactokinase signature”
b) How many of them?
http://us.expasy.org/prosite/

>SEQ1
MGNLFENCTHRYSFEYIYENCTNTTNQCGLIRNVASSIDVFHWLDVYISTTIFVISGILNFYCLFIALYT
YYFLDNETRKHYVFVLSRFLSSILVIISLLVLESTLFSESLSPTFAYYAVAFSIYDFSMDTLFFSYIMIS
LITYFGVVHYNFYRRHVSLRSLYIILISMWTFSLAIAIPLGLYEAASNSQGPIKCDLSYCGKVVEWITCS
LQGCDSFYNANELLVQSIISSVETLVGSLVFLTDPLINIFFDKNISKMVKLQLTLGKWFIALYRFLFQMT
NIFENCSTHYSFEKNLQKCVNASNPCQLLQKMNTAHSLMIWMGFYIPSAMCFLAVLVDTYCLLVTISILK
SLKKQSRKQYIFGRANIIGEHNDYVVVRLSAAILIALCIIIIQSTYFIDIPFRDTFAFFAVLFIIYDFSILSLLGSFTGVA
M MTYFGVMRPLVYRDKFTLKTIYIIAFAIVLFSVCVAIPFGLFQAADEIDGPIKCDSESCELIVKWLLFCI
ACLILMGCTGTLLFVTVSLHWHSYKSKKMGNVSSSAFNHGKSRLTWTTTILVILCCVELIPTGLLAAFGK
SESISDDCYDFYNANSLIFPAIVSSLETFLGSITFLLDPIINFSFDKRISKVFSSQVSMFSIFFCGKR
>SEQ2
MLDDRARMEA AKKEKVEQIL AEFQLQEEDL KKVMRRMQKE MDRGLRLETH EEASVKMLPT YVRSTPEGSE
VGDFLSLDLG GTNFRVMLVK VGEGEEGQWS VKTKHQMYSI PEDAMTGTAE MLFDYISECI SDFLDKHQMK
HKKLPLGFTF SFPVRHEDID KGILLNWTKG FKASGAEGNN VVGLLRDAIK RRGDFEMDVV AMVNDTVATM
ISCYYEDHQC EVGMIVGTGC NACYMEEMQN VELVEGDEGR MCVNTEWGAF GDSGELDEFL LEYDRLVDES
SANPGQQLYE KLIGGKYMGE LVRLVLLRLV DENLLFHGEA SEQLRTRGAF ETRFVSQVES DTGDRKQIYN
ILSTLGLRPS TTDCDIVRRA CESVSTRAAH MCSAGLAGVI NRMRESRSED VMRITVGVDG SVYKLHPSFK
ERFHASVRRL TPSCEITFIE SEEGSGRGAA LVSAVACKKA CMLGQ
>SEQ3
MESDSFEDFLKGEDFSNYSYSSDLPPFLLDAAPCEPESLEINKYFVVIIYVLVFLLSLLGNSLVMLVILY
SRVGRSGRDNVIGDHVDYVTDVYLLNLALADLLFALTLPIWAASKVTGWIFGTFLCKVVSLLKEVNFYSGILLLA
CISVDRY
LAIVHATRTLTQKRYLVKFICLSIWGLSLLLALPVLIFRKTIYPPYVSPVCYEDMGNNTANWRMLLRILP
QSFGFIVPLLIMLFCYGFTLRTLFKAHMGQKHRAMRVIFAVVLIFLLCWLPYNLVLLADTLMRTWVIQET
CERRNDIDRALEATEILGILGRVNLIGEHWDYHSCLNPLIYAFIGQKFRHGLLKILAIHGLISKDSLPKDSRPSFVGS
SSGH TSTTL
>SEQ4
MEANFQQAVK KLVNDFEYPT ESLREAVKEF DELRQKGLQK NGEVLAMAPA FISTLPTGAE TGDFLALDFG
GTNLRVCWIQ LLGDGKYEMK HSKSVLPREC VRNESVKPII DFMSDHVELF IKEHFPSKFG CPEEEYLPMG
FTFSYPANQV SITESYLLRW TKGLNIPEAI NKDFAQFLTE GFKARNLPIR IEAVINDTVG TLVTRAYTSK
ESDTFMGIIF GTGTNGAYVE QMNQIPKLAG KCTGDHMLIN MEWGATDFSC LHSTRYDLLL DHDTPNAGRQ
IFEKRVGGMY LGELFRRALF HLIKVYNFNE GIFPPSITDA WSLETSVLSR MMVERSAENV RNVLSTFKFR
FRSDEEALYL WDAAHAIGRR AARMSAVPIA SLYLSTGRAG KKSDVGVDGS LVEHYPHFVD MLREALRELI
GDNEKLISIG IAKDGSGIGA ALCALQAVKE KKGLA MEANFQQAVK KLVNDFEYPT ESLREAVKEF
DELRQKGLQK NGEVLAMAPA FISTLPTGAE TGDFLALDFG GTNLRVCWIQ LLGDGKYEMK HSKSVLPREC
VRNESVKPII DFMSDHVELF IKEHFPSKFG CPEEEYLPMG FTFSYPANQV SITESYLLRW TKGLNIPEAI
NKDFAQFLTE GFKARNLPIR IEAVINDTVG TLVTRAYTSK ESDTFMGIIF GTGTNGAYVE QMNQIPKLAG
KCTGDHMLIN MEWGATDFSC LHSTRYDLLL DHDTPNAGRQ IFEKRVGGMY LGELFRRALF HLIKVYNFNE
GIFPPSITDA WSLETSVLSR MMVERSAENV RNVLSTFKFR FRSDEEALYL WDAAHAIGRR AARMSAVPIA
SLYLSTGRAG KKSDVGVDGS LVEHYPHFVD MLREALRELI GDNEKLISIG IAKDGSGIGA ALCALQAVKE
KKGLA
Oefening 1

2. Find the answer in ultimate-
sequence.txt ?
>ultimate-sequence
ACTCGTTATGATATTTTTTTTGAACGTGAAAATACT
TTTCGTGCTATGGAAGGACTCGTTATCGTGAAGT
TGAACGTTCTGAATGTATGCCTCTTGAAATGGA
AAATACTCATTGTTTATCTGAAATTTGAATGGGA
ATTTTATCTACAATGTTTTATTCTTACAGAACAT
TAAATTGTGTTATGTTTCATTTCACATTTTAGTA
GTTTTTTCAGTGAAAGCTTGAAAACCACCAAGA
AGAAAAGCTGGTATGCGTAGCTATGTATATATA
AAATTAGATTTTCCACAAAAAATGATCTGATAA
ACCTTCTCTGTTGGCTCCAAGTATAAGTACGAAA
AGAAATACGTTCCCAAGAATTAGCTTCATGAGT
AAGAAGAAAAGCTGGTATGCGTAGCTATGTATA
TATAAAATTAGATTTTCCACAAAAAATGATCTG
ATAA

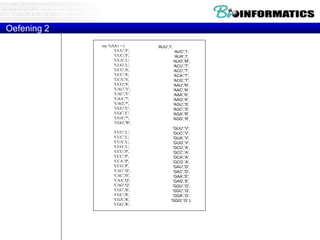

Oefening 2

my %AA1 = (
'UUU','F',
'UUC','F',
'UUA','L',
'UUG','L',
'UCU','S',
'UCC','S',
'UCA','S',
'UCG','S',
'UAU','Y',
'UAC','Y',
'UAA','*',
'UAG','*',
'UGU','C',
'UGC','C',
'UGA','*',
'UGG','W',
'CUU','L',
'CUC','L',
'CUA','L',
'CUG','L',
'CCU','P',
'CCC','P',
'CCA','P',
'CCG','P',
'CAU','H',
'CAC','H',
'CAA','Q',
'CAG','Q',
'CGU','R',
'CGC','R',
'CGA','R',
'CGG','R',
'AUU','I',
'AUC','I',
'AUA','I',
'AUG','M',
'ACU','T',
'ACC','T',
'ACA','T',
'ACG','T',
'AAU','N',
'AAC','N',
'AAA','K',
'AAG','K',
'AGU','S',
'AGC','S',
'AGA','R',
'AGG','R',
'GUU','V',
'GUC','V',
'GUA','V',
'GUG','V',
'GCU','A',
'GCC','A',
'GCA','A',
'GCG','A',
'GAU','D',
'GAC','D',
'GAA','E',
'GAG','E',
'GGU','G',
'GGC','G',
'GGA','G',
'GGG','G' );
Oefening 2

AA1 =
{'UUU':'F','UUC':'F','UUA':'L','UUG':'L','UCU':'S','
UCC':'S','UCA':'S','UCG':'S','UAU':'Y','UAC':'Y','UA
A':'*','UAG':'*','UGU':'C','UGC':'C','UGA':'*','UGG':
'W','CUU':'L','CUC':'L','CUA':'L','CUG':'L','CCU':'P',
'CCC':'P','CCA':'P','CCG':'P','CAU':'H','CAC':'H','CA
A':'Q','CAG':'Q','CGU':'R','CGC':'R','CGA':'R','CGG'
:'R','AUU':'I','AUC':'I','AUA':'I','AUG':'M','ACU':'T','
ACC':'T','ACA':'T','ACG':'T','AAU':'N','AAC':'N','AAA'
:'K','AAG':'K','AGU':'S','AGC':'S','AGA':'R','AGG':'R',
'GUU':'V','GUC':'V','GUA':'V','GUG':'V','GCU':'A','G
CC':'A','GCA':'A','GCG':'A','GAU':'D','GAC':'D','GA
A':'E','GAG':'E','GGU':'G','GGC':'G','GGA':'G','GGG
':'G' }
Oefening 2

Translations
Python way:
tab = str.maketrans("ACGU","UGCA")
sequence = sequence.translate(tab)[::-1]

http://www.pythonchallenge.com

2016 bioinformatics i_python_part_2_strings_wim_vancriekinge

More Related Content

What's hot

Viewers also liked

Similar to 2016 bioinformatics i_python_part_2_strings_wim_vancriekinge

More from Prof. Wim Van Criekinge

Recently uploaded

2016 bioinformatics i_python_part_2_strings_wim_vancriekinge
