The document provides requirements for indoor and outdoor sports facilities for a sports complex. For indoor spaces, it lists the number of courts or spaces needed for badminton, squash, skating, table tennis, gymnastics, and a multipurpose hall. Outdoors, it lists requirements for net baskets, football/cricket fields, lawn tennis courts, table tennis tables, basketball courts, volleyball courts, a swimming pool, and a running track. It also provides brief descriptions of facilities and designs for various indoor courts and structures like a cricket stadium.

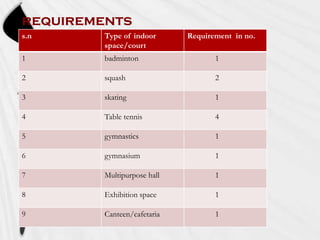

2. requirements
s.n
Type of indoor
space/court
Requirement in no.
1
badminton
1
2
squash
2
3
skating
1
4
Table tennis
4
5
gymnastics
1
6
gymnasium
1
7
Multipurpose hall
1
8
Exhibition space
1
9
Canteen/cafetaria
1

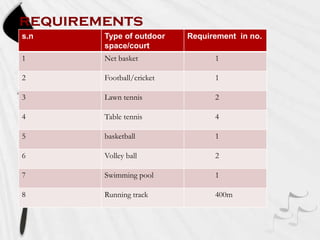

3. requirements
s.n
Type of outdoor
space/court
Requirement in no.
1
Net basket
1
2
Football/cricket
1
3
Lawn tennis
2
4
Table tennis
4
5
basketball
1
6
Volley ball
2
7
Swimming pool
1
8
Running track
400m

4. A sports complex is an enclosed area, designed to showcase and practice
of various sports.
Provision for practicing various sports
Provision for parking at the drop off zones and should be directly
connected to various stadiums.
Proper signages should be provided.

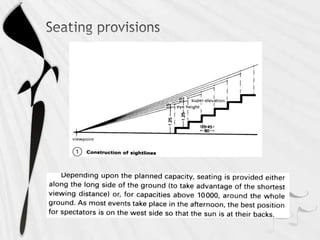

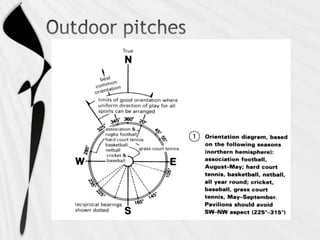

The orientation of the stadiums should be NE-SW

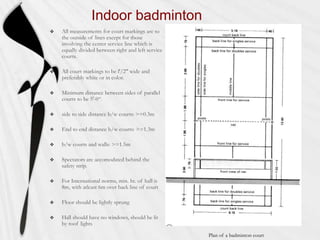

7. Indoor badminton










Plan of a badminton court

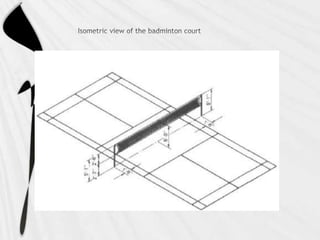

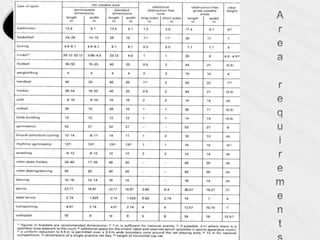

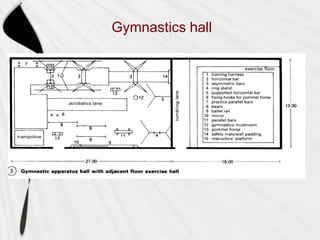

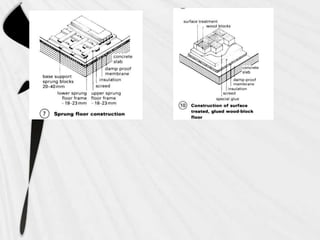

11. Gymnastics hall

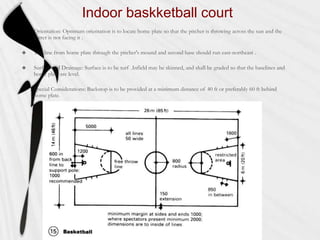

12. Indoor baskketball court





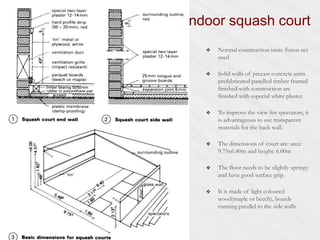

13. Indoor squash court







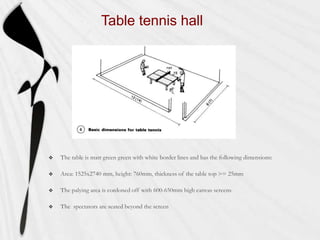

14. Table tennis hall





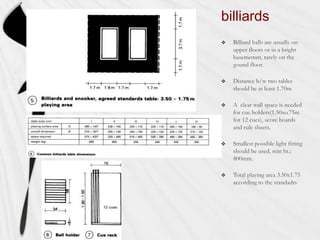

15. billiards






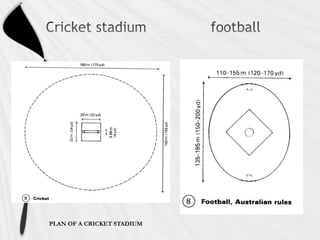

17. PLAN OF A CRICKET STADIUM

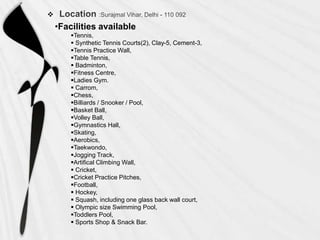

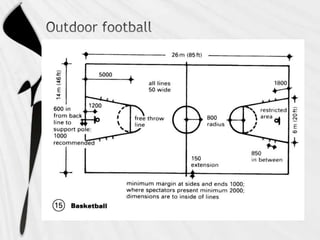

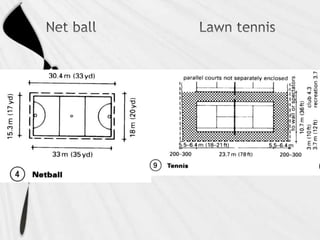

21. 
•Facilities available
Tennis,
 Synthetic Tennis Courts(2), Clay-5, Cement-3,
Tennis Practice Wall,
Table Tennis,
 Badminton,
Fitness Centre,
Ladies Gym.
 Carrom,
Chess,
Billiards / Snooker / Pool,
Basket Ball,
Volley Ball,
Gymnastics Hall,
Skating,
Aerobics,
Taekwondo,
Jogging Track,
Artifical Climbing Wall,
 Cricket,
Cricket Practice Pitches,
Football,
 Hockey,
 Squash, including one glass back wall court,
 Olympic size Swimming Pool,
Toddlers Pool,
 Sports Shop & Snack Bar.

23. 





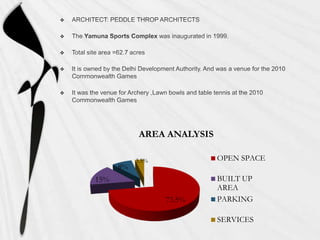

AREA ANALYSIS
8%
OPEN SPACE
3.5%
15%
73.5%
BUILT UP
AREA
PARKING
SERVICES

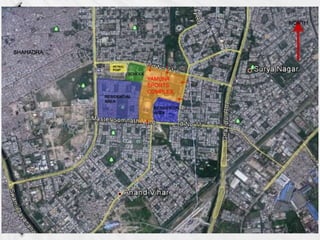

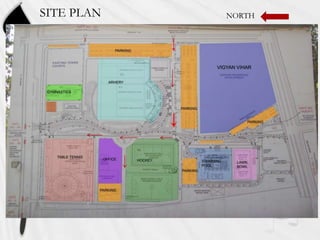

24. SITE PLAN
NORTH

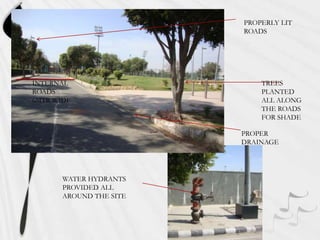

25. PROPERLY LIT
ROADS
INTERNAL
ROADS
6MTR WIDE
TREES
PLANTED
ALL ALONG
THE ROADS
FOR SHADE
PROPER
DRAINAGE
WATER HYDRANTS
PROVIDED ALL
AROUND THE SITE

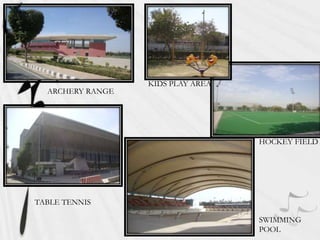

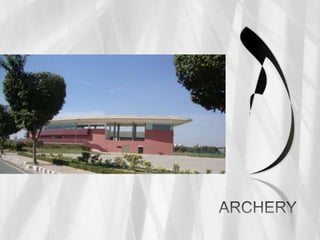

26. ARCHERY RANGE
KIDS PLAY AREA
HOCKEY FIELD
TABLE TENNIS
SWIMMING
POOL

28. 



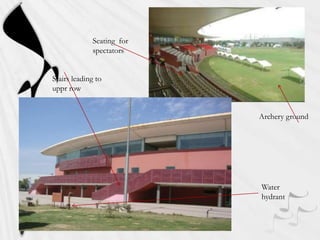

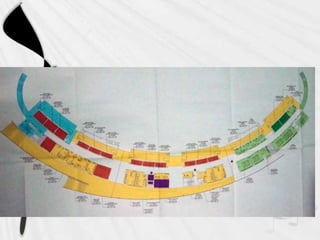

30. Seating for
spectators
Stairs leading to
uppr row
Archery ground
Water
hydrant

32. 






33. North

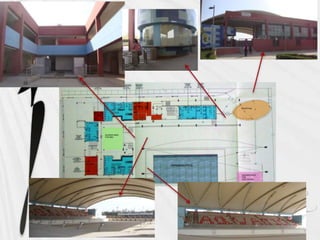

37. •SEATING FOR AROUND 126
PEOPLE
•MAIN STRUCTURE FACES
NORTH
•FACILITIES:
•PHYSIOTHERAPY ROOM
•FIRST AID ROOM
•CANTEEN
•LOUNGE
•STAFF REST ROOM
NORTH

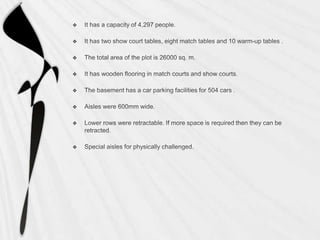

39. 








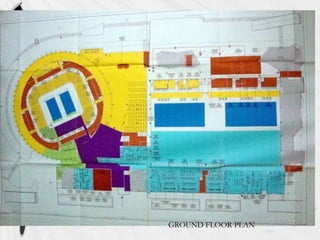

40. GROUND FLOOR PLAN

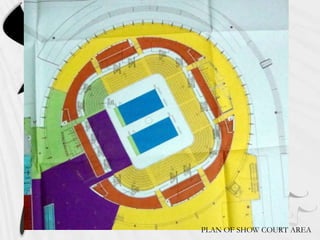

41. PLAN OF SHOW COURT AREA

42. SECTION THROUGH TABLE TENNIS SHOW COURT

43. SOUTH ELEVATION
WEST ELEVATION

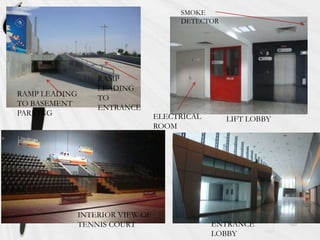

44. SMOKE
DETECTOR
RAMP LEADING
TO BASEMENT
PARKING
RAMP
LEADING
TO
ENTRANCE
ELECTRICAL
ROOM
INTERIOR VIEW OF
TENNIS COURT
LIFT LOBBY
ENTRANCE
LOBBY

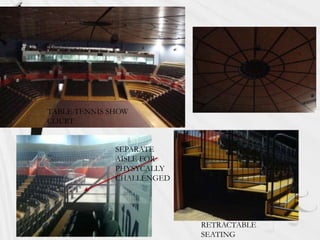

45. TABLE TENNIS SHOW
COURT
SEPARATE
AISLE FOR
PHYSYCALLY
CHALLENGED
RETRACTABLE
SEATING

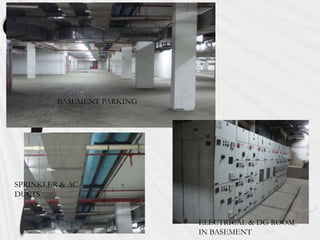

46. BASEMENT PARKING
SPRINKLER & AC
DUCTS
ELECTRICAL & DG ROOM
IN BASEMENT

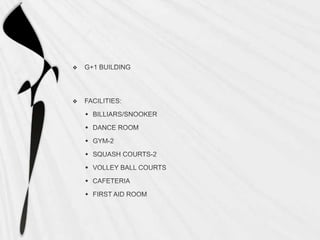

48. 


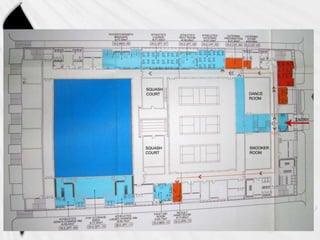

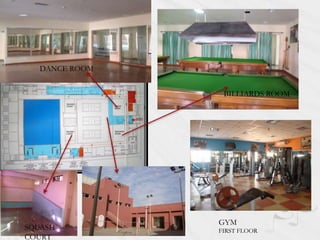

50. DANCE ROOM
BILLIARDS ROOM
SQUASH
COURT
GYM
FIRST FLOOR

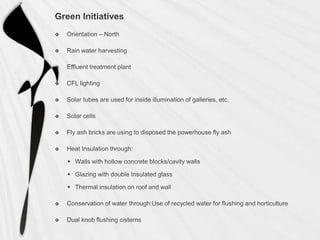

51. 










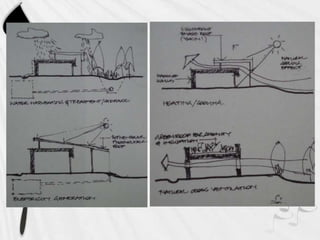

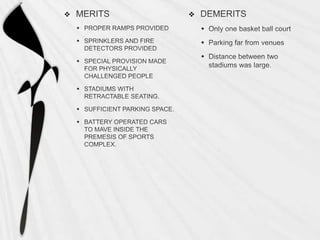

53. 


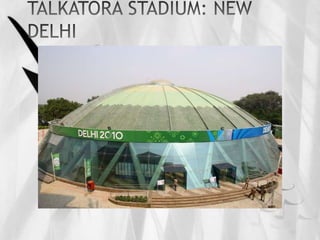

55. iNTRODUCTION
Talkatora Stadium is located on Willingdon
Crescent Road, New Delhi.
It is in the prime location of the city.
PLOT AREA: 49088Msq
PARKING: 500cars
INDOOR STADIUM: 4800Msq
SERVICES: 3480Msq

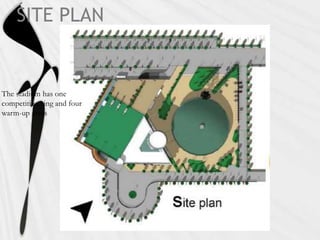

56. SITE PLAN
The stadium has one
competition ring and four
warm-up areas

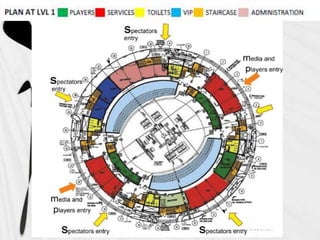

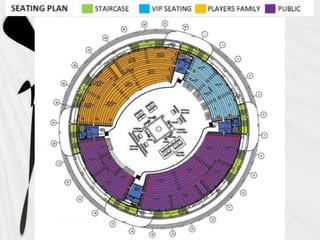

60. ELEVATION

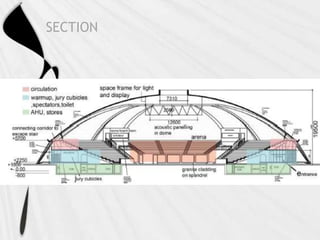

61. SECTION

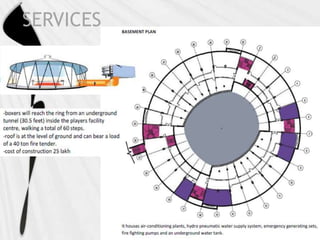

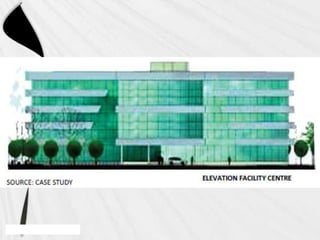

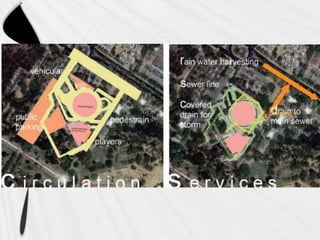

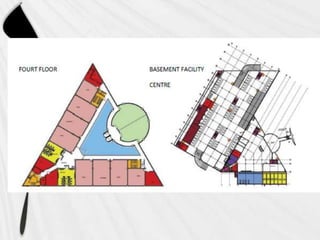

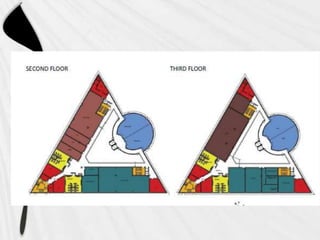

66. SERVICES

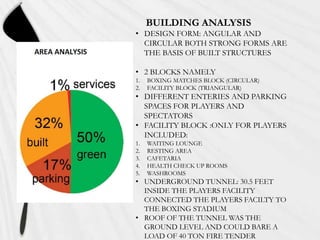

67. BUILDING ANALYSIS
• DESIGN FORM: ANGULAR AND
CIRCULAR BOTH STRONG FORMS ARE
THE BASIS OF BUILT STRUCTURES
• 2 BLOCKS NAMELY
1.
2.
BOXING MATCHES BLOCK (CIRCULAR)
FACILITY BLOCK (TRIANGULAR)
• DIFFERENT ENTERIES AND PARKING
SPACES FOR PLAYERS AND
SPECTATORS
• FACILITY BLOCK :ONLY FOR PLAYERS
INCLUDED:
1.
2.
3.
4.
5.
WAITING LOUNGE
RESTING AREA
CAFETARIA
HEALTH CHECK UP ROOMS
WASHROOMS
• UNDERGROUND TUNNEL: 30.5 FEET
INSIDE THE PLAYERS FACILITY
CONNECTED THE PLAYERS FACILTY TO
THE BOXING STADIUM
• ROOF OF THE TUNNEL WAS THE
GROUND LEVEL AND COULD BARE A
LOAD OF 40 TON FIRE TENDER

68. CONSTRUCTION AND MATERIALS
• BOXING STADIUM
1.
2.
3.
4.
GRANITE CLADDING ON THE PLINTH
GLASS FAÇADE COVERING THE COLUMNSALONG THE PROFILE OF
STADIUM
DOME FINISHED WITH WATERPROOF HIGH QUALITY PAINT
SPACE FRAME FOR LIGHT AND DISPLAY
• FACILITY AREA
1.
GLASS CLADDING AND CONCRETE
