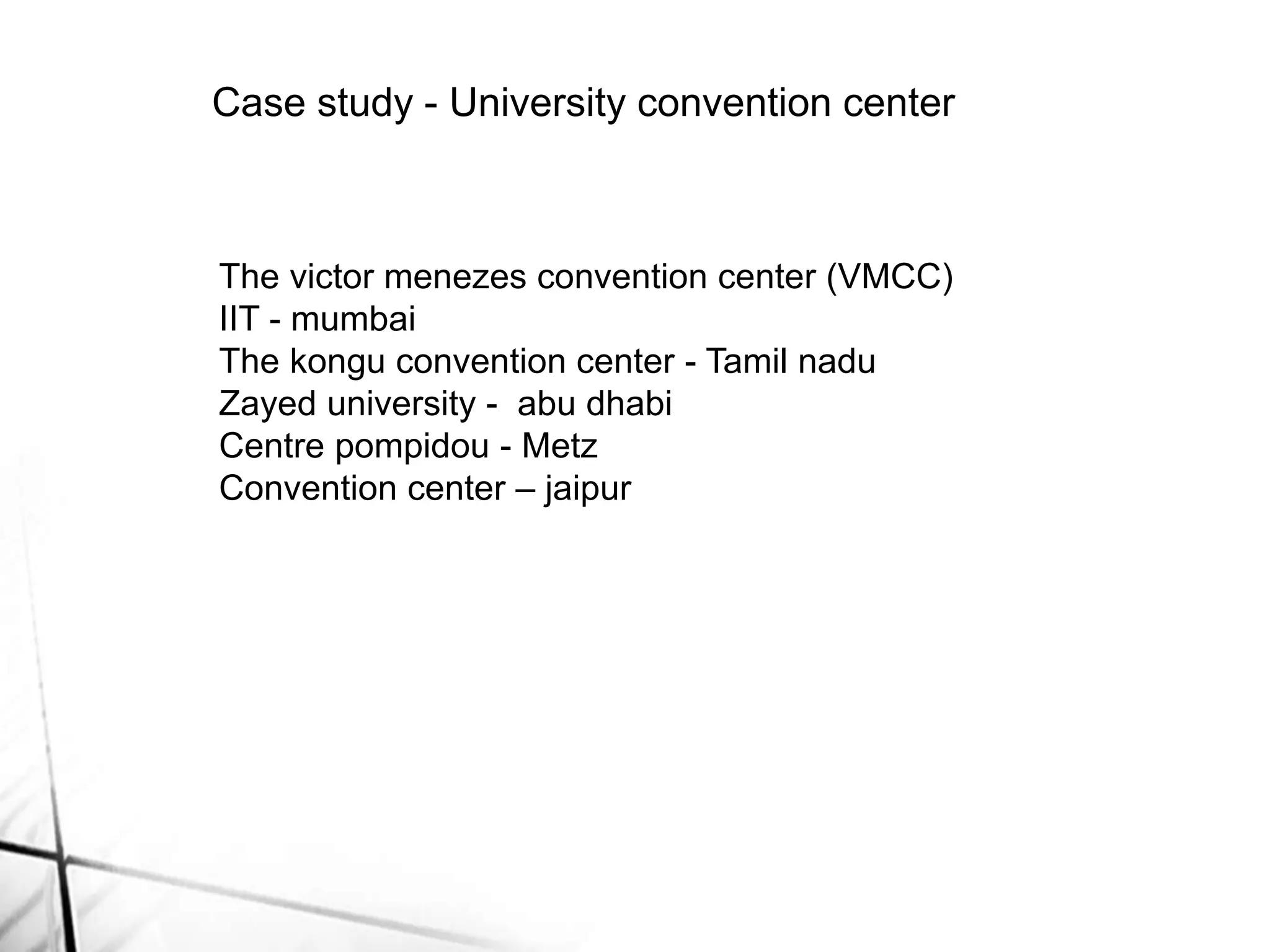

1. The victor menezes convention center (VMCC)
IIT - mumbai
The kongu convention center - Tamil nadu

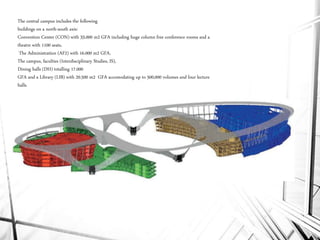

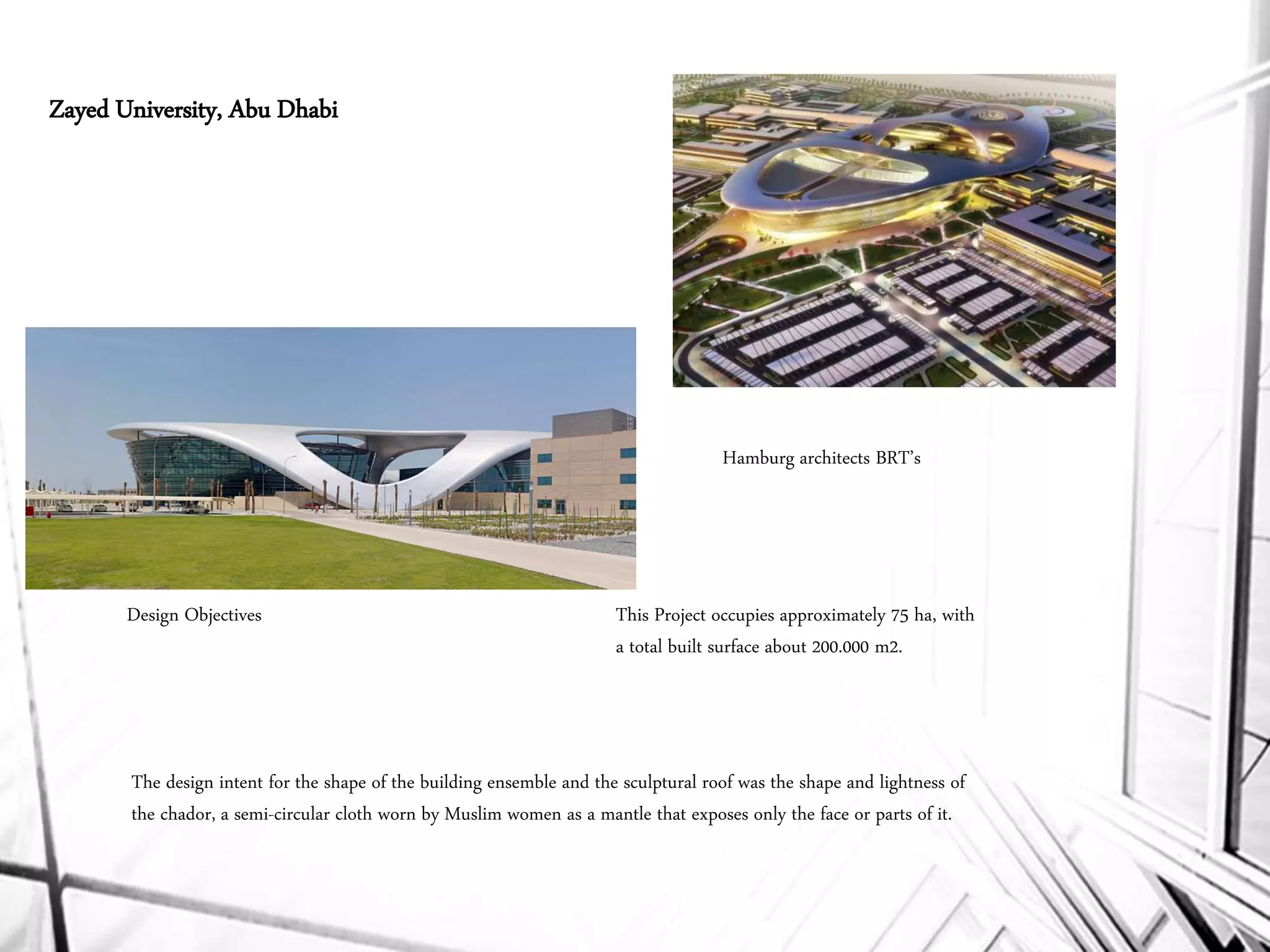

Zayed university - abu dhabi

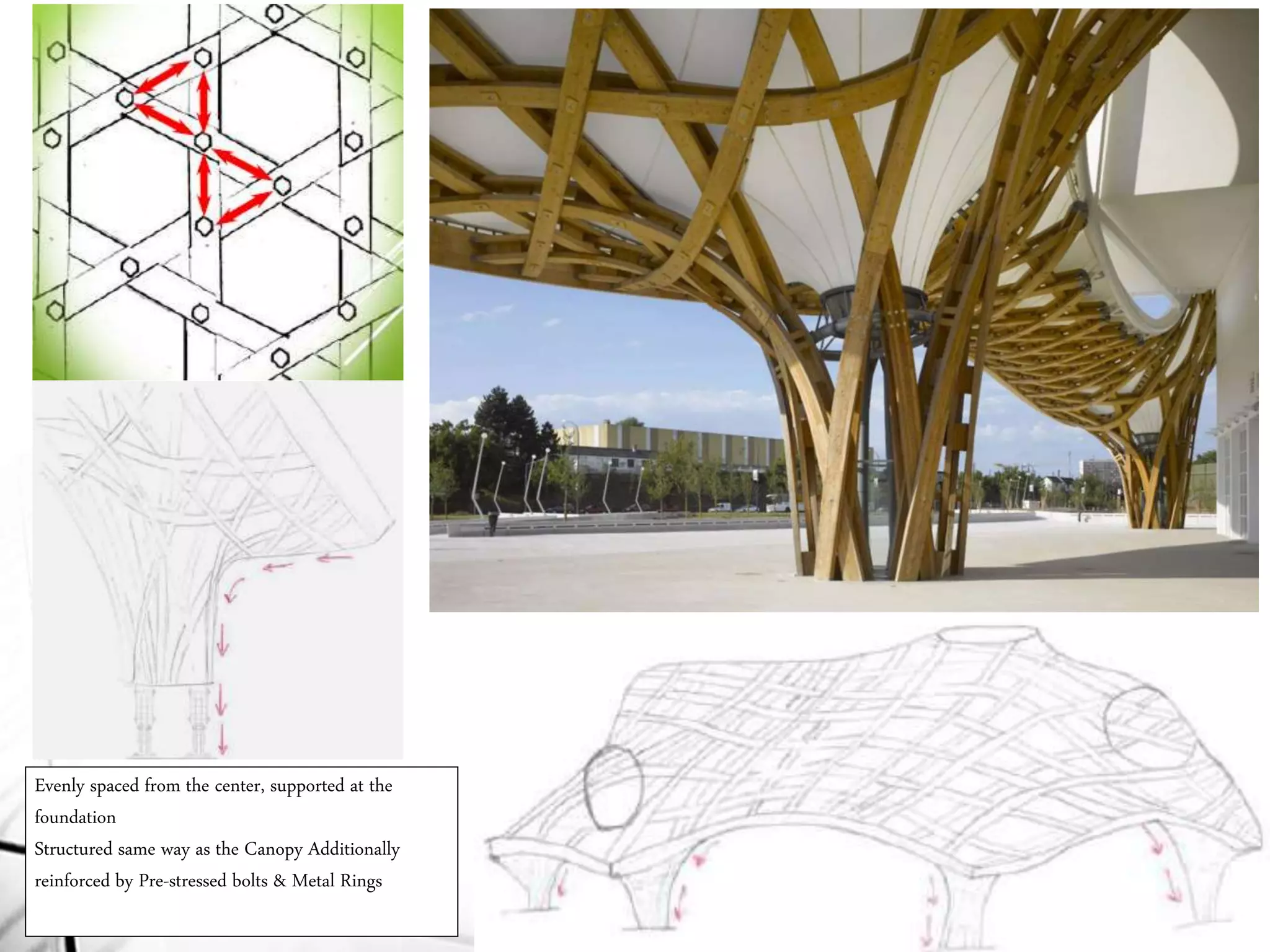

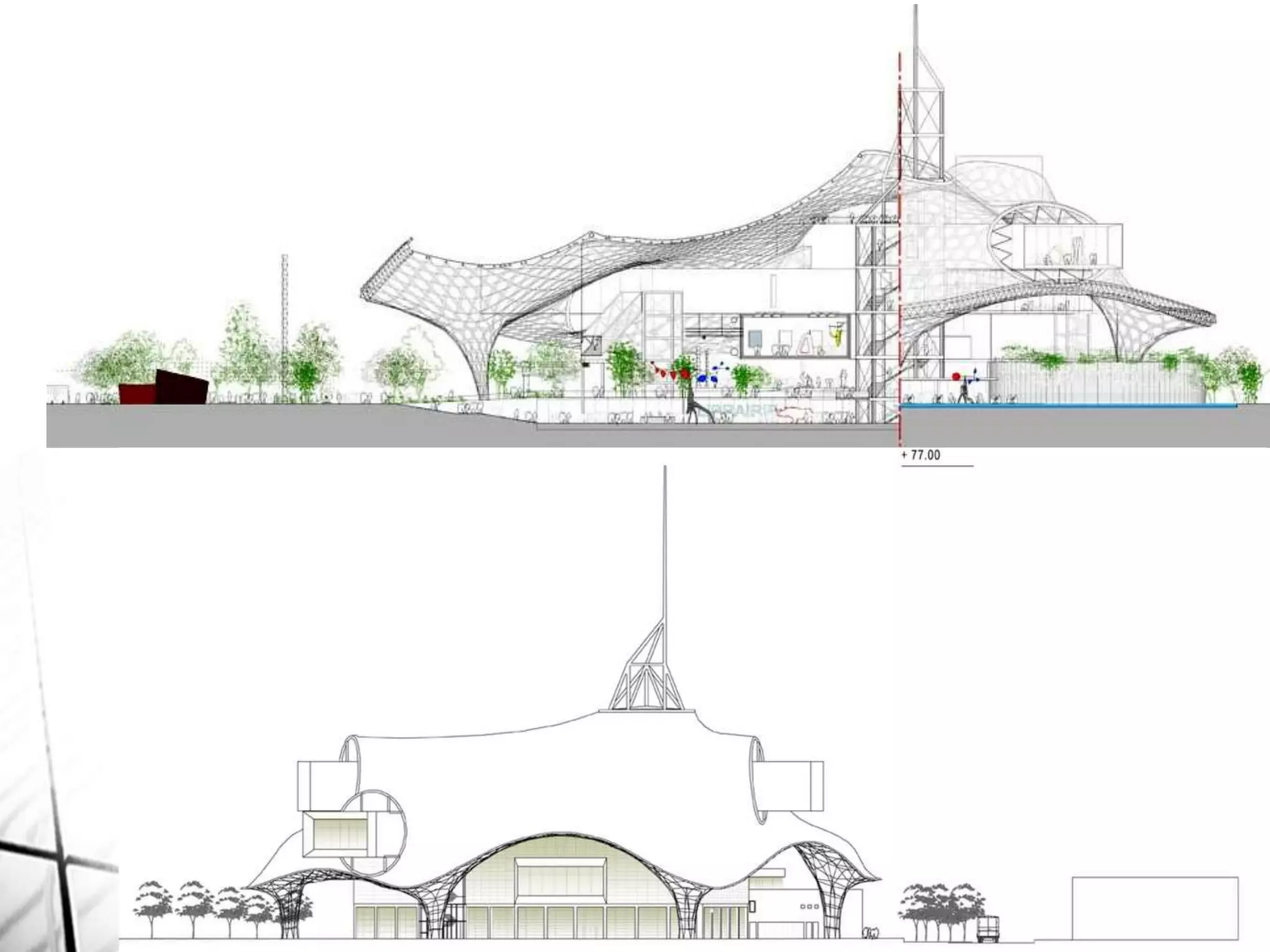

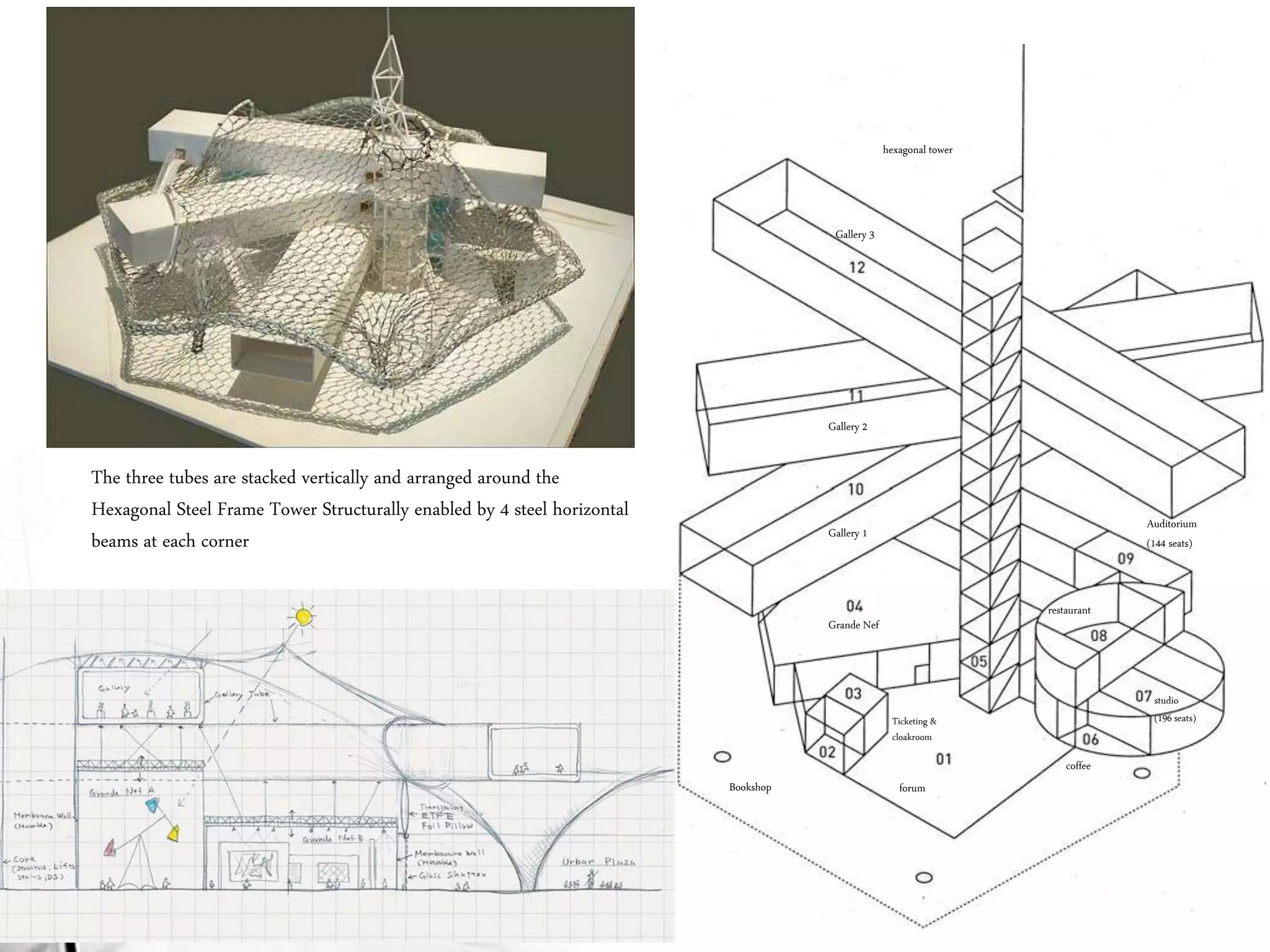

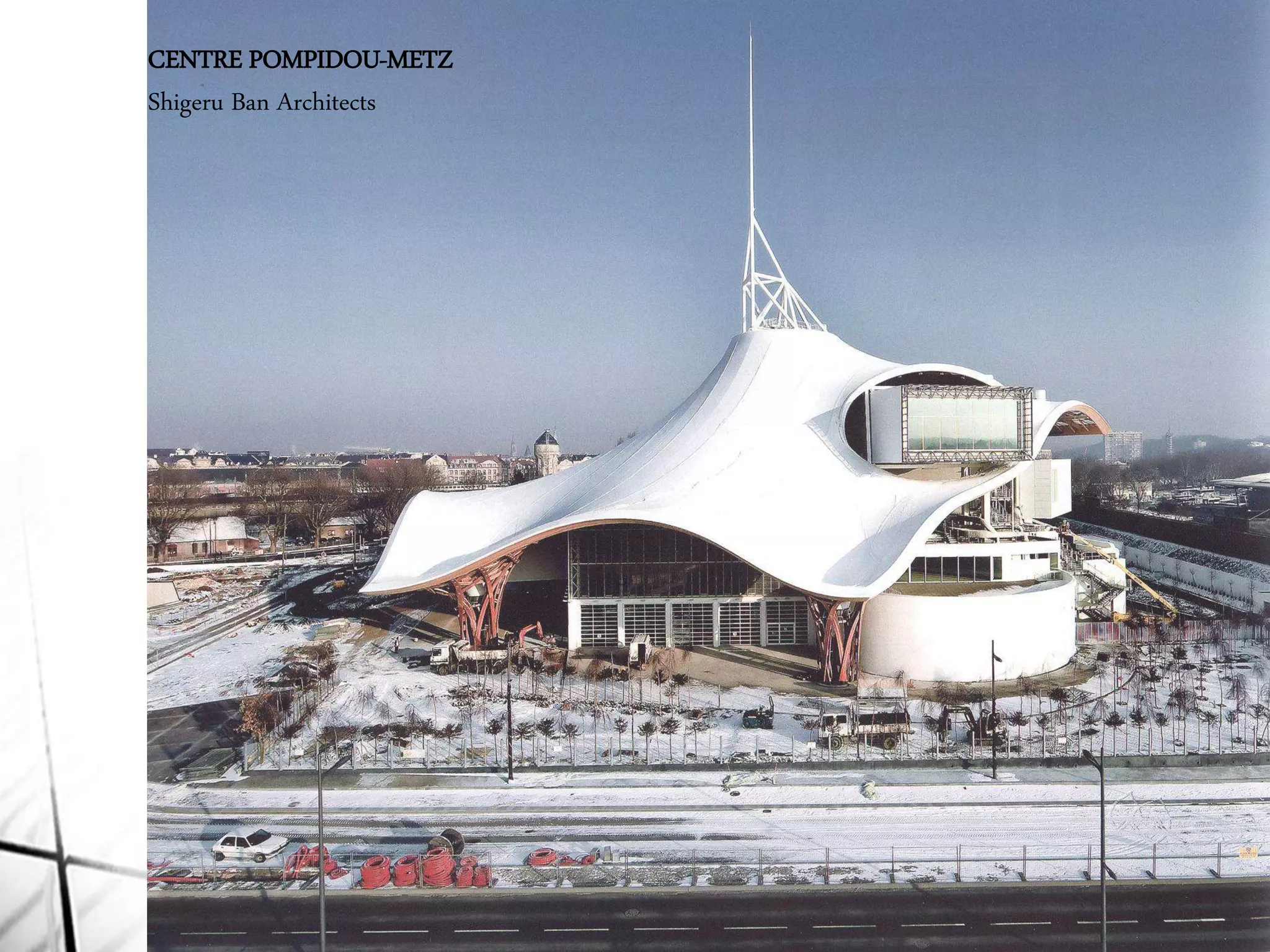

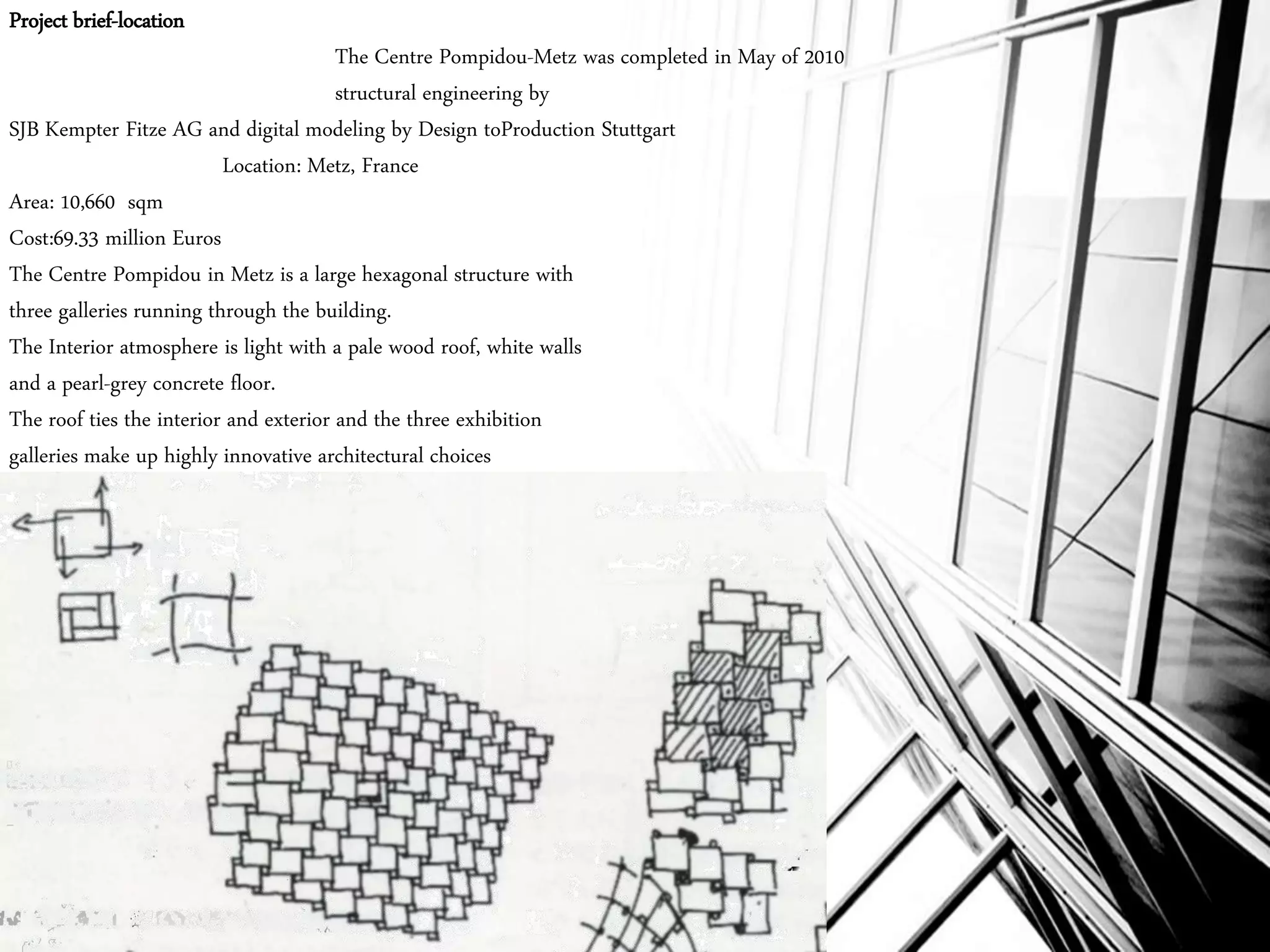

Centre pompidou - Metz

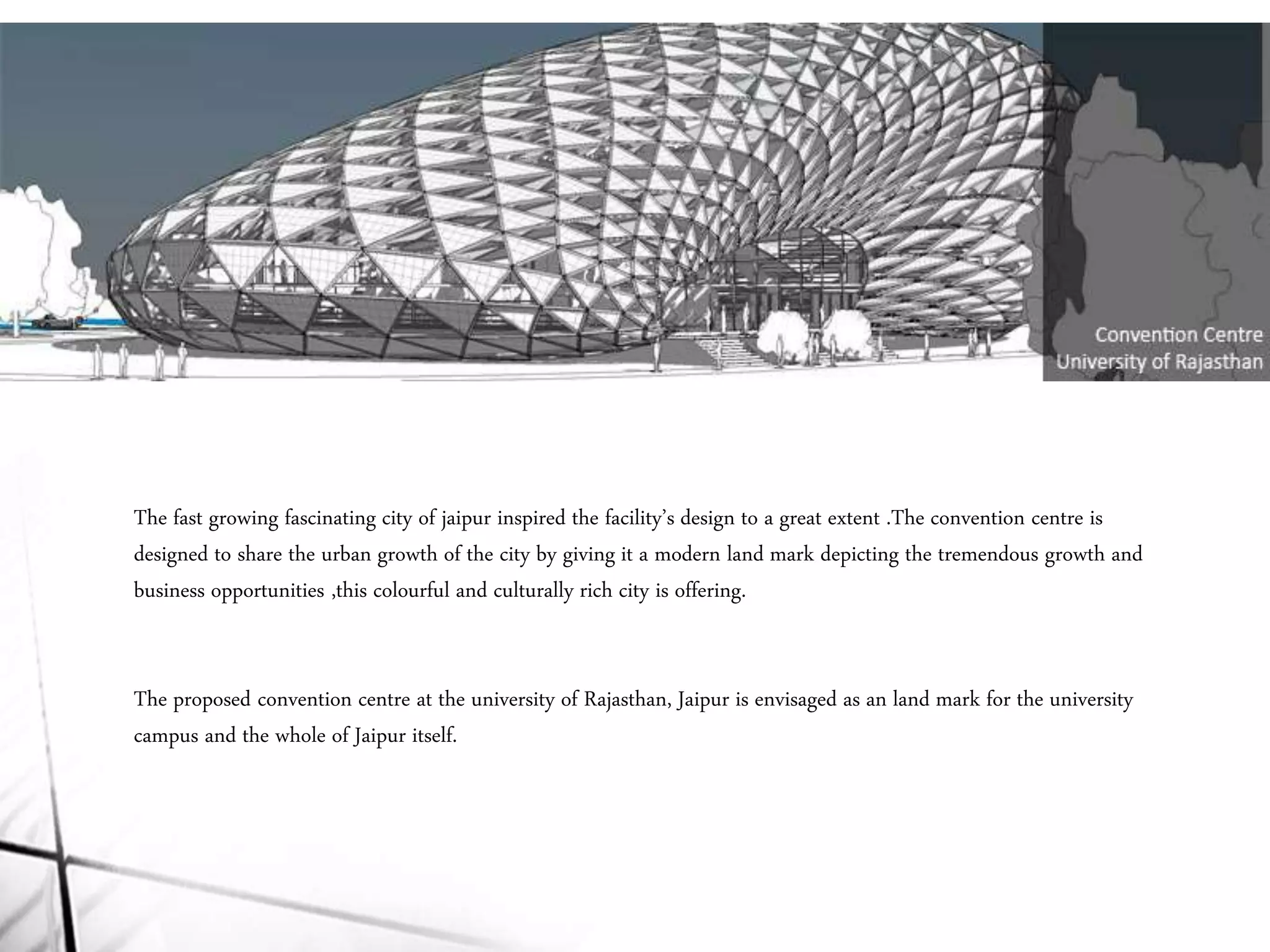

Convention center – jaipur
Case study - University convention center

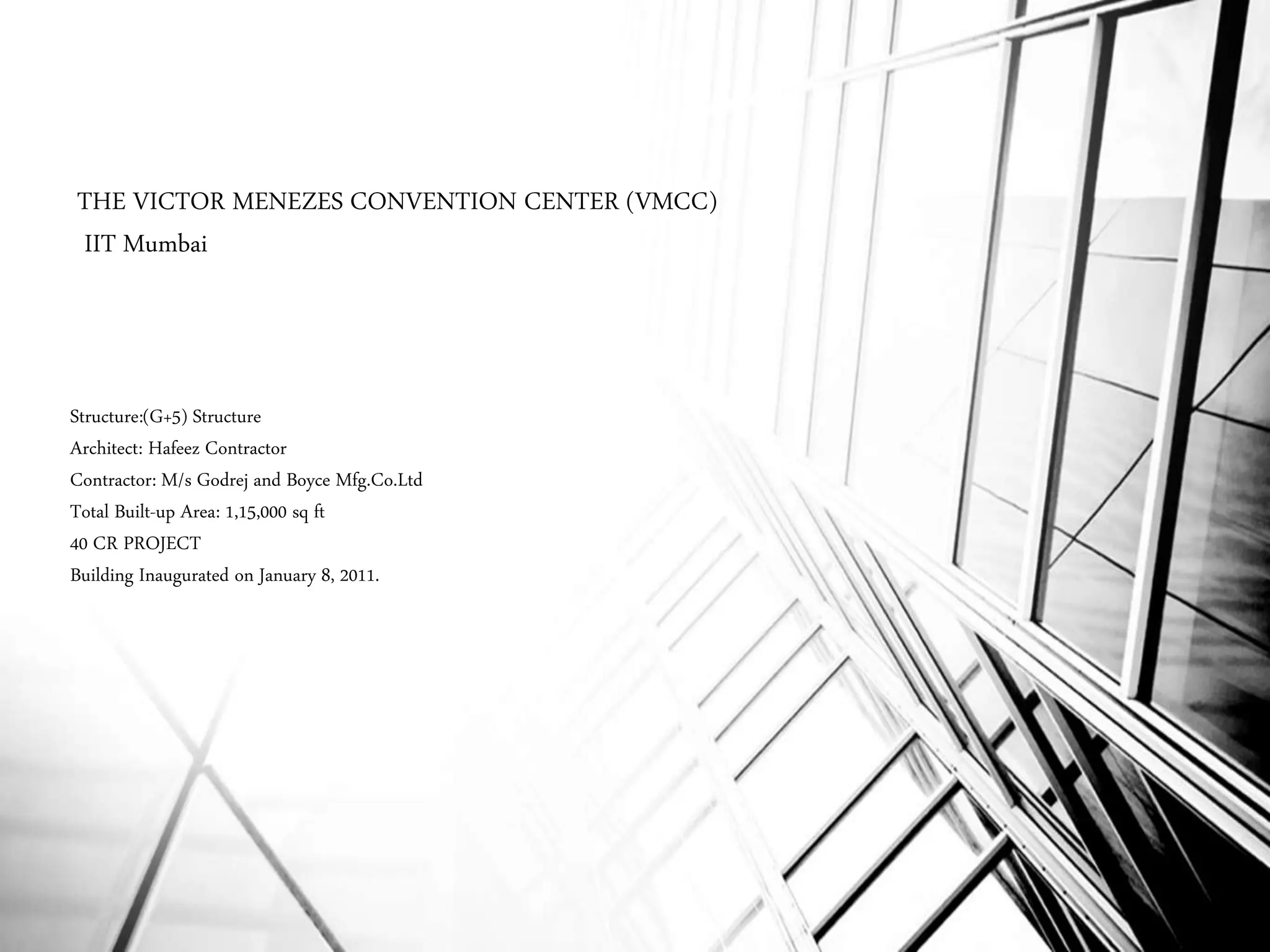

2. THE VICTOR MENEZES CONVENTION CENTER (VMCC)
IIT Mumbai
Structure:(G+5) Structure
Architect: Hafeez Contractor
Contractor: M/s Godrej and Boyce Mfg.Co.Ltd
Total Built-up Area: 1,15,000 sq ft
40 CR PROJECT
Building Inaugurated on January 8, 2011.

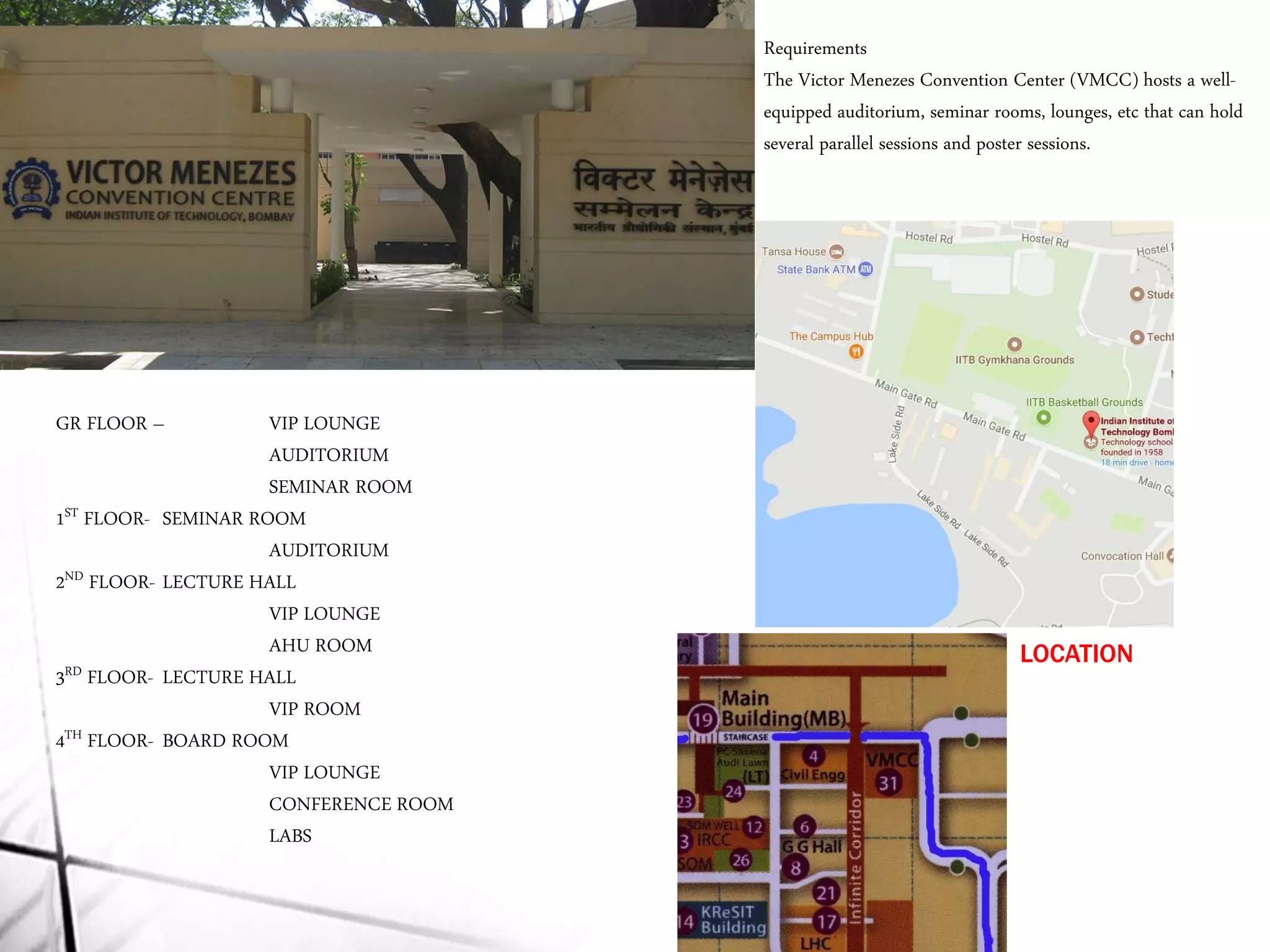

3. LOCATION

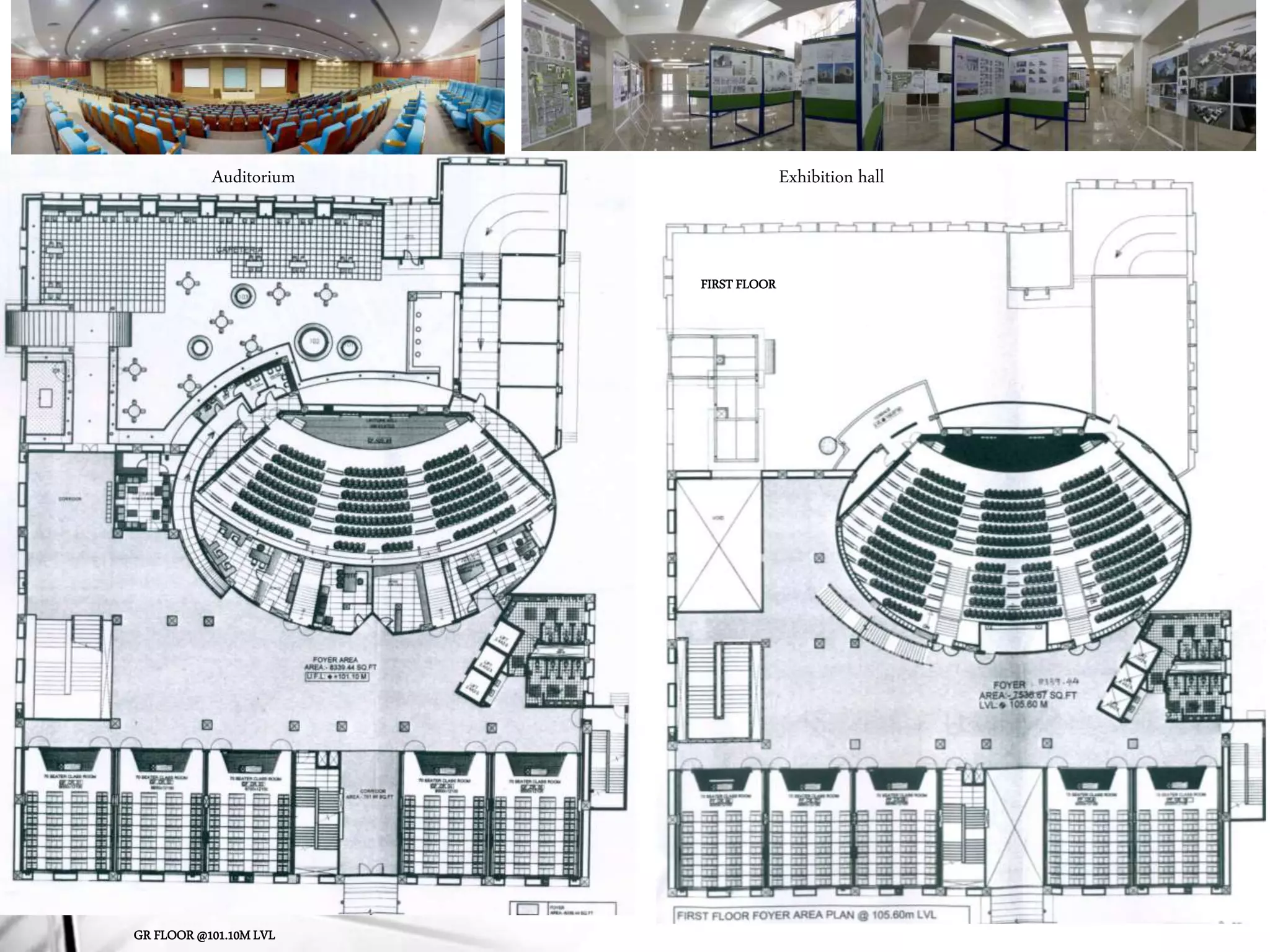

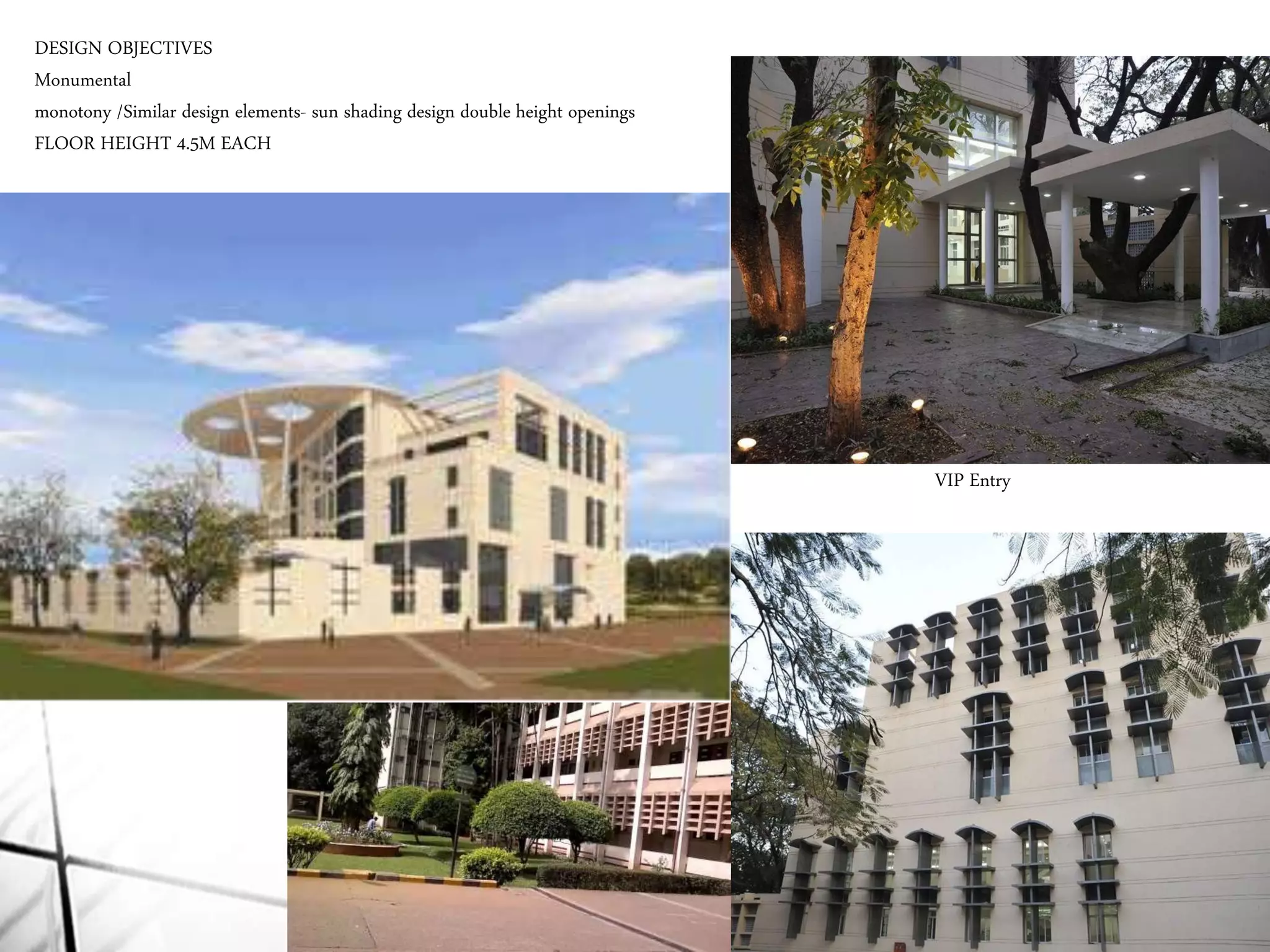

GR FLOOR – VIP LOUNGE
AUDITORIUM
SEMINAR ROOM
1ST FLOOR- SEMINAR ROOM
AUDITORIUM

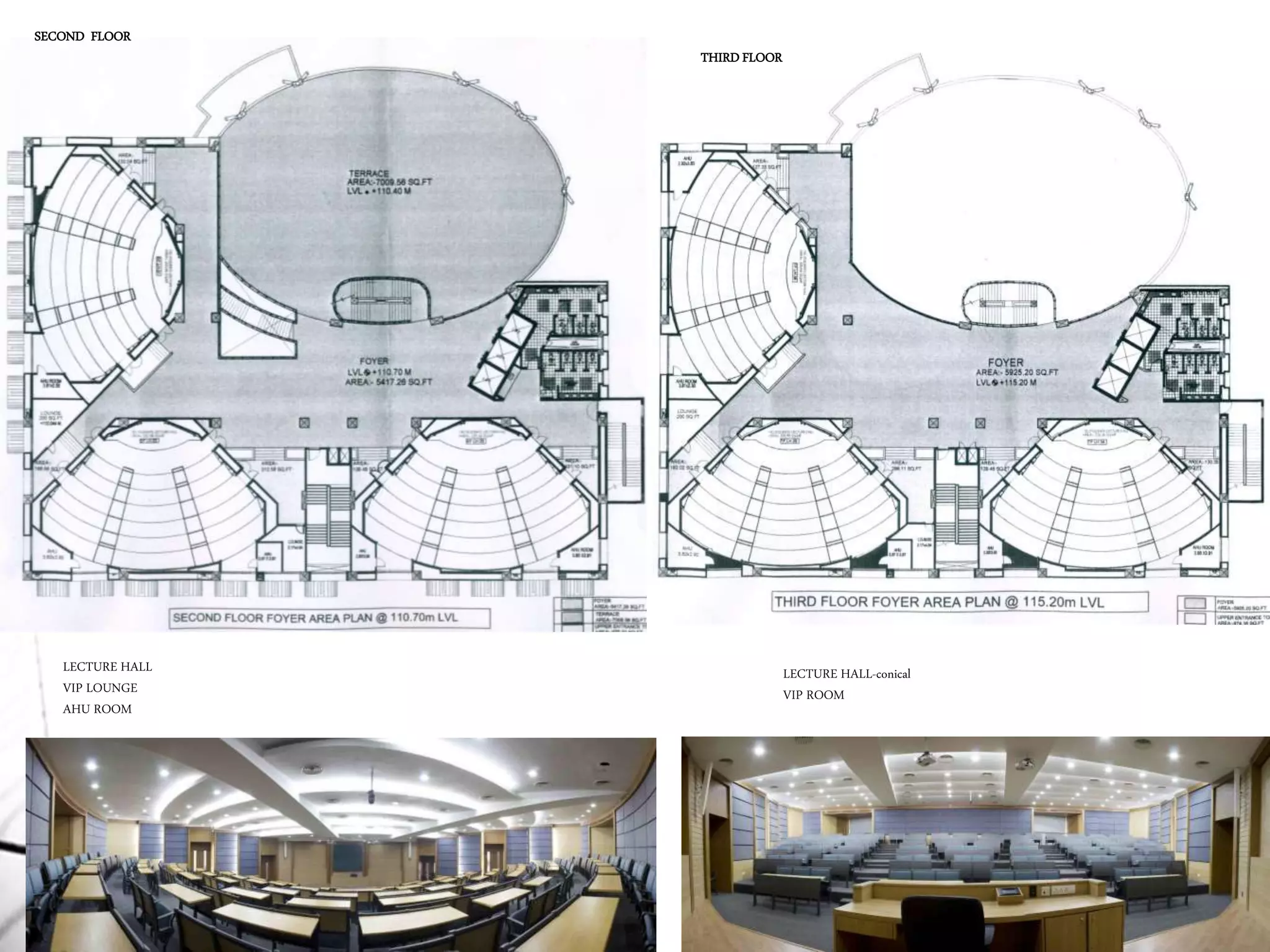

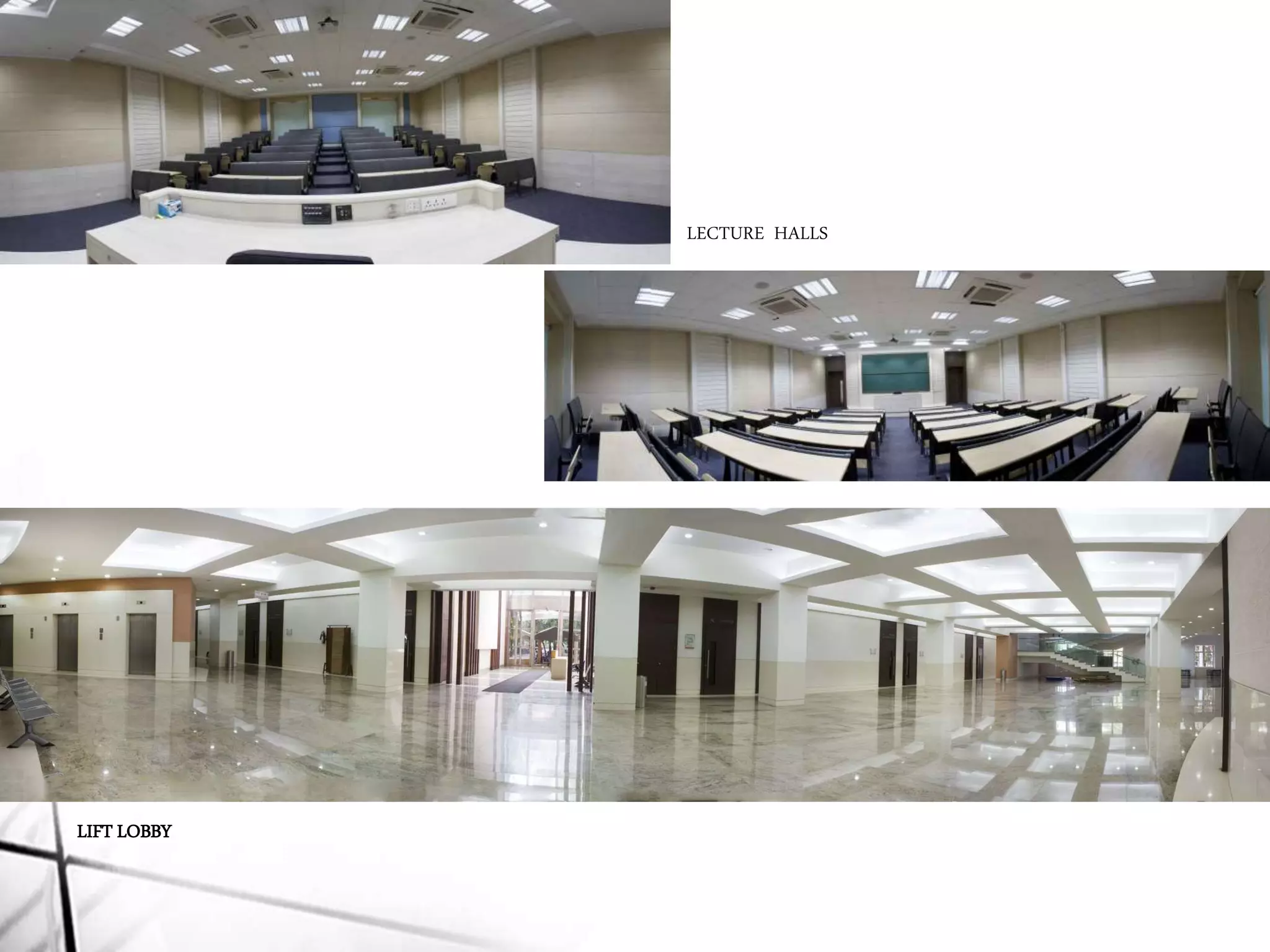

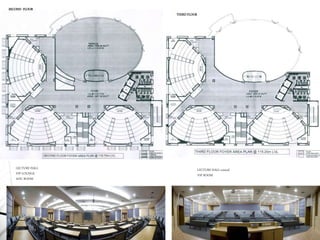

2ND FLOOR- LECTURE HALL
VIP LOUNGE
AHU ROOM
3RD FLOOR- LECTURE HALL
VIP ROOM

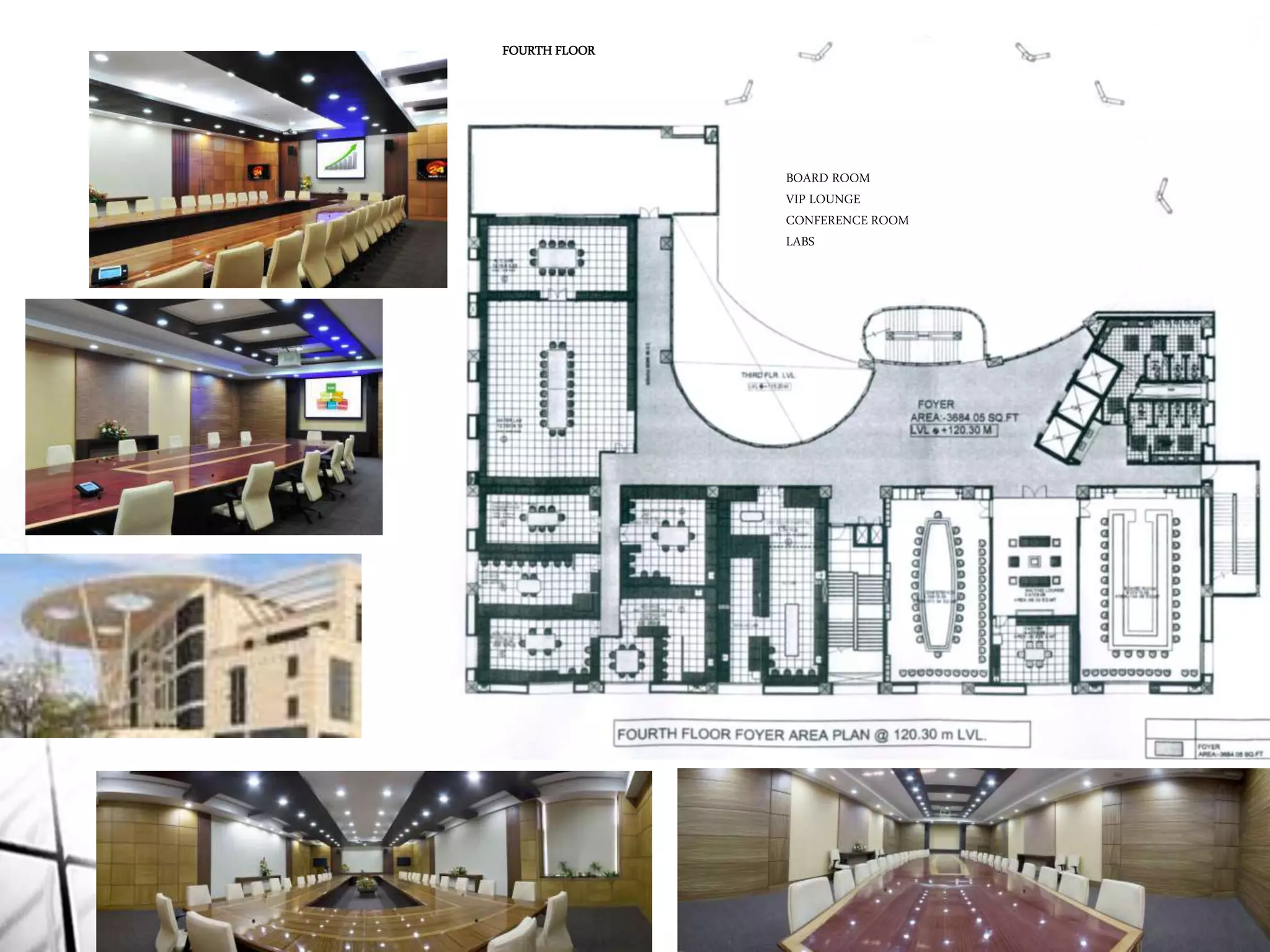

4TH FLOOR- BOARD ROOM
VIP LOUNGE
CONFERENCE ROOM
LABS
Requirements

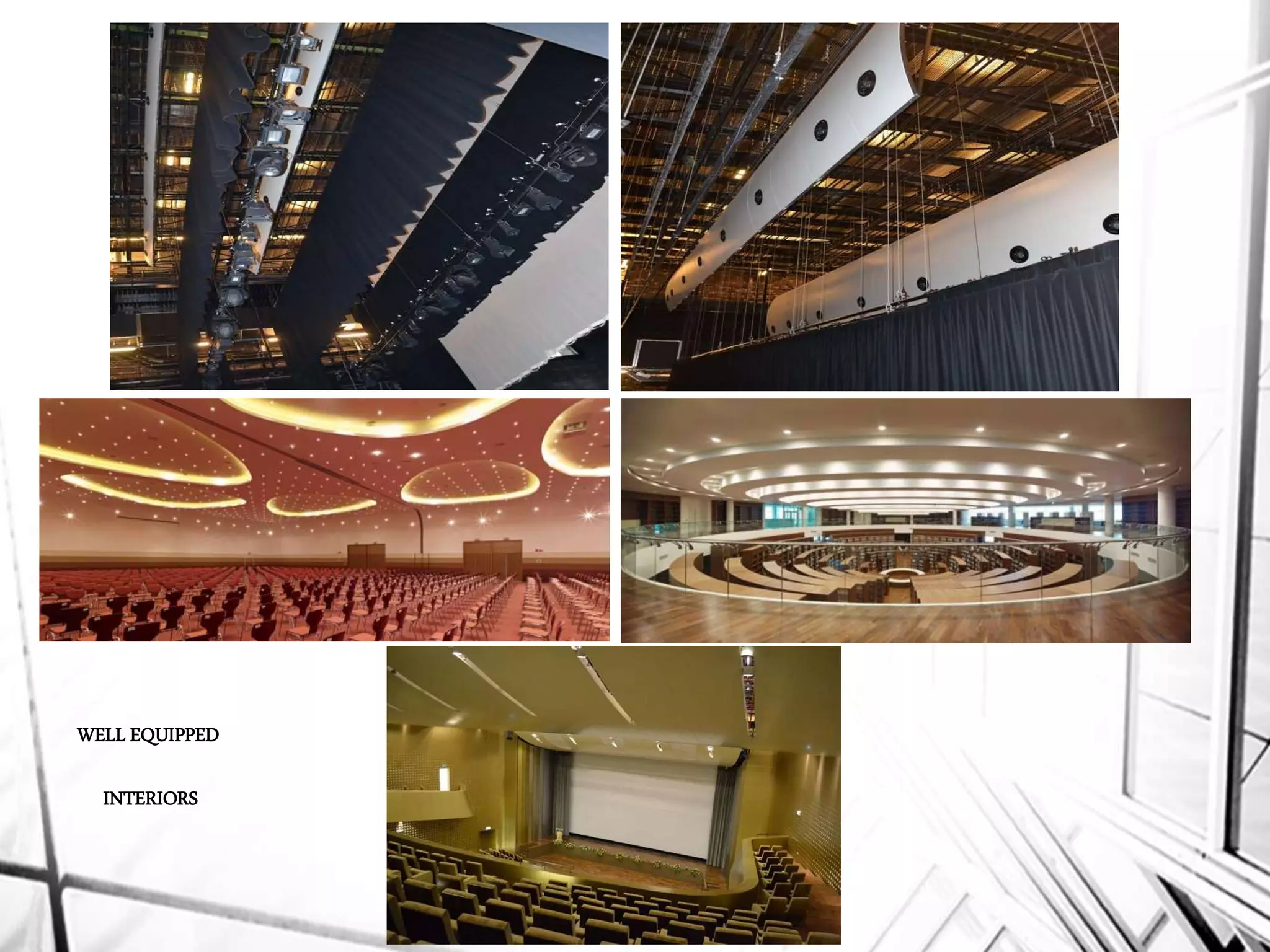

The Victor Menezes Convention Center (VMCC) hosts a well-
equipped auditorium, seminar rooms, lounges, etc that can hold
several parallel sessions and poster sessions.

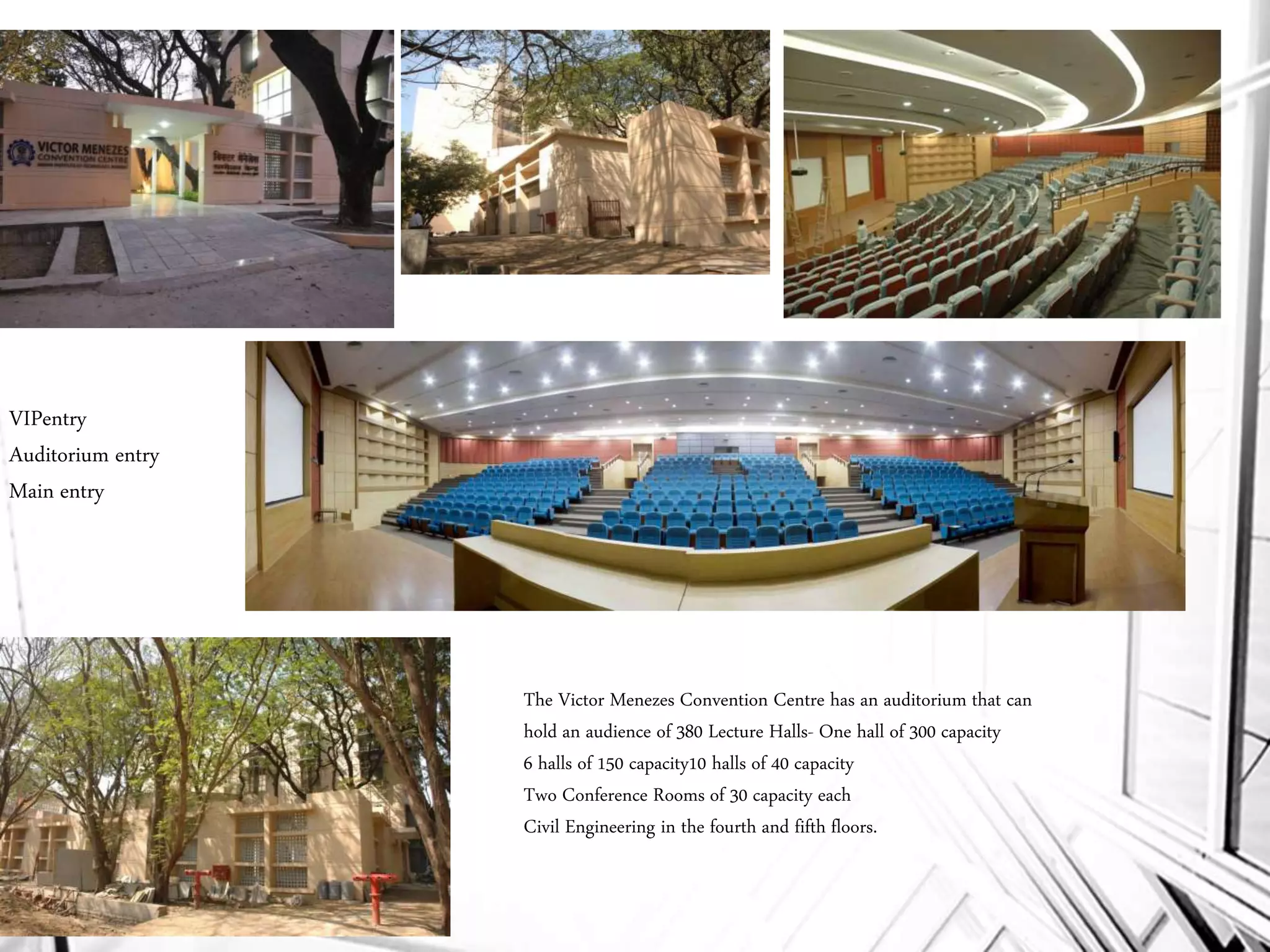

6. VIPentry
Auditorium entry
Main entry

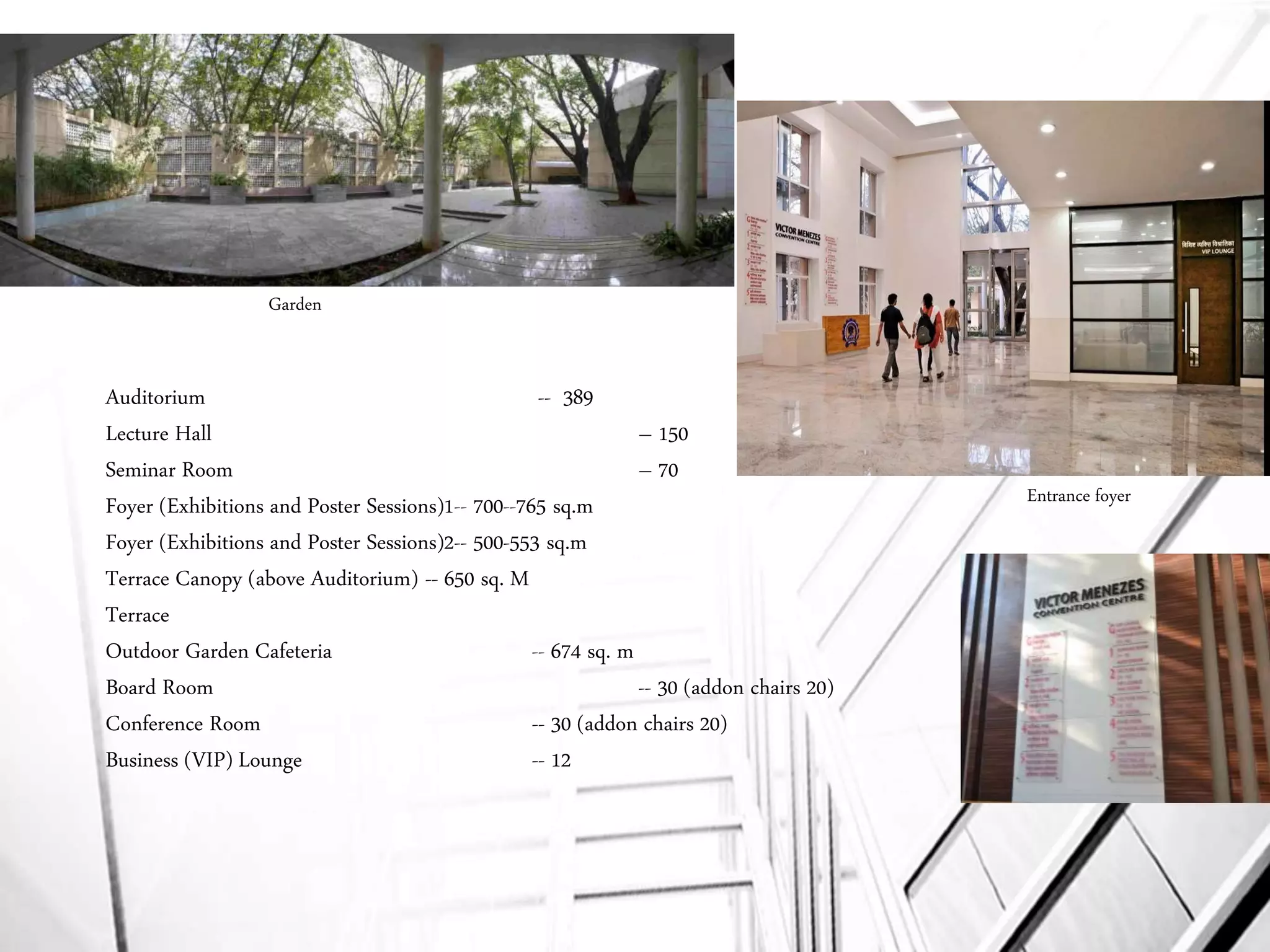

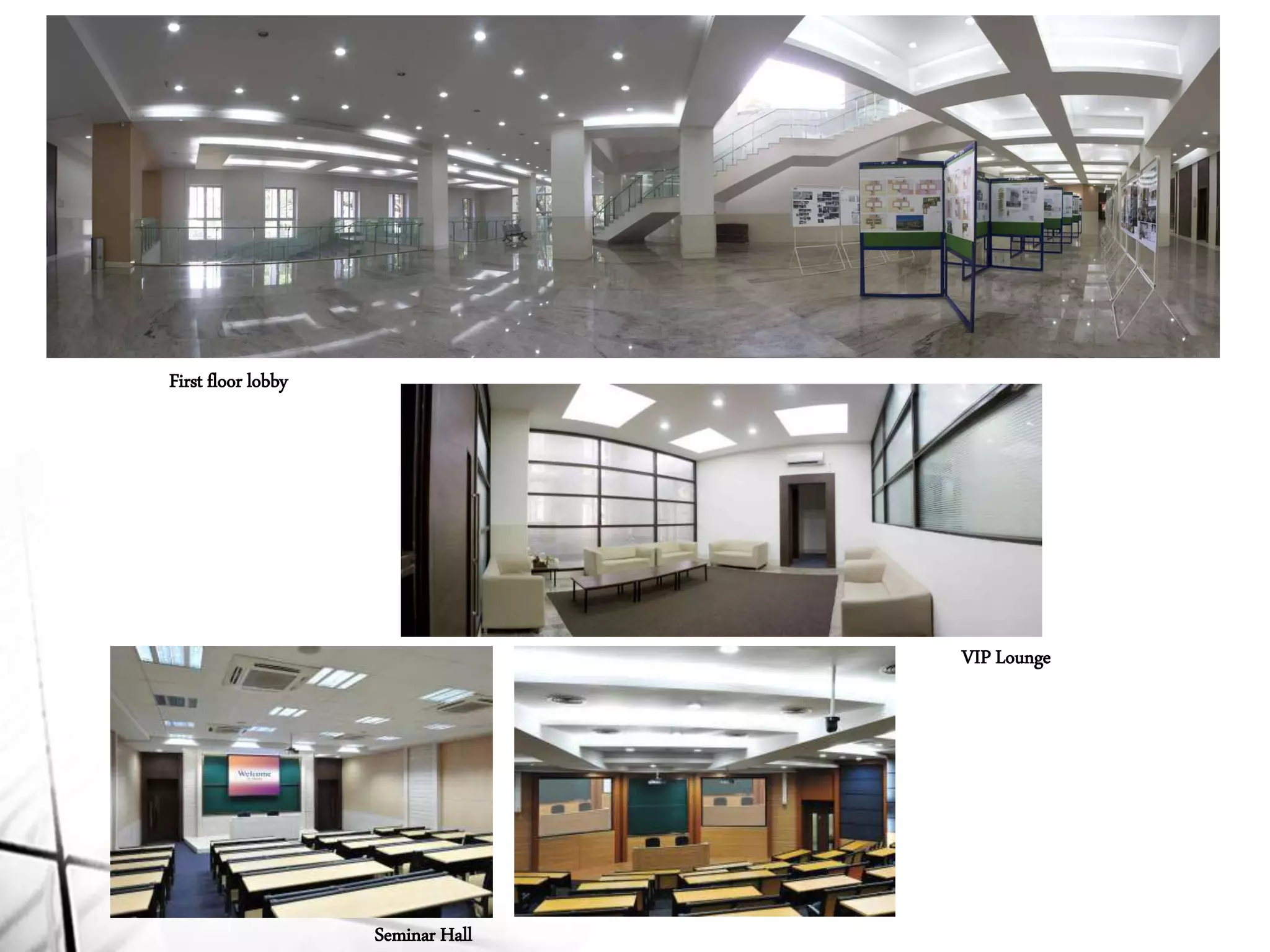

The Victor Menezes Convention Centre has an auditorium that can
hold an audience of 380 Lecture Halls- One hall of 300 capacity
6 halls of 150 capacity10 halls of 40 capacity
Two Conference Rooms of 30 capacity each
Civil Engineering in the fourth and fifth floors.

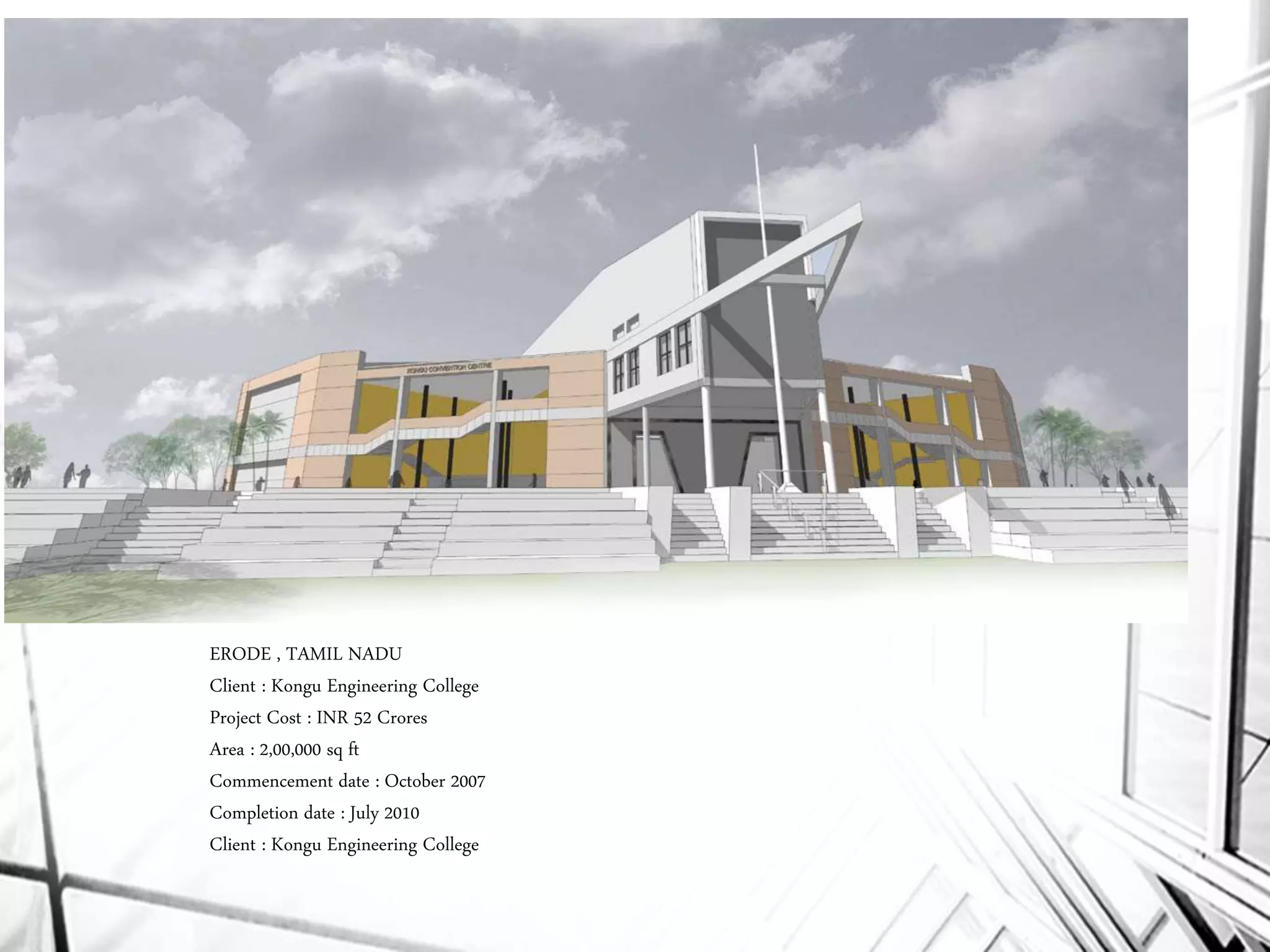

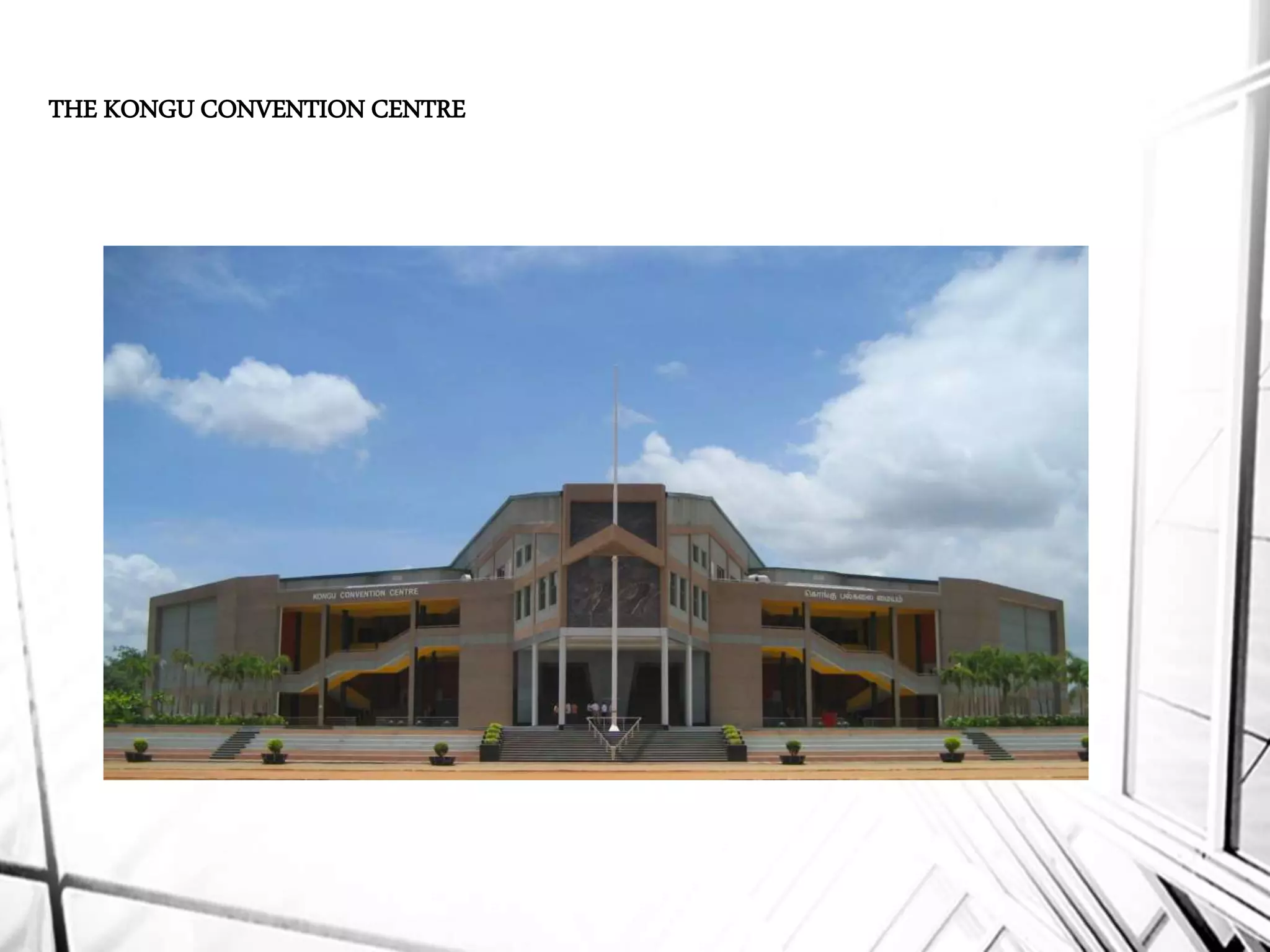

13. ERODE , TAMIL NADU
Client : Kongu Engineering College
Project Cost : INR 52 Crores
Area : 2,00,000 sq ft
Commencement date : October 2007
Completion date : July 2010
Client : Kongu Engineering College

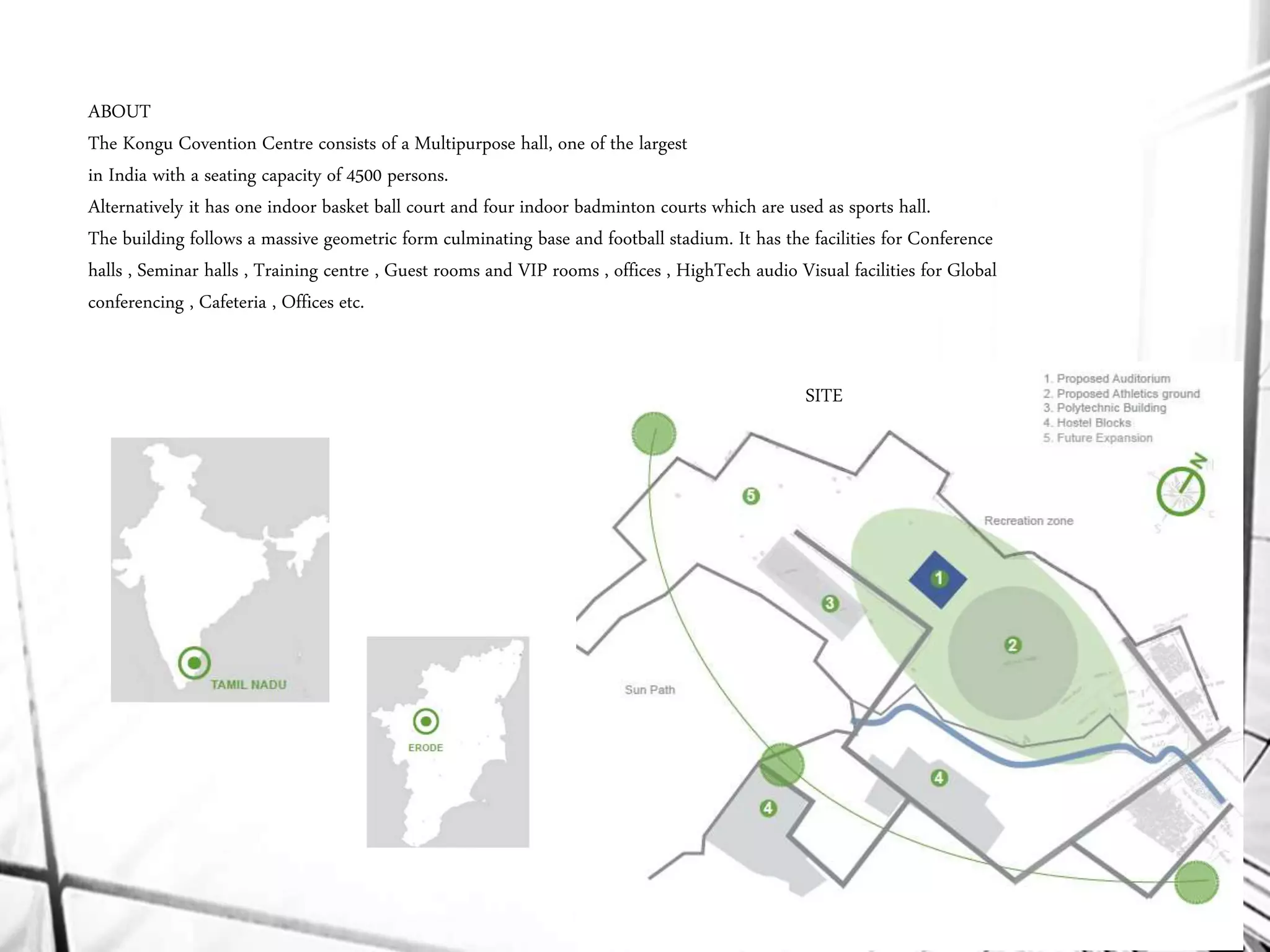

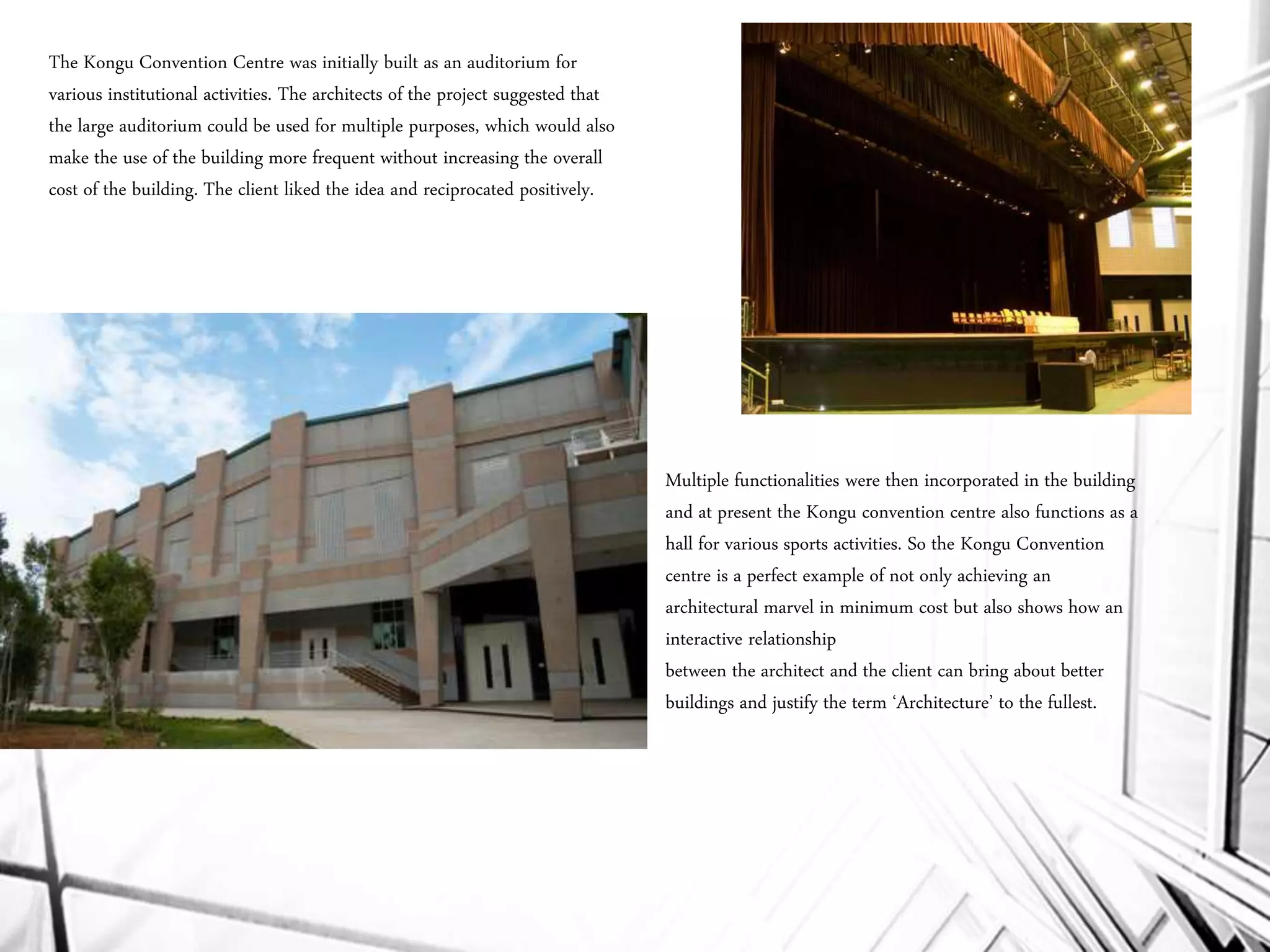

14. ABOUT

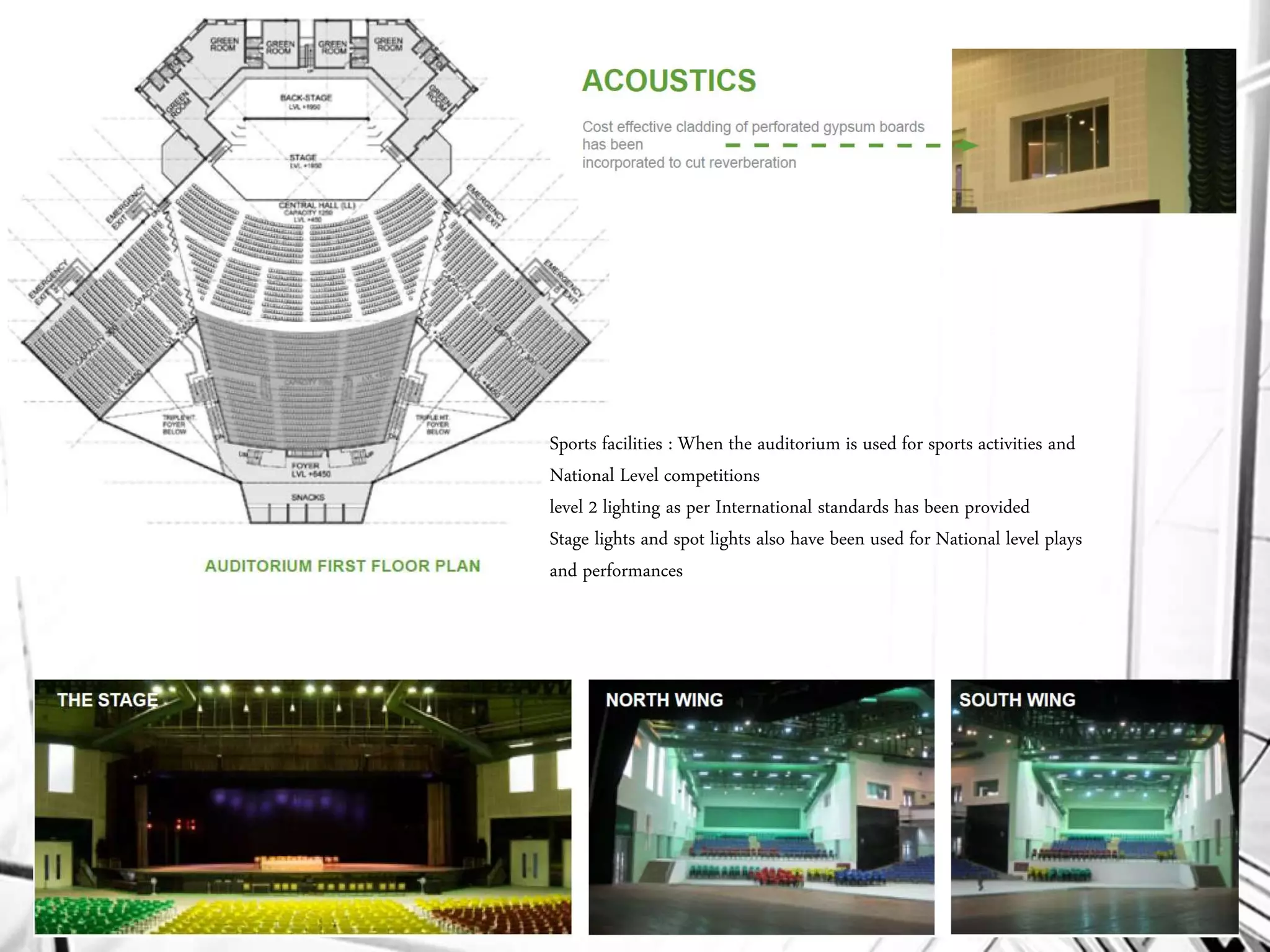

The Kongu Covention Centre consists of a Multipurpose hall, one of the largest
in India with a seating capacity of 4500 persons.

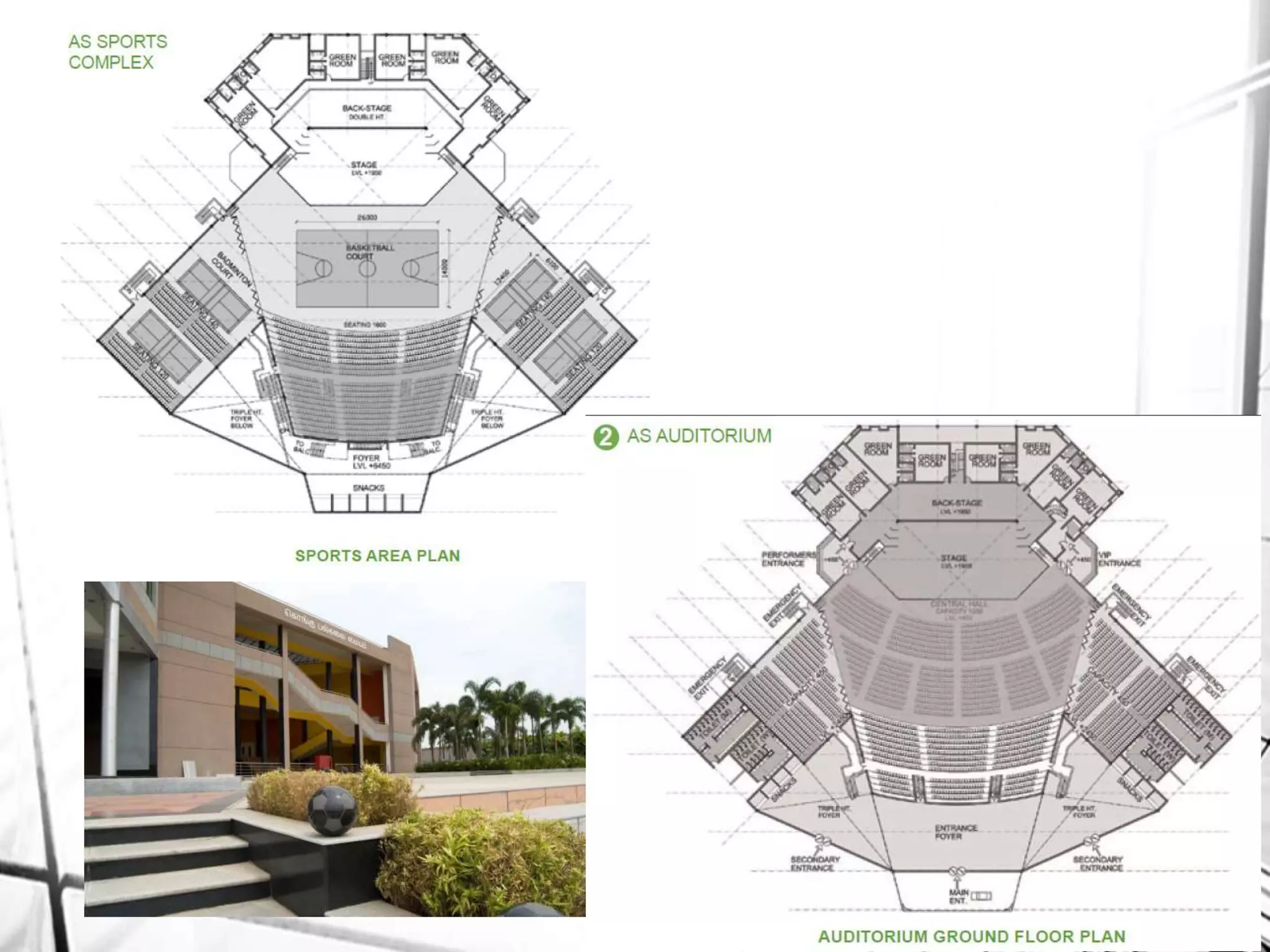

Alternatively it has one indoor basket ball court and four indoor badminton courts which are used as sports hall.
The building follows a massive geometric form culminating base and football stadium. It has the facilities for Conference
halls , Seminar halls , Training centre , Guest rooms and VIP rooms , offices , HighTech audio Visual facilities for Global
conferencing , Cafeteria , Offices etc.

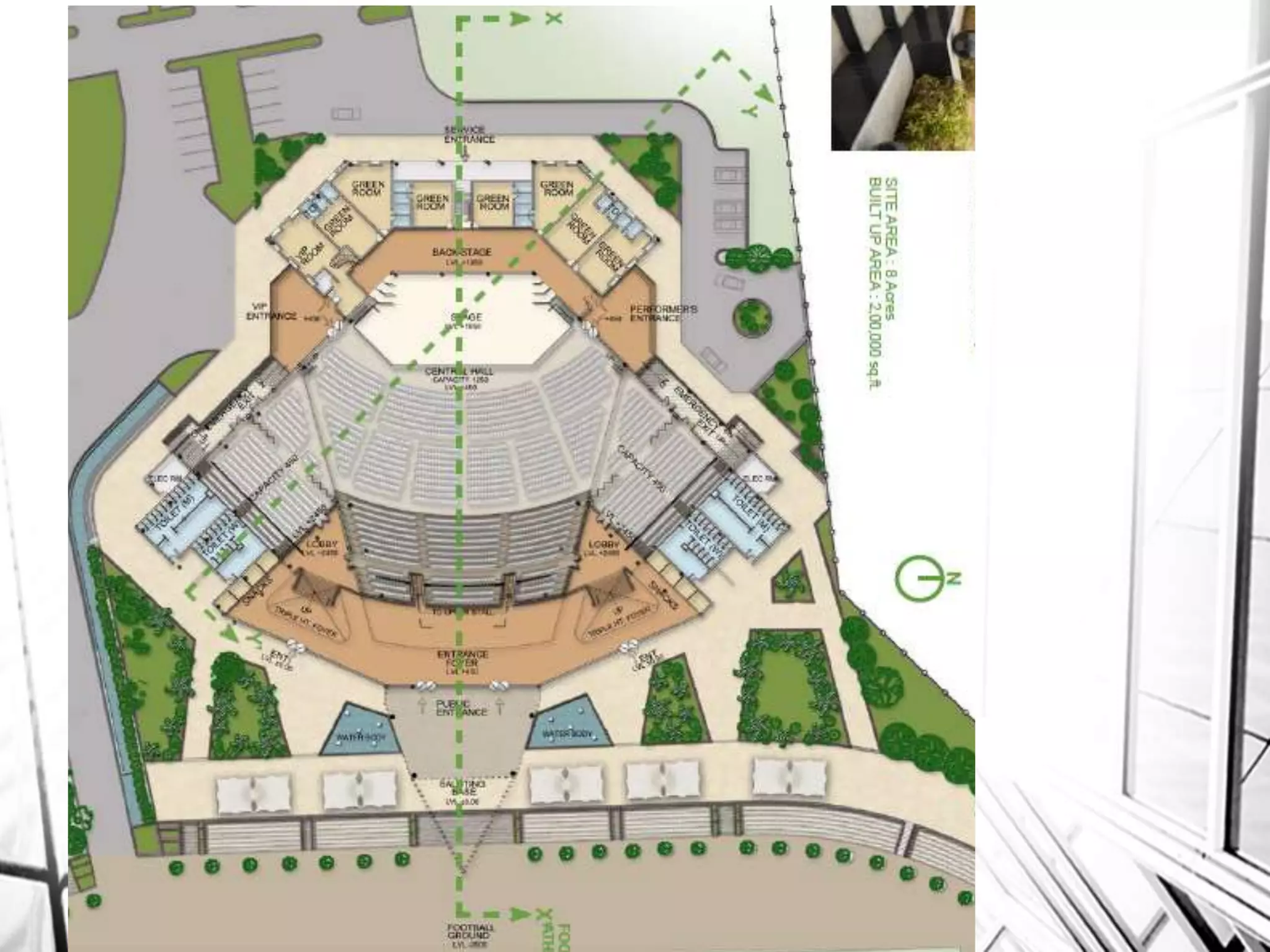

SITE

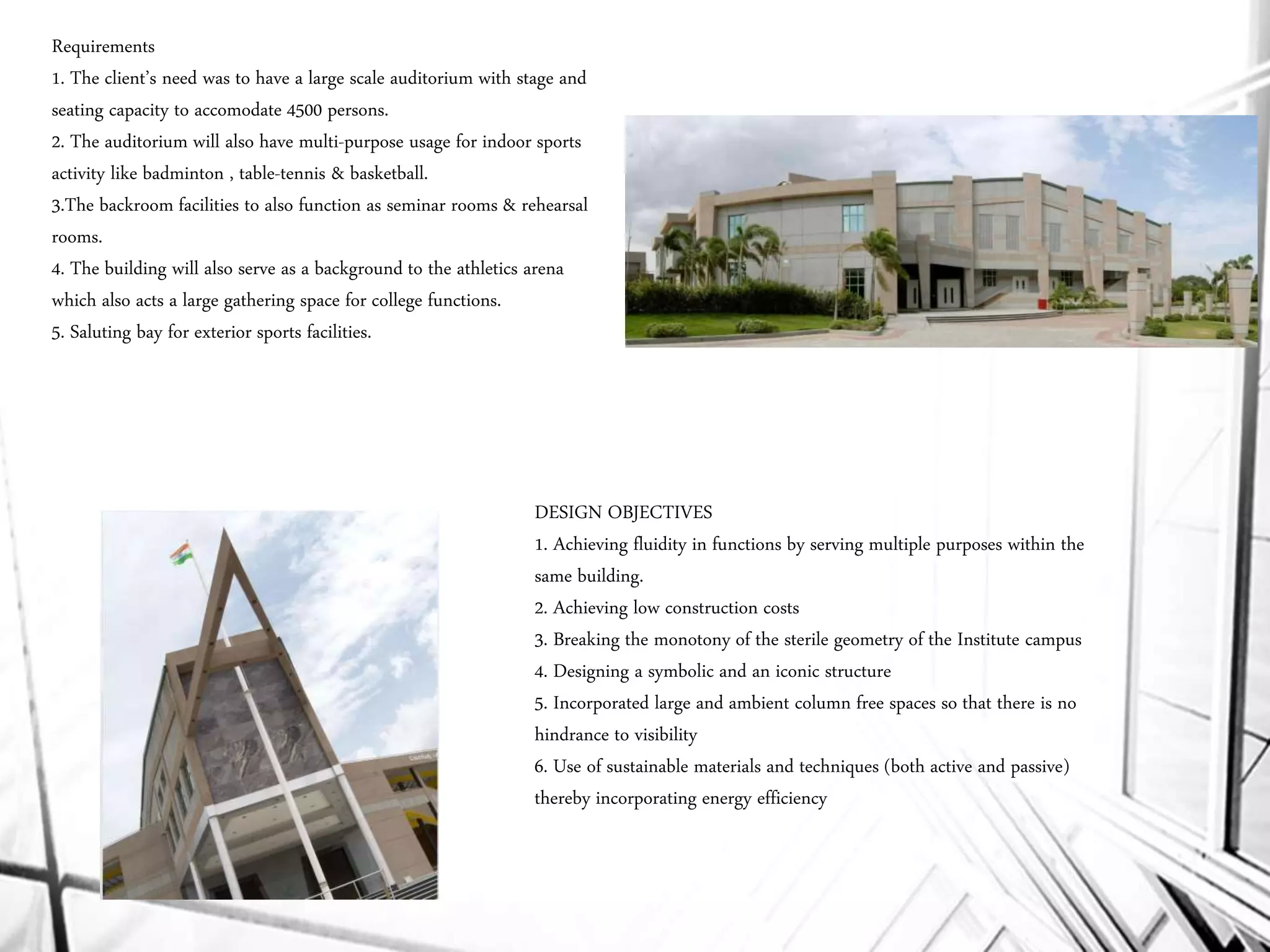

15. Requirements
1. The client’s need was to have a large scale auditorium with stage and
seating capacity to accomodate 4500 persons.
2. The auditorium will also have multi-purpose usage for indoor sports
activity like badminton , table-tennis & basketball.
3.The backroom facilities to also function as seminar rooms & rehearsal
rooms.
4. The building will also serve as a background to the athletics arena
which also acts a large gathering space for college functions.
5. Saluting bay for exterior sports facilities.
DESIGN OBJECTIVES

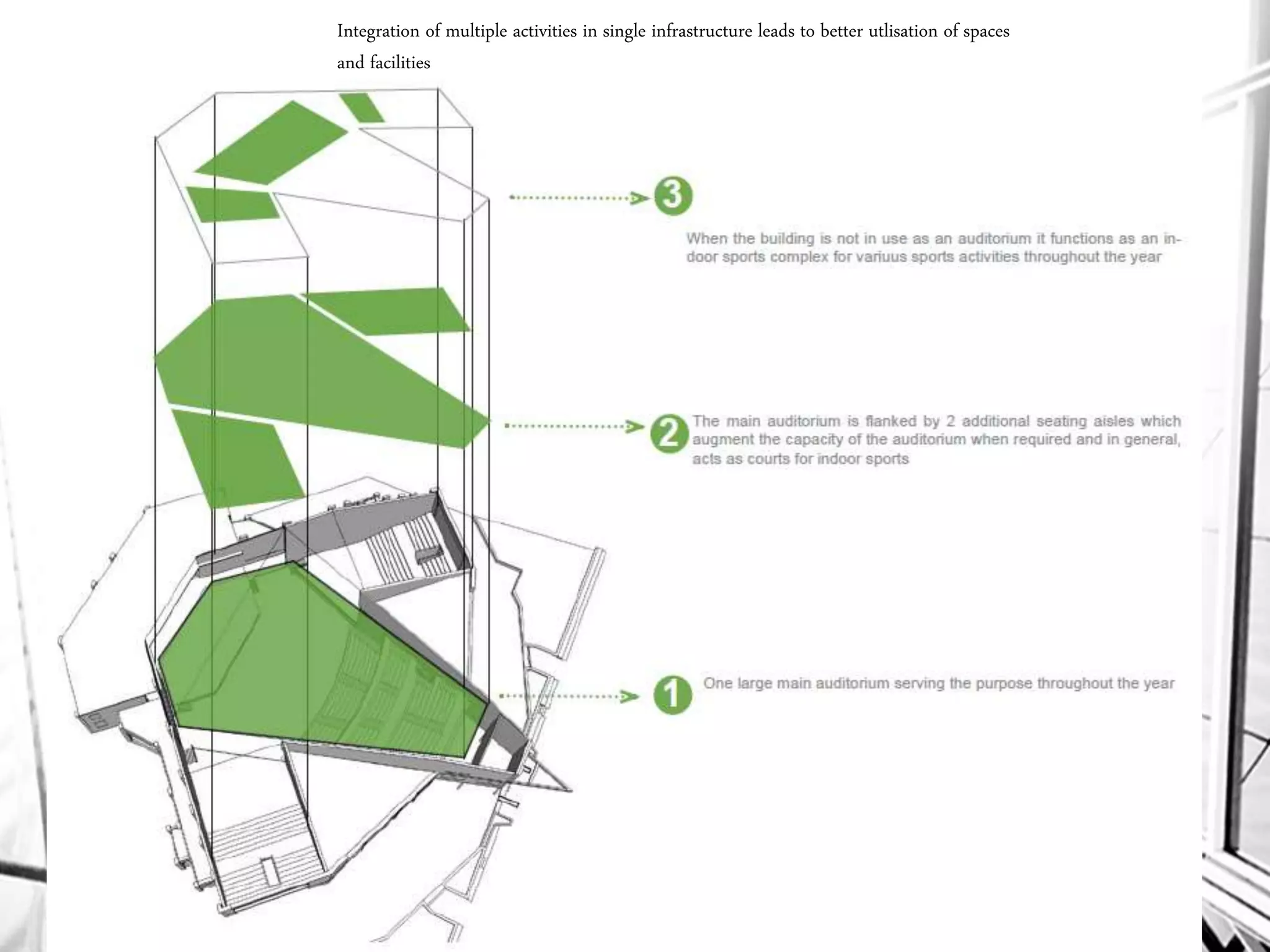

1. Achieving fluidity in functions by serving multiple purposes within the
same building.
2. Achieving low construction costs
3. Breaking the monotony of the sterile geometry of the Institute campus
4. Designing a symbolic and an iconic structure

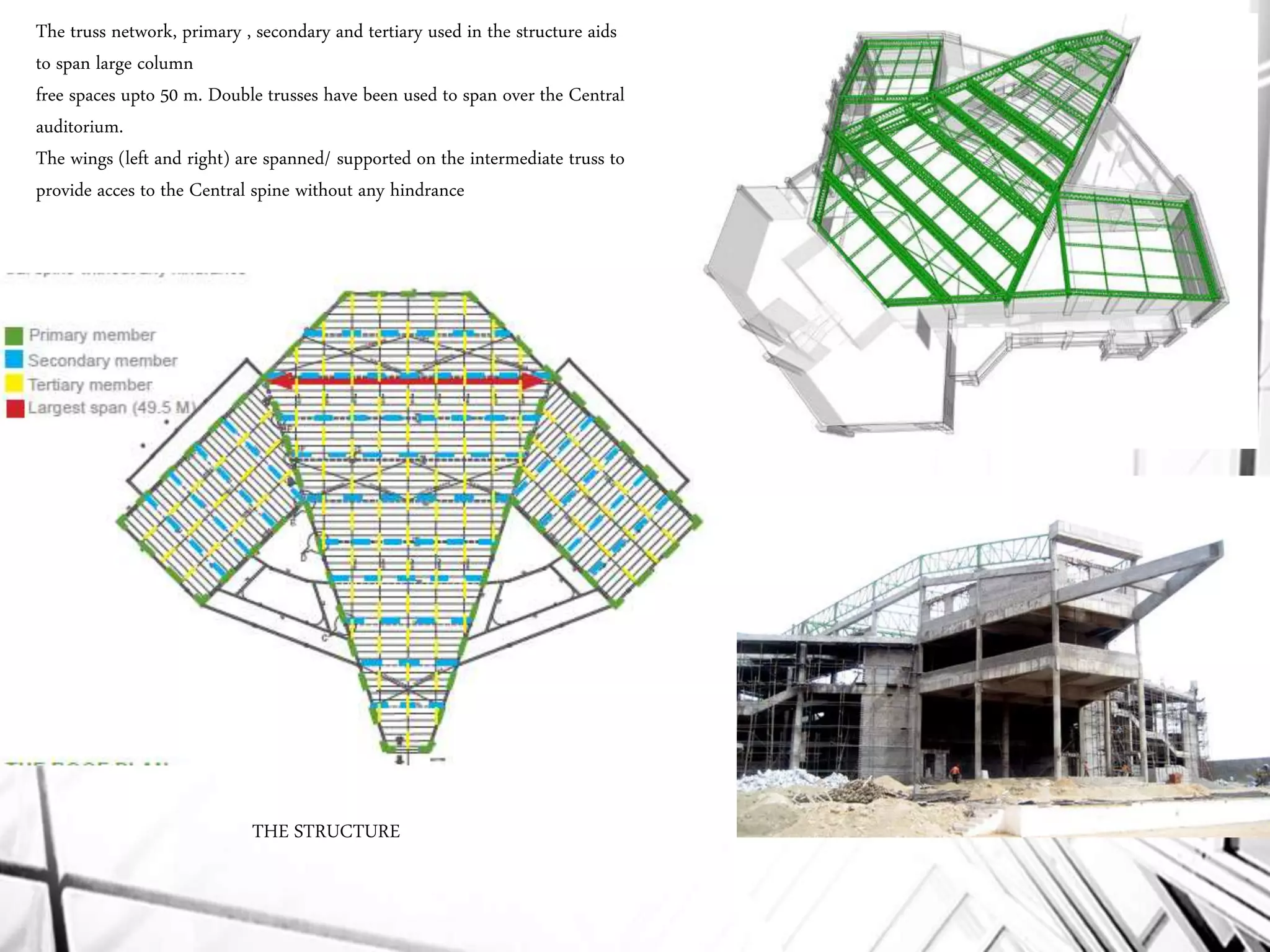

5. Incorporated large and ambient column free spaces so that there is no
hindrance to visibility

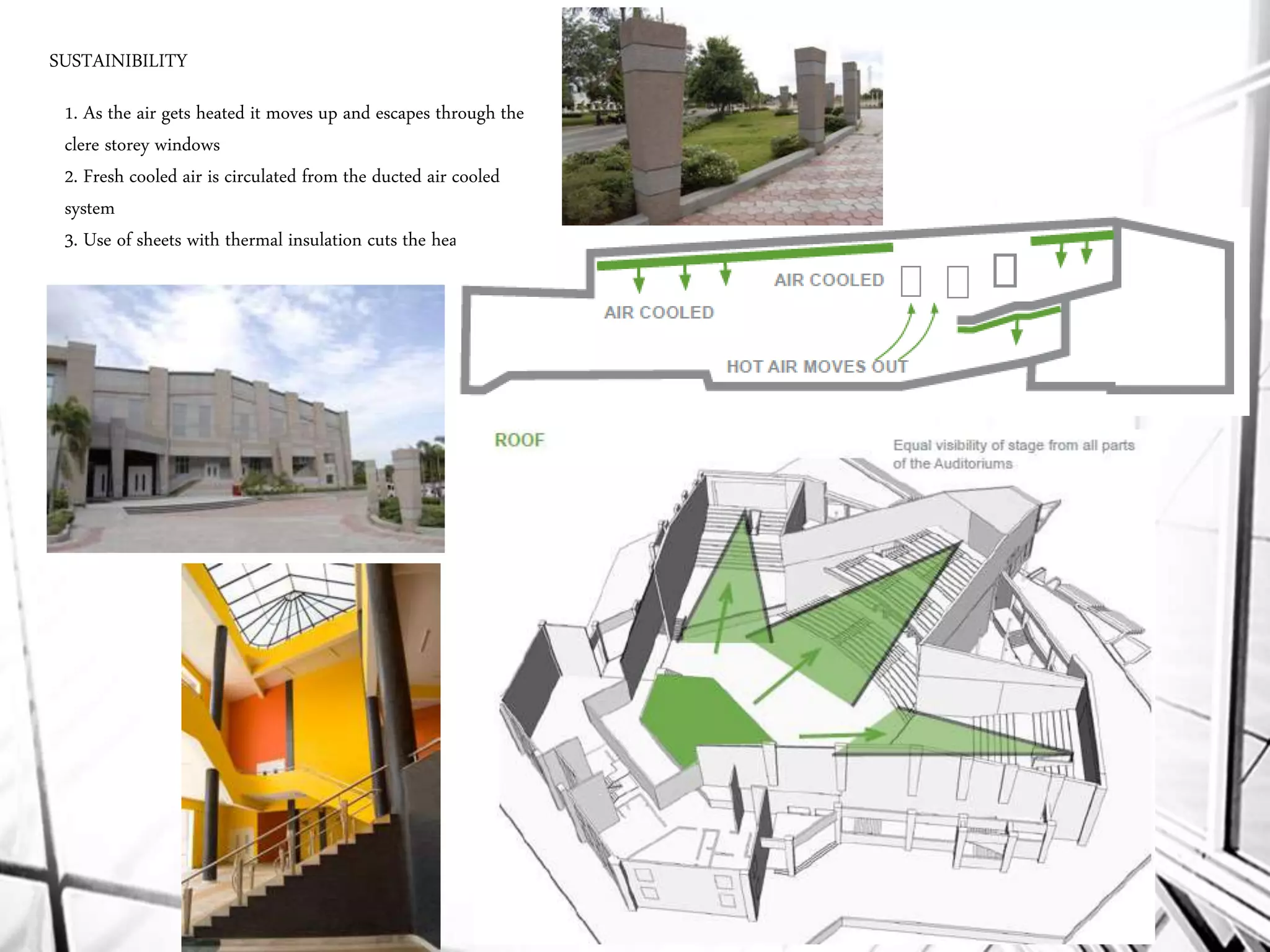

6. Use of sustainable materials and techniques (both active and passive)
thereby incorporating energy efficiency

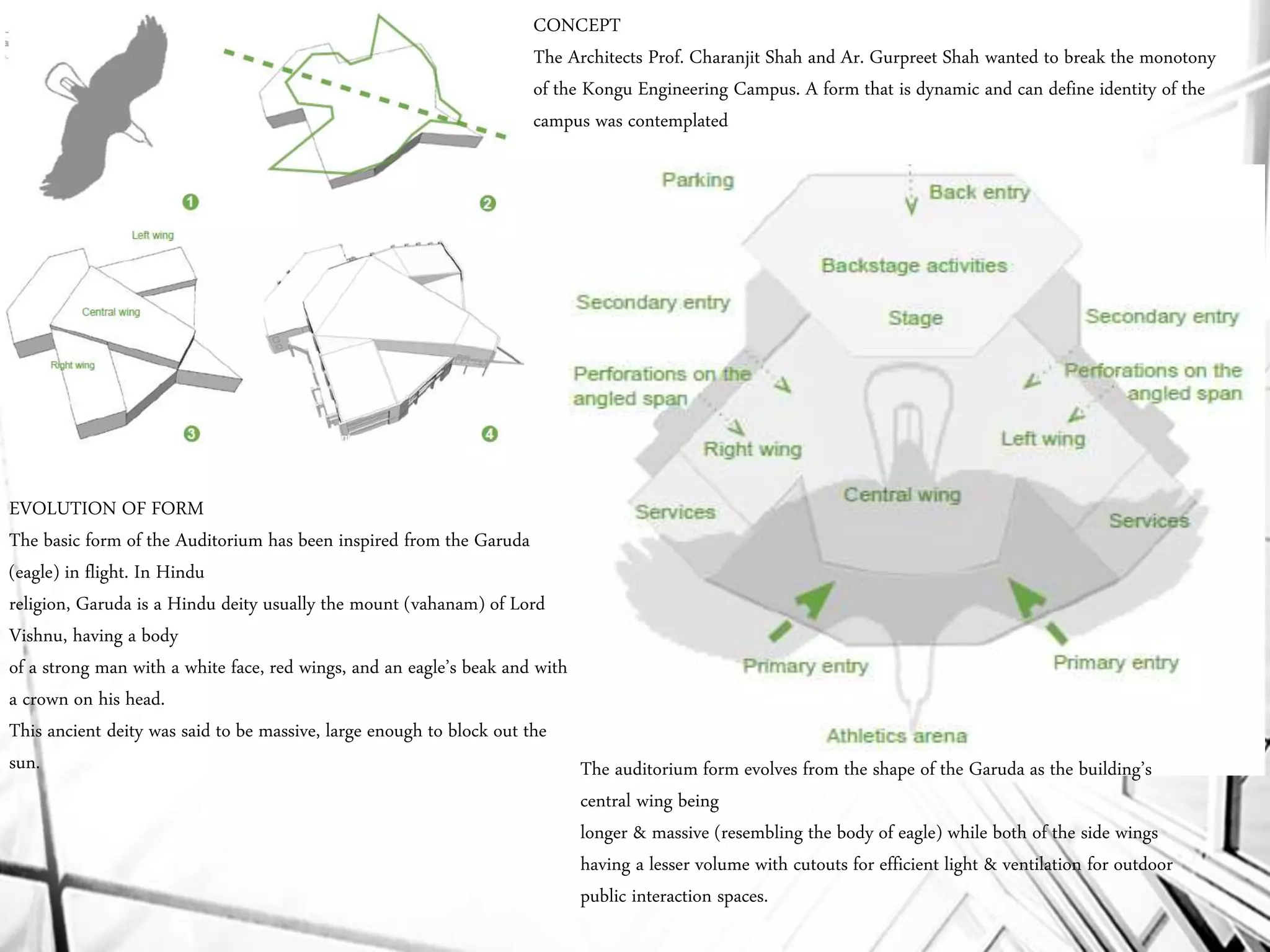

16. CONCEPT
The Architects Prof. Charanjit Shah and Ar. Gurpreet Shah wanted to break the monotony
of the Kongu Engineering Campus. A form that is dynamic and can define identity of the
campus was contemplated

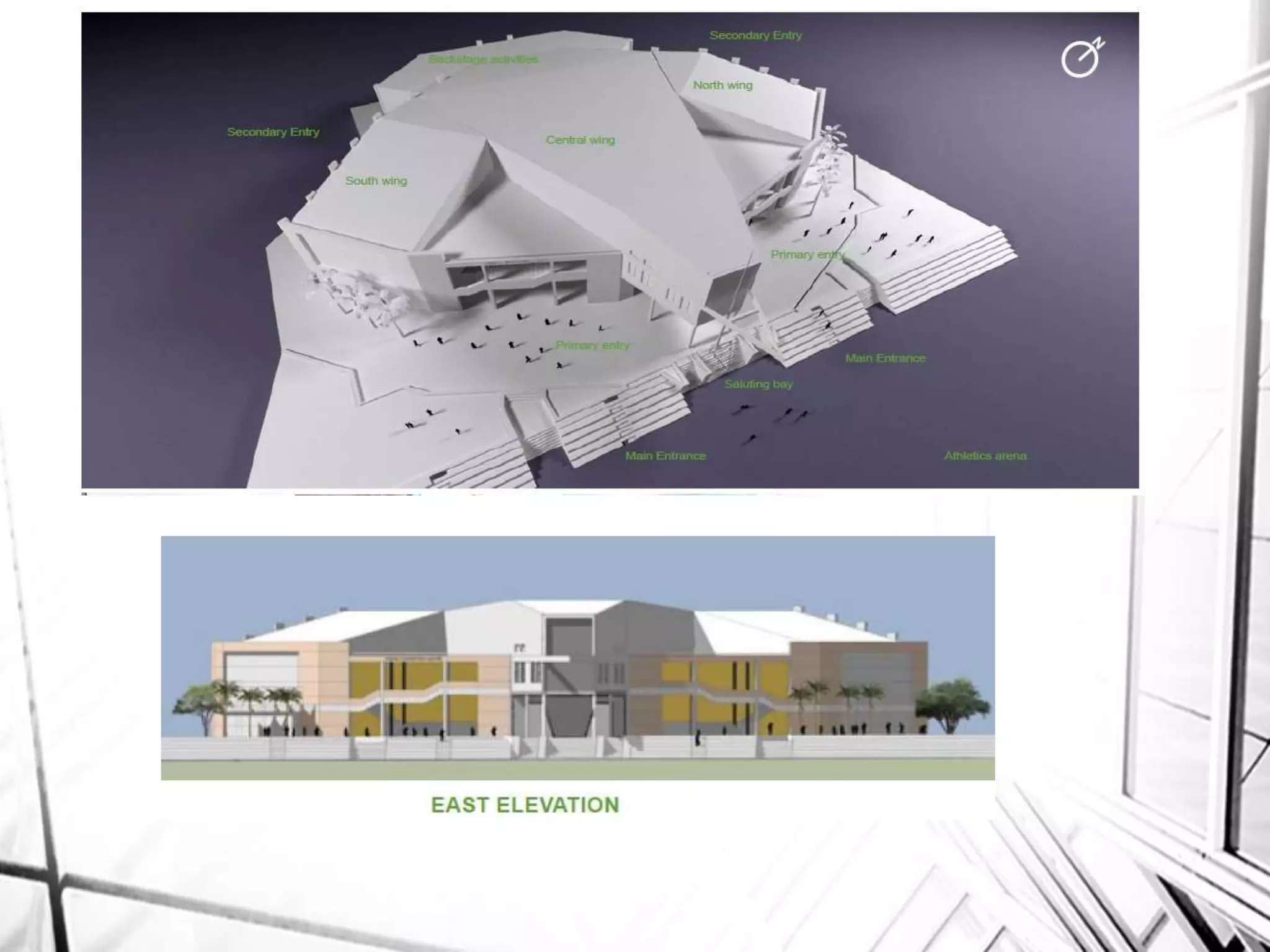

EVOLUTION OF FORM
The basic form of the Auditorium has been inspired from the Garuda
(eagle) in flight. In Hindu
religion, Garuda is a Hindu deity usually the mount (vahanam) of Lord
Vishnu, having a body
of a strong man with a white face, red wings, and an eagle’s beak and with
a crown on his head.
This ancient deity was said to be massive, large enough to block out the
sun. The auditorium form evolves from the shape of the Garuda as the building’s
central wing being
longer & massive (resembling the body of eagle) while both of the side wings
having a lesser volume with cutouts for efficient light & ventilation for outdoor
public interaction spaces.
17. Integration of multiple activities in single infrastructure leads to better utlisation of spaces
and facilities
18.
19.
20.

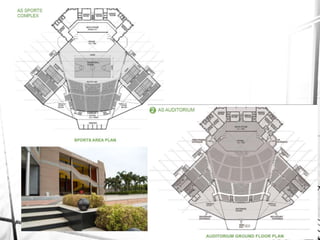

21. Sports facilities : When the auditorium is used for sports activities and
National Level competitions
level 2 lighting as per International standards has been provided
Stage lights and spot lights also have been used for National level plays
and performances
22.

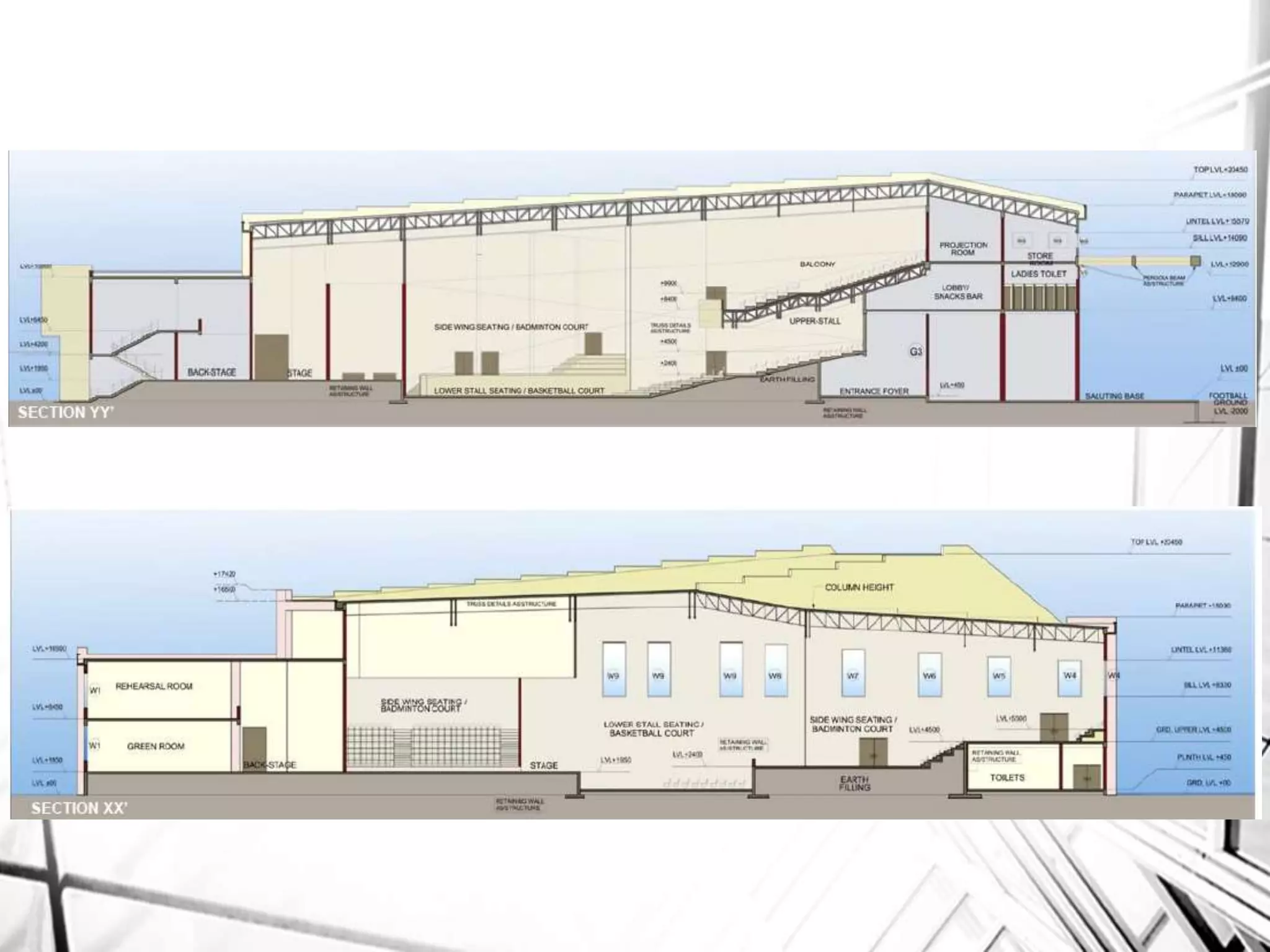

23. The truss network, primary , secondary and tertiary used in the structure aids
to span large column
free spaces upto 50 m. Double trusses have been used to span over the Central
auditorium.
The wings (left and right) are spanned/ supported on the intermediate truss to
provide acces to the Central spine without any hindrance
THE STRUCTURE
24. SUSTAINIBILITY
1. As the air gets heated it moves up and escapes through the
clere storey windows
2. Fresh cooled air is circulated from the ducted air cooled
system
3. Use of sheets with thermal insulation cuts the heat gain

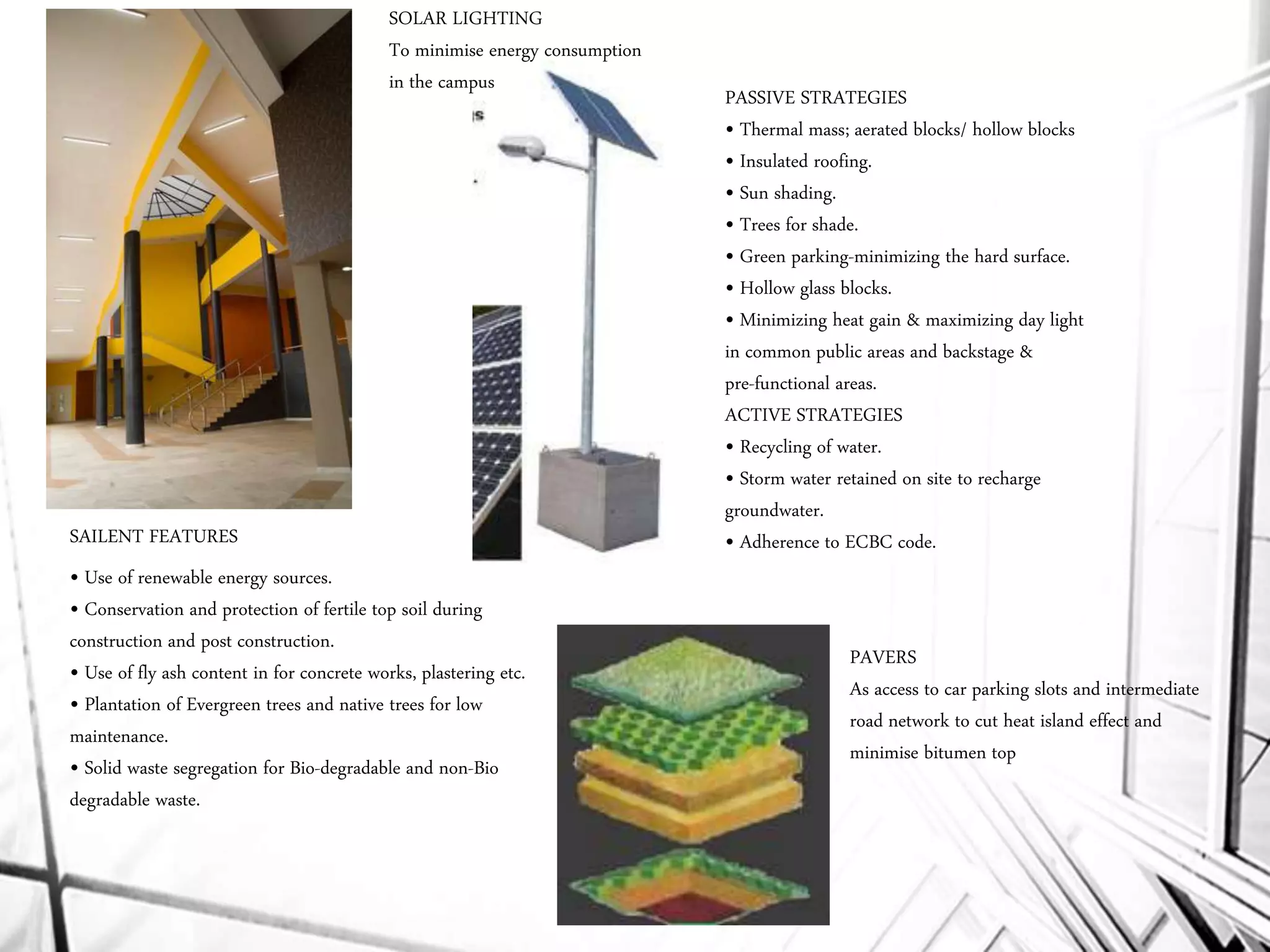

25. • Use of renewable energy sources.
• Conservation and protection of fertile top soil during
construction and post construction.
• Use of fly ash content in for concrete works, plastering etc.
• Plantation of Evergreen trees and native trees for low
maintenance.
• Solid waste segregation for Bio-degradable and non-Bio
degradable waste.
PASSIVE STRATEGIES
• Thermal mass; aerated blocks/ hollow blocks
• Insulated roofing.
• Sun shading.
• Trees for shade.
• Green parking-minimizing the hard surface.
• Hollow glass blocks.
• Minimizing heat gain & maximizing day light
in common public areas and backstage &
pre-functional areas.
ACTIVE STRATEGIES
• Recycling of water.
• Storm water retained on site to recharge
groundwater.
• Adherence to ECBC code.SAILENT FEATURES
SOLAR LIGHTING
To minimise energy consumption
in the campus
PAVERS
As access to car parking slots and intermediate
road network to cut heat island effect and
minimise bitumen top
26. The Kongu Convention Centre was initially built as an auditorium for
various institutional activities. The architects of the project suggested that
the large auditorium could be used for multiple purposes, which would also
make the use of the building more frequent without increasing the overall
cost of the building. The client liked the idea and reciprocated positively.
Multiple functionalities were then incorporated in the building
and at present the Kongu convention centre also functions as a
hall for various sports activities. So the Kongu Convention
centre is a perfect example of not only achieving an
architectural marvel in minimum cost but also shows how an
interactive relationship
between the architect and the client can bring about better
buildings and justify the term ‘Architecture’ to the fullest.

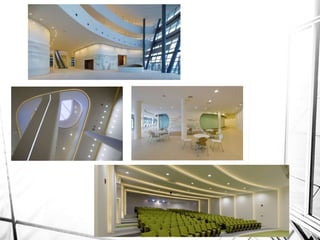

27. Hamburg architects BRT’s
The design intent for the shape of the building ensemble and the sculptural roof was the shape and lightness of
the chador, a semi-circular cloth worn by Muslim women as a mantle that exposes only the face or parts of it.

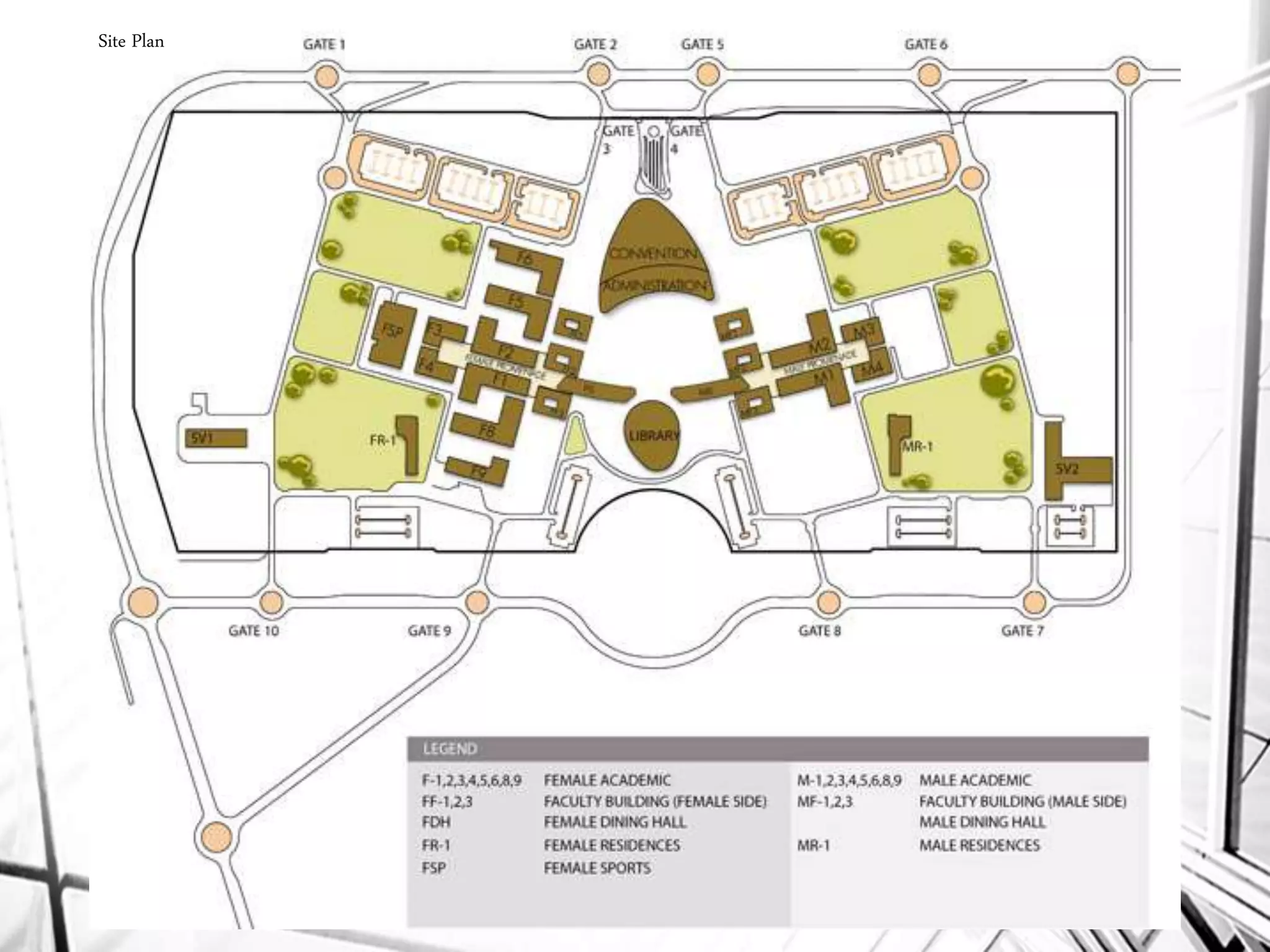

This Project occupies approximately 75 ha, with
a total built surface about 200.000 m2.

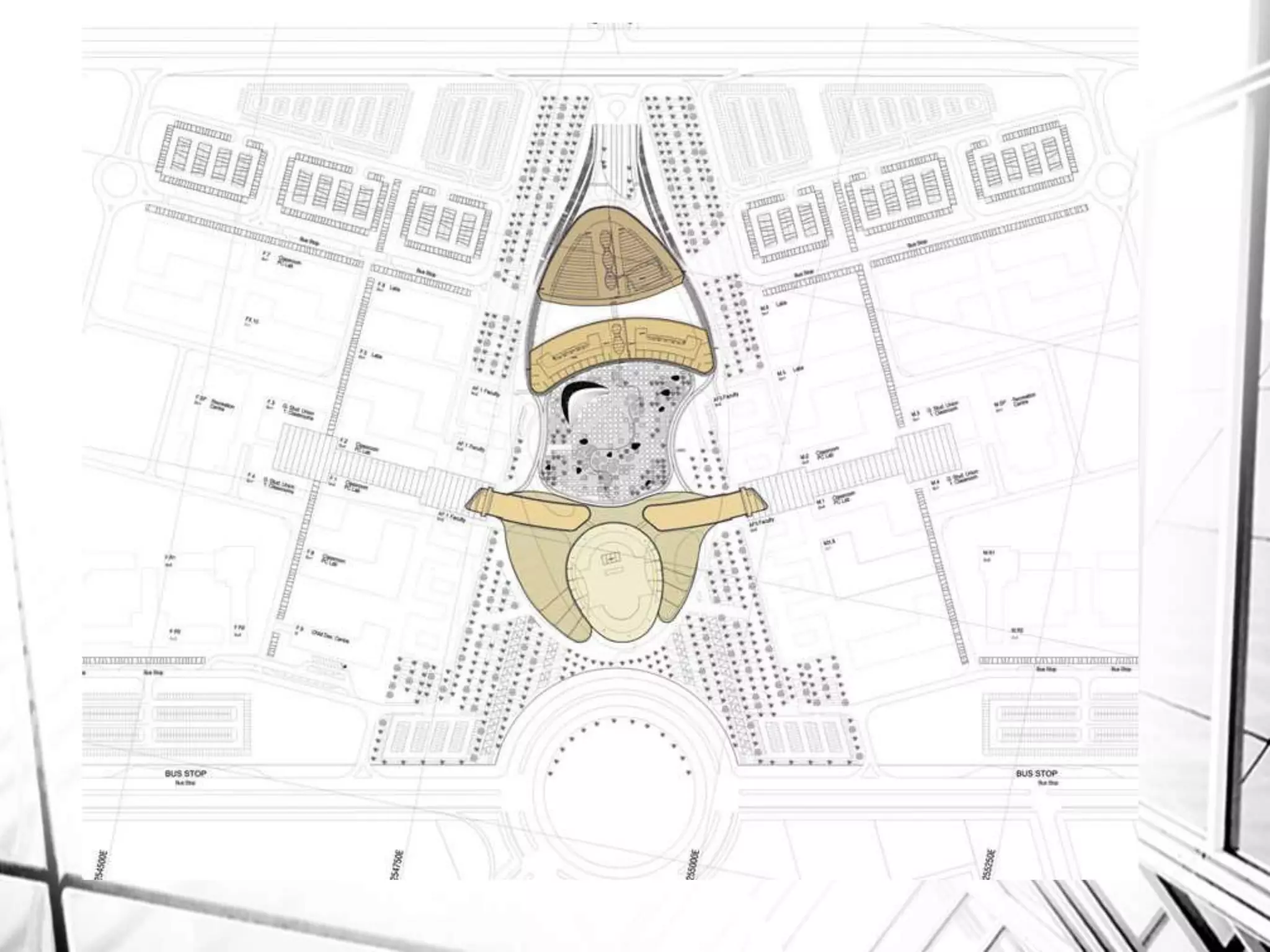

Zayed University, Abu Dhabi
Design Objectives

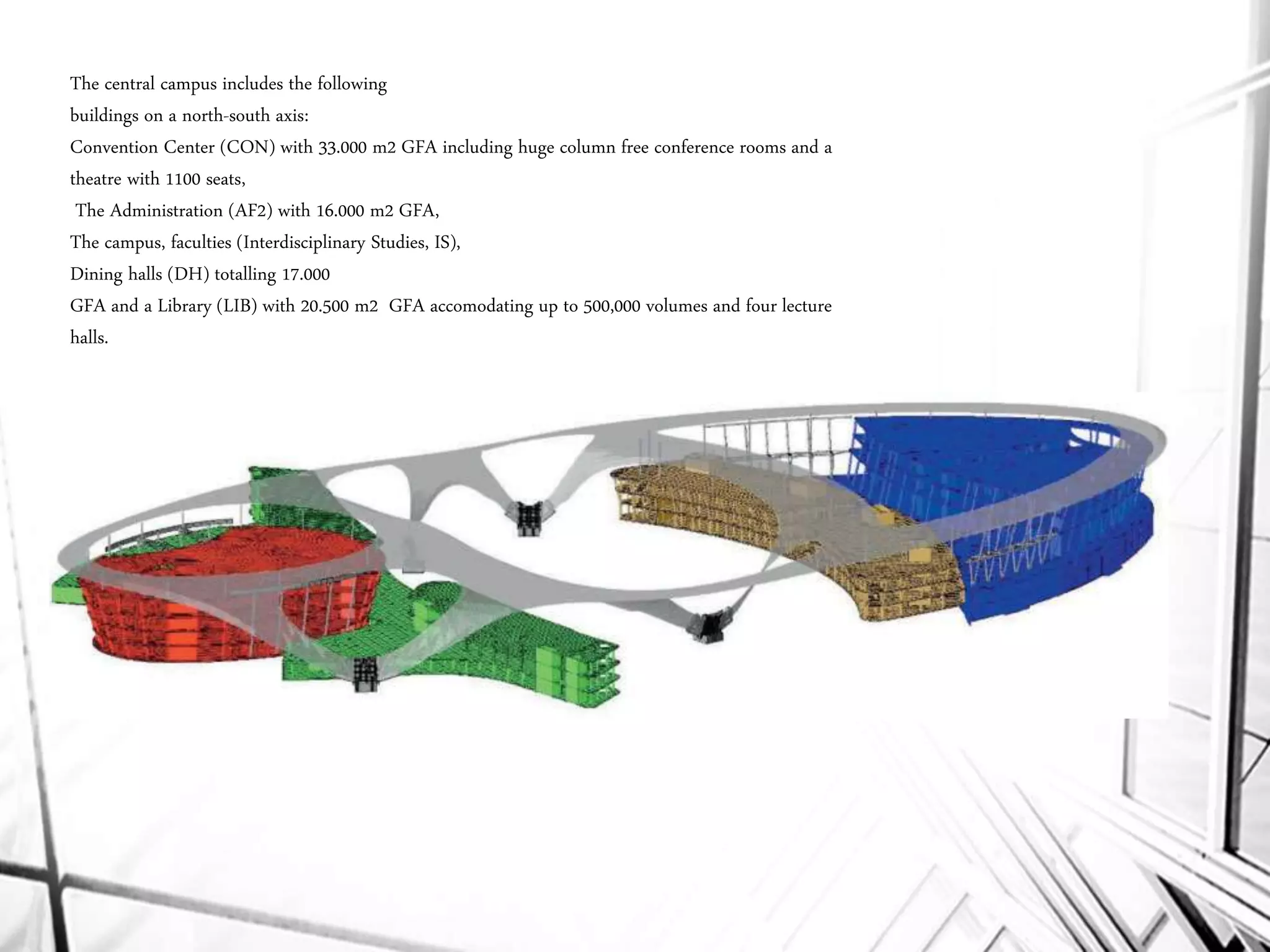

29. The central campus includes the following
buildings on a north-south axis:
Convention Center (CON) with 33.000 m2 GFA including huge column free conference rooms and a
theatre with 1100 seats,
The Administration (AF2) with 16.000 m2 GFA,
The campus, faculties (Interdisciplinary Studies, IS),
Dining halls (DH) totalling 17.000
GFA and a Library (LIB) with 20.500 m2 GFA accomodating up to 500,000 volumes and four lecture
halls.

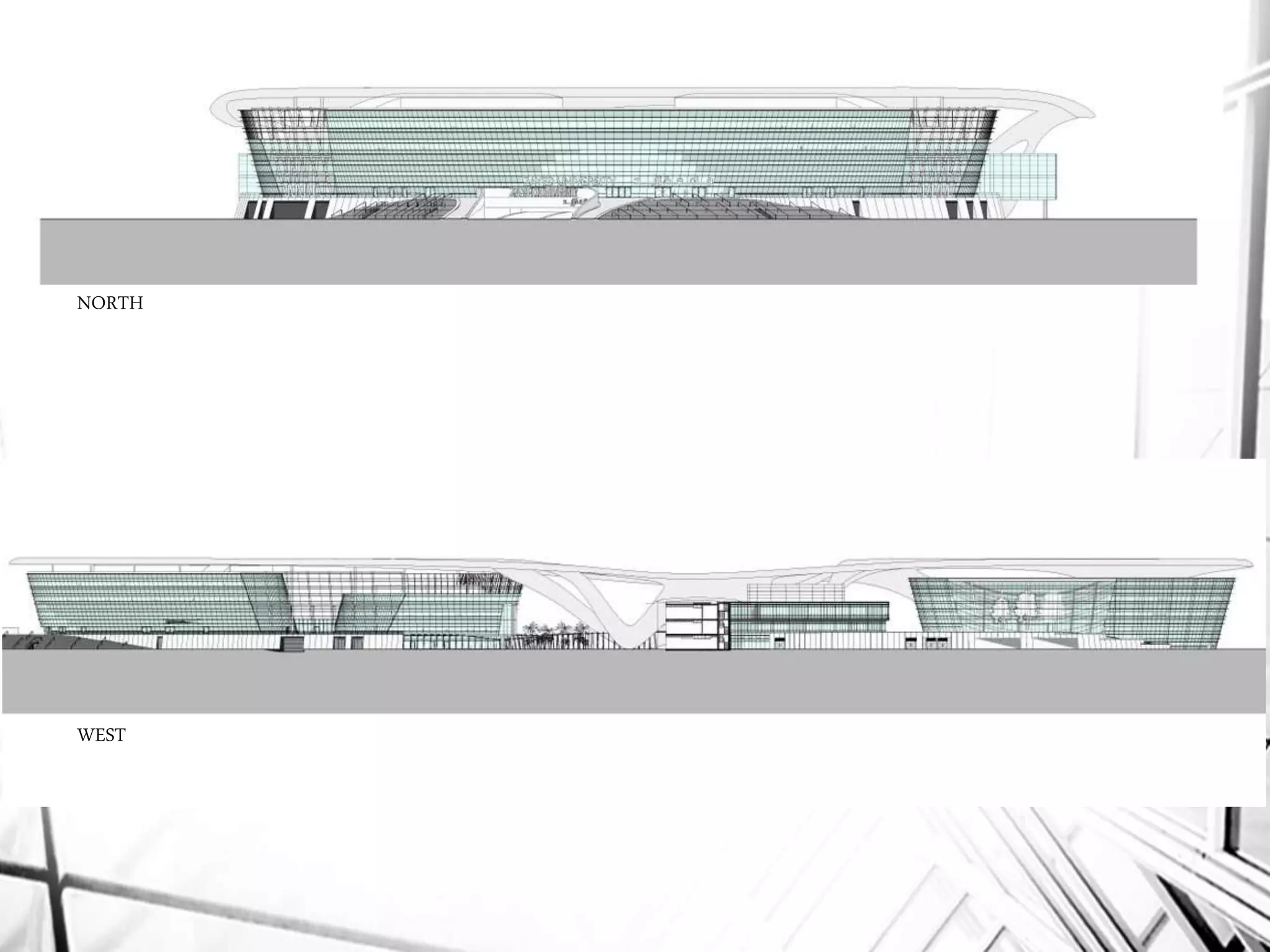

36. The roughly 25,000 aluminium panels have typical dimensions of ca. 1500 mm × 1500 mm by 3 mm thickness and are
mounted on their own substructure at the upper side ceiling and the soffit. This left a structural height of constantly only 1.50
m.

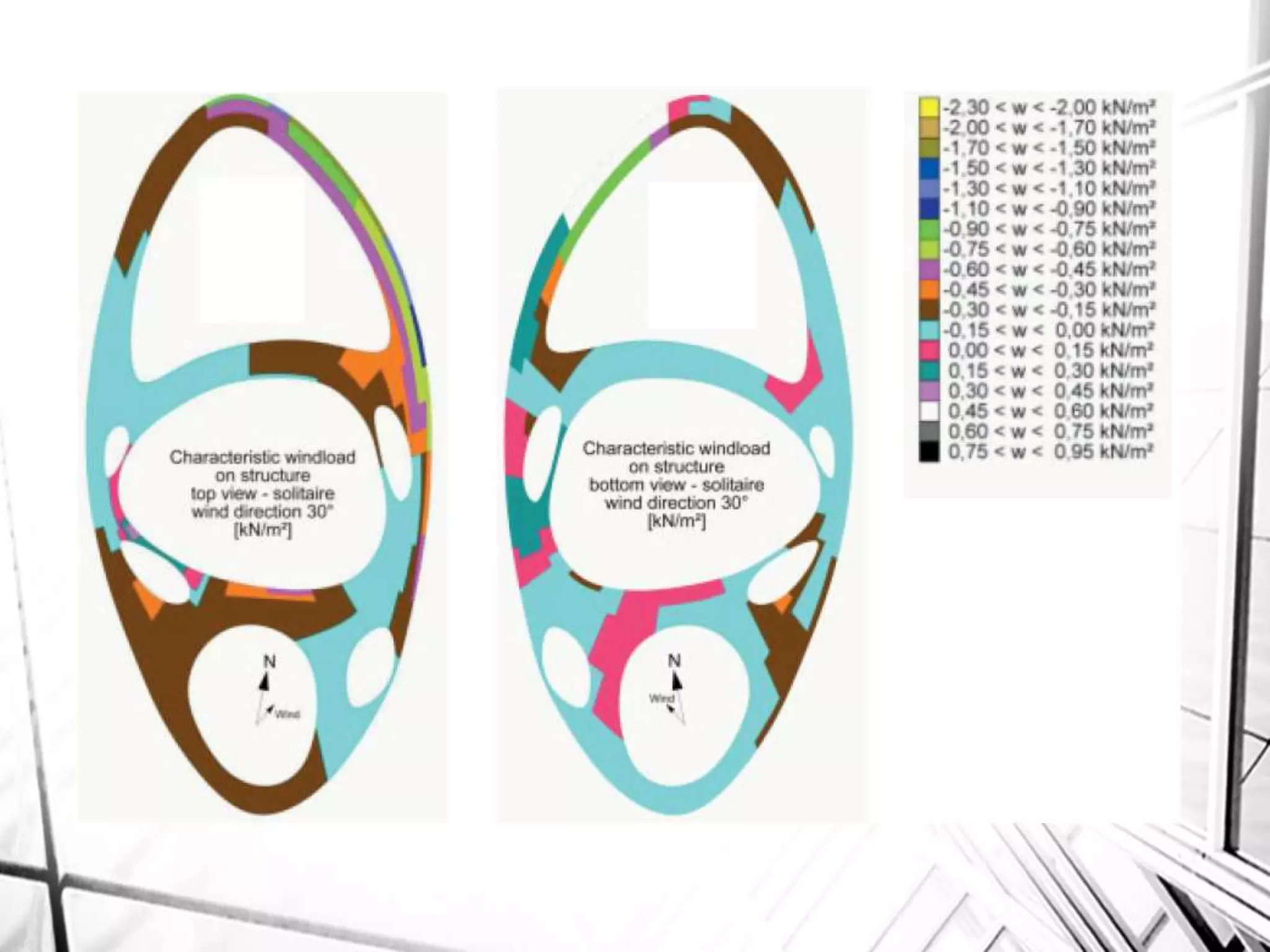

37.
38.

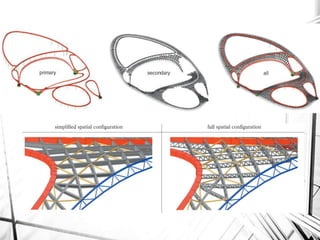

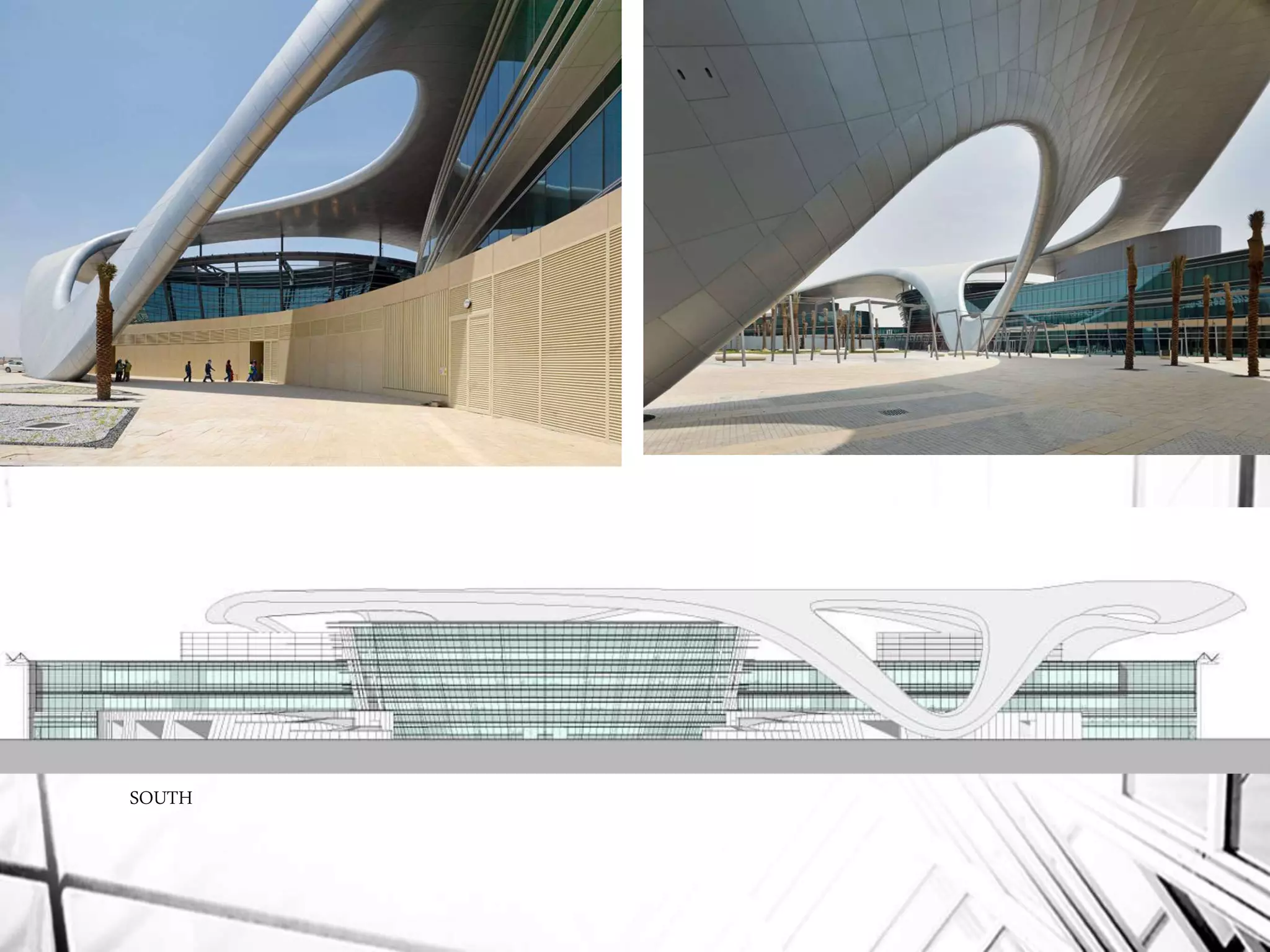

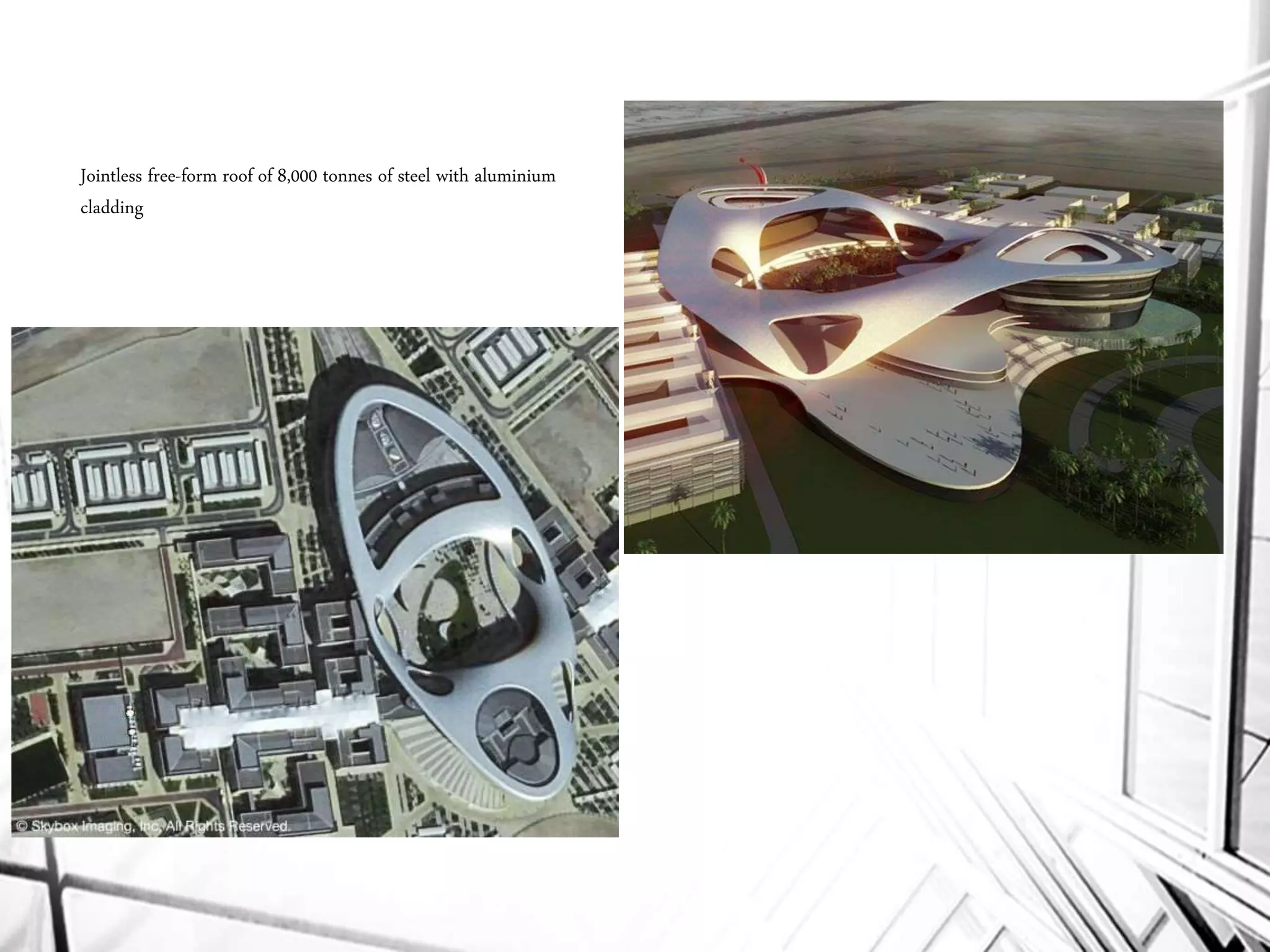

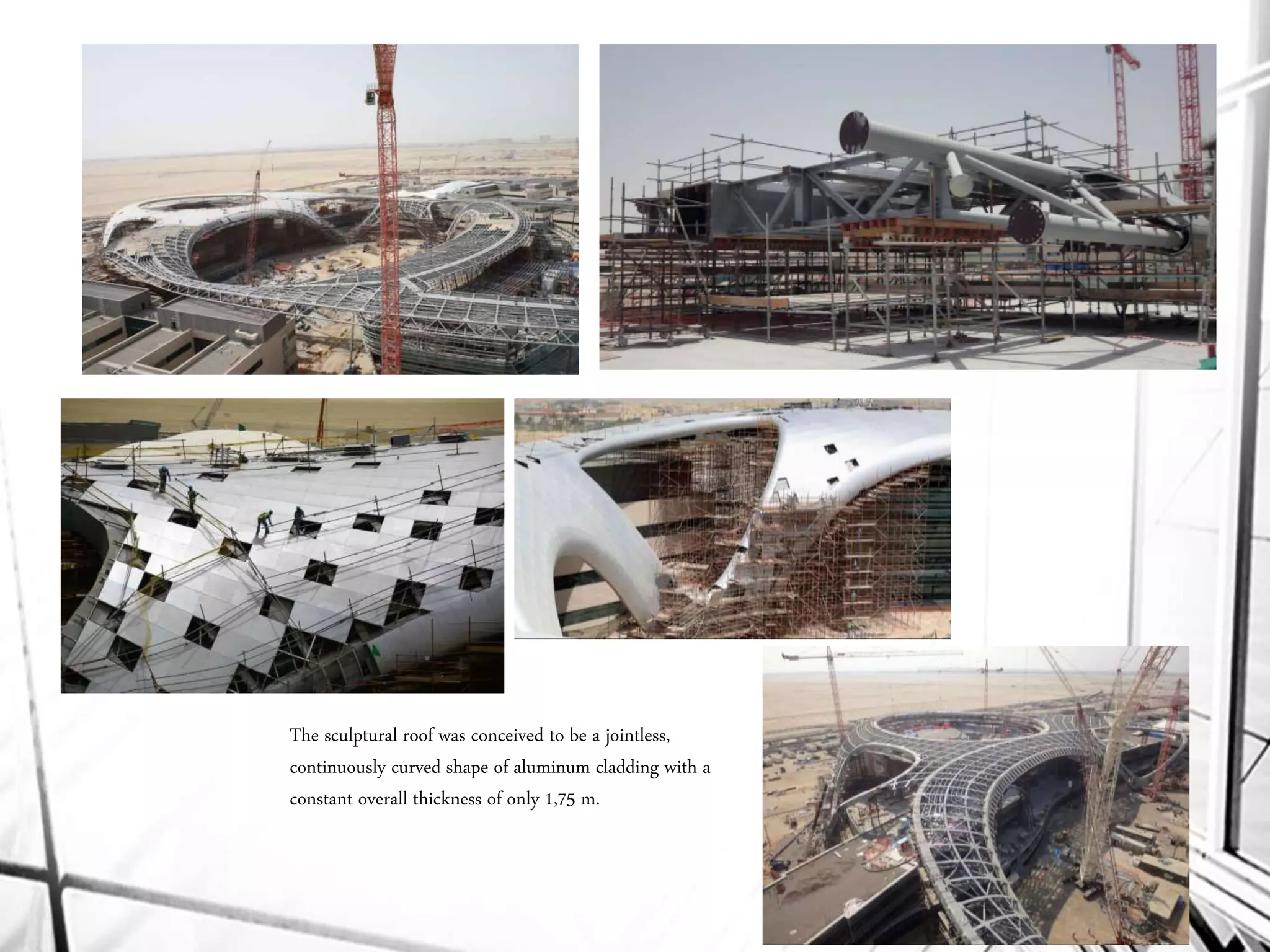

39. The sculptural roof was conceived to be a jointless,
continuously curved shape of aluminum cladding with a
constant overall thickness of only 1,75 m.

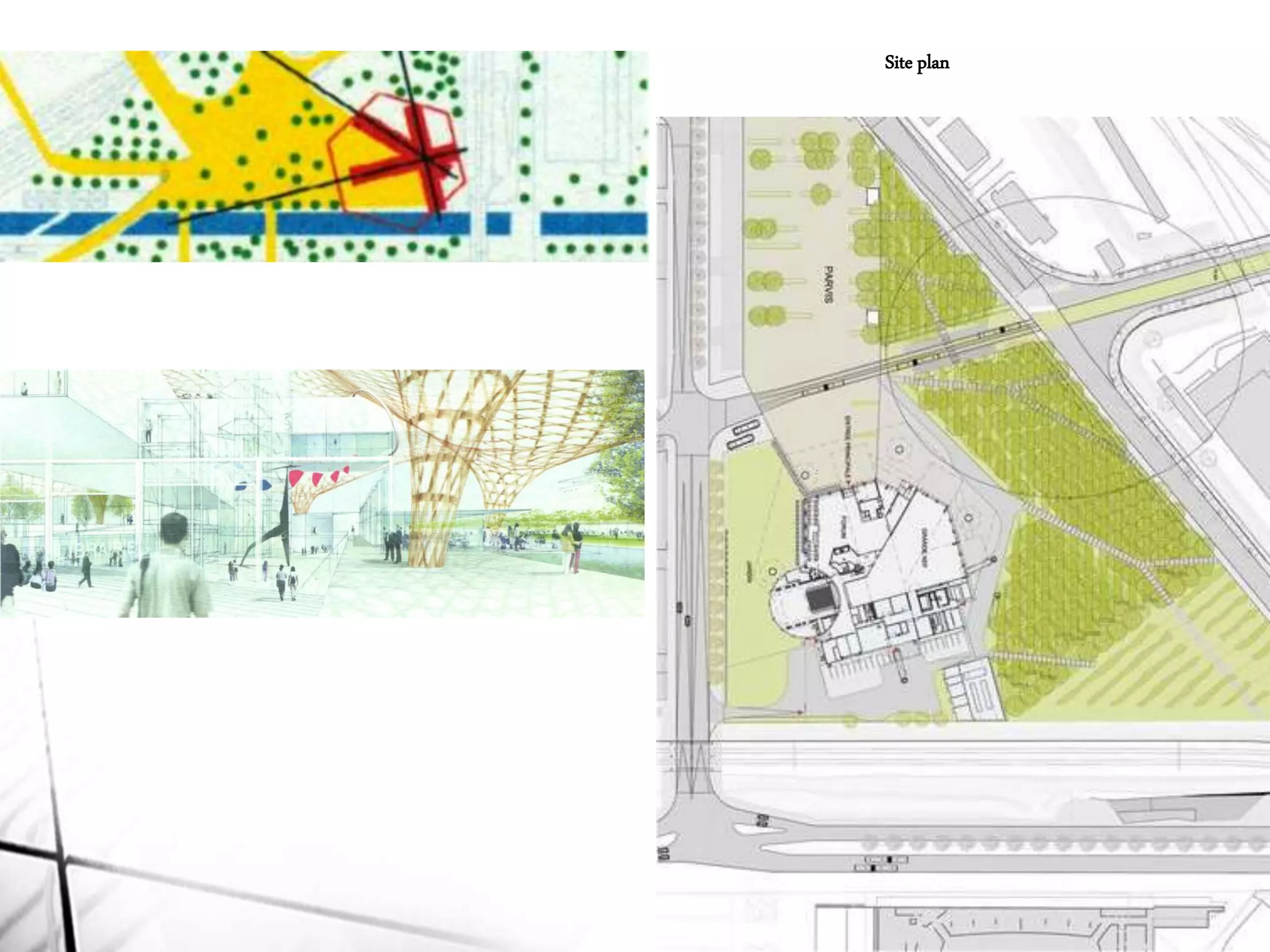

41. Project brief-location
The Centre Pompidou-Metz was completed in May of 2010
structural engineering by
SJB Kempter Fitze AG and digital modeling by Design toProduction Stuttgart

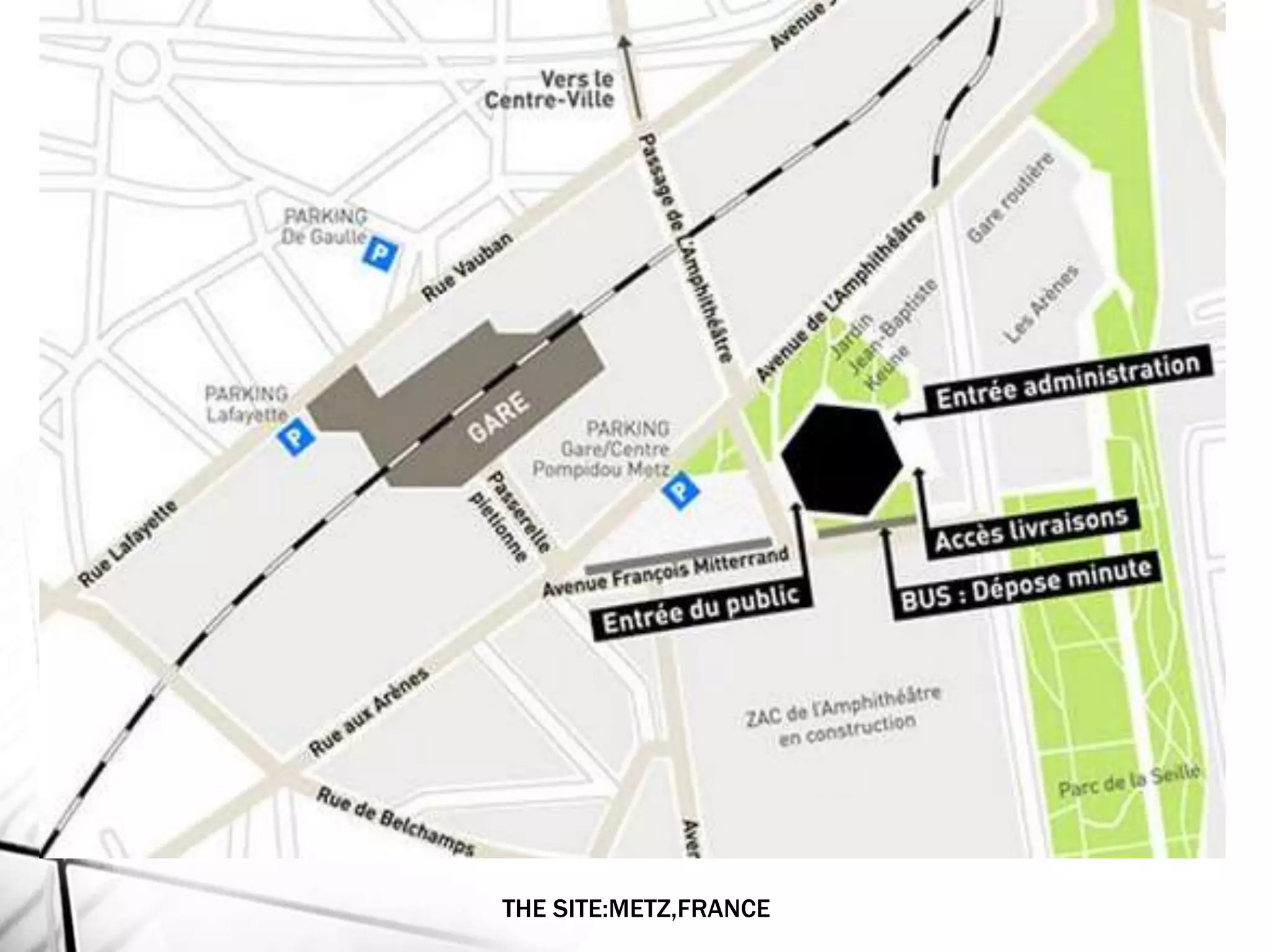

Location: Metz, France
Area: 10,660 sqm
Cost:69.33 million Euros
The Centre Pompidou in Metz is a large hexagonal structure with
three galleries running through the building.
The Interior atmosphere is light with a pale wood roof, white walls
and a pearl-grey concrete floor.
The roof ties the interior and exterior and the three exhibition
galleries make up highly innovative architectural choices

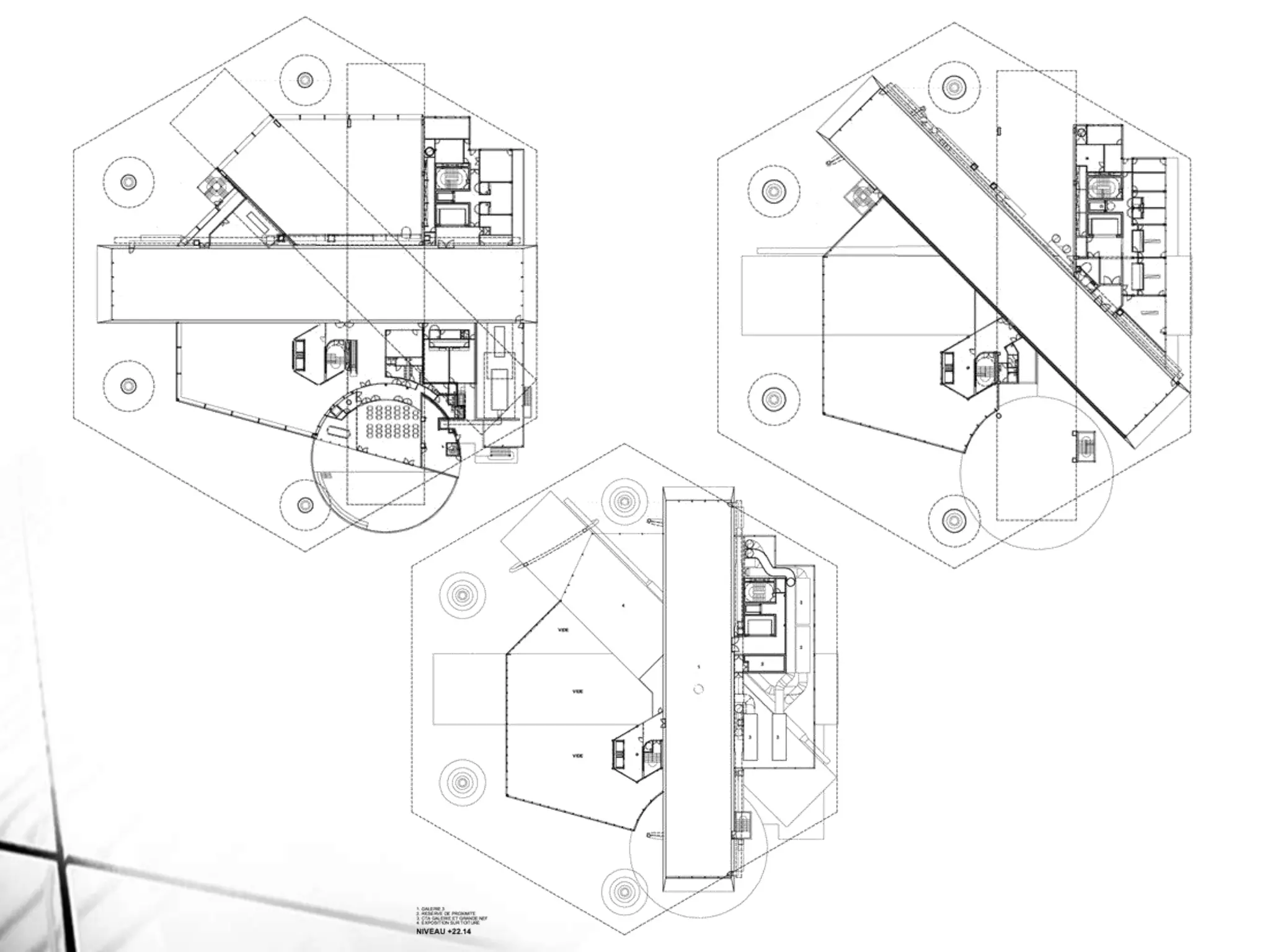

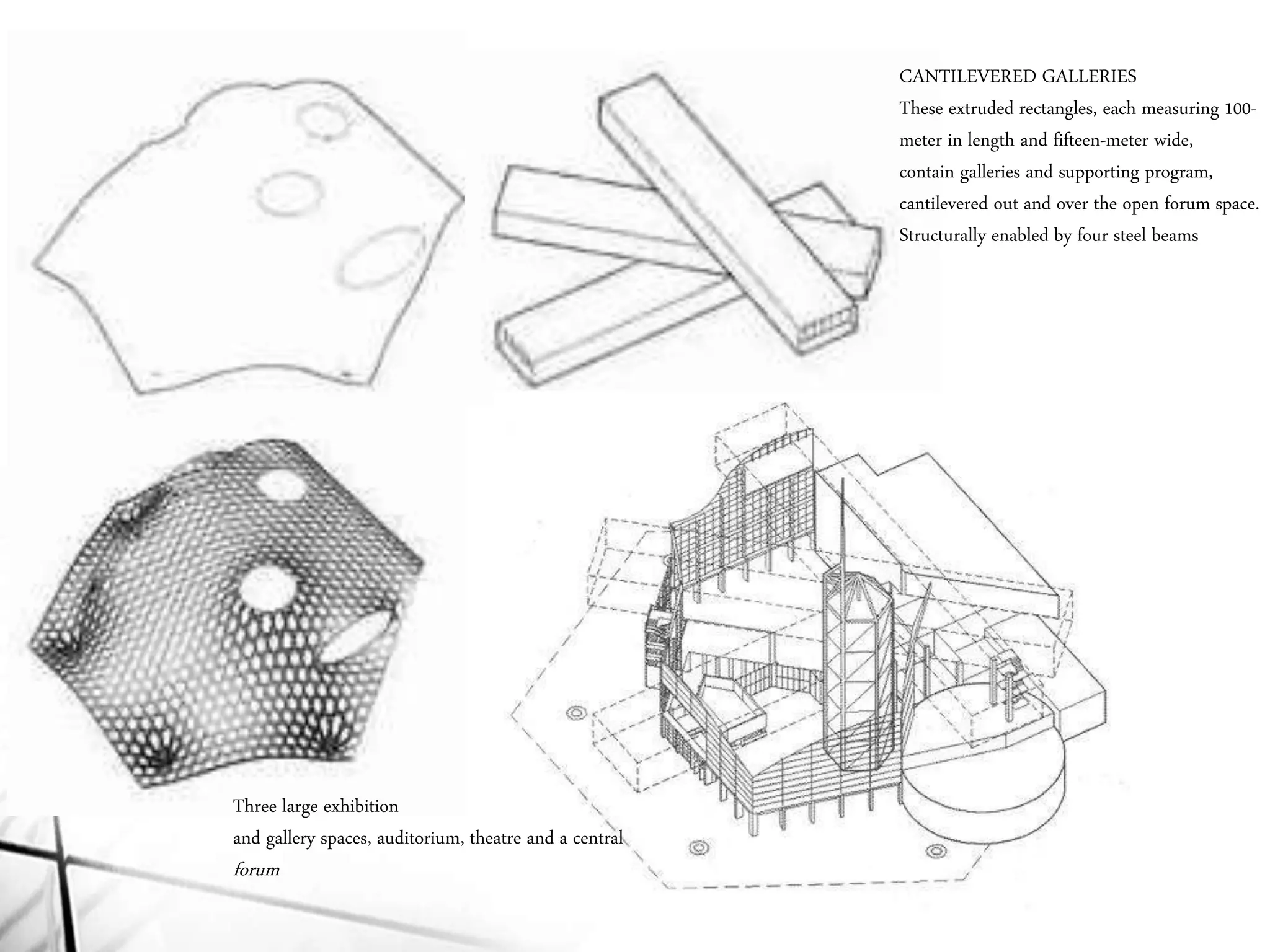

45. Three large exhibition
and gallery spaces, auditorium, theatre and a central
forum
CANTILEVERED GALLERIES
These extruded rectangles, each measuring 100-
meter in length and fifteen-meter wide,
contain galleries and supporting program,
cantilevered out and over the open forum space.
Structurally enabled by four steel beams

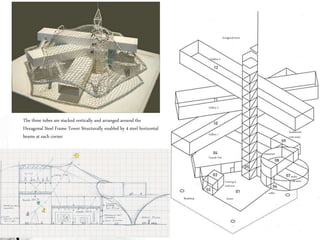

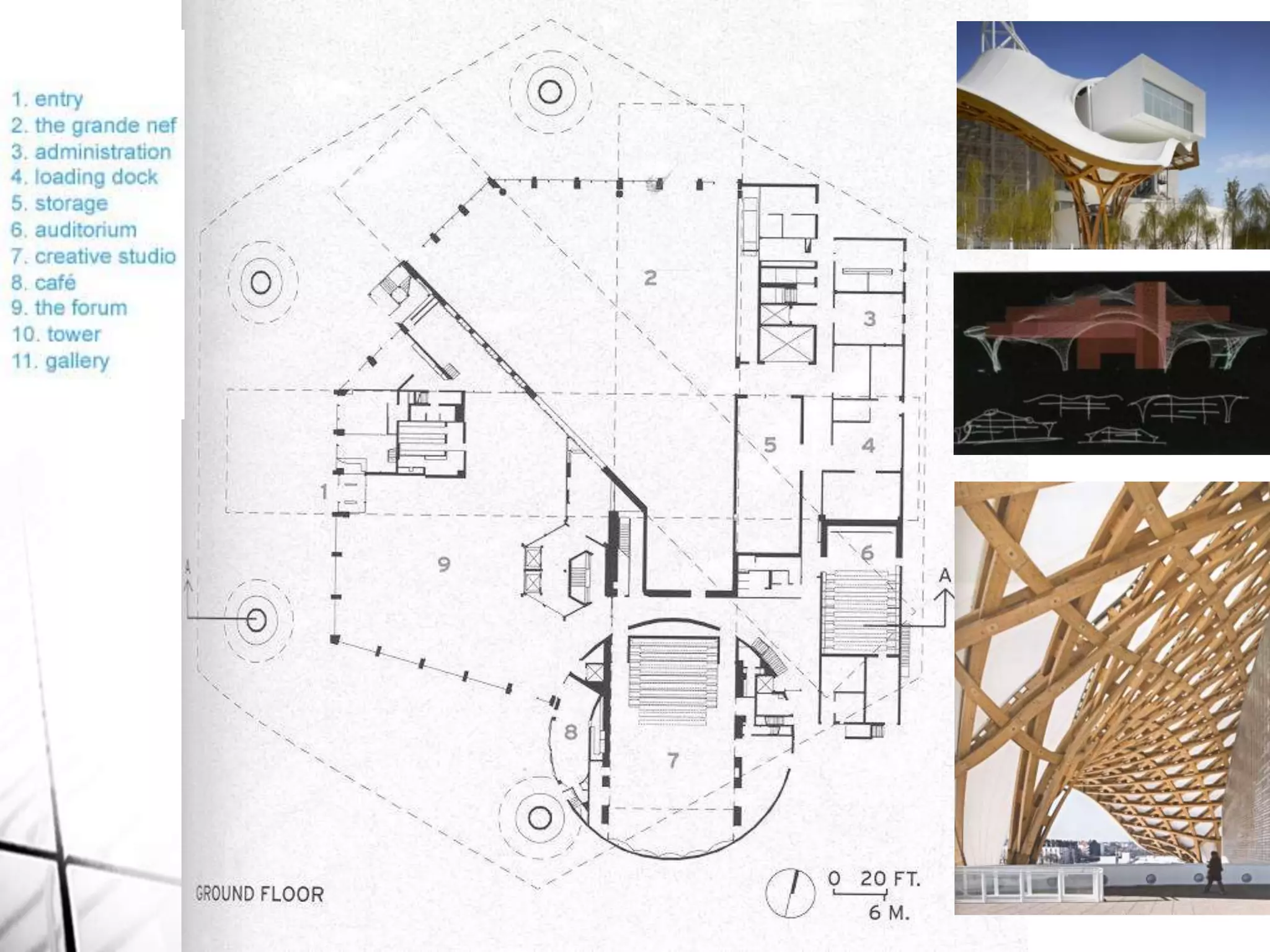

46. forum
Grande Nef
hexagonal tower
Gallery 1
Gallery 2
Gallery 3
Auditorium
(144 seats)
restaurant
Bookshop
studio
(196 seats)
coffee
Ticketing &
cloakroom
The three tubes are stacked vertically and arranged around the
Hexagonal Steel Frame Tower Structurally enabled by 4 steel horizontal
beams at each corner
47.
48.

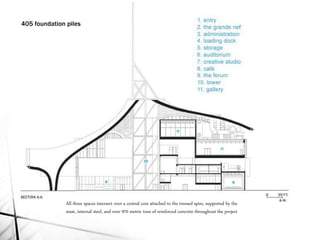

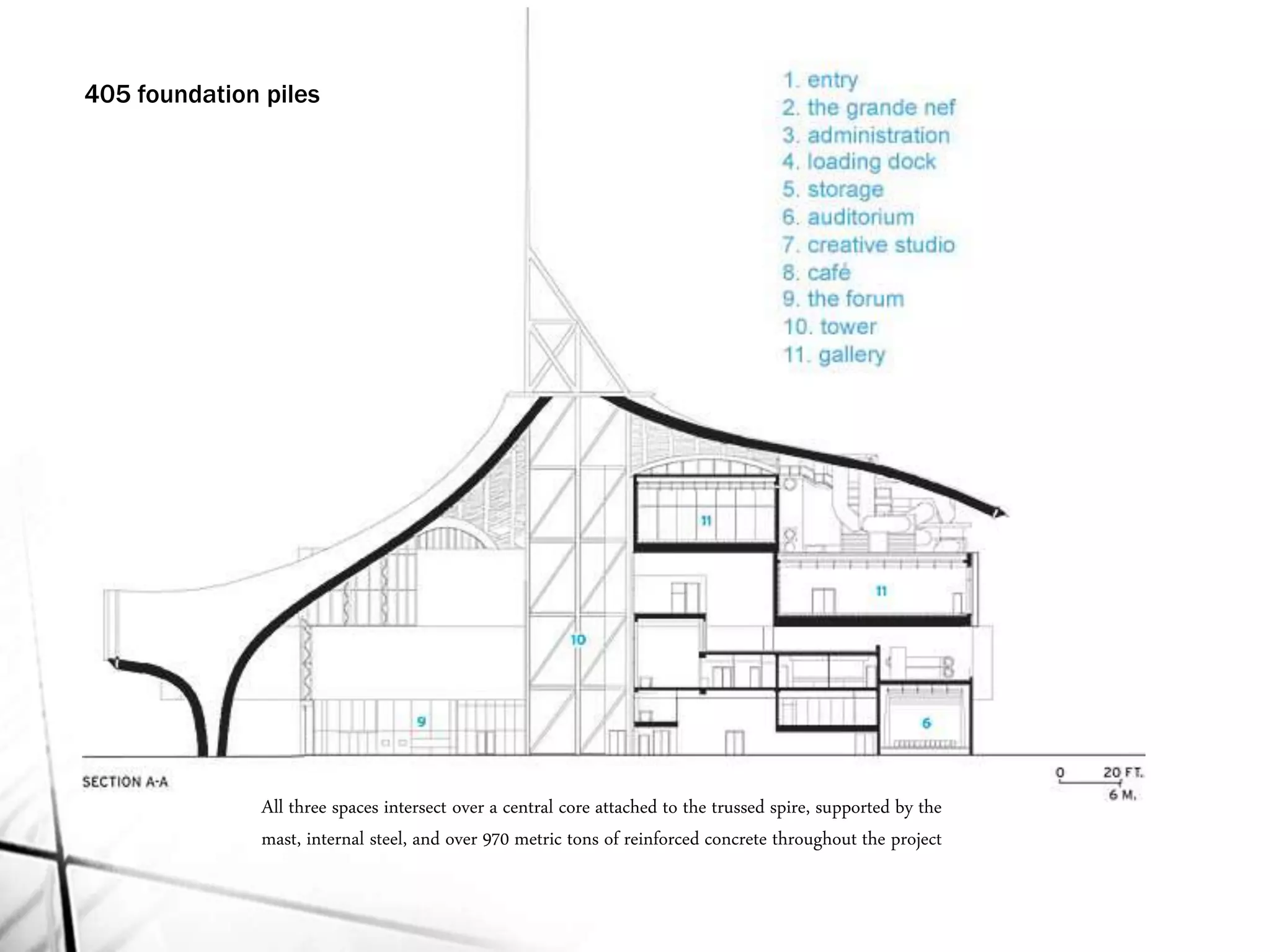

49. 405 foundation piles
All three spaces intersect over a central core attached to the trussed spire, supported by the
mast, internal steel, and over 970 metric tons of reinforced concrete throughout the project

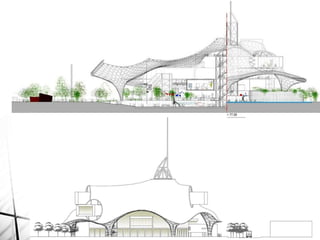

50.

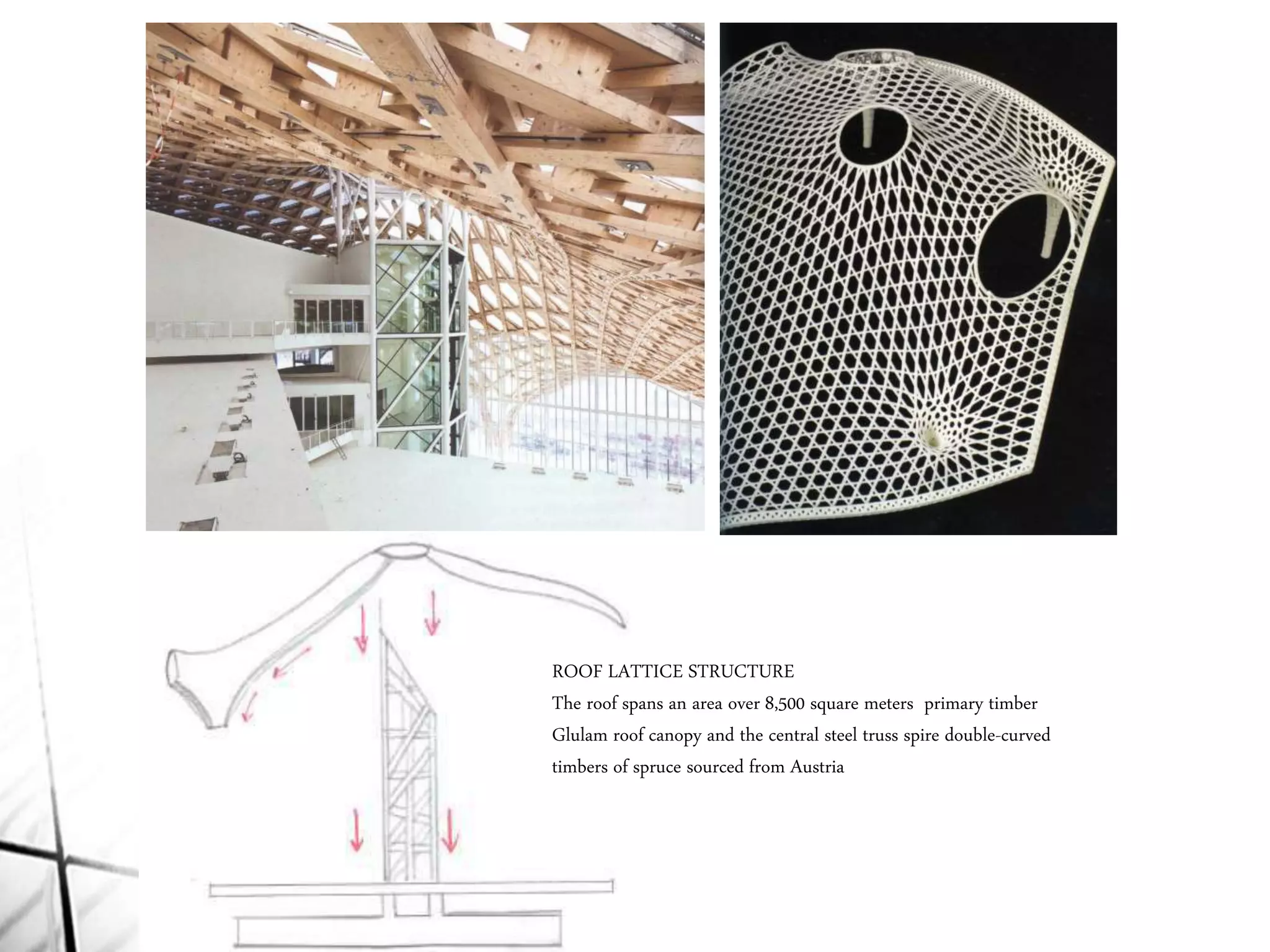

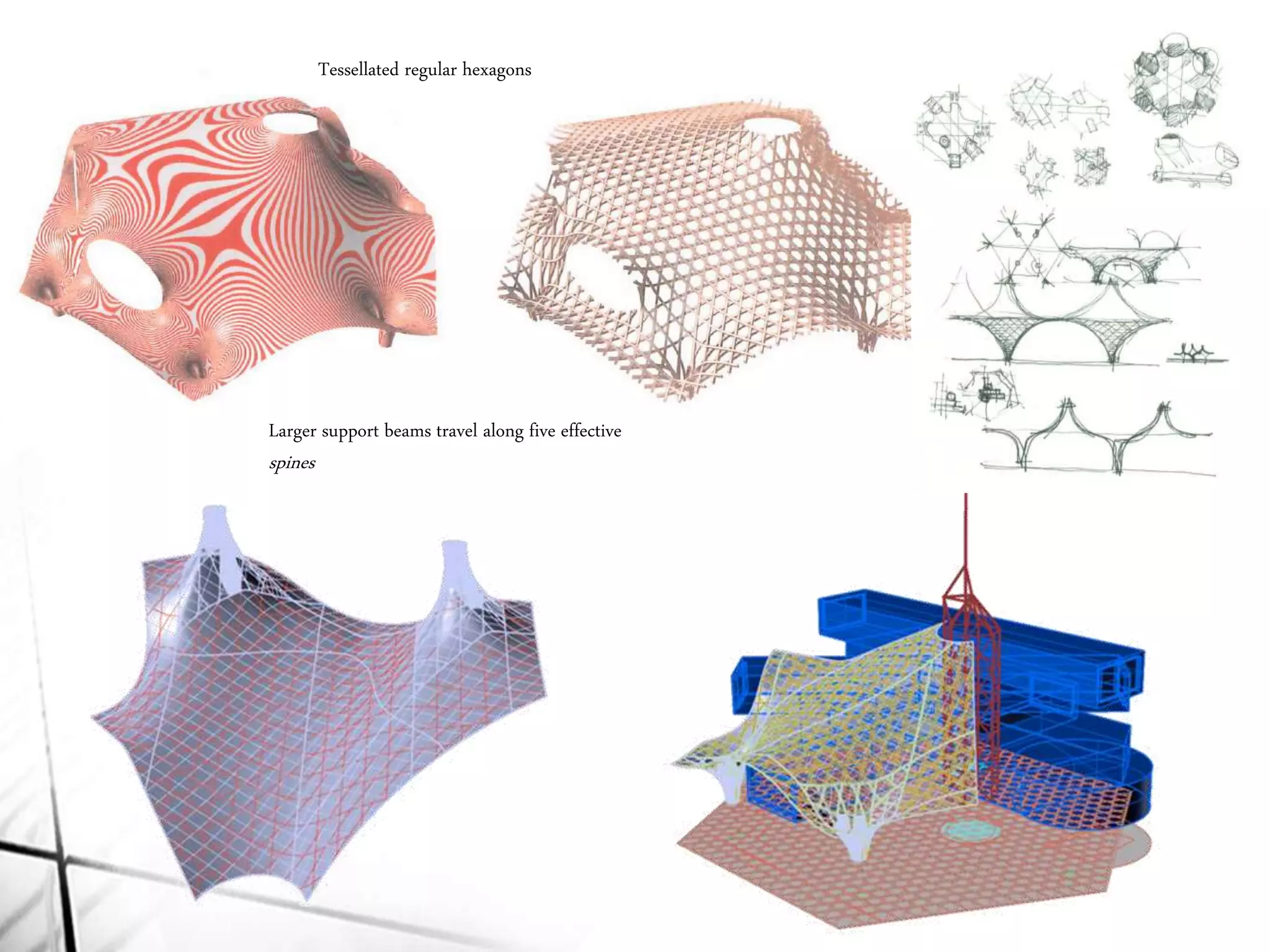

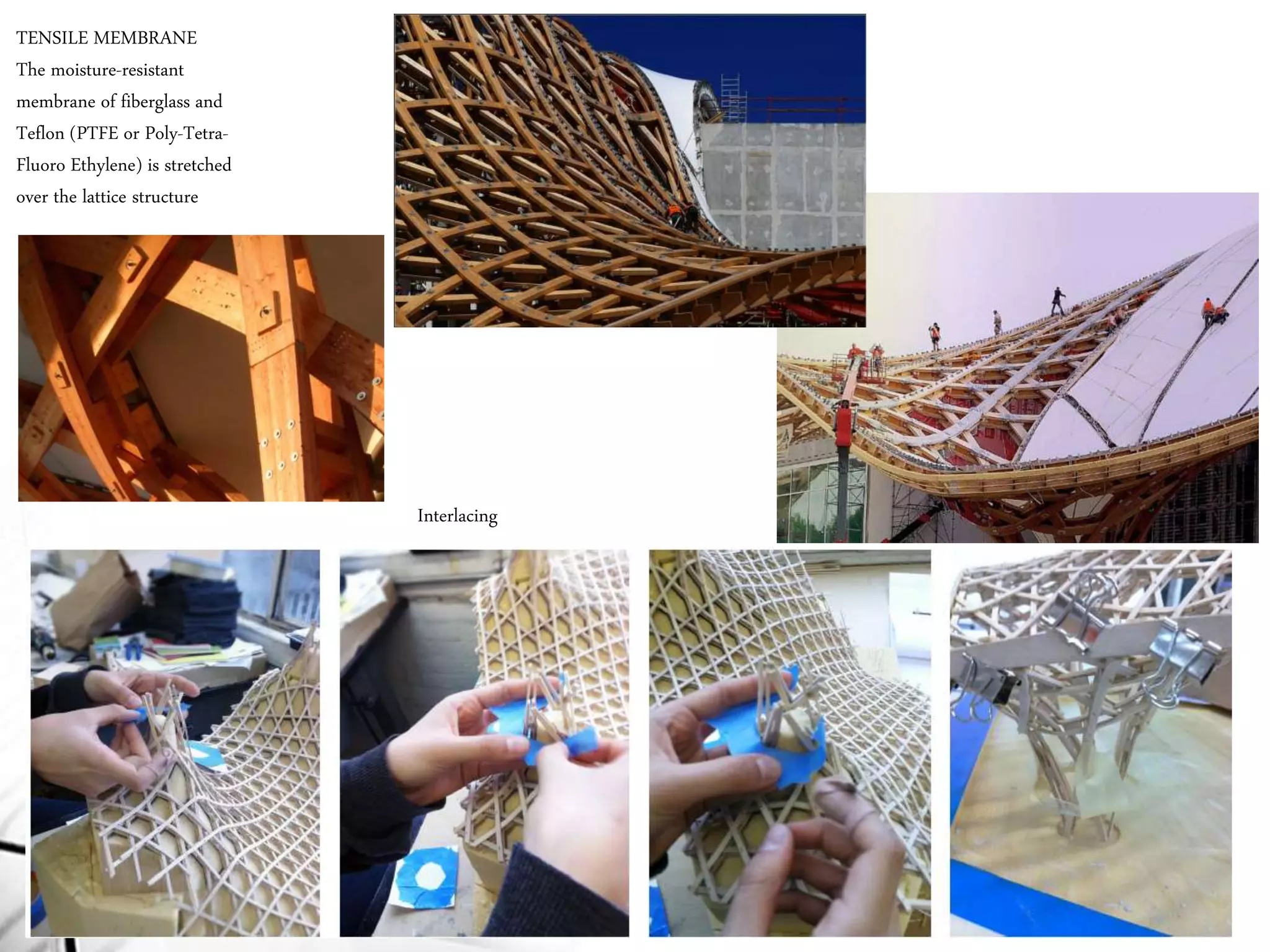

51. ROOF LATTICE STRUCTURE
The roof spans an area over 8,500 square meters primary timber
Glulam roof canopy and the central steel truss spire double-curved
timbers of spruce sourced from Austria
52.

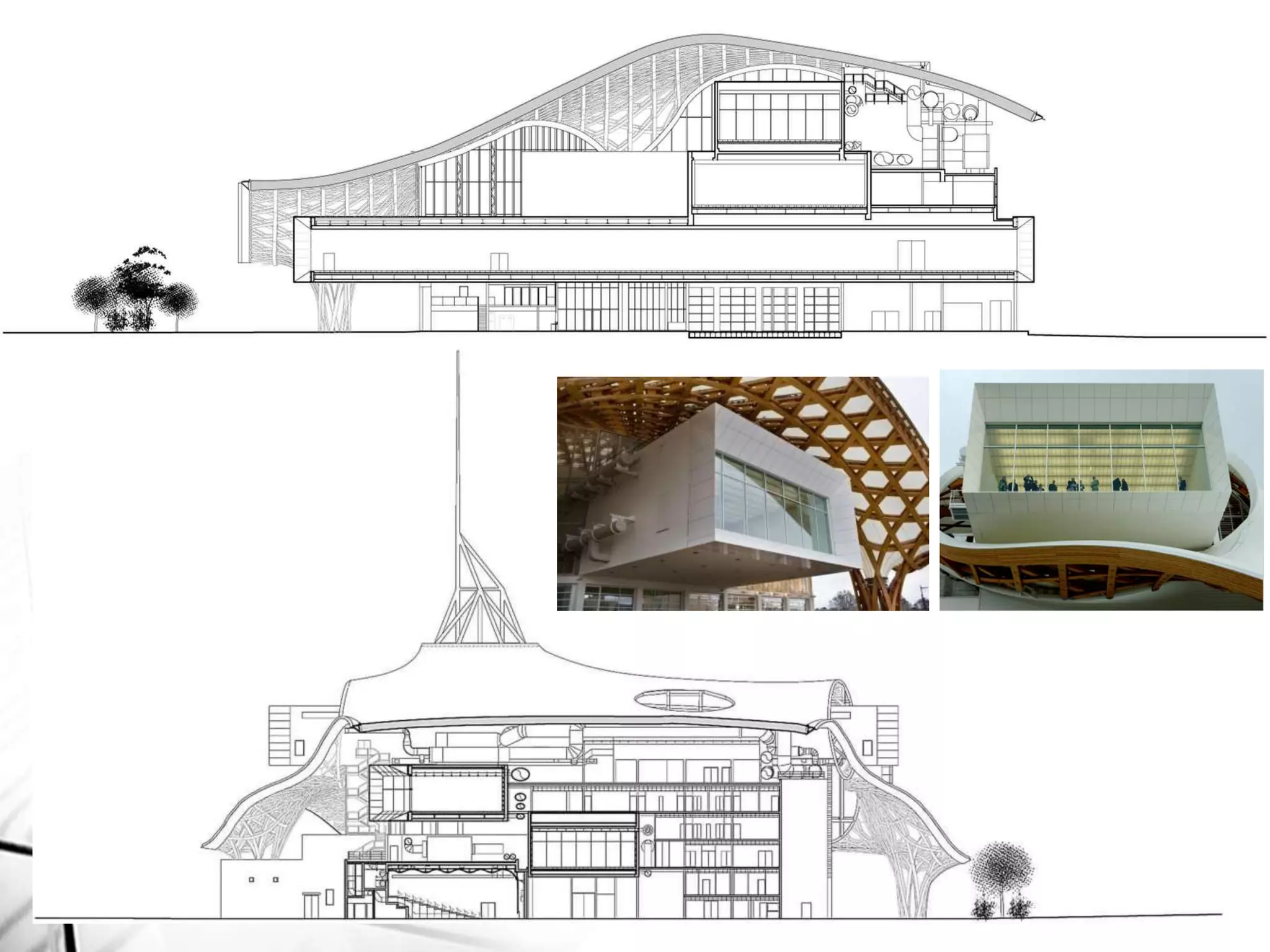

53. Evenly spaced from the center, supported at the
foundation
Structured same way as the Canopy Additionally
reinforced by Pre-stressed bolts & Metal Rings

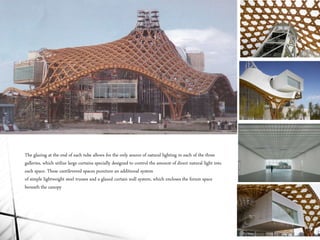

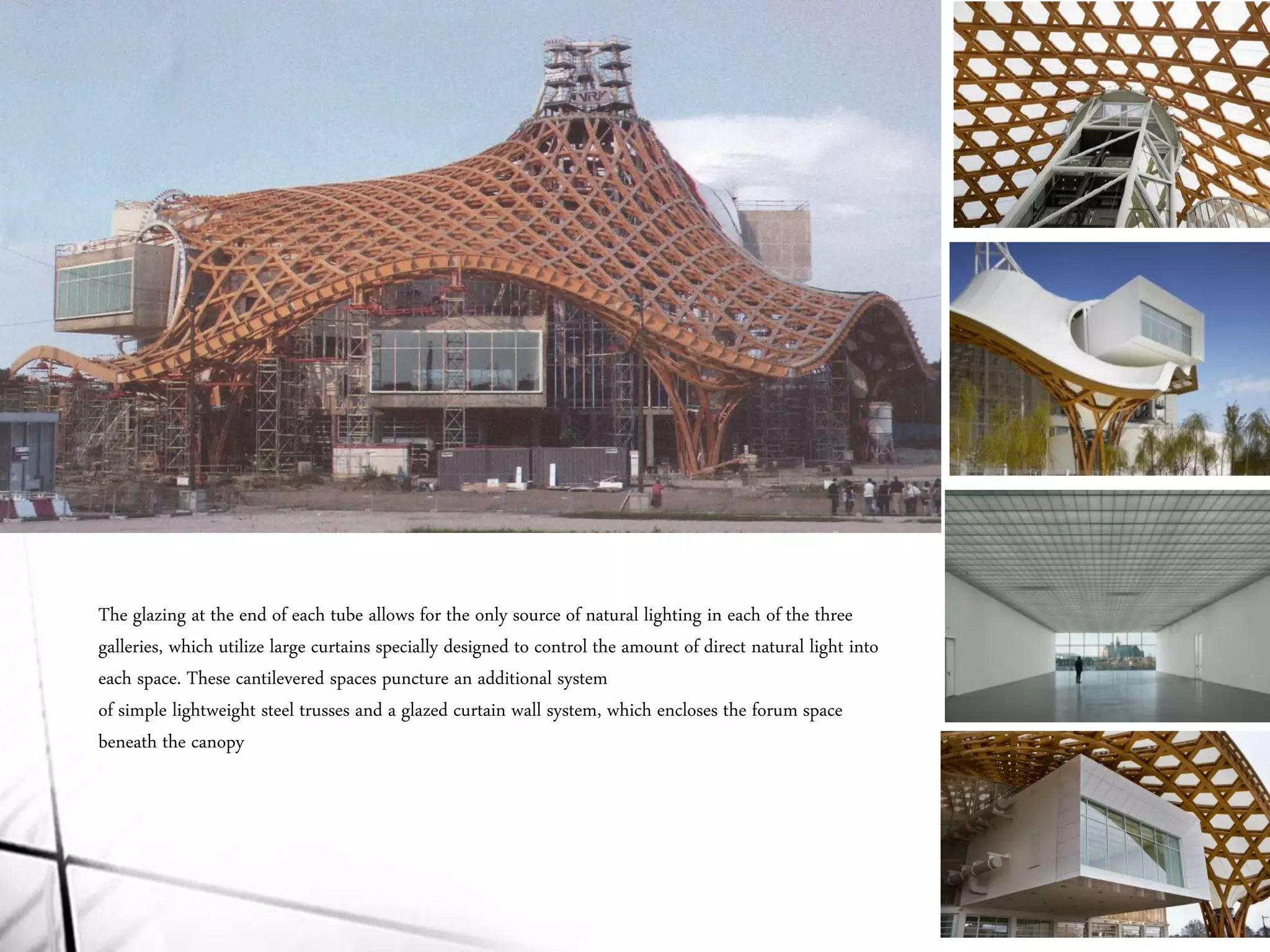

54. The glazing at the end of each tube allows for the only source of natural lighting in each of the three
galleries, which utilize large curtains specially designed to control the amount of direct natural light into
each space. These cantilevered spaces puncture an additional system
of simple lightweight steel trusses and a glazed curtain wall system, which encloses the forum space
beneath the canopy

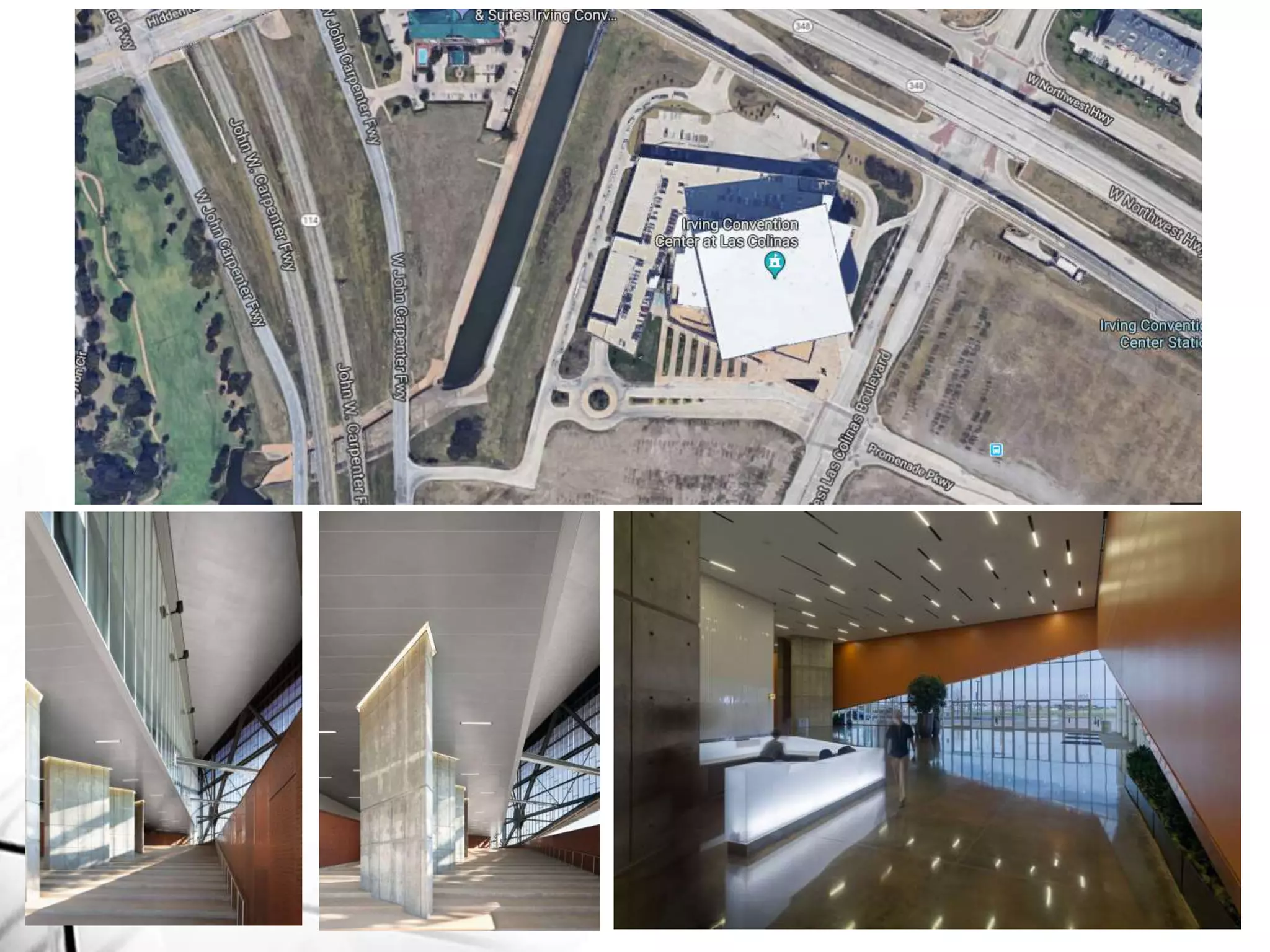

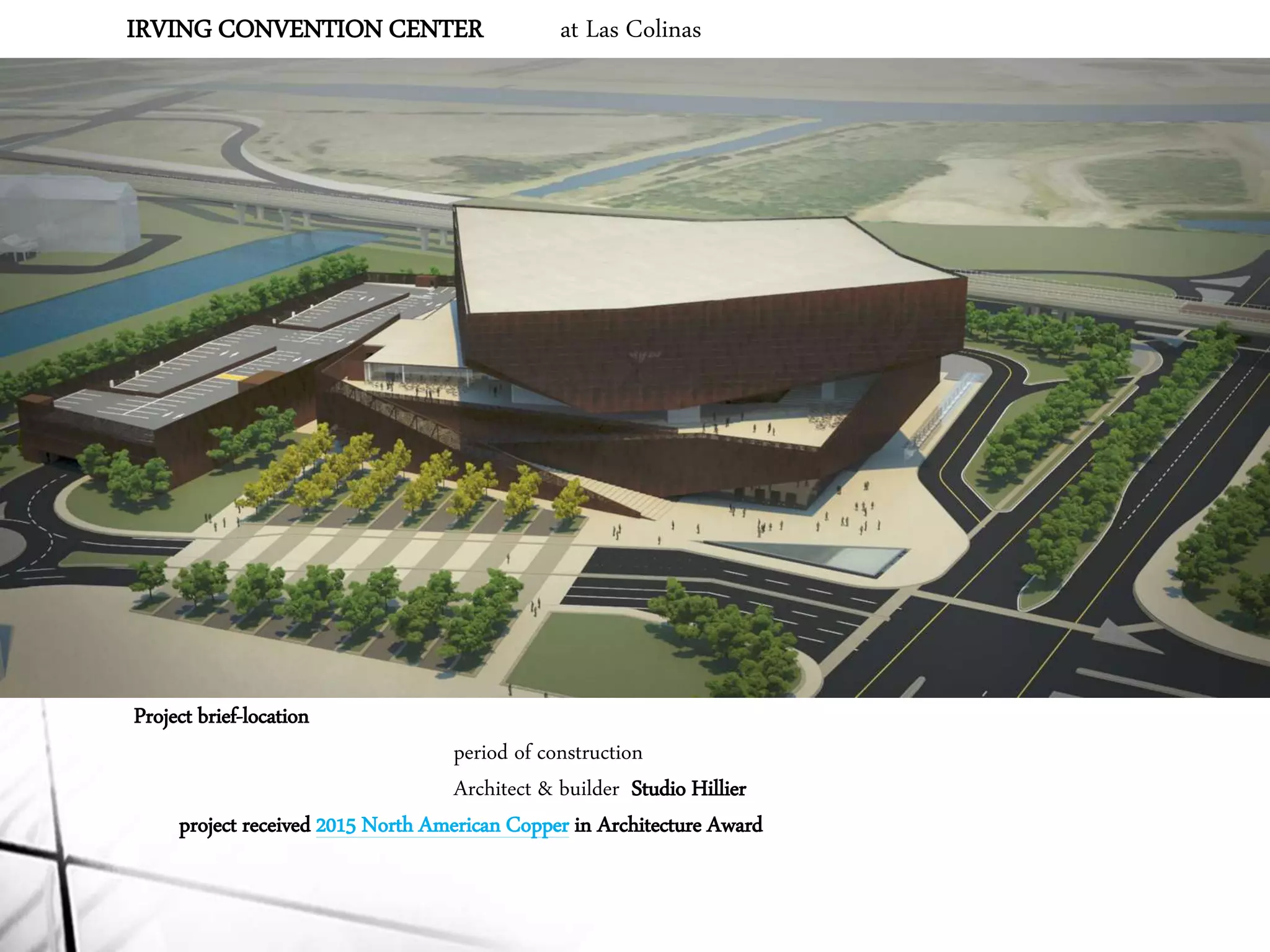

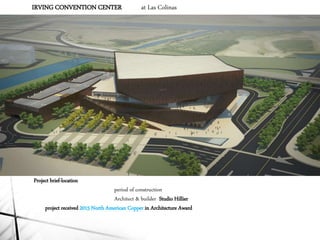

56. IRVING CONVENTION CENTER at Las Colinas
Project brief-location
period of construction
Architect & builder Studio Hillier
project received 2015 North American Copper in Architecture Award
57.

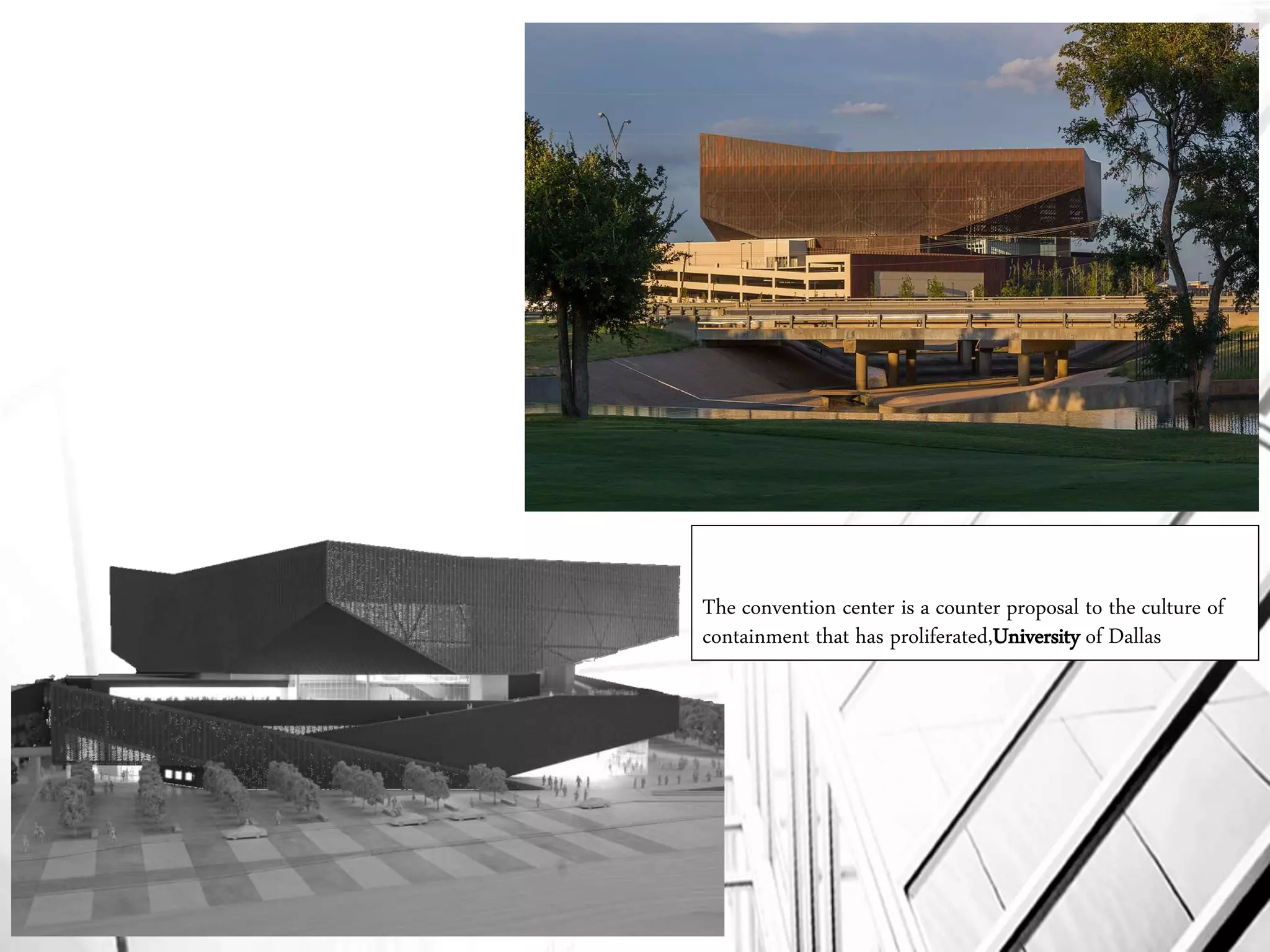

58. The convention center is a counter proposal to the culture of
containment that has proliferated,University of Dallas

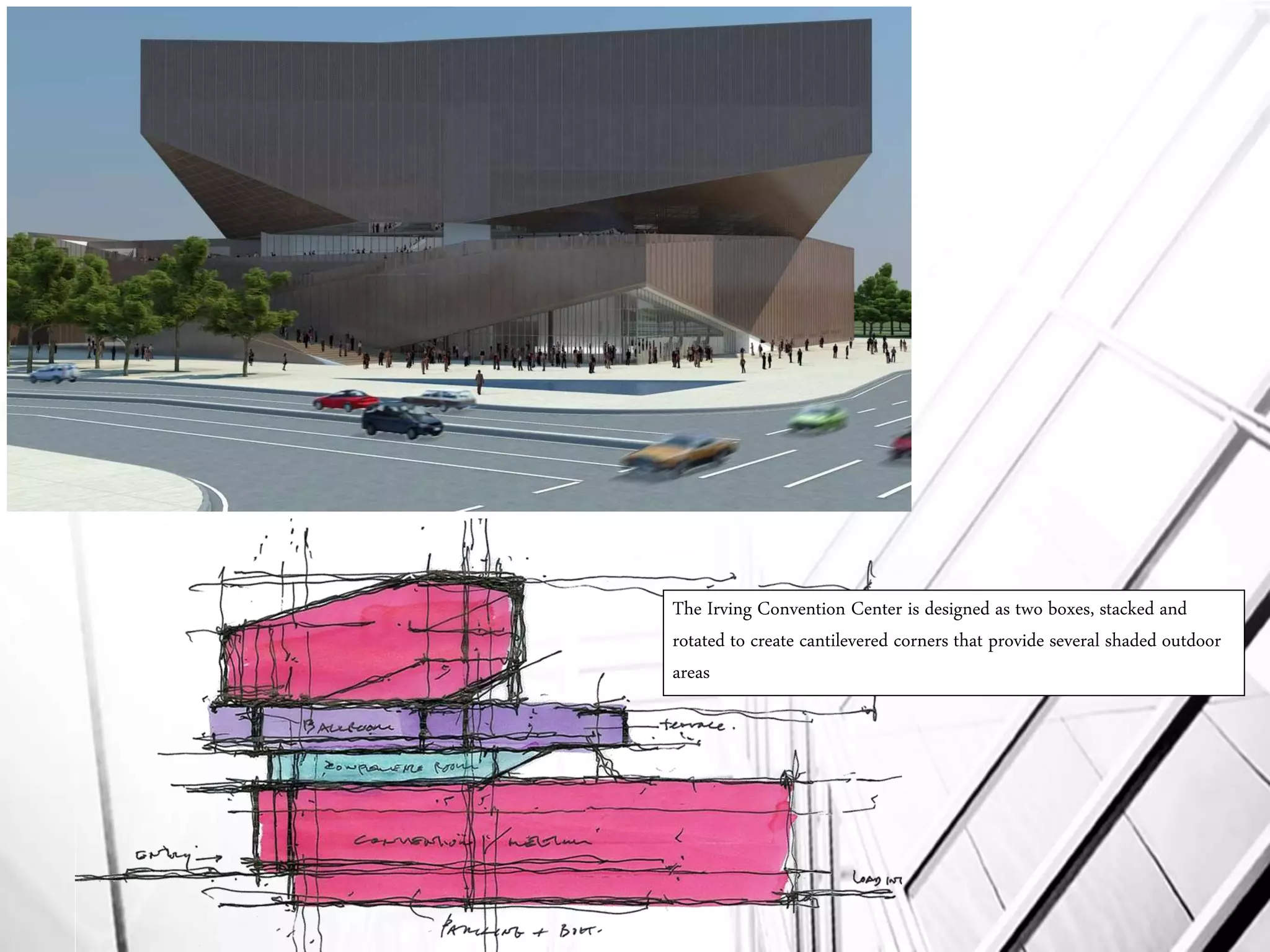

59. The Irving Convention Center is designed as two boxes, stacked and
rotated to create cantilevered corners that provide several shaded outdoor
areas

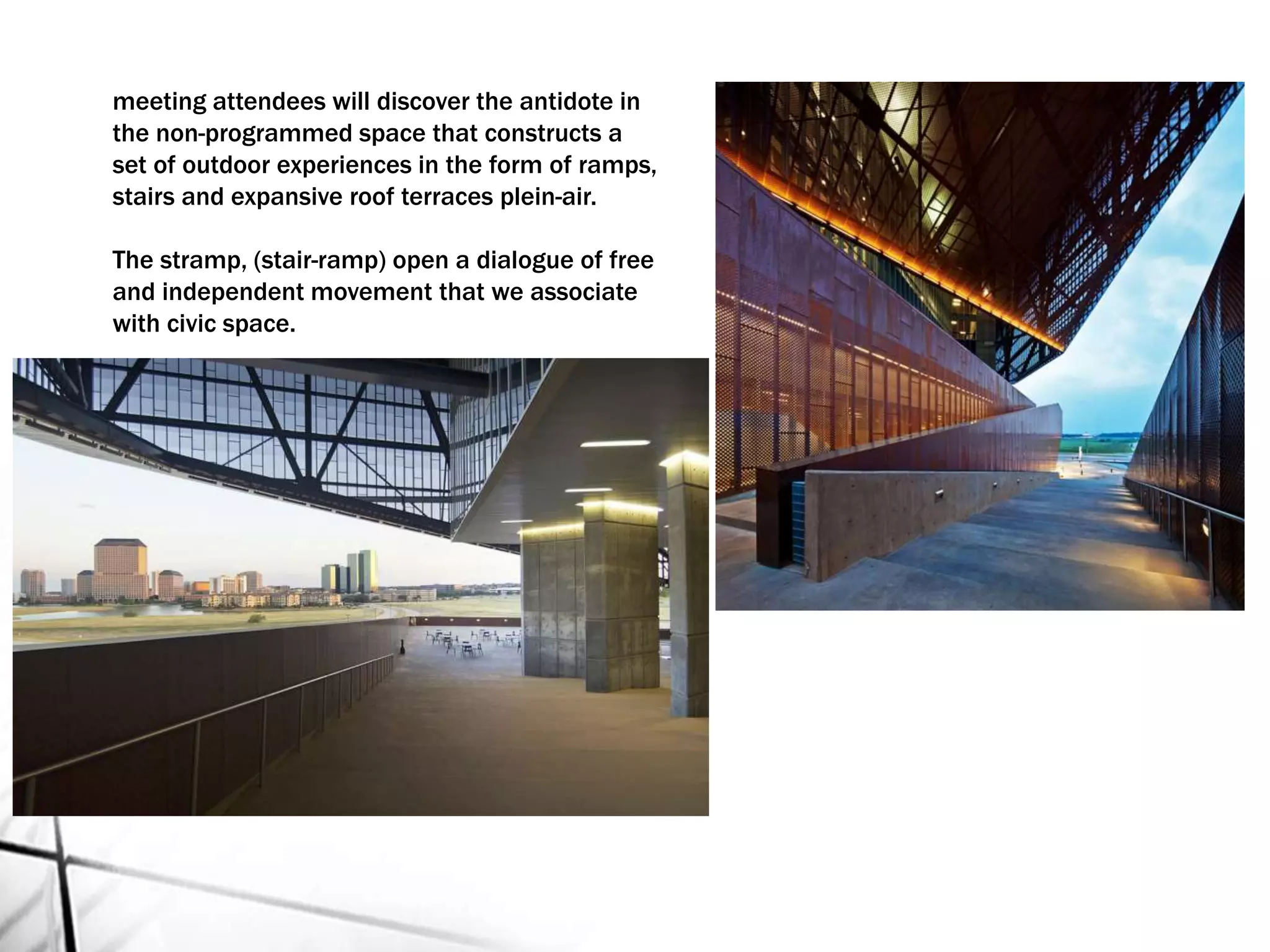

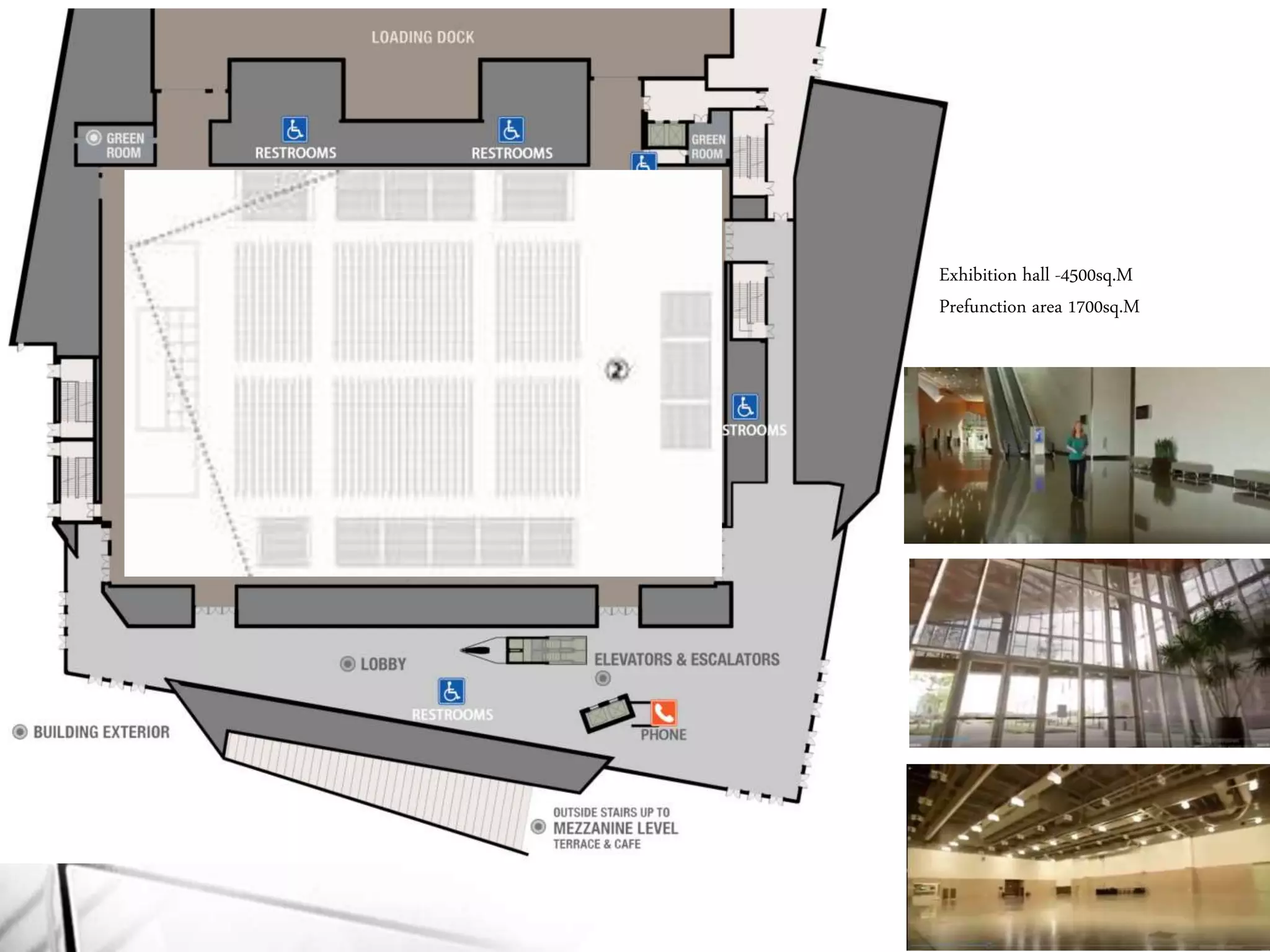

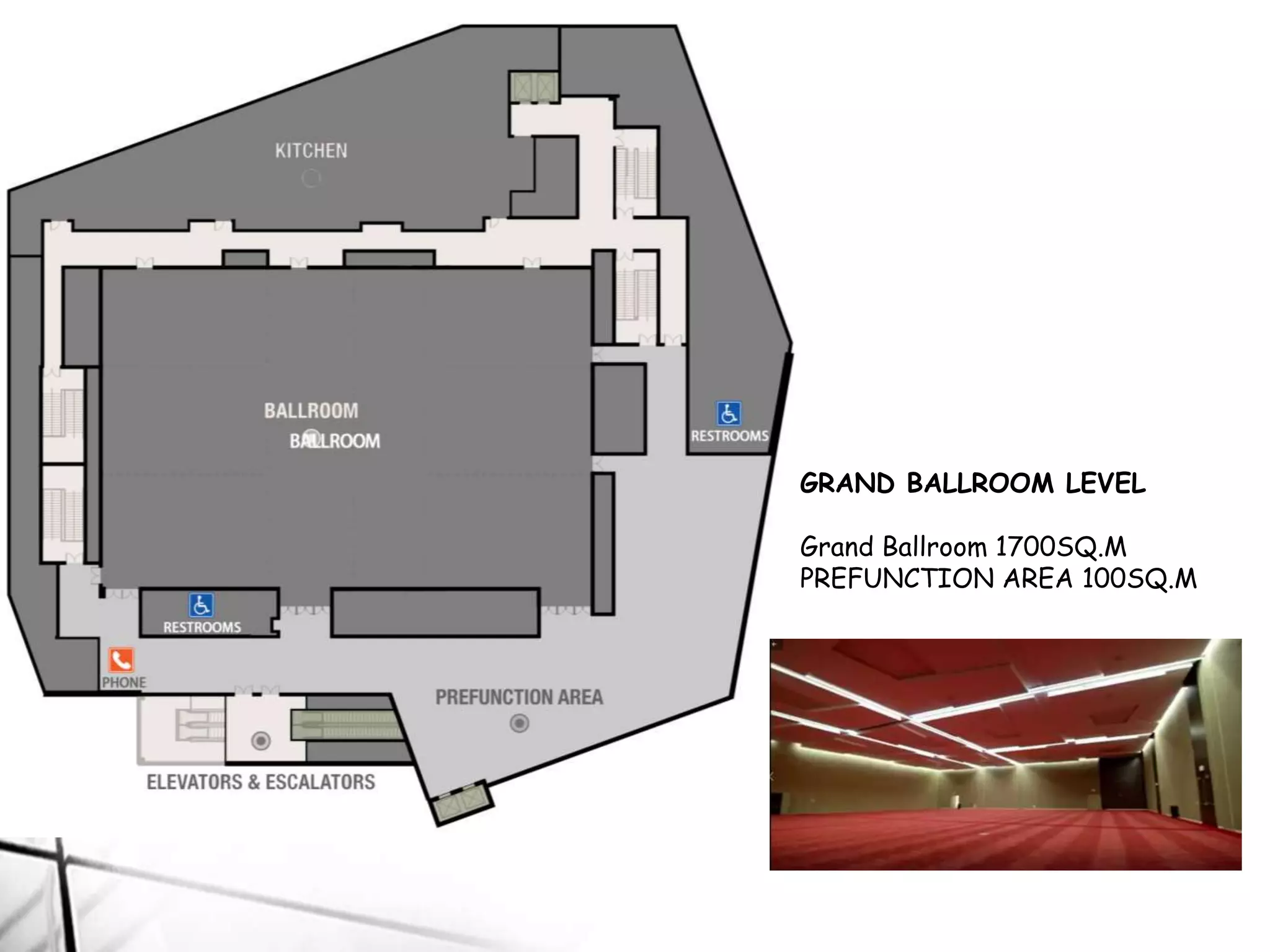

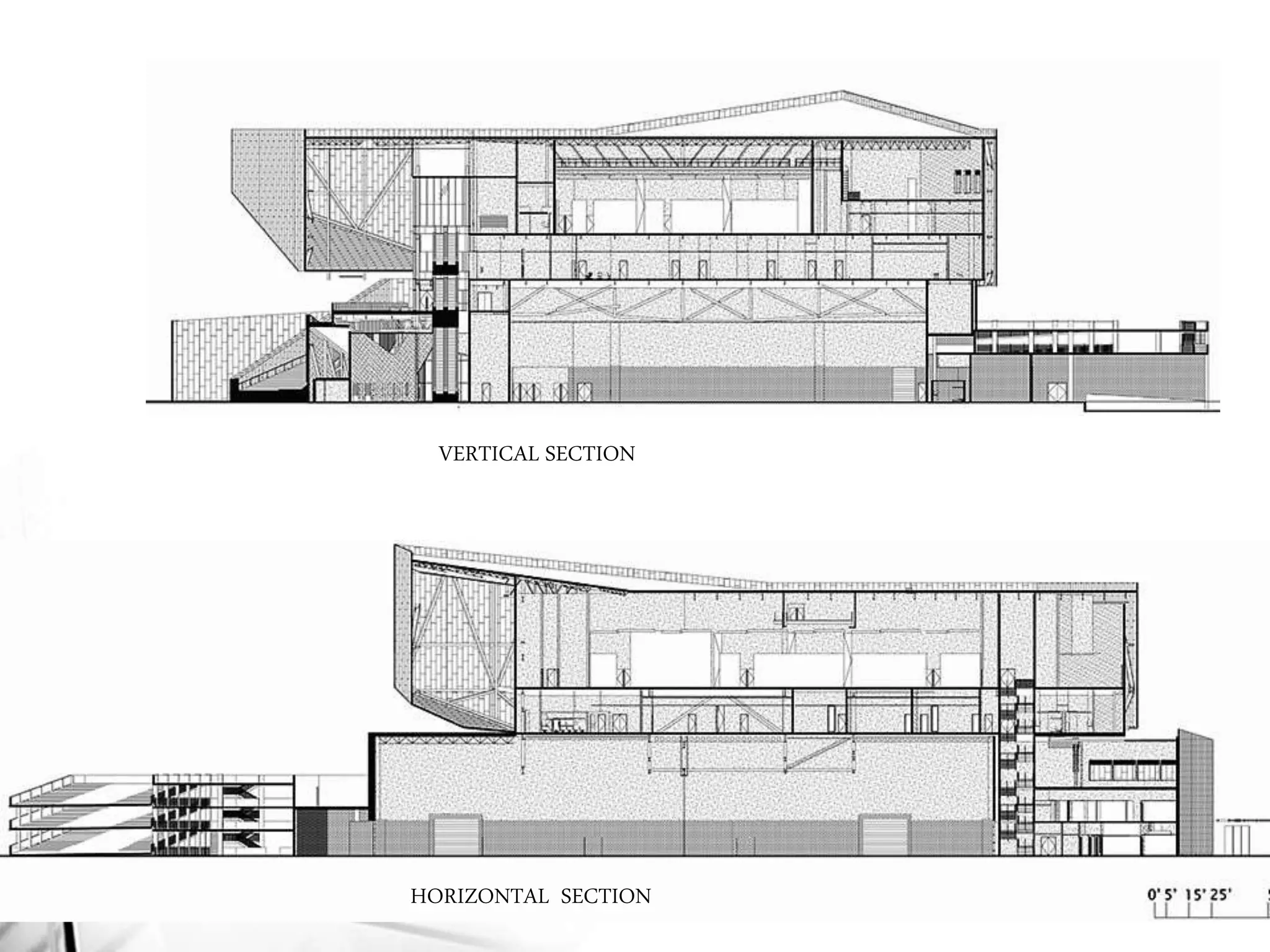

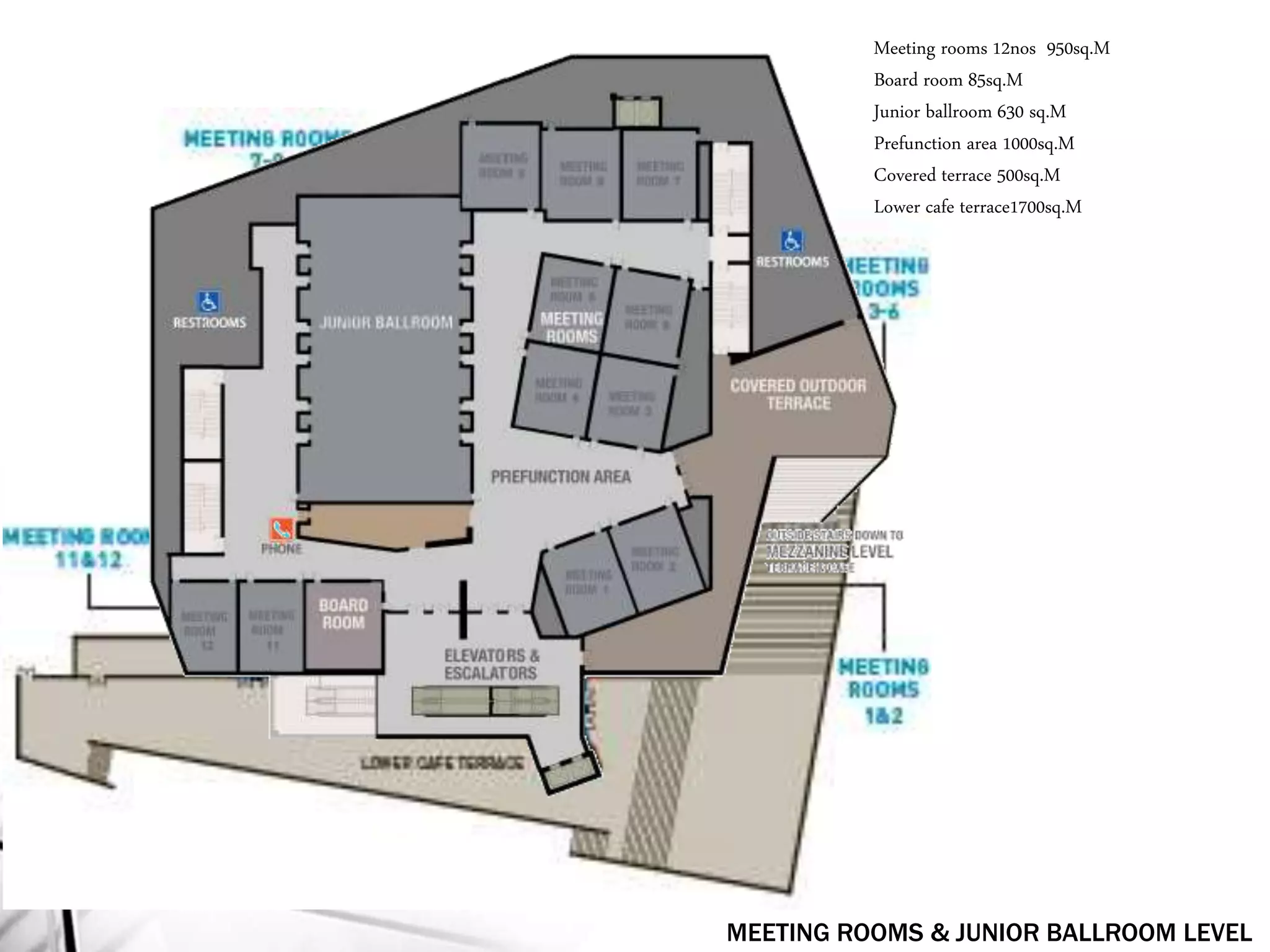

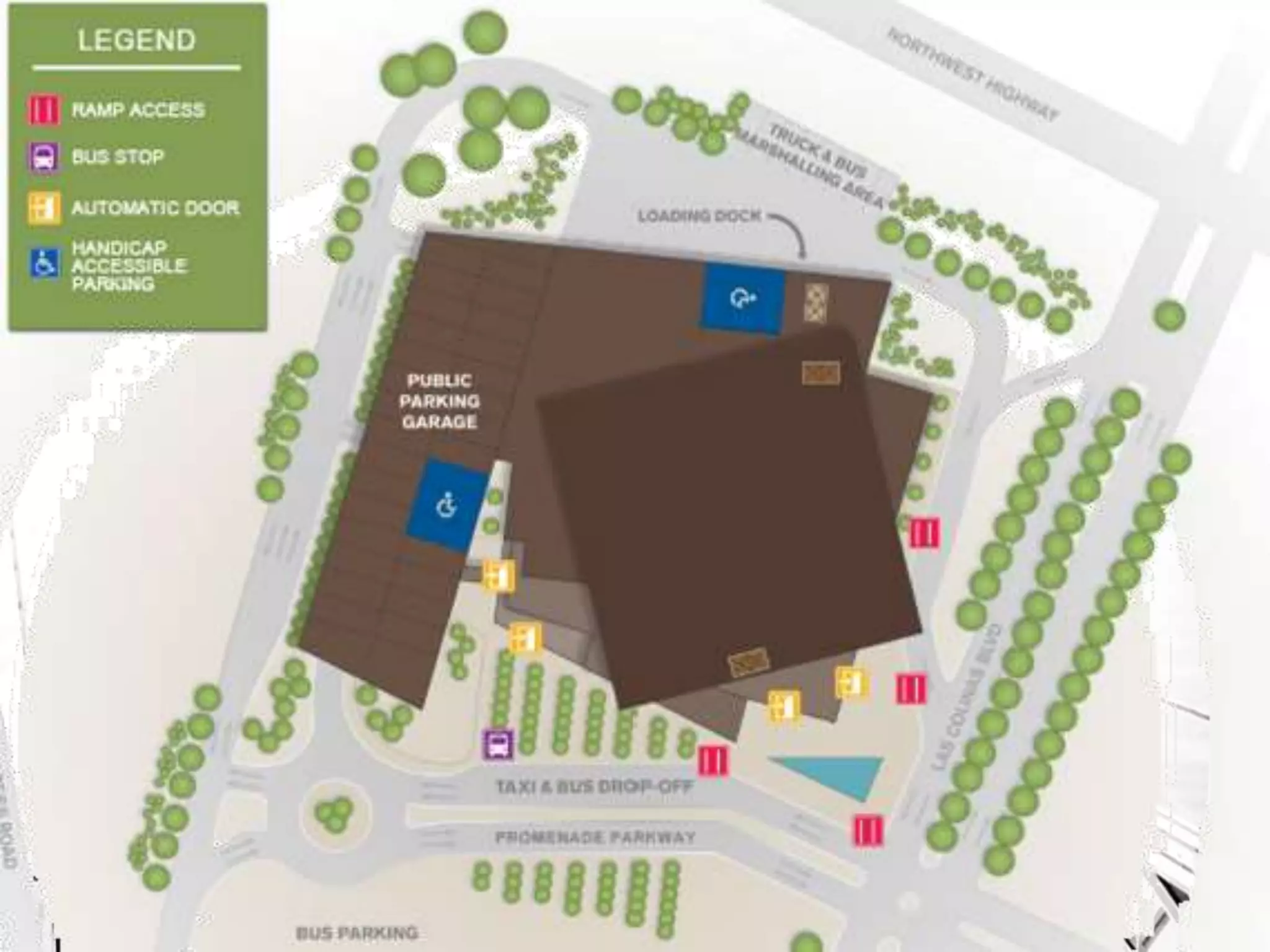

65. meeting attendees will discover the antidote in
the non-programmed space that constructs a
set of outdoor experiences in the form of ramps,
stairs and expansive roof terraces plein-air.
The stramp, (stair-ramp) open a dialogue of free
and independent movement that we associate
with civic space.

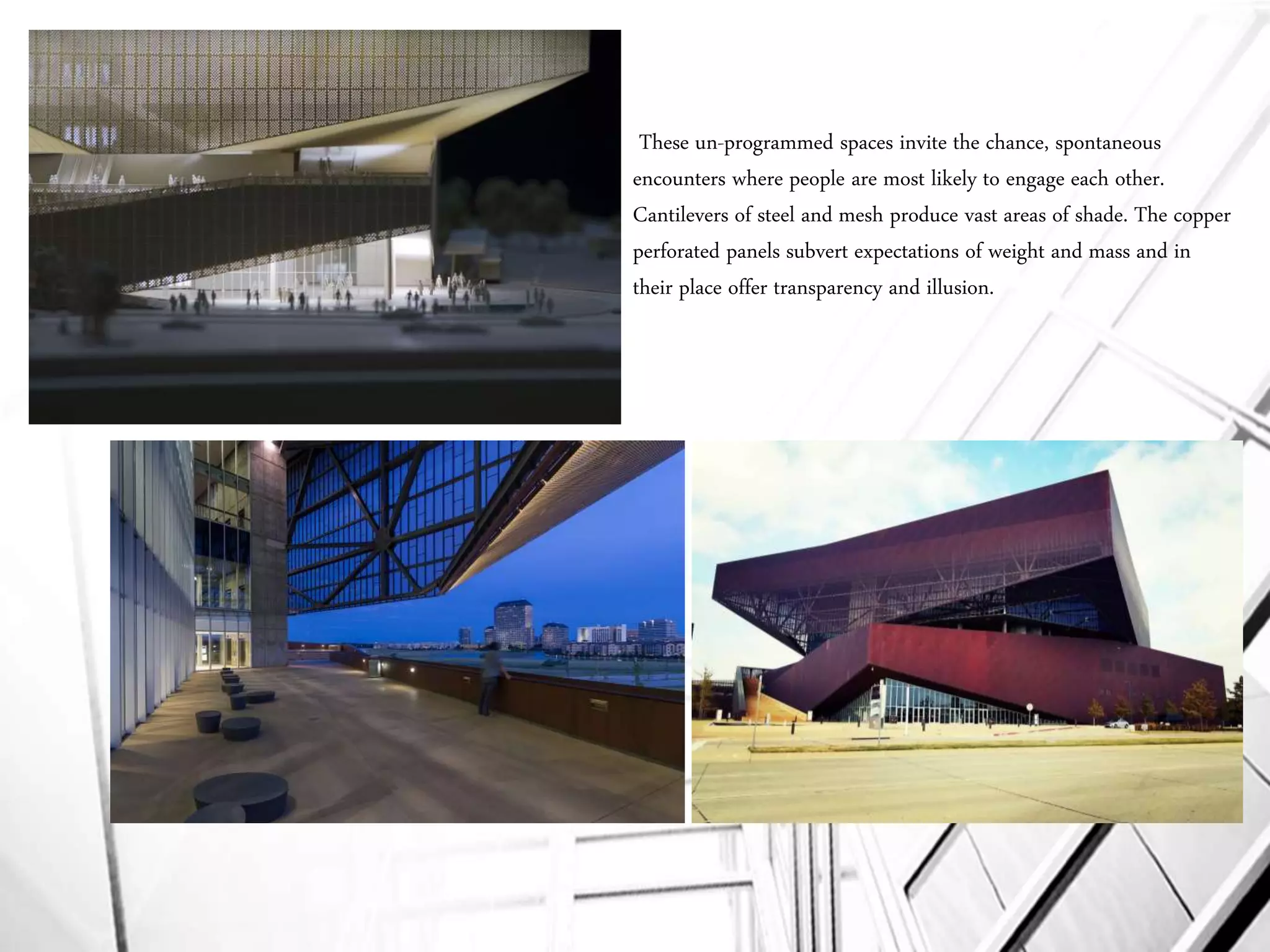

66. These un-programmed spaces invite the chance, spontaneous
encounters where people are most likely to engage each other.
Cantilevers of steel and mesh produce vast areas of shade. The copper
perforated panels subvert expectations of weight and mass and in
their place offer transparency and illusion.

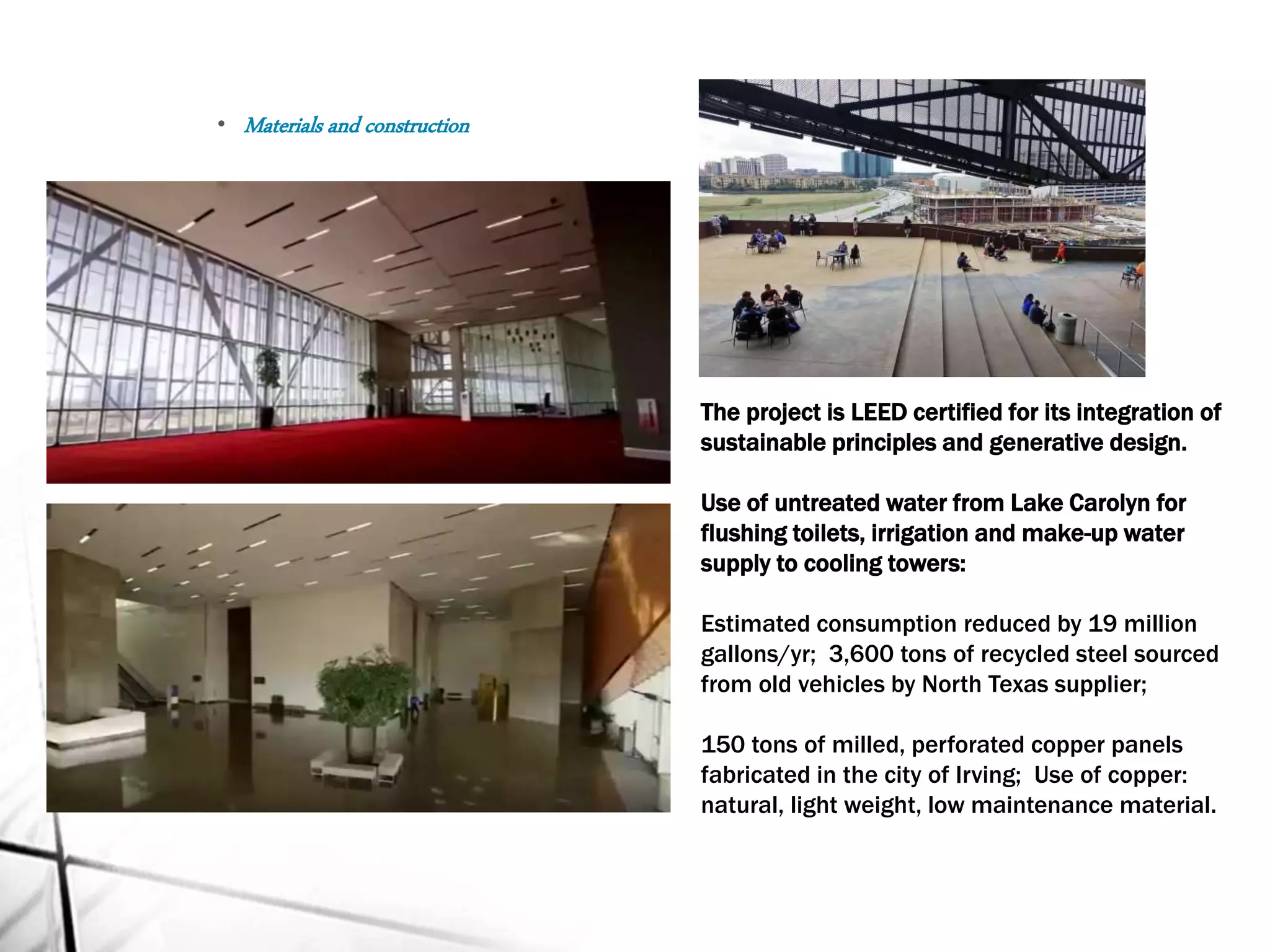

67. The project is LEED certified for its integration of
sustainable principles and generative design.
Use of untreated water from Lake Carolyn for
flushing toilets, irrigation and make-up water
supply to cooling towers:
Estimated consumption reduced by 19 million
gallons/yr; 3,600 tons of recycled steel sourced
from old vehicles by North Texas supplier;
150 tons of milled, perforated copper panels
fabricated in the city of Irving; Use of copper:
natural, light weight, low maintenance material.
• Materials and construction

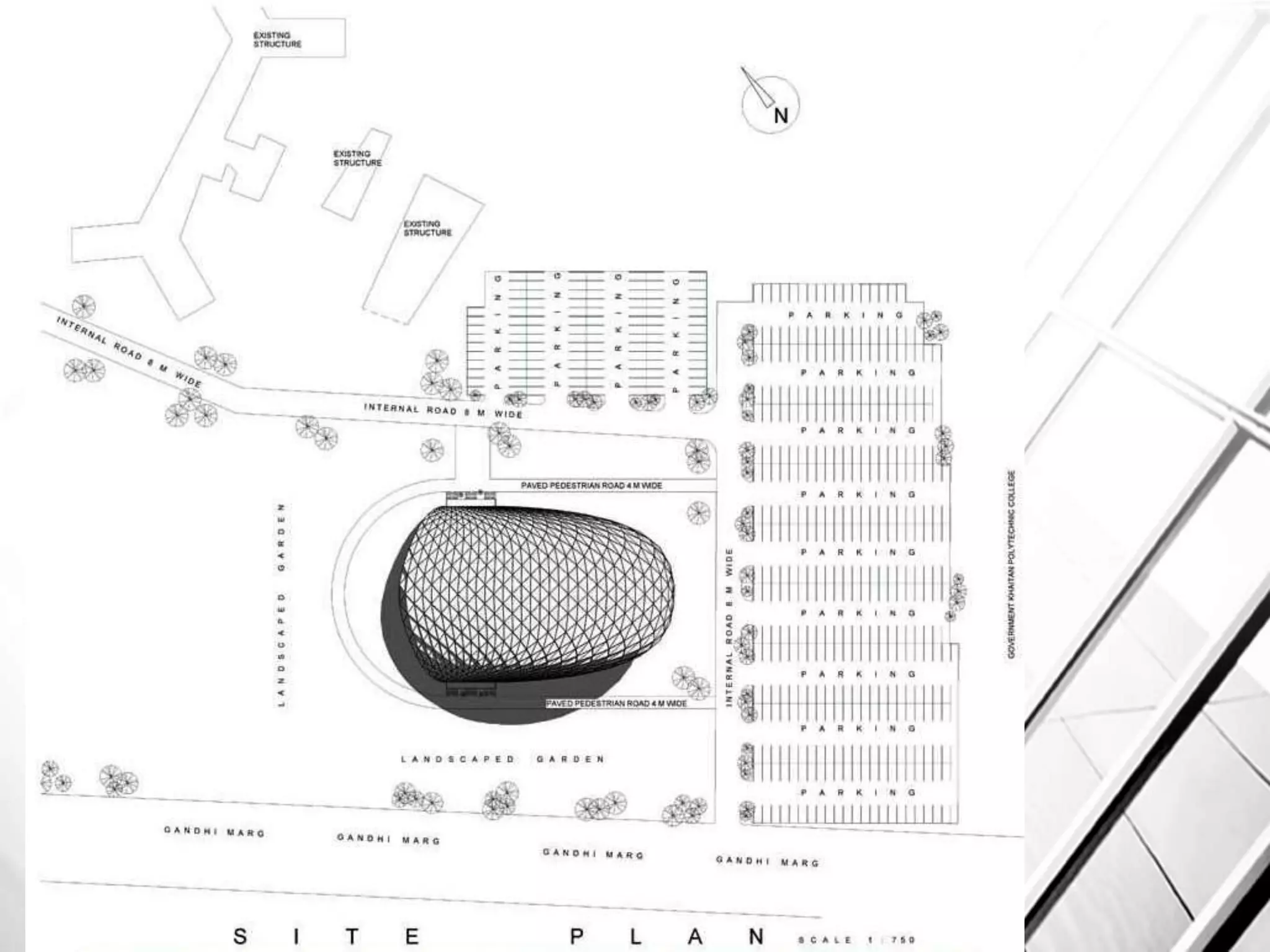

68. CONVENTION CENTER – JAIPUR
Project brief-location
period of construction
Architect & builder
Extent of site & building
Estimate
69. The fast growing fascinating city of jaipur inspired the facility’s design to a great extent .The convention centre is
designed to share the urban growth of the city by giving it a modern land mark depicting the tremendous growth and
business opportunities ,this colourful and culturally rich city is offering.
The proposed convention centre at the university of Rajasthan, Jaipur is envisaged as an land mark for the university
campus and the whole of Jaipur itself.

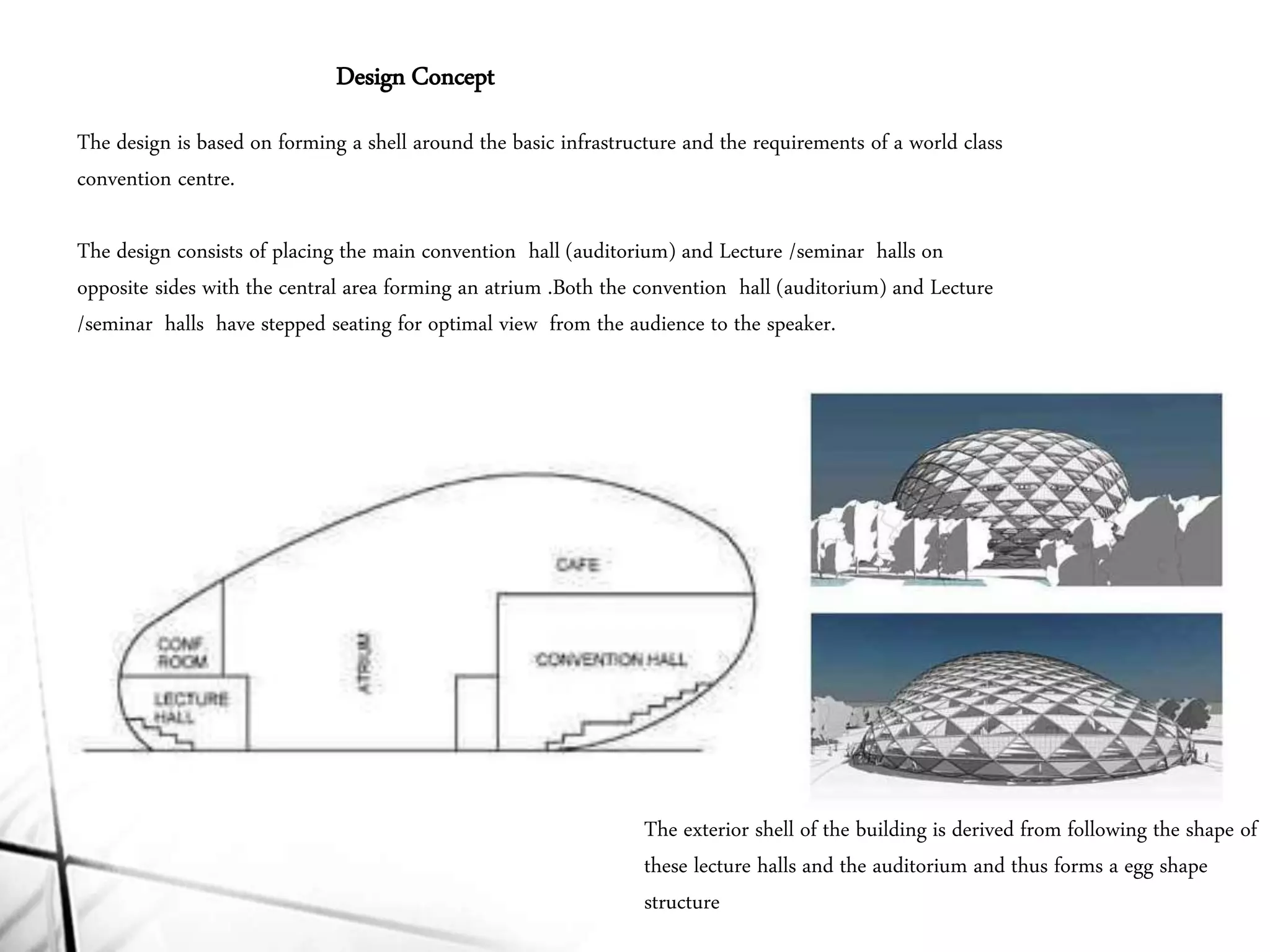

70. Design Concept
The design is based on forming a shell around the basic infrastructure and the requirements of a world class
convention centre.
The design consists of placing the main convention hall (auditorium) and Lecture /seminar halls on
opposite sides with the central area forming an atrium .Both the convention hall (auditorium) and Lecture
/seminar halls have stepped seating for optimal view from the audience to the speaker.

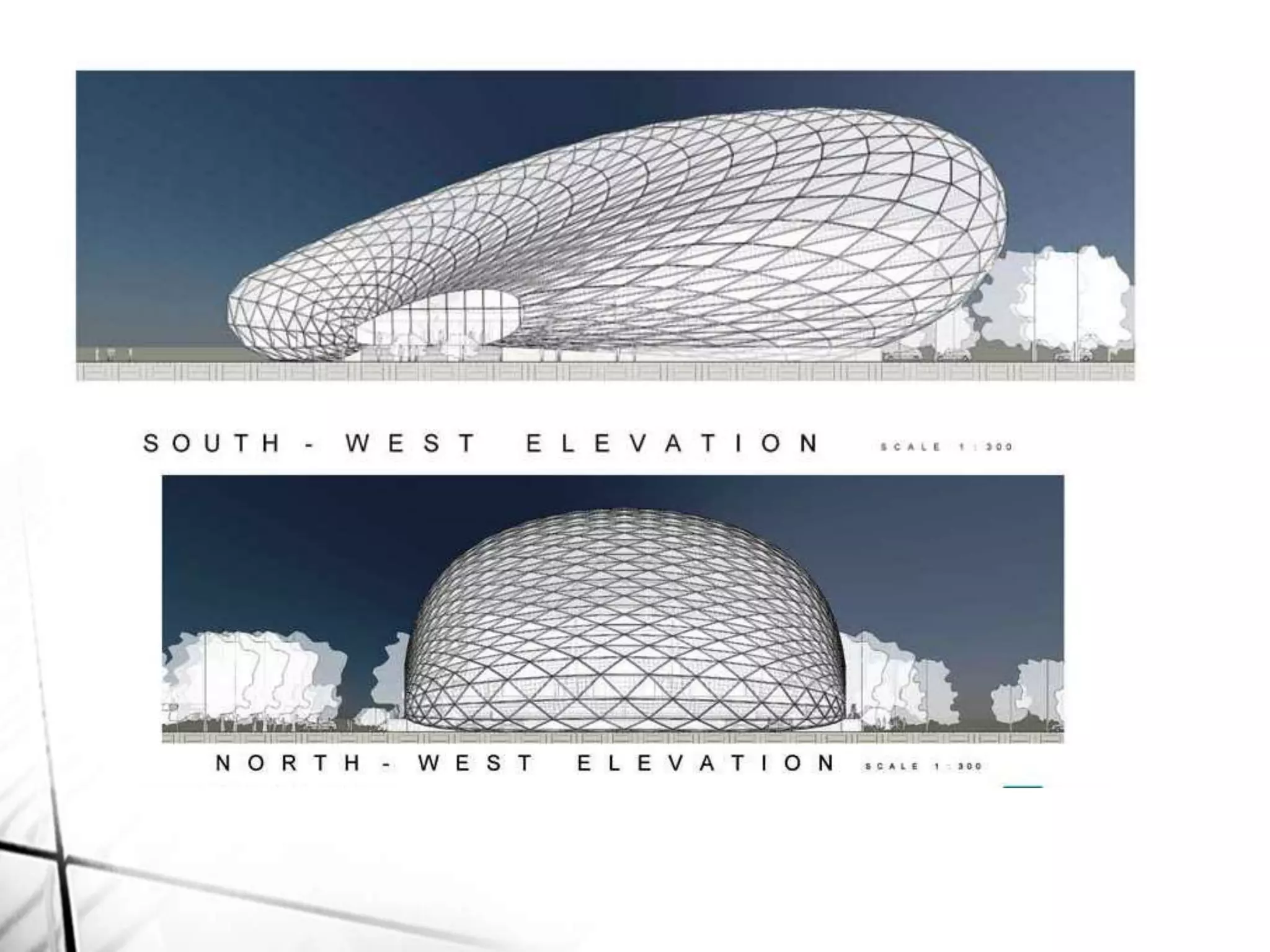

The exterior shell of the building is derived from following the shape of
these lecture halls and the auditorium and thus forms a egg shape
structure

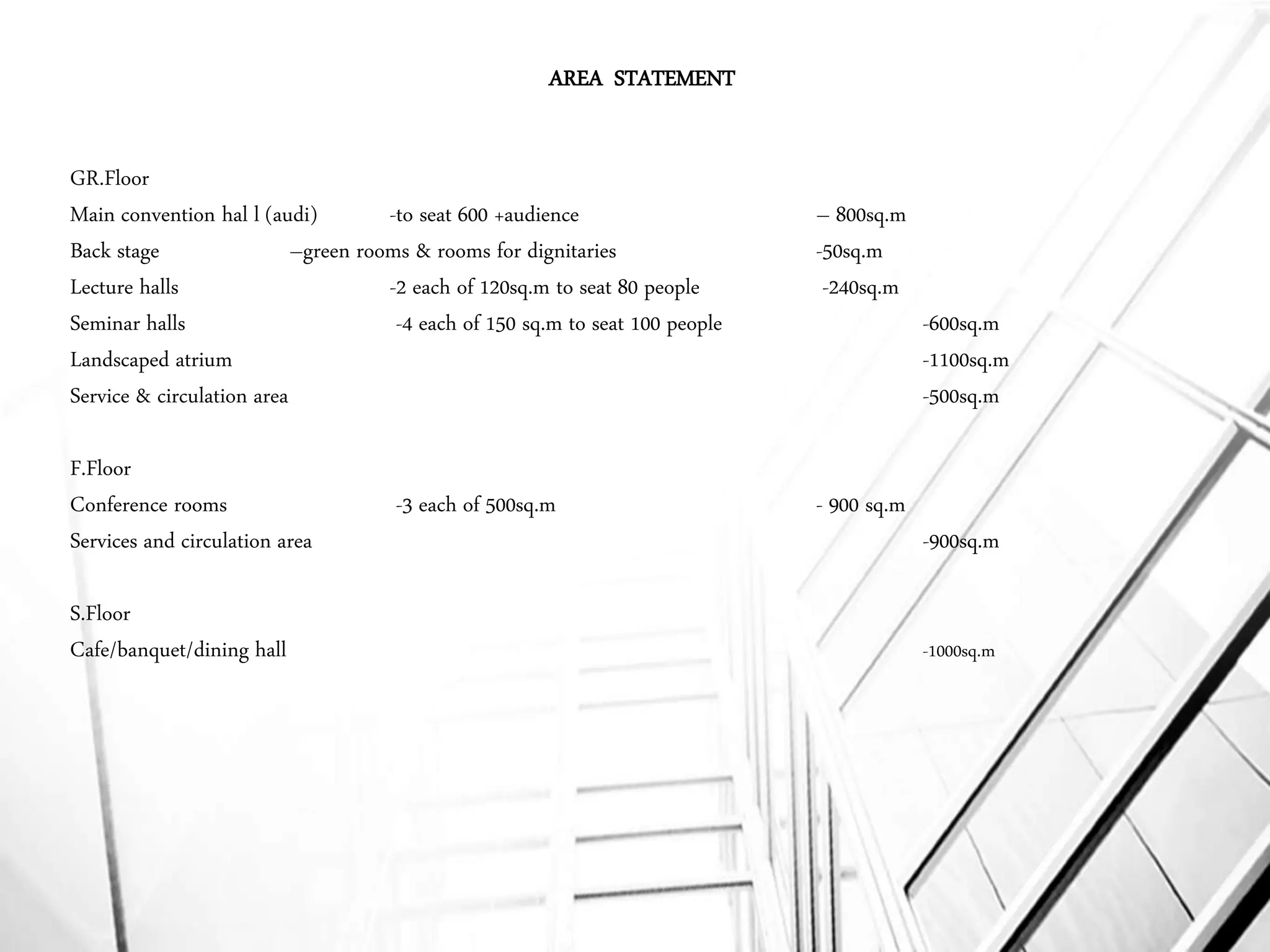

71. AREA STATEMENT
GR.Floor
Main convention hal l (audi) -to seat 600 +audience – 800sq.m
Back stage –green rooms & rooms for dignitaries -50sq.m
Lecture halls -2 each of 120sq.m to seat 80 people -240sq.m
Seminar halls -4 each of 150 sq.m to seat 100 people -600sq.m
Landscaped atrium -1100sq.m
Service & circulation area -500sq.m
F.Floor
Conference rooms -3 each of 500sq.m - 900 sq.m
Services and circulation area -900sq.m
S.Floor
Cafe/banquet/dining hall -1000sq.m
72.

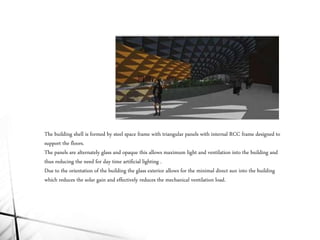

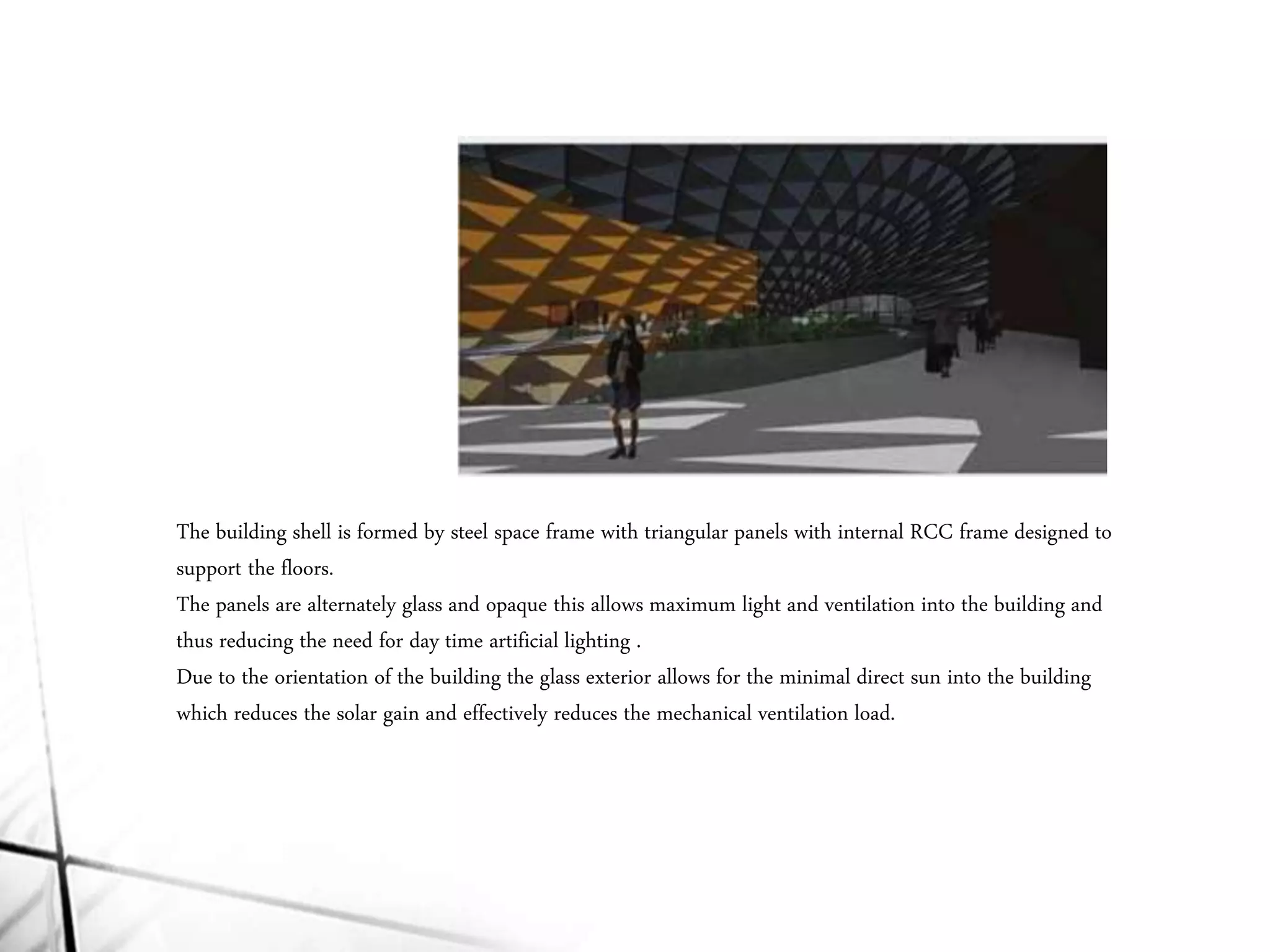

73. The building shell is formed by steel space frame with triangular panels with internal RCC frame designed to
support the floors.
The panels are alternately glass and opaque this allows maximum light and ventilation into the building and
thus reducing the need for day time artificial lighting .
Due to the orientation of the building the glass exterior allows for the minimal direct sun into the building
which reduces the solar gain and effectively reduces the mechanical ventilation load.
74.

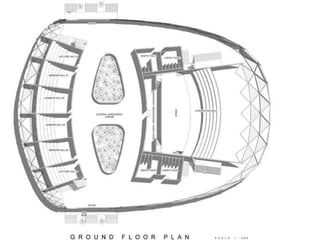

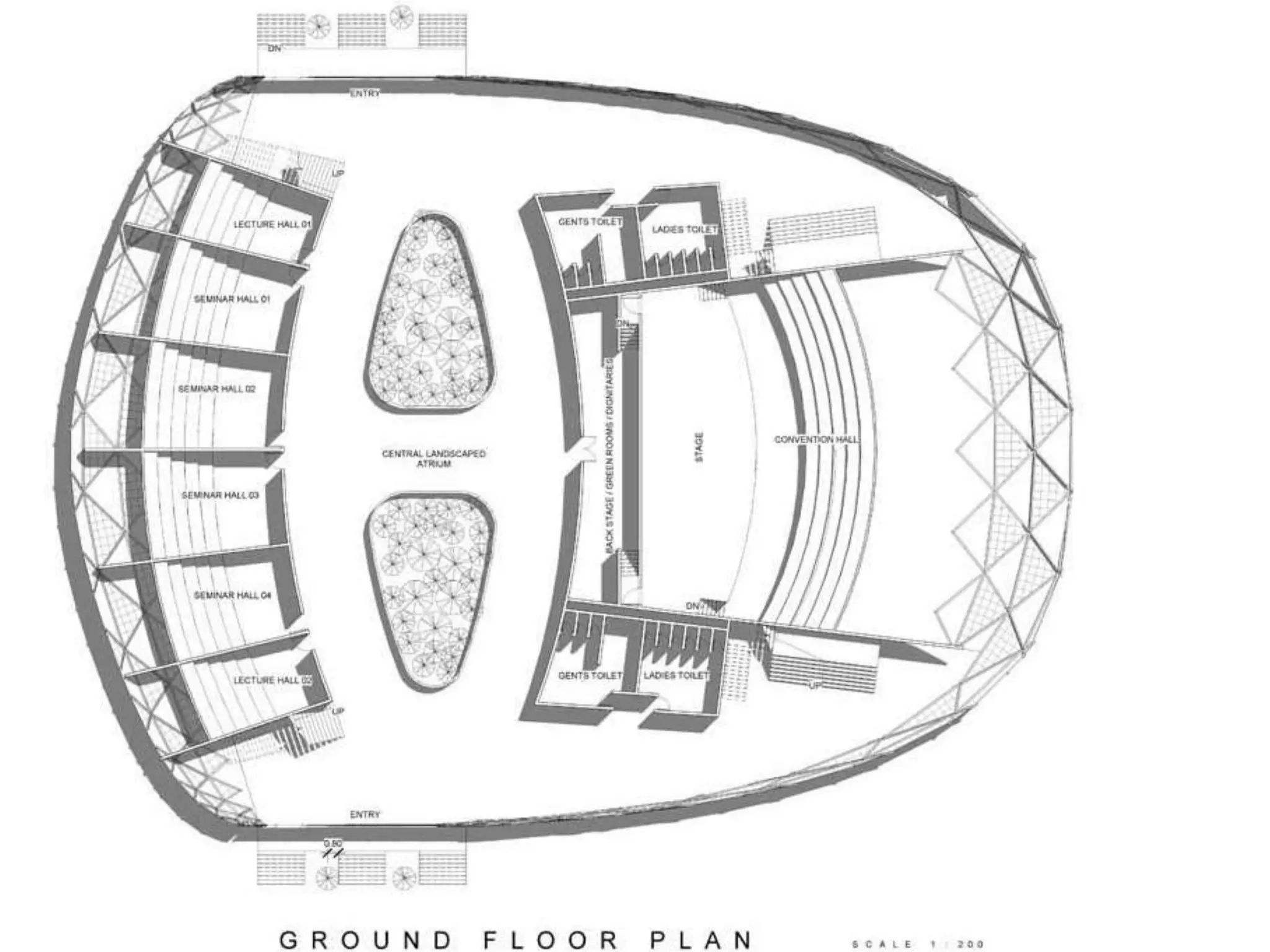

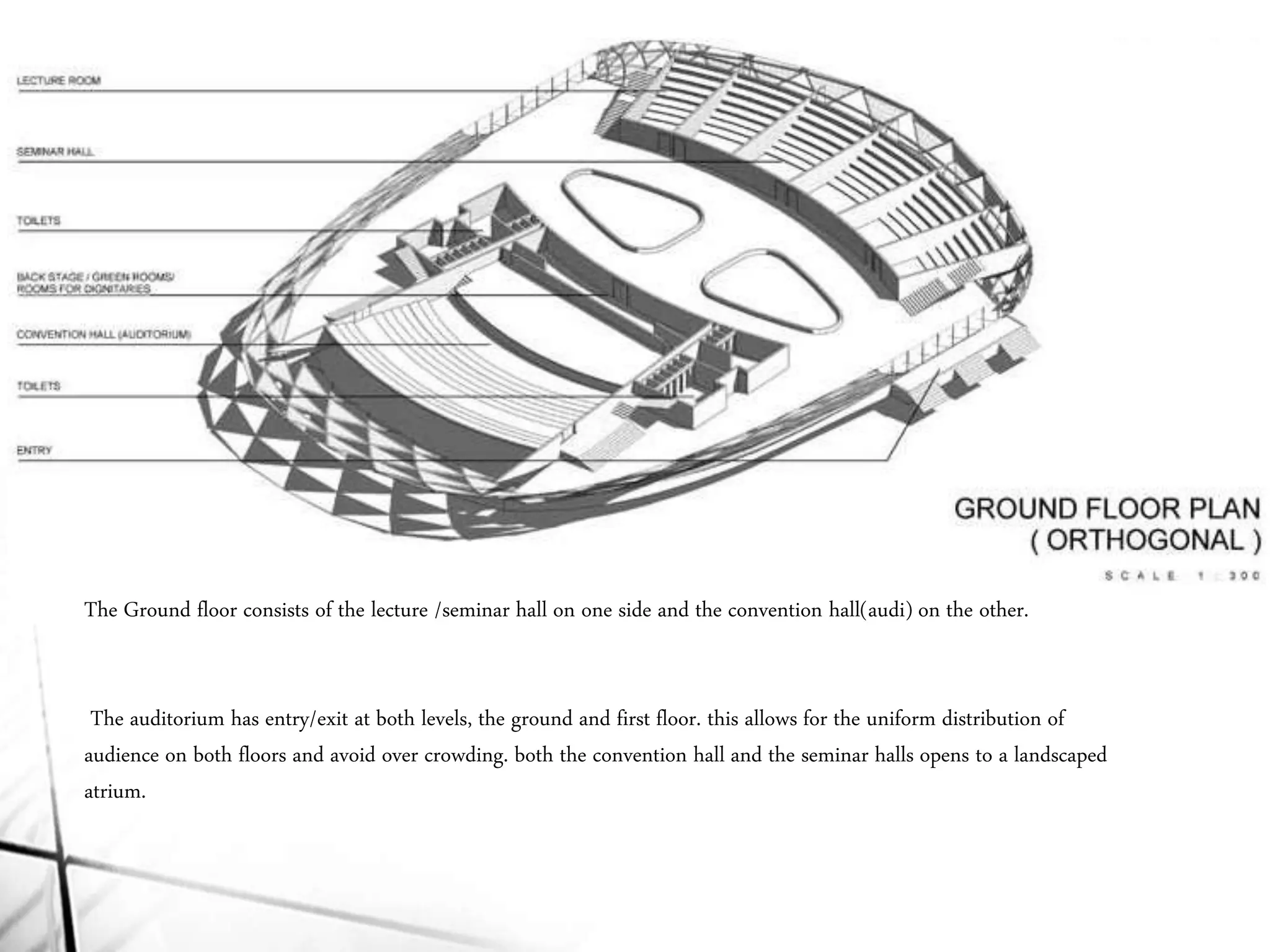

75. The Ground floor consists of the lecture /seminar hall on one side and the convention hall(audi) on the other.
The auditorium has entry/exit at both levels, the ground and first floor. this allows for the uniform distribution of
audience on both floors and avoid over crowding. both the convention hall and the seminar halls opens to a landscaped
atrium.

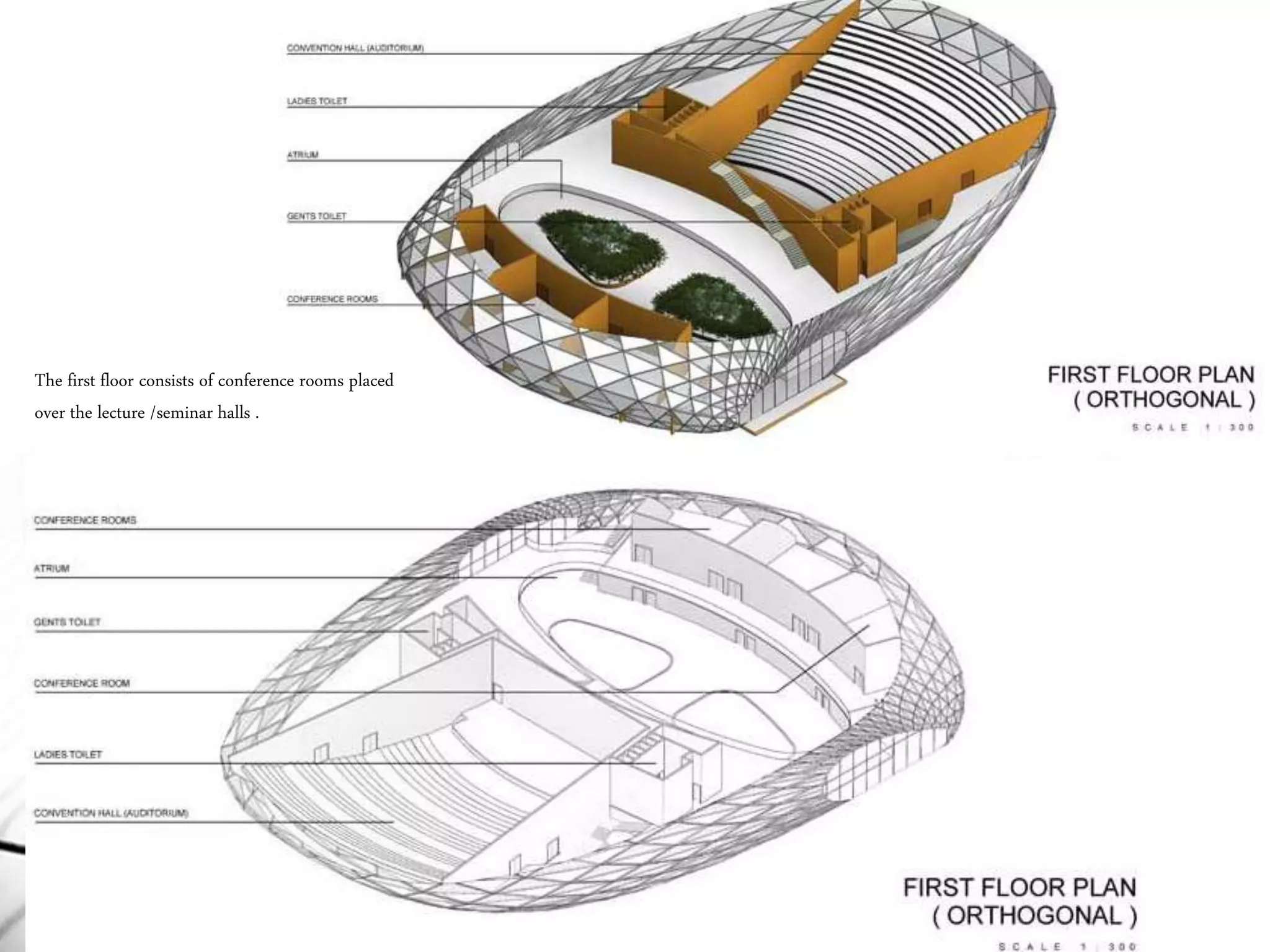

76. The first floor consists of conference rooms placed
over the lecture /seminar halls .

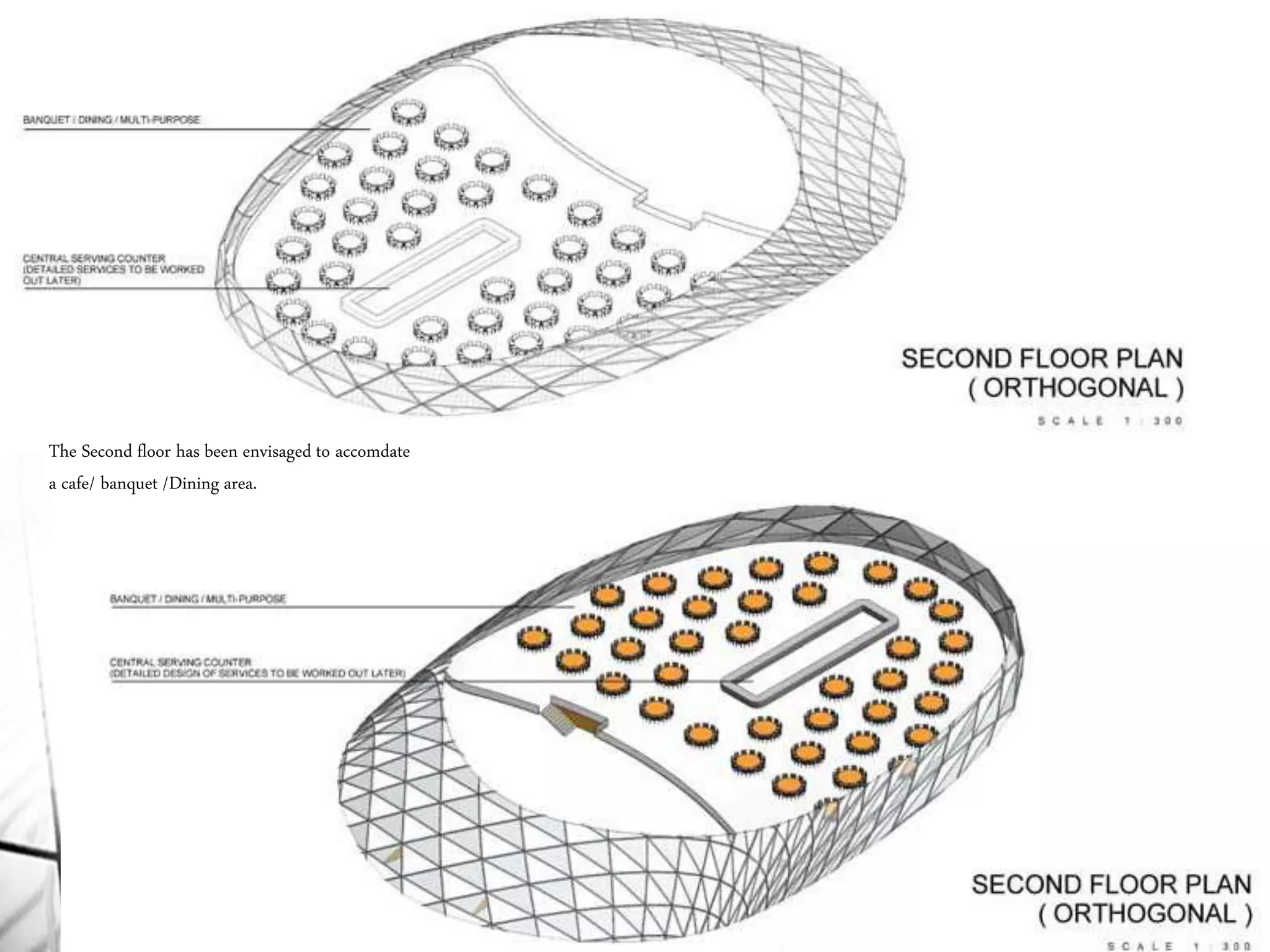

77. The Second floor has been envisaged to accomdate
a cafe/ banquet /Dining area.

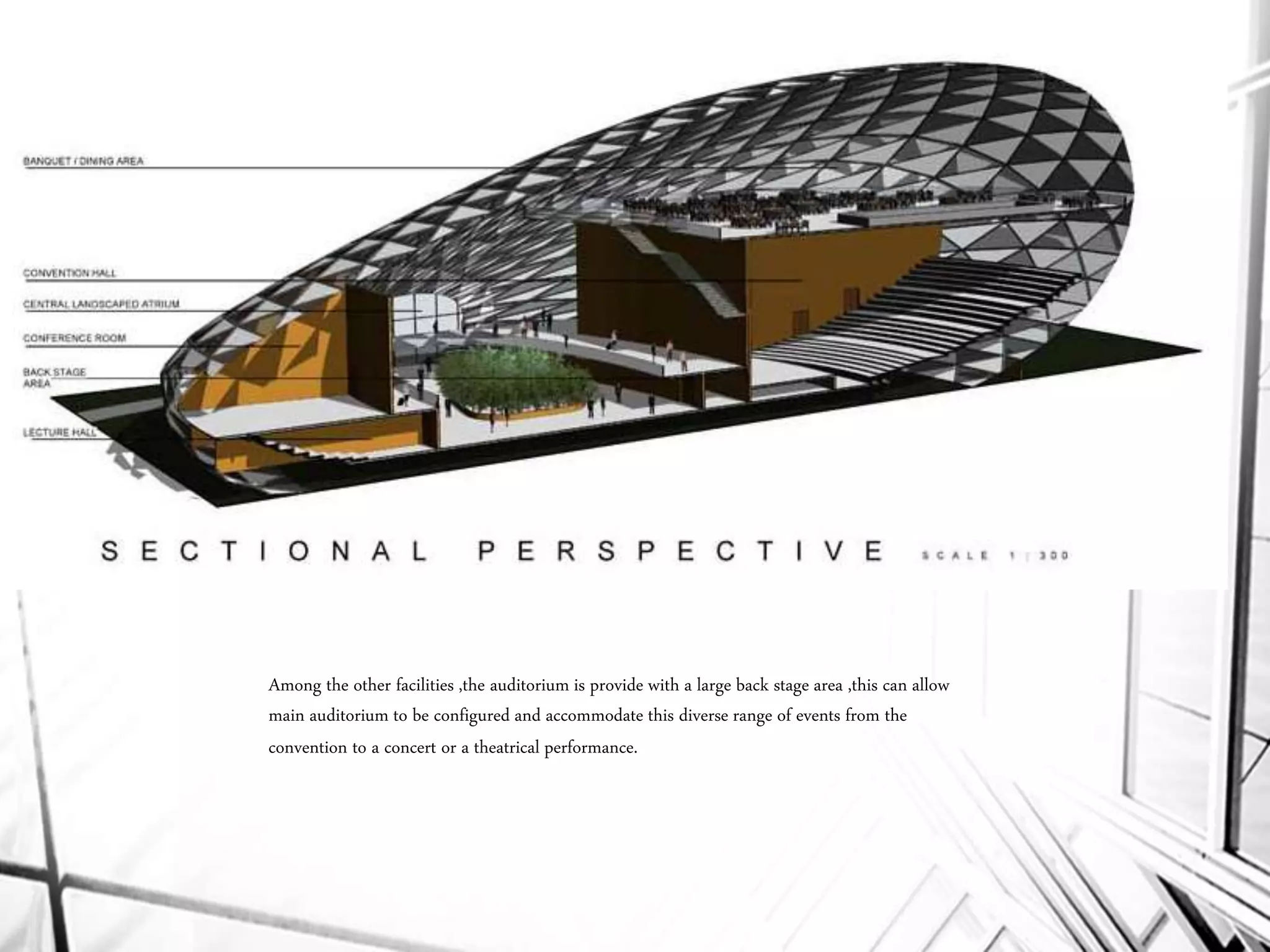

78. Among the other facilities ,the auditorium is provide with a large back stage area ,this can allow
main auditorium to be configured and accommodate this diverse range of events from the
convention to a concert or a theatrical performance.
79.

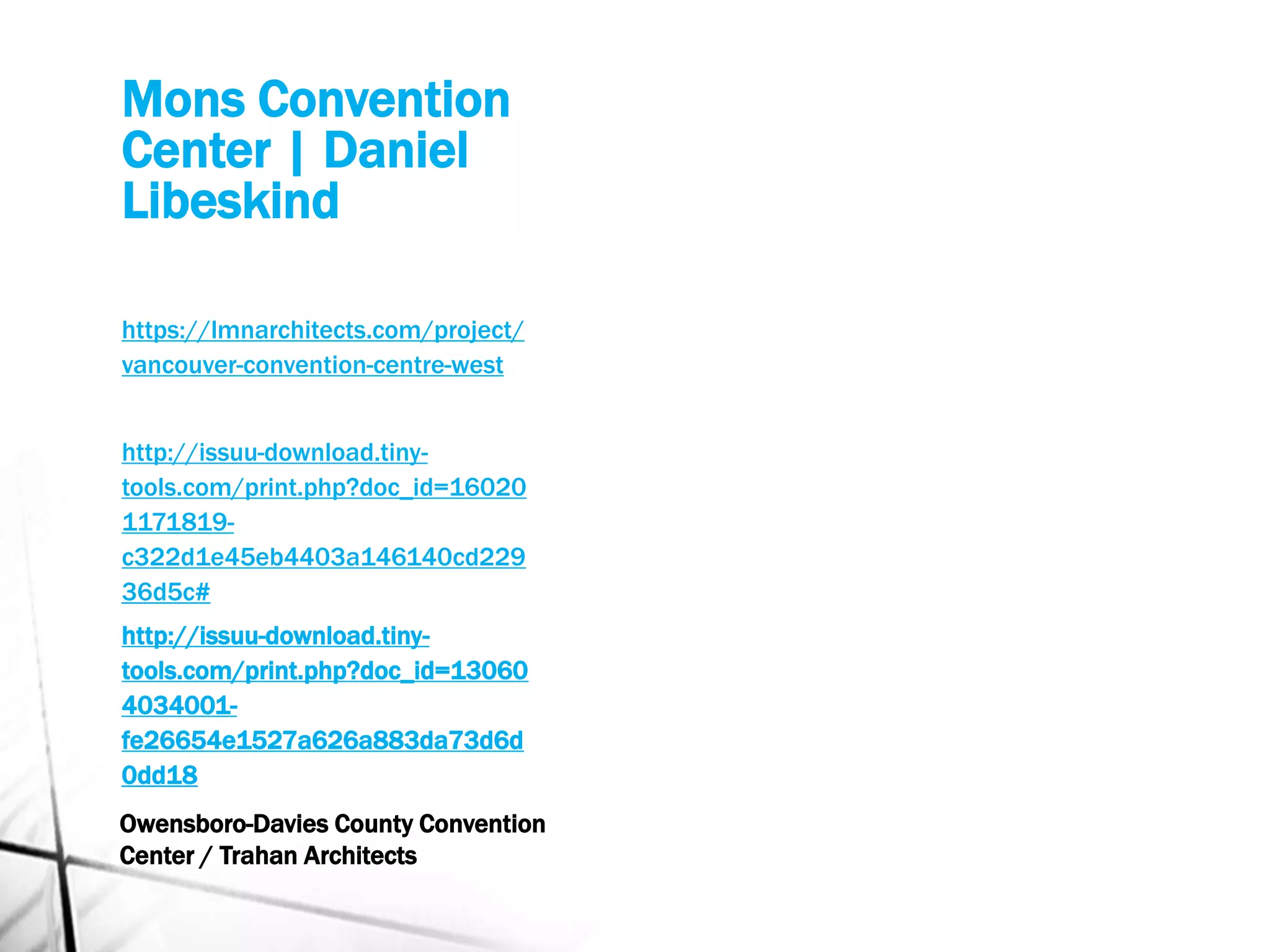

80. Mons Convention
Center | Daniel
Libeskind
https://lmnarchitects.com/project/
vancouver-convention-centre-west
http://issuu-download.tiny-
tools.com/print.php?doc_id=16020
1171819-
c322d1e45eb4403a146140cd229
36d5c#
http://issuu-download.tiny-
tools.com/print.php?doc_id=13060
4034001-
fe26654e1527a626a883da73d6d
0dd18
Owensboro-Davies County Convention
Center / Trahan Architects
