The document summarizes details about The Hemisphere housing project in Greater Noida, India. It describes the project as luxury villas equipped with modern amenities located on a 9-hole golf course. The apartments feature 3 units per floor with golf course views from all units. The structures use a precast construction method with prefabricated wall panels, columns, beams, and staircases that are assembled on site. Connection details are provided for walls, beams, slabs, and columns.

1. BUILDING CONSTRUCTION
ASSIGNMENT II
LIVE CASE STUDY OF
THE HEMISPHERE
SHIVANGI SAINI
13/AR/010
B.ARCH, IV YEAR ,
VII SEM

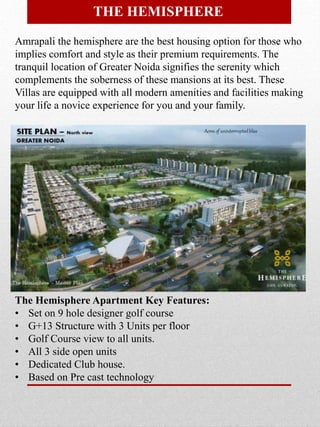

2. THE HEMISPHERE
Amrapali the hemisphere are the best housing option for those who
implies comfort and style as their premium requirements. The
tranquil location of Greater Noida signifies the serenity which
complements the soberness of these mansions at its best. These
Villas are equipped with all modern amenities and facilities making
your life a novice experience for you and your family.
The Hemisphere Apartment Key Features:
• Set on 9 hole designer golf course
• G+13 Structure with 3 Units per floor
• Golf Course view to all units.
• All 3 side open units
• Dedicated Club house.
• Based on Pre cast technology

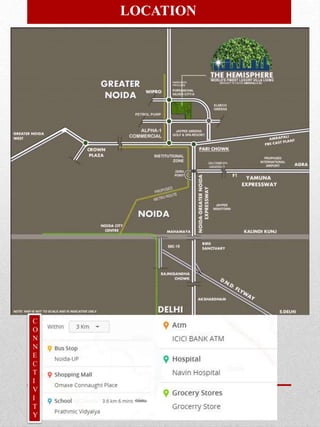

3. LOCATION
C
O
N
N
E
C
T
I
V
I
T
Y

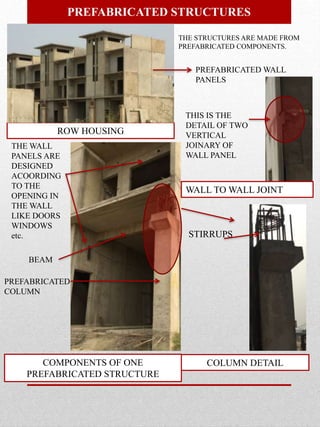

4. ROW HOUSING
PREFABRICATED STRUCTURES
THE STRUCTURES ARE MADE FROM
PREFABRICATED COMPONENTS.
PREFABRICATED WALL
PANELS
THIS IS THE
DETAIL OF TWO
VERTICAL
JOINARY OF
WALL PANEL
WALL TO WALL JOINT
PREFABRICATED
COLUMN
THE WALL
PANELS ARE
DESIGNED
ACOORDING
TO THE
OPENING IN
THE WALL
LIKE DOORS
WINDOWS
etc.
BEAM
COMPONENTS OF ONE
PREFABRICATED STRUCTURE
STIRRUPS
COLUMN DETAIL

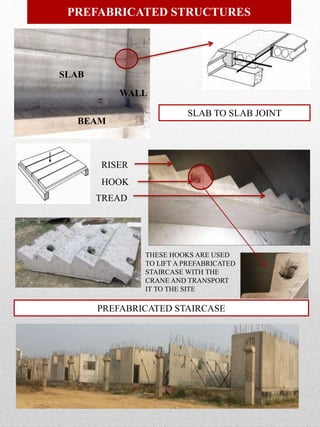

5. PREFABRICATED STRUCTURES
BEAM
SLAB TO SLAB JOINT
WALL
SLAB
RISER
HOOK
TREAD
THESE HOOKS ARE USED
TO LIFT A PREFABRICATED
STAIRCASE WITH THE
CRANE AND TRANSPORT
IT TO THE SITE
PREFABRICATED STAIRCASE

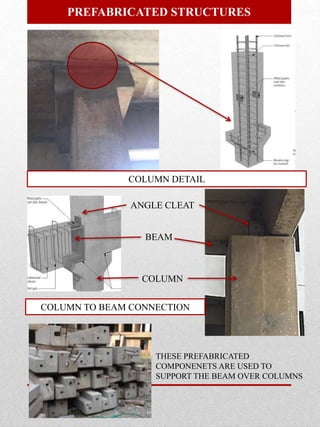

6. PREFABRICATED STRUCTURES
COLUMN DETAIL
ANGLE CLEAT
COLUMN
BEAM
COLUMN TO BEAM CONNECTION
THESE PREFABRICATED
COMPONENETS ARE USED TO
SUPPORT THE BEAM OVER COLUMNS

7. PREFABRICATED STRUCTURES
HOLLOW CORE SLAB DETAILS
WALL PANEL TO WALL PANEL JOINT
WALL PANEL
REINFORCEMENT
FINAL PREFABRICATED VILLA

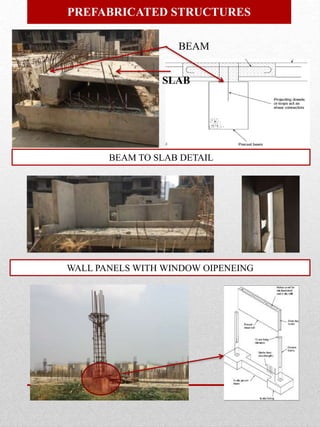

8. PREFABRICATED STRUCTURES
BEAM
SLAB
BEAM TO SLAB DETAIL
WALL PANELS WITH WINDOW OIPENEING

9. PREFABRICATED STRUCTURES
EXPANSION SPACE PROVIDED
WALL PANEL
WALL PANEL WITH OPENING DETAIL
REINFORCEMENT
PREFABRICATED WALL IS
BEING ERECTED ON SITE
