Sports complex
1. INTRODUCTION
• A sports complex is an enclosed area, often circular or oval-shaped , designed to
showcase and practice of various sports events.
• Sports complex will have a stadium complex that is to be the most modern and advance
which will be able to facilitate international sports and mega-events.
• It will have a dedicated cricket stadium , an outdoor multipurpose stadium for sports like
football and rugby . An indoor multi-purpose stadium for sports like basketball swimming
pool , skating rink ,volleyball and a dedicated hockey stadium.
BASIC REQUIREMENT OF A SPORT COMPLEX
• Full provision for all field events
• A separate warming-up area (desirable)
• Changing and washing facilities for 200 athletes in the proportion two-thirds
male to one-third female
• Additional separate changing accommodation for boys and girls is desirable
• A covered stand to seat least 2000 spectators.
• Appropriate toilet and car parking facilities.
• An announcer’s box and provision for the press, broadcasting and television
•Officials’ room
•Equipment rooms and store
SEATING AREAS:
The necessary space for seating areas calculated as follows:
WIDTH OF SEAT= 0.5M
OVERALL DEPTH OF WHICH = 0.8M
SEAT DEPTH = 0.35M
CIRCULATION= 0.45M
TYPES OF SEATING
Seating with backs, fixed and fold-up
• Row width 780 –800mm recommended
• Minimum clear seat way 305 mm
• Width of seats 460 – 500mm for seats without arms
500mm for seats with arms
Benches without backs.
• Row width 610mm min recommended
• Minimum clear seat way 400mm
•Width of seats 460 – 500mm
• These allow closer spacing but are less comfortable.
SIGHT OF SPECTATOR
• The sight of spectator is determined by the following principal factors.
All planning must be done by accordance with national regulation for the
construction and management of meeting places in which the requirement
for access ways , ramps, stairway accommodation are set out :
• depending upon the planned capacity seating is provided either along the
long side of the ground (to take advantage of the shortest viewing distance)
or for capacities above 10,000 around the whole ground.
• As most event take place in the afternoon the best position for spectator is on
the west side so that the sun is at their backs.
FIRST AID AND FACILITIES
First aid rooms for the spectators should be provided close to the spectator areas.
First aid treatment for 20,000 or more spectator requires a suite of rooms: treatment and
recovery rooms 15m², storeroom 2m² and two toilets with ventilation.
EXITS FROM SPORTS GROUNDS
• Large numbers of spectators in sports grounds are a source of danger to themselves,
particularly from :
Tripping, slipping and falling
Crowd pressure on terraces and exit end
Fire and chaos.
All spectators should be able to leave a sports ground within 8minutes.
If there are combustible stands (such as constructed of timber) spectators must be able to
be cleared from them within 2½ Minutes.
An exit or escape route be less than 1.1 m wide, minimum headroom 2.4 m.
Ramps should not be be steeper than 10 per cent ( 1:10 )
LITERATURE STUDY SPORTS COMPLEX
SUBMITTED TO
AR. KUMAR ABHISHEK
AR. ANIQA SAUD
SUBMITTED BY
RUSHALI
SRIVASTAVA
B.ARCH 3RD YEAR
Vth SEM

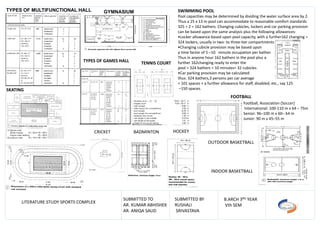

2. TYPES OF MULTIFUNCTIONAL HALL
TYPES OF GAMES HALL
SWIMMING POOL
Pool capacities may be determined by dividing the water surface area by 2.
Thus a 25 x 13 m pool can accommodate to reasonable comfort standards
325 ÷ 2 = 162 bathers. Changing cubicles, lockers and car parking provision
can be based upon the same analysis plus the following allowances:
•Locker allowance based upon pool capacity, with a further162 changing =
324 lockers, usually in two- to three-tier compartments
•Changing cubicle provision may be based upon
a time factor of 5 –10 minute occupation per bather.
Thus in anyone hour 162 bathers in the pool plus a
further 162changing ready to enter the
pool = 324 bathers ÷ 10 minutes= 32 cubicles
•Car parking provision may be calculated
thus: 324 bathers,3 persons per car average
= 101 spaces + a further allowance for staff, disabled, etc., say 125
–150 spaces.
GYMNASIUM
SKATING
TENNIS COURT
FOOTBALL
Football, Association (Soccer)
International: 100-110 m x 64 – 75m
Senior: 96–100 m x 60– 64 m
Junior: 90 m x 45–55 m
CRICKET BADMINTON HOCKEY
OUTDOOR BASKETBALL
INDOOR BASKETBALL
LITERATURE STUDY SPORTS COMPLEX
SUBMITTED TO
AR. KUMAR ABHISHEK
AR. ANIQA SAUD
SUBMITTED BY
RUSHALI
SRIVASTAVA
B.ARCH 3RD YEAR
Vth SEM
