X-ray Beam Restrictors
Presenter: Dheeraj Kumar
MRIT, Ph.D. (Radiology and Imaging)
Assistant Professor
Medical Radiology and Imaging Technology
School of Health Sciences, CSJM University, Kanpur

What are X-ray Beam Restrictors?
X-ray beam restrictors, commonly referred to as collimators, are
sophisticated devices utilized in medical imaging to control the size,
shape, and direction of the X-ray beam emitted from the X-ray tube.
These devices are integral components of X-ray machines, working in
conjunction with other components to optimize image quality while
minimizing patient radiation exposure.
04-04-2024 X-ray Beam Restrictors By- Dr. Dheeraj Kumar 2

Components of X-ray Beam Restrictors:
1. Primary Collimators: Positioned near the X-ray tube, primary
collimators consist of a set of lead shutters or blades that can
be adjusted to determine the initial size and shape of the X-ray
beam. They are responsible for the initial restriction of the
beam to the desired area of interest.
2. Secondary Collimators: Secondary collimators are located
closer to the patient and serve to further refine the size and
shape of the X-ray beam before it reaches the imaging
receptor. These collimators play a crucial role in reducing
scatter radiation and enhancing image contrast.

1.Aperture Diaphragms: Aperture diaphragms are interchangeable components that allow
for precise adjustment of the beam size and shape by changing the opening size and
configuration. This flexibility enables healthcare providers to tailor the X-ray beam to
specific imaging needs and patient anatomies.
2.Filtration Systems: In addition to controlling beam size and shape, X-ray beam restrictors
often incorporate filtration systems to remove low-energy photons from the X-ray beam.
This filtration helps reduce patient radiation dose by ensuring that only the higher-energy
photons necessary for imaging penetrate the patient's body.

Components of X-ray Beam Restrictors
X-ray beam restrictors, also known as
collimators, are intricate devices comprised
of several components working together to
control the size, shape, and direction of the
X-ray beam emitted from the X-ray tube.
Understanding the various components is
crucial for optimizing imaging procedures
and ensuring patient safety.

1. Primary Collimators
• Location: Situated near the X-ray tube, primary collimators are the first line
of defense in restricting the X-ray beam.
• Function: Consisting of lead shutters or blades, primary collimators allow
adjustment to determine the initial size and shape of the X-ray beam.
• Role: By narrowing down the beam to the area of interest, primary
collimators minimize unnecessary radiation exposure and scatter, improving
image quality and diagnostic accuracy.

2. Secondary Collimators
• Location: Positioned closer to the patient, secondary collimators further refine the
size and shape of the X-ray beam before it reaches the imaging receptor.
• Function: Secondary collimators work in conjunction with primary collimators to
reduce scatter radiation and enhance image contrast.
• Importance: Their precise control helps ensure that only the targeted anatomy is
exposed to radiation, minimizing dose to surrounding tissues.

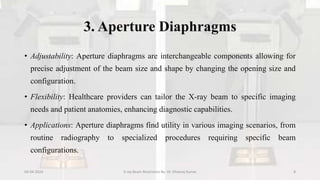

3. Aperture Diaphragms
• Adjustability: Aperture diaphragms are interchangeable components allowing for
precise adjustment of the beam size and shape by changing the opening size and
configuration.
• Flexibility: Healthcare providers can tailor the X-ray beam to specific imaging
needs and patient anatomies, enhancing diagnostic capabilities.
• Applications: Aperture diaphragms find utility in various imaging scenarios, from
routine radiography to specialized procedures requiring specific beam
configurations.

4. Filtration Systems
• Purpose: Filtration systems are integrated into beam restrictors to remove low-
energy photons from the X-ray beam.
• Dose Reduction: By filtering out unnecessary low-energy photons, filtration
systems reduce patient radiation dose while maintaining diagnostic image quality.
• Compliance: Compliance with regulatory standards for radiation safety often
mandates the use of appropriate filtration to ensure patient and staff safety.

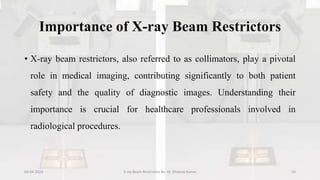

Importance of X-ray Beam Restrictors
• X-ray beam restrictors, also referred to as collimators, play a pivotal
role in medical imaging, contributing significantly to both patient
safety and the quality of diagnostic images. Understanding their
importance is crucial for healthcare professionals involved in
radiological procedures.

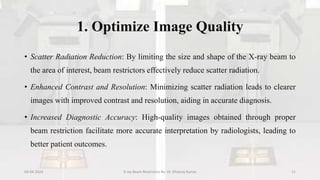

1. Optimize Image Quality
• Scatter Radiation Reduction: By limiting the size and shape of the X-ray beam to
the area of interest, beam restrictors effectively reduce scatter radiation.
• Enhanced Contrast and Resolution: Minimizing scatter radiation leads to clearer
images with improved contrast and resolution, aiding in accurate diagnosis.
• Increased Diagnostic Accuracy: High-quality images obtained through proper
beam restriction facilitate more accurate interpretation by radiologists, leading to
better patient outcomes.

2. Minimize Patient Dose
• Targeted Radiation Exposure: Beam restrictors restrict the X-ray beam to only the
anatomical area of interest, minimizing unnecessary radiation exposure to other parts of
the body.
• Dose Optimization: By controlling the size and shape of the beam, beam restrictors ensure
that the patient receives the lowest possible radiation dose while maintaining diagnostic
image quality.
• Radiation Safety: Limiting patient dose is essential for reducing the risk of radiation-
induced complications and long-term effects, promoting patient safety in medical imaging
procedures.

3. Compliance with Regulations
• Radiation Safety Standards: Regulatory bodies set guidelines and standards to
ensure safe radiation practices in medical imaging.
• Use of Beam Restrictors: Proper utilization of beam restrictors is often mandated
by regulatory agencies to comply with radiation safety standards and minimize
radiation exposure to patients and healthcare workers.
• Quality Assurance: Regular maintenance, calibration, and inspection of beam
restrictors are essential to ensure compliance with regulatory requirements and
maintain safe imaging practices.

4. Enhance Workflow Efficiency
• Streamlined Imaging Process: Beam restrictors allow healthcare providers to efficiently
target specific anatomical areas without unnecessary exposure or image retakes.
• Reduced Retake Rates: By optimizing image quality and minimizing artifacts caused by
scatter radiation, beam restrictors help reduce the need for repeat imaging studies, saving
time and resources.
• Improved Patient Throughput: Efficient use of beam restrictors contributes to a smoother
workflow, enabling healthcare facilities to accommodate more patients while maintaining
high-quality care standards.

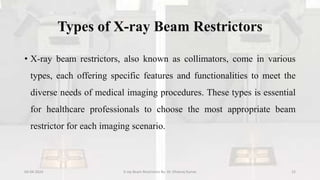

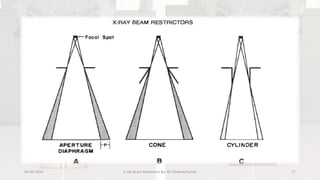

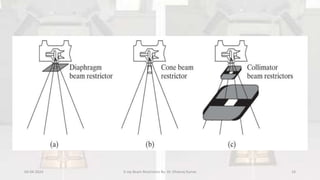

Types of X-ray Beam Restrictors
• X-ray beam restrictors, also known as collimators, come in various
types, each offering specific features and functionalities to meet the
diverse needs of medical imaging procedures. These types is essential
for healthcare professionals to choose the most appropriate beam
restrictor for each imaging scenario.

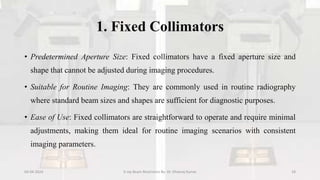

1. Fixed Collimators
• Predetermined Aperture Size: Fixed collimators have a fixed aperture size and
shape that cannot be adjusted during imaging procedures.
• Suitable for Routine Imaging: They are commonly used in routine radiography
where standard beam sizes and shapes are sufficient for diagnostic purposes.
• Ease of Use: Fixed collimators are straightforward to operate and require minimal
adjustments, making them ideal for routine imaging scenarios with consistent
imaging parameters.

2. Adjustable Collimators
• Flexibility in Beam Adjustment: Adjustable collimators allow healthcare providers
to modify the size and shape of the X-ray beam according to specific imaging
requirements.
• Variable Aperture Size: These collimators feature movable shutters or blades that
can be adjusted to vary the aperture size and shape dynamically.
• Adaptability to Patient Anatomy: Adjustable collimators are particularly useful in
imaging scenarios where patient anatomy varies or when specific areas of interest
require precise beam targeting

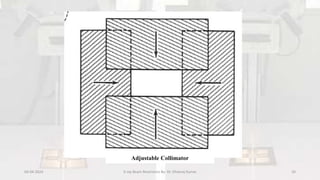

Adjustable Collimator

3. Ancillary Devices
• Complementary Beam-Shaping Tools: Ancillary devices include additional tools such as
cones, cylinders, and wedges used in conjunction with collimators to further shape the X-
ray beam.
• Specialized Imaging Applications: These devices are employed in specialized imaging
procedures where precise beam shaping or localization is required, such as dental
radiography or mammography.
• Enhanced Versatility: Ancillary devices enhance the versatility of X-ray beam restrictors,
allowing healthcare providers to tailor the beam to unique imaging needs and patient
anatomies.

4. Beam Limiting Devices (BLDs)
• Integrated Collimation Systems: Beam limiting devices are sophisticated systems that
incorporate collimation capabilities into the X-ray tube housing or detector assembly.
• Automated Beam Adjustment: BLDs feature automated beam adjustment mechanisms that
dynamically adjust collimation parameters based on imaging parameters and patient
anatomy.
• Advanced Imaging Modalities: These devices are commonly used in advanced imaging
modalities such as computed tomography (CT) and fluoroscopy, where rapid and precise
beam control is essential for high-quality imaging.

Factors Influencing Beam Restriction
• X-ray beam restriction is influenced by various factors, including
patient anatomy, imaging technique, and equipment specifications.
These factors is crucial for healthcare professionals to effectively
utilize beam restrictors and optimize imaging procedures for each
patient.

1. Patient Anatomy
• Size and Shape: The size and shape of the patient's
anatomy directly influence the selection and
adjustment of beam restrictors.
• Targeted Area: Beam restrictors are adjusted to focus
the X-ray beam precisely on the area of interest while
minimizing radiation exposure to surrounding tissues.
• Variability: Patient anatomy can vary significantly,
necessitating the use of adjustable collimators to
accommodate differences in body habitus and
anatomical structures.

2. Imaging Technique
• Procedure-Specific Requirements: Different imaging
procedures require varying degrees of beam restriction to
achieve optimal image quality and diagnostic accuracy.
• Contrast and Resolution: Beam restrictors are adjusted to
optimize image contrast and resolution while minimizing
artifacts caused by scatter radiation.
• Positioning and Alignment: Proper positioning and
alignment of beam restrictors are essential for accurately
targeting the desired anatomical area and minimizing
unnecessary radiation exposure

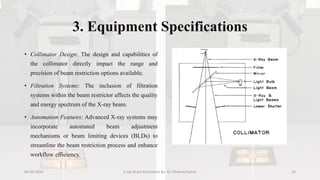

3. Equipment Specifications
• Collimator Design: The design and capabilities of
the collimator directly impact the range and
precision of beam restriction options available.
• Filtration Systems: The inclusion of filtration
systems within the beam restrictor affects the quality
and energy spectrum of the X-ray beam.
• Automation Features: Advanced X-ray systems may
incorporate automated beam adjustment
mechanisms or beam limiting devices (BLDs) to
streamline the beam restriction process and enhance
workflow efficiency.

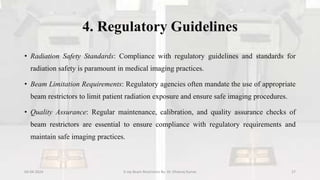

4. Regulatory Guidelines
• Radiation Safety Standards: Compliance with regulatory guidelines and standards for
radiation safety is paramount in medical imaging practices.
• Beam Limitation Requirements: Regulatory agencies often mandate the use of appropriate
beam restrictors to limit patient radiation exposure and ensure safe imaging procedures.
• Quality Assurance: Regular maintenance, calibration, and quality assurance checks of
beam restrictors are essential to ensure compliance with regulatory requirements and
maintain safe imaging practices.

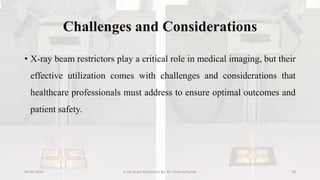

Challenges and Considerations
• X-ray beam restrictors play a critical role in medical imaging, but their
effective utilization comes with challenges and considerations that
healthcare professionals must address to ensure optimal outcomes and
patient safety.

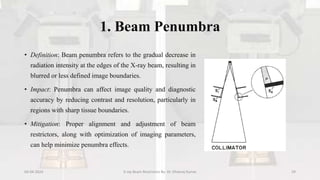

1. Beam Penumbra
• Definition: Beam penumbra refers to the gradual decrease in
radiation intensity at the edges of the X-ray beam, resulting in
blurred or less defined image boundaries.
• Impact: Penumbra can affect image quality and diagnostic
accuracy by reducing contrast and resolution, particularly in
regions with sharp tissue boundaries.
• Mitigation: Proper alignment and adjustment of beam
restrictors, along with optimization of imaging parameters,
can help minimize penumbra effects.

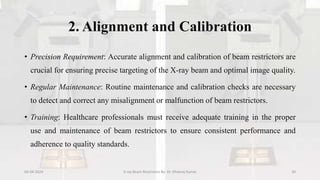

2. Alignment and Calibration
• Precision Requirement: Accurate alignment and calibration of beam restrictors are
crucial for ensuring precise targeting of the X-ray beam and optimal image quality.
• Regular Maintenance: Routine maintenance and calibration checks are necessary
to detect and correct any misalignment or malfunction of beam restrictors.
• Training: Healthcare professionals must receive adequate training in the proper
use and maintenance of beam restrictors to ensure consistent performance and
adherence to quality standards.

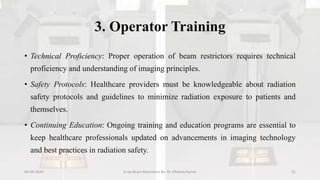

3. Operator Training
• Technical Proficiency: Proper operation of beam restrictors requires technical
proficiency and understanding of imaging principles.
• Safety Protocols: Healthcare providers must be knowledgeable about radiation
safety protocols and guidelines to minimize radiation exposure to patients and
themselves.
• Continuing Education: Ongoing training and education programs are essential to
keep healthcare professionals updated on advancements in imaging technology
and best practices in radiation safety.

4. Patient-Specific Considerations
• Pediatric Imaging: Special considerations are needed for pediatric patients,
as they are more sensitive to radiation and may require customized beam
restriction techniques to minimize dose while maintaining diagnostic image
quality.
• Obese Patients: Beam restrictors must accommodate variations in patient
size and body habitus, particularly in obese patients, to ensure adequate
coverage of the anatomical area of interest while minimizing scatter
radiation.

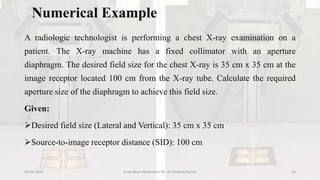

Numerical Example
A radiologic technologist is performing a chest X-ray examination on a
patient. The X-ray machine has a fixed collimator with an aperture
diaphragm. The desired field size for the chest X-ray is 35 cm x 35 cm at the
image receptor located 100 cm from the X-ray tube. Calculate the required
aperture size of the diaphragm to achieve this field size.
Given:
Desired field size (Lateral and Vertical): 35 cm x 35 cm
Source-to-image receptor distance (SID): 100 cm

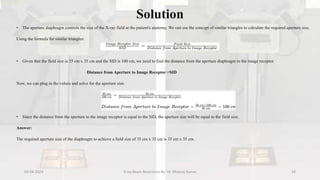

Solution
• The aperture diaphragm controls the size of the X-ray field at the patient's anatomy. We can use the concept of similar triangles to calculate the required aperture size.
Using the formula for similar triangles:
• Given that the field size is 35 cm x 35 cm and the SID is 100 cm, we need to find the distance from the aperture diaphragm to the image receptor.
Distance from Aperture to Image Receptor =SID
Now, we can plug in the values and solve for the aperture size.
• Since the distance from the aperture to the image receptor is equal to the SID, the aperture size will be equal to the field size.
Answer:
The required aperture size of the diaphragm to achieve a field size of 35 cm x 35 cm is 35 cm x 35 cm.

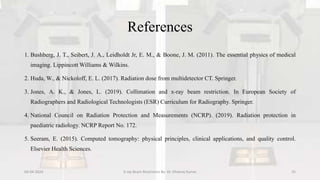

References
1. Bushberg, J. T., Seibert, J. A., Leidholdt Jr, E. M., & Boone, J. M. (2011). The essential physics of medical
imaging. Lippincott Williams & Wilkins.
2. Huda, W., & Nickoloff, E. L. (2017). Radiation dose from multidetector CT. Springer.
3. Jones, A. K., & Jones, L. (2019). Collimation and x-ray beam restriction. In European Society of
Radiographers and Radiological Technologists (ESR) Curriculum for Radiography. Springer.
4. National Council on Radiation Protection and Measurements (NCRP). (2019). Radiation protection in
paediatric radiology. NCRP Report No. 172.
5. Seeram, E. (2015). Computed tomography: physical principles, clinical applications, and quality control.
Elsevier Health Sciences.

Thank You

X-Ray Beam Restrictors/Beam Modifying devices.pptx

More Related Content

What's hot

Similar to X-Ray Beam Restrictors/Beam Modifying devices.pptx

More from Dr. Dheeraj Kumar

Recently uploaded

X-Ray Beam Restrictors/Beam Modifying devices.pptx
